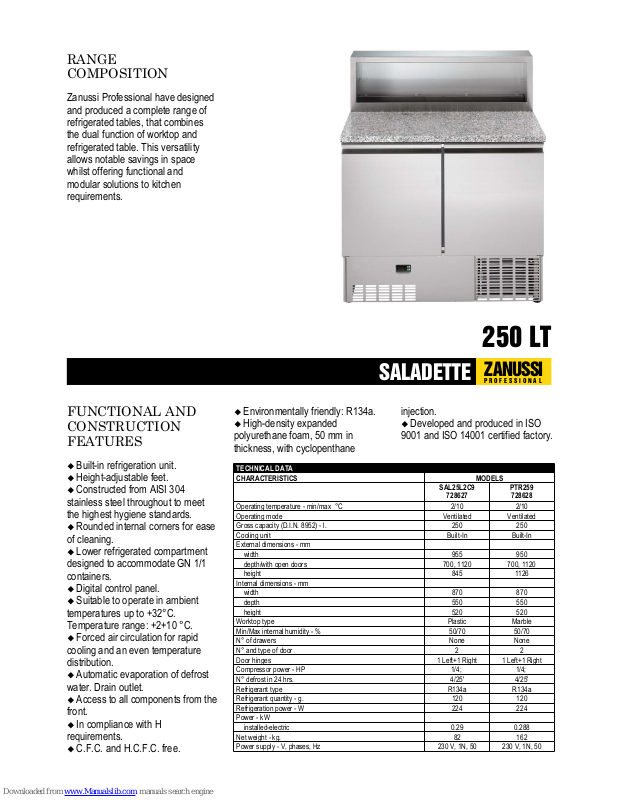

Zanussi SAL25L2C9, 728627, PTR259, 728628 Specifications

ZANUSSI

P R O F E S S I O N A L

SALADETTE

250 LT

Power supply - V, phases, Hz 230 V, 1N, 50 230 V, 1N, 50

Net weight - kg. 82 162

installed-electric 0.29 0.288

Power - kW

Refrigeration power - W 224 224

Refrigerant quantity - g. 120 120

Refrigerant type R134a R134a

N° defrost in 24 hrs. 4/25' 4/25'

Compressor power - HP 1/4; 1/4;

Door hinges 1 Left+1 Right 1 Left+1 Right

N° and type of door 2 2

N° of drawers None None

Min/Max internal humidity - % 50/70 50/70

Worktop type Plastic Marble

height 520 520

depth 550 550

width 870 870

Internal dimensions - mm

height 845 1126

depth/with open doors 700, 1120 700, 1120

width 955 950

External dimensions - mm

Cooling unit Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 250 250

Operating mode Ventilated Ventilated

Operating temperature - min/max °C 2/10 2/10

SAL25L2C9

728627

PTR259

728628

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE
COMPOSITION

Zanussi Professional have designed
and produced a complete range of
refrigerated tables, that combines
the dual function of worktop and
refrigerated table. This versatility
allows notable savings in space
whilst offering functional and
modular solutions to kitchen
requirements.

FUNCTIONAL AND
CONSTRUCTION
FEATURES

� Built-in refrigeration unit.
� Height-adjustable feet.
� Constructed from AISI 304

stainless steel throughout to meet
the highest hygiene standards.

� Rounded internal corners for ease

of cleaning.

� Lower refrigerated compartment

designed to accommodate GN 1/1
containers.

� Digital control panel.
� Suitable to operate in ambient

temperatures up to +32°C.
Temperature range: +2+10 °C.

� Forced air circulation for rapid

cooling and an even temperature
distribution.

� Automatic evaporation of defrost

water. Drain outlet.

� Access to all components from the

front.

� In compliance with H

requirements.

� C.F.C. and H.C.F.C. free.

� Environmentally friendly: R134a.
� High-density expanded

polyurethane foam, 50 mm in
thickness, with cyclopenthane

injection.

� Developed and produced in ISO

9001 and ISO 14001 certified factory.

DBE03 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

PLASTIC CONTAINER GN 1/1 H=65 MM 881038 881038

PLASTIC CONTAINER GN 1/1 H=150 MM 881040 881040

PLASTIC CONTAINER GN 1/1 H=100 MM 811451 811451

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205

KIT HACCP EKIS 922166 922166

KIT 4 WHEELS FOR 250L COUNTER/SALADETTE 880267

1/1 GN GREY "RILSAN" GRID 881435 881435

SAL25L2C9

728627

PTR259

728628

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50

SAL25L2C9

728627

PTR259

728628

LEGEND

728627 728628
