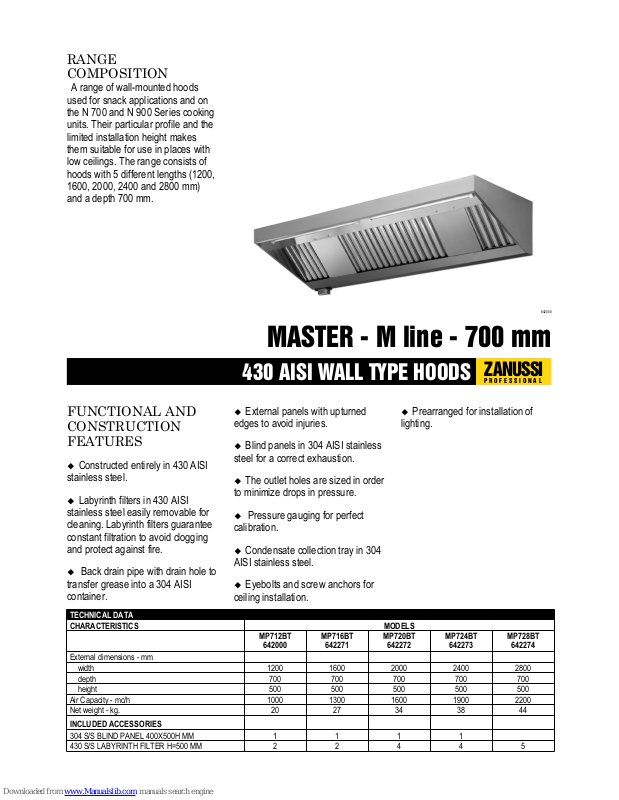

ZANUSSI
P R O F E S S I O N A L
430 AISI WALL TYPE HOODS
MASTER - M line - 700 mm
642000
430 S/S LABYRINTH FILTER H=500 MM 2 2 4 4 5
304 S/S BLIND PANEL 400X500H MM 1 1 1 1
INCLUDED ACCESSORIES
Net weight - kg. 20 27 34 38 44
Air Capacity - mc/h 1000 1300 1600 1900 2200
height 500 500 500 500 500
depth 700 700 700 700 700
width 1200 1600 2000 2400 2800
External dimensions - mm
MP712BT
642000
MP716BT
642271
MP720BT
642272
MP724BT
642273
MP728BT
642274
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
A range of wall-mounted hoods
used for snack applications and on
the N 700 and N 900 Series cooking
units. Their particular profile and the
limited installation height makes
them suitable for use in places with
low ceilings. The range consists of
hoods with 5 different lengths (1200,
1600, 2000, 2400 and 2800 mm)
and a depth 700 mm.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Constructed entirely in 430 AISI
stainless steel.
� Labyrinth filters in 430 AISI
stainless steel easily removable for
cleaning. Labyrinth filters guarantee
constant filtration to avoid clogging
and protect against fire.
� Back drain pipe with drain hole to
transfer grease into a 304 AISI
container.
� External panels with upturned
edges to avoid injuries.
� Blind panels in 304 AISI stainless
steel for a correct exhaustion.
� The outlet holes are sized in order
to minimize drops in pressure.
� Pressure gauging for perfect
calibration.
� Condensate collection tray in 304
AISI stainless steel.
� Eyebolts and screw anchors for
ceiling installation.
� Prearranged for installation of
lighting.
Page 2
HBAA1 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
SPEED VARIATOR FOR MOTORS UP TO 1.7 KW 640686
SPEED VARIATOR FOR MOTORS UP TO 1.17 KW 640076 640076 640076 640076
FAN FOR VENTIL HOODS+DUCTED EXTRACT.UNIT 640748 640748 640748 640748 640748
DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG 640409 640409 640409 640409 640409
36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680805 680805
27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680804 680804 680804
MP712BT
642000
MP716BT
642271
MP720BT
642272
MP724BT
642273
MP728BT
642274
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
642000, 642273, 642272, 642271 642274
