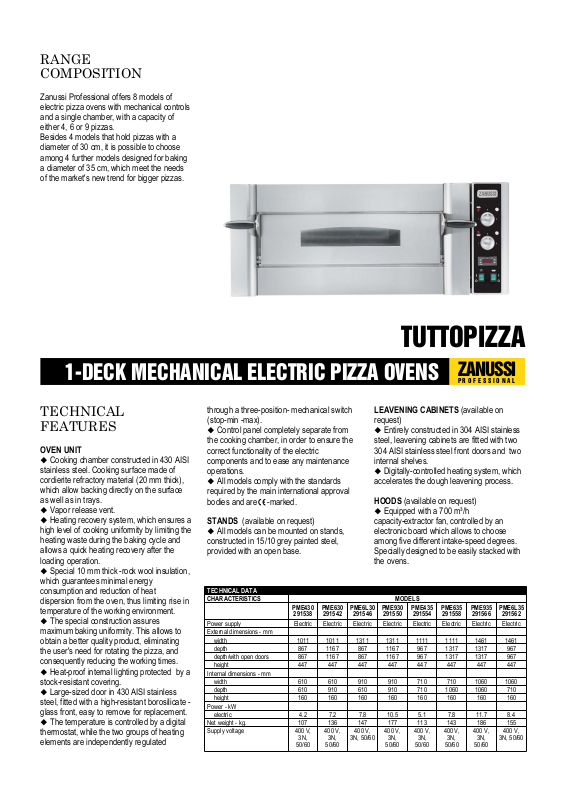

Page 1
RANGE
COMPOSITION
Zanussi Professional offers 8 models of
electric pizza ovens with mechanical controls
and a single chamber, with a capacity of
either 4, 6 or 9 pizzas.
Besides 4 models that hold pizzas with a
diameter of 30 cm, it is possible to choose
among 4 further models designed for baking
a diameter of 35 cm, which meet the needs
of the market's new trend for bigger pizzas.
1-DECK MECHANICAL ELECTRIC PIZZA OVENS
TECHNICAL
FEATURES
OVEN UNIT
� Cooking chamber constructed in 430 AISI
stainless steel. Cooking surface made of
cordierite refractory material (20 mm thick),
which allow backing directly on the surface
as well as in trays.
� Vapor release vent.
� Heating recovery system, which ensures a
high level of cooking uniformity by limiting the
heating waste during the baking cycle and
allows a quick heating recovery after the
loading operation.
� Special 10 mm thick -rock wool insulation,
which guarantees minimal energy
consumption and reduction of heat
dispersion from the oven, thus limiting rise in
temperature of the working environment.
� The special construction assures
maximum baking uniformity. This allows to
obtain a better quality product, eliminating
the user's need for rotating the pizza, and
consequently reducing the working times.
� Heat-proof internal lighting protected by a
stock-resistant covering.
� Large-sized door in 430 AISI stainless
steel, fitted with a high-resistant borosilicate glass front, easy to remove for replacement.
� The temperature is controlled by a digital
thermostat, while the two groups of heating
elements are independently regulated
through a three-position- mechanical switch
(stop-min -max).
� Control panel completely separate from
the cooking chamber, in order to ensure the
correct functionality of the electric
components and to ease any maintenance
operations.
� All models comply with the standards
required by the main international approval
bodies and areH-marked.
STANDS (available on request)
� All models can be mounted on stands,
constructed in 15/10 grey painted steel,
provided with an open base.
TECHNICAL DATA
CHARACTERISTICS MODELS
Power supply Electric Electric Electric Electric Electric Electric Electric Electric
External dimensions - mm
width 1011 1011 1311 1311 1111 1111 1461 1461
depth 867 1167 867 1167 967 1317 1317 967
depth/with open doors 867 1167 867 1167 967 1317 1317 967
height 447 447 447 447 447 447 447 447
Internal dimensions - mm
width 610 610 910 910 710 710 1060 1060
depth 610 910 610 910 710 1060 1060 710
height 160 160 160 160 160 160 160 160
Power - kW
electric 4.2 7.2 7.8 10.5 5.1 7.8 11.7 8.4
Net weight - kg. 107 136 147 177 113 143 186 155
Supply voltage 400 V,
PME430
291538
3N,
50/60
PME630
291542
400 V,
3N,
50/60
LEAVENING CABINETS (available on
request)
� Entirely constructed in 304 AISI stainless
steel, leavening cabinets are fitted with two
304 AISI stainless steel front doors and two
internal shelves.
� Digitally-controlled heating system, which
accelerates the dough leavening process.
HOODS (available on request)
� Equipped with a 700 m³/h
capacity-extractor fan, controlled by an
electronic board which allows to choose
among five different intake-speed degrees.
Specially designed to be easily stacked with
the ovens.
PME6L30
291546
3N, 50/60
400 V,
PME930
291550
400 V,
3N,
50/60
TUTTOPIZZA
ZANUSSI
P R O F E S S I O N A L
PME435
291554
400 V,
3N,
50/60
PME635
291558
400 V,
3N,
50/60
PME935
291566
400 V,
3N,
50/60
PME6L35
291562
400 V,
3N, 50/60
Page 2
OPTIONAL ACCESSORIES
ACCESSORIES MODELS
HOOD FOR 4&4X2-PIZZA(30CM) ELECTRIC OVEN 291506
HOOD FOR 4&4X2-PIZZA(35CM) ELECTRIC OVEN 291525
HOOD FOR 6&6X2-PIZZA (30CM) EL.OVEN WIDE 291517
HOOD FOR 6&6X2-PIZZA (35CM) EL.OVEN WIDE 291533
HOOD FOR 6&6X2-PIZZA(30CM)PASTRY EL.OVEN 291511
HOOD FOR 6&6X2-PIZZA(35CM) ELECTRIC OVEN 291529
HOOD FOR 9&9X2-PIZZA(30CM) ELECTRIC OVEN 291521
HOOD FOR 9&9X2-PIZZA(35CM) ELECTRIC OVEN 291537
LEAVENING CAB.-4-PIZZA (30CM) EL.OVEN 291539
LEAVENING CAB.-4-PIZZA (35CM) EL.OVEN 291555
LEAVENING CAB.-6-PIZZA (30CM) EL.OVEN 291543
LEAVENING CAB.-6-PIZZA (35CM) EL.OVEN 291559
LEAVENING CAB.-6-PIZZA(30CM)EL.OVEN WIDE 291547
LEAVENING CAB.-6-PIZZA(35CM)EL.OVEN WIDE 291563
LEAVENING CAB.-9-PIZZA (30CM) EL.OVEN 291551
LEAVENING CAB.-9-PIZZA (35CM) EL.OVEN 291567
STAND FOR 4-PIZZA (30CM) ELECTRIC OVEN 291540
STAND FOR 4-PIZZA (35CM) ELECTRIC OVEN 291556
STAND FOR 6-PIZZA (30CM) EL.OVEN WIDE 291548
STAND FOR 6-PIZZA (30CM) ELECTRIC OVEN 291544
STAND FOR 6-PIZZA (35CM) EL.OVEN WIDE 291564
STAND FOR 6-PIZZA (35CM) ELECTRIC OVEN 291560
STAND FOR 9-PIZZA (30CM) ELECTRIC OVEN 291552
STAND FOR 9-PIZZA (35CM) ELECTRIC OVEN 291568
GBBA1 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.
PME430
291538
PME630
291542
PME6L30
291546
PME930
291550
PME435
291554
PME635
291558
PME935
291566
PME6L35
291562
ZANUSSI
P R O F E S S I O N A L
www.zanussiprofessional.com
