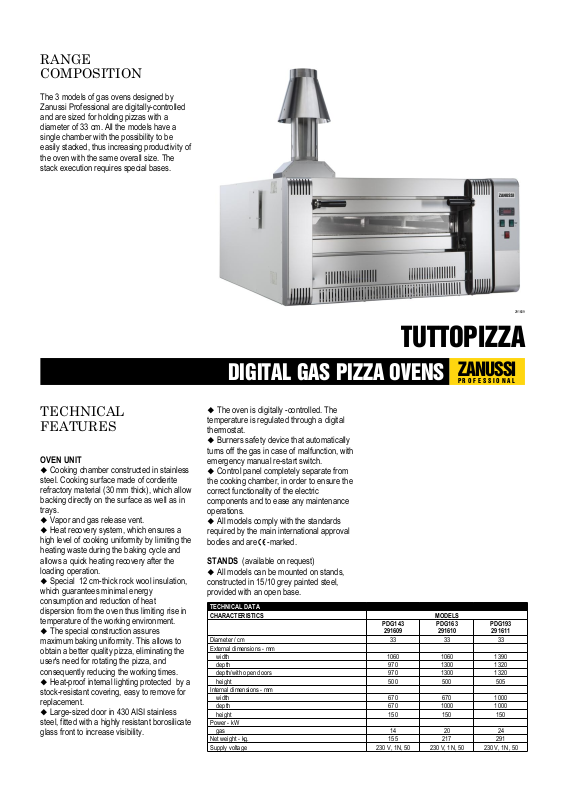

RANGE
COMPOSITION

The 3 models of gas ovens designed by
Zanussi Professional are digitally-controlled
and are sized for holding pizzas with a
diameter of 33 cm. All the models have a
single chamber with the possibility to be
easily stacked, thus increasing productivity of
the oven with the same overall size. The
stack execution requires special bases.

291609

TECHNICAL
FEATURES

OVEN UNIT

� Cooking chamber constructed in stainless

steel. Cooking surface made of cordierite
refractory material (30 mm thick), which allow
backing directly on the surface as well as in
trays.

� Vapor and gas release vent.
� Heat recovery system, which ensures a

high level of cooking uniformity by limiting the
heating waste during the baking cycle and
allows a quick heating recovery after the
loading operation.

� Special 12 cm-thick rock wool insulation,

which guarantees minimal energy
consumption and reduction of heat
dispersion from the oven thus limiting rise in
temperature of the working environment.

� The special construction assures

maximum baking uniformity. This allows to
obtain a better quality pizza, eliminating the
user's need for rotating the pizza, and
consequently reducing the working times.

� Heat-proof internal lighting protected by a

stock-resistant covering, easy to remove for
replacement.

� Large-sized door in 430 AISI stainless

steel, fitted with a highly resistant borosilicate
glass front to increase visibility.

TUTTOPIZZA

DIGITAL GAS PIZZA OVENS

� The oven is digitally -controlled. The

temperature is regulated through a digital
thermostat.

� Burners safety device that automatically

turns off the gas in case of malfunction, with
emergency manual re-start switch.

� Control panel completely separate from

the cooking chamber, in order to ensure the
correct functionality of the electric
components and to ease any maintenance
operations.

� All models comply with the standards

required by the main international approval
bodies and areH-marked.

STANDS (available on request)

� All models can be mounted on stands,

constructed in 15/10 grey painted steel,
provided with an open base.

TECHNICAL DATA

CHARACTERISTICS MODELS

Diameter / cm 33 33 33
External dimensions - mm
width 1060 1060 1390
depth 970 1300 1320
depth/with open doors 970 1300 1320
height 500 500 505
Internal dimensions - mm
width 670 670 1000
depth 670 1000 1000
height 150 150 150
Power - kW
gas 14 20 24
Net weight - kg. 155 217 291
Supply voltage 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

PDG143

291609

ZANUSSI

P R O F E S S I O N A L

PDG163

291610

PDG193

291611

291609, 291611, 291610

LEGEND

PDG143

291609

PDG163

291610

PDG193

291611

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50
F - Fumes outlet l l l
G - Gas connection 1/2" 1/2" 1/2"

OPTIONAL ACCESSORIES

ACCESSORIES MODELS

FLUE CONDENSER FOR 1-DECK DIGIT.GAS OVEN 291639 291639 291639
STAND FOR 4-PIZZA (33CM) DIGIT.GAS OVEN 291633
STAND FOR 4PIZZA(33CM)DIG.GAS OVEN-TOWER 291636
STAND FOR 6-PIZZA (33CM) DIGIT.GAS OVEN 291634
STAND FOR 6PIZZA(33CM)DIG.GAS OVEN-TOWER 291637
STAND FOR 9-PIZZA (33CM) DIGIT.GAS OVEN 291635
STAND FOR 9PIZZA(33CM)DIG.GAS OVEN-TOWER 291638

PDG143

291609

PDG163

291610

PDG193

291611

ZANUSSI

P R O F E S S I O N A L

www.zanussiprofessional.com

GBAB1 2012-07-27 The Company reserves the right to alter technical specifications without prior notice.
