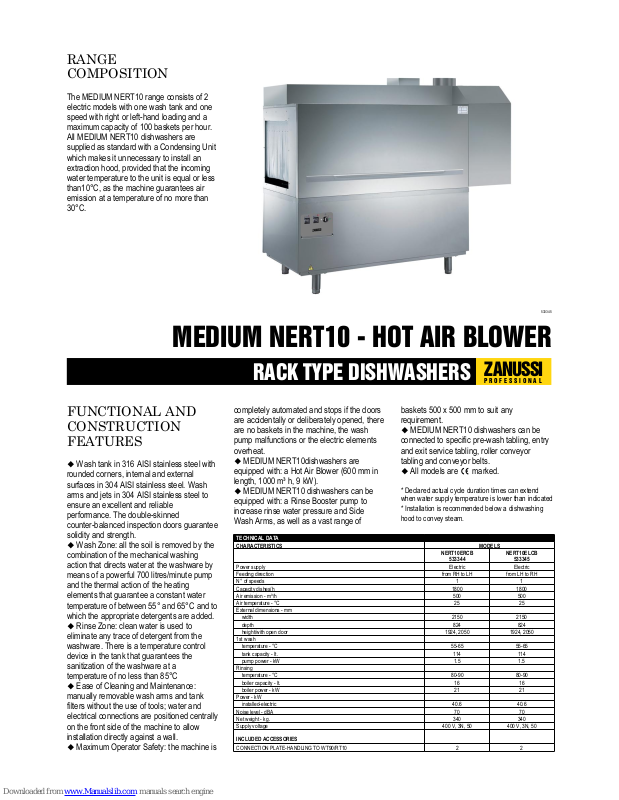

Zanussi NERT10ERCB, 533344, NERT10ELCB, 533345 Specifications

ZANUSSI
P R O F E S S I O N A L
RACK TYPE DISHWASHERS
MEDIUM NERT10 - HOT AIR BLOWER
533345
CONNECTION PLATE-HANDLING TO WT90/RT10 2 2
INCLUDED ACCESSORIES
Net weight - kg. 340 340
Noise level - dBA 70 70
installed-electric 40.6 40.6
Power - kW
boiler power - kW 21 21
boiler capacity - lt. 16 16
temperature - °C 80-90 80-90
Rinsing
pump power - kW 1.5 1.5
tank capacity - lt. 114 114
temperature - °C 55-65 55-65
1st wash
height/with open door 1924, 2050 1924, 2050
depth 824 824
width 2150 2150
External dimensions - mm
Air temperature - °C 25 25
Air emission - m³/h 500 500
Capacity dishes/h 1800 1800
N° of speeds 1 1
Feeding direction from RH to LH from LH to RH
Power supply Electric Electric
NERT10ERCB
533344
NERT10ELCB
533345
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE COMPOSITION
The MEDIUM NERT10 range consists of 2 electric models with one wash tank and one speed with right or left-hand loading and a maximum capacity of 100 baskets per hour. All MEDIUM NERT10 dishwashers are supplied as standard with a Condensing Unit which makes it unnecessary to install an extraction hood, provided that the incoming water temperature to the unit is equal or less than10°C, as the machine guarantees air emission at a temperature of no more than 30°C.
FUNCTIONAL AND CONSTRUCTION FEATURES
Wash tank in 316 AISI stainless steel with
rounded corners, internal and external surfaces in 304 AISI stainless steel. Wash arms and jets in 304 AISI stainless steel to ensure an excellent and reliable performance. The double-skinned counter-balanced inspection doors guarantee solidity and strength.
Wash Zone: all the soil is removed by the
combination of the mechanical washing action that directs water at the washware by means of a powerful 700 litres/minute pump and the thermal action of the heating elements that guarantee a constant water temperature of between 55° and 65°C and to which the appropriate detergents are added.
Rinse Zone: clean water is used to
eliminate any trace of detergent from the washware. There is a temperature control device in the tank that guarantees the sanitization of the washware at a temperature of no less than 85°C
Ease of Cleaning and Maintenance:
manually removable wash arms and tank filters without the use of tools; water and electrical connections are positioned centrally on the front side of the machine to allow installation directly against a wall.
Maximum Operator Safety: the machine is
completely automated and stops if the doors are accidentally or deliberately opened, there are no baskets in the machine, the wash pump malfunctions or the electric elements overheat.
MEDIUM NERT10dishwashers are
equipped with: a Hot Air Blower (600 mm in length, 1000 m³ h, 9 kW).
MEDIUM NERT10 dishwashers can be
equipped with: a Rinse Booster pump to increase rinse water pressure and Side Wash Arms, as well as a vast range of
baskets 500 x 500 mm to suit any requirement.
MEDIUM NERT10 dishwashers can be
connected to specific pre-wash tabling, entry and exit service tabling, roller conveyor tabling and conveyor belts.
All models are H marked.
* Declared actual cycle duration times can extend when water supply temperature is lower than indicated
* Installation is recommended below a dishwashing hood to convey steam.
EBAA5 2011-06-27 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
SIDE PRE-WASH AND WASH ARMS 864053 864053
RINSE BOOSTER PUMP-ELECTR.MECH.RACK TYPE 864052 864052
KIT 9 BASKETS FOR 1-TANK RACK TYPE DW 867051 867051
KIT 6 BASKETS FOR 1-TANK RACK TYPE DW 867050 867050
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016
BASKET FOR 5 HALF INSULATED TRAYS-RED 867005 867005
NERT10ERCB
533344
NERT10ELCB
533345
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
V - Condensation outlet l l
HWI - Hot water inlet G 3/4" G 3/4"
EI - Electrical connection 400 V, 3N, 50 400 V, 3N, 50
D - Water drain 50mm 50mm
CWI - Cold water inlet G 3/4" G 3/4"
NERT10ERCB
533344
NERT10ELCB
533345
LEGEND
533344 533345
