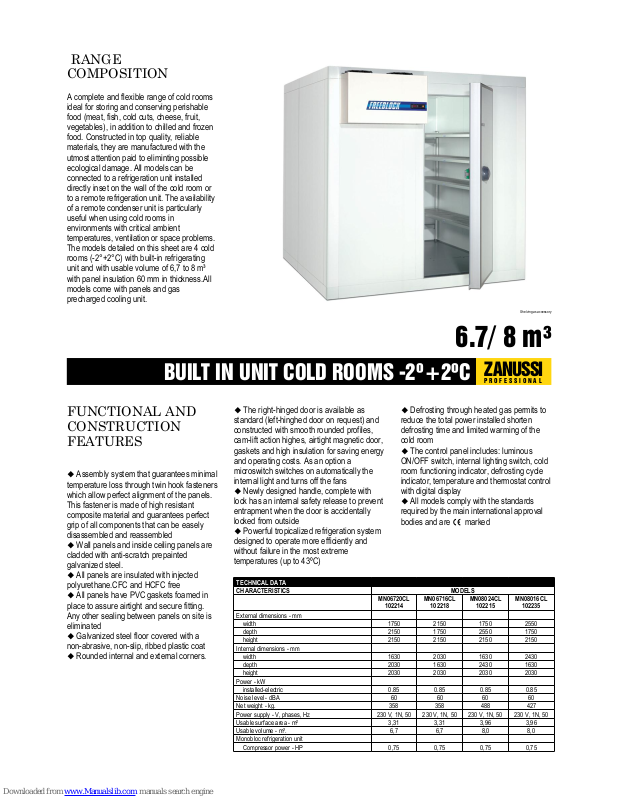

Zanussi 102214, 102215, 102218, 102235, MN06716CL Specifications
...
ZANUSSI
P R O F E S S I O N A L
BUILT IN UNIT COLD ROOMS -2º+2ºC
6.7/ 8 m³
Shelving as accessory
Compressor power - HP 0,75 0,75 0,75 0,75
Monobloc refrigeration unit
Usable volume - m³. 6,7 6,7 8,0 8,0
Usable surface area - m² 3,31 3,31 3,96 3,96
Power supply - V, phases, Hz 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50
Net weight - kg. 358 358 488 427
Noise level - dBA 60 60 60 60
installed-electric 0.85 0.85 0.85 0.85
Power - kW
height 2030 2030 2030 2030
depth 2030 1630 2430 1630
width 1630 2030 1630 2430
Internal dimensions - mm
height 2150 2150 2150 2150
depth 2150 1750 2550 1750
width 1750 2150 1750 2550
External dimensions - mm
MN06720CL
102214
MN06716CL
102218
MN08024CL
102215
MN08016CL
102235
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
A complete and flexible range of cold rooms
ideal for storing and conserving perishable
food (meat, fish, cold cuts, cheese, fruit,
vegetables), in addition to chilled and frozen
food. Constructed in top quality, reliable
materials, they are manufactured with the
utmost attention paid to eliminting possible
ecological damage. All models can be
connected to a refrigeration unit installed
directly inset on the wall of the cold room or
to a remote refrigeration unit. The availability
of a remote condenser unit is particularly
useful when using cold rooms in
environments with critical ambient
temperatures, ventilation or space problems.
The models detailed on this sheet are 4 cold
rooms (-2°+2°C) with built-in refrigerating
unit and with usable volume of 6,7 to 8 m³
with panel insulation 60 mm in thickness.All
models come with panels and gas
precharged cooling unit.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Assembly system that guarantees minimal
temperature loss through twin hook fasteners
which allow perfect alignment of the panels.
This fastener is made of high resistant
composite material and guarantees perfect
grip of all components that can be easely
disassembled and reassembled
� Wall panels and inside ceiling panels are
cladded with anti-scratch prepainted
galvanized steel.
� All panels are insulated with injected
polyurethane.CFC and HCFC free
� All panels have PVC gaskets foamed in
place to assure airtight and secure fitting.
Any other sealing between panels on site is
eliminated
� Galvanized steel floor covered with a
non-abrasive, non-slip, ribbed plastic coat
� Rounded internal and external corners.
� The right-hinged door is available as
standard (left-hinghed door on request) and
constructed with smooth rounded profiles,
cam-lift action highes, airtight magnetic door,
gaskets and high insulation for saving energy
and operating costs. As an option a
microswitch switches on automatically the
internal light and turns off the fans
� Newly designed handle, complete with
lock has an internal safety release to prevent
entrapment when the door is accidentally
locked from outside
� Powerful tropicalized refrigeration system
designed to operate more efficiently and
without failure in the most extreme
temperatures (up to 43ºC)
� Defrosting through heated gas permits to
reduce the total power installed shorten
defrosting time and limited warming of the
cold room
� The control panel includes: luminous
ON/OFF switch, internal lighting switch, cold
room functioning indicator, defrosting cycle
indicator, temperature and thermostat control
with digital display
� All models comply with the standards
required by the main international approval
bodies and are H marked
DEBA02 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
PRINTER FOR TEMPERATURE RECORDER 102026 102026 102026 102026
PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457 881457
PLASTIC CURTAIN FOR 65CM DOOR CLEARANCE 102027 102027 102027 102027
KIT HACCP ADV.CONNECTION FOR COLD ROOMS 102021 102021 102021 102021
GRAPHIC TEMPERATURE RECORDER 102025 102025 102025 102025
DOOR MICROSWITCH 102441 102441 102441 102441
ALUM.SHELV.,POLY.TIERS-COLDROOM 243X163 137101
ALUM.SHELV.,POLY.TIERS-COLDROOM 203X163 137096
ALUM.SHELV.,POLY.TIERS-COLDROOM 163X243 137093
ALUM.SHELV.,POLY.TIERS-COLDROOM 163X203 137092
MN06720CL
102214
MN06716CL
102218
MN08024CL
102215
MN08016CL
102235
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50
MN06720CL
102214
MN06716CL
102218
MN08024CL
102215
MN08016CL
102235
LEGEND
102214 102215
102235
