RANGE
COMPOSITION
Zanussi Professional have designed
and produced a complete range of
refrigerated tables, that combines
the dual function of worktop and
refrigerated table. This versatility
allows notable savings in space
whilst offering functional and
modular solutions to kitchen
requirements.
728157
REFRIGERATED TABLES - 2 COMPARTMENTS
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� 150mm height-adjustable feet.
� Internal and external doors, front and side
panels and worktop in 304 AISI stainless
steel.
� Rounded internal corners for ease of
cleaning.
� Refrigerated compartment designed to
accommodate GN 1/1 containers.
� Digital control panel.
� Suitable to operate in ambient
temperatures up to +43°C. Temperature
range: -2/+10 °C.
� Forced air circulation for rapid cooling and
an even temperature distribution.
� Automatic evaporation of defrost water.
Drain outlet.
� Access to all components from the front.
� In compliance with H requirements.
� C.F.C. and H.C.F.C. free.
� High-density expanded polyurethane
foam, 50 mm in thickness, with
cyclopenthane injection.
� Developed and produced in ISO 9001 and
ISO 14001 certified factory.
CONCEPT SERIES
ZANUSSI
P R O F E S S I O N A L
TECHNICAL DATA
CHARACTERISTICS MODELS
Operating temperature min/max °C
Operating mode Ventilated Ventilated Ventilated Ventilated Ventilated Ventilated
Gross capacity (D.I.N. 8952)
- l.
Cooling unit Built-In Built-In Built-In Built-In Built-In Built-In

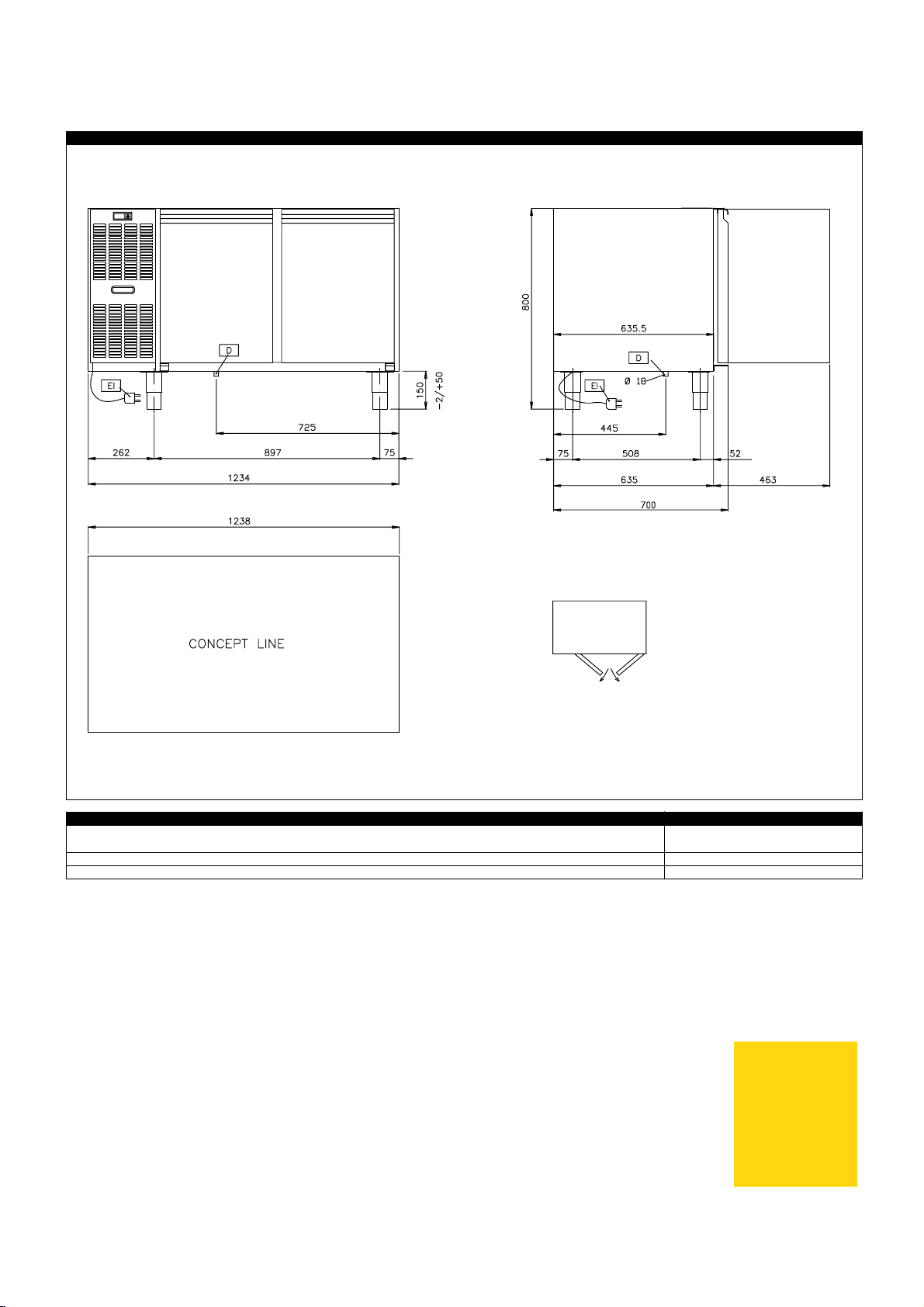

External dimensions - mm
width 1238 1234 1238 1238 1238 1238
depth/with open doors 700, 1102 700, 1102 700, 1102 700, 1102 700, 1102 700, 1102
height 850 800 850 850 850 850
Internal dimensions - mm
depth 580 580 580 580 580 580
height 543 543 543 543 543 543
Without worktop l
Top material 304 AISI Galvanized
Min/Max internal humidity %
N° of drawers 2x1/2 1x1/4+1x3/4 3x1/3 4x1/2
Door hinges 1 Left+1
Compressor power - HP 1/4 1/4 1/4 1/4 1/4 1/4
N° defrost in 24 hrs. 4/20 4/20 4/20 4/20 4/20 4/20
Refrigerant type R404a R404a R404a R404a R404a R404a
Refrigerant quantity - g. 130 130 130 130 130 130
Refrigeration power - W 343 343 343 343 343 343
Refrigerant power
at evaporation
temperature - °C
Power - kW
installed-electric 0.34 0.34 0.34 0.34 0.34 0.34
Net weight - kg. 119 119 126 126 126 126
Power supply - V, phases,Hz230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50
HB2P
728086
-2/10 -2/10 -2/10 -2/10 -2/10 -2/10
265 265 265 265 265 265
55 55 55 55 55 55
Right
-23 -23 -23 -23 -23 -23
HB2PNT
727105
Steel
1 Left+1
Right
HB1P2C12
728139
304 AISI 304 AISI 304 AISI 304 AISI
Right Side Right Side Right Side
HB1P2C
728302
HB1P3C
728157
HB4C
728158
INCLUDED ACCESSORIES
1/1 GN GREY "RILSAN"
GRID
2 2 1 1 1
REFRIGERATED TABLES - 2 COMPARTMENTS
CONCEPT SERIES
OPTIONAL ACCESSORIES
ACCESSORIES MODELS
1/1 GN GREY "RILSAN" GRID 881435
2x½ DRAWER KIT FOR
REFRIGERATED TABLES
3x1/3 DRAWER KIT FOR
REFRIGERATED TABLES
DRAWER KIT-1/3+2/3
(BOTTLES)-REF.TABLES
KIT 2 S/S GRIDS GN1/1 FOR
REFRIG.TABLES
KIT 4 WHEELS (2 W/BRAKE)+4
(40MM)SPACERS
KIT DOOR REVERSIBILITY FOR
REF.TABLES
KIT HACCP EKIS 922166 922166 922166 922166 922166 922166
KIT INTEGRATED HACCP-DIG. REFR.
(IR33)
LOCK KIT FOR REFRIGERATED
TABLES
PRINTER FOR HACCP BASIC VERSION
REFRIG.
S/S STRUCTURE TO SUPPORT 6
GRIDS (R+L)
STRUCTURE TO SUPPORT 3
GRIDS(RIGHT+LEFT)
WORKTOP FOR 2 DOOR
REFRIGERATED TABLES
WORKTOP+UPSTAND FOR 2 DOOR
REFRIG.TABLE
DBAD50 2009-07-03 The Company reserves the right to alter technical specifications without prior notice.
HB2P
728086
880118 880118 880118 880118 880118
880115 880115 880115 880115 880115 880115
880126 880126 880126 880126 880126
880139 880139 880139 880139 880139
880025 880025 880025 880025 880025 880025
880046 880046 880046 880046 880046 880046
880205 880205 880205 880205 880205 880205
880130 880130 880130 880130 880130
881457 881457 881457 881457 881457 881457
880140 880140 880140 880140 880140
HB2PNT
727105
880194
880097
HB1P2C12
728139
HB1P2C
728302
880047
HB1P3C
728157
HB4C
728158
ZANUSSI
P R O F E S S I O N A L
www.zanussiprofessional.com
