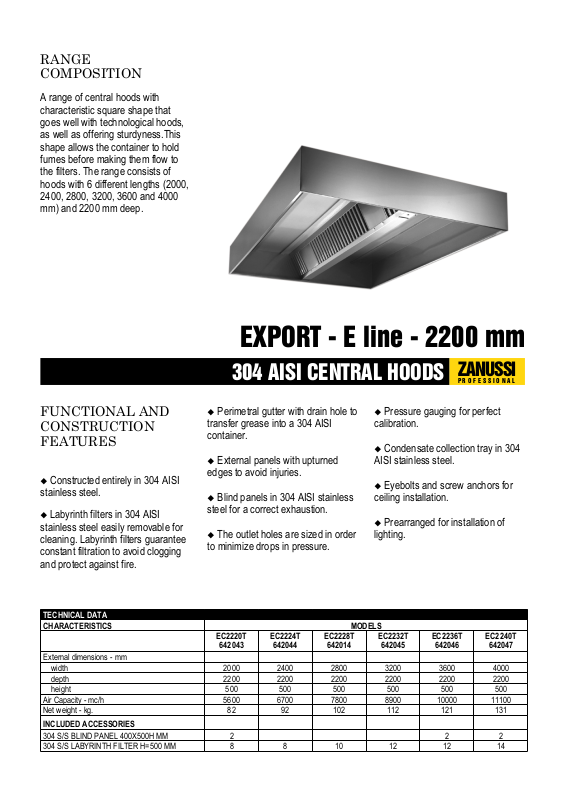

RANGE COMPOSITION

A range of central hoods with characteristic square shape that goes well with technological hoods, as well as offering sturdyness.This shape allows the container to hold fumes before making them flow to the filters. The range consists of hoods with 6 different lengths (2000, 2400, 2800, 3200, 3600 and 4000 mm) and 2200 mm deep.

EXPORT - E line - 2200 mm

EC2236T

642046

ZANUSSI

P R O F E S S I O N A L

EC2240T

642047

304 AISI CENTRAL HOODS

FUNCTIONAL AND CONSTRUCTION FEATURES 

� Constructed entirely in 304 AISI

stainless steel.

� Labyrinth filters in 304 AISI

stainless steel easily removable for cleaning. Labyrinth filters guarantee constant filtration to avoid clogging

� Perimetral gutter with drain hole to

transfer grease into a 304 AISI container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

and protect against fire.

TECHNICAL DATA

CHARACTERISTICS MODELS

EC2220T

642043

External dimensions - mm width 2000 2400 2800 3200 3600 4000 depth 2200 2200 2200 2200 2200 2200 height 500 500 500 500 500 500 Air Capacity - mc/h 5600 6700 7800 8900 10000 11100 Net weight - kg. 82 92 102 112 121 131

INCLUDED ACCESSORIES

304 S/S BLIND PANEL 400X500H MM 2 2 2 304 S/S LABYRINTH FILTER H=500 MM 8 8 10 12 12 14

EC2224T

642044

EC2228T

642014

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

EC2232T

642045

500

642043, 642047, 642046, 642045, 642014, 642044

2200

1100 1100

262

25 25

447298298447

510/910/1310/1710/2110/2510

2000/2400/2800/3200/3600/4000

OPTIONAL ACCESSORIES

ACCESSORIES MODELS

EC2220T

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG

FAN FOR VENTIL HOODS+DUCTED EXTRACT.UNIT

SPEED VARIATOR FOR MOTORS UP TO 1.7 KW

HDAB3 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.

642043

EC2224T

642044

EC2228T

642014

EC2232T

642045

EC2236T

642046

EC2240T

642047

680804 680804 680804 680804

680805 680805 680805 680805

640409 640409 640409 640409 640409 640409

640748 640748 640748 640748 640748 640748

640686 640686 640686 640686 640686 640686
