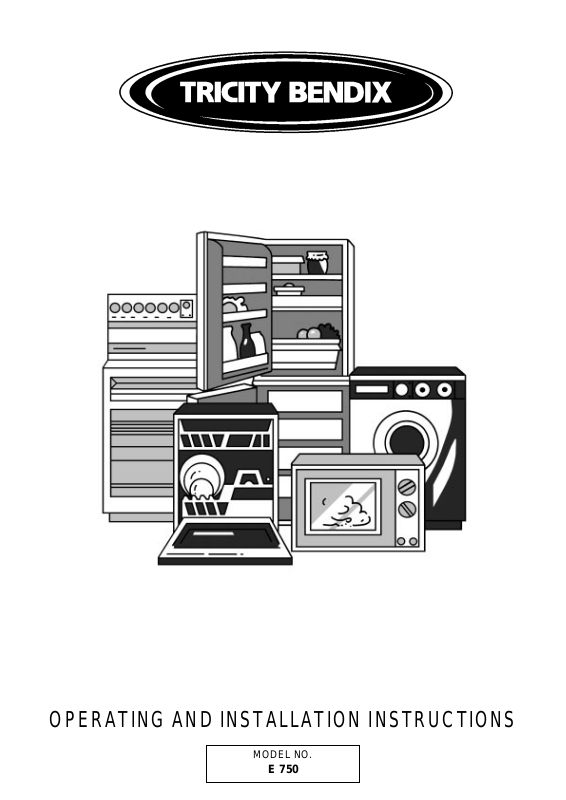

OPERATING AND INSTALLATION INSTRUCTIONS

MODEL NO.

E 750

IMPORTANT SAFETY INFORMATION

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the cooker. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department. The address is on the back page of this book.

INSTALLATION

The cooker must be installed according to the instructions supplied. Any electrical installation work must be undertaken by a qualified electrician/competent person.

This cooker is heavy and care must be taken when moving it. Do not try to move the cooker by pulling the door handles.

All packaging, both inside and outside the cooker must be removed before the cooker is used.

It is dangerous to alter the specifications or modify the cooker in any way. After installation please dispose of the packaging with due regard for safety and the environment.

CHILD SAFETY

This cooker is designed to be operated by adults. Young children must not be allowed to tamper with the controls or play near or with the cooker.

The cooker and accessible parts especially around the grill area become hot when the cooker is in use. Keep children away until it has cooled.

DURING USE

Do not use this cooker if it is in contact with water. Never operate it with wet hands.

Take great care when heating fats and oils as they will ignite if they become too hot.

This cooker has been designed for cooking edible foodstuffs only, and must not be used for any other purposes.

Never place plastic or any other material which may melt in or on the oven.

Do not leave the grill pan handle in position when grilling and ensure oven gloves are used to remove and replace the handle, as it will become hot.

Always use oven gloves to remove and place food in the oven.

Ensure that all vents are left unobstructed to ensure ventilation of the oven cavity.

Never line any part of the cooker with aluminium foil. Do not allow heatproof cooking material, e.g. roasting bags to come into contact with oven elements because they may catch fire.

Always stand back from the cooker when opening the oven door to allow any build up of steam or heat to release.

Stand clear when opening the drop down oven doors. Support the doors using the handles until fully open.

Do not place sealed cans or aerosols inside

the oven. They may explode if they are heated.

Ensure that all control knobs are in the OFF position when not in use.

Do not stand on the cooker or on the open oven doors.

Do not hang towels, dishcloths or clothes from the cooker or its handles. They are a safety hazard.

CLEANING AND MAINTENANCE

The cooker is heavy and care must be taken

when moving it.

This cooker should be kept clean at all

times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan.

Do not leave cookware containing

foodstuffs, e.g. fat or oil in the cooker in case it is inadvertently switched on.

Always allow the cooling fan to cool the

cooker down before switching off at the wall prior to carrying out any cleaning / maintenance work.

Only clean this cooker in accordance with

the instructions given in this book.

SERVICE

Repairs should not be carried out by inexperienced persons as this may cause injury or serious malfunction. This cooker should be serviced by an authorised Service Engineer and only genuine approved spare parts should be used. Details of servicing and repair arrangements are supplied on page 44 of this book.

AT THE END OF THE COOKERS LIFE

When the time comes to dispose of your

cooker please contact your local Council Authority. They can arrange to dispose of the cooker in a safe and controlled manner. The number will be in the telephone book.

Please read this

instruction book carefully

before use and retain

for future reference.

CONTENTS

FOR THE USER

Important Safety Information 2 Description of the cooker 5

Getting to Know Your Oven 6 The Cooling Fan for the Controls 7 Control Panel Indicator Neons 7 Before Using The Cooker 8 Rating Plate 8 When First Switching On 8 The Fan Selector Button 8 Condensation and Steam 8 Cookware 9 The Trivet 9 Grill and Oven Furniture 10

The Electronic Timer 11 The Dual Grill 15

Uses of the Grill 15 How To Use the Dual Grill 15 Things To Note 15 The Grill Pan and Handle 1 6 Hints and Tips 16 Grilling Chart 18

The Fan Assisted Convenience Oven 19 Uses of the Fan Assisted Oven 19 How To Use the Fan Assisted Oven 19 Things To Note 19 To Fit the Oven Shelves 19 Hints and Tips 20

The Conventional Convenience Oven 21 Uses of the Conventional Oven 21 How To Use the Conventional Oven 21 Things to Note 21 To Fit the Oven Shelf 21 Hints and Tips 22

The Main Fan Oven 29 Uses of The Fan Oven 29 How To Use the Fan Oven 29 Things to Note 29 To Fit the Fan Oven Shelves 30 Hints and Tips 30

Fan Oven Cooking Chart 31 Roasting Chart 32

Defrosting in the Main Fan Oven 33

Uses of Defrost Feature 33 How to Defrost 33 Things to Note 33 Hints and Tips 33

Care and Cleaning 35 Cleaning Materials 35 Cleaning the Outside of the Cooker 35 Cleaning the Outer and Inner Door Glass Panels 36 Cleaning Inside the Ovens 37 To Remove the Wirework Runners 38 Cleaning the Shelves, Wirework Runners and Oven Furniture 38

Care of Stayclean Surfaces 38 The Oven Cleaning Cycle 39 Things to Note 39 Hints and Tips 39 Replacing the Oven Light Bulb 40

If Something Doesn't Work 41 Guarantee Conditions 43 Service and Spare Parts 44 Customer Service Centres 45

Convenience Oven Cooking Chart 23 Thermal Grilling in the Convenience

Oven 24

Uses of Thermal Grilling 24 How To Thermal Grill 24 Things to Note 25 Hints and Tips 25 Thermal Grilling Chart 26

To Cool and Defrost in the Convenience Oven 27

Uses of Cooling and Defrost 27 How to Cool / Defrost 27 Things to Note 27 Hints and Tips 27

Please read the whole instruction book before using the cooker. To help you the following symbols will be found in the text.

Safety Instructions

Step by Step Instructions

Hints and Tips

FOR THE INSTALLER

Technical Details 47 Things You Need to Know 48 Warnings 48 Choice of Electrical Connection 48

Things to Note 49 Preparing Cabinet for Fitting Oven 50 How to Finish Unpacking 51

Making the Electrical Connections 52 To Remove Cover of Mains Terminal 52 Connecting to the Mains Terminal 53 Checking Electrical Connections 54 Connecting to a Hob or Cooker Point 54

DESCRIPTION OF THE COOKER

Built in electric double oven

WARNING: THIS COOKER MUST BE EARTHED

Convenience Oven / Dual Grill

Electronic Timer

Control Knob

Control Panel

Main Fan Oven

Your built in cooker comprises of an oven with conventional and fan assisted option and dual grill in the top compartment. The top oven is convenient and economical for mid-week use because of its size. The main fan oven is the larger of the two ovens. It is particularly suitable for cooking larger quantities of food. The main fan oven can be automatically controlled by the electronic timer.

GETTING TO KNOW YOUR OVEN

The Control Panel

Fan Selector button for Convenience Oven

Dual Grill Control

Convenience Oven Temperature Control

Electronic Timer

Fan Selector Indicator Neon

Dual Grill Indicator Neon

Convenience Oven Indicator Neon

Fan Oven Temperature Control

Fan Oven Indicator Neon

THE COOLING FAN FOR THE CONTROLS

Your cooker has a cooling fan fitted behind the controls to prevent them from overheating. The cooling fan will come on immediately with the grill or when thermal grill is selected and after a short time when either of the ovens are in use. The cooling fan may cycle on and off when the cooker is in use. This is quite normal.

The cooling fan may run on after the ovens or grill are switched off for a period of time to cool the cooker down. It may continue to switch on and off until the cooker is cool.

Always allow the cooling fan to cool the cooker down before switching off at the wall prior to carrying out any cleaning or maintenance work.

NOTE

The action of the cooling fan will depend on how long the ovens or grill have been used and at what temperature. It may not switch in at all at lower temperature settings nor run on where the grill or oven has only been used for a short time.

CONTROL PANEL INDICATOR NEONS

These lights indicate whether the ovens or grill are switched on. When the grill or ovens are switched on the neon illuminates. In the case of the ovens, the neons also indicate when the set temperature has been reached. They will cycle on and off during use to show that the temperature is being maintained.

The grill neon does not cycle on and off when the grill is in use.

The Fan oven neon does not operate with the Defrost function.

The Fan Selector neon operates when the Fan Selector button is set. It does not cycle on and off when in use. The Selector neon will illuminate with all Convenience oven functions, except the conventional oven.

If the neons do not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and re-set following the instructions for the required setting.

When the main fan oven has been set for automatic cooking the neon will illuminate when cooking begins.

BEFORE USING THE COOKER

WHEN FIRST SWITCHING ON

The timer must be set to manual operation before the main fan oven can be operated. This must be done whenever the cooker is switched off at the wall or when there has been a power failure. For instructions on how to set the timer see page 11. If the Fan oven indicator neon does not glow when the oven temperature control is turned, it is most likely that the timer is set for automatic cooking. The Convenience Oven and the Dual Grill are not controlled by the electronic timer.

RATING PLATE

Record the model, product and serial numbers of your cooker on the back page of this instruction book for future reference. You can find these numbers on the rating plate on the front frame of the cooker upon opening the top oven door. The cooker must be protected by a suitably rated fuse or circuit breaker. The rating of the cooker is given on the rating plate.

PREPARING TO USE YOUR COOKER

Wipe over the base of the ovens with a soft cloth and hot soapy water and wash the grill and oven furniture before use. The grill and ovens should be heated without food to burn off any residue from the elements. To do this, run the ovens at maximum temperature for approximately 45 minutes. The procedure should be repeated with the grill for approximately 5 - 10 minutes. During this period an unpleasant odour may be emitted, it is therefore advisable to open a window for ventilation.

THE FAN SELECTOR BUTTON

The Convenience oven enables you to cook with the oven fan in operation or by conventional means. Push the Fan Selector button in for fan assisted cooking. Push the button out for conventional oven cooking. Refer to the appropriate oven section for full instructions.

IN FOR FAN ASSISTED

OUT FOR CONVENTIONAL

CONDENSATION AND STEAM

When food is heated it produces steam in the same way as a boiling kettle does. The ovens are vented to allow some of this steam to escape. However, always stand back from the cooker when opening the oven doors to allow any build up of steam or heat to release. If the steam comes into contact with a cool surface on the outside of the cooker, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the cooker. To prevent discolouration occurring, regularly wipe away condensation and any soilage from the cooker surfaces.

COOKWARE

Baking trays, dishes etc., should not be placed directly against the grid covering the fan at the back of the oven.

Do not use baking trays larger than 30cm x 35cm (12" x 14") as they will restrict the circulation of heat and may affect performance. Advice on the effect of different materials and finishes of bakeware is given in 'Hints and Tips' in the appropriate oven section.

THE TRIVET

When roasting we recommend that you use the trivet in the meat tin. Fat and meat juices will drain into the meat tin below and can be used to make gravy. The trivet also prevents splashes of fat from soiling the oven interior.

Note. The meat tin should not be placed on a heated hotplate as this may cause the enamel to crack.

GRILL AND OVEN FURNITURE

The following items of oven furniture have been supplied with the cooker.

1 grill pan

1 grill pan handle

1 grill pan grid

1 trivet

1 meat tin

2 shelves for main oven cooking

2 shelves for grilling and Convenience oven cooking

Scuffing of the Stayclean sides and back panel by the oven furniture pack may occur during transit. These marks will disappear after the oven has been used for the first time.

THE ELECTRONIC TIMER

The electronic timer can indicate the time of day, operate as a minute minder and automatically time the main fan oven.

A Auto Symbol ( automatic cooking )

Bell Symbol ( minute minder ) Cookpot Symbol ( manual cooking )

Please note that this is a 24 hour clock, for example 2pm is shown as 14.00.

If the oven is switched off at the wall or there is loss of power the clock will stop and you will not be able to use the cooker. When you first switch the electricity supply on, the timer display will flash.

TO SET THE TIME OF DAY

1.Press buttons and together. Release the buttons.

2. Within 5 seconds press the + button until the time of day shows in the display.

The cookpot symbol ( ) will be showing.

Cookpot Symbol

Auto Symbol

Bell Symbol

TO CHANGE THE TONE OF

THE ALARM

The timer has three different tones to the alarm. You can change the sound of the alarm if you wish.

1.Ensure the clock shows the correct time of day.

2. Press the the alarm.

You will hear each of the three tones with each press of the button. Keep pressing the button until you hear the tone you prefer.

The next time the minute minder or timer is used the tone you selected will sound.

- button to change the sound of

THE MINUTE MINDER

1.Press and release the button.

2.Within 5 seconds press the + button until the display shows the time you want.

Our diagram shows the timer set to 5 minutes. After a few seconds the time of day will show in the display.

When you are using the minute minder you can check the number of minutes remaining by pressing the button. At the end of the timed period an alarm will sound. Switch off the alarm by pressing the button. After a few seconds the time of day shows in the display.

AUTOMATIC TIMER CONTROL

The automatic timer can be used with the main fan oven only.

TO SWITCH THE MAIN OVEN

ON AND OFF AUTOMATICALLY

1. Ensure the clock is showing the correct time of day.

2.Place food in the main oven.

3. Set the length of time you want the food to cook for by pressing and releasing the button and then pressing the + button until the correct cooking time is displayed. This must be completed within 5 seconds of pressing the button.

The maximum cooking time is 23 hours 59 minutes.

The Cookpot and Auto symbols will show in the display. Our diagram shows the cooking time set for 2 hours 30 minutes.

After a few seconds the time of day shows in the display.

4.To set the time you want the food to be cooked by, press and release the button. This will show you the earliest possible stop time.

If this is different to the time you want the food to be cooked by, press the + button within 5 seconds until the correct stop time shows in the display. Our diagram shows the food is to be cooked by 18.00 hours (6pm). After a few seconds the time of day shows in the display and the Cookpot symbol goes out.

The 'Stop' time must not be more than 23 hours 59 minutes from the time of day. For example, if the time of day is 09.00 hours (9.00am) the latest 'Stop' time will be 08.59 (8.59am) the next day.

5.Turn the oven control to the correct temperature.

The clock will work out what time the oven will switch itself on and will switch the oven off at the end. An audible signal will sound when cooking is complete. To cancel the alarm, see below.

RETURNING THE COOKER TO MANUAL OR TO CANCEL AN AUTOMATIC PROGRAMME

Once automatic cooking is complete an alarm will sound and the Auto symbol will flash to remind you that the oven needs to be set for manual operation.

1.To do this press buttons and together.

After a few seconds the timer will show the time of day. The cookpot will show in the display and the oven will switch on again.

2.Turn off the oven control.

TO SET THE TIMER TO SWITCH OFF ONLY

This is useful if you want to begin cooking immediately but have the main fan oven switch off whilst you are out.

1. Ensure the clock is showing the correct time

of day.

2.Place food in the oven.

3. Set the length of time you want the food to

cook for. Press and release the button and then within 5 seconds press the + button until the correct cook time is showing.

Our diagram shows the timer set for 2 hours 30 minutes.

After a few seconds the time of day shows in the display.

4.Turn the oven temperature control to the

required setting. The oven indicator neon will come on.

If you want to check the time the oven will switch off simply press the button and the 'Stop' time will be displayed.

At the end of the cooktime the oven will switch off, the alarm will sound and the auto symbol will flash.

5.To cancel and return to manual operation

press buttons and together.

6.Turn off the oven temperature control.

THE DUAL GRILL

WARNING - Accessible parts become hot when the grill is in use. Keep children away.

USES OF THE GRILL

The grill is situated in the Convenience oven compartment. The grill is a dual circuit grill which means that the full area of the grill or the centre section only can be used. Use the full grill for cooking larger quantities of food. Use the centre section for economy purposes when cooking smaller quantities.

HOW TO USE THE DUAL

1.Open the Grill / Convenience Oven door.

2. Turn the grill control clockwise for full grill or

anticlockwise for the centre section only.

3.Ensure the Convenience Oven control is in

the Off position '0'.

The grill door must be left open when grilling.

GRILL

THINGS TO NOTE

DUAL GRILL

CONVENIENCE OVEN

The cooling fan for the controls will operate as soon as the grill control is turned. For more information on the operation of the cooling fan turn to page 7. The outer section of the grill element may appear to glow brighter than the inner section. This is quite normal. The grill indicator neon will illuminate. You can use the grill pan on the shelf in positions 3 and 5 only. If you use the grill pan in position 3 the shelf must be withdrawn before the pan can be located or removed.

Ensure the grill pan is properly located.

5 4 3 2 1

THE GRILL PAN AND HANDLE

The grill pan has a removable handle. To insert the handle, press the button on the

handle with the thumb and pivot the handle slightly upwards inserting the lip into widest part of the bracket. Move the handle towards the left, lower into position and release the button.

Ensure the handle is positively located.

To remove the handle, press the button on the handle with the thumb and pivot the handle slightly upwards and towards the right to remove from the bracket.

Protect your hands when removing the grill pan handle.

Always remove the grill pan handle during grilling.

To correctly locate the grill pan on the shelf, ensure that the cut out on the underside of the handle bracket locates over the front bar of the shelf.

To check the progress of the food being grilled, the grill pan should be withdrawn on the shelf to attend to food during cooking.

Ensure that you support the grill pan when it is withdrawn.

HINTS AND TIPS

Most foods should be placed on the grilling grid in the grill pan. This allows maximum circulation of air by raising the food out of fats and juices. Foods such as fish, liver and kidneys may be placed directly on the trivet in the grill pan if preferred.

Adjust the grid and grill pan runner position to allow for different thicknesses of food. Position the food close to the element for faster cooking and further away for more gentle cooking.

The grill pan grid is reversible. This is useful if you want to cook foods of varying thickness. As a general rule, bread for toasting should be placed on the grid in the ' high ' position in the grill pan. Foods such as chicken pieces or chops may be grilled using the grilling grid in the low position.

Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

Accompaniments such as tomatoes and mushrooms may be placed underneath the grid when grilling meats.

The food should be turned over during cooking as required.

The grill door must be left open when grilling. For convenience the grill door can be left ajar.

Preheat the grill on full setting for a few minutes before sealing steaks or toasting. Adjust the heat setting and the shelf position as necessary during cooking.

GRILLING CHART

The chart below gives recommended cooking times and shelf positions. Remember that these are a guide and should be adjusted to suit personal taste.

Note Shelf positions are counted from the bottom upwards.

FOOD Grill Time

(Min)

Bacon Rashers Beefburgers Chicken Joints Chops - Lamb

- Pork Fish - Whole Trout / Herring

Fillets - Plaice / Cod Kebabs Kidneys - Lamb

Pig Liver - Lamb / Pig Sausages

3 - 5 each side

6 - 10 each side

15 - 20 each side

7 - 10 each side

10 - 15 each side

8 - 12 each side

4 - 6 each side

10 - 15 each side

4 - 6 each side

8 - 10 each side 5 - 10 each side

10 - 15 turn as required

Shelf Grid

Position

5 5 3 5

5 5

5 5 5

High

Low

High

Low Low

Low Low Low

Steaks - Rare

Medium Well Done

Browning e.g. au gratin, lasagne, shepherd's pie

3 - 6 each side 6 - 8 each side

7 - 10 each side

3 - 5 mins

5 5 5

Low Low Low

+ 39 hidden pages
