Zanussi DWS 939 User Manual

DISHWASHER

DWS 939

INSTRUCTION BOOKLET

152989 33/1

For the user

Important safety information 3 Description of the appliance 4 The control panel 4 Before use 5

Setting the water softener 5 Rinse aid 7

Using your appliance 8 Loading your appliance 8 Adjusting the height of the upper basket 9 Use of detergent 10

Hints and tips 11 Washing programmes 12 Operating sequence 13 Maintenance and cleaning 14

Internal cleaning 14 Cleaning the central filter 14 Cleaning the large filter 14 External cleaning 15 Prolonged periods of non-operation 15 Frost precautions 15 Moving the machine 15

Something not working 16 Service and spare parts 17

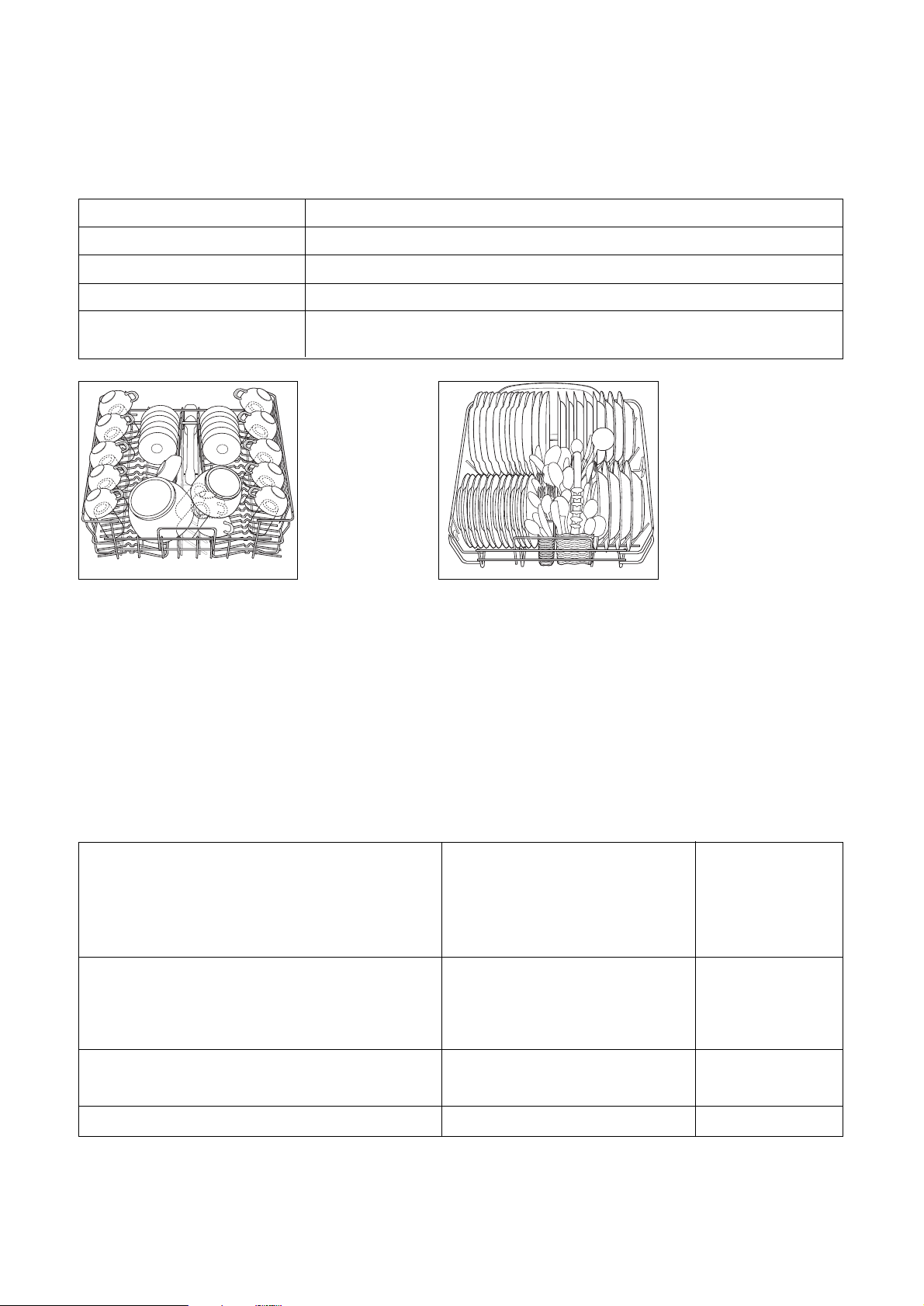

Guarantee conditions 18 Hints for test centres 19

Technical specifications 19

For the installer

Installation instructions 20

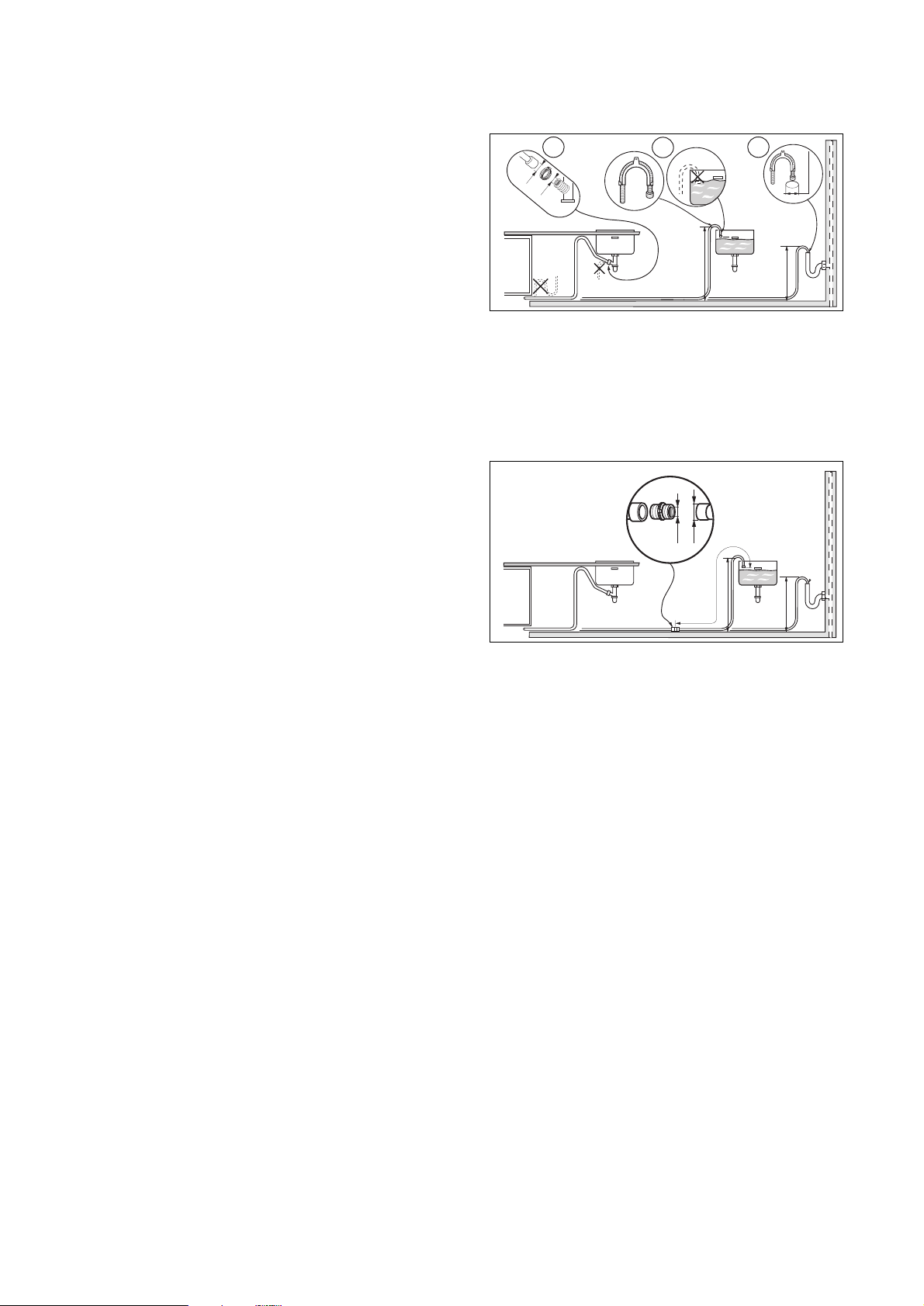

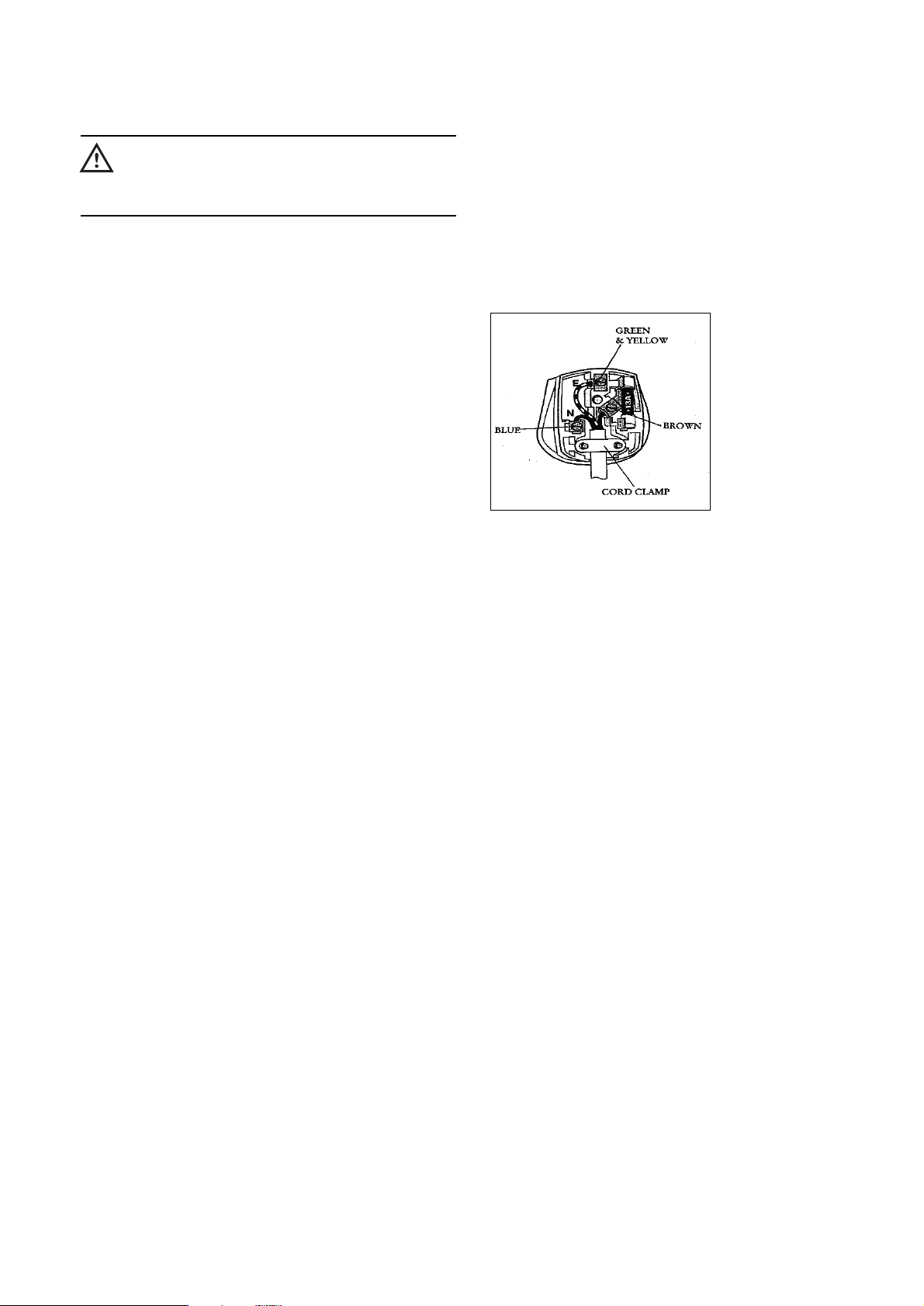

Water supply connections 20 Water outlet hose connection 21 Electrical connection 22

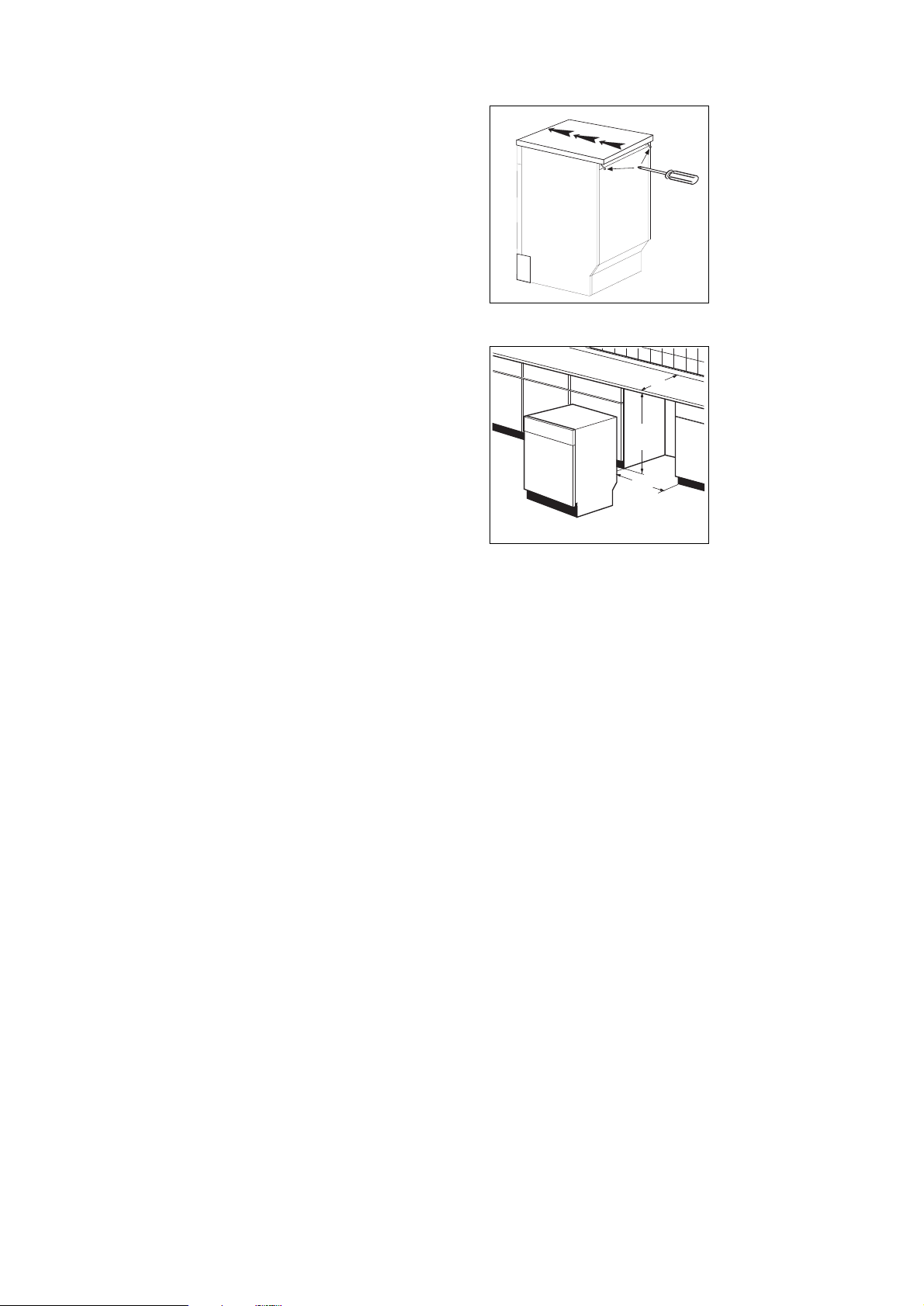

Adjusting the worktop 23 Fitting under a counter 23 Levelling 23

IND15en

Contents

Guide to use the instruction book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

1. 2. 3. Step by step

Hints and tips

Environmental information

Installation

● This appliance is heavy. Care should be taken when

moving it.

● It is dangerous to alter the specifications or attempt

to modify this product in any way.

● Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

● Any electrical work required to install this appliance

should be carried out by a qualified electrician or competent person.

● Any plumbing work required to install this appliance

should be carried out by a qualified plumber or competent person.

Child Safety

● This appliance is designed to be operated by adults.

Children should not be allowed to tamper with the controls or play with the product.

● Keep all packaging well away from children.

● Keep all detergents in a safe place out of children's

reach.

During Use

● Items that are contaminated by petrol, paint, steel

or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.

● Under no circumstances should you open the door

whilst the appliance is in operation.Always turn off the appliance before opening the door.

● Only use detergent specifically designed for use in

dishwashers.

● Long bladed knives stored in an upright position are

a potential hazard.

● Long and/or sharp items of cutlery such as carving

knives must be positioned horizontally in the upper basket.

● When finishing loading or unloading close the

door, as an open door can be a hazard.

● Do not sit or stand on the open door.

● Isolate the appliance from the power supply and

turn off the water supply after use.

● Care should be taken when cleaning the bottom

door seal and hinge area as any exposed metal edges may cut if care is not taken.

● This product should be serviced by an

authorised Service engineer, and only genuine spare parts should be used.

● Under no circumstances should you attempt to

repair the machine yourself.Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.Always insist on genuine spare parts.

Conservation

In the interest of the environment:

● Materials marked with the symbol are

recyclable.

● Check with your local Council or Environmental

Health Office to see if there are facilities in your area for re-cycling this appliance.

● When the appliance is to be scrapped, cut off

the power supply cable and make the door closing device unusable to prevent young children from being trapped inside.

● Help to keep your country tidy - use authorised

disposal sites for your old appliance.

AVV01en

Important safety information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety.You MUST read it carefully before installing or using the appliance.

1. Water hardness adjustment

2. Levelling spacers

3. Upper basket stop

4. Salt container

5. Large filter

6. Detergent dispenser

7. Control panel

8. Rating plate

9. Rinse aid dispenser

10. Central filter

11. Lower spray arm

12. Upper spray arm

13. Upper basket

14. Worktop

1. On/Off indicator light

2. On/Off pushbutton

3. 45°C Delicate pushbutton

4. 50°C Energy Save pushbutton

5. Door handle

6. Programme marker

7. Programme selector dial

8. Wash programme phase indicator

9. Programme guide

10.Phase indicator guide

APP23en

Description of the appliance

The control panel

1 2 3

4 5

IN68

1234 5 678

910

Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply with the installation instructions

2. Remove all packaging from inside the appliance

3. Set the water softener

4. Pour 1 litre of water inside the salt container and

then fill with salt

5. Fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these salts, the harder your water is.

Water hardness is measured in equivalent scales, Clarke, French degrees and PPM (parts per Million).

The softener should be adjusted according to the hardness of the water in your area.Your local Water Authority can advise you on the hardness of the water in your area.

The dishwasher is factory set at level 2. If this level is not suitable for your area the softener

should be adjusted.

To adjust the water softener

With a screwdriver turn the selector on the upper front corner of the machine until the level required corresponds with the marker.

PDU06UKen

Before use

Level

Use of

salt

French

degrees

(°TH)

PPM

(Parts per

Million)

Clarke

degrees

0 1 2 3 4 5

NO YES YES YES YES YES

0 - 6

7 - 17 18 - 28 29 - 42 43 - 63 64 - 84

0 - 8

9 - 20 21 - 40 41 - 60 61 - 90

91 - 120

0 - 80

81 - 200 201 - 400 401 - 600 601 - 900

901 - 1200

Water hardness

If your water is level 0 it is already soft and therefore there is no need to use salt. In this case adjust the water softener on level 1 without using salt.

AA05

Filling with salt

Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in dishwasher, especially table salt, will damage the water softener.

Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme).This will prevent any grains of salt or salty water, which may have been spilled,remaining on the bottom of the machine for any period of time, which may cause corrosion.

To fill:

1. To fill with salt, unscrew the cap of the salt

container.

2. Pour 1 litre of water inside the container (this is necessary only before filling with salt for the first time).

3. Using the funnel provided, pour in the salt until the

container is full. Do not worry if water over flows from the unit when filling with salt, this is quite normal.

4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.

5. Screw on the cap tightly.

The salt container will require topping up periodically. The salt cap has a refill indicator window in the centre.

A green float is clearly visible when there is salt inside the container, and almost disappears when the salt has finished reminding you to add salt.

SAL02en

SALE

SALT

SALZ

SEL

SR06

SR11

Rinse aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.

Filling with rinse aid

1. Open the container by turning the lid (A)

anticlockwise.

2. Add the rinse aid until the container is completely full.The indicator (B) will be completely dark.

3. Top up the rinse aid when the indicator (B) because clear.

Ensure that the lid is closed after every refill.

Do not put liquid detergent in the rinse aid department. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

Adjusting the dose

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (C) (position 1 minimum dosage, position 6 maximum dosage).

Start from position 3. Gradually increase the dose if there are drops of water

or lime spots on the dishes after washing.Reduce it if there are sticky whitish streaks on the dishes.

BRI01en

BR01

BR03

BR02

Loading your appliance

Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance.

Do not load very small items which can fall through the baskets.

Open the door and slide out the baskets to load the dishes.

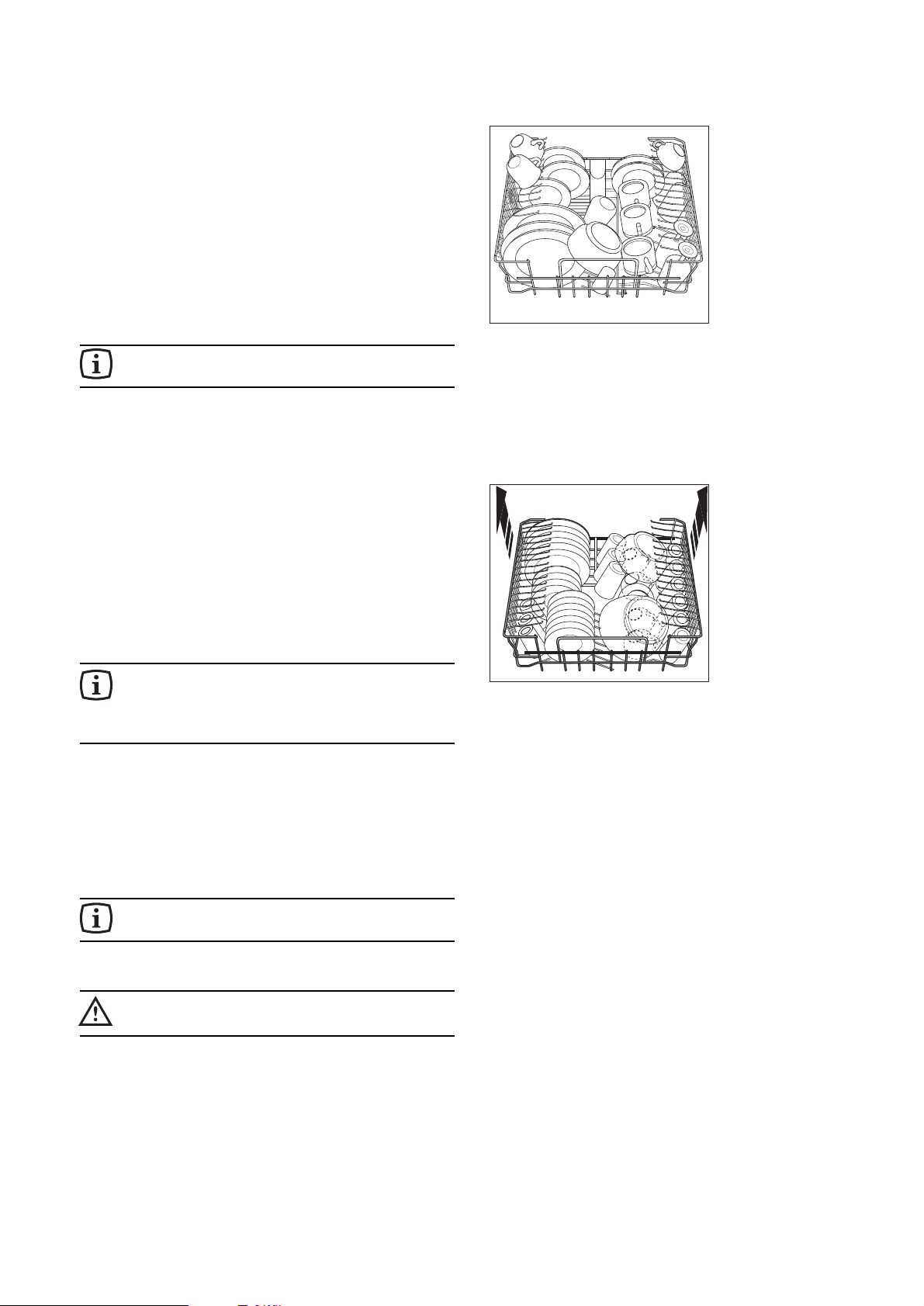

The lower basket

The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely.

The two rear rows of prongs on the lower basket can be easily lowered to allow you to load pots, pans and bowls.

To lower the prongs:

- Slightly pull them upward and let them drop down (see picture).

- To bring them back to the standing position, just pull them up again.

The cutlery basket

Long bladed knives stored in an upright position are a potential hazard. These items should only be placed in the removable knife basket. Take care when loading or unloading sharp items such as knives.

Cutlery should be placed in the removable cutlery basket with the handles facing downwards.If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking together.

Removable knife basket

Long and/or sharp items of cutlery such as carving knives must be placed horizontally in the removable knife basket, which is positioned at the rear of the upper basket.

The cutlery basket is in two parts which can be separated to give greater loading flexibility. To separate the two parts, slide them horizontally in opposite directions and pull them apart.To reassemble, reverse the procedure.

CES21en

Using your appliance

UI22

UI21

UI18

I53

UI07
