Zanussi Cook Plate User Manual

TABLE DE CUISSON

KOOKPLATEN

KOCHMULDEN

HOBS

INSTRUCTION BOOKLET

NOTICE D'UTILISATION

GEBRUIKSAANWIJZING

GEBRAUCHSANLEITUNG

GB

BE

IMPORTANT SAFETY INFORMATION

Installation

ENGLISH

You MUST read these warnings carefully before installing or using the
hob. If you need assistance, contact our Customer Care Department
on 08705 727727

● This hob must be installed by qualified personnel,

according to the manufacturer’s instructions and to
the relevant British Standards.

● Remove all packaging before using the hob.

● Ensure that the electrical supply complies with the

type stated on the rating plate, located on the
bottom of the hob.

● Do not attempt to modify the hob in any way.

Child Safety

● This hob is designed to be operated by adults. Do

not allow children to play near or with the hob.

● The hob gets hot when it is in use.

● Children should be kept away until it has cooled.

● Children can also injure themselves by pulling

pans or pots off the hob.

During Use

● Perishable food, plastic items and areosols may

be affected by heat and should not be stored
above or below the hob unit.

Service

● This hob should only be repaired or serviced by

an authorised Service Engineer and only genuine
approved spare parts should be used.

Environmental Information

● After installation, please dispose of the packaging

with due regard to safety and the environment.

● When disposing of an old appliance, make it

unusable, by cutting off the cable.

● This hob is intended for domestic cooking only. It

is not designed for commercial or industrial
purposes.

● Do not use this hob if it is in contact with water.

Do not operate the hob with wet hands.

● Ensure the control knobs are in the ‘OFF’ position

when not in use.

● When using other electrical appliances, ensure

the cable does not come into contact with the hot
surfaces of the hob.

● Unstable or misshapen pans should not be used

on the hob as unstable pans can cause an
accident by tipping or spillage.

● Never leave the hob unattended when cooking

with oil and fats.

● Never use plastic or aluminium foil dishes on the

hob.

Keep this instruction book for future
reference and ensure it is passed on

to any new owner.

3

CONTENTS

For the User

Description
of the Hob Page 5

Operation Page 6
Maintenance

and Cleaning Page 7
Something Not

Working? Page 7
Service and

Spare Parts Page 8
Guarantee Conditions Page 8

For the Installer

Technical Data Page 9
Important Safety

Requirements Page 9
Installation Page 10

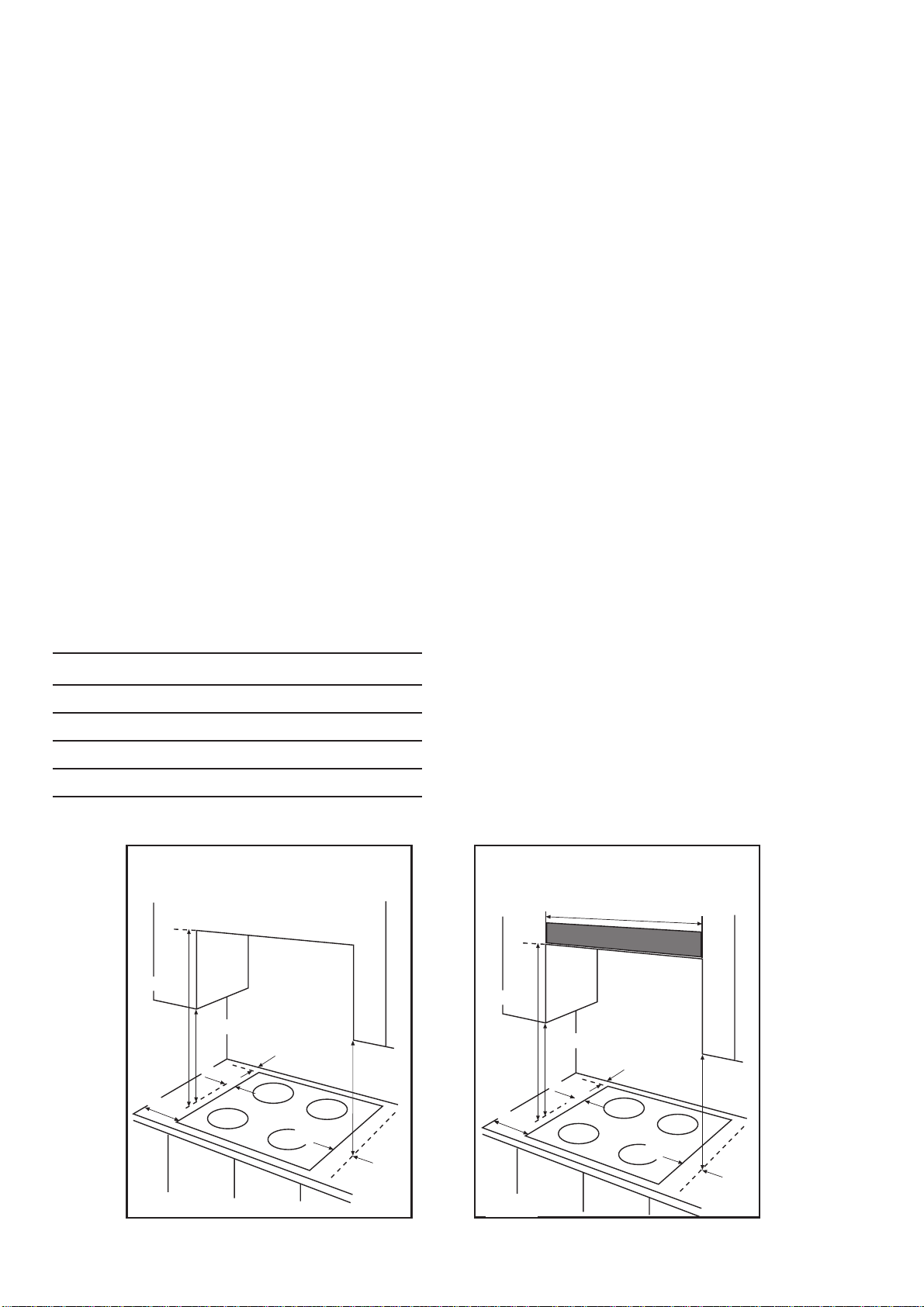

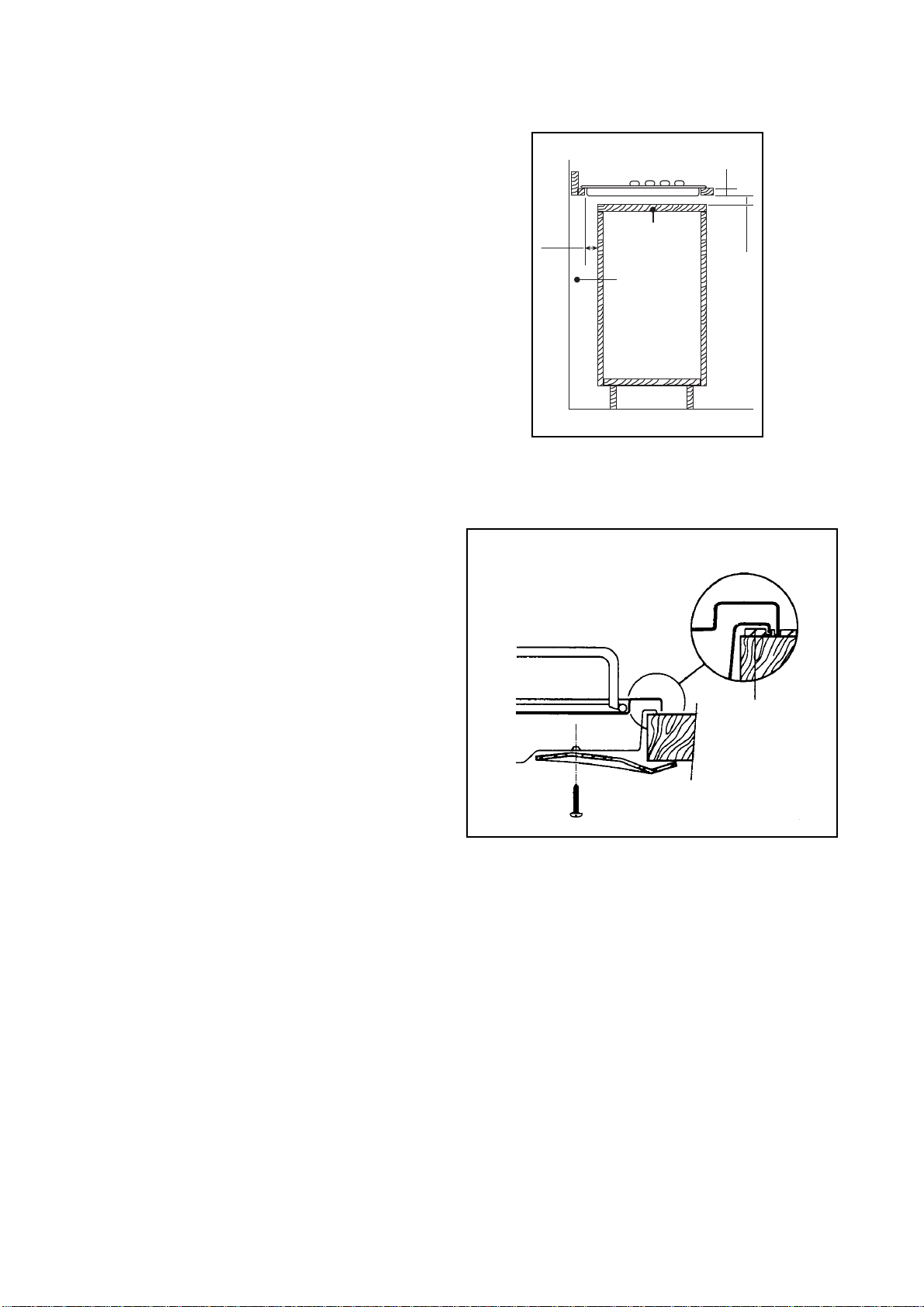

Building In Page 10

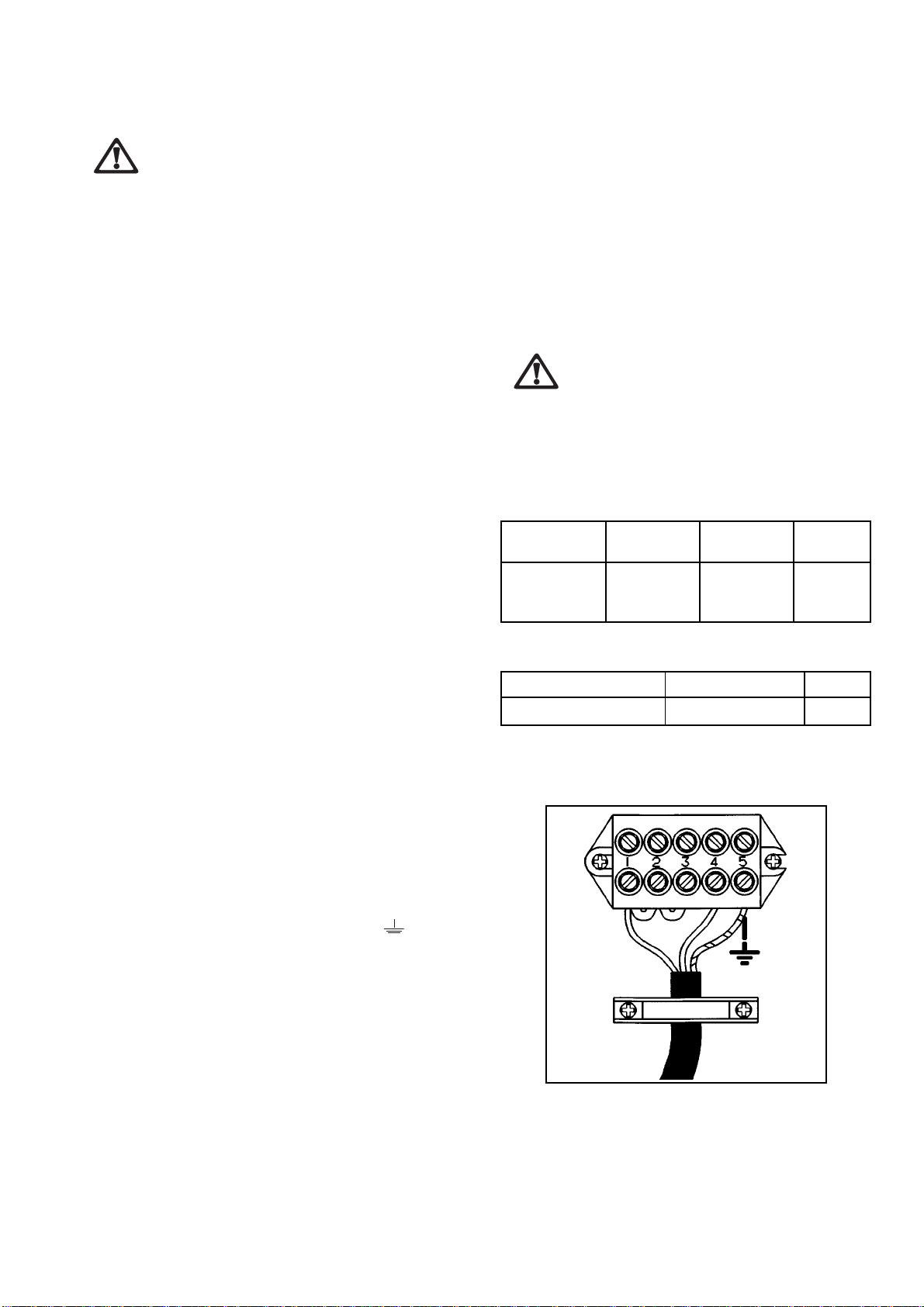

Electrical Connection Page 12

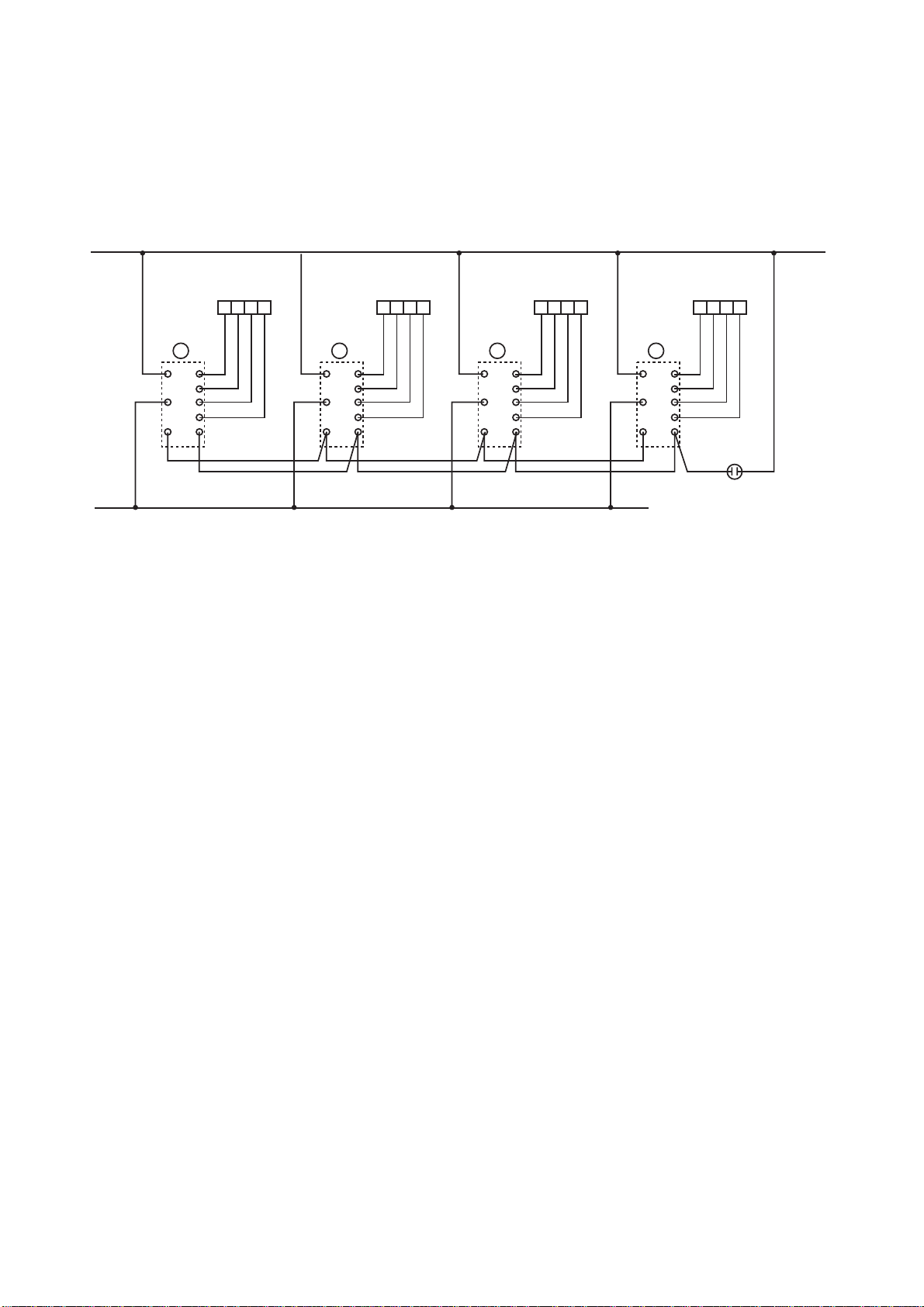

Wiring Diagram Page 13

Guide to Use the instructions

The following symbols will be found in the text to
guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an

☞

operation

Hints and Tips

i

This appliance is manufactured according
to the following EEC directives:
73/23 EEC - 90/683 EEC - 93/68 EEC ­89/336 EEC current edition.

4

DESCRIPTION OF THE HOB

3

1

4

2

5

6

7

8

9

10

1. Hob T op

2. Rapid Hotplate - 2090 W/180 mm dia.

3. Normal Hotplate - 1040 W/145 mm dia.

4. Rapid Hotplate - 1570 W/145 mm dia.

5. Normal Hotplate - 1570 W/180 mm dia.

6. Control knob for back left hotplate

7. Control knob for back right hotplate

8. Control knob for front right hotplate

9. Control knob for front left hotplate

9. Electric Hotplates Control Light

INSTALLATION

The hob must be installed according to the
instructions supplied.

The hob must be installed by qualified
personnel to the relevant British Standards.

Please, ensure that, once the hob is
installed, it is easily accessible for the
engineer in the event of a breakdown.

WHEN THE HOB IS FIRST INSTALLED

Once the hob has been installed, it is
important to remove any protective
materials, which were put on in the factory.

5
