ZANUSSI
P R O F E S S I O N A L

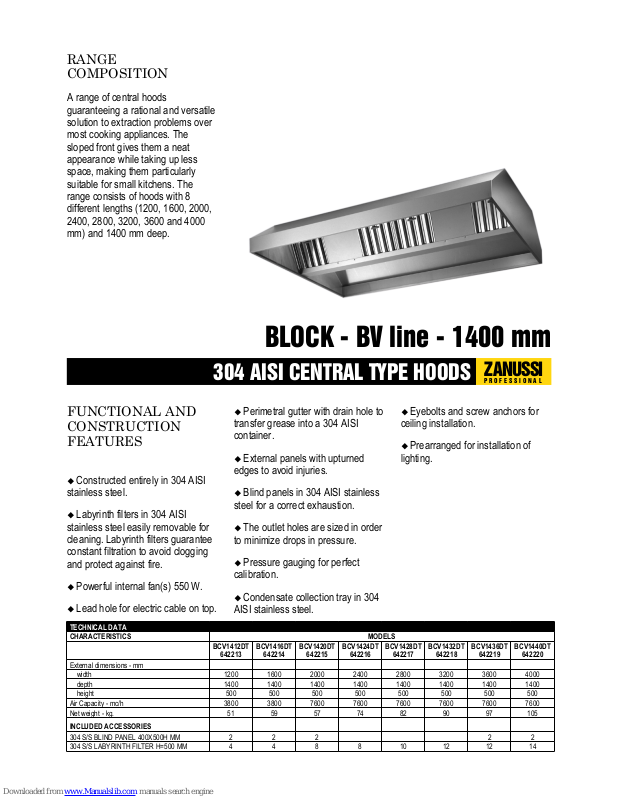

304 AISI CENTRAL TYPE HOODS
BLOCK - BV line - 1400 mm
304 S/S LABYRINTH FILTER H=500 MM 4 4 8 8 10 12 12 14
304 S/S BLIND PANEL 400X500H MM 2 2 2 2 2
INCLUDED ACCESSORIES
Net weight - kg. 51 59 57 74 82 90 97 105
Air Capacity - mc/h 3800 3800 7600 7600 7600 7600 7600 7600
height 500 500 500 500 500 500 500 500
depth 1400 1400 1400 1400 1400 1400 1400 1400
width 1200 1600 2000 2400 2800 3200 3600 4000
External dimensions - mm
BCV1412DT
642213
BCV1416DT
642214
BCV1420DT
642215
BCV1424DT
642216
BCV1428DT
642217
BCV1432DT
642218
BCV1436DT
642219
BCV1440DT
642220
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
A range of central hoods
guaranteeing a rational and versatile
solution to extraction problems over
most cooking appliances. The
sloped front gives them a neat
appearance while taking up less
space, making them particularly
suitable for small kitchens. The
range consists of hoods with 8
different lengths (1200, 1600, 2000,
2400, 2800, 3200, 3600 and 4000
mm) and 1400 mm deep.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Constructed entirely in 304 AISI
stainless steel.
� Labyrinth filters in 304 AISI
stainless steel easily removable for
cleaning. Labyrinth filters guarantee
constant filtration to avoid clogging
and protect against fire.
� Powerful internal fan(s) 550 W.
� Lead hole for electric cable on top.
� Perimetral gutter with drain hole to
transfer grease into a 304 AISI
container.
� External panels with upturned
edges to avoid injuries.
� Blind panels in 304 AISI stainless
steel for a correct exhaustion.
� The outlet holes are sized in order
to minimize drops in pressure.
� Pressure gauging for perfect
calibration.
� Condensate collection tray in 304
AISI stainless steel.
� Eyebolts and screw anchors for
ceiling installation.
� Prearranged for installation of
lighting.
HCBB4 2011-06-27 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
SPEED VARIATOR
FOR MOTORS UP
TO 1.7 KW
640686 640686 640686 640686 640686 640686
SPEED VARIATOR
FOR MOTORS UP
TO 1.17 KW
640076 640076
DRAIN FOR HOODS
DIAM.1/2"(M) WITH
PLUG
640409 640409 640409 640409 640409 640409 640409 640409
36-WATT LIGHTING
FIXTURE W/1
LAMP-IP 65
680805 680805 680805 680805 680805
27-WATT LIGHTING
FIXTURE W/1
LAMP-IP 65
680804 680804 680804 680804 680804
BCV1412DT
642213
BCV1416DT
642214
BCV1420DT
642215
BCV1424DT
642216
BCV1428DT
642217
BCV1432DT
642218
BCV1436DT
642219
BCV1440DT
642220
ACCESSORIES MODELS
OPTIONAL
ACCESSORIES
EI - Electrical
connection
220/240 V,
1N, 50/60
220/240 V,
1N, 50/60
220/240 V,
1N, 50/60
220/240 V,
1N, 50/60
220/240 V,
1N, 50/60
220/240 V,
1N, 50/60
220/240 V,
1N, 50/60
220/240 V,
1N, 50/60
BCV1412DT
642213
BCV1416DT
642214
BCV1420DT
642215
BCV1424DT
642216
BCV1428DT
642217
BCV1432DT
642218
BCV1436DT
642219
BCV1440DT
642220
LEGEND
642213, 642214 642215, 642220, 642219, 642218, 642217, 642216
