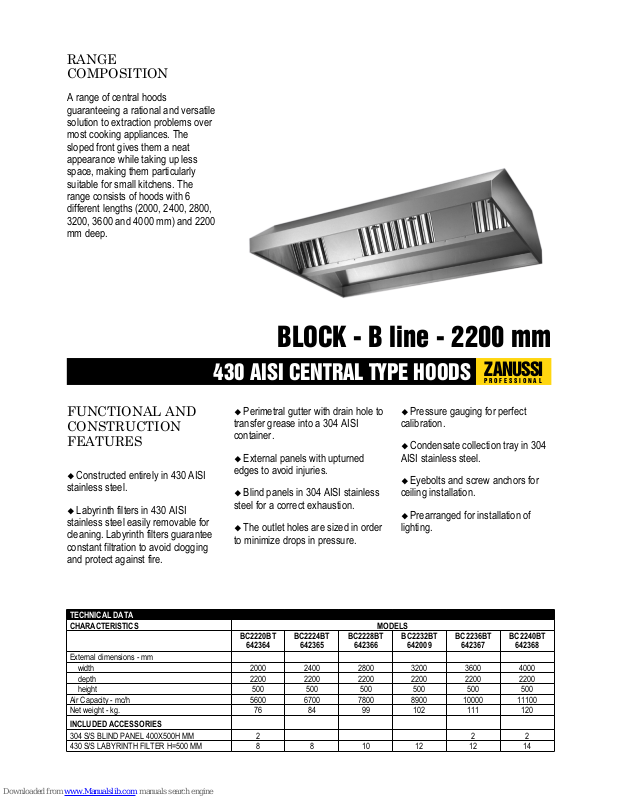

Page 1

ZANUSSI

P R O F E S S I O N A L

430 AISI CENTRAL TYPE HOODS

BLOCK - B line - 2200 mm

430 S/S LABYRINTH FILTER H=500 MM 8 8 10 12 12 14

304 S/S BLIND PANEL 400X500H MM 2 2 2

INCLUDED ACCESSORIES

Net weight - kg. 76 84 99 102 111 120

Air Capacity - mc/h 5600 6700 7800 8900 10000 11100

height 500 500 500 500 500 500

depth 2200 2200 2200 2200 2200 2200

width 2000 2400 2800 3200 3600 4000

External dimensions - mm

BC2220BT

642364

BC2224BT

642365

BC2228BT

642366

BC2232BT

642009

BC2236BT

642367

BC2240BT

642368

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE COMPOSITION

A range of central hoods guaranteeing a rational and versatile solution to extraction problems over most cooking appliances. The sloped front gives them a neat appearance while taking up less space, making them particularly suitable for small kitchens. The range consists of hoods with 6 different lengths (2000, 2400, 2800, 3200, 3600 and 4000 mm) and 2200 mm deep.

FUNCTIONAL AND CONSTRUCTION FEATURES

� Constructed entirely in 430 AISI

stainless steel.

� Labyrinth filters in 430 AISI

stainless steel easily removable for cleaning. Labyrinth filters guarantee constant filtration to avoid clogging and protect against fire.

� Perimetral gutter with drain hole to

transfer grease into a 304 AISI container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

� The outlet holes are sized in order

to minimize drops in pressure.

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

Page 2

HCAB3 2011-06-27 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

SPEED VARIATOR FOR MOTORS UP TO 1.7 KW 640686 640686 640686 640686 640686 640686

FAN FOR VENTIL HOODS+DUCTED EXTRACT.UNIT

640748 640748 640748 640748 640748 640748

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG 640409 640409 640409 640409 640409 640409

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680805 680805 680805 680805

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680804 680804 680804 680804
