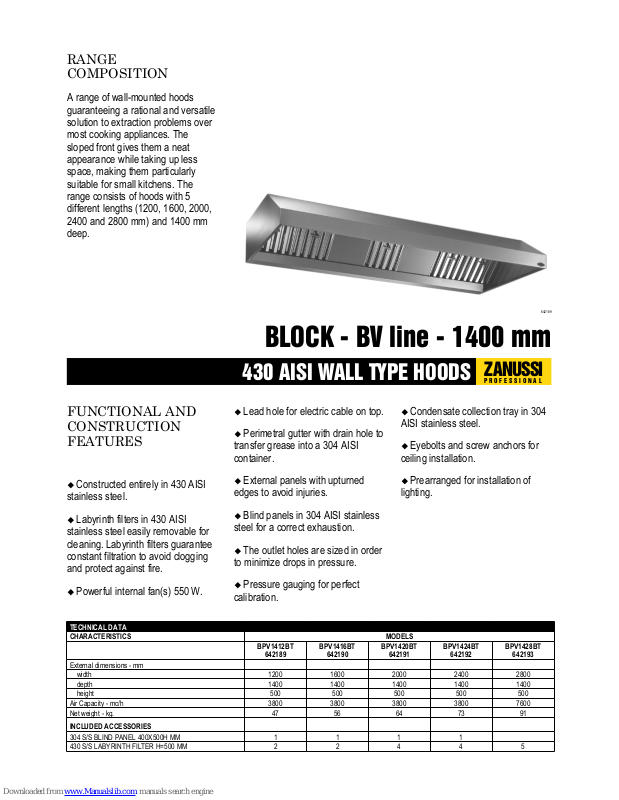

ZANUSSI
P R O F E S S I O N A L
430 AISI WALL TYPE HOODS
BLOCK - BV line - 1400 mm
642189
430 S/S LABYRINTH FILTER H=500 MM 2 2 4 4 5
304 S/S BLIND PANEL 400X500H MM 1 1 1 1
INCLUDED ACCESSORIES
Net weight - kg. 47 56 64 73 91
Air Capacity - mc/h 3800 3800 3800 3800 7600
height 500 500 500 500 500
depth 1400 1400 1400 1400 1400
width 1200 1600 2000 2400 2800
External dimensions - mm
BPV1412BT
642189
BPV1416BT
642190
BPV1420BT
642191
BPV1424BT
642192
BPV1428BT
642193
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
A range of wall-mounted hoods
guaranteeing a rational and versatile
solution to extraction problems over
most cooking appliances. The
sloped front gives them a neat
appearance while taking up less
space, making them particularly
suitable for small kitchens. The
range consists of hoods with 5
different lengths (1200, 1600, 2000,
2400 and 2800 mm) and 1400 mm
deep.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Constructed entirely in 430 AISI
stainless steel.
� Labyrinth filters in 430 AISI
stainless steel easily removable for
cleaning. Labyrinth filters guarantee
constant filtration to avoid clogging
and protect against fire.
� Powerful internal fan(s) 550 W.
� Lead hole for electric cable on top.
� Perimetral gutter with drain hole to
transfer grease into a 304 AISI
container.
� External panels with upturned
edges to avoid injuries.
� Blind panels in 304 AISI stainless
steel for a correct exhaustion.
� The outlet holes are sized in order
to minimize drops in pressure.
� Pressure gauging for perfect
calibration.
� Condensate collection tray in 304
AISI stainless steel.
� Eyebolts and screw anchors for
ceiling installation.
� Prearranged for installation of
lighting.
Page 2
HCBA2 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
SPEED VARIATOR FOR MOTORS UP TO 1.7 KW 640686
SPEED VARIATOR FOR MOTORS UP TO 1.17 KW 640076 640076 640076 640076
DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG 640409 640409 640409 640409 640409
36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680805 680805
27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65 680804 680804 680804
BPV1412BT
642189
BPV1416BT
642190
BPV1420BT
642191
BPV1424BT
642192
BPV1428BT
642193
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
EI - Electrical connection 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60 220/240 V, 1N, 50/60
BPV1412BT
642189
BPV1416BT
642190
BPV1420BT
642191
BPV1424BT
642192
BPV1428BT
642193
LEGEND
642189, 642192, 642191, 642190 642193
