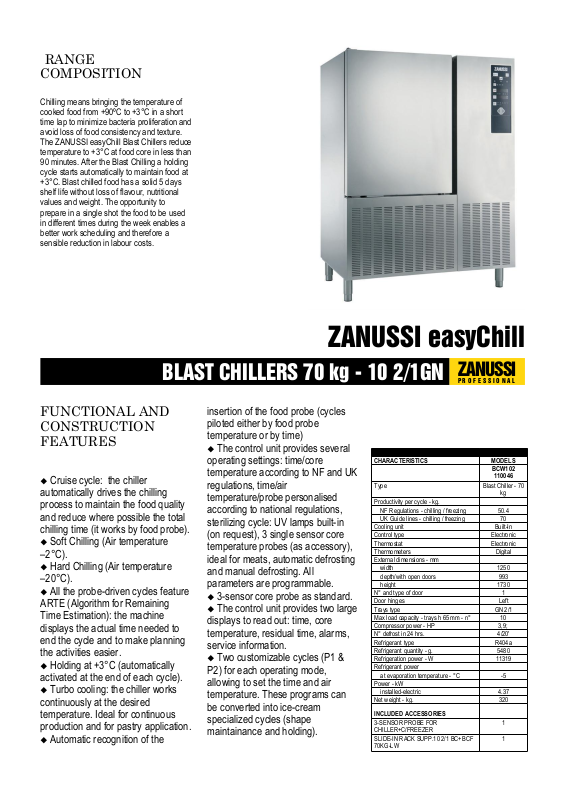

RANGE
COMPOSITION
Chilling means bringing the temperature of
cooked food from +90ºC to +3°C in a short
time lap to minimize bacteria proliferation and
avoid loss of food consistency and texture.
The ZANUSSI easyChill Blast Chillers reduce
temperature to +3°C at food core in less than
90 minutes. After the Blast Chilling a holding
cycle starts automatically to maintain food at
+3°C. Blast chilled food has a solid 5 days
shelf life without loss of flavour, nutritional
values and weight. The opportunity to
prepare in a single shot the food to be used
in different times during the week enables a
better work scheduling and therefore a
sensible reduction in labour costs.
BLAST CHILLERS 70 kg - 10 2/1GN
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Cruise cycle: the chiller
automatically drives the chilling
process to maintain the food quality
and reduce where possible the total
chilling time (it works by food probe).
� Soft Chilling (Air temperature
–2°C).
� Hard Chilling (Air temperature
–20°C).
� All the probe-driven cycles feature
ARTE (Algorithm for Remaining
Time Estimation): the machine
displays the actual time needed to
end the cycle and to make planning
the activities easier.
� Holding at +3°C (automatically
activated at the end of each cycle).
� Turbo cooling: the chiller works
continuously at the desired
temperature. Ideal for continuous
production and for pastry application.
� Automatic recognition of the
ZANUSSI easyChill
insertion of the food probe (cycles
piloted either by food probe
temperature or by time)
� The control unit provides several
operating settings: time/core
temperature according to NF and UK
regulations, time/air
temperature/probe personalised
according to national regulations,
sterilizing cycle: UV lamps built-in
(on request), 3 single sensor core
temperature probes (as accessory),
ideal for meats, automatic defrosting
and manual defrosting. All
parameters are programmable.
� 3-sensor core probe as standard.
� The control unit provides two large
displays to read out: time, core
temperature, residual time, alarms,
service information.
� Two customizable cycles (P1 &
P2) for each operating mode,
allowing to set the time and air
temperature. These programs can
be converted into ice-cream
specialized cycles (shape
maintainance and holding).
ZANUSSI
P R O F E S S I O N A L
TECHNICAL DATA
CHARACTERISTICS MODELS
Type Blast Chiller - 70
Productivity per cycle - kg.
NF Regulations - chilling / freezing 50.4
UK Guide lines - chilling / freezing 70
Cooling unit Built-In
Control type Electronic
Thermostat Electronic
Thermometers Digital
External dimensions - mm
width 1250
depth/with open doors 993
height 1730
N° and type of door 1
Door hinges Left
Trays type GN 2/1
Max load capacity - trays h 65 mm - n° 10
Compressor power - HP 3,9;
N° defrost in 24 hrs. 4/20'
Refrigerant type R404a
Refrigerant quantity - g. 5480
Refrigeration power - W 11319
Refrigerant power
at evaporation temperature - °C -5
Power - kW
installed-electric 4.37
Net weight - kg. 320
INCLUDED ACCESSORIES
3-SENSOR PROBE FOR
CHILLER+C/FREEZER
SLIDE-IN RACK SUPP.10 2/1 BC+BCF
70KG-LW
BCW102
110046
kg
1
1
Page 2
BLAST CHILLERS 70 kg - 10 2/1GN
ZANUSSI easyChill
� All information related to the
different operating models are
recorded: date, time, cycle, core
temperature, holding temperature,
HACCP accordance.
� An audible alarm starts when the
cycle ends or terminates abnormally.
� Chilling times can vary according
to food quantity, density, moisture
contents and type of containers.
� Internal and external finishing in
304 AISI stainless steel and
backpanel in galvanized steel.
� HCFC, CFC and HFC free
insulation (Cyclopentane), HCFC
and CFC free refrigerant gas
(R404a).
� Developed and produced in ISO
9001 and ISO 14001 certified
factory.
� Inner cell with rounded corners.
� Door equipped with removable
magnetic gasket with hygienic
design.
� Evaporator with antirust
protection.
� Ventilator swinging panel foreasy
access to the evaporator.
� Automatic heated door frame.
� Thermostatic expansion valve to
optimize the cooling unit efficiency.
� Adjustable feet 150 mm high.
� Stand alone printer as accessory.
� PC connection as accessory, gate
RS 485.
� No water connections required:
Waste water can be plumbed into
drain, but can also be collected in an
optional waste container.
*NF HYGIENE ALIMENTAIRE
certifying authority : AFAQ AFNOR
CERTIFICATION. Adress:11, Avenue Francis de
Pressense - 93571 Saint-Denis La Plaine Cedex
- France. Conformity with regulation NF031.
Certified guarantees: fitness for cleaning, thermal
performance.
OPTIONAL ACCESSORIES
ACCESSORIES MODELS
1 SINGLE SENSOR PROBE CHILLER+C/FREEZER 880089
2 SINGLE SENSOR PROBES CHILLER+C/FREEZER 880096
BANQUET RACK-51PLATES-75MM PITCH-10GN2/1 922052
KIT 3 SINGLE SENSOR PROBES FOR BC/BCF 880269
KIT 6 WHEELS FOR BLAST C/FREEZER 70KG-US 880141
KIT HACCP ADVANCED CONNECT. BC/BCF LW+CW 880183
KIT HACCP EKIS 922166
PASTRY(400X600)RACK+WHEELS-80MM,10 2/1LW 922067
PRINTER FOR HACCP BASIC VERSION 881532
THERMAL COVER FOR 10 GN 2/1-LW 922048
TRAY RACK+WHEELS 10 GN 2/1,65MM PITCH-LW 922043
TRAY RACK+WHEELS 8 GN 2/1,80MM PITCH-LW 922045
TROLLEY FOR SLIDE-IN RACK 10 GN 2/1-LW 922042
DCAB4 2009-07-03 The Company reserves the right to alter technical specifications without prior notice.
BCW102
110046
ZANUSSI
P R O F E S S I O N A L
www.zanussiprofessional.com
Page 3
BLAST CHILLERS 70 kg - 10 2/1GN
ZANUSSI easyChill
110046
LEGEND
D - Water drain 1/2"
EI - Electrical connection 400 V, 3N, 50
DCAB4 2009-07-03 The Company reserves the right to alter technical specifications without prior notice.
BCW102
110046
ZANUSSI
P R O F E S S I O N A L
www.zanussiprofessional.com
