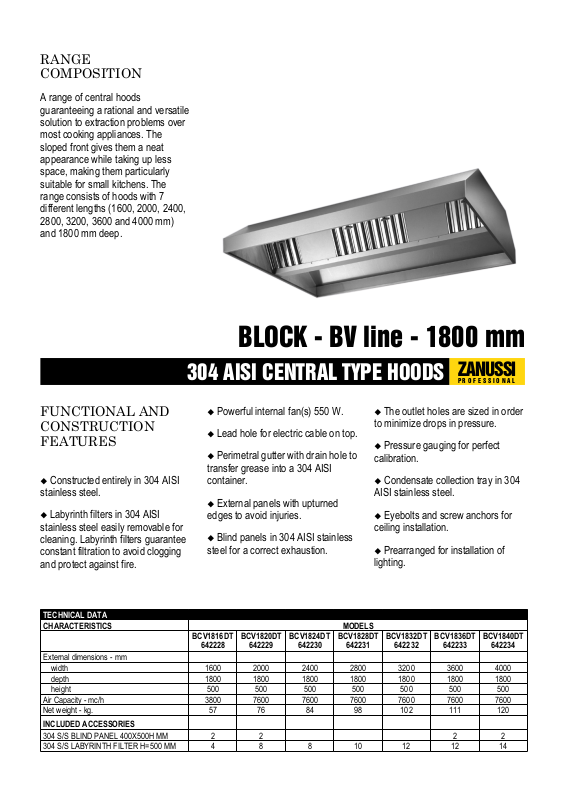

RANGE
COMPOSITION
A range of central hoods
guaranteeing a rational and versatile
solution to extraction problems over
most cooking appliances. The
sloped front gives them a neat
appearance while taking up less
space, making them particularly
suitable for small kitchens. The
range consists of hoods with 7
different lengths (1600, 2000, 2400,
2800, 3200, 3600 and 4000 mm)
and 1800 mm deep.
BLOCK - BV line - 1800 mm
304 AISI CENTRAL TYPE HOODS
FUNCTIONAL AND
CONSTRUCTION
� Powerful internal fan(s) 550 W.
� Lead hole for electric cable on top.
FEATURES
� Constructed entirely in 304 AISI
stainless steel.
� Labyrinth filters in 304 AISI
stainless steel easily removable for
cleaning. Labyrinth filters guarantee
constant filtration to avoid clogging
and protect against fire.
TECHNICAL DATA
CHARACTERISTICS MODELS
External dimensions - mm
width 1600 2000 2400 2800 3200 3600 4000
depth 1800 1800 1800 1800 1800 1800 1800
height 500 500 500 500 500 500 500
Air Capacity - mc/h 3800 7600 7600 7600 7600 7600 7600
Net weight - kg. 57 76 84 98 102 111 120
INCLUDED ACCESSORIES
304 S/S BLIND PANEL 400X500H MM 2 2 2 2
304 S/S LABYRINTH FILTER H=500 MM 4 8 8 10 12 12 14
� Perimetral gutter with drain hole to
transfer grease into a 304 AISI
container.
� External panels with upturned
edges to avoid injuries.
� Blind panels in 304 AISI stainless
steel for a correct exhaustion.
BCV1816DT
642228
BCV1820DT
642229
BCV1824DT
642230
BCV1828DT
� The outlet holes are sized in order
to minimize drops in pressure.
� Pressure gauging for perfect
calibration.
� Condensate collection tray in 304
AISI stainless steel.
� Eyebolts and screw anchors for
ceiling installation.
� Prearranged for installation of
lighting.
642231
BCV1832DT
642232
ZANUSSI
P R O F E S S I O N A L
BCV1836DT
642233
BCV1840DT
642234
![](/html/57/571b/571be90fb8547e972cd50821a0531d9f948d1ea4a4261d746fc6bf04c1ba582b/bg2.png)
500
241.5
305
1800
642228
642229, 642234, 642233, 642232, 642231, 642230
1800
305
500
241.5
1800
900 900
LEGEND
I - Electrical
connection
1800
900 900
C
262
P
298
62
25
305 305
25
BCV1816DT
642228
220/240 V,
1N, 50/60
BCV1820DT
642229
220/240 V,
1N, 50/60
BCV1824DT
K
9
25
642230
220/240 V,
1N, 50/60
BCV1828DT
642231
220/240 V,
1N, 50/60
25
1600
BCV1832DT
642232
220/240 V,
1N, 50/60
25
BCV1836DT
642233
220/240 V,
1N, 50/60
C
262
PP
262
305 305
25 25
BCV1840DT
642234
220/240 V,
1N, 50/60
K
62
9
25
447298298
510/910/1310/1710/2110/2510
447
2000/2400/2800/3200/3600/4000
OPTIONAL
ACCESSORIES
ACCESSORIES MODELS
BCV1816DT
27-WATT LIGHTING
FIXTURE W/1
LAMP-IP 65
36-WATT LIGHTING
FIXTURE W/1
LAMP-IP 65
DRAIN FOR HOODS
DIAM.1/2"(M) WITH
PLUG
SPEED VARIATOR
FOR MOTORS UP TO
1.17 KW
SPEED VARIATOR
FOR MOTORS UP TO
1.7 KW
