ZANUSSI
P R O F E S S I O N A L

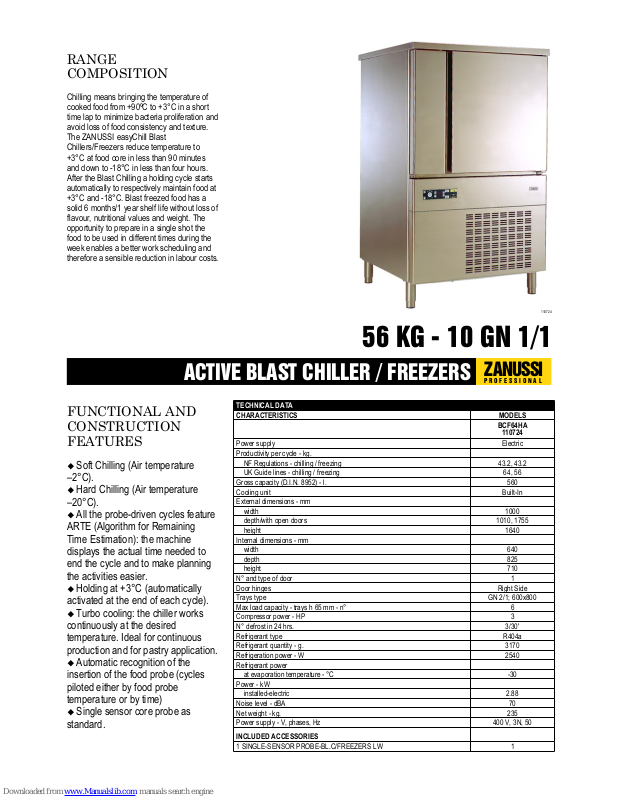

ACTIVE BLAST CHILLER / FREEZERS
56 KG - 10 GN 1/1
110724
1 SINGLE-SENSOR PROBE-BL.C/FREEZERS LW 1
INCLUDED ACCESSORIES
Power supply - V, phases, Hz 400 V, 3N, 50
Net weight - kg. 235
Noise level - dBA 70
installed-electric 2.88
Power - kW
at evaporation temperature - °C -30
Refrigerant power
Refrigeration power - W 2540
Refrigerant quantity - g. 3170
Refrigerant type R404a
N° defrost in 24 hrs. 3/30'
Compressor power - HP 3
Max load capacity - trays h 65 mm - n° 6
Trays type GN 2/1; 600x800
Door hinges Right Side
N° and type of door 1
height 710
depth 825
width 640
Internal dimensions - mm
height 1640
depth/with open doors 1010, 1755
width 1000
External dimensions - mm
Cooling unit Built-In
Gross capacity (D.I.N. 8952) - l. 560
UK Guide lines - chilling / freezing 64, 56
NF Regulations - chilling / freezing 43.2, 43.2
Productivity per cycle - kg.
Power supply Electric
BCF64HA
110724
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
Chilling means bringing the temperature of
cooked food from +90ºC to +3°C in a short
time lap to minimize bacteria proliferation and
avoid loss of food consistency and texture.
The ZANUSSI easyChill Blast
Chillers/Freezers reduce temperature to
+3°C at food core in less than 90 minutes
and down to -18°C in less than four hours.
After the Blast Chilling a holding cycle starts
automatically to respectively maintain food at
+3°C and -18°C. Blast freezed food has a
solid 6 months/1 year shelf life without loss of
flavour, nutritional values and weight. The
opportunity to prepare in a single shot the
food to be used in different times during the
week enables a better work scheduling and
therefore a sensible reduction in labour costs.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Soft Chilling (Air temperature
–2°C).
� Hard Chilling (Air temperature
–20°C).
� All the probe-driven cycles feature
ARTE (Algorithm for Remaining
Time Estimation): the machine
displays the actual time needed to
end the cycle and to make planning
the activities easier.
� Holding at +3°C (automatically
activated at the end of each cycle).
� Turbo cooling: the chiller works
continuously at the desired
temperature. Ideal for continuous
production and for pastry application.
� Automatic recognition of the
insertion of the food probe (cycles
piloted either by food probe
temperature or by time)
� Single sensor core probe as
standard.
Page 2
ACTIVE BLAST CHILLER / FREEZERS
56 KG - 10 GN 1/1
DCB02 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
TROLLEY FOR 10X1/1 & 2/1 ROLL IN RACK 922128
SLIDE-IN RACK SUPP. BC+BCF 56KG 10 GN2/1 880075
PRINTER FOR HACCP BASIC VERSION 881532
PLASTIFIED GRILL RILSAN GN 2/1 881030
PLASTIC COATED GRID-600X400 MM 880864
KIT TO CONVERT TO 10X2/1 ROLL-IN RACK 922202
KIT HACCP EKIS 922166
KIT HACCP ADVANCED CONNECT. BC/BCF LW+CW 880183
80 MM PITCH SIDE HANGERS FOR 10X2/1 OVEN 922117
60 MM PITCH SIDE HANGERS FOR 10X2/1 OVEN 922123
4 WHEELS FOR BLAST CHILLERS 881097
3-POINT-SENSOR PROBE-BL.C/FREEZERS LW 880212
1 SINGLE-SENSOR PROBE-BL.C/FREEZERS LW 880213
BCF64HA
110724
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
� The control unit provides several
operating settings: time/core
temperature according to NF and UK
regulations, time/air
temperature/probe personalised
according to national regulations,
sterilizing cycle: UV lamps built-in
(on request), 3 single sensor or
3-sensor temperature probes (as
accessory), ideal for meats,
automatic defrosting and manual
defrosting. All parameters are
programmable.
� The control unit provides two large
displays to read out: time, core
temperature, residual time, alarms,
service information.
� Two customizable cycles for each
operating modes, allowing setting
time and air temperature. These two
programs (P1-P2) can be converted
into ice-cream specialist cycles
(shape maintenance and holding).
� All information related to the
different operating models are
recorded: date, time, cycle, core
temperature, holding temperature,
HACCP accordance.
� An audible alarm starts when the
cycle ends or terminates abnormally.
� Chilling times can vary according
to food quantity, density, moisture
contents and type of containers.
� Internal and external finishing in
304 AISI stainless steel and
backpanel in galvanized steel.
� HCFC, CFC and HFC free
insulation (Cyclopentane), HCFC
and CFC free refrigerant gas
(R404a).
� Developed and produced in ISO
9001 and ISO 14001 certified
factory.
� Inner cell with rounded corners.
� Door equipped with removable
magnetic gasket with hygienic
design.
� Evaporator with antirust
protection.
� Ventilator swinging panel foreasy
access to the evaporator.
� Automatic heated door frame.
� Hot gas defrosting system.
� Thermostatic expansion valve to
optimize the cooling unit efficiency.
� Adjustable feet 150 mm high.
� Stand alone printer as accessory.
� PC connection as accessory, gate
RS 485. No water connections
required: Waste water can be
plumbed into drain, but can also be
collected in an optional waste
container.
Page 3
ACTIVE BLAST CHILLER / FREEZERS
56 KG - 10 GN 1/1
DCB02 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
EI - Electrical connection 400 V, 3N, 50
D - Water drain 1/2"
BCF64HA
110724
LEGEND
110724
