Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

ENGLISH

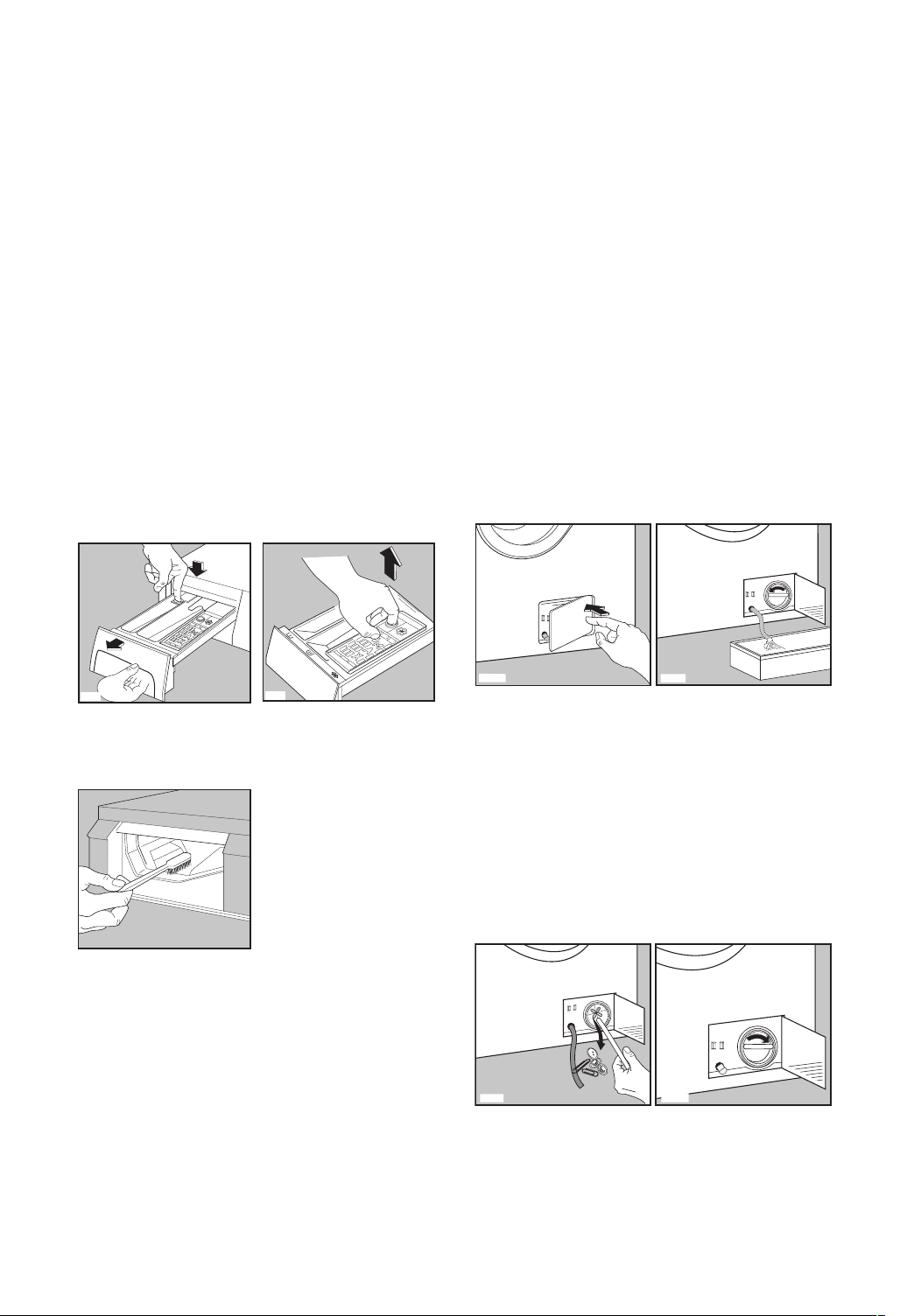

Maintenance 22-23

Bodywork 22 Detergent dispenser drawer 22 Cleaning of the drainage area 22 Water inlet filter 23 Emergency emptying out 23 Frost precautions 23

Something not working? 24-26

Warnings 4-5

Disposal 5

Tips for environmental protection 5

Technical specifications 6

Installation 7-8

Unpacking 7 Hydraulic connection 7 Levelling 8 Electrical connection 8

Your new washing machine 9

Description of the appliance 9

Detergent dispenser drawer 9

Use 10

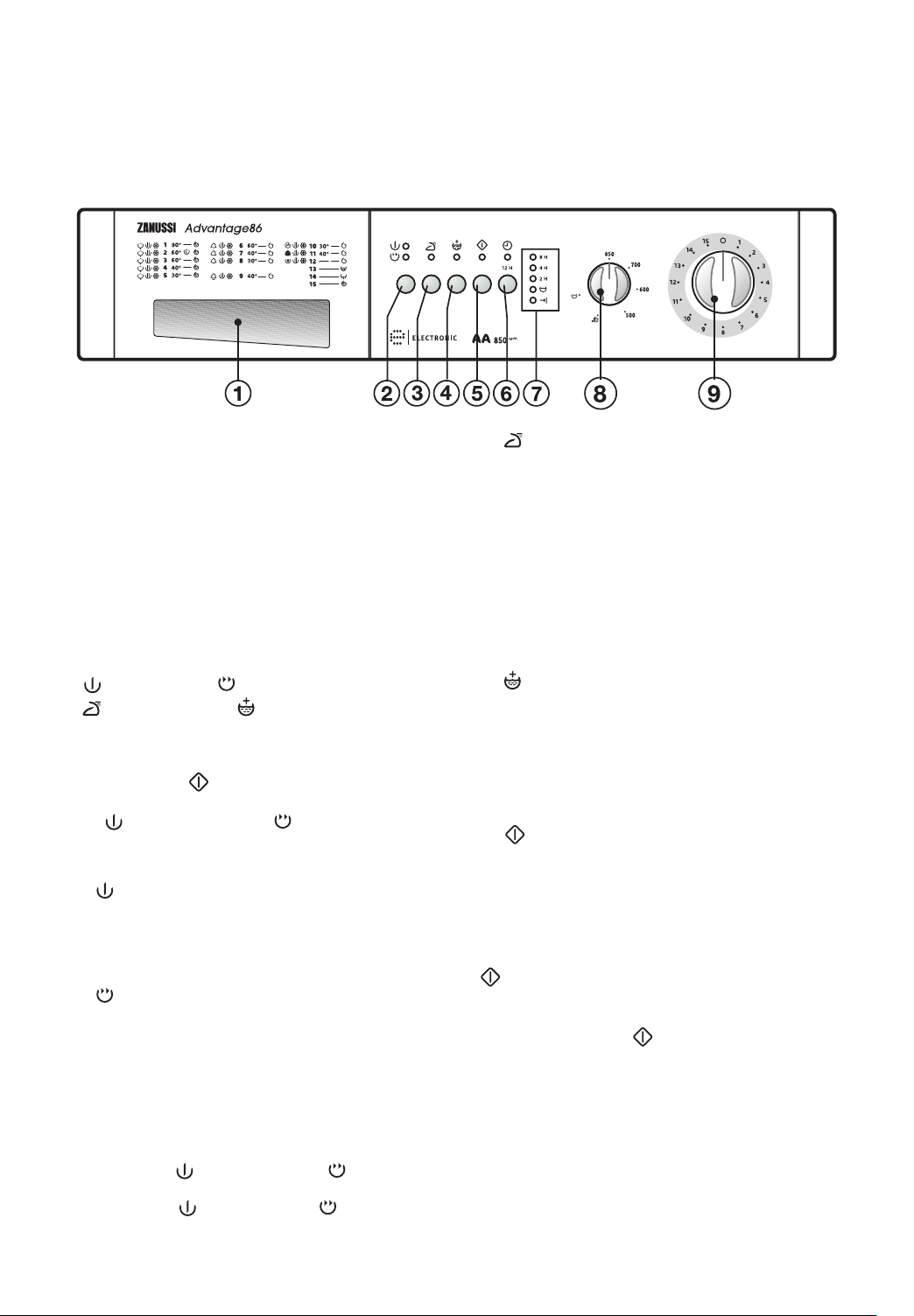

Control panel 10 Controls 10-12 Washing hints 13

Sorting the laundry 13 Temperatures 13 Before loading the laundry 13 Maximum loads 13 Laundry weights 13 Removing stains 13 Detergents and additives 14

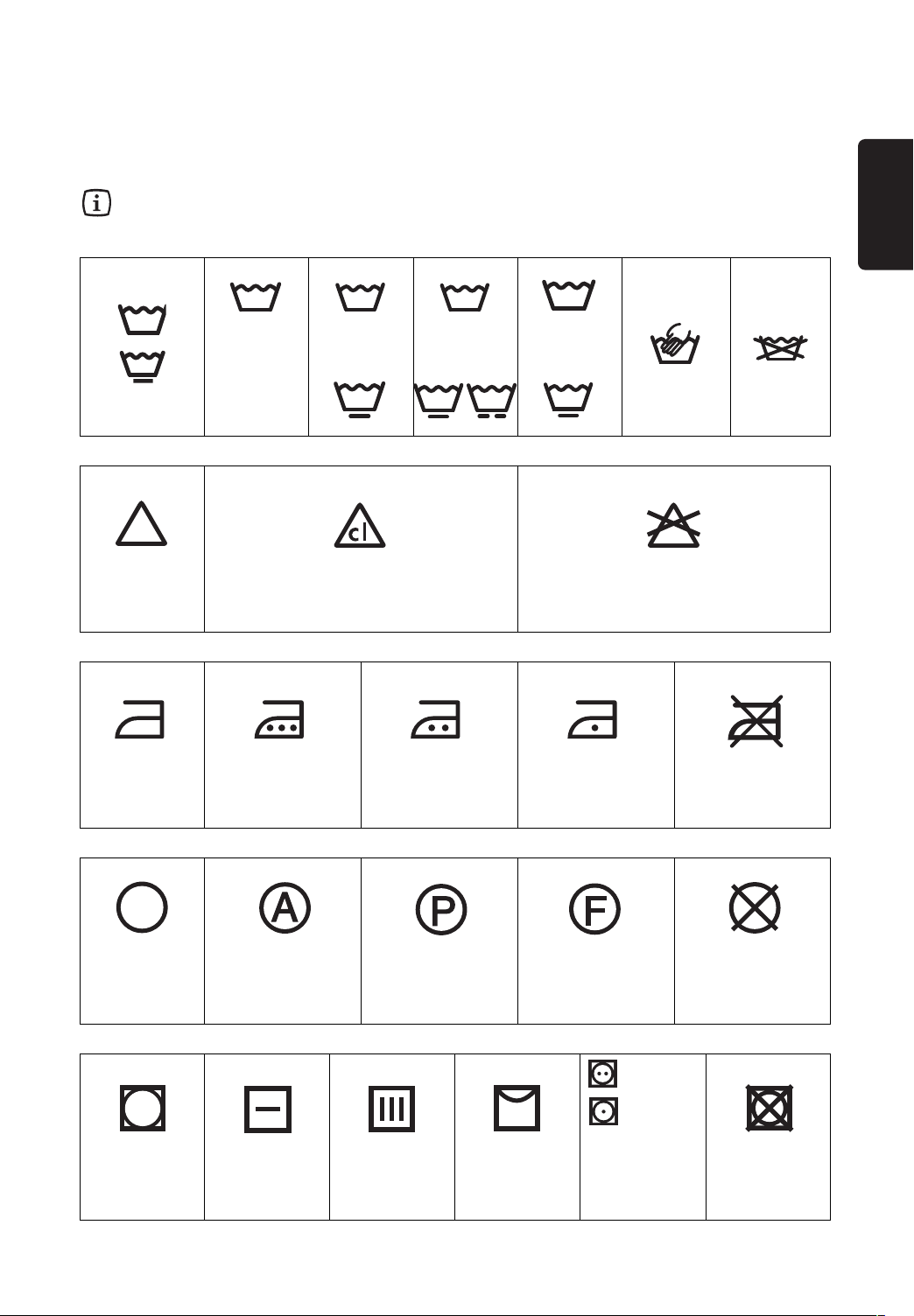

Quantity of detergent to be used 14 International wash code symbols 15 Operating sequence 16-18 Washing programmes 19-21

Contents

Installation

• All internal packing must be removed before using the appliance. Serious damage may be caused to the machine or adjacent furniture if the protective transit devices are not removed or are not completely removed. Refer to the relevant paragraph in the instruction book.

• Any electrical work required to install this appliance must be carried out by a qualified electrician.

• Any plumbing work required to install this appliance must be carried out by a qualified plumber.

• After having installed the machine, check that it is not standing on its electrical supply cable.

• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the feet and the floor.

• The power supply cable only can be replaced by a person of the Technical Service.

Use

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.

• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.

• Do not overload the appliance. Follow the instructions in the instruction book.

• Make sure that all pockets are empty. Objects such as coins, safety pins, pins and screws can cause extensive damage.

• Do not machine wash garments saturated with petroleum, methylated spirits, trichlorethylene, etc. If such fluids have been used to remove stains prior to washing, wait until they have completely evaporated from the fabric before placing garments in the appliance.

• Place small items such as socks, belts, etc. in a cloth bag or pillowcase to prevent them getting trapped between the drum and the tub.

• Use only the recommended quantities of fabric softener. An excessive amount could damage the laundry.

Warnings

• Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door seal and prevents the formation of musty smells.

• Always check that water has emptied out before opening the door. If not, drain the water following the instructions in the instruction book.

• Always unplug the appliance and shut the water tap after use.

General safety

• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious danger. Contact your local Service Centre.

• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

• During high temperature wash programmes the door glass may get hot. Do not touch it!

The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

ENGLISH

Disposal

Tips for environmental protection

Packaging materials

The materials marked with the symbol are recyclable.

>PE<=polyethylene >PS<=polystyrene >PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

Machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.!

To save water, energy and to help protect the environment, we recommend that you follow these tips:

• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded.

• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum.

• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

DIMENSIONS Height 85 cm

Width 60 cm Depth 60 cm

MAXIMUM RECOMMEND LOAD Cotton, linen 5 kg

Synthetics 2 kg Delicates 2 kg Woollens 1 kg

SPIN SPEED 850 r.p.m. max.

POWER SUPPLY VOLTAGE/FREQUENCY 230 V/50 Hz TOTAL POWER ABSORBED 2100 W MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 50 kPa

Maximum 800 kPa

This appliance complies with the following EEC Directives: 73/23/EEC of 19/02/73 relating to low voltage 89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

Technical specifications

It is dangerous to alter the specifications or attempt to modify this product in any way.

Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

The power supply cable only can be replaced by a person of our Service Force Centre.

Intallation instructions

ENGLISH

Installation

Transit security bars

Before starting the machine up, the transport security bars must be removed as follows:

You are advised to keep all the transport security bars in case the appliance has to be transported again.

1. Unscrew and remove the three rear screws by means of a key.

2. Lean the appliance back on the rear and fit one of the polystyrene angles between the appliance and the floor.

Make sure the hoses are not squashed.

3. Carefully remove the plastic bags on the left and the right, pulling them to the centre of the appliance

4. Place the machine in an upright position and remove the three plastic bolts.

5. Plug the 3 holes with the plastic plugs which you can find in the envelope containing the instruction booklet.

Hydraulic connection

There should be a COLD WATER tap near the washing machine with a screwing on connection pipe of 3/4 gas for the water supply, a sink, a wash basin or a drainage system in the wall.

Previously check if: — it is not a hot water tap. — the running water is clean. If not, run off a

reasonable amount of water to flush out any debris that may have collected in the pipes.

Have the permanent drainage system in the wall checked by a plumber.

A) Carefully screw the pipe to the tap taking care not to damage the screwdrive and fix the nut well on to the end in order to avoid leaking.

B) If necessary turn the hose adequately by unscrewing the nut at the rear of the appliance.

C) Now tighten the nut anew to avoid leaks. (Open the tap and asure that it does not leak and close it again.)

D) Place the discharging hose in a washbasin or sink with the aid of the bent piece delivered separately. The bent piece has to be entered into the tube’s mouth in order to assure the support. Aforesaid piece allows the hose to be fixed to the wall by means of an opening on the upper part and that way the hose does not move and its falling is avoided.

P0287

P0018

AL009

P0001

P0002

P1088

P0021

P0022

1,5 m. Max.

60 cm. Min.

90 cm. Max.

IMPORTANT: The distance from the floor to the highest part of the hose should be between 60 to 90 cm. (It is advised to be between 60 and 70 cm). The hose must not be bent nor twisted to avoid clogging. Should a prolongation of the discharging hose be unavoidable this must never surpass 1.5 m and must be of the same diameter as the original hose. Make sure the hoses are not too tense.

Levelling

Level the appliance by loosening or tightening the feet. Once in the right position fix the feet by pushing the nuts against the base of the case. Accurate levelling will prevent vibration, noise and displacement of the appliance during operation.

Some vibration is inevitable, especially if placed on a wooden floor. Wooden floors are particularly susceptible to vibrations. For advice, consult a builder. If posible always place the appliance on a solid floor.

Electrical connections

Before plugging the appliance make sure that: 1º. the mains of your installation is the same as on

the rating plate of your appliance (the plate is sticked to the rear of the appliance).

2º. The meter, the fuses, the wiring and the socket outlet can support the max. power absorbed stated on the rating plate.

3º. The socket base and the plug must fit in adequately without any reducing interposition, multiple outlets or adapters. If necessary replace the socket outlet by an adequate one.

The applicable rules for electrical security require an adequate earthing. The plug of the appliance is provided with such a device.

Make sure your socket outlet is provided with an adequate earthing too.

The manufacturer declines any liability in case of accidents or incicents should these safety measures not be observed.

The power supply cable only can be replaced by a person of our Service Force Centre.

P0254

ENGLISH

This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

• The balance control device ensures the machine is stable during the spin.

1 Detergent dispenser drawer 2 Control panel 3 Door handle 4 Drainage area door 5 Adjustable feet

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

Your new washing machine

Description of the appliance

R0001 3D
