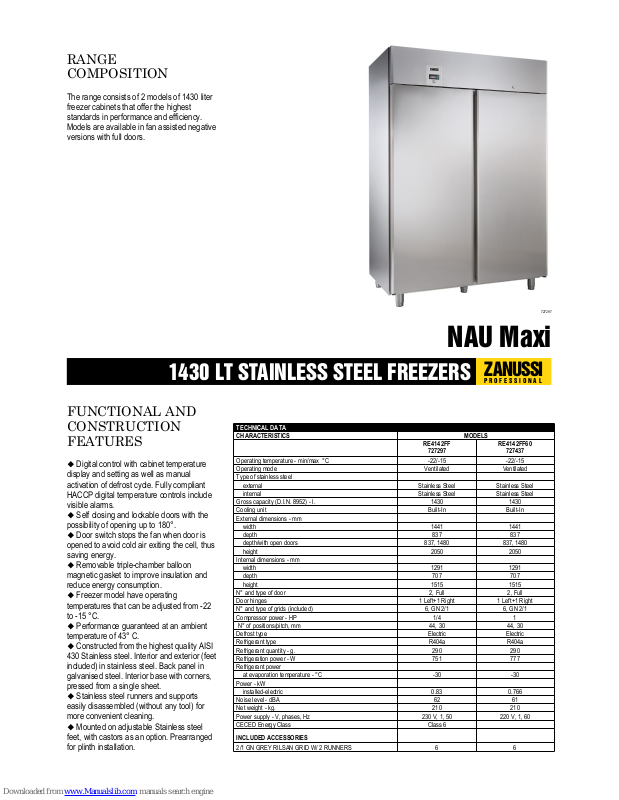

Page 1
ZANUSSI
P R O F E S S I O N A L
1430 LT STAINLESS STEEL FREEZERS
NAU Maxi
727297
2/1 GN GREY RILSAN GRID W/ 2 RUNNERS 6 6
INCLUDED ACCESSORIES
CECED Energy Class Class 6
Power supply - V, phases, Hz 230 V, 1, 50 220 V, 1, 60
Net weight - kg. 210 210
Noise level - dBA 62 61
installed-electric 0.83 0.766
Power - kW
at evaporation temperature - °C -30 -30
Refrigerant power
Refrigeration power - W 751 777
Refrigerant quantity - g. 290 290
Refrigerant type R404a R404a
Defrost type Electric Electric
N° of positions/pitch, mm 44, 30 44, 30
Compressor power - HP 1/4 1
N° and type of grids (included) 6, GN 2/1 6, GN 2/1
Door hinges 1 Left+1 Right 1 Left+1 Right
N° and type of door 2, Full 2, Full
height 1515 1515
depth 707 707
width 1291 1291
Internal dimensions - mm
height 2050 2050
depth/with open doors 837, 1480 837, 1480
depth 837 837
width 1441 1441
External dimensions - mm
Cooling unit Built-In Built-In
Gross capacity (D.I.N. 8952) - l. 1430 1430
internal Stainless Steel Stainless Steel
external Stainless Steel Stainless Steel
Type of stainless steel
Operating mode Ventilated Ventilated
Operating temperature - min/max °C -22/-15 -22/-15
RE4142FF
727297
RE4142FF60
727437
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
The range consists of 2 models of 1430 liter
freezer cabinets that offer the highest
standards in performance and efficiency.
Models are available in fan assisted negative
versions with full doors.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Digital control with cabinet temperature
display and setting as well as manual
activation of defrost cycle. Fully compliant
HACCP digital temperature controls include
visible alarms.
� Self closing and lockable doors with the
possibility of opening up to 180°.
� Door switch stops the fan when door is
opened to avoid cold air exiting the cell, thus
saving energy.
� Removable triple-chamber balloon
magnetic gasket to improve insulation and
reduce energy consumption.
� Freezer model have operating
temperatures that can be adjusted from -22
to -15 °C.
� Performance guaranteed at an ambient
temperature of 43° C.
� Constructed from the highest quality AISI
430 Stainless steel. Interior and exterior (feet
included) in stainless steel. Back panel in
galvanised steel. Interior base with corners,
pressed from a single sheet.
� Stainless steel runners and supports
easily disassembled (without any tool) for
more convenient cleaning.
� Mounted on adjustable Stainless steel
feet, with castors as an option. Prearranged
for plinth installation.
Page 2
1430 LT STAINLESS STEEL FREEZERS
NAU Maxi
DAKB04 2013-10-03 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
SPACER FOR 670L & 1430L CABINETS 880248 880248
SET OF 8-1/1 GN PVC CONTAINERS FOR FISH 880243
PRINTER HACCP BASIC VERS-REF.DIGIT.CONTR 881457 881457
PERFORATED SHELF GN 2/1 881042 881042
PEDAL OPENING FOR 1430 L REFRIGER. 881033 881033
KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880252 880252
GN 2/1 WIRE BASKET-H-150 MM+SIDE RUNNERS 881047 881047
GN 1/1 PLASTIC CONTAINER+FALSE BOTTOM 880705 880705
4 SWIVELLING WHEELS (2 W/ BRAKE)D=125MM 881002 881002
4 SWIVELLING WHEELS (2 W/ BRAKE) D=50MM 881035
304 AISI S/S GRID GN 2/1 WITH 2 RUNNERS 881018 881018
3 GREY RILSAN CENTRAL GRIDS FOR 1430L 881044 881044
2/1 GN PVC CONTAINER W/LID AND 2 RUNNERS 881039 881039
2/1 GN GREY RILSAN GRID W/ 2 RUNNERS 881020 881020
2/1 GN GREY "RILSAN" GRID 881004 881004
2/1 GN AISI 304 S/S GRID 881016 881016
2 S/S RUNNERS FOR REFR.CABINETS-MARINE 880242 880242
2 S/S RUNNERS FOR 670/1430L REF 881021 881021
1/1 GN RILSAN STEEL WIRE BASKET H=150 MM 881043 881043
RE4142FF
727297
RE4142FF60
727437
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
� The rounded internal corners and the
easily removable runners and grids allow for
ease of cleaning and high hygiene standards.
� Refrigerant type: R404a.
� Hidden evaporator thus guaranteeing
higher storage capacity and less corrosion
problems.
� Automatic evaporation of the defrosting
water by hot gas on the top.
� Automatic defrost.
� Easy access to the main components for
an easy maintenance.
� Evaporator features 60mm thick insulation
which can be easily removed with a single
operation. Evaporator easily accessible from
the top and even from the internal cell for fast
mantenance.
� Large storage area suitable to contain 2/1
GN grids or shelves in anti-tilt runners.
� Internal structure with numerous charging
positions available to host grids for a higher
net capacity and greater storage space.
� Cabinet fitted with up to 75 mm thickness
of cyclopentane insulation for best insulating
performance with 100% environmental
protection.
� Bottom of the internal cell is prearranged
for water drain.
� Anti-corrosion bottom avoids any damage
to the cabinet when using agressive
detergents to clean the floors.
� Optimized back to front forced air flow
provide even temperature distribution and
fast cooling in any conditions.
� Prearranged to fit RS485 port to connect
to a remote computer and integrated HACCP
systems.
� RILSAN coated grids for improved
protection.
� Provided with Schuko type plug.
� CFC and HCFC free insulation.
� Models certified as class 6 by the CECED
Italia energy classification board are
estimated to provide a potential annual
savings in terms of energy costs of 580 €
when replacing a freezer in class 1 with one
in class 6 of equivalent volume (according to
a CECED Italia study based on an energy
cost of 0,17 €/kWh and an average net
volume of 600lt). See more at:
www.ceceditalia.it
Page 3
1430 LT STAINLESS STEEL FREEZERS
NAU Maxi
DAKB04 2013-10-03 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
EI - Electrical connection 230 V, 1, 50 220 V, 1, 60
RE4142FF
727297
RE4142FF60
727437
LEGEND
727297, 727437
