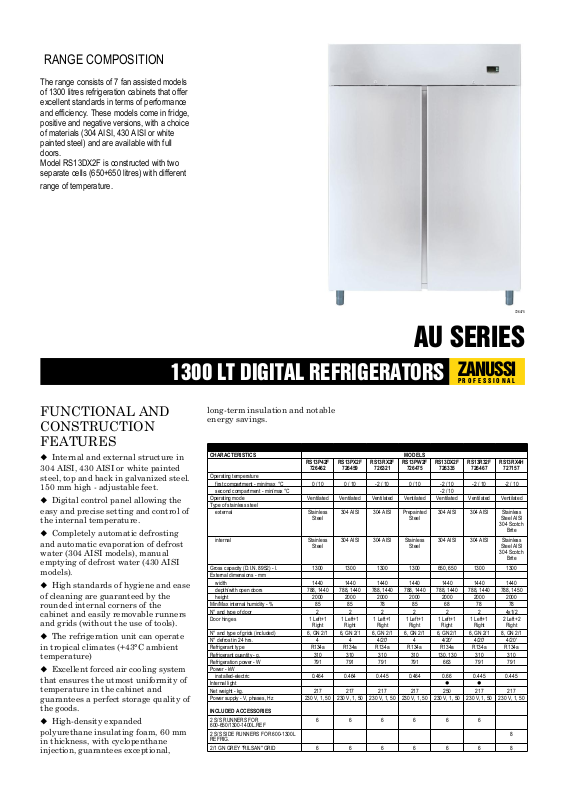

Page 1
RANGE COMPOSITION
The range consists of 7 fan assisted models
of 1300 litres refrigeration cabinets that offer
excellent standards in terms of performance
and efficiency. These models come in fridge,
positive and negative versions, with a choice
of materials (304 AISI, 430 AISI or white
painted steel) and are available with full
doors.
Model RS13DX2F is constructed with two
separate cells (650+650 litres) with different
range of temperature.
726475
1300 LT DIGITAL REFRIGERATORS
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Internal and external structure in
304 AISI, 430 AISI or white painted
steel, top and back in galvanized steel.
150 mm high - adjustable feet.
� Digital control panel allowing the
easy and precise setting and control of
the internal temperature.
� Completely automatic defrosting
and automatic evaporation of defrost
water (304 AISI models), manual
emptying of defrost water (430 AISI
models).
� High standards of hygiene and ease
of cleaning are guaranteed by the
rounded internal corners of the
cabinet and easily removable runners
and grids (without the use of tools).
� The refrigeration unit can operate
in tropical climates (+43°C ambient
temperature)
� Excellent forced air cooling system
that ensures the utmost uniformity of
temperature in the cabinet and
guarantees a perfect storage quality of
the goods.
� High-density expanded
polyurethane insulating foam, 60 mm
in thickness, with cyclopenthane
injection, guarantees exceptional,
AU SERIES
ZANUSSI
P R O F E S S I O N A L
long-term insulation and notable
energy savings.
TECHNICAL DATA
CHARACTERISTICS MODELS
Operating temperature
first compartment - min/max °C 0 / 10 0 / 10 -2 / 10 0 / 10 -2 / 10 -2 / 10 -2 / 10
second compartment - min/max °C -2 / 10
Operating mode Ventilated Ventilated Ventilated Ventilated Ventilated Ventilated Ventilated
Type of stainless steel
external Stainless
internal Stainless
Gross capacity (D.I.N. 8952) - l. 1300 1300 1300 1300 650, 650 1300 1300
External dimensions - mm
width 1440 1440 1440 1440 1440 1440 1440
depth/with open doors 788, 1440 788, 1440 788, 1440 788, 1440 788, 1440 788, 1440 788, 1450
height 2000 2000 2000 2000 2000 2000 2000
Min/Max internal humidity - % 85 85 78 85 68 78 78
N° and type of door 2 2 2 2 2 2 4x1/2
Door hinges 1 Left+1
N° and type of grids (included) 6, GN 2/1 6, GN 2/1 6, GN 2/1 6, GN 2/1 6, GN 2/1 6, GN 2/1 8, GN 2/1
N° defrost in 24 hrs. 4 4 4/20' 4 4/20' 4/20' 4/20'
Refrigerant type R134a R134a R134a R134a R134a R134a R134a
Refrigerant quantity - g. 310 310 310 310 130, 130 310 310
Refrigeration power - W 791 791 791 791 663 791 791
Power - kW
installed-electric 0.464 0.464 0.445 0.464 0.66 0.445 0.445
Internal light l l
Net weight - kg. 217 217 217 217 250 217 217
Power supply - V, phases, Hz 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50
INCLUDED ACCESSORIES
2 S/S RUNNERS FOR
600-650/1300-1400L.REF
2 S/S SIDE RUNNERS FOR 600-1300L
REFRIG.
2/1 GN GREY "RILSAN" GRID 6 6 6 6 6 6 8
RS13P42F
RS13PX2F
726462
Steel
Steel
Right
304 AISI 304 AISI Prepainted
304 AISI 304 AISI Stainless
1 Left+1
6 6 6 6 6 6
726459
Right
RS13RX2F
726321
1 Left+1
Right
RS13PW2F
726475
Steel
Steel
1 Left+1
Right
RS13DX2F
726335
304 AISI 304 AISI Stainless
304 AISI 304 AISI Stainless
1 Left+1
Right
RS13R32F
726467
1 Left+1
Right
RS13RX4H
727157
Steel AISI
304 Scotch
Brite
Steel AISI
304 Scotch
Brite
2 Left+2
Right
8
Page 2
� The rational use of the internal
space of the refrigerator guarantees a
large storage area suitable to contain
2/1 GN grids.
� Reversible self-closing door, in
positions less than 90°, with a stop at
95° and a maximum opening at 180°,
equipped with a magnetic door seal to
guarantee perfect closure. The pressed
stainless steel recessed door handle
without joints makes opening the
cabinet extremely easy. All the doors
are fitted as standard with locks and
keys and a microswitch to switch off
the fan when the door is opened.
� Stainless steel feet (plastic interior).
� A wide range of optional
accessories are available.
� CFC and HCFC free.
� All models comply with the
standards required by the main
international approval bodies and are
H marked.
1300 LT DIGITAL REFRIGERATORS
AU SERIES
OPTIONAL ACCESSORIES
ACCESSORIES MODELS
2 S/S RUNNERS FOR
600-650/1300-1400L.REF
2 S/S SIDE RUNNERS FOR 600-1300L
REFRIG.
2 WHEELS FOR
REFRIGERATORS/REFRIG.TABLES
2/1 GN AISI 304 S/S GRID 881067 881067 881067 881067 881067 881067
2/1 GN GREY "RILSAN" GRID 880720 880720 880720 880720 880720 880720 880720
3 RILSAN CENTR.GRIDS-2 DOOR
REF/FREEZERS
ENERGY FREE ALARM DEVICE 881089 881089 881089 881089 881089
KIT HACCP EKIS 922166 922166 922166 922166 922166 922166 922166
KIT INTEGRATED HACCP-DIG. REFR.
(IR33)
KIT TO FIT 11 PASTRY TRAYS (400X600
MM)
MEAT RAIL FOR 650-1400 L
REFRIGERATORS
PRINTER FOR HACCP BASIC VERSION
REFRIG.
DAFA02 2009-07-03 The Company reserves the right to alter technical specifications without prior notice.
RS13P42F
RS13PX2F
726462
881456 881456 881456 881456 881456 881456
880539 880539 880539 880539 880539 880539 880539
880211 880211 880211 880211 880211
880205 880205 880205 880205 880205 880205 880205
881031 881031 881031 881031 881031 881031
881451 881451 881451 881451 881451 881451
881457 881457 881457 881457 881457 881457 881457
726459
RS13RX2F
726321
RS13PW2F
726475
RS13DX2F
726335
RS13R32F
726467
RS13RX4H
727157
880557
ZANUSSI
P R O F E S S I O N A L
www.zanussiprofessional.com
Page 3
1300 LT DIGITAL REFRIGERATORS
AU SERIES
726462, 726467, 726335, 726475, 726321, 726459
LEGEND
EI - Electrical connection 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50 230 V, 1, 50
DAFA02 2009-07-03 The Company reserves the right to alter technical specifications without prior notice.
RS13P42F
726462
RS13PX2F
726459
RS13RX2F
726321
RS13PW2F
726475
RS13DX2F
726335
ZANUSSI
P R O F E S S I O N A L
www.zanussiprofessional.com
RS13R32F
726467
