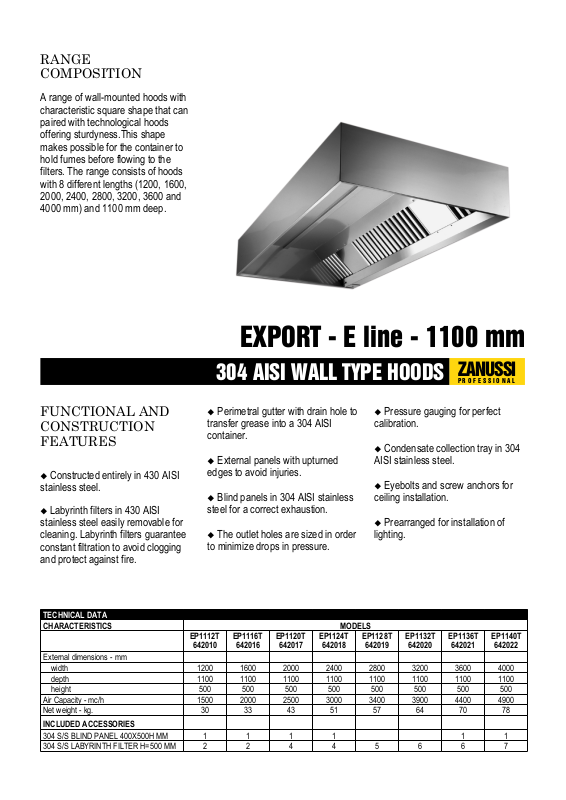

RANGE
COMPOSITION
A range of wall-mounted hoods with
characteristic square shape that can
paired with technological hoods
offering sturdyness.This shape
makes possible for the container to
hold fumes before flowing to the
filters. The range consists of hoods
with 8 different lengths (1200, 1600,
2000, 2400, 2800, 3200, 3600 and
4000 mm) and 1100 mm deep.
EXPORT - E line - 1100 mm
304 AISI WALL TYPE HOODS
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Constructed entirely in 430 AISI
� Perimetral gutter with drain hole to
transfer grease into a 304 AISI
container.
� External panels with upturned
edges to avoid injuries.
stainless steel.
� Blind panels in 304 AISI stainless
� Labyrinth filters in 430 AISI
steel for a correct exhaustion.
stainless steel easily removable for
cleaning. Labyrinth filters guarantee
constant filtration to avoid clogging
� The outlet holes are sized in order
to minimize drops in pressure.
and protect against fire.
TECHNICAL DATA
CHARACTERISTICS MODELS
EP1112T
642010
External dimensions - mm
width 1200 1600 2000 2400 2800 3200 3600 4000
depth 1100 1100 1100 1100 1100 1100 1100 1100
height 500 500 500 500 500 500 500 500
Air Capacity - mc/h 1500 2000 2500 3000 3400 3900 4400 4900
Net weight - kg. 30 33 43 51 57 64 70 78
INCLUDED ACCESSORIES
304 S/S BLIND PANEL 400X500H MM 1 1 1 1 1 1
304 S/S LABYRINTH FILTER H=500 MM 2 2 4 4 5 6 6 7
EP1116T
642016
EP1120T
642017
EP1124T
642018
� Pressure gauging for perfect
calibration.
� Condensate collection tray in 304
AISI stainless steel.
� Eyebolts and screw anchors for
ceiling installation.
� Prearranged for installation of
lighting.
EP1128T
642019
EP1132T
642020
ZANUSSI
P R O F E S S I O N A L
EP1136T
642021
EP1140T
642022
642010, 642018, 642017, 642016
472.8
642019, 642022, 642021, 642020
423.3
500
120
C
472.8
1100
1100
423.3
500
1100
1100
120
C
P
K
298
K
140
262
9
140
25
OPTIONAL
ACCESSORIES
P
262
25
298
9
1200/1600/2000/2400
25
25
ACCESSORIES MODELS
EP1112T
27-WATT LIGHTING
FIXTURE W/1
LAMP-IP 65
36-WATT LIGHTING
FIXTURE W/1
LAMP-IP 65
DRAIN FOR HOODS
DIAM.1/2"(M) WITH
PLUG
FAN FOR VENTIL
HOODS+DUCTED
EXTRACT.UNIT
SPEED VARIATOR
FOR MOTORS UP
TO 1.17 KW
SPEED VARIATOR
FOR MOTORS UP
TO 1.7 KW
HDAA1 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.
642010
EP1116T
642016
EP1120T
642017
EP1124T
642018
EP1128T
642019
EP1132T
642020
EP1136T
680804 680804 680804 680804 680804
680805 680805 680805 680805 680805
640409 640409 640409 640409 640409 640409 640409 640409
640748 640748 640748 640748 640748 640748 640748 640748
640076 640076 640076 640076
640686 640686 640686 640686
642021
EP1140T
642022
2800/3200/3600/4000
P
262
25
25
25
298
447 1310/1710/2110/2510 447
25
ZANUSSI
P R O F E S S I O N A L
