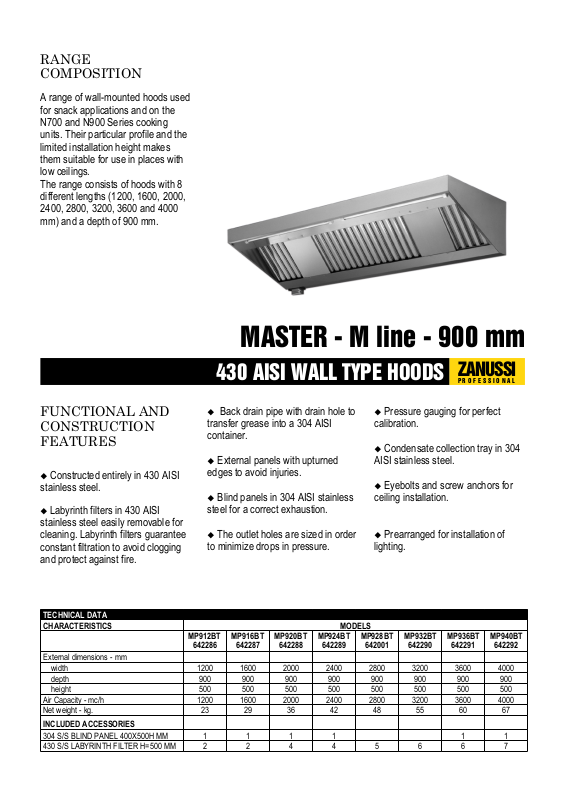

RANGE COMPOSITION

A range of wall-mounted hoods used for snack applications and on the N700 and N900 Series cooking units. Their particular profile and the limited installation height makes them suitable for use in places with low ceilings. The range consists of hoods with 8 different lengths (1200, 1600, 2000, 2400, 2800, 3200, 3600 and 4000 mm) and a depth of 900 mm.

MASTER - M line - 900 mm

430 AISI WALL TYPE HOODS

FUNCTIONAL AND CONSTRUCTION FEATURES

� Constructed entirely in 430 AISI

� Back drain pipe with drain hole to

transfer grease into a 304 AISI container.

� External panels with upturned

edges to avoid injuries.

stainless steel.

� Blind panels in 304 AISI stainless

� Labyrinth filters in 430 AISI

steel for a correct exhaustion. stainless steel easily removable for cleaning. Labyrinth filters guarantee constant filtration to avoid clogging and protect against fire.

TECHNICAL DATA

CHARACTERISTICS MODELS

External dimensions - mm width 1200 1600 2000 2400 2800 3200 3600 4000 depth 900 900 900 900 900 900 900 900 height 500 500 500 500 500 500 500 500 Air Capacity - mc/h 1200 1600 2000 2400 2800 3200 3600 4000 Net weight - kg. 23 29 36 42 48 55 60 67

INCLUDED ACCESSORIES

304 S/S BLIND PANEL 400X500H MM 1 1 1 1 1 1 430 S/S LABYRINTH FILTER H=500 MM 2 2 4 4 5 6 6 7

� The outlet holes are sized in order

to minimize drops in pressure.

MP912BT

642286

MP916BT

642287

MP920BT

642288

MP924BT

642289

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

MP928BT

642001

MP932BT

642290

ZANUSSI

P R O F E S S I O N A L

MP936BT

642291

MP940BT

642292

642286, 642289, 642288, 642287

900

473.6

222

900

473.6

642001, 642292, 642291, 642290

222

137.8

500

120

137.8

900

2525

120

500

900

2525

140

262

298298 1310/1710/2110/2510 447447

2800/3200/3600/4000

298

140

262

OPTIONAL ACCESSORIES

ACCESSORIES MODELS

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG

FAN FOR VENTIL HOODS+DUCTED EXTRACT.UNIT

SPEED VARIATOR FOR MOTORS UP TO

1.17 KW SPEED VARIATOR FOR MOTORS UP TO

1.7 KW

HBAA2 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.

MP912BT

642286

680804 680804 680804 680804 680804

640409 640409 640409 640409 640409 640409 640409 640409

640748 640748 640748 640748 640748 640748 640748 640748

640076 640076 640076 640076
