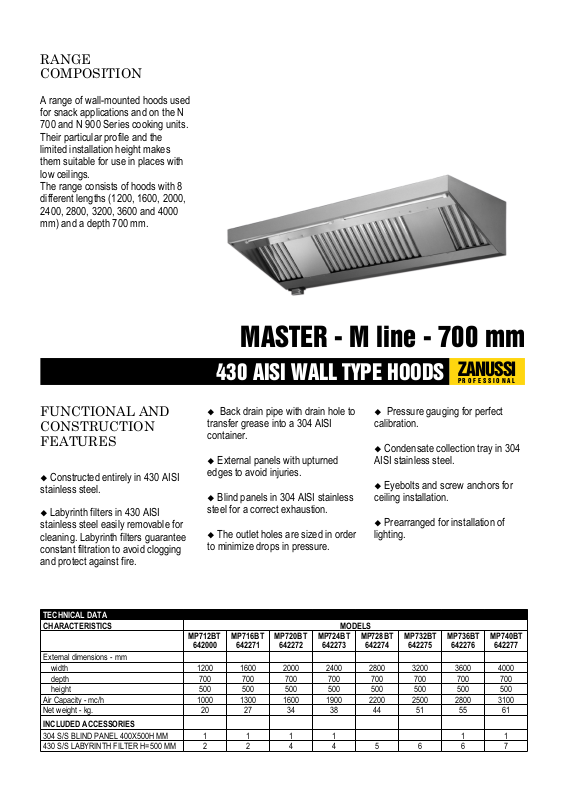

RANGE COMPOSITION

A range of wall-mounted hoods used for snack applications and on the N 700 and N 900 Series cooking units. Their particular profile and the limited installation height makes them suitable for use in places with low ceilings. The range consists of hoods with 8 different lengths (1200, 1600, 2000, 2400, 2800, 3200, 3600 and 4000 mm) and a depth 700 mm.

MASTER - M line - 700 mm

430 AISI WALL TYPE HOODS

FUNCTIONAL AND CONSTRUCTION FEATURES

� Constructed entirely in 430 AISI

stainless steel.

� Labyrinth filters in 430 AISI

� Back drain pipe with drain hole to

transfer grease into a 304 AISI container.

� External panels with upturned

edges to avoid injuries.

� Blind panels in 304 AISI stainless

steel for a correct exhaustion.

stainless steel easily removable for cleaning. Labyrinth filters guarantee constant filtration to avoid clogging

� The outlet holes are sized in order

to minimize drops in pressure.

and protect against fire.

TECHNICAL DATA

CHARACTERISTICS MODELS

MP712BT

642000

External dimensions - mm width 1200 1600 2000 2400 2800 3200 3600 4000 depth 700 700 700 700 700 700 700 700 height 500 500 500 500 500 500 500 500 Air Capacity - mc/h 1000 1300 1600 1900 2200 2500 2800 3100 Net weight - kg. 20 27 34 38 44 51 55 61

INCLUDED ACCESSORIES

304 S/S BLIND PANEL 400X500H MM 1 1 1 1 1 1 430 S/S LABYRINTH FILTER H=500 MM 2 2 4 4 5 6 6 7

MP716BT

642271

MP720BT

642272

MP724BT

642273

� Pressure gauging for perfect

calibration.

� Condensate collection tray in 304

AISI stainless steel.

� Eyebolts and screw anchors for

ceiling installation.

� Prearranged for installation of

lighting.

MP728BT

642274

MP732BT

642275

ZANUSSI

P R O F E S S I O N A L

MP736BT

642276

MP740BT

642277

500

642000, 642273, 642272, 642271

700

473.6

137.8

500

2525

700

473.6

700

642274, 642277, 642276, 642275

137.8

120

700

2525

298298 1310/1710/2110/2510 447447

140

262

298

1200/1600/2000/2400

140

262

2800/3200/3600/4000

262

OPTIONAL ACCESSORIES

ACCESSORIES MODELS

27-WATT LIGHTING FIXTURE W/1 LAMP-IP 65

36-WATT LIGHTING FIXTURE W/1 LAMP-IP 65

DRAIN FOR HOODS DIAM.1/2"(M) WITH PLUG

FAN FOR VENTIL HOODS+DUCTED EXTRACT.UNIT

SPEED VARIATOR FOR MOTORS UP TO

1.17 KW SPEED VARIATOR FOR MOTORS UP TO

1.7 KW

HBAA1 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.
