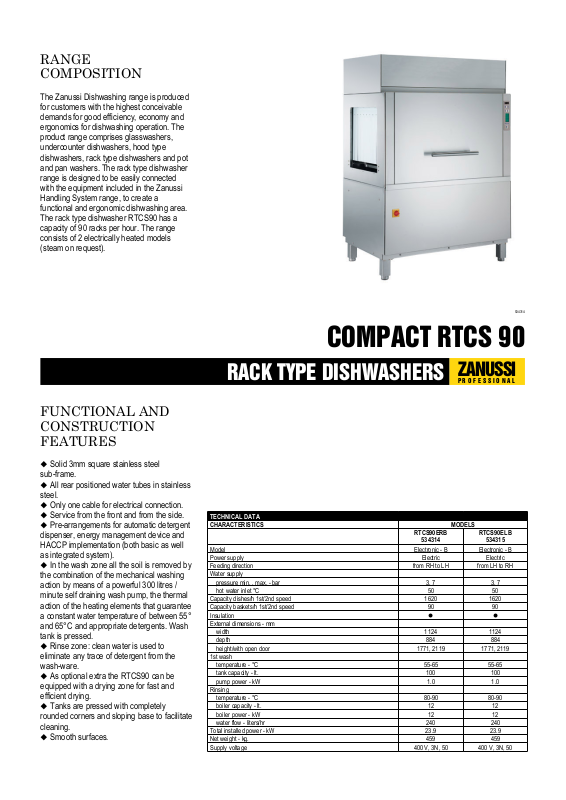

RANGE
COMPOSITION

The Zanussi Dishwashing range is produced
for customers with the highest conceivable
demands for good efficiency, economy and
ergonomics for dishwashing operation. The
product range comprises glasswashers,
undercounter dishwashers, hood type
dishwashers, rack type dishwashers and pot
and pan washers. The rack type dishwasher
range is designed to be easily connected
with the equipment included in the Zanussi
Handling System range, to create a
functional and ergonomic dishwashing area.
The rack type dishwasher RTCS90 has a
capacity of 90 racks per hour. The range
consists of 2 electrically heated models
(steam on request).

534314

FUNCTIONAL AND
CONSTRUCTION
FEATURES

� Solid 3mm square stainless steel

sub-frame.

� All rear positioned water tubes in stainless

steel.

� Only one cable for electrical connection.
� Service from the front and from the side.
� Pre-arrangements for automatic detergent

dispenser, energy management device and
HACCP implementation (both basic as well
as integrated system).

� In the wash zone all the soil is removed by

the combination of the mechanical washing
action by means of a powerful 300 litres /
minute self draining wash pump, the thermal
action of the heating elements that guarantee
a constant water temperature of between 55°
and 65°C and appropriate detergents. Wash
tank is pressed.

� Rinse zone: clean water is used to

eliminate any trace of detergent from the
wash-ware.

� As optional extra the RTCS90 can be

equipped with a drying zone for fast and
efficient drying.

� Tanks are pressed with completely

rounded corners and sloping base to facilitate
cleaning.

� Smooth surfaces.

COMPACT RTCS 90

RACK TYPE DISHWASHERS

TECHNICAL DATA

CHARACTERISTICS MODELS

Model Electronic - B Electronic - B
Power supply Electric Electric
Feeding direction from RH to LH from LH to RH
Water supply
pressure min. , max. - bar 3, 7 3, 7
hot water inlet °C 50 50
Capacity dishes/h 1st/2nd speed 1620 1620
Capacity baskets/h 1st/2nd speed 90 90
Insulation l l
External dimensions - mm
width 1124 1124
depth 884 884
height/with open door 1771, 2119 1771, 2119
1st wash
temperature - °C 55-65 55-65
tank capacity - lt. 100 100
pump power - kW 1.0 1.0
Rinsing
temperature - °C 80-90 80-90
boiler capacity - lt. 12 12
boiler power - kW 12 12
water flow - liters/hr 240 240
Total installed power - kW 23.9 23.9
Net weight - kg. 459 459
Supply voltage 400 V, 3N, 50 400 V, 3N, 50

RTCS90ERB

534314

ZANUSSI

P R O F E S S I O N A L

RTCS90ELB

534315

RACK TYPE DISHWASHERS

COMPACT RTCS 90

� 304 AISI stainless steel front and side

panels, strainers and wash and rinse arms.

� Wash arms and double tank filter (flat and

deep box) easy to remove.

� Height adjustable stainless steel feet.
� All models finished in top quality materials

with double skinned construction to aid
durability and reduce noise.

� Self-draining wash pumps provide

maximum hygiene.

� Large balanced inspection door for easy

access to wash area.

� Self-cleaning cycle.
� Automatic start/stop function.
� Simple electric control panel.
� Counter balanced door with safety switch

and easy to grip handle.

� Built-in rinse water heater to increase the

temperature of the final rinse water.

� Electronic control panel with

autodiagnostic check control.

� 35mm thickness foam injection insulated

doors to reduce noise and reduce heat
dispersion.

� 98% recyclable by weight.
� CFC free packaging.
� Low noise level.
� Developed and produced in ISO 9001 and

ISO 14001 certified factory.

* Installation is recommended below a
dishwashing hood to convey steam.

OPTIONAL ACCESSORIES

ACCESSORIES MODELS

12 S/S PLUGS FOR WASH.ARMS-MODUL/COMP.RT 864239 864239
BASKET FOR 5 HALF INSULATED TRAYS-RED 867005 867005
DRAIN KIT FOR MODULAR+COMPACT RACK TYPE 864150 864150
EL. DRYING TUNNEL-COMPACT RT-L>R-600 MM 864519
EL. DRYING TUNNEL-COMPACT RT-L>R-900 MM 864517
EL. DRYING TUNNEL-COMPACT RT-R>L-600 MM 864518
EL. DRYING TUNNEL-COMPACT RT-R>L-900 MM 864516
EL. DRYING TUNNEL-CORNER-L>R-COMPACT RT 864521
EL. DRYING TUNNEL-CORNER-R>L-COMPACT RT 864520
EL.HOT AIR BLOWER-LEFT-600MM-COMPACT RT 864507
EL.HOT AIR BLOWER-RIGHT-600MM-COMPACT RT 864506
KIT 6 BASKETS FOR 1-TANK RACK TYPE DW 867050 867050
KIT 9 BASKETS FOR 1-TANK RACK TYPE DW 867051 867051
KIT AIR GAP FOR COMPACT RACK TYPE 864309 864309
KIT SILASTIC CURTAINS FOR RACK TYPE DW 864245 864245
SPLASH HOOD-LEFT SIDE-COMPACT RACK TYPE 864248 864248
SPLASH HOOD-RIGHT SIDE-COMPACT RACK TYPE 864247 864247

EBBA10 2009-06-19 The Company reserves the right to alter technical specifications without prior notice.

RTCS90ERB

534314

RTCS90ELB

534315
