RANGE
COMPOSITION
The range consists of 5 models with
a capacity of 540 plates per hour, all
designed for the washing of plates,
cutlery, glasses, cups etc.
400140
UNDERCOUNTER DISHWASHERS
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Pressure boiler guarantees rinse
quality by providing rinsing water at
a temperature superior to 82,5°C
(water supply at a minimum of 2 bar
and 50°C).
� 4 second (variable) pause after
washing and before rinsing ensures
that no drops of unclean water will
fall on the clean items at the end of
the rinsing cycle.
� Two washing cycles: 1st cycle of
120 seconds for normally soiled
items and 2nd cycle of 180 seconds
one for heavily soiled items.
� Washing system with endowed
rotating washing arms, high power
wash pump, large capacity boiler
and tank volume, all together
designed for professional washing
with high performance.
* Declared actual cycle duration times can
extend when water supply temperature is lower
than indicated.
STANDARD VERSION
ZANUSSI
P R O F E S S I O N A L
TECHNICAL DATA
CHARACTERISTICS MODELS
Water supply
temperature - °C 50 50 50 50 50
hardness - °f 7-14 7-14 7-14 7-14 7-14
pressure min- bar 2 2 2 2 2
Thermometer l l l l l
Drain pump l l l
Rinse aid dispenser l l l l l
N° of cycles 2 2 2 2 2
Duration cycles - sec. 120/180 120/180 120/180 120/180 120/180
Dishes capacity/h 540 540 540 540 540
Basket capacity/h 30 30 30 30 30

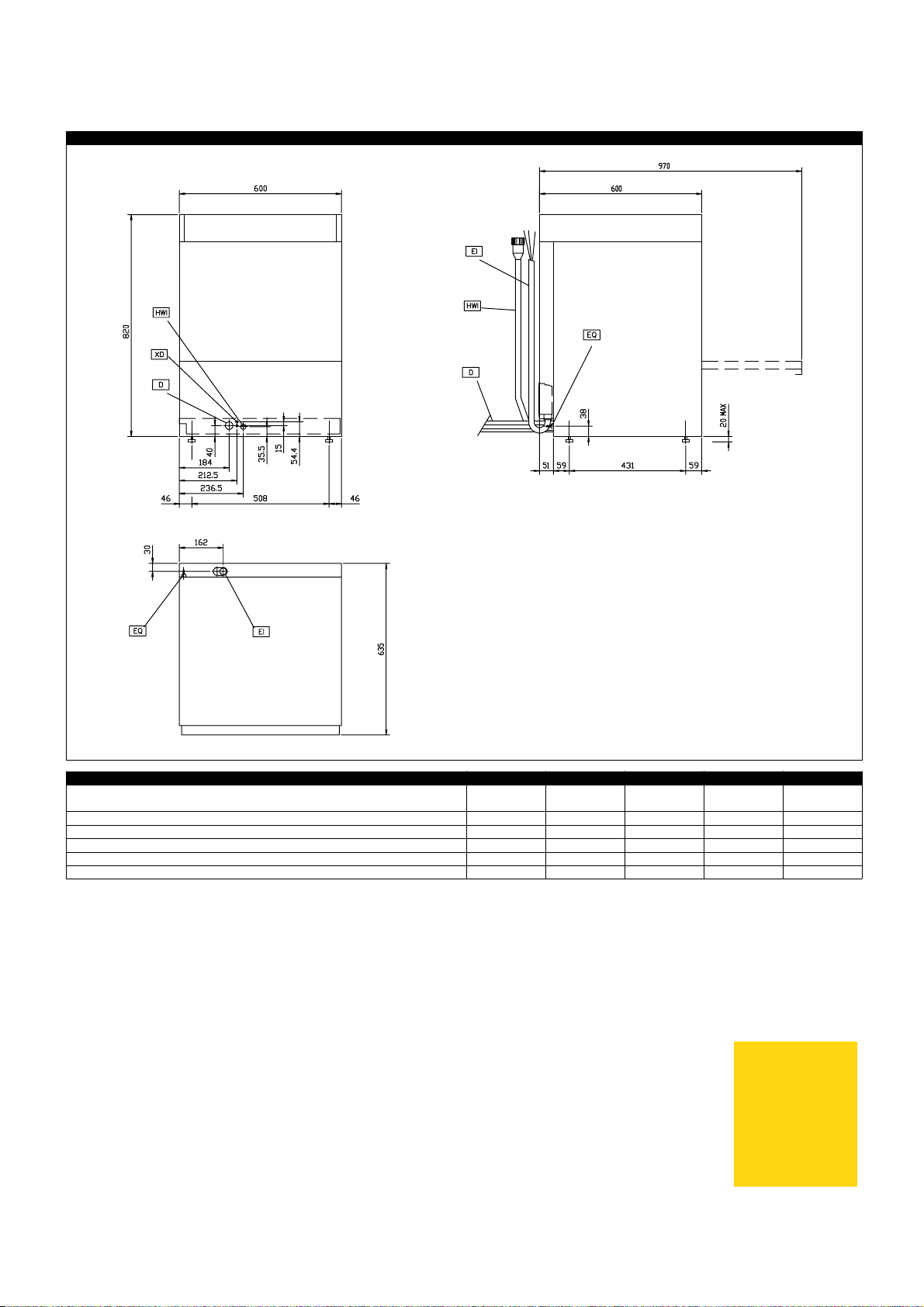

External dimensions - mm
width 600 600 600 600 600
depth 600 600 600 600 600
height 820 820 820 820 820
Cell dimensions - mm
width 500 500 500 500 500
depth 500 500 500 500 500
height 330 330 330 330 330
Washing cycle
temperature -°C 55-65 55-65 55-65 55-65 55-65
tank capacity - lt. 33 33 33 33 33
power pump - kW 0.736 0.736 0.736 0.736 0.736
electrical elements - kW 2 2 2 2 2
Hot rinse cycle
duration - sec. 16 16 16 16 16
temperature during rinse - °C 80-90 80-90 80-90 80-90 80-90
water consumption - lt./cycle 3.3 3.3 3.3 3.3 3.3
Boiler capacity - lt. 5.8 5.8 5.8 5.8 5.8
Boiler elements - kW 2.8 2.8 4.5 4.5 2.8
Power - kW
drain pump 0.034 0.034 0.034
total power 3.65 3.65 5.35 5.35 3.65
Noise level - dBA <70 <70 <70 <70 <70
Net weight - kg. 60 60 57 57 60
Supply voltage 230 V, 1N, 50 230 V, 1N, 50 400 V, 3N, 50 400 V, 3N, 50 230 V, 1N, 60
Convertible to 230 V / 3 / 50
INCLUDED ACCESSORIES
BASKET FOR 18 DINNER PLATES 240MM-YELLOW 1 1 1 1 1
YELLOW CUTLERY CONTAINER 1 1 1 1 1
NUC1
400140
NUC1DP
400141
NUC3
400144
Hz; 230 V /
1+N / 50 Hz
NUC3DP
400146
230 V / 3 / 50
Hz; 230 V /
1+N / 50 Hz
NUC1DP60
400149
UNDERCOUNTER DISHWASHERS
STANDARD VERSION
� All the machines have smooth
surfaces and a wash tank with
rounded corners to facilitate cleaning.
� Front and side panels, door and
wash tank made in heavy duty
anti-corrosive AISI 304 stainless
steel to guarantee appliance
durability.
� 304L stainless steel boiler with
high welding protection increases
the resistance against corrosion with
chlorinated water.
� The fully automatic self-cleaning
cycle avoids the risk of bacteria
proliferation.
� Wash/rinse arms easy to remove.
� PVC water supply hose with metal
connections resistant to high water
pressure.
� Completely closed on the reverse
by a cover plate while IPX4 water
protection prevents external
infiltrations.
� Simple control panel with digital
display allows on-site
personalization of washing and
rinsing cycle times and temperatures
as well as precise rinse aid and
detergent quantities depending on
the customers needs.
� The incorporated Soft Start
feature offers additional protection to
delicate items such as glassware
and crockery and increases wash
pump reliability.
� Three phase or single phase
electrical connection.
� All machines are pre-arranged to
accept external dispensers.
� Pre-arrangement for HACCP
system implementation and Energy
Management device.
� 98% recyclable by weight.
� CFC free packaging.
� In compliance with H
requirements.
� Low noise level.
� Developed and produced in ISO
9001 and ISO 14001 certified
factory.
OPTIONAL ACCESSORIES
ACCESSORIES MODELS
12 L EXTERNAL MANUAL WATER SOFTENER 860412 860412 860412 860412 860412
304 AISI BACK PANEL FOR UC ENTRY LEVEL 864246 864246 864246 864246 864246
8 L EXTERNAL AUTOMATIC WATER SOFTENER 860413 860413 860413 860413 860413
BASKET FOR 18 DINNER PLATES 240MM-YELLOW 867002 867002 867002 867002 867002
BASKET FOR 48 SMALL CUPS/24 CUPS-BLUE 867007 867007 867007 867007 867007
BASKET FOR 5 TRAYS 530X325MM-RED 867006 867006 867006 867006 867006
COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016 867016 867016 867016
DETERGENT LEVEL PROBE KIT FOR UC+HT DW 864004 864004 864004 864004 864004
DETERGENT PUMP KIT 864218 864218 864218 864218 864218
DRAIN PUMP KIT FOR 50HZ DISHWASHERS 864012 864012
EXT.REVERSE OSMOSIS FILT-PRESSURE BOILER 864027 864027 864027 864027 864027
FILTER FOR PARTIAL DEMINERALIZATION 864017 864017 864017 864017 864017
FILTER FOR TOTAL DEMINERALIZATION 864015 864015 864015 864015 864015
HACCP PRINTER KIT FOR UC, HT AND POTW 864002 864002 864002 864002 864002
INTEGRATED HACCP KIT FOR UC, HT AND POTW 864001 864001 864001 864001 864001
KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 865574 865574 865574 865574 865574
KIT PRESSURE BOOSTER FOR RINSING WATER 860415 860415 860415 860415 860415
KIT TO MEASURE TOTAL/PART.WATER HARDNESS 864050 864050 864050 864050 864050
RINSE AID LEVEL PROBE KIT FOR UC+HT DW 864005 864005 864005 864005 864005
ST.STEEL WASH TANK FILTER FOR UNDERC.DW 864039 864039 864039 864039 864039
STAINLESS STEEL INLET HOSE KIT 864016 864016 864016 864016 864016
STAND FOR UNDERCOUNTER DISHWASHER 860418 860418 860418 860418 860418
YELLOW CUTLERY CONTAINER 864242 864242 864242 864242 864242
EABA2 2009-07-03 The Company reserves the right to alter technical specifications without prior notice.
NUC1
400140
NUC1DP
400141
NUC3
400144
NUC3DP
400146
NUC1DP60
400149
