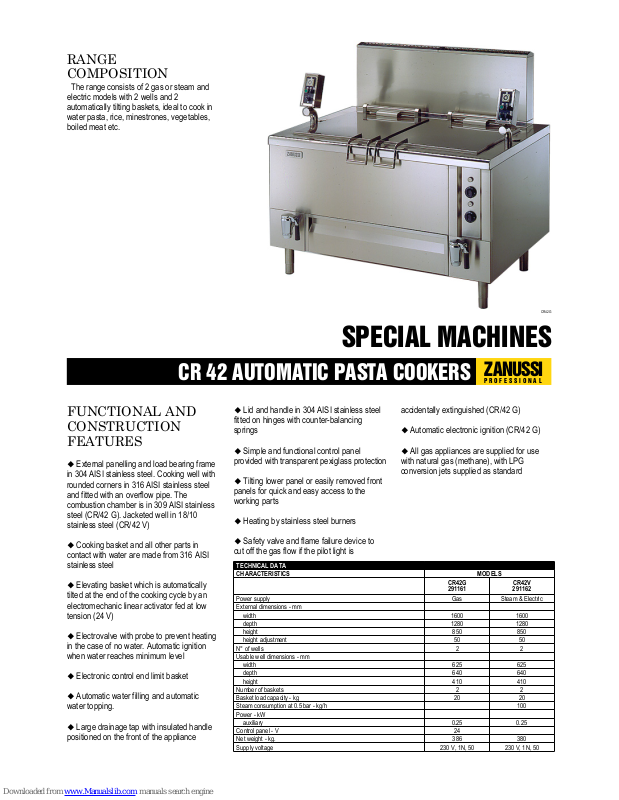

Page 1
ZANUSSI
P R O F E S S I O N A L
CR 42 AUTOMATIC PASTA COOKERS
SPECIAL MACHINES
CR42G
Supply voltage 230 V, 1N, 50 230 V, 1N, 50
Net weight - kg. 386 380
Control panel - V 24
auxiliary 0.25 0.25
Power - kW
Steam consumption at 0.5 bar - kg/h 100
Basket load capacity - kg 20 20
Number of baskets 2 2
height 410 410
depth 640 640
width 625 625
Usable well dimensions - mm
N° of wells 2 2
height adjustment 50 50
height 850 850
depth 1280 1280
width 1600 1600
External dimensions - mm
Power supply Gas Steam & Electric
CR42G
291161
CR42V
291162
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
The range consists of 2 gas or steam and
electric models with 2 wells and 2
automatically tilting baskets, ideal to cook in
water pasta, rice, minestrones, vegetables,
boiled meat etc.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� External panelling and load bearing frame
in 304 AISI stainless steel. Cooking well with
rounded corners in 316 AISI stainless steel
and fitted with an overflow pipe. The
combustion chamber is in 309 AISI stainless
steel (CR/42 G). Jacketed well in 18/10
stainless steel (CR/42 V)
� Cooking basket and all other parts in
contact with water are made from 316 AISI
stainless steel
� Elevating basket which is automatically
tilted at the end of the cooking cycle by an
electromechanic linear activator fed at low
tension (24 V)
� Electrovalve with probe to prevent heating
in the case of no water. Automatic ignition
when water reaches minimum level
� Electronic control end limit basket
� Automatic water filling and automatic
water topping.
� Large drainage tap with insulated handle
positioned on the front of the appliance
� Lid and handle in 304 AISI stainless steel
fitted on hinges with counter-balancing
springs
� Simple and functional control panel
provided with transparent pexiglass protection
� Tilting lower panel or easily removed front
panels for quick and easy access to the
working parts
� Heating by stainless steel burners
� Safety valve and flame failure device to
cut off the gas flow if the pilot light is
accidentally extinguished (CR/42 G)
� Automatic electronic ignition (CR/42 G)
� All gas appliances are supplied for use
with natural gas (methane), with LPG
conversion jets supplied as standard
Page 2
CR 42 AUTOMATIC PASTA COOKERS
SPECIAL MACHINES
BBG02 2010-05-31 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
PASTA COOKER TROLLEY WITH TILTING TANK 921012 921012
PASTA COOKER TROLLEY FOR 2-GN 1/1 CONT. 921011 921011
MATCHING RING FOR FLUE CONDENSER 150DIAM 206133
KIT HACCP EKIS 922166
DRAUGHT DIVERTER WITH 150 MM DIAMETER 206132
CR42G
291161
CR42V
291162
ACCESSORIES MODELS
OPTIONAL ACCESSORIES
� Steam supply pressure 0.5 bar (CR/42 V)
� Controls and safety unit consisting of
safety valve, depressurising valve and
pressure gauge (CR/42 V)
� Steam flow controlled by means of a ball
valve (CR/42 V)
� A drainpipe for steam appliances to
condense water, is compulsory
� All models comply with the standards
required by the main international approval
boards and are H marked.
Page 3
CR 42 AUTOMATIC PASTA COOKERS
SPECIAL MACHINES
BBG02 2010-05-31 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
G - Gas connection 1"1/4
EI - Electrical connection 230 V, 1N, 50
D - Water drain 2"
CWI - Cold water inlet 3/4"
CR42G
291161
LEGEND
291161
Page 4
CR 42 AUTOMATIC PASTA COOKERS
SPECIAL MACHINES
BBG02 2010-05-31 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
ZANUSSI
P R O F E S S I O N A L
SO - Condensation outlet 1/2"
SI - Steam inlet 1"1/4
EI - Electrical connection 230 V, 1N, 50
D - Water drain 2"
CWI - Cold water inlet 3/4"
CR42V
291162
LEGEND
291162
