ZANUSSI
P R O F E S S I O N A L

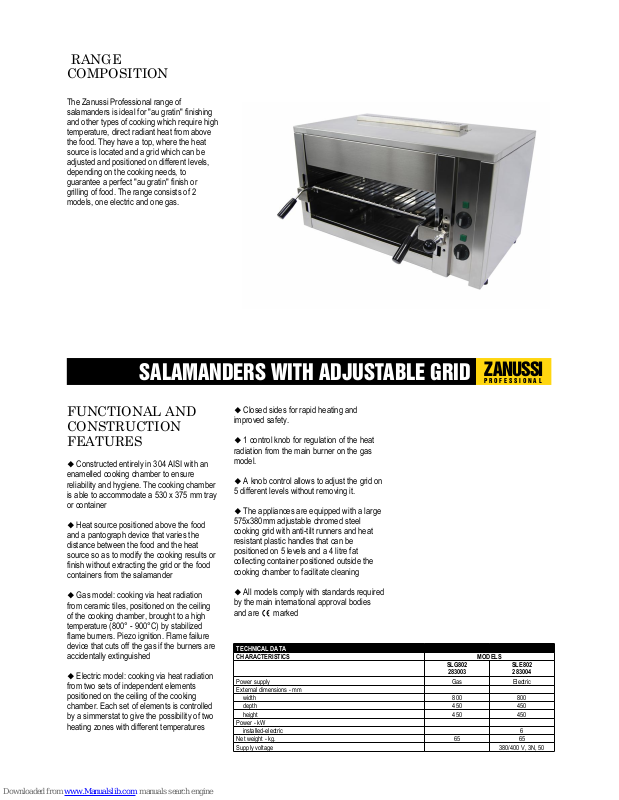

SALAMANDERS WITH ADJUSTABLE GRID
Supply voltage 380/400 V, 3N, 50
Net weight - kg. 65 65
installed-electric 6
Power - kW
height 450 450
depth 450 450
width 800 800
External dimensions - mm
Power supply Gas Electric
SLG802
283003
SLE802
283004
CHARACTERISTICS MODELS
TECHNICAL DATA
RANGE
COMPOSITION
The Zanussi Professional range of
salamanders is ideal for "au gratin" finishing
and other types of cooking which require high
temperature, direct radiant heat from above
the food. They have a top, where the heat
source is located and a grid which can be
adjusted and positioned on different levels,
depending on the cooking needs, to
guarantee a perfect "au gratin" finish or
grilling of food. The range consists of 2
models, one electric and one gas.
FUNCTIONAL AND
CONSTRUCTION
FEATURES
� Constructed entirely in 304 AISI with an
enamelled cooking chamber to ensure
reliability and hygiene. The cooking chamber
is able to accommodate a 530 x 375 mm tray
or container
� Heat source positioned above the food
and a pantograph device that varies the
distance between the food and the heat
source so as to modify the cooking results or
finish without extracting the grid or the food
containers from the salamander
� Gas model: cooking via heat radiation
from ceramic tiles, positioned on the ceiling
of the cooking chamber, brought to a high
temperature (800° - 900°C) by stabilized
flame burners. Piezo ignition. Flame failure
device that cuts off the gas if the burners are
accidentally extinguished
� Electric model: cooking via heat radiation
from two sets of independent elements
positioned on the ceiling of the cooking
chamber. Each set of elements is controlled
by a simmerstat to give the possibility of two
heating zones with different temperatures
� Closed sides for rapid heating and
improved safety.
� 1 control knob for regulation of the heat
radiation from the main burner on the gas
model.
� A knob control allows to adjust the grid on
5 different levels without removing it.
� The appliances are equipped with a large
575x380mm adjustable chromed steel
cooking grid with anti-tilt runners and heat
resistant plastic handles that can be
positioned on 5 levels and a 4 litre fat
collecting container positioned outside the
cooking chamber to facilitate cleaning
� All models comply with standards required
by the main international approval bodies
and are H marked
BBE03 2011-05-16 The Company reserves the right to alter technical specifications without prior notice.
www.zanussiprofessional.com
