ZANO GRID 1-10V
The Zano Grid 1-10V modules have been designed and tested to
work with a range of high frequency 1-10V electronic ballasts and
LED drivers. A maximum of 70 ballasts or LED 1-10 V drivers can be
controlled from a single device. Please use a ballast manufacturer
from the list below. Some digital 1-10 V ballasts require a DSI
Interface.
RECOMMENDED MANUFACTURERS
Aurora ............................. Tridonic ...................... Helvar ................Huco
Magnetek ...................... Osram ........................ Philips HFR ..........Atlas
Collingwood .................. Megaman ................Vossloh Schwabe
If you require any assistance with product selection or technical
support, please contact our friendly team on 0845 519 5858
GUIDANCE NOTES
Due to the large inrush current from switch on, care has to be taken
to ensure the installation is carefully designed to accommodate such
load characteristics. For example: Tridonic have listed out in table
form a recommended number of ballasts per circuit. For example,
10A MCB could have a maximum of 10, PCA 1/58 EXCEL. To see
the full list go to www.tridonicatco.com. Other manufacturers also
publish the relevant data to assist in the design of an installation. This
product must be used in conjunction with a suitable rocker switch.
The DC + & - connections should be made using a screened
cable where the screen is linked and connected to ground at
one end. For uorescent tubes, we would recommend leaving
the lamps at full brightness for 100 hours minimum, for example, 10
hours a day for 10 days. Some makes of tube may require longer.
This will help reduce the icker at low levels of dimming.
This does not apply to 1-10 V LED drivers
This product should be disposed of properly and recycled at the
end of its life where facilities exist.
INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
• Turn o the mains at distribution board
• Wire device using a suitable rated cable as in wiring diagrams.
• Terminals should be tightened to a maximum of 0.33Nm.
• Check polarity is correct throughout.
• Fit appropriate adaptor as in assembly diagrams.
• Fit device into wall box ensuring cables are not obstructed.
• Secure front plate.
• Product should be recycled at end of life where facilities exist.
A. DETA B.SChNEIDER ELECTRIC (GET) C. BG D. WANDSWORTh E. MK LOGIC F. hAMILTON J. hAGER h. CRABTREE

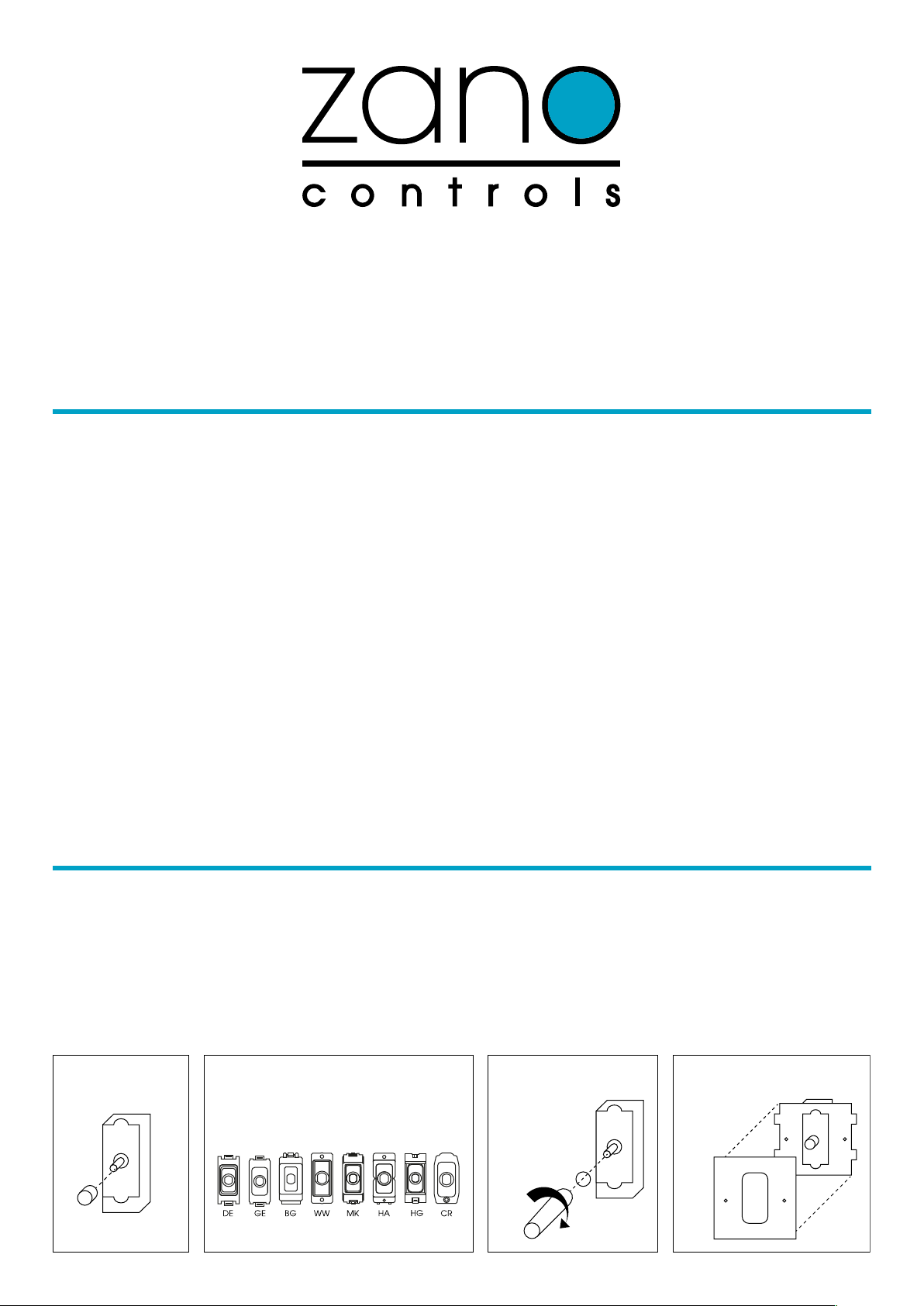

1. Remove knob.
2. Choose the adaptor to t your grid
A B C D E F J H
3. Use tool to secure
adaptor with the ring.
4. Clip into grid,
replace knob.
N
N
N
N
USING MORE ThAN 7 BALLASTS OR LED DRIVERSUSING LESS ThAN 7 BALLASTS OR LED DRIVERS
LAMP
ZANO
1 - 10V
DIMMER
1 - 10V
ELECTRONIC
BALLAST/LED
DRIVER
L
2-WAY SWITChING USING LESS ThAN 7 BALLASTS OR LED DRIVERS
LAMP
ROCKER
SWITCH
ROCKER
SWITCH
ZANO
1 - 10V
DIMMER
1 - 10V
ELECTRONIC
BALLAST/LED
DRIVER
LAMP
ZANO
1 - 10V
DIMMER
CONTACTOR
COIL CONT
1 - 10V
ELECTRONIC
BALLAST/LED
DRIVER
INSTALLATION CONVERTING FROM 1-10V TO DSI
LAMP
ZANO
1 - 10V
DIMMER
D1
D2
DSI - AD
INTERFACE
D1
D2
DSI - AD
ELECTRONIC
BALLAST
L
L
FOR LOW VOLTAGE CONTROL USE A 0.75MM2 TWO CORE SCREENED CABLE, EARTh AT ONE END
