ZANKER PVX1556 User Manual
PVX1556
User Manual
Dishwasher
Benutzerin‐
formation
Geschirrspü‐
ler
Contents
Safety information 2
Safety instructions 3
Product description 4
Control panel 5
Programmes 5
Settings 6
Options 9
Before first use 9
Daily use 10
Hints and tips 12
Care and cleaning 13
Troubleshooting 15
Technical information 18
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read the supplied
instructions. The manufacturer is not responsible for any injuries or damages
that are the result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future reference.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe way and
understand the hazards involved.
• Do not let children play with the appliance.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
General Safety
• This appliance is intended to be used in household and similar
applications such as:
– farm houses; staff kitchen areas in shops, offices and other working
environments;
– by clients in hotels, motels, bed & breakfast and other residential type
environments.
• Do not change the specification of this appliance.
• The operating water pressure (minimum and maximum) must be between
0.5 (0.05) / 8 (0.8) bar (MPa)
2
• Obey the maximum number of 13 place settings.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
Authorised Service Centre or similarly qualified persons in order to avoid a
hazard.
• Put the cutlery in the cutlery basket with the sharp ends pointing down or
put them in the cutlery drawer in a horizontal position with the sharp edges
down.
• Do not leave the appliance with the open door unattended to avoid
stepping accidentally onto it.
• Before any maintenance operation, deactivate the appliance and
disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the
appliance.
• If the appliance has ventilation openings in the base, they must not be
covered e.g. by a carpet.
• The appliance is to be connected to the water mains using the new
supplied hose-sets. Old hose sets must not be reused.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the
temperature is less than 0 °C.
• Follow the installation instruction supplied with the
appliance.
• Always take care when moving the appliance as it is
heavy. Always use safety gloves and enclosed
footwear.
• Make sure that the appliance is installed below and
adjacent to safe structures.
Electrical connection
Warning! Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate
are compatible with the electrical ratings of the
mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the mains plug
and to the mains cable. Should the mains cable
need to be replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• This appliance complies with the E.E.C. Directives.
• UK and Ireland only. This appliance is fitted with a
13 A mains plug. If it is necessary to change the
mains plug fuse, use only a 13 A ASTA (BS 1362)
fuse.
Water connection
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for
a long time, where repair work has been carried out
or new devices fitted (water meters, etc.), let the
water flow until it is clean and clear.
• Ensure that there are no visible water leaks during
and after the first use of the appliance.
• The water inlet hose has a safety valve and a
sheath with an inner mains cable.
3
Warning! Dangerous voltage.
• If the water inlet hose is damaged, immediately
close the water tap and disconnect the mains plug
from the mains socket. Contact the Authorised
Service Centre to replace the water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the
safety instructions on the detergent packaging.
• Do not drink and play with the water in the
appliance.
• Do not remove the dishes from the appliance until
the programme is complete. Some detergent may
remain on the dishes.
• The appliance can release hot steam if you open the
door while a programme operates.
• Do not put flammable products or items that are wet
with flammable products in, near or on the
appliance.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets
to get closed in the appliance.
Product description
5
4
67
9
8
12
2
3
1
11 10
1
Top spray arm
2
Upper spray arm
3
Lower spray arm
4
Filters
5
Rating plate
6
Salt container
7
Air vent
8
Rinse aid dispenser
9
Detergent dispenser
10
Cutlery basket
4
11
Lower basket
12
Upper basket
Control panel
1
2
3
4
1
On/off button
2
Programme buttons
3
Delay button
4
Indicators
Indicators
Indicator Description
End indicator.
XtraDry indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
Programmes
Programme Degree of soil
Type of load
Programme phases Options
1)
• Normal soil
• Crockery and cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• XtraDry
• Heavy soil
• Crockery, cutlery,
pots and pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• XtraDry
• Normal soil
• Crockery and cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
• XtraDry
2)
• Fresh soil
• Crockery and cutlery
• Wash 60 °C
• Rinses
• XtraDry
5
Programme Degree of soil
Type of load
Programme phases Options
3)
• All • Prewash
1) With this programme, you have the most efficient use of water and energy consumption for crockery and cutlery with
normal soil. This is the standard programme for test institutes.
2) With this programme, you can wash a half-load dishwasher with fresh soil. It gives good washing results in a short time.
3) With this programme, you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form in the
appliance. Do not use detergent with this programme.
Consumption values
Programme
1)
Water
(l)
Energy
(kWh)
Duration
(min)
10.2 0.932 225
12.5 - 14.5 1.4 - 1.7 170 - 190
15 1.7 170
10 0.9 30
4 0.1 14
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes
can change the values.
Information for test institutes
For all the necessary information for test performance,
send an email to:
info.test@dishwasher-production.com
Write down the product number (PNC) that is on the
rating plate.
Settings
Programme selection mode and user mode
When the appliance is in programme selection mode it
is possible to set a programme and to enter the user
mode.
Settings available in the user mode:
• The level of water softener according to the water
hardness.
• Activation or deactivation of the acoustic signal for
the end of a programme.
• Activation or deactivation of the rinse aid empty
notification.
• The level of rinse aid according to the required
dosage.
• Activation or deactivation of AirDry.
As the appliance stores the saved settings, there is
no need to configure it before every cycle.
How to set the programme selection mode
The appliance is in programme selection mode when
only the indicator of the programme is on.
After activation, the appliance is in programme selection
mode by default. If not, set the programme selection
mode the following way:
Press and hold simultaneously and until the
appliance is in programme selection mode.
6
How to enter user mode
Make sure the appliance is in programme selection
mode.
To enter user mode, press and hold simultaneously
and until the indicators , , ,
and start flashing.
The water softener
The water softener removes minerals from the water
supply, which would have a detrimental effect on the
washing results and on the appliance.
The higher the content of these minerals, the harder
your water is. Water hardness is measured in equivalent
scales.
The water softener should be adjusted according to the
hardness of the water in your area. Your local water
authority can advise you on the hardness of the water in
your area. It is important to set the right level of the
water softener to assure good washing results.
Water hardness
German degrees
(°dH)
French degrees
(°fH)
mmol/l Clarke de-
grees
Water softener level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27
5
1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5
1
2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent or multi-tabs
(with or without salt), set the proper water hardness
level to keep the salt refill indicator active.
Multi-tabs containing salt are not
effective enough to soften hard water.
How to set the water softener
Make sure the appliance is in user mode.
1. Press
.
• The indicators
, , and are off.
• The indicator
still flashes.
• The indicator starts flashing. The number
of flashes indicates the current water softener
setting (e.g. 5 flashes + pause + 5 flashes... =
level 5).
2. Press repeatedly to change the setting.
Each pressing of the button increases the
level number by one. After reaching level 10, the
count starts again from level 1.
3. Press on/off to confirm and save the setting.
The rinse aid empty notification
The rinse aid helps to dry the dishes without streaks
and stains.
7
The rinse aid is automatically released during the hot
rinse phase.
When rinse aid chamber is empty, the rinse aid indicator
is turned on notifying to refill rinse aid. If the drying
results are satisfactory while using multi-tablets only, it
is possible to deactivate the notification for refilling rinse
aid. However, for best drying performance, always use
rinse aid.
If standard detergent or multi-tablets without rinse aid
are used, activate the notification to keep the rinse aid
refill indicator active.
How to deactivate the rinse aid empty notification
Make sure the appliance is in user mode.
1. Press
.
• The indicators , , and are
off.
• The indicator still flashes.
• The indicator shows the current setting.
– If the indicator is on = the rinse aid
empty notification is activated.
– If the indicator is off = the rinse aid
empty notification is deactivated.
2. Press to change the setting.
3. Press on/off to confirm and save the setting.
The rinse aid level
It is possible to set the released quantity of rinse aid
between level 1 (minimum quantity) and level 6
(maximum quantity). Level 0 deactivates the rinse aid
dispenser and no rinse aid is released.
Factory setting: level 4.
How to set the rinse aid level
Make sure the appliance is in user mode.
1. Press .
• The indicators , , and are
off.
• The indicator still flashes.
• The indicator
starts flashing. The number
of flashes indicates the current setting: e.g. 4
flashes + pause + 4 flashes... = level 4.
– The levels of rinse aid range from 0 to 6.
– Level 0 means no rinse aid is used. In this
case the indicator remains off.
2.
Press repeatedly to change the setting. Each
pressing of increases the level number. After
reaching level 6, the count starts again from level 1.
3. Press on/off to confirm the setting.
Acoustic signals
Acoustic signals sound when a malfunction of the
appliance occurs. It is not possible to deactivate these
acoustic signals.
There is also an acoustic signal that sounds when the
programme is completed. By default this acoustic signal
is deactivated but it is possible to activate it.
How to activate the acoustic signal for the end of
programme
Make sure the appliance is in user mode.
1. Press
• The indicators , , and are
off.
• The indicator
still flashes.
• The indicator
shows the current setting.
– If the indicator is on = the acoustic
signal is activated.
– If the indicator is off = the acoustic
signal is deactivated.
2. Press to change the setting.
3. Press on/off to confirm the setting.
AirDry
AirDry improves the drying results with less energy
consumption.
During the drying phase, the door opens
automatically and remains ajar.
8
Caution! Do not try to close the
appliance door within 2 minutes after
automatic opening. This can cause
damage to the appliance.
If, afterwards, the door is closed for
another 3 minutes, the running
programme ends.
AirDry is automatically activated with all programmes
excluding (if applicable).
To improve the drying performance refer to the XtraDry
option or activate AirDry.
Caution! If children have access to the
appliance, it is advised to deactivate
AirDry as opening the door may pose a
danger.
How to deactivate AirDry
Make sure the appliance is in user mode.
1. Press .
• The indicators , , and are
off.
• The indicator still flashes.
• The indicator shows the current setting.
– If the indicator is on = AirDry is
activated.
– If the indicator
is off = AirDry is
deactivated.
2. Press to change the setting.
3. Press on/off to confirm and save the setting.
Options
Desired options must be activated every
time before you start a programme.
It is not possible to activate or deactivate
options while a programme is running.
Not all options are compatible with each
other. If you select non compatible
options, the appliance automatically
deactivates one or more of them. Only
the indicators of the still active options
are on.
XtraDry
Activate this option to boost the drying performance.
With XtraDry on, the duration of some programmes,
water consumption and the last rinse temperature can
be affected.
XtraDry is a permanent option for all programmes other
than and need not to be selected at every
cycle.
In the other programmes the setting of XtraDry is
permanent and it is automatically used in next cycles.
This configuration can be changed at any time.
Every time is activated, XtraDry
is off and needs to be chosen manually.
How to activate XtraDry
Press simultaneously and . The indicator is
on.
If the option is not applicable to the programme, the
related indicator is off or it flashes quickly for a few
seconds and then goes off.
Before first use
1. Make sure that the current level of the water
softener agrees with the hardness of the water
supply. If not, adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing
residuals that can still be inside the appliance. Do
not use detergent and do not load the baskets.
After starting a programme, it may take up to 5 minutes
for the appliance to recharge the resin in the water
softener. It seems that the appliance is not working. The
washing phase starts only after this procedure is
completed. The procedure is repeated periodically.
The salt container
Caution! Use rough salt designed for
dishwashers only. Fine salt increases the
risk of corrosion.
The salt is used to recharge the resin in the water
softener and to assure good washing results in daily
use.
9
How to fill the salt container
1. Turn the cap of the salt container counterclockwise
and remove it.
2. Put 1 litre of water in the salt container (only for the
first time).
3. Fill the salt container with 1 kg of salt (until it is full).
4. Carefully shake the funnel by its handle to get the
last granules inside.
5. Remove the salt around the opening of the salt
container.
6. Turn the cap of the salt container clockwise to
close the salt container.
Caution! Water and salt can come out of
the salt container when you fill it. After
you fill the salt container, immediately
start a programme to prevent corrosion.
How to fill the rinse aid dispenser
A
B
C
Caution! Only use rinse aid specifically
designed for dishwashers.
1. Open the lid (C).
2. Fill the dispenser (B) until the rinse aid reaches the
marking ''MAX''.
3. Remove the spilled rinse aid with an absorbent
cloth to prevent too much foam.
4. Close the lid. Make sure that the lid locks into
position.
Fill the rinse aid dispenser when the
indicator (A) becomes clear.
If you use multi-tablets and the drying
performance is satisfactory, the rinse aid
refill indication can be disabled.
We recommend to always use rinse aid
for better drying performance, also in
combination with multi-tablets containing
rinsing agent.
Daily use
1. Open the water tap.
2. Press the on/off button to activate the appliance.
Make sure that the appliance is in programme selection
mode.
• If the salt indicator is on, fill the salt container.
• If the rinse aid indicator is on, fill the rinse aid
dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme for the type of
load and the degree of soil.
10
Using the detergent
A
B
C
Caution! Only use detergent specifically
designed for dishwashers.
1. Press the release button (A) to open the lid (C).
2. Put the detergent, in powder or tablets, in the
compartment (B).
3. If the programme has a prewash phase, put a small
quantity of detergent on the inner part of the
appliance door.
4. Close the lid. Make sure that the lid locks into
position.
Setting and starting a programme
The AUTO OFF function
This function decreases energy consumption by
deactivating automatically the appliance when it is not
operating.
The function comes into operation:
• 5 minutes after the completion of the programme.
• After 5 minutes if the programme has not started.
Starting a programme
1. Keep the appliance door ajar.
2. Press the on/off button to activate the appliance.
Make sure that the appliance is in programme
selection mode.
3. Press the button related to the programme you
want to start.
The related programme indicator comes on.
4. Close the appliance door to start the programme.
Starting a programme with delay start
1. Set a programme.
2. Press repeatedly until the indicator related to
the desired number of hours is on (3h or 6h).
The delay indicator is on.
3. Close the appliance door to start the countdown.
While the countdown is running, it is possible to
increase the delay time but not to change the
selection of the programme and options.
When the countdown is completed, the programme
starts.
Opening the door while the appliance operates
Opening the door while a programme is running stops
the appliance. It may affect the energy consumption and
the programme duration. After closing the door, the
appliance continues from the point of interruption.
If the door is opened for more than 30
seconds during the drying phase, the
running programme ends. It does not
happen if the door is opened by AirDry
function.
Cancelling the delay start while the countdown
operates
When you cancel the delay start you have to set the
programme and options again.
Press and hold simultaneously
and until the
appliance is in programme selection mode.
Cancelling the programme
Press and hold simultaneously and until the
appliance is in programme selection mode.
Make sure that there is detergent in the detergent
dispenser before you start a new programme.
End of the programme
When the programme is completed the indicator is
on.
1. Press the on/off button or wait for the AUTO OFF
function to deactivate the appliance. If you open the
door before the activation of AUTO OFF, the
appliance is automatically deactivated.
2. Close the water tap.
11
Hints and tips
General
The following hints will ensure optimal cleaning and
drying results in daily use and also help to protect the
environment.
• Remove larger residues of food from the dishes into
the waste bin.
• Do not pre-rinse dishes by hand. When needed, use
the prewash programme (if available) or select a
programme with a prewash phase.
• Always use the whole space of the baskets.
• When loading the appliance, make sure that the
dishes can be completely reached and washed by
the water released from the spray arm nozzles.
Make sure that items do not touch or cover each
other.
• You can use dishwasher detergent, rinse aid and
salt separately or you can use the multi-tablets (e.g.
''3in1'', ''4in1'', ''All in 1''). Follow the instructions
written on the packaging.
• Select the programme according to the type of load
and degree of soil. With the ECO programme you
have the most efficient use of water and energy
consumption for crockery and cutlery with normal
soil.
Using salt, rinse aid and detergent
• Only use salt, rinse aid and detergent for
dishwasher. Other products can cause damage to
the appliance.
• In areas with hard and very hard water we
recommend to use plain dishwasher detergent
(powder, gel, tablets containing no additional
agents), rinse aid and salt separately for optimal
cleaning and drying results.
• At least once a month run the appliance with the use
of appliance cleaner which is particularly suitable for
this purpose.
• Detergent tablets do not fully dissolve with short
programmes. To prevent detergent residues on the
tableware, we recommend that you use the tablets
with long programmes.
• Do not use more than the correct quantity of
detergent. Refer to the instructions on the detergent
packaging.
What to do if you want to stop using multi-tablets
Before you start to use separately detergent, salt and
rinse aid do the following procedure.
1. Set the highest level of the water softener.
2. Make sure that the salt and rinse aid containers are
full.
3. Start the shortest programme with a rinsing phase.
Do not add detergent and do not load the baskets.
4. When the programme is completed, adjust the
water softener according to the water hardness in
your area.
5. Adjust the released quantity of rinse aid.
6. Activate the rinse aid empty notification.
Loading the baskets
• Only use the appliance to wash items that are
dishwasher-safe.
• Do not put in the appliance items made of wood,
horn, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb
water (sponges, household cloths).
• Remove larger residues of food from the dishes into
the waste bin.
• Make soft the remaining burned food on the items.
• Put hollow items (cups, glasses and pans) with the
opening down.
• Make sure that glasses do not touch other glasses.
• Put cutlery and small items in the cutlery basket.
• Put light items in the upper basket. Make sure that
the items do not move.
• Make sure that the spray arms can move freely
before you start a programme.
Before starting a programme
Make sure that:
• The filters are clean and correctly installed.
• The cap of the salt container is tight.
• The spray arms are not clogged.
• There is dishwasher salt and rinse aid (unless you
use multi- tablets).
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load
and for the degree of soil.
• The correct quantity of detergent is used.
Unloading the baskets
1. Let the tableware cool down before you remove it
from the appliance. Hot items can be easily
damaged.
2. First remove items from the lower basket, then from
the upper basket.
At the end of the program water can still
remain on the sides and on the door of
the appliance.
12

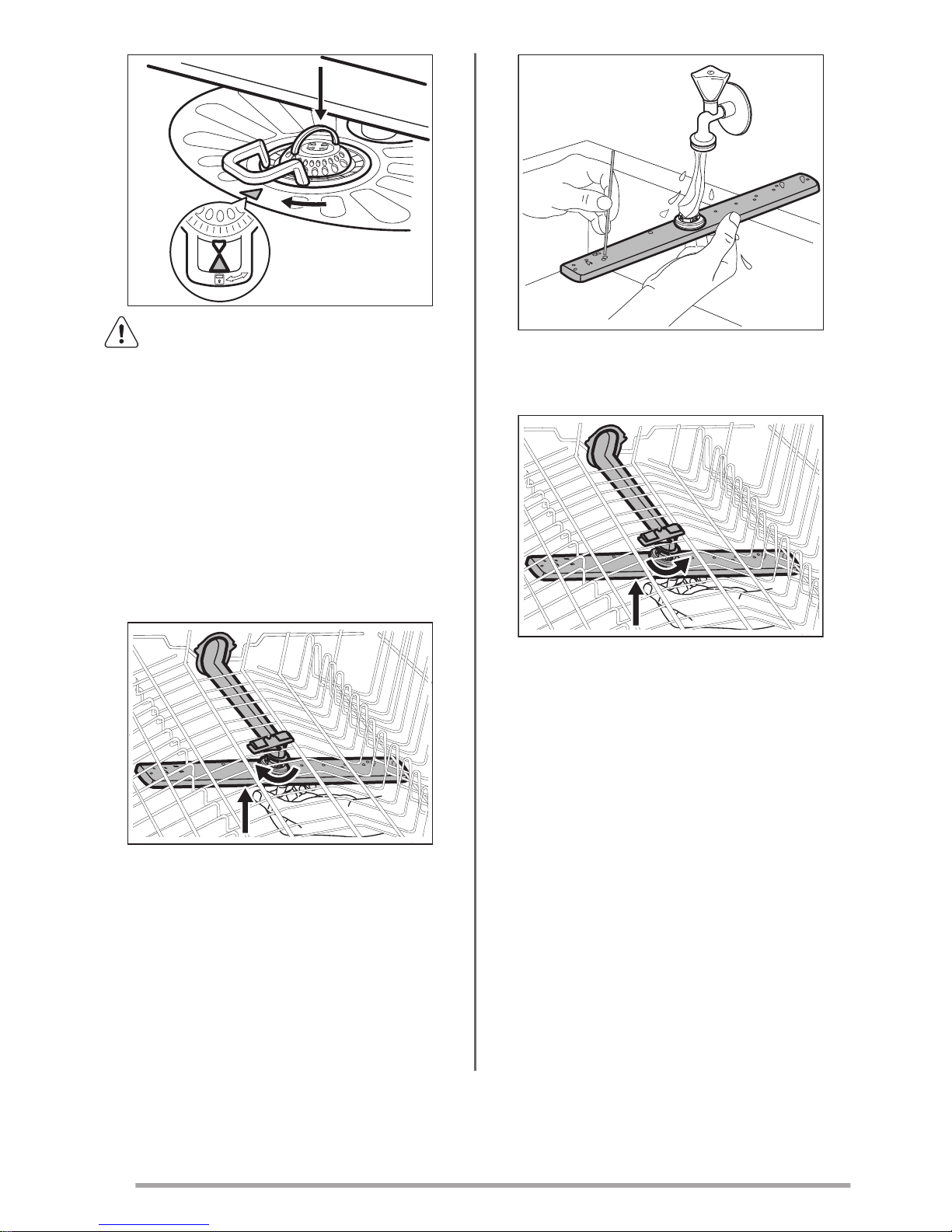

Loading...
