ZANEEN design ZN3007 Specifcations

POLIFEMO 4 LIGHT SQUARE SURFACE
D92023-
base number
1.To build a product code in our configurator select the specify button on the base model # product page
2. To build a manual product code on this datasheet choose from the options listed below in blue font and add the suffix to the base model #
GENERAL
Division: Design Series: Polifemo Subseries: Polifemo 4 Light Square Mounting Type: Surface Mounting Location: Ceiling Subcategory: Downlight Brand: Milan
PHYSICAL
Shape: Square Length (mm): 450 Length (in): 17 11⁄ Width (mm): 450 Width (in): 17 11⁄ Height (mm): 76 Height (in): 3 Light Distribution: Direct Weight (kg): 4.09 Weight (lbs): 9.02
Fixture Finish: GRY / WHI
Fixture Material: Metal
ELECTRICAL
Number of Lamps: 4 Lamp Type: LED Retrofit Lamp Shape: MR16 Bulb Included: Bulb Not Included Max. Wattage Per Lamp (W): 4 Lamp Base: GU10 Input Voltage (V): 120
RATINGS AND CERTIFICATIONS
Certified By: Certified for North American Standards IP rating: IP20
16
16
PROJECT
TYPE
SPECIFIER
QUANTITY
DATE
Zaneen Group Inc. © 2022, T 1800-388-3382, F 416-247-9319, www.zaneen.com
Available for International specifications by adding ‘INT’ at the end of the existing Model #. For assistance on ‘custom’ specifications, contact zteam@zaneen.com. In a constant effort to supply the best product, we reserve the right to change specifications or materials without notice. The most recent specification sheets are found at zaneen.com
Page 1/3
May 2, 2022, 12:25 am
POLIFEMO 4 LIGHT SQUARE SURFACE
COLOR FINISH CHART
Gray - GRY White - WHI
PROJECT
TYPE
SPECIFIER
QUANTITY
DATE
Digital: Not all screens are calibrated the same, and therefore, colors will appear differently between screens. Physical: When texture is involved, there will be variations in color, character and tone within a product series and between product families.
Zaneen Group Inc. © 2022, T 1800-388-3382, F 416-247-9319, www.zaneen.com
Available for International specifications by adding ‘INT’ at the end of the existing Model #. For assistance on ‘custom’ specifications, contact zteam@zaneen.com. In a constant effort to supply the best product, we reserve the right to change specifications or materials without notice. The most recent specification sheets are found at zaneen.com
Page 2/3
May 2, 2022, 12:25 am

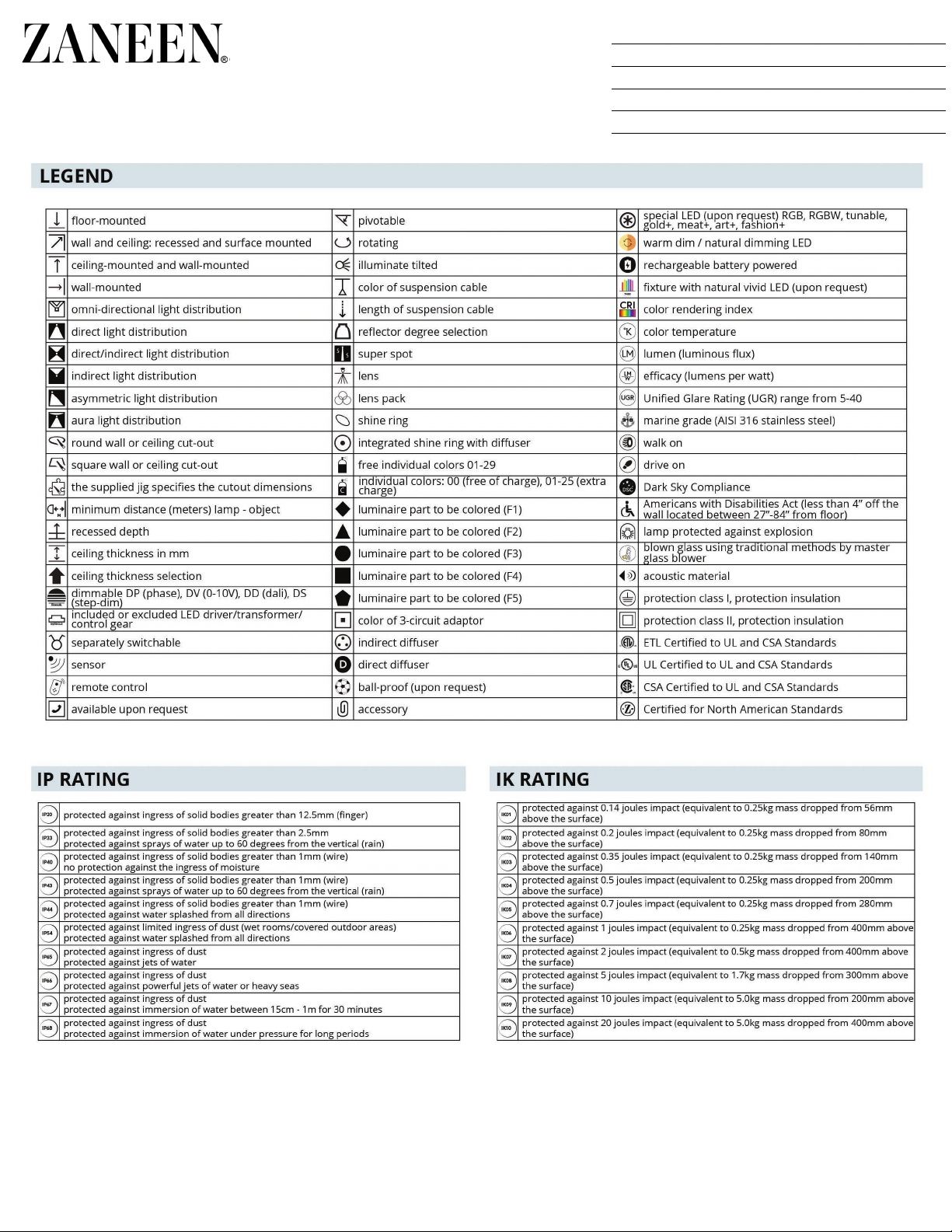

POLIFEMO 4 LIGHT SQUARE SURFACE
PROJECT
TYPE
SPECIFIER
QUANTITY
DATE
Zaneen Group Inc. © 2022, T 1800-388-3382, F 416-247-9319, www.zaneen.com Page 3/3
Available for International specifications by adding ‘INT’ at the end of the existing Model #. For assistance on ‘custom’ specifications, contact zteam@zaneen.com.
In a constant effort to supply the best product, we reserve the right to change specifications or materials without notice. The most recent specification sheets are found at zaneen.com May 2, 2022, 12:25 am
