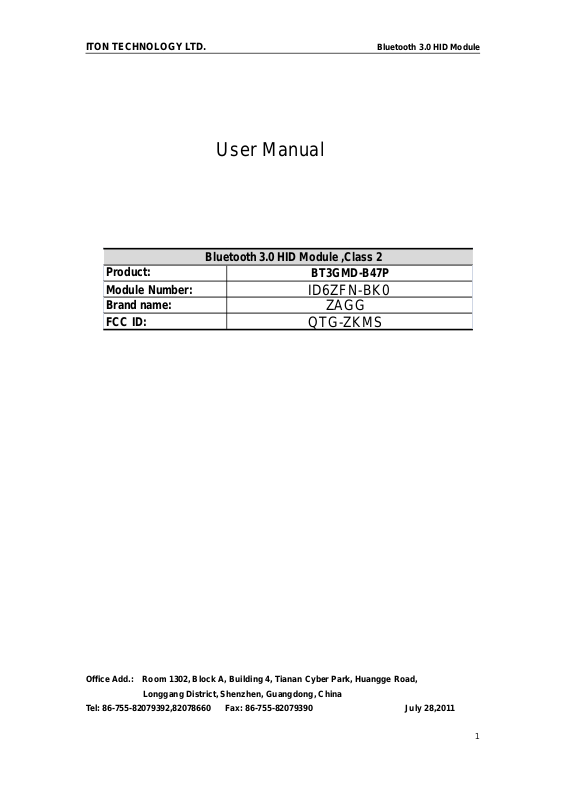

ZAGG ZKMS User Manual

ITON TECHNOLOGY L TD.

Product:

Bluetooth 3.0 HID Module

User Manual

Bluetooth 3.0 HID Module ,Class 2

BT3GMD-B47P

Module Numb er:
Brand name:

FCC ID:

ID6ZFN-BK0

ZAGG

QTG-ZKMS

Office Add.: Room 1302, Block A, Building 4, Tianan Cyber Park, Huangge Road,

Longgang District, Shenzhen, Guangdong, China

Tel: [phone] Fax: [phone] July 28,2011

1

ITON TECHNOLOGY L TD.

Bluetooth 3.0 HID Module

Section 1:Overview

The BT3GMD-B47P is a Bluetooth Human Interface Device(HID) module based on

the Broadcom BCM20730 Bluetooth 3.0 specification basic rate-compliant stand alone

baseband processor with an integrated 2.4GHz transceiver.

The module includes EEPROM, crystal, and PCB antenna.

1.1 Applications

●

Wireless pointing devices: mice , trackballs , gestural controls

Wireless keyboards

●

3D glasses

●

●

Game controllers

●

Point-of-sale(POS)input devices

●

Remote sensors

● Home automation

Personal health and fitness monitoring

●

1.2 Features

The BT3GMD-B47P offers the following features:

●

On-chip support for common keyboard and mouse interfaces eliminates external

processor

Programmable keyscan matrix interface, up to 8 × 20 key-scanning matrix

●

Bluetooth specification 3.0 compatible, includeing enhanced power control

●

Bluetooth HID profile version 1.0 compliant

●

Bluetooth Device ID profile version 1.3 compliant

●

●

Bluetooth AVRCP-CT profile version 1.3 compliant

Supports Adaptive Frequency Hopping(AFH)

●

●

On-chip support for serial peripheral interface(SPI)

●

Programmable output power control meets Class 2 or Class 3 requirements

Excellent receiver sensitivity

●

Integrated ARM CortexTM-M3 based

●

●

On-chip power-on reset(POR)

1.3 Functional Description

The primary component on the module is the Broadcom BCM20730, which is a

Bluetooth 3.0 compliant basic rate single-chip. The baseband and radio have been

integrated into a single chip implemented in standard digital CMOS. The block diagram of

the module is shown in Figure 1.

ITON TECHNOLOGY L TD.

Bluetooth 3.0 HID Module

Figure 1: Block Diagram

The BT3GMD-B47P employs an integrated ARM CortexTM-M3 microprocessor core

that runs software from the Link Control layer up to the Host Controller Interface (HCI).The

baseband portion of the BT3GMD-B47P performs all the time-critical functions required

for high-performance Bluetooth operations.

The radio incorporates the complete receive and transmit paths, including PLL, VCO,

LNA, PA, upconverter,downconverter, modulator, demodulator, and channel select

filtering.

The BT3GMD-B47P on-chip keyboard scanner is designed to autonomously sample

keys and store them into buffer registers without requiring host microcontroller

intervention. A state machine of three states(Idle, Scan, and Scan-End)controls the

keyscan block.

The module has a SPI interface. The interface has a 16-byte transmit buffer and a

16-byte receive buffer .To support more flexibility for user applications. The module acts

as an SPI master device that supports 1.8V or 3.3V SPI slaves.

ITON TECHNOLOGY L TD.

1.4 Physical Description

The BT3GMD-B47P is a 28.5mm×15mm FR4 PCB with 47 pads located around

the perimeter. Table 1 shows the pinout diagram of the module.

Bluetooth 3.0 HID Module

INSignal

1 GND 2 GND 3 P13 4 P8 5 P17

6 P22 7 UP_TX 8 UP_RX 9 P6 10 P0
11 P1 12 P5 13 P4 14 P2 15 P31
16 RESET 17 P3 18 SDA 19 SCL 20 P32
21P1622P1823P1924P2525VDD
26 GND 27 P20 28 P24 29 P21 30 P7
31P2932P2833P2734P2635P36
36P3037P3838P3739P1540P14
41P1242 P9 43P2344P1145P10
46 GND 47 GND

IN Signal

IN Signal

Table 1 Pin Location

28.5mm

IN Signal

IN Signal

Figure 2: Module PCB Top View

15mm

ITON TECHNOLOGY L TD.

Bluetooth 3.0 HID Module

Pin

Number

1，2

，

26，46

Pin

Name

GND Ground

，

Default

Direction

POR

State

Function Description

47
25 VDD Power supply
16 RESET PU Active-low system reset with open-drain output & internal pull up resistor
18 SDA I/O PU

19 SCL I/O PU

Data signal for an extern I

Clock signal for an extern I

2

C device

2

C device
7 UP_TX output PU UART serial output-serial data output for the HCI UART interface
8 UP_RX input UART serial input-serial data output for the HCI UART interface

10 P0 input Floating GPIO:P0,Keyboard scan input(row):KSI0
11 P1 input Floating GPIO:P1,Keyboard scan input(row):KSI1
14 P2 input Floating GPIO:P2,Keyboard scan input(row):KSI2
17 P3 input Floating GPIO:P3,Keyboard scan input(row):KSI3
13 P4 input Floating GPIO:P4,Keyboard scan input(row):KSI4
12 P5 input Floating GPIO:P5,Keyboard scan input(row):KSI5

9 P6 input Floating GPIO:P6,Keyboard scan input(row):KSI6

30 P7 input Floating GPIO:P7,Keyboard scan input(row):KSI7

4 P8 input Floating GPIO:P8,Keyboard scan output(column):KSO0

42 P9 input Floating GPIO:P9,Keyboard scan output(column):KSO1
45 P10 input Floating GPIO:P10,Key board scan output(column):KSO2
44 P11 input Floating GPIO:P11,Key board scan output(column):KSO3
41 P12 input Floating GPIO:P12,Key board scan output(column):KSO4

3 P13 input Floating GPIO:P13,Keyboard sc an output(column):KSO5

40 P14 input Floating GPIO:P14,Key board scan output(column):KSO6
39 P15 input Floating GPIO:P15,Key board scan output(column):KSO7
21 P16 input Floating GPIO:P16,Key board scan output(column):KSO8

5 P17 input Floating GPIO:P17,Keyboard sc an output(column):KSO9

22 P18 input Floating GPIO:P18,Key board scan output(column):KSO10
23 P19 input Floating GPIO:P19,Key board scan output(column):KSO11
27 P20 input Floating GPIO:P20,Key board scan output(column):KSO12
29 P21 input Floating GPIO:P21,Key board scan output(column):KSO13

6 P22 input Floating GPIO:P22,Keyboard sc an output(column):KSO14

43 P23 input Floating GPIO:P23,Key board scan output(column):KSO15
28 P24 input Floating GPIO:P24,Key board scan output(column):KSO16
24 P25 input Floating GPIO:P25,Key board scan output(column):KSO17,SPI MISO (Master mode)
34 P26 input Floating GPIO:P26,Current 16 mA @3.3V
33 P27 input Floating GPIO:P27,Current 16 mA @3.3V
32 P28 input Floating GPIO:P28,Current 16 mA @3.3V
31 P29 input Floating GPIO:P29,Current 16 mA @3.3V
36 P30 input Floating GPIO:P30,A/D converter input,Default as the battery capacity detection
15 P31 input Floating GPIO:P31, A/D converter input,
20 P32 input PU GPIO:P32,Default as the EEPROM write protect pin
35 P36 input Floating GPIO:P36,SPI CLK(Master mode)
38 P37 input Floating GPIO:P37,SPI CS(Mas ter mode)
37 P38 input Floating GPIO:P38,SPI MOSI(Master mode)

Table 2 Pin Function Descriptions

ITON TECHNOLOGY L TD.

Section 2: Supporting Documentions

2.1 Reference Schematic

The most recent schematic , bill of material ,and layout file are available

from the ITON Technology Limit. Contact your ITON representative for details.

2.2 Layout Considerations

The BT3GMD-B47P module is placed at the location where the antenna is

away from the power supply(i.e.,BT1 Battery contacts)and any digital signal

traces. There should be no key matrix membrane under the antenna area and

the user’s hand should not be over the antenna area when the keyboard is in use.

The antenna keep-out area which is 5mm around the parameter of the module

region is shown in the red dotted box. PCB material and signal traces should not

be placed within the antenna keep-out area to assure optimum antenna

performance.

Bluetooth 3.0 HID Module

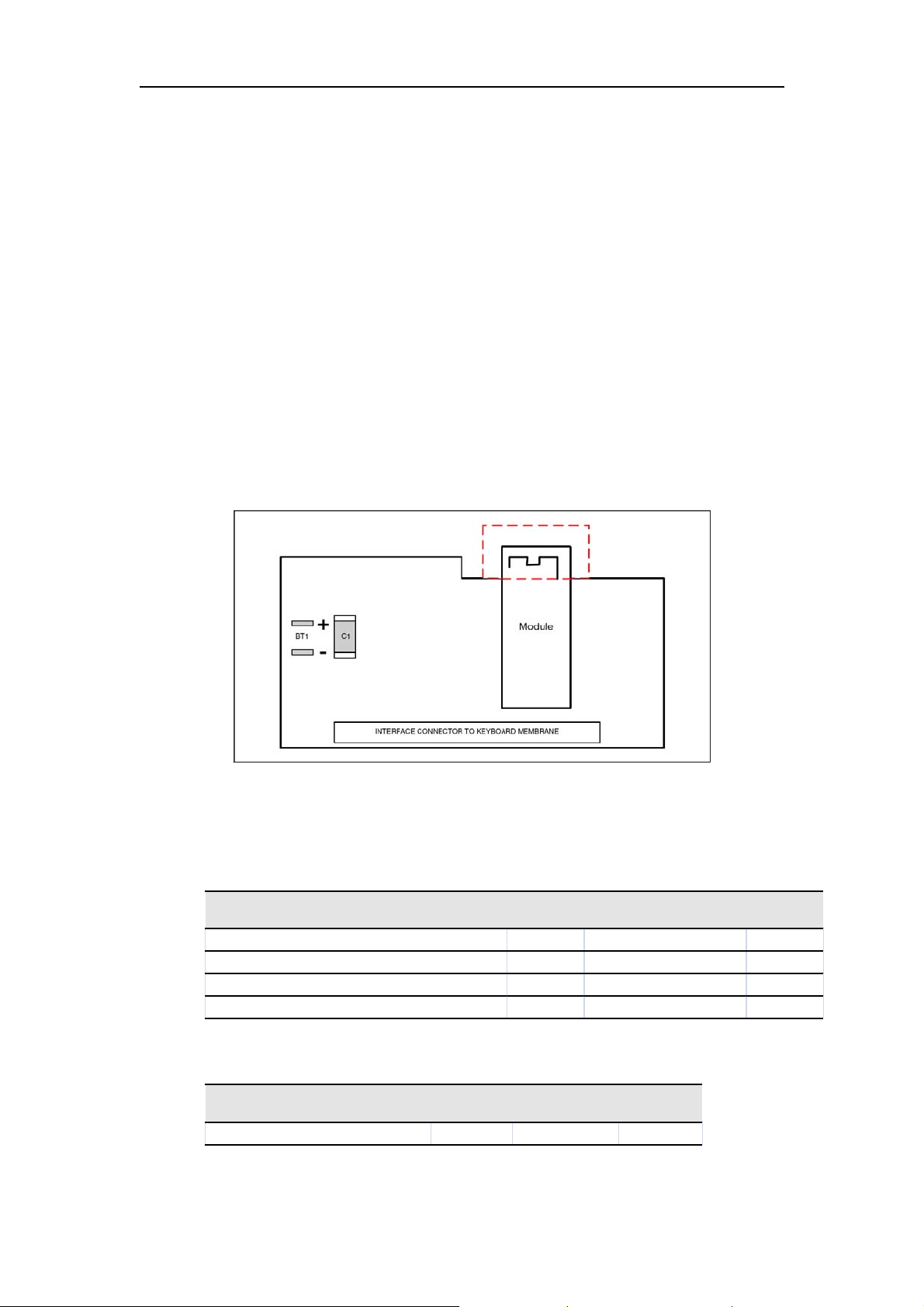

Figure 3: Keyboard PCB

2.3 Electrical Characteristics

Table 3: Maximum Electrical Rating

Rating Symbol Value Unit

Dc supply voltage

Voltage on input or output pin

Operating ambient temperature range Topr 0 to +70

Storage temperature range Tstg -40 to +125

Table 4 :Power supply

－

－

1.4(Min)--3.8(Max) V

Vss -0.3 to Vdd +0.3 V

Rating Minimum Typical Maximum

Dc supply voltage 1.6V 2.8V 3.6V

℃

℃

ITON TECHNOLOGY L TD.

2.4 RF Specification

Bluetooth 3.0 HID Module

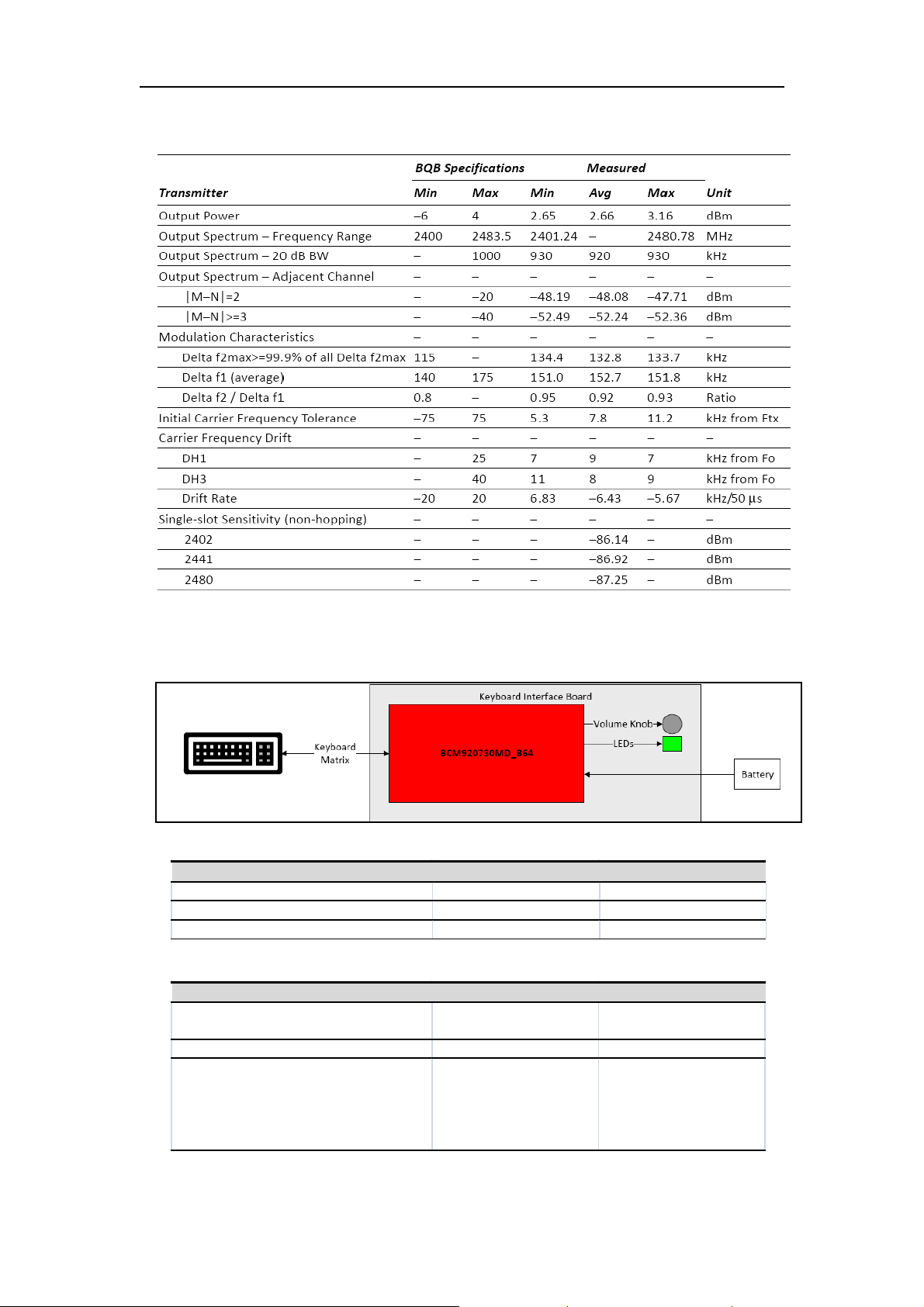

Table 5 : Module RF Specifications(Vdd_RF=1.5,T=25C)

Section3:Application Examples

Figure 4: Keyboard PCB

Power consumption Vdd @1.8V V dd @2.8V

operating current 1mA <2mA
Standby current 0.03-0.4mA 0.03-0.4mA
Deep sleep 22.5uA 22.5uA

Table 6: keyboard Performance

Power consumption Vdd @3V Remark

Pairing current 15mA

operating current 1.2mA

Deep sleep 1.2uA

30 second timeout, the 2

LEDs flash by tunes

push power switch one

tim e will wake up the
device and push one

time again will power off

the device

Table 7: 3D Galsses Performance

ITON TECHNOLOGY L TD.

Section 4: Mechanical Specification

Bluetooth 3.0 HID Module

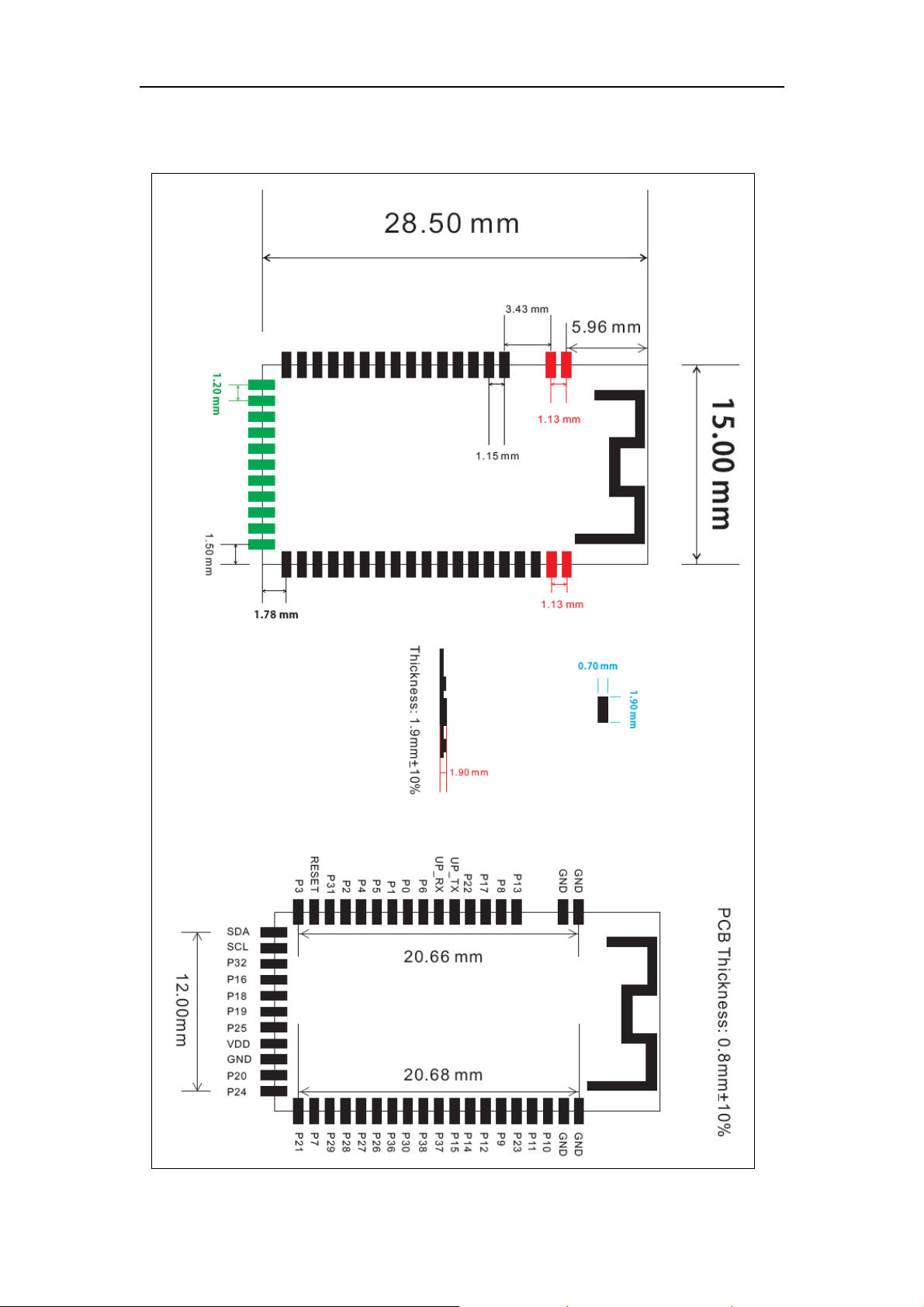

Figure 5: 47Pin-Bluetooth Module

ITON TECHNOLOGY L TD.

Bluetooth 3.0 HID Module

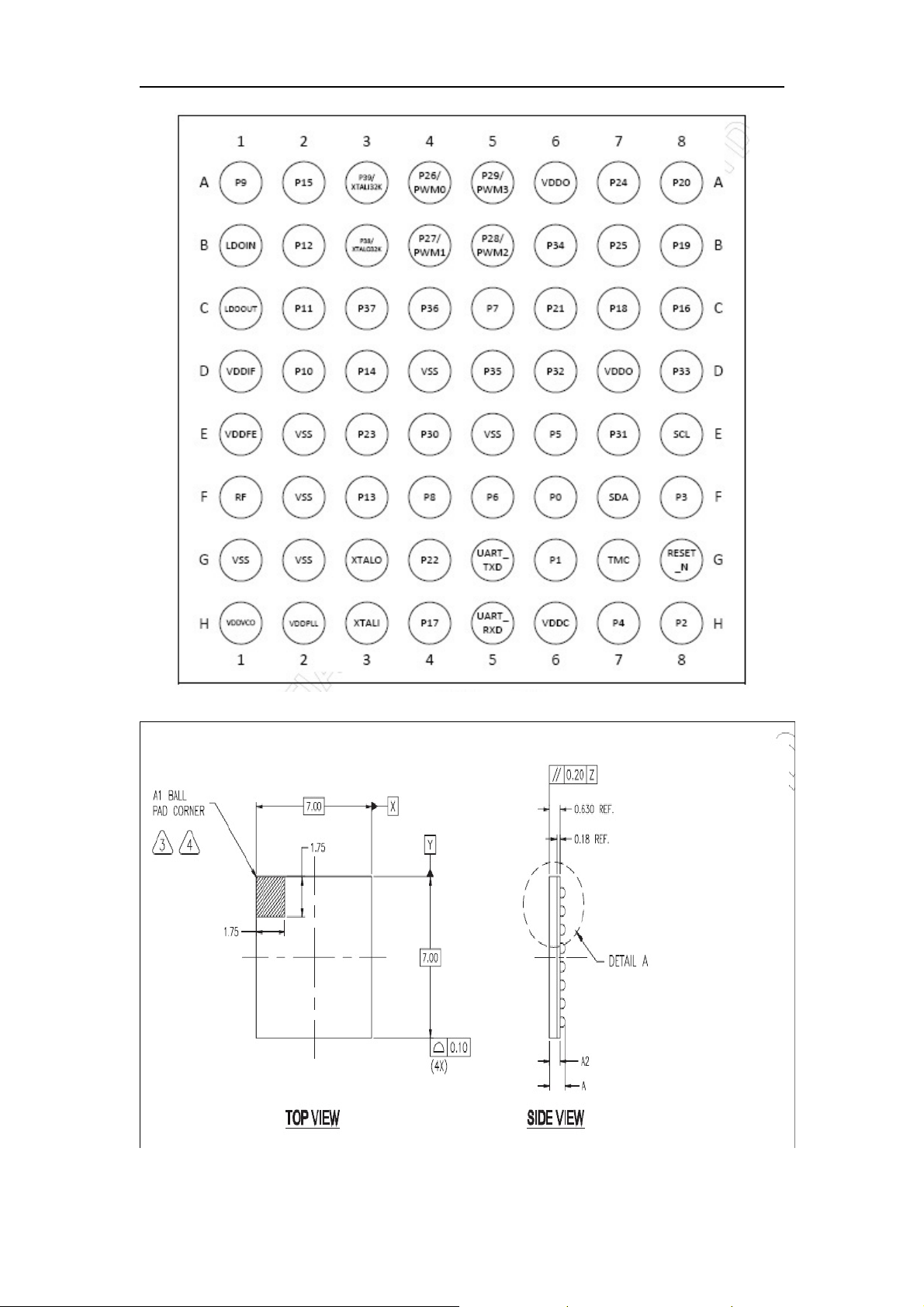

Figure 6: 64Pin BGA Ball Map

ITON TECHNOLOGY L TD.

Bluetooth 3.0 HID Module

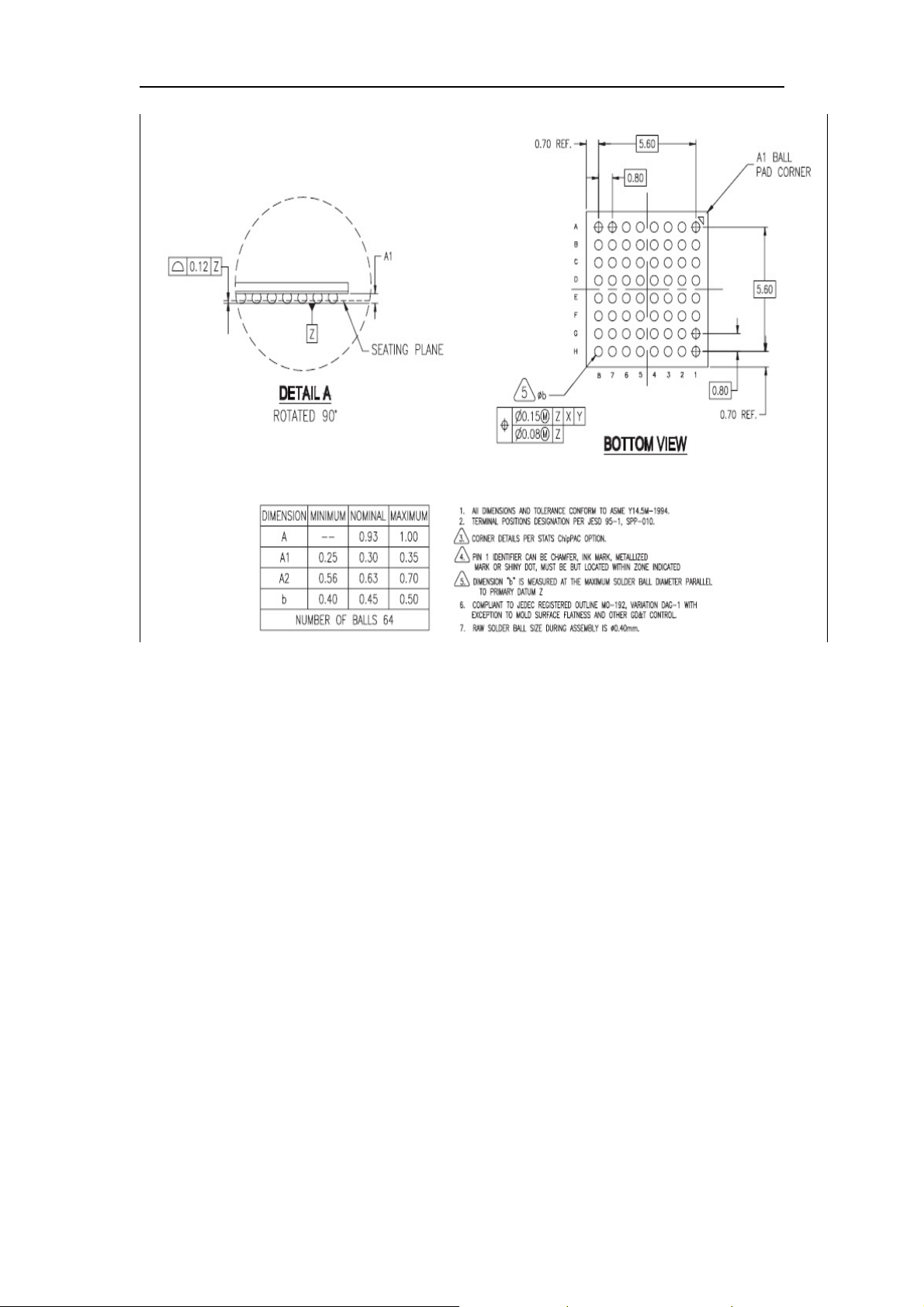

Figure 7: 64Pin FBGA Package

Attention: Limited Modular Approval ‐this RF Module may not be sold to the generic p ublic and

requires professional installation. Due to the fact that this RF Module is not equipped with an own

shielding, the end‐product incl. this RF Module has to show compliance to the FCC rules

(15B/radiated emissions).

(OEM)Integrator has to assure compliance of the entire end‐product incl. the integrate d RF

Module. Additional measurements (15B) and/ or equipment authorizations

(e.g Verification) may need to be addressed dependin g on co‐location or simultaneous

transmission issues if applicable.

Integrator is reminded to assure that these installation instructions will not be made available to the

end‐user of the final host device.

With the low output power, this RF Module meets the FCC SAR exemption.

The final host device, into which this RF Module is integrated "has to be labeled with an auxiliary

lable stating the FCC ID of the RF Module

, such as" Contains FCC ID:

QTG-ZKMS

The RF Module is powered by DC ,the antenna is PCB antenna and the antenna gain is 2 dBi.

This device complies with part15 of the FCC rules. Operation is subject to the following two

conditions:

(1) this device may not cause harmful interference, and

(2)this device must accept any interference received, including interference that may cause

undesired operation. "should be placed also on the device or alternatively within a prominent

location of the users manual

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.



This module is intended for OEM integrator. The OEM integrator is still resp onsible for the FCC

compliance requirement of the end product, which integrates this module. Due to missing shielding

the module is strictly limited to integration by the Grantee himself or his dedicated OEM Integrator.

The integration is strictly limited into following host platform(s) that are electrically identical incl.

variations that are defined as Class I Permissive Change to the documented and certified samples

-Bluetooth

Keyboard

under the control of the Grantee.

Additional hosts and/or platforms can be added via Class II Permissive Change by the Grantee.



This RF Module will be exclusively integrated into battery power host devices
under strict control of the Grantee.
