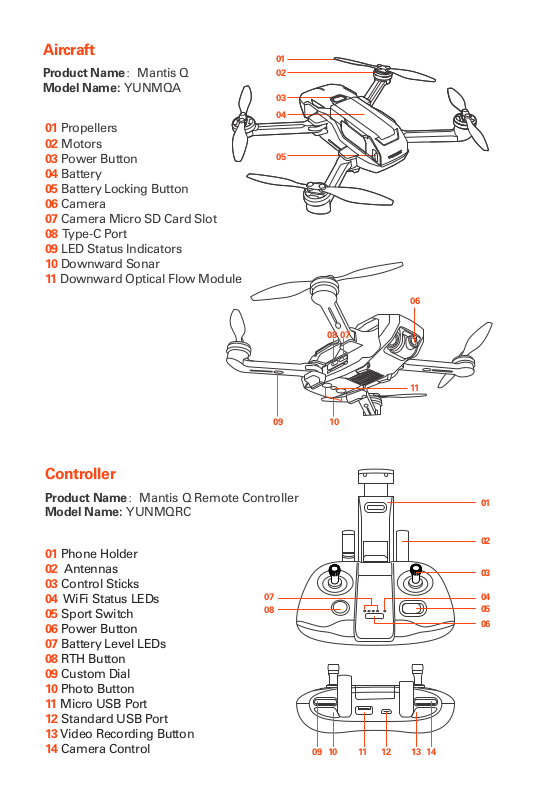

Aircraft
Product Name：Mantis Q
Model Name: YUNMQA
01 Propellers
02 Motors
03 Power Button
04 Battery
05 Battery Locking Button
06 Camera
07 Camera Micro SD Card Slot
08 Type-C Port
09 LED Status Indicators
10 Downward Sonar
11 Downward Optical Flow Module
01
02
03
04
05
06
07 08
11
09
Controller
Product Name：Mantis Q Remote Controller
Model Name: YUNMQRC
01 Phone Holder
02 Antennas
03 Control Sticks
04 WiFi Status LEDs
05 Sport Switch
06 Power Button
07 Battery Level LEDs
08 RTH Button
09 Custom Dial
10 Photo Button
11 Micro USB Port
12 Standard USB Port
13 Video Recording Button
14 Camera Control
08
10
09 10 11 12 13 14
01
02
03
04 07
05
06
Before Flight
• Download Yuneec Pilot App in the App Store or Google Play, or scan the QR
code to install the app on your smart device.
• Scan the below QR code to download the tutorial videos and learn more
instructions.
tutorial videos
• It is recommend that first-time pilot to activate Angle Mode. After getting used
to the flight characteristics of the V18S, and try the different mode flight
experience.
Preparing the Aircraft
1.Remove the
camera protector 3.Unfold the front armst2.Unfold the rear arms
NOTICE
• All arms and propellers must be unfolded before powering on the aircraft.
• Folding in reverse order.
Charging the Flight Battery
• Press the battery locking button
and remove the battery
• Push the flight battery into the
aircraft until hearing a ‘click’
• Plug the flight battery to the supplied charger as shown below.
Flight battery charging time: 1.5 hour
Solid Green:
Power standby
Green Flickering:
Charging
Green Flashing:
Charge Completed
Error
Solid Green:
Charging the Remote Controller
Charging the remote controller using
Micro USB.
Remote controller Charging time: 1 hour
Installing the Smart Device
• Pull out the smart phone holder from the remote controller.
• Put the smart phone on the holder.
• Plug one end of the connecting cable to the standard USB port in the remote
controller, and the other end to the data port of your smart phone.
Power On/Off
Press the power button show as below and hold for two seconds to power on/off.
Takeoff / Landing
Option 1
Tap the icon as below and slide on the App to take off / landing.
Auto take off Auto landing
Option 2
• Move the sticks as shown below to start the motors.
or
Left Stick up (slowly)
to take off.
Left Stick down (slowly)
to landing.
Direction Control
When the aircraft lifts off the ground surface, move the sticks slightly on the
remote controller as described below to explore the different movements of
the Mantis Q.The default flight control is known as Mode 2.
Left Stick
Turn Left Turn Right
Up
Down
Right Stick Forward
Back
Left Right
Flight Modes
Angle Mode
When in Angle Mode and GPS is available, the aircraft will respond according
to the remote controller.
Sport Mode
The aircraft has high reaction sensitivity
in sport mode. The maximum flight speed
of the aircraft is increased to 33.55mph
(54km/h).
RTL Mode
When in RTL Mode, the aircraft will return
to the home point and automatically land.
Voice Control
The Voice Control function allows the aircraft to execute a series of simple
maneuvers.
One-Tap Movie
One-Tap Movie function enables the pilot to record an automatically generated
15-seconds video by selecting one shooting mode in the App.
Instant Social Sharing
The Instant Social Sharing function allows the pilot to capture the 4K HD video
and simultaneously share it to the social media.
NCC
警語
(
以下警語適用台灣地區
1.
經型式認證合格之低功率射頻電機，非經許可，公司、商號
)
Angle Mode
Sport ModeRTL Mode
或使用者均不得擅自變更頻率、加大功率
或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；
2.
經發現有干擾現象時，應立即停用，並改
善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作
業之無線電通信。低功率射頻電機須
忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干
擾。
Disclaimer
Yuneec International (China) Co., Ltd shall not be held liable for any damage,
injury or for use of the product in violation with legal regulations, especially in the
following circumstances:
Damage and/or injury as well violation of legal regulations resulting from a failure
to comply with the operating instructions or the instructions at www.yuneec.com,
product information, user manual and other legally binding information;
Damage and/or injury as well violation of legal regulations brought about by the
influence of alcohol, drugs, medication or other narcotics which may impact on
the concentration of the user;
The same applies to illnesses effecting the concentration of the user (dizziness,
tiredness, nausea etc.) or other factors compromising mental and physical capabilities.
Intentionally caused damage, injury or violation of legal regulations;
Any request for compensation caused by an accident resulting from use of the
product;
Malfunction of the product caused by retrofitting or replacement with components which did not come from Yuneec;
Damage and/or injury caused by the use of replica parts (non-original parts);
Damage and/or injury as well as violation of legal regulations caused by incorrect
operation or misjudgment;
Damage and/or injury caused by damaged spare parts or not using original
Yuneec spare parts;
Damage and/or injury caused by unauthorized change settings and/or parameters;
Damage and/or injury caused by modify and/or add parts;
Damage and/or injury as well as violation of legal regulations caused by ignoring
the low voltage battery warning;
Damage and/or injury caused by knowingly and negligibly flying with a damaged
model or one which is unfit to fly, e.g. due to dirt, water penetration, coarse particles, oil or a model which has not been correctly or completely assembled or if
the main components exhibit visible damage, defects or missing parts;
Damage and/or injury as well as violation of legal regulations caused by use of
the product in a no-fly zone, e.g. next to an airfield, above a motorway or a natural conservation area;
Damage and/or injury as well as violation of legal regulations caused by operating the model in a magnetic field (e.g. high voltage lines, electricity/ transformer
stations, radio towers, mobile phone masts etc.), a strong wireless signal environment, no-fly zones, poor visibility and in the event of vision impairments or other
impacts on the pilot which are left unchecked etc;
Damage and/or injury brought about through a violation of the legal regulations
for operating the model, in unsuitable weather conditions, e.g. rain, wind, snow,
hail, storms, hurricanes etc;
Damage and/or injury as well as violation of legal regulations caused by force
majeure, e.g. collision, fire, explosion, flooding, tsunami, landslide, avalanche,
earthquake or other forces of nature;
Damage and/or injury as well as violation of legal regulations caused by the
illegal or immoral use of the model, e.g. capturing videos or recording data which
infringes upon/harms the privacy of other people;
Damage and/or injury as well as violation of legal regulations caused by incorrect
use of the batteries, protection systems, chargers or aircraft;
Consequential damage caused by the incorrect operation of any kind of system
components and accessory parts, especially memory cards, whereby image or
video material from the camera can become defect;
Any non-compliance with legal obligations, personal injury, material damage and
environmental damage caused by use and a failure to comply with the local laws
and regulations;
Damage and/or injury as well as violation of legal regulations caused by hazardous use without sufficient practical experience;
Damage and/or injury as well as violation of legal regulations caused by flying in
legally defined no-fly zones; and/or.
Further losses which do not fall within the scope of use defined by Yuneec as
improper.
This product is designed for both professional use and personal private use. Any
domestic and/or international laws, code and regulations in force as the time of
taking off must be adhered to.
Collection and Processing of Data
Yuneec may collect navigation information such as GPS data to help improve our
products.
We may also collect Depth Map information and Infrared Image information from
your drone delivered to our service center for repair and maintenance service or
any other service.
We may also collect other information such as device information, server log
information, etc. We may also collect personal information used in registration if
you choose to become a registered user and any other information user provided
to Yuneec. We may also collect information which user send to other users, and
the recipients and senders of such information.
We reserve the right to disclose your information if required to do so by law or in
the good-faith belief that such disclosure is needed to comply with applicable
laws, for example in response to a court order, judicial subpoena, warrant or
request from government, or otherwise cooperating with government agencies
or law enforcement.
We also reserve the right to disclose your information that we believe in good
faith is necessary or appropriate to: (i) protect ourselves or others from fraudulent, unlawful, or abusive activities; (ii) take precautions against potential liability;
(iii) protect the security of the Yuneec Apps embedded into or downloaded onto
your drone or any associated equipment and services; (iv) protect the legal rights
of ourselves or any others.
Any information we collected maybe disclosed or transferred to an acquirer,
successor or assignee as part of any potential merger, acquisition, debt financing
or other activities that involves transfer of business assets.
We may make the aggregated non-personal information of the users available to
third parties for various purposes, including (i) complying with various report
obligations; (ii) marketing efforts; (iii) analyzing product safety; (iv) understanding
and analyzing our users’ interests, habits, usage pattern for certain functionalities,
services, content, etc.
Battery Warnings and Usage Guidelines
WARNING: Lithium Polymer (LiPo) batteries are significantly more volatile than
alkaline, NiCd or NiMH batteries. All instructions and warnings must be followed
exactly to prevent property damage and/or serious injury as the mishandling of
LiPo batteries can result in fire. By handling, charging or using the included LiPo
battery you assume all risks associated with LiPo batteries. If you do not agree
with these conditions please return the complete product in new, unused condition to the place of purchase immediately.
You must always charge the LiPo battery in a safe, well-ventilated area away from
flammable materials.
Never charge the LiPo battery unattended at any time. When charging the battery
you must always remain in constant observation to monitor the charging process
and react immediately to any potential problems that may occur.
After flying/discharging the LiPo battery you must allow it to cool to ambient/room temperature before recharging.
To charge the LiPo battery you must use only the included charger or a suitably
compatible LiPo battery charger. Failure to do so may result in a fire causing
property damage and/or serious injury.
If at any time the LiPo battery begins to balloon or swell, discontinue charging or
discharging immediately. Quickly and safely disconnect the battery, then place it
in a safe, open area away from flammable materials to observe it for at least 15
minutes. Continuing to charge or discharge a battery that has begun to balloon or
swell can result in a fire. A battery that has ballooned or swollen even a small
amount must be removed from service completely.
Do not over-discharge the LiPo battery. Discharging the battery too low can cause
damage to the battery resulting in reduced power, flight duration or failure of the
battery entirely. LiPo cells should not be discharged to below 3.0V each under load.
Store the LiPo battery at room temperature and in a dry area for best results.
When charging, transporting or temporarily storing the LiPo battery the temperature range should be from approximately 40–120 ° F (5–49 ° C). Do not store the
battery or aircraft in a hot garage, car or direct sunlight. If stored in a hot garage
or car the battery can be damaged or even catch fire.
Never leave batteries, chargers and power supplies unattended during use.
Never attempt to charge low voltage, ballooned/swollen, damaged or wet batteries.
Never allow children under 14 years of age to charge batteries.
Never charge a battery if any of the wire leads have been damaged or shorted.
Never attempt to disassemble the battery, charger or power supply.
Never drop batteries, chargers or power supplies.
Always inspect the battery, charger and power supply before charging.
Always ensure correct polarity before connecting batteries, chargers and power
supplies.
Always disconnect the battery after charging.
Always terminate all processes if the battery, charger or power supply malfunctions.
General Safety Precautions and Warnings
WARNING: Failure to use this product in the intended manner as described in the
quick start guide and instruction manual can result in damage to the product,
property and/or cause serious injury. A Radio Controlled (RC) multirotor aircraft,
APV platform, drone, etc. is not a toy! If misused it can cause serious bodily harm
and damage to property.
WARNING: As the user of this product you are solely and wholly responsible for
operating it in a manner that does not endanger yourself and others or result in
damage to the product or the property of others.
Keep your hands, face and other parts of your body away from the spinning
propellers/rotor blades and other moving parts at all times. Keep items that could
impact or become entangled away from the propellers/rotor blades including
debris, parts, tools, loose clothing, etc.
Always operate your aircraft in open areas that are free from people, vehicles and
other obstructions.
Never fly near or above crowds, airports or buildings.
To ensure proper operation and safe flight performance never attempt to operate
your aircraft nearby buildings or other obstructions that do not offer a clear view
of the sky and can restrict GPS reception.
Do not attempt to operate your aircraft in areas with potential magnetic and/or
radio interference including areas nearby broadcast towers, power transmission
stations, high voltage power lines, etc.
Always keep a safe distance in all directions around your aircraft to avoid collisions and/or injury. This aircraft is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary
loss of control.
To ensure proper and safe operation of the automatic landing function in Return
Home Mode you must start the motors with the aircraft in an open space and
achieve a proper GPS lock.
Do not attempt to operate your aircraft with any worn and/or damaged components, parts, etc. including, but not limited to, damaged propellers/rotor blades,
old batteries, etc.
Never operate your aircraft in poor or severe weather conditions including heavy
winds, precipitation, lightning, etc.
Always begin to operate your aircraft with a fully charged battery. Always land as
soon as possible after the first level low voltage battery warning or land immediately after the second level low voltage battery warning.
Always operate your aircraft when the voltage of the battery in the transmitter/personal ground station is in a safe range (as indicated by the LED status indicator light of the transmitter/personal ground station).
Always keep the aircraft in clear line of sight and under control, and keep the
transmitter/personal ground station powered on while the aircraft is powered on.
Always move the throttle control stick down fully and turn off the power in the
event the propellers/rotor blades come into contact with any objects.
Always allow components and parts to cool after use before touching them and
flying again.
Always remove batteries after use and store/transport them per the corresponding guidelines.
Avoid water exposure to all electronic components, parts, etc. not specifically
designed and protected for use in water. Moisture causes damage to electronic
components and parts.
Never place any portion of the aircraft or any related accessories, components or
parts in your mouth as doing so could cause serious injury or even death.
Always keep chemicals, small parts and electronic components out of the reach
of children.
To ensure safe fly, it is recommended to install the propeller protectors when
operating the aircraft indoors or nearby crowds.
Carefully follow the instructions and warnings included with this aircraft and any
related accessories, components or parts (including, but not limited to, chargers,
rechargeable batteries, etc.).
Camera Usage Warnings
NOTICE
For the latest product information, please check our official website:
www.yuneec.com.
WARNING
Do not expose the lens of the camera to extreme light sources.
Do not operate the camera in the rain or in environments with high humidity.
Do not try to repair the camera. Repairs must go to an authorized service center.
WARNING
Read the entire instruction manual to become familiar with the features of the
product before operating.
Do not use with incompatible components or alter this product in any way
outside of the instructions provided by Yuneec.
Failure to use this product in the intended manner as described in instruction
manual can result in damage to the product, property and/or cause serious injury.
FCC Statement
This equipment has been tested and found to comply with the limits for Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
RF Exposure Warning
This equipment must be installed and operated in accordance with
conjunction with any other antenna or transmitter. End-users and
and transmitter operating conditions for satisfying RF exposure
The SAR limit adopted by US is 1.6 W/kg averaged over 1gram of tissue. The
when properly worn on the body is 1.18 W/kg.
The antennas used for this transmitter must be installed to provide a separation distance of at least 10mm from body.
provided instructionsand must not be co-located or operating in
installers must be provide with antenna installation instructions
compliance.
highest SAR value for this device type
IC Radiation Exposure Statement for Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
This equipment complies with IC RSS-102 radiation exposure limit set forth for an
uncontrolled environment. Cet équipement respecte les limites d'exposition aux
rayonnements IC définies pour un environnement non contrôlé.
Radiation Exposure Statement:
The exposure standard for wireless transmitter employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit set by the IC is 1.6W/kg.
The highest SAR value for the EUT as reported to the IC when worn on the body, as described in
this user guide, is 0.769 W/kg.
La norme d'exposition pour l'émetteur sans fil utilise une unité de mesure connue sous le
nom de taux d'absorption spécifique, ou SAR. La limite SAR fixée par l'IC est de 1,6 W / kg.
La valeur SAR la plus élevée pour l'EUT signalée à l'IC lorsqu'elle est portée sur le corps, comme
décrit dans ce guide de l'utilisateur, est de 0.769 W / kg.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 10mm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 10mm de distance entre la source de
rayonnement et votre corps.
NCC Warning Statement
本產品符合低功率電波輻射性電機管理辦法 第十二條 ~ 第十四條等條文規定：
* 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅
自變更頻率、加大功率或變更原設計之特性及功能。
* 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象
時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法
通信或工業、科學及醫療用電波輻射性電機設備之干擾。
CE Warning Statement
This device meets the EU requirements on the limitation of the general public to
electromagnetic fields by way of health protection.
EU Operation Frequency (The Maximum Transmitted Power)
Mantis Q Remote Controller:
5G: 5470–5725MHz (27dBm)
Mantis Q:
5G: 5470–5725MHz (27dBm)
EU Compliance Statement
Hereby, Yuneec International (China) Co., Ltd. declares that this device is in com
pliance with the essential requirements and other relevant provisions of the RED
Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available
at the following internet address: http://yuneec/de-downloads
Please visit the address above and enter into corresponding product page.
-
Loading...
