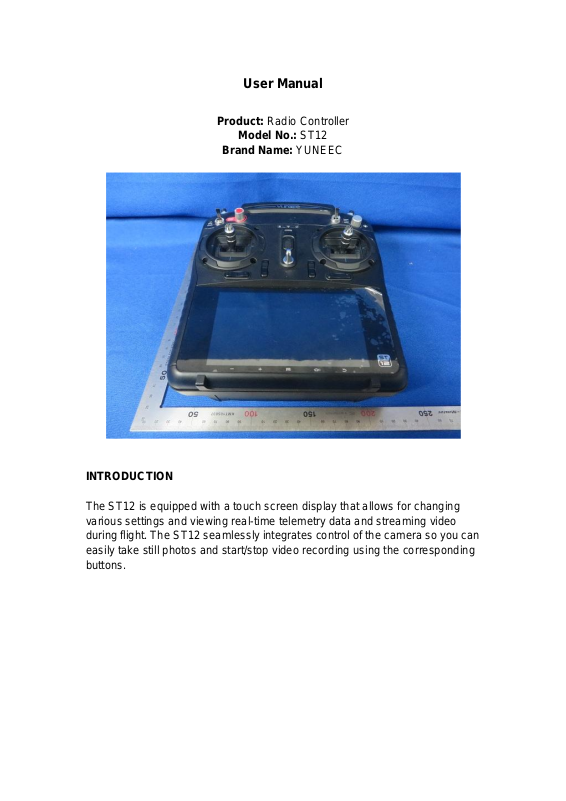

User Manual

Product: Radio Controller

Model No.: ST12

Brand Name: YUNEEC

INTRODUCTION

The ST12 is equipped with a touch screen display that allows for changing
various settings and viewing real-time telemetry data and streaming video
during flight. The ST12 seamlessly integrates control of the camera so you can
easily take still photos and start/stop video recording using the corresponding
buttons.

OPERATING INSTRUCTIONS:

ST12 AND RECEIVER BINDING

STEP 1): Power on the ST12 and tap “RC” on the main interface
STEP 2): Tap Model Select and if required press “OK” to bypass any pop up

warning/alerts.
STEP 3): Tap to create a new model and if required press “OK” to bypass any
pop up warnings/alerts.

STEP 4): Tap Flight Settings and if required press “OK” to bypass any pop up

warnings/alerts.
STEP 5): Lift the H920 back end upward approximately 45°, then back down to
“level” twice till the main LED indicator blinks yellow.
STEP 6): Tap the Refresh icon. Select the code of the H920 listed in the
column under ”Model” and tap Bind ,then tap “OK” after the connection has
been established.
STEP 7): When tapping, you will hear two long beeps from the aircraft. That
means the ST12 is bound to the H920 successfully.
STEP 8): Tap twice to return to the main screen and the model /receiver should
automatically connect to ST12

NOTICE: The H920 main LED indicator will blink red and white if the
TORNADO loses GPS signal /lock. The H920 main LED indicator will be solid
color of the current mode if the GPS signal/lock is acquired.
