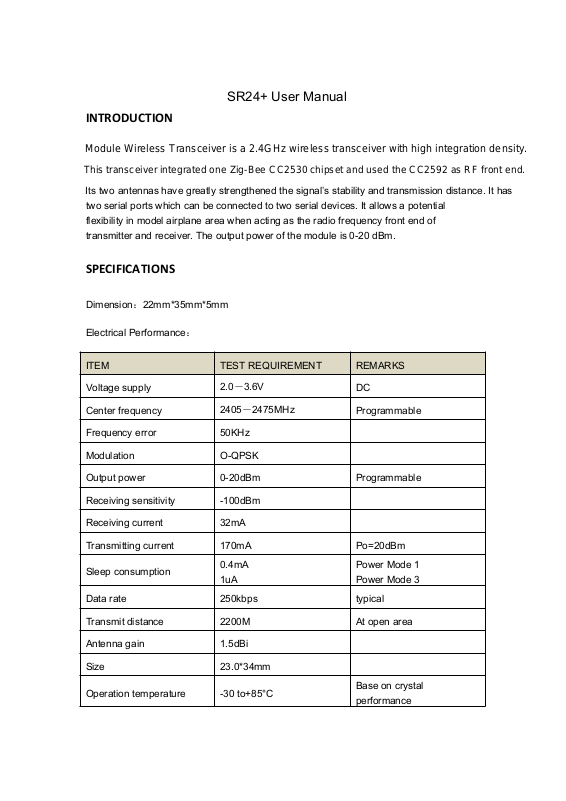

SR24+ User Manual

INTRODUCTION

Module Wireless Transceiver is a 2.4GHz wireless transceiver with high integration density.

This transceiver integrated one Zig-Bee CC2530 chipset and used the CC2592 as RF front end.

Its two

two serial ports which can be connected to two serial devices. It allows a potential

flexibility in model airplane area when acting as the radio frequency front end of

transmitter and receiver. The output power of the module is 0-20 dBm.

antennas have greatly strengthened the signal’s stability and transmission distance. It has

SPECIFICATIONS

Dimension：22mm*35mm*5mm

Electrical Performance：

ITEM TEST REQUIREMENT REMARKS

Voltage supply

Center frequency

Frequency error 50KHz

2.0－3.6V

2405－2475MHz

DC

Programmable

Modulation O-QPSK

Output power 0-20dBm Programmable

Receiving sensitivity -100dBm

Receiving current 32mA

Transmitting current 170mA Po=20dBm

Sleep consumption

Data rate 250kbps typical

Transmit distance 2200M At open area

Antenna gain 1.5dBi

Size 23.0*34mm

Operation temperature -30 to+85°C

0.4mA

1uA

Power Mode 1

Power Mode 3

Base on crystal

performance

OPERATIONS

1. Connected to a 3.3V DC power supply.

2. Connect to main control board through UART port.

3. It can be used as transmitter module as well as receiving module, realizing
intercommunication.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference
received, including interference that may cause undesired operation.
—Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
The module’s FCC ID and IC ID are not visible when installed in the host, or If the host is
marketed so that end users do not have straight forward commonly used methods for
access to remove the module so that the FCC ID and IC ID of the module is visible; then
an additional permanent label referring to the enclosed module: Contains Transmitter
Module FCC ID: 2ACS5-SR24P; IC: 11554B-SR24P or Contains FCC ID: 2ACS5-SR24P; IC:
11554B-SR24P must be used.

RF EXPOSURE WARNING

This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.

IC RADIATION EXPOSURE STATEMENT FOR CANADA

This device complies with Industry Canada licence-exempt RSS standard(s).Operation is
subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
This equipment complies with IC RSS-102 radiation exposure limit set forth for an
uncontrolled environment.Cet équipement respecte les limites d'exposition aux
rayonnements IC définies pour un environnement non contrôlé

NCC WARNING STATEMENT

Without permission, any company, firm or user shall not alter the frequency, increase
the power, or change the characteristics and functions of the original design of the
certified lower power frequency electric machinery. The application of low power
frequency electric machineries shall not affect the navigation safety nor interfere a legal
communication, if an interference is found, the service will be suspended until
improvement is made and the interference no longer exists.

CUSTOMER SERVICE

Manufacturer:

Yuneec International (China) Co., Ltd.
Production Address:
East Zhengwei Road No.388, Jinxi Town, Kunshan City, Jiangsu Province

Distributor:
CN：Youyu (Shanghai) Digital Technology Co.,Ltd.

Address: B 15F, 461 HongCao Road,CaoHeJing Software Building XuHui District, Shanghai,
Tel.: [phone]
US: Yuneec USA Inc.
Address: 5555 Ontario Mills Parkway, Ontario, CA91764, USA
Tel.: [phone]
EU: Yuneec Europe GmbH
Address: Niklaus–Otto-Strasse 4, 24568 Kaltenkirchen, Germany.
Tel.: [phone]
