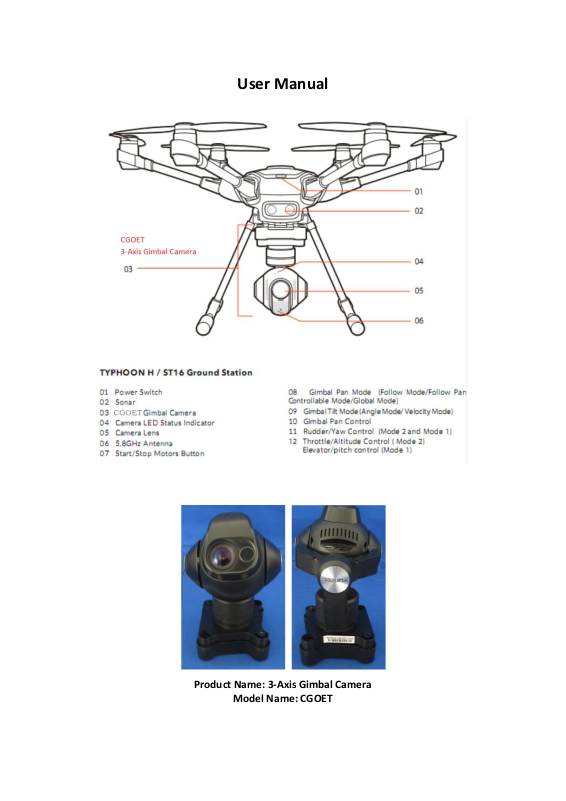

User Manual
Product Name: 3-Axis Gimbal Camera
Model Name: CGOET
INTRODUCTION:
The CGOET is a 3-Axis, brushless self-stabilizing gimbal camera, compatible with
Typhoon H. The Self-Stabilizing gimbal makes it possible to capture vivid photographs
and fluid video footage for an array of uses. And the built-in digital video link delivers
streaming video to compatible iOS® and Android™ equipped devices including
smart-phones and tablets as well as YUNEEC Personal Ground Stations.
OPERATING INSTRUCTIONS:
1. Insert the micro SD card into the CGOET, and then connect the power supply.
When you turn on the power switch, the CGOET will start to work;
2. Start the CGOET Wi-Fi, the green light will start to blink. Then you can make the
Wi-Fi connection between the CGOET gimbal camera and mobile device. The green
light will become solid when the connection is successful.
3. Press the shutter button on the CGOET. You’ll hear an audible ‘shutter’ sound and
it will take approximately 5 seconds to capture the photo before you can take
another photo. Press and hold the shutter button on the CGOET. You’ll hear an
audible indication each time the recording starts/stops.
4. Turn off the power switch, the CGOET will stop working.
