SDIHD2MULTI
User Manual
Rev1.2
Content
Feature .................................................................................... 3
Front Panel ............................................................................... 4
Rear Panel ................................................................................ 4
Side Panel ................................................................................. 5
DipSwitch/LED Control .................................................................. 5
Installation .............................................................................. 12
Package Contents ...................................................................... 12
Specifications .......................................................................... 13
Firmware Upload ...................................................................... 14
Appendix Table A ...................................................................... 16
Update List ............................................................................. 18
SDI Supports HD formats :
720p50 & 60
1080i50 & 60
1080p24, 25, 30, 50 & 60
SDI Support 525i & 625i SD D1 format
Auto 3G/HD/SD-SDI detection
Can be split one 3G-SDI displays simultaneously.
Frame rate conversion(1.000/1.001)
External Dipswitch and Usb Configuration
Firmware is upgradable in the field using the integrated USB port
The converter is Plug-and-Play
Support DVI-D, DVI-A, Component, CVBS and S-Video Output
Support stereo audio( L/R Audio ) output
Feature

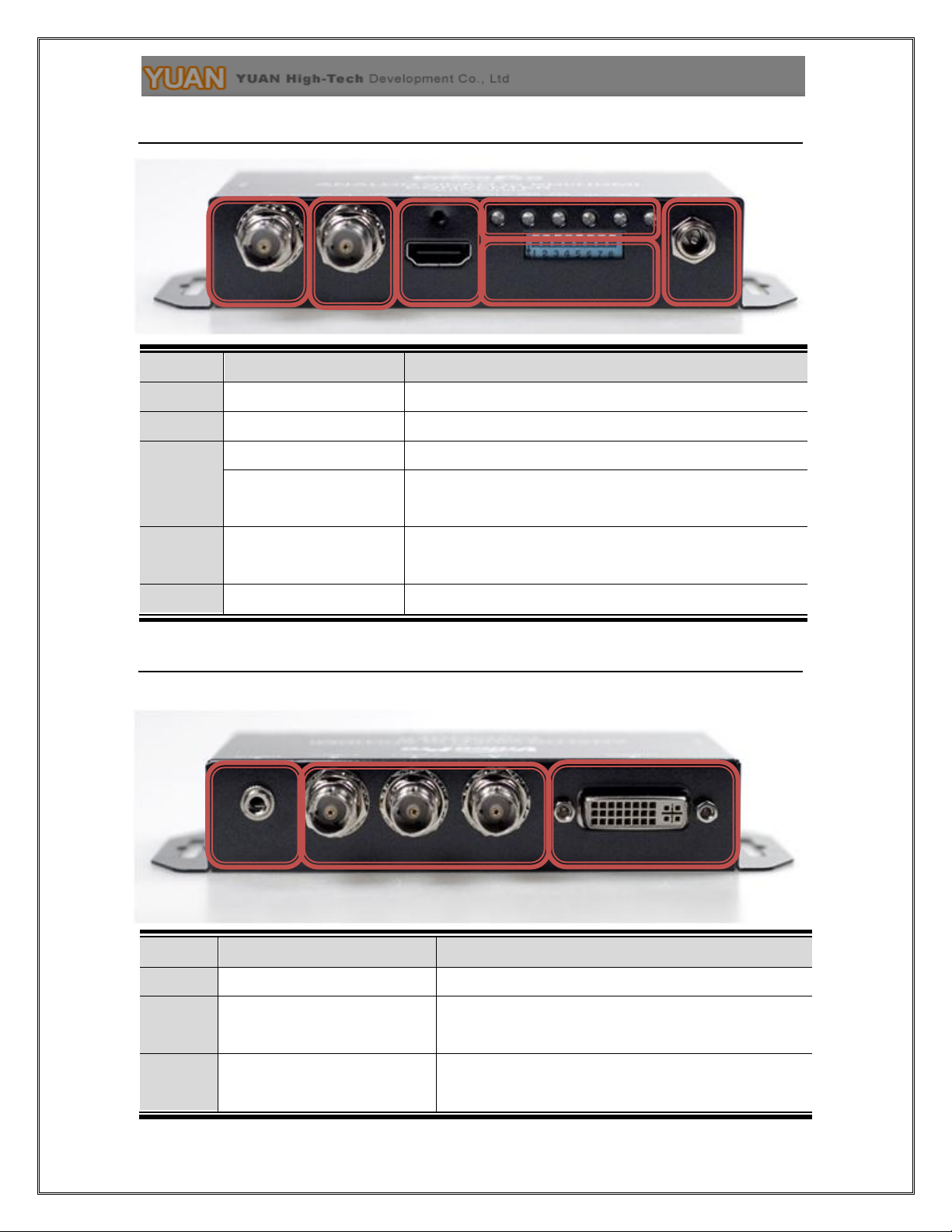

Front Panel
NO
Component
Function
1
SDI Input Port
From your SDI Device plug into this port
2
SDI Pass Thru
From your SDI Display Device plug into this ports
3
HDMI Input Port
From your HDMI Device plug into this port
4
Input Port/ Ouptut
Port LED
The LEDs are indicate Input Ports and Ouptut
Source
5
Dipswitch
Control the Box ( Input Port/Audio/Output
Format) 6 Power Jack
The Power adapter plug into here
NO
Component
Function
1
Phone Jack
From you Audio Device plug into this port
2
Component/CVBS/S-Video
Output Port
From your YPbPr/CVBS/S-Video Device plug
into this port
3
DVI-D/DVI-A Input Port
From your DVI-D/DIV-A Device plug into this
port
1
3
1
6
3
2
4
5
2

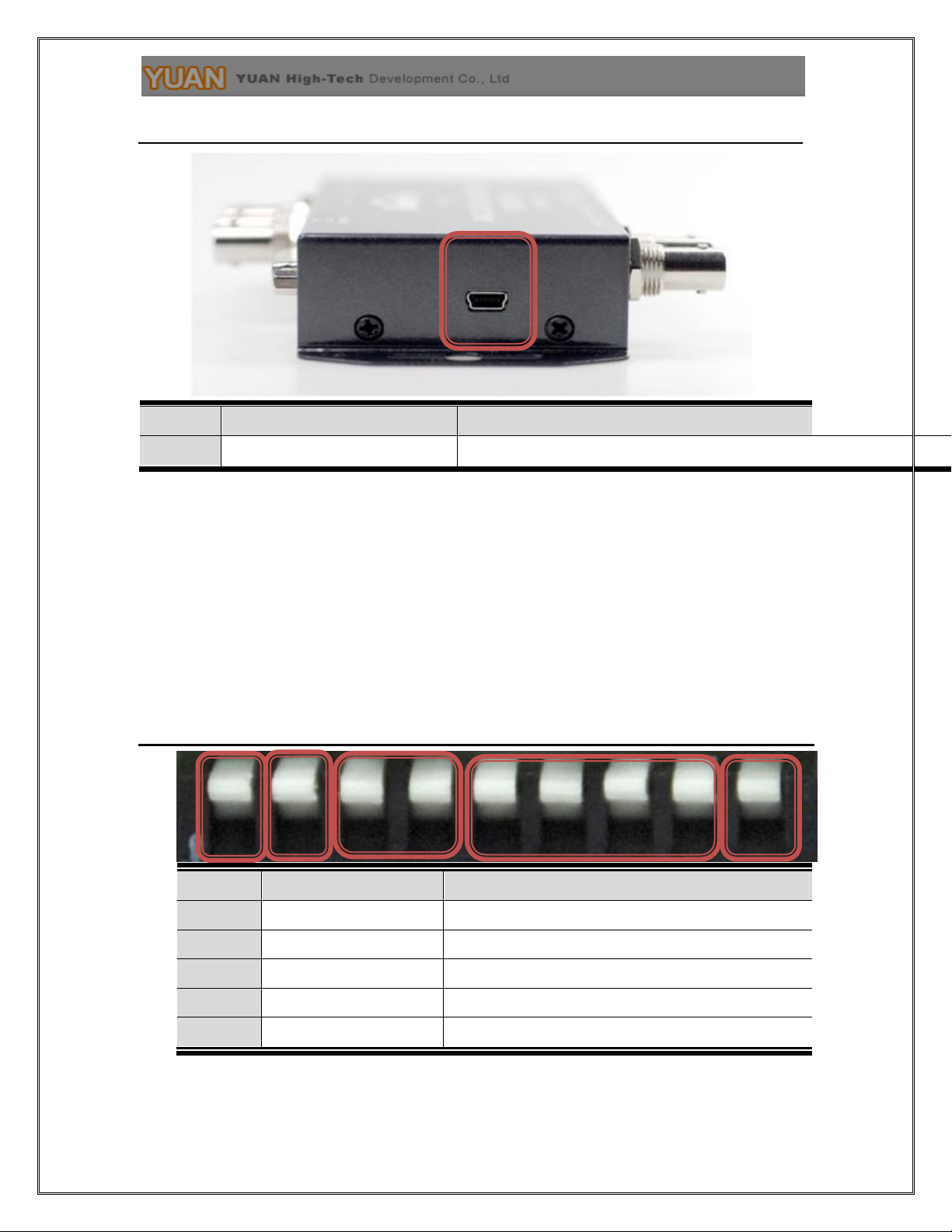

Rear Panel
NO
Component
Function 1 USB Port
Upgrade firmware/Control Box From PC
NO
Component
Function
1
Control Mode
Control Box from Dipswitch or USB
2
Input Source
Select Input Source
3
Output Source
Select Output Source
2
Output Format
Select Output Format
3
Frame Rate
Select 1000 or 1001 Frame rate
1
1
2
4
3
5
Side Panel
DipSwitch/LED Control
Control Mode:
Control Mode
Dipswitch Indicates
DipSwitch
USB
Input Source
Dipswitch Indicates
SDI
HDMI
Control Box from Dipswitch or USB.
Input Source:
Select Input Source from SDI or HDMI
