High Performance Combo Router BE5
Quick Start Guide Update
Setting up YOYORouter BE5 in Ethernet WAN Mode with Failover
Configure YOYORouter BE5 in Ethernet WAN mode and test the connection.
To add failover to 3G Wireless WAN, ensure that your SIM Card is inserted and the Ethernet WAN is
connected then follow these steps:
1. Log in.
2. Select Advanced then Network Setup.
3. Make sure that Connection Control is set to Auto Reconnect (always-on).
4. Against Combo WAN Status, click the Setting button.
5. Set Combo WAN Mode to Failover.
6. Enter an IP address in Remote Host for Keep Alive that YOYORouter can ping to check the
connectivity. This can be numeric, e.g. 8.8.8.8 or text, e.g. www.google.com.
7. Your Ethernet WAN connection is shown as primary WAN. To add the 3G WAN as failover, click the Add
button against Secondary WAN and select 3G in the drop-down box.
8. Click the Save button.
9. The Dial-Up Profile (connection settings) for 3G mobile broadband are now displayed.
• Select Auto-Detection for automatic configuration based on your SIM card (recommended).
• Select Manual if you need to select alternative or enter special settings. Select your country and the
network operator, or Others to enter your own settings.
• If your SIM requires a PIN code, enter it now.
10.Click the Save button then click OK to reboot YOYORouter.
BE5 Update double sided:Layout 1 15/12/11 18:01 Page 1
Checking Failover to 3G
1
. Check that YOYORouter is normally connected to the Ethernet WAN connection
•
System Status shows Ethernet WAN connection details.
•
Failover Status shows zeroed IP addresses and blank Connection Time
• Wireless Modem Link Status indicates Disconnected.
2. Unplug the Ethernet cable from the WAN port and check that Failover occurs:
• System Status shows blank Remaining Lease Time and zeroed IP addresses
• Failover Status shows 3G connection information (IP numbers) and Connection Time.
• Wireless Modem Link Status indicates Connected.
3. Re-connect the Ethernet WAN and check that service reverts to the Ethernet WAN connection.

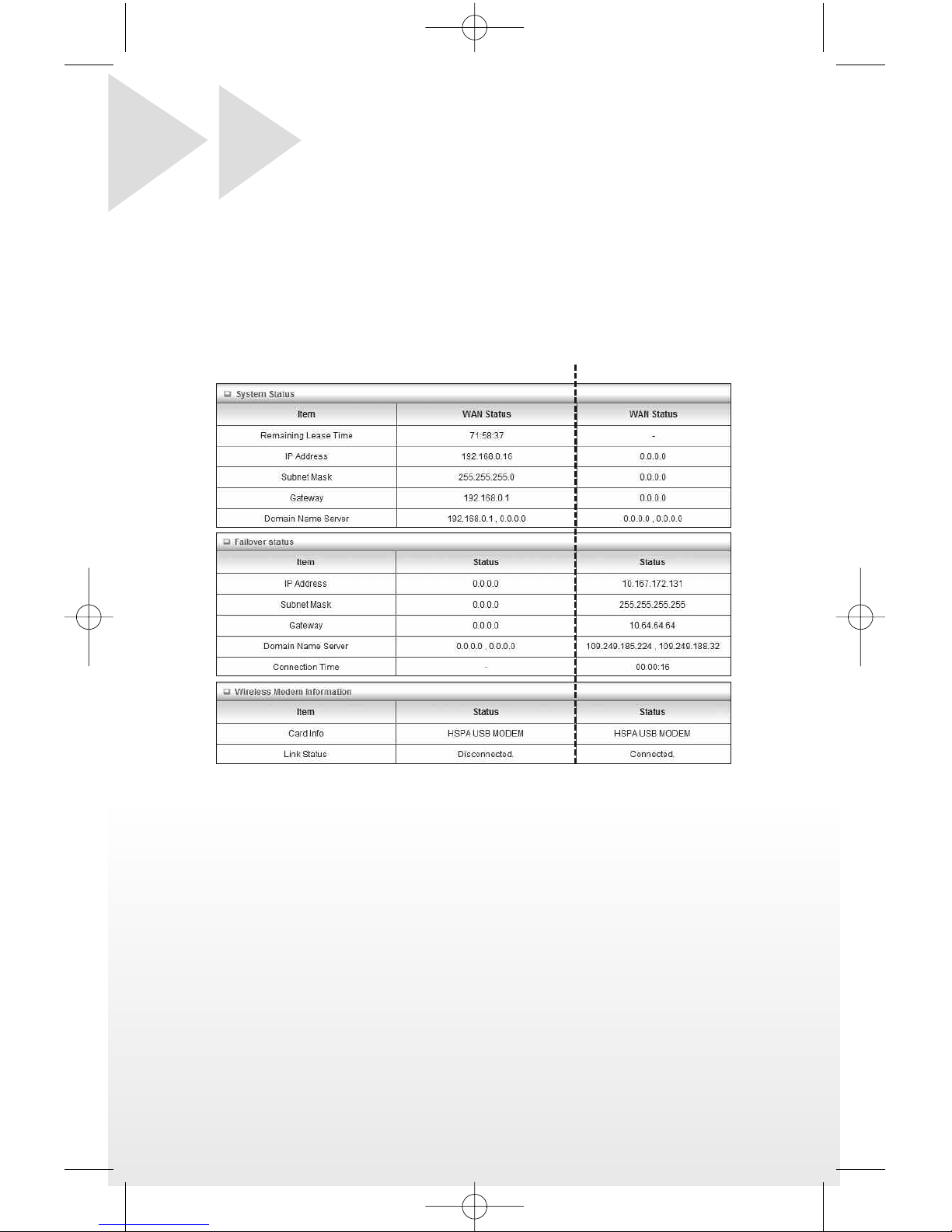

Normal (Ethernet) Failover (3G)
