Svolazzo

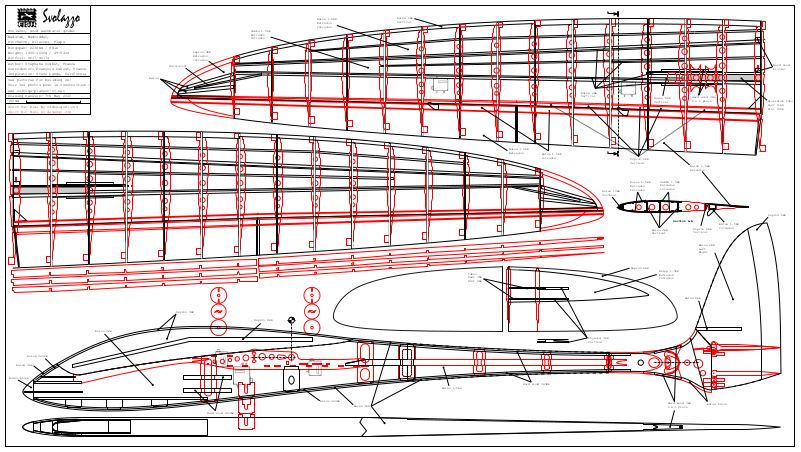

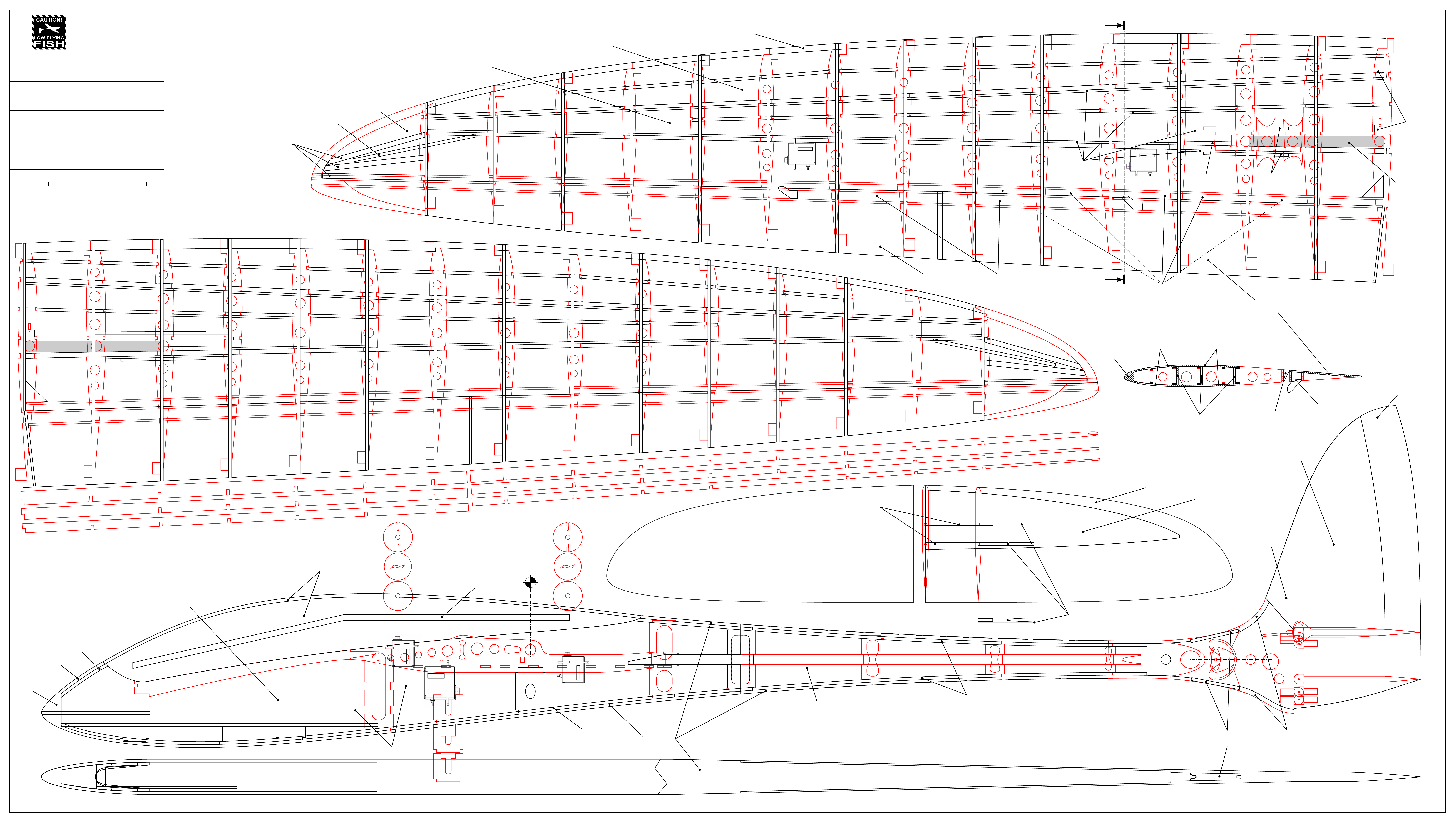

Svolazzo, wood aerobatic glider
Madstab, Madrudder,
Pitcheron, Ailerons, Flaps
Wingspan: 2236mm / 88in
Weight: 1400-1500g / 49-53oz
Airfoil: SC17/SC17s
Author: Stéphane Combet, France
Contributor: François Cahour, France
Hard wood
Depron 3mm
Extrados
Intrados
Samba 1.5mm
Extrados
Intrados
Balsa 1.5mm
Extrados
Intrados
Balsa 6mm
Vertical
Hard wood
blocks
Inspiration: Steve Lange, California
See pictures for building on:
Voir les photos pour la construction:
www.voltige-planeur-rc.net
Drawing version: 7th May 2020
100mm
hort Kit Plus by cddesign01.com
S
Short Kit Mini by damengo.com
Balsa
Balsa 2mm
Vertical
Balsa 5mm
Vertical
Hard wood 3mm
2 x 1 piece
Aluminium tube
Dext 11mm
Dint 10mm
Balsa 1.5mm
Extrados
Balsa 1.5mm
Intrados
A
Balsa 10mm
Vertical
Depron 6mm
Vertical
Balsa 1.5mm
Extrados
Intrados
Balsa 1.5mm
Extrados
Samba 1.5mm
Extrados
Intrados
Tubes
Dext 3mm
Dint 2mm
Depron 6mm
Balsa 2mm
Vertical
Balsa 1.5mm
Extrados
Intrados
Section A-A
Depron 6mm
Vertical
Balsa 2mm
Left
Right
Depron 6mm
Balsa 1.5mm
Intrados
Balsa 3mm
Balsa 6mm
Depron 3mm
Depron 6mm
Plywood 3mm
Vertical
Balsa 3x3mm
Balsa 3mm
Balsa block
Balsa 3x3mm
Balsa 3mm
Balsa 1.5mm
Hard wood 3x3mm
Hard wood 3mm
2 x 1 piece
Balsa block
Hard wood 8x3mm
