USER MANUAL
GEBRAUCHSANLEITUNG
BRUKSANVISNING
MANUAL DEL USUARIO
Ultrasonic Diuser
• English • Deutsch • Svenska • Español
Page 2
Product Features
Safety Instructions
Components Descriptions
Solving Problem DIY
Operating Instructions
Specications
Contents
1
Introduction
How to use
Using clean ltered water, add one cupful (236ml) to the bowl.
Water should reach the top of the level indicator on the side of
the bowl. Add 15–20 drops of any essential oil single or blend.
Plug the adapter into the socket at the rear of the diuser. Do not
power the diuser until the bowl is correctly lled with water.
Page 3
Product Specications
2
External Dimension 17.5cm * 15cm * 11cm
Transformer 110V/24V/750mA:
220V/24V/750mA
Maximum working voltage 24V/750mA
Maximum input 18W
Operation frequency 1.7MHZ
Atomising rate 50~60
Particle size Approx. 3 micro-meter
Controls
* on/o switch
* output control in the centre; turn clockwise to increase
output, turn anticlockwise to decrease
* Timer switch (5 settings)
1 Works continuously until low water level is reached and
automatically enters safety stop mode
2 Works continuously for 2 hours and automatically enters
safety stop mode
3 Dispenses for 15 seconds and rests for 40 seconds
4 Dispenses for 30 minutes and rests for 15 minutes
Accessory humidier, transformer, dispersal nozzle,
cover
Water level 0.5 cm below water blocking cover
Water level
safety stop Operates at 1.3 cm of water in tank
Capacity of tank 250 ml
Page 4
Product Specications
Problem Solution
When switched on the
Machine does not operate
1 Check the power supply is
securely plugged into the socket
at the rear of the machine
2 Check the mains plug is
securely plugged into the wall
socket
3 Check the water level is correct
and there is water in the tank
No dispersal or lower than
usual
1 Check for correct water level
2 Check if the water level sensor
is jammed
3 Check to see if the transducer
is clean: do not use any cleaning
agents (see instructions)
4 Adjust output control
5 Check to see if the top cover is
securely tted
6 Restart the machine
Page 5
4
Product features
Safety
No risk of over heating and/or explosion since
the cool mist is generated by ultrasonic, not ame
or any kind of heat
User friendly
You can set levels of output and time to your own
personal settings
Operations
Once lled, the unit can operate for up to 5 hours
Digital control
To save energy and prolong product life, a digital
control is
designed for safety stop when water is below the
recommended water level
Functions
Can be used as humidier, atomizer and air
purier
Features
Special night-light installed
Page 6

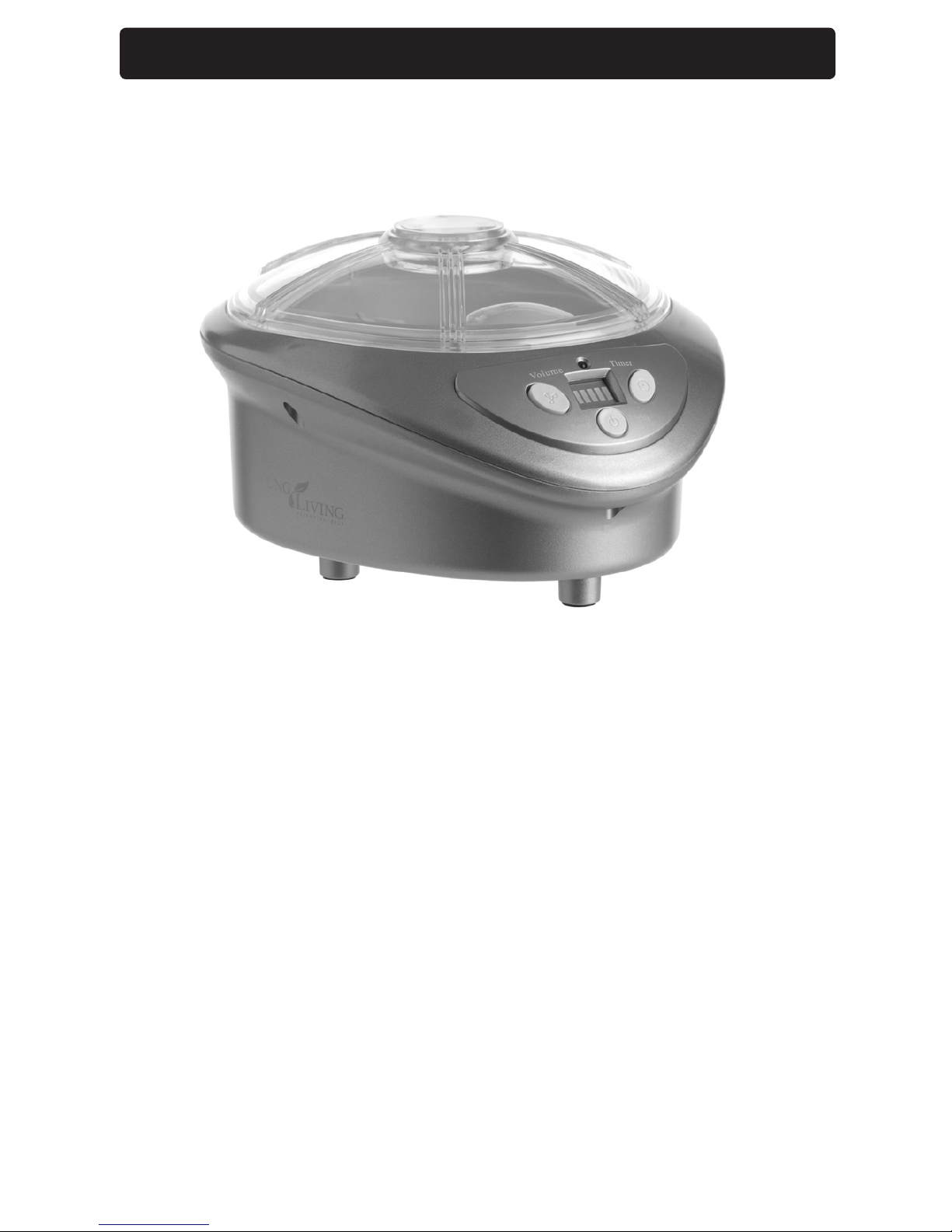

Component descriptions
1. water blocking cover
2. power on indicator
3. on/off switch
4. timer
5. output
6. time control
7. dispersal nozzle
8. water level sensor
9. cover
10. water tank
11. transducer
12. case
