York YZF02413, YZF02413C, YZF03013, YZF03013C, YZF03613C Technical Manual

...

Download

Page 1

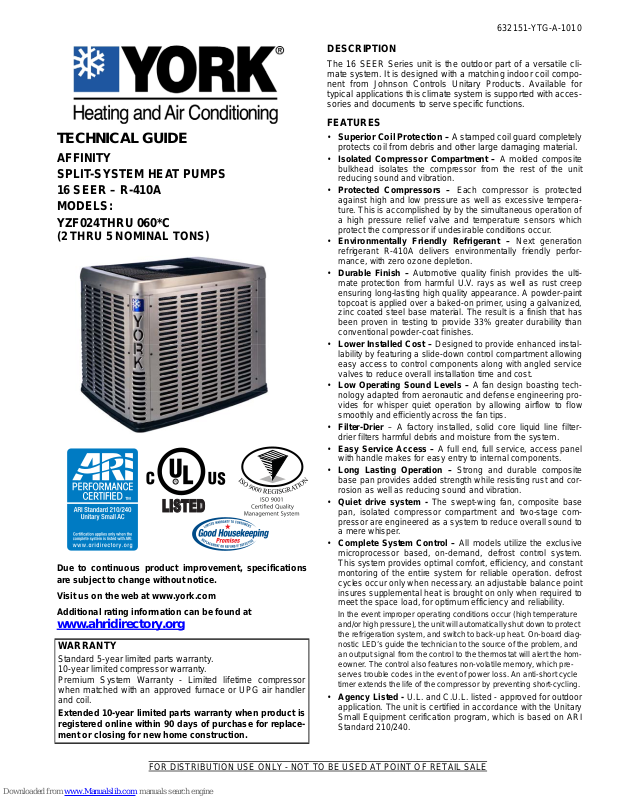

TECHNICAL GUIDE

AFFINITY SPLIT-SYSTEM HEAT PUMPS 16 SEER – R-410A MODELS: YZF024THRU 060*C

(2 THRU 5 NOMINAL TONS)

Due to continuous product improvement, specifications are subject to change without notice.

Visit us on the web at www .york.com Additional rating information can be found at

www.ahridirectory.org

WARRANTY

Standard 5-year limited parts warranty. 10-year limited compressor warranty. Premium System Warranty - Limited lifetime compressor when matched with an approved furnace or UPG air handler and coil.

Extended 10-year limited parts warranty when product is registered online within 90 days of purchase for replacement or closing for new home construction.

LISTED

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

632151-YTG-A-1010

DESCRIPTION

The 16 SEER Series unit is the outdoor part of a versatile climate system. It is designed with a matching indoor coil component from Johnson Controls Unitary Products. Available for typical applications this climate system is supported with accessories and documents to serve specific functions.

FEATURES

• Superior Coil Protection – A stamped coil guard completely

protects coil from debris and other large damaging material.

• Isolated Compressor Compartment – A molded composite bulkhead isolates the compressor from the rest of the unit reducing sound and vibration.

• Protected Compressors – Each compressor is protected against high and low pressure as well as excessive temperature. This is accomplished by by the simultaneous operation of a high pressure relief valve and temperature sensors which protect the compressor if undesirable conditions occur.

• Environmentally Friendly Refrigerant – Next generation refrigerant R-410A delivers environmentally friendly performance, with zero ozone depletion.

• Durable Finish – Automotive quality finish provides the ultimate protection from harmful U.V. rays as well as rust creep ensuring long-lasting high quality appearance. A powder-paint topcoat is applied over a baked-on primer, using a galvanized, zinc coated steel base material. The result is a finish that has been proven in testing to provide 33% greater durability than conventional powder-coat finishes.

• Lower Installed Cost – Designed to provide enhanced installability by featuring a slide-down control compartment allowing easy access to control components along with angled service valves to reduce overall installation time and cost.

• Low Operating Sound Levels – A fan design boasting technology adapted from aeronautic and defense engineering provides for whisper quiet operation by allowing airflow to flow smoothly and efficiently across the fan tips.

• Filter-Drier – A factory installed, solid core liquid line filterdrier filters harmful debris and moisture from the system.

• Easy Service Access – A full end, full service, access panel with handle makes for easy entry to internal components.

• Long Lasting Operation – Strong and durable composite base pan provides added strength while resisting rust and corrosion as well as reducing sound and vibration.

• Quiet drive system - The swept-wing fan, composite base pan, isolated compressor compartment and two-stage compressor are engineered as a system to reduce overall sound to a mere whisper.

• Complete System Control – All models utilize the exclusive microprocessor based, on-demand, defrost control system. This system provides optimal comfort, efficiency, and constant montoring of the entire system for reliable operation. defrost cycles occur only when necessary. an adjust able balance point insures supplemental heat is brought on only when required to meet the space load, for optimum efficiency and reliability.

In the event improper operating conditions occur (high temperature and/or high pressure), the unit will automatically shut down to protect the refrigeration system, and switch to back-up heat. On-board diagnostic LED’s guide the technician to the source of the problem, and an output signal from the control to the thermostat will alert the homeowner. The control also features non-volatile memory, which preserves trouble codes in the event of power loss. An anti-short cycle timer extends the life of the compressor by preventing short-cycling.

• Agency Listed - U.L. and C.U.L. listed - approved for outdoor application. The unit is certified in accordance with the Unitary Small Equipment cerification program, which is based on ARI Standard 210/240.

Page 2

632151-YTG-A-1010

VAPOR

LIQUID

2-3/8

3-1/8

6-1/2

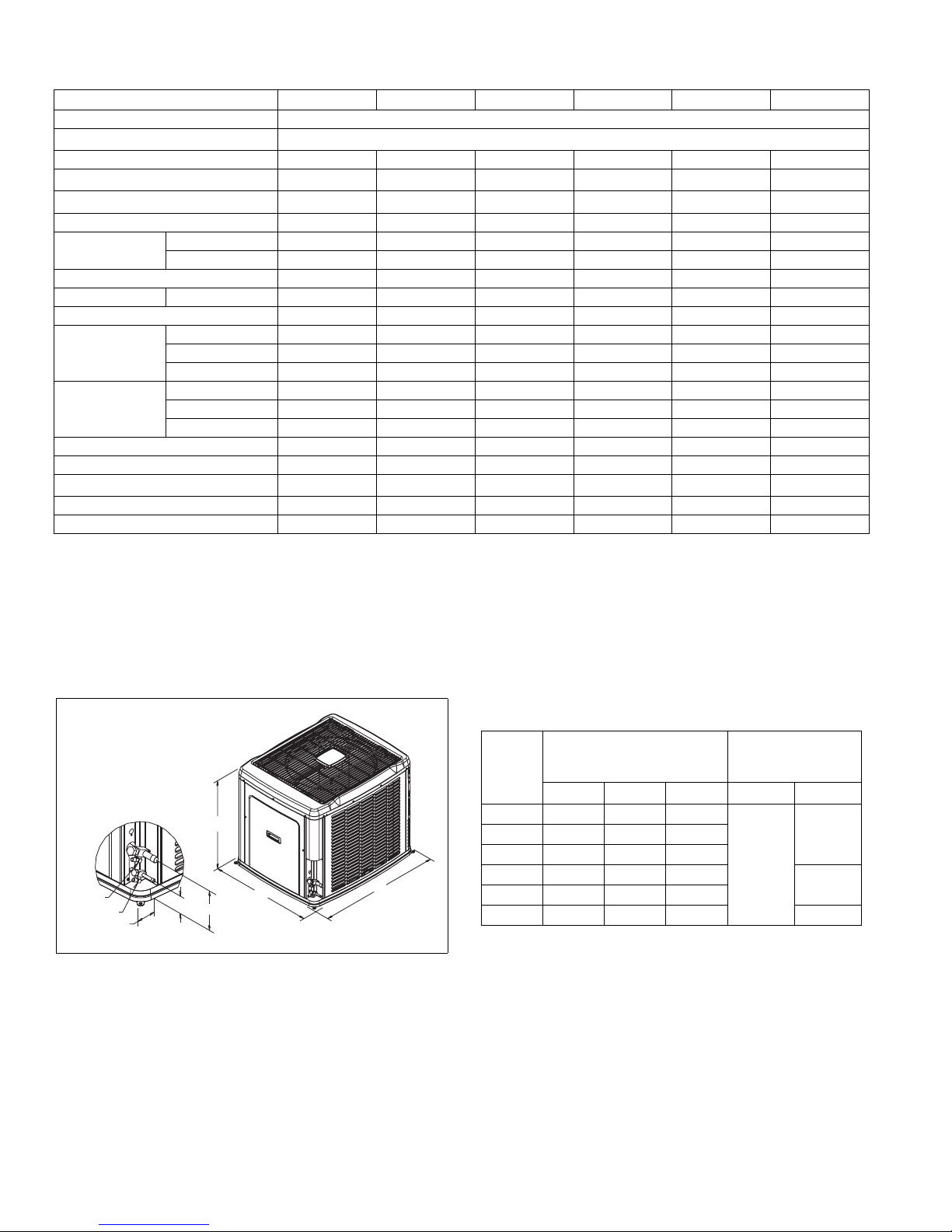

Physical and Electrical Data

Model

Unit Supply Voltage 208-230V, 1 60Hz Normal Voltage Range

Minimum Circuit Ampacity 17.5 17.3 22.6 26.1 26.9 33.8 Max. Overcurrent Device Amps Min. Overcurrent Device Amps

Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Compressor Amps Crankcase Heater No No No No No No

Fan Motor Amps Rated Load 0.7 1.3 1.3 1.3 1.3 1.3 Fan Diameter Inches 24 24 24 24 24 24

Fan Motor

Coil

Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 7/8 7/8 1-1/8

Unit Charge (Lbs. - Oz.) Charge Per Foot, Oz. 0.62 0.62 0.62 0.67 0.67 0.75 Operating Weight Lbs. 199 228 230 234 283 298

1. Rated in accordance with ARI Standard 110, utilization range “A”.

2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.

3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.

4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.

Rated Load 13.4 12.8 17 19.8 20.5 26 Locked Rotor 58.3 64 77 115 115 118

Rated HP 1/8 1/4 1/4 1/4 1/4 1/4 Nominal RPM 1075 850 850 850 850 850 Nominal CFM 2750 3800 3800 3800 3400 3700 Face Area Sq. Ft. 20.6 23.6 23.6 23.6 23.6 23.6 Rows Deep111122 Fins / Inch 22 22 22 22 22 14

YZF02413(C) YZF03013(C) YZF03613(C) YZF04213(C) YZF04813(C) YZF06013(C)

187 to 252

30 30 35 45 45 50 20 20 25 35 30 35

9 – 3 9 – 13 10 – 10 11 – 12 14 – 5 14 – 11

All dimensions are in inches. They are subject to change without notice. Certified dimensions will be provided upon request.

Refrigerant Connection

Service Valve Size

Unit

Model

Dimensions

(Inches)

A B C Liquid Vapor

024 39-1/2 37 31

3/4”030 39-1/2 42 34 036 39-1/2 42 34 042 39-1/2 42 34 048 39-1/2 42 34

3/8”

7/8” 060 39-1/2 42 34 7/8”*

* Adapter fitting required for 1-1/8” line set.

2 Johnson Controls Unitary Products

Page 3

632151-YTG-A-1010

System Charge for Various Matched Systems

Outdoor Unit YZF02413(C) YZF03013(C) YZF03613(C) YZF04213(C) YZF04813(C) YZF06013(C)

Approved System Thermal Expansion Valve

Indoor Coil

FC/MC/PC32 TXV + 0 – – – – – FC/MC/PC35 TXV + 0 – – – – – FC/MC/PC37 TXV + 7 TXV + 0 – – – – FC/MC/PC43 TXV + 7 TXV + 0 – – – – FC/MC/PC/UC48 – – TXV + 0 – – – FC/MC/PC/UC60 – – TXV + 3 – – – FC/PC62 – – – TXV + 0 TXV + 0 TXV + 0 FC64 – – – – TXV + 8 TXV + 8 AHX30 TXV + 0 – – – – – AHX36 TXV + 7 TXV + 0 – – – – AHX42 – – TXV + 0 – – – AHX48 – – TXV + 3 – – – AHX60 – – – TXV + 0 TXV + 0 TXV + 0 AV36 TXV + 7 TXV + 0 – – – – AV48 – – TXV + 3 – – – F6FP030 TXV + 0 – – – – – F6FP036 TXV + 0 – – – – – F6FP042 – –TXV + 0– – – F6FP048 – –TXV + 3– – – F6FP060 – – – TXV + 0 TXV + 0 –

FOOTNOTES:

PROCEDURES:

1. Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit 2FD06700224.

2. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.

3. A TXV kit must be used with these coils to obtain system performance. Note: If a TXV is factory installed on the coil, it must be replaced with the listed TXV.

1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator and 15 feet of interconnecting line tubing.

2. Verify the TXV and additional charge required for specific evaporator coil in the system using the above table.

3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in the Physical and Electrical Data Table.

4. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for evaporator + adder for line set.

1TVM4N1 1TVM4H1 1TVM4H1 1TVM4J1 1TVM4J1 1TVM4K1

TXV Kit3 - Additional Charge, Oz

Johnson Controls Unitary Products 3

Page 4

632151-YTG-A-1010

COOLING CAPACITY - With Air Handler Coils

UNIT MODEL

AIR HANDLER

MODEL W STAGE

COIL

MODEL

RATED

CFM

1 PH HP WITH MV - VARIABLE SPEED

YZF02413(C)

YZF03013(C)

MV12B 17 FC/MC35B 800 23.6 17.8 15.00 12.50 MV12B 17 FC/MC43B 800 24.0 18.6 16.00 13.00 MV12B 17 FC/MC43B 1000 28.8 21.8 16.00 13.00 MV16C 21 FC/MC43C 1000 28.8 22.0 16.00 13.00 MV12D 24 FC/MC48D 1160 34.8 26.0 15.00 12.50

YZF03613(C)

MV16C 21 FC/MC48C 1200 34.6 25.8 15.00 12.50 MV12D 24 FC/MC60D 1135 34.6 25.6 15.00 12.50

YZF04213(C) MV20D 24 FC/MC62D 1400 41.0 28.0 15.00 12.50 YZF04813(C)

YZF06013(C)

MV20D 24 FC/MC62D 1630 46.5 34.8 15.00 12.50 MV20D 24 FC64D 1630 48.0 36.8 15.00 12.50

MV20D 24 FC/MC62D

MV20D 24 FC64D

1 1075 46.5 29.8 2 1630 56.0 39.0 11.80 1 1075 48.0 31.2 2 1630 57.5 40.5 12.00

1 PH HP WITH AV / SV / F*FV - VARIABLE SPEED

YZF02413(C) AV*36 21 – – 725 23.8 17.4 16.00 13.00 YZF03013(C) AV*36 21 – – 960 28.8 21.6 16.00 13.00 YZF03613(C) AV*48 24 – – 1220 35.2 26.6 15.00 12.50

1 PH HP WITH AHP/ SHP / AHX / F*FP

AHX30 17 – – 835 23.8 18.1 15.00 12.50

YZF02413(C)

AHX36 21 – – 820 24.0 18.1 15.00 12.50 F6FP030 17 – – 850 23.8 17.9 15.00 12.50 F6FP036 21 – – 855 23.8 18.0 15.00 12.50

YZF03013(C) AHX36 21 – – 1005 28.8 22.0 16.00 13.00

AHX42 21 – – 1200 35.2 26.4 15.00 12.50

YZF03613(C)

AHX48 24 – – 1255 35.4 27.2 15.00 12.50 F6FP042 24 – – 1290 35.2 27.2 15.00 12.50 F6FP048 24 – – 1125 34.8 25.6 15.00 12.50

YZF04213(C)

YZF04813(C)

YZF06013(C) AHX60 24 –

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210. Cooling MBH based on 8°F entering air temperature, 50% RH, and rated air flo w. EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions. SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the same period.

AHX60 24 – – 1440 41.5 28.0 15.00 12.50 F6FP060 24 – – 1475 41.5 28.6 15.00 12.50

AHX60 24 – – 1570 46.5 35.2 15.00 12.50 F6FP060 24 – – 1570 46.5 35.0 15.00 12.50

1 1255 48.0 31.6 2 1930 57.0 41.5 11.60

COOLING NET MBH

TOTAL SENSIBLE

SEER EER

15.00

20.80

21.60

20.65

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number. — = Not applicable.

4 Johnson Controls Unitary Products

Page 5

COOLING CAPACITY - With High Efficiency Motor Furnaces

UNIT

MODEL

YZF02413(C)

YZF03013(C)

YZF03613(C)

For Notes, See Page 6.

FURNACE

MODEL

1 PH HP WITH HIGH EFFICIENCY FURNACES

T*(8,L)X*A12 FC/MC/PC32A 14 800 23.8 17.9 15.00 12.50

(Y*(8,L)C/T*8V)*A12 FC/MC/PC32A 14 755 23.4 17.3 15.00 12.50

T*(8,L)X*B12 FC/MC/PC35B 17 850 24.0 18.2 15.00 12.50 T*(8,L)X*C16 FC/MC/PC35C 21 865 24.0 18.2 15.00 12.50 T*(8,L)X*C20 FC/MC/PC35C 21 885 24.0 18.1 15.00 12.50

T*9X*B12 FC/MC/PC35B 17 785 23.8 17.7 15.00 12.50 T*9X*C16 FC/MC/PC35C 21 765 23.6 17.5 15.00 12.50

T*9X*C20 FC/MC/PC35C 21 825 24.0 18.1 15.00 12.50 (Y*(8,L)C/T*8V)*B12 FC/MC/PC35B 17 785 23.6 17.6 15.00 12.50 (Y*(8,L)C/T*8V)*C16 FC/MC/PC35C 21 775 23.6 17.6 15.00 12.50 (Y*(8,L)C/T*8V)*C20 FC/MC/PC35C 21 755 23.6 17.4 15.00 12.50

(Y*9C/T*9V)*B12 FC/MC/PC35B 17 815 23.8 18.0 15.00 12.50 (Y*9C/T*9V)*C16 FC/MC/PC35C 21 900 24.0 18.8 15.00 12.50 (Y*9C/T*9V)*C20 FC/MC/PC35C 21 755 23.6 17.4 15.00 12.50

T*(8,L)X*A12 FC/MC/PC37A 14 840 24.0 18.7 16.00 13.00

(Y*(8,L)C/T*8V)*A12 FC/MC/PC37A 14 765 23.8 17.7 15.00 12.50

T*(8,L)X*B12 FC/MC/PC43B 17 865 24.0 18.7 16.00 13.00 T*(8,L)X*C16 FC/MC/PC43C 21 855 24.0 18.7 16.00 13.00 T*(8,L)X*C20 FC/MC/PC43C 21 815 24.0 18.6 16.00 13.00

T*9X*B12 FC/MC/PC43B 17 800 24.0 18.7 16.00 13.00

T*9X*C16 FC/MC/PC43C 21 785 24.0 18.0 16.00 13.00

T*9X*C20 FC/MC/PC43C 21 790 24.0 18.1 16.00 13.00 (Y*(8,L)C/T*8V)*B12 FC/MC/PC43B 17 790 24.0 18.0 15.00 12.50 (Y*(8,L)C/T*8V)*C16 FC/MC/PC43C 21 770 24.0 17.8 16.00 13.00 (Y*(8,L)C/T*8V)*C20 FC/MC/PC43C 21 740 23.8 17.5 15.00 12.50

(Y*9C/T*9V)*B12 FC/MC/PC43B 17 800 24.0 18.5 15.00 12.50 (Y*9C/T*9V)*C16 FC/MC/PC43C 21 810 24.0 18.6 16.00 13.00 (Y*9C/T*9V)*C20 FC/MC/PC43C 21 890 24.0 19.1 16.00 13.00

T*(8,L)X*A12 FC/MC/PC37A 14 1090 29.2 23.0 15.00 12.50

(Y*(8,L)C/T*8V)*A12 FC/MC/PC37A 14 950 28.4 21.2 15.00 12.50

T*(8,L)X*B12 FC/MC/PC43B 17 1090 29.2 23.0 15.00 12.50 T*(8,L)X*C16 FC/MC/PC43C 21 955 28.8 21.6 15.00 12.50 T*(8,L)X*C20 FC/MC/PC43C 21 870 28.2 20.6 15.00 12.50

T*9X*B12 FC/MC/PC43B 17 1095 29.4 23.0 15.00 12.50

T*9X*C16 FC/MC/PC43C 21 1055 29.4 23.0 15.00 12.50 (Y*(8,L)C/T*8V)*B12 FC/MC/PC43B 17 1045 28.8 22.2 15.00 12.50 (Y*(8,L)C/T*8V)*C16 FC/MC/PC43C 21 1035 29.0 22.4 15.00 12.50 (Y*(8,L)C/T*8V)*C20 FC/MC/PC43C 21 1025 29.2 22.4 15.00 12.50

(Y*9C/T*9V)*B12 FC/MC/PC43B 17 1035 28.8 22.0 15.00 12.50 (Y*9C/T*9V)*C16 FC/MC/PC43C 21 1030 28.8 22.2 15.00 12.50 (Y*9C/T*9V)*C20 FC/MC/PC43C 21 995 28.8 21.8 15.00 12.50

T*(8,L)X*C16 FC/MC/PC48C 21 1185 34.8 26.0 15.00 12.50 T*(8,L)X*C20 FC/MC/PC48C 21 1270 35.4 27.0 15.00 12.50

T*9X*C16 FC/MC/PC48C 21 1280 35.2 27.0 15.00 12.50

T*9X*C20 FC/MC/PC48C 21 1205 34.6 25.8 15.00 12.50

T*9X*D20 FC/MC/PC48D 24 1240 35.2 26.8 15.00 12.50 (Y*(8,L)C/T*8V)*C16 FC/MC/PC48C 21 1195 34.6 25.8 15.00 12.50 (Y*(8,L)C/T*8V)*C20 FC/MC/PC48C 21 1150 34.6 25.8 15.00 12.50

(Y*9C/T*9V)*D20 FC/MC/PC48D 24 1240 35.0 26.6 15.00 12.50

T*(8,L)X*C16 FC/PC60C 21 1190 34.8 25.8 15.00 12.50 T*(8,L)X*C20 FC/PC60C 21 1275 35.4 27.2 15.00 12.50

COIL

MODEL

COOLING

RATED

CFM

NET MBH

TOTAL SENSIBLE

632151-YTG-A-1010

SEER EER

Johnson Controls Unitary Products 5

Page 6

632151-YTG-A-1010

COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL

YZF03613(C)

YZF04213(C)

YZF04813(C)

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

2. Variable speed furnaces have B.O.D (Blower on Delay) standard.

FURNACE

MODEL

1 PH HP WITH HIGH EFFICIENCY FURNACES

T*9X*C16 FC/PC60C 21 1315 35.4 27.4 15.00 12.50 T*9X*C20 FC/PC60C 21 1240 35.2 26.8 15.00 12.50

T*9X*D20 FC/MC/PC60D 24 1310 35.6 27.6 15.00 12.50 (Y*(8,L)C/T*8V)*C16 FC/PC60C 21 1185 34.8 25.6 15.00 12.50 (Y*(8,L)C/T*8V)*C20 FC/PC60C 21 1215 35.0 26.4 15.00 12.50

(Y*9C/T*9V)*D20 FC/MC/PC60D 24 1225 35.0 26.4 15.00 12.50

T*(8,L)X*C16 UC48C 21 1185 34.8 26.2 15.00 12.50 T*(8,L)X*C20 UC48C 21 1270 35.0 26.8 15.00 12.50

T*9X*C16 UC48C 21 1280 34.8 26.8 15.00 12.50

T*9X*C20 UC48C 21 1205 34.6 26.0 15.00 12.50

T*9X*D20 UC48D 24 1240 34.6 26.0 15.00 12.50 (Y*(8,L)C/T*8V)*C16 UC48C 21 1210 34.6 26.0 15.00 12.50 (Y*(8,L)C/T*8V)*C20 UC48C 21 1155 34.6 26.0 15.00 12.50

T*(8,L)X*C16 UC60C 21 1190 34.6 25.8 15.00 12.50 T*(8,L)X*C20 UC60C 21 1275 34.8 26.6 15.00 12.50

T*9X*C16 UC60C 21 1300 34.8 26.8 15.00 12.50

T*9X*C20 UC60C 21 1240 34.4 25.6 15.00 12.50

T*9X*D20 UC60D 24 1310 35.0 27.0 15.00 12.50 (Y*(8,L)C/T*8V)*C16 UC60C 21 1195 34.4 25.6 15.00 12.50 (Y*(8,L)C/T*8V)*C20 UC60C 21 1215 34.4 25.6 15.00 12.50

T*(8,L)X*C16 FC/MC62D 21 1360 41.0 27.8 15.00 12.50 T*(8,L)X*C20 FC/MC62D 21 1485 41.5 28.8 15.00 12.50

T*9X*C16 FC/MC62D 21 1460 41.5 28.6 15.00 12.50

T*9X*C20 FC/MC62D 21 1460 41.5 28.8 15.00 12.50

T*9X*D20 FC/MC62D 24 1425 41.5 28.8 15.00 12.50 (Y*(8,L)C/T*8V)*C16 FC/MC62D 21 1420 41.5 28.6 15.00 12.50 (Y*(8,L)C/T*8V)*C20 FC/MC62D 21 1365 41.0 27.6 15.00 12.50

(Y*9C/T*9V)*D20 FC/MC62D 24 1455 41.5 28.6 15.00 12.50

T*(8,L)X*C20 FC/MC62D 21 1665 47.0 35.8 15.00 12.50

T*9X*C20 FC/MC62D 21 1595 46.5 34.8 15.00 12.50

T*(8,L)X*C16 FC64D 21 1610 48.0 36.6 15.00 12.50 T*(8,L)X*C20 FC64D 21 1665 48.0 36.8 15.00 12.50

T*9X*C16 FC64D 21 1550 47.5 36.6 15.00 12.50

T*9X*C20 FC64D 21 1595 48.0 36.8 15.00 12.50

T*9X*D20 FC64D 24 1610 47.5 36.6 15.00 12.50 (Y*(8,L)C/T*8V)*C16 FC64D 21 1635 47.5 36.6 15.00 12.50 (Y*(8,L)C/T*8V)*C20 FC64D 21 1630 47.5 36.6 15.00 12.50

(Y*9C/T*9V)*C16 FC64D 21 1590 47.5 36.4 15.00 12.50

COIL

MODEL

COOLING

RATED

CFM

NET MBH

TOTAL SENSIBLE

SEER EER

6 Johnson Controls Unitary Products

Page 7

COOLING CAPACITY - With High Eff iciency Motor Furnaces

UNIT

MODEL

YZF06013(C)

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

2. Variable speed furnaces have B.O.D (Blower on Delay) standard.

FURNACE

MODEL

T*(8,L)X*C16 FC/MC62D 21

T*9X*C16 FC/MC62D 21

T*9X*C20 FC/MC62D 21

T*9X*D20 FC/MC62D 24

(Y*(8,L)C/T*8V)*C16 FC/MC62D 21

(Y*(8,L)C/T*8V)*C20 FC/MC62D 21

(Y*9C/T*9V)*C16 FC/MC62D 21

(Y*9C/T*9V)*C20 FC/MC62D 21

(Y*9C/T*9V)*D20 FC/MC62D 24

T*(8,L)X*C16 FC64D 21

T*(8,L)X*C20 FC64D 21

T*9X*C16 FC64D 21

T*9X*C20 FC64D 21

T*9X*D20 FC64D 24

(Y*(8,L)C/T*8V)*C16 FC64D 21

(Y*(8,L)C/T*8V)*C20 FC64D 21

(Y*9C/T*9V)*C16 FC64D 21

(Y*9C/T*9V)*C20 FC64D 21

(Y*9C/T*9V)*D20 FC64D 24

COIL

MODEL

1 PH HP WITH HIGH EFFICIENCY FURNACES

COOLING

STAGE

1 1115 46.5 29.8 2 1610 55.5 39.0 11.65 1 1085 46.5 29.8 2 1550 55.5 39.0 11.60 1 1220 47.5 31.2 2 1595 55.5 38.5 11.70 1 1240 48.0 31.4 2 1610 55.0 38.5 11.50 1 1025 46.5 29.8 2 1635 55.5 38.5 11.45 1 1060 46.5 29.8 2 1620 55.5 39.0 11.60 1 1040 46.5 29.8 2 1590 55.5 38.5 11.40 1 1040 46.5 29.8 2 1655 55.0 38.5 11.25 1 1085 46.5 29.8 2 1630 55.5 38.5 11.35 1 1115 48.0 31.2 2 1610 57.0 40.0 11.90 1 835 45.0 28.0 2 1665 57.5 40.5 12.00 1 1085 48.0 31.2 2 1550 57.0 40.0 11.85 1 1220 49.5 32.6 2 1595 57.0 40.0 12.00 1 1240 49.5 32.8 2 1610 57.0 40.0 11.85 1 1025 48.0 31.2 2 1635 57.0 40.0 11.75 1 1060 48.0 31.2 2 1630 57.0 40.0 11.85 1 1040 48.0 31.2 2 1590 57.0 40.0 11.70 1 1040 48.0 31.2 2 1655 56.5 40.0 11.50 1 1085 48.0 31.2 2 1630 57.0 40.0 11.65

RATED

CFM

NET MBH

TOTAL SENSIBLE

632151-YTG-A-1010

SEER EER

15.00

20.80

20.35

20.50

20.80

21.60

20.35

21.60

21.10

21.25

21.60

Johnson Controls Unitary Products 7

Page 8

632151-YTG-A-1010

HEATING PERFORMANCE - With Air Handler

UNIT

MODEL*

AIR

HANDLER

COIL

MODEL

RATED

CFM

MBH COP KW MBH COP KW STD

47F17FHSPF

ARI HEATING

1 PH HP WITH MV - VARIABLE SPEED

YZF02413(C)

YZF03013(C)

YZF03613(C)

YZF04213(C) MV20D FC/MC62D

YZF04813(C)

MV12B FC/MC35B 80024.03.821.8415.02.541.738.50 MV12B FC/MC43B 80024.04.021.7614.92.701.629.00 MV12B FC/MC43B 1000 29.6 3.94 2.20 19.1 2.74 2.04 9.00 MV16C FC/MC43C 1000 29.6 3.96 2.19 19.0 2.76 2.02 9.00

MV12D FC/MC48D

MV16C FC/MC48C

MV12D FC/MC60D

116036.03.982.6523.22.802.439.00 1000 36.0 3.40 3.29 23.2 2.80 2.43 9.00 1200 36.0 3.92 2.71 23.4 2.76 2.48 9.00 1000 36.0 3.40 3.35 23.4 2.76 2.48 9.00

113536.04.102.6023.22.862.389.00 1000 36.0 3.40 3.24 23.2 2.86 2.38 9.00 1400 37.8 3.86 2.87 25.2 2.68 2.76 9.00 1020 37.1 3.63 2.75 25.2 2.68 2.76 8.78

MV20D FC/MC62D

MV20D FC64D

1630 48.0 3.78 3.91 33.6 2.70 3.65 9.00 1000 48.0 3.29 4.38 33.6 2.70 3.65 9.00 1630 48.0 3.94 3.79 34.0 2.78 3.58 9.00 1000 48.0 3.45 4.26 34.0 2.78 3.58 9.00

1 PH HP WITH AV / SV / F*FV - VARIABLE SPEED

YZF02413(C) AV*36 –

YZF03013(C) AV*36 –

YZF03613(C) AV*48 –

725

505*

23.83.921.7814.82.661.639.00

96029.44.022.1418.92.801.989.00

72528.93.752.2618.92.801.989.00

1220 36.0 4.20 2.55 23.2 2.92 2.33 9.00

96036.03.403.1923.22.922.339.00

1 PH HP WITH AHP / SHP / AHX / F*FP

83524.03.881.8315.12.561.738.50

61823.83.631.9215.12.561.738.50

82024.03.901.8215.12.621.698.50

60023.83.651.9115.12.621.698.50

YZF02413(C)

AHX30 –

AHX36 –

F6FP030 – 85024.03.821.8615.22.541.758.50 F6FP036 – 85524.03.901.8015.12.581.718.50

YZF03013(C) AHX36 –

AHX42 –

YZF03613(C)

AHX48 –

1005 29.6 4.00 2.17 19.0 2.78 2.00 9.00

75529.13.732.2819.02.782.009.00 1200 36.0 4.00 2.65 23.2 2.80 2.43 9.00 1000 36.0 3.40 3.29 23.2 2.80 2.43 9.00 1255 36.0 4.08 2.60 23.2 2.82 2.41 9.00 1080 36.0 3.40 3.24 23.2 2.82 2.41 9.00

F6FP042 – 1290 36.0 4.06 2.64 23.4 2.80 2.45 9.00 F6FP048 – 112536.04.122.5723.02.902.329.00

1440 37.8 3.88 2.85 25.6 2.72 2.76 9.00 1040 37.1 3.65 2.73 25.6 2.72 2.76 8.78

YZF04213(C)

AHX60 –

F6FP060 – 1475 38.0 3.86 2.88 25.4 2.68 2.78 9.00

1570 48.0 3.82 3.84 33.4 2.72 3.60 9.00

98548.03.334.3033.42.723.609.00

YZF04813(C)

AHX60 –

F6FP060 – 1570 48.0 3.82 3.84 33.4 2.72 3.60 9.00

1. Rated CFM same as for cooling.

2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.

* Notates “Hot Heat Pump” performance. These ratings are not AHRI Listed. CP equals MBH output divided by (total KW input x 3.412). HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the

total electric power input during the same period. — = Not Applicable.

8 Johnson Controls Unitary Products

Page 9

632151-YTG-A-1010

HEATING CAPACITY - With Air Handler Coils

ARI HEATING

NET MBH

47 OD 17 OD

UNIT MODEL

AIR HANDLER

MODEL

COIL

MODEL

STAGE

RATED

CFM

1 PH HP WITH MV - VARIABLE SPEED

1 1075 41.5 – – 3.42

MV20D FC/MC62D

YZF06013C

MV20D FC64D

2 1630 58.0 38.0 9.00 3.72 2 1075 57.5 38.5 9.00 3.24 1 1075 42.0 – – 3.52 2 1630 58.0 38.0 9.00 3.82 2 1075 58.0 38.5 9.00 3.32

1 PH HP WITH AHP/ SHP / AHX / F*FP

1 1255 42.5 – – 3.56

YZF06013C AHX60 –

2 1930 58.0 38.5 9.00 3.80 2 1255 58.0 38.5 9.00 3.40

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210. Cooling MBH based on 8°F entering air temperature, 50% RH, and rated air flow. EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditio ns. SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the same period.

1. Rated CFM same as for cooling.

2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.

CP equals MBH output divided by (total KW input x 3.412). HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the

total electric power input during the same period. — = Not Applicable.

HSPF COP @ 47

HEATING CAPACITY - With High Efficiency Motor Furnaces

MODEL

YZF02413(C)

For Notes See Page 12.

FURNACE

MODEL

1 PH HP WITH VARIABLE SPEED FURNACES

T*(8,L)X*A12 FC/MC/PC32A

(Y*(8,L)C/T*8V)*A12 FC/MC/PC32A

T*(8,L)X*B12 FC/MC/PC35B

T*(8,L)X*C16 FC/MC/PC35C T*(8,L)X*C20 FC/MC/PC35C 885 24.0 3.92 1.79 15.0 2.60 1.69 8.50

T*9X*B12 FC/MC/PC35B

T*9X*C16 FC/MC/PC35C

T*9X*C20 FC/MC/PC35C 825 24.0 3.94 1.78 15.0 2.60 1.69 8.50 (Y*(8,L)C/T*8V)*B12 FC/MC/PC35B (Y*(8,L)C/T*8V)*C16 FC/MC/PC35C 775 23.8 3.80 1.84 15.0 2.54 1.73 8.50

(Y*(8,L)C/T*8V)*C20 FC/MC/PC35C 755 23.8 3.78 1.84 15.0 2.52 1.74 8.50

(Y*9C/T*9V)*B12 FC/MC/PC35B

COIL

MODEL

RATED

CFM

80023.83.921.7814.92.601.688.50

53023.33.671.8714.92.601.688.50

75524.03.761.8715.12.521.768.50

59023.83.511.9615.12.521.768.50

85024.03.981.7714.92.621.678.50

67523.83.731.8614.92.621.678.50

86524.03.981.7714.92.621.678.50

62523.83.731.8614.92.621.678.50

78523.83.841.8215.02.561.728.50

62023.63.591.9115.02.561.728.50

76523.83.801.8415.02.541.738.50

61023.33.551.9315.02.541.738.50

78524.03.801.8515.12.521.768.50

51523.83.551.9415.12.521.768.50

81524.03.861.8415.12.561.738.50

55023.83.611.9315.12.561.738.50

ARI HEATING

47F17F HSPF

MBH COP KW MBH COP KW STD

Johnson Controls Unitary Products 9

Page 10

632151-YTG-A-1010

HEAT ING CAPACITY - With High Efficiency Motor Furnaces (Continued)

MODEL

(Y*(8,L)C/T*8V)*A12 FC/MC/PC37A

YZF02413(C)

(Y*(8,L)C/T*8V)*B12 FC/MC/PC43B

(Y*(8,L)C/T*8V)*C16 FC/MC/PC43C (Y*(8,L)C/T*8V)*C20 FC/MC/PC43C 740 23.8 3.88 1.80 14.9 2.62 1.67 9.00

YZF03013(C)

(Y*(8,L)C/T*8V)*B12 FC/MC/PC43B

(Y*(8,L)C/T*8V)*C16 FC/MC/PC43C

(Y*(8,L)C/T*8V)*C20 FC/MC/PC43C

For Notes See Page 12.

FURNACE

MODEL

(Y*9C/T*9V)*C16 FC/MC/PC35C (Y*9C/T*9V)*C20 FC/MC/PC35C 75523.83.781.8415.02.521.748.50

T*(8,L)X*A12 FC/MC/PC37A

T*(8,L)X*B12 FC/MC/PC43B

T*(8,L)X*C16 FC/MC/PC43C T*(8,L)X*C20 FC/MC/PC43C 815 24.04.061.7314.92.721.619.00

(Y*9C/T*9V)*B12 FC/MC/PC43B (Y*9C/T*9V)*C16 FC/MC/PC43C 81024.04.021.7614.92.681.639.00

(Y*9C/T*9V)*C20 FC/MC/PC43C 89024.04.041.7715.02.661.659.00

T*(8,L)X*A12 FC/MC/PC37A

Y*(8,L)C*A12 FC/MC/PC37A

T*(8,L)X*B12 FC/MC/PC43B

T*(8,L)X*C16 FC/MC/PC43C

T*(8,L)X*C20 FC/MC/PC43C

T*9X*B12 FC/MC/PC43B

T*9X*C16 FC/MC/PC43C

(Y*9C/T*9V)*B12 FC/MC/PC43B

(Y*9C/T*9V)*C16 FC/MC/PC43C

(Y*9C/T*9V)*C20 FC/MC/PC43C

COIL

MODEL

RATED

CFM

900 24.03.921.8115.12.561.738.50 645 23.83.671.9015.12.561.738.50

840 24.04.081.7214.82.741.589.00 640 23.83.831.8114.82.741.589.00 765 24.03.901.8015.02.621.688.50 585 23.83.651.8915.02.621.688.50 865 24.04.101.7214.82.741.589.00 700 23.83.851.8114.82.741.589.00 855 24.04.101.7214.82.741.589.00 655 23.83.851.8114.82.741.589.00

790 24.03.921.7915.02.641.669.00 515 23.83.671.8815.02.641.669.00 770 24.03.921.7914.92.641.659.00 645 23.83.671.8814.92.641.659.00

800 24.03.981.7815.02.661.658.50 550 23.83.731.8715.02.661.658.50

1090 30.0 4.06 2.17 19.2 2.80 2.01 9.00

605 29.53.792.2819.22.802.019.00 950 29.63.862.2519.22.702.089.00 630 29.13.592.3619.22.702.089.00

1090 30.0 4.06 2.17 19.2 2.80 2.01 9.00

660 29.53.792.2819.22.802.019.00 955 29.43.962.1818.92.781.999.00 710 28.93.692.2918.92.781.999.00 870 29.03.862.2018.82.762.009.00 780 28.53.592.3118.82.762.009.00

1095 29.8 4.08 2.14 19.2 2.80 2.01 9.00

775 29.33.812.2519.22.802.019.00

1055 29.8 4.10 2.13 19.1 2.82 1.98 9.00

695 29.33.832.2419.12.821.989.00

1045 29.8 3.92 2.23 19.2 2.74 2.05 9.00

715 29.33.652.3419.22.742.059.00

1035 29.6 4.00 2.17 19.0 2.78 2.00 9.00

695 29.13.732.2819.02.782.009.00

1025 29.4 4.04 2.13 18.9 2.80 1.98 9.00

690 28.93.772.2518.92.801.989.00

1035 30.0 3.88 2.27 19.3 2.70 2.09 9.00

670 29.53.612.3819.32.702.099.00

1030 29.8 3.92 2.23 19.2 2.74 2.05 9.00

680 29.33.652.3419.22.742.059.00 995 29.63.942.2019.12.742.049.00 675 29.13.672.3119.12.742.049.00

MBH COP KW MBH COP KW STD

47F17FHSPF

ARI HEATING

10 Johnson Controls Unitary Products

Page 11

HEATING CAPACITY - With High Efficiency Motor Furnaces (Continued)

MODEL

YZF03613(C)

For Notes See Page 12.

FURNACE

MODEL

T*(8,L)X*C16 FC/MC/PC48C

T*(8,L)X*C20 FC/MC/PC48C

T*9X*C16 FC/MC/PC48C

T*9X*C20 FC/MC/PC48C

T*9X*D20 FC/MC/PC48D

(Y*(8,L)C/T*8V)*C16 FC/MC/PC48C

(Y*(8,L)C/T*8V)*C20 FC/MC/PC48C

(Y*9C/T*9V)*D20 FC/MC/PC48D

T*(8,L)X*C16 FC/PC60C

T*(8,L)X*C20 FC/PC60C

T*9X*C16 FC/PC60C

T*9X*C20 FC/PC60C

T*9X*D20 FC/MC/PC60D

(Y*(8,L)C/T*8V)*C16 FC/PC60C

(Y*(8,L)C/T*8V)*C20 FC/PC60C

(Y*9C/T*9V)*D20 FC/MC/PC60D

T*(8,L)X*C16 UC48C

T*(8,L)X*C20 UC48C

T*9X*C16 UC48C

T*9X*C20 UC48C

T*9X*D20 UC48D

(Y*(8,L)C/T*8V)*C16 UC48C

(Y*(8,L)C/T*8V)*C20 UC48C

T*(8,L)X*C16 UC60C

T*(8,L)X*C20 UC60C

T*9X*C16 UC60C

COIL

MODEL

RATED

CFM

118536.03.982.6523.22.802.439.00

100036.03.383.2923.22.802.439.00

127036.04.042.6323.42.822.439.00

100036.03.443.2723.42.822.439.00

128036.03.982.6823.42.782.479.00

100036.03.383.3223.42.782.479.00

120536.03.922.7123.42.742.509.00

100036.03.323.3523.42.742.509.00

124036.04.022.6523.42.802.459.00

100036.03.423.2923.42.802.459.00

119536.03.902.7223.42.742.509.00

100036.03.303.3623.42.742.509.00

115036.03.922.7123.42.762.489.00

100036.03.323.3523.42.762.489.00

124036.03.962.6923.42.762.489.00

100036.03.363.3323.42.762.489.00

119036.04.162.5523.02.922.319.00

100036.03.563.1923.02.922.319.00

127536.64.222.5423.22.922.339.00

100036.03.623.1823.22.922.339.00

131536.04.202.5723.22.862.389.00

100036.03.603.2123.22.862.389.00

124036.04.182.5723.22.902.349.00

100036.03.583.2123.22.902.349.00

131036.04.282.5123.02.922.319.00

100036.03.683.1523.02.922.319.00

118536.04.122.5923.22.882.369.00

100036.03.523.2323.22.882.369.00

121536.04.142.5923.22.882.369.00

100036.03.543.2323.22.882.369.00

122536.04.122.6223.42.862.409.00

100036.03.523.2623.42.862.409.00

118536.04.162.5523.02.902.329.00

100036.03.563.1923.02.902.329.00

127036.04.162.5623.22.902.349.00

100036.03.563.2023.22.902.349.00

128036.04.102.6223.42.862.409.00

100036.03.503.2623.42.862.409.00

120536.04.082.6123.22.862.389.00

100036.03.483.2523.22.862.389.00

124036.04.102.6023.22.862.389.00

100036.03.503.2423.22.862.389.00

121036.04.062.6323.42.842.419.00

100036.03.463.2723.42.842.419.00

115536.04.102.6023.22.862.389.00

100036.03.503.2423.22.862.389.00

119036.04.162.5522.82.862.349.00

100036.03.563.1922.82.862.349.00

127536.04.162.5623.02.862.369.00

100036.03.563.2023.02.862.369.00

130036.04.142.5923.02.842.379.00

100036.03.543.2323.02.842.379.00

MBH COP KW MBH COP KW STD

47F17F HSPF

ARI HEATING

632151-YTG-A-1010

Johnson Controls Unitary Products 11

Page 12

632151-YTG-A-1010

HEAT ING CAPACITY - With High Efficiency Motor Furnaces (Continued)

MODEL

YZF03613(C)

YZF04213(C)

YZF04813(C)

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.

3. Variable speed furnaces have B.O.D (Blower on Delay) standard.

FURNACE

MODEL

T*9X*C20 UC60C

T*9X*D20 UC60D

(Y*(8,L)C/T*8V)*C16 UC60C

(Y*(8,L)C/T*8V)*C20 UC60C

T*(8,L)X*C16 FC/MC62D

T*(8,L)X*C20 FC/MC62D

T*9X*C16 FC/MC62D

T*9X*C20 FC/MC62D

T*9X*D20 FC/MC62D

(Y*(8,L)C/T*8V)*C16 FC/MC62D

(Y*(8,L)C/T*8V)*C20 FC/MC62D

(Y*9C/T*9V)*D20 FC/MC62D

T*(8,L)X*C20 FC/MC62D

T*9X*C20 FC/MC62D

T*(8,L)X*C16 FC64D

T*(8,L)X*C20 FC64D

T*9X*C16 FC64D

T*9X*C20 FC64D

T*9X*D20 FC64D

(Y*(8,L)C/T*8V)*C16 FC64D

(Y*(8,L)C/T*8V)*C20 FC64D

(Y*9C/T*9V)*C16 FC64D

COIL

MODEL

RATED

CFM

1240 36.0 4.08 2.61 23.0 2.82 2.39 9.00 1000 36.0 3.48 3.25 23.0 2.82 2.39 9.00 1310 36.0 4.22 2.53 23.0 2.88 2.34 9.00 1000 36.0 3.62 3.17 23.0 2.88 2.34 9.00

119536.04.082.6123.02.822.399.00 1000 36.0 3.48 3.25 23.0 2.82 2.39 9.00 1215 36.0 4.06 2.63 23.0 2.82 2.39 9.00 1000 36.0 3.46 3.27 23.0 2.82 2.39 9.00 1360 37.6 3.86 2.85 25.2 2.70 2.73 9.00 1020 36.9 3.63 2.73 25.2 2.70 2.73 8.78 1485 37.8 3.90 2.84 25.2 2.70 2.73 9.00 1020 37.1 3.67 2.72 25.2 2.70 2.73 8.78 1460 38.0 3.86 2.88 25.4 2.66 2.80 8.50 1020 37.3 3.63 2.76 25.4 2.66 2.80 8.28 1460 37.8 3.90 2.84 25.2 2.70 2.73 9.00 1020 37.1 3.67 2.72 25.2 2.70 2.73 8.78 1425 37.8 3.90 2.84 25.2 2.70 2.73 9.00 1020 37.1 3.67 2.72 25.2 2.70 2.73 8.78 1420 38.0 3.82 2.91 25.6 2.64 2.84 8.50 1020 37.3 3.59 2.79 25.6 2.64 2.84 8.28 1365 37.8 3.80 2.91 25.4 2.64 2.82 8.50 1020 37.1 3.57 2.79 25.4 2.64 2.82 8.28 1455 38.0 3.82 2.91 25.6 2.64 2.84 8.50 1020 37.3 3.59 2.79 25.6 2.64 2.84 8.28 1665 48.0 3.84 3.89 33.8 2.70 3.67 9.00 1200 48.0 3.43 4.29 33.8 2.70 3.67 9.00 1595 48.0 3.76 3.94 33.6 2.68 3.67 9.00 1200 48.0 3.35 4.34 33.6 2.68 3.67 9.00 1610 48.0 3.90 3.83 34.2 2.76 3.63 9.00 1000 48.0 3.41 4.29 34.2 2.76 3.63 9.00 1665 48.0 3.92 3.81 34.0 2.76 3.61 9.00 1200 48.0 3.51 4.21 34.0 2.76 3.61 9.00 1550 48.0 3.88 3.85 34.2 2.74 3.66 9.00 1000 48.0 3.39 4.31 34.2 2.74 3.66 9.00 1595 48.0 3.92 3.81 34.0 2.76 3.61 9.00 1200 48.0 3.51 4.21 34.0 2.76 3.61 9.00 1610 48.0 3.88 3.85 34.2 2.74 3.66 9.00 1200 48.0 3.47 4.25 34.2 2.74 3.66 9.00 1635 48.0 3.86 3.87 34.4 2.72 3.71 9.00 1000 48.0 3.37 4.33 34.4 2.72 3.71 9.00 1630 48.0 3.88 3.85 34.2 2.74 3.66 9.00 1000 48.0 3.39 4.31 34.2 2.74 3.66 9.00 1590 48.0 3.84 3.93 34.4 2.72 3.71 9.00 1000 48.0 3.35 4.39 34.4 2.72 3.71 9.00

MBH COP KW MBH COP KW STD

47F17FHSPF

ARI HEATING

12 Johnson Controls Unitary Products

Page 13

HEATING CAPACITY - With High Efficiency Motor Furnaces

UNIT

MODEL

YZF06013(C)

For Notes, See Page 16.

FURNACE MODEL

1 PH HP WITH HIGH EFFICIENCY FURNACES

T*(8,L)X*C16 FC/MC62D

T*9X*C16 FC/MC62D

T*9X*C20 FC/MC62D

T*9X*D20 FC/MC62D

(Y*(8,L)C/T*8V)*C16 FC/MC62D

(Y*(8,L)C/T*8V)*C20 FC/MC62D

(Y*9C/T*9V)*C16 FC/MC62D

(Y*9C/T*9V)*C20 FC/MC62D

(Y*9C/T*9V)*D20 FC/MC62D

T*(8,L)X*C16 FC64D

T*(8,L)X*C20 FC64D

T*9X*C16 FC64D

T*9X*C20 FC64D

T*9X*D20 FC64D

(Y*(8,L)C/T*8V)*C16 FC64D

COIL

MODEL

632151-YTG-A-1010

HEATING

STAGE

RATED

CFM

NET MBH

47 OD 17 OD

1 1115 41.5 – – 3.38 2 1610 58.0 38.0 9.00 3.68 2 1115 57.5 38.5 9.00 3.20 1 1085 42.0 – – 3.38 2 1550 58.0 38.5 9.00 3.68 2 1085 57.5 38.5 9.00 3.20 1 1220 42.5 – – 3.52 2 1595 58.0 38.0 9.00 3.68 2 1220 58.0 38.5 9.00 3.38 1 1240 42.5 – – 3.54 2 1610 58.0 38.5 9.00 3.66 2 1240 58.0 38.5 9.00 3.40 1 1025 41.5 – – 3.38 2 1635 58.0 38.5 9.00 3.66 2 1025 57.5 38.5 9.00 3.20 1 1060 42.0 – – 3.38 2 1620 58.0 38.5 9.00 3.68 2 1060 57.5 38.5 9.00 3.20 1 1040 42.0 – – 3.36 2 1590 58.0 38.5 9.00 3.64 2 1040 57.5 38.5 9.00 3.20 1 1040 42.0 – – 3.36 2 1655 58.0 38.5 9.00 3.62 2 1040 57.5 38.5 9.00 3.20 1 1085 42.0 – – 3.36 2 1630 58.0 38.5 9.00 3.64 2 1085 57.5 38.5 9.00 3.20 1 1115 42.5 – – 3.48 2 1610 58.0 38.5 9.00 3.80 2 1115 58.0 39.0 9.00 3.30 1 835 41.0 – – 3.16 2 1665 58.0 38.5 9.00 3.84 2 835 56.5 39.0 8.75 2.92 1 1085 42.5 – – 3.48 2 1550 58.0 38.5 9.00 3.78 2 1085 58.0 39.0 9.00 3.30 1 1220 42.5 – – 3.60 2 1595 58.0 38.5 9.00 3.78 2 1220 58.0 39.0 9.00 3.48 1 1240 42.5 – – 3.64 2 1610 58.0 38.5 9.00 3.76 2 1240 58.0 39.0 9.00 3.48 1 1025 42.5 – – 3.48 2 1635 58.0 38.5 9.00 3.76 2 1025 58.0 39.0 9.00 3.30

HSPF

COP @

Johnson Controls Unitary Products 13

Page 14

632151-YTG-A-1010

HEAT ING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL

YZF06013(C)

1. Rated CFM same as for cooling.

2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.

3. Variable speed furnaces have B.O.D (Blower on Delay) standard.

CP equals MBH output divided by (total KW input x 3.412). HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the total electric power input during the same period.

— = Not Applicable.

FURNACE MODEL

1 PH HP WITH HIGH EFFICIENCY FURNACES

(Y*(8,L)C/T*8V)*C20 FC64D

(Y*9C/T*9V)*C16 FC64D

(Y*9C/T*9V)*C20 FC64D

(Y*9C/T*9V)*D20 FC64D

COIL

MODEL

STAGE

1 1060 42.5 – – 3.48 2 1630 58.0 38.5 9.00 3.78 2 1060 58.0 39.0 9.00 3.30 1 1040 42.5 – – 3.46 2 1590 58.0 38.5 9.00 3.74 2 1040 58.0 39.0 9.00 3.28 1 1040 42.5 – – 3.46 2 1655 58.0 39.0 9.00 3.72 2 1040 58.0 39.0 9.00 3.28 1 1085 42.5 – – 3.46 2 1630 58.0 38.5 9.00 3.74 2 1085 58.0 39.0 9.00 3.28

RATED

CFM

HEATING

NET MBH

47 OD 17 OD

HSPF

COP @

ACCESSORIES*

TXV Kits - 1TVM9 series thermal expansion valves precisely

meter refrigerant for optimum performance. Bonnet Sensor (2SB13700124) - The bonnet sensor is used to

sense plenum temperature, and is optional with a gas or oil back-up heat source. Compatible only with 13 SEER and higher heat pumps.

Dehumidistat (2HU16700124) - Provides increased dehumidification when matched with variable speed furnace or air handler.

Heat Pump Risers - (526-35389-000, 526-35390-000, 52635391-000) - 3", 6", or 12" risers mount easily in composite base pan recesses, ensuring the unit stays clear of snow and ice build-up in harsh winter weather.

Thermostats - Compatible thermostat controls are available through accessory sourcing. For optimum performance and installation, refer to the UPGNET “Low Voltage Wiring Diagram” document to select and apply controls.

SOUND POWER RATINGS*

UNIT MODEL

024 71.0 71.5 030 71.2 70.8 036 71.5 68.1 042 71.4 69.8 048 71.3 71.5 060 69.8 71.8

* Rated in accordance with ARI 270-95 Standards.

Cooling Heating

(dBA)

14 Johnson Controls Unitary Products

Page 15

632151-YTG-A-1010

COOLING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF02413(C) INDOOR COIL MODEL NO. AHX30

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

NOTE:

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperatur e.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

Air Handler Coil

AHX36 – 1.01 1.00 1.08 AV*36 – 1.00 0.96 1.03 F6FP030 – 1.00 0.99 1.07 F6FP036 – 1.00 0.99 1.07 MV12B FC/MC35B 0.99 0.98 1.06 MV12B FC/MC43B 1.03 1.03 1.05

Furnace Coil

T*(8,L)X*A12 FC/MC/PC32A 1.00 0.99 1.03 (Y*(8,L)C/T*8V)*A12 FC/MC/PC32A 0.98 0.96 1.05 T*(8,L)X*B12 FC/MC/PC35B 1.01 1.01 1.04 T*(8,L)X*C16 FC/MC/PC35C 1.01 1.01 1.04 T*(8,L)X*C20 FC/MC/PC35C 1.01 1.00 1.08 T*9X*B12 FC/MC/PC35B 1.00 0.98 1.03 T*9X*C16 FC/MC/PC35C 0.99 0.97 1.06 T*9X*C20 FC/MC/PC35C 1.01 1.00 1.04 (Y*(8,L)C/T*8V)*B12 FC/MC/PC35B 0.99 0.97 1.06 (Y*(8,L)C/T*8V)*C16 FC/MC/PC35C 0.99 0.97 1.06

ID CFM 635 835 1035

ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

ID WB (°F) 57 62 62 67 72 57 62 62 67 57 62 62 67 72 57

T.C. 21.7 24.2 24.1 26.2 28.4 23.9 25.3 25.2 27.3 29.5 26.1 26.4 26.3 28.5 30.5 S.C. 21.7 20.6 17.8 17.8 14.8 23.9 23.6 19.7 19.6 15.7 26.1 26.4 21.7 21.4 16.6

K.W. 1.19 1.19 1.19 1.19 1.19 1.26 1.26 1.27 1.27 1.27 1.34 1.34 1.34 1.35 1.35

T.C. 21.2 23.2 23.1 25.1 27.2 23.1 24.2 24.0 26.1 28.2 25.1 25.1 25.0 27.2 29.3 S.C. 21.2 20.1 17.3 17.3 14.4 23.1 22.8 19.2 19.1 15.3 25.1 25.1 21.2 20.9 16.2 K.W. 1.36 1.36 1.36 1.36 1.37 1.43 1.44 1.44 1.44 1.45 1.51 1.51 1.51 1.52 1.53

T.C. 20.6 22.1 22.1 24.0 26.0 22.3 23.0 22.9 24.9 27.0 24.1 23.9 23.8 25.9 28.0 S.C. 20.6 19.6 16.8 16.8 13.9 22.3 22.0 18.8 18.6 14.9 24.1 23.9 20.7 20.4 15.8 K.W. 1.52 1.53 1.53 1.54 1.55 1.61 1.61 1.61 1.62 1.63 1.69 1.69 1.69 1.70 1.71

T.C. 20.0 21.1 21.0 23.0 24.8 21.5 21.9 21.8 23.8 25.7 23.1 22.6 22.5 24.5 26.7 S.C. 20.0 19.2 16.4 16.3 13.4 21.5 21.3 18.3 18.1 14.4 23.1 22.6 20.2 19.8 15.4 K.W. 1.69 1.70 1.70 1.71 1.72 1.78 1.78 1.78 1.79 1.81 1.86 1.86 1.86 1.87 1.89

T.C. 19.1 19.8 19.8 21.6 23.4 20.5 20.7 20.4 22.3 24.1 21.8 21.6 21.1 23.0 24.9 S.C. 19.1 18.6 15.8 15.7 12.8 20.5 20.5 17.7 17.5 13.7 21.8 21.6 19.6 19.3 14.7 K.W. 1.90 1.90 1.90 1.92 1.93 1.98 1.99 1.98 2.00 2.01 2.07 2.07 2.06 2.08 2.10

T.C. 18.1 18.6 18.6 20.3 21.9 19.4 19.6 19.1 20.8 22.5 20.6 20.6 19.6 21.4 23.1 S.C. 18.1 18.1 15.3 15.0 12.2 19.4 19.6 17.1 16.9 13.1 20.6 20.6 19.0 18.7 13.9 K.W. 2.11 2.11 2.11 2.12 2.14 2.19 2.19 2.19 2.20 2.22 2.28 2.28 2.27 2.29 2.30

T.C. 17.2 17.3 17.4 18.9 20.5 18.3 18.5 17.8 19.4 20.9 19.4 19.6 18.2 19.8 21.4 S.C. 17.2 17.3 14.8 14.4 11.6 18.3 18.5 16.6 16.3 12.4 19.4 19.6 18.2 18.2 13.2 K.W. 2.32 2.31 2.32 2.33 2.34 2.40 2.40 2.39 2.41 2.43 2.49 2.49 2.47 2.49 2.51

T.C. S.C. KW

Furnace Coil

(Y*(8,L)C/T*8V)*C20 FC/MC/PC35C 0.99 0.96 1.06 (Y*9C/T*9V)*B12 FC/MC/PC35B 1.00 0.99 1.07 (Y*9C/T*9V)*C16 FC/MC/PC35C 1.01 1.04 1.08 (Y*9C/T*9V)*C20 FC/MC/PC35C 0.99 0.96 1.06 T*(8,L)X*A12 FC/MC/PC37A 1.03 1.03 1.05 (Y*(8,L)C/T*8V)*A12 FC/MC/PC37A 1.00 0.98 1.07 T*(8,L)X*B12 FC/MC/PC43B 1.03 1.03 1.05 T*(8,L)X*C16 FC/MC/PC43C 1.03 1.03 1.05 T*(8,L)X*C20 FC/MC/PC43C 1.03 1.03 1.05 T*9X*B12 FC/MC/PC43B 1.03 1.03 1.05 T*9X*C16 FC/MC/PC43C 1.02 0.99 1.04 T*9X*C20 FC/MC/PC43C 1.01 1.00 1.04 (Y*(8,L)C/T*8V)*B12 FC/MC/PC43B 1.01 0.99 1.08 (Y*(8,L)C/T*8V)*C16 FC/MC/PC43C 1.01 0.98 1.04 (Y*(8,L)C/T*8V)*C20 FC/MC/PC43C 1.00 0.97 1.07 (Y*9C/T*9V)*B12 FC/MC/PC43B 1.02 1.02 1.09 (Y*9C/T*9V)*C16 FC/MC/PC43C 1.02 1.03 1.04 (Y*9C/T*9V)*C20 FC/MC/PC43C 1.03 1.06 1.06

T.C. S.C. KW

Johnson Controls Unitary Products 15

Page 16

632151-YTG-A-1010

COOLING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF03013(C) INDOOR COIL MODEL NO. AHX36

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE:

ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

ID CFM 805 1005 1205 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 57 62 62 67 72 57

T.C. 27.5 29.6 29.7 32.4 35.6 29.4 30.7 30.7 33.7 36.7 31.4 31.8 31.8 35.0 37.9 S.C. 27.5 25.6 22.0 21.8 17.9 29.4 28.8 24.1 23.9 19.1 31.4 31.8 26.2 26.0 20.4

K.W. 1.49 1.49 1.49 1.49 1.48 1.56 1.56 1.57 1.56 1.55 1.63 1.63 1.64 1.63 1.62

T.C. 26.5 28.3 28.3 31.0 34.0 28.4 29.3 29.3 32.1 35.1 30.2 30.3 30.3 33.3 36.2 S.C. 26.5 25.0 21.4 21.2 17.3 28.4 27.9 23.5 23.2 18.5 30.2 30.3 25.6 25.3 19.7

K.W. 1.67 1.67 1.67 1.67 1.67 1.74 1.74 1.75 1.74 1.74 1.82 1.82 1.82 1.82 1.81

T.C. 25.5 27.0 27.0 29.6 32.5 27.3 27.9 27.9 30.6 33.5 29.1 28.8 28.7 31.5 34.5 S.C. 25.5 24.4 20.8 20.6 16.7 27.3 26.9 22.8 22.6 17.9 29.1 28.8 24.9 24.6 19.1

K.W. 1.85 1.85 1.85 1.85 1.86 1.93 1.93 1.92 1.93 1.93 2.01 2.00 2.00 2.00 2.00

T.C. 24.5 25.7 25.7 28.2 31.0 26.2 26.5 26.4 29.0 31.9 27.9 27.3 27.2 29.7 32.8 S.C. 24.5 23.8 20.1 19.9 16.1 26.2 25.9 22.2 21.9 17.2 27.9 27.3 24.3 23.9 18.4

K.W. 2.03 2.03 2.03 2.03 2.04 2.11 2.11 2.10 2.11 2.11 2.19 2.18 2.18 2.18 2.18

T.C. 23.2 24.0 24.0 26.4 29.0 24.7 25.0 24.7 27.1 29.7 26.2 25.9 25.3 27.7 30.5 S.C. 23.2 23.0 19.4 19.2 15.3 24.7 24.8 21.5 21.2 16.4 26.2 25.9 23.5 23.1 17.6

K.W. 2.27 2.27 2.27 2.27 2.28 2.35 2.34 2.34 2.34 2.35 2.42 2.42 2.42 2.42 2.42

T.C. 22.0 22.3 22.4 24.6 27.0 23.3 23.4 22.9 25.1 27.6 24.5 24.5 23.4 25.7 28.2 S.C. 22.0 22.3 18.7 18.4 14.5 23.3 23.4 20.7 20.4 15.6 24.5 24.5 22.7 22.4 16.7

K.W. 2.51 2.51 2.51 2.51 2.51 2.58 2.58 2.58 2.58 2.58 2.66 2.66 2.66 2.65 2.66

T.C. 20.7 20.6 20.7 22.7 25.0 21.8 21.9 21.1 23.2 25.4 22.9 23.1 21.6 23.7 25.9 S.C. 20.7 20.6 17.9 17.7 13.8 21.8 21.9 19.9 19.6 14.8 22.9 23.1 21.6 21.6 15.8

K.W. 2.75 2.74 2.74 2.74 2.74 2.82 2.82 2.82 2.82 2.82 2.89 2.89 2.89 2.89 2.89

Air Handler Coil

AV*36 – 1.00 0.98 1.06 MV12B FC/MC43B 1.00 0.99 1.06 MV16C FC/MC43C 1.00 1.00 1.06

T.C. S.C. KW

Furnace Coil

T*(8,L)X*A12 FC/MC/PC37A 1.01 1.05 1.07 (Y*(8,L)C/T*8V)*A12 FC/MC/PC37A 0.99 0.96 1.08 T*(8,L)X*B12 FC/MC/PC43B 1.01 1.05 1.07 T*(8,L)X*C16 FC/MC/PC43C 1.00 0.98 1.06 T*(8,L)X*C20 FC/MC/PC43C 0.98 0.94 1.04 T*9X*B12 FC/MC/PC43B 1.02 1.05 1.08 T*9X*C16 FC/MC/PC43C 1.02 1.05 1.08 (Y*(8,L)C/T*8V)*B12 FC/MC/PC43B 1.00 1.01 1.10 (Y*(8,L)C/T*8V)*C16 FC/MC/PC43C 1.01 1.02 1.07 (Y*(8,L)C/T*8V)*C20 FC/MC/PC43C 1.01 1.02 1.07 (Y*9C/T*9V)*B12 FC/MC/PC43B 1.00 1.00 1.10 (Y*9C/T*9V)*C16 FC/MC/PC43C 1.00 1.01 1.10 (Y*9C/T*9V)*C20 FC/MC/PC43C 1.00 0.99 1.06

T.C. S.C. KW

16 Johnson Controls Unitary Products

Page 17

632151-YTG-A-1010

COOLING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF03613(C) INDOOR COIL MODEL NO. AHX42

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

NOTE:

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperatur e.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

Air Handler Coil

AHX48 – 1.01 1.03 1.08 AV*48 – 1.00 1.01 1.08 F6FP042 – 1.00 1.03 1.08 F6FP048 – 0.99 0.97 1.06 MV12D FC/MC48D 0.99 0.98 1.06 MV16C FC/MC48C 0.98 0.98 1.06 MV12D FC/MC60D 0.98 0.97 1.06

Furnace Coil

T*(8,L)X*C16 FC/MC/PC48C 0.99 0.98 1.06 T*(8,L)X*C20 FC/MC/PC48C 1.01 1.02 1.08 T*9X*C16 FC/MC/PC48C 1.00 1.02 1.08 T*9X*C20 FC/MC/PC48C 0.98 0.98 1.06 T*9X*D20 FC/MC/PC48D 1.00 1.02 1.08 (Y*(8,L)C/T*8V)*C16 FC/MC/PC48C 0.98 0.98 1.06 (Y*(8,L)C/T*8V)*C20 FC/MC/PC48C 0.98 0.98 1.06 (Y*9C/T*9V)*D20 FC/MC/PC48D 0.99 1.01 1.07 T*(8,L)X*C16 FC/PC60C 0.99 0.98 1.06 T*(8,L)X*C20 FC/PC60C 1.01 1.03 1.08

ID CFM 1000 1200 1400

ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

ID WB (°F) 57 62 62 67 72 57 62 62 67 57 62 62 67 72 57

T.C. 34.1 36.2 36.4 39.6 43.0 36.1 37.4 37.5 40.8 44.1 38.1 38.5 38.5 42.0 45.3 S.C. 34.1 31.2 26.9 26.6 21.7 36.1 34.5 28.9 28.5 22.8 38.1 37.8 30.9 30.3 23.9 K.W. 1.93 1.93 1.94 1.94 1.95 2.01 2.02 2.02 2.03 2.04 2.10 2.10 2.10 2.13 2.12

T.C. 32.9 34.7 34.8 38.0 41.2 34.8 35.7 35.7 38.9 42.2 36.6 36.6 36.7 39.9 43.3 S.C. 32.9 30.5 26.1 25.8 21.0 34.8 33.4 28.1 27.7 22.1 36.6 36.3 30.1 29.6 23.1 K.W. 2.20 2.20 2.20 2.21 2.23 2.29 2.29 2.29 2.30 2.32 2.37 2.37 2.37 2.39 2.41

T.C. 31.8 33.1 33.2 36.3 39.4 33.5 34.0 34.0 37.1 40.3 35.2 34.8 34.8 37.8 41.2 S.C. 31.8 29.8 25.4 25.1 20.3 33.5 32.3 27.4 27.0 21.3 35.2 34.7 29.4 28.9 22.4 K.W. 2.47 2.47 2.47 2.49 2.51 2.56 2.56 2.56 2.57 2.60 2.65 2.64 2.65 2.65 2.69

T.C. 30.6 31.5 31.6 34.6 37.6 32.1 32.3 32.3 35.2 38.4 33.7 33.0 33.0 35.8 39.2 S.C. 30.6 29.1 24.6 24.3 19.6 32.1 31.1 26.6 26.2 20.6 33.7 33.0 28.7 28.2 21.6 K.W. 2.74 2.74 2.74 2.77 2.79 2.83 2.83 2.83 2.84 2.89 2.92 2.91 2.92 2.90 2.98

T.C. 29.0 29.3 29.6 32.4 35.3 30.4 30.4 30.1 32.9 35.9 31.7 31.4 30.6 33.4 36.5 S.C. 29.0 28.2 23.7 23.4 18.6 30.4 29.9 25.7 25.3 19.7 31.7 31.4 27.7 27.2 20.7 K.W. 3.06 3.05 3.07 3.05 3.07 3.13 3.12 3.15 3.12 3.16 3.20 3.20 3.23 3.20 3.25

T.C. 27.4 27.2 27.6 30.2 33.0 28.6 28.5 27.9 30.6 33.4 29.8 29.8 28.2 31.0 33.9 S.C. 27.4 27.2 22.8 22.5 17.6 28.6 28.5 24.8 24.4 18.7 29.8 29.8 26.7 26.3 19.7 K.W. 3.38 3.35 3.40 3.32 3.34 3.43 3.42 3.47 3.41 3.43 3.49 3.49 3.54 3.50 3.52

T.C. 25.9 25.0 25.6 28.0 30.7 26.9 26.6 25.7 28.4 30.9 27.9 28.2 25.8 28.7 31.2 S.C. 25.9 25.0 21.9 21.6 16.7 26.9 26.6 23.8 23.5 17.7 27.9 28.2 25.8 25.4 18.8 K.W. 3.70 3.65 3.73 3.60 3.62 3.73 3.71 3.79 3.70 3.70 3.77 3.77 3.85 3.79 3.79

T.C. S.C. KW

Furnace Coil

T*9X*C16 FC/PC60C 1.01 1.04 1.08 T*9X*C20 FC/PC60C 1.00 1.02 1.08 T*9X*D20 FC/MC/PC60D 1.01 1.05 1.09 (Y*(8,L)C/T*8V)*C16 FC/PC60C 0.99 0.97 1.06 (Y*(8,L)C/T*8V)*C20 FC/PC60C 0.99 1.00 1.07 (Y*9C/T*9V)*D20 FC/MC/PC60D 0.99 1.00 1.07 T*(8,L)X*C16 UC48C 0.99 0.99 1.06 T*(8,L)X*C20 UC48C 0.99 1.02 1.07 T*9X*C16 UC48C 0.99 1.02 1.06 T*9X*C20 UC48C 0.98 0.98 1.06 T*9X*D20 UC48D 0.98 0.98 1.06 (Y*(8,L)C/T*8V)*C16 UC48C 0.98 0.98 1.06 (Y*(8,L)C/T*8V)*C20 UC48C 0.98 0.98 1.06 T*(8,L)X*C16 UC60C 0.98 0.98 1.06 T*(8,L)X*C20 UC60C 0.99 1.01 1.06 T*9X*C16 UC60C 0.99 1.02 1.06 T*9X*C20 UC60C 0.98 0.97 1.05 T*9X*D20 UC60D 0.99 1.02 1.07 (Y*(8,L)C/T*8V)*C16 UC60C 0.98 0.97 1.05 (Y*(8,L)C/T*8V)*C20 UC60C 0.98 0.97 1.05

T.C. S.C. KW

Johnson Controls Unitary Products 17

Page 18

632151-YTG-A-1010

COOLING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF04213(C) INDOOR COIL MODEL NO. AHX60

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

NOTE:

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

ID CFM 1185 1385 1585 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 57 62 62 67 72 57

T.C. 39.7 42.3 42.3 46.2 50.6 41.4 43.5 43.4 47.5 51.9 43.2 44.7 44.6 48.7 53.3 S.C. 37.5 33.8 29.1 29.0 24.1 39.1 36.7 31.1 30.8 25.2 40.8 39.6 33.0 32.6 26.2

K.W. 2.37 2.38 2.37 2.37 2.37 2.45 2.46 2.45 2.45 2.46 2.52 2.53 2.53 2.53 2.54

T.C. 38.3 40.4 40.5 44.2 48.4 40.0 41.5 41.5 45.4 49.6 41.8 42.6 42.5 46.5 50.9 S.C. 36.2 33.1 28.4 28.2 23.2 37.8 35.8 30.3 30.0 24.2 39.4 38.4 32.2 31.9 25.3

K.W. 2.70 2.70 2.70 2.71 2.72 2.78 2.78 2.78 2.79 2.81 2.86 2.86 2.86 2.88 2.89

T.C. 37.0 38.5 38.7 42.2 46.2 38.6 39.4 39.6 43.3 47.3 40.3 40.4 40.4 44.3 48.4 S.C. 34.9 32.5 27.7 27.4 22.3 36.5 34.9 29.5 29.2 23.3 38.1 37.3 31.4 31.1 24.3

K.W. 3.02 3.02 3.03 3.05 3.07 3.11 3.11 3.11 3.13 3.16 3.20 3. 19 3.19 3.22 3.24

T.C. 35.6 36.6 36.9 40.2 44.0 37.2 37.4 37.6 41.2 45.0 38.9 38.2 38.3 42.2 45.9 S.C. 33.6 31.8 26.9 26.6 21.4 35.2 34.0 28.8 28.4 22.4 36.7 36.1 30.6 30.3 23.4

K.W. 3.34 3.34 3.36 3.38 3.42 3.44 3.43 3.44 3.48 3.51 3.55 3.52 3.52 3.57 3.60

T.C. 33.8 34.4 34.6 37.8 41.5 35.3 35.4 35.1 38.6 42.2 36.8 36.5 35.7 39.3 43.0 S.C. 31.9 31.0 26.0 25.7 20.5 33.3 32.7 27.8 27.5 21.4 34.8 34.4 29.7 29.3 22.4

K.W. 3.71 3.64 3.64 3.67 3.71 3.77 3.73 3.73 3.76 3.80 3.83 3.82 3.81 3.85 3.88

T.C. 32.0 32.2 32.2 35.4 38.9 33.3 33.4 32.7 35.9 39.5 34.7 34.7 33.1 36.5 40.0 S.C. 30.2 30.1 25.1 24.8 19.6 31.5 31.4 26.9 26.6 20.5 32.8 32.8 28.7 28.3 21.4

K.W. 4.07 3.93 3.93 3.96 4.00 4.09 4.02 4.01 4.04 4.08 4.12 4.12 4.09 4.13 4.17

T.C. 30.1 30.0 29.8 33.0 36.4 31.4 31.4 30.2 33.3 36.7 32.6 32.9 30.5 33.6 37.1 S.C. 28.5 29.3 24.1 23.9 18.6 29.6 30.2 26.0 25.6 19.5 30.8 31.1 27.8 27.4 20.4

K.W. 4.43 4.22 4.21 4.24 4.29 4.42 4.32 4.30 4.32 4.37 4.40 4.41 4.38 4.41 4.45

Air Handler Coil

F6FP060 – 1.01 1.02 1.06 MV20D FC/MC62D 1.00 1.00 1.05

T.C. S.C. KW

Furnace Coil

T*(8,L)X*C16 FC/MC62D 1.00 0.99 1.05 T*(8,L)X*C20 FC/MC62D 1.01 1.03 1.06 T*9X*C16 FC/MC62D 1.01 1.02 1.06 T*9X*C20 FC/MC62D 1.01 1.03 1.06 T*9X*D20 FC/MC62D 1.01 1.03 1.06 (Y*(8,L)C/T*8V)*C16 FC/MC62D 1.01 1.02 1.06 (Y*(8,L)C/T*8V)*C20 FC/MC62D 1.00 0.99 1.05 (Y*9C/T*9V)*D20 FC/MC62D 1.01 1.02 1.06

T.C. S.C. KW

18 Johnson Controls Unitary Products

Page 19

632151-YTG-A-1010

COOLING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF04813(C) INDOOR COIL MODEL NO. AHX60

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

NOTE:

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperatur e.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

ID CFM 1400 1600 1800

ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

ID WB (°F) 57 62 62 67 72 57 62 62 67 57 62 62 67 72 57

T.C. 45.7 48.6 48.5 52.9 58.0 47.6 49.7 49.6 54.2 59.4 49.4 50.9 50.8 55.5 60.7 S.C. 45.7 42.2 36.3 35.9 29.9 47.6 45.2 38.3 37.9 30.9 49.4 48.1 40.3 39.9 32.0 K.W. 2.57 2.58 2.58 2.59 2.62 2.65 2.66 2.66 2.67 2.71 2.73 2.73 2.73 2.75 2.79

T.C. 44.1 46.4 46.3 50.6 55.4 45.8 47.4 47.4 51.7 56.6 47.6 48.4 48.4 52.9 57.8 S.C. 44.1 41.4 35.3 35.0 28.7 45.8 44.1 37.3 36.9 29.8 47.6 46.9 39.3 38.8 30.8 K.W. 2.90 2.91 2.91 2.92 2.95 2.98 2.98 2.98 3.00 3.04 3.06 3.06 3.06 3.08 3.12

T.C. 42.5 44.3 44.2 48.3 52.8 44.1 45.1 45.1 49.3 53.8 45.7 45.9 45.9 50.3 54.8 S.C. 42.5 40.5 34.3 34.0 27.5 44.1 43.0 36.3 35.9 28.6 45.7 45.6 38.3 37.8 29.6 K.W. 3.23 3.24 3.24 3.26 3.29 3.31 3.31 3.31 3.34 3.37 3.39 3.39 3.39 3.42 3.45

T.C. 40.9 42.1 42.1 45.9 50.2 42.4 42.7 42.8 46.8 51.0 43.9 43.4 43.5 47.7 51.9 S.C. 40.9 39.6 33.4 33.0 26.3 42.4 42.0 35.3 34.9 27.4 43.9 43.4 37.3 36.7 28.4 K.W. 3.56 3.56 3.56 3.59 3.62 3.64 3.64 3.64 3.67 3.70 3.73 3.72 3.72 3.75 3.79

T.C. 38.2 38.6 38.6 42.6 46.5 39.6 39.6 39.2 43.1 47.2 41.0 40.6 39.7 43.6 48.0 S.C. 38.2 37.7 31.8 31.6 24.8 39.6 39.6 33.8 33.4 25.9 41.0 40.6 35.8 35.2 27.0 K.W. 3.96 3.96 3.96 4.00 4.03 4.05 4.04 4.04 4.07 4.11 4.13 4.13 4.12 4.15 4.19

T.C. 35.6 35.1 35.0 39.3 42.8 36.8 36.4 35.5 39.4 43.4 38.0 37.7 36.0 39.6 44.1 S.C. 35.6 35.1 30.3 30.2 23.3 36.8 36.4 32.3 32.0 24.4 38.0 37.7 34.3 33.8 25.6 K.W. 4.36 4.36 4.36 4.40 4.44 4.45 4.45 4.44 4.48 4.52 4.54 4.54 4.52 4.55 4.60

T.C. 32.9 31.6 31.5 36.0 39.1 34.0 33.3 31.9 35.8 39.6 35.1 34.9 32.3 35.5 40.2 S.C. 32.9 31.6 28.8 28.8 21.8 34.0 33.3 30.8 30.6 22.9 35.1 34.9 32.3 32.3 24.1 K.W. 4.77 4.76 4.75 4.81 4.84 4.86 4.85 4.83 4.88 4.93 4.95 4.94 4.92 4.95 5.01

Air Handler Coil

F6FP060 – 0.99 0.99 1.01 MV20D FC/MC62D 0.99 0.99 1.01 MV20D FC64D 1.02 1.05 1.01

T.C. S.C. KW

Furnace Coil

T*(8,L)X*C20 FC/MC62D 1.00 1.02 1.02 T*9X*C20 FC/MC62D 0.99 0.99 1.01 T*(8,L)X*C16 FC64D 1.02 1.04 1.05 T*(8,L)X*C20 FC64D 1.02 1.05 1.05 T*9X*C16 FC64D 1.01 1.04 1.03 T*9X*C20 FC64D 1.02 1.05 1.05 T*9X*D20 FC64D 1.01 1.04 1.03 (Y*(8,L)C/T*8V)*C16 FC64D 1.01 1.04 1.03 (Y*(8,L)C/T*8V)*C20 FC64D 1.01 1.04 1.03 (Y*9C/T*9V)*C16 FC64D 1.01 1.03 1.03

T.C. S.C. KW

Johnson Controls Unitary Products 19

Page 20

632151-YTG-A-1010

COOLING PERFORMANCE DATA - LOW CFM 1-STAGE OPERATION

OUTDOOR UNIT MODEL NO. YZF06013(C) INDOOR COIL MODEL NO. AHX60

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

NOTE:

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

LOW CFM

Air Handler Coil

MV20D FC/MC62D 0.98 0.96 1.02 MV20D FC64D 0.99 0.99 1.00

ID CFM 1055 1255 1455 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 57 62 62 67 72 57

T.C. 45.5 49.4 49.3 54.2 59.0 48.2 51.4 51.2 56.0 61.0 50.9 53.3 53.0 57.9 63.0 S.C. 42.4 37.6 32.7 32.6 27.5 44.9 40.8 35.0 34.9 28.8 47.4 44.1 37.4 37.1 30.0

K.W. 1.57 1.57 1.57 1.57 1.56 1.62 1.62 1.62 1.62 1.61 1.67 1.67 1.67 1.67 1.66

T.C. 43.8 47.1 47.0 51.7 56.4 46.3 48.8 48.6 53.4 58.3 48.8 50.4 50.2 55.0 60.1 S.C. 40.8 36.7 31.7 31.6 26.4 43.1 39.9 34.0 33.8 27.7 45.5 43.1 36.4 36.0 28.9

K.W. 1.80 1.80 1.80 1.80 1.80 1.85 1.85 1.85 1.85 1.85 1.90 1.90 1.90 1.90 1.90

T.C. 42.1 44.8 44.7 49.3 53.8 44.4 46.2 46.1 50.7 55.5 46.8 47.5 47.5 52.1 57.2 S.C. 39.2 35.8 30.7 30.5 25.3 41.4 39.0 33.0 32.7 26.6 43.6 42.2 35.3 35.0 27.8

K.W. 2.03 2.03 2.03 2.03 2.04 2.08 2.08 2.08 2.09 2.09 2.13 2.13 2.13 2.14 2.14

T.C. 40.4 42.4 42.5 46.8 51.2 42.5 43.6 43.6 48.0 52.7 44.7 44.7 44.7 49.2 54.3 S.C. 37.6 34.9 29.7 29.5 24.2 39.6 38.0 32.0 31.7 25.5 41.7 41.2 34.3 33.9 26.8

K.W. 2.26 2.26 2.26 2.27 2.27 2.31 2.31 2.31 2.32 2.33 2.37 2.37 2.37 2.37 2.38

T.C. 38.2 39.4 39.4 43.5 47.7 40.1 40.7 40.4 44.5 48.9 42.0 41.9 41.3 45.6 50.2 S.C. 35.6 33.7 28.5 28.2 22.7 37.4 36.3 30.7 30.4 24.0 39.2 38.9 33.0 32.6 25.3

K.W. 2.56 2.56 2.56 2.56 2.57 2.61 2.61 2.61 2.62 2.62 2.66 2.66 2.66 2.67 2.68

T.C. 36.1 36.4 36.4 40.2 44.1 37.7 37.8 37.1 41.1 45.1 39.3 39.2 37.8 41.9 46.1 S.C. 33.6 32.5 27.2 27.0 21.3 35.1 34.5 29.5 29.1 22.6 36.7 36.5 31.7 31.3 23.8

K.W. 2.86 2.87 2.87 2.86 2.86 2.91 2.91 2.91 2.91 2.92 2.96 2.96 2.96 2.97 2.97

T.C. 33.9 33.3 33.4 36.9 40.6 35.3 34.9 33.9 37.6 41.3 36.7 36.5 34.4 38.3 41.9 S.C. 31.6 31.3 26.0 25.7 19.9 32.9 32.8 28.2 27.9 21.1 34.2 34.2 30.4 30.1 22.4

K.W. 3.16 3.17 3.17 3.15 3.16 3.21 3.22 3.21 3.21 3.21 3.26 3.26 3.26 3.26 3.27

T.C. S.C. KW

Furnace Coil

T*(8,L)X*C16 FC/MC62D 0.98 0.95 1.03 T*9X*C16 FC/MC62D 0.99 0.95 1.04 T*9X*C20 FC/MC62D 1.00 0.99 1.01 T*9X*D20 FC/MC62D 1.00 0.99 1.01 (Y*(8,L)C/T*8V)*C16 FC/MC62D 0.98 0.95 1.03 (Y*(8,L)C/T*8V)*C20 FC/MC62D 0.99 0.95 1.04 (Y*9C/T*9V)*C16 FC/MC62D 0.99 0.94 1.05 (Y*9C/T*9V)*C20 FC/MC62D 0.99 0.94 1.05 (Y*9C/T*9V)*D20 FC/MC62D 0.99 0.94 1.05 T*(8,L)X*C16 FC64D 1.00 0.98 1.02 T*(8,L)X*C20 FC64D 0.96 0.89 1.09 T*9X*C16 FC64D 1.00 0.98 1.02 T*9X*C20 FC64D 1.00 1.01 0.99 T*9X*D20 FC64D 1.00 1.02 0.98 (Y*(8,L)C/T*8V)*C16 FC64D 1.00 0.98 1.02 (Y*(8,L)C/T*8V)*C20 FC64D 1.00 0.98 1.02 (Y*9C/T*9V)*C16 FC64D 1.00 0.97 1.03 (Y*9C/T*9V)*C20 FC64D 1.00 0.97 1.03 (Y*9C/T*9V)*D20 FC64D 1.00 0.97 1.03

T.C. S.C. KW

20 Johnson Controls Unitary Products

Page 21

632151-YTG-A-1010

COOLING PERFORMANCE DATA - HIGH CFM 2-STAGE OPERATION

OUTDOOR UNIT MODEL NO. YZF06013(C) INDOOR COIL MODEL NO. AHX60

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.

NOTE:

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperatur e.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

HIGH CFM

ID CFM 1730 1930 2130

ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

ID WB (°F) 57 62 62 67 72 57 62 62 67 57 62 62 67 72 57

T.C. 56.5 59.8 59.9 65.4 70.1 58.4 60.9 60.8 66.6 71.7 60.4 62.0 61.7 67.8 73.3 S.C. 56.5 50.7 43.5 43.0 35.1 58.4 53.4 45.4 44.8 36.3 60.4 56.1 47.3 46.7 37.5 K.W. 3.95 4.00 4.00 4.08 4.18 4.06 4.10 4.10 4.18 4.30 4.18 4.20 4.20 4.28 4.42

T.C. 54.3 56.8 56.9 62.1 67.1 56.0 57.8 57.7 63.2 68.3 57.8 58.8 58.5 64.2 69.6 S.C. 54.3 49.5 42.2 41.6 33.7 56.0 52.1 44.1 43.5 34.8 57.8 54.8 45.9 45.4 35.9 K.W. 4.40 4.44 4.44 4.52 4.63 4.51 4.54 4.54 4.63 4.74 4.63 4.64 4.64 4.73 4.85

T.C. 52.0 53.8 53.9 58.9 64.0 53.6 54.7 54.7 59.7 64.9 55.2 55.5 55.4 60.6 65.8 S.C. 52.0 48.2 40.9 40.3 32.3 53.6 50.8 42.7 42.2 33.3 55.2 53.5 44.6 44.0 34.4 K.W. 4.85 4.88 4.88 4.97 5.07 4.96 4.98 4.98 5.07 5.18 5.08 5.08 5.08 5.17 5.29

T.C. 49.8 50.8 50.9 55.6 60.9 51.2 51.5 51.6 56.3 61.5 52.7 52.3 52.3 57.1 62.1 S.C. 49.8 46.9 39.5 39.0 30.9 51.2 49.6 41.4 40.8 31.9 52.7 52.2 43.3 42.6 32.8 K.W. 5.30 5.32 5.32 5.41 5.52 5.41 5.42 5.42 5.52 5.62 5.53 5.52 5.52 5.62 5.72

T.C. 46.7 47.1 47.1 51.5 56.3 48.0 48.0 47.7 52.2 56.9 49.3 49.0 48.3 52.9 57.4 S.C. 46.7 45.3 37.9 37.3 29.1 48.0 47.2 39.8 39.1 30.1 49.3 49.0 41.6 40.9 31.1 K.W. 5.89 5.89 5.89 6.00 6.10 6.00 6.01 6.00 6.10 6.20 6.12 6.12 6.10 6.20 6.30

T.C. 43.6 43.3 43.2 47.5 51.7 44.7 44.6 43.8 48.0 52.2 45.9 45.8 44.3 48.6 52.7 S.C. 43.6 43.3 36.2 35.7 27.4 44.7 44.6 38.1 37.5 28.3 45.9 45.8 40.0 39.2 29.3 K.W. 6.48 6.47 6.47 6.58 6.68 6.60 6.59 6.57 6.68 6.78 6.71 6.71 6.67 6.77 6.88

T.C. 40.6 39.6 39.4 43.4 47.0 41.5 41.1 39.9 43.9 47.5 42.5 42.5 40.4 44.4 48.0 S.C. 40.6 39.6 34.6 34.0 25.6 41.5 41.1 36.5 35.8 26.6 42.5 42.5 38.4 37.6 27.5 K.W. 7.07 7.05 7.05 7.17 7.25 7.19 7.18 7.14 7.26 7.35 7.31 7.31 7.24 7.35 7.45

Air Handler Coil

MV20D FC/MC62D 0.98 0.98 1.00 MV20D FC64D 0.99 1.01 0.99

T.C. S.C. KW

Furnace Coil

T*(8,L)X*C16 FC/MC62D 0.99 0.97 1.02 T*9X*C16 FC/MC62D 0.99 0.97 1.02 T*9X*C20 FC/MC62D 0.98 0.97 1.02 T*9X*D20 FC/MC62D 0.99 0.96 1.03 (Y*(8,L)C/T*8V)*C16 FC/MC62D 0.99 0.96 1.03 (Y*(8,L)C/T*8V)*C20 FC/MC62D 0.99 0.97 1.02 (Y*9C/T*9V)*C16 FC/MC62D 0.99 0.96 1.04 (Y*9C/T*9V)*C20 FC/MC62D 1.00 0.95 1.05 (Y*9C/T*9V)*D20 FC/MC62D 0.99 0.96 1.04 T*(8,L)X*C16 FC64D 0.99 1.00 0.99 T*(8,L)X*C20 FC64D 0.99 1.01 0.98 T*9X*C16 FC64D 0.99 0.99 1.00 T*9X*C20 FC64D 0.99 0.99 1.00 T*9X*D20 FC64D 0.99 0.99 1.00 (Y*(8,L)C/T*8V)*C16 FC64D 1.00 0.99 1.01 (Y*(8,L)C/T*8V)*C20 FC64D 0.99 0.99 1.00 (Y*9C/T*9V)*C16 FC64D 1.00 0.98 1.02 (Y*9C/T*9V)*C20 FC64D 1.00 0.98 1.02 (Y*9C/T*9V)*D20 FC64D 1.00 0.98 1.02

T.C. S.C. KW

Johnson Controls Unitary Products 21

Page 22

632151-YTG-A-1010

HEATING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF02413(C) INDOOR COIL MODEL NO. AHX30

AIR TEMP.

ENTERING

OUTDOOR

UNIT

NOTE:

ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

Multipliers for determining the performance with other indoor section.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

Air Handler Coil

AHX36 – 1.00 1.01 0.99 AV*36 – 0.98 1.01 0.97 F6FP030 – 1.00 0.98 1.02 F6FP036 – 0.99 1.01 0.99 MV12B FC/MC35B 0.99 0.98 1.01 MV12B FC/MC43B 1.00 1.04 0.97

Furnace Coil

T*(8,L)X*A12 FC/MC/PC32A 0.98 1.01 0.97 (Y*(8,L)C/T*8V)*A12 FC/MC/PC32A 0.99 0.97 1.02 T*(8,L)X*B12 FC/MC/PC35B 0.99 1.03 0.97 T*(8,L)X*C16 FC/MC/PC35C 0.99 1.03 0.97 T*(8,L)X*C20 FC/MC/PC35C 0.99 1.01 0.98 T*9X*B12 FC/MC/PC35B 0.98 0.99 0.99 T*9X*C16 FC/MC/PC35C 0.98 0.98 1.00 T*9X*C20 FC/MC/PC35C 0.99 1.02 0.98 (Y*(8,L)C/T*8V)*B12 FC/MC/PC35B 0.99 0.98 1.01 (Y*(8,L)C/T*8V)*C16 FC/MC/PC35C 0.98 0.98 1.00

AIR TEMP. ENTERING

INDOOR

COIL

60 29.1 4.30 1.8 30.4 4.69 1.6 31.6 5.12 1.4 70 28.3 3.78 2.0 29.4 4.12 1.8 30.5 4.49 1.6 80 27.6 3.35 2.2 28.5 3.64 2.0 29.4 3.96 1.8 60 24.4 3.85 1.6 25.1 4.03 1.5 25.8 4.21 1.4 70 24.1 3.35 1.9 24.6 3.53 1.7 25.2 3.72 1.6 80 23.7 2.95 2.1 24.2 3.13 2.0 24.6 3.32 1.8 60 22.1 3.30 1.7 22.7 3.52 1.6 23.3 3.75 1.5 70 21.8 2.95 1.9 22.3 3.17 1.8 22.8 3.40 1.6 80 21.5 2.67 2.1 21.9 2.87 1.9 22.3 3.10 1.7 60 19.5 3.20 1.6 20.0 3.28 1.5 20.5 3.35 1.4 70 19.1 2.81 1.8 19.5 2.89 1.7 19.8 2.97 1.6 80 18.7 2.49 2.0 19.0 2.57 1.9 19.2 2.64 1.8 60 15.7 2.62 1.5 16.0 2.68 1.5 16.4 2.75 1.4 70 15.3 2.15 1.9 15.6 2.29 1.7 15.9 2.43 1.5 80 14.8 1.81 2.2 15.2 1.98 1.9 15.5 2.17 1.7 60 13.6 2.28 1.5 13.9 2.33 1.4 14.1 2.38 1.4 70 12.9 1.95 1.7 13.3 2.03 1.6 13.7 2.10 1.5 80 12.2 1.68 1.9 12.7 1.77 1.8 13.3 1.86 1.7

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

MBH KW COP

600 800 1000

Furnace Coil

(Y*(8,L)C/T*8V)*C20 FC/MC/PC35C 0.98 0.97 1.01 (Y*9C/T*9V)*B12 FC/MC/PC35B 1.00 0.99 1.01 (Y*9C/T*9V)*C16 FC/MC/PC35C 1.00 1.01 0.99 (Y*9C/T*9V)*C20 FC/MC/PC35C 0.98 0.97 1.01 T*(8,L)X*A12 FC/MC/PC37A 0.99 1.05 0.94 (Y*(8,L)C/T*8V)*A12 FC/MC/PC37A 0.99 1.01 0.99 T*(8,L)X*B12 FC/MC/PC43B 0.99 1.06 0.94 T*(8,L)X*C16 FC/MC/PC43C 0.99 1.06 0.94 T*(8,L)X*C20 FC/MC/PC43C 0.99 1.05 0.95 T*9X*B12 FC/MC/PC43B 0.99 1.05 0.94 T*9X*C16 FC/MC/PC43C 0.99 1.03 0.97 T*9X*C20 FC/MC/PC43C 0.99 1.02 0.97 (Y*(8,L)C/T*8V)*B12 FC/MC/PC43B 0.99 1.01 0.98 (Y*(8,L)C/T*8V)*C16 FC/MC/PC43C 0.99 1.01 0.98 (Y*(8,L)C/T*8V)*C20 FC/MC/PC43C 0.98 1.00 0.98 (Y*9C/T*9V)*B12 FC/MC/PC43B 1.00 1.03 0.97 (Y*9C/T*9V)*C16 FC/MC/PC43C 1.00 1.04 0.97 (Y*9C/T*9V)*C20 FC/MC/PC43C 1.01 1.04 0.97

ID CFM

MBH KW COP

22 Johnson Controls Unitary Products

Page 23

HEATING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF03013(C) INDOOR COIL MODEL NO. AHX36

AIR TEMP. ENTERING OUTDOOR

UNIT

NOTE:

ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

Multipliers for determining the performance with other indoor section.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

AIR TEMP.

ENTERING

INDOOR

COIL

60 34.9 4.32 2.1 35.6 4.54 1.9 36.2 4.77 1.8 70 34.2 3.84 2.3 34.9 4.04 2.2 35.5 4.25 2.0 80 33.5 3.44 2.6 34.1 3.62 2.4 34.8 3.82 2.2 60 30.3 3.93 2.0 30.6 4.03 1.9 30.9 4.14 1.7 70 29.6 3.48 2.2 30.0 3.60 2.1 30.3 3.71 1.9 80 29.0 3.11 2.4 29.4 3.23 2.3 29.7 3.36 2.2 60 26.7 3.54 1.9 27.3 3.66 1.8 27.9 3.79 1.7 70 26.5 3.18 2.1 27.0 3.29 2.0 27.4 3.40 1.9 80 26.4 2.89 2.4 26.7 2.98 2.3 27.0 3.08 2.1 60 24.4 3.33 1.8 24.0 3.30 1.8 23.6 3.28 1.7 70 23.4 2.90 2.1 23.5 2.94 2.0 23.6 2.98 1.9 80 22.5 2.54 2.3 23.0 2.64 2.2 23.5 2.74 2.1 60 19.3 2.75 1.8 19.7 2.79 1.7 20.0 2.83 1.6 70 18.9 2.46 2.0 19.3 2.51 1.9 19.6 2.56 1.8 80 18.6 2.21 2.2 18.9 2.27 2.1 19.3 2.32 2.0 60 16.7 2.45 1.7 15.9 2.30 1.6 15.0 2.16 1.6 70 16.6 2.21 1.9 16.4 2.17 1.8 16.1 2.14 1.8 80 16.4 2.01 2.1 16.8 2.06 2.0 17.3 2.12 1.9

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

800 1000 1200

632151-YTG-A-1010

ID CFM

Air Handler Coil

AV*36 – 0.99 1.01 0.99 MV12B FC/MC43B 1.00 0.99 1.02 MV16C FC/MC43C 1.00 0.99 1.01

MBH KW COP

Furnace Coil

T*(8,L)X*A12 FC/MC/PC37A 1.01 1.02 1.00 (Y*(8,L)C/T*8V)*A12 FC/MC/PC37A 1.00 0.97 1.04 T*(8,L)X*B12 FC/MC/PC43B 1.01 1.02 1.00 T*(8,L)X*C16 FC/MC/PC43C 0.99 0.99 1.00 T*(8,L)X*C20 FC/MC/PC43C 0.98 0.97 1.02 T*9X*B12 FC/MC/PC43B 1.01 1.02 0.99 T*9X*C16 FC/MC/PC43C 1.01 1.03 0.98 (Y*(8,L)C/T*8V)*B12 FC/MC/PC43B 1.01 0.98 1.03 (Y*(8,L)C/T*8V)*C16 FC/MC/PC43C 1.00 1.00 1.00 (Y*(8,L)C/T*8V)*C20 FC/MC/PC43C 0.99 1.01 0.98 (Y*9C/T*9V)*B12 FC/MC/PC43B 1.01 0.97 1.04 (Y*9C/T*9V)*C16 FC/MC/PC43C 1.01 0.98 1.03 (Y*9C/T*9V)*C20 FC/MC/PC43C 1.00 0.99 1.02

MBH KW COP

Johnson Controls Unitary Products 23

Page 24

632151-YTG-A-1010

HEATING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF03613(C) INDOOR COIL MODEL NO. AHX42

AIR TEMP.

ENTERING

OUTDOOR

UNIT

ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

NOTE:

AIR TEMP. ENTERING

INDOOR

COIL

60 44.7 3.64 3.1 44.9 3.96 2.9 45.0 4.35 2.7 70 43.8 3.20 3.5 44.1 3.48 3.3 44.3 3.83 3.0 80 42.9 2.83 3.9 43.3 3.10 3.6 43.7 3.41 3.4 60 38.5 3.35 2.8 38.4 3.63 2.7 38.3 3.96 2.5 70 37.7 2.95 3.2 37.8 3.19 3.0 37.9 3.47 2.8 80 36.9 2.62 3.6 37.2 2.83 3.4 37.4 3.09 3.2 60 34.7 3.10 2.8 34.7 3.34 2.6 34.8 3.63 2.4 70 34.1 2.74 3.1 34.3 2.96 2.9 34.5 3.22 2.8 80 33.5 2.44 3.5 33.8 2.65 3.3 34.1 2.89 3.1 60 30.5 2.87 2.6 30.6 3.08 2.5 30.6 3.33 2.3 70 29.8 2.51 3.0 30.0 2.70 2.8 30.1 2.91 2.7 80 29.1 2.22 3.3 29.4 2.39 3.2 29.7 2.58 3.0 60 24.6 1.96 3.2 24.9 2.31 2.7 25.1 2.82 2.2 70 24.1 1.91 3.2 24.4 2.17 2.8 24.8 2.50 2.5 80 23.5 1.87 3.2 24.0 2.04 3.0 24.4 2.24 2.8 60 21.8 2.31 2.2 21.2 2.38 2.2 20.6 2.45 2.1 70 21.3 2.04 2.5 21.0 2.17 2.4 20.6 2.32 2.2 80 20.8 1.82 2.8 20.7 1.99 2.6 20.6 2.19 2.4

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

ID CFM

1000 1200 1400

Multipliers for determining the performance with other indoor sections.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

Air Handler Coil

AHX48 – 1.00 1.02 0.98 AV*48 – 1.01 1.05 0.96 F6FP042 – 1.01 1.02 1.00 F6FP048 – 1.00 1.03 0.97 MV12D FC/MC48D 0.99 1.00 1.00 MV16C FC/MC48C 1.00 0.98 1.02 MV12D FC/MC60D 1.01 1.03 0.98

Furnace Coil

T*(8,L)X*C16 FC/MC/PC48C 0.99 1.00 1.00 T*(8,L)X*C20 FC/MC/PC48C 1.00 1.01 0.99 T*9X*C16 FC/MC/PC48C 1.01 1.00 1.01 T*9X*C20 FC/MC/PC48C 1.00 0.98 1.02 T*9X*D20 FC/MC/PC48D 1.01 1.01 1.00 (Y*(8,L)C/T*8V)*C16 FC/MC/PC48C 1.00 0.98 1.03 (Y*(8,L)C/T*8V)*C20 FC/MC/PC48C 1.00 0.98 1.02 (Y*9C/T*9V)*D20 FC/MC/PC48D 1.01 0.99 1.02 T*(8,L)X*C16 FC/PC60C 1.00 1.04 0.96 T*(8,L)X*C20 FC/PC60C 1.01 1.06 0.96

MBH KW COP

Furnace Coil

T*9X*C16 FC/PC60C 1.02 1.05 0.97 T*9X*C20 FC/PC60C 1.01 1.05 0.97 T*9X*D20 FC/MC/PC60D 1.01 1.07 0.94 (Y*(8,L)C/T*8V)*C16 FC/PC60C 1.01 1.03 0.98 (Y*(8,L)C/T*8V)*C20 FC/PC60C 1.01 1.04 0.98 (Y*9C/T*9V)*D20 FC/MC/PC60D 1.02 1.03 0.99 T*(8,L)X*C16 UC48C 1.00 1.04 0.96 T*(8,L)X*C20 UC48C 1.01 1.04 0.97 T*9X*C16 UC48C 1.01 1.03 0.99 T*9X*C20 UC48C 1.01 1.02 0.99 T*9X*D20 UC48D 1.01 1.03 0.98 (Y*(8,L)C/T*8V)*C16 UC48C 1.01 1.02 0.99 (Y*(8,L)C/T*8V)*C20 UC48C 1.01 1.03 0.98 T*(8,L)X*C16 UC60C 1.00 1.04 0.96 T*(8,L)X*C20 UC60C 1.01 1.04 0.97 T*9X*C16 UC60C 1.01 1.04 0.98 T*9X*C20 UC60C 1.01 1.02 0.99 T*9X*D20 UC60D 1.01 1.06 0.95 (Y*(8,L)C/T*8V)*C16 UC60C 1.01 1.02 0.99 (Y*(8,L)C/T*8V)*C20 UC60C 1.01 1.02 0.99

MBH KW COP

24 Johnson Controls Unitary Products

Page 25

HEATING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF04213(C) INDOOR COIL MODEL NO. AHX60

AIR TEMP. ENTERING OUTDOOR

UNIT

NOTE:

ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

Multipliers for determining the performance with other indoor section.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

AIR TEMP.

ENTERING

INDOOR

COIL

60 46.5 4.55 2.5 47.8 4.72 2.5 49.2 4.89 2.4 70 44.5 4.01 2.8 45.8 4.16 2.7 47.0 4.31 2.6 80 42.5 3.54 3.1 43.7 3.68 3.0 44.9 3.82 2.9 60 39.6 3.34 3.0 40.5 3.73 2.7 41.3 4.19 2.3 70 38.2 3.24 3.0 39.0 3.46 2.8 39.8 3.71 2.6 80 36.7 3.14 3.0 37.5 3.22 2.9 38.3 3.30 2.8 60 36.1 3.68 2.4 37.0 3.77 2.4 37.8 3.86 2.3 70 34.3 3.22 2.7 35.3 3.31 2.6 36.3 3.41 2.5 80 32.6 2.82 2.9 33.6 2.92 2.9 34.7 3.03 2.8 60 28.0 2.98 2.3 30.1 3.16 2.3 32.3 3.33 2.2 70 28.3 2.73 2.6 29.6 2.83 2.5 30.9 2.93 2.5 80 28.5 2.52 2.9 29.0 2.56 2.8 29.5 2.60 2.7 60 27.4 2.91 2.3 26.7 2.82 2.3 26.1 2.73 2.2 70 21.4 2.15 2.5 20.9 2.09 2.4 20.4 2.02 2.4 80 15.5 1.48 2.6 15.2 1.43 2.6 14.8 1.38 2.5 60 23.7 2.55 2.3 23.8 2.53 2.2 23.8 2.52 2.2 70 18.3 1.86 2.4 18.3 1.85 2.4 18.4 1.83 2.4 80 12.8 1.24 2.6 12.9 1.23 2.5 13.0 1.22 2.5

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

1200 1400 1600

632151-YTG-A-1010

ID CFM

Air Handler Coil

F6FP060 – 1.01 0.99 1.02 MV20D FC/MC62D 1.01 0.99 1.01

MBH KW COP

Furnace Coil

T*(8,L)X*C16 FC/MC62D 1.00 0.99 1.01 T*(8,L)X*C20 FC/MC62D 1.01 1.01 1.00 T*9X*C16 FC/MC62D 1.01 0.99 1.02 T*9X*C20 FC/MC62D 1.01 1.01 1.00 T*9X*D20 FC/MC62D 1.01 1.01 1.00 (Y*(8,L)C/T*8V)*C16 FC/MC62D 1.01 0.98 1.03 (Y*(8,L)C/T*8V)*C20 FC/MC62D 1.01 0.98 1.03 (Y*9C/T*9V)*D20 FC/MC62D 1.01 0.98 1.03

MBH KW COP

Johnson Controls Unitary Products 25

Page 26

632151-YTG-A-1010

HEATING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF04813(C) INDOOR COIL MODEL NO. AHX60

AIR TEMP.

ENTERING

OUTDOOR

UNIT

ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

NOTE:

AIR TEMP. ENTERING

INDOOR

COIL

60 61.1 4.66 3.3 61.2 4.75 3.2 61.3 4.84 3.1 70 58.8 4.02 3.8 59.1 4.12 3.6 59.4 4.23 3.4 80 56.6 3.50 4.2 57.0 3.61 4.0 57.4 3.74 3.8 60 51.6 3.80 3.5 51.8 3.89 3.3 52.0 3.98 3.2 70 50.4 3.39 3.8 50.5 3.46 3.7 50.7 3.54 3.5 80 49.1 3.05 4.2 49.3 3.11 4.1 49.4 3.16 3.9 60 43.8 3.41 3.2 45.7 3.61 3.1 47.7 3.82 3.0 70 43.9 3.02 3.7 44.7 3.13 3.6 45.5 3.25 3.4 80 43.9 2.71 4.2 43.6 2.75 4.1 43.3 2.79 3.9 60 39.0 3.12 3.1 40.1 3.24 3.0 41.3 3.35 2.9 70 39.1 2.87 3.5 39.7 2.92 3.4 40.2 2.98 3.3 80 39.3 2.65 3.8 39.2 2.66 3.7 39.1 2.67 3.6 60 34.0 2.79 3.1 34.2 2.84 2.9 34.5 2.89 2.8 70 33.2 2.46 3.4 33.5 2.51 3.3 33.8 2.57 3.2 80 32.5 2.20 3.8 32.7 2.25 3.7 33.0 2.30 3.5 60 29.5 2.56 2.9 29.7 2.57 2.8 29.8 2.57 2.7 70 29.3 2.33 3.2 29.5 2.34 3.1 29.8 2.34 3.1 80 29.0 2.13 3.5 29.4 2.14 3.4 29.8 2.15 3.4

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

ID CFM

1400 1600 1800

Multipliers for determining the performance with other indoor sections.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

Air Handler Coil

F6FP060 – 1.00 1.00 1.00 MV20D FC/MC62D 1.01 0.99 1.02 MV20D FC64D 1.02 1.03 0.99

MBH KW COP

Furnace Coil

T*(8,L)X*C20 FC/MC62D 1.02 1.01 1.01 T*9X*C20 FC/MC62D 1.01 0.98 1.03 T*(8,L)X*C16 FC64D 1.02 1.02 1.00 T*(8,L)X*C20 FC64D 1.02 1.03 0.99 T*9X*C16 FC64D 1.02 1.02 1.00 T*9X*C20 FC64D 1.02 1.03 0.99 T*9X*D20 FC64D 1.02 1.02 1.00 (Y*(8,L)C/T*8V)*C16 FC64D 1.02 1.01 1.01 (Y*(8,L)C/T*8V)*C20 FC64D 1.02 1.02 1.00 (Y*9C/T*9V)*C16 FC64D 1.03 1.01 1.02

MBH KW COP

26 Johnson Controls Unitary Products

Page 27

HEATING PERFORMANCE DATA

OUTDOOR UNIT MODEL NO. YZF06013(C) INDOOR COIL MODEL NO. AHX60

AIR TEMP. ENTERING OUTDOOR

UNIT

ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

NOTE:

AIR TEMP.

ENTERING

INDOOR

COIL

60 72.6 4.30 4.4 73.3 4.42 4.2 74.1 4.55 4.0 70 71.1 3.82 4.9 72.0 3.94 4.7 72.9 4.07 4.5 80 69.6 3.42 5.4 70.7 3.54 5.2 71.7 3.67 5.0 60 62.5 3.91 4.1 62.9 3.98 4.0 63.4 4.06 3.8 70 61.4 3.46 4.6 61.9 3.54 4.5 62.4 3.62 4.3 80 60.3 3.10 5.1 60.8 3.18 4.9 61.4 3.26 4.8 60 56.0 3.56 4.0 56.4 3.64 3.9 56.7 3.71 3.7 70 55.1 3.17 4.5 55.4 3.23 4.4 55.8 3.30 4.2 80 54.2 2.85 5.0 54.5 2.90 4.8 54.9 2.96 4.7 60 47.1 3.16 3.8 46.0 3.10 3.7 45.0 3.04 3.6 70 47.6 2.87 4.3 47.2 2.86 4.2 46.7 2.85 4.1 80 48.2 2.63 4.8 48.3 2.66 4.7 48.5 2.70 4.5 60 39.8 2.74 3.7 40.2 2.78 3.6 40.6 2.82 3.5 70 37.9 2.37 4.1 37.8 2.40 4.0 37.7 2.42 3.8 80 36.0 2.07 4.5 35.4 2.07 4.3 34.9 2.07 4.2 60 35.0 2.46 3.6 35.2 2.48 3.5 35.4 2.50 3.4 70 34.7 2.23 4.0 34.9 2.25 3.9 35.1 2.28 3.8 80 34.4 2.03 4.4 34.6 2.06 4.3 34.8 2.09 4.1

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

632151-YTG-A-1010

ID CFM

1750 1850 1950

Multipliers for determining the performance with other indoor sections.

NOTE: KW RATING IS FOR OUTDOOR AND INDOOR UNITS.

Air Handler Coil

MV20D FC/MC62D 0.98 0.98 1.00 MV20D FC64D 0.99 1.01 0.99

MBH KW COP

Furnace Coil

MBH KW COP

Johnson Controls Unitary Products 27

Page 28

Johnson Controls Unitary Products

5005 York Drive

Norman, OK 73069
