INSTALLATION & OWNER’S MANUAL

MINISPLIT FLOOR/CEILING AIR CONDITIONER MODELS : YOCC-YOHC 12-60

REQUIRED TOOLS

1. Screw Driver 9. Manifold Guage

Hexagonal Wrench 10. Gas Leak Detector

Torque Wrench 11. Vacuum Pump

Spanner 12. Pipe Clamp

Reamer 13. Pipe Cutter

Hole Core Drill 14. Flare Tool Set

Tape Measure 15. Electrical Circuit Tester

Thermometer

EXTENDED PARTS

1. Refrigerant Pipe : See Technical Speci fication

2. Pipe Insulation Material (Polyethylene foam 9 mm thick)

3. Vinyl Tape

4. Putty

• Please read this installation manual carefully before starting installation of the unit.

•

This air conditioning system contains refrigerant under pressure, rotating parts and electrical connection which may be dangerous and can cause injury. Installation and maintenance of this air conditioning system should only be carried out by trained and quali fied personnel.

•

After unpacking, please check the unit carefully for possible damage.

•

Before undertaking any work on the unit, make sure that the power supply has been disconnected.

CAUTIONS FOR INSTALLATION

• Do not store or unpack the unit in a wet area or expose to rain or water.

It may cause the unit to short circuit and may result electric shocks or fire.

• Do not install in a place where flammable gas may leak.

It may cause fire.

• Do not conduct installation in wet area or in the rain.

It is a high risk to cause the electrical shocks.

• This system is designed for domestic or residential use only.

If used in certain environments, such as a manufacturing workplace, the equipment may not function ef ficiently.

PART LIST

INDOOR UNIT

■ YOCC-YOHC

INSTALLATION ACCESSORIES

E N G L I S H

EN/FR

■ Ceiling & Floor Type

PREPARATION BEFORE INSTALLATION

• Before doing any work, check the interior power supply cord and the main breaker capacity are suf ficient and the installation area is suf ficient and complies with the requirements.

•

Check that the power supply available agrees with nameplate voltage.

•

Electrical work, wiring and cables must be performed in compliance with

national and local wiring codes and standard.

•

Do not use the extension cables. In the case extended cables are needed,

use the terminal block.

SELECTION OF THE LOCATION

INDOOR UNIT

OUTDOOR UNIT

INSTALLATION

INSTALLATION SITE

■ To install the air conditioner in the following types of environments,

consult the shop.

•

Places with an oily ambient or where steam or soot occurs.

•

Salty or corrosive environments such as coastal areas.

•

Places where sul fide gas occurs such as hot springs.

The drain from the outdoor unit must be discharged to a place of good drainage.

CONSIDER NUISANCE TO YOUR NEIGHBOURS

FROM NOISES

■ For installation choose a place as described below.

•

A place solid enough to bear the weight of the unit and which does not

amplify the operation noise or vibration.

•

A place from where the air discharged from the outdoor unit or the operation noise will not annoy your neighbours.

ELECTRICAL WORK

• For power supply, be sure to use a separate power circuit dedicated to the air conditioner.

SYSTEM RELOCATION

• Relocating the air conditioner requires specialized knowledge and skills. Please consult the shop where you bought the air conditioner if relocation is necessary for moving or remodelling.

SAFETY PRECAUTIONS

■ Select a place which provides the space around the units as shown in

the diagram below.

To prevent interference, place at least 1m awa

Inverter-type

fluorescent

lamp.

A place with good ventilation.

Air

Outlet

Air

Inlet

Radio

035M00003-001

Dimension

(mm)

YOCC-YOHC

12 18 24 30 36 48 60

A 2300 2300 2300 2300 2300 2300 2300 B 2300 2300 2300 2300 2300 2300 2300 C 5 5 5 5 5 5 5 D 120 120 120 120 120 120 120

Dimension

(mm)

YOCC-YOHC

12 18 24 30 36 48 60

A 300 300 300 300 300 300 300 B 2000 2000 2000 2000 2000 2000 2000 C 600 600 600 600 600 600 600 D 300 300 300 300 300 300 300

Description Qty USE

Hook

For wall mounting installation

Hanging arm

For ceiling installation

Tapping Screw (ST2.9x10-C-H)

Remote Controller

Frame

Alkalina dry batteries (AM4)

Install & Owner’s manual and User’s guide

NAMES AND FUNCTIONS

NOTICE!

The

chart based on one model of our product is for reference only, which may be

fferent from the unit you purchased.

indoor unit

outdoor unit

remote controller

air-in

air flow louver (at air outlet)

connecting pipe

drain hose

air inlet (with air filter in it)

installation part

DEF./FAN indicator (For cooling and heating type, it’s DEF., for cooling only type, it’s FAN)

infrared signal receiver

operation lamp

timer indicator

alarm indicator

temporary button

air-out

WALL MOUNTING INSTALLATION

D. Connecting point

of refrigerant pipe

(D. gas side) Drain point

E. Connecting point

of refrigerant pipe

(E. Liquid side)

Hook

Chart

1. Fix the hook with tapping screw onto the wall.

(Refer to Chart 6)

Hang the indoor unit on the hook.

<6mm

Hook

Chart

Tapping screw

Washer

OPERATION

TIMER

DEF./FAN

ALARM

MANUAL

Display Panel

温温度度

速速

自自

模模

式式

速速

温温度度

J354-EN.indd 1J354-EN.indd 1 4/25/07 5:02:52 PM4/25/07 5:02:52 PM

• The drain pipe of indoor unit must be heat insulated, or it will condense dew, as well as the connections of the indoor unit.

• Hard PVC binder must be used for pipe connection, and make sure there is no leakage.

• With the connection part to the indoor unit, please be noted not to impose pressure on the side of indoor unit pipes.

• When the declivity of the drain pipe downwards is over 1/100, there should not be any winding.

• The total length of the drain pipe when pulled out traversely shall not exceed 20m, when the pipe is over long, a prop stand must be installed to prevent winding.

• Refer to the ﬁ gures on the right for the installation of the pipes.

INSTALLATION IN THE FOLLOWING PLACES

MAY RESULT IN TROUBLE

INDOOR UNIT INSTALLATION

Installing Ø10 hanging screw bolts. (4 bolts)

• Please refer to the following ﬁ gure for the distance measurement between the screw bolts.

• Please install with Ø10 hanging screw bolts.

• The handling to the ceiling varies from the constructions, consult the construction personnels for the speciﬁ c procedures.

1. The size of the ceiling to be handled ... ... do keep the ceiling ﬂ at. Consolidate

the roof beam for possible vibration.

2. Cut off the roof beam.

3. Strengthen the place cut off, and consolidate the roof beam.

• Carry out the pipe and line operation in the ceiling after ﬁ nishing the installation of the main body. While choosing where to start the operation, determine the direction of the pipes to be drawn out. Especially in case there is a ceiling, position the refrigerant pipes, drain pipes, indoor & outdoor lines to the connection places before hanging up the machine.

• The installation of hanging screw bolts.

Installation of the indoor unit in direct sun light.

Installation in the unit in wrong direction.

Installation of outdoor units too close or, blowing discharged air into each other.

Installation of the indoor unit in a place where there is an obstacle near the air inlet or outlet.

Installation of the outdoor unit in a place exposed regularly to a strong wind.

> 30 cm

Installation of the indoor unit at too high > 30 cm a position.

CEILING INSTALLATION

1. Remove the side board and the grille. (Refer to Chart 8) (For models 48000 and 60000 Btu/h, do not remove the grille.)

2. Locate the hanging arm on the hanging screw bolt. (Refer to Chart 9) Prepare the mounting bolts on the unit. (Refer to Chart 10)

3. Hang the unit on the hanging arm by sliding backward. Securely tighten the mounting bolts on both sides. (Refer to Chart 9)

Chart 7

Chart 8

Hanging arm

Hanging screw bolt

Mounting bolt

D. Connecting point of refrigerant pipe (D. gas side)

E. Connecting point of refrigerant pipe (E. Liquid side)

Drain point

Chart 11

Chart 10

Screw nut

Washer

Hanging screw bolt

Hanging arm

Mounting bolt (max. 40 mm)

Side board

Grille

Hanging arm

ATTENTION: The ﬁ gures above are based on model with 18000 Btu/h as rated

capacity, which may differ from the unit you purchased.

The dimension of the unit

Capacity

(Btu/h)

ABCDEFGH

12000-24000 Btu/h 990 660 206 505 506 907 200 203

36000 Btu/h 1280 660 206 795 506 1195 200 203

48000-60000 Btu/h 1670 680 244 1070 450 1542 200 240

• Note: The dimension of 12000 Btu/h and 24000 Btu/h are the same

The dimension of 48000 Btu/h and 60000 Btu/h are the same

Chart 17

The base pan hole of outdoor unit

The base pan hole of outdoor

Drain elbow

Seal

Seal Drain elbow

Chart 9

285 750 845

590

695

860

351.2

135

235

125

335

330

530

110

315

290

301.5

141.5 560.1

163 590

313

895 300

■ YODC-YOJC 12 ■ YODC-YOJC 18 ■ YODC-YOJC 24

Outdoor unit

360

960

990

336.4 400

1245

360

940

650

181.4

624

■ YODC-YOJC 30-36 ■ YODC-YOJC 48-60

■ DC Inverter R-410A

MODEL A B C D E H REMARK

18 840 550 335 360 310 677

R-410A

24 894 590 333 355 302 860 36 990 624 366 396 340 960 48 940 600 376 400 340 1245

Wooden construction New concrete bricks

For Original concrete bricks Steel roof beam structre

Put the square timber traversely over the roof beam, then install the hanging screw bolts. (Refer to Chart 1)

Inlaying or embedding the screw bolts. (Refer to Chart 2)

Use embedding screw bolt. (Refer to Chart 3)

Install and use directly the supporting angle steel. (Refer to chart 4)

Timber over the beam

Roof beam

Ceiling

Hanging screw bolts

Chart 1

Chart 2

(Blade shape insertion) (Slide insertion)

Steel bar

Embedding screw bolt

(Pipe hanging and embedding screw bolt)

Chart 3

Hanging screw bolt

Supporting angle steel

Hanging bolts

Chart 4

CONNECT THE DRAIN PIPE

1. Install indoor unit drain pipe The outlet has PTI screw thread, Please use sealing materials and pipe sheath

(ﬁ tting) when connecting PVC pipes.

Cautions

2. Drainage test

• Check whether the drainpipe is unhindered

• New built house should have this test done before paving the ceiling.

3. Drain Elbow Installation

Fit the seal into the drain elbow, then insert the drain elbow into the base pan

hole of outdoor unit, rotate 90° to securely assemble them. Connect the drain elbow with an extension drain hose (Locally purchased), in case of the condensate draining off the outdoor unit during the heating mode. (Refer to Chart 17)

1.5m~2m

Insulating

material

Downward

declivity lower

than 1/100

Bend

S shape

Put as deep as possible (about 10cm)

Downward declivity lower than 1/100

VP30

WIRING

■ Attaching wiring

1. The air conditioner should use separate power supply with rated voltage

2. The external power supply to the air conditioner should have ground wiring, which is linked to the ground wiring of the indoor and outdoor unit.

3. The wiring work should be done by qualiﬁ ed persons according to circuit drawing.

4. A leakage protector should be installed according to the National Standard concerning electrical appliance.

5. Be sure to locate the power wiring and the signal wring well to avoid crossdisturbance and their contact with connecting pipe or stop valve body.

6. The wiring attached to this air conditioner is 10m long. Be sure to prolong it with wiring of the same type and proper length if necessary. Generally, do not twist two wiring together unless the joint is soldered well and covered with insulator tape.

7. Do not turn on the power until you have checked carefully after wiring.

TYPE

12000~18000 Btu/h

(Cooling&Heating)

24000-36000 Btu/h

(Cooling&Heating)

36000-60000 Btu/h

(Cooling&Heating)

POWER

PHASE 1-PHASE 1-PHASE 3-PHASE

FREQUENCY AND VOLT 220-240V~, 50Hz 220-240V~, 50Hz 380V 3N~, 50Hz CIRCUIT BREAKER/FUSE (A) 20/16 40/25 40/20 INDOOR UNIT POWER WIRING (mm

) 3x2.5 5x2.5

INDOOR/OUTDOOR CONNECTING WIRING

(mm

)

GROUND WIRING 2.0 2.5 2.5 OUTDOOR UNIT POWER WIRING

3x2.5 3x2.5 5x2.5

STRONG ELECTRIC SIGNAL

5x2.0

(3x2.0)

3x2.0

(2x2.0)

3x2.0

(2x2.0) WEAK ELECTRIC SIGNAL

1-core sheild wire

1x0.5mm

2-core sheild wire

2x0.5mm

TYPE

12000~18000 Btu/h

(Cooling Only)

24000-36000 Btu/h

(Cooling Only)

36000-60000 Btu/h

(Cooling Only)

POWER

PHASE 1-PHASE 1-PHASE 3-PHASE

FREQUENCY AND VOLT 220-240V~, 50Hz 220-240V~, 50Hz 380V 3N~, 50Hz CIRCUIT BREAKER/FUSE (A) 40/25 40/20 40/25 INDOOR UNIT POWER WIRING (mm

) 3x2.5 3x2.5 5x2.5

INDOOR/OUTDOOR CONNECTING WIRING

(mm

)

GROUND WIRING 2.0 2.0 2.0 OUTDOOR UNIT POWER WIRING

3x2.0 5x2.0

STRONG ELECTRIC SIGNAL

3x2.0 1x2.0 1x2.0

WEAK ELECTRIC SIGNAL

■ Wiring Chart

Installing wiring chart, refer to link circuit chart for details.

CAUTION: When wiring, please choose the corresponding chart, or it may

cause damage.

Power supply

Switch/Fuse (Available locally)

Power wiring (indoor)

Power linking wiring (Outdoor)

Ground wiring

Strong elec-signal link wiring

Weak elec-signal link wiring

Ground wiring

Indoor Unit

Outdoor Unit

• Ground the air conditioner properly in case to affect its anti-interference function

Chart 19

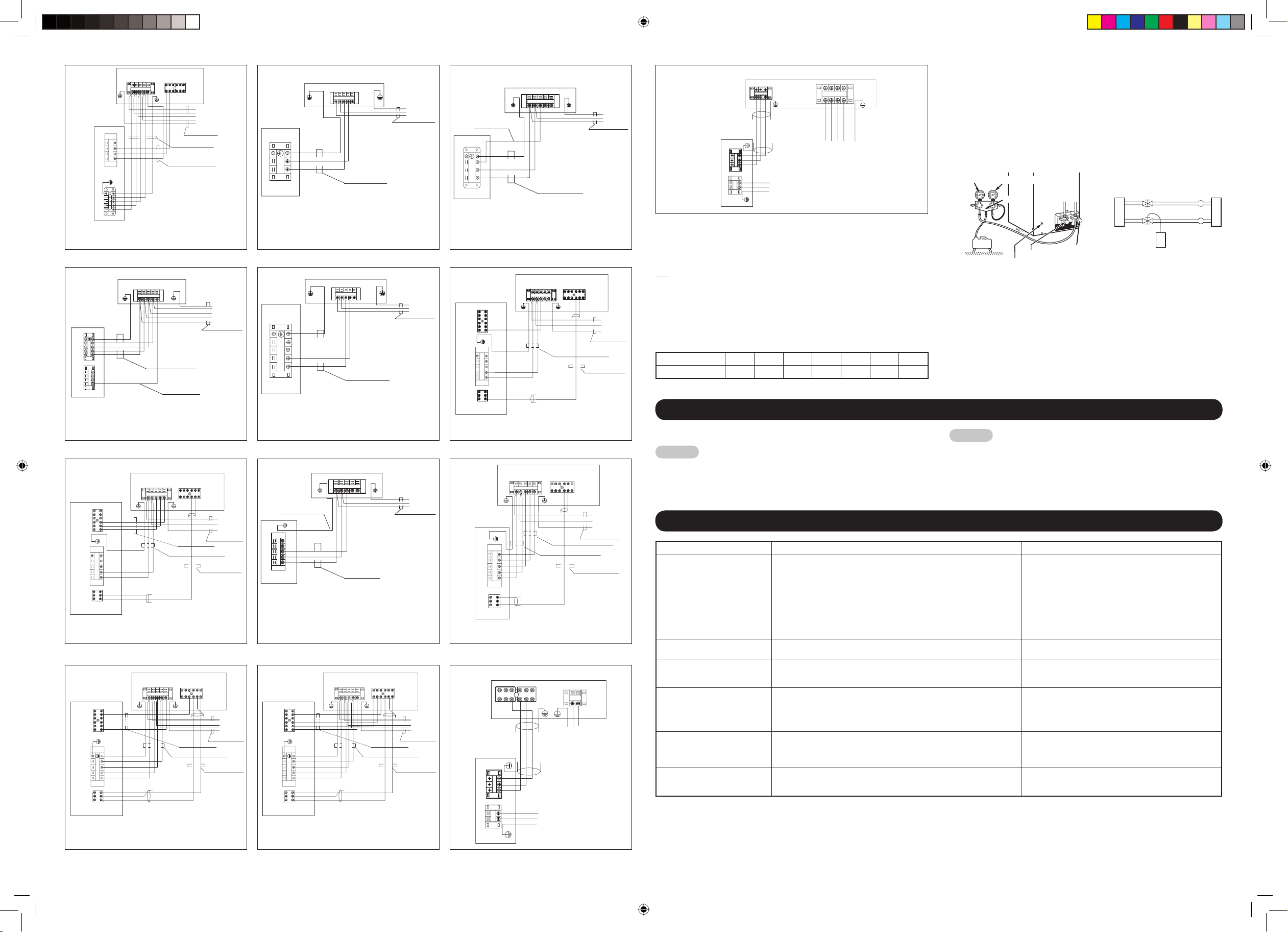

12000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A, Cooling & Heating) 18000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A, R-407C and R-22, Cooling & Heating)

Chart 20

3-core cable 3x2.5mm

1-core sheild wire 1x0.5mm

5-core cable 5x2.0mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

Chart 18

■ The Speciﬁ cation of Power

24000Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A, Cooling & Heating) 24000-36000Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-407C, Cooling & Heating)

Chart 21

3-core cable 3x2.5mm

1-core sheild wire 1x0.5mm

3-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

3-core cable 3x2.0mm

20〜25mm

J354-EN.indd 2J354-EN.indd 2 4/25/07 5:03:07 PM4/25/07 5:03:07 PM

>20mm

8〜13mm

CED

L N 1 2(N)

Y&G

XT1

Y&G

XT1

1N34

T3 E

XT2

Y&G

N L

XT1

T3 E

XT2

Y&G

312

XT2

BLACK (E)

WHITE (T3)

XT1 XT2

T3 E

Q(E)

Y/G

Q(E)

L1 L2 L3 N

XT1

ABC 1N

ABCN

123

XT2 XT1

■ Maximum Piping Lengths

Note : Where the difference in elevation between the indoor unit and the outdoor unit is greater than 5 meters, install an oil trap every 5 meters.

The suction line must have a 2% gradient up to the compressor on horizontal sections. Where piping lengths are unusually long and include a large number of oil traps, it may be necessary to adjust to compressor charge.

■ Refrigerant Piping Connections (FLARE Connections)

To avoid alteration of unit capacities, check that piping lengths and changes in elevation are kept to a strict minimum.

Before connection the refrigerant lines, follow the procedures below (if precharged connection lines are not supplied):

– Select copper pipe diameters according to the size of unit to be installed. – Install the refrigeration lines, checking that no foreign bodies get inside the

piping.

– Install the ﬂ are connectors and ﬂ are the ends of the pipes.

Refrigerant charge to be added per extra metre of piping length when more than 7 meters.

TEST OPERATION

CHECK THIS ITEM BEFORE START OPERATION

Outdoor

Check the ﬂ are nut connections, valve stem cap connections and service cap connections for gas leak with a leak detector or soap water.

Indoor

• Check the unit is ﬁ rmly ﬁ xed.

• Check the connecting pipes are tighten securely.

• Check the pipe insulation.

• Check the drainage.

• Check the connection of the grounding wire.

TROUBLESHOOTING GUIDE

This unit is shipped complete with a charge of R-22/R-407C refrigerant that will be sufﬁ cient for an interconnecting piping length of 7.5 meters.

Unit size 12 18 24 30 36 48 60

g/m 15 40 40 40 40 60 60

Low Pressure

Gas Valve

Liquid Valve

Pressure Tap

Manifold

High Pressure

12000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A and R-407C, Cooling Only) 18000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A, Cooling Only)

36000~60000 Btu/h (3 PHASE) Air Conditioner Link-circuit (For R-410A, R-407C and R-22, Cooling & Heating)

Chart 23Chart 22

24000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A, Cooling Only)

18000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-22, Cooling Only)

36000~60000 Btu/h (3 PHASE) Air Conditioner Link-circuit (For R-410A, R-407C and R-22, Cooling Only)

Chart 24

Chart 26Chart 25

Chart 29Chart 28

24000~36000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-407C, Cooling Only)

24000~36000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-22, Cooling & Heating)

Chart 32Chart 31

24000~30000 Btu/h (3 PHASE) Air Conditioner Link-circuit (For R-407C, Cooling & Heating)

24000~30000 Btu/h (3 PHASE) Air Conditioner Link-circuit (For R-407C, Cooling only)

Y&G

5-core cable 5x2.5mm

3-core cable 3x1.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 380V 3N~50Hz

5-core cable 5x2.5mm

L N12(N)

3-core cable 3x2.5mm

3-core cable 3x2.0mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

XT1

XT3

LN1 32

3-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

3-core cable 5x2.5mm

1-core cable 1x2.0mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 380V 3N~50Hz

5-core cable 5x2.5mm

L N 1 2(N)

3-core cable 3x2.5mm

3-core cable 3x2.0mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

Chart 27

24000~36000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-22, Cooling only)

3-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

1-core sheild wire 1x0.5mm

3-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

1-core sheild wire 1x0.5mm

3-core cable 3x2.0mm

3-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

LN1 32

XT3

XT1

XT2

XT1

T3 GND +5V

ABCN

Y&G

XT4

123 456

Y&G

ABCN1

XT1

XT2

T3 GND +5V

23(4)5

XT2

XT1

T3 GND +5V

ABCN

Y&G

XT4

123 456

Y&G

ABCN 1

XT1

XT2

T3 GND +5V

23(4)5

Chart 30

30000~36000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-407C, Cooling & Heating)

3-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

1-core sheild wire 1x0.5mm

3-core cable 3x2.0mm

5-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 380V~50Hz

2-core sheild wire 1x0.5mm

4-core cable 3x2.0mm

5-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 380V~50Hz

2-core sheild wire 1x0.5mm

4-core cable 3x2.0mm

Problem Probable cause Remedy

The air conditioner does not run.

1. Power Failure.

2. Fuse blown or circuit breaker open.

3. Voltage is too low.

4. Faulty contactor or relay.

5. Electrical connections loose.

6. Thermostat adjustment too low (in heating mode) or too high (in cooling mode).

7. Faulty Capacitor.

8. Incorrect wiring, terminal loose.

9. Pressure switch tripped.

1. Wait for Power resume.

2. Replace the fuse or reset the breaker.

3. Find the cause and ﬁ x it.

4. Replace the faulty component.

5. Retighten the connection.

6. Check Thermostat setting.

7. Find the cause then replace Capacitor.

8. Check and retighten.

9. Find the cause before reset.

B. The outdoor fan runs but the

compressor will not start.

1. Motor winding cut or grounded.

2. Faulty Capacitor.

1. Check the wiring and the compressor winding resistance.

2. Find the cause then replace Capacitor.

C. There is insufﬁ cient heating or

cooling.

1. There is a gas leak.

2. Liquid and gas line insulated together.

3. The room was probably very hot (cool) when you started the system.

1. Remove charge, repair, evacuate and recharge.

2. Insulate them separately.

3. Wait while unit has enough time to cool the room.

D. The compressor run

continuously.

1. Thermostat adjustment too low (in heating mode) or too high (in cooling mode).

2. Faulty fan.

3. Refrigerant charge too low, leak.

4. Air or incondensables in refrigerant circuit.

1. Check Thermostat setting.

2. Check condenser air circulation.

3. Find leak, repair and recharge.

4. Remove charge, evacuate and recharge.

E. The compressor starts but

shuts down quickly.

1. Too much or too little refrigerant.

2. Faulty compressor.

3. Air or incondensables in refrigerant circuit.

4. Changeover valve damaged or blocked open (heat pump unit).

1. Remove charge, evacuate and recharge.

2. Determine the cause and replace compressor.

3. Remove charge, evacuate and recharge.

4. Replace it.

F. Clicking sound is heard from

the air conditioner.

In heating or cooling operation any plastic parts may expand or shrink due to a sudden temperature change in this event, a clicking sound may occur.

1-core cable 1x2.0mm

1-core cable 1x2.5mm

Indoor

Unit

Outdoor

Unit

Gas Line

Liquid Line

R-22/R-407C

For 18000-24000 Btu/h

Power supply 1-Phase 220-240V~ (3-core cable 3x2.5mm2)

Power supply

1-Phase

220-240V~ (3-core cable 3x1.0mm

)

3-core sheild cable

OUTDOOR UNIT

INDOOR UNIT

DC Inverter R-410A

For 36000-60000 Btu/h

Power supply 1-Phase 220-240V~ (3-core cable 3x2.5mm2)

Power supply

3-Phase

380-415V~ (5-core cable 5x2.5mm

)

3-core sheild cable

DC Inverter R-410A

INDOOR UNIT

OUTDOOR UNIT

See technical speciﬁ cation

ABCN1

1234

XT3 XT4

Y&G

XT1

Y&G

XT2

Y&G

123 456

XT4

Y&G

L(1) N(1)

E XT1

T 3 E

XT2

LN123

XT1 T3EXT2

LN123

Y&G

123 456

XT4

Y&G

L(1) N(1)

E XT1

T 3 E

XT2

XT1 T3EXT2

J354-EN.indd 3J354-EN.indd 3 4/25/07 5:03:12 PM4/25/07 5:03:12 PM

12L

Y&G

XT1

T3 E

XT2

Q(E)

XYP

Q(E)

Y/G

XT1 XT2

T3 E

Y/G

NORMAL FUNCTION OF THE AIR CONDITIONER

The following symptoms do not indicate air conditioner malfunction.

1. The system does not operate

• The system does not restart immediately after the ON/OFF button is pressed. If the OPERATION lamp lights, the system is in normal condition. The safety device operates to prevent overload of the system. After 3 minutes, the system will turn on again automatically.

• The system does not restart immediately when TEMPERATURE SETTING changed. If the OPERATION lamp lights, the system is in normal condition. If the timer light is flashing operation is being delayed by the safety device. It does not restart immediately because the compressor has been stopped and requested to start within the delay period. A safety device operates to prevent overload of the system. After 3 minutes, the system will turn on again automatically.

• The system does not start immediately after the power supply is turned on. Wait one minute until the microcomputer is prepared for operation.

1.1

White mist comes out of a unit

• When humidity is high during cooling operation. (In dusty locations or after construction work) If the inside of an indoor unit is contaminated, the temperature distribution inside a room may become uneven. It is necessary to clean the inside of the indoor unit. The unit should be cleaned by a quali fied service person familiar with the unit.

• When the system is changed over to HEATING OPERATION or after DEFROST OPERATION. Moisture generated on the coil by the DEFROST becomes vapour and exists.

1.2 Noise of air conditioners

• A continuous flow “Shuh” sound is heard when the systems is in COOLING or DEFROST OPERATION. This is the sound of refrigerant gas flowing through both indoor and outdoor units.

• A “Shuh” sound which is heard at the start or immediately after operation. It may also be heard at the start or immediately after a DEFROST OPERATION. This is the noise of refrigerant caused by the start and stop of the flow.

• A “Pishi-pishi” squeaking sound is heard when the system is in operation or just after operation. Expansion and contraction of plastic parts caused by temperature change makes this noise.

1.3

Dust from the units

• Dust may blow out from the unit when starting after long off cycles. Dust absorbed by the unit blows out.

• The units give off odours. The unit absorbs the smell of rooms, furniture, cigarettes, etc., and then emits them.

EMERGENCY OPERATION

• Units are equipped with a switch to run

emergency operation mode. Pushing the emergency switch turns the unit on; pushing it again turns if off (toggle action). During emergency operation, the remote controller cannot be used and the power LED light will flash at intervals, while the other LED lights will indicate the operation of the Diagnostic Codes. In Emergency Operation and cooling units the temperature will be set at 24°C and the fan on Auto. Heating units will switch to auto mode at a temperature set point of 24°C and the fan will run on auto mode.

• After a power failure the unit restarts automatically in the same

mode as before the failure, when power is resumed.

TECHNICAL SPECIFICATION

■ Floor/Ceiling YOHC (YOKC-YOJC)R-410A 50Hz Rev.291106

PROTECTION FUNCTION

Auto Restart Function

•

The unit will automatically restart after loss of the electrical power supply. When power is

restored;

the unit operation will restart according to all parameters set before the loss of

powe

ANTI-ICE and

ANTI-OVERHEAT

•

This feature is used to prevent the indoor unit from freezing during cool or dry operation

and

overheating in heat mode. During execution of anti-ice operation and anti-overheating,

the

compressor will stop operating and the fan will continue to run until the coil temperature

reaches predetermined set points, at which time the unit will resume normal operation.

Low

Voltage

•

The feature is used to protect against any damage to the unit caused by fluctuation of voltage.

voltage is lower than the lower limit for approximately 10 seconds or longer, compressor

operation

will be temporarily stopped. Normal operation will resume when the voltage returns

abo

ve the set limit for a minimum of 10 seconds. If the time elapsed is less than 3 minutes

then the compressor start up will be delayed until 3 minutes has passed.

Filter Care and Filter

Alarm

• Replace Air Purifying filter if fitted.

•

The filters should be cleaned regularly, i.e, once a month, or more frequently depending on

conditions.

The control is equipped with a filter alarm; After a certain numbers of hours of

operation, flashing

lights will indicate that it is time to clean the filter. The alarm is reset by

pressing the filter button or the transmitte

MAINTENANCE

The units are designed to operate for long periods of time with a minimum of maintenance. Howeve

r, the following operation must be performed regularly.

* This operation must be carried out by quali fied personnel only.

BEFORE MAINTENANCE

S Turn off the main breaker or disconnect the main power supply.

Notes

• Don’t spill water : There is a danger of electric shock.

• Don’t used petrol, paint thinner, benzene or polishing agents : They may deform or scratch the unit.

CLEANING THE UNIT

Wipe the unit with a soft dry cloth only. If the unit is very dirty, wipe it with a cloth soaked in warm water (Not more than 40°C).

CLEANING THE AIR FILTER

1. Remove the air filter.

Open front grille and pull fillter outward front grille.

3. Drying

Drying the air filter by hair drying or direct sunlight.

2. Cleaning

If the fillter is very dirty, clean it with water (approx 30°C).

4. Reinstall the air filter.

Approx 30 °C

EMERGENCY OPER

ATION

Not more than

40°C

Remark: The above design and specifications are subject to change without prior notice for product improvement.

Floor/Ceiling YOCC (YOEC-YODC) COOLING R-410A 50Hz Rev.291106

Maintenance Operations Recommended Frequency

Air filter Clean Every month or more often if necessary

Unit casing Clean Every month or more often if necessary

Drain pan and evacuation piping Clean and check for obstructions Each season before start up*

Indoor/outdoor coils Clean Each season before start up*

Compressor No need

Model

Set YOHC18DSBAAR YOHC24DSBAAR YOHC36DSBACR YOHC48DSBACR YOHC60DSBACR Indoor YOKC18DS-BAR YOKC24DS-BAR YOKC36DS-BCR YOKC48DS-BCR YOKC60DS-BCR Outdoor YOJC18DS-BAR YOJC24DS-BAR YOJC36DS-BCR YOJC48DS-BCR YOJC60DS-BCR

Power supply V-Ph-Hz 220~240-1-50 220~240-1-50 380V~3~ 50Hz 380V~3~ 50Hz 380V~3~ 50Hz

Cooling

Capacity Btu/h 18,000 24,000 36,000 48,000 60,000 Input W 1,550 2,220 3,290 4,300 4,940 Rated current A 6.8 9.25 8.77 11.47 11.47

Heating

Capacity Btu/h 21,000 28,000 40,000 53,000 62,000 Input W 1,680 2,250 3,160 4,170 4,880

Rated current A 7.35 9.4 8.33 10.99 11.4 Max. input consumption W 2,500 2,750 3,880 4,850 5,990 Max. current A 10 11 10.17 12.98 15.69 Starting current A 1.08 1.15 1.1 1.16 1.23

Compressor

Type DC Inverter Rotary DC Inverter Scroll

Input W 1,650 1,650 3,665 3,665 3,665

Rated current (RLA) A 8 8 7.8 7.8 7.8

Locked rotor Amp (LRA) A 28 28 28 28 28

Protector Thermal

Capacitor µF 50 50 50 50 50

Refrigerant oil ml 480 480 500 500 500

Indoor fan motor

Type AC Motor

Input W 110 110 134 89.5 59

Capacitor µF 2.5 2.5 3.5 2.5 2.5

Speed (Hi/Me/Lo) r/min 1,310/1,190/1,020 1,310/1,190/1,020 1,265/1,165/1,075 1,170/1,070/995 1,145*1,035*975

Indoor coil

Number of rows 3 3 3 3 3

Fin spacing mm 1.8 1.8 1.8 1.8 1.8

Fin type Hydrophilic aluminium

Tube outside dia. mm Ø9.52

Tube Material Innergroove tube

Coil length × height × width mm 828×254×66 828×254×66 905×203×66 1150×254×66 1150×254×66 Indoor air f low (Hi/Me/Lo) m3/h 910/810/700 910/810/700 1,400/1,200/1,000 2,000/1,800/1,60 0 2,000/1,800/1,600 Indoor noise level (Hi/Me/Lo) dB(A) 49.5/-/- 53/-/- 45/43/40 47/45/42 47/45/42

Indoor unit

Dimension (W*H*D) mm 980×660×195 980×660×195 1,285×660×198 1,670×680×240 1,670×680×240

Packing (W*H*D) mm 1,089×744×296 1,089×744×296 1,379×744×296 1,764×760×329 1,764×760×329

Net/Gross weight kg 29/35 29/35 37/42 54/61 54/61

Outdoor fan motor

Input W 129 150 307 150*2 150*2

Capacitor µF 3 3 10 3.5*2 3.5*2

Speed r/min 770 800 740 800 800

Outdoor coil

Number of rows 2 2 1 1 1

Fin spacing mm 1.7 1.5 1.7 1.8 1.8

Fin type Hydrophilic aluminium

Tube outside dia. mm Ø9.52

Tube Material Innergroove tube

Coil length × height × width mm 630×660×44 620×813×44 955×915×22 715×610×22 1,150×305×66

Number of circuits 4 2 8 4 4 Outdoor air f low m3/h 2,400 3,000 5,000 6,000 6,000 Outdoor noise level dB(A) 56 55 57 58 58

Outdoor unit

Dimension (W*H*D) mm 840×677×310 894×860×302 990×960×340 940×1,245×340 940×1,245×340

Packing (W*H*D) mm 965×770×395 1,043×915×395 1,120×1,015×435 1,058×1,300×435 1,058×1,300×435

Net/Gross weight kg 62.5/66.5 72/76.5 106/111 117/126 112/127 Refrigerant R-410A g 1,650 2,200 2,600 3,550 4,200 Throttle type EXV&Capillary Refrigerant piping Liquid side/Gas side mm 6.35/12.7 9.53/16 9.53/16 9.53/16 9.53/16

Model

Set YOCC12FSA(B)AAR YOCC18FSA(B)AAR YOCC24FSA(B)AAR YOCC30FSA(B)ACR YOCC30FSA(B)AAR YOCC36FSA(B)AAR YOCC36FSA(B)ACR YOCC48FSA(B)ACR YOCC60FSA(B)ACR Indoor unit YOEC12FS-A(B)AR YOEC18FS-A(B)AR YOEC24FS-A(B)AR YOEC30FS-A(B)CR YOEC30FS-A(B)AR YOEC36FS-A(B)AR YOEC36FS-A(B)CR YOEC48FS-A(B)CR YOEC60FS-A(B)CR Outdoor Unit YODC12FS-A(B)AR YODC18FS-A(B)AR YODC24FS-A(B)AR YODC30FS-A(B)CR YODC30FS-A(B)AR YODC36FS-A(B)AR YODC36FS-A(B)CR YODC48FS-A(B)CR YODC60FS-A(B)CR

Power supply Ph-V-Hz 1,220-240V,50Hz 1,220-240V,50Hz 1,220-240V,50Hz 3,380V,50Hz 1,220-240V,50Hz 1,220-240V,50Hz 3,380V,50Hz 3,380V,50Hz 3,380V,50Hz

Cooling

Capacity

Btu/h 12,000 18,000 24,000 30,000 30,000 36,000 36,000 48,000 60,000

kW 3.5 5.4 7.1 9.2 9.2 10.5 10.5 14 17

kcal/h 3,024 4,536 6,048 7,560 7,560 9,072 9,072 12,096 15,120 Input W 1,200 1,900 2,600 3,450 3,450 3,800 3,800 4,900 5,800 Rated current A 5.3 8.5 12.1 6.4 16.4 19.2 6.4 8.2 9.8

Moisture Removal L/h 1.2 1.8 2.4 3 3 3.6 3.8 4.8 6 Max. input consumption W 1,400 2,600 3,300 5,200 5,200 5,200 5,200 6,100 7,200 Max. current A 7.2 13 16.5 8.8 25 26.3 8.8 10.3 12.2 Starting current A 26 36.8 61 97 97 97 61 66 67

Compressor

Type ROTARY ROTARY ROTARY SCROLL SCROLL SCROLL SCROLL SCROLL SCROLL Input W 1,145 1,870 2,430 3,650 3,650 3,650 3,650 4,750 5,750 Rated current (RLA) A 5.3 8.75 11.4 6.58 17.65 17.65 6.58 8.22 9.77 Locked rotor Amp (LRA) A 26 36.8 61 61 97 97 61 66 67 Thermal protector Inner Inner Inner Inner Inner Inner Inner Inner Inner Capacitor µF 35/370µF/V 50/370µF/V 50/400µF/V / 60µF/440V 60µF/440V / / /

Indoor fan motor

Input W 104/98 110/104/98 110/104/98 142/134/132 142/134/132 142/134/132 142/134/132 118/108/101 118/108/101 Capacitor µF 1.5µF/450V 2.5µF/450V 2.5µF/450V 3.5µF/450V 3.5µF/450V 3.5µF/450V 3.5µF/450V 2.5µF/450V 2.5µF/450V Speed (Hi/Mid/Low) r/min 1,190/1,000/890 1,280/1,190/1,000 1,280/1,190/1,000 1,310/1,200/1,000 1,310/1,200/1,000 1,310/1,200/1,000 1,310/1,200/1,000 820/695/620 820/695/620

Indoor coil

Number of rows 2 3 3 3 3 3 3 3 3 Fin spacing mm 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 Fin type Hydrophilic aluminum Tube outside dia.and type mm Ø9.53 innergroove tube Coil length × height × width mm 804×254×44 804×254×6 6 804×254×66 905×203×66 905×203×66 905×203×66 905×203×66 1,150×254×66 1,150×254×66

Indoor air f low (Hi/Mid/Low) m3/h 600/480/400 800/600/500 1,000/900/700 1,200/1,000/800 1,400/1,200/1,000 1,400/1,200/1,000 1,400/1,200/1,000 2,000/1,800/1,600 2,000/1,800/1,600 Indoor noise level (Hi/Mid/Low) dB(A) 43/41/38 43/41/38 45/43/40 45/43/40 45/43/40 45/43/40 45/43/40 47/45/42 47/45/42

Indoor unit

Dimension (W*H*D) mm 995×660×198 995×660×198 995×660×198 1,285×660×198 1,285×660×198 1,285×660×198 1,285×660×198 1,670×680×240 1,670×680×240 Packing (W*H*D) mm 1,075×744×278 1,075×744×278 1,075×744×278 1,365×744×278 1,365×744×278 1,365×744×278 1,365×744×278 1,764×760×329 1,764×760×329 Net/Gross weight kg 30/37 30/37 30/37 34/42 34/42 34/42 34/42 52/62 52/62

Outdoor fan motor

Input W 56 130 130 307 307 307 307 138+156 138+156 Capacitor µF 2.5µF/450V 2.5µF/450V 3µF/450V 10µF/450V 10µF/450V 10µF/450V 10µF/450V 3.5×2µF/450V 3.5×2µF/450V Speed r/min 800 750 800 740 740 740 740 800 800

Outdoor coil

Number of rows 2 2 2 2 2 2 2 2 2 Fin spacing mm 1.4 1.7 1.5 1.7 1.7 1.7 1.7 1.8 1.8 Fin type Unhydrophilic aluminum Tube outside dia. and type mm Ø9.53, Innergroove tube Coil length × height × width mm 651×559×44 775×660×4 4 850×810×44 955×915×44 955×915×44 955×915×44 955×915×44 715×1,220×44 715×1,220×44

Outdoor air f low m3/h 2,100 2,400 3,000 5,000 5,000 5,000 5,000 6,000 6,000 Outdoor noise level dB(A) 43 48 55 57 57 57 57 58 58

Outdoor unit

Dimension (W*H*D) mm 760×590×285 845×695×335 895×860×330 990×960×360 990×960×360 990×960×360 990×960×360 940×1,245×340 940×1,245×340 Packing (W*H*D) mm 887×655×355 970×770×395 1,043×915×395 1,120×1,090×435 1,120×1,090×435 1,120×1,090×435 1,120×1,090×435 1,058×1,380×435 1,058×1,380×435 Net/Gross weight kg 44/48 57/62 68/70 90/102 90/102 90/102 90/102 112/127 112/127

Refrigerant type/Quantity g R-410A/1,100 R-410A/2,000 R-410A/2,600 R-410A/3,000 R-410A/3,000 R-410A/3,000 R-410A/3,000 R-410A/3,700 R-410A/3,900 Design pressure (high side/low side) MPa 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5

Refrigerant piping

Liquid side mm (inch) 6.35 (1/4) 6.35 (1/4) 9.53 (3/8) 12.7 (1/2) 12.7 (1/2) 12.7 (1/2) 12.7 (1/2) 12.7 (1/2) 12.7 (1/2) Gas side mm (inch) 12.7 (1/2) 12.7 (1/2) 16 (5/8) 19 (3/4) 19 (3/4) 19 (3/4) 19 (3/4) 19 (3/4) 19 (3/4) Max. pipe length m 25 25 30 30 30 30 30 50 50 Max. difference in level m 15 15 15 20 20 20 20 30 30

Operation temp ºC 17~30 17~30 17~30 17~30 17~30 17~30 17~30 17~30 17~30 Ambient temp ºC 18~45 18~45 18~45 18~45 18~45 18~45 18~45 18~45 18~45 Qty’per 20’& 40’Fcl Pieces 63/138/155 49/104/126 44/94/101 27/55/62 27/55/62 27/55/62 27/55/62 25/50/54 25/50/54

Model

Set YOHC12FSA(B)AAR YOHC18FSA(B)AAR YOHC24FSA(B)AAR YOHC30FSA(B)ACR YOHC30FSA(B)AAR YOHC36FSA(B)AAR YOHC36FSA(B)ACR YOHC48FSA(B)ACR YOHC60FSA(B)ACR Indoor unit YOKC12FS-A(B)AR YOKC18FS-A(B)AR YOKC24FS-A(B)AR YOKC30FS-A(B)CR YOKC30FS-A(B)AR YOKC36FS-A(B)AR YOKC36FS-A(B)CR YOKC48FS-A(B)CR YOKC60FS-A(B)CR Outdoor Unit YOJC12FS-A(B)AR YOJC18FS-A(B)AR YOJC24FS-A(B)AR YOJC30FS-A(B)CR YOJC30FS-A(B)AR YOJC36FS-A(B)AR YOJC36FS-A(B)CR YOJC48FS-A(B)CR YOJC60FS-A(B)CR

Power supply Ph-V-Hz 1,220-240V, 50Hz 1,220-240V, 50Hz 1,220-240V, 50Hz 3,380V, 50Hz 1,220-240V, 50Hz 1,220-240V, 50Hz 3,380V, 50Hz 3,380V, 50Hz 3,380V, 50Hz

Cooling

Capacity

Btu/h 12,000 18,000 24,000 30,000 30,000 36,000 36,000 48,000 60,000

kW 3.5 5.4 7.1 9.2 9.2 10.5 10.5 14 17

kcal/h 3,024 4,536 6,048 7,560 7,560 9,072 9,072 12,096 15,120 Input W 1,200 1,900 2,700 3,750 3,750 3,750 3,750 4,700 6,000 Rated current A 6 8.5 12 6.3 16.3 16.3 6.6 8.2 9.8

Heating

Capacity

Btu/h 13,000 20,500 27,300 32,000 32,000 39,000 39,000 52,000 68,000

kW 3.8 6 8 9.4 9.4 11.4 11.4 15.2 20

kcal/h 3,276 5,166 6,880 8,064 8,064 9,828 9,828 13,104 17,136 Input W 1,130 1,850 2,800 3,500 3,500 3,500 3,700 4,900 6,000 Rated current A 5 8 12.5 5.2 15.2 15.2 6.5 8.6 9.8

Moisture Removal L/h 1.2 1.8 2.4 3 3 3.6 3.8 4.8 6 Max. input consumption W 1,500 2,400 3,300 4,620 4,620 4,620 4,400 5,870 7,500 Max. current A 7 11.5 14.5 7.1 21 21 8 10.7 12.8 Starting current A 26 36.8 61 61 97 97 61 66 67

Compressor

Indoor fan motor

Input W 104/98 110/104/98 110/104/98 142/134/132 142/134/132 142/134/132 142/134/132 118/108/101 118/108/101 Capacitor µF 1.5µF/450V 2.5µF/450V 2.5µF/450V 3.5µF/450V 3.5µF/450V 3.5µF/450V 3.5µF/450V 2.5µF/450V 2.5µF/450V Speed (Hi/Med/Low) r/min 1,190/1,000/890 1,280/1,190/1,000 1,280/1,190/1,000 1,310/1,200/1,000 1,310/1,200/1,000 1,310/1,200/1,000 1,310/1,200/1,000 820/695/620 820/695/620

Indoor coil

Number of rows 2 3 3 3 3 3 3 3 3 Tube pitch(a) × row pitch(b) mm 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 Fin spacing mm 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 Fin type Hydrophilic aluminum Tube outside dia. and type mm Ø9.53 innergroove tube Coil length × height × width mm 804×254×44 804×254×66 804×254×66 905×203×66 905×203×66 905×203×66 905×203×66 1,150×254×66 1,150×254×66

Indoor air f low (Hi/Mid/Low) m3/h 600/480/400 800/600/500 1,000/900/700 1,200/1,000/800 1,400/1,200/1,000 1,400/1,200/1,000 1,400/1,200/1,000 2,000/1,800/1,600 2,000/1,800/1,600 Indoor noise level (Hi/Mid/Lo) dB(A) 43/41/38 43/41/38 45/43/40 45/43/40 45/43/40 45/43/40 45/43/40 47/45/42 47/45/42

Indoor unit

Dimension (W*H*D) mm 995×660×198 995×660×198 995×660×198 1,285×660×198 1,285×660×198 1,285×660×198 1,285×660×198 1,670×680×240 1,670×680×240 Packing (W*H*D) mm 1,075×744×278 1,075×744×278 1,075×744×278 1,365×744×278 1,365×744×278 1,365×744×278 1,365×744×278 1,764×760×329 1,764×760×329 Net/Gross weight kg 29/35 30/37 30/37 34/42 34/42 34/42 34/42 52/62 52/62

Outdoor fan motor

Outdoor coil

Number of rows 2 2 2 2 2 2 2 2 2 Tube pitch(a) × row pitch(b) mm 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 25.4×22 Fin spacing mm 1.4 1.7 1.5 1.7 1.7 1.7 1.7 1.8 1.8 Fin type Hydrophilic aluminum Unhydrophilic aluminium Hydrophilic aluminum Tube outside dia. and type mm Ø9.53x0.35,Innergroove tube Coil length × height × width mm 651×559×44 775×660×4 4 850×810×44 955×915×44 955×915×44 955×915×44 955×915×44 715×1220×44 715×1220×44 Number of circuits 2 3 4 8 8 8 8 4 4

Outdoor air f low m3/h 2,100 2,400 3,000 5,000 5,000 5,000 5,000 6,000 6,000 Outdoor noise level dB(A) 43 48 55 57 57 57 57 58 58

Outdoor unit

Dimension (W*H*D) mm 760×590×285 845×695×335 895×860×330 990×960×360 990×960×360 990×960×360 990×960×360 940×1,245×340 940×1,245×340 Packing (W*H*D) mm 887×655×355 970×770×395 1,043×915×395 1,120×1,090×435 1,120×1,090×435 1,120×1,090×43 5 1,120×1,090×435 1,058×1,380×435 1,058×1,380×435 Net/Gross weight kg 44/48 57/62 68/70 90/102 90/102 90/102 90/102 112/127 112/127

Refrigerant type/Quantity g R-410A/1,120 R-410A/2,050 R-410A/2,600 R-410A/3,100 R-410A/3,450 R-410A/3,450 R-410A/3,100 R-410A/4,000 R-410A/4,200 Design pressure (high side/low side) MPa 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5 4.2/2.5

Refrigerant piping

Operation temp ºC 17~30 17~30 17~30 17~30 17~30 17~30 17~30 17~30 17~30 Ambient temp ºC -7~45 -7~45 -7~45 -7~45 -7~45 -7~45 -7~45 -7~45 -7~45 Qty’per 20’& 40’Fcl Pieces 63/138/155 49/104/126 44/94/101 27/55/62 27/55/62 27/55/62 27/55/62 25/50/54 25/50/54

■ Floor/Ceiling DC Inverter “YOHC” R-410A, 50Hz

DECLARATION OF CONFORMITY

Type of Equipment: Brand Name: Type Designation: YOCC-YOHC 12/18/24/30/36/48/60 FS YOHC 18/24/36/48/60 DS

Application of Council: Low Voltage Directive 73/23/EEC, EMC Directive 89/336/EEC, CE Marking

The equipments above follow harmonized standards have been applied: EN 60335-1:1994+A11:1995+A1, A12:1996+A EN 60335-2-40:1997+A1:2000 EN55014-1:2000+A1+A2 EN55014-2:1994+A1

EN61000-3-2:2000 EN61000-3-3:1995+A1 EN61000-3-11:2000

Authorized Representative:

_________________________

Suriya Sittidamrong

Senior Technical Support Engineer

York Industrial Thailand

49/40 Moo5, Tambon Tungsukla, Sriracha, Chonburi 20230, Thailand. Tel. +6638 493400 Fax. +6638 493423- 424

DECLARATION OF CONFORMITY

Air Conditioners YORK

Date: May 29, 2007

Ref No.: 07GMSPG0529DC005-0

DE - COMMISSIONING DISMANTLING & DISPOSAL

This product contains refrigerant under pressure, rotating parts, and electrical connections which may be a danger and cause injury!

All work must only be carried out by competent persons using suitable protective clothing and safety precautions.

Directive 93/68/EEC and Machinery Directive 98/37/EEC.

13, A14:1998+A15, A2:2000+A16:2001

Read the Manual

1. Isolate all sources of electrical supply to the unit including any control system supplies

switched by the unit. Ensure that all points of electrical and gas isolation are secured in the OFF position. The supply cables and gas pipework may then be disconnected and removed. For points of connection refer to unit installation instructions.

2. Remove all refrigerant from each system of the unit into a suitable container using a refrigerant reclaim or recovery unit. This refrigerant may then be reused, if appropriate, or returned to the manufacturer for disposal Under No circumstances should refrigerant be vented to atmosphere. Where appropriate, drain the refrigerant oil from each system into a suitable container and dispose of according to local laws and regulations governing disposal of oily wastes.

3. Packaged unit can generally be removed in one piece after disconnection as above. Any fi

xing down bolts should be removed and then unit lifted from position using the points provided and equipment of adequate lifting capacity. Reference MUST be made to the unit installation instructions for unit weight and correct methods of lifting. Note that any residual or spilt refrigerant oil should be mopped up and disposed of as described above.

4. After removal from position the unit parts may be disposed of according to local laws and regulations.

Risk of electric shock

Unit is remotely controlled and

may start without warning

J354-EN.indd 4J354-EN.indd 4 4/25/07 5:03:18 PM4/25/07 5:03:18 PM

York YOCC, YOHC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
