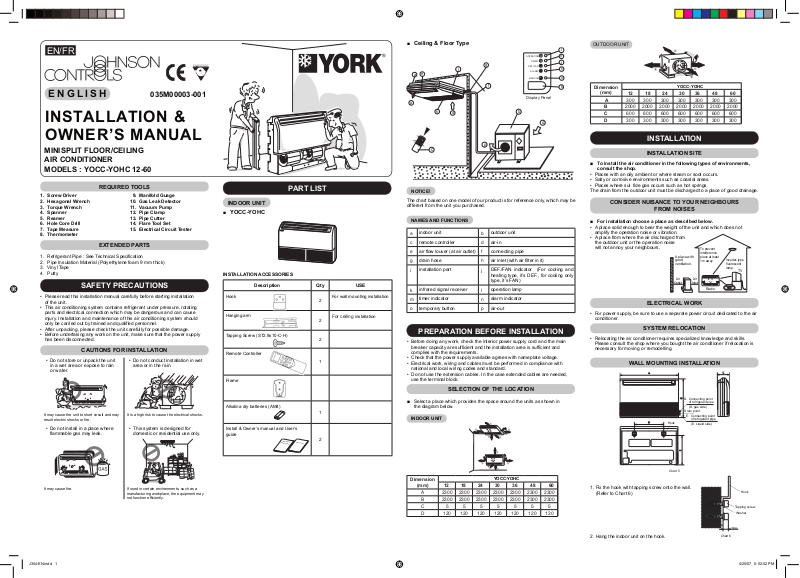

INSTALLATION & OWNER’S MANUAL

MINISPLIT FLOOR/CEILING AIR CONDITIONER MODELS : YOCC-YOHC 12-60

REQUIRED TOOLS

1. Screw Driver 9. Manifold Guage

Hexagonal Wrench 10. Gas Leak Detector

Torque Wrench 11. Vacuum Pump

Spanner 12. Pipe Clamp

Reamer 13. Pipe Cutter

Hole Core Drill 14. Flare Tool Set

Tape Measure 15. Electrical Circuit Tester

Thermometer

EXTENDED PARTS

1. Refrigerant Pipe : See Technical Speci fication

2. Pipe Insulation Material (Polyethylene foam 9 mm thick)

3. Vinyl Tape

4. Putty

• Please read this installation manual carefully before starting installation of the unit.

•

This air conditioning system contains refrigerant under pressure, rotating parts and electrical connection which may be dangerous and can cause injury. Installation and maintenance of this air conditioning system should only be carried out by trained and quali fied personnel.

•

After unpacking, please check the unit carefully for possible damage.

•

Before undertaking any work on the unit, make sure that the power supply has been disconnected.

CAUTIONS FOR INSTALLATION

• Do not store or unpack the unit in a wet area or expose to rain or water.

It may cause the unit to short circuit and may result electric shocks or fire.

• Do not install in a place where flammable gas may leak.

It may cause fire.

• Do not conduct installation in wet area or in the rain.

It is a high risk to cause the electrical shocks.

• This system is designed for domestic or residential use only.

If used in certain environments, such as a manufacturing workplace, the equipment may not function ef ficiently.

PART LIST

INDOOR UNIT

■ YOCC-YOHC

INSTALLATION ACCESSORIES

E N G L I S H

EN/FR

■ Ceiling & Floor Type

PREPARATION BEFORE INSTALLATION

• Before doing any work, check the interior power supply cord and the main breaker capacity are suf ficient and the installation area is suf ficient and complies with the requirements.

•

Check that the power supply available agrees with nameplate voltage.

•

Electrical work, wiring and cables must be performed in compliance with

national and local wiring codes and standard.

•

Do not use the extension cables. In the case extended cables are needed,

use the terminal block.

SELECTION OF THE LOCATION

INDOOR UNIT

OUTDOOR UNIT

INSTALLATION

INSTALLATION SITE

■ To install the air conditioner in the following types of environments,

consult the shop.

•

Places with an oily ambient or where steam or soot occurs.

•

Salty or corrosive environments such as coastal areas.

•

Places where sul fide gas occurs such as hot springs.

The drain from the outdoor unit must be discharged to a place of good drainage.

CONSIDER NUISANCE TO YOUR NEIGHBOURS

FROM NOISES

■ For installation choose a place as described below.

•

A place solid enough to bear the weight of the unit and which does not

amplify the operation noise or vibration.

•

A place from where the air discharged from the outdoor unit or the operation noise will not annoy your neighbours.

ELECTRICAL WORK

• For power supply, be sure to use a separate power circuit dedicated to the air conditioner.

SYSTEM RELOCATION

• Relocating the air conditioner requires specialized knowledge and skills. Please consult the shop where you bought the air conditioner if relocation is necessary for moving or remodelling.

SAFETY PRECAUTIONS

■ Select a place which provides the space around the units as shown in

the diagram below.

To prevent interference, place at least 1m awa

Inverter-type

fluorescent

lamp.

A place with good ventilation.

Air

Outlet

Air

Inlet

Radio

035M00003-001

Dimension

(mm)

YOCC-YOHC

12 18 24 30 36 48 60

A 2300 2300 2300 2300 2300 2300 2300 B 2300 2300 2300 2300 2300 2300 2300 C 5 5 5 5 5 5 5 D 120 120 120 120 120 120 120

Dimension

(mm)

YOCC-YOHC

12 18 24 30 36 48 60

A 300 300 300 300 300 300 300 B 2000 2000 2000 2000 2000 2000 2000 C 600 600 600 600 600 600 600 D 300 300 300 300 300 300 300

Description Qty USE

Hook

For wall mounting installation

Hanging arm

For ceiling installation

Tapping Screw (ST2.9x10-C-H)

Remote Controller

Frame

Alkalina dry batteries (AM4)

Install & Owner’s manual and User’s guide

NAMES AND FUNCTIONS

NOTICE!

The

chart based on one model of our product is for reference only, which may be

fferent from the unit you purchased.

indoor unit

outdoor unit

remote controller

air-in

air flow louver (at air outlet)

connecting pipe

drain hose

air inlet (with air filter in it)

installation part

DEF./FAN indicator (For cooling and heating type, it’s DEF., for cooling only type, it’s FAN)

infrared signal receiver

operation lamp

timer indicator

alarm indicator

temporary button

air-out

WALL MOUNTING INSTALLATION

D. Connecting point

of refrigerant pipe

(D. gas side) Drain point

E. Connecting point

of refrigerant pipe

(E. Liquid side)

Hook

Chart

1. Fix the hook with tapping screw onto the wall.

(Refer to Chart 6)

Hang the indoor unit on the hook.

<6mm

Hook

Chart

Tapping screw

Washer

OPERATION

TIMER

DEF./FAN

ALARM

MANUAL

Display Panel

温温度度

速速

自自

模模

式式

速速

温温度度

J354-EN.indd 1J354-EN.indd 1 4/25/07 5:02:52 PM4/25/07 5:02:52 PM

• The drain pipe of indoor unit must be heat insulated, or it will condense dew, as well as the connections of the indoor unit.

• Hard PVC binder must be used for pipe connection, and make sure there is no leakage.

• With the connection part to the indoor unit, please be noted not to impose pressure on the side of indoor unit pipes.

• When the declivity of the drain pipe downwards is over 1/100, there should not be any winding.

• The total length of the drain pipe when pulled out traversely shall not exceed 20m, when the pipe is over long, a prop stand must be installed to prevent winding.

• Refer to the ﬁ gures on the right for the installation of the pipes.

INSTALLATION IN THE FOLLOWING PLACES

MAY RESULT IN TROUBLE

INDOOR UNIT INSTALLATION

Installing Ø10 hanging screw bolts. (4 bolts)

• Please refer to the following ﬁ gure for the distance measurement between the screw bolts.

• Please install with Ø10 hanging screw bolts.

• The handling to the ceiling varies from the constructions, consult the construction personnels for the speciﬁ c procedures.

1. The size of the ceiling to be handled ... ... do keep the ceiling ﬂ at. Consolidate

the roof beam for possible vibration.

2. Cut off the roof beam.

3. Strengthen the place cut off, and consolidate the roof beam.

• Carry out the pipe and line operation in the ceiling after ﬁ nishing the installation of the main body. While choosing where to start the operation, determine the direction of the pipes to be drawn out. Especially in case there is a ceiling, position the refrigerant pipes, drain pipes, indoor & outdoor lines to the connection places before hanging up the machine.

• The installation of hanging screw bolts.

Installation of the indoor unit in direct sun light.

Installation in the unit in wrong direction.

Installation of outdoor units too close or, blowing discharged air into each other.

Installation of the indoor unit in a place where there is an obstacle near the air inlet or outlet.

Installation of the outdoor unit in a place exposed regularly to a strong wind.

> 30 cm

Installation of the indoor unit at too high > 30 cm a position.

CEILING INSTALLATION

1. Remove the side board and the grille. (Refer to Chart 8) (For models 48000 and 60000 Btu/h, do not remove the grille.)

2. Locate the hanging arm on the hanging screw bolt. (Refer to Chart 9) Prepare the mounting bolts on the unit. (Refer to Chart 10)

3. Hang the unit on the hanging arm by sliding backward. Securely tighten the mounting bolts on both sides. (Refer to Chart 9)

Chart 7

Chart 8

Hanging arm

Hanging screw bolt

Mounting bolt

D. Connecting point of refrigerant pipe (D. gas side)

E. Connecting point of refrigerant pipe (E. Liquid side)

Drain point

Chart 11

Chart 10

Screw nut

Washer

Hanging screw bolt

Hanging arm

Mounting bolt (max. 40 mm)

Side board

Grille

Hanging arm

ATTENTION: The ﬁ gures above are based on model with 18000 Btu/h as rated

capacity, which may differ from the unit you purchased.

The dimension of the unit

Capacity

(Btu/h)

ABCDEFGH

12000-24000 Btu/h 990 660 206 505 506 907 200 203

36000 Btu/h 1280 660 206 795 506 1195 200 203

48000-60000 Btu/h 1670 680 244 1070 450 1542 200 240

• Note: The dimension of 12000 Btu/h and 24000 Btu/h are the same

The dimension of 48000 Btu/h and 60000 Btu/h are the same

Chart 17

The base pan hole of outdoor unit

The base pan hole of outdoor

Drain elbow

Seal

Seal Drain elbow

Chart 9

285 750 845

590

695

860

351.2

135

235

125

335

330

530

110

315

290

301.5

141.5 560.1

163 590

313

895 300

■ YODC-YOJC 12 ■ YODC-YOJC 18 ■ YODC-YOJC 24

Outdoor unit

360

960

990

336.4 400

1245

360

940

650

181.4

624

■ YODC-YOJC 30-36 ■ YODC-YOJC 48-60

■ DC Inverter R-410A

MODEL A B C D E H REMARK

18 840 550 335 360 310 677

R-410A

24 894 590 333 355 302 860 36 990 624 366 396 340 960 48 940 600 376 400 340 1245

Wooden construction New concrete bricks

For Original concrete bricks Steel roof beam structre

Put the square timber traversely over the roof beam, then install the hanging screw bolts. (Refer to Chart 1)

Inlaying or embedding the screw bolts. (Refer to Chart 2)

Use embedding screw bolt. (Refer to Chart 3)

Install and use directly the supporting angle steel. (Refer to chart 4)

Timber over the beam

Roof beam

Ceiling

Hanging screw bolts

Chart 1

Chart 2

(Blade shape insertion) (Slide insertion)

Steel bar

Embedding screw bolt

(Pipe hanging and embedding screw bolt)

Chart 3

Hanging screw bolt

Supporting angle steel

Hanging bolts

Chart 4

CONNECT THE DRAIN PIPE

1. Install indoor unit drain pipe The outlet has PTI screw thread, Please use sealing materials and pipe sheath

(ﬁ tting) when connecting PVC pipes.

Cautions

2. Drainage test

• Check whether the drainpipe is unhindered

• New built house should have this test done before paving the ceiling.

3. Drain Elbow Installation

Fit the seal into the drain elbow, then insert the drain elbow into the base pan

hole of outdoor unit, rotate 90° to securely assemble them. Connect the drain elbow with an extension drain hose (Locally purchased), in case of the condensate draining off the outdoor unit during the heating mode. (Refer to Chart 17)

1.5m~2m

Insulating

material

Downward

declivity lower

than 1/100

Bend

S shape

Put as deep as possible (about 10cm)

Downward declivity lower than 1/100

VP30

WIRING

■ Attaching wiring

1. The air conditioner should use separate power supply with rated voltage

2. The external power supply to the air conditioner should have ground wiring, which is linked to the ground wiring of the indoor and outdoor unit.

3. The wiring work should be done by qualiﬁ ed persons according to circuit drawing.

4. A leakage protector should be installed according to the National Standard concerning electrical appliance.

5. Be sure to locate the power wiring and the signal wring well to avoid crossdisturbance and their contact with connecting pipe or stop valve body.

6. The wiring attached to this air conditioner is 10m long. Be sure to prolong it with wiring of the same type and proper length if necessary. Generally, do not twist two wiring together unless the joint is soldered well and covered with insulator tape.

7. Do not turn on the power until you have checked carefully after wiring.

TYPE

12000~18000 Btu/h

(Cooling&Heating)

24000-36000 Btu/h

(Cooling&Heating)

36000-60000 Btu/h

(Cooling&Heating)

POWER

PHASE 1-PHASE 1-PHASE 3-PHASE

FREQUENCY AND VOLT 220-240V~, 50Hz 220-240V~, 50Hz 380V 3N~, 50Hz CIRCUIT BREAKER/FUSE (A) 20/16 40/25 40/20 INDOOR UNIT POWER WIRING (mm

) 3x2.5 5x2.5

INDOOR/OUTDOOR CONNECTING WIRING

(mm

)

GROUND WIRING 2.0 2.5 2.5 OUTDOOR UNIT POWER WIRING

3x2.5 3x2.5 5x2.5

STRONG ELECTRIC SIGNAL

5x2.0

(3x2.0)

3x2.0

(2x2.0)

3x2.0

(2x2.0) WEAK ELECTRIC SIGNAL

1-core sheild wire

1x0.5mm

2-core sheild wire

2x0.5mm

TYPE

12000~18000 Btu/h

(Cooling Only)

24000-36000 Btu/h

(Cooling Only)

36000-60000 Btu/h

(Cooling Only)

POWER

PHASE 1-PHASE 1-PHASE 3-PHASE

FREQUENCY AND VOLT 220-240V~, 50Hz 220-240V~, 50Hz 380V 3N~, 50Hz CIRCUIT BREAKER/FUSE (A) 40/25 40/20 40/25 INDOOR UNIT POWER WIRING (mm

) 3x2.5 3x2.5 5x2.5

INDOOR/OUTDOOR CONNECTING WIRING

(mm

)

GROUND WIRING 2.0 2.0 2.0 OUTDOOR UNIT POWER WIRING

3x2.0 5x2.0

STRONG ELECTRIC SIGNAL

3x2.0 1x2.0 1x2.0

WEAK ELECTRIC SIGNAL

■ Wiring Chart

Installing wiring chart, refer to link circuit chart for details.

CAUTION: When wiring, please choose the corresponding chart, or it may

cause damage.

Power supply

Switch/Fuse (Available locally)

Power wiring (indoor)

Power linking wiring (Outdoor)

Ground wiring

Strong elec-signal link wiring

Weak elec-signal link wiring

Ground wiring

Indoor Unit

Outdoor Unit

• Ground the air conditioner properly in case to affect its anti-interference function

Chart 19

12000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A, Cooling & Heating) 18000 Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A, R-407C and R-22, Cooling & Heating)

Chart 20

3-core cable 3x2.5mm

1-core sheild wire 1x0.5mm

5-core cable 5x2.0mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

Chart 18

■ The Speciﬁ cation of Power

24000Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-410A, Cooling & Heating) 24000-36000Btu/h (1 PHASE) Air Conditioner Link-circuit (For R-407C, Cooling & Heating)

Chart 21

3-core cable 3x2.5mm

1-core sheild wire 1x0.5mm

3-core cable 3x2.5mm

OUTDOOR UNIT

INDOOR UNIT

POWER: 220-240V~50Hz

3-core cable 3x2.0mm

20〜25mm

J354-EN.indd 2J354-EN.indd 2 4/25/07 5:03:07 PM4/25/07 5:03:07 PM

>20mm

8〜13mm

CED

L N 1 2(N)

Y&G

XT1

Y&G

XT1

1N34

T3 E

XT2

Y&G

N L

XT1

T3 E

XT2

Y&G

312

XT2

BLACK (E)

WHITE (T3)

XT1 XT2

T3 E

+ 2 hidden pages
