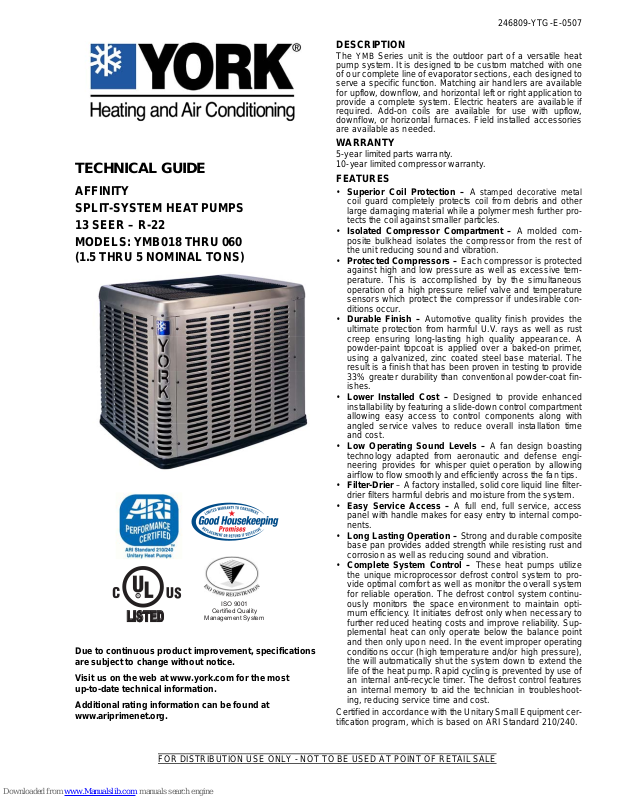

Page 1
TECHNICAL GUIDE
AFFINITY
SPLIT-SYSTEM HEAT PUMPS
13 SEER – R-22
MODELS: YMB018 THRU 060
(1.5 THRU 5 NOMINAL TONS)
ISO 9001
Certified Quality
LISTED
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.ariprimenet.org.
Management System
246809-YTG-E-0507
DESCRIPTION
The YMB Series un it is the outdoor part of a versatile heat
pump system. It is designed to be custom matched with one
of our complete line of evaporator sections, each designed to
serve a specific function. Matching air handlers a re available
for upflow, downflow, and horizontal left or right application to
provide a complete system. Electric heaters are available if
required. Add-on coils are available for use with upflow,
downflow, or horizontal furnaces. Field installed accessories
are available as needed.
WARRANTY
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
• Superior Coil Protection – A stamped decorative metal
coil guard completely protects coil from debris and other
large damaging material while a polymer mesh further protects the coil against smaller particles.
• Isolated Compressor Compartment – A molded composite bulkhead isolates the compressor from the rest of
the unit reducing sound and vibration.
• Protected Compressors – Each compressor is protected
against high and low pressure as well as excessive temperature. This is accomplished by by the simultaneous
operation of a high pressure relief valve and temperature
sensors which protect the compressor if undesirable conditions occur.
• Durable Finish – Automotive quality finish provides the
ultimate protection from harmful U.V. rays as well as rust
creep ensuring long-lasting high quality appearance. A
powder-paint topcoat is applied over a baked-on primer,
using a galvanized, zinc coated steel base material. The
result is a finish that has been proven in testing to provide
33% greater durability than conventional powder-coat finishes.
• Lower Installed Cost – Designed to provide enhanced
installability by featuring a slide-down control compartment
allowing easy access to control components along with
angled service valves to reduce overall installation time
and cost.
• Low Operating Sound Levels – A fan design boasting
technology adapted from aeronautic and defense engineering provides for whisper quiet operation by allowing
airflow to flow smoothly and efficiently across the fan tips.
• Filter-Drier – A factory installed, solid core liquid line filterdrier filters harmful debris and moisture from the system.
• Easy Service Access – A full end, full service, access
panel with handle makes for easy entry to internal components.
• Long Lasting Operation – Strong and durable composite
base pan provides added strength while resisting rust and
corrosion as well as reducing sound and vibration.
• Complete System Control – These heat pumps utilize
the unique microprocessor defrost control system to provide optimal comfort as well as monitor the overall system
for reliable operation. The defrost control system continuously monitors the space environment to maintain optimum efficiency. It initiates defrost only when necessary to
further reduced heating costs and improve reliability. Supplemental heat can only operate below the balance point
and then only upon need. In the event improper operating
conditions occur (high temperature and/or high pressure),
the will automatically shut the system down to extend the
life of the heat pump. Rapid cycling is prevente d by use of
an internal anti-recycle timer. The defrost control features
an internal memory to aid the technician in troubleshooting, reducing service time and cost.
Certified in accordance with the Unitary Small Equipment certification program, which is based on ARI Standard 210/240.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
Page 2
246809-YTG-E-0507

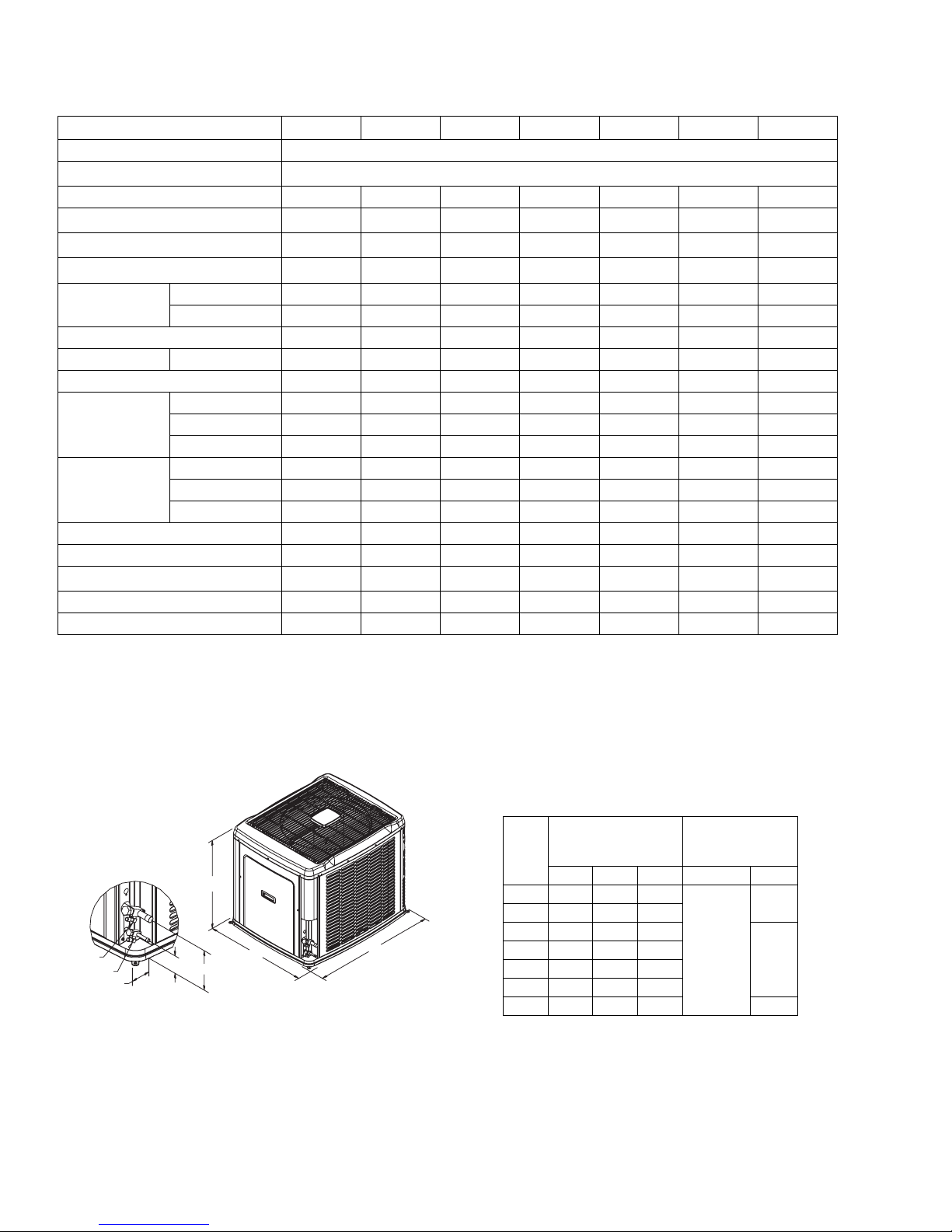

Physical and Electrical Data
MODEL
Unit Supply Voltage 208/230 – 1 – 60
Normal Voltage Range
Minimum Circuit Ampacity 11.7 14.5 16.7 20.0 27.8 33.9 40.2
Max. Overcurrent Device Amps
Min. Overcurrent Device Amps
Compressor Type
Compressor Amps
Crankcase Heater No No No Yes No No No
Fan Motor Amps Rated Load 0.5 0.5 1.5 1.5 1.5 1.5 1.5
Fan Diameter Inches 22 22 22 24 24 24 24
Fan Motor
Coil
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 7/8 7/8 7/8 7/8 1-1/8
Unit Charge (Lbs. - Oz.)
Charge Per Foot, Oz. 0.68 0.68 0.70 0.70 0.70 0.70 0.76
Operating Weight Lbs. 175 190 195 258 258 278 278
1 Rated in accordance with ARI Standard 110, utilization range “A”.
2 Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3 Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4 All scrolls listed with superscript “D” are Danfoss scrolls. All scrolls listed with superscripts “C” are Copeland scrolls.
5 The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than
15 feet, add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
1
2
3
4
Rated Load 10.0 12.1 13.6 13.4 21.0 23.0 25.0
Locked Rotor 41 54 67 78 115 115 150
Rated HP 1/15 1/15 1/4 1/4 1/4 1/4 1/4
Nominal RPM 850 850 850 850 850 850 850
Nominal CFM 1,900 1,800 3,300 3,600 3,600 3,400 3,400
Face Area Sq. Ft. 14.86 17.15 20.58 23.58 23.58 23.58 23.58
Rows Deep 1111122
Fin / Inches 22 22 22 22 22 22 22
5
YMB01811 YMB02411 YMB03011 YMB03611 YMB04211 YMB04811 YMB06011
187 to 252
20 25 25 30 45 50 60
15 15 20 20 30 35 45
Scroll
C
Scroll
C
Scroll
C
Recip
Scroll
D
Scroll
D
Scroll
6 - 6 7 - 9 9 - 1 9 - 9 10 - 9 13 - 1 14 - 11
D
All dimensions are in inches. They are subject to change
without notice. Certified dimensions will be provided upon
request.
Refrigerant
Connection
Service Valve Size
3/4”
3/8”
7/8”
VAPOR
LIQUID
2-3/8
3-1/8
6-1/2
Unit
Model
A
018 29-1/2 37 31
Dimensions
(Inches)
A B C Liquid Vapor
024 33-1/2 37 31
030 39-1/2 37 31
C
B
036 39-1/2 42 34
042 39-1/2 42 34
048 39-1/2 42 34
060 39-1/2 42 34 1-1/8”
* Expander fitting required for 1-1/8” lineset.
2 Unitary Products Group
Page 3
246809-YTG-E-0507
Additional R-22 Charge / TXV Size for Various Matched Systems
Outdoor Unit YMB01811 YMB02411 YMB03011 YMB03611 YMB04211 YMB04811 YMB06011
Required TXV
Factory R-22 Charge, lbs-oz 6 - 6 7 - 9 9 - 1 9 - 9 10 - 9 13 - 1 14 - 11
1
1TVM2A1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2C1 1TVM2C1 1TVM2C1
Indoor Coil
FC/MC/PC/UC18A2A 0––––––
FC/MC/PC/UC18B2A 0––––––
FC/MC/PC/UC24A2A –0–––––
FC/MC/PC/UC24B2A –0–––––
FC/MC/PC/UC30A2A –0–––––
FC/MC/PC/UC30B2A –0–––––
FC/MC/PC35B2A ––0––––
FC/MC/PC/UC42B2C ––0––––
FC/MC/PC/UC42C2C ––0––––
FC/MC/PC/UC48C2C –––0–––
FC/MC/PC/UC48D2C –––0–––
FC/PC/UC60C2C ––––000
FC/MC/PC/UC60D2C ––––000
MC61D2C –––––00
HC18A2A 0––––––
HC30A2A –0–––––
HC36B2A ––0––––
HC42C2C –––0–––
HC60D2C ––––000
HD24A2A –0–––––
HD36B2A ––0––––
HD48C2C –––0–––
HD60D2C ––––000
AHP18B2A 0––––––
AHP24B2A –0–––––
AHP30B2A ––0––––
AHP36C2A –––0–––
AHP42C2C –––0–––
AHP/SHP48D2C ––––00–
AHP/SHP60D2C ––––000
AV24B2A 00–––––
AV36C2A ––00–––
AV/SV48D2C ––––00–
AV/SV60D2C ––––000
FC/MC/PC/UC18A3X 2A + 0––––––
FC/MC/PC/UC18B3X 2A + 0––––––
FC/MC/PC/UC24A3X –2A + 0–––––
FC/MC/PC/UC24B3X –2A + 0–––––
FC/MC/PC/UC30A3X –2A + 0–––––
FC/MC/PC/UC30B3X –2A + 0–––––
FC/MC/PC35B2A ––2A + 0––––
FC/MC/PC/UC42B3X ––2A + 0––––
FC/MC/PC/UC42C3X ––2A + 0––––
FC/MC/PC/UC48C3X – – – 2A + 0 – – –
FC/MC/PC/UC48D3X – – – 2A + 0 – – –
FC/PC/UC60C3X ––––2C + 02C + 02C + 0
FC/MC/PC/UC60D3X ––––2C + 02C + 02C + 0
MC61D3X –––––2C + 02C + 0
For Notes see Page 4.
2,3
TXV Kit4 - Additional Charge, Oz
Unitary Products Group 3
Page 4
246809-YTG-E-0507
Additional R-22 Charge / TXV Size for Various Matched Systems
Outdoor Unit YMB01811 YMB02411 YMB03011 YMB03611 YMB04211 YMB04811 YMB06011
Required TXV
Factory R-22 Charge, lbs-oz 6 - 6 7 - 9 9 - 1 9 - 9 10 - 9 13 - 1 14 - 11
1
1TVM2A1 1TVM2A1 1TVM2A1 1TVM2A1 1TVM2C1 1TVM2C1 1TVM2C1
Indoor Coil
HC18A3X 2A + 0––––––
HC30A3X –2A + 0–––––
HC36B3X ––2A + 0––––
HC42C3X –––2A + 0–––
HC60D3X ––––2C + 02C + 02C + 0
HD24A3X –2A + 0–––––
HD36B3X ––2A + 0––––
HD48C3X –––2A + 0–––
HD60D3X ––––2C + 02C + 02C + 0
AHP18B3X 2A + 0––––––
AHP24B3X –2A + 0–––––
AHP30B3X ––2A + 0––––
AHP36C3X –––2A + 0–––
AHP42C3X –––2A + 0–––
AHP/SHP48D3X ––––2C + 02C + 0–
AHP/SHP60D3X ––––2C + 02C + 02C + 0
AV24B3X 2A + 02A + 0–––––
AV36C3X ––2A + 02A + 0–––
AV/SV48D3X ––––2C + 02C + 0–
AV/SV60D3X ––––2C + 02C + 02C + 0
F*FP024H06T2A 2A + 0 ––––––
F*FP040H06T2A – – 2A + 0 ––––
F*FP045H06T2C ––––2C + 0––
F*FV060H06T2C ––––2C + 02C + 02C + 0
FOOTNOTES:
PROCEDURES:
2,3
1 A TXV kit must be used with these coils to obtain system performance.
2 Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit 2FD06700224.
3 These orifices are factory mounted in the flow device of each indoor coil.
4 If not TXV is listed, the indoor coil has the correct valve factory-installed.
1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator and 15 feet of
interconnecting line tubing.
2. Verify the TXV and additional charge required for specific evaporator coil in the system using the above table.
3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified on the previous page.
4. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for
evaporator + adder for line set.
TXV Kit4 - Additional Charge, Oz
4 Unitary Products Group
Page 5
246809-YTG-E-0507
COOLING CAPACITY - With Air Handler Coils
COOLING
NET MBH
SENSIBL
E
SEER EER
UNIT MODEL
AIR HANDLER
MODEL W
1 PH 13 SEER HP WITH MA
COIL
MODEL
1
RATED
CFM
TOTAL
YMB01811 MA08B 17 FC/MC18B 600 17.3 12.1 13.00 11.00
YMB02411
YMB03011
YMB03611
YMB04211
YMB04811
YMB06011
MA08B 17 FC/MC24B 800 23.0 16.3 13.00 11.00
MA08B 17 FC/MC30B 800 23.0 16.3 13.00 11.00
MA12B 17 FC/MC35B 1000 28.6 20.3 13.00 11.00
MA12B 17 FC/MC42B 1000 28.6 20.3 13.00 11.00
MA12B 17 FC/MC42B 1200 34.6 25.0 13.00 11.00
MA14D 24 FC/MC48D 1200 35.2 25.5 13.50 11.00
MA16C 21 FC60C 1400 41.5 30.7 13.00 11.00
MA14D 24 FC/MC60D 1400 41.5 30.7 13.00 11.00
MA16C 21 FC60C 1600 47.0 34.2 13.00 11.00
MA20D 24 FC/MC60D 1600 47.0 34.2 13.00 11.00
MA20D 24 FC/MC60D 1800 55.0 37.9 13.00 11.00
MA20D 24 MC61D 1800 55.5 38.3 13.00 11.00
1 PH 13 SEER HP WITH MV - VARIABLE SPEED
YMB01811 MV12B 17 FC/MC18B 600 17.5 12.0 14.00 11.50
YMB02411
YMB03011
YMB03611
YMB04211
YMB04811
YMB06011
MV12B 17 FC/MC24B 800 23.4 16.3 14.00 11.50
MV12B 17 FC/MC30B 800 23.4 16.3 14.00 11.50
MV12B 17 FC/MC35B 1000 29.0 20.1 14.00 11.50
MV12B 17 FC/MC42B 1000 29.0 20.1 14.00 11.50
MV16C 21 FC/MC48C 1200 36.0 25.3 14.00 11.50
MV20D 24 FC/MC48D 1200 36.0 25.3 14.00 11.50
MV16C 21 FC60C 1400 41.0 29.6 13.50 11.00
MV20D 24 FC/MC60D 1400 42.0 30.2 14.00 11.50
MV16C 21 FC60C 1600 46.0 32.7 13.25 11.00
MV20D 24 FC/MC60D 1600 47.0 33.3 13.50 11.00
MV20D 24 FC/MC60D 1800 55.0 37.2 13.25 11.00
MV20D 24 MC61D 1800 55.5 37.6 13.25 11.00
1 PH 13 SEER HP WITH AV / SV / F*FV - VARIABLE SPEED
YMB01811 AV24 17 – 600 17.5 12.0 14.00 11.50
YMB02411 AV24 17 – 800 23.4 16.3 14.00 11.50
YMB03011 AV36 21 – 1000 29.0 20.1 14.00 11.50
YMB03611 AV36 21 – 1200 36.0 25.3 14.00 11.50
AV/SV48 24 – 1400 42.0 30.2 14.00 11.50
YMB04211
AV/SV60 24 – 1400 42.0 30.2 14.00 11.50
F*FV060 24 – 1400 42.0 30.2 14.00 11.50
AV/SV48 24 – 1600 47.0 33.3 13.50 11.00
YMB04811
AV/SV60 24 – 1600 47.0 33.3 13.50 11.00
F*FV060 24 – 1600 47.0 33.3 13.50 11.00
YMB06011
AV/SV60 24 – 1800 55.0 37.2 13.25 11.00
F*FV060 24 – 1800 55.0 37.2 13.00 11.00
1 PH 13 SEER HP WITH AHP / SHP / F*FP
YMB01811
AHP18 17 – 650 17.4 12.7 13.00 11.00
F*FP024 17 – 600 17.3 12.1 13.00 11.00
YMB02411 AHP24 17 – 830 23.0 16.5 13.00 11.00
YMB03011
YMB03611
AHP30 17 – 1015 28.8 20.4 13.00 11.00
F*FP040 17 – 1000 28.6 20.3 13.00 11.00
AHP36 21 – 1200 35.2 25.5 13.50 11.00
AHP42 21 – 1200 35.2 25.5 13.50 11.00
AHP/SHP48 21 – 1400 41.5 30.7 13.00 11.00
YMB04211
AHP/SHP60 24 – 1400 42.0 30.8 14.00 11.50
F*FP045 21 – 1400 41.5 30.7 13.00 11.00
YMB04811
AHP/SHP48 21 – 1675 47.0 35.0 13.00 11.00
AHP/SHP60 24 – 1600 47.0 34.2 13.50 11.00
YMB06011 AHP/SHP60 24 – 1850 55.0 38.7 13.00 11.00
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210.
Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the t ot al co oling out put in BTU’s during a normal annual usage period for cooling divi ded b y the t ot al elect ric power
input in watt-hours during the same period.
1 MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
— = Not applicable.
Go to www.ari.org/aridirectory for the latest additional matches.
Unitary Products Group 5
Page 6
246809-YTG-E-0507
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils
FURNACE**
UNIT MODEL
YMB01811
YMB02411
YMB03011
YMB03611
YMB04211
YMB04811
YMB06011
1 Requires a 2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
CFM RANGE
(Min.-max.)
400
800
600
1000
800
1200
1000
1400
1200
1600
1400
1800
1600
2000
W
14,17 FC/MC/PC/UC18 600 17.3 12.1 13.00 11.00
14 HC18 600 17.3 12.1 13.00 11.00
14,17 FC/MC/PC/UC24 800 23.0 16.3 13.00 11.00
14,17 FC/MC/PC/UC30 800 23.0 16.3 13.00 11.00
21 HC30 800 23.2 16.5 13.00 11.00
– HD24 800 23.4 16.7 13.00 11.00
17,21 FC/MC/PC35 1000 28.6 20.3 13.00 11.00
17,21 FC/MC/PC/UC42 1000 28.6 20.3 13.00 11.00
17 HC36 1000 28.8 20.3 13.00 11.00
– HD36 1000 28.8 20.3 13.00 11.00
17,21 FC/MC/PC/UC42 1200 34.6 25.0 13.00 11.00
21,24 FC/MC/PC/UC48 1200 35.2 25.5 13.50 11.00
21 HC42 1200 35.4 25.0 13.50 11.00
– HD48 1200 36.0 26.0 13.50 11.00
21,24 FC/MC/PC/UC60 1400 41.5 30.7 13.00 11.00
24 HC60 1400 41.5 30.7 13.00 11.00
– HD60 1400 41.5 30.8 13.00 11.00
21,24 FC/MC/PC/UC60 1600 47.0 34.2 13.00 11.00
24 HC60 1600 47.0 34.2 13.00 11.00
– HD60 1600 47.0 34.3 13.00 11.00
21,24 FC/MC/PC/UC60 1800 55.0 37.9 13.00 11.00
24 MC61 1800 55.5 38.3 13.00 11.00
24 HC60 1800 55.0 37.9 13.00 11.00
– HD60 1800 55.0 38.3 13.00 11.00
COIL
MODEL
RATED
CFM
NET MBH
TOTAL SENSIBLE
COOLING
SEER
1
EER
6 Unitary Products Group
Page 7
COOLING CAPACITY - With Variable Speed Furnaces
UNIT MODEL
YMB01811
YMB02411
YMB03011
YMB03611
For Notes see Page 8.
VARIABLE SPEED
FURNACE MODEL
PV8*A12 14 FC/MC/PC18A 600 17.6 12.2 14.00 11.50
PV9*A12 14 FC/MC/PC18A 600 17.6 12.2 14.00 11.50
P(C,V)9*B12 17 FC/MC/PC18B 600 17.6 12.2 14.00 11.50
PV8*A12 14 HC18 600 17.6 12.2 14.00 11.50
PV9*A12 14 HC18 600 17.6 12.2 14.00 11.50
PV8*A12 14 FC/MC/PC24A 800 23.2 16.5 14.00 11.50
PV9*A12 14 FC/MC/PC24A 800 23.2 16.5 14.00 11.50
P(C,V)9*B12 17 FC/MC/PC24B 800 23.2 16.5 14.00 11.50
PV8*A12 14 FC/MC/PC30A 800 23.2 16.5 14.00 11.50
PV9*A12 14 FC/MC/PC30A 800 23.2 16.5 14.00 11.50
P(C,V)9*B12 17 FC/MC/PC30B 800 23.2 16.5 14.00 11.50
PV8*A12 14 HC30 800 23.6 16.7 14.00 11.50
PV9*A12 14 HC30 800 23.6 16.7 14.00 11.50
PV8*A12 – HD24 800 23.8 16.9 14.00 11.50
PV9*A12 – HD24 800 23.8 16.9 14.00 11.50
PV8*B16 17 FC/MC/PC35B 1000 29.2 20.5 14.00 11.50
P(C,V)9*B12 17 FC/MC/PC35B 1000 29.0 20.4 14.00 11.50
PV8*B16 17 HC36 1000 29.2 20.5 14.00 11.50
P(C,V)9*B12 17 HC36 1000 29.2 20.5 14.00 11.50
PV8*A12 – HD36 1000 29.0 20.4 14.00 11.50
PV8*B16 – HD36 1000 29.2 20.5 14.00 11.50
PV8*C16 – HD36 1000 29.4 20.5 14.00 11.50
PV8*C20 – HD36 1000 29.4 20.6 14.00 11.50
PV9*A12 – HD36 1000 29.0 20.4 13.75 11.00
P(C,V)9*B12 – HD36 1000 29.2 20.5 14.00 11.50
P(C,V)9*C16 – HD36 1000 29.2 20.5 14.00 11.50
P(C,V)9*C20 – HD36 1000 29.2 20.5 14.00 11.50
PV8*B16 17 FC/MC/PC42B 1200 35.0 25.0 14.00 11.50
P(C,V)9*B12 17 FC/MC/PC42B 1200 35.0 25.0 13.50 11.00
PV8*C16 21 FC/MC/PC42C 1200 35.0 25.0 13.50 11.00
PV8*C20 21 FC/MC/PC42C 1200 35.0 25.0 14.00 11.50
P(C,V)9*C16 21 FC/MC/PC42C 1200 35.0 25.0 13.50 11.00
P(C,V)9*C20 21 FC/MC/PC42C 1200 35.0 25.0 14.00 11.50
PV8*C16 21 FC/MC/PC48C 1200 36.0 25.7 14.00 11.50
PV8*C20 21 FC/MC/PC48C 1200 36.0 25.7 14.00 11.50
P(C,V)9*C16 21 FC/MC/PC48C 1200 35.8 25.7 14.00 11.50
P(C,V)9*C20 21 FC/MC/PC48C 1200 36.0 25.7 14.00 11.50
P(C,V)9*D20 24 FC/MC/PC48D 1200 36.0 25.7 14.00 11.50
PV8*C16 21 HC42 1200 36.0 25.9 14.00 11.50
PV8*C20 21 HC42 1200 36.0 25.9 14.00 11.50
P(C,V)9*C16 21 HC42 1200 36.0 25.9 14.00 11.50
P(C,V)9*C20 21 HC42 1200 36.0 25.9 14.00 11.50
PV8*C16 – HD48 1200 36.0 25.9 14.00 11.50
PV8*C20 – HD48 1200 36.0 25.9 14.00 11.50
P(C,V)9*C16 – HD48 1200 36.0 25.9 14.00 11.50
P(C,V)9*C20 – HD48 1200 36.0 25.9 14.00 11.50
P(C,V)9*D20 – HD48 1200 36.0 25.8 14.00 11.50
COIL
1
MODEL
1 PH 13 SEER HP WITH - VARIABLE SPEED
W
RATED
CFM
COOLING
NET MBH
TOTAL SENSIBLE
2,3
246809-YTG-E-0507
SEER EER
Unitary Products Group 7
Page 8
246809-YTG-E-0507
COOLING CAPACITY - With Variable Speed Furnaces
UNIT MODEL
YMB04211
YMB04811
YMB06011
1 MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
2 Variable speed furnaces have B.O.D (Blower on Delay) standard.
3 HC60D coils matched to “C” width furnaces will require field supplied transition or modification.
VARIABLE SPEED
FURNACE MODEL
PV8*C16 21 FC/PC60C 1400 41.5 30.8 13.50 11.00
PV8*C20 21 FC/PC60C 1400 42.0 30.8 13.50 11.00
P(C,V)9*C16 21 FC/PC60C 1400 41.5 30.8 13.50 11.00
P(C,V)9*C20 21 FC/PC60C 1400 41.5 30.8 13.50 11.00
P(C,V)9*D20 24 FC/MC/PC60D 1400 41.5 30.8 13.50 11.00
PV8*C20 21 HC60 1400 42.0 30.8 13.50 11.00
P(C,V)9*C20 21 HC60 1400 41.5 30.8 13.50 11.00
P(C,V)9*D20 24 HC60 1400 41.5 30.8 13.50 11.00
PV8*C16 – HD60 1400 42.0 30.8 13.50 11.00
PV8*C20 – HD60 1400 42.0 30.8 13.50 11.00
P(C,V)9*C16 – HD60 1400 42.0 30.8 13.50 11.00
P(C,V)9*C20 – HD60 1400 42.0 30.8 13.50 11.00
P(C,V)9*D20 – HD60 1400 41.5 30.7 13.50 11.00
PV8*C16 21 FC/PC60C 1500 47.0 33.1 13.00 11.00
PV8*C20 21 FC/PC60C 1600 47.0 34.1 13.25 11.00
P(C,V)9*C16 21 FC/PC60C 1600 47.0 34.2 13.00 11.00
P(C,V)9*C20 21 FC/PC60C 1600 47.0 34.1 13.00 11.00
P(C,V)9*D20 24 FC/MC/PC60D 1600 47.0 34.1 13.25 11.00
PV8*C20 21 HC60 1600 47.0 34.1 13.25 11.00
P(C,V)9*C20 21 HC60 1600 47.0 34.1 13.00 11.00
P(C,V)9*D20 24 HC60 1600 47.0 34.1 13.25 11.00
PV8*C16 – HD60 1500 47.0 33.1 13.25 11.00
PV8*C20 – HD60 1600 47.0 34.4 13.25 11.00
P(C,V)9*C16 – HD60 1600 47.0 34.4 13.00 11.00
P(C,V)9*C20 – HD60 1600 47.0 34.4 13.25 11.00
P(C,V)9*D20 – HD60 1600 47.0 34.4 13.25 11.00
PV8*C20 21 FC/PC60C 1730 55.0 37.5 13.00 11.00
P(C,V)9*C20 21 FC/PC60C 1620 54.5 36.0 13.00 11.00
P(C,V)9*D20 24 FC/MC/PC60D 1620 54.5 36.1 13.25 11.00
PV8*C20 21 MC61D 1730 55.5 37.8 13.25 11.00
P(C,V)9*C20 21 MC61D 1620 54.0 36.5 13.00 11.00
P(C,V)9*D20 24 MC61D 1620 55.0 36.6 13.25 11.00
PV8*C20 21 HC60 1730 55.0 37.5 13.00 11.00
P(C,V)9*D20 24 HC60 1620 54.5 36.1 13.25 11.00
PV8*C20 – HD60 1730 55.0 37.4 13.00 11.00
P(C,V)9*C20 – HD60 1620 54.5 36.4 13.00 11.00
P(C,V)9*D20 – HD60 1620 54.0 36.4 13.25 11.00
COIL
1
MODEL
1 PH 13 SEER HP WITH - VARIABLE SPEED
W
RATED
CFM
NET MBH
TOTAL SENSIBLE
2,3
COOLING
SEER EER
8 Unitary Products Group
Page 9
246809-YTG-E-0507
HEATING PERFORMANCE - Air Handlers
UNIT
MODEL*
AIR
HANDLER
COIL
MODEL
1
47°F17°FHSPF
MBH COP KW MBH COP KW
ARI HEATING
1 PH 13 SEER HP WITH MA
YMB01811 MA08B FC/MC18B 17.5 3.40 1.51 10.6 2.40 1.29 8.00
YMB02411
YMB03011
YMB03611
YMB04211
YMB04811
YMB06011
MA08B FC/MC24B23.63.202.1614.62.201.948.00
MA08B FC/MC30B23.63.202.1614.62.201.948.00
MA12B FC/MC35B29.63.402.5518.02.202.408.00
MA12B FC/MC42B29.63.402.5518.02.202.408.00
MA12B FC/MC42B35.04.002.7822.62.582.588.75
MA14D FC/MC48D36.04.002.7822.62.582.589.00
MA16C FC60C 42.03.763.2729.02.543.348.60
MA14D FC/MC60D42.03.763.2729.02.543.348.60
MA16C FC60C 48.03.763.7433.42.583.798.60
MA20D FC/MC60D48.03.763.7433.42.583.798.60
MA20D FC/MC60D58.03.584.7540.02.404.888.00
MA20D MC61D 58.03.584.7540.02.404.888.00
1 PH 13 SEER HP WITH MV - VARIABLE SPEED
YMB01811 MV12B FC/MC18B 17.1 3.60 1.39 10.3 2.54 1.19 8.50
YMB02411
YMB03011
YMB03611
YMB04211
YMB04811
YMB06011
MV12B FC/MC24B23.23.382.0114.02.301.788.30
MV12B FC/MC30B23.23.382.0114.02.301.788.30
MV12B FC/MC35B29.03.582.3717.32.302.208.35
MV12B FC/MC42B29.03.582.3717.32.282.228.30
MV16C FC/MC48C36.04.182.6222.22.702.419.50
MV20D FC/MC8D36.04.242.5722.22.742.359.60
MV16C FC60C 42.0 3.92 3.14 28.2 2.66 3.11 8.85
MV20D FC/MC60D 42.0 3.92 3.14 28.2 2.66 3.11 8.85
MV16C FC60C 48.03.863.6433.02.663.638.75
MV20D FC/MC60D48.03.863.6433.02.663.638.75
MV20D FC/MC60D58.03.644.6739.52.424.788.15
MV20D MC61D 58.03.664.6439.52.444.748.20
1 PH 13 SEER HP WITH AV / SV / FV - VARIABLE SPEED
YMB01811 AV24 – 17.1 3.60 1.39 10.3 2.54 1.19 8.50
YMB02411 AV24 – 23.2 3.38 2.01 14.0 2.30 1.78 8.30
YMB03011 AV36 – 29.0 3.58 2.37 17.3 2.30 2.20 8.35
YMB03611 AV36 – 36.0 4.18 2.62 22.2 2.70 2.41 9.50
AV/SV48 – 42.03.923.1428.22.663.118.85
YMB04211
AV/SV60 – 42.03.923.1428.22.663.118.85
F*FV060 – 42.03.923.1428.22.663.118.85
AV/SV48 – 48.03.863.6433.02.663.638.75
YMB04811
AV/SV60 – 48.03.863.6433.02.663.638.75
F*FV060 – 48.03.863.6433.02.663.638.75
YMB06011
AV/SV60 – 58.03.644.6739.52.424.788.15
F*FV060 – 58.03.644.6739.52.424.788.15
For Notes see Page 10.
2
STD
Unitary Products Group 9
Page 10
246809-YTG-E-0507
HEATING PERFORMANCE - Air Handlers
UNIT
MODEL*
AIR
HANDLER
COIL
MODEL
1
47°F17°FHSPF
MBH COP KW MBH COP KW
ARI HEATING
1 PH 13 SEER HP WITH AHP/ SHP
YMB01811
AHP18 – 17.53.401.5110.62.401.298.00
F*FP024 – 17.53.401.5110.62.401.298.00
YMB02411 AHP24 – 23.6 3.20 2.16 14.6 2.20 1.94 8.00
YMB03011
YMB03611
AHP30 – 29.63.402.5518.02.202.408.00
F*FP040 – 29.63.402.5518.02.202.408.00
AHP36 – 36.04.002.7822.62.582.589.25
AHP42 – 36.04.002.7822.62.582.589.25
AHP/SHP48 – 42.03.783.2528.82.563.308.60
YMB04211
AHP/SHP60 – 42.03.903.1528.22.643.138.80
F*FP045 – 42.03.783.2528.82.563.308.60
YMB04811
AHP/SHP48 – 48.03.723.7833.42.583.798.50
AHP/SHP60 – 48.03.823.6833.02.663.638.70
YMB06011 AHP/SHP60 – 58.0 3.60 4.72 39.0 2.40 4.76 8.05
1 Rated CFM same as for cooling.
2 Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and
no supplemental electric heat operation.
CP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by
the total electric power input during the same period.
— = Not Applicable.
2
STD
HEATING PERFORMANCE - Furnace Coils
UNIT
MODEL*
YMB01811
1
COIL
MODEL
MBH COP KW MBH COP KW
47°F17°FHSPF
FC/MC/PC/UC1817.53.401.5110.62.401.298.00
HC18 17.53.401.5110.62.401.298.00
ARI HEATING
FC/MC/PC/UC2423.63.202.1614.62.201.948.00
YMB02411
FC/MC/PC/UC3023.63.202.1614.62.201.948.00
HC30 23.63.202.1614.62.201.948.00
HD24 23.63.202.1614.62.201.948.00
FC/MC/PC35 29.63.402.5518.02.202.408.00
YMB03011
FC/MC/PC/UC4229.63.402.5518.02.202.408.00
HC36 29.63.402.5518.02.202.408.00
HD36 29.63.402.5518.02.202.408.00
FC/MC/PC/UC4235.04.002.7822.62.582.578.50
YMB03611
FC/MC/PC/UC4836.04.002.7822.62.582.578.50
HC42 36.04.002.7822.62.582.578.50
HD48 36.04.002.7822.62.582.578.50
FC/MC/PC/UC6042.03.763.2729.02.543.348.50
YMB04211
HC60 42.03.763.2729.02.543.348.50
HD60 42.03.763.2729.02.543.348.50
FC/MC/PC/UC6048.03.763.7433.42.583.798.60
YMB04811
HC60 48.03.763.7433.42.583.798.60
HD60 48.03.763.7433.42.583.798.60
FC/MC/PC/UC6058.03.584.7540.02.404.888.00
YMB06011
MC61 58.03.584.7540.02.404.888.00
HC60 58.03.584.7540.02.404.888.00
HD60 58.03.584.7540.02.404.888.00
1 Rated CFM same as for cooling.
2 Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping
and no supplemental electric heat operation.
COP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by
the total electric power input during the same period.
10 Unitary Products Group
2
STD
Page 11
HEATING CAPACITY - With Variable Speed Furnaces
UNIT
MODEL
YMB01811
YMB02411
YMB03011
YMB03611
For Notes see Page 12.
VARIABLE
SPEED
FURNACE
PV8*A12 FC/MC/PC18A 17.03.641.3710.22.561.178.50
PV9*A12 FC/MC/PC18A 17.13.581.4010.32.521.208.50
P(C,V)9*B12 FC/MC/PC18B 17.0 3.62 1.38 10.2 2.56 1.17 8.50
PV8*A12 HC18 17.03.641.3710.22.561.178.50
PV9*A12 HC18 17.13.581.4010.32.521.208.50
PV8*A12 FC/MC/PC24A 23.23.322.0514.12.281.818.15
PV9*A12 FC/MC/PC24A 23.23.322.0514.12.281.818.15
P(C,V)9*B12 FC/MC/PC24B 23.2 3.32 2.05 14.1 2.28 1.81 8.15
PV8*A12 FC/MC/PC30A 23.23.342.0314.12.281.818.20
PV9*A12 FC/MC/PC30A 23.23.322.0514.12.281.818.15
P(C,V)9*B12 FC/MC/PC30B 23.2 3.34 2.03 14.1 2.28 1.81 8.20
PV8*A12 HC30 23.23.342.0314.12.281.818.20
PV9*A12 HC30 23.23.322.0514.12.281.818.15
PV8*A12 HD24 23.23.342.0314.12.281.818.20
PV9*A12 HD24 23.23.322.0514.12.281.818.15
PV8*B16 FC/MC/PC35B 29.03.582.3717.32.302.208.35
P(C,V)9*B12 FC/MC/PC35B 29.0 3.60 2.36 17.2 2.30 2.19 8.35
PV8*B16 HC36 29.43.502.4617.62.262.288.15
P(C,V)9*B12 HC36 29.43.502.4617.62.242.308.10
PV8*A12 HD36 29.43.502.4617.62.262.288.15
PV8*B16 HD36 29.03.582.3717.32.282.228.30
PV8*C16 HD36 29.03.602.3617.32.302.208.35
PV8*C20 HD36 29.03.602.3617.22.302.198.35
PV9*A12 HD36 29.43.502.4617.62.242.308.10
P(C,V)9*B12 HD36 29.23.502.4417.52.262.278.20
P(C,V)9*C16 HD36 29.23.562.4017.42.282.248.30
P(C,V)9*C20 HD36 29.23.562.4017.42.282.248.30
PV8*B16 FC/MC/PC42B 34.03.602.6423.02.682.588.40
P(C,V)9*B12 FC/MC/PC42B 34.0 3.50 2.64 23.0 2.68 2.58 8.40
PV8*C16 FC/MC/PC42C 34.0 3.60 2.64 23.0 2.68 2.58 8.50
PV8*C20 FC/MC/PC42C 34.0 3.50 2.64 23.0 2.68 2.58 8.50
P(C,V)9*C16 FC/MC/PC42C 34.0 3.60 2.64 23.0 2.68 2.58 8.50
P(C,V)9*C20 FC/MC/PC42C 34.0 3.50 2.64 23.0 2.68 2.58 8.50
PV8*C16 FC/MC/PC48C 35.2 3.90 2.64 24.0 2.72 2.58 9.50
PV8*C20 FC/MC/PC48C 35.2 3.90 2.64 24.0 2.72 2.58 9.50
P(C,V)9*C16 FC/MC/PC48C 35.4 3.86 2.69 24.2 2.70 2.63 9.40
P(C,V)9*C20 FC/MC/PC48C 35.4 3.86 2.69 24.2 2.70 2.63 9.50
P(C,V)9*D20 FC/MC/PC48D 35.4 3.86 2.69 24.2 2.70 2.63 9.50
PV8*C16 HC42 35.23.902.6424.02.722.589.50
PV8*C20 HC42 35.23.902.6424.02.722.589.50
P(C,V)9*C16 HC42 35.43.862.6924.22.702.639.40
P(C,V)9*C20 HC42 35.43.862.6924.22.702.639.50
PV8*C16 HD48 35.23.902.6424.02.722.589.50
PV8*C20 HD48 35.23.902.6424.02.722.589.50
P(C,V)9*C16 HD48 35.43.862.6924.22.702.639.40
P(C,V)9*C20 HD48 35.43.862.6924.22.702.639.50
P(C,V)9*D20 HD48 35.23.862.6724.02.702.609.50
COIL
MODEL
1
246809-YTG-E-0507
ARI HEATING
47°F17°FHSPF
MBH COP KW MBH COP KW STD
2
Unitary Products Group 11
Page 12
246809-YTG-E-0507
HEATING CAPACITY - With Variable Speed Furnaces (Continued)
UNIT
MODEL
VARIABLE
SPEED
FURNACE
COIL
MODEL
1
47°F17°FHSPF
MBH COP KW MBH COP KW STD
ARI HEATING
PV8*C16 FC/PC60C 42.0 3.84 3.20 28.4 2.60 3.20 8.65
PV8*C20 FC/PC60C 42.0 3.86 3.19 28.4 2.60 3.20 8.70
P(C,V)9*C16 FC/PC60C 42.0 3.84 3.20 28.6 2.60 3.22 8.65
P(C,V)9*C20 FC/PC60C 42.0 3.84 3.20 28.4 2.60 3.20 8.65
P(C,V)9*D20 FC/MC/PC60D 42.0 3.82 3.22 28.6 2.60 3.22 8.65
PV8*C20 HC60 42.0 3.86 3.19 28.4 2.60 3.20 8.70
YMB04211
P(C,V)9*C20 HC60 42.0 3.84 3.20 28.6 2.60 3.22 8.65
P(C,V)9*D20 HC60 42.0 3.82 3.22 28.6 2.60 3.22 8.65
PV8*C16 HD60 42.0 3.84 3.20 28.4 2.60 3.20 8.65
PV8*C20 HD60 42.0 3.86 3.19 28.4 2.60 3.20 8.70
P(C,V)9*C16 HD60 42.0 3.84 3.20 28.6 2.60 3.22 8.65
P(C,V)9*C20 HD60 42.0 3.84 3.20 28.4 2.60 3.20 8.65
P(C,V)9*D20 HD60 42.0 3.82 3.22 28.6 2.60 3.22 8.65
PV8*C16 FC/PC60C 48.03.783.7233.02.603.728.60
PV8*C20 FC/PC60C 48.03.803.7033.22.643.688.65
P(C,V)9*C16 FC/PC60C 48.03.763.7433.42.603.768.60
P(C,V)9*C20 FC/PC60C 48.03.783.7233.22.603.748.60
P(C,V)9*D20 FC/MC/PC60D 48.03.803.7033.22.643.688.65
PV8*C20 HC60 48.03.803.7033.22.643.688.65
YMB04811
P(C,V)9*C20 HC60 48.03.783.7233.22.603.748.60
P(C,V)9*D20 HC60 48.03.803.7033.22.643.688.65
PV8*C16 HD60 48.03.783.7233.02.603.728.60
PV8*C20 HD60 48.03.803.7033.22.643.688.65
P(C,V)9*C16 HD60 48.03.763.7433.42.603.768.60
P(C,V)9*C20 HD60 48.03.783.7233.22.603.748.60
P(C,V)9*D20 HD60 48.03.803.7033.22.643.688.65
PV8*C20 FC/PC60C 58.03.624.6939.52.424.788.10
P(C,V)9*C20 FC/PC60C 58.03.604.7239.02.404.768.10
P(C,V)9*D20 FC/MC/PC60D 58.03.644.6739.02.424.728.15
PV8*C20 MC61D 58.03.624.6939.52.424.788.10
P(C,V)9*C20 MC61D 58.03.604.7239.02.404.768.10
YMB06011
P(C,V)9*D20 MC61D 58.03.644.6739.02.424.728.15
PV8*C20 HC60 58.03.624.6939.52.424.788.10
P(C,V)9*D20 HC60 58.03.644.6739.02.424.728.15
PV8*C20 HD60 58.03.624.6939.52.424.788.10
P(C,V)9*C20 HD60 58.03.604.7239.02.404.768.10
P(C,V)9*D20 HD60 58.03.644.6739.02.424.728.15
1 Rated CFM same as for cooling.
2 Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no
supplemental electric heat operation.
COP equals MBH output divided by (total KW input x 3.412).
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by
the total electric power input during the same period.
2
12 Unitary Products Group
Page 13
246809-YTG-E-0507
ACCESSORIES*
Hard Start Kit - Provides increased starting torque for areas
with low voltage.
TXV Kits - 1TVM2* series thermal expansion valves precisely
meter refrigerant for optimum performance.
Compressor Discharge Temperature Sensor
(2SN02700124) - Adds an additional safety for improved
compressor reliability and diagnostics. Compatible only with
13 SEER and higher heat pumps.
Bonnet Sensor (373-09243-000) - The bonnet sensor is
used to sense plenum temperature, and is optional with a gas
or oil back-up heat source. Compatible only with 13 SEER
and higher heat pumps.
Dehumidistat (2HU16700124) - Provides increased dehumidification when matched with variable speed furnace or air
handler.
Heat Pump Risers - (526-35389-000, 526-35390-000, 52635391-000) - 3", 6", or 12" risers mount easily in composite
base pan recesses, ensuring the unit stays clear of snow and
ice build-up in harsh winter weather.
Room Thermostats - A wide selection of matching thermostats is available to provide features required for any installation.
2H/1C, manual changeover electronic non-programmable
thermostat.
3H/2C, non-programmable digital thermostat.
3H/2C, auto/manual changeover, electronic programmable,
7-day, thermostat.
* For the most current accessory information, refer to the
price book or consult factroy.
SOUND POWER RATINGS*
UNIT MODEL
018 69 71
024 71 73
030 72 74
036 72 72
042 72 74
048 73 74
060 73 74
* Rated in accordance with ARI 270-95 Standards.
Cooling Heating
(dBA)
COLOR GRILLES
CHOICE OF SEVERAL COLOR COIL GRILLES TO
COMPLIMENT ANY HOME.
Color Grill Color Description
1CP0126
1CP0130 030, 036
1CP0136 042
1CP1136 048, 060
1CP0226
1CP0230 030, 036
1CP0236 042
1CP1236 048, 060
1CP0326
1CP0330 030, 036
1CP0336 042
1CP1336 048, 060
1CP0426
1CP0430 030, 036
1CP0436 042
1CP1436 048, 060
1CP0526
1CP0530 030, 036
1CP0536 042
1CP1536 048, 060
1CP0626
1CP0630 030, 036
1CP0636 042
1CP1636 048, 060
Terra Cotta
Jet Black
Stone
Bermuda
Gunmetal
Chocolate
018, 024
018, 024
018, 024
018, 024
018, 024
018, 024
Unitary Products Group 13
Page 14
246809-YTG-E-0507
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB01811
INDOOR COIL MODEL NO. FC/MC/PC18
CONDENSER
ENTERING AIR
TEMPERATURE
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
ID CFM 450 600 750
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 16.1 17.1 17.1 19.0 21.4 17.8 18.3 18.1 20.0 22.1 19.5 19.4 19.1 21.1 22.8
S.C. 15.4 13.8 11.7 11.6 9.5 17.0 16.3 13.6 13.3 10.5 18.6 18.8 15.6 15.1 11.5
K.W. 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
T.C. 15.3 16.4 16.4 18.2 20.5 17.0 17.4 17.3 19.1 21.2 18.6 18.5 18.2 20.1 21.9
S.C. 14.8 13.3 11.3 11.3 9.2 16.4 15.6 13.1 13.0 10.2 17.9 18.0 15.0 14.7 11.2
K.W. 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.1
T.C. 14.5 15.7 15.7 17.5 19.6 16.1 16.6 16.5 18.3 20.4 17.8 17.5 17.3 19.1 21.1
S.C. 14.2 12.9 10.9 11.0 8.9 15.8 15.0 12.7 12.7 9.9 17.3 17.2 14.4 14.4 10.9
K.W. 1.1 1.1 1.1 1.2 1.2 1.1 1.2 1.1 1.2 1.2 1.2 1.2 1.2 1.2 1.2
T.C. 13.6 14.9 15.0 16.8 18.7 15.3 15.8 15.7 17.4 19.5 17.0 16.6 16.4 18.0 20.3
S.C. 13.7 12.4 10.5 10.6 8.5 15.1 14.4 12.2 12.4 9.6 16.6 16.4 13.8 14.1 10.7
K.W. 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3
T.C. 13.0 14.2 14.2 15.9 17.8 14.6 15.0 14.9 16.5 18.5 16.1 15.8 15.5 17.1 19.1
S.C. 13.0 11.9 10.1 10.3 8.2 14.4 13.9 11.7 11.9 9.3 15.8 15.9 13.4 13.6 10.3
K.W. 1.4 1.4 1.4 1.4 1.5 1.4 1.4 1.4 1.5 1.5 1.4 1.5 1.4 1.5 1.5
T.C. 12.4 13.4 13.4 15.1 16.9 13.8 14.2 14.1 15.6 17.5 15.2 15.0 14.7 16.2 18.0
S.C. 12.4 11.5 9.7 9.9 7.9 13.7 13.4 11.3 11.5 8.9 15.1 15.4 13.0 13.2 9.9
K.W. 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
T.C. 11.8 12.7 12.7 14.3 16.0 13.1 13.4 13.3 14.8 16.5 14.3 14.2 13.9 15.3 16.9
S.C. 11.7 11.0 9.3 9.5 7.6 13.0 12.9 10.9 11.1 8.6 14.3 14.9 12.6 12.7 9.6
K.W. 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Air Handler Coil
MA08B FC/MC18B 1.00 1.00 1.00
MV12B FC/MC18B 1.01 0.99 0.96
AV24 – 1.01 0.99 0.96
F*FP024 – 1.00 1.00 1.00
AHP18 – 1.01 1.05 1.00
– HC18 1.00 1.00 1.00
T.C. S.C. KW
Variable Speed
Furnace
PV8*A12 FC/MC/PC18A 1.02 1.01 0.96
PV9*A12 FC/MC/PC18A 1.02 1.01 0.96
P(C,V)9*B12 FC/MC/PC18B 1.02 1.01 0.96
PV8*A12 HC18 1.021.010.96
PV9*A12 HC18 1.021.010.96
Coil
T.C. S.C. KW
14 Unitary Products Group
Page 15
246809-YTG-E-0507
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB02411
INDOOR COIL MODEL NO. FC/MC/PC24
CONDENSER
ENTERING AIR
TEMPERATURE
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
ID CFM 600 800 1000
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 15.4 18.9 19.1 20.9 23.6 16.7 20.1 20.0 22.2 24.9 18.1 21.2 20.9 23.5 26.2
S.C. 15.4 15.8 13.3 13.3 10.8 16.8 18.4 15.3 15.6 12.3 18.1 21.0 17.2 17.9 13.8
K.W. 1.5 1.6 1.5 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
T.C. 18.3 20.8 20.9 23.4 26.4 19.9 22.0 22.1 24.5 27.7 21.4 23.3 23.3 25.6 29.0
S.C. 18.3 17.1 14.6 14.7 12.0 19.8 19.8 16.8 16.9 13.6 21.4 22.4 19.1 19.1 15.1
K.W. 1.3 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4
T.C. 16.9 19.8 20.0 22.1 25.0 18.3 21.0 21.1 23.3 26.3 19.7 22.2 22.1 24.5 27.6
S.C. 16.8 16.5 13.9 14.0 11.4 18.3 19.1 16.1 16.2 12.9 19.8 21.7 18.2 18.5 14.4
K.W. 1.4 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
T.C. 16.7 18.9 19.1 21.1 23.8 18.1 20.0 20.0 22.2 24.9 19.5 21.1 20.9 23.2 26.1
S.C. 16.7 16.0 13.5 13.6 11.0 18.1 18.4 15.6 15.7 12.4 19.5 20.7 17.6 17.8 13.9
K.W. 1.7 1.7 1.7 1.8 1.8 1.7 1.7 1.7 1.8 1.8 1.7 1.7 1.7 1.8 1.8
T.C. 16.5 18.0 18.1 20.1 22.5 17.9 19.0 19.0 21.0 23.6 19.3 20.0 19.8 21.9 24.6
S.C. 16.5 15.5 13.1 13.1 10.5 17.9 17.6 15.1 15.2 11.9 19.2 19.7 17.0 17.2 13.3
K.W. 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
T.C. 16.4 17.1 17.2 19.1 21.3 17.7 18.0 17.9 19.9 22.3 19.0 18.9 18.6 20.6 23.2
S.C. 16.4 15.0 12.7 12.7 10.1 17.7 16.9 14.6 14.6 11.5 18.9 18.8 16.4 16.6 12.8
K.W. 2.2 2.2 2.2 2.3 2.3 2.2 2.3 2.2 2.3 2.3 2.3 2.3 2.3 2.3 2.3
T.C. 16.2 16.2 16.3 18.2 20.1 17.5 17.0 16.9 18.7 20.9 18.8 17.8 17.5 19.3 21.8
S.C. 16.2 14.6 12.4 12.2 9.7 17.5 16.2 14.1 14.1 11.0 18.7 17.9 15.8 16.0 12.3
K.W. 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Air Handler Coil
MA08B FC/MC24B 1.00 1.00 1.00
MA08B FC/MC30B 1.00 1.00 1.00
MV12B FC/MC24B 1.02 1.00 0.96
MV12B FC/MC30B 1.02 1.00 0.96
AV24 – 1.02 1.00 0.96
AHP24 – 1.00 1.01 1.00
– FC/MC/PC/UC30 1.00 1.00 1.00
– HC30 1.01 1.01 1.00
– HD24 1.02 1.02 1.00
T.C. S.C. KW
Variable Speed
Furnace
PV8*A12 FC/MC/PC24A 1.01 1.01 0.96
PV9*A12 FC/MC/PC24A 1.01 1.01 0.96
P(C,V)9*B12 FC/MC/PC24B 1.01 1.01 0.96
PV8*A12 FC/MC/PC30A 1.01 1.01 0.96
PV9*A12 FC/MC/PC30A 1.01 1.01 0.96
P(C,V)9*B12 FC/MC/PC30B 1.01 1.01 0.96
PV8*A12 HC30 1.03 1.02 0.96
PV9*A12 HC30 1.03 1.02 0.96
PV8*A12 HD24 1.03 1.04 0.96
PV9*A12 HD24 1.03 1.04 0.96
Coil
T.C. S.C. KW
Unitary Products Group 15
Page 16
246809-YTG-E-0507
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB03011
INDOOR COIL MODEL NO. AHP30
CONDENSER
ENTERING AIR
TEMPERATURE
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
ID CFM 800 1000 1200
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 26.3 28.5 28.4 31.2 34.1 28.3 29.2 29.4 32.2 35.2 30.3 29.9 30.4 33.1 36.3
S.C. 25.8 23.4 19.9 19.6 15.5 27.8 26.4 22.0 21.7 16.6 29.8 29.5 24.1 23.8 17.7
K.W. 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.6 1.6
T.C. 25.7 27.4 27.5 30.1 33.0 27.4 28.2 28.4 31.0 33.9 29.2 29.1 29.3 31.9 34.8
S.C. 25.1 23.0 19.5 19.2 15.1 26.9 25.8 21.6 21.3 16.5 28.7 28.6 23.7 23.3 17.8
K.W. 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.7 1.8 1.7 1.7 1.7 1.8 1.8
T.C. 25.0 26.4 26.5 29.1 31.8 26.6 27.3 27.4 29.9 32.6 28.1 28.2 28.3 30.7 33.4
S.C. 24.5 22.6 19.1 18.8 14.7 26.1 25.2 21.2 20.8 16.3 27.7 27.8 23.3 22.8 17.9
K.W. 1.9 1.9 1.9 1.9 2.0 1.9 1.9 1.9 1.9 2.0 1.9 1.9 1.9 2.0 2.0
T.C. 24.3 25.3 25.6 28.0 30.7 25.7 26.3 26.4 28.8 31.3 27.0 27.3 27.2 29.5 31.9
S.C. 23.8 22.2 18.7 18.4 14.3 25.2 24.6 20.8 20.4 16.1 26.6 27.0 22.9 22.4 18.0
K.W. 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.1 2.2 2.1 2.2 2.1 2.2 2.2
T.C. 22.9 24.0 24.3 26.7 29.3 24.1 25.1 25.0 27.3 29.9 25.4 26.2 25.8 28.0 30.4
S.C. 22.5 21.7 18.2 17.9 13.8 23.7 23.7 20.3 19.9 15.5 25.0 25.8 22.4 21.8 17.1
K.W. 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.5
T.C. 21.6 22.7 22.9 25.3 27.9 22.7 23.9 23.7 25.9 28.5 23.8 25.0 24.4 26.5 29.0
S.C. 21.2 21.2 17.8 17.4 13.4 22.3 22.9 19.9 19.3 14.8 23.5 24.6 22.0 21.2 16.2
K.W. 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7
T.C. 20.2 21.5 21.6 24.0 26.6 21.2 22.6 22.3 24.5 27.1 22.1 23.8 23.1 25.1 27.6
S.C. 19.9 20.6 17.3 16.9 13.0 20.9 22.1 19.4 18.8 14.1 22.0 23.5 21.5 20.7 15.3
K.W. 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Air Handler Coil
MA12B FC/MC35B 0.99 1.00 1.00
MA12B FC/MC42B 0.99 1.00 1.00
MV12B FC/MC35B 1.01 0.99 0.96
MV12B FC/MC42B 1.01 0.99 0.96
AV36 – 1.01 0.99 0.96
F*FP040 – 0.99 1.00 1.00
– FC/MC/PC35 0.99 1.00 1.00
– HC36 1.00 1.00 1.00
– HD36 1.00 1.00 1.00
T.C. S.C. KW
Variable Speed
Furnace
PV8*B16 FC/MC/PC35B 1.01 1.00 0.96
P(C,V)9*B12 FC/MC/PC35B 1.01 1.00 0.96
PV8*B16 HC36 1.011.000.96
P(C,V)9*B12 HC36 1.01 1.00 0.96
PV8*A12 HD36 1.011.000.96
PV8*B16 HD36 1.011.000.96
PV8*C16 HD36 1.021.000.96
PV8*C20 HD36 1.021.010.96
PV9*A12 HD36 1.011.001.00
P(C,V)9*B12 HD36 1.01 1.00 0.96
P(C,V)9*C16 HD36 1.01 1.00 0.96
P(C,V)9*C20 HD36 1.01 1.00 0.96
Coil
T.C. S.C. KW
16 Unitary Products Group
Page 17
246809-YTG-E-0507
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB03611
INDOOR COIL MODEL NO. FC/MC/PC/UC48
CONDENSER
ENTERING AIR
TEMPERATURE
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
ID CFM 1000 1200 1400
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 33.3 36.9 35.5 35.8 39.2 35.5 37.4 37.8 34.5 40.7 37.6 37.9 40.1 33.2 42.3
S.C. 32.7 33.6 25.5 22.7 18.5 34.9 34.7 29.6 20.8 20.1 37.0 35.7 33.8 19.0 21.8
K.W. 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8
T.C. 32.5 35.5 33.9 34.2 37.7 34.4 36.1 35.0 33.8 39.2 36.4 36.6 36.1 33.3 40.6
S.C. 31.9 32.9 24.9 22.1 17.8 33.9 34.0 27.2 21.6 19.5 35.9 35.0 29.4 21.1 21.1
K.W. 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.1
T.C. 31.6 34.2 32.3 32.7 36.3 33.4 34.8 32.1 33.0 37.6 35.2 35.4 32.0 33.3 38.8
S.C. 31.1 32.2 24.4 21.4 17.1 33.0 33.3 24.7 22.4 18.8 34.8 34.4 25.0 23.3 20.5
K.W. 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3
T.C. 30.8 32.8 30.7 31.2 34.9 32.4 33.4 29.3 32.3 36.0 34.0 34.1 27.9 33.3 37.1
S.C. 30.3 31.5 23.9 20.8 16.3 32.0 32.6 22.2 23.1 18.1 33.7 33.7 20.6 25.5 19.8
K.W. 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.6 2.5 2.5 2.5 2.5 2.6
T.C. 29.2 31.4 29.4 30.2 33.4 30.9 32.0 28.8 30.6 34.4 32.6 32.6 28.2 31.0 35.3
S.C. 28.8 30.4 23.2 21.8 16.2 30.6 31.4 22.9 22.5 17.7 32.3 32.4 22.6 23.3 19.2
K.W. 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9
T.C. 27.8 30.0 28.3 29.1 31.9 29.5 30.6 28.4 29.0 32.8 31.2 31.2 28.6 28.8 33.6
S.C. 27.4 29.4 22.6 22.8 16.1 29.1 30.3 23.6 21.9 17.3 30.9 31.2 24.6 21.1 18.6
K.W. 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2
T.C. 26.3 28.7 27.1 28.1 30.4 28.1 29.3 28.0 27.4 31.2 29.9 29.9 28.9 26.6 31.9
S.C. 25.9 28.4 22.0 23.8 15.9 27.7 29.2 24.3 21.4 17.0 29.6 30.0 26.5 19.0 18.1
K.W. 3.5 3.5 3.5 3.5 3.6 3.5 3.5 3.5 3.5 3.6 3.5 3.5 3.5 3.5 3.6
Multipliers for determining the performance with other indoor sections
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Air Handler Coil
MA12B FC/MC42B 0.98 0.98 1.00
MA14D FC/MC48D 1.00 1.00 1.00
MV16C FC/MC48C 1.02 0.99 0.96
MV20D FC/MC48D 1.02 0.99 0.96
AV36 – 1.02 0.99 0.96
AHP42 – 1.00 1.00 1.00
– FC/MC/PC/UC42 0.98 0.98 1.00
– HC42 1.01 0.98 1.00
– HD48 1.02 1.02 1.00
T.C. S.C. KW
Variable Speed
Furnace
PV8*B16 FC/MC/PC42B 0.99 0.98 0.96
P(C,V)9*B12 FC/MC/PC42B 0.99 0.98 1.00
PV8*C16 FC/MC/PC42C 0.99 0.98 1.00
PV8*C20 FC/MC/PC42C 0.99 0.98 0.96
P(C,V)9*C16 FC/MC/PC42C 0.99 0.98 1.00
P(C,V)9*C20 FC/MC/PC42C 0.99 0.98 0.96
PV8*C16 FC/MC/PC48C 1.02 1.01 0.96
PV8*C20 FC/MC/PC48C 1.02 1.01 0.96
P(C,V)9*C16 FC/MC/PC48C 1.02 1.01 0.96
P(C,V)9*C20 FC/MC/PC48C 1.02 1.01 0.96
P(C,V)9*D20 FC/MC/PC48D 1.02 1.01 0.96
PV8*C16 HC42 1.02 1.02 0.96
PV8*C20 HC42 1.02 1.02 0.96
P(C,V)9*C16 HC42 1.02 1.02 0.96
P(C,V)9*C20 HC42 1.02 1.02 0.96
PV8*C16 HD48 1.02 1.02 0.96
PV8*C20 HD48 1.02 1.02 0.96
P(C,V)9*C16 HD48 1.02 1.02 0.96
P(C,V)9*C20 HD48 1.02 1.02 0.96
P(C,V)9*D20 HD48 1.02 1.01 0.96
Coil
T.C. S.C. KW
Unitary Products Group 17
Page 18
246809-YTG-E-0507
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB04211
INDOOR COIL MODEL NO. FC/MC/PC60
CONDENSER
ENTERING AIR
TEMPERATURE
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
ID CFM 1200 1400 1600
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C.
S.C.
K.W.
T.C.
S.C.
K.W.
T.C.
S.C.
K.W.
T.C.
S.C.
K.W.
T.C.
S.C.
K.W.
T.C.
S.C.
K.W.
T.C.
S.C.
K.W.
40.3 43.7 41.4 45.8 47.2 43.9 45.1 42.2 46.7 48.5 47.6 46.6 43.0 47.6 49.7
38.3 37.1 30.3 30.7 23.8 40.3 39.6 32.8 32.9 26.2 42.3 42.1 35.2 35.0 28.7
2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3
38.5 42.1 40.2 44.2 45.5 42.0 43.6 41.0 45.0 46.3 45.4 45.1 41.8 45.9 47.1
37.2 36.3 29.8 30.0 23.0 39.1 38.7 32.2 32.3 25.1 41.0 41.0 34.6 34.5 27.1
2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6 2.6
36.8 40.6 38.9 42.6 43.7 40.0 42.1 39.7 43.4 44.2 43.3 43.5 40.5 44.1 44.6
36.1 35.6 29.3 29.4 22.2 37.9 37.7 31.7 31.6 23.9 39.7 39.9 34.0 33.9 25.5
2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9
35.1 39.0 37.6 41.1 42.0 38.1 40.5 38.5 41.7 42.0 41.1 42.0 39.3 42.3 42.1
35.0 34.8 28.8 28.7 21.5 36.7 36.8 31.1 31.0 22.7 38.4 38.8 33.3 33.4 23.9
3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.3
34.4 37.3 35.7 38.8 39.6 37.0 38.8 36.5 39.4 39.5 39.7 40.3 37.3 40.1 39.5
33.6 33.4 28.0 27.8 20.7 35.1 35.2 30.2 30.1 21.8 36.6 37.0 32.4 32.5 23.0
3.7 3.7 3.6 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7 3.7
33.7 35.6 33.8 36.6 37.2 36.0 37.2 34.6 37.2 37.2 38.3 38.7 35.4 37.9 37.1
32.2 32.1 27.2 26.9 20.0 33.6 33.7 29.3 29.3 21.0 34.9 35.2 31.5 31.6 22.1
4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1 4.1
33.0 33.9 31.9 34.4 34.9 35.0 35.5 32.7 35.1 34.8 36.9 37.1 33.4 35.7 34.6
30.8 30.8 26.4 26.1 19.2 32.0 32.2 28.5 28.4 20.2 33.2 33.5 30.6 30.8 21.2
4.6 4.6 4.5 4.5 4.6 4.6 4.6 4.6 4.5 4.6 4.6 4.6 4.6 4.5 4.6
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Air Handler Coil
MA14D FC/MC60D 1.00 1.00 1.00
MA16C FC60C 1.00 1.00 1.00
MV20D FC/MC60D 1.01 0.98 0.96
MV16C FC60C 0.99 0.96 1.00
AV/SV48 – 1.01 0.98 0.96
AV/SV60 – 1.01 0.98 0.96
F*FV060 – 1.01 0.98 0.96
AHP/SHP48 – 1.00 1.00 1.00
AHP/SHP60 – 1.01 1.00 0.96
F*FP045 – 1.00 1.00 1.00
– HC60 1.00 1.00 1.00
– HD60 1.00 1.00 1.00
T.C. S.C. KW
Variable Speed
Furnace
P(C,V)9*D20 FC/MC/PC60D 1.00 1.00 1.00
PV8*C16 FC/PC60C 1. 00 1.00 1.00
PV8*C20 FC/PC60C 1. 01 1.00 1.00
P(C,V)9*C16 FC/PC60C 1.00 1.00 1.00
P(C,V)9*C20 FC/PC60C 1.00 1.00 1.00
PV8*C20 HC60 1.011.001.00
P(C,V)9*C20 HC60 1.00 1.00 1.00
P(C,V)9*D20 HC60 1.00 1.00 1.00
PV8*C16 HD60 1.011.001.00
PV8*C20 HD60 1.011.001.00
P(C,V)9*C16 HD60 1.01 1.00 1.00
P(C,V)9*C20 HD60 1.01 1.00 1.00
P(C,V)9*D20 HD60 1.00 1.00 1.00
Coil
T.C. S.C. KW
18 Unitary Products Group
Page 19
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB04811
INDOOR COIL MODEL NO. FC/MC/PC60
CONDENSER
ENTERING AIR
TEMPERATURE
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
ID CFM 1400 1600 1800
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 43.6 47.2 46.7 50.8 55.5 46.0 48.7 47.3 51.8 55.7 48.3 50.3 47.9 52.8 55.9
S.C. 43.2 41.1 32.8 33.4 26.3 44.9 43.8 35.5 35.5 27.2 46.6 46.5 38.2 37.7 28.2
K.W. 2.4 2.4 2.4 2.5 2.5 2.4 2.4 2.4 2.5 2.5 2.4 2.4 2.4 2.5 2.5
T.C. 42.1 45.4 44.4 48.8 52.7 44.3 46.8 45.1 49.7 53.1 46.5 48.2 45.8 50.7 53.5
S.C. 41.6 40.0 32.4 32.6 25.2 43.3 42.5 34.7 34.7 26.2 44.9 44.9 37.1 36.8 27.2
K.W. 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.9
T.C. 40.5 43.7 42.1 46.8 50.0 42.6 44.9 42.9 47.7 50.5 44.8 46.1 43.8 48.5 51.1
S.C. 40.1 39.0 31.9 31.8 24.1 41.7 41.2 34.0 33.8 25.2 43.3 43.4 36.0 35.8 26.3
K.W. 3.1 3.1 3.1 3.2 3.2 3.1 3.1 3.1 3.2 3.2 3.1 3.2 3.1 3.2 3.2
T.C. 39.0 41.9 39.9 44.8 47.2 41.0 42.9 40.8 45.6 47.9 43.0 44.0 41.7 46.4 48.6
S.C. 38.5 38.0 31.5 31.0 23.0 40.0 39.9 33.2 32.9 24.2 41.6 41.8 34.9 34.9 25.3
K.W. 3.5 3.5 3.5 3.5 3.6 3.5 3.5 3.5 3.5 3.6 3.5 3.5 3.5 3.5 3.6
T.C. 37.2 39.5 37.7 42.4 44.4 39.4 40.5 38.5 43.1 45.1 41.6 41.5 39.4 43.8 45.7
S.C. 36.5 36.2 30.5 30.0 22.0 38.1 37.9 32.2 31.9 23.1 39.6 39.5 33.8 33.9 24.1
K.W. 4.0 4.0 4.0 4.0 4.1 4.0 4.0 4.0 4.0 4.1 4.0 4.0 4.0 4.0 4.1
T.C. 35.5 37.3 35.6 40.1 41.8 37.9 38.1 36.4 40.7 42.3 40.2 39.0 37.1 41.4 42.8
S.C. 34.6 34.5 29.5 29.1 21.1 36.2 35.9 31.1 31.0 22.0 37.8 37.3 32.8 32.9 22.9
K.W. 4.5 4.5 4.5 4.5 4.6 4.5 4.5 4.5 4.5 4.6 4.5 4.5 4.5 4.5 4.6
T.C. 33.8 35.0 33.5 37.7 39.1 36.3 35.8 34.2 38.3 39.5 38.8 36.5 34.8 38.9 39.9
S.C. 32.7 32.8 28.5 28.2 20.2 34.3 34.0 30.1 30.0 21.0 35.9 35.1 31.7 31.9 21.7
K.W. 5.0 4.9 5.0 5.0 5.1 5.0 5.0 5.0 5.0 5.1 5.0 5.0 5.0 5.0 5.1
246809-YTG-E-0507
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Air Handler Coil
MA20D FC/MC60D 1.00 1.00 1.00
MA16C FC60C 1.00 1.00 1.00
MV20D FC/MC60D 1.00 0.97 1.00
MV16C FC60C 0.98 0.96 1.00
AV/SV48 – 1.00 0.97 1.00
AV/SV60 – 1.00 0.97 1.00
F*FV060 – 1.00 0.97 1.00
AHP/SHP48 – 1.00 1.02 1.00
AHP/SHP60 – 1.00 1.00 1.00
– HC60 1.00 1.00 1.00
– HD60 1.00 1.00 1.00
T.C. S.C. KW
Variable Speed
Furnace
P(C,V)9*D20 FC/MC/PC60D 1.00 1.00 1.00
PV8*C16 FC/PC60C 1.00 0.97 1.00
PV8*C20 FC/PC60C 1.00 1.00 1.00
P(C,V)9*C16 FC/PC60C 1.00 1.00 1.00
P(C,V)9*C20 FC/PC60C 1.00 1.00 1.00
PV8*C20 HC60 1.00 1.00 1.00
P(C,V)9*C20 HC60 1.00 1.00 1.00
P(C,V)9*D20 HC60 1.00 1.00 1.00
PV8*C16 HD60 1.00 0.97 1.00
PV8*C20 HD60 1.00 1.01 1.00
P(C,V)9*C16 HD60 1.00 1.01 1.00
P(C,V)9*C20 HD60 1.00 1.01 1.00
P(C,V)9*D20 HD60 1.00 1.01 1.00
Coil
T.C. S.C. KW
Unitary Products Group 19
Page 20
246809-YTG-E-0507
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB06011
INDOOR COIL MODEL NO. FC/MC/PC60
CONDENSER
ENTERING AIR
TEMPERATURE
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES ARE NET (KBTUH) WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
ID CFM 1600 1800 2000
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 54.0 55.2 55.2 60.7 64.4 56.4 57.0 56.5 62.3 65.6 58.7 58.7 57.7 63.9 66.7
S.C. 49.8 47.0 36.8 39.6 29.4 52.1 50.2 40.6 42.1 30.8 54.4 53.5 44.3 44.6 32.2
K.W. 2.9 2.9 3.0 3.0 3.1 3.0 2.9 3.0 3.0 3.1 3.0 2.9 3.0 3.0 3.1
T.C. 52.5 53.5 52.6 58.5 61.5 54.7 55.3 53.9 60.0 62.9 57.0 57.1 55.2 61.5 64.2
S.C. 48.2 45.9 36.6 38.4 28.4 50.4 49.1 39.9 41.0 30.0 52.6 52.2 43.3 43.5 31.6
K.W. 3.3 3.4 3.4 3.4 3.5 3.4 3.4 3.4 3.5 3.5 3.4 3.4 3.4 3.5 3.5
T.C. 50.9 51.8 50.1 56.2 58.7 53.0 53.7 51.4 57.6 60.2 55.2 55.5 52.7 59.1 61.7
S.C. 46.7 44.9 36.3 37.3 27.5 48.7 47.9 39.3 39.8 29.2 50.8 50.9 42.3 42.4 31.0
K.W. 3.7 3.8 3.8 3.9 3.9 3.8 3.8 3.8 3.9 4.0 3.8 3.8 3.9 3.9 4.0
T.C. 49.3 50.2 47.6 53.9 55.8 51.4 52.0 48.9 55.3 57.5 53.4 53.8 50.2 56.6 59.2
S.C. 45.1 43.9 36.0 36.1 26.6 47.1 46.8 38.7 38.7 28.5 49.0 49.6 41.3 41.2 30.4
K.W. 4.2 4.3 4.3 4.3 4.4 4.2 4.3 4.3 4.3 4.4 4.2 4.3 4.3 4.3 4.4
T.C. 46.9 47.7 44.9 51.1 52.9 49.0 49.3 46.2 52.3 54.3 51.0 50.9 47.5 53.6 55.8
S.C. 42.8 42.0 34.8 34.7 25.5 44.7 44.5 37.3 37.2 27.3 46.6 46.9 39.8 39.8 29.2
K.W. 4.8 4.9 4.9 4.9 5.0 4.8 4.9 4.9 4.9 5.0 4.8 4.9 4.9 5.0 5.0
T.C. 44.6 45.2 42.3 48.3 50.0 46.6 46.7 43.6 49.5 51.3 48.6 48.1 44.8 50.6 52.5
S.C. 40.7 40.2 33.5 33.3 24.5 42.4 42.2 35.9 35.8 26.2 44.2 44.2 38.3 38.3 28.0
K.W. 5.3 5.5 5.5 5.5 5.6 5.4 5.5 5.5 5.5 5.6 5.4 5.5 5.5 5.6 5.6
T.C. 42.3 42.8 39.7 45.6 47.2 44.2 44.0 40.9 46.6 48.2 46.2 45.3 42.2 47.6 49.3
S.C. 38.5 38.5 32.3 32.0 23.4 40.1 40.0 34.5 34.4 25.1 41.8 41.5 36.8 36.9 26.8
K.W. 5.9 6.0 6.1 6.1 6.2 6.0 6.1 6.1 6.1 6.2 6.0 6.1 6.1 6.2 6.2
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the
listed temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
Air Handler Coil
MA20D FC/MC60D 1.00 1.00 1.00
MA20D MC61D 1.01 1.01 1.00
MV20D FC/MC60D 1.00 0.98 1.00
MV20D MC61D 1.01 0.99 1.00
AV/SV60 – 1.00 0.98 1.00
F*FV060 – 1.00 0.98 1.00
AHP/SHP60 – 1.00 1.02 1.00
– HC60 1.00 1.00 1.00
– HD60 1.00 1.01 1.00
– MC61 1.01 1.01 1.00
T.C. S.C. KW
Variable Speed
Furnace
P(C,V)9*D20 FC/MC/PC60D 0.99 0.95 1.00
PV8*C20 FC/PC60C 1. 00 0.99 1.00
P(C,V)9*C20 FC/PC60C 0.99 0.95 1.00
PV8*C20 HC60 1.000.991.00
P(C,V)9*D20 HC60 0.99 0.95 1.00
PV8*C20 HD60 1.000.991.00
P(C,V)9*C20 HD60 0.99 0.96 1.00
P(C,V)9*D20 HD60 0.98 0.96 1.00
PV8*C20 MC61D 1.01 1.00 1.00
P(C,V)9*C20 MC61D 0.98 0.96 1.00
P(C,V)9*D20 MC61D 1.00 0.97 1.00
Coil
T.C. S.C. KW
20 Unitary Products Group
Page 21
HEATING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO.
INDOOR COIL MODEL NO.
AIR TEMP.
ENTERING
OUTDOOR
UNIT
60
47
40
30
17
10
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT A T 125 0 BTUH/1000 CFM.
AIR TEMP.
ENTERING
INDOOR
COIL
60 20.3 1.5 4.0 21.2 1.5 4.3 22.1 1.4 4.6
70 19.6 1.6 3.5 20.6 1.6 3.8 21.6 1.5 4.2
80 18.8 1.8 3.1 20.0 1.7 3.4 21.1 1.7 3.7
60 17.4 1.4 3.6 18.0 1.4 3.8 18.6 1.4 4.0
70 16.8 1.5 3.2 17.4 1.5 3.4 18.1 1.5 3.6
80 16.1 1.7 2.8 16.9 1.6 3.0 17.6 1.6 3.3
60 15.4 1.4 3.3 15.9 1.3 3.5 16.5 1.3 3.6
70 15.1 1.5 3.0 15.6 1.5 3.1 16.2 1.4 3.3
80 14.7 1.6 2.6 15.3 1.6 2.8 16.0 1.6 3.0
60 12.0 1.5 2.3 12.5 1.5 2.4 13.1 1.5 2.5
70 12.5 1.4 2.6 12.9 1.4 2.7 13.2 1.4 2.7
80 13.1 1.3 3.0 13.2 1.3 3.0 13.2 1.3 3.0
60 9.5 1.4 1.9 10.7 1.4 2.3 12.0 1.3 2.7
70 9.7 1.3 2.1 10.7 1.3 2.4 11.7 1.3 2.7
80 10.0 1.2 2.4 10.7 1.3 2.5 11.4 1.3 2.6
60 8.6 1.4 1.8 9.1 1.4 1.9 9.7 1.4 2.0
70 9.2 1.3 2.1 9.6 1.3 2.2 10.0 1.3 2.2
80 9.9 1.2 2.4 10.1 1.2 2.4 10.4 1.2 2.4
YMB01811
FC/MC/PC18
450 600 750
MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.
246809-YTG-E-0507
ID CFM
Multipliers for determining the performance with other indoor section.
Air Handler Coil
MA08B FC/MC18B 1.00 1.00 1.00
MV12B FC/MC18B 0.98 1.06 0.92
AV24 – 0.98 1.06 0.92
F*FP024 – 1.00 1.00 1.00
AHP18 – 1.00 1.00 1.00
– HC18 1.00 1.00 1.00
MBH KW COP
Variable Speed
Furnace
PV8*A12 FC/MC/PC18A 0.97 1.07 0.91
PV9*A12 FC/MC/PC18A 0.98 1.05 0.93
P(C,V)9*B12 FC/MC/PC18B 0.97 1.06 0.91
PV8*A12 HC18 0.97 1.07 0.91
PV9*A12 HC18 0.98 1.05 0.93
Coil
T.C. S.C. KW
Unitary Products Group 21
Page 22
246809-YTG-E-0507
HEATING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB02411
INDOOR COIL MODEL NO. FC/MC/PC24
AIR TEMP.
ENTERING
OUTDOOR
UNIT
60
47
40
30
17
10
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEA T AT 1250 BTUH/1000 CFM.
AIR TEMP.
ENTERING
INDOOR
COIL
60 28.2 1.9 3.9 28.9 1.7 4.2 29.7 1.6 4.5
70 27.5 2.2 3.3 28.2 2.0 3.6 28.9 1.8 4.0
80 26.9 2.5 2.9 27.6 2.2 3.2 28.2 2.0 3.5
60 23.6 1.9 3.3 23.9 1.7 3.5 24.3 1.5 3.8
70 23.1 2.1 2.9 23.6 1.9 3.2 24.0 1.7 3.4
80 22.7 2.3 2.6 23.2 2.1 2.8 23.8 1.9 3.1
60 20.7 1.7 3.1 21.4 1.6 3.3 22.1 1.5 3.5
70 20.5 2.0 2.8 21.1 1.8 2.9 21.7 1.7 3.1
80 20.4 2.2 2.5 20.9 2.0 2.6 21.3 1.9 2.8
60 17.6 1.6 2.8 18.3 1.5 2.9 18.9 1.4 3.1
70 17.1 1.9 2.4 18.0 1.7 2.6 18.8 1.6 2.8
80 16.6 2.1 2.1 17.6 1.9 2.3 18.7 1.8 2.5
60 14.3 1.5 2.4 14.8 1.4 2.5 15.2 1.4 2.6
70 13.6 1.7 2.1 14.3 1.6 2.2 15.0 1.6 2.3
80 12.9 1.9 1.8 13.8 1.8 1.9 14.7 1.7 2.1
60 11.8 1.5 2.1 12.0 1.4 2.1 12.3 1.3 2.2
70 11.5 1.5 1.9 11.6 1.6 1.8 11.8 1.6 1.8
80 11.2 1.6 1.8 11.3 1.7 1.6 11.3 1.9 1.5
MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.
600 800 1000
ID CFM
Multipliers for determining the performance with other indoor section.
Air Handler Coil
MA08B FC/MC24B 1.00 1.00 1.00
MA08B FC/MC30B 1.00 1.00 1.00
MV12B FC/MC24B 0.98 1.06 0.93
MV12B FC/MC30B 0.98 1.06 0.93
AV24 – 0.98 1.06 0.93
AHP24 – 1.00 1.00 1.00
– FC/MC/PC/UC30 1.00 1.00 1.00
– HC30 1.00 1.00 1.00
– HD24 1.00 1.00 1.00
MBH KW COP
Variable Speed
Furnace
PV8*A12 FC/MC/PC24A 0.98 1.04 0.95
PV9*A12 FC/MC/PC24A 0.98 1.04 0.95
P(C,V)9*B12 FC/MC/PC24B 0.98 1.04 0.95
PV8*A12 FC/MC/PC30A 0.98 1.04 0.94
PV9*A12 FC/MC/PC30A 0.98 1.04 0.95
P(C,V)9*B12 FC/MC/PC30B 0.98 1.04 0.94
PV8*A12 HC30 0.981.040.94
PV9*A12 HC30 0.981.040.95
PV8*A12 HD24 0.981.040.94
PV9*A12 HD24 0.981.040.95
Coil
T.C. S.C. KW
22 Unitary Products Group
Page 23
HEATING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB03011
INDOOR COIL MODEL NO. AHP30
AIR TEMP.
ENTERING
OUTDOOR
UNIT
60
47
40
30
17
10
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT A T 125 0 BTUH/1000 CFM.
AIR TEMP.
ENTERING
INDOOR
COIL
60 36.0 2.2 4.2 36.8 2.1 4.4 37.7 2.0 4.6
70 35.2 2.5 3.8 36.2 2.3 4.0 37.2 2.2 4.2
80 34.5 2.7 3.4 35.6 2.5 3.6 36.6 2.4 3.8
60 29.9 2.1 3.7 30.9 2.0 3.9 32.0 1.9 4.1
70 29.6 2.3 3.4 30.6 2.2 3.5 31.5 2.1 3.7
80 29.4 2.5 3.1 30.2 2.4 3.2 31.0 2.3 3.4
60 27.7 2.0 3.5 28.5 1.9 3.7 29.3 1.8 3.8
70 27.2 2.2 3.2 28.0 2.1 3.3 28.8 2.0 3.4
80 26.8 2.4 2.9 27.5 2.3 3.0 28.2 2.2 3.1
60 21.5 1.9 2.9 23.2 1.8 3.1 24.8 1.8 3.3
70 22.3 2.1 2.7 23.3 2.0 2.8 24.2 1.9 3.0
80 23.2 2.4 2.6 23.4 2.2 2.6 23.6 2.1 2.7
60 18.8 1.7 2.8 18.9 1.8 2.6 19.1 1.8 2.5
70 18.4 2.0 2.4 18.6 2.0 2.4 18.8 1.9 2.3
80 18.0 2.3 2.1 18.3 2.1 2.1 18.6 2.0 2.2
60 16.6 1.8 2.4 16.8 1.7 2.4 17.1 1.7 2.4
70 16.1 2.0 2.1 16.5 1.9 2.1 16.8 1.8 2.2
80 15.7 2.2 1.8 16.1 2.1 1.9 16.5 2.0 2.0
MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.
800 1000 1200
246809-YTG-E-0507
ID CFM
Multipliers for determining the performance with other indoor sections.
Air Handler Coil
MA12B FC/MC35B 1.00 1.00 1.00
MA12B FC/MC42B 1.00 1.00 1.00
MV12B FC/MC35B 0.98 1.05 0.93
MV12B FC/MC42B 0.98 1.05 0.93
AV36 – 0.98 1.05 0.93
F*FP040 – 1.00 1.00 1.00
– FC/MC/PC35 1.00 1.00 1.00
– HC36 1.00 1.00 1.00
– HD36 1.00 1.00 1.00
MBH KW COP
Variable Speed
Furnace
PV8*B16 FC/MC/PC35B 0.98 1.05 0.93
P(C,V)9*B12 FC/MC/PC35B 0.98 1.06 0.93
PV8*B16 HC36 0.99 1.03 0.96
P(C,V)9*B12 HC36 0.99 1.03 0.96
PV8*A12 HD36 0.99 1.03 0.96
PV8*B16 HD36 0.98 1.05 0.93
PV8*C16 HD36 0.98 1.06 0.93
PV8*C20 HD36 0.98 1.06 0.93
PV9*A12 HD36 0.99 1.03 0.96
P(C,V)9*B12 HD36 0.99 1.03 0.96
P(C,V)9*C16 HD36 0.99 1.05 0.94
P(C,V)9*C20 HD36 0.99 1.05 0.94
Coil
T.C. S.C. KW
Unitary Products Group 23
Page 24
246809-YTG-E-0507
HEATING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB03611
INDOOR COIL MODEL NO. FC/MC/PC48
AIR TEMP.
ENTERING
OUTDOOR
UNIT
60
47
40
30
17
10
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEA T AT 1250 BTUH/1000 CFM.
AIR TEMP.
ENTERING
INDOOR
COIL
60 39.2 2.6 4.0 40.1 2.5 4.2 40.9 2.3 4.3
70 38.5 2.9 3.5 39.3 2.7 3.7 40.1 2.6 3.9
80 37.8 3.2 3.2 38.5 3.0 3.3 39.2 2.9 3.5
60 32.9 2.4 3.6 33.5 2.3 3.7 34.1 2.2 3.8
70 32.1 2.7 3.2 32.7 2.6 3.3 33.3 2.5 3.4
80 31.4 3.0 2.8 32.0 2.8 2.9 32.6 2.7 3.0
60 29.3 2.3 3.3 29.9 2.3 3.3 30.4 2.2 3.4
70 29.0 2.6 2.9 29.4 2.5 3.0 29.8 2.4 3.1
80 28.6 2.8 2.7 28.9 2.7 2.7 29.2 2.6 2.8
60 24.6 2.3 2.8 25.0 2.2 2.9 25.4 2.1 2.9
70 24.4 2.5 2.6 24.8 2.4 2.6 25.2 2.4 2.7
80 24.3 2.7 2.4 24.7 2.6 2.4 25.1 2.6 2.5
60 15.6 2.6 1.9 16.9 2.3 1.9 18.2 2.0 1.8
70 17.8 2.6 1.8 18.5 2.4 1.9 19.2 2.2 2.1
80 19.9 2.7 2.0 20.1 2.6 2.0 20.3 2.5 2.0
60 18.2 2.1 2.3 18.4 2.0 2.3 18.7 2.0 2.3
70 17.7 2.3 2.0 18.0 2.3 2.0 18.4 2.2 2.0
80 17.3 2.6 1.8 17.7 2.5 1.8 18.0 2.4 1.8
MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.
1000 1200 1400
ID CFM
Multipliers for determining the performance with other indoor sections.
Air Handler Coil
MA12B FC/MC42B 0.97 1.00 1.00
MA14D FC/MC48D 1.00 1.00 1.00
MV16C FC/MC48C 1.00 1.05 0.94
MV20D FC/MC48D 1.00 1.06 0.92
AV36 – 1.00 1.05 0.94
AHP42 – 1.00 1.00 1.00
– FC/MC/PC/UC42 0.97 1.00 1.00
– FC/MC/PC/UC48 1.00 1.00 1.00
– HC42 1.00 1.00 1.00
– HD48 1.00 1.00 1.00
MBH KW COP
Variable Speed
Furnace
PV8*B16 FC/MC/PC42B 0.94 0.90 0.95
P(C,V)9*B12 FC/MC/PC42B 0.94 0.88 0.95
PV8*C16 FC/MC/PC42C 0.94 0.90 0.95
PV8*C20 FC/MC/PC42C 0.94 0.88 0.95
P(C,V)9*C16 FC/MC/PC42C 0.94 0.90 0.95
P(C,V)9*C20 FC/MC/PC42C 0.94 0.88 0.95
PV8*C16 FC/MC/PC48C 0.98 0.98 0.95
PV8*C20 FC/MC/PC48C 0.98 0.98 0.95
P(C,V)9*C16 FC/MC/PC48C 0.98 0.97 0.97
P(C,V)9*C20 FC/MC/PC48C 0.98 0.97 0.97
P(C,V)9*D20 FC/MC/PC48D 0.98 0.97 0.97
PV8*C16 HC42 0.980.980.95
PV8*C20 HC42 0.980.980.95
P(C,V)9*C16 HC42 0.98 0.97 0.97
P(C,V)9*C20 HC42 0.98 0.97 0.97
PV8*C16 HD48 0.980.980.95
PV8*C20 HD48 0.980.980.95
P(C,V)9*C16 HD48 0.98 0.97 0.97
P(C,V)9*C20 HD48 0.98 0.97 0.97
P(C,V)9*D20 HD48 0.98 0.97 0.96
Coil
T.C. S.C. KW
24 Unitary Products Group
Page 25
HEATING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB04211
INDOOR COIL MODEL NO. FC/MC/PC60
AIR TEMP.
ENTERING
OUTDOOR
UNIT
60
47
40
30
17
10
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT A T 125 0 BTUH/1000 CFM.
AIR TEMP.
ENTERING
INDOOR
COIL
60 54.5 3.0 4.6 54.6 2.9 4.7 54.7 2.8 4.8
70 53.3 3.4 4.1 53.6 3.2 4.2 54.0 3.1 4.3
80 52.2 3.7 3.7 52.7 3.5 3.8 53.3 3.4 4.0
60 44.9 2.8 4.1 23.0 1.3 3.7 46.0 2.6 4.2
70 44.5 3.1 3.7 33.7 2.3 3.5 45.3 2.9 3.8
80 44.1 3.5 3.3 44.4 3.3 3.4 44.6 3.2 3.5
60 36.5 2.6 3.5 38.8 2.6 3.7 41.2 2.6 3.9
70 37.2 3.0 3.2 39.0 2.9 3.3 40.8 2.8 3.5
80 38.0 3.4 2.9 39.2 3.2 3.1 40.4 3.1 3.2
60 32.2 2.4 3.3 33.3 2.5 3.2 34.4 2.6 3.2
70 33.3 2.8 3.0 33.9 2.8 3.0 34.6 2.8 3.0
80 34.4 3.2 2.8 34.6 3.1 2.8 34.8 3.0 2.8
60 28.6 2.5 2.9 28.7 2.4 2.9 28.8 2.4 2.9
70 28.0 2.8 2.6 28.3 2.7 2.6 28.6 2.6 2.6
80 27.4 3.1 2.3 27.9 3.0 2.3 28.3 2.9 2.4
60 26.0 2.3 2.7 26.1 2.4 2.6 26.2 2.5 2.5
70 25.4 2.7 2.4 25.6 2.7 2.4 25.8 2.7 2.3
80 24.9 3.0 2.1 25.1 2.9 2.1 25.3 2.9 2.2
MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.
1200 1400 1600
246809-YTG-E-0507
ID CFM
Multipliers for determining the performance with other indoor sections.
Air Handler Coil
MA14D FC/MC60D 1.00 1.00 1.00
MA16C FC60C 1.00 1.00 1.00
MV20D FC/MC60D 1.00 1.04 0.96
MV16C FC60C 1.00 1.04 0.96
AV/SV48 – 1.00 1.04 0.96
AV/SV60 – 1.00 1.04 0.96
F*FV060 – 1.00 1.04 0.96
AHP/SHP48 – 1.00 1.01 0.99
AHP/SHP60 – 1.00 1.04 0.96
F*FP045 – 1.00 1.01 0.99
– HC60 1.00 1.00 1.00
– HD60 1.00 1.00 1.00
MBH KW COP
Variable Speed
Furnace
P(C,V)9*D20 FC/MC/PC60D 1.00 1.02 0.98
PV8*C16 FC/PC60C 1.00 1.02 0.98
PV8*C20 FC/PC60C 1.00 1.03 0.97
P(C,V)9*C16 FC/PC60C 1.00 1.02 0.98
P(C,V)9*C20 FC/PC60C 1.00 1.02 0.98
PV8*C20 HC60 1.00 1.03 0.97
P(C,V)9*C20 HC60 1.00 1.02 0.98
P(C,V)9*D20 HC60 1.00 1.02 0.98
PV8*C16 HD60 1.00 1.02 0.98
PV8*C20 HD60 1.00 1.03 0.97
P(C,V)9*C16 HD60 1.00 1.02 0.98
P(C,V)9*C20 HD60 1.00 1.02 0.98
P(C,V)9*D20 HD60 1.00 1.02 0.98
Coil
T.C. S.C. KW
Unitary Products Group 25
Page 26
246809-YTG-E-0507
HEATING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB04811
INDOOR COIL MODEL NO. FC/MC/PC60
AIR TEMP.
ENTERING
OUTDOOR
UNIT
60
47
40
30
17
10
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEA T AT 1250 BTUH/1000 CFM.
AIR TEMP.
ENTERING
INDOOR
COIL
60 64.7 3.3 4.9 64.7 3.4 4.8 64.8 3.4 4.7
70 62.2 3.9 4.1 62.4 3.8 4.2 62.6 3.7 4.2
80 59.7 4.4 3.5 60.0 4.3 3.6 60.3 4.1 3.7
60 54.3 3.4 4.1 54.5 3.3 4.2 54.7 3.1 4.2
70 52.1 3.8 3.6 52.3 3.6 3.6 52.5 3.5 3.7
80 49.8 4.1 3.2 50.1 4.0 3.2 50.3 3.8 3.3
60 49.1 3.2 3.8 49.2 3.1 3.9 49.4 3.0 3.9
70 47.1 3.6 3.3 47.2 3.5 3.4 47.2 3.4 3.4
80 45.0 4.0 2.9 45.1 3.9 3.0 45.1 3.7 3.0
60 42.5 3.1 3.5 42.9 3.0 3.5 43.2 3.0 3.5
70 39.7 3.4 3.0 40.2 3.4 3.0 40.6 3.4 2.9
80 36.9 3.7 2.6 37.5 3.8 2.5 38.1 3.9 2.5
60 34.5 2.8 3.0 34.9 2.9 3.0 35.3 2.9 2.9
70 31.8 3.3 2.5 32.6 3.2 2.5 33.5 3.2 2.6
80 29.1 3.7 2.0 30.4 3.6 2.1 31.7 3.5 2.3
60 32.3 2.9 2.8 32.4 2.8 2.8 32.5 2.8 2.8
70 30.3 3.2 2.4 30.5 3.1 2.4 30.6 3.0 2.4
80 28.3 3.5 2.0 28.5 3.4 2.1 28.8 3.3 2.1
MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.
1400 1600 1800
ID CFM
Multipliers for determining the performance with other indoor sections.
Air Handler Coil
MA20D FC/MC60D 1.00 1.00 1.00
MA16C FC60C 1.00 1.00 1.00
MV20D FC/MC60D 1.00 1.03 0.97
MV16C FC60C 1.00 1.03 0.97
AV/SV48 – 1.00 1.03 0.97
AV/SV60 – 1.00 1.03 0.97
F*FV060 – 1.00 1.03 0.97
AHP/SHP48 – 1.00 0.99 1.01
AHP/SHP60 – 1.00 1.02 0.98
– HC60 1.00 1.00 1.00
– HD60 1.00 1.00 1.00
MBH KW COP
Variable Speed
Furnace
P(C,V)9*D20 FC/MC/PC60D 1.00 1.01 0.99
PV8*C16 FC/PC60C 1.00 1.01 0.99
PV8*C20 FC/PC60C 1.00 1.01 0.99
P(C,V)9*C16 FC/PC60C 1.00 1.00 1.00
P(C,V)9*C20 FC/PC60C 1.00 1.01 0.99
PV8*C20 HC60 1.001.010.99
P(C,V)9*C20 HC60 1.00 1.01 0.99
P(C,V)9*D20 HC60 1.00 1.01 0.99
PV8*C16 HD60 1.001.010.99
PV8*C20 HD60 1.001.010.99
P(C,V)9*C16 HD60 1.00 1.00 1.00
P(C,V)9*C20 HD60 1.00 1.01 0.99
P(C,V)9*D20 HD60 1.00 1.01 0.99
Coil
T.C. S.C. KW
26 Unitary Products Group
Page 27
HEATING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YMB06011
INDOOR COIL MODEL NO. FC/MC/PC60
AIR TEMP.
ENTERING
OUTDOOR
UNIT
60
47
40
30
17
10
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT A T 125 0 BTUH/1000 CFM.
AIR TEMP.
ENTERING
INDOOR
COIL
60 75.6 4.6 4.8 76.1 4.4 5.1 76.6 4.2 5.3
70 72.9 5.1 4.2 73.4 4.9 4.4 73.8 4.6 4.7
80 70.2 5.6 3.7 70.6 5.3 3.9 71.0 5.1 4.1
60 63.8 4.3 4.4 64.2 4.1 4.6 64.7 3.9 4.8
70 61.4 4.8 3.8 61.8 4.6 4.0 62.2 4.4 4.2
80 59.0 5.3 3.3 59.3 5.0 3.4 59.6 4.8 3.6
60 53.1 4.0 3.9 53.2 4.2 3.7 53.3 4.3 3.6
70 48.9 4.4 3.3 49.3 4.6 3.1 49.6 4.8 3.0
80 44.7 4.7 2.7 45.4 5.0 2.7 46.0 5.2 2.6
60 47.5 4.1 3.4 48.8 3.9 3.6 50.2 3.7 3.9
70 46.6 4.5 3.0 47.3 4.4 3.2 48.1 4.2 3.4
80 45.7 4.9 2.7 45.8 4.8 2.8 45.9 4.6 2.9
60 38.3 3.8 2.9 40.1 3.6 3.2 41.9 3.5 3.5
70 36.8 4.0 2.7 38.4 4.0 2.8 40.0 3.9 3.0
80 35.3 4.3 2.4 36.7 4.3 2.5 38.1 4.4 2.6
60 33.1 3.4 2.9 34.5 3.5 2.9 36.0 3.6 2.9
70 33.2 3.9 2.5 34.0 3.9 2.5 34.7 3.9 2.6
80 33.4 4.4 2.2 33.4 4.3 2.2 33.4 4.3 2.3
MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.
1600 1800 2000
246809-YTG-E-0507
ID CFM
Multipliers for determining the performance with other indoor sections.
Air Handler Coil
MA20D FC/MC60D 1.00 1.00 1.00
MA20D MC61D 1.00 1.00 1.00
MV20D FC/MC60D 1.00 1.02 0.98
MV20D MC61D 1.00 1.02 0.98
AV/SV60 – 1.00 1.02 0.98
F*FV060 – 1.00 1.02 0.98
AHP/SHP60 – 1.00 1.01 0.99
– HC60 1.00 1.00 1.00
– HD60 1.00 1.00 1.00
– MC61 1.00 1.00 1.00
MBH KW COP
Variable Speed
Furnace
P(C,V)9*D20 FC/MC/PC60D 1.00 1.02 0.98
PV8*C20 FC/PC60C 1.00 1.01 0.99
P(C,V)9*C20 FC/PC60C 1.00 1.01 0.99
PV8*C20 HC60 1.00 1.01 0.99
P(C,V)9*D20 HC60 1.00 1.02 0.98
PV8*C20 HD60 1.00 1.01 0.99
P(C,V)9*C20 HD60 1.00 1.01 0.99
P(C,V)9*D20 HD60 1.00 1.02 0.98
PV8*C20 MC61D 1.00 1.01 0.99
P(C,V)9*C20 MC61D 1.00 1.01 0.99
P(C,V)9*D20 MC61D 1.00 1.02 0.98
Coil
T.C. S.C. KW
Unitary Products Group 27
Page 28
K
NOTES
Subject to change without notice. Printed in U.S.A. 246809-YTG-E-0507
Copyright © by York International Corp. 2007. All rights reserved. Supersedes: 246809-YTG-D-0906
Unitary 5005 Norman
Products York O
Group Drive 73069
Loading...
