Page 1

FOR INSTALLATION ONLY IN US SOUTHEAST

TECHNICAL GUIDE

SERIES

AND NORTHERN REGIONS AND CANADA

SPLIT SYSTEM AIR CONDITIONERS

Installation Allowed

14 SEER – R-410A – 1 PHASE

1.5 THRU 5 NOMINAL TONS

MODELS: YFE18 THRU 60

Due to continuous product improvement, specifications are subject to change without notice.

Visit us on the web at

www.upgnet.com and www.york.com

Additional rating information can be found at

www.ahridirectory.org

WARRANTY SUMMARY*

Standard 5-Years limited parts warranty. Standard 10-Years limited compressor warranty. Extended 10-Years limited parts warranty when product is registered online within 90 days of purchase for replacement

or closing for new home construction.

*Does not apply to R-22 models, 3-Phase models, or Internet sales.

See Limited Warranty certificate in User's Information Manual for details.

5006142-YTG-A-0815

DESCRIPTION

The YFE models are a new offering in our successful LX Series split system air conditioner lineup. These units are optimized for the new 14 SEER Regional Minimum Efficiency in the Southeast US, and feature a tube-in-fin condenser coil, scroll compressor, and copper filter-drier. These outdoor units have been specifically designed to be matched with Johnson Controls Unitary Products indoor coils, furnaces, and air handlers to provide a complete system solution.

FEATURES

• Quality Coils - Enhanced aluminum fins are mechanically bonded to copper tubing.

• Scroll Compressor - Featuring the newest generation of high efficiency scroll compressors.

• Copper filter-drier - The factory installed filter drier features copper construction for reliable long term protection.

• Easier Installation - Independent panels provide quick access for unit setup. Installation time is reduced by easy power and control wiring access. Select indoor matches with factory-mounted TXVs are available for quicker system installation. The factory installed filter-drier and factory charge for a 15-Ft lineset means less time spent brazing and charging the system. The small base dimension and reduced unit clearances make for easier retrofits.

• Accessible Information - QR code on unit provides quick access to technical documents and warranty information.

• Durable Finish - The coated steel wire fan guard, coated external fasteners, and pre-treated G90-equivalent galvanized steel chassis components resist corrosion and rust creep. Champagne colored powdercoat paint further protects external panels.

• Rugged Coil Protection - Coils are protected from mechanical damage by a proven stamped steel coil guard design.

• Protected Compressor - Compressors are protected internally by a high pressure relief valve and a temperature sensor, and externally by the system high pressure switch. The liquid line filter-drier is factory installed to protect the compressor against moisture and debris.

• Reliable Operation - Ball bearing fan motors provide superior performance in extreme temperatures.

• Environmentally Friendly - CFC-free R-410A refrigerant delivers environmentally friendly performance with zero ozone depletion.

• Top Discharge - Warm air is blown up, away from the struc- ture and any landscaping and allows compact location on multi-unit applications.

• Low Operating Sound Levels - Developed using CFD and FEA tools, the sturdy cabinet and top design provides sound performance of 76 dBA or lower. Compatible accessories for further sound reduction are also available.

• Better Service Access - Diagonal base valves with open access for low-loss fittings, single panel access to the electrical controls, swing out control box for full corner access, and removable fan guard allow easy access for unit maintenance.

• Agency Listed - Safety certified by CSA to UL 1995 / CSA

22.2. Performance certified to ANSI/AHRI Standard 210/240 in accordance with the Unitary Small Equipment certification program.

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

Page 2

5006142-YTG-A-0815

LIST OF SECTIONS

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PHYSICAL AND ELECTRICAL DATA . . . . . . . . . . . . . . . . . . . . . . . 3

DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS . . . . . . . 4

COOLING CAPACITY - With Air Handler Coils . . . . . . . . . . . . . . . 5

COOLING CAPACITY - Upflow, Downflow &

Horizontal Furnaces and Coils (Coil Only Ratings) . . . . . . . . . . . 9

COOLING CAPACITY - With High Efficiency Motor Furnaces . . 10

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

SOUND POWER RATINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 41

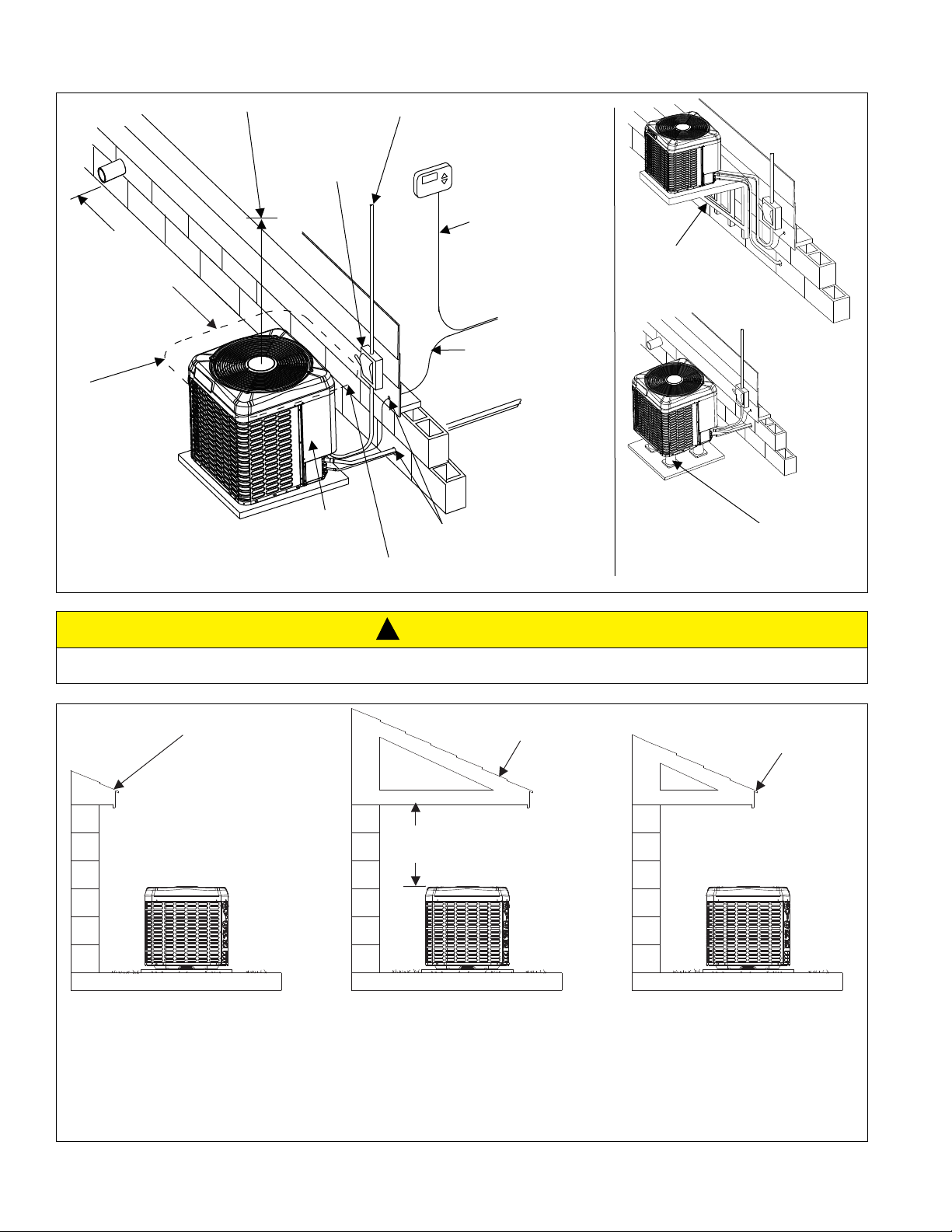

TYPICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

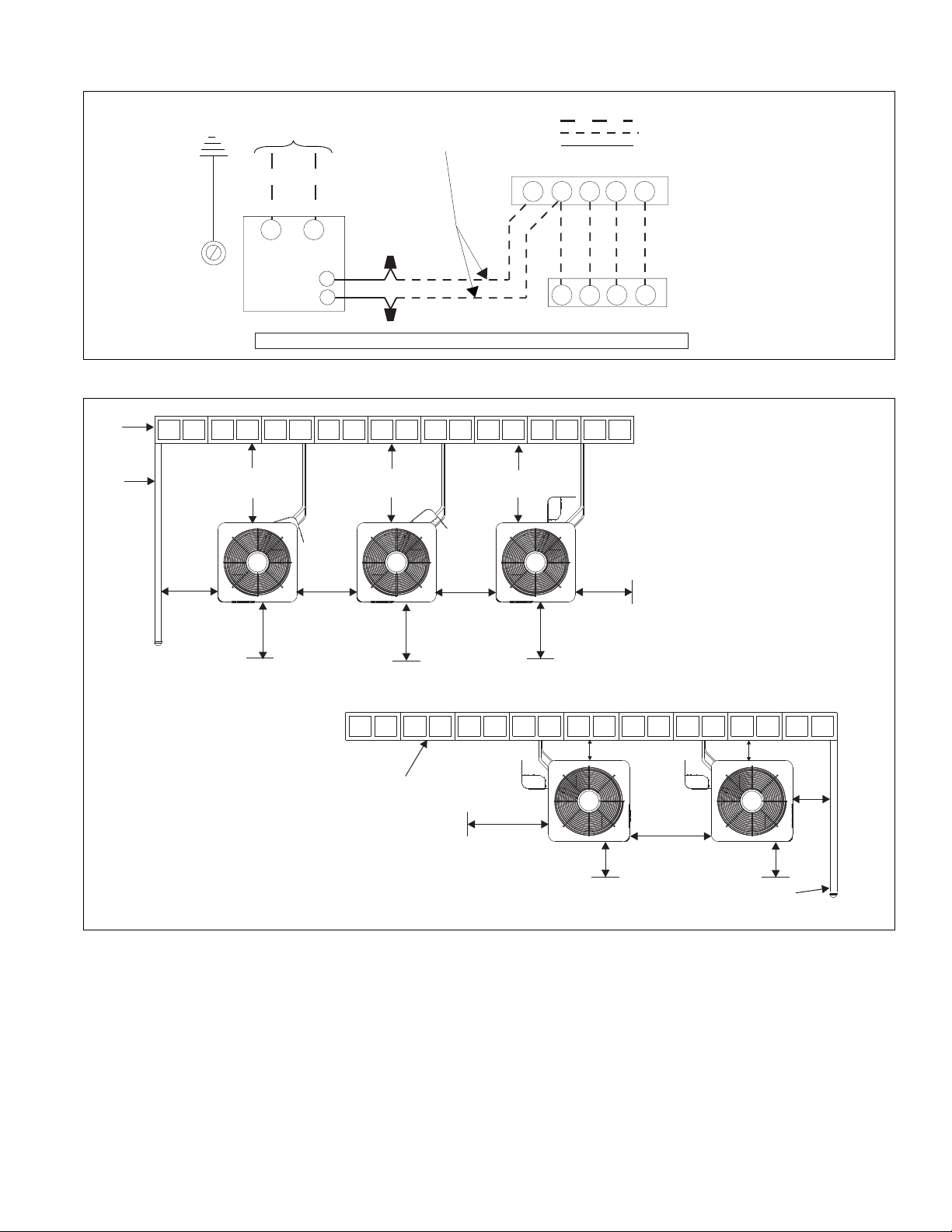

TYPICAL FIELD WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

ALTERNATIVE INSTALLATION CLEARANCES . . . . . . . . . . . . . . 43

PERFORMANCE DATA - 1.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 44

COIL MULTIPLIERS - 1.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 45

FURNACE MULTIPLIERS - 1.5 TON . . . . . . . . . . . . . . . . . . . . . . 45

PERFORMANCE DATA - 2 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 47

COIL MULTIPLIERS - 2 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

FURNACE MULTIPLIERS - 2 TON . . . . . . . . . . . . . . . . . . . . . . . 48

PERFORMANCE DATA - 2.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 51

COIL MULTIPLIERS - 2.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 52

FURNACE MULTIPLIERS - 2.5 TON . . . . . . . . . . . . . . . . . . . . . . 52

PERFORMANCE DATA - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 55

COIL MULTIPLIERS - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

FURNACE MULTIPLIERS - 3 TON . . . . . . . . . . . . . . . . . . . . . . . 56

PERFORMANCE DATA - 3.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 59

COIL MULTIPLIERS - 3.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 60

FURNACE MULTIPLIERS - 3.5 TON . . . . . . . . . . . . . . . . . . . . . . 60

PERFORMANCE DATA - 4 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 63

COIL MULTIPLIERS - 4 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

FURNACE MULTIPLIERS - 4 TON . . . . . . . . . . . . . . . . . . . . . . . 64

PERFORMANCE DATA - 5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 67

COIL MULTIPLIERS - 5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

FURNACE MULTIPLIERS - 5 TON . . . . . . . . . . . . . . . . . . . . . . . 68

NOMENCLATURE

BRAND

PRODUCT TYPE

NOMINAL SERIES EFFICIENCY AND STAGING

NOMINAL UNIT CAPACITY (MBH)

REFRIGERANT VOLTAGE

(Voltage-Phase-Hertz)

GENERATION (MAJOR REVISION)

FACTORY OPTION STYLE LETTER

(MINOR REVISION) NOT USED FOR ORDERING

Y = York C = Air Conditioner

H = Heat Pump F = Fin & Tube Air Conditioner D = 13 SEER / 1-Stage

(US Northern Region)

E = 14 SEER / 1-Stage

(US Southeast Region) S = 14 SEER / 1-Stage

(US Southwest Region)

18 = 1.5 Ton 42 = 3.5 Ton 24 = 2 Ton 48 = 4 Ton

30 = 2.5 Ton 60 = 5 Ton 36 = 3 Ton

B = R-410A

2 = 208/230-1-60 1 = 1st Gen

2 = 2nd Gen etc S = Standard (No Options)

H = Hard Start Kit A = Style A B = Style B

etc

2 Johnson Controls Unitary Products

Page 3

5006142-YTG-A-0815

PHYSICAL AND ELECTRICAL DATA

MODEL YFE18B21S YFE24B21S YFE30B21S YFE36B21S YFE42B21S YFE48B21S YFE60B21S

Unit Supply Voltage 208-230V, 1 60Hz Normal Voltage Range

Minimum Circuit Ampacity Max. Overcurrent Device Amps Min. Overcurrent Device Amps

Compressor Type Compressor

Amps

11.8 13.6 18.1 20.5 22.1 25.7 31.7

20 20 30 35 35 45 50 15 15 20 25 25 30 35

Scroll Scroll Scroll Scroll Scroll Scroll Scroll

Rated Load

9.0 10.2 13.4 15.4 16.6 19.5 24.3

Locked Rotor 47.5 61.6 72.5 83.9 109.0 130.0 144.2 Crankcase Heater No No No No No No No Factory External Discharge Muffler No No No No No No No Factory External Check Valve No No No No No No No

HS Kit Required with TXV Fan Diameter Inches

No No No No No No No

18 22 24 24 24 24 26

Rated HP 1/12 1/8 1/4 1/4 1/4 1/4 1/4 Fan Motor

Rated Load Amps

Nominal RPM

0.64 0.80 1.30 1.30 1.30 1.30 1.30

1000 1075 850 850 850 850 850

Nominal CFM 2125 2850 3775 3775 3550 3625 4025

14.51 14.58 23.69 23.69 45.95 47.38 51.07

22 22 22 22 18 18 18

Coil

Face Area Sq. Ft.

Rows Deep 1 1 1 1 2 2 2

Fins / Inch Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8

Vapor Line Set OD (Field Installed) Unit Charge (Lbs. - Oz.)

Charge Per Foot, Oz.

3/4 3/4 3/4 3/4 7/8 7/8

4 - 15 4 - 15 8 - 4 7 - 5 12 - 10 11 - 5 13 - 2

0.62 0.62 0.62 0.62 0.67 0.67 0.75

Operating Weight Lbs. 120 131 176 176 230 235 256

1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.

2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.

3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.

4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.

5. For applications with non-standard vapor line sizes, see the “Applications & Accessories” section of this Technical Guide.

6. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract the amount of refrigerant, using the difference in actual lineset length (not equivalent length) multiplied by the per foot value.

187 to 252

1-1/8

‡

DIMENSIONS

Unit

Model

Dimensions

(Inches)

A B C Liquid Vapor

YFE18B21S 36-1/4 24 24 YFE24B21S 30 29-1/4 29-1/4

YFE30B21S 39-1/2 35-1/4 31-3/4 YFE36B21S 39-1/2 35-1/4 31-3/4 YFE42B21S 39-1/2 35-1/4 31-3/4 YFE48B21S 39-1/2 35-1/4 31-3/4

YFE60B21S 39-1/2 38 34-1/4

‡ Adapter fitting must be field installed for the required 1-1/8” line set.

A0339-001

All dimensions are in inches and are subject to change without notice. Overall height is from bottom of base pan to top of fan guard. Overall length and width include screw heads.

Refrigerant Connection

Service Valve Size

3/4

3/8

7/8

‡

7/8

Johnson Controls Unitary Products 3

Page 4

5006142-YTG-A-0815

SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS

Outdoor Unit YFE18B21S YFE24B21S YFE30B21S YFE36B21S YFE42B21S YFE48B21S YFE60B21S Required TXV

Indoor Unit

1,2

3,4,5

AP18B 0 – – – – – – AP24B 3 0 – – – – – AP30B 10 7 2 – – – – AP36B 10 7 2 0 – – – AP36C – 11 2 2 – – – AP42C – 11 2 2 0 – – AP48(C,D) – – – 5 2 0 – AP60(C,D) – – – – 9 2 0 AE18B 0 – – – – – – AE24B 3 0 – – – – – AE30B 8 5 0 – – – – AE36(B,C) 10 7 2 0 – – – AE42C – – – 5 2 – – AE48(C,D) – – – 5 2 0 – AE60C – – – – 9 2 0 AE60D – – – – 29 22 20 AVC18B 0 – – – – – – AVC24B 3 0 – – – – – AVC30B 8 5 0 – – – – AVC36(B,C) 10 7 2 0 – – – AVC42C – – – 5 2 – – AVC48(C,D) – – – 5 2 0 – AVC60C – – – – 9 2 0 AVC60D – – – – 29 22 20 CF/CM/CU18(A,B) 0 – – – – – – CF/CM/CU24(A,B) 3 0 – – – – – CF/CM/CU30(A,B,C) 8 5 0 – – – – CF/CM/CU36(A,B,C) 10 7 2 0 – – – CF/CM/CU42(B,C,D) – 11 2 2 0 – – CF/CM/CU48(C,D) – – – 5 2 0 – CF/CM/CU60(C,D) – – – – 9 2 0 CF/CM64D – – – – 29 22 20 Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil

only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.

FOOTNOTES:

1. For applications requiring a TXV, use S1-1TVM*** series kit.

2. A TXV kit must be used with these indoor units to obtain system performance.

3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.

4. CF coils cannot be used in horizontal applications.

5. Charge adders shown above do not indicate that coils are rated for every application. Refer to Performance Data Tables for actual performance for specified system matches. Obtain certified system ratings from www.ahridirectory.org.

CHARGING PROCEDURES:

1. Unit factory charge listed on the unit nameplate includes refrigerant for the outdoor unit, the smallest matched indoor unit, and 15 feet of interconnecting line tubing.

2. Verify the indoor metering device and additional charge required for specific matched indoor unit in the system using the above table.

3. Add additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.

4. For indoor matches requiring additional charge, the refrigerant needs to be weighed in for specific matched indoor unit and actual lineset length.

5. Once lineset and coil adders have been applied, system operation will need to be matched to the temperatures and pressures noted on the Charging Chart for the given outdoor and indoor conditions. Charging Charts can be found on the outdoor unit or in the Service Data Application Guide on www.upgnet.com. Subcool or Superheat charging procedures are determined by the type of indoor metering device. These charging procedures can be found in the Installation Manual included with outdoor unit.

6. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + charge adder for matched indoor unit + charge adder for actual lineset length + charge adjustments to match Charging Chart.

BA1 BA1 BB1 BC1 BC1 BC1 BD1

Additional Charge, oz

4 Johnson Controls Unitary Products

Page 5

5006142-YTG-A-0815

COOLING CAPACITY - With Air Handler Coils

UNIT

MODEL

YFE18B21S AE18BX21 17.5 – 600 18.0 13.7 16.25 13.25 YFE18B21S AE24BX21 17.5 – 600 18.0 13.6 16.25 13.25 YFE18B21S AE30BX21 17.5 – 600 18.0 13.8 16.25 13.25 YFE18B21S AE36BX21 17.5 – 600 18.0 13.4 15.50 12.75 YFE18B21S AE36CX21 21.0 – 600 18.0 13.4 16.00 13.00 YFE18B21S AP18BX21 17.5 – 600 18.0 13.6 15.00 12.50 YFE18B21S AP24BX21 17.5 – 600 18.0 13.5 14.50 12.25 YFE18B21S AP30BX21 17.5 – 600 18.0 13.4 14.75 12.25 YFE18B21S AVC18BX21 17.5 – 600 18.0 13.7 16.25 13.25 YFE18B21S AVC24BX21 17.5 – 600 18.0 13.6 16.25 13.25 YFE18B21S AVC30BX21 17.5 – 600 18.0 13.7 16.25 13.25 YFE18B21S ME08BN21 17.5 CF/CM18B 600 18.0 13.7 16.25 13.25 YFE18B21S ME08BN21 17.5 CF/CM24B 600 18.0 13.6 16.25 13.25 YFE18B21S ME08BN21 17.5 CF/CM30B 600 18.0 13.7 16.25 13.25 YFE18B21S ME08BN21 17.5 CF/CM36B 600 18.0 13.5 16.25 13.25 YFE18B21S ME12BN21 17.5 CF/CM18B 600 18.0 13.6 15.25 12.50 YFE18B21S ME12BN21 17.5 CF/CM24B 625 18.0 13.8 15.50 12.75 YFE18B21S ME12BN21 17.5 CF/CM30B 625 18.0 13.8 15.75 12.75 YFE18B21S ME12BN21 17.5 CF/CM36B 650 18.0 13.9 15.75 13.00 YFE18B21S MVC08BN21 17.5 CF/CM18B 550 18.0 13.2 16.25 13.25 YFE18B21S MVC08BN21 17.5 CF/CM24B 575 18.0 13.4 16.25 13.25 YFE18B21S MVC08BN21 17.5 CF/CM30B 600 18.0 13.7 16.25 13.25 YFE18B21S MVC12BN21 17.5 CF/CM36B 675 18.0 14.0 16.25 13.25 YFE24B21S AE24BX21 17.5 – 800 24.0 18.2 15.75 13.00 YFE24B21S AE30BX21 17.5 – 800 24.0 18.2 16.00 13.25 YFE24B21S AE36BX21 17.5 – 800 24.0 18.2 16.25 13.25 YFE24B21S AE36CX21 21.0 – 800 24.0 18.2 16.25 13.25 YFE24B21S AP24BX21 17.5 – 800 24.0 18.0 14.00 12.00 YFE24B21S AP30BX21 17.5 – 800 24.0 17.8 14.75 12.50 YFE24B21S AP36BX21 17.5 – 900 24.0 19.0 14.25 12.25 YFE24B21S AP36CX21 21.0 – 850 24.0 18.4 14.25 12.25 YFE24B21S AVC24BX21 17.5 – 750 24.0 17.8 15.50 12.75 YFE24B21S AVC30BX21 17.5 – 775 24.0 18.0 16.25 13.25 YFE24B21S AVC36BX21 17.5 – 800 24.0 18.0 16.25 13.25 YFE24B21S AVC36CX21 21.0 – 800 24.0 18.0 16.25 13.25 YFE24B21S ME08BN21 17.5 CF/CM24B 800 24.0 18.2 15.75 13.00 YFE24B21S ME08BN21 17.5 CF/CM30B 800 24.0 18.2 16.25 13.25 YFE24B21S ME08BN21 17.5 CF/CM36B 800 24.0 18.0 16.25 13.25 YFE24B21S ME08BN21 17.5 CF42B 800 24.0 18.0 15.75 13.00 YFE24B21S ME12BN21 17.5 CF/CM24B 800 24.0 18.2 15.75 13.00 YFE24B21S ME12BN21 17.5 CF/CM30B 800 24.0 18.0 16.00 13.25 YFE24B21S ME12BN21 17.5 CF/CM36B 800 24.0 18.0 16.00 13.25 YFE24B21S ME12BN21 17.5 CF42B 800 24.0 18.0 16.25 13.25 YFE24B21S ME14DN21 24.5 CF/CM30D 800 24.0 18.0 15.50 12.75 YFE24B21S ME14DN21 24.5 CF/CM36D 800 24.0 18.0 15.50 12.75 YFE24B21S ME14DN21 24.5 CF/CM42D 800 24.0 18.0 15.75 13.00 YFE24B21S ME16CN21 21.0 CF/CM24C 875 24.0 18.8 14.50 12.25 YFE24B21S MVC08BN21 17.5 CF/CM24B 800 24.0 18.2 15.75 13.00 YFE24B21S MVC08BN21 17.5 CF/CM30B 700 24.0 17.6 16.00 13.25 YFE24B21S MVC08BN21 17.5 CF/CM36B 775 24.0 17.8 16.25 13.25 YFE24B21S MVC08BN21 17.5 CF42B 800 24.0 18.0 16.25 13.25 YFE24B21S MVC12BN21 17.5 CF/CM24B 800 24.0 18.0 15.75 13.00

For Notes See Page 8.

AIR HANDLER

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 5

Page 6

5006142-YTG-A-0815

COOLING CAPACITY - With Air Handler Coils (Continued)

UNIT

MODEL

YFE24B21S MVC12BN21 17.5 CF/CM30B 850 24.0 18.8 16.00 13.25 YFE24B21S MVC12BN21 17.5 CF/CM36B 775 24.0 17.8 16.00 13.25 YFE24B21S MVC12BN21 17.5 CF42B 800 24.0 18.0 16.25 13.25 YFE24B21S MVC14DN21 24.5 CF/CM30D 800 24.0 18.0 16.25 13.25 YFE24B21S MVC14DN21 24.5 CF/CM36D 850 24.0 18.4 16.25 13.25 YFE24B21S MVC14DN21 24.5 CF/CM42D 825 24.0 18.4 16.25 13.25 YFE24B21S MVC16CN21 21.0 CF/CM42C 900 24.0 19.0 16.25 13.25 YFE30B21S AE30BX21 17.5 – 1000 29.8 21.6 15.25 12.50 YFE30B21S AE36BX21 17.5 – 975 30.0 21.8 15.50 12.75 YFE30B21S AE36CX21 21.0 – 1000 30.0 21.6 16.00 13.00 YFE30B21S AP30BX21 17.5 – 1000 29.6 21.2 14.25 11.75 YFE30B21S AP36BX21 17.5 – 1000 29.6 21.2 14.00 11.75 YFE30B21S AP36CX21 21.0 – 1000 29.6 21.6 14.25 11.75 YFE30B21S AP42CX21 21.0 – 1100 29.8 22.6 14.00 11.75 YFE30B21S AVC30BX21 17.5 – 975 29.8 21.4 15.25 12.50 YFE30B21S AVC36BX21 17.5 – 975 30.0 22.0 15.75 12.75 YFE30B21S AVC36CX21 21.0 – 975 30.0 22.0 16.25 13.25 YFE30B21S ME08BN21 17.5 CF/CM30B 900 29.6 20.8 15.50 12.75 YFE30B21S ME08BN21 17.5 CF/CM36B 900 29.6 20.6 15.75 12.75 YFE30B21S ME08BN21 17.5 CF42B 875 29.6 20.6 15.75 12.75 YFE30B21S ME12BN21 17.5 CF/CM30B 825 29.2 19.8 15.50 12.75 YFE30B21S ME12BN21 17.5 CF/CM36B 1025 30.0 21.8 15.50 12.75 YFE30B21S ME12BN21 17.5 CF42B 975 30.0 21.8 15.50 12.75 YFE30B21S ME14DN21 24.5 CF/CM30D 1050 30.0 22.2 16.00 13.00 YFE30B21S ME14DN21 24.5 CF/CM36D 1025 30.0 22.0 16.00 13.00 YFE30B21S ME14DN21 24.5 CF/CM42D 1000 30.0 21.8 16.25 13.25 YFE30B21S ME16CN21 21.0 CF/CM30C 1075 30.0 22.6 15.25 12.50 YFE30B21S ME16CN21 21.0 CF/CM36C 1100 30.0 22.8 15.25 12.50 YFE30B21S ME16CN21 21.0 CF/CM42C 1000 29.8 21.8 15.00 12.50 YFE30B21S MVC08BN21 17.5 CF42B 825 29.4 20.0 15.50 12.75 YFE30B21S MVC12BN21 17.5 CF/CM30B 850 29.2 19.8 15.25 12.50 YFE30B21S MVC12BN21 17.5 CF/CM36B 1000 30.0 21.6 15.25 12.50 YFE30B21S MVC12BN21 17.5 CF42B 975 30.0 21.8 15.50 12.75 YFE30B21S MVC14DN21 24.5 CF/CM30D 925 30.0 21.0 16.00 13.00 YFE30B21S MVC14DN21 24.5 CF/CM36D 975 30.0 21.4 16.00 13.00 YFE30B21S MVC14DN21 24.5 CF/CM42D 1000 30.0 21.8 16.25 13.25 YFE30B21S MVC16CN21 21.0 CF/CM30C 925 30.0 21.0 16.00 13.00 YFE30B21S MVC16CN21 21.0 CF/CM36C 1025 30.0 22.0 16.00 13.00 YFE30B21S MVC16CN21 21.0 CF/CM42C 900 30.0 21.0 16.00 13.00 YFE30B21S MVC20DN21 24.5 CF/CM36D 1120 30.0 22.8 16.00 13.00 YFE30B21S MVC20DN21 24.5 CF/CM42D 1100 30.0 22.8 15.75 12.75 YFE36B21S AE36BX21 17.5 – 1000 35.6 24.0 15.00 12.50 YFE36B21S AE36CX21 21.0 – 1225 36.0 26.0 15.25 12.50 YFE36B21S AE42CX21 21.0 – 1200 36.0 25.8 15.25 12.50 YFE36B21S AE48CX21 21.0 – 1250 36.0 26.4 15.50 12.75 YFE36B21S AE48DX21 24.5 – 1225 36.0 26.0 15.50 12.75 YFE36B21S AP36BX21 17.5 – 1000 35.0 23.4 14.00 11.75 YFE36B21S AP36CX21 21.0 – 1225 36.0 25.8 14.00 11.75 YFE36B21S AP42CX21 21.0 – 1225 36.0 26.0 14.00 11.75 YFE36B21S AP48CX21 21.0 – 1200 36.0 25.6 14.00 11.75 YFE36B21S AP48DX21 24.5 – 1325 36.0 26.6 14.00 11.75 YFE36B21S AVC36BX21 17.5 – 1025 35.8 24.2 15.00 12.50

For Notes See Page 8.

AIR HANDLER

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

6 Johnson Controls Unitary Products

Page 7

5006142-YTG-A-0815

COOLING CAPACITY - With Air Handler Coils (Continued)

UNIT

MODEL

YFE36B21S AVC36CX21 21.0 – 1125 36.0 25.6 15.50 12.75 YFE36B21S AVC42CX21 21.0 – 1100 36.0 25.4 15.50 12.75 YFE36B21S AVC48CX21 21.0 – 1075 36.0 24.8 15.50 12.75 YFE36B21S AVC48DX21 24.5 – 1350 36.0 27.0 15.50 12.75 YFE36B21S ME12BN21 17.5 CF/CM36B 1025 35.8 24.2 15.00 12.50 YFE36B21S ME12BN21 17.5 CF42B 975 35.8 24.0 14.75 12.25 YFE36B21S ME14DN21 24.5 CF/CM36D 1250 36.0 26.2 15.50 12.75 YFE36B21S ME14DN21 24.5 CF/CM42D 1225 36.0 26.0 15.50 12.75 YFE36B21S ME14DN21 24.5 CF/CM48D 1200 36.0 25.8 15.50 12.75 YFE36B21S ME16CN21 21.0 CF/CM36C 1225 36.0 26.0 15.50 12.75 YFE36B21S ME16CN21 21.0 CF/CM42C 1225 36.0 26.0 15.50 12.75 YFE36B21S ME16CN21 21.0 CF/CM48C 1225 36.0 26.0 15.50 12.75 YFE36B21S ME20DN21 24.5 CF/CM36D 1325 36.0 26.8 14.50 12.25 YFE36B21S ME20DN21 24.5 CF/CM42D 1325 36.0 26.8 14.50 12.25 YFE36B21S ME20DN21 24.5 CF/CM48D 1325 36.0 26.8 14.75 12.25 YFE36B21S MVC08BN21 17.5 CF42B 975 35.8 24.0 14.75 12.25 YFE36B21S MVC12BN21 17.5 CF/CM36B 1025 35.6 24.0 14.50 12.25 YFE36B21S MVC12BN21 17.5 CF42B 975 35.8 24.0 14.75 12.25 YFE36B21S MVC14DN21 24.5 CF/CM36D 975 35.6 23.6 15.25 12.50 YFE36B21S MVC14DN21 24.5 CF/CM42D 1275 36.0 26.4 15.50 12.75 YFE36B21S MVC14DN21 24.5 CF/CM48D 1150 36.0 25.4 15.75 12.75 YFE36B21S MVC16CN21 21.0 CF/CM36C 1100 36.0 25.0 15.50 12.75 YFE36B21S MVC16CN21 21.0 CF/CM42C 1250 36.0 26.2 15.25 12.50 YFE36B21S MVC16CN21 21.0 CF/CM48C 1200 36.0 25.8 15.50 12.75 YFE36B21S MVC20DN21 24.5 CF/CM36D 1120 36.0 25.2 15.50 12.75 YFE36B21S MVC20DN21 24.5 CF/CM42D 1200 36.0 26.0 15.25 12.50 YFE36B21S MVC20DN21 24.5 CF/CM48D 1200 36.0 25.8 15.50 12.75 YFE42B21S AE42CX21 21.0 – 1375 41.0 31.0 14.75 12.50 YFE42B21S AE48CX21 21.0 – 1225 41.0 29.0 15.25 12.75 YFE42B21S AE48DX21 24.5 – 1225 41.0 29.0 15.50 12.75 YFE42B21S AE60CX21 21.0 – 1425 41.5 32.0 15.00 12.50 YFE42B21S AE60DX21 24.5 – 1400 42.0 31.0 15.50 12.75 YFE42B21S AP42CX21 21.0 – 1225 40.0 28.0 14.00 12.25 YFE42B21S AP48CX21 21.0 – 1300 40.5 29.0 14.00 12.25 YFE42B21S AP48DX21 24.5 – 1350 41.0 30.0 14.00 12.25 YFE42B21S AP60CX21 21.0 – 1350 40.5 29.5 14.00 12.20 YFE42B21S AVC42CX21 21.0 – 1275 41.0 29.5 15.00 12.50 YFE42B21S AVC48CX21 21.0 – 1225 41.0 29.0 15.25 12.75 YFE42B21S AVC48DX21 24.5 – 1300 41.5 30.0 15.50 12.75 YFE42B21S AVC60CX21 21.0 – 1275 41.0 30.0 15.25 12.75 YFE42B21S AVC60DX21 24.5 – 1200 41.5 29.0 15.25 12.75 YFE42B21S ME14DN21 24.5 CF/CM42D 1400 41.5 31.0 15.25 12.75 YFE42B21S ME14DN21 24.5 CF/CM48D 1400 41.5 31.0 15.25 12.75 YFE42B21S ME14DN21 24.5 CF/CM60D 1225 41.0 29.5 15.75 13.00 YFE42B21S ME14DN21 24.5 CF/CM64D 1375 42.0 31.0 15.50 12.75 YFE42B21S ME16CN21 21.0 CF/CM42C 1400 41.5 31.0 15.00 12.50 YFE42B21S ME16CN21 21.0 CF/CM48C 1225 41.0 29.0 15.50 12.75 YFE42B21S ME16CN21 21.0 CF/CM60C 1225 41.0 29.5 15.75 13.00 YFE42B21S ME20DN21 24.5 CF/CM42D 1450 41.5 31.5 15.25 12.75 YFE42B21S ME20DN21 24.5 CF/CM48D 1475 42.0 32.0 15.50 12.75 YFE42B21S ME20DN21 24.5 CF/CM60D 1425 42.0 31.5 15.25 12.75 YFE42B21S ME20DN21 24.5 CF/CM64D 1400 42.0 31.5 15.50 12.75 YFE42B21S MVC12BN21 17.5 CF42B 1175 40.0 27.5 14.50 12.25

For Notes See Page 8.

AIR HANDLER

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 7

Page 8

5006142-YTG-A-0815

COOLING CAPACITY - With Air Handler Coils (Continued)

UNIT

MODEL

AIR HANDLER

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

YFE42B21S MVC14DN21 24.5 CF/CM42D 1375 41.0 31.0 15.25 12.75 YFE42B21S MVC14DN21 24.5 CF/CM48D 1325 41.5 30.0 15.50 12.75 YFE42B21S MVC14DN21 24.5 CF/CM60D 1225 41.0 29.5 15.50 12.75 YFE42B21S MVC14DN21 24.5 CF/CM64D 1325 41.5 30.5 15.75 13.00 YFE42B21S MVC16CN21 21.0 CF/CM42C 1250 41.0 29.0 15.50 12.75 YFE42B21S MVC16CN21 21.0 CF/CM48C 1275 41.0 29.5 15.25 12.75 YFE42B21S MVC20DN21 24.5 CF/CM42D 1225 40.5 29.0 15.00 12.50 YFE42B21S MVC20DN21 24.5 CF/CM48D 1300 41.5 30.0 15.25 12.75 YFE42B21S MVC20DN21 24.5 CF/CM60D 1250 41.5 29.5 16.00 13.25 YFE42B21S MVC20DN21 24.5 CF/CM64D 1250 42.0 29.5 15.50 12.75 YFE48B21S AE48CX21 21.0 – 1425 47.5 34.5 15.25 12.50 YFE48B21S AE48DX21 24.5 – 1425 47.5 35.0 15.50 12.75 YFE48B21S AE60CX21 21.0 – 1425 48.0 35.5 15.50 12.75 YFE48B21S AE60DX21 24.5 – 1400 48.0 35.0 15.75 13.00 YFE48B21S AP48CX21 21.0 – 1300 46.0 32.5 14.00 11.75 YFE48B21S AP48DX21 24.5 – 1600 47.0 34.0 14.00 11.75 YFE48B21S AP60CX21 21.0 – 1600 48.0 36.5 14.00 11.75 YFE48B21S AP60DX21 24.5 – 1600 48.0 36.5 14.00 11.75 YFE48B21S AVC48CX21 21.0 – 1350 48.0 34.0 14.75 12.50 YFE48B21S AVC48DX21 24.5 – 1350 48.0 34.0 15.00 12.50 YFE48B21S AVC60CX21 21.0 – 1350 47.5 34.5 15.25 12.50 YFE48B21S AVC60DX21 24.5 – 1475 48.0 35.5 15.50 12.75 YFE48B21S ME14DN21 24.5 CF/CM60D 1425 48.0 35.5 15.50 12.75 YFE48B21S ME14DN21 24.5 CF/CM64D 1375 48.0 35.0 15.75 12.75 YFE48B21S ME16CN21 21.0 CF/CM48C 1475 48.0 35.5 15.00 12.50 YFE48B21S ME16CN21 21.0 CF/CM60C 1450 48.0 35.5 15.50 12.75 YFE48B21S ME20DN21 24.5 CF/CM48D 1475 48.0 35.5 15.25 12.50 YFE48B21S ME20DN21 24.5 CF/CM60D 1400 48.0 35.0 15.25 12.50 YFE48B21S ME20DN21 24.5 CF/CM64D 1425 48.0 35.0 15.75 12.75 YFE48B21S MVC14DN21 24.5 CF/CM48D 1325 47.0 33.0 15.00 12.50 YFE48B21S MVC14DN21 24.5 CF/CM60D 1350 47.5 34.0 15.25 12.50 YFE48B21S MVC14DN21 24.5 CF/CM64D 1325 48.0 34.0 15.75 12.75 YFE48B21S MVC16CN21 21.0 CF/CM48C 1425 47.5 34.5 15.50 12.50 YFE48B21S MVC16CN21 21.0 CF/CM60C 1650 48.0 37.5 16.25 13.25 YFE48B21S MVC20DN21 24.5 CF/CM48D 1450 48.0 35.0 15.50 12.75 YFE48B21S MVC20DN21 24.5 CF/CM60D 1475 48.0 35.5 15.75 12.75 YFE48B21S MVC20DN21 24.5 CF/CM64D 1375 48.0 35.0 15.75 12.75 YFE60B21S AE60CX21 21.0 – 1625 56.5 39.0 14.25 12.00 YFE60B21S AE60DX21 24.5 – 1775 58.0 41.0 14.50 12.00 YFE60B21S AVC60DX21 24.5 – 1650 57.5 40.0 14.25 12.25 YFE60B21S ME16CN21 21.0 CF/CM60C 1625 56.5 39.0 14.75 12.25 YFE60B21S ME20DN21 24.5 CF/CM60D 1650 56.5 39.0 14.75 12.25 YFE60B21S ME20DN21 24.5 CF/CM64D 1625 58.0 39.5 14.75 12.25 YFE60B21S MVC16CN21 21.0 CF/CM60C 1650 57.0 39.5 15.50 12.75 YFE60B21S MVC20DN21 24.5 CF/CM60D 1700 56.5 39.0 14.50 12.00 YFE60B21S MVC20DN21 24.5 CF/CM64D 1700 57.5 39.5 14.75 12.25

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240. Cooling MBH based on 80°F entering air temperature, 50% RH (Relative Humidity), and rated air flow. EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.

SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the same period.

1. CM coils available with a factory installed horizontal drain pan. See price pages for specific model number.

— = Not applicable. MP Modular Air Handlers use Coil Only Ratings.

COOLING

NET MBH

SEER EER

8 Johnson Controls Unitary Products

Page 9

5006142-YTG-A-0815

COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)

COIL

UNIT MODEL

YFE18B21S CF/CM/CU18A 14.5 450 - 750 600 17.8 13.3 14.00 12.20 YFE18B21S CF/CM/CU18B 17.5 450 - 750 600 17.8 13.3 14.00 12.20 YFE18B21S CF/CM/CU24A 14.5 450 - 750 600 18.0 13.5 14.00 12.20 YFE18B21S CF/CM/CU24B 17.5 450 - 750 600 18.0 13.5 14.00 12.20 YFE18B21S CF/CM/CU24C 21.0 450 - 750 600 18.0 13.5 14.00 12.20 YFE18B21S CF/CM/CU30A 14.5 450 - 750 600 18.0 13.6 14.00 12.20 YFE18B21S CF/CM/CU30B 17.5 450 - 750 600 18.0 13.6 14.00 12.20 YFE18B21S CF/CM/CU30C 21.0 450 - 750 600 18.0 13.6 14.00 12.20 YFE18B21S CF/CM/CU30D 24.5 450 - 750 600 18.0 13.6 14.00 12.20 YFE18B21S CF/CM/CU36B 17.5 450 - 750 600 18.0 13.4 14.50 12.25 YFE18B21S CF/CM/CU36C 21.0 450 - 750 600 18.0 13.4 14.50 12.25 YFE18B21S CF/CM/CU36D 24.5 450 - 750 600 18.0 13.4 14.50 12.25 YFE18B21S CF/CM36A 14.5 450 - 750 600 18.0 13.4 14.50 12.25 YFE24B21S CF/CM/CU24A 14.5 600 - 1000 800 24.0 18.0 14.00 11.75 YFE24B21S CF/CM/CU24B 17.5 600 - 1000 800 24.0 18.0 14.00 11.75 YFE24B21S CF/CM/CU24C 21.0 600 - 1000 800 24.0 18.0 14.00 11.75 YFE24B21S CF/CM/CU30A 14.5 600 - 1000 800 24.0 18.0 14.00 11.75 YFE24B21S CF/CM/CU30B 17.5 600 - 1000 800 24.0 18.0 14.00 11.75 YFE24B21S CF/CM/CU30C 21.0 600 - 1000 800 24.0 18.0 14.00 11.75 YFE24B21S CF/CM/CU30D 24.5 600 - 1000 800 24.0 18.0 14.00 11.75 YFE24B21S CF/CM/CU36B 17.5 600 - 1000 800 24.0 17.8 14.25 12.25 YFE24B21S CF/CM/CU36C 21.0 600 - 1000 800 24.0 17.8 14.25 12.25 YFE24B21S CF/CM/CU36D 24.5 600 - 1000 800 24.0 17.8 14.25 12.25 YFE24B21S CF/CM/CU42C 21.0 600 - 1000 800 24.0 17.8 14.50 12.25 YFE24B21S CF/CM/CU42D 24.5 600 - 1000 800 24.0 17.8 14.50 12.25 YFE24B21S CF/CM36A 14.5 600 - 1000 800 24.0 17.8 14.25 12.25 YFE24B21S CF42B 17.5 600 - 1000 800 24.0 17.8 14.50 12.25 YFE30B21S CF/CM/CU30B 17.5 800 - 1200 1000 29.0 21.0 14.00 11.75 YFE30B21S CF/CM/CU30C 21.0 800 - 1200 1000 29.0 21.0 14.00 11.75 YFE30B21S CF/CM/CU30D 24.5 800 - 1200 1000 29.0 21.0 14.00 11.75 YFE30B21S CF/CM/CU36B 17.5 800 - 1200 1000 29.4 21.2 14.00 11.75 YFE30B21S CF/CM/CU36C 21.0 800 - 1200 1000 29.4 21.2 14.00 11.75 YFE30B21S CF/CM/CU36D 24.5 800 - 1200 1000 29.4 21.2 14.00 11.75 YFE30B21S CF/CM/CU42C 21.0 800 - 1200 1000 29.6 21.4 14.00 11.75 YFE30B21S CF/CM/CU42D 24.5 800 - 1200 1000 29.6 21.4 14.00 11.75 YFE30B21S CF42B 17.5 800 - 1200 1000 29.6 21.4 14.00 11.75 YFE36B21S CF/CM/CU36B 17.5 1000 - 1400 1200 35.0 24.6 14.00 11.75 YFE36B21S CF/CM/CU36C 21.0 1000 - 1400 1200 35.0 24.6 14.00 11.75 YFE36B21S CF/CM/CU36D 24.5 1000 - 1400 1200 35.0 24.6 14.00 11.75 YFE36B21S CF/CM/CU42C 21.0 1000 - 1400 1200 36.0 26.0 14.00 11.75 YFE36B21S CF/CM/CU42D 24.5 1000 - 1400 1200 36.0 26.0 14.00 11.75 YFE36B21S CF/CM/CU48C 21.0 1000 - 1400 1200 36.0 25.6 14.00 11.75 YFE36B21S CF/CM/CU48D 24.5 1000 - 1400 1200 36.0 25.6 14.00 11.75 YFE36B21S CF42B 17.5 1000 - 1400 1200 36.0 26.0 14.00 11.75 YFE42B21S CF/CM/CU42C 21.0 1200 - 1600 1400 40.0 31.0 14.00 12.20 YFE42B21S CF/CM/CU42D 24.5 1200 - 1600 1400 40.0 31.0 14.00 12.20 YFE42B21S CF/CM/CU48C 21.0 1200 - 1600 1400 41.0 30.0 14.00 12.20 YFE42B21S CF/CM/CU48D 24.5 1200 - 1600 1400 41.0 30.0 14.00 12.20

For Notes See Page 10.

MODEL WIDTH

CFM RANGE

(MIN.-MAX.)

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER

EER

Johnson Controls Unitary Products 9

Page 10

5006142-YTG-A-0815

COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings) (Continued)

COIL

UNIT MODEL

MODEL WIDTH

CFM RANGE

(MIN.-MAX.)

RATED

CFM

TOTAL SENS.

YFE42B21S CF/CM/CU60C 21.0 1200 - 1600 1400 41.0 30.5 14.00 12.20 YFE42B21S CF/CM/CU60D 24.5 1200 - 1600 1400 41.0 30.5 14.00 12.20 YFE42B21S CF/CM64D 24.5 1200 - 1600 1400 41.5 31.0 14.25 12.25 YFE42B21S CF42B 17.5 1200 - 1600 1225 38.5 27.0 14.00 12.20 YFE48B21S CF/CM/CU48C 21.0 1400 - 1800 1600 46.5 33.5 14.00 11.75 YFE48B21S CF/CM/CU48D 24.5 1400 - 1800 1600 46.5 33.5 14.00 11.75 YFE48B21S CF/CM/CU60C 21.0 1400 - 1800 1600 48.0 36.5 14.00 11.75 YFE48B21S CF/CM/CU60D 24.5 1400 - 1800 1600 48.0 36.5 14.00 11.75 YFE48B21S CF/CM64D 24.5 1400 - 1800 1600 48.0 36.5 14.25 12.25 YFE60B21S CF/CM/CU60C 21.0 1530 - 1930 1715 56.0 39.0 14.00 11.75 YFE60B21S CF/CM/CU60D 24.5 1530 - 1930 1725 56.0 39.0 14.00 11.75 YFE60B21S CF/CM64D 24.5 1530 - 1930 1725 57.5 40.5 14.00 11.75

For rated condition information, see the footnotes below the System Capacity - Single Piece and Modular Air Handlers table.

1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.

— = Not Applicable. MP Modular Air Handlers use Coil Only Ratings. PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.

COOLING

NET MBH

SEER

EER

COOLING CAPACITY - With High Efficiency Motor Furnaces1

UNIT

MODEL

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

YFE18B21S TM8V060A12MP11 14.5 CF/CM/CU18A 525 18.0 12.9 15.75 13.00 YFE18B21S TM8V060A12MP11 14.5 CF/CM/CU24A 550 18.0 13.2 16.00 13.25 YFE18B21S TM8V060A12MP11 14.5 CF/CM/CU30A 550 18.0 13.2 16.25 13.25 YFE18B21S TM8V080B12MP11 17.5 CF/CM/CU18B 650 18.0 14.0 16.00 13.25 YFE18B21S TM8V080B12MP11 17.5 CF/CM/CU24B 675 18.0 14.3 16.25 13.25 YFE18B21S TM8V080B12MP11 17.5 CF/CM/CU30B 625 18.0 13.9 16.25 13.25 YFE18B21S TM8V080B12MP11 17.5 CF/CM/CU36B 675 18.0 14.1 16.25 13.25 YFE18B21S TM8X060A12MP11 14.5 CF/CM/CU18A 600 18.0 13.7 15.75 13.00 YFE18B21S TM8X060A12MP11 14.5 CF/CM/CU24A 600 18.0 13.6 16.00 13.00 YFE18B21S TM8X060A12MP11 14.5 CF/CM/CU30A 625 18.0 13.9 16.25 13.25 YFE18B21S TM8X060A12MP11 14.5 CF/CM36A 600 18.0 13.5 16.00 13.25 YFE18B21S TM8X080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.75 13.00 YFE18B21S TM8X080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.6 16.00 13.25 YFE18B21S TM8X080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.25 13.25 YFE18B21S TM8X080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S TM8X080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00 YFE18B21S TM8X080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00 YFE18B21S TM8X080C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25 YFE18B21S TM8X080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25 YFE18B21S TM8X080C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25 YFE18B21S TM8X100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00 YFE18B21S TM8X100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00 YFE18B21S TM8X100C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25 YFE18B21S TM8X100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25 YFE18B21S TM8X100C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25 YFE18B21S TM8Y060A12MP11 14.5 CF/CM/CU18A 600 18.0 13.7 15.75 13.00 YFE18B21S TM8Y060A12MP11 14.5 CF/CM/CU24A 600 18.0 13.6 16.00 13.00 YFE18B21S TM8Y060A12MP11 14.5 CF/CM/CU30A 625 18.0 13.9 16.25 13.25

For notes see Page 39.

COOLING

NET MBH

SEER EER

10 Johnson Controls Unitary Products

Page 11

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE18B21S TM8Y060A12MP11 14.5 CF/CM36A 600 18.0 13.5 16.00 13.25 YFE18B21S TM8Y080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.75 13.00 YFE18B21S TM8Y080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.6 16.00 13.25 YFE18B21S TM8Y080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.25 13.25 YFE18B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S TM8Y080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00 YFE18B21S TM8Y080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00 YFE18B21S TM8Y080C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25 YFE18B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25 YFE18B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25 YFE18B21S TM8Y100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00 YFE18B21S TM8Y100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00 YFE18B21S TM8Y100C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25 YFE18B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25 YFE18B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25 YFE18B21S TM9E040A10MP11 14.5 CF/CM/CU18A 600 18.0 13.7 16.00 13.25 YFE18B21S TM9E040A10MP11 14.5 CF/CM/CU24A 575 18.0 13.4 16.00 13.25 YFE18B21S TM9E040A10MP11 14.5 CF/CM/CU30A 600 18.0 13.6 16.25 13.25 YFE18B21S TM9E040A10MP11 14.5 CF/CM36A 600 18.0 13.5 16.25 13.25 YFE18B21S TM9E060B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.50 12.75 YFE18B21S TM9E060B12MP11 17.5 CF/CM/CU24B 600 18.0 13.5 15.75 13.00 YFE18B21S TM9E060B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.00 13.00 YFE18B21S TM9E060B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.00 13.25 YFE18B21S TM9E080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.50 12.75 YFE18B21S TM9E080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.5 15.75 13.00 YFE18B21S TM9E080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.00 13.00 YFE18B21S TM9E080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.00 13.25 YFE18B21S TM9E080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.25 13.25 YFE18B21S TM9E080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.7 16.25 13.25 YFE18B21S TM9E080C16MP11 21.0 CF/CM/CU30D 600 18.0 13.7 16.25 13.25 YFE18B21S TM9E080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.25 13.25 YFE18B21S TM9E080C16MP11 21.0 CF/CM/CU36D 600 18.0 13.5 16.25 13.25 YFE18B21S TM9E100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.25 13.25 YFE18B21S TM9E100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.7 16.25 13.25 YFE18B21S TM9E100C16MP11 21.0 CF/CM/CU30D 600 18.0 13.7 16.25 13.25 YFE18B21S TM9E100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.25 13.25 YFE18B21S TM9E100C16MP11 21.0 CF/CM/CU36D 600 18.0 13.5 16.25 13.25 YFE18B21S TM9E100C20MP11 21.0 CF/CM/CU24C 625 18.0 13.8 14.75 12.25 YFE18B21S TM9E100C20MP11 21.0 CF/CM/CU30C 625 18.0 13.8 15.00 12.50 YFE18B21S TM9E100C20MP11 21.0 CF/CM/CU30D 650 18.0 13.8 15.00 12.50 YFE18B21S TM9E100C20MP11 21.0 CF/CM/CU36C 625 18.0 13.5 15.00 12.50 YFE18B21S TM9E100C20MP11 21.0 CF/CM/CU36D 650 18.0 13.9 15.25 12.50 YFE18B21S TM9E120D20MP11 24.5 CF/CM/CU30D 600 18.0 13.7 15.00 12.50 YFE18B21S TM9E120D20MP11 24.5 CF/CM/CU36D 600 18.0 13.4 15.00 12.50 YFE18B21S TM9V040A10MP11 14.5 CF/CM/CU24A 675 18.0 14.3 15.00 12.50 YFE18B21S TM9V060B12MP11 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00 YFE18B21S TM9V060B12MP11 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25 YFE18B21S TM9V060B12MP11 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25 YFE18B21S TM9V060B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S TM9V080B12MP11 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 11

Page 12

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE18B21S TM9V080B12MP11 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25 YFE18B21S TM9V080B12MP11 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25 YFE18B21S TM9V080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S TM9Y040A10MP11 14.5 CF/CM/CU18A 600 18.0 13.7 16.00 13.25 YFE18B21S TM9Y040A10MP11 14.5 CF/CM/CU24A 575 18.0 13.4 16.00 13.25 YFE18B21S TM9Y040A10MP11 14.5 CF/CM/CU30A 600 18.0 13.6 16.25 13.25 YFE18B21S TM9Y040A10MP11 14.5 CF/CM36A 600 18.0 13.5 16.25 13.25 YFE18B21S TM9Y060B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.50 12.75 YFE18B21S TM9Y060B12MP11 17.5 CF/CM/CU24B 600 18.0 13.5 15.75 13.00 YFE18B21S TM9Y060B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.00 13.00 YFE18B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.00 13.25 YFE18B21S TM9Y080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.50 12.75 YFE18B21S TM9Y080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.5 15.75 13.00 YFE18B21S TM9Y080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.00 13.00 YFE18B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.00 13.25 YFE18B21S TM9Y080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.25 13.25 YFE18B21S TM9Y080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.7 16.25 13.25 YFE18B21S TM9Y080C16MP11 21.0 CF/CM/CU30D 600 18.0 13.7 16.25 13.25 YFE18B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.25 13.25 YFE18B21S TM9Y080C16MP11 21.0 CF/CM/CU36D 600 18.0 13.5 16.25 13.25 YFE18B21S TM9Y100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.25 13.25 YFE18B21S TM9Y100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.7 16.25 13.25 YFE18B21S TM9Y100C16MP11 21.0 CF/CM/CU30D 600 18.0 13.7 16.25 13.25 YFE18B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.25 13.25 YFE18B21S TM9Y100C16MP11 21.0 CF/CM/CU36D 600 18.0 13.5 16.25 13.25 YFE18B21S TM9Y100C20MP11 21.0 CF/CM/CU24C 625 18.0 13.8 14.75 12.25 YFE18B21S TM9Y100C20MP11 21.0 CF/CM/CU30C 625 18.0 13.8 15.00 12.50 YFE18B21S TM9Y100C20MP11 21.0 CF/CM/CU30D 650 18.0 13.8 15.00 12.50 YFE18B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 625 18.0 13.5 15.00 12.50 YFE18B21S TM9Y100C20MP11 21.0 CF/CM/CU36D 650 18.0 13.9 15.25 12.50 YFE18B21S TM9Y120D20MP11 24.5 CF/CM/CU30D 600 18.0 13.7 15.00 12.50 YFE18B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 600 18.0 13.4 15.00 12.50 YFE18B21S TMLV060A12MP11 14.5 CF/CM/CU18A 525 18.0 12.9 15.75 13.00 YFE18B21S TMLV060A12MP11 14.5 CF/CM/CU24A 550 18.0 13.2 16.00 13.25 YFE18B21S TMLV060A12MP11 14.5 CF/CM/CU30A 550 18.0 13.2 16.25 13.25 YFE18B21S TMLV080B12MP11 17.5 CF/CM/CU18B 650 18.0 14.0 16.00 13.25 YFE18B21S TMLV080B12MP11 17.5 CF/CM/CU24B 675 18.0 14.3 16.25 13.25 YFE18B21S TMLV080B12MP11 17.5 CF/CM/CU30B 625 18.0 13.9 16.25 13.25 YFE18B21S TMLV080B12MP11 17.5 CF/CM/CU36B 675 18.0 14.1 16.25 13.25 YFE18B21S TMLX060A12MP11 14.5 CF/CM/CU18A 600 18.0 13.7 15.75 13.00 YFE18B21S TMLX060A12MP11 14.5 CF/CM/CU24A 600 18.0 13.6 16.00 13.00 YFE18B21S TMLX060A12MP11 14.5 CF/CM/CU30A 625 18.0 13.9 16.25 13.25 YFE18B21S TMLX060A12MP11 14.5 CF/CM36A 600 18.0 13.5 16.00 13.25 YFE18B21S TMLX080B12MP11 17.5 CF/CM/CU18B 600 18.0 13.7 15.75 13.00 YFE18B21S TMLX080B12MP11 17.5 CF/CM/CU24B 600 18.0 13.6 16.00 13.25 YFE18B21S TMLX080B12MP11 17.5 CF/CM/CU30B 600 18.0 13.6 16.25 13.25 YFE18B21S TMLX080B12MP11 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S TMLX080C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00 YFE18B21S TMLX080C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00 YFE18B21S TMLX080C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

12 Johnson Controls Unitary Products

Page 13

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE18B21S TMLX080C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25 YFE18B21S TMLX080C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25 YFE18B21S TMLX100C16MP11 21.0 CF/CM/CU24C 600 18.0 13.6 16.00 13.00 YFE18B21S TMLX100C16MP11 21.0 CF/CM/CU30C 600 18.0 13.6 16.00 13.00 YFE18B21S TMLX100C16MP11 21.0 CF/CM/CU30D 625 18.0 13.9 16.25 13.25 YFE18B21S TMLX100C16MP11 21.0 CF/CM/CU36C 600 18.0 13.5 16.00 13.25 YFE18B21S TMLX100C16MP11 21.0 CF/CM/CU36D 625 18.0 13.6 16.25 13.25 YFE18B21S TP9C060B12MP12 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00 YFE18B21S TP9C060B12MP12 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25 YFE18B21S TP9C060B12MP12 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25 YFE18B21S TP9C060B12MP12 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S TP9C080B12MP12 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00 YFE18B21S TP9C080B12MP12 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25 YFE18B21S TP9C080B12MP12 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25 YFE18B21S TP9C080B12MP12 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S TPLC060A12MP12 14.5 CF/CM/CU18A 525 18.0 12.9 15.75 13.00 YFE18B21S TPLC060A12MP12 14.5 CF/CM/CU24A 550 18.0 13.2 16.00 13.25 YFE18B21S TPLC060A12MP12 14.5 CF/CM/CU30A 550 18.0 13.2 16.25 13.25 YFE18B21S TPLC080B12MP12 17.5 CF/CM/CU18B 650 18.0 14.0 16.00 13.25 YFE18B21S TPLC080B12MP12 17.5 CF/CM/CU24B 675 18.0 14.3 16.25 13.25 YFE18B21S TPLC080B12MP12 17.5 CF/CM/CU30B 625 18.0 13.9 16.25 13.25 YFE18B21S TPLC080B12MP12 17.5 CF/CM/CU36B 675 18.0 14.1 16.25 13.25 YFE18B21S YP9C060B12MP12 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00 YFE18B21S YP9C060B12MP12 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25 YFE18B21S YP9C060B12MP12 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25 YFE18B21S YP9C060B12MP12 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S YP9C080B12MP12 17.5 CF/CM/CU18B 625 18.0 13.8 16.00 13.00 YFE18B21S YP9C080B12MP12 17.5 CF/CM/CU24B 550 18.0 13.2 16.25 13.25 YFE18B21S YP9C080B12MP12 17.5 CF/CM/CU30B 650 18.0 13.9 16.25 13.25 YFE18B21S YP9C080B12MP12 17.5 CF/CM/CU36B 600 18.0 13.5 16.25 13.25 YFE18B21S YPLC060A12MP12 14.5 CF/CM/CU18A 525 18.0 12.9 15.75 13.00 YFE18B21S YPLC060A12MP12 14.5 CF/CM/CU24A 550 18.0 13.2 16.00 13.25 YFE18B21S YPLC060A12MP12 14.5 CF/CM/CU30A 550 18.0 13.2 16.25 13.25 YFE18B21S YPLC080B12MP12 17.5 CF/CM/CU18B 650 18.0 14.0 16.00 13.25 YFE18B21S YPLC080B12MP12 17.5 CF/CM/CU24B 675 18.0 14.3 16.25 13.25 YFE18B21S YPLC080B12MP12 17.5 CF/CM/CU30B 625 18.0 13.9 16.25 13.25 YFE18B21S YPLC080B12MP12 17.5 CF/CM/CU36B 675 18.0 14.1 16.25 13.25 YFE24B21S TM8V060A12MP11 14.5 CF/CM/CU24A 725 24.0 17.6 15.00 12.50 YFE24B21S TM8V060A12MP11 14.5 CF/CM/CU30A 725 24.0 17.4 15.25 12.50 YFE24B21S TM8V060A12MP11 14.5 CF/CM36A 700 24.0 17.2 15.25 12.50 YFE24B21S TM8V080B12MP11 17.5 CF/CM/CU24B 850 24.0 18.4 15.25 12.50 YFE24B21S TM8V080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 15.50 12.75 YFE24B21S TM8V080B12MP11 17.5 CF/CM/CU36B 675 24.0 16.8 15.50 12.75 YFE24B21S TM8V080B12MP11 17.5 CF42B 850 24.0 18.4 15.75 13.00 YFE24B21S TM8X060A12MP11 14.5 CF/CM/CU24A 800 24.0 18.0 15.50 12.75 YFE24B21S TM8X060A12MP11 14.5 CF/CM/CU30A 800 24.0 18.0 16.00 13.25 YFE24B21S TM8X060A12MP11 14.5 CF/CM36A 775 24.0 17.8 16.00 13.25 YFE24B21S TM8X080B12MP11 17.5 CF/CM/CU24B 800 24.0 18.0 15.75 13.00 YFE24B21S TM8X080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 16.00 13.25 YFE24B21S TM8X080B12MP11 17.5 CF/CM/CU36B 800 24.0 18.0 16.00 13.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 13

Page 14

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE24B21S TM8X080B12MP11 17.5 CF42B 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X080C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25 YFE24B21S TM8X080C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25 YFE24B21S TM8X080C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25 YFE24B21S TM8X080C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X080C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X080C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X080C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X100C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25 YFE24B21S TM8X100C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25 YFE24B21S TM8X100C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25 YFE24B21S TM8X100C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X100C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X100C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X100C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25 YFE24B21S TM8X100C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50 YFE24B21S TM8X100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50 YFE24B21S TM8X100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50 YFE24B21S TM8X100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50 YFE24B21S TM8X100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50 YFE24B21S TM8X100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50 YFE24B21S TM8X120C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50 YFE24B21S TM8X120C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50 YFE24B21S TM8X120C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50 YFE24B21S TM8X120C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50 YFE24B21S TM8X120C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50 YFE24B21S TM8X120C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50 YFE24B21S TM8Y060A12MP11 14.5 CF/CM/CU24A 800 24.0 18.0 15.50 12.75 YFE24B21S TM8Y060A12MP11 14.5 CF/CM/CU30A 800 24.0 18.0 16.00 13.25 YFE24B21S TM8Y060A12MP11 14.5 CF/CM36A 775 24.0 17.8 16.00 13.25 YFE24B21S TM8Y080B12MP11 17.5 CF/CM/CU24B 800 24.0 18.0 15.75 13.00 YFE24B21S TM8Y080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 16.00 13.25 YFE24B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 800 24.0 18.0 16.00 13.25 YFE24B21S TM8Y080B12MP11 17.5 CF42B 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y080C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25 YFE24B21S TM8Y080C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25 YFE24B21S TM8Y080C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25 YFE24B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y100C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25 YFE24B21S TM8Y100C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25 YFE24B21S TM8Y100C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25 YFE24B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25 YFE24B21S TM8Y100C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50 YFE24B21S TM8Y100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

14 Johnson Controls Unitary Products

Page 15

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE24B21S TM8Y100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50 YFE24B21S TM8Y100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50 YFE24B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50 YFE24B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50 YFE24B21S TM8Y120C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50 YFE24B21S TM8Y120C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50 YFE24B21S TM8Y120C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50 YFE24B21S TM8Y120C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50 YFE24B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50 YFE24B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50 YFE24B21S TM9E040A10MP11 14.5 CF/CM/CU24A 750 24.0 17.6 14.75 12.25 YFE24B21S TM9E040A10MP11 14.5 CF/CM/CU30A 775 24.0 18.0 15.25 12.50 YFE24B21S TM9E040A10MP11 14.5 CF/CM36A 775 24.0 17.8 15.25 12.50 YFE24B21S TM9E060B12MP11 17.5 CF/CM/CU24B 750 24.0 17.8 15.75 13.00 YFE24B21S TM9E060B12MP11 17.5 CF/CM/CU30B 750 24.0 17.8 16.00 13.25 YFE24B21S TM9E060B12MP11 17.5 CF/CM/CU36B 750 24.0 17.6 16.00 13.25 YFE24B21S TM9E060B12MP11 17.5 CF42B 750 24.0 17.6 16.00 13.25 YFE24B21S TM9E080B12MP11 17.5 CF/CM/CU24B 750 24.0 17.8 15.75 13.00 YFE24B21S TM9E080B12MP11 17.5 CF/CM/CU30B 750 24.0 17.8 16.00 13.25 YFE24B21S TM9E080B12MP11 17.5 CF/CM/CU36B 750 24.0 17.6 16.00 13.25 YFE24B21S TM9E080B12MP11 17.5 CF42B 750 24.0 17.6 16.00 13.25 YFE24B21S TM9E080C16MP11 21.0 CF/CM/CU24C 750 24.0 17.8 15.75 13.00 YFE24B21S TM9E080C16MP11 21.0 CF/CM/CU30C 750 24.0 17.8 16.25 13.25 YFE24B21S TM9E080C16MP11 21.0 CF/CM/CU30D 775 24.0 18.0 16.25 13.25 YFE24B21S TM9E080C16MP11 21.0 CF/CM/CU36C 750 24.0 17.6 16.25 13.25 YFE24B21S TM9E080C16MP11 21.0 CF/CM/CU36D 775 24.0 17.8 16.25 13.25 YFE24B21S TM9E080C16MP11 21.0 CF/CM/CU42C 750 24.0 17.6 16.25 13.25 YFE24B21S TM9E080C16MP11 21.0 CF/CM/CU42D 775 24.0 18.2 16.25 13.25 YFE24B21S TM9E100C16MP11 21.0 CF/CM/CU24C 750 24.0 17.8 15.75 13.00 YFE24B21S TM9E100C16MP11 21.0 CF/CM/CU30C 750 24.0 17.8 16.25 13.25 YFE24B21S TM9E100C16MP11 21.0 CF/CM/CU30D 775 24.0 18.0 16.25 13.25 YFE24B21S TM9E100C16MP11 21.0 CF/CM/CU36C 750 24.0 17.6 16.25 13.25 YFE24B21S TM9E100C16MP11 21.0 CF/CM/CU36D 775 24.0 17.8 16.25 13.25 YFE24B21S TM9E100C16MP11 21.0 CF/CM/CU42C 750 24.0 17.6 16.25 13.25 YFE24B21S TM9E100C16MP11 21.0 CF/CM/CU42D 775 24.0 18.2 16.25 13.25 YFE24B21S TM9E100C20MP11 21.0 CF/CM/CU24C 825 24.0 18.2 15.25 12.50 YFE24B21S TM9E100C20MP11 21.0 CF/CM/CU30C 825 24.0 18.2 15.50 12.75 YFE24B21S TM9E100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.50 12.75 YFE24B21S TM9E100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.2 15.50 12.75 YFE24B21S TM9E100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.2 15.50 12.75 YFE24B21S TM9E100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.0 15.75 13.00 YFE24B21S TM9E100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.75 13.00 YFE24B21S TM9E120D20MP11 24.5 CF/CM/CU30D 825 24.0 18.4 15.75 13.00 YFE24B21S TM9E120D20MP11 24.5 CF/CM/CU36D 800 24.0 18.0 15.75 13.00 YFE24B21S TM9E120D20MP11 24.5 CF/CM/CU42D 800 24.0 18.0 15.75 13.00 YFE24B21S TM9V040A10MP11 14.5 CF/CM/CU24A 675 24.0 16.8 14.25 12.25 YFE24B21S TM9V040A10MP11 14.5 CF/CM/CU30A 700 24.0 17.4 14.75 12.25 YFE24B21S TM9V060B12MP11 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25 YFE24B21S TM9V060B12MP11 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75 YFE24B21S TM9V060B12MP11 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 15

Page 16

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE24B21S TM9V060B12MP11 17.5 CF42B 825 24.0 18.2 16.25 13.25 YFE24B21S TM9V080B12MP11 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25 YFE24B21S TM9V080B12MP11 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75 YFE24B21S TM9V080B12MP11 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25 YFE24B21S TM9V080B12MP11 17.5 CF42B 825 24.0 18.2 16.25 13.25 YFE24B21S TM9V080C16MP11 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25 YFE24B21S TM9V100C16MP11 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25 YFE24B21S TM9Y040A10MP11 14.5 CF/CM/CU24A 750 24.0 17.6 14.75 12.25 YFE24B21S TM9Y040A10MP11 14.5 CF/CM/CU30A 775 24.0 18.0 15.25 12.50 YFE24B21S TM9Y040A10MP11 14.5 CF/CM36A 775 24.0 17.8 15.25 12.50 YFE24B21S TM9Y060B12MP11 17.5 CF/CM/CU24B 750 24.0 17.8 15.75 13.00 YFE24B21S TM9Y060B12MP11 17.5 CF/CM/CU30B 750 24.0 17.8 16.00 13.25 YFE24B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 750 24.0 17.6 16.00 13.25 YFE24B21S TM9Y060B12MP11 17.5 CF42B 750 24.0 17.6 16.00 13.25 YFE24B21S TM9Y080B12MP11 17.5 CF/CM/CU24B 750 24.0 17.8 15.75 13.00 YFE24B21S TM9Y080B12MP11 17.5 CF/CM/CU30B 750 24.0 17.8 16.00 13.25 YFE24B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 750 24.0 17.6 16.00 13.25 YFE24B21S TM9Y080B12MP11 17.5 CF42B 750 24.0 17.6 16.00 13.25 YFE24B21S TM9Y080C16MP11 21.0 CF/CM/CU24C 750 24.0 17.8 15.75 13.00 YFE24B21S TM9Y080C16MP11 21.0 CF/CM/CU30C 750 24.0 17.8 16.25 13.25 YFE24B21S TM9Y080C16MP11 21.0 CF/CM/CU30D 775 24.0 18.0 16.25 13.25 YFE24B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 750 24.0 17.6 16.25 13.25 YFE24B21S TM9Y080C16MP11 21.0 CF/CM/CU36D 775 24.0 17.8 16.25 13.25 YFE24B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 750 24.0 17.6 16.25 13.25 YFE24B21S TM9Y080C16MP11 21.0 CF/CM/CU42D 775 24.0 18.2 16.25 13.25 YFE24B21S TM9Y100C16MP11 21.0 CF/CM/CU24C 750 24.0 17.8 15.75 13.00 YFE24B21S TM9Y100C16MP11 21.0 CF/CM/CU30C 750 24.0 17.8 16.25 13.25 YFE24B21S TM9Y100C16MP11 21.0 CF/CM/CU30D 775 24.0 18.0 16.25 13.25 YFE24B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 750 24.0 17.6 16.25 13.25 YFE24B21S TM9Y100C16MP11 21.0 CF/CM/CU36D 775 24.0 17.8 16.25 13.25 YFE24B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 750 24.0 17.6 16.25 13.25 YFE24B21S TM9Y100C16MP11 21.0 CF/CM/CU42D 775 24.0 18.2 16.25 13.25 YFE24B21S TM9Y100C20MP11 21.0 CF/CM/CU24C 825 24.0 18.2 15.25 12.50 YFE24B21S TM9Y100C20MP11 21.0 CF/CM/CU30C 825 24.0 18.2 15.50 12.75 YFE24B21S TM9Y100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.50 12.75 YFE24B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.2 15.50 12.75 YFE24B21S TM9Y100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.2 15.50 12.75 YFE24B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.0 15.75 13.00 YFE24B21S TM9Y100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.75 13.00 YFE24B21S TM9Y120D20MP11 24.5 CF/CM/CU30D 825 24.0 18.4 15.75 13.00 YFE24B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 800 24.0 18.0 15.75 13.00 YFE24B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 800 24.0 18.0 15.75 13.00 YFE24B21S TMLV060A12MP11 14.5 CF/CM/CU24A 725 24.0 17.6 15.00 12.50 YFE24B21S TMLV060A12MP11 14.5 CF/CM/CU30A 725 24.0 17.4 15.25 12.50 YFE24B21S TMLV060A12MP11 14.5 CF/CM36A 700 24.0 17.2 15.25 12.50 YFE24B21S TMLV080B12MP11 17.5 CF/CM/CU24B 850 24.0 18.4 15.25 12.50 YFE24B21S TMLV080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 15.50 12.75 YFE24B21S TMLV080B12MP11 17.5 CF/CM/CU36B 675 24.0 16.8 15.50 12.75 YFE24B21S TMLV080B12MP11 17.5 CF42B 850 24.0 18.4 15.75 13.00 YFE24B21S TMLX060A12MP11 14.5 CF/CM/CU24A 800 24.0 18.0 15.50 12.75

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

16 Johnson Controls Unitary Products

Page 17

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE24B21S TMLX060A12MP11 14.5 CF/CM/CU30A 800 24.0 18.0 16.00 13.25 YFE24B21S TMLX060A12MP11 14.5 CF/CM36A 775 24.0 17.8 16.00 13.25 YFE24B21S TMLX080B12MP11 17.5 CF/CM/CU24B 800 24.0 18.0 15.75 13.00 YFE24B21S TMLX080B12MP11 17.5 CF/CM/CU30B 800 24.0 18.0 16.00 13.25 YFE24B21S TMLX080B12MP11 17.5 CF/CM/CU36B 800 24.0 18.0 16.00 13.25 YFE24B21S TMLX080B12MP11 17.5 CF42B 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX080C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25 YFE24B21S TMLX080C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25 YFE24B21S TMLX080C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25 YFE24B21S TMLX080C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX080C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX080C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX080C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX100C16MP11 21.0 CF/CM/CU24C 800 24.0 18.2 16.00 13.25 YFE24B21S TMLX100C16MP11 21.0 CF/CM/CU30C 800 24.0 18.2 16.25 13.25 YFE24B21S TMLX100C16MP11 21.0 CF/CM/CU30D 800 24.0 18.2 16.25 13.25 YFE24B21S TMLX100C16MP11 21.0 CF/CM/CU36C 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX100C16MP11 21.0 CF/CM/CU36D 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX100C16MP11 21.0 CF/CM/CU42C 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX100C16MP11 21.0 CF/CM/CU42D 800 24.0 18.0 16.25 13.25 YFE24B21S TMLX100C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50 YFE24B21S TMLX100C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50 YFE24B21S TMLX100C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50 YFE24B21S TMLX100C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50 YFE24B21S TMLX100C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50 YFE24B21S TMLX100C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50 YFE24B21S TMLX120C20MP11 21.0 CF/CM/CU30C 800 24.0 18.0 14.75 12.50 YFE24B21S TMLX120C20MP11 21.0 CF/CM/CU30D 825 24.0 18.2 15.00 12.50 YFE24B21S TMLX120C20MP11 21.0 CF/CM/CU36C 825 24.0 18.0 15.00 12.50 YFE24B21S TMLX120C20MP11 21.0 CF/CM/CU36D 825 24.0 18.0 15.00 12.50 YFE24B21S TMLX120C20MP11 21.0 CF/CM/CU42C 825 24.0 18.2 15.25 12.50 YFE24B21S TMLX120C20MP11 21.0 CF/CM/CU42D 825 24.0 18.2 15.25 12.50 YFE24B21S TP9C060B12MP12 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25 YFE24B21S TP9C060B12MP12 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75 YFE24B21S TP9C060B12MP12 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25 YFE24B21S TP9C060B12MP12 17.5 CF42B 825 24.0 18.2 16.25 13.25 YFE24B21S TP9C080B12MP12 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25 YFE24B21S TP9C080B12MP12 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75 YFE24B21S TP9C080B12MP12 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25 YFE24B21S TP9C080B12MP12 17.5 CF42B 825 24.0 18.2 16.25 13.25 YFE24B21S TP9C080C16MP12 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25 YFE24B21S TP9C100C16MP12 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25 YFE24B21S TPLC060A12MP12 14.5 CF/CM/CU24A 725 24.0 17.6 15.00 12.50 YFE24B21S TPLC060A12MP12 14.5 CF/CM/CU30A 725 24.0 17.4 15.25 12.50 YFE24B21S TPLC060A12MP12 14.5 CF/CM36A 700 24.0 17.2 15.25 12.50 YFE24B21S TPLC080B12MP12 17.5 CF/CM/CU24B 850 24.0 18.4 15.25 12.50 YFE24B21S TPLC080B12MP12 17.5 CF/CM/CU30B 800 24.0 18.0 15.50 12.75 YFE24B21S TPLC080B12MP12 17.5 CF/CM/CU36B 675 24.0 16.8 15.50 12.75 YFE24B21S TPLC080B12MP12 17.5 CF42B 850 24.0 18.4 15.75 13.00 YFE24B21S YP9C060B12MP12 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 17

Page 18

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE24B21S YP9C060B12MP12 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75 YFE24B21S YP9C060B12MP12 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25 YFE24B21S YP9C060B12MP12 17.5 CF42B 825 24.0 18.2 16.25 13.25 YFE24B21S YP9C080B12MP12 17.5 CF/CM/CU24B 800 24.0 18.2 16.00 13.25 YFE24B21S YP9C080B12MP12 17.5 CF/CM/CU30B 650 24.0 16.8 15.50 12.75 YFE24B21S YP9C080B12MP12 17.5 CF/CM/CU36B 725 24.0 17.4 16.00 13.25 YFE24B21S YP9C080B12MP12 17.5 CF42B 825 24.0 18.2 16.25 13.25 YFE24B21S YP9C080C16MP12 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25 YFE24B21S YP9C100C16MP12 21.0 CF/CM/CU36C 875 24.0 18.6 16.25 13.25 YFE24B21S YPLC060A12MP12 14.5 CF/CM/CU24A 725 24.0 17.6 15.00 12.50 YFE24B21S YPLC060A12MP12 14.5 CF/CM/CU30A 725 24.0 17.4 15.25 12.50 YFE24B21S YPLC060A12MP12 14.5 CF/CM36A 700 24.0 17.2 15.25 12.50 YFE24B21S YPLC080B12MP12 17.5 CF/CM/CU24B 850 24.0 18.4 15.25 12.50 YFE24B21S YPLC080B12MP12 17.5 CF/CM/CU30B 800 24.0 18.0 15.50 12.75 YFE24B21S YPLC080B12MP12 17.5 CF/CM/CU36B 675 24.0 16.8 15.50 12.75 YFE24B21S YPLC080B12MP12 17.5 CF42B 850 24.0 18.4 15.75 13.00 YFE30B21S TM8V060A12MP11 14.5 CF/CM/CU30A 975 29.6 21.2 14.50 12.00 YFE30B21S TM8V060A12MP11 14.5 CF/CM36A 875 29.4 20.2 14.75 12.25 YFE30B21S TM8V080B12MP11 17.5 CF/CM/CU36B 975 29.8 21.2 14.75 12.25 YFE30B21S TM8V080B12MP11 17.5 CF42B 850 29.4 20.2 15.25 12.50 YFE30B21S TM8V080C16MP11 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50 YFE30B21S TM8V080C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75 YFE30B21S TM8V080C16MP11 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75 YFE30B21S TM8V100C16MP11 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50 YFE30B21S TM8V100C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75 YFE30B21S TM8V100C16MP11 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75 YFE30B21S TM8V100C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50 YFE30B21S TM8V100C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50 YFE30B21S TM8V120C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50 YFE30B21S TM8V120C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50 YFE30B21S TM8X060A12MP11 14.5 CF/CM/CU30A 1000 29.6 21.6 15.00 12.50 YFE30B21S TM8X060A12MP11 14.5 CF/CM36A 975 29.8 21.4 15.00 12.50 YFE30B21S TM8X080B12MP11 17.5 CF/CM/CU30B 1000 29.8 21.6 15.25 12.50 YFE30B21S TM8X080B12MP11 17.5 CF/CM/CU36B 1000 30.0 21.6 15.25 12.50 YFE30B21S TM8X080B12MP11 17.5 CF42B 1000 30.0 21.8 15.25 12.50 YFE30B21S TM8X080C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75 YFE30B21S TM8X080C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8X080C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75 YFE30B21S TM8X080C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8X080C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75 YFE30B21S TM8X080C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00 YFE30B21S TM8X100C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75 YFE30B21S TM8X100C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8X100C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75 YFE30B21S TM8X100C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8X100C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75 YFE30B21S TM8X100C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00 YFE30B21S TM8X100C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8X100C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75 YFE30B21S TM8X100C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

18 Johnson Controls Unitary Products

Page 19

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE30B21S TM8X100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00 YFE30B21S TM8X100C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75 YFE30B21S TM8X100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00 YFE30B21S TM8X120C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8X120C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75 YFE30B21S TM8X120C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8X120C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00 YFE30B21S TM8X120C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75 YFE30B21S TM8X120C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00 YFE30B21S TM8Y060A12MP11 14.5 CF/CM/CU30A 1000 29.6 21.6 15.00 12.50 YFE30B21S TM8Y060A12MP11 14.5 CF/CM36A 975 29.8 21.4 15.00 12.50 YFE30B21S TM8Y080B12MP11 17.5 CF/CM/CU30B 1000 29.8 21.6 15.25 12.50 YFE30B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 1000 30.0 21.6 15.25 12.50 YFE30B21S TM8Y080B12MP11 17.5 CF42B 1000 30.0 21.8 15.25 12.50 YFE30B21S TM8Y080C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75 YFE30B21S TM8Y080C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75 YFE30B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75 YFE30B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00 YFE30B21S TM8Y100C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75 YFE30B21S TM8Y100C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75 YFE30B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75 YFE30B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00 YFE30B21S TM8Y100C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8Y100C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75 YFE30B21S TM8Y100C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8Y100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00 YFE30B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75 YFE30B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00 YFE30B21S TM8Y120C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8Y120C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75 YFE30B21S TM8Y120C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75 YFE30B21S TM8Y120C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00 YFE30B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75 YFE30B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00 YFE30B21S TM9E040A10MP11 14.5 CF/CM/CU30A 875 29.0 20.0 14.25 12.00 YFE30B21S TM9E040A10MP11 14.5 CF/CM36A 875 29.2 20.0 14.50 12.00 YFE30B21S TM9E060B12MP11 17.5 CF/CM/CU30B 900 29.4 20.6 15.25 12.50 YFE30B21S TM9E060B12MP11 17.5 CF/CM/CU36B 900 29.4 20.6 15.25 12.50 YFE30B21S TM9E060B12MP11 17.5 CF42B 900 29.8 20.6 15.25 12.50 YFE30B21S TM9E080B12MP11 17.5 CF/CM/CU30B 900 29.4 20.6 15.25 12.50 YFE30B21S TM9E080B12MP11 17.5 CF/CM/CU36B 900 29.4 20.6 15.25 12.50 YFE30B21S TM9E080B12MP11 17.5 CF42B 900 29.8 20.6 15.25 12.50 YFE30B21S TM9E080C16MP11 21.0 CF/CM/CU30C 1075 30.0 22.4 15.25 12.50 YFE30B21S TM9E080C16MP11 21.0 CF/CM/CU30D 1050 30.0 22.4 15.25 12.50 YFE30B21S TM9E080C16MP11 21.0 CF/CM/CU36C 1025 30.0 22.0 15.25 12.50 YFE30B21S TM9E080C16MP11 21.0 CF/CM/CU42C 1000 30.0 21.8 15.25 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 19

Page 20

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE30B21S TM9E100C16MP11 21.0 CF/CM/CU30C 1075 30.0 22.4 15.25 12.50 YFE30B21S TM9E100C16MP11 21.0 CF/CM/CU30D 1050 30.0 22.4 15.25 12.50 YFE30B21S TM9E100C16MP11 21.0 CF/CM/CU36C 1025 30.0 22.0 15.25 12.50 YFE30B21S TM9E100C16MP11 21.0 CF/CM/CU42C 1000 30.0 21.8 15.25 12.50 YFE30B21S TM9E100C20MP11 21.0 CF/CM/CU30C 975 30.0 21.6 15.75 12.75 YFE30B21S TM9E100C20MP11 21.0 CF/CM/CU36C 975 30.0 21.6 15.75 12.75 YFE30B21S TM9E100C20MP11 21.0 CF/CM/CU42C 975 30.0 21.8 16.00 13.00 YFE30B21S TM9E120D20MP11 24.5 CF/CM/CU30D 975 30.0 21.6 16.00 13.00 YFE30B21S TM9E120D20MP11 24.5 CF/CM/CU36D 975 30.0 21.4 16.00 13.00 YFE30B21S TM9E120D20MP11 24.5 CF/CM/CU42D 975 30.0 21.8 16.25 13.25 YFE30B21S TM9V060B12MP11 17.5 CF/CM/CU30B 825 29.0 19.6 15.00 12.50 YFE30B21S TM9V060B12MP11 17.5 CF/CM/CU36B 950 29.8 21.2 15.25 12.50 YFE30B21S TM9V060B12MP11 17.5 CF42B 925 29.8 21.0 15.50 12.75 YFE30B21S TM9V080B12MP11 17.5 CF/CM/CU30B 825 29.0 19.6 15.00 12.50 YFE30B21S TM9V080B12MP11 17.5 CF/CM/CU36B 950 29.8 21.2 15.25 12.50 YFE30B21S TM9V080B12MP11 17.5 CF42B 925 29.8 21.0 15.50 12.75 YFE30B21S TM9V080C16MP11 21.0 CF/CM/CU30C 950 29.8 21.4 15.50 12.75 YFE30B21S TM9V080C16MP11 21.0 CF/CM/CU36C 975 30.0 21.6 15.50 12.75 YFE30B21S TM9V080C16MP11 21.0 CF/CM/CU42C 975 30.0 21.8 15.75 12.75 YFE30B21S TM9V100C16MP11 21.0 CF/CM/CU30C 950 29.8 21.4 15.50 12.75 YFE30B21S TM9V100C16MP11 21.0 CF/CM/CU36C 975 30.0 21.6 15.50 12.75 YFE30B21S TM9V100C16MP11 21.0 CF/CM/CU42C 975 30.0 21.8 15.75 12.75 YFE30B21S TM9V100C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.25 12.50 YFE30B21S TM9V100C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.4 15.25 12.50 YFE30B21S TM9V120D20MP11 24.5 CF/CM/CU36D 1125 30.0 22.8 16.25 13.25 YFE30B21S TM9V120D20MP11 24.5 CF/CM/CU42D 1125 30.0 23.0 15.50 12.75 YFE30B21S TM9Y040A10MP11 14.5 CF/CM/CU30A 875 29.0 20.0 14.25 12.00 YFE30B21S TM9Y040A10MP11 14.5 CF/CM36A 875 29.2 20.0 14.50 12.00 YFE30B21S TM9Y060B12MP11 17.5 CF/CM/CU30B 900 29.4 20.6 15.25 12.50 YFE30B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 900 29.4 20.6 15.25 12.50 YFE30B21S TM9Y060B12MP11 17.5 CF42B 900 29.8 20.6 15.25 12.50 YFE30B21S TM9Y080B12MP11 17.5 CF/CM/CU30B 900 29.4 20.6 15.25 12.50 YFE30B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 900 29.4 20.6 15.25 12.50 YFE30B21S TM9Y080B12MP11 17.5 CF42B 900 29.8 20.6 15.25 12.50 YFE30B21S TM9Y080C16MP11 21.0 CF/CM/CU30C 1075 30.0 22.4 15.25 12.50 YFE30B21S TM9Y080C16MP11 21.0 CF/CM/CU30D 1050 30.0 22.4 15.25 12.50 YFE30B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 1025 30.0 22.0 15.25 12.50 YFE30B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 1000 30.0 21.8 15.25 12.50 YFE30B21S TM9Y100C16MP11 21.0 CF/CM/CU30C 1075 30.0 22.4 15.25 12.50 YFE30B21S TM9Y100C16MP11 21.0 CF/CM/CU30D 1050 30.0 22.4 15.25 12.50 YFE30B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 1025 30.0 22.0 15.25 12.50 YFE30B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 1000 30.0 21.8 15.25 12.50 YFE30B21S TM9Y100C20MP11 21.0 CF/CM/CU30C 975 30.0 21.6 15.75 12.75 YFE30B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 975 30.0 21.6 15.75 12.75 YFE30B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 975 30.0 21.8 16.00 13.00 YFE30B21S TM9Y120D20MP11 24.5 CF/CM/CU30D 975 30.0 21.6 16.00 13.00 YFE30B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 975 30.0 21.4 16.00 13.00 YFE30B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 975 30.0 21.8 16.25 13.25 YFE30B21S TMLV060A12MP11 14.5 CF/CM/CU30A 975 29.6 21.2 14.50 12.00 YFE30B21S TMLV060A12MP11 14.5 CF/CM36A 875 29.4 20.2 14.75 12.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

20 Johnson Controls Unitary Products

Page 21

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE30B21S TMLV080B12MP11 17.5 CF/CM/CU36B 975 29.8 21.2 14.75 12.25 YFE30B21S TMLV080B12MP11 17.5 CF42B 850 29.4 20.2 15.25 12.50 YFE30B21S TMLV080C16MP11 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50 YFE30B21S TMLV080C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75 YFE30B21S TMLV080C16MP11 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75 YFE30B21S TMLV100C16MP11 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50 YFE30B21S TMLV100C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75 YFE30B21S TMLV100C16MP11 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75 YFE30B21S TMLV100C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50 YFE30B21S TMLV100C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50 YFE30B21S TMLV120C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50 YFE30B21S TMLV120C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50 YFE30B21S TMLX060A12MP11 14.5 CF/CM/CU30A 1000 29.6 21.6 15.00 12.50 YFE30B21S TMLX060A12MP11 14.5 CF/CM36A 975 29.8 21.4 15.00 12.50 YFE30B21S TMLX080B12MP11 17.5 CF/CM/CU30B 1000 29.8 21.6 15.25 12.50 YFE30B21S TMLX080B12MP11 17.5 CF/CM/CU36B 1000 30.0 21.6 15.25 12.50 YFE30B21S TMLX080B12MP11 17.5 CF42B 1000 30.0 21.8 15.25 12.50 YFE30B21S TMLX080C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75 YFE30B21S TMLX080C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75 YFE30B21S TMLX080C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75 YFE30B21S TMLX080C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75 YFE30B21S TMLX080C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75 YFE30B21S TMLX080C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00 YFE30B21S TMLX100C16MP11 21.0 CF/CM/CU30C 1050 30.0 22.2 15.50 12.75 YFE30B21S TMLX100C16MP11 21.0 CF/CM/CU30D 1075 30.0 22.6 15.75 12.75 YFE30B21S TMLX100C16MP11 21.0 CF/CM/CU36C 1050 30.0 22.0 15.75 12.75 YFE30B21S TMLX100C16MP11 21.0 CF/CM/CU36D 1075 30.0 22.6 15.75 12.75 YFE30B21S TMLX100C16MP11 21.0 CF/CM/CU42C 1050 30.0 22.2 15.75 12.75 YFE30B21S TMLX100C16MP11 21.0 CF/CM/CU42D 1075 30.0 22.4 15.75 13.00 YFE30B21S TMLX100C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75 YFE30B21S TMLX100C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75 YFE30B21S TMLX100C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75 YFE30B21S TMLX100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00 YFE30B21S TMLX100C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75 YFE30B21S TMLX100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00 YFE30B21S TMLX120C20MP11 21.0 CF/CM/CU30C 1075 30.0 22.6 15.75 12.75 YFE30B21S TMLX120C20MP11 21.0 CF/CM/CU30D 1050 30.0 22.2 15.50 12.75 YFE30B21S TMLX120C20MP11 21.0 CF/CM/CU36C 1075 30.0 22.6 15.75 12.75 YFE30B21S TMLX120C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.8 16.00 13.00 YFE30B21S TMLX120C20MP11 21.0 CF/CM/CU42C 1075 30.0 22.4 15.75 12.75 YFE30B21S TMLX120C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.8 16.00 13.00 YFE30B21S TP9C060B12MP12 17.5 CF/CM/CU30B 825 29.0 19.6 15.00 12.50 YFE30B21S TP9C060B12MP12 17.5 CF/CM/CU36B 950 29.8 21.2 15.25 12.50 YFE30B21S TP9C060B12MP12 17.5 CF42B 925 29.8 21.0 15.50 12.75 YFE30B21S TP9C080B12MP12 17.5 CF/CM/CU30B 825 29.0 19.6 15.00 12.50 YFE30B21S TP9C080B12MP12 17.5 CF/CM/CU36B 950 29.8 21.2 15.25 12.50 YFE30B21S TP9C080B12MP12 17.5 CF42B 925 29.8 21.0 15.50 12.75 YFE30B21S TP9C080C16MP12 21.0 CF/CM/CU30C 950 29.8 21.4 15.50 12.75 YFE30B21S TP9C080C16MP12 21.0 CF/CM/CU36C 975 30.0 21.6 15.50 12.75 YFE30B21S TP9C080C16MP12 21.0 CF/CM/CU42C 975 30.0 21.8 15.75 12.75 YFE30B21S TP9C100C16MP12 21.0 CF/CM/CU30C 950 29.8 21.4 15.50 12.75

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

Johnson Controls Unitary Products 21

COOLING

NET MBH

SEER EER

Page 22

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE30B21S TP9C100C16MP12 21.0 CF/CM/CU36C 975 30.0 21.6 15.50 12.75 YFE30B21S TP9C100C16MP12 21.0 CF/CM/CU42C 975 30.0 21.8 15.75 12.75 YFE30B21S TP9C100C20MP12 21.0 CF/CM/CU30C 1075 30.0 22.6 15.25 12.50 YFE30B21S TP9C100C20MP12 21.0 CF/CM/CU36C 1075 30.0 22.4 15.25 12.50 YFE30B21S TP9C120D20MP12 24.5 CF/CM/CU36D 1125 30.0 22.8 16.25 13.25 YFE30B21S TP9C120D20MP12 24.5 CF/CM/CU42D 1125 30.0 23.0 15.50 12.75 YFE30B21S TPLC060A12MP12 14.5 CF/CM/CU30A 975 29.6 21.2 14.50 12.00 YFE30B21S TPLC060A12MP12 14.5 CF/CM36A 875 29.4 20.2 14.75 12.25 YFE30B21S TPLC080B12MP12 17.5 CF/CM/CU36B 975 29.8 21.2 14.75 12.25 YFE30B21S TPLC080B12MP12 17.5 CF42B 850 29.4 20.2 15.25 12.50 YFE30B21S TPLC080C16MP12 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50 YFE30B21S TPLC080C16MP12 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75 YFE30B21S TPLC080C16MP12 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75 YFE30B21S TPLC100C16MP12 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50 YFE30B21S TPLC100C16MP12 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75 YFE30B21S TPLC100C16MP12 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75 YFE30B21S TPLC100C20MP12 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50 YFE30B21S TPLC100C20MP12 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50 YFE30B21S TPLC120C20MP12 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50 YFE30B21S TPLC120C20MP12 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50 YFE30B21S YP9C060B12MP12 17.5 CF/CM/CU30B 825 29.0 19.6 15.00 12.50 YFE30B21S YP9C060B12MP12 17.5 CF/CM/CU36B 950 29.8 21.2 15.25 12.50 YFE30B21S YP9C060B12MP12 17.5 CF42B 925 29.8 21.0 15.50 12.75 YFE30B21S YP9C080B12MP12 17.5 CF/CM/CU30B 825 29.0 19.6 15.00 12.50 YFE30B21S YP9C080B12MP12 17.5 CF/CM/CU36B 950 29.8 21.2 15.25 12.50 YFE30B21S YP9C080B12MP12 17.5 CF42B 925 29.8 21.0 15.50 12.75 YFE30B21S YP9C080C16MP12 21.0 CF/CM/CU30C 950 29.8 21.4 15.50 12.75 YFE30B21S YP9C080C16MP12 21.0 CF/CM/CU36C 975 30.0 21.6 15.50 12.75 YFE30B21S YP9C080C16MP12 21.0 CF/CM/CU42C 975 30.0 21.8 15.75 12.75 YFE30B21S YP9C100C16MP12 21.0 CF/CM/CU30C 950 29.8 21.4 15.50 12.75 YFE30B21S YP9C100C16MP12 21.0 CF/CM/CU36C 975 30.0 21.6 15.50 12.75 YFE30B21S YP9C100C16MP12 21.0 CF/CM/CU42C 975 30.0 21.8 15.75 12.75 YFE30B21S YP9C100C20MP12 21.0 CF/CM/CU30C 1075 30.0 22.6 15.25 12.50 YFE30B21S YP9C100C20MP12 21.0 CF/CM/CU36C 1075 30.0 22.4 15.25 12.50 YFE30B21S YP9C120D20MP12 24.5 CF/CM/CU36D 1125 30.0 22.8 16.25 13.25 YFE30B21S YP9C120D20MP12 24.5 CF/CM/CU42D 1125 30.0 23.0 15.50 12.75 YFE30B21S YPLC060A12MP12 14.5 CF/CM/CU30A 975 29.6 21.2 14.50 12.00 YFE30B21S YPLC060A12MP12 14.5 CF/CM36A 875 29.4 20.2 14.75 12.25 YFE30B21S YPLC080B12MP12 17.5 CF/CM/CU36B 975 29.8 21.2 14.75 12.25 YFE30B21S YPLC080B12MP12 17.5 CF42B 850 29.4 20.2 15.25 12.50 YFE30B21S YPLC080C16MP12 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50 YFE30B21S YPLC080C16MP12 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75 YFE30B21S YPLC080C16MP12 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75 YFE30B21S YPLC100C16MP12 21.0 CF/CM/CU30C 950 29.6 21.2 15.25 12.50 YFE30B21S YPLC100C16MP12 21.0 CF/CM/CU36C 1100 30.0 22.6 15.50 12.75 YFE30B21S YPLC100C16MP12 21.0 CF/CM/CU42C 925 29.8 21.0 15.50 12.75 YFE30B21S YPLC100C20MP12 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50 YFE30B21S YPLC100C20MP12 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50 YFE30B21S YPLC120C20MP12 21.0 CF/CM/CU36C 1100 30.0 22.6 15.25 12.50 YFE30B21S YPLC120C20MP12 21.0 CF/CM/CU42C 1100 30.0 22.8 15.25 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

22 Johnson Controls Unitary Products

Page 23

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE36B21S TM8V060A12MP11 14.5 CF/CM36A 975 35.0 23.2 14.00 11.75 YFE36B21S TM8V080B12MP11 17.5 CF/CM/CU36B 1025 35.6 24.0 14.25 12.00 YFE36B21S TM8V080B12MP11 17.5 CF42B 1000 35.6 23.8 14.25 12.25 YFE36B21S TM8V080C16MP11 21.0 CF/CM/CU36C 1100 36.0 25.0 15.00 12.50 YFE36B21S TM8V080C16MP11 21.0 CF/CM/CU42C 1325 36.0 27.0 14.50 12.25 YFE36B21S TM8V080C16MP11 21.0 CF/CM/CU48C 1050 36.0 24.6 15.00 12.50 YFE36B21S TM8V080C16MP11 21.0 CF/CM/CU48D 1050 36.0 24.4 15.00 12.50 YFE36B21S TM8V100C16MP11 21.0 CF/CM/CU36C 1100 36.0 25.0 15.00 12.50 YFE36B21S TM8V100C16MP11 21.0 CF/CM/CU42C 1325 36.0 27.0 14.50 12.25 YFE36B21S TM8V100C16MP11 21.0 CF/CM/CU48C 1050 36.0 24.6 15.00 12.50 YFE36B21S TM8V100C16MP11 21.0 CF/CM/CU48D 1050 36.0 24.4 15.00 12.50 YFE36B21S TM8V100C20MP11 21.0 CF/CM/CU36C 1100 36.0 25.0 14.75 12.25 YFE36B21S TM8V100C20MP11 21.0 CF/CM/CU42C 1100 36.0 25.0 14.75 12.25 YFE36B21S TM8V100C20MP11 21.0 CF/CM/CU48C 1250 36.0 26.0 15.00 12.50 YFE36B21S TM8V100C20MP11 21.0 CF/CM/CU48D 1125 36.0 25.0 16.00 13.00 YFE36B21S TM8V120C20MP11 21.0 CF/CM/CU36C 1100 36.0 25.0 14.75 12.25 YFE36B21S TM8V120C20MP11 21.0 CF/CM/CU42C 1100 36.0 25.0 14.75 12.25 YFE36B21S TM8V120C20MP11 21.0 CF/CM/CU48C 1250 36.0 26.0 15.00 12.50 YFE36B21S TM8V120C20MP11 21.0 CF/CM/CU48D 1125 36.0 25.0 16.00 13.00 YFE36B21S TM8X060A12MP11 14.5 CF/CM36A 975 35.2 23.4 14.50 12.25 YFE36B21S TM8X080B12MP11 17.5 CF/CM/CU36B 1000 35.4 23.4 14.75 12.25 YFE36B21S TM8X080B12MP11 17.5 CF42B 1000 35.8 24.0 14.75 12.25 YFE36B21S TM8X080C16MP11 21.0 CF/CM/CU36C 1050 35.8 24.6 15.00 12.50 YFE36B21S TM8X080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.50 YFE36B21S TM8X080C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.00 12.50 YFE36B21S TM8X080C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.25 12.50 YFE36B21S TM8X080C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.00 12.50 YFE36B21S TM8X080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.50 12.75 YFE36B21S TM8X100C16MP11 21.0 CF/CM/CU36C 1050 35.8 24.6 15.00 12.50 YFE36B21S TM8X100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.50 YFE36B21S TM8X100C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.00 12.50 YFE36B21S TM8X100C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.25 12.50 YFE36B21S TM8X100C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.00 12.50 YFE36B21S TM8X100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.50 12.75 YFE36B21S TM8X100C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.6 15.00 12.50 YFE36B21S TM8X100C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.6 15.25 12.50 YFE36B21S TM8X100C20MP11 21.0 CF/CM/CU42C 1075 36.0 25.0 15.25 12.50 YFE36B21S TM8X100C20MP11 21.0 CF/CM/CU42D 1100 36.0 25.2 15.50 12.75 YFE36B21S TM8X100C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.8 15.25 12.50 YFE36B21S TM8X100C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 14.75 12.25 YFE36B21S TM8X120C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.6 15.00 12.50 YFE36B21S TM8X120C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.6 15.25 12.50 YFE36B21S TM8X120C20MP11 21.0 CF/CM/CU42C 1075 36.0 25.0 15.25 12.50 YFE36B21S TM8X120C20MP11 21.0 CF/CM/CU42D 1100 36.0 25.2 15.50 12.75 YFE36B21S TM8X120C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.8 15.25 12.50 YFE36B21S TM8X120C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 14.75 12.25 YFE36B21S TM8Y060A12MP11 14.5 CF/CM36A 975 35.2 23.4 14.50 12.25 YFE36B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 1000 35.4 23.4 14.75 12.25 YFE36B21S TM8Y080B12MP11 17.5 CF42B 1000 35.8 24.0 14.75 12.25 YFE36B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 1050 35.8 24.6 15.00 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 23

Page 24

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE36B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.50 YFE36B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.00 12.50 YFE36B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.25 12.50 YFE36B21S TM8Y080C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.00 12.50 YFE36B21S TM8Y080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.50 12.75 YFE36B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 1050 35.8 24.6 15.00 12.50 YFE36B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.50 YFE36B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.00 12.50 YFE36B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.25 12.50 YFE36B21S TM8Y100C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.00 12.50 YFE36B21S TM8Y100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.50 12.75 YFE36B21S TM8Y100C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.6 15.00 12.50 YFE36B21S TM8Y100C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.6 15.25 12.50 YFE36B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 1075 36.0 25.0 15.25 12.50 YFE36B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 1100 36.0 25.2 15.50 12.75 YFE36B21S TM8Y100C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.8 15.25 12.50 YFE36B21S TM8Y100C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 14.75 12.25 YFE36B21S TM8Y120C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.6 15.00 12.50 YFE36B21S TM8Y120C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.6 15.25 12.50 YFE36B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 1075 36.0 25.0 15.25 12.50 YFE36B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 1100 36.0 25.2 15.50 12.75 YFE36B21S TM8Y120C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.8 15.25 12.50 YFE36B21S TM8Y120C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 14.75 12.25 YFE36B21S TM9E060B12MP11 17.5 CF/CM/CU36B 975 35.4 23.4 14.50 12.25 YFE36B21S TM9E060B12MP11 17.5 CF42B 975 35.8 24.0 14.50 12.25 YFE36B21S TM9E080B12MP11 17.5 CF/CM/CU36B 975 35.4 23.4 14.50 12.25 YFE36B21S TM9E080B12MP11 17.5 CF42B 975 35.8 24.0 14.50 12.25 YFE36B21S TM9E080C16MP11 21.0 CF/CM/CU36C 1075 36.0 24.8 15.00 12.50 YFE36B21S TM9E080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.00 12.50 YFE36B21S TM9E080C16MP11 21.0 CF/CM/CU42C 1075 36.0 25.2 15.00 12.50 YFE36B21S TM9E080C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.00 12.50 YFE36B21S TM9E080C16MP11 21.0 CF/CM/CU48C 1075 36.0 24.8 15.25 12.50 YFE36B21S TM9E080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.25 12.50 YFE36B21S TM9E100C16MP11 21.0 CF/CM/CU36C 1075 36.0 24.8 15.00 12.50 YFE36B21S TM9E100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.00 12.50 YFE36B21S TM9E100C16MP11 21.0 CF/CM/CU42C 1075 36.0 25.2 15.00 12.50 YFE36B21S TM9E100C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.00 12.50 YFE36B21S TM9E100C16MP11 21.0 CF/CM/CU48C 1075 36.0 24.8 15.25 12.50 YFE36B21S TM9E100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.25 12.50 YFE36B21S TM9E100C20MP11 21.0 CF/CM/CU36C 975 35.6 23.6 15.00 12.50 YFE36B21S TM9E100C20MP11 21.0 CF/CM/CU36D 975 35.6 23.6 15.00 12.50 YFE36B21S TM9E100C20MP11 21.0 CF/CM/CU42C 1250 36.0 26.2 15.00 12.50 YFE36B21S TM9E100C20MP11 21.0 CF/CM/CU42D 975 36.0 24.0 15.25 12.50 YFE36B21S TM9E100C20MP11 21.0 CF/CM/CU48C 975 36.0 24.0 15.25 12.50 YFE36B21S TM9E100C20MP11 21.0 CF/CM/CU48D 1000 36.0 24.0 15.50 12.75 YFE36B21S TM9E120D20MP11 24.5 CF/CM/CU36D 1275 36.0 26.2 15.25 12.50 YFE36B21S TM9E120D20MP11 24.5 CF/CM/CU42D 1275 36.0 26.4 15.25 12.50 YFE36B21S TM9E120D20MP11 24.5 CF/CM/CU48D 1275 36.0 26.6 15.25 12.50 YFE36B21S TM9V060B12MP11 17.5 CF/CM/CU36B 1050 35.6 24.4 14.50 12.25 YFE36B21S TM9V060B12MP11 17.5 CF42B 1175 36.0 25.8 14.50 12.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

24 Johnson Controls Unitary Products

Page 25

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE36B21S TM9V080B12MP11 17.5 CF/CM/CU36B 1050 35.6 24.4 14.50 12.25 YFE36B21S TM9V080B12MP11 17.5 CF42B 1175 36.0 25.8 14.50 12.25 YFE36B21S TM9V080C16MP11 21.0 CF/CM/CU36C 975 35.6 23.6 15.00 12.50 YFE36B21S TM9V080C16MP11 21.0 CF/CM/CU42C 975 36.0 24.0 15.00 12.50 YFE36B21S TM9V080C16MP11 21.0 CF/CM/CU48C 1275 36.0 26.2 14.75 12.25 YFE36B21S TM9V080C16MP11 21.0 CF/CM/CU48D 1200 36.0 25.8 15.25 12.50 YFE36B21S TM9V100C16MP11 21.0 CF/CM/CU36C 975 35.6 23.6 15.00 12.50 YFE36B21S TM9V100C16MP11 21.0 CF/CM/CU42C 975 36.0 24.0 15.00 12.50 YFE36B21S TM9V100C16MP11 21.0 CF/CM/CU48C 1275 36.0 26.2 14.75 12.25 YFE36B21S TM9V100C16MP11 21.0 CF/CM/CU48D 1200 36.0 25.8 15.25 12.50 YFE36B21S TM9V100C20MP11 21.0 CF/CM/CU36C 1075 36.0 24.8 14.75 12.25 YFE36B21S TM9V100C20MP11 21.0 CF/CM/CU42C 1275 36.0 26.2 14.50 12.25 YFE36B21S TM9V100C20MP11 21.0 CF/CM/CU48C 1200 36.0 25.6 14.75 12.25 YFE36B21S TM9V100C20MP11 21.0 CF/CM/CU48D 1250 36.0 26.0 15.00 12.50 YFE36B21S TM9V120D20MP11 24.5 CF/CM/CU36D 1125 36.0 25.2 15.50 12.75 YFE36B21S TM9V120D20MP11 24.5 CF/CM/CU42D 1125 36.0 25.2 15.00 12.50 YFE36B21S TM9V120D20MP11 24.5 CF/CM/CU48D 1250 36.0 26.2 15.00 12.50 YFE36B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 975 35.4 23.4 14.50 12.25 YFE36B21S TM9Y060B12MP11 17.5 CF42B 975 35.8 24.0 14.50 12.25 YFE36B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 975 35.4 23.4 14.50 12.25 YFE36B21S TM9Y080B12MP11 17.5 CF42B 975 35.8 24.0 14.50 12.25 YFE36B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 1075 36.0 24.8 15.00 12.50 YFE36B21S TM9Y080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.00 12.50 YFE36B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 1075 36.0 25.2 15.00 12.50 YFE36B21S TM9Y080C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.00 12.50 YFE36B21S TM9Y080C16MP11 21.0 CF/CM/CU48C 1075 36.0 24.8 15.25 12.50 YFE36B21S TM9Y080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.25 12.50 YFE36B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 1075 36.0 24.8 15.00 12.50 YFE36B21S TM9Y100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.00 12.50 YFE36B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 1075 36.0 25.2 15.00 12.50 YFE36B21S TM9Y100C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.00 12.50 YFE36B21S TM9Y100C16MP11 21.0 CF/CM/CU48C 1075 36.0 24.8 15.25 12.50 YFE36B21S TM9Y100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.25 12.50 YFE36B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 975 35.6 23.6 15.00 12.50 YFE36B21S TM9Y100C20MP11 21.0 CF/CM/CU36D 975 35.6 23.6 15.00 12.50 YFE36B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 1250 36.0 26.2 15.00 12.50 YFE36B21S TM9Y100C20MP11 21.0 CF/CM/CU42D 975 36.0 24.0 15.25 12.50 YFE36B21S TM9Y100C20MP11 21.0 CF/CM/CU48C 975 36.0 24.0 15.25 12.50 YFE36B21S TM9Y100C20MP11 21.0 CF/CM/CU48D 1000 36.0 24.0 15.50 12.75 YFE36B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 1275 36.0 26.2 15.25 12.50 YFE36B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 1275 36.0 26.4 15.25 12.50 YFE36B21S TM9Y120D20MP11 24.5 CF/CM/CU48D 1275 36.0 26.6 15.25 12.50 YFE36B21S TMLV060A12MP11 14.5 CF/CM36A 975 35.0 23.2 14.00 11.75 YFE36B21S TMLV080B12MP11 17.5 CF/CM/CU36B 1025 35.6 24.0 14.25 12.00 YFE36B21S TMLV080B12MP11 17.5 CF42B 1000 35.6 23.8 14.25 12.25 YFE36B21S TMLV080C16MP11 21.0 CF/CM/CU36C 1100 36.0 25.0 15.00 12.50 YFE36B21S TMLV080C16MP11 21.0 CF/CM/CU42C 1325 36.0 27.0 14.50 12.25 YFE36B21S TMLV080C16MP11 21.0 CF/CM/CU48C 1050 36.0 24.6 15.00 12.50 YFE36B21S TMLV080C16MP11 21.0 CF/CM/CU48D 1050 36.0 24.4 15.00 12.50 YFE36B21S TMLV100C16MP11 21.0 CF/CM/CU36C 1100 36.0 25.0 15.00 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 25

Page 26

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE36B21S TMLV100C16MP11 21.0 CF/CM/CU42C 1325 36.0 27.0 14.50 12.25 YFE36B21S TMLV100C16MP11 21.0 CF/CM/CU48C 1050 36.0 24.6 15.00 12.50 YFE36B21S TMLV100C16MP11 21.0 CF/CM/CU48D 1050 36.0 24.4 15.00 12.50 YFE36B21S TMLV100C20MP11 21.0 CF/CM/CU36C 1100 36.0 25.0 14.75 12.25 YFE36B21S TMLV100C20MP11 21.0 CF/CM/CU42C 1100 36.0 25.0 14.75 12.25 YFE36B21S TMLV100C20MP11 21.0 CF/CM/CU48C 1250 36.0 26.0 15.00 12.50 YFE36B21S TMLV100C20MP11 21.0 CF/CM/CU48D 1125 36.0 25.0 16.00 13.00 YFE36B21S TMLV120C20MP11 21.0 CF/CM/CU36C 1100 36.0 25.0 14.75 12.25 YFE36B21S TMLV120C20MP11 21.0 CF/CM/CU42C 1100 36.0 25.0 14.75 12.25 YFE36B21S TMLV120C20MP11 21.0 CF/CM/CU48C 1250 36.0 26.0 15.00 12.50 YFE36B21S TMLV120C20MP11 21.0 CF/CM/CU48D 1125 36.0 25.0 16.00 13.00 YFE36B21S TMLX060A12MP11 14.5 CF/CM36A 975 35.2 23.4 14.50 12.25 YFE36B21S TMLX080B12MP11 17.5 CF/CM/CU36B 1000 35.4 23.4 14.75 12.25 YFE36B21S TMLX080B12MP11 17.5 CF42B 1000 35.8 24.0 14.75 12.25 YFE36B21S TMLX080C16MP11 21.0 CF/CM/CU36C 1050 35.8 24.6 15.00 12.50 YFE36B21S TMLX080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.50 YFE36B21S TMLX080C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.00 12.50 YFE36B21S TMLX080C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.25 12.50 YFE36B21S TMLX080C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.00 12.50 YFE36B21S TMLX080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.50 12.75 YFE36B21S TMLX100C16MP11 21.0 CF/CM/CU36C 1050 35.8 24.6 15.00 12.50 YFE36B21S TMLX100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.50 YFE36B21S TMLX100C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.00 12.50 YFE36B21S TMLX100C16MP11 21.0 CF/CM/CU42D 1075 36.0 25.0 15.25 12.50 YFE36B21S TMLX100C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.00 12.50 YFE36B21S TMLX100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.8 15.50 12.75 YFE36B21S TMLX100C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.6 15.00 12.50 YFE36B21S TMLX100C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.6 15.25 12.50 YFE36B21S TMLX100C20MP11 21.0 CF/CM/CU42C 1075 36.0 25.0 15.25 12.50 YFE36B21S TMLX100C20MP11 21.0 CF/CM/CU42D 1100 36.0 25.2 15.50 12.75 YFE36B21S TMLX100C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.8 15.25 12.50 YFE36B21S TMLX100C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 14.75 12.25 YFE36B21S TMLX120C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.6 15.00 12.50 YFE36B21S TMLX120C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.6 15.25 12.50 YFE36B21S TMLX120C20MP11 21.0 CF/CM/CU42C 1075 36.0 25.0 15.25 12.50 YFE36B21S TMLX120C20MP11 21.0 CF/CM/CU42D 1100 36.0 25.2 15.50 12.75 YFE36B21S TMLX120C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.8 15.25 12.50 YFE36B21S TMLX120C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 14.75 12.25 YFE36B21S TP9C060B12MP12 17.5 CF/CM/CU36B 1050 35.6 24.4 14.50 12.25 YFE36B21S TP9C060B12MP12 17.5 CF42B 1175 36.0 25.8 14.50 12.25 YFE36B21S TP9C080B12MP12 17.5 CF/CM/CU36B 1050 35.6 24.4 14.50 12.25 YFE36B21S TP9C080B12MP12 17.5 CF42B 1175 36.0 25.8 14.50 12.25 YFE36B21S TP9C080C16MP12 21.0 CF/CM/CU36C 975 35.6 23.6 15.00 12.50 YFE36B21S TP9C080C16MP12 21.0 CF/CM/CU42C 975 36.0 24.0 15.00 12.50 YFE36B21S TP9C080C16MP12 21.0 CF/CM/CU48C 1275 36.0 26.2 14.75 12.25 YFE36B21S TP9C080C16MP12 21.0 CF/CM/CU48D 1200 36.0 25.8 15.25 12.50 YFE36B21S TP9C100C16MP12 21.0 CF/CM/CU36C 975 35.6 23.6 15.00 12.50 YFE36B21S TP9C100C16MP12 21.0 CF/CM/CU42C 975 36.0 24.0 15.00 12.50 YFE36B21S TP9C100C16MP12 21.0 CF/CM/CU48C 1275 36.0 26.2 14.75 12.25 YFE36B21S TP9C100C16MP12 21.0 CF/CM/CU48D 1200 36.0 25.8 15.25 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

26 Johnson Controls Unitary Products

Page 27

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE36B21S TP9C100C20MP12 21.0 CF/CM/CU36C 1075 36.0 24.8 14.75 12.25 YFE36B21S TP9C100C20MP12 21.0 CF/CM/CU42C 1275 36.0 26.2 14.50 12.25 YFE36B21S TP9C100C20MP12 21.0 CF/CM/CU48C 1200 36.0 25.6 14.75 12.25 YFE36B21S TP9C100C20MP12 21.0 CF/CM/CU48D 1250 36.0 26.0 15.00 12.50 YFE36B21S TP9C120D20MP12 24.5 CF/CM/CU36D 1125 36.0 25.2 15.50 12.75 YFE36B21S TP9C120D20MP12 24.5 CF/CM/CU42D 1125 36.0 25.2 15.00 12.50 YFE36B21S TP9C120D20MP12 24.5 CF/CM/CU48D 1250 36.0 26.2 15.00 12.50 YFE36B21S TPLC060A12MP12 14.5 CF/CM36A 975 35.0 23.2 14.00 11.75 YFE36B21S TPLC080B12MP12 17.5 CF/CM/CU36B 1025 35.6 24.0 14.25 12.00 YFE36B21S TPLC080B12MP12 17.5 CF42B 1000 35.6 23.8 14.25 12.25 YFE36B21S TPLC080C16MP12 21.0 CF/CM/CU36C 1100 36.0 25.0 15.00 12.50 YFE36B21S TPLC080C16MP12 21.0 CF/CM/CU42C 1325 36.0 27.0 14.50 12.25 YFE36B21S TPLC080C16MP12 21.0 CF/CM/CU48C 1050 36.0 24.6 15.00 12.50 YFE36B21S TPLC080C16MP12 21.0 CF/CM/CU48D 1050 36.0 24.4 15.00 12.50 YFE36B21S TPLC100C16MP12 21.0 CF/CM/CU36C 1100 36.0 25.0 15.00 12.50 YFE36B21S TPLC100C16MP12 21.0 CF/CM/CU42C 1325 36.0 27.0 14.50 12.25 YFE36B21S TPLC100C16MP12 21.0 CF/CM/CU48C 1050 36.0 24.6 15.00 12.50 YFE36B21S TPLC100C16MP12 21.0 CF/CM/CU48D 1050 36.0 24.4 15.00 12.50 YFE36B21S TPLC100C20MP12 21.0 CF/CM/CU36C 1100 36.0 25.0 14.75 12.25 YFE36B21S TPLC100C20MP12 21.0 CF/CM/CU42C 1100 36.0 25.0 14.75 12.25 YFE36B21S TPLC100C20MP12 21.0 CF/CM/CU48C 1250 36.0 26.0 15.00 12.50 YFE36B21S TPLC100C20MP12 21.0 CF/CM/CU48D 1125 36.0 25.0 16.00 13.00 YFE36B21S TPLC120C20MP12 21.0 CF/CM/CU36C 1100 36.0 25.0 14.75 12.25 YFE36B21S TPLC120C20MP12 21.0 CF/CM/CU42C 1100 36.0 25.0 14.75 12.25 YFE36B21S TPLC120C20MP12 21.0 CF/CM/CU48C 1250 36.0 26.0 15.00 12.50 YFE36B21S TPLC120C20MP12 21.0 CF/CM/CU48D 1125 36.0 25.0 16.00 13.00 YFE36B21S YP9C060B12MP12 17.5 CF/CM/CU36B 1050 35.6 24.4 14.50 12.25 YFE36B21S YP9C060B12MP12 17.5 CF42B 1175 36.0 25.8 14.50 12.25 YFE36B21S YP9C080B12MP12 17.5 CF/CM/CU36B 1050 35.6 24.4 14.50 12.25 YFE36B21S YP9C080B12MP12 17.5 CF42B 1175 36.0 25.8 14.50 12.25 YFE36B21S YP9C080C16MP12 21.0 CF/CM/CU36C 975 35.6 23.6 15.00 12.50 YFE36B21S YP9C080C16MP12 21.0 CF/CM/CU42C 975 36.0 24.0 15.00 12.50 YFE36B21S YP9C080C16MP12 21.0 CF/CM/CU48C 1275 36.0 26.2 14.75 12.25 YFE36B21S YP9C080C16MP12 21.0 CF/CM/CU48D 1200 36.0 25.8 15.25 12.50 YFE36B21S YP9C100C16MP12 21.0 CF/CM/CU36C 975 35.6 23.6 15.00 12.50 YFE36B21S YP9C100C16MP12 21.0 CF/CM/CU42C 975 36.0 24.0 15.00 12.50 YFE36B21S YP9C100C16MP12 21.0 CF/CM/CU48C 1275 36.0 26.2 14.75 12.25 YFE36B21S YP9C100C16MP12 21.0 CF/CM/CU48D 1200 36.0 25.8 15.25 12.50 YFE36B21S YP9C100C20MP12 21.0 CF/CM/CU36C 1075 36.0 24.8 14.75 12.25 YFE36B21S YP9C100C20MP12 21.0 CF/CM/CU42C 1275 36.0 26.2 14.50 12.25 YFE36B21S YP9C100C20MP12 21.0 CF/CM/CU48C 1200 36.0 25.6 14.75 12.25 YFE36B21S YP9C100C20MP12 21.0 CF/CM/CU48D 1250 36.0 26.0 15.00 12.50 YFE36B21S YP9C120D20MP12 24.5 CF/CM/CU36D 1125 36.0 25.2 15.50 12.75 YFE36B21S YP9C120D20MP12 24.5 CF/CM/CU42D 1125 36.0 25.2 15.00 12.50 YFE36B21S YP9C120D20MP12 24.5 CF/CM/CU48D 1250 36.0 26.2 15.00 12.50 YFE36B21S YPLC060A12MP12 14.5 CF/CM36A 975 35.0 23.2 14.00 11.75 YFE36B21S YPLC080B12MP12 17.5 CF/CM/CU36B 1025 35.6 24.0 14.25 12.00 YFE36B21S YPLC080B12MP12 17.5 CF42B 1000 35.6 23.8 14.25 12.25 YFE36B21S YPLC080C16MP12 21.0 CF/CM/CU36C 1100 36.0 25.0 15.00 12.50 YFE36B21S YPLC080C16MP12 21.0 CF/CM/CU42C 1325 36.0 27.0 14.50 12.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 27

Page 28

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE36B21S YPLC080C16MP12 21.0 CF/CM/CU48C 1050 36.0 24.6 15.00 12.50 YFE36B21S YPLC080C16MP12 21.0 CF/CM/CU48D 1050 36.0 24.4 15.00 12.50 YFE36B21S YPLC100C16MP12 21.0 CF/CM/CU36C 1100 36.0 25.0 15.00 12.50 YFE36B21S YPLC100C16MP12 21.0 CF/CM/CU42C 1325 36.0 27.0 14.50 12.25 YFE36B21S YPLC100C16MP12 21.0 CF/CM/CU48C 1050 36.0 24.6 15.00 12.50 YFE36B21S YPLC100C16MP12 21.0 CF/CM/CU48D 1050 36.0 24.4 15.00 12.50 YFE36B21S YPLC100C20MP12 21.0 CF/CM/CU36C 1100 36.0 25.0 14.75 12.25 YFE36B21S YPLC100C20MP12 21.0 CF/CM/CU42C 1100 36.0 25.0 14.75 12.25 YFE36B21S YPLC100C20MP12 21.0 CF/CM/CU48C 1250 36.0 26.0 15.00 12.50 YFE36B21S YPLC100C20MP12 21.0 CF/CM/CU48D 1125 36.0 25.0 16.00 13.00 YFE36B21S YPLC120C20MP12 21.0 CF/CM/CU36C 1100 36.0 25.0 14.75 12.25 YFE36B21S YPLC120C20MP12 21.0 CF/CM/CU42C 1100 36.0 25.0 14.75 12.25 YFE36B21S YPLC120C20MP12 21.0 CF/CM/CU48C 1250 36.0 26.0 15.00 12.50 YFE36B21S YPLC120C20MP12 21.0 CF/CM/CU48D 1125 36.0 25.0 16.00 13.00 YFE42B21S TM8V080C16MP11 21.0 CF/CM/CU42C 1325 40.5 29.5 14.50 12.25 YFE42B21S TM8V080C16MP11 21.0 CF/CM/CU48C 1325 41.0 30.0 14.75 12.50 YFE42B21S TM8V080C16MP11 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S TM8V080C16MP11 21.0 CF/CM/CU60C 1325 41.0 30.5 14.75 12.50 YFE42B21S TM8V080C16MP11 21.0 CF/CM64D 1250 41.5 29.5 15.25 12.75 YFE42B21S TM8V100C16MP11 21.0 CF/CM/CU42C 1325 40.5 29.5 14.50 12.25 YFE42B21S TM8V100C16MP11 21.0 CF/CM/CU48C 1325 41.0 30.0 14.75 12.50 YFE42B21S TM8V100C16MP11 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S TM8V100C16MP11 21.0 CF/CM/CU60C 1325 41.0 30.5 14.75 12.50 YFE42B21S TM8V100C16MP11 21.0 CF/CM64D 1250 41.5 29.5 15.25 12.75 YFE42B21S TM8V100C20MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S TM8V100C20MP11 21.0 CF/CM/CU48C 1300 41.0 29.5 14.75 12.50 YFE42B21S TM8V100C20MP11 21.0 CF/CM/CU60C 1400 41.5 31.0 14.50 12.50 YFE42B21S TM8V100C20MP11 21.0 CF/CM/CU60D 1225 41.0 29.0 15.25 12.50 YFE42B21S TM8V100C20MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TM8V120C20MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S TM8V120C20MP11 21.0 CF/CM/CU48C 1300 41.0 29.5 14.75 12.50 YFE42B21S TM8V120C20MP11 21.0 CF/CM/CU60C 1400 41.5 31.0 14.50 12.50 YFE42B21S TM8V120C20MP11 21.0 CF/CM/CU60D 1225 41.0 29.0 15.25 12.50 YFE42B21S TM8V120C20MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TM8X080B12MP11 17.5 CF42B 1175 40.0 27.5 14.50 12.50 YFE42B21S TM8X080C16MP11 21.0 CF/CM/CU42C 1200 40.0 28.0 15.00 12.50 YFE42B21S TM8X080C16MP11 21.0 CF/CM/CU42D 1400 41.0 30.5 14.50 12.50 YFE42B21S TM8X080C16MP11 21.0 CF/CM/CU48C 1400 41.5 30.5 14.75 12.50 YFE42B21S TM8X080C16MP11 21.0 CF/CM/CU48D 1400 41.5 30.5 14.50 12.50 YFE42B21S TM8X080C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TM8X080C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TM8X080C16MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TM8X100C16MP11 21.0 CF/CM/CU42C 1200 40.0 28.0 15.00 12.50 YFE42B21S TM8X100C16MP11 21.0 CF/CM/CU42D 1400 41.0 30.5 14.50 12.50 YFE42B21S TM8X100C16MP11 21.0 CF/CM/CU48C 1400 41.5 30.5 14.75 12.50 YFE42B21S TM8X100C16MP11 21.0 CF/CM/CU48D 1400 41.5 30.5 14.50 12.50 YFE42B21S TM8X100C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TM8X100C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TM8X100C16MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TM8X100C20MP11 21.0 CF/CM/CU42C 1400 41.0 31.0 14.75 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

28 Johnson Controls Unitary Products

Page 29

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE42B21S TM8X100C20MP11 21.0 CF/CM/CU42D 1275 41.0 29.5 15.00 12.50 YFE42B21S TM8X100C20MP11 21.0 CF/CM/CU48C 1275 41.0 29.5 15.00 12.50 YFE42B21S TM8X100C20MP11 21.0 CF/CM/CU48D 1300 41.5 30.0 15.25 12.75 YFE42B21S TM8X100C20MP11 21.0 CF/CM/CU60C 1275 41.0 30.0 15.25 12.75 YFE42B21S TM8X100C20MP11 21.0 CF/CM/CU60D 1275 41.0 30.0 15.25 12.75 YFE42B21S TM8X100C20MP11 21.0 CF/CM64D 1275 41.5 30.0 15.50 12.75 YFE42B21S TM8X120C20MP11 21.0 CF/CM/CU42C 1400 41.0 31.0 14.75 12.50 YFE42B21S TM8X120C20MP11 21.0 CF/CM/CU42D 1275 41.0 29.5 15.00 12.50 YFE42B21S TM8X120C20MP11 21.0 CF/CM/CU48C 1275 41.0 29.5 15.00 12.50 YFE42B21S TM8X120C20MP11 21.0 CF/CM/CU48D 1300 41.5 30.0 15.25 12.75 YFE42B21S TM8X120C20MP11 21.0 CF/CM/CU60C 1275 41.0 30.0 15.25 12.75 YFE42B21S TM8X120C20MP11 21.0 CF/CM/CU60D 1275 41.0 30.0 15.25 12.75 YFE42B21S TM8X120C20MP11 21.0 CF/CM64D 1275 41.5 30.0 15.50 12.75 YFE42B21S TM8Y080B12MP11 17.5 CF42B 1175 40.0 27.5 14.50 12.50 YFE42B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 1200 40.0 28.0 15.00 12.50 YFE42B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 1400 41.0 30.5 14.50 12.50 YFE42B21S TM8Y080C16MP11 21.0 CF/CM/CU48C 1400 41.5 30.5 14.75 12.50 YFE42B21S TM8Y080C16MP11 21.0 CF/CM/CU48D 1400 41.5 30.5 14.50 12.50 YFE42B21S TM8Y080C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TM8Y080C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TM8Y080C16MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 1200 40.0 28.0 15.00 12.50 YFE42B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 1400 41.0 30.5 14.50 12.50 YFE42B21S TM8Y100C16MP11 21.0 CF/CM/CU48C 1400 41.5 30.5 14.75 12.50 YFE42B21S TM8Y100C16MP11 21.0 CF/CM/CU48D 1400 41.5 30.5 14.50 12.50 YFE42B21S TM8Y100C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TM8Y100C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TM8Y100C16MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 1400 41.0 31.0 14.75 12.50 YFE42B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 1275 41.0 29.5 15.00 12.50 YFE42B21S TM8Y100C20MP11 21.0 CF/CM/CU48C 1275 41.0 29.5 15.00 12.50 YFE42B21S TM8Y100C20MP11 21.0 CF/CM/CU48D 1300 41.5 30.0 15.25 12.75 YFE42B21S TM8Y100C20MP11 21.0 CF/CM/CU60C 1275 41.0 30.0 15.25 12.75 YFE42B21S TM8Y100C20MP11 21.0 CF/CM/CU60D 1275 41.0 30.0 15.25 12.75 YFE42B21S TM8Y100C20MP11 21.0 CF/CM64D 1275 41.5 30.0 15.50 12.75 YFE42B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 1400 41.0 31.0 14.75 12.50 YFE42B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 1275 41.0 29.5 15.00 12.50 YFE42B21S TM8Y120C20MP11 21.0 CF/CM/CU48C 1275 41.0 29.5 15.00 12.50 YFE42B21S TM8Y120C20MP11 21.0 CF/CM/CU48D 1300 41.5 30.0 15.25 12.75 YFE42B21S TM8Y120C20MP11 21.0 CF/CM/CU60C 1275 41.0 30.0 15.25 12.75 YFE42B21S TM8Y120C20MP11 21.0 CF/CM/CU60D 1275 41.0 30.0 15.25 12.75 YFE42B21S TM8Y120C20MP11 21.0 CF/CM64D 1275 41.5 30.0 15.50 12.75 YFE42B21S TM9E080C16MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S TM9E080C16MP11 21.0 CF/CM/CU42D 1325 40.5 29.5 14.25 12.25 YFE42B21S TM9E080C16MP11 21.0 CF/CM/CU48C 1325 41.0 30.0 14.50 12.50 YFE42B21S TM9E080C16MP11 21.0 CF/CM/CU48D 1225 40.5 29.0 14.75 12.50 YFE42B21S TM9E080C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.00 12.50 YFE42B21S TM9E080C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TM9E080C16MP11 21.0 CF/CM64D 1225 41.5 29.5 15.25 12.75 YFE42B21S TM9E100C16MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 29

Page 30

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE42B21S TM9E100C16MP11 21.0 CF/CM/CU42D 1325 40.5 29.5 14.25 12.25 YFE42B21S TM9E100C16MP11 21.0 CF/CM/CU48C 1325 41.0 30.0 14.50 12.50 YFE42B21S TM9E100C16MP11 21.0 CF/CM/CU48D 1225 40.5 29.0 14.75 12.50 YFE42B21S TM9E100C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.00 12.50 YFE42B21S TM9E100C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TM9E100C16MP11 21.0 CF/CM64D 1225 41.5 29.5 15.25 12.75 YFE42B21S TM9E100C20MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 15.00 12.50 YFE42B21S TM9E100C20MP11 21.0 CF/CM/CU42D 1225 40.5 29.0 15.00 12.50 YFE42B21S TM9E100C20MP11 21.0 CF/CM/CU48C 1225 41.0 29.0 15.00 12.50 YFE42B21S TM9E100C20MP11 21.0 CF/CM/CU48D 1225 41.0 29.0 15.00 12.50 YFE42B21S TM9E100C20MP11 21.0 CF/CM/CU60C 1225 41.0 29.0 15.25 12.75 YFE42B21S TM9E100C20MP11 21.0 CF/CM/CU60D 1250 41.5 29.5 15.25 12.75 YFE42B21S TM9E100C20MP11 21.0 CF/CM64D 1225 41.5 29.5 15.25 12.75 YFE42B21S TM9E120D20MP11 24.5 CF/CM/CU42D 1250 40.5 29.0 15.25 12.75 YFE42B21S TM9E120D20MP11 24.5 CF/CM/CU48D 1250 41.0 29.0 15.50 12.75 YFE42B21S TM9E120D20MP11 24.5 CF/CM/CU60D 1225 41.0 29.0 15.25 12.75 YFE42B21S TM9E120D20MP11 24.5 CF/CM64D 1225 41.5 29.5 15.25 12.75 YFE42B21S TM9V060B12MP11 17.5 CF42B 1175 40.0 27.5 14.50 12.25 YFE42B21S TM9V080B12MP11 17.5 CF42B 1175 40.0 27.5 14.50 12.25 YFE42B21S TM9V080C16MP11 21.0 CF/CM/CU42C 1275 40.5 29.5 14.50 12.50 YFE42B21S TM9V080C16MP11 21.0 CF/CM/CU48C 1275 41.0 29.5 14.75 12.50 YFE42B21S TM9V080C16MP11 21.0 CF/CM/CU48D 1425 41.0 31.0 14.75 12.50 YFE42B21S TM9V080C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TM9V080C16MP11 21.0 CF/CM/CU60D 1425 41.5 31.5 14.75 12.50 YFE42B21S TM9V080C16MP11 21.0 CF/CM64D 1300 41.5 30.0 14.75 12.50 YFE42B21S TM9V100C16MP11 21.0 CF/CM/CU42C 1275 40.5 29.5 14.50 12.50 YFE42B21S TM9V100C16MP11 21.0 CF/CM/CU48C 1275 41.0 29.5 14.75 12.50 YFE42B21S TM9V100C16MP11 21.0 CF/CM/CU48D 1425 41.0 31.0 14.75 12.50 YFE42B21S TM9V100C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TM9V100C16MP11 21.0 CF/CM/CU60D 1425 41.5 31.5 14.75 12.50 YFE42B21S TM9V100C16MP11 21.0 CF/CM64D 1300 41.5 30.0 14.75 12.50 YFE42B21S TM9V100C20MP11 21.0 CF/CM/CU42C 1275 40.5 29.0 14.50 12.50 YFE42B21S TM9V100C20MP11 21.0 CF/CM/CU48C 1275 41.0 29.0 14.75 12.50 YFE42B21S TM9V100C20MP11 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S TM9V100C20MP11 21.0 CF/CM/CU60C 1275 41.0 30.0 14.75 12.50 YFE42B21S TM9V100C20MP11 21.0 CF/CM/CU60D 1250 41.0 29.5 15.25 12.75 YFE42B21S TM9V100C20MP11 21.0 CF/CM64D 1225 41.5 29.5 15.00 12.50 YFE42B21S TM9V120D20MP11 24.5 CF/CM/CU42D 1300 41.0 30.0 15.00 12.50 YFE42B21S TM9V120D20MP11 24.5 CF/CM/CU48D 1300 41.0 30.0 15.00 12.50 YFE42B21S TM9V120D20MP11 24.5 CF/CM/CU60D 1250 41.5 29.5 15.25 12.75 YFE42B21S TM9V120D20MP11 24.5 CF/CM64D 1250 41.5 29.5 15.50 12.75 YFE42B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S TM9Y080C16MP11 21.0 CF/CM/CU42D 1325 40.5 29.5 14.25 12.25 YFE42B21S TM9Y080C16MP11 21.0 CF/CM/CU48C 1325 41.0 30.0 14.50 12.50 YFE42B21S TM9Y080C16MP11 21.0 CF/CM/CU48D 1225 40.5 29.0 14.75 12.50 YFE42B21S TM9Y080C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.00 12.50 YFE42B21S TM9Y080C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TM9Y080C16MP11 21.0 CF/CM64D 1225 41.5 29.5 15.25 12.75 YFE42B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S TM9Y100C16MP11 21.0 CF/CM/CU42D 1325 40.5 29.5 14.25 12.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

30 Johnson Controls Unitary Products

Page 31

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE42B21S TM9Y100C16MP11 21.0 CF/CM/CU48C 1325 41.0 30.0 14.50 12.50 YFE42B21S TM9Y100C16MP11 21.0 CF/CM/CU48D 1225 40.5 29.0 14.75 12.50 YFE42B21S TM9Y100C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.00 12.50 YFE42B21S TM9Y100C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TM9Y100C16MP11 21.0 CF/CM64D 1225 41.5 29.5 15.25 12.75 YFE42B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 15.00 12.50 YFE42B21S TM9Y100C20MP11 21.0 CF/CM/CU42D 1225 40.5 29.0 15.00 12.50 YFE42B21S TM9Y100C20MP11 21.0 CF/CM/CU48C 1225 41.0 29.0 15.00 12.50 YFE42B21S TM9Y100C20MP11 21.0 CF/CM/CU48D 1225 41.0 29.0 15.00 12.50 YFE42B21S TM9Y100C20MP11 21.0 CF/CM/CU60C 1225 41.0 29.0 15.25 12.75 YFE42B21S TM9Y100C20MP11 21.0 CF/CM/CU60D 1250 41.5 29.5 15.25 12.75 YFE42B21S TM9Y100C20MP11 21.0 CF/CM64D 1225 41.5 29.5 15.25 12.75 YFE42B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 1250 40.5 29.0 15.25 12.75 YFE42B21S TM9Y120D20MP11 24.5 CF/CM/CU48D 1250 41.0 29.0 15.50 12.75 YFE42B21S TM9Y120D20MP11 24.5 CF/CM/CU60D 1225 41.0 29.0 15.25 12.75 YFE42B21S TM9Y120D20MP11 24.5 CF/CM64D 1225 41.5 29.5 15.25 12.75 YFE42B21S TMLV080C16MP11 21.0 CF/CM/CU42C 1325 40.5 29.5 14.50 12.25 YFE42B21S TMLV080C16MP11 21.0 CF/CM/CU48C 1325 41.0 30.0 14.75 12.50 YFE42B21S TMLV080C16MP11 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S TMLV080C16MP11 21.0 CF/CM/CU60C 1325 41.0 30.5 14.75 12.50 YFE42B21S TMLV080C16MP11 21.0 CF/CM64D 1250 41.5 29.5 15.25 12.75 YFE42B21S TMLV100C16MP11 21.0 CF/CM/CU42C 1325 40.5 29.5 14.50 12.25 YFE42B21S TMLV100C16MP11 21.0 CF/CM/CU48C 1325 41.0 30.0 14.75 12.50 YFE42B21S TMLV100C16MP11 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S TMLV100C16MP11 21.0 CF/CM/CU60C 1325 41.0 30.5 14.75 12.50 YFE42B21S TMLV100C16MP11 21.0 CF/CM64D 1250 41.5 29.5 15.25 12.75 YFE42B21S TMLV100C20MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S TMLV100C20MP11 21.0 CF/CM/CU48C 1300 41.0 29.5 14.75 12.50 YFE42B21S TMLV100C20MP11 21.0 CF/CM/CU60C 1400 41.5 31.0 14.50 12.50 YFE42B21S TMLV100C20MP11 21.0 CF/CM/CU60D 1225 41.0 29.0 15.25 12.50 YFE42B21S TMLV100C20MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TMLV120C20MP11 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S TMLV120C20MP11 21.0 CF/CM/CU48C 1300 41.0 29.5 14.75 12.50 YFE42B21S TMLV120C20MP11 21.0 CF/CM/CU60C 1400 41.5 31.0 14.50 12.50 YFE42B21S TMLV120C20MP11 21.0 CF/CM/CU60D 1225 41.0 29.0 15.25 12.50 YFE42B21S TMLV120C20MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TMLX080B12MP11 17.5 CF42B 1175 40.0 27.5 14.50 12.50 YFE42B21S TMLX080C16MP11 21.0 CF/CM/CU42C 1200 40.0 28.0 15.00 12.50 YFE42B21S TMLX080C16MP11 21.0 CF/CM/CU42D 1400 41.0 30.5 14.50 12.50 YFE42B21S TMLX080C16MP11 21.0 CF/CM/CU48C 1400 41.5 30.5 14.75 12.50 YFE42B21S TMLX080C16MP11 21.0 CF/CM/CU48D 1400 41.5 30.5 14.50 12.50 YFE42B21S TMLX080C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TMLX080C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50 YFE42B21S TMLX080C16MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TMLX100C16MP11 21.0 CF/CM/CU42C 1200 40.0 28.0 15.00 12.50 YFE42B21S TMLX100C16MP11 21.0 CF/CM/CU42D 1400 41.0 30.5 14.50 12.50 YFE42B21S TMLX100C16MP11 21.0 CF/CM/CU48C 1400 41.5 30.5 14.75 12.50 YFE42B21S TMLX100C16MP11 21.0 CF/CM/CU48D 1400 41.5 30.5 14.50 12.50 YFE42B21S TMLX100C16MP11 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TMLX100C16MP11 21.0 CF/CM/CU60D 1200 40.5 28.0 15.00 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 31

Page 32

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE42B21S TMLX100C16MP11 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TMLX100C20MP11 21.0 CF/CM/CU42C 1400 41.0 31.0 14.75 12.50 YFE42B21S TMLX100C20MP11 21.0 CF/CM/CU42D 1275 41.0 29.5 15.00 12.50 YFE42B21S TMLX100C20MP11 21.0 CF/CM/CU48C 1275 41.0 29.5 15.00 12.50 YFE42B21S TMLX100C20MP11 21.0 CF/CM/CU48D 1300 41.5 30.0 15.25 12.75 YFE42B21S TMLX100C20MP11 21.0 CF/CM/CU60C 1275 41.0 30.0 15.25 12.75 YFE42B21S TMLX100C20MP11 21.0 CF/CM/CU60D 1275 41.0 30.0 15.25 12.75 YFE42B21S TMLX100C20MP11 21.0 CF/CM64D 1275 41.5 30.0 15.50 12.75 YFE42B21S TMLX120C20MP11 21.0 CF/CM/CU42C 1400 41.0 31.0 14.75 12.50 YFE42B21S TMLX120C20MP11 21.0 CF/CM/CU42D 1275 41.0 29.5 15.00 12.50 YFE42B21S TMLX120C20MP11 21.0 CF/CM/CU48C 1275 41.0 29.5 15.00 12.50 YFE42B21S TMLX120C20MP11 21.0 CF/CM/CU48D 1300 41.5 30.0 15.25 12.75 YFE42B21S TMLX120C20MP11 21.0 CF/CM/CU60C 1275 41.0 30.0 15.25 12.75 YFE42B21S TMLX120C20MP11 21.0 CF/CM/CU60D 1275 41.0 30.0 15.25 12.75 YFE42B21S TMLX120C20MP11 21.0 CF/CM64D 1275 41.5 30.0 15.50 12.75 YFE42B21S TP9C060B12MP12 17.5 CF42B 1175 40.0 27.5 14.50 12.25 YFE42B21S TP9C080B12MP12 17.5 CF42B 1175 40.0 27.5 14.50 12.25 YFE42B21S TP9C080C16MP12 21.0 CF/CM/CU42C 1275 40.5 29.5 14.50 12.50 YFE42B21S TP9C080C16MP12 21.0 CF/CM/CU48C 1275 41.0 29.5 14.75 12.50 YFE42B21S TP9C080C16MP12 21.0 CF/CM/CU48D 1425 41.0 31.0 14.75 12.50 YFE42B21S TP9C080C16MP12 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TP9C080C16MP12 21.0 CF/CM/CU60D 1425 41.5 31.5 14.75 12.50 YFE42B21S TP9C080C16MP12 21.0 CF/CM64D 1300 41.5 30.0 14.75 12.50 YFE42B21S TP9C100C16MP12 21.0 CF/CM/CU42C 1275 40.5 29.5 14.50 12.50 YFE42B21S TP9C100C16MP12 21.0 CF/CM/CU48C 1275 41.0 29.5 14.75 12.50 YFE42B21S TP9C100C16MP12 21.0 CF/CM/CU48D 1425 41.0 31.0 14.75 12.50 YFE42B21S TP9C100C16MP12 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S TP9C100C16MP12 21.0 CF/CM/CU60D 1425 41.5 31.5 14.75 12.50 YFE42B21S TP9C100C16MP12 21.0 CF/CM64D 1300 41.5 30.0 14.75 12.50 YFE42B21S TP9C100C20MP12 21.0 CF/CM/CU42C 1275 40.5 29.0 14.50 12.50 YFE42B21S TP9C100C20MP12 21.0 CF/CM/CU48C 1275 41.0 29.0 14.75 12.50 YFE42B21S TP9C100C20MP12 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S TP9C100C20MP12 21.0 CF/CM/CU60C 1275 41.0 30.0 14.75 12.50 YFE42B21S TP9C100C20MP12 21.0 CF/CM/CU60D 1250 41.0 29.5 15.25 12.75 YFE42B21S TP9C100C20MP12 21.0 CF/CM64D 1225 41.5 29.5 15.00 12.50 YFE42B21S TP9C120D20MP12 24.5 CF/CM/CU42D 1300 41.0 30.0 15.00 12.50 YFE42B21S TP9C120D20MP12 24.5 CF/CM/CU48D 1300 41.0 30.0 15.00 12.50 YFE42B21S TP9C120D20MP12 24.5 CF/CM/CU60D 1250 41.5 29.5 15.25 12.75 YFE42B21S TP9C120D20MP12 24.5 CF/CM64D 1250 41.5 29.5 15.50 12.75 YFE42B21S TPLC080C16MP12 21.0 CF/CM/CU42C 1325 40.5 29.5 14.50 12.25 YFE42B21S TPLC080C16MP12 21.0 CF/CM/CU48C 1325 41.0 30.0 14.75 12.50 YFE42B21S TPLC080C16MP12 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S TPLC080C16MP12 21.0 CF/CM/CU60C 1325 41.0 30.5 14.75 12.50 YFE42B21S TPLC080C16MP12 21.0 CF/CM64D 1250 41.5 29.5 15.25 12.75 YFE42B21S TPLC100C16MP12 21.0 CF/CM/CU42C 1325 40.5 29.5 14.50 12.25 YFE42B21S TPLC100C16MP12 21.0 CF/CM/CU48C 1325 41.0 30.0 14.75 12.50 YFE42B21S TPLC100C16MP12 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S TPLC100C16MP12 21.0 CF/CM/CU60C 1325 41.0 30.5 14.75 12.50 YFE42B21S TPLC100C16MP12 21.0 CF/CM64D 1250 41.5 29.5 15.25 12.75 YFE42B21S TPLC100C20MP12 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

32 Johnson Controls Unitary Products

Page 33

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE42B21S TPLC100C20MP12 21.0 CF/CM/CU48C 1300 41.0 29.5 14.75 12.50 YFE42B21S TPLC100C20MP12 21.0 CF/CM/CU60C 1400 41.5 31.0 14.50 12.50 YFE42B21S TPLC100C20MP12 21.0 CF/CM/CU60D 1225 41.0 29.0 15.25 12.50 YFE42B21S TPLC100C20MP12 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S TPLC120C20MP12 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S TPLC120C20MP12 21.0 CF/CM/CU48C 1300 41.0 29.5 14.75 12.50 YFE42B21S TPLC120C20MP12 21.0 CF/CM/CU60C 1400 41.5 31.0 14.50 12.50 YFE42B21S TPLC120C20MP12 21.0 CF/CM/CU60D 1225 41.0 29.0 15.25 12.50 YFE42B21S TPLC120C20MP12 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S YP9C060B12MP12 17.5 CF42B 1175 40.0 27.5 14.50 12.25 YFE42B21S YP9C080B12MP12 17.5 CF42B 1175 40.0 27.5 14.50 12.25 YFE42B21S YP9C080C16MP12 21.0 CF/CM/CU42C 1275 40.5 29.5 14.50 12.50 YFE42B21S YP9C080C16MP12 21.0 CF/CM/CU48C 1275 41.0 29.5 14.75 12.50 YFE42B21S YP9C080C16MP12 21.0 CF/CM/CU48D 1425 41.0 31.0 14.75 12.50 YFE42B21S YP9C080C16MP12 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S YP9C080C16MP12 21.0 CF/CM/CU60D 1425 41.5 31.5 14.75 12.50 YFE42B21S YP9C080C16MP12 21.0 CF/CM64D 1300 41.5 30.0 14.75 12.50 YFE42B21S YP9C100C16MP12 21.0 CF/CM/CU42C 1275 40.5 29.5 14.50 12.50 YFE42B21S YP9C100C16MP12 21.0 CF/CM/CU48C 1275 41.0 29.5 14.75 12.50 YFE42B21S YP9C100C16MP12 21.0 CF/CM/CU48D 1425 41.0 31.0 14.75 12.50 YFE42B21S YP9C100C16MP12 21.0 CF/CM/CU60C 1200 40.5 28.0 15.25 12.75 YFE42B21S YP9C100C16MP12 21.0 CF/CM/CU60D 1425 41.5 31.5 14.75 12.50 YFE42B21S YP9C100C16MP12 21.0 CF/CM64D 1300 41.5 30.0 14.75 12.50 YFE42B21S YP9C100C20MP12 21.0 CF/CM/CU42C 1275 40.5 29.0 14.50 12.50 YFE42B21S YP9C100C20MP12 21.0 CF/CM/CU48C 1275 41.0 29.0 14.75 12.50 YFE42B21S YP9C100C20MP12 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S YP9C100C20MP12 21.0 CF/CM/CU60C 1275 41.0 30.0 14.75 12.50 YFE42B21S YP9C100C20MP12 21.0 CF/CM/CU60D 1250 41.0 29.5 15.25 12.75 YFE42B21S YP9C100C20MP12 21.0 CF/CM64D 1225 41.5 29.5 15.00 12.50 YFE42B21S YP9C120D20MP12 24.5 CF/CM/CU42D 1300 41.0 30.0 15.00 12.50 YFE42B21S YP9C120D20MP12 24.5 CF/CM/CU48D 1300 41.0 30.0 15.00 12.50 YFE42B21S YP9C120D20MP12 24.5 CF/CM/CU60D 1250 41.5 29.5 15.25 12.75 YFE42B21S YP9C120D20MP12 24.5 CF/CM64D 1250 41.5 29.5 15.50 12.75 YFE42B21S YPLC080C16MP12 21.0 CF/CM/CU42C 1325 40.5 29.5 14.50 12.25 YFE42B21S YPLC080C16MP12 21.0 CF/CM/CU48C 1325 41.0 30.0 14.75 12.50 YFE42B21S YPLC080C16MP12 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S YPLC080C16MP12 21.0 CF/CM/CU60C 1325 41.0 30.5 14.75 12.50 YFE42B21S YPLC080C16MP12 21.0 CF/CM64D 1250 41.5 29.5 15.25 12.75 YFE42B21S YPLC100C16MP12 21.0 CF/CM/CU42C 1325 40.5 29.5 14.50 12.25 YFE42B21S YPLC100C16MP12 21.0 CF/CM/CU48C 1325 41.0 30.0 14.75 12.50 YFE42B21S YPLC100C16MP12 21.0 CF/CM/CU48D 1300 41.0 29.5 14.75 12.50 YFE42B21S YPLC100C16MP12 21.0 CF/CM/CU60C 1325 41.0 30.5 14.75 12.50 YFE42B21S YPLC100C16MP12 21.0 CF/CM64D 1250 41.5 29.5 15.25 12.75 YFE42B21S YPLC100C20MP12 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S YPLC100C20MP12 21.0 CF/CM/CU48C 1300 41.0 29.5 14.75 12.50 YFE42B21S YPLC100C20MP12 21.0 CF/CM/CU60C 1400 41.5 31.0 14.50 12.50 YFE42B21S YPLC100C20MP12 21.0 CF/CM/CU60D 1225 41.0 29.0 15.25 12.50 YFE42B21S YPLC100C20MP12 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE42B21S YPLC120C20MP12 21.0 CF/CM/CU42C 1225 40.5 29.0 14.75 12.50 YFE42B21S YPLC120C20MP12 21.0 CF/CM/CU48C 1300 41.0 29.5 14.75 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 33

Page 34

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE42B21S YPLC120C20MP12 21.0 CF/CM/CU60C 1400 41.5 31.0 14.50 12.50 YFE42B21S YPLC120C20MP12 21.0 CF/CM/CU60D 1225 41.0 29.0 15.25 12.50 YFE42B21S YPLC120C20MP12 21.0 CF/CM64D 1200 41.0 28.0 15.00 12.50 YFE48B21S TM8V080C16MP11 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.25 YFE48B21S TM8V080C16MP11 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TM8V080C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TM8V080C16MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S TM8V080C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8V100C16MP11 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.25 YFE48B21S TM8V100C16MP11 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TM8V100C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TM8V100C16MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S TM8V100C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8V100C20MP11 21.0 CF/CM/CU48C 1300 46.5 33.0 14.50 12.25 YFE48B21S TM8V100C20MP11 21.0 CF/CM/CU48D 1650 48.0 35.0 15.00 12.50 YFE48B21S TM8V100C20MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8V100C20MP11 21.0 CF/CM/CU60D 1350 47.5 33.5 14.75 12.25 YFE48B21S TM8V100C20MP11 21.0 CF/CM64D 1425 48.0 35.0 15.25 12.50 YFE48B21S TM8V120C20MP11 21.0 CF/CM/CU48C 1300 46.5 33.0 14.50 12.25 YFE48B21S TM8V120C20MP11 21.0 CF/CM/CU48D 1650 48.0 35.0 15.00 12.50 YFE48B21S TM8V120C20MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8V120C20MP11 21.0 CF/CM/CU60D 1350 47.5 33.5 14.75 12.25 YFE48B21S TM8V120C20MP11 21.0 CF/CM64D 1425 48.0 35.0 15.25 12.50 YFE48B21S TM8X080C16MP11 21.0 CF/CM/CU48C 1400 47.5 34.0 15.00 12.25 YFE48B21S TM8X080C16MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.00 12.25 YFE48B21S TM8X080C16MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8X080C16MP11 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TM8X080C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8X100C16MP11 21.0 CF/CM/CU48C 1400 47.5 34.0 15.00 12.25 YFE48B21S TM8X100C16MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.00 12.25 YFE48B21S TM8X100C16MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8X100C16MP11 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TM8X100C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8X100C20MP11 21.0 CF/CM/CU48C 1425 47.5 34.5 15.00 12.25 YFE48B21S TM8X100C20MP11 21.0 CF/CM/CU48D 1300 47.0 33.0 14.75 12.25 YFE48B21S TM8X100C20MP11 21.0 CF/CM/CU60C 1450 47.5 35.5 15.25 12.50 YFE48B21S TM8X100C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.5 15.50 12.75 YFE48B21S TM8X100C20MP11 21.0 CF/CM64D 1450 48.0 35.0 14.75 12.50 YFE48B21S TM8X120C20MP11 21.0 CF/CM/CU48C 1425 47.5 34.5 15.00 12.25 YFE48B21S TM8X120C20MP11 21.0 CF/CM/CU48D 1300 47.0 33.0 14.75 12.25 YFE48B21S TM8X120C20MP11 21.0 CF/CM/CU60C 1450 47.5 35.5 15.25 12.50 YFE48B21S TM8X120C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.5 15.50 12.75 YFE48B21S TM8X120C20MP11 21.0 CF/CM64D 1450 48.0 35.0 14.75 12.50 YFE48B21S TM8Y080C16MP11 21.0 CF/CM/CU48C 1400 47.5 34.0 15.00 12.25 YFE48B21S TM8Y080C16MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.00 12.25 YFE48B21S TM8Y080C16MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8Y080C16MP11 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TM8Y080C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8Y100C16MP11 21.0 CF/CM/CU48C 1400 47.5 34.0 15.00 12.25 YFE48B21S TM8Y100C16MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.00 12.25

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

34 Johnson Controls Unitary Products

Page 35

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE48B21S TM8Y100C16MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8Y100C16MP11 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TM8Y100C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TM8Y100C20MP11 21.0 CF/CM/CU48C 1425 47.5 34.5 15.00 12.25 YFE48B21S TM8Y100C20MP11 21.0 CF/CM/CU48D 1300 47.0 33.0 14.75 12.25 YFE48B21S TM8Y100C20MP11 21.0 CF/CM/CU60C 1450 47.5 35.5 15.25 12.50 YFE48B21S TM8Y100C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.5 15.50 12.75 YFE48B21S TM8Y100C20MP11 21.0 CF/CM64D 1450 48.0 35.0 14.75 12.50 YFE48B21S TM8Y120C20MP11 21.0 CF/CM/CU48C 1425 47.5 34.5 15.00 12.25 YFE48B21S TM8Y120C20MP11 21.0 CF/CM/CU48D 1300 47.0 33.0 14.75 12.25 YFE48B21S TM8Y120C20MP11 21.0 CF/CM/CU60C 1450 47.5 35.5 15.25 12.50 YFE48B21S TM8Y120C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.5 15.50 12.75 YFE48B21S TM8Y120C20MP11 21.0 CF/CM64D 1450 48.0 35.0 14.75 12.50 YFE48B21S TM9E080C16MP11 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.00 YFE48B21S TM9E080C16MP11 21.0 CF/CM/CU48D 1350 46.5 33.0 14.25 12.00 YFE48B21S TM9E080C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 14.75 12.25 YFE48B21S TM9E080C16MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 14.75 12.25 YFE48B21S TM9E080C16MP11 21.0 CF/CM64D 1350 48.0 34.0 15.00 12.50 YFE48B21S TM9E100C16MP11 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.00 YFE48B21S TM9E100C16MP11 21.0 CF/CM/CU48D 1350 46.5 33.0 14.25 12.00 YFE48B21S TM9E100C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 14.75 12.25 YFE48B21S TM9E100C16MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 14.75 12.25 YFE48B21S TM9E100C16MP11 21.0 CF/CM64D 1350 48.0 34.0 15.00 12.50 YFE48B21S TM9E100C20MP11 21.0 CF/CM/CU48C 1400 47.5 34.5 15.00 12.50 YFE48B21S TM9E100C20MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.00 12.25 YFE48B21S TM9E100C20MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TM9E100C20MP11 21.0 CF/CM/CU60D 1450 47.5 35.5 15.25 12.50 YFE48B21S TM9E100C20MP11 21.0 CF/CM64D 1400 48.0 35.0 15.25 12.50 YFE48B21S TM9E120D20MP11 24.5 CF/CM/CU48D 1425 47.5 34.5 15.25 12.50 YFE48B21S TM9E120D20MP11 24.5 CF/CM/CU60D 1425 47.5 35.0 15.25 12.50 YFE48B21S TM9E120D20MP11 24.5 CF/CM64D 1400 48.0 35.0 15.50 12.50 YFE48B21S TM9V080C16MP11 21.0 CF/CM/CU48C 1425 47.5 34.5 14.75 12.25 YFE48B21S TM9V080C16MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.25 12.50 YFE48B21S TM9V080C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TM9V080C16MP11 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TM9V080C16MP11 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50 YFE48B21S TM9V100C16MP11 21.0 CF/CM/CU48C 1425 47.5 34.5 14.75 12.25 YFE48B21S TM9V100C16MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.25 12.50 YFE48B21S TM9V100C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TM9V100C16MP11 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TM9V100C16MP11 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50 YFE48B21S TM9V100C20MP11 21.0 CF/CM/CU48C 1450 47.5 35.0 14.50 12.00 YFE48B21S TM9V100C20MP11 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TM9V100C20MP11 21.0 CF/CM/CU60C 1500 48.0 36.0 14.50 12.25 YFE48B21S TM9V100C20MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S TM9V100C20MP11 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50 YFE48B21S TM9V120D20MP11 24.5 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TM9V120D20MP11 24.5 CF/CM/CU60D 1300 47.5 34.0 15.25 12.50 YFE48B21S TM9V120D20MP11 24.5 CF/CM64D 1525 48.0 36.0 14.50 12.25 YFE48B21S TM9Y080C16MP11 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.00

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 35

Page 36

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE48B21S TM9Y080C16MP11 21.0 CF/CM/CU48D 1350 46.5 33.0 14.25 12.00 YFE48B21S TM9Y080C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 14.75 12.25 YFE48B21S TM9Y080C16MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 14.75 12.25 YFE48B21S TM9Y080C16MP11 21.0 CF/CM64D 1350 48.0 34.0 15.00 12.50 YFE48B21S TM9Y100C16MP11 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.00 YFE48B21S TM9Y100C16MP11 21.0 CF/CM/CU48D 1350 46.5 33.0 14.25 12.00 YFE48B21S TM9Y100C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 14.75 12.25 YFE48B21S TM9Y100C16MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 14.75 12.25 YFE48B21S TM9Y100C16MP11 21.0 CF/CM64D 1350 48.0 34.0 15.00 12.50 YFE48B21S TM9Y100C20MP11 21.0 CF/CM/CU48C 1400 47.5 34.5 15.00 12.50 YFE48B21S TM9Y100C20MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.00 12.25 YFE48B21S TM9Y100C20MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TM9Y100C20MP11 21.0 CF/CM/CU60D 1450 47.5 35.5 15.25 12.50 YFE48B21S TM9Y100C20MP11 21.0 CF/CM64D 1400 48.0 35.0 15.25 12.50 YFE48B21S TM9Y120D20MP11 24.5 CF/CM/CU48D 1425 47.5 34.5 15.25 12.50 YFE48B21S TM9Y120D20MP11 24.5 CF/CM/CU60D 1425 47.5 35.0 15.25 12.50 YFE48B21S TM9Y120D20MP11 24.5 CF/CM64D 1400 48.0 35.0 15.50 12.50 YFE48B21S TMLV080C16MP11 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.25 YFE48B21S TMLV080C16MP11 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TMLV080C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TMLV080C16MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S TMLV080C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TMLV100C16MP11 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.25 YFE48B21S TMLV100C16MP11 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TMLV100C16MP11 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TMLV100C16MP11 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S TMLV100C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TMLV100C20MP11 21.0 CF/CM/CU48C 1300 46.5 33.0 14.50 12.25 YFE48B21S TMLV100C20MP11 21.0 CF/CM/CU48D 1650 48.0 35.0 15.00 12.50 YFE48B21S TMLV100C20MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TMLV100C20MP11 21.0 CF/CM/CU60D 1350 47.5 33.5 14.75 12.25 YFE48B21S TMLV100C20MP11 21.0 CF/CM64D 1425 48.0 35.0 15.25 12.50 YFE48B21S TMLV120C20MP11 21.0 CF/CM/CU48C 1300 46.5 33.0 14.50 12.25 YFE48B21S TMLV120C20MP11 21.0 CF/CM/CU48D 1650 48.0 35.0 15.00 12.50 YFE48B21S TMLV120C20MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TMLV120C20MP11 21.0 CF/CM/CU60D 1350 47.5 33.5 14.75 12.25 YFE48B21S TMLV120C20MP11 21.0 CF/CM64D 1425 48.0 35.0 15.25 12.50 YFE48B21S TMLX080C16MP11 21.0 CF/CM/CU48C 1400 47.5 34.0 15.00 12.25 YFE48B21S TMLX080C16MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.00 12.25 YFE48B21S TMLX080C16MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TMLX080C16MP11 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TMLX080C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TMLX100C16MP11 21.0 CF/CM/CU48C 1400 47.5 34.0 15.00 12.25 YFE48B21S TMLX100C16MP11 21.0 CF/CM/CU48D 1425 47.5 34.5 15.00 12.25 YFE48B21S TMLX100C16MP11 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TMLX100C16MP11 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TMLX100C16MP11 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TMLX100C20MP11 21.0 CF/CM/CU48C 1425 47.5 34.5 15.00 12.25 YFE48B21S TMLX100C20MP11 21.0 CF/CM/CU48D 1300 47.0 33.0 14.75 12.25 YFE48B21S TMLX100C20MP11 21.0 CF/CM/CU60C 1450 47.5 35.5 15.25 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

36 Johnson Controls Unitary Products

Page 37

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE48B21S TMLX100C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.5 15.50 12.75 YFE48B21S TMLX100C20MP11 21.0 CF/CM64D 1450 48.0 35.0 14.75 12.50 YFE48B21S TMLX120C20MP11 21.0 CF/CM/CU48C 1425 47.5 34.5 15.00 12.25 YFE48B21S TMLX120C20MP11 21.0 CF/CM/CU48D 1300 47.0 33.0 14.75 12.25 YFE48B21S TMLX120C20MP11 21.0 CF/CM/CU60C 1450 47.5 35.5 15.25 12.50 YFE48B21S TMLX120C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.5 15.50 12.75 YFE48B21S TMLX120C20MP11 21.0 CF/CM64D 1450 48.0 35.0 14.75 12.50 YFE48B21S TP9C080C16MP12 21.0 CF/CM/CU48C 1425 47.5 34.5 14.75 12.25 YFE48B21S TP9C080C16MP12 21.0 CF/CM/CU48D 1425 47.5 34.5 15.25 12.50 YFE48B21S TP9C080C16MP12 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TP9C080C16MP12 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TP9C080C16MP12 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50 YFE48B21S TP9C100C16MP12 21.0 CF/CM/CU48C 1425 47.5 34.5 14.75 12.25 YFE48B21S TP9C100C16MP12 21.0 CF/CM/CU48D 1425 47.5 34.5 15.25 12.50 YFE48B21S TP9C100C16MP12 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TP9C100C16MP12 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S TP9C100C16MP12 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50 YFE48B21S TP9C100C20MP12 21.0 CF/CM/CU48C 1450 47.5 35.0 14.50 12.00 YFE48B21S TP9C100C20MP12 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TP9C100C20MP12 21.0 CF/CM/CU60C 1500 48.0 36.0 14.50 12.25 YFE48B21S TP9C100C20MP12 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S TP9C100C20MP12 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50 YFE48B21S TP9C120D20MP12 24.5 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TP9C120D20MP12 24.5 CF/CM/CU60D 1300 47.5 34.0 15.25 12.50 YFE48B21S TP9C120D20MP12 24.5 CF/CM64D 1525 48.0 36.0 14.50 12.25 YFE48B21S TPLC080C16MP12 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.25 YFE48B21S TPLC080C16MP12 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TPLC080C16MP12 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TPLC080C16MP12 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S TPLC080C16MP12 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TPLC100C16MP12 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.25 YFE48B21S TPLC100C16MP12 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S TPLC100C16MP12 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S TPLC100C16MP12 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S TPLC100C16MP12 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S TPLC100C20MP12 21.0 CF/CM/CU48C 1300 46.5 33.0 14.50 12.25 YFE48B21S TPLC100C20MP12 21.0 CF/CM/CU48D 1650 48.0 35.0 15.00 12.50 YFE48B21S TPLC100C20MP12 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TPLC100C20MP12 21.0 CF/CM/CU60D 1350 47.5 33.5 14.75 12.25 YFE48B21S TPLC100C20MP12 21.0 CF/CM64D 1425 48.0 35.0 15.25 12.50 YFE48B21S TPLC120C20MP12 21.0 CF/CM/CU48C 1300 46.5 33.0 14.50 12.25 YFE48B21S TPLC120C20MP12 21.0 CF/CM/CU48D 1650 48.0 35.0 15.00 12.50 YFE48B21S TPLC120C20MP12 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S TPLC120C20MP12 21.0 CF/CM/CU60D 1350 47.5 33.5 14.75 12.25 YFE48B21S TPLC120C20MP12 21.0 CF/CM64D 1425 48.0 35.0 15.25 12.50 YFE48B21S YP9C080C16MP12 21.0 CF/CM/CU48C 1425 47.5 34.5 14.75 12.25 YFE48B21S YP9C080C16MP12 21.0 CF/CM/CU48D 1425 47.5 34.5 15.25 12.50 YFE48B21S YP9C080C16MP12 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S YP9C080C16MP12 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S YP9C080C16MP12 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 37

Page 38

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

YFE48B21S YP9C100C16MP12 21.0 CF/CM/CU48C 1425 47.5 34.5 14.75 12.25 YFE48B21S YP9C100C16MP12 21.0 CF/CM/CU48D 1425 47.5 34.5 15.25 12.50 YFE48B21S YP9C100C16MP12 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S YP9C100C16MP12 21.0 CF/CM/CU60D 1425 47.5 35.0 15.00 12.25 YFE48B21S YP9C100C16MP12 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50 YFE48B21S YP9C100C20MP12 21.0 CF/CM/CU48C 1450 47.5 35.0 14.50 12.00 YFE48B21S YP9C100C20MP12 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S YP9C100C20MP12 21.0 CF/CM/CU60C 1500 48.0 36.0 14.50 12.25 YFE48B21S YP9C100C20MP12 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S YP9C100C20MP12 21.0 CF/CM64D 1300 48.0 34.0 15.25 12.50 YFE48B21S YP9C120D20MP12 24.5 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S YP9C120D20MP12 24.5 CF/CM/CU60D 1300 47.5 34.0 15.25 12.50 YFE48B21S YP9C120D20MP12 24.5 CF/CM64D 1525 48.0 36.0 14.50 12.25 YFE48B21S YPLC080C16MP12 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.25 YFE48B21S YPLC080C16MP12 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S YPLC080C16MP12 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S YPLC080C16MP12 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S YPLC080C16MP12 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S YPLC100C16MP12 21.0 CF/CM/CU48C 1325 46.5 33.0 14.25 12.25 YFE48B21S YPLC100C16MP12 21.0 CF/CM/CU48D 1300 46.5 33.0 14.50 12.25 YFE48B21S YPLC100C16MP12 21.0 CF/CM/CU60C 1325 47.5 33.5 15.00 12.50 YFE48B21S YPLC100C16MP12 21.0 CF/CM/CU60D 1325 47.5 33.5 15.00 12.50 YFE48B21S YPLC100C16MP12 21.0 CF/CM64D 1400 48.0 35.0 15.00 12.50 YFE48B21S YPLC100C20MP12 21.0 CF/CM/CU48C 1300 46.5 33.0 14.50 12.25 YFE48B21S YPLC100C20MP12 21.0 CF/CM/CU48D 1650 48.0 35.0 15.00 12.50 YFE48B21S YPLC100C20MP12 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S YPLC100C20MP12 21.0 CF/CM/CU60D 1350 47.5 33.5 14.75 12.25 YFE48B21S YPLC100C20MP12 21.0 CF/CM64D 1425 48.0 35.0 15.25 12.50 YFE48B21S YPLC120C20MP12 21.0 CF/CM/CU48C 1300 46.5 33.0 14.50 12.25 YFE48B21S YPLC120C20MP12 21.0 CF/CM/CU48D 1650 48.0 35.0 15.00 12.50 YFE48B21S YPLC120C20MP12 21.0 CF/CM/CU60C 1400 48.0 35.0 15.00 12.50 YFE48B21S YPLC120C20MP12 21.0 CF/CM/CU60D 1350 47.5 33.5 14.75 12.25 YFE48B21S YPLC120C20MP12 21.0 CF/CM64D 1425 48.0 35.0 15.25 12.50 YFE60B21S TM8V080C16MP11 21.0 CF/CM64D 1650 57.0 39.0 14.00 11.75 YFE60B21S TM8V100C16MP11 21.0 CF/CM64D 1650 57.0 39.0 14.00 11.75 YFE60B21S TM8V100C20MP11 21.0 CF/CM/CU60D 1700 56.0 38.5 14.00 11.75 YFE60B21S TM8V120C20MP11 21.0 CF/CM/CU60D 1700 56.0 38.5 14.00 11.75 YFE60B21S TM8X100C20MP11 21.0 CF/CM/CU60C 1625 56.5 39.0 14.25 12.00 YFE60B21S TM8X100C20MP11 21.0 CF/CM/CU60D 1650 56.5 39.0 14.25 12.00 YFE60B21S TM8X100C20MP11 21.0 CF/CM64D 1625 57.5 39.5 14.50 12.25 YFE60B21S TM8X120C20MP11 21.0 CF/CM/CU60C 1625 56.5 39.0 14.25 12.00 YFE60B21S TM8X120C20MP11 21.0 CF/CM/CU60D 1650 56.5 39.0 14.25 12.00 YFE60B21S TM8X120C20MP11 21.0 CF/CM64D 1625 57.5 39.5 14.50 12.25 YFE60B21S TM8Y100C20MP11 21.0 CF/CM/CU60C 1625 56.5 39.0 14.25 12.00 YFE60B21S TM8Y100C20MP11 21.0 CF/CM/CU60D 1650 56.5 39.0 14.25 12.00 YFE60B21S TM8Y100C20MP11 21.0 CF/CM64D 1625 57.5 39.5 14.50 12.25 YFE60B21S TM8Y120C20MP11 21.0 CF/CM/CU60C 1625 56.5 39.0 14.25 12.00 YFE60B21S TM8Y120C20MP11 21.0 CF/CM/CU60D 1650 56.5 39.0 14.25 12.00 YFE60B21S TM8Y120C20MP11 21.0 CF/CM64D 1625 57.5 39.5 14.50 12.25 YFE60B21S TM9E100C20MP11 21.0 CF/CM/CU60D 1625 56.0 39.0 14.25 12.00

For notes see Page 39.

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

COOLING

NET MBH

SEER EER

38 Johnson Controls Unitary Products

Page 39

5006142-YTG-A-0815

COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)

UNIT

MODEL

FURNACE

MODEL WIDTH

COIL

MODEL

RATED

CFM

TOTAL SENS.

YFE60B21S TM9E120D20MP11 24.5 CF/CM/CU60D 1625 56.5 39.0 14.50 12.00 YFE60B21S TM9V080C16MP11 21.0 CF/CM/CU60C 1650 56.0 38.5 14.00 11.75 YFE60B21S TM9V080C16MP11 21.0 CF/CM64D 1650 57.5 39.5 14.25 12.00 YFE60B21S TM9V100C16MP11 21.0 CF/CM/CU60C 1650 56.0 38.5 14.00 11.75 YFE60B21S TM9V100C16MP11 21.0 CF/CM64D 1650 57.5 39.5 14.25 12.00 YFE60B21S TM9V100C20MP11 21.0 CF/CM64D 1675 57.0 39.0 14.00 11.75 YFE60B21S TM9V120D20MP11 24.5 CF/CM/CU60D 1775 56.5 40.5 14.00 11.75 YFE60B21S TM9V120D20MP11 24.5 CF/CM64D 1750 58.0 40.5 14.00 11.75 YFE60B21S TM9Y100C20MP11 21.0 CF/CM/CU60D 1625 56.0 39.0 14.25 12.00 YFE60B21S TM9Y120D20MP11 24.5 CF/CM/CU60D 1625 56.5 39.0 14.50 12.00 YFE60B21S TMLV080C16MP11 21.0 CF/CM64D 1650 57.0 39.0 14.00 11.75 YFE60B21S TMLV100C16MP11 21.0 CF/CM64D 1650 57.0 39.0 14.00 11.75 YFE60B21S TMLV100C20MP11 21.0 CF/CM/CU60D 1700 56.0 38.5 14.00 11.75 YFE60B21S TMLV120C20MP11 21.0 CF/CM/CU60D 1700 56.0 38.5 14.00 11.75 YFE60B21S TMLX100C20MP11 21.0 CF/CM/CU60C 1625 56.5 39.0 14.25 12.00 YFE60B21S TMLX100C20MP11 21.0 CF/CM/CU60D 1650 56.5 39.0 14.25 12.00 YFE60B21S TMLX100C20MP11 21.0 CF/CM64D 1625 57.5 39.5 14.50 12.25 YFE60B21S TMLX120C20MP11 21.0 CF/CM/CU60C 1625 56.5 39.0 14.25 12.00 YFE60B21S TMLX120C20MP11 21.0 CF/CM/CU60D 1650 56.5 39.0 14.25 12.00 YFE60B21S TMLX120C20MP11 21.0 CF/CM64D 1625 57.5 39.5 14.50 12.25 YFE60B21S TP9C080C16MP12 21.0 CF/CM/CU60C 1650 56.0 38.5 14.00 11.75 YFE60B21S TP9C080C16MP12 21.0 CF/CM64D 1650 57.5 39.5 14.25 12.00 YFE60B21S TP9C100C16MP12 21.0 CF/CM/CU60C 1650 56.0 38.5 14.00 11.75 YFE60B21S TP9C100C16MP12 21.0 CF/CM64D 1650 57.5 39.5 14.25 12.00 YFE60B21S TP9C100C20MP12 21.0 CF/CM64D 1675 57.0 39.0 14.00 11.75 YFE60B21S TP9C120D20MP12 24.5 CF/CM/CU60D 1775 56.5 40.5 14.00 11.75 YFE60B21S TP9C120D20MP12 24.5 CF/CM64D 1750 58.0 40.5 14.00 11.75 YFE60B21S TPLC080C16MP12 21.0 CF/CM64D 1650 57.0 39.0 14.00 11.75 YFE60B21S TPLC100C16MP12 21.0 CF/CM64D 1650 57.0 39.0 14.00 11.75 YFE60B21S TPLC100C20MP12 21.0 CF/CM/CU60D 1700 56.0 38.5 14.00 11.75 YFE60B21S TPLC120C20MP12 21.0 CF/CM/CU60D 1700 56.0 38.5 14.00 11.75 YFE60B21S YP9C080C16MP12 21.0 CF/CM/CU60C 1650 56.0 38.5 14.00 11.75 YFE60B21S YP9C080C16MP12 21.0 CF/CM64D 1650 57.5 39.5 14.25 12.00 YFE60B21S YP9C100C16MP12 21.0 CF/CM/CU60C 1650 56.0 38.5 14.00 11.75 YFE60B21S YP9C100C16MP12 21.0 CF/CM64D 1650 57.5 39.5 14.25 12.00 YFE60B21S YP9C100C20MP12 21.0 CF/CM64D 1675 57.0 39.0 14.00 11.75 YFE60B21S YP9C120D20MP12 24.5 CF/CM/CU60D 1775 56.5 40.5 14.00 11.75 YFE60B21S YP9C120D20MP12 24.5 CF/CM64D 1750 58.0 40.5 14.00 11.75 YFE60B21S YPLC080C16MP12 21.0 CF/CM64D 1650 57.0 39.0 14.00 11.75 YFE60B21S YPLC100C16MP12 21.0 CF/CM64D 1650 57.0 39.0 14.00 11.75 YFE60B21S YPLC100C20MP12 21.0 CF/CM/CU60D 1700 56.0 38.5 14.00 11.75 YFE60B21S YPLC120C20MP12 21.0 CF/CM/CU60D 1700 56.0 38.5 14.00 11.75

For rated condition information, see the footnotes below the System Capacity - Single Piece and Modular Air Handlers table.

1. High Efficiency Motor Furnaces have B.O.D (Blower Off Delay) standard.

2. CM coils available with a factory installed horizontal drain pan. See price pages for specific model number. PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings

COOLING

NET MBH

SEER EER

Johnson Controls Unitary Products 39

Page 40

5006142-YTG-A-0815

ACCESSORIES

Refer to Price Manual for specific model numbers.

Standard Application Limits*

Maximum Lineset Equivalent Length 80 Ft Outdoor Ambient Temperature Limits

Cooling Operation

* For Low Ambient and/or Long Lineset Applications, please see the acces-

sories listed below.

Long Lineset Applications - For installations with more than 80' of equivalent lineset length, refer to the current version of the Piping Application Guide 247077-UAD-H-0209, available in the Application Bulletins section on

OD Unit Anti Short Cycle Kit (10 Pack) S1-2TD08700124BK:

A time delay that prevents rapid compressor restarting as a result of power interruption, limit switch operation, or thermostat resetting. Not required for HP models, or for AC models with factory electronic controls.

Standard Low Ambient Control Kit S1-2LA06700424: Allows the use of air conditioning at low outdoor ambient temperatures down to +20°F (-7°C). For use with all R-410A single stage AC & HP models.

Advanced Low Ambient Control Kit S1-2LA04701024: Con-

tains the necessary components and controls to allow cooling operation down to -20ºF (-29ºC). For use with all R-410A single stage AC & HP models.

Low Pressure Switch Kit S1-2PS06700524: Provides field installed low pressure (loss of charge) protection. Not required for HP models, or for AC models with factory electronic controls.

High Ambient Condenser Fan Motor S1-FHM****HT: Class F 70°C motor to allow cooling operation up to 160ºF air entering the condenser. For use with all R-410A single stage AC & HP models containing R-410A refrigerant only.

Outdoor Communicating Board Kit (S1-33102952310): Electronic control upgrade for standard AC & HP units to provide compatibility with the Residential Touch Screen Communicating Control.

Start Assist Kit S1-2SA067*****: Provides increased compressor starting torque for areas with low supply voltage. Required for units with recip compressors when applied with indoor TXV, and for all units when applied with long linesets or low ambient kits. May be factory installed on select AC & HP units (see Physical & Electrical Table). See Price Pages or Source1 SmartSearch for the correct kit for each application.

Maximum DB 125°F

Minimum DB 55°F

www.upgnet.com.

Compressor Crankcase Heater Kit (S1-025-*****-***): A wrap-around electrical resistance heater that warms the compressor sump, reducing the chance of liquid slugging on startup. Required on all long lineset and low ambient applications. See Price Pages or Source1 SmartSearch for the correct part for each application.

Indoor Blower-Off Delay Kit S1-2FD06700224: Provides a 1minute blower-off delay at the end of the cooling cycle. May be required for retrofits with non-Johnson Controls Unitary Products indoor units. This feature is factory-provided on all JCUP indoor products.

Support Feet S1-HPRKIT-**: Kit of support feet to raise unit above snow or landscaping. A vailable in heights of 3", 6" or 12".

Anchor Bracket Kit S1-1HK0401: Firmly anchors unit to pad or support structure. When properly installed, approved for ground-mounted or roof-mounted applications.

Indoor TXV Kit S1-1TVM***: Thermal expansion valves precisely meter refrigerant for optimum performance over a wide range of conditions. See System Charge Table, Price Pages, or Source1 Smart Search for TXV part number for each AC & HP model.

Wall Mount Kit (S1-ACB-**): Includes two brackets to allow outdoor unit to be securely mounted to a vertical wall. Mounting hardware is field sourced according to the specific application.

Winter Cover Kit S1-CCVRE***: Custom fit winter cover protects AC condensing unit from debris during the off-season. Must be removed prior to unit operation. See Price Pages or Source1 SmartSearch for the correct cover for each application.

Cold Weather Charging Tent S1-CHGTENT01: Provides warm environment to accurately service AC & HP systems in ambient conditions 55ºF (13ºC) or colder.

Touch-up Paint S1-5130153****: Color matched aerosol paint for touching up unit chassis and panels. See Price Pages or Source1 SmartSearch for the correct color for each application.

Compressor Sound Blanket S1-010-07xxx-000: A field installed dense foam cover that provides 2dBA sound level reduction. See Price Pages or Source1 SmartSearch for the correct blanket for each application.

SOUND POWER RATINGS

Cooling Octave Band Sound Power Level (db re. 1-pW)

Model Number 63 125 250 500 1000 2000 4000 8000 dBA SQI

YFE18B21S 43.9 51.9 55.2 62.4 64.5 66.0 56.9 52.6 70.0 19.1 YFE24B21S 44.3 58 61 67.2 68.2 70.3 64.4 57.9 74.0 19.1 YFE30B21S 43.2 57.4 60.5 67.6 70.0 70.4 63.6 57.5 75.0 19.0 YFE36B21S 41.5 56.0 63.6 66.4 67.4 67.2 59.8 54.2 73.0 19.1 YFE42B21S 42.6 56.2 60.6 66.8 68.1 65.3 60.3 55.6 73.0 19.0 YFE48B21S 42.7 54.9 60.5 68.7 68.4 64.3 61.1 55.2 73.0 19.2 YFE60B21S 47.7 59.1 61.3 68.7 69.8 67.7 62.5 58.6 74.0 19.2

Rated in accordance with ARI Standard 270.

40 Johnson Controls Unitary Products

Page 41

5006142-YTG-A-0815

MECHANICAL SPECIFICATIONS

MANUFACTURE AND CERTIFICA TIONS

• Units shall be manufactured in an ISO 9001 certified facility.

• Units shall be certified by CSA to UL 1995 / CSA 22.2 and performance certified to ANSI/AHRI Standard 210/240.

• Units shall be sound tested according to ANSI/AHRI Standard 270.

• Certified matched system ratings will be available for download from the AHRI online directory at www.ahridirectory.org

• Unit packaging shall be marked, “Assembled in the USA”

UNIT APPLICATION

• Units shall be approved for cooling operation between 55ºF and 125°F without modification.

• Units shall be approved for linesets up to 80 feet equivalent length without modification.

• Units shall be approved for installation within 6 inches of a flat vertical wall without modification, according to the instructions in the technical literature.

• Units shall be certified to the 5th Edition (2014) of the Florida Building Code for both Ground Mounted and Rooftop Mounted applications up to 200 feet above grade with approved mounting kit.

• Units shall be designed to 76dBA or less to minimize sound pollution.

UNIT ACCESS

• Units shall have a removable fan guard that can be removed independently of the top for interior access through the top of the unit without damaging the coil.

• Units shall have two removable stamped steel coil guards for exterior coil access.

• Units shall have a separate compartment for electrical controls that can be accessed without disturbing the unit airflow.

• Units shall have a blockoff panel that can be removed to provide interior unit access through the side of the unit.

• Units shall have a removable blockoff panel and a swing away removable electrical panel that provides sufficient interior unit access for removing the compressor through the side of the unit.

UNIT CONSTRUCTION

• Units shall be shipped completely wired, piped and assembled. Wiring pigtails shall be provided for field control wiring connections. Service valves shall be provided for field refrigerant line connections.

• Units shall be factory leak checked, run tested, and shipped with a holding charge of R-410A refrigerant.

• Unit cabinet components shall be G90 equivalent steel finished with powder-coat paint rated at a minimum of 500 hours under ASTM B117 testing.

• Unit base pan shall be stamped G90 equivalent steel finished with powder-coat paint rated at a minimum of 500 hours under ASTM B117 testing.

• Units shall have a single corner post opposite the electrical control box and two independently removable steel coil guard panels to optimize cabinet strength and serviceability.

• Units shall have L-shaped stamped sheet metal coil guards with punched and extruded slots for maximum panel durability and stiffness.

• Units shall have a factory installed filter-drier for faster installation and improved system reliability.

• Unit base valves shall be mounted diagonally on the unit base pan with service ports that provide sufficient clearance for low-loss hose fittings.

• Units shall be constructed with a high pressure switch for system protection.

• Units shall be constructed with all badging and labels applied at the factory.

UNIT COMPONENTS

• Compressor shall be hermetic with internal electrical overload protection and internal overpressure protection.

• Compressor shall be mounted on rubber vibration isolators that do not require the removal of transportation clips or brackets.

• Units shall be constructed with scroll compressors.

• Condenser fan shall be direct drive with vertical air discharge for low sound levels.

• Condenser fan motor shall be totally enclosed with permanently lubricated ball bearings motors approved for vertical shaft applications.

• Condenser coil shall be air cooled and constructed of enhanced aluminum fins mechanically bonded to internally enhanced Ø 7mm copper tubing.

UNIT WARRANTIES

• Unit manufacturer shall provide a 10-Year compressor warranty without a requirement for unit registration.

• Unit manufacturer shall provide a 5-Year parts warranty without a requirement for unit registration.

Johnson Controls Unitary Products 41

Page 42

5006142-YTG-A-0815

TYPICAL INSTALLATION

48” OVERHEAD CLEARANCE

60” CLEARANCE

Do not locate outdoor unit closer than the indicated clearance to a dryer vent or to a 90+% furnace ﬂue.

10” CLEARANCE AROUND PERIMETER

(6” clearance permissible on one side only, see Alternative Installation Clearances.)

NOTE:

Ensure a minimum of 24” clearance between any two units.

NEC CLASS 1 WIRING

WEATHERPROOF DISCONNECT SWITCH

THERMOSTAT

NEC CLASS 2 WIRING

TO FURNACE OR AIR HANDLER TERMINAL BLOCK

NEC CLASS 2 WIRING

NOTE:

All outdoor wiring must be weatherproof.

CONTROL ACCESS PANEL

MINIMUM 18” SERVICE ACCESS CLEARANCE Maintain minimum clearance on one side of access panel.

SEAL OPENINGS

Use permagum or equivalent.

3 BRACES

Use for wall mount with center brace under center of compressor.

5 SNOW PUMP-UPS

Use in deep snow areas with ﬁfth pump-up under center of compressor.

NOTE:

Ensure adequate wall support.

A0260-001

CAUTION

Care must be taken to prevent ice from damaging the unit. Damage may occur from ice falling onto unit from a sloped roof or from a vertical drip line due to a partial overhang.

NO OVERHANG COVERING UNIT

48” MINIMUM OVERHEAD CLEARANCE

INSTALLATION ACCEPTABLE

(Refer to CAUTION above.)

NOTE:

The unit must be installed on a solid base above the grade. The base must not be able to settle or shift causing strain on refrigerant lines and possible leaks.

OVERHANG COMPLETELY COVERING UNIT

INSTALLATION NOT RECOMMENDED

OVERHANG PARTIALLY COVERING UNIT

(Refer to CAUTION above.)

NOTE:

Install unit on ﬂat surface. If installation surface is sloped, ensure that unit slopes away from house structure at 1/4” per foot.

CAUTION:

Special care must be taken to avoid recirculation of discharge air through condenser coil.

A0291-001

42 Johnson Controls Unitary Products

Page 43

TYPICAL FIELD WIRING

A0287-001

ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES

GND.

LUG

POWER WIRING

208/230-1-60

CONTACTOR TERMINALS

COIL

CONDENSING UNIT

ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.

24 VOLT CONTROL WIRING MINIMUM 18 GA. WIRE (NEC CLASS 2)

ALTERNATIVE INSTALLATION CLEARANCES

MINIMUM CLEARANCE BETWEEN UNITS

WALL

POWER WIRING CONTROL WIRING FACTORY WIRING

FURNACE OR AIR HANDLER TERMINAL BLOCK

CYRGW

TERMINAL W IS ONLY REQUIRED ON SYSTEMS WITH HEAT.

ROOM THERMOSTAT

5006142-YTG-A-0815

ENCE

18”

24”

SERVICE

18”

UNIT-

TO-UNIT

24”

SERVICE

18”

UNIT-

TO-UNIT

24”

SERVICE

18”

NOTE:

Clearance to one side of the unit may be reduced to 6” provided the clearance to each remaining side is increased to 12” minimum, the service access is increased to 24” minimum, and the clearances between any two units is maintained at 24” minimum.

WALL

24”

SERVICE

CAUTION:

Special care must be taken to avoid recirculation of discharge air through condenser coil.

NOTE:

Clearance between two units may be reduced to 18” minimum provided the service access clearance is increased to 24” minimum, and the clearance on each remaining side is maintained at 18” minimum.

18”

MINIMUM CLEARANCE FROM WALL

6”

24”

SERVICE

AND UNIT-

TO-UNIT

12”

6”

12”

FENCE

Johnson Controls Unitary Products 43

Page 44

5006142-YTG-A-0815

PERFORMANCE DATA - 1.5 TON

CONDENSER-ONLY DATA (OUTDOOR UNIT)

SATURATED SUCTION

MODEL

@ COMPRESSOR

55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F

T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW

35 107 17.2 0.80 16.2 0.91 15.4 1.03 14.5 1.16 13.6 1.30 12.7 1.48 11.8 1.68 10.7 1.91 40 118 18.9 0.79 17.9 0.90 16.9 1.02 16.0 1.15 15.0 1.29 14.1 1.46 13.0 1.67 11.9 1.89

YFE18B21S

45 130 20.7 0.79 19.6 0.90 18.6 1.01 17.6 1.14 16.6 1.28 15.5 1.45 14.4 1.65 13.2 1.88 50 142 22.6 0.79 21.5 0.89 20.4 1.01 19.3 1.13 18.2 1.27 17.0 1.45 15.8 1.64 14.5 1.86 55 156 24.7 0.79 23.5 0.89 22.3 1.00 21.2 1.13 19.7 1.27 18.6 1.45 17.4 1.63 16.0 1.84

Notes:

1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.

2. Performance based on 15°F subcooling and 15°F superheat at the Outdoor Unit base valves. a. Increase capacity by 1% for each 2°F increase in subcooling. b. Decrease capacity by 1% for each 2°F decrease in subcooling.

3. Maximum recommended condensing temperature is 140°F.

COOLING PERFORMANCE DATA OUTDOOR UNIT MODEL NO. YFE18B21S INDOOR COIL MODEL NO. CF18AXA1

AIR TEMP. ENTERING

OUTDOOR UNIT (°F)

ID CFM 450 600 750

ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 22.1 20.1 17.1 17.3 14.0 24.1 23.1 19.4 19.3 15.5 26.0 26.0 21.7 21.3 17.0

S.C. 16.5 15.0 12.8 12.9 10.5 18.0 17.2 14.5 14.4 11.6 19.4 19.4 16.2 15.9 12.7 KW 0.93 0.92 0.92 0.91 0.90 0.97 0.97 0.97 0.96 0.95 1.02 1.02 1.01 1.01 1.01 T.C. 21.5 19.7 16.9 16.8 13.6 23.4 22.5 19.2 18.9 15.1 25.4 25.3 21.4 21.0 16.5

S.C. 16.1 14.7 12.6 12.5 10.2 17.5 16.8 14.3 14.1 11.3 18.9 18.9 16.0 15.7 12.3 KW 1.03 1.03 1.02 1.02 1.01 1.07 1.08 1.07 1.07 1.06 1.12 1.13 1.12 1.12 1.11 T.C. 20.9 19.3 16.7 16.3 13.2 22.8 21.9 18.9 18.5 14.6 24.7 24.5 21.2 20.8 16.0

S.C. 15.6 14.4 12.5 12.2 9.9 17.0 16.4 14.2 13.9 10.9 18.4 18.3 15.8 15.5 12.0 KW 1.13 1.14 1.13 1.13 1.11 1.18 1.19 1.18 1.18 1.16 1.22 1.24 1.23 1.23 1.21 T.C. 20.2 18.7 16.1 16.0 12.9 21.9 21.5 18.3 18.2 14.3 23.5 24.3 20.5 20.4 15.7

S.C. 15.1 14.0 12.0 11.9 9.6 16.3 16.1 13.7 13.6 10.7 17.6 18.2 15.3 15.2 11.7 KW 1.27 1.28 1.26 1.27 1.25 1.32 1.33 1.31 1.32 1.30 1.36 1.37 1.36 1.37 1.35 T.C. 19.6 18.2 15.5 15.6 12.5 21.0 21.2 17.7 17.8 14.0 22.4 24.1 19.8 20.0 15.4

S.C. 14.6 13.6 11.6 11.7 9.4 15.7 15.8 13.2 13.3 10.4 16.7 18.0 14.8 14.9 11.5 KW 1.41 1.42 1.40 1.41 1.38 1.45 1.47 1.45 1.46 1.43 1.50 1.51 1.50 1.50 1.49 T.C. 18.9 17.5 15.0 15.0 11.9 20.1 20.0 17.1 17.1 13.3 21.3 22.5 19.3 19.1 14.6

105

S.C. 14.1 13.1 11.2 11.2 8.9 15.0 14.9 12.8 12.8 9.9 15.9 16.8 14.4 14.3 10.9 KW 1.60 1.62 1.60 1.61 1.59 1.65 1.67 1.65 1.66 1.64 1.70 1.72 1.70 1.71 1.69 T.C. 18.2 16.8 14.5 14.4 11.4 19.2 18.9 16.6 16.4 12.6 20.2 21.0 18.7 18.3 13.8

115

S.C. 13.6 12.5 10.8 10.7 8.5 14.4 14.1 12.4 12.2 9.4 15.1 15.7 14.0 13.7 10.3 KW 1.80 1.81 1.80 1.81 1.79 1.85 1.87 1.85 1.86 1.84 1.90 1.92 1.90 1.91 1.89 T.C. 17.5 16.0 14.0 13.8 10.8 18.3 17.7 16.1 15.6 11.9 19.1 19.4 18.2 17.5 13.1

125

S.C. 13.1 12.0 10.5 10.3 8.1 13.7 13.2 12.0 11.7 8.9 14.3 14.5 13.6 13.1 9.8 KW 1.99 2.01 2.00 2.00 1.98 2.04 2.06 2.05 2.05 2.04 2.10 2.12 2.10 2.10 2.09

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).

Green shaded cells are ACCA (TVA) conditions. Blue shaded cells are AHRI conditions.

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

Outdoor Ambient Temperature

44 Johnson Controls Unitary Products

Page 45

5006142-YTG-A-0815

COIL MULTIPLIERS - 1.5 TON

Air Handler Coil T.C. S.C. KW

– CF/CM/CU18A 1.00 1.00 1.00 – CF/CM/CU18B 1.00 1.00 1.00 – CF/CM/CU24A 1.01 1.02 1.01 – CF/CM/CU24B 1.01 1.02 1.01 – CF/CM/CU24C 1.01 1.02 1.01 – CF/CM/CU30A 1.01 1.02 1.01 – CF/CM/CU30B 1.01 1.02 1.01 – CF/CM/CU30C 1.01 1.02 1.01 – CF/CM/CU30D 1.01 1.02 1.01 – CF/CM/CU36B 1.01 1.01 1.01 – CF/CM/CU36C 1.01 1.01 1.01 – CF/CM/CU36D 1.01 1.01 1.01 – CF/CM36A 1.01 1.01 1.01 AE18BX21 – 1.01 1.03 0.93 AE24BX21 – 1.01 1.02 0.93 AE30BX21 – 1.01 1.04 0.93 AE36BX21 – 1.01 1.01 0.97 AE36CX21 – 1.01 1.01 0.95 AP18BX21 – 1.01 1.02 0.99 AP24BX21 – 1.01 1.02 1.01 AP30BX21 – 1.01 1.01 1.01 AVC18BX21 – 1.01 1.03 0.93 AVC24BX21 – 1.01 1.02 0.93 AVC30BX21 – 1.01 1.03 0.93 ME08BN21 CF/CM18B 1.01 1.03 0.93 ME08BN21 CF/CM24B 1.01 1.02 0.93 ME08BN21 CF/CM30B 1.01 1.03 0.93 ME08BN21 CF/CM36B 1.01 1.02 0.93 ME12BN21 CF/CM18B 1.01 1.02 0.99 ME12BN21 CF/CM24B 1.01 1.04 0.97 ME12BN21 CF/CM30B 1.01 1.04 0.97 ME12BN21 CF/CM36B 1.01 1.05 0.95 MVC08BN21 CF/CM18B 1.01 0.99 0.93 MVC08BN21 CF/CM24B 1.01 1.01 0.93 MVC08BN21 CF/CM30B 1.01 1.03 0.93 MVC12BN21 CF/CM36B 1.01 1.05 0.93

FURNACE MULTIPLIERS - 1.5 TON

Furnaces Coil T.C. S.C. KW

TM8V060A12MP11 CF/CM/CU18A 1.01 0.97 0.95 TM8V060A12MP11 CF/CM/CU24A 1.01 0.99 0.93 TM8V060A12MP11 CF/CM/CU30A 1.01 0.99 0.93 TM8V080B12MP11 CF/CM/CU18B 1.01 1.05 0.93 TM8V080B12MP11 CF/CM/CU24B 1.01 1.08 0.93 TM8V080B12MP11 CF/CM/CU30B 1.01 1.05 0.93 TM8V080B12MP11 CF/CM/CU36B 1.01 1.06 0.93 TM8X060A12MP11 CF/CM/CU18A 1.01 1.03 0.95 TM8X060A12MP11 CF/CM/CU24A 1.01 1.02 0.95 TM8X060A12MP11 CF/CM/CU30A 1.01 1.05 0.93 TM8X060A12MP11 CF/CM36A 1.01 1.02 0.93 TM8X080B12MP11 CF/CM/CU18B 1.01 1.03 0.95 TM8X080B12MP11 CF/CM/CU24B 1.01 1.02 0.93 TM8X080B12MP11 CF/CM/CU30B 1.01 1.02 0.93 TM8X080B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TM8X080C16MP11 CF/CM/CU24C 1.01 1.02 0.95

FURNACE MULTIPLIERS - 1.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8X080C16MP11 CF/CM/CU30C 1.01 1.02 0.95 TM8X080C16MP11 CF/CM/CU30D 1.01 1.05 0.93 TM8X080C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TM8X080C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TM8X100C16MP11 CF/CM/CU24C 1.01 1.02 0.95 TM8X100C16MP11 CF/CM/CU30C 1.01 1.02 0.95 TM8X100C16MP11 CF/CM/CU30D 1.01 1.05 0.93 TM8X100C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TM8X100C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TM8Y060A12MP11 CF/CM/CU18A 1.01 1.03 0.95 TM8Y060A12MP11 CF/CM/CU24A 1.01 1.02 0.95 TM8Y060A12MP11 CF/CM/CU30A 1.01 1.05 0.93 TM8Y060A12MP11 CF/CM36A 1.01 1.02 0.93 TM8Y080B12MP11 CF/CM/CU18B 1.01 1.03 0.95 TM8Y080B12MP11 CF/CM/CU24B 1.01 1.02 0.93 TM8Y080B12MP11 CF/CM/CU30B 1.01 1.02 0.93 TM8Y080B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TM8Y080C16MP11 CF/CM/CU24C 1.01 1.02 0.95 TM8Y080C16MP11 CF/CM/CU30C 1.01 1.02 0.95 TM8Y080C16MP11 CF/CM/CU30D 1.01 1.05 0.93 TM8Y080C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TM8Y080C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TM8Y100C16MP11 CF/CM/CU24C 1.01 1.02 0.95 TM8Y100C16MP11 CF/CM/CU30C 1.01 1.02 0.95 TM8Y100C16MP11 CF/CM/CU30D 1.01 1.05 0.93 TM8Y100C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TM8Y100C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TM9E040A10MP11 CF/CM/CU18A 1.01 1.03 0.93 TM9E040A10MP11 CF/CM/CU24A 1.01 1.01 0.93 TM9E040A10MP11 CF/CM/CU30A 1.01 1.02 0.93 TM9E040A10MP11 CF/CM36A 1.01 1.02 0.93 TM9E060B12MP11 CF/CM/CU18B 1.01 1.03 0.97 TM9E060B12MP11 CF/CM/CU24B 1.01 1.02 0.95 TM9E060B12MP11 CF/CM/CU30B 1.01 1.02 0.95 TM9E060B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TM9E080B12MP11 CF/CM/CU18B 1.01 1.03 0.97 TM9E080B12MP11 CF/CM/CU24B 1.01 1.02 0.95 TM9E080B12MP11 CF/CM/CU30B 1.01 1.02 0.95 TM9E080B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TM9E080C16MP11 CF/CM/CU24C 1.01 1.02 0.93 TM9E080C16MP11 CF/CM/CU30C 1.01 1.03 0.93 TM9E080C16MP11 CF/CM/CU30D 1.01 1.03 0.93 TM9E080C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TM9E080C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TM9E100C16MP11 CF/CM/CU24C 1.01 1.02 0.93 TM9E100C16MP11 CF/CM/CU30C 1.01 1.03 0.93 TM9E100C16MP11 CF/CM/CU30D 1.01 1.03 0.93 TM9E100C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TM9E100C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TM9E100C20MP11 CF/CM/CU24C 1.01 1.04 1.01 TM9E100C20MP11 CF/CM/CU30C 1.01 1.04 0.99 TM9E100C20MP11 CF/CM/CU30D 1.01 1.04 0.99 TM9E100C20MP11 CF/CM/CU36C 1.01 1.02 0.99 TM9E100C20MP11 CF/CM/CU36D 1.01 1.05 0.99 TM9E120D20MP11 CF/CM/CU30D 1.01 1.03 0.99

Johnson Controls Unitary Products 45

Page 46

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 1.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM9E120D20MP11 CF/CM/CU36D 1.01 1.01 0.99 TM9V040A10MP11 CF/CM/CU24A 1.01 1.08 0.99 TM9V060B12MP11 CF/CM/CU18B 1.01 1.04 0.95 TM9V060B12MP11 CF/CM/CU24B 1.01 0.99 0.93 TM9V060B12MP11 CF/CM/CU30B 1.01 1.05 0.93 TM9V060B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TM9V080B12MP11 CF/CM/CU18B 1.01 1.04 0.95 TM9V080B12MP11 CF/CM/CU24B 1.01 0.99 0.93 TM9V080B12MP11 CF/CM/CU30B 1.01 1.05 0.93 TM9V080B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TM9Y040A10MP11 CF/CM/CU18A 1.01 1.03 0.93 TM9Y040A10MP11 CF/CM/CU24A 1.01 1.01 0.93 TM9Y040A10MP11 CF/CM/CU30A 1.01 1.02 0.93 TM9Y040A10MP11 CF/CM36A 1.01 1.02 0.93 TM9Y060B12MP11 CF/CM/CU18B 1.01 1.03 0.97 TM9Y060B12MP11 CF/CM/CU24B 1.01 1.02 0.95 TM9Y060B12MP11 CF/CM/CU30B 1.01 1.02 0.95 TM9Y060B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TM9Y080B12MP11 CF/CM/CU18B 1.01 1.03 0.97 TM9Y080B12MP11 CF/CM/CU24B 1.01 1.02 0.95 TM9Y080B12MP11 CF/CM/CU30B 1.01 1.02 0.95 TM9Y080B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TM9Y080C16MP11 CF/CM/CU24C 1.01 1.02 0.93 TM9Y080C16MP11 CF/CM/CU30C 1.01 1.03 0.93 TM9Y080C16MP11 CF/CM/CU30D 1.01 1.03 0.93 TM9Y080C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TM9Y080C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TM9Y100C16MP11 CF/CM/CU24C 1.01 1.02 0.93 TM9Y100C16MP11 CF/CM/CU30C 1.01 1.03 0.93 TM9Y100C16MP11 CF/CM/CU30D 1.01 1.03 0.93 TM9Y100C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TM9Y100C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TM9Y100C20MP11 CF/CM/CU24C 1.01 1.04 1.01 TM9Y100C20MP11 CF/CM/CU30C 1.01 1.04 0.99 TM9Y100C20MP11 CF/CM/CU30D 1.01 1.04 0.99 TM9Y100C20MP11 CF/CM/CU36C 1.01 1.02 0.99 TM9Y100C20MP11 CF/CM/CU36D 1.01 1.05 0.99 TM9Y120D20MP11 CF/CM/CU30D 1.01 1.03 0.99 TM9Y120D20MP11 CF/CM/CU36D 1.01 1.01 0.99 TMLV060A12MP11 CF/CM/CU18A 1.01 0.97 0.95 TMLV060A12MP11 CF/CM/CU24A 1.01 0.99 0.93 TMLV060A12MP11 CF/CM/CU30A 1.01 0.99 0.93 TMLV080B12MP11 CF/CM/CU18B 1.01 1.05 0.93 TMLV080B12MP11 CF/CM/CU24B 1.01 1.08 0.93 TMLV080B12MP11 CF/CM/CU30B 1.01 1.05 0.93 TMLV080B12MP11 CF/CM/CU36B 1.01 1.06 0.93 TMLX060A12MP11 CF/CM/CU18A 1.01 1.03 0.95 TMLX060A12MP11 CF/CM/CU24A 1.01 1.02 0.95

FURNACE MULTIPLIERS - 1.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TMLX060A12MP11 CF/CM/CU30A 1.01 1.05 0.93 TMLX060A12MP11 CF/CM36A 1.01 1.02 0.93 TMLX080B12MP11 CF/CM/CU18B 1.01 1.03 0.95 TMLX080B12MP11 CF/CM/CU24B 1.01 1.02 0.93 TMLX080B12MP11 CF/CM/CU30B 1.01 1.02 0.93 TMLX080B12MP11 CF/CM/CU36B 1.01 1.02 0.93 TMLX080C16MP11 CF/CM/CU24C 1.01 1.02 0.95 TMLX080C16MP11 CF/CM/CU30C 1.01 1.02 0.95 TMLX080C16MP11 CF/CM/CU30D 1.01 1.05 0.93 TMLX080C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TMLX080C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TMLX100C16MP11 CF/CM/CU24C 1.01 1.02 0.95 TMLX100C16MP11 CF/CM/CU30C 1.01 1.02 0.95 TMLX100C16MP11 CF/CM/CU30D 1.01 1.05 0.93 TMLX100C16MP11 CF/CM/CU36C 1.01 1.02 0.93 TMLX100C16MP11 CF/CM/CU36D 1.01 1.02 0.93 TP9C060B12MP12 CF/CM/CU18B 1.01 1.04 0.95 TP9C060B12MP12 CF/CM/CU24B 1.01 0.99 0.93 TP9C060B12MP12 CF/CM/CU30B 1.01 1.05 0.93 TP9C060B12MP12 CF/CM/CU36B 1.01 1.02 0.93 TP9C080B12MP12 CF/CM/CU18B 1.01 1.04 0.95 TP9C080B12MP12 CF/CM/CU24B 1.01 0.99 0.93 TP9C080B12MP12 CF/CM/CU30B 1.01 1.05 0.93 TP9C080B12MP12 CF/CM/CU36B 1.01 1.02 0.93 TPLC060A12MP12 CF/CM/CU18A 1.01 0.97 0.95 TPLC060A12MP12 CF/CM/CU24A 1.01 0.99 0.93 TPLC060A12MP12 CF/CM/CU30A 1.01 0.99 0.93 TPLC080B12MP12 CF/CM/CU18B 1.01 1.05 0.93 TPLC080B12MP12 CF/CM/CU24B 1.01 1.08 0.93 TPLC080B12MP12 CF/CM/CU30B 1.01 1.05 0.93 TPLC080B12MP12 CF/CM/CU36B 1.01 1.06 0.93 YP9C060B12MP12 CF/CM/CU18B 1.01 1.04 0.95 YP9C060B12MP12 CF/CM/CU24B 1.01 0.99 0.93 YP9C060B12MP12 CF/CM/CU30B 1.01 1.05 0.93 YP9C060B12MP12 CF/CM/CU36B 1.01 1.02 0.93 YP9C080B12MP12 CF/CM/CU18B 1.01 1.04 0.95 YP9C080B12MP12 CF/CM/CU24B 1.01 0.99 0.93 YP9C080B12MP12 CF/CM/CU30B 1.01 1.05 0.93 YP9C080B12MP12 CF/CM/CU36B 1.01 1.02 0.93 YPLC060A12MP12 CF/CM/CU18A 1.01 0.97 0.95 YPLC060A12MP12 CF/CM/CU24A 1.01 0.99 0.93 YPLC060A12MP12 CF/CM/CU30A 1.01 0.99 0.93 YPLC080B12MP12 CF/CM/CU18B 1.01 1.05 0.93 YPLC080B12MP12 CF/CM/CU24B 1.01 1.08 0.93 YPLC080B12MP12 CF/CM/CU30B 1.01 1.05 0.93 YPLC080B12MP12 CF/CM/CU36B 1.01 1.06 0.93

46 Johnson Controls Unitary Products

Page 47

5006142-YTG-A-0815

PERFORMANCE DATA - 2 TON

CONDENSER-ONLY DATA (OUTDOOR UNIT)

SATURATED SUCTION

MODEL

@ COMPRESSOR

55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F

T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW

35 107 23.8 1.14 22.7 1.31 21.5 1.49 20.3 1.66 19.1 1.87 17.7 2.11 16.3 2.39 14.8 2.75 40 118 26.2 1.11 25.0 1.30 23.7 1.47 22.4 1.65 21.0 1.85 19.6 2.10 18.1 2.38 16.5 2.73

YFE24B21S

45 130 28.8 1.08 27.4 1.27 26.0 1.45 24.6 1.64 23.2 1.84 21.6 2.08 20.0 2.37 18.2 2.71 50 142 31.5 1.06 30.0 1.25 28.5 1.44 27.0 1.63 25.4 1.83 23.8 2.07 22.0 2.36 20.1 2.69 55 156 34.3 1.03 32.8 1.23 31.2 1.42 29.5 1.61 27.8 1.82 26.0 2.06 24.2 2.35 22.1 2.67

Notes:

1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.

3. Maximum recommended condensing temperature is 140°F.

COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YFE24B21S INDOOR COIL MODEL NO. CF24AXA1

AIR TEMP. ENTERING

OUTDOOR UNIT (°F)

IDCFM 600 800 1000 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 21.8 24.8 24.9 27.2 28.7 23.6 25.8 25.9 28.0 29.1 25.5 26.9 27.0 28.8 29.5

S.C. 21.3 20.1 17.6 17.6 14.3 23.1 22.9 19.7 19.4 15.2 24.9 25.6 21.9 21.3 16.2 KW 1.30 1.29 1.29 1.29 1.28 1.36 1.36 1.36 1.36 1.35 1.43 1.43 1.43 1.43 1.43 T.C. 21.4 23.9 24.0 26.3 28.4 23.1 24.9 25.1 27.2 29.0 24.8 25.9 26.2 28.1 29.7

S.C. 20.9 19.7 17.1 17.1 14.1 22.6 22.4 19.5 19.2 15.3 24.2 25.0 21.8 21.3 16.5 KW 1.43 1.44 1.42 1.44 1.41 1.49 1.51 1.49 1.51 1.48 1.56 1.58 1.56 1.57 1.56 T.C. 21.1 22.9 23.2 25.5 28.0 22.6 24.0 24.3 26.4 28.9 24.2 25.0 25.5 27.3 29.9

S.C. 20.6 19.4 16.7 16.7 13.9 22.1 21.9 19.2 19.0 15.4 23.6 24.4 21.7 21.3 16.9 KW 1.55 1.59 1.55 1.58 1.54 1.62 1.66 1.62 1.65 1.62 1.69 1.72 1.69 1.72 1.69 T.C. 20.2 22.0 22.2 24.3 27.0 21.8 22.9 23.2 25.2 27.8 23.3 23.9 24.2 26.1 28.7

S.C. 19.7 18.9 16.3 16.3 13.5 21.2 21.1 18.7 18.5 15.0 22.8 23.3 21.1 20.7 16.5 KW 1.74 1.78 1.74 1.78 1.72 1.81 1.84 1.81 1.85 1.79 1.88 1.90 1.88 1.91 1.87 T.C. 19.3 21.0 21.2 23.1 25.9 20.9 21.9

S.C. 18.8 18.3 15.8 15.8 13.1 20.4 20.3 18.1 18.0 14.6 21.9 22.3 20.5 20.2 16.1 KW 1.92 1.96 1.93 1.98 1.90 1.99 2.02 2.00 2.04 1.97 2.06 2.09 2.07 2.10 2.05 T.C. 18.6 19.7 19.9 21.7 24.4 19.9 20.6 20.7 22.5 25.1 21.3 21.5 21.5 23.3 25.9

105

S.C. 18.1 17.7 15.2 15.2 12.6 19.4 19.4 17.5 17.4 14.0 20.8 21.0 19.7 19.7 15.5 KW 2.23 2.26 2.23 2.28 2.20 2.30 2.32 2.29 2.34 2.27 2.36 2.38 2.36 2.40 2.34 T.C. 17.9 18.5 18.7 20.3 22.9 19.0 19.4 19.4 21.1 23.5 20.1 20.2 20.0 21.8 24.2

115

S.C. 17.5 17.1 14.6 14.6 12.0 18.6 18.4 16.8 16.9 13.4 19.6 19.8 18.9 19.1 14.9 KW 2.53 2.55 2.52 2.57 2.49 2.60 2.61 2.58 2.63 2.56 2.66 2.67 2.65 2.69 2.63 T.C. 17.2 17.2 17.4 19.0 21.4 18.1 18.1 18.0 19.6 22.0 19.0 19.0 18.6 20.3 22.5

125

S.C. 16.8 16.5 14.1 14.1 11.4 17.7 17.5 16.1 16.3 12.9 18.5 18.5 18.1 18.6 14.3 KW 2.84 2.84 2.81 2.86 2.78 2.90 2.89 2.87 2.92 2.85 2.96 2.95 2.94 2.99 2.91

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).

Green shaded cells are ACCA (TVA) conditions. Blue shaded cells are AHRI conditions.

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

Outdoor Ambient Temperature

22.1 24.0 26.8 22.5 22.8 23.0 24.9 27.6

Johnson Controls Unitary Products 47

Page 48

5006142-YTG-A-0815

COIL MULTIPLIERS - 2 TON

Air Handler Coil T.C. S.C. KW

– CF/CM/CU24A 1.00 1.00 1.00 – CF/CM/CU24B 1.00 1.00 1.00 – CF/CM/CU24C 1.00 1.00 1.00 – CF/CM/CU30A 1.00 1.00 1.00 – CF/CM/CU30B 1.00 1.00 1.00 – CF/CM/CU30C 1.00 1.00 1.00 – CF/CM/CU30D 1.00 1.00 1.00 – CF/CM/CU36B 1.00 0.99 0.96 – CF/CM/CU36C 1.00 0.99 0.96 – CF/CM/CU36D 1.00 0.99 0.96 – CF/CM/CU42C 1.00 0.99 0.96 – CF/CM/CU42D 1.00 0.99 0.96 – CF/CM36A 1.00 0.99 0.96 – CF42B 1.00 0.99 0.96 AE24BX21 – 1.00 1.01 0.90 AE30BX21 – 1.00 1.01 0.89 AE36BX21 – 1.00 1.01 0.89 AE36CX21 – 1.00 1.01 0.89 AP24BX21 – 1.00 1.00 0.98 AP30BX21 – 1.00 0.99 0.94 AP36BX21 – 1.00 1.06 0.96 AP36CX21 – 1.00 1.02 0.96 AVC24BX21 – 1.00 0.99 0.92 AVC30BX21 – 1.00 1.00 0.89 AVC36BX21 – 1.00 1.00 0.89 AVC36CX21 – 1.00 1.00 0.89 ME08BN21 CF/CM24B 1.00 1.01 0.90 ME08BN21 CF/CM30B 1.00 1.01 0.89 ME08BN21 CF/CM36B 1.00 1.00 0.89 ME08BN21 CF42B 1.00 1.00 0.90 ME12BN21 CF/CM24B 1.00 1.01 0.90 ME12BN21 CF/CM30B 1.00 1.00 0.89 ME12BN21 CF/CM36B 1.00 1.00 0.89 ME12BN21 CF42B 1.00 1.00 0.89 ME14DN21 CF/CM30D 1.00 1.00 0.92 ME14DN21 CF/CM36D 1.00 1.00 0.92 ME14DN21 CF/CM42D 1.00 1.00 0.90 ME16CN21 CF/CM24C 1.00 1.04 0.96 MVC08BN21 CF/CM24B 1.00 1.01 0.90 MVC08BN21 CF/CM30B 1.00 0.98 0.89 MVC08BN21 CF/CM36B 1.00 0.99 0.89 MVC08BN21 CF42B 1.00 1.00 0.89 MVC12BN21 CF/CM24B 1.00 1.00 0.90 MVC12BN21 CF/CM30B 1.00 1.04 0.89 MVC12BN21 CF/CM36B 1.00 0.99 0.89 MVC12BN21 CF42B 1.00 1.00 0.89 MVC14DN21 CF/CM30D 1.00 1.00 0.89 MVC14DN21 CF/CM36D 1.00 1.02 0.89 MVC14DN21 CF/CM42D 1.00 1.02 0.89 MVC16CN21 CF/CM42C 1.00 1.06 0.89

FURNACE MULTIPLIERS - 2 TON

Furnaces Coil T.C. S.C. KW

TM8V060A12MP11 CF/CM/CU24A 1.00 0.98 0.94 TM8V060A12MP11 CF/CM/CU30A 1.00 0.97 0.94 TM8V060A12MP11 CF/CM36A 1.00 0.96 0.94 TM8V080B12MP11 CF/CM/CU24B 1.00 1.02 0.94 TM8V080B12MP11 CF/CM/CU30B 1.00 1.00 0.92 TM8V080B12MP11 CF/CM/CU36B 1.00 0.93 0.92 TM8V080B12MP11 CF42B 1.00 1.02 0.90 TM8X060A12MP11 CF/CM/CU24A 1.00 1.00 0.92 TM8X060A12MP11 CF/CM/CU30A 1.00 1.00 0.89 TM8X060A12MP11 CF/CM36A 1.00 0.99 0.89 TM8X080B12MP11 CF/CM/CU24B 1.00 1.00 0.90 TM8X080B12MP11 CF/CM/CU30B 1.00 1.00 0.89 TM8X080B12MP11 CF/CM/CU36B 1.00 1.00 0.89 TM8X080B12MP11 CF42B 1.00 1.00 0.89 TM8X080C16MP11 CF/CM/CU24C 1.00 1.01 0.89 TM8X080C16MP11 CF/CM/CU30C 1.00 1.01 0.89 TM8X080C16MP11 CF/CM/CU30D 1.00 1.01 0.89 TM8X080C16MP11 CF/CM/CU36C 1.00 1.00 0.89 TM8X080C16MP11 CF/CM/CU36D 1.00 1.00 0.89 TM8X080C16MP11 CF/CM/CU42C 1.00 1.00 0.89 TM8X080C16MP11 CF/CM/CU42D 1.00 1.00 0.89 TM8X100C16MP11 CF/CM/CU24C 1.00 1.01 0.89 TM8X100C16MP11 CF/CM/CU30C 1.00 1.01 0.89 TM8X100C16MP11 CF/CM/CU30D 1.00 1.01 0.89 TM8X100C16MP11 CF/CM/CU36C 1.00 1.00 0.89 TM8X100C16MP11 CF/CM/CU36D 1.00 1.00 0.89 TM8X100C16MP11 CF/CM/CU42C 1.00 1.00 0.89 TM8X100C16MP11 CF/CM/CU42D 1.00 1.00 0.89 TM8X100C20MP11 CF/CM/CU30C 1.00 1.00 0.94 TM8X100C20MP11 CF/CM/CU30D 1.00 1.01 0.94 TM8X100C20MP11 CF/CM/CU36C 1.00 1.00 0.94 TM8X100C20MP11 CF/CM/CU36D 1.00 1.00 0.94 TM8X100C20MP11 CF/CM/CU42C 1.00 1.01 0.94 TM8X100C20MP11 CF/CM/CU42D 1.00 1.01 0.94 TM8X120C20MP11 CF/CM/CU30C 1.00 1.00 0.94 TM8X120C20MP11 CF/CM/CU30D 1.00 1.01 0.94 TM8X120C20MP11 CF/CM/CU36C 1.00 1.00 0.94 TM8X120C20MP11 CF/CM/CU36D 1.00 1.00 0.94 TM8X120C20MP11 CF/CM/CU42C 1.00 1.01 0.94 TM8X120C20MP11 CF/CM/CU42D 1.00 1.01 0.94 TM8Y060A12MP11 CF/CM/CU24A 1.00 1.00 0.92 TM8Y060A12MP11 CF/CM/CU30A 1.00 1.00 0.89 TM8Y060A12MP11 CF/CM36A 1.00 0.99 0.89 TM8Y080B12MP11 CF/CM/CU24B 1.00 1.00 0.90 TM8Y080B12MP11 CF/CM/CU30B 1.00 1.00 0.89 TM8Y080B12MP11 CF/CM/CU36B 1.00 1.00 0.89 TM8Y080B12MP11 CF42B 1.00 1.00 0.89 TM8Y080C16MP11 CF/CM/CU24C 1.00 1.01 0.89 TM8Y080C16MP11 CF/CM/CU30C 1.00 1.01 0.89 TM8Y080C16MP11 CF/CM/CU30D 1.00 1.01 0.89 TM8Y080C16MP11 CF/CM/CU36C 1.00 1.00 0.89 TM8Y080C16MP11 CF/CM/CU36D 1.00 1.00 0.89

48 Johnson Controls Unitary Products

Page 49

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 2 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8Y080C16MP11 CF/CM/CU42C 1.00 1.00 0.89 TM8Y080C16MP11 CF/CM/CU42D 1.00 1.00 0.89 TM8Y100C16MP11 CF/CM/CU24C 1.00 1.01 0.89 TM8Y100C16MP11 CF/CM/CU30C 1.00 1.01 0.89 TM8Y100C16MP11 CF/CM/CU30D 1.00 1.01 0.89 TM8Y100C16MP11 CF/CM/CU36C 1.00 1.00 0.89 TM8Y100C16MP11 CF/CM/CU36D 1.00 1.00 0.89 TM8Y100C16MP11 CF/CM/CU42C 1.00 1.00 0.89 TM8Y100C16MP11 CF/CM/CU42D 1.00 1.00 0.89 TM8Y100C20MP11 CF/CM/CU30C 1.00 1.00 0.94 TM8Y100C20MP11 CF/CM/CU30D 1.00 1.01 0.94 TM8Y100C20MP11 CF/CM/CU36C 1.00 1.00 0.94 TM8Y100C20MP11 CF/CM/CU36D 1.00 1.00 0.94 TM8Y100C20MP11 CF/CM/CU42C 1.00 1.01 0.94 TM8Y100C20MP11 CF/CM/CU42D 1.00 1.01 0.94 TM8Y120C20MP11 CF/CM/CU30C 1.00 1.00 0.94 TM8Y120C20MP11 CF/CM/CU30D 1.00 1.01 0.94 TM8Y120C20MP11 CF/CM/CU36C 1.00 1.00 0.94 TM8Y120C20MP11 CF/CM/CU36D 1.00 1.00 0.94 TM8Y120C20MP11 CF/CM/CU42C 1.00 1.01 0.94 TM8Y120C20MP11 CF/CM/CU42D 1.00 1.01 0.94 TM9E040A10MP11 CF/CM/CU24A 1.00 0.98 0.96 TM9E040A10MP11 CF/CM/CU30A 1.00 1.00 0.94 TM9E040A10MP11 CF/CM36A 1.00 0.99 0.94 TM9E060B12MP11 CF/CM/CU24B 1.00 0.99 0.90 TM9E060B12MP11 CF/CM/CU30B 1.00 0.99 0.89 TM9E060B12MP11 CF/CM/CU36B 1.00 0.98 0.89 TM9E060B12MP11 CF42B 1.00 0.98 0.89 TM9E080B12MP11 CF/CM/CU24B 1.00 0.99 0.90 TM9E080B12MP11 CF/CM/CU30B 1.00 0.99 0.89 TM9E080B12MP11 CF/CM/CU36B 1.00 0.98 0.89 TM9E080B12MP11 CF42B 1.00 0.98 0.89 TM9E080C16MP11 CF/CM/CU24C 1.00 0.99 0.90 TM9E080C16MP11 CF/CM/CU30C 1.00 0.99 0.89 TM9E080C16MP11 CF/CM/CU30D 1.00 1.00 0.89 TM9E080C16MP11 CF/CM/CU36C 1.00 0.98 0.89 TM9E080C16MP11 CF/CM/CU36D 1.00 0.99 0.89 TM9E080C16MP11 CF/CM/CU42C 1.00 0.98 0.89 TM9E080C16MP11 CF/CM/CU42D 1.00 1.01 0.89 TM9E100C16MP11 CF/CM/CU24C 1.00 0.99 0.90 TM9E100C16MP11 CF/CM/CU30C 1.00 0.99 0.89 TM9E100C16MP11 CF/CM/CU30D 1.00 1.00 0.89 TM9E100C16MP11 CF/CM/CU36C 1.00 0.98 0.89 TM9E100C16MP11 CF/CM/CU36D 1.00 0.99 0.89 TM9E100C16MP11 CF/CM/CU42C 1.00 0.98 0.89 TM9E100C16MP11 CF/CM/CU42D 1.00 1.01 0.89 TM9E100C20MP11 CF/CM/CU24C 1.00 1.01 0.94 TM9E100C20MP11 CF/CM/CU30C 1.00 1.01 0.92 TM9E100C20MP11 CF/CM/CU30D 1.00 1.01 0.92 TM9E100C20MP11 CF/CM/CU36C 1.00 1.01 0.92 TM9E100C20MP11 CF/CM/CU36D 1.00 1.01 0.92 TM9E100C20MP11 CF/CM/CU42C 1.00 1.00 0.90 TM9E100C20MP11 CF/CM/CU42D 1.00 1.01 0.90

FURNACE MULTIPLIERS - 2 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM9E120D20MP11 CF/CM/CU30D 1.00 1.02 0.90 TM9E120D20MP11 CF/CM/CU36D 1.00 1.00 0.90 TM9E120D20MP11 CF/CM/CU42D 1.00 1.00 0.90 TM9V040A10MP11 CF/CM/CU24A 1.00 0.93 0.96 TM9V040A10MP11 CF/CM/CU30A 1.00 0.97 0.96 TM9V060B12MP11 CF/CM/CU24B 1.00 1.01 0.89 TM9V060B12MP11 CF/CM/CU30B 1.00 0.93 0.92 TM9V060B12MP11 CF/CM/CU36B 1.00 0.97 0.89 TM9V060B12MP11 CF42B 1.00 1.01 0.89 TM9V080B12MP11 CF/CM/CU24B 1.00 1.01 0.89 TM9V080B12MP11 CF/CM/CU30B 1.00 0.93 0.92 TM9V080B12MP11 CF/CM/CU36B 1.00 0.97 0.89 TM9V080B12MP11 CF42B 1.00 1.01 0.89 TM9V080C16MP11 CF/CM/CU36C 1.00 1.03 0.89 TM9V100C16MP11 CF/CM/CU36C 1.00 1.03 0.89 TM9Y040A10MP11 CF/CM/CU24A 1.00 0.98 0.96 TM9Y040A10MP11 CF/CM/CU30A 1.00 1.00 0.94 TM9Y040A10MP11 CF/CM36A 1.00 0.99 0.94 TM9Y060B12MP11 CF/CM/CU24B 1.00 0.99 0.90 TM9Y060B12MP11 CF/CM/CU30B 1.00 0.99 0.89 TM9Y060B12MP11 CF/CM/CU36B 1.00 0.98 0.89 TM9Y060B12MP11 CF42B 1.00 0.98 0.89 TM9Y080B12MP11 CF/CM/CU24B 1.00 0.99 0.90 TM9Y080B12MP11 CF/CM/CU30B 1.00 0.99 0.89 TM9Y080B12MP11 CF/CM/CU36B 1.00 0.98 0.89 TM9Y080B12MP11 CF42B 1.00 0.98 0.89 TM9Y080C16MP11 CF/CM/CU24C 1.00 0.99 0.90 TM9Y080C16MP11 CF/CM/CU30C 1.00 0.99 0.89 TM9Y080C16MP11 CF/CM/CU30D 1.00 1.00 0.89 TM9Y080C16MP11 CF/CM/CU36C 1.00 0.98 0.89 TM9Y080C16MP11 CF/CM/CU36D 1.00 0.99 0.89 TM9Y080C16MP11 CF/CM/CU42C 1.00 0.98 0.89 TM9Y080C16MP11 CF/CM/CU42D 1.00 1.01 0.89 TM9Y100C16MP11 CF/CM/CU24C 1.00 0.99 0.90 TM9Y100C16MP11 CF/CM/CU30C 1.00 0.99 0.89 TM9Y100C16MP11 CF/CM/CU30D 1.00 1.00 0.89 TM9Y100C16MP11 CF/CM/CU36C 1.00 0.98 0.89 TM9Y100C16MP11 CF/CM/CU36D 1.00 0.99 0.89 TM9Y100C16MP11 CF/CM/CU42C 1.00 0.98 0.89 TM9Y100C16MP11 CF/CM/CU42D 1.00 1.01 0.89 TM9Y100C20MP11 CF/CM/CU24C 1.00 1.01 0.94 TM9Y100C20MP11 CF/CM/CU30C 1.00 1.01 0.92 TM9Y100C20MP11 CF/CM/CU30D 1.00 1.01 0.92 TM9Y100C20MP11 CF/CM/CU36C 1.00 1.01 0.92 TM9Y100C20MP11 CF/CM/CU36D 1.00 1.01 0.92 TM9Y100C20MP11 CF/CM/CU42C 1.00 1.00 0.90 TM9Y100C20MP11 CF/CM/CU42D 1.00 1.01 0.90 TM9Y120D20MP11 CF/CM/CU30D 1.00 1.02 0.90 TM9Y120D20MP11 CF/CM/CU36D 1.00 1.00 0.90 TM9Y120D20MP11 CF/CM/CU42D 1.00 1.00 0.90 TMLV060A12MP11 CF/CM/CU24A 1.00 0.98 0.94 TMLV060A12MP11 CF/CM/CU30A 1.00 0.97 0.94 TMLV060A12MP11 CF/CM36A 1.00 0.96 0.94

Johnson Controls Unitary Products 49

Page 50

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 2 TON (Continued)

Furnaces Coil T.C. S.C. KW

TMLV080B12MP11 CF/CM/CU24B 1.00 1.02 0.94 TMLV080B12MP11 CF/CM/CU30B 1.00 1.00 0.92 TMLV080B12MP11 CF/CM/CU36B 1.00 0.93 0.92 TMLV080B12MP11 CF42B 1.00 1.02 0.90 TMLX060A12MP11 CF/CM/CU24A 1.00 1.00 0.92 TMLX060A12MP11 CF/CM/CU30A 1.00 1.00 0.89 TMLX060A12MP11 CF/CM36A 1.00 0.99 0.89 TMLX080B12MP11 CF/CM/CU24B 1.00 1.00 0.90 TMLX080B12MP11 CF/CM/CU30B 1.00 1.00 0.89 TMLX080B12MP11 CF/CM/CU36B 1.00 1.00 0.89 TMLX080B12MP11 CF42B 1.00 1.00 0.89 TMLX080C16MP11 CF/CM/CU24C 1.00 1.01 0.89 TMLX080C16MP11 CF/CM/CU30C 1.00 1.01 0.89 TMLX080C16MP11 CF/CM/CU30D 1.00 1.01 0.89 TMLX080C16MP11 CF/CM/CU36C 1.00 1.00 0.89 TMLX080C16MP11 CF/CM/CU36D 1.00 1.00 0.89 TMLX080C16MP11 CF/CM/CU42C 1.00 1.00 0.89 TMLX080C16MP11 CF/CM/CU42D 1.00 1.00 0.89 TMLX100C16MP11 CF/CM/CU24C 1.00 1.01 0.89 TMLX100C16MP11 CF/CM/CU30C 1.00 1.01 0.89 TMLX100C16MP11 CF/CM/CU30D 1.00 1.01 0.89 TMLX100C16MP11 CF/CM/CU36C 1.00 1.00 0.89 TMLX100C16MP11 CF/CM/CU36D 1.00 1.00 0.89 TMLX100C16MP11 CF/CM/CU42C 1.00 1.00 0.89 TMLX100C16MP11 CF/CM/CU42D 1.00 1.00 0.89 TMLX100C20MP11 CF/CM/CU30C 1.00 1.00 0.94 TMLX100C20MP11 CF/CM/CU30D 1.00 1.01 0.94 TMLX100C20MP11 CF/CM/CU36C 1.00 1.00 0.94 TMLX100C20MP11 CF/CM/CU36D 1.00 1.00 0.94 TMLX100C20MP11 CF/CM/CU42C 1.00 1.01 0.94 TMLX100C20MP11 CF/CM/CU42D 1.00 1.01 0.94 TMLX120C20MP11 CF/CM/CU30C 1.00 1.00 0.94 TMLX120C20MP11 CF/CM/CU30D 1.00 1.01 0.94 TMLX120C20MP11 CF/CM/CU36C 1.00 1.00 0.94 TMLX120C20MP11 CF/CM/CU36D 1.00 1.00 0.94 TMLX120C20MP11 CF/CM/CU42C 1.00 1.01 0.94 TMLX120C20MP11 CF/CM/CU42D 1.00 1.01 0.94

FURNACE MULTIPLIERS - 2 TON (Continued)

Furnaces Coil T.C. S.C. KW

TP9C060B12MP12 CF/CM/CU24B 1.00 1.01 0.89 TP9C060B12MP12 CF/CM/CU30B 1.00 0.93 0.92 TP9C060B12MP12 CF/CM/CU36B 1.00 0.97 0.89 TP9C060B12MP12 CF42B 1.00 1.01 0.89 TP9C080B12MP12 CF/CM/CU24B 1.00 1.01 0.89 TP9C080B12MP12 CF/CM/CU30B 1.00 0.93 0.92 TP9C080B12MP12 CF/CM/CU36B 1.00 0.97 0.89 TP9C080B12MP12 CF42B 1.00 1.01 0.89 TP9C080C16MP12 CF/CM/CU36C 1.00 1.03 0.89 TP9C100C16MP12 CF/CM/CU36C 1.00 1.03 0.89 TPLC060A12MP12 CF/CM/CU24A 1.00 0.98 0.94 TPLC060A12MP12 CF/CM/CU30A 1.00 0.97 0.94 TPLC060A12MP12 CF/CM36A 1.00 0.96 0.94 TPLC080B12MP12 CF/CM/CU24B 1.00 1.02 0.94 TPLC080B12MP12 CF/CM/CU30B 1.00 1.00 0.92 TPLC080B12MP12 CF/CM/CU36B 1.00 0.93 0.92 TPLC080B12MP12 CF42B 1.00 1.02 0.90 YP9C060B12MP12 CF/CM/CU24B 1.00 1.01 0.89 YP9C060B12MP12 CF/CM/CU30B 1.00 0.93 0.92 YP9C060B12MP12 CF/CM/CU36B 1.00 0.97 0.89 YP9C060B12MP12 CF42B 1.00 1.01 0.89 YP9C080B12MP12 CF/CM/CU24B 1.00 1.01 0.89 YP9C080B12MP12 CF/CM/CU30B 1.00 0.93 0.92 YP9C080B12MP12 CF/CM/CU36B 1.00 0.97 0.89 YP9C080B12MP12 CF42B 1.00 1.01 0.89 YP9C080C16MP12 CF/CM/CU36C 1.00 1.03 0.89 YP9C100C16MP12 CF/CM/CU36C 1.00 1.03 0.89 YPLC060A12MP12 CF/CM/CU24A 1.00 0.98 0.94 YPLC060A12MP12 CF/CM/CU30A 1.00 0.97 0.94 YPLC060A12MP12 CF/CM36A 1.00 0.96 0.94 YPLC080B12MP12 CF/CM/CU24B 1.00 1.02 0.94 YPLC080B12MP12 CF/CM/CU30B 1.00 1.00 0.92 YPLC080B12MP12 CF/CM/CU36B 1.00 0.93 0.92 YPLC080B12MP12 CF42B 1.00 1.02 0.90

50 Johnson Controls Unitary Products

Page 51

5006142-YTG-A-0815

PERFORMANCE DATA - 2.5 TON

CONDENSER-ONLY DATA (OUTDOOR UNIT)

SATURATED SUCTION

MODEL

@ COMPRESSOR

55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F

T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW

35 107 27.9 1.39 26.5 1.56 25.1 1.73 23.7 1.93 21.5 2.13 20.0 2.39 18.5 2.69 16.8 3.03 40 118 29.8 1.37 28.3 1.54 26.8 1.71 25.3 1.91 23.8 2.13 22.2 2.39 20.5 2.69 18.7 3.03

YFE30B21S

45 130 32.7 1.37 31.1 1.53 29.5 1.71 27.9 1.90 26.2 2.12 24.5 2.38 22.7 2.69 20.7 3.02 50 142 35.8 1.38 34.2 1.53 32.5 1.70 30.7 1.90 28.9 2.12 27.0 2.38 25.0 2.68 22.9 3.02 55 156 39.2 1.38 37.4 1.53 35.6 1.70 33.7 1.89 31.7 2.11 29.7 2.37 27.5 2.68 25.2 3.01

Notes:

1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.

3. Maximum recommended condensing temperature is 140°F.

COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YFE30B21S INDOOR COIL MODEL NO. CF30BXA1

AIR TEMP. ENTERING

OUTDOOR UNIT (°F)

IDCFM 800 1000 1200 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 26.2 28.0 27.9 28.6 27.3 26.8 28.3 28.3 28.8 27.5 27.4 28.6 28.6 29.0 27.6

S.C. 25.7 22.0 19.2 17.5 12.8 26.5 23.0 20.0 18.2 13.0 27.3 24.0 20.8 18.9 13.1 KW 1.66 1.66 1.67 1.67 1.68 1.74 1.74 1.74 1.75 1.76 1.81 1.82 1.82 1.83 1.83 T.C. 26.0 27.8 27.9 29.6 29.4 27.1 28.5 28.4 30.0 29.7 28.2 29.1 29.0 30.4 30.0

S.C. 25.6 22.7 19.6 18.6 13.9 26.8 24.5 21.0 19.8 14.3 28.1 26.3 22.4 20.9 14.6 KW 1.82 1.82 1.82 1.84 1.83 1.89 1.90 1.90 1.91 1.91 1.97 1.98 1.97 1.99 1.99 T.C. 25.8 27.6 27.8 30.6 31.4 27.4 28.7 28.6 31.2 31.9 29.0 29.7 29.4 31.8 32.4

S.C. 25.5 23.3 20.0 19.8 15.0 27.2 26.0 22.0 21.3 15.5 28.9 28.7 24.0 22.9 16.0 KW 1.97 1.98 1.97 2.00 1.99 2.05 2.06 2.05 2.08 2.07 2.12 2.13 2.13 2.15 2.15 T.C. 24.8 26.5 26.7 29.4 31.3 26.4 27.5 27.4 30.1 31.8 28.0 28.4 28.1 30.8 32.3

S.C. 24.6 22.8 19.5 19.3 15.0 26.2 25.4 21.5 21.2 15.8 27.9 28.0 23.5 23.0 16.6 KW 2.19 2.19 2.18 2.21 2.20 2.25 2.27 2.27 2.27 2.28 2.32 2.34 2.35 2.33 2.35 T.C. 23.9 25.4 25.6 28.3 31.1 25.4 26.3

S.C. 23.7 22.3 19.0 18.9 14.9 25.3 24.9 21.0 21.0 16.0 26.9 27.1 23.0 23.1 17.1 KW 2.40 2.40 2.40 2.42 2.41 2.46 2.48 2.48 2.47 2.48 2.52 2.55 2.56 2.51 2.56 T.C. 22.7 23.8 23.9 26.6 29.3 24.1 24.8 24.5 27.3 29.9 25.6 25.7 25.1 28.0 30.5

105

S.C. 22.6 21.5 18.1 18.3 14.3 24.1 23.7 20.1 20.4 15.5 25.6 25.7 22.1 22.5 16.6 KW 2.74 2.73 2.73 2.75 2.73 2.80 2.81 2.81 2.80 2.81 2.86 2.88 2.88 2.85 2.88 T.C. 21.5 22.4 22.3 24.9 27.6 22.9 23.3 22.9 25.6 28.2 24.3 24.3 23.4 26.3 28.8

115

S.C. 21.5 20.6 17.3 17.7 13.7 22.9 22.5 19.2 19.7 15.0 24.3 24.3 21.2 21.8 16.2 KW 3.07 3.05 3.05 3.06 3.05 3.13 3.13 3.12 3.12 3.13 3.19 3.20 3.20 3.19 3.20 T.C. 20.3 20.9 20.7 23.2 26.0 21.7 21.9 21.2 23.9 26.5 23.0 22.9 21.8 24.6 27.0

125

S.C. 20.3 19.8 16.4 17.1 13.1 21.7 21.4 18.4 19.1 14.4 23.0 22.9 20.4 21.1 15.7 KW 3.40 3.37 3.36 3.38 3.37 3.46 3.45 3.44 3.45 3.44 3.52 3.52 3.51 3.52 3.52

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).

Green shaded cells are ACCA (TVA) conditions. Blue shaded cells are AHRI conditions.

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

Outdoor Ambient Temperature

26.2 29.0 31.6 26.9 27.1 26.8 29.7 32.2

Johnson Controls Unitary Products 51

Page 52

5006142-YTG-A-0815

COIL MULTIPLIERS - 2.5 TON

Air Handler Coil T.C. S.C. KW

– CF/CM/CU30B 1.00 1.00 1.00 – CF/CM/CU30C 1.00 1.00 1.00 – CF/CM/CU30D 1.00 1.00 1.00 – CF/CM/CU36B 1.01 1.01 1.01 – CF/CM/CU36C 1.01 1.01 1.01 – CF/CM/CU36D 1.01 1.01 1.01 – CF/CM/CU42C 1.02 1.02 1.02 – CF/CM/CU42D 1.02 1.02 1.02 – CF42B 1.02 1.02 1.02 AE30BX21 – 1.03 1.03 0.97 AE36BX21 – 1.03 1.04 0.95 AE36CX21 – 1.03 1.03 0.94 AP30BX21 – 1.02 1.01 1.02 AP36BX21 – 1.02 1.01 1.02 AP36CX21 – 1.02 1.03 1.02 AP42CX21 – 1.03 1.08 1.03 AVC30BX21 – 1.03 1.02 0.97 AVC36BX21 – 1.03 1.05 0.95 AVC36CX21 – 1.03 1.05 0.92 ME08BN21 CF/CM30B 1.02 0.99 0.94 ME08BN21 CF/CM36B 1.02 0.98 0.94 ME08BN21 CF42B 1.02 0.98 0.94 ME12BN21 CF/CM30B 1.01 0.94 0.93 ME12BN21 CF/CM36B 1.03 1.04 0.95 ME12BN21 CF42B 1.03 1.04 0.95 ME14DN21 CF/CM30D 1.03 1.06 0.94 ME14DN21 CF/CM36D 1.03 1.05 0.94 ME14DN21 CF/CM42D 1.03 1.04 0.92 ME16CN21 CF/CM30C 1.03 1.08 0.97 ME16CN21 CF/CM36C 1.03 1.09 0.97 ME16CN21 CF/CM42C 1.03 1.04 0.97 MVC08BN21 CF42B 1.01 0.95 0.93 MVC12BN21 CF/CM30B 1.01 0.94 0.95 MVC12BN21 CF/CM36B 1.03 1.03 0.97 MVC12BN21 CF42B 1.03 1.04 0.95 MVC14DN21 CF/CM30D 1.03 1.00 0.94 MVC14DN21 CF/CM36D 1.03 1.02 0.94 MVC14DN21 CF/CM42D 1.03 1.04 0.92 MVC16CN21 CF/CM30C 1.03 1.00 0.94 MVC16CN21 CF/CM36C 1.03 1.05 0.94 MVC16CN21 CF/CM42C 1.03 1.00 0.94 MVC20DN21 CF/CM36D 1.03 1.09 0.94 MVC20DN21 CF/CM42D 1.03 1.09 0.95

FURNACE MULTIPLIERS - 2.5 TON

Furnaces Coil T.C. S.C. KW

TM8V060A12MP11 CF/CM/CU30A 1.02 1.01 1.00 TM8V060A12MP11 CF/CM36A 1.01 0.96 0.97 TM8V080B12MP11 CF/CM/CU36B 1.03 1.01 0.99 TM8V080B12MP11 CF42B 1.01 0.96 0.95 TM8V080C16MP11 CF/CM/CU30C 1.02 1.01 0.96 TM8V080C16MP11 CF/CM/CU36C 1.03 1.08 0.95 TM8V080C16MP11 CF/CM/CU42C 1.03 1.00 0.95

FURNACE MULTIPLIERS - 2.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8V100C16MP11 CF/CM/CU30C 1.02 1.01 0.96 TM8V100C16MP11 CF/CM/CU36C 1.03 1.08 0.95 TM8V100C16MP11 CF/CM/CU42C 1.03 1.00 0.95 TM8V100C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TM8V100C20MP11 CF/CM/CU42C 1.03 1.09 0.97 TM8V120C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TM8V120C20MP11 CF/CM/CU42C 1.03 1.09 0.97 TM8X060A12MP11 CF/CM/CU30A 1.02 1.03 0.96 TM8X060A12MP11 CF/CM36A 1.03 1.02 0.97 TM8X080B12MP11 CF/CM/CU30B 1.03 1.03 0.97 TM8X080B12MP11 CF/CM/CU36B 1.03 1.03 0.97 TM8X080B12MP11 CF42B 1.03 1.04 0.97 TM8X080C16MP11 CF/CM/CU30C 1.03 1.06 0.95 TM8X080C16MP11 CF/CM/CU30D 1.03 1.08 0.95 TM8X080C16MP11 CF/CM/CU36C 1.03 1.05 0.95 TM8X080C16MP11 CF/CM/CU36D 1.03 1.08 0.95 TM8X080C16MP11 CF/CM/CU42C 1.03 1.06 0.95 TM8X080C16MP11 CF/CM/CU42D 1.03 1.07 0.94 TM8X100C16MP11 CF/CM/CU30C 1.03 1.06 0.95 TM8X100C16MP11 CF/CM/CU30D 1.03 1.08 0.95 TM8X100C16MP11 CF/CM/CU36C 1.03 1.05 0.95 TM8X100C16MP11 CF/CM/CU36D 1.03 1.08 0.95 TM8X100C16MP11 CF/CM/CU42C 1.03 1.06 0.95 TM8X100C16MP11 CF/CM/CU42D 1.03 1.07 0.94 TM8X100C20MP11 CF/CM/CU30C 1.03 1.08 0.95 TM8X100C20MP11 CF/CM/CU30D 1.03 1.06 0.95 TM8X100C20MP11 CF/CM/CU36C 1.03 1.08 0.95 TM8X100C20MP11 CF/CM/CU36D 1.03 1.09 0.94 TM8X100C20MP11 CF/CM/CU42C 1.03 1.07 0.95 TM8X100C20MP11 CF/CM/CU42D 1.03 1.09 0.94 TM8X120C20MP11 CF/CM/CU30C 1.03 1.08 0.95 TM8X120C20MP11 CF/CM/CU30D 1.03 1.06 0.95 TM8X120C20MP11 CF/CM/CU36C 1.03 1.08 0.95 TM8X120C20MP11 CF/CM/CU36D 1.03 1.09 0.94 TM8X120C20MP11 CF/CM/CU42C 1.03 1.07 0.95 TM8X120C20MP11 CF/CM/CU42D 1.03 1.09 0.94 TM8Y060A12MP11 CF/CM/CU30A 1.02 1.03 0.96 TM8Y060A12MP11 CF/CM36A 1.03 1.02 0.97 TM8Y080B12MP11 CF/CM/CU30B 1.03 1.03 0.97 TM8Y080B12MP11 CF/CM/CU36B 1.03 1.03 0.97 TM8Y080B12MP11 CF42B 1.03 1.04 0.97 TM8Y080C16MP11 CF/CM/CU30C 1.03 1.06 0.95 TM8Y080C16MP11 CF/CM/CU30D 1.03 1.08 0.95 TM8Y080C16MP11 CF/CM/CU36C 1.03 1.05 0.95 TM8Y080C16MP11 CF/CM/CU36D 1.03 1.08 0.95 TM8Y080C16MP11 CF/CM/CU42C 1.03 1.06 0.95 TM8Y080C16MP11 CF/CM/CU42D 1.03 1.07 0.94 TM8Y100C16MP11 CF/CM/CU30C 1.03 1.06 0.95 TM8Y100C16MP11 CF/CM/CU30D 1.03 1.08 0.95 TM8Y100C16MP11 CF/CM/CU36C 1.03 1.05 0.95 TM8Y100C16MP11 CF/CM/CU36D 1.03 1.08 0.95 TM8Y100C16MP11 CF/CM/CU42C 1.03 1.06 0.95 TM8Y100C16MP11 CF/CM/CU42D 1.03 1.07 0.94

52 Johnson Controls Unitary Products

Page 53

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 2.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8Y100C20MP11 CF/CM/CU30C 1.03 1.08 0.95 TM8Y100C20MP11 CF/CM/CU30D 1.03 1.06 0.95 TM8Y100C20MP11 CF/CM/CU36C 1.03 1.08 0.95 TM8Y100C20MP11 CF/CM/CU36D 1.03 1.09 0.94 TM8Y100C20MP11 CF/CM/CU42C 1.03 1.07 0.95 TM8Y100C20MP11 CF/CM/CU42D 1.03 1.09 0.94 TM8Y120C20MP11 CF/CM/CU30C 1.03 1.08 0.95 TM8Y120C20MP11 CF/CM/CU30D 1.03 1.06 0.95 TM8Y120C20MP11 CF/CM/CU36C 1.03 1.08 0.95 TM8Y120C20MP11 CF/CM/CU36D 1.03 1.09 0.94 TM8Y120C20MP11 CF/CM/CU42C 1.03 1.07 0.95 TM8Y120C20MP11 CF/CM/CU42D 1.03 1.09 0.94 TM9E040A10MP11 CF/CM/CU30A 1.00 0.95 0.98 TM9E040A10MP11 CF/CM36A 1.01 0.95 0.99 TM9E060B12MP11 CF/CM/CU30B 1.01 0.98 0.95 TM9E060B12MP11 CF/CM/CU36B 1.01 0.98 0.95 TM9E060B12MP11 CF42B 1.03 0.98 0.97 TM9E080B12MP11 CF/CM/CU30B 1.01 0.98 0.95 TM9E080B12MP11 CF/CM/CU36B 1.01 0.98 0.95 TM9E080B12MP11 CF42B 1.03 0.98 0.97 TM9E080C16MP11 CF/CM/CU30C 1.03 1.07 0.97 TM9E080C16MP11 CF/CM/CU30D 1.03 1.07 0.97 TM9E080C16MP11 CF/CM/CU36C 1.03 1.05 0.97 TM9E080C16MP11 CF/CM/CU42C 1.03 1.04 0.97 TM9E100C16MP11 CF/CM/CU30C 1.03 1.07 0.97 TM9E100C16MP11 CF/CM/CU30D 1.03 1.07 0.97 TM9E100C16MP11 CF/CM/CU36C 1.03 1.05 0.97 TM9E100C16MP11 CF/CM/CU42C 1.03 1.04 0.97 TM9E100C20MP11 CF/CM/CU30C 1.03 1.03 0.95 TM9E100C20MP11 CF/CM/CU36C 1.03 1.03 0.95 TM9E100C20MP11 CF/CM/CU42C 1.03 1.04 0.94 TM9E120D20MP11 CF/CM/CU30D 1.03 1.03 0.94 TM9E120D20MP11 CF/CM/CU36D 1.03 1.02 0.94 TM9E120D20MP11 CF/CM/CU42D 1.03 1.04 0.92 TM9V060B12MP11 CF/CM/CU30B 1.00 0.93 0.94 TM9V060B12MP11 CF/CM/CU36B 1.03 1.01 0.97 TM9V060B12MP11 CF42B 1.03 1.00 0.95 TM9V080B12MP11 CF/CM/CU30B 1.00 0.93 0.94 TM9V080B12MP11 CF/CM/CU36B 1.03 1.01 0.97 TM9V080B12MP11 CF42B 1.03 1.00 0.95 TM9V080C16MP11 CF/CM/CU30C 1.03 1.02 0.95 TM9V080C16MP11 CF/CM/CU36C 1.03 1.03 0.95 TM9V080C16MP11 CF/CM/CU42C 1.03 1.04 0.95 TM9V100C16MP11 CF/CM/CU30C 1.03 1.02 0.95 TM9V100C16MP11 CF/CM/CU36C 1.03 1.03 0.95 TM9V100C16MP11 CF/CM/CU42C 1.03 1.04 0.95 TM9V100C20MP11 CF/CM/CU30C 1.03 1.08 0.97 TM9V100C20MP11 CF/CM/CU36C 1.03 1.07 0.97 TM9V120D20MP11 CF/CM/CU36D 1.03 1.09 0.92 TM9V120D20MP11 CF/CM/CU42D 1.03 1.10 0.95 TM9Y040A10MP11 CF/CM/CU30A 1.00 0.95 0.98 TM9Y040A10MP11 CF/CM36A 1.01 0.95 0.99 TM9Y060B12MP11 CF/CM/CU30B 1.01 0.98 0.95

FURNACE MULTIPLIERS - 2.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM9Y060B12MP11 CF/CM/CU36B 1.01 0.98 0.95 TM9Y060B12MP11 CF42B 1.03 0.98 0.97 TM9Y080B12MP11 CF/CM/CU30B 1.01 0.98 0.95 TM9Y080B12MP11 CF/CM/CU36B 1.01 0.98 0.95 TM9Y080B12MP11 CF42B 1.03 0.98 0.97 TM9Y080C16MP11 CF/CM/CU30C 1.03 1.07 0.97 TM9Y080C16MP11 CF/CM/CU30D 1.03 1.07 0.97 TM9Y080C16MP11 CF/CM/CU36C 1.03 1.05 0.97 TM9Y080C16MP11 CF/CM/CU42C 1.03 1.04 0.97 TM9Y100C16MP11 CF/CM/CU30C 1.03 1.07 0.97 TM9Y100C16MP11 CF/CM/CU30D 1.03 1.07 0.97 TM9Y100C16MP11 CF/CM/CU36C 1.03 1.05 0.97 TM9Y100C16MP11 CF/CM/CU42C 1.03 1.04 0.97 TM9Y100C20MP11 CF/CM/CU30C 1.03 1.03 0.95 TM9Y100C20MP11 CF/CM/CU36C 1.03 1.03 0.95 TM9Y100C20MP11 CF/CM/CU42C 1.03 1.04 0.94 TM9Y120D20MP11 CF/CM/CU30D 1.03 1.03 0.94 TM9Y120D20MP11 CF/CM/CU36D 1.03 1.02 0.94 TM9Y120D20MP11 CF/CM/CU42D 1.03 1.04 0.92 TMLV060A12MP11 CF/CM/CU30A 1.02 1.01 1.00 TMLV060A12MP11 CF/CM36A 1.01 0.96 0.97 TMLV080B12MP11 CF/CM/CU36B 1.03 1.01 0.99 TMLV080B12MP11 CF42B 1.01 0.96 0.95 TMLV080C16MP11 CF/CM/CU30C 1.02 1.01 0.96 TMLV080C16MP11 CF/CM/CU36C 1.03 1.08 0.95 TMLV080C16MP11 CF/CM/CU42C 1.03 1.00 0.95 TMLV100C16MP11 CF/CM/CU30C 1.02 1.01 0.96 TMLV100C16MP11 CF/CM/CU36C 1.03 1.08 0.95 TMLV100C16MP11 CF/CM/CU42C 1.03 1.00 0.95 TMLV100C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TMLV100C20MP11 CF/CM/CU42C 1.03 1.09 0.97 TMLV120C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TMLV120C20MP11 CF/CM/CU42C 1.03 1.09 0.97 TMLX060A12MP11 CF/CM/CU30A 1.02 1.03 0.96 TMLX060A12MP11 CF/CM36A 1.03 1.02 0.97 TMLX080B12MP11 CF/CM/CU30B 1.03 1.03 0.97 TMLX080B12MP11 CF/CM/CU36B 1.03 1.03 0.97 TMLX080B12MP11 CF42B 1.03 1.04 0.97 TMLX080C16MP11 CF/CM/CU30C 1.03 1.06 0.95 TMLX080C16MP11 CF/CM/CU30D 1.03 1.08 0.95 TMLX080C16MP11 CF/CM/CU36C 1.03 1.05 0.95 TMLX080C16MP11 CF/CM/CU36D 1.03 1.08 0.95 TMLX080C16MP11 CF/CM/CU42C 1.03 1.06 0.95 TMLX080C16MP11 CF/CM/CU42D 1.03 1.07 0.94 TMLX100C16MP11 CF/CM/CU30C 1.03 1.06 0.95 TMLX100C16MP11 CF/CM/CU30D 1.03 1.08 0.95 TMLX100C16MP11 CF/CM/CU36C 1.03 1.05 0.95 TMLX100C16MP11 CF/CM/CU36D 1.03 1.08 0.95 TMLX100C16MP11 CF/CM/CU42C 1.03 1.06 0.95 TMLX100C16MP11 CF/CM/CU42D 1.03 1.07 0.94 TMLX100C20MP11 CF/CM/CU30C 1.03 1.08 0.95 TMLX100C20MP11 CF/CM/CU30D 1.03 1.06 0.95 TMLX100C20MP11 CF/CM/CU36C 1.03 1.08 0.95

Johnson Controls Unitary Products 53

Page 54

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 2.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TMLX100C20MP11 CF/CM/CU36D 1.03 1.09 0.94 TMLX100C20MP11 CF/CM/CU42C 1.03 1.07 0.95 TMLX100C20MP11 CF/CM/CU42D 1.03 1.09 0.94 TMLX120C20MP11 CF/CM/CU30C 1.03 1.08 0.95 TMLX120C20MP11 CF/CM/CU30D 1.03 1.06 0.95 TMLX120C20MP11 CF/CM/CU36C 1.03 1.08 0.95 TMLX120C20MP11 CF/CM/CU36D 1.03 1.09 0.94 TMLX120C20MP11 CF/CM/CU42C 1.03 1.07 0.95 TMLX120C20MP11 CF/CM/CU42D 1.03 1.09 0.94 TP9C060B12MP12 CF/CM/CU30B 1.00 0.93 0.94 TP9C060B12MP12 CF/CM/CU36B 1.03 1.01 0.97 TP9C060B12MP12 CF42B 1.03 1.00 0.95 TP9C080B12MP12 CF/CM/CU30B 1.00 0.93 0.94 TP9C080B12MP12 CF/CM/CU36B 1.03 1.01 0.97 TP9C080B12MP12 CF42B 1.03 1.00 0.95 TP9C080C16MP12 CF/CM/CU30C 1.03 1.02 0.95 TP9C080C16MP12 CF/CM/CU36C 1.03 1.03 0.95 TP9C080C16MP12 CF/CM/CU42C 1.03 1.04 0.95 TP9C100C16MP12 CF/CM/CU30C 1.03 1.02 0.95 TP9C100C16MP12 CF/CM/CU36C 1.03 1.03 0.95 TP9C100C16MP12 CF/CM/CU42C 1.03 1.04 0.95 TP9C100C20MP12 CF/CM/CU30C 1.03 1.08 0.97 TP9C100C20MP12 CF/CM/CU36C 1.03 1.07 0.97 TP9C120D20MP12 CF/CM/CU36D 1.03 1.09 0.92 TP9C120D20MP12 CF/CM/CU42D 1.03 1.10 0.95 TPLC060A12MP12 CF/CM/CU30A 1.02 1.01 1.00 TPLC060A12MP12 CF/CM36A 1.01 0.96 0.97 TPLC080B12MP12 CF/CM/CU36B 1.03 1.01 0.99 TPLC080B12MP12 CF42B 1.01 0.96 0.95 TPLC080C16MP12 CF/CM/CU30C 1.02 1.01 0.96 TPLC080C16MP12 CF/CM/CU36C 1.03 1.08 0.95 TPLC080C16MP12 CF/CM/CU42C 1.03 1.00 0.95 TPLC100C16MP12 CF/CM/CU30C 1.02 1.01 0.96 TPLC100C16MP12 CF/CM/CU36C 1.03 1.08 0.95 TPLC100C16MP12 CF/CM/CU42C 1.03 1.00 0.95 TPLC100C20MP12 CF/CM/CU36C 1.03 1.08 0.97

FURNACE MULTIPLIERS - 2.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TPLC100C20MP12 CF/CM/CU42C 1.03 1.09 0.97 TPLC120C20MP12 CF/CM/CU36C 1.03 1.08 0.97 TPLC120C20MP12 CF/CM/CU42C 1.03 1.09 0.97 YP9C060B12MP12 CF/CM/CU30B 1.00 0.93 0.94 YP9C060B12MP12 CF/CM/CU36B 1.03 1.01 0.97 YP9C060B12MP12 CF42B 1.03 1.00 0.95 YP9C080B12MP12 CF/CM/CU30B 1.00 0.93 0.94 YP9C080B12MP12 CF/CM/CU36B 1.03 1.01 0.97 YP9C080B12MP12 CF42B 1.03 1.00 0.95 YP9C080C16MP12 CF/CM/CU30C 1.03 1.02 0.95 YP9C080C16MP12 CF/CM/CU36C 1.03 1.03 0.95 YP9C080C16MP12 CF/CM/CU42C 1.03 1.04 0.95 YP9C100C16MP12 CF/CM/CU30C 1.03 1.02 0.95 YP9C100C16MP12 CF/CM/CU36C 1.03 1.03 0.95 YP9C100C16MP12 CF/CM/CU42C 1.03 1.04 0.95 YP9C100C20MP12 CF/CM/CU30C 1.03 1.08 0.97 YP9C100C20MP12 CF/CM/CU36C 1.03 1.07 0.97 YP9C120D20MP12 CF/CM/CU36D 1.03 1.09 0.92 YP9C120D20MP12 CF/CM/CU42D 1.03 1.10 0.95 YPLC060A12MP12 CF/CM/CU30A 1.02 1.01 1.00 YPLC060A12MP12 CF/CM36A 1.01 0.96 0.97 YPLC080B12MP12 CF/CM/CU36B 1.03 1.01 0.99 YPLC080B12MP12 CF42B 1.01 0.96 0.95 YPLC080C16MP12 CF/CM/CU30C 1.02 1.01 0.96 YPLC080C16MP12 CF/CM/CU36C 1.03 1.08 0.95 YPLC080C16MP12 CF/CM/CU42C 1.03 1.00 0.95 YPLC100C16MP12 CF/CM/CU30C 1.02 1.01 0.96 YPLC100C16MP12 CF/CM/CU36C 1.03 1.08 0.95 YPLC100C16MP12 CF/CM/CU42C 1.03 1.00 0.95 YPLC100C20MP12 CF/CM/CU36C 1.03 1.08 0.97 YPLC100C20MP12 CF/CM/CU42C 1.03 1.09 0.97 YPLC120C20MP12 CF/CM/CU36C 1.03 1.08 0.97 YPLC120C20MP12 CF/CM/CU42C 1.03 1.09 0.97

54 Johnson Controls Unitary Products

Page 55

5006142-YTG-A-0815

PERFORMANCE DATA - 3 TON

CONDENSER-ONLY DATA (OUTDOOR UNIT)

SATURATED SUCTION

MODEL

@ COMPRESSOR

55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F

T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW

35 107 33.5 1.75 31.8 1.95 30.1 2.16 28.4 2.39 26.6 2.67 24.7 3.01 22.7 3.38 20.6 3.84 40 118 36.9 1.76 35.1 1.95 33.3 2.16 31.4 2.39 29.5 2.67 27.4 3.00 25.2 3.38 22.9 3.83

YFE36B21S

45 130 40.5 1.77 38.6 1.96 36.7 2.16 34.6 2.40 32.5 2.67 30.3 3.00 27.9 3.38 25.5 3.82 50 142 44.4 1.78 42.4 1.97 40.2 2.17 38.1 2.41 35.8 2.68 33.4 3.00 30.8 3.38 28.2 3.81 55 156 48.6 1.80 46.3 1.98 44.1 2.18 41.7 2.41 39.2 2.68 36.6 3.01 33.9 3.39 31.1 3.80

Notes:

1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.

3. Maximum recommended condensing temperature is 140°F.

COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YFE36B21S INDOOR COIL MODEL NO. CF36BXA1

AIR TEMP. ENTERING

OUTDOOR UNIT (°F)

IDCFM 1000 1200 1400 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 31.9 33.7 33.1 33.6 33.9 32.3 33.6 33.1 33.8 33.6 32.7 33.5 33.0 33.9 33.3

S.C. 31.9 26.6 22.7 21.3 16.4 32.3 27.0 23.2 21.5 16.4 32.7 27.3 23.6 21.7 16.4 KW 1.96 1.97 1.97 1.97 1.97 2.04 2.05 2.04 2.05 2.05 2.11 2.12 2.12 2.12 2.12 T.C. 31.5 33.8 33.6 34.9 35.6 32.4 34.0 33.8 35.0 35.3 33.3 34.2 34.0 35.1 35.1

S.C. 31.5 27.8 23.6 22.3 17.2 32.4 28.7 24.3 22.8 17.3 33.3 29.6 25.0 23.2 17.4 KW 2.16 2.17 2.17 2.17 2.18 2.23 2.24 2.24 2.25 2.25 2.31 2.31 2.31 2.32 2.32 T.C. 31.1 33.9 34.0 36.2 37.2 32.5 34.4 34.5 36.2 37.0 33.8 34.9 35.1 36.3 36.9

S.C. 31.1 29.0 24.5 23.4 17.9 32.5 30.4 25.5 24.1 18.1 33.8 31.8 26.4 24.8 18.4 KW 2.35 2.36 2.36 2.38 2.38 2.43 2.44 2.44 2.45 2.45 2.50 2.51 2.51 2.53 2.53 T.C. 30.0 32.6 32.6 35.5 37.1 31.4 33.2 33.2 35.6 37.0 32.8 33.8 33.8 35.8 37.0

S.C. 30.0 28.0 23.8 23.2 18.1 31.4 29.9 25.1 24.3 18.4 32.8 31.7 26.4 25.5 18.8 KW 2.62 2.63 2.62 2.64 2.64 2.69 2.70 2.70 2.71 2.71 2.77 2.77 2.77 2.79 2.79 T.C. 28.8 31.3 31.1 34.7 37.1 30.3 32.0

S.C. 28.8 27.1 23.0 23.0 18.3 30.3 29.4 24.8 24.6 18.7 31.8 31.6 26.5 26.2 19.2 KW 2.88 2.90 2.89 2.91 2.90 2.95 2.97 2.96 2.98 2.97 3.03 3.04 3.03 3.05 3.05 T.C. 27.5 29.5 29.2 32.8 35.2 28.9 30.3 29.9 33.0 35.3 30.3 31.0 30.5 33.3 35.4

105

S.C. 27.5 26.3 22.2 22.3 17.6 28.9 28.4 23.9 24.0 18.2 30.3 30.4 25.7 25.6 18.8 KW 3.28 3.29 3.28 3.29 3.29 3.36 3.36 3.35 3.36 3.36 3.43 3.42 3.42 3.44 3.44 T.C. 26.3 27.8 27.4 30.8 33.4 27.5 28.6 28.0 31.1 33.6 28.8 29.4 28.6 31.3 33.8

115

S.C. 26.3 25.6 21.4 21.7 17.0 27.5 27.4 23.1 23.4 17.7 28.8 29.3 24.8 25.1 18.5 KW 3.68 3.68 3.66 3.66 3.67 3.75 3.74 3.73 3.74 3.74 3.82 3.80 3.80 3.81 3.81 T.C. 25.1 26.1 25.6 28.9 31.6 26.2 26.9 26.1 29.2 31.9 27.3 27.8 26.7 29.4 32.2

125

S.C. 25.1 24.9 20.5 21.1 16.3 26.2 26.5 22.3 22.8 17.2 27.3 27.8 24.0 24.5 18.1 KW 4.07 4.06 4.04 4.04 4.05 4.14 4.12 4.11 4.11 4.12 4.20 4.17 4.18 4.18 4.19

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).

Green shaded cells are ACCA (TVA) conditions. Blue shaded cells are AHRI conditions.

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

Outdoor Ambient Temperature

31.8 35.0 37.1 31.8 32.6 32.5 35.3 37.1

Johnson Controls Unitary Products 55

Page 56

5006142-YTG-A-0815

COIL MULTIPLIERS - 3 TON

Air Handler Coil T.C. S.C. KW

– CF/CM/CU36B 1.00 1.00 1.00 – CF/CM/CU36C 1.00 1.00 1.00 – CF/CM/CU36D 1.00 1.00 1.00 – CF/CM/CU42C 1.03 1.06 1.03 – CF/CM/CU42D 1.03 1.06 1.03 – CF/CM/CU48C 1.03 1.04 1.03 – CF/CM/CU48D 1.03 1.04 1.03 – CF42B 1.03 1.06 1.03 AE36BX21 – 1.02 0.98 0.96 AE36CX21 – 1.03 1.06 0.97 AE42CX21 – 1.03 1.05 0.97 AE48CX21 – 1.03 1.07 0.95 AE48DX21 – 1.03 1.06 0.95 AP36BX21 – 1.00 0.95 1.00 AP36CX21 – 1.03 1.05 1.03 AP42CX21 – 1.03 1.06 1.03 AP48CX21 – 1.03 1.04 1.03 AP48DX21 – 1.03 1.08 1.03 AVC36BX21 – 1.02 0.98 0.96 AVC36CX21 – 1.03 1.04 0.95 AVC42CX21 – 1.03 1.03 0.95 AVC48CX21 – 1.03 1.01 0.95 AVC48DX21 – 1.03 1.10 0.95 ME12BN21 CF/CM36B 1.02 0.98 0.96 ME12BN21 CF42B 1.02 0.98 0.98 ME14DN21 CF/CM36D 1.03 1.07 0.95 ME14DN21 CF/CM42D 1.03 1.06 0.95 ME14DN21 CF/CM48D 1.03 1.05 0.95 ME16CN21 CF/CM36C 1.03 1.06 0.95 ME16CN21 CF/CM42C 1.03 1.06 0.95 ME16CN21 CF/CM48C 1.03 1.06 0.95 ME20DN21 CF/CM36D 1.03 1.09 0.99 ME20DN21 CF/CM42D 1.03 1.09 0.99 ME20DN21 CF/CM48D 1.03 1.09 0.99 MVC08BN21 CF42B 1.02 0.98 0.98 MVC12BN21 CF/CM36B 1.02 0.98 0.98 MVC12BN21 CF42B 1.02 0.98 0.98 MVC14DN21 CF/CM36D 1.02 0.96 0.96 MVC14DN21 CF/CM42D 1.03 1.07 0.95 MVC14DN21 CF/CM48D 1.03 1.03 0.95 MVC16CN21 CF/CM36C 1.03 1.02 0.95 MVC16CN21 CF/CM42C 1.03 1.07 0.97 MVC16CN21 CF/CM48C 1.03 1.05 0.95 MVC20DN21 CF/CM36D 1.03 1.02 0.95 MVC20DN21 CF/CM42D 1.03 1.06 0.97 MVC20DN21 CF/CM48D 1.03 1.05 0.95

FURNACE MULTIPLIERS - 3 TON

Furnaces Coil T.C. S.C. KW

TM8V060A12MP11 CF/CM36A 1.00 0.94 1.00 TM8V080B12MP11 CF/CM/CU36B 1.02 0.98 1.00 TM8V080B12MP11 CF42B 1.02 0.97 0.98 TM8V080C16MP11 CF/CM/CU36C 1.03 1.02 0.97 TM8V080C16MP11 CF/CM/CU42C 1.03 1.10 0.99 TM8V080C16MP11 CF/CM/CU48C 1.03 1.00 0.97

FURNACE MULTIPLIERS - 3 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8V080C16MP11 CF/CM/CU48D 1.03 0.99 0.97 TM8V100C16MP11 CF/CM/CU36C 1.03 1.02 0.97 TM8V100C16MP11 CF/CM/CU42C 1.03 1.10 0.99 TM8V100C16MP11 CF/CM/CU48C 1.03 1.00 0.97 TM8V100C16MP11 CF/CM/CU48D 1.03 0.99 0.97 TM8V100C20MP11 CF/CM/CU36C 1.03 1.02 0.99 TM8V100C20MP11 CF/CM/CU42C 1.03 1.02 0.99 TM8V100C20MP11 CF/CM/CU48C 1.03 1.06 0.97 TM8V100C20MP11 CF/CM/CU48D 1.03 1.02 0.93 TM8V120C20MP11 CF/CM/CU36C 1.03 1.02 0.99 TM8V120C20MP11 CF/CM/CU42C 1.03 1.02 0.99 TM8V120C20MP11 CF/CM/CU48C 1.03 1.06 0.97 TM8V120C20MP11 CF/CM/CU48D 1.03 1.02 0.93 TM8X060A12MP11 CF/CM36A 1.01 0.95 0.96 TM8X080B12MP11 CF/CM/CU36B 1.01 0.95 0.97 TM8X080B12MP11 CF42B 1.02 0.98 0.98 TM8X080C16MP11 CF/CM/CU36C 1.02 1.00 0.96 TM8X080C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TM8X080C16MP11 CF/CM/CU42C 1.03 1.06 0.97 TM8X080C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TM8X080C16MP11 CF/CM/CU48C 1.03 1.05 0.97 TM8X080C16MP11 CF/CM/CU48D 1.03 1.01 0.95 TM8X100C16MP11 CF/CM/CU36C 1.02 1.00 0.96 TM8X100C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TM8X100C16MP11 CF/CM/CU42C 1.03 1.06 0.97 TM8X100C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TM8X100C16MP11 CF/CM/CU48C 1.03 1.05 0.97 TM8X100C16MP11 CF/CM/CU48D 1.03 1.01 0.95 TM8X100C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TM8X100C20MP11 CF/CM/CU36D 1.03 1.08 0.97 TM8X100C20MP11 CF/CM/CU42C 1.03 1.02 0.97 TM8X100C20MP11 CF/CM/CU42D 1.03 1.02 0.95 TM8X100C20MP11 CF/CM/CU48C 1.03 1.09 0.97 TM8X100C20MP11 CF/CM/CU48D 1.03 1.04 0.99 TM8X120C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TM8X120C20MP11 CF/CM/CU36D 1.03 1.08 0.97 TM8X120C20MP11 CF/CM/CU42C 1.03 1.02 0.97 TM8X120C20MP11 CF/CM/CU42D 1.03 1.02 0.95 TM8X120C20MP11 CF/CM/CU48C 1.03 1.09 0.97 TM8X120C20MP11 CF/CM/CU48D 1.03 1.04 0.99 TM8Y060A12MP11 CF/CM36A 1.01 0.95 0.96 TM8Y080B12MP11 CF/CM/CU36B 1.01 0.95 0.97 TM8Y080B12MP11 CF42B 1.02 0.98 0.98 TM8Y080C16MP11 CF/CM/CU36C 1.02 1.00 0.96 TM8Y080C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TM8Y080C16MP11 CF/CM/CU42C 1.03 1.06 0.97 TM8Y080C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TM8Y080C16MP11 CF/CM/CU48C 1.03 1.05 0.97 TM8Y080C16MP11 CF/CM/CU48D 1.03 1.01 0.95 TM8Y100C16MP11 CF/CM/CU36C 1.02 1.00 0.96 TM8Y100C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TM8Y100C16MP11 CF/CM/CU42C 1.03 1.06 0.97 TM8Y100C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TM8Y100C16MP11 CF/CM/CU48C 1.03 1.05 0.97 TM8Y100C16MP11 CF/CM/CU48D 1.03 1.01 0.95

56 Johnson Controls Unitary Products

Page 57

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 3 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8Y100C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TM8Y100C20MP11 CF/CM/CU36D 1.03 1.08 0.97 TM8Y100C20MP11 CF/CM/CU42C 1.03 1.02 0.97 TM8Y100C20MP11 CF/CM/CU42D 1.03 1.02 0.95 TM8Y100C20MP11 CF/CM/CU48C 1.03 1.09 0.97 TM8Y100C20MP11 CF/CM/CU48D 1.03 1.04 0.99 TM8Y120C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TM8Y120C20MP11 CF/CM/CU36D 1.03 1.08 0.97 TM8Y120C20MP11 CF/CM/CU42C 1.03 1.02 0.97 TM8Y120C20MP11 CF/CM/CU42D 1.03 1.02 0.95 TM8Y120C20MP11 CF/CM/CU48C 1.03 1.09 0.97 TM8Y120C20MP11 CF/CM/CU48D 1.03 1.04 0.99 TM9E060B12MP11 CF/CM/CU36B 1.01 0.95 0.97 TM9E060B12MP11 CF42B 1.02 0.98 0.98 TM9E080B12MP11 CF/CM/CU36B 1.01 0.95 0.97 TM9E080B12MP11 CF42B 1.02 0.98 0.98 TM9E080C16MP11 CF/CM/CU36C 1.03 1.01 0.97 TM9E080C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TM9E080C16MP11 CF/CM/CU42C 1.03 1.02 0.97 TM9E080C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TM9E080C16MP11 CF/CM/CU48C 1.03 1.01 0.97 TM9E080C16MP11 CF/CM/CU48D 1.03 1.01 0.97 TM9E100C16MP11 CF/CM/CU36C 1.03 1.01 0.97 TM9E100C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TM9E100C16MP11 CF/CM/CU42C 1.03 1.02 0.97 TM9E100C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TM9E100C16MP11 CF/CM/CU48C 1.03 1.01 0.97 TM9E100C16MP11 CF/CM/CU48D 1.03 1.01 0.97 TM9E100C20MP11 CF/CM/CU36C 1.02 0.96 0.96 TM9E100C20MP11 CF/CM/CU36D 1.02 0.96 0.96 TM9E100C20MP11 CF/CM/CU42C 1.03 1.07 0.97 TM9E100C20MP11 CF/CM/CU42D 1.03 0.98 0.97 TM9E100C20MP11 CF/CM/CU48C 1.03 0.98 0.97 TM9E100C20MP11 CF/CM/CU48D 1.03 0.98 0.95 TM9E120D20MP11 CF/CM/CU36D 1.03 1.07 0.97 TM9E120D20MP11 CF/CM/CU42D 1.03 1.07 0.97 TM9E120D20MP11 CF/CM/CU48D 1.03 1.08 0.97 TM9V060B12MP11 CF/CM/CU36B 1.02 0.99 0.98 TM9V060B12MP11 CF42B 1.03 1.05 0.99 TM9V080B12MP11 CF/CM/CU36B 1.02 0.99 0.98 TM9V080B12MP11 CF42B 1.03 1.05 0.99 TM9V080C16MP11 CF/CM/CU36C 1.02 0.96 0.96 TM9V080C16MP11 CF/CM/CU42C 1.03 0.98 0.97 TM9V080C16MP11 CF/CM/CU48C 1.03 1.07 0.99 TM9V080C16MP11 CF/CM/CU48D 1.03 1.05 0.97 TM9V100C16MP11 CF/CM/CU36C 1.02 0.96 0.96 TM9V100C16MP11 CF/CM/CU42C 1.03 0.98 0.97 TM9V100C16MP11 CF/CM/CU48C 1.03 1.07 0.99 TM9V100C16MP11 CF/CM/CU48D 1.03 1.05 0.97 TM9V100C20MP11 CF/CM/CU36C 1.03 1.01 0.99 TM9V100C20MP11 CF/CM/CU42C 1.03 1.07 0.99 TM9V100C20MP11 CF/CM/CU48C 1.03 1.04 0.99 TM9V100C20MP11 CF/CM/CU48D 1.03 1.06 0.97 TM9V120D20MP11 CF/CM/CU36D 1.03 1.02 0.95 TM9V120D20MP11 CF/CM/CU42D 1.03 1.02 0.97

FURNACE MULTIPLIERS - 3 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM9V120D20MP11 CF/CM/CU48D 1.03 1.07 0.97 TM9Y060B12MP11 CF/CM/CU36B 1.01 0.95 0.97 TM9Y060B12MP11 CF42B 1.02 0.98 0.98 TM9Y080B12MP11 CF/CM/CU36B 1.01 0.95 0.97 TM9Y080B12MP11 CF42B 1.02 0.98 0.98 TM9Y080C16MP11 CF/CM/CU36C 1.03 1.01 0.97 TM9Y080C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TM9Y080C16MP11 CF/CM/CU42C 1.03 1.02 0.97 TM9Y080C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TM9Y080C16MP11 CF/CM/CU48C 1.03 1.01 0.97 TM9Y080C16MP11 CF/CM/CU48D 1.03 1.01 0.97 TM9Y100C16MP11 CF/CM/CU36C 1.03 1.01 0.97 TM9Y100C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TM9Y100C16MP11 CF/CM/CU42C 1.03 1.02 0.97 TM9Y100C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TM9Y100C16MP11 CF/CM/CU48C 1.03 1.01 0.97 TM9Y100C16MP11 CF/CM/CU48D 1.03 1.01 0.97 TM9Y100C20MP11 CF/CM/CU36C 1.02 0.96 0.96 TM9Y100C20MP11 CF/CM/CU36D 1.02 0.96 0.96 TM9Y100C20MP11 CF/CM/CU42C 1.03 1.07 0.97 TM9Y100C20MP11 CF/CM/CU42D 1.03 0.98 0.97 TM9Y100C20MP11 CF/CM/CU48C 1.03 0.98 0.97 TM9Y100C20MP11 CF/CM/CU48D 1.03 0.98 0.95 TM9Y120D20MP11 CF/CM/CU36D 1.03 1.07 0.97 TM9Y120D20MP11 CF/CM/CU42D 1.03 1.07 0.97 TM9Y120D20MP11 CF/CM/CU48D 1.03 1.08 0.97 TMLV060A12MP11 CF/CM36A 1.00 0.94 1.00 TMLV080B12MP11 CF/CM/CU36B 1.02 0.98 1.00 TMLV080B12MP11 CF42B 1.02 0.97 0.98 TMLV080C16MP11 CF/CM/CU36C 1.03 1.02 0.97 TMLV080C16MP11 CF/CM/CU42C 1.03 1.10 0.99 TMLV080C16MP11 CF/CM/CU48C 1.03 1.00 0.97 TMLV080C16MP11 CF/CM/CU48D 1.03 0.99 0.97 TMLV100C16MP11 CF/CM/CU36C 1.03 1.02 0.97 TMLV100C16MP11 CF/CM/CU42C 1.03 1.10 0.99 TMLV100C16MP11 CF/CM/CU48C 1.03 1.00 0.97 TMLV100C16MP11 CF/CM/CU48D 1.03 0.99 0.97 TMLV100C20MP11 CF/CM/CU36C 1.03 1.02 0.99 TMLV100C20MP11 CF/CM/CU42C 1.03 1.02 0.99 TMLV100C20MP11 CF/CM/CU48C 1.03 1.06 0.97 TMLV100C20MP11 CF/CM/CU48D 1.03 1.02 0.93 TMLV120C20MP11 CF/CM/CU36C 1.03 1.02 0.99 TMLV120C20MP11 CF/CM/CU42C 1.03 1.02 0.99 TMLV120C20MP11 CF/CM/CU48C 1.03 1.06 0.97 TMLV120C20MP11 CF/CM/CU48D 1.03 1.02 0.93 TMLX060A12MP11 CF/CM36A 1.01 0.95 0.96 TMLX080B12MP11 CF/CM/CU36B 1.01 0.95 0.97 TMLX080B12MP11 CF42B 1.02 0.98 0.98 TMLX080C16MP11 CF/CM/CU36C 1.02 1.00 0.96 TMLX080C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TMLX080C16MP11 CF/CM/CU42C 1.03 1.06 0.97 TMLX080C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TMLX080C16MP11 CF/CM/CU48C 1.03 1.05 0.97 TMLX080C16MP11 CF/CM/CU48D 1.03 1.01 0.95 TMLX100C16MP11 CF/CM/CU36C 1.02 1.00 0.96

Johnson Controls Unitary Products 57

Page 58

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 3 TON (Continued)

Furnaces Coil T.C. S.C. KW

TMLX100C16MP11 CF/CM/CU36D 1.03 1.01 0.97 TMLX100C16MP11 CF/CM/CU42C 1.03 1.06 0.97 TMLX100C16MP11 CF/CM/CU42D 1.03 1.02 0.97 TMLX100C16MP11 CF/CM/CU48C 1.03 1.05 0.97 TMLX100C16MP11 CF/CM/CU48D 1.03 1.01 0.95 TMLX100C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TMLX100C20MP11 CF/CM/CU36D 1.03 1.08 0.97 TMLX100C20MP11 CF/CM/CU42C 1.03 1.02 0.97 TMLX100C20MP11 CF/CM/CU42D 1.03 1.02 0.95 TMLX100C20MP11 CF/CM/CU48C 1.03 1.09 0.97 TMLX100C20MP11 CF/CM/CU48D 1.03 1.04 0.99 TMLX120C20MP11 CF/CM/CU36C 1.03 1.08 0.97 TMLX120C20MP11 CF/CM/CU36D 1.03 1.08 0.97 TMLX120C20MP11 CF/CM/CU42C 1.03 1.02 0.97 TMLX120C20MP11 CF/CM/CU42D 1.03 1.02 0.95 TMLX120C20MP11 CF/CM/CU48C 1.03 1.09 0.97 TMLX120C20MP11 CF/CM/CU48D 1.03 1.04 0.99 TP9C060B12MP12 CF/CM/CU36B 1.02 0.99 0.98 TP9C060B12MP12 CF42B 1.03 1.05 0.99 TP9C080B12MP12 CF/CM/CU36B 1.02 0.99 0.98 TP9C080B12MP12 CF42B 1.03 1.05 0.99 TP9C080C16MP12 CF/CM/CU36C 1.02 0.96 0.96 TP9C080C16MP12 CF/CM/CU42C 1.03 0.98 0.97 TP9C080C16MP12 CF/CM/CU48C 1.03 1.07 0.99 TP9C080C16MP12 CF/CM/CU48D 1.03 1.05 0.97 TP9C100C16MP12 CF/CM/CU36C 1.02 0.96 0.96 TP9C100C16MP12 CF/CM/CU42C 1.03 0.98 0.97 TP9C100C16MP12 CF/CM/CU48C 1.03 1.07 0.99 TP9C100C16MP12 CF/CM/CU48D 1.03 1.05 0.97 TP9C100C20MP12 CF/CM/CU36C 1.03 1.01 0.99 TP9C100C20MP12 CF/CM/CU42C 1.03 1.07 0.99 TP9C100C20MP12 CF/CM/CU48C 1.03 1.04 0.99 TP9C100C20MP12 CF/CM/CU48D 1.03 1.06 0.97 TP9C120D20MP12 CF/CM/CU36D 1.03 1.02 0.95 TP9C120D20MP12 CF/CM/CU42D 1.03 1.02 0.97 TP9C120D20MP12 CF/CM/CU48D 1.03 1.07 0.97 TPLC060A12MP12 CF/CM36A 1.00 0.94 1.00 TPLC080B12MP12 CF/CM/CU36B 1.02 0.98 1.00 TPLC080B12MP12 CF42B 1.02 0.97 0.98 TPLC080C16MP12 CF/CM/CU36C 1.03 1.02 0.97 TPLC080C16MP12 CF/CM/CU42C 1.03 1.10 0.99 TPLC080C16MP12 CF/CM/CU48C 1.03 1.00 0.97 TPLC080C16MP12 CF/CM/CU48D 1.03 0.99 0.97 TPLC100C16MP12 CF/CM/CU36C 1.03 1.02 0.97 TPLC100C16MP12 CF/CM/CU42C 1.03 1.10 0.99 TPLC100C16MP12 CF/CM/CU48C 1.03 1.00 0.97 TPLC100C16MP12 CF/CM/CU48D 1.03 0.99 0.97 TPLC100C20MP12 CF/CM/CU36C 1.03 1.02 0.99

FURNACE MULTIPLIERS - 3 TON (Continued)

Furnaces Coil T.C. S.C. KW

TPLC100C20MP12 CF/CM/CU42C 1.03 1.02 0.99 TPLC100C20MP12 CF/CM/CU48C 1.03 1.06 0.97 TPLC100C20MP12 CF/CM/CU48D 1.03 1.02 0.93 TPLC120C20MP12 CF/CM/CU36C 1.03 1.02 0.99 TPLC120C20MP12 CF/CM/CU42C 1.03 1.02 0.99 TPLC120C20MP12 CF/CM/CU48C 1.03 1.06 0.97 TPLC120C20MP12 CF/CM/CU48D 1.03 1.02 0.93 YP9C060B12MP12 CF/CM/CU36B 1.02 0.99 0.98 YP9C060B12MP12 CF42B 1.03 1.05 0.99 YP9C080B12MP12 CF/CM/CU36B 1.02 0.99 0.98 YP9C080B12MP12 CF42B 1.03 1.05 0.99 YP9C080C16MP12 CF/CM/CU36C 1.02 0.96 0.96 YP9C080C16MP12 CF/CM/CU42C 1.03 0.98 0.97 YP9C080C16MP12 CF/CM/CU48C 1.03 1.07 0.99 YP9C080C16MP12 CF/CM/CU48D 1.03 1.05 0.97 YP9C100C16MP12 CF/CM/CU36C 1.02 0.96 0.96 YP9C100C16MP12 CF/CM/CU42C 1.03 0.98 0.97 YP9C100C16MP12 CF/CM/CU48C 1.03 1.07 0.99 YP9C100C16MP12 CF/CM/CU48D 1.03 1.05 0.97 YP9C100C20MP12 CF/CM/CU36C 1.03 1.01 0.99 YP9C100C20MP12 CF/CM/CU42C 1.03 1.07 0.99 YP9C100C20MP12 CF/CM/CU48C 1.03 1.04 0.99 YP9C100C20MP12 CF/CM/CU48D 1.03 1.06 0.97 YP9C120D20MP12 CF/CM/CU36D 1.03 1.02 0.95 YP9C120D20MP12 CF/CM/CU42D 1.03 1.02 0.97 YP9C120D20MP12 CF/CM/CU48D 1.03 1.07 0.97 YPLC060A12MP12 CF/CM36A 1.00 0.94 1.00 YPLC080B12MP12 CF/CM/CU36B 1.02 0.98 1.00 YPLC080B12MP12 CF42B 1.02 0.97 0.98 YPLC080C16MP12 CF/CM/CU36C 1.03 1.02 0.97 YPLC080C16MP12 CF/CM/CU42C 1.03 1.10 0.99 YPLC080C16MP12 CF/CM/CU48C 1.03 1.00 0.97 YPLC080C16MP12 CF/CM/CU48D 1.03 0.99 0.97 YPLC100C16MP12 CF/CM/CU36C 1.03 1.02 0.97 YPLC100C16MP12 CF/CM/CU42C 1.03 1.10 0.99 YPLC100C16MP12 CF/CM/CU48C 1.03 1.00 0.97 YPLC100C16MP12 CF/CM/CU48D 1.03 0.99 0.97 YPLC100C20MP12 CF/CM/CU36C 1.03 1.02 0.99 YPLC100C20MP12 CF/CM/CU42C 1.03 1.02 0.99 YPLC100C20MP12 CF/CM/CU48C 1.03 1.06 0.97 YPLC100C20MP12 CF/CM/CU48D 1.03 1.02 0.93 YPLC120C20MP12 CF/CM/CU36C 1.03 1.02 0.99 YPLC120C20MP12 CF/CM/CU42C 1.03 1.02 0.99 YPLC120C20MP12 CF/CM/CU48C 1.03 1.06 0.97 YPLC120C20MP12 CF/CM/CU48D 1.03 1.02 0.93

58 Johnson Controls Unitary Products

Page 59

5006142-YTG-A-0815

PERFORMANCE DATA - 3.5 TON

CONDENSER-ONLY DATA (OUTDOOR UNIT)

SATURATED SUCTION

MODEL

@ COMPRESSOR

55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F

T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW

35 107 38.1 1.80 36.2 2.01 34.4 2.24 32.7 2.50 30.8 2.81 28.8 3.17 26.5 3.59 23.9 4.08 40 118 41.8 1.81 39.8 2.02 37.9 2.24 35.9 2.50 33.9 2.80 31.7 3.16 29.3 3.58 26.6 4.07

YFE42B21S

45 130 45.9 1.83 43.7 2.03 41.5 2.25 39.4 2.51 37.2 2.79 34.9 3.15 32.3 3.57 29.4 4.05 50 142 50.1 1.86 47.7 2.04 44.9 2.27 43.2 2.51 40.8 2.80 38.2 3.15 35.5 3.56 32.4 4.03 55 156 54.8 1.88 51.9 2.07 49.1 2.29 47.1 2.53 44.5 2.80 41.8 3.14 38.8 3.55 35.6 4.02

Notes:

1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.

3. Maximum recommended condensing temperature is 140°F.

COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YFE42B21S INDOOR COIL MODEL NO. CF42CXA1

AIR TEMP. ENTERING

OUTDOOR UNIT (°F)

IDCFM 1200 1400 1600 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 39.2 40.4 40.5 40.8 39.9 40.0 40.8 40.8 41.0 39.8 40.8 41.3 41.2 41.2 39.7

S.C. 38.6 35.3 30.6 27.2 20.5 39.3 36.6 32.0 27.9 20.8 40.0 38.0 33.4 28.6 21.1 KW 2.17 2.18 2.18 2.19 2.19 2.25 2.26 2.26 2.26 2.27 2.32 2.33 2.33 2.34 2.34 T.C. 38.1 39.5 39.7 41.6 42.4 39.3 40.3 40.3 42.1 42.5 40.5 41.1 40.9 42.6 42.6

S.C. 37.5 35.4 30.6 28.8 22.1 38.6 37.3 32.4 30.2 22.8 39.8 39.1 34.2 31.7 23.4 KW 2.38 2.40 2.39 2.41 2.41 2.46 2.48 2.47 2.49 2.49 2.53 2.56 2.55 2.57 2.57 T.C. 37.0 38.7 38.9 42.4 44.9 38.6 39.8 39.8 43.2 45.2 40.3 41.0 40.7 44.1 45.4

S.C. 36.4 35.6 30.5 30.3 23.7 38.0 37.9 32.7 32.5 24.7 39.5 40.2 35.0 34.8 25.7 KW 2.58 2.62 2.60 2.64 2.64 2.67 2.70 2.68 2.71 2.72 2.75 2.78 2.76 2.79 2.80 T.C. 35.5 36.6 37.1 40.5 43.4 37.1 37.6 38.0 41.6 43.9 38.7 38.7 38.8 42.7 44.3

S.C. 34.9 34.4 29.6 29.5 23.3 36.5 36.2 31.8 31.8 24.5 38.0 38.1 34.1 34.0 25.8 KW 2.86 2.91 2.88 2.92 2.92 2.95 2.99 2.96 3.00 3.00 3.03 3.07 3.04 3.07 3.08 T.C. 34.1 34.4 35.3 38.6 42.0 35.6 35.4

S.C. 33.5 33.2 28.7 28.7 22.9 35.0 34.5 31.0 31.0 24.3 36.5 35.9 33.2 33.3 25.8 KW 3.15 3.19 3.16 3.20 3.20 3.23 3.27 3.24 3.28 3.28 3.31 3.35 3.32 3.36 3.37 T.C. 32.4 32.4 33.1 36.3 39.4 33.8 33.5 33.9 37.5 40.0 35.1 34.6 34.6 38.6 40.6

105

S.C. 31.9 31.5 27.6 27.7 22.0 33.2 32.7 29.8 30.0 23.5 34.5 33.9 32.0 32.2 25.0 KW 3.57 3.62 3.58 3.62 3.63 3.65 3.69 3.66 3.69 3.71 3.73 3.77 3.74 3.77 3.78 T.C. 30.8 30.5 31.0 34.1 36.9 32.0 31.6 31.7 35.1 37.5 33.2 32.6 32.4 36.0 38.2

115

S.C. 30.3 29.8 26.6 26.7 21.1 31.4 30.9 28.7 28.9 22.6 32.6 32.1 30.8 31.2 24.1 KW 3.97 4.03 3.98 4.02 4.04 4.05 4.10 4.06 4.10 4.11 4.13 4.18 4.14 4.17 4.19 T.C. 29.2 28.6 28.9 31.9 34.4 30.2 29.7 29.5 32.6 35.0 31.3 30.7 30.1 33.4 35.7

125

S.C. 28.7 28.1 25.5 25.7 20.3 29.7 29.2 27.6 27.9 21.8 30.7 30.2 29.6 30.1 23.3 KW 4.38 4.43 4.39 4.43 4.45 4.46 4.51 4.46 4.50 4.52 4.54 4.59 4.54 4.58 4.59

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).

Green shaded cells are ACCA (TVA) conditions. Blue shaded cells are AHRI conditions.

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

Outdoor Ambient Temperature

36.1 40.0 42.6 37.1 36.5 36.9 41.4 43.2

Johnson Controls Unitary Products 59

Page 60

5006142-YTG-A-0815

COIL MULTIPLIERS - 3.5 TON

Air Handler Coil T.C. S.C. KW

– CF/CM/CU42C 1.00 1.00 1.00 – CF/CM/CU42D 1.00 1.00 1.00 – CF/CM/CU48C 1.03 0.97 1.03 – CF/CM/CU48D 1.03 0.97 1.03 – CF/CM/CU60C 1.03 0.98 1.03 – CF/CM/CU60D 1.03 0.98 1.03 – CF/CM64D 1.04 1.00 1.03 – CF42B 0.96 0.87 0.96 AE42CX21 – 1.03 1.00 1.00 AE48CX21 – 1.03 0.94 0.98 AE48DX21 – 1.03 0.94 0.98 AE60CX21 – 1.04 1.03 1.01 AE60DX21 – 1.05 1.00 1.00 AP42CX21 – 1.00 0.90 1.00 AP48CX21 – 1.01 0.94 1.01 AP48DX21 – 1.03 0.97 1.02 AP60CX21 – 1.01 0.95 1.01 AVC42CX21 – 1.03 0.95 1.00 AVC48CX21 – 1.03 0.94 0.98 AVC48DX21 – 1.04 0.97 0.99 AVC60CX21 – 1.03 0.97 0.98 AVC60DX21 – 1.04 0.94 0.99 ME14DN21 CF/CM42D 1.04 1.00 0.99 ME14DN21 CF/CM48D 1.04 1.00 0.99 ME14DN21 CF/CM60D 1.03 0.95 0.96 ME14DN21 CF/CM64D 1.05 1.00 1.00 ME16CN21 CF/CM42C 1.04 1.00 1.01 ME16CN21 CF/CM48C 1.03 0.94 0.98 ME16CN21 CF/CM60C 1.03 0.95 0.96 ME20DN21 CF/CM42D 1.04 1.02 0.99 ME20DN21 CF/CM48D 1.05 1.03 1.00 ME20DN21 CF/CM60D 1.05 1.02 1.00 ME20DN21 CF/CM64D 1.05 1.02 1.00 MVC12BN21 CF42B 1.00 0.89 1.00 MVC14DN21 CF/CM42D 1.03 1.00 0.98 MVC14DN21 CF/CM48D 1.04 0.97 0.99 MVC14DN21 CF/CM60D 1.03 0.95 0.98 MVC14DN21 CF/CM64D 1.04 0.98 0.97 MVC16CN21 CF/CM42C 1.03 0.94 0.98 MVC16CN21 CF/CM48C 1.03 0.95 0.98 MVC20DN21 CF/CM42D 1.01 0.94 0.99 MVC20DN21 CF/CM48D 1.04 0.97 0.99 MVC20DN21 CF/CM60D 1.04 0.95 0.96 MVC20DN21 CF/CM64D 1.05 0.95 1.00

FURNACE MULTIPLIERS - 3.5 TON

Furnaces Coil T.C. S.C. KW

TM8V080C16MP11 CF/CM/CU42C 1.01 0.95 1.01 TM8V080C16MP11 CF/CM/CU48C 1.03 0.97 1.00 TM8V080C16MP11 CF/CM/CU48D 1.03 0.95 1.00 TM8V080C16MP11 CF/CM/CU60C 1.03 0.98 1.00 TM8V080C16MP11 CF/CM64D 1.04 0.95 0.99 TM8V100C16MP11 CF/CM/CU42C 1.01 0.95 1.01 TM8V100C16MP11 CF/CM/CU48C 1.03 0.97 1.00 TM8V100C16MP11 CF/CM/CU48D 1.03 0.95 1.00 TM8V100C16MP11 CF/CM/CU60C 1.03 0.98 1.00 TM8V100C16MP11 CF/CM64D 1.04 0.95 0.99

FURNACE MULTIPLIERS - 3.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8V100C20MP11 CF/CM/CU42C 1.01 0.94 0.99 TM8V100C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TM8V100C20MP11 CF/CM/CU60C 1.04 1.00 1.01 TM8V100C20MP11 CF/CM/CU60D 1.03 0.94 1.00 TM8V100C20MP11 CF/CM64D 1.03 0.90 1.00 TM8V120C20MP11 CF/CM/CU42C 1.01 0.94 0.99 TM8V120C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TM8V120C20MP11 CF/CM/CU60C 1.04 1.00 1.01 TM8V120C20MP11 CF/CM/CU60D 1.03 0.94 1.00 TM8V120C20MP11 CF/CM64D 1.03 0.90 1.00 TM8X080B12MP11 CF42B 1.00 0.89 0.98 TM8X080C16MP11 CF/CM/CU42C 1.00 0.90 0.98 TM8X080C16MP11 CF/CM/CU42D 1.03 0.98 1.00 TM8X080C16MP11 CF/CM/CU48C 1.04 0.98 1.01 TM8X080C16MP11 CF/CM/CU48D 1.04 0.98 1.01 TM8X080C16MP11 CF/CM/CU60C 1.01 0.90 0.97 TM8X080C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TM8X080C16MP11 CF/CM64D 1.03 0.90 1.00 TM8X100C16MP11 CF/CM/CU42C 1.00 0.90 0.98 TM8X100C16MP11 CF/CM/CU42D 1.03 0.98 1.00 TM8X100C16MP11 CF/CM/CU48C 1.04 0.98 1.01 TM8X100C16MP11 CF/CM/CU48D 1.04 0.98 1.01 TM8X100C16MP11 CF/CM/CU60C 1.01 0.90 0.97 TM8X100C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TM8X100C16MP11 CF/CM64D 1.03 0.90 1.00 TM8X100C20MP11 CF/CM/CU42C 1.03 1.00 1.00 TM8X100C20MP11 CF/CM/CU42D 1.03 0.95 1.00 TM8X100C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TM8X100C20MP11 CF/CM/CU48D 1.04 0.97 0.99 TM8X100C20MP11 CF/CM/CU60C 1.03 0.97 0.98 TM8X100C20MP11 CF/CM/CU60D 1.03 0.97 0.98 TM8X100C20MP11 CF/CM64D 1.04 0.97 0.99 TM8X120C20MP11 CF/CM/CU42C 1.03 1.00 1.00 TM8X120C20MP11 CF/CM/CU42D 1.03 0.95 1.00 TM8X120C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TM8X120C20MP11 CF/CM/CU48D 1.04 0.97 0.99 TM8X120C20MP11 CF/CM/CU60C 1.03 0.97 0.98 TM8X120C20MP11 CF/CM/CU60D 1.03 0.97 0.98 TM8X120C20MP11 CF/CM64D 1.04 0.97 0.99 TM8Y080B12MP11 CF42B 1.00 0.89 0.98 TM8Y080C16MP11 CF/CM/CU42C 1.00 0.90 0.98 TM8Y080C16MP11 CF/CM/CU42D 1.03 0.98 1.00 TM8Y080C16MP11 CF/CM/CU48C 1.04 0.98 1.01 TM8Y080C16MP11 CF/CM/CU48D 1.04 0.98 1.01 TM8Y080C16MP11 CF/CM/CU60C 1.01 0.90 0.97 TM8Y080C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TM8Y080C16MP11 CF/CM64D 1.03 0.90 1.00 TM8Y100C16MP11 CF/CM/CU42C 1.00 0.90 0.98 TM8Y100C16MP11 CF/CM/CU42D 1.03 0.98 1.00 TM8Y100C16MP11 CF/CM/CU48C 1.04 0.98 1.01 TM8Y100C16MP11 CF/CM/CU48D 1.04 0.98 1.01 TM8Y100C16MP11 CF/CM/CU60C 1.01 0.90 0.97 TM8Y100C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TM8Y100C16MP11 CF/CM64D 1.03 0.90 1.00 TM8Y100C20MP11 CF/CM/CU42C 1.03 1.00 1.00 TM8Y100C20MP11 CF/CM/CU42D 1.03 0.95 1.00 TM8Y100C20MP11 CF/CM/CU48C 1.03 0.95 1.00

60 Johnson Controls Unitary Products

Page 61

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 3.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8Y100C20MP11 CF/CM/CU48D 1.04 0.97 0.99 TM8Y100C20MP11 CF/CM/CU60C 1.03 0.97 0.98 TM8Y100C20MP11 CF/CM/CU60D 1.03 0.97 0.98 TM8Y100C20MP11 CF/CM64D 1.04 0.97 0.99 TM8Y120C20MP11 CF/CM/CU42C 1.03 1.00 1.00 TM8Y120C20MP11 CF/CM/CU42D 1.03 0.95 1.00 TM8Y120C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TM8Y120C20MP11 CF/CM/CU48D 1.04 0.97 0.99 TM8Y120C20MP11 CF/CM/CU60C 1.03 0.97 0.98 TM8Y120C20MP11 CF/CM/CU60D 1.03 0.97 0.98 TM8Y120C20MP11 CF/CM64D 1.04 0.97 0.99 TM9E080C16MP11 CF/CM/CU42C 1.01 0.94 0.99 TM9E080C16MP11 CF/CM/CU42D 1.01 0.95 1.01 TM9E080C16MP11 CF/CM/CU48C 1.03 0.97 1.00 TM9E080C16MP11 CF/CM/CU48D 1.01 0.94 0.99 TM9E080C16MP11 CF/CM/CU60C 1.01 0.90 0.99 TM9E080C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TM9E080C16MP11 CF/CM64D 1.04 0.95 0.99 TM9E100C16MP11 CF/CM/CU42C 1.01 0.94 0.99 TM9E100C16MP11 CF/CM/CU42D 1.01 0.95 1.01 TM9E100C16MP11 CF/CM/CU48C 1.03 0.97 1.00 TM9E100C16MP11 CF/CM/CU48D 1.01 0.94 0.99 TM9E100C16MP11 CF/CM/CU60C 1.01 0.90 0.99 TM9E100C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TM9E100C16MP11 CF/CM64D 1.04 0.95 0.99 TM9E100C20MP11 CF/CM/CU42C 1.01 0.94 0.99 TM9E100C20MP11 CF/CM/CU42D 1.01 0.94 0.99 TM9E100C20MP11 CF/CM/CU48C 1.03 0.94 1.00 TM9E100C20MP11 CF/CM/CU48D 1.03 0.94 1.00 TM9E100C20MP11 CF/CM/CU60C 1.03 0.94 0.98 TM9E100C20MP11 CF/CM/CU60D 1.04 0.95 0.99 TM9E100C20MP11 CF/CM64D 1.04 0.95 0.99 TM9E120D20MP11 CF/CM/CU42D 1.01 0.94 0.97 TM9E120D20MP11 CF/CM/CU48D 1.03 0.94 0.98 TM9E120D20MP11 CF/CM/CU60D 1.03 0.94 0.98 TM9E120D20MP11 CF/CM64D 1.04 0.95 0.99 TM9V060B12MP11 CF42B 1.00 0.89 1.00 TM9V080B12MP11 CF42B 1.00 0.89 1.00 TM9V080C16MP11 CF/CM/CU42C 1.01 0.95 0.99 TM9V080C16MP11 CF/CM/CU48C 1.03 0.95 1.00 TM9V080C16MP11 CF/CM/CU48D 1.03 1.00 1.00 TM9V080C16MP11 CF/CM/CU60C 1.01 0.90 0.97 TM9V080C16MP11 CF/CM/CU60D 1.04 1.02 1.01 TM9V080C16MP11 CF/CM64D 1.04 0.97 1.01 TM9V100C16MP11 CF/CM/CU42C 1.01 0.95 0.99 TM9V100C16MP11 CF/CM/CU48C 1.03 0.95 1.00 TM9V100C16MP11 CF/CM/CU48D 1.03 1.00 1.00 TM9V100C16MP11 CF/CM/CU60C 1.01 0.90 0.97 TM9V100C16MP11 CF/CM/CU60D 1.04 1.02 1.01 TM9V100C16MP11 CF/CM64D 1.04 0.97 1.01 TM9V100C20MP11 CF/CM/CU42C 1.01 0.94 0.99 TM9V100C20MP11 CF/CM/CU48C 1.03 0.94 1.00 TM9V100C20MP11 CF/CM/CU48D 1.03 0.95 1.00 TM9V100C20MP11 CF/CM/CU60C 1.03 0.97 1.00 TM9V100C20MP11 CF/CM/CU60D 1.03 0.95 0.98 TM9V100C20MP11 CF/CM64D 1.04 0.95 1.01

FURNACE MULTIPLIERS - 3.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM9V120D20MP11 CF/CM/CU42D 1.03 0.97 1.00 TM9V120D20MP11 CF/CM/CU48D 1.03 0.97 1.00 TM9V120D20MP11 CF/CM/CU60D 1.04 0.95 0.99 TM9V120D20MP11 CF/CM64D 1.04 0.95 0.99 TM9Y080C16MP11 CF/CM/CU42C 1.01 0.94 0.99 TM9Y080C16MP11 CF/CM/CU42D 1.01 0.95 1.01 TM9Y080C16MP11 CF/CM/CU48C 1.03 0.97 1.00 TM9Y080C16MP11 CF/CM/CU48D 1.01 0.94 0.99 TM9Y080C16MP11 CF/CM/CU60C 1.01 0.90 0.99 TM9Y080C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TM9Y080C16MP11 CF/CM64D 1.04 0.95 0.99 TM9Y100C16MP11 CF/CM/CU42C 1.01 0.94 0.99 TM9Y100C16MP11 CF/CM/CU42D 1.01 0.95 1.01 TM9Y100C16MP11 CF/CM/CU48C 1.03 0.97 1.00 TM9Y100C16MP11 CF/CM/CU48D 1.01 0.94 0.99 TM9Y100C16MP11 CF/CM/CU60C 1.01 0.90 0.99 TM9Y100C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TM9Y100C16MP11 CF/CM64D 1.04 0.95 0.99 TM9Y100C20MP11 CF/CM/CU42C 1.01 0.94 0.99 TM9Y100C20MP11 CF/CM/CU42D 1.01 0.94 0.99 TM9Y100C20MP11 CF/CM/CU48C 1.03 0.94 1.00 TM9Y100C20MP11 CF/CM/CU48D 1.03 0.94 1.00 TM9Y100C20MP11 CF/CM/CU60C 1.03 0.94 0.98 TM9Y100C20MP11 CF/CM/CU60D 1.04 0.95 0.99 TM9Y100C20MP11 CF/CM64D 1.04 0.95 0.99 TM9Y120D20MP11 CF/CM/CU42D 1.01 0.94 0.97 TM9Y120D20MP11 CF/CM/CU48D 1.03 0.94 0.98 TM9Y120D20MP11 CF/CM/CU60D 1.03 0.94 0.98 TM9Y120D20MP11 CF/CM64D 1.04 0.95 0.99 TMLV080C16MP11 CF/CM/CU42C 1.01 0.95 1.01 TMLV080C16MP11 CF/CM/CU48C 1.03 0.97 1.00 TMLV080C16MP11 CF/CM/CU48D 1.03 0.95 1.00 TMLV080C16MP11 CF/CM/CU60C 1.03 0.98 1.00 TMLV080C16MP11 CF/CM64D 1.04 0.95 0.99 TMLV100C16MP11 CF/CM/CU42C 1.01 0.95 1.01 TMLV100C16MP11 CF/CM/CU48C 1.03 0.97 1.00 TMLV100C16MP11 CF/CM/CU48D 1.03 0.95 1.00 TMLV100C16MP11 CF/CM/CU60C 1.03 0.98 1.00 TMLV100C16MP11 CF/CM64D 1.04 0.95 0.99 TMLV100C20MP11 CF/CM/CU42C 1.01 0.94 0.99 TMLV100C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TMLV100C20MP11 CF/CM/CU60C 1.04 1.00 1.01 TMLV100C20MP11 CF/CM/CU60D 1.03 0.94 1.00 TMLV100C20MP11 CF/CM64D 1.03 0.90 1.00 TMLV120C20MP11 CF/CM/CU42C 1.01 0.94 0.99 TMLV120C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TMLV120C20MP11 CF/CM/CU60C 1.04 1.00 1.01 TMLV120C20MP11 CF/CM/CU60D 1.03 0.94 1.00 TMLV120C20MP11 CF/CM64D 1.03 0.90 1.00 TMLX080B12MP11 CF42B 1.00 0.89 0.98 TMLX080C16MP11 CF/CM/CU42C 1.00 0.90 0.98 TMLX080C16MP11 CF/CM/CU42D 1.03 0.98 1.00 TMLX080C16MP11 CF/CM/CU48C 1.04 0.98 1.01 TMLX080C16MP11 CF/CM/CU48D 1.04 0.98 1.01 TMLX080C16MP11 CF/CM/CU60C 1.01 0.90 0.97 TMLX080C16MP11 CF/CM/CU60D 1.01 0.90 0.99

Johnson Controls Unitary Products 61

Page 62

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 3.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TMLX080C16MP11 CF/CM64D 1.03 0.90 1.00 TMLX100C16MP11 CF/CM/CU42C 1.00 0.90 0.98 TMLX100C16MP11 CF/CM/CU42D 1.03 0.98 1.00 TMLX100C16MP11 CF/CM/CU48C 1.04 0.98 1.01 TMLX100C16MP11 CF/CM/CU48D 1.04 0.98 1.01 TMLX100C16MP11 CF/CM/CU60C 1.01 0.90 0.97 TMLX100C16MP11 CF/CM/CU60D 1.01 0.90 0.99 TMLX100C16MP11 CF/CM64D 1.03 0.90 1.00 TMLX100C20MP11 CF/CM/CU42C 1.03 1.00 1.00 TMLX100C20MP11 CF/CM/CU42D 1.03 0.95 1.00 TMLX100C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TMLX100C20MP11 CF/CM/CU48D 1.04 0.97 0.99 TMLX100C20MP11 CF/CM/CU60C 1.03 0.97 0.98 TMLX100C20MP11 CF/CM/CU60D 1.03 0.97 0.98 TMLX100C20MP11 CF/CM64D 1.04 0.97 0.99 TMLX120C20MP11 CF/CM/CU42C 1.03 1.00 1.00 TMLX120C20MP11 CF/CM/CU42D 1.03 0.95 1.00 TMLX120C20MP11 CF/CM/CU48C 1.03 0.95 1.00 TMLX120C20MP11 CF/CM/CU48D 1.04 0.97 0.99 TMLX120C20MP11 CF/CM/CU60C 1.03 0.97 0.98 TMLX120C20MP11 CF/CM/CU60D 1.03 0.97 0.98 TMLX120C20MP11 CF/CM64D 1.04 0.97 0.99 TP9C060B12MP12 CF42B 1.00 0.89 1.00 TP9C080B12MP12 CF42B 1.00 0.89 1.00 TP9C080C16MP12 CF/CM/CU42C 1.01 0.95 0.99 TP9C080C16MP12 CF/CM/CU48C 1.03 0.95 1.00 TP9C080C16MP12 CF/CM/CU48D 1.03 1.00 1.00 TP9C080C16MP12 CF/CM/CU60C 1.01 0.90 0.97 TP9C080C16MP12 CF/CM/CU60D 1.04 1.02 1.01 TP9C080C16MP12 CF/CM64D 1.04 0.97 1.01 TP9C100C16MP12 CF/CM/CU42C 1.01 0.95 0.99 TP9C100C16MP12 CF/CM/CU48C 1.03 0.95 1.00 TP9C100C16MP12 CF/CM/CU48D 1.03 1.00 1.00 TP9C100C16MP12 CF/CM/CU60C 1.01 0.90 0.97 TP9C100C16MP12 CF/CM/CU60D 1.04 1.02 1.01 TP9C100C16MP12 CF/CM64D 1.04 0.97 1.01 TP9C100C20MP12 CF/CM/CU42C 1.01 0.94 0.99 TP9C100C20MP12 CF/CM/CU48C 1.03 0.94 1.00 TP9C100C20MP12 CF/CM/CU48D 1.03 0.95 1.00 TP9C100C20MP12 CF/CM/CU60C 1.03 0.97 1.00 TP9C100C20MP12 CF/CM/CU60D 1.03 0.95 0.98 TP9C100C20MP12 CF/CM64D 1.04 0.95 1.01 TP9C120D20MP12 CF/CM/CU42D 1.03 0.97 1.00 TP9C120D20MP12 CF/CM/CU48D 1.03 0.97 1.00 TP9C120D20MP12 CF/CM/CU60D 1.04 0.95 0.99 TP9C120D20MP12 CF/CM64D 1.04 0.95 0.99 TPLC080C16MP12 CF/CM/CU42C 1.01 0.95 1.01 TPLC080C16MP12 CF/CM/CU48C 1.03 0.97 1.00 TPLC080C16MP12 CF/CM/CU48D 1.03 0.95 1.00 TPLC080C16MP12 CF/CM/CU60C 1.03 0.98 1.00 TPLC080C16MP12 CF/CM64D 1.04 0.95 0.99 TPLC100C16MP12 CF/CM/CU42C 1.01 0.95 1.01 TPLC100C16MP12 CF/CM/CU48C 1.03 0.97 1.00 TPLC100C16MP12 CF/CM/CU48D 1.03 0.95 1.00 TPLC100C16MP12 CF/CM/CU60C 1.03 0.98 1.00 TPLC100C16MP12 CF/CM64D 1.04 0.95 0.99

FURNACE MULTIPLIERS - 3.5 TON (Continued)

Furnaces Coil T.C. S.C. KW

TPLC100C20MP12 CF/CM/CU42C 1.01 0.94 0.99 TPLC100C20MP12 CF/CM/CU48C 1.03 0.95 1.00 TPLC100C20MP12 CF/CM/CU60C 1.04 1.00 1.01 TPLC100C20MP12 CF/CM/CU60D 1.03 0.94 1.00 TPLC100C20MP12 CF/CM64D 1.03 0.90 1.00 TPLC120C20MP12 CF/CM/CU42C 1.01 0.94 0.99 TPLC120C20MP12 CF/CM/CU48C 1.03 0.95 1.00 TPLC120C20MP12 CF/CM/CU60C 1.04 1.00 1.01 TPLC120C20MP12 CF/CM/CU60D 1.03 0.94 1.00 TPLC120C20MP12 CF/CM64D 1.03 0.90 1.00 YP9C060B12MP12 CF42B 1.00 0.89 1.00 YP9C080B12MP12 CF42B 1.00 0.89 1.00 YP9C080C16MP12 CF/CM/CU42C 1.01 0.95 0.99 YP9C080C16MP12 CF/CM/CU48C 1.03 0.95 1.00 YP9C080C16MP12 CF/CM/CU48D 1.03 1.00 1.00 YP9C080C16MP12 CF/CM/CU60C 1.01 0.90 0.97 YP9C080C16MP12 CF/CM/CU60D 1.04 1.02 1.01 YP9C080C16MP12 CF/CM64D 1.04 0.97 1.01 YP9C100C16MP12 CF/CM/CU42C 1.01 0.95 0.99 YP9C100C16MP12 CF/CM/CU48C 1.03 0.95 1.00 YP9C100C16MP12 CF/CM/CU48D 1.03 1.00 1.00 YP9C100C16MP12 CF/CM/CU60C 1.01 0.90 0.97 YP9C100C16MP12 CF/CM/CU60D 1.04 1.02 1.01 YP9C100C16MP12 CF/CM64D 1.04 0.97 1.01 YP9C100C20MP12 CF/CM/CU42C 1.01 0.94 0.99 YP9C100C20MP12 CF/CM/CU48C 1.03 0.94 1.00 YP9C100C20MP12 CF/CM/CU48D 1.03 0.95 1.00 YP9C100C20MP12 CF/CM/CU60C 1.03 0.97 1.00 YP9C100C20MP12 CF/CM/CU60D 1.03 0.95 0.98 YP9C100C20MP12 CF/CM64D 1.04 0.95 1.01 YP9C120D20MP12 CF/CM/CU42D 1.03 0.97 1.00 YP9C120D20MP12 CF/CM/CU48D 1.03 0.97 1.00 YP9C120D20MP12 CF/CM/CU60D 1.04 0.95 0.99 YP9C120D20MP12 CF/CM64D 1.04 0.95 0.99 YPLC080C16MP12 CF/CM/CU42C 1.01 0.95 1.01 YPLC080C16MP12 CF/CM/CU48C 1.03 0.97 1.00 YPLC080C16MP12 CF/CM/CU48D 1.03 0.95 1.00 YPLC080C16MP12 CF/CM/CU60C 1.03 0.98 1.00 YPLC080C16MP12 CF/CM64D 1.04 0.95 0.99 YPLC100C16MP12 CF/CM/CU42C 1.01 0.95 1.01 YPLC100C16MP12 CF/CM/CU48C 1.03 0.97 1.00 YPLC100C16MP12 CF/CM/CU48D 1.03 0.95 1.00 YPLC100C16MP12 CF/CM/CU60C 1.03 0.98 1.00 YPLC100C16MP12 CF/CM64D 1.04 0.95 0.99 YPLC100C20MP12 CF/CM/CU42C 1.01 0.94 0.99 YPLC100C20MP12 CF/CM/CU48C 1.03 0.95 1.00 YPLC100C20MP12 CF/CM/CU60C 1.04 1.00 1.01 YPLC100C20MP12 CF/CM/CU60D 1.03 0.94 1.00 YPLC100C20MP12 CF/CM64D 1.03 0.90 1.00 YPLC120C20MP12 CF/CM/CU42C 1.01 0.94 0.99 YPLC120C20MP12 CF/CM/CU48C 1.03 0.95 1.00 YPLC120C20MP12 CF/CM/CU60C 1.04 1.00 1.01 YPLC120C20MP12 CF/CM/CU60D 1.03 0.94 1.00 YPLC120C20MP12 CF/CM64D 1.03 0.90 1.00

62 Johnson Controls Unitary Products

Page 63

5006142-YTG-A-0815

PERFORMANCE DATA - 4 TON

CONDENSER-ONLY DATA (OUTDOOR UNIT)

SATURATED SUCTION

MODEL

@ COMPRESSOR

55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F

T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW

35 107 46.6 2.18 44.4 2.42 42.1 2.72 39.9 3.02 37.5 3.39 34.9 3.81 32.1 4.28 29.1 4.83 40 118 51.3 2.20 48.6 2.45 46.3 2.72 43.8 3.04 41.3 3.40 38.5 3.82 35.6 4.28 32.4 4.82

YFE48B21S

45 130 56.3 2.23 53.1 2.48 51.0 2.76 47.1 3.09 45.4 3.40 42.4 3.81 39.2 4.29 35.8 4.82 50 142 61.6 2.27 58.0 2.50 55.2 2.79 52.7 3.07 49.7 3.41 46.5 3.82 43.2 4.28 39.6 4.79 55 156 65.5 2.30 63.1 2.55 59.2 2.84 57.5 3.08 54.2 3.43 50.9 3.84 47.3 4.30 43.5 4.79

Notes:

1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.

3. Maximum recommended condensing temperature is 140°F.

COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YFE48B21S INDOOR COIL MODEL NO. CF48CXA1

AIR TEMP. ENTERING

OUTDOOR UNIT (°F)

IDCFM 1400 1600 1800 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 44.1 45.0 44.8 45.4 45.4 44.6 45.3 44.9 45.6 45.7 45.1 45.6 45.1 45.9 46.0

S.C. 43.9 35.1 30.6 27.8 21.4 44.4 35.8 31.0 28.3 21.7 44.9 36.6 31.3 28.7 21.9 KW 2.55 2.55 2.55 2.55 2.55 2.63 2.62 2.62 2.62 2.62 2.70 2.69 2.70 2.69 2.69 T.C. 43.7 45.6 45.6 47.2 47.4 44.9 46.2 46.0 47.5 47.6 46.0 46.9 46.3 47.9 47.9

S.C. 43.5 37.5 32.1 29.9 22.5 44.6 39.1 33.2 30.7 22.8 45.8 40.8 34.3 31.4 23.1 KW 2.84 2.84 2.84 2.85 2.84 2.91 2.91 2.91 2.92 2.92 2.99 2.99 2.99 2.99 2.99 T.C. 43.3 46.2 46.4 48.9 49.4 45.1 47.2 47.0 49.4 49.6 47.0 48.1 47.6 49.9 49.7

S.C. 43.1 39.9 33.6 32.0 23.6 44.9 42.5 35.4 33.1 24.0 46.8 45.1 37.3 34.2 24.3 KW 3.12 3.13 3.13 3.14 3.14 3.19 3.21 3.20 3.21 3.21 3.27 3.28 3.28 3.28 3.28 T.C. 41.6 43.8 44.0 47.3 49.5 43.3 44.8 44.7 48.0 50.0 45.0 45.7 45.3 48.7 50.4

S.C. 41.4 38.7 32.5 31.7 24.0 43.1 41.2 34.4 33.3 24.7 44.8 43.8 36.3 34.9 25.3 KW 3.48 3.49 3.49 3.51 3.52 3.56 3.57 3.57 3.58 3.59 3.64 3.65 3.64 3.66 3.66 T.C. 39.9 41.5 41.7 45.6 49.6 41.4 42.4

S.C. 39.7 37.5 31.4 31.3 24.3 41.2 40.0 33.3 33.5 25.3 42.8 42.5 35.3 35.7 26.3 KW 3.85 3.86 3.86 3.88 3.90 3.93 3.94 3.94 3.96 3.97 4.01 4.01 4.01 4.03 4.04 T.C. 37.6 38.8 38.9 42.6 46.5 39.1 39.7 39.5 43.4 47.2 40.7 40.7 40.1 44.3 47.9

105

S.C. 37.4 35.9 30.2 30.1 23.3 38.9 38.0 32.0 32.2 24.4 40.4 40.0 33.9 34.4 25.5 KW 4.36 4.37 4.37 4.40 4.42 4.44 4.45 4.44 4.47 4.49 4.52 4.53 4.52 4.55 4.56 T.C. 35.4 36.2 36.3 39.7 43.6 36.9 37.1 36.8 40.4 44.2 38.4 38.1 37.2 41.2 44.8

115

S.C. 35.2 34.4 28.9 28.9 22.3 36.7 36.0 30.7 31.0 23.4 38.2 37.6 32.5 33.1 24.6 KW 4.85 4.87 4.86 4.90 4.92 4.94 4.94 4.94 4.97 4.99 5.02 5.02 5.01 5.05 5.06 T.C. 33.2 33.6 33.6 36.7 40.6 34.7 34.5 34.0 37.4 41.1 36.1 35.4 34.4 38.1 41.7

125

S.C. 33.0 32.9 27.6 27.7 21.2 34.5 34.1 29.4 29.8 22.5 36.0 35.3 31.1 31.8 23.7 KW 5.35 5.36 5.35 5.40 5.42 5.44 5.44 5.43 5.47 5.50 5.53 5.52 5.51 5.55 5.57

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).

Green shaded cells are ACCA (TVA) conditions. Blue shaded cells are AHRI conditions.

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

Outdoor Ambient Temperature

42.3 46.5 50.4 43.0 43.4 43.0 47.4 51.1

Johnson Controls Unitary Products 63

Page 64

5006142-YTG-A-0815

COIL MULTIPLIERS - 4 TON

Air Handler Coil T.C. S.C. KW

– CF/CM/CU48C 1.00 1.00 1.00 – CF/CM/CU48D 1.00 1.00 1.00 – CF/CM/CU60C 1.03 1.09 1.03 – CF/CM/CU60D 1.03 1.09 1.03 – CF/CM64D 1.03 1.09 0.99 AE48CX21 – 1.02 1.03 0.96 AE48DX21 – 1.02 1.04 0.94 AE60CX21 – 1.03 1.06 0.95 AE60DX21 – 1.03 1.04 0.93 AP48CX21 - 0.99 0.97 0.99 AP48DX21 - 1.01 1.01 1.01 AP60CX21 - 1.03 1.09 1.03 AP60DX21 - 1.03 1.09 1.03 AVC48CX21 - 1.03 1.01 0.97 AVC48DX21 - 1.03 1.01 0.97 AVC60CX21 - 1.02 1.03 0.96 AVC60DX21 - 1.03 1.06 0.95 ME14DN21 CF/CM60D 1.03 1.06 0.95 ME14DN21 CF/CM64D 1.03 1.04 0.95 ME16CN21 CF/CM48C 1.03 1.06 0.97 ME16CN21 CF/CM60C 1.03 1.06 0.95 ME20DN21 CF/CM48D 1.03 1.06 0.97 ME20DN21 CF/CM60D 1.03 1.04 0.97 ME20DN21 CF/CM64D 1.03 1.04 0.95 MVC14DN21 CF/CM48D 1.01 0.99 0.95 MVC14DN21 CF/CM60D 1.02 1.01 0.96 MVC14DN21 CF/CM64D 1.03 1.01 0.95 MVC16CN21 CF/CM48C 1.02 1.03 0.96 MVC16CN21 CF/CM60C 1.03 1.12 0.92 MVC20DN21 CF/CM48D 1.03 1.04 0.95 MVC20DN21 CF/CM60D 1.03 1.06 0.95 MVC20DN21 CF/CM64D 1.03 1.04 0.95

FURNACE MULTIPLIERS - 4 TON

Furnaces Coil T.C. S.C. KW

TM8V080C16MP11 CF/CM/CU48C 1.00 0.99 0.96 TM8V080C16MP11 CF/CM/CU48D 1.00 0.99 0.96 TM8V080C16MP11 CF/CM/CU60C 1.02 1.00 0.96 TM8V080C16MP11 CF/CM/CU60D 1.02 1.00 0.96 TM8V080C16MP11 CF/CM64D 1.03 1.04 0.97 TM8V100C16MP11 CF/CM/CU48C 1.00 0.99 0.96 TM8V100C16MP11 CF/CM/CU48D 1.00 0.99 0.96 TM8V100C16MP11 CF/CM/CU60C 1.02 1.00 0.96 TM8V100C16MP11 CF/CM/CU60D 1.02 1.00 0.96 TM8V100C16MP11 CF/CM64D 1.03 1.04 0.97 TM8V100C20MP11 CF/CM/CU48C 1.00 0.99 0.96 TM8V100C20MP11 CF/CM/CU48D 1.03 1.04 0.97 TM8V100C20MP11 CF/CM/CU60C 1.03 1.04 0.97 TM8V100C20MP11 CF/CM/CU60D 1.02 1.00 0.98 TM8V100C20MP11 CF/CM64D 1.03 1.04 0.97 TM8V120C20MP11 CF/CM/CU48C 1.00 0.99 0.96 TM8V120C20MP11 CF/CM/CU48D 1.03 1.04 0.97 TM8V120C20MP11 CF/CM/CU60C 1.03 1.04 0.97

FURNACE MULTIPLIERS - 4 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM8V120C20MP11 CF/CM/CU60D 1.02 1.00 0.98 TM8V120C20MP11 CF/CM64D 1.03 1.04 0.97 TM8X080C16MP11 CF/CM/CU48C 1.02 1.01 0.98 TM8X080C16MP11 CF/CM/CU48D 1.02 1.03 0.98 TM8X080C16MP11 CF/CM/CU60C 1.03 1.04 0.97 TM8X080C16MP11 CF/CM/CU60D 1.02 1.04 0.98 TM8X080C16MP11 CF/CM64D 1.03 1.04 0.97 TM8X100C16MP11 CF/CM/CU48C 1.02 1.01 0.98 TM8X100C16MP11 CF/CM/CU48D 1.02 1.03 0.98 TM8X100C16MP11 CF/CM/CU60C 1.03 1.04 0.97 TM8X100C16MP11 CF/CM/CU60D 1.02 1.04 0.98 TM8X100C16MP11 CF/CM64D 1.03 1.04 0.97 TM8X100C20MP11 CF/CM/CU48C 1.02 1.03 0.98 TM8X100C20MP11 CF/CM/CU48D 1.01 0.99 0.97 TM8X100C20MP11 CF/CM/CU60C 1.02 1.06 0.96 TM8X100C20MP11 CF/CM/CU60D 1.03 1.06 0.95 TM8X100C20MP11 CF/CM64D 1.03 1.04 0.97 TM8X120C20MP11 CF/CM/CU48C 1.02 1.03 0.98 TM8X120C20MP11 CF/CM/CU48D 1.01 0.99 0.97 TM8X120C20MP11 CF/CM/CU60C 1.02 1.06 0.96 TM8X120C20MP11 CF/CM/CU60D 1.03 1.06 0.95 TM8X120C20MP11 CF/CM64D 1.03 1.04 0.97 TM8Y080C16MP11 CF/CM/CU48C 1.02 1.01 0.98 TM8Y080C16MP11 CF/CM/CU48D 1.02 1.03 0.98 TM8Y080C16MP11 CF/CM/CU60C 1.03 1.04 0.97 TM8Y080C16MP11 CF/CM/CU60D 1.02 1.04 0.98 TM8Y080C16MP11 CF/CM64D 1.03 1.04 0.97 TM8Y100C16MP11 CF/CM/CU48C 1.02 1.01 0.98 TM8Y100C16MP11 CF/CM/CU48D 1.02 1.03 0.98 TM8Y100C16MP11 CF/CM/CU60C 1.03 1.04 0.97 TM8Y100C16MP11 CF/CM/CU60D 1.02 1.04 0.98 TM8Y100C16MP11 CF/CM64D 1.03 1.04 0.97 TM8Y100C20MP11 CF/CM/CU48C 1.02 1.03 0.98 TM8Y100C20MP11 CF/CM/CU48D 1.01 0.99 0.97 TM8Y100C20MP11 CF/CM/CU60C 1.02 1.06 0.96 TM8Y100C20MP11 CF/CM/CU60D 1.03 1.06 0.95 TM8Y100C20MP11 CF/CM64D 1.03 1.04 0.97 TM8Y120C20MP11 CF/CM/CU48C 1.02 1.03 0.98 TM8Y120C20MP11 CF/CM/CU48D 1.01 0.99 0.97 TM8Y120C20MP11 CF/CM/CU60C 1.02 1.06 0.96 TM8Y120C20MP11 CF/CM/CU60D 1.03 1.06 0.95 TM8Y120C20MP11 CF/CM64D 1.03 1.04 0.97 TM9E080C16MP11 CF/CM/CU48C 1.00 0.99 0.98 TM9E080C16MP11 CF/CM/CU48D 1.00 0.99 0.98 TM9E080C16MP11 CF/CM/CU60C 1.02 1.00 0.98 TM9E080C16MP11 CF/CM/CU60D 1.02 1.00 0.98 TM9E080C16MP11 CF/CM64D 1.03 1.01 0.97 TM9E100C16MP11 CF/CM/CU48C 1.00 0.99 0.98 TM9E100C16MP11 CF/CM/CU48D 1.00 0.99 0.98 TM9E100C16MP11 CF/CM/CU60C 1.02 1.00 0.98 TM9E100C16MP11 CF/CM/CU60D 1.02 1.00 0.98 TM9E100C16MP11 CF/CM64D 1.03 1.01 0.97 TM9E100C20MP11 CF/CM/CU48C 1.02 1.03 0.96

64 Johnson Controls Unitary Products

Page 65

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 4 TON (Continued)

Furnaces Coil T.C. S.C. KW

TM9E100C20MP11 CF/CM/CU48D 1.02 1.03 0.98 TM9E100C20MP11 CF/CM/CU60C 1.03 1.04 0.97 TM9E100C20MP11 CF/CM/CU60D 1.02 1.06 0.96 TM9E100C20MP11 CF/CM64D 1.03 1.04 0.97 TM9E120D20MP11 CF/CM/CU48D 1.02 1.03 0.96 TM9E120D20MP11 CF/CM/CU60D 1.02 1.04 0.96 TM9E120D20MP11 CF/CM64D 1.03 1.04 0.97 TM9V080C16MP11 CF/CM/CU48C 1.02 1.03 0.98 TM9V080C16MP11 CF/CM/CU48D 1.02 1.03 0.96 TM9V080C16MP11 CF/CM/CU60C 1.02 1.00 0.96 TM9V080C16MP11 CF/CM/CU60D 1.02 1.04 0.98 TM9V080C16MP11 CF/CM64D 1.03 1.01 0.97 TM9V100C16MP11 CF/CM/CU48C 1.02 1.03 0.98 TM9V100C16MP11 CF/CM/CU48D 1.02 1.03 0.96 TM9V100C16MP11 CF/CM/CU60C 1.02 1.00 0.96 TM9V100C16MP11 CF/CM/CU60D 1.02 1.04 0.98 TM9V100C16MP11 CF/CM64D 1.03 1.01 0.97 TM9V100C20MP11 CF/CM/CU48C 1.02 1.04 1.00 TM9V100C20MP11 CF/CM/CU48D 1.00 0.99 0.96 TM9V100C20MP11 CF/CM/CU60C 1.03 1.07 0.99 TM9V100C20MP11 CF/CM/CU60D 1.02 1.00 0.96 TM9V100C20MP11 CF/CM64D 1.03 1.01 0.97 TM9V120D20MP11 CF/CM/CU48D 1.00 0.99 0.96 TM9V120D20MP11 CF/CM/CU60D 1.02 1.01 0.96 TM9V120D20MP11 CF/CM64D 1.03 1.07 0.99 TM9Y080C16MP11 CF/CM/CU48C 1.00 0.99 0.98 TM9Y080C16MP11 CF/CM/CU48D 1.00 0.99 0.98 TM9Y080C16MP11 CF/CM/CU60C 1.02 1.00 0.98 TM9Y080C16MP11 CF/CM/CU60D 1.02 1.00 0.98 TM9Y080C16MP11 CF/CM64D 1.03 1.01 0.97 TM9Y100C16MP11 CF/CM/CU48C 1.00 0.99 0.98 TM9Y100C16MP11 CF/CM/CU48D 1.00 0.99 0.98 TM9Y100C16MP11 CF/CM/CU60C 1.02 1.00 0.98 TM9Y100C16MP11 CF/CM/CU60D 1.02 1.00 0.98 TM9Y100C16MP11 CF/CM64D 1.03 1.01 0.97 TM9Y100C20MP11 CF/CM/CU48C 1.02 1.03 0.96 TM9Y100C20MP11 CF/CM/CU48D 1.02 1.03 0.98 TM9Y100C20MP11 CF/CM/CU60C 1.03 1.04 0.97 TM9Y100C20MP11 CF/CM/CU60D 1.02 1.06 0.96 TM9Y100C20MP11 CF/CM64D 1.03 1.04 0.97 TM9Y120D20MP11 CF/CM/CU48D 1.02 1.03 0.96 TM9Y120D20MP11 CF/CM/CU60D 1.02 1.04 0.96 TM9Y120D20MP11 CF/CM64D 1.03 1.04 0.97 TMLV080C16MP11 CF/CM/CU48C 1.00 0.99 0.96 TMLV080C16MP11 CF/CM/CU48D 1.00 0.99 0.96 TMLV080C16MP11 CF/CM/CU60C 1.02 1.00 0.96 TMLV080C16MP11 CF/CM/CU60D 1.02 1.00 0.96 TMLV080C16MP11 CF/CM64D 1.03 1.04 0.97 TMLV100C16MP11 CF/CM/CU48C 1.00 0.99 0.96 TMLV100C16MP11 CF/CM/CU48D 1.00 0.99 0.96 TMLV100C16MP11 CF/CM/CU60C 1.02 1.00 0.96 TMLV100C16MP11 CF/CM/CU60D 1.02 1.00 0.96 TMLV100C16MP11 CF/CM64D 1.03 1.04 0.97

FURNACE MULTIPLIERS - 4 TON (Continued)

Furnaces Coil T.C. S.C. KW

TMLV100C20MP11 CF/CM/CU48C 1.00 0.99 0.96 TMLV100C20MP11 CF/CM/CU48D 1.03 1.04 0.97 TMLV100C20MP11 CF/CM/CU60C 1.03 1.04 0.97 TMLV100C20MP11 CF/CM/CU60D 1.02 1.00 0.98 TMLV100C20MP11 CF/CM64D 1.03 1.04 0.97 TMLV120C20MP11 CF/CM/CU48C 1.00 0.99 0.96 TMLV120C20MP11 CF/CM/CU48D 1.03 1.04 0.97 TMLV120C20MP11 CF/CM/CU60C 1.03 1.04 0.97 TMLV120C20MP11 CF/CM/CU60D 1.02 1.00 0.98 TMLV120C20MP11 CF/CM64D 1.03 1.04 0.97 TMLX080C16MP11 CF/CM/CU48C 1.02 1.01 0.98 TMLX080C16MP11 CF/CM/CU48D 1.02 1.03 0.98 TMLX080C16MP11 CF/CM/CU60C 1.03 1.04 0.97 TMLX080C16MP11 CF/CM/CU60D 1.02 1.04 0.98 TMLX080C16MP11 CF/CM64D 1.03 1.04 0.97 TMLX100C16MP11 CF/CM/CU48C 1.02 1.01 0.98 TMLX100C16MP11 CF/CM/CU48D 1.02 1.03 0.98 TMLX100C16MP11 CF/CM/CU60C 1.03 1.04 0.97 TMLX100C16MP11 CF/CM/CU60D 1.02 1.04 0.98 TMLX100C16MP11 CF/CM64D 1.03 1.04 0.97 TMLX100C20MP11 CF/CM/CU48C 1.02 1.03 0.98 TMLX100C20MP11 CF/CM/CU48D 1.01 0.99 0.97 TMLX100C20MP11 CF/CM/CU60C 1.02 1.06 0.96 TMLX100C20MP11 CF/CM/CU60D 1.03 1.06 0.95 TMLX100C20MP11 CF/CM64D 1.03 1.04 0.97 TMLX120C20MP11 CF/CM/CU48C 1.02 1.03 0.98 TMLX120C20MP11 CF/CM/CU48D 1.01 0.99 0.97 TMLX120C20MP11 CF/CM/CU60C 1.02 1.06 0.96 TMLX120C20MP11 CF/CM/CU60D 1.03 1.06 0.95 TMLX120C20MP11 CF/CM64D 1.03 1.04 0.97 TP9C080C16MP12 CF/CM/CU48C 1.02 1.03 0.98 TP9C080C16MP12 CF/CM/CU48D 1.02 1.03 0.96 TP9C080C16MP12 CF/CM/CU60C 1.02 1.00 0.96 TP9C080C16MP12 CF/CM/CU60D 1.02 1.04 0.98 TP9C080C16MP12 CF/CM64D 1.03 1.01 0.97 TP9C100C16MP12 CF/CM/CU48C 1.02 1.03 0.98 TP9C100C16MP12 CF/CM/CU48D 1.02 1.03 0.96 TP9C100C16MP12 CF/CM/CU60C 1.02 1.00 0.96 TP9C100C16MP12 CF/CM/CU60D 1.02 1.04 0.98 TP9C100C16MP12 CF/CM64D 1.03 1.01 0.97 TP9C100C20MP12 CF/CM/CU48C 1.02 1.04 1.00 TP9C100C20MP12 CF/CM/CU48D 1.00 0.99 0.96 TP9C100C20MP12 CF/CM/CU60C 1.03 1.07 0.99 TP9C100C20MP12 CF/CM/CU60D 1.02 1.00 0.96 TP9C100C20MP12 CF/CM64D 1.03 1.01 0.97 TP9C120D20MP12 CF/CM/CU48D 1.00 0.99 0.96 TP9C120D20MP12 CF/CM/CU60D 1.02 1.01 0.96 TP9C120D20MP12 CF/CM64D 1.03 1.07 0.99 TPLC080C16MP12 CF/CM/CU48C 1.00 0.99 0.96 TPLC080C16MP12 CF/CM/CU48D 1.00 0.99 0.96 TPLC080C16MP12 CF/CM/CU60C 1.02 1.00 0.96 TPLC080C16MP12 CF/CM/CU60D 1.02 1.00 0.96 TPLC080C16MP12 CF/CM64D 1.03 1.04 0.97

Johnson Controls Unitary Products 65

Page 66

5006142-YTG-A-0815

FURNACE MULTIPLIERS - 4 TON (Continued)

Furnaces Coil T.C. S.C. KW

TPLC100C16MP12 CF/CM/CU48C 1.00 0.99 0.96 TPLC100C16MP12 CF/CM/CU48D 1.00 0.99 0.96 TPLC100C16MP12 CF/CM/CU60C 1.02 1.00 0.96 TPLC100C16MP12 CF/CM/CU60D 1.02 1.00 0.96 TPLC100C16MP12 CF/CM64D 1.03 1.04 0.97 TPLC100C20MP12 CF/CM/CU48C 1.00 0.99 0.96 TPLC100C20MP12 CF/CM/CU48D 1.03 1.04 0.97 TPLC100C20MP12 CF/CM/CU60C 1.03 1.04 0.97 TPLC100C20MP12 CF/CM/CU60D 1.02 1.00 0.98 TPLC100C20MP12 CF/CM64D 1.03 1.04 0.97 TPLC120C20MP12 CF/CM/CU48C 1.00 0.99 0.96 TPLC120C20MP12 CF/CM/CU48D 1.03 1.04 0.97 TPLC120C20MP12 CF/CM/CU60C 1.03 1.04 0.97 TPLC120C20MP12 CF/CM/CU60D 1.02 1.00 0.98 TPLC120C20MP12 CF/CM64D 1.03 1.04 0.97 YP9C080C16MP12 CF/CM/CU48C 1.02 1.03 0.98 YP9C080C16MP12 CF/CM/CU48D 1.02 1.03 0.96 YP9C080C16MP12 CF/CM/CU60C 1.02 1.00 0.96 YP9C080C16MP12 CF/CM/CU60D 1.02 1.04 0.98 YP9C080C16MP12 CF/CM64D 1.03 1.01 0.97 YP9C100C16MP12 CF/CM/CU48C 1.02 1.03 0.98 YP9C100C16MP12 CF/CM/CU48D 1.02 1.03 0.96 YP9C100C16MP12 CF/CM/CU60C 1.02 1.00 0.96 YP9C100C16MP12 CF/CM/CU60D 1.02 1.04 0.98 YP9C100C16MP12 CF/CM64D 1.03 1.01 0.97 YP9C100C20MP12 CF/CM/CU48C 1.02 1.04 1.00 YP9C100C20MP12 CF/CM/CU48D 1.00 0.99 0.96 YP9C100C20MP12 CF/CM/CU60C 1.03 1.07 0.99

FURNACE MULTIPLIERS - 4 TON (Continued)

Furnaces Coil T.C. S.C. KW

YP9C100C20MP12 CF/CM/CU60D 1.02 1.00 0.96 YP9C100C20MP12 CF/CM64D 1.03 1.01 0.97 YP9C120D20MP12 CF/CM/CU48D 1.00 0.99 0.96 YP9C120D20MP12 CF/CM/CU60D 1.02 1.01 0.96 YP9C120D20MP12 CF/CM64D 1.03 1.07 0.99 YPLC080C16MP12 CF/CM/CU48C 1.00 0.99 0.96 YPLC080C16MP12 CF/CM/CU48D 1.00 0.99 0.96 YPLC080C16MP12 CF/CM/CU60C 1.02 1.00 0.96 YPLC080C16MP12 CF/CM/CU60D 1.02 1.00 0.96 YPLC080C16MP12 CF/CM64D 1.03 1.04 0.97 YPLC100C16MP12 CF/CM/CU48C 1.00 0.99 0.96 YPLC100C16MP12 CF/CM/CU48D 1.00 0.99 0.96 YPLC100C16MP12 CF/CM/CU60C 1.02 1.00 0.96 YPLC100C16MP12 CF/CM/CU60D 1.02 1.00 0.96 YPLC100C16MP12 CF/CM64D 1.03 1.04 0.97 YPLC100C20MP12 CF/CM/CU48C 1.00 0.99 0.96 YPLC100C20MP12 CF/CM/CU48D 1.03 1.04 0.97 YPLC100C20MP12 CF/CM/CU60C 1.03 1.04 0.97 YPLC100C20MP12 CF/CM/CU60D 1.02 1.00 0.98 YPLC100C20MP12 CF/CM64D 1.03 1.04 0.97 YPLC120C20MP12 CF/CM/CU48C 1.00 0.99 0.96 YPLC120C20MP12 CF/CM/CU48D 1.03 1.04 0.97 YPLC120C20MP12 CF/CM/CU60C 1.03 1.04 0.97 YPLC120C20MP12 CF/CM/CU60D 1.02 1.00 0.98 YPLC120C20MP12 CF/CM64D 1.03 1.04 0.97

66 Johnson Controls Unitary Products

Page 67

5006142-YTG-A-0815

PERFORMANCE DATA - 5 TON

CONDENSER-ONLY DATA (OUTDOOR UNIT)

SATURATED SUCTION

MODEL

@ COMPRESSOR

55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F

T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW

35 107 55.2 2.68 52.6 2.93 49.8 3.28 47.2 3.61 44.4 4.03 41.4 4.52 38.1 5.05 34.6 5.70 40 118 58.3 2.73 57.6 3.00 54.7 3.31 51.2 3.65 48.9 4.07 45.6 4.55 42.1 5.08 38.4 5.72

YFE60B21S

45 130 66.5 2.78 62.4 3.04 59.9 3.36 56.5 3.71 53.7 4.08 50.2 4.55 46.5 5.09 42.5 5.73 50 142 72.8 2.82 69.4 3.09 64.5 3.41 61.8 3.77 58.8 4.11 55.1 4.58 51.1 5.12 46.9 5.72 55 156 73.7 2.86 74.6 3.14 68.7 3.46 68.1 3.74 63.8 4.16 60.2 4.63 56.0 5.16 51.5 5.74

Notes:

1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.

3. Maximum recommended condensing temperature is 140°F.

COOLING PERFORMANCE DATA AIR CONDITIONER MODEL NO. YFE60B21S INDOOR COIL MODEL NO. CF60CXA1

AIR TEMP. ENTERING

OUTDOOR UNIT (°F)

IDCFM 1530 1730 1930 ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80 ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

T.C. 53.1 57.9 57.5 61.4 63.0 54.5 58.5 58.0 61.5 62.4 55.9 59.2 58.6 61.6 61.8

S.C. 53.1 46.3 39.9 38.6 29.7 54.5 48.2 41.3 39.6 30.1 55.9 50.1 42.7 40.6 30.6 KW 3.14 3.17 3.16 3.19 3.20 3.22 3.25 3.25 3.26 3.27 3.31 3.33 3.33 3.34 3.35 T.C. 51.9 56.8 56.1 60.3 63.6 53.3 57.4 56.7 60.7 63.7 54.6 58.0 57.4 61.2 63.8

S.C. 51.9 46.4 39.6 38.7 30.2 53.3 48.4 41.2 40.1 31.0 54.6 50.3 42.9 41.4 31.7 KW 3.45 3.49 3.48 3.50 3.53 3.54 3.57 3.56 3.58 3.61 3.62 3.65 3.64 3.66 3.69 T.C. 50.7 55.7 54.6 59.2 64.3 52.0 56.3 55.4 60.0 65.0 53.3 56.9 56.2 60.9 65.8

S.C. 50.5 46.6 39.3 38.7 30.8 51.8 48.6 41.2 40.5 31.8 53.1 50.5 43.1 42.3 32.8 KW 3.76 3.81 3.79 3.82 3.86 3.85 3.89 3.87 3.90 3.95 3.94 3.97 3.95 3.99 4.03 T.C. 48.7 52.7 52.2 57.3 61.8 50.1 53.4 53.0 58.0 62.5 51.5 54.2 53.8 58.8 63.2

S.C. 48.5 45.1 38.2 38.0 29.8 49.9 47.3 40.3 39.8 30.9 51.2 49.6 42.3 41.5 32.0 KW 4.19 4.23 4.22 4.25 4.29 4.28 4.31 4.30 4.34 4.37 4.37 4.39 4.38 4.42 4.45 T.C. 46.7 49.6 49.8 55.3 59.4 48.2 50.6

S.C. 46.5 43.6 37.1 37.2 28.9 47.9 46.1 39.4 39.0 30.0 49.3 48.6 41.6 40.8 31.2 KW 4.62 4.66 4.65 4.68 4.72 4.71 4.74 4.73 4.77 4.80 4.80 4.82 4.81 4.85 4.88 T.C. 44.3 46.5 46.7 51.9 56.1 45.7 47.4 47.5 52.6 56.5 47.2 48.3 48.2 53.2 57.0

105

S.C. 44.2 41.7 35.6 35.9 27.9 45.5 44.1 37.8 37.6 28.9 46.9 46.5 39.9 39.3 30.0 KW 5.24 5.28 5.26 5.30 5.33 5.33 5.36 5.35 5.38 5.42 5.42 5.44 5.43 5.46 5.50 T.C. 41.8 43.5 43.7 48.6 52.9 43.3 44.4 44.4 49.2 53.2 44.8 45.2 45.0 49.8 53.5

115

S.C. 41.8 39.9 34.2 34.5 26.9 43.3 42.2 36.2 36.2 27.8 44.6 44.4 38.3 37.9 28.8 KW 5.84 5.87 5.86 5.89 5.94 5.93 5.96 5.95 5.97 6.02 6.03 6.04 6.03 6.06 6.10 T.C. 39.4 40.5 40.6 45.3 49.7 40.9 41.3 41.2 45.9 49.9 42.4 42.0 41.8 46.4 50.0

125

S.C. 39.4 38.1 32.7 33.2 25.9 40.9 40.2 34.7 34.8 26.7 42.3 42.0 36.6 36.4 27.6 KW 6.44 6.47 6.46 6.49 6.54 6.54 6.55 6.55 6.57 6.62 6.64 6.64 6.63 6.65 6.70

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).

Green shaded cells are ACCA (TVA) conditions. Blue shaded cells are AHRI conditions.

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

Outdoor Ambient Temperature

50.7 56.0 60.0 49.6 51.5 51.5 56.7 60.6

Johnson Controls Unitary Products 67

Page 68

COIL MULTIPLIERS - 5 TON

Air Handler Coil T.C. S.C. KW

– CF/CM/CU60C 1.00 1.00 1.00 – CF/CM/CU60D 1.00 1.00 1.00

– CF/CM64D 1.03 1.04 1.03 AE60CX21 – 1.01 1.00 0.99 AE60DX21 – 1.04 1.05 1.01 AVC60DX21 – 1.03 1.03 0.98

ME16CN21 CF/CM60C 1.01 1.00 0.97

ME20DN21 CF/CM60D 1.01 1.00 0.97

ME20DN21 CF/CM64D 1.04 1.01 0.99

MVC16CN21 CF/CM60C 1.02 1.01 0.94

MVC20DN21 CF/CM60D 1.01 1.00 0.99

MVC20DN21 CF/CM64D 1.03 1.01 0.98

FURNACE MULTIPLIERS - 5 TON

Furnaces Coil T.C. S.C. KW

TM8V080C16MP11 CF/CM64D 1.02 1.00 1.02

TM8V100C16MP11 CF/CM64D 1.02 1.00 1.02

TM8V100C20MP11 CF/CM/CU60D 1.00 0.99 1.00

TM8V120C20MP11 CF/CM/CU60D 1.00 0.99 1.00

TM8X100C20MP11 CF/CM/CU60C 1.01 1.00 0.99

TM8X100C20MP11 CF/CM/CU60D 1.01 1.00 0.99

TM8X100C20MP11 CF/CM64D 1.03 1.01 0.98

TM8X120C20MP11 CF/CM/CU60C 1.01 1.00 0.99

TM8X120C20MP11 CF/CM/CU60D 1.01 1.00 0.99

TM8X120C20MP11 CF/CM64D 1.03 1.01 0.98

TM8Y100C20MP11 CF/CM/CU60C 1.01 1.00 0.99

TM8Y100C20MP11 CF/CM/CU60D 1.01 1.00 0.99

TM8Y100C20MP11 CF/CM64D 1.03 1.01 0.98

TM8Y120C20MP11 CF/CM/CU60C 1.01 1.00 0.99

TM8Y120C20MP11 CF/CM/CU60D 1.01 1.00 0.99

TM8Y120C20MP11 CF/CM64D 1.03 1.01 0.98

TM9E100C20MP11 CF/CM/CU60D 1.00 1.00 0.98

TM9E120D20MP11 CF/CM/CU60D 1.01 1.00 0.99

TM9V080C16MP11 CF/CM/CU60C 1.00 0.99 1.00

TM9V080C16MP11 CF/CM64D 1.03 1.01 1.01

TM9V100C16MP11 CF/CM/CU60C 1.00 0.99 1.00

TM9V100C16MP11 CF/CM64D 1.03 1.01 1.01

TM9V100C20MP11 CF/CM64D 1.02 1.00 1.02

FURNACE MULTIPLIERS - 5 TON

Furnaces Coil T.C. S.C. KW

TM9V120D20MP11 CF/CM/CU60D 1.01 1.04 1.01 TM9V120D20MP11 CF/CM64D 1.04 1.04 1.04 TM9Y100C20MP11 CF/CM/CU60D 1.00 1.00 0.98 TM9Y120D20MP11 CF/CM/CU60D 1.01 1.00 0.99 TMLV080C16MP11 CF/CM64D 1.02 1.00 1.02 TMLV100C16MP11 CF/CM64D 1.02 1.00 1.02 TMLV100C20MP11 CF/CM/CU60D 1.00 0.99 1.00 TMLV120C20MP11 CF/CM/CU60D 1.00 0.99 1.00 TMLX100C20MP11 CF/CM/CU60C 1.01 1.00 0.99 TMLX100C20MP11 CF/CM/CU60D 1.01 1.00 0.99 TMLX100C20MP11 CF/CM64D 1.03 1.01 0.98 TMLX120C20MP11 CF/CM/CU60C 1.01 1.00 0.99 TMLX120C20MP11 CF/CM/CU60D 1.01 1.00 0.99 TMLX120C20MP11 CF/CM64D 1.03 1.01 0.98 TP9C080C16MP12 CF/CM/CU60C 1.00 0.99 1.00 TP9C080C16MP12 CF/CM64D 1.03 1.01 1.01 TP9C100C16MP12 CF/CM/CU60C 1.00 0.99 1.00 TP9C100C16MP12 CF/CM64D 1.03 1.01 1.01 TP9C100C20MP12 CF/CM64D 1.02 1.00 1.02 TP9C120D20MP12 CF/CM/CU60D 1.01 1.04 1.01 TP9C120D20MP12 CF/CM64D 1.04 1.04 1.04 TPLC080C16MP12 CF/CM64D 1.02 1.00 1.02 TPLC100C16MP12 CF/CM64D 1.02 1.00 1.02 TPLC100C20MP12 CF/CM/CU60D 1.00 0.99 1.00 TPLC120C20MP12 CF/CM/CU60D 1.00 0.99 1.00 YP9C080C16MP12 CF/CM/CU60C 1.00 0.99 1.00 YP9C080C16MP12 CF/CM64D 1.03 1.01 1.01 YP9C100C16MP12 CF/CM/CU60C 1.00 0.99 1.00 YP9C100C16MP12 CF/CM64D 1.03 1.01 1.01 YP9C100C20MP12 CF/CM64D 1.02 1.00 1.02 YP9C120D20MP12 CF/CM/CU60D 1.01 1.04 1.01 YP9C120D20MP12 CF/CM64D 1.04 1.04 1.04 YPLC080C16MP12 CF/CM64D 1.02 1.00 1.02 YPLC100C16MP12 CF/CM64D 1.02 1.00 1.02 YPLC100C20MP12 CF/CM/CU60D 1.00 0.99 1.00 YPLC120C20MP12 CF/CM/CU60D 1.00 0.99 1.00

York International Corp.

5005 Y ork Drive

Norman, OK 73069

York YFE Air Technical Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

DESCRIPTION

FEATURES

NOMENCLATURE

PHYSICAL AND ELECTRICAL DATA

DIMENSIONS

SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS

ACCESSORIES

SOUND POWER RATINGS

MECHANICAL SPECIFICATIONS

TYPICAL INSTALLATION

TYPICAL FIELD WIRING

ALTERNATIVE INSTALLATION CLEARANCES

PERFORMANCE DATA - 1.5 TON

PERFORMANCE DATA - 2 TON

PERFORMANCE DATA - 2.5 TON

PERFORMANCE DATA - 3 TON

PERFORMANCE DATA - 3.5 TON

PERFORMANCE DATA - 4 TON

PERFORMANCE DATA - 5 TON
