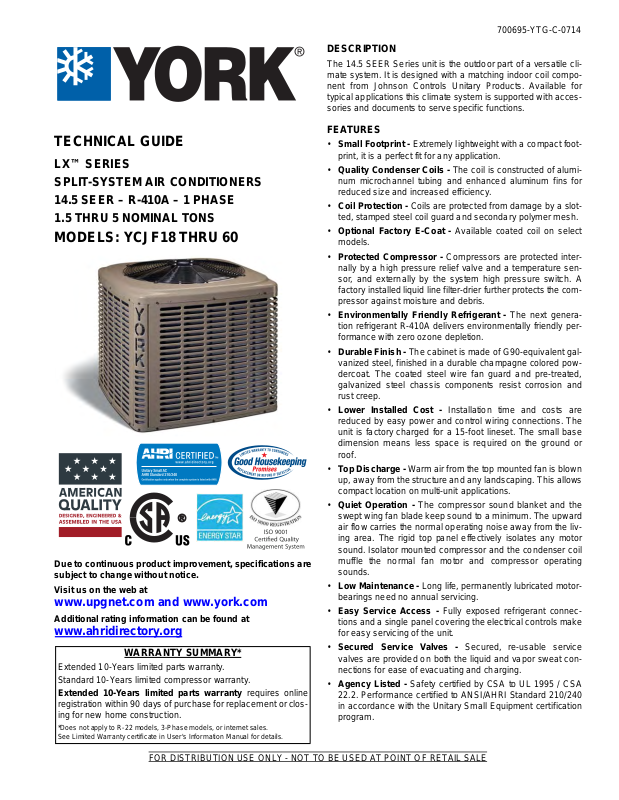

TECHNICAL GUIDE
LX™ SERIES
SPLIT-SYSTEM AIR CONDITIONERS
14.5 SEER – R-410A – 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: YCJF18 THRU 60
Due to continuous product improvement, specifications are
subject to change without notice.
Visit us on the web at
www.upgnet.com and www.york.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Extended 10-Years limited parts warranty.
Standard 10-Years limited compressor warranty.
Extended 10-Years limited parts warranty requires online
registration within 90 days of purchase for replacement or closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
®
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
700695-YTG-C-0714
DESCRIPTION
The 14.5 SEER Series unit is the outdoor part of a versatile climate system. It is designed with a matching indoor coil component from Johnson Controls Unitary Products. Available for
typical applications this climate system is supported with accessories and documents to serve specific functions.
FEATURES
• Small Footprint - Extremely lightweight with a compact footprint, it is a perfect fit for any application.
• Quality Condenser Coils - The coil is constructe d of aluminum microchannel tubing and enhanced aluminum fins for
reduced size and increased efficiency.
• Coil Protection - Coils are protected from damage by a slotted, stamped steel coil guard and secondary polymer mesh.
• Optional Factory E-Coat - Available coated coil on select
models.
• Protected Compressor - Compressors are protected internally by a high pressure relief valve and a temperature sensor, and externally by the system high pressure switch. A
factory installed liquid line filter-drier further protects the compressor against moisture and debris.
• Environmentally Friendly Refrigerant - The next generation refrigerant R-410A delivers environmentally friendly performance with zero ozone depletion.
• Durable Finish - The cabinet is made of G90-equivalent galvanized steel, finished in a durable champagne colored powdercoat. The coated steel wire fan guard and pre-treated,
galvanized steel chassis components resist corrosion and
rust creep.
• Lower Installed Cost - Installation time and costs are
reduced by easy power and control wiring connections. The
unit is factory charged for a 15-foot lineset. The small base
dimension means less space is required on the ground or
roof.
• T op Discharge - Warm air from the top mounted fan is blown
up, away from the structure and any landscaping. This allows
compact location on multi-unit applications.
• Quiet Operation - The compressor sound blanket and the
swept wing fan blade keep sound to a minimum. The upward
air flow carries the normal operating noise away from the living area. The rigid top panel effectively isolates any motor
sound. Isolator mounted compressor and the conde nser coil
muffle the normal fan motor and compressor operating
sounds.
• Low Maintenance - Long life, permanently lubricated motorbearings need no annual servicing.
• Easy Service Access - Fully exposed refrigerant connections and a single panel covering the electrical controls make
for easy servicing of the unit.
• Secured Service Valves - Secured, re-usable service
valves are provided on both the liquid and vapor swe at connections for ease of evacuating and charging.
• Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.
Page 2
700695-YTG-C-0714
B
C
A
Physical and Electrical Data
MODEL
YCJF18
S41S1(E)
YCJF24
S41S1(E)
YCJF30
S41S1(E)
YCJF36
S41S1(E)
YCJF42
S41S1(E)
YCJF48
S41S2(E)
YCJF60
S41S2(E)
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range
1
187 to 252
Minimum Circuit Ampacity 12.0 16.8 18.4 19.1 23.9 26.3 32.7
Max. Overcurrent Device Amps
Min. Overcurrent Device Amps
2
3
20 25 30 30 40 45 50
15 20 20 20 25 30 35
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Compressor
Amps
Rated Load 9.0 12.8 14.1 14.1 17.9 19.9 25.0
Locked Rotor 46 58 73 77 112 109 134
Crankcase Heater No No No No No No No
Factory External Discharge MufflerNoNoNoNoNoNoNo
Factory External Check ValveNoNoNoNoNoNoNo
HS Kit Required with TXV
4
No No No No No No No
Fan Motor Amps Rated Load 0.8 0.8 0.8 1.5 1.5 1.5 1.5
Fan Diameter Inches 22 22 22 22 24 24 24
Rated HP 1/8 1/8 1/8 1/4 1/4 1/4 1/4
Fan Motor
Nominal RPM 1075 1075 1075 850 850 850 850
Nominal CFM 2750 2750 2800 3200 3600 3700 3750
Face Area Sq. Ft. 13.1 13.1 17.4 17.4 20.0 21.4 24.0
Coil
Rows Deep 1 1 1 1 1 1 1
Fins / Inch 23 23 23 23 23 23 23
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 3/4 7/8 7/8 7/8
Unit Charge (Lbs. - Oz.)
5
3 - 10 3 - 2 3 - 7 3 - 10 4 - 4 5 - 1 5 - 4
Charge Per Foot, Oz. 0.62 0.62 0.62 0.62 0.67 0.67 0.67
Operating Weight Lbs. 125 128 130 145 172 208 231
Models with “E” on the end of the model number have E-Coated coils.
1. Rated in accordance with AHRI Standa rd 110-2012, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.
5. The Unit Charge is correct for the outdoor unit, smalle st matc hed indoor unit, and 15 feet of re frigera nt tubing. For tubing leng ths o ther than 15 feet, add or subtract
the amount of refrigerant, using the difference in actual lin eset length (not equivalent length) multiplied by the per foot value.
Unit
Model
Dimensions
(Inches)
A B C Liquid Vapor
Refrigerant Connection
Service Valve Size
18 28-1/4 29-1/2 29-1/2
24 28-1/4 29-1/2 29-1/2
30 36-1/4 29-1/2 29-1/2
36 36-1/4 29-1/2 29-1/2
42 34-1/4 34 34
3/8
3/4
7/848 36-1/4 34 34
60 40-1/4 34 34
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.
2 Johnson Controls Unitary Products
Page 3
700695-YTG-C-0714
System Charge for Various Matched Systems
Outdoor Unit
Required TXV
Indoor Unit
3,4,5
1,2
YCJF18
S41S1(E)
4F1 4F1 4G1 4G1 4G1 4J1 4J1
AHE18B 0––––––
AHE24B 1516–––––
AHE30B 151613––––
AHE36C 24 23 19 15 – – –
AHE42D – 35302517 – –
AHE48D – – – 24 16 11 –
AHE60D – – – 29221513
AHR18B 0––––––
AHR24B –16–––––
AHR30B ––12––––
AHR36B – – 19 15 – – –
AHR42C – – – 25 17 – –
AHR48D – – – – 16 11 –
AHR60D – – – – 22 15 13
AHV18B 0––––––
AHV24B 1516–––––
AHV30B 151613––––
AHV36C 23 22 19 15 – – –
AHV42D – – 31 25 17 – –
AHV48D – – – 24 16 11 –
AHV60D – – – – 21 15 13
FC/MC/PC18 0––––––
FC/MC/PC32 151613––––
FC/MC/PC35 151613––––
FC/MC/PC37 23 22 19 15 – – –
FC/MC/PC43 23 22 19 15 8 – –
FC/MC/PC48 – 34302517 9 –
FC/MC/PC60 – – – 24 16 11 9
FC/MC62 – – – 29 21 15 13
FC64 – – – 39302621
HD24 14––––––
HD36 191916––––
HD48 – 45 40 34 26 – –
HD60 ––––2286
UC18 2––––––
UC48 – – – 19 11 10 –
UC60 – – – 24 16 13 11
Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil
only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:
1. For applications requ ir i ng a TXV use S1-1TVM*** series kit.
2. A TXV kit must be used with these indoor units to obtain system performance.
3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.
4. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.
5. Refer to Cooling Performance Data tables for actual system performance for specified system matches.
PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the outdoor unit, the smallest matched indoor unit, and 15 feet of interconnecting line tubing.
2. Verify the TXV and additional charge required for specific matched indoor unit in the system using the above table.
3. Add additional charge for the amount of interconnecting line tubing great er than 15 feet at the rate specified in Physical and Electrical Data Table.
4. For indoor matches requiring additional charge, the refrigerant needs to be
weighed in for specific matched indoor unit and actual lineset length.
5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + charge adder for matched indoor unit +
charge adder for actual lineset length.
YCJF24
S41S1(E)
YCJF30
S41S1(E)
YCJF36
S41S1(E)
Additional Charge, oz
YCJF42
S41S1(E)
YCJF48
S41S2(E)
YCJF60
S41S2(E)
Johnson Controls Unitary Products 3
Page 4
700695-YTG-C-0714
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
YCJF18S41S1(E)
YCJF24S41S1(E)
YCJF30S41S1(E)
For notes see Page 6.
AIR HANDLER
MODEL WIDTH
14.5 SEER AC WITH AIR HANDLERS
AHE18B 17.5 – 610 17.9 13.0 16.25 13.25
AHE24B 17.5 – 585 18.1 13.1 16.75 13.50
AHE30B 17.5 – 585 18.1 13.1 16.75 13.50
AHE36C 21.0 – 730 19.2 15.0 17.50 14.25
AHR18B 17.5 – 665 17.7 13.1 14.25 12.00
AHV18B 17.5 – 615 17.6 12.8 16.00 13.00
AHV24B 17.5 – 580 17.8 12.9 16.50 13.25
AHV30B 17.5 – 700 18.0 13.8 16.50 13.25
AHV36C 21.0 – 670 18.2 13.7 17.00 13.75
MV12B 17.5 FC/MC18B 600 17.9 12.7 16.25 13.25
MV12B 17.5 FC/MC35B 600 18.2 13.1 16.50 13.25
MV12B 17.5 FC/MC43B 600 18.4 13.2 16.75 13.50
MX12BN21 17.5 FC/MC18B 600 17.9 12.8 16.25 13.35
MX12BN21 17.5 FC/MC35B 600 18.3 13.2 16.85 13.60
MX12BN21 17.5 FC/MC43B 600 18.4 13.4 17.15 13.75
MX16CN21 21.0 FC/MC35C 625 17.9 13.0 14.75 12.00
AHE24B 17.5 – 795 25.2 18.7 16.25 13.50
AHE30B 17.5 – 795 25.2 18.7 16.25 13.50
AHE36C 21.0 – 855 26.2 19.7 17.00 14.25
AHE42D 24.5 – 820 26.4 19.5 17.25 14.50
AHR24B 17.5 – 740 24.8 17.7 15.00 12.75
AHV24B 17.5 – 710 24.0 17.0 15.75 13.25
AHV30B 17.5 – 775 24.2 17.5 15.75 13.25
AHV36C 21.0 – 760 24.4 17.7 16.25 13.50
MV12B 17.5 FC/MC35B 800 25.6 18.0 16.00 13.50
MV12B 17.5 FC/MC43B 800 25.8 18.4 16.10 13.75
MV12D 24.5 FC/MC48D 845 26.4 19.8 17.25 14.50
MV16C 21.0 FC/MC35C 800 25.6 18.0 16.00 13.50
MV16C 21.0 FC/MC43C 800 25.8 18.4 16.10 13.75
MV16C 21.0 FC/MC48C 800 26.2 18.7 16.50 14.00
MX12BN21 17.5 FC/MC35B 800 25.6 18.6 16.15 13.70
MX12BN21 17.5 FC/MC43B 800 25.8 19.0 16.40 13.90
MX12DN21 24.5 FC/MC48D 800 26.2 19.1 16.75 14.00
MX16CN21 21.0 FC/MC35C 800 25.4 18.5 15.50 13.25
MX16CN21 21.0 FC/MC43C 800 25.8 18.9 15.75 13.25
MX16CN21 21.0 FC/MC48C 800 26.0 19.0 16.00 13.50
AHE30B 17.5 – 985 29.6 21.1 15.50 13.00
AHE36C 21.0 – 1000 30.4 21.9 16.25 13.75
AHE42D 24.5 – 1000 30.8 22.3 16.75 14.00
AHR30B 17.5 – 1115 29.8 21.9 14.25 12.00
AHR36B 17.5 – 1060 30.0 21.7 14.50 12.25
AHV30B 17.5 – 1000 29.0 20.7 14.75 12.50
AHV36C 21.0 – 895 29.4 20.5 16.00 13.25
AHV42D 24.5 – 1080 30.0 22.2 16.25 13.50
MV12B 17.5 FC/MC35B 1000 29.6 21.4 15.25 13.00
MV12B 17.5 FC/MC43B 1000 30.2 22.0 15.75 13.25
MV16C 21.0 FC/MC35C 1000 29.6 21.4 15.50 13.25
MV16C 21.0 FC/MC43C 1000 30.2 22.0 16.00 13.50
MV16C 21.0 FC/MC48C 1000 30.6 22.2 16.00 13.50
MV20D 24.5 FC/MC48D 1000 30.6 22.2 16.00 13.50
COIL
MODEL
COOLING
1
RATED
CFM
NET MBH
TOTAL SENS.
SEER EER
4 Johnson Controls Unitary Products
Page 5
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
YCJF30S41S1(E)
YCJF36S41S1(E)
YCJF42S41S1(E)
For notes see Page 6.
AIR HANDLER
MODEL WIDTH
14.5 SEER AC WITH AIR HANDLERS
MX12BN21 17.5 FC/MC35B 975 29.6 21.2 15.80 13.25
MX12BN21 17.5 FC/MC43B 975 30.2 21.6 16.05 13.50
MX12DN21 24.5 FC/MC48D 950 30.0 21.2 16.25 13.75
MX16CN21 21.0 FC/MC35C 1000 29.6 21.2 15.75 13.25
MX16CN21 21.0 FC/MC43C 950 29.8 21.2 16.50 13.85
MX16CN21 21.0 FC/MC48C 950 30.0 21.2 16.65 13.95
MX20DN21 24.5 FC/MC48D 1000 30.0 21.4 15.25 12.75
AHE36C 21.0 – 1190 35.0 26.0 16.00 13.50
AHE42D 24.5 – 1180 35.2 26.4 16.50 13.75
AHE48D 24.5 – 1195 35.0 26.2 16.50 13.75
AHE60D 24.5 – 1190 35.4 26.6 16.75 14.00
AHR36B 17.5 – 1245 34.2 25.2 14.25 12.00
AHR42C 21.0 – 1230 34.8 26.2 14.75 12.50
AHV36C 21.0 – 1215 34.4 25.8 15.50 12.75
AHV42D 24.5 – 1180 34.8 26.1 16.25 13.25
AHV48D 24.5 – 1155 34.2 25.5 16.25 13.25
MV12B 17.5 FC/MC43B 1200 34.8 25.6 15.50 13.00
MV12D 24.5 FC/MC48D 1160 35.2 25.8 16.00 13.25
MV12D 24.5 FC/MC60D 1135 34.6 25.4 16.00 13.25
MV12D 24.5 FC/MC62D 1155 35.4 26.6 16.75 14.00
MV12D 24.5 FC64D 1155 36.0 27.0 17.00 13.50
MV16C 21.0 FC/MC43C 1200 35.0 25.8 16.00 13.25
MV16C 21.0 FC/MC48C 1200 35.4 26.4 16.25 13.25
MV20D 24.5 FC/MC48D 1300 35.8 27.6 16.50 14.00
MV20D 24.5 FC/MC60D 1300 35.2 27.2 16.25 13.50
MV20D 24.5 FC/MC62D 1300 35.6 27.6 16.50 13.75
MV20D 24.5 FC64D 1300 36.0 27.0 16.50 13.50
MX12BN21 17.5 FC/MC43B 1125 33.8 24.9 15.50 13.00
MX12DN21 24.5 FC/MC48D 1125 34.6 25.5 16.25 13.50
MX12DN21 24.5 FC/MC60D 1150 34.6 25.7 16.50 13.50
MX12DN21 24.5 FC/MC62D 1150 34.8 26.1 16.75 13.90
MX12DN21 24.5 FC64D 1175 36.0 27.2 17.25 14.35
MX16CN21 21.0 FC/MC43C 1200 34.2 25.7 15.80 13.05
MX16CN21 21.0 FC/MC48C 1200 34.6 26.0 15.85 13.15
MX16CN21 21.0 FC60C 1200 34.2 25.5 15.50 12.75
MX20DN21 24.5 FC/MC48D 1200 35.0 26.3 16.50 13.50
MX20DN21 24.5 FC/MC60D 1200 34.6 25.7 16.75 13.75
MX20DN21 24.5 FC/MC62D 1200 34.8 26.1 16.75 13.90
MX20DN21 24.5 FC64D 1200 36.0 27.2 17.25 14.30
AHE42D 24.5 – 1385 41.5 31.0 16.00 13.25
AHE48D 24.5 – 1385 40.5 30.6 16.00 13.00
AHE60D 24.5 – 1390 41.5 31.4 16.25 13.25
AHR42C 21.0 – 1485 41.0 31.2 14.75 12.00
AHR48D 24.5 – 1320 39.5 29.2 14.25 11.75
AHR60D 24.5 – 1350 40.5 30.2 14.75 12.25
AHV42D 24.5 – 1385 40.0 30.2 15.00 12.50
AHV48D 24.5 – 1300 40.5 29.8 15.25 12.75
AHV60D 24.5 – 1340 41.0 30.8 15.25 12.75
MV12D 24.5 FC64D 1155 42.0 30.4 16.00 13.00
MV16C 21.0 FC/MC43C 1400 41.0 30.8 15.00 12.75
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 5
Page 6
700695-YTG-C-0714
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER
MODEL WIDTH
COIL
MODEL
1
RATED
CFM
TOTAL SENS.
14.5 SEER AC WITH AIR HANDLERS
MV16C 21.0 FC/MC48C 1400 41.5 31.2 15.50 13.00
MV16C 21.0 FC60C 1400 40.5 30.6 15.50 12 .75
MV20D 24.5 FC/MC48D 1400 42.0 31.4 15.50 13.00
MV20D 24.5 FC/MC60D 1400 41.5 31.4 15.50 13.00
MV20D 24.5 FC/MC62D 1400 42.0 31.4 16.00 13.00
MV20D 24.5 FC64D 1300 42.0 31.4 16.50 13 .50
YCJF42S41S1(E)
MX16CN21 21.0 FC/MC43C 1400 40.5 30.6 15.25 12.75
MX16CN21 21.0 FC/MC48C 1400 41.0 30.8 15.35 12.85
MX16CN21 21.0 FC60C 1400 41.0 30.6 15.35 12.85
MX20DN21 24.5 FC/MC48D 1375 41.5 31.2 16.00 13.25
MX20DN21 24.5 FC/MC60D 1375 41.0 30.8 16.10 13.25
MX20DN21 24.5 FC/MC62D 1400 41.5 31.6 16.20 13.50
MX20DN21 24.5 FC64D 1400 43.0 32.8 16.70 13.75
AHE48D 24.5 – 1600 46.0 32.6 15.25 12.50
AHE60D 24.5 – 1565 46.5 33.2 15.75 13.00
AHR48D 24.5 – 1610 45.5 32.0 14.25 11.75
AHR60D 24.5 – 1620 46.5 33.0 14.50 12.25
AHV48D 24.5 – 1585 45.5 31.9 14.75 12.25
AHV60D 24.5 – 1570 46.0 32.4 15.00 12.50
MV16C 21.0 FC/MC48C 1625 45.0 33.2 15.00 12.25
MV16C 21.0 FC60C 1625 46.0 32.2 15.00 12 .50
YCJF48S41S2(E)
MV20D 24.5 FC/MC48D 1620 45.5 33.4 15.50 12.50
MV20D 24.5 FC/MC60D 1600 46.0 32.2 15.00 12.25
MV20D 24.5 FC/MC62D 1630 47.0 33.8 15.50 12.75
MV20D 24.5 FC64D 1630 47.5 34.2 16.00 13 .00
MX16CN21 21.0 FC/MC48C 1600 45.0 32.1 15.05 12.25
MX16CN21 21.0 FC60C 1600 45.0 31.9 15.05 12.55
MX20DN21 24.5 FC/MC48D 1525 45.5 32.5 15.50 12.75
MX20DN21 24.5 FC/MC60D 1525 45.5 32.1 15.85 13.00
MX20DN21 24.5 FC/MC62D 1525 45.5 32.3 15.85 13.25
MX20DN21 24.5 FC64D 1525 46.5 33.5 16.30 13.50
AHE60D 24.5 – 1835 56.5 39.6 14.50 12.50
AHR60D 24.5 – 1870 56.0 39.1 13.75 11.75
AHV60D 24.5 – 1635 55.5 37.4 14.25 12.00
MV20D 24.5 FC/MC60D 1845 56.0 38.1 14.50 12.25
YCJF60S41S2(E)
MV20D 24.5 FC/MC62D 1855 56.5 39.6 14.25 12.25
MV20D 24.5 FC64D 1855 57.5 40.5 14.50 12 .50
MX20DN21 24.5 FC/MC60D 1725 55.0 36.9 14.50 12.45
MX20DN21 24.5 FC/MC62D 1750 56.0 38.3 14.90 12.70
MX20DN21 24.5 FC64D 1750 57.5 39.8 15.25 13.00
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI /AHRI Standard 210/240.
Cooling MBH based on 80°F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power input in
watt-hours during the same period.
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
— = Not applicable.
MA Modular Air Handlers use Coil Only Ratings.
COOLING
NET MBH
SEER EER
6 Johnson Controls Unitary Products
Page 7
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)
UNIT MODEL
COIL
MODEL WIDTH
CFM RANGE
(MIN.-MAX.)
RATED
CFM
14.5 SEER AC COIL ONLY RATINGS
FC/MC/PC18 14.5,17.5 450-750 600 17.3 12.4 14.00 11.50
FC/MC/PC32 14.5 450-750 600 17.8 12.8 14.50 12.00
FC/MC/PC35 17.5,21.0 450-750 600 17.8 12.8 14.50 12.00
YCJF18S41S1(E)
FC/MC/PC37 14.5 450-750 600 18.0 12.9 14.75 12.00
FC/MC/PC43 17.5,21.0 450-750 600 18.0 12.9 14.75 12.00
HD24 – 450-750 600 17.9 12.8 14.50 12.00
HD36 – 450-750 600 17.3 11.9 14.00 11.50
UC18 14.5,17.5 450-750 600 17.4 12.5 14.00 11.75
FC/MC/PC32 14.5 500-900 700 24.4 17.2 14.50 12.30
FC/MC/PC35 17.5,21.0 500-900 800 25.0 17.6 14.50 12.35
FC/MC/PC37 14.5 500-900 800 25.4 17.9 14.50 12.35
YCJF24S41S1(E)
FC/MC/PC43 17.5,21.0 500-900 800 25.2 18.0 14.70 12.50
FC/MC/PC48 21.0,24.5 500-900 800 25.6 18.3 14.80 12.65
HD36 – 500-900 800 24.8 17.0 14.00 12.00
HD48 – 500-900 800 25.6 17.9 14.50 12.35
FC/MC/PC32 14.5 800-1200 1000 29.0 21.0 14.00 12.00
FC/MC/PC35 17.5,21.0 800-1200 1000 29.0 21.0 14.00 12.00
FC/MC/PC37 14.5 800-1200 1000 29.6 21.6 14.50 12.35
YCJF30S41S1(E)
FC/MC/PC43 17.5,21.0 800-1200 1000 29.6 21.8 14.50 12.30
FC/MC/PC48 21.0,24.5 800-1200 1000 30.0 21.8 14.50 12.35
HD36 – 800-1200 1000 28.8 20.2 14.00 12.00
HD48 – 800-1200 1000 29.8 21.4 14.50 12.35
FC/MC/PC37 14.5 1000-1400 1200 34.4 25.2 14.50 12.20
FC/MC/PC43 17.5,21.0 1000-1400 1200 34.2 25.0 14.50 12.30
FC/MC/PC48 21.0,24.5 1000-1400 1200 34.6 25.4 14.50 12.25
YCJF36S41S1(E)
FC/MC/PC60 21.0,24.5 1000-1400 1200 34.0 25.4 14.25 12.00
FC/MC62 24.5 1000-1400 1200 34.4 25.8 14.50 12.25
FC64 24.5 1000-1400 1200 35.6 26.8 14.75 12.50
HD48 – 1000-1400 1200 34.6 25.0 14.50 12.20
UC60 21.0,24.5 1000-1400 1200 33.2 23.8 14.00 11.75
FC/MC/PC43 17.5,21.0 1200-1600 1400 40.5 30.4 14.00 12.00
FC/MC/PC48 21.0,24.5 1200-1600 1400 40.5 30.4 14.50 12.00
FC/MC/PC60 21.0,24.5 1200-1600 1400 41.0 30.8 14.50 12.30
YCJF42S41S1(E)
FC/MC62 24.5 1200-1600 1400 41.0 31.0 14.50 12.30
FC64 24.5 1200-1600 1400 41.5 32.0 14.75 12.25
HD48 – 1200-1600 1400 41.0 30.4 14.25 12.10
HD60 – 1200-1600 1400 41.5 31.2 14.50 12.30
FC/MC/PC48 21.0,24.5 1400 - 1800 1600 44.5 32.8 14.25 11.75
FC/MC/PC60 21.0,24.5 1400 - 1800 1600 45.5 31.8 14.25 11.75
FC/MC62 24.5 1400 - 1800 1600 46.0 32.8 14.50 12.00
YCJF48S41S2(E)
FC64 24.5 1400 - 1800 1600 46.5 33.8 14.75 12.25
HD60 – 1400 - 1800 1600 46.5 32.4 14.50 12.00
UC48 21.0,24.5 1400 - 1800 1600 44.5 32.8 14.25 11.75
UC60 21.0,24.5 1400 - 1800 1600 45.0 31.8 14.25 11.75
FC/MC/PC60 21.0,24.5 1600 - 2000 1800 54.5 36.8 13.50 11.75
FC/MC62 24.5 1600 - 2000 1800 56.0 38.6 14.00 12.00
YCJF60S41S2(E)
FC64 24.5 1600 - 2000 1800 57.0 40.5 14.25 12.25
HD60 – 1600 - 2000 1800 56.5 38.1 14.00 12.00
UC60 21.0,24.5 1600 - 2000 1800 55.0 37.4 13.75 11.75
1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
MA Modular Air Handlers use Coil Only Ratings.
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
TOTAL SENS.
COOLING
NET MBH
700695-YTG-C-0714
1
SEER
EER
Johnson Controls Unitary Products 7
Page 8
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces
UNIT
MODEL
YCJF18S41S1(E)
For notes see Page 27.
MODEL WIDTH
T*(8,L)V*A12 14.5 FC/MC/PC18A 615 17.8 12.7 16.00 13.00
T*(8,L)V*A12 14.5 FC/MC/PC32A 620 18.2 13.1 16.50 13.25
T*(8,L)V*A12 14.5 FC/MC/PC37A 635 18.6 13.8 17.00 13.75
T*(8,L)V*A12 14.5 HD24 640 18.6 13.7 17.00 13.75
T*(8,L)V*A12 14.5 HD36 645 18.0 12.8 16.25 13.25
T*(8,L)V*A12 14.5 UC18A 620 17.9 12.8 16.25 13.25
T*(8,L)V*B12 17.5 FC/MC/PC18B 625 17.8 12.7 16.00 13.00
T*(8,L)V*B12 17.5 FC/MC/PC35B 630 18.4 13.6 16.75 13.50
T*(8,L)V*B12 17.5 FC/MC/PC43B 570 18.2 13.0 16.75 13.50
T*(8,L)V*B12 17.5 HD24 575 18.5 13.2 17.25 14.00
T*(8,L)V*B12 17.5 HD36 650 18.1 12.9 16.50 13.25
T*(8,L)V*B12 17.5 UC18B 580 17.9 12.9 16.25 13.25
T*(8,L)V*C16 21.0 FC/MC/PC35C 645 18.4 13.8 17.00 13.50
T*(8,L)V*C16 21.0 HD24 600 18.4 13.1 17.25 13.75
T*(8,L)V*C16 21.0 HD36 595 17.8 12.3 16.50 13.25
T*9(C,V)*B12 17.5 FC/MC/PC18B 610 17.9 12.7 16.25 13.25
T*9(C,V)*B12 17.5 FC/MC/PC35B 570 18.0 12.9 16.50 13.50
T*9(C,V)*B12 17.5 HD24 610 18.4 13.1 17.00 13.75
T*9(C,V)*B12 17.5 HD36 635 18.0 12.8 16.50 13.25
T*9(C,V)*B12 17.5 UC18B 610 17.9 12.9 16.50 13.50
T*9(C,V)*C16 21.0 FC/MC/PC35C 645 18.4 13.8 17.00 13.75
T*9(C,V)*C16 21.0 HD36 595 17.8 12.3 16.50 13.25
T*9V*A10 14.5 FC/MC/PC18A 580 17.7 12.5 15.25 12.75
T*9V*A10 14.5 FC/MC/PC32A 580 18.0 13.0 16.25 13.00
T*9V*A10 14.5 FC/MC/PC37A 570 18.2 13.0 16.25 13.25
TM8X060A12MP11 14.5 FC/MC/PC18A 600 17.8 12.8 15.85 13.05
TM8X060A12MP11 14.5 FC/MC/PC32A 600 18.2 13.2 16.50 13.35
TM8X060A12MP11 14.5 FC/MC/PC37A 600 18.3 13.3 16.80 13.50
TM8X060A12MP11 14.5 UC18A 600 17.9 12.9 16.15 13.15
TM8X080B12MP11 17.5 FC/MC/PC18B 600 17.8 12.8 15.80 13.00
TM8X080B12MP11 17.5 FC/MC/PC35B 600 18.2 13.2 16.40 13.30
TM8X080B12MP11 17.5 FC/MC/PC43B 600 18.3 13.3 16.65 13.35
TM8X080B12MP11 17.5 UC18B 600 17.9 12.8 16.05 13.10
TM8X080C16MP11 21.0 FC/MC/PC35C 600 18.2 13.2 16.40 13.30
TM8X080C16MP11 21.0 FC/MC/PC43C 600 18.3 13.3 16.50 13.00
TM8X100C16MP11 21.0 FC/MC/PC35C 600 18.2 13.2 16.40 13.30
TM8X100C16MP11 21.0 FC/MC/PC43C 600 18.3 13.3 16.50 13.00
TM9E040A10MP11 14.5 FC/MC/PC18A 600 17.6 12.6 14.70 12.20
TM9E040A10MP11 14.5 FC/MC/PC32A 600 17.9 13.0 15.15 12.40
TM9E040A10MP11 14.5 FC/MC/PC37A 600 18.0 13.1 15.35 12.50
TM9E040A10MP11 14.5 UC18A 600 17.7 12.7 14.75 12.00
TM9E060B12MP11 17.5 FC/MC/PC18B 600 17.8 12.7 15.60 12.85
TM9E060B12MP11 17.5 FC/MC/PC35B 600 18.1 13.1 16.20 13.15
TM9E060B12MP11 17.5 FC/MC/PC43B 600 18.3 13.3 16.25 13.00
TM9E060B12MP11 17.5 UC18B 600 17.9 12.8 15.85 12.95
TM9E080B12MP11 17.5 FC/MC/PC18B 600 17.8 12.7 15.60 12.85
TM9E080B12MP11 17.5 FC/MC/PC35B 600 18.1 13.1 16.20 13.15
TM9E080B12MP11 17.5 FC/MC/PC43B 600 18.3 13.3 16.25 13.00
TM9E080B12MP11 17.5 UC18B 600 17.9 12.8 15.85 12.95
TM9E080C16MP11 21.0 FC/MC/PC35C 600 18.3 13.2 16.50 13.25
TM9E080C16MP11 21.0 FC/MC/PC43C 600 18.4 13.4 16.75 13.50
TM9E100C16MP11 21.0 FC/MC/PC35C 600 18.3 13.2 16.50 13.25
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
COOLING
1
RATED
CFM
NET MBH
TOTAL SENS.
2
SEER EER
8 Johnson Controls Unitary Products
Page 9
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF18S41S1(E)
For notes see Page 27.
MODEL WIDTH
TM9E100C16MP11 21.0 FC/MC/PC43C 600 18.4 13.4 16.75 13.50
TM9E100C20MP11 21.0 FC/MC/PC35C 600 17.9 13.0 14.75 12.00
TM9E100C20MP11 21.0 FC/MC/PC43C 600 18.0 13.1 15.00 12.25
TM9X040A10MP11 14.5 FC/MC/PC18A 600 17.6 12.6 14.70 12.20
TM9X040A10MP11 14.5 FC/MC/PC32A 600 17.9 13.0 15.15 12.40
TM9X040A10MP11 14.5 FC/MC/PC37A 600 18.0 13.1 15.35 12.50
TM9X040A10MP11 14.5 UC18A 600 17.7 12.7 14.75 12.00
TM9X060B12MP11 17.5 FC/MC/PC18B 600 17.8 12.7 15.60 12.85
TM9X060B12MP11 17.5 FC/MC/PC35B 600 18.1 13.1 16.20 13.15
TM9X060B12MP11 17.5 FC/MC/PC43B 600 18.3 13.3 16.25 13.00
TM9X060B12MP11 17.5 UC18B 600 17.9 12.8 15.85 12.95
TM9X080B12MP11 17.5 FC/MC/PC18B 600 17.8 12.7 15.60 12.85
TM9X080B12MP11 17.5 FC/MC/PC35B 600 18.1 13.1 16.20 13.15
TM9X080B12MP11 17.5 FC/MC/PC43B 600 18.3 13.3 16.25 13.00
TM9X080B12MP11 17.5 UC18B 600 17.9 12.8 15.85 12.95
TM9X080C16MP11 21.0 FC/MC/PC35C 600 18.3 13.2 16.50 13.25
TM9X080C16MP11 21.0 FC/MC/PC43C 600 18.4 13.4 16.75 13.50
TM9X100C16MP11 21.0 FC/MC/PC35C 600 18.3 13.2 16.50 13.25
TM9X100C16MP11 21.0 FC/MC/PC43C 600 18.4 13.4 16.75 13.50
TM9X100C20MP11 21.0 FC/MC/PC35C 600 17.9 13.0 14.75 12.00
TM9X100C20MP11 21.0 FC/MC/PC43C 600 18.0 13.1 15.00 12.25
TMLX060A12MP11 14.5 FC/MC/PC18A 600 17.8 12.8 15.85 13.05
TMLX060A12MP11 14.5 FC/MC/PC32A 600 18.2 13.2 16.50 13.35
TMLX060A12MP11 14.5 FC/MC/PC37A 600 18.3 13.3 16.80 13.50
TMLX060A12MP11 14.5 UC18A 600 17.9 12.9 16.15 13.15
TMLX080B12MP11 17.5 FC/MC/PC18B 600 17.8 12.8 15.80 13.00
TMLX080B12MP11 17.5 FC/MC/PC35B 600 18.2 13.2 16.40 13.30
TMLX080B12MP11 17.5 FC/MC/PC43B 600 18.3 13.3 16.65 13.35
TMLX080B12MP11 17.5 UC18B 600 17.9 12.8 16.05 13.10
TMLX080C16MP11 21.0 FC/MC/PC35C 600 18.2 13.2 16.40 13.30
TMLX080C16MP11 21.0 FC/MC/PC43C 600 18.3 13.3 16.50 13.00
TMLX100C16MP11 21.0 FC/MC/PC35C 600 18.2 13.2 16.40 13.30
TMLX100C16MP11 21.0 FC/MC/PC43C 600 18.3 13.3 16.50 13.00
Y*(8,L)C*A12 14.5 FC/MC/PC18A 615 17.8 12.7 16.00 13.00
Y*(8,L)C*A12 14.5 FC/MC/PC32A 620 18.2 13.1 16.50 13.25
Y*(8,L)C*A12 14.5 FC/MC/PC37A 635 18.6 13.8 17.00 13.75
Y*(8,L)C*A12 14.5 HD24 640 18.6 13.7 17.00 13.75
Y*(8,L)C*A12 14.5 HD36 645 18.0 12.8 16.25 13.25
Y*(8,L)C*A12 14.5 UC18A 620 17.9 12.8 16.25 13.25
Y*(8,L)C*B12 17.5 FC/MC/PC18B 625 17.8 12.7 16.00 13.00
Y*(8,L)C*B12 17.5 FC/MC/PC35B 630 18.4 13.6 16.75 13.50
Y*(8,L)C*B12 17.5 FC/MC/PC43B 570 18.2 13.0 16.75 13.50
Y*(8,L)C*B12 17.5 HD24 575 18.5 13.2 17.25 14.00
Y*(8,L)C*B12 17.5 HD36 650 18.1 12.9 16.50 13.25
Y*(8,L)C*B12 17.5 UC18B 580 17.9 12.9 16.25 13.25
Y*(8,L)C*C16 21.0 FC/MC/PC35C 645 18.4 13.8 17.00 13.50
Y*(8,L)C*C16 21.0 HD24 600 18.4 13.1 17.25 13.75
Y*(8,L)C*C16 21.0 HD36 595 17.8 12.3 16.50 13.25
Y*9C*B12 17.5 FC/MC/PC18B 610 17.9 12.7 16.25 13.25
Y*9C*B12 17.5 FC/MC/PC35B 570 18.0 12.9 16.50 13.50
Y*9C*B12 17.5 HD24 610 18.4 13.1 17.00 13.75
Y*9C*B12 17.5 HD36 635 18.0 12.8 16.50 13.25
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 9
Page 10
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF18S41S1(E)
YCJF24S41S1(E)
For notes see Page 27.
MODEL WIDTH
Y*9C*B12 17.5 UC18B 610 17.9 12.9 16.50 13.50
Y*9C*C16 21.0 FC/MC/PC35C 645 18.4 13 .8 17.00 13.75
Y*9C*C16 21.0 HD36 595 17.8 12.3 16.50 13.25
T*(8,L)V*A12 14.5 FC/MC/PC32A 775 24.0 16.8 15.50 13.25
T*(8,L)V*A12 14.5 FC/MC/PC37A 805 24.0 16.9 16.00 13.50
T*(8,L)V*A12 14.5 HD36 805 24.0 16.4 16.00 13.50
T*(8,L)V*B12 17.5 FC/MC/PC35B 760 24.0 16.8 15.75 13.25
T*(8,L)V*B12 17.5 FC/MC/PC43B 760 24.0 16.7 16.00 13.50
T*(8,L)V*B12 17.5 HD36 760 24.0 16.2 15.75 13.25
T*(8,L)V*C16 21.0 HD36 855 24.0 16.7 16.00 13.50
T*(8,L)V*C20 21.0 HD36 750 24.0 16.1 15.75 13.25
T*9(C,V)*B12 17.5 FC/MC/PC35B 815 24.0 17.0 15.75 13.25
T*9(C,V)*B12 17.5 FC/MC/PC43B 800 24.0 16.8 16.00 13.50
T*9(C,V)*B12 17.5 HD36 815 24.0 16.4 15.75 13.25
T*9(C,V)*C16 21.0 FC/MC/PC35C 875 25 .2 17.6 16.00 13.00
T*9(C,V)*C16 21.0 HD36 785 24.0 16.4 16.00 13.50
T*9(C,V)*C20 21.0 HD36 760 24.0 16.1 15.75 13.25
T*9V*A10 14.5 FC/MC/PC32A 785 25.0 18.2 15.25 12.75
T*9V*A10 14.5 FC/MC/PC37A 790 25.4 18.6 15.50 13.00
TM8X060A12MP11 14.5 FC/MC/PC32A 800 25.4 18.6 15.75 13.25
TM8X060A12MP11 14.5 FC/MC/PC37A 800 25.8 18.9 16.00 13.50
TM8X080B12MP11 17.5 FC/MC/PC35B 750 25.2 18.1 15.75 13.25
TM8X080B12MP11 17.5 FC/MC/PC43B 775 26.0 19.0 16.25 13.75
TM8X080C16MP11 21.0 FC/MC/PC35C 800 25.4 18.4 15.35 13.15
TM8X080C16MP11 21.0 FC/MC/PC43C 800 25.6 18.8 15.65 13.35
TM8X080C16MP11 21.0 FC/MC/PC48C 800 25.8 18.9 15.75 13.25
TM8X080C16MP11 21.0 FC/MC/PC48D 750 25.8 18.6 16.50 14.00
TM8X100C16MP11 21.0 FC/MC/PC35C 800 25.4 18.4 15.35 13.15
TM8X100C16MP11 21.0 FC/MC/PC43C 800 25.6 18.8 15.65 13.35
TM8X100C16MP11 21.0 FC/MC/PC48C 800 25.8 18.9 15.75 13.25
TM8X100C16MP11 21.0 FC/MC/PC48D 750 25.8 18.6 16.50 14.00
TM8X100C20MP11 21.0 FC/MC/PC35C 800 25.2 18.4 15.15 12.95
TM8X100C20MP11 21.0 FC/MC/PC43C 800 25.6 18.8 15.00 12.75
TM8X100C20MP11 21.0 FC/MC/PC48C 800 25.8 18.8 15.25 12.75
TM8X100C20MP11 21.0 FC/MC/PC48D 800 25.8 18.8 15.00 12.75
TM8X120C20MP11 21.0 FC/MC/PC35C 800 25.2 18.4 15.15 12.95
TM8X120C20MP11 21.0 FC/MC/PC43C 800 25.6 18.8 15.00 12.75
TM8X120C20MP11 21.0 FC/MC/PC48C 800 25.8 18.8 15.25 12.75
TM8X120C20MP11 21.0 FC/MC/PC48D 800 25.8 18.8 15.00 12.75
TM9E040A10MP11 14.5 FC/MC/PC32A 775 25.0 18.0 14.70 12.70
TM9E040A10MP11 14.5 FC/MC/PC37A 800 25.4 18.7 15.10 12.90
TM9E060B12MP11 17.5 FC/MC/PC35B 800 25.4 18.4 15.35 13.15
TM9E060B12MP11 17.5 FC/MC/PC43B 800 25.6 18.8 15.65 13.35
TM9E080B12MP11 17.5 FC/MC/PC35B 800 25.4 18.4 15.35 13.15
TM9E080B12MP11 17.5 FC/MC/PC43B 800 25.6 18.8 15.65 13.35
TM9E080C16MP11 21.0 FC/MC/PC35C 800 25.2 18.3 15.00 12.85
TM9E080C16MP11 21.0 FC/MC/PC43C 800 25.6 18.7 15.20 13.00
TM9E080C16MP11 21.0 FC/MC/PC48C 800 25.6 18.8 15.30 13.10
TM9E080C16MP11 21.0 FC/MC/PC48D 800 25.6 18.8 15.00 12.75
TM9E100C16MP11 21.0 FC/MC/PC35C 800 25.2 18.3 15.00 12.85
TM9E100C16MP11 21.0 FC/MC/PC43C 800 25.6 18.7 15.20 13.00
TM9E100C16MP11 21.0 FC/MC/PC48C 800 25.6 18.8 15.30 13.10
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
10 Johnson Controls Unitary Products
Page 11
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF24S41S1(E)
For notes see Page 27.
MODEL WIDTH
TM9E100C16MP11 21.0 FC/MC/PC48D 800 25.6 18.8 15.00 12.75
TM9E100C20MP11 21.0 FC/MC/PC35C 800 25.4 18.5 15.75 13.50
TM9E100C20MP11 21.0 FC/MC/PC43C 800 25.8 18.9 15.75 13.25
TM9E100C20MP11 21.0 FC/MC/PC48C 800 26.0 19.0 15.75 13.25
TM9E100C20MP11 21.0 FC/MC/PC48D 800 26.0 19.0 15.75 13.50
TM9E120D20MP11 24.5 FC/MC/PC48D 800 26.0 19.0 16.00 13.50
TM9X040A10MP11 14.5 FC/MC/PC32A 775 25.0 18.0 14.70 12.70
TM9X040A10MP11 14.5 FC/MC/PC37A 800 25.4 18.7 15.10 12.90
TM9X060B12MP11 17.5 FC/MC/PC35B 800 25.4 18.4 15.35 13.15
TM9X060B12MP11 17.5 FC/MC/PC43B 800 25.6 18.8 15.65 13.35
TM9X080B12MP11 17.5 FC/MC/PC35B 800 25.4 18.4 15.35 13.15
TM9X080B12MP11 17.5 FC/MC/PC43B 800 25.6 18.8 15.65 13.35
TM9X080C16MP11 21.0 FC/MC/PC35C 800 25.2 18.3 15.00 12.85
TM9X080C16MP11 21.0 FC/MC/PC43C 800 25.6 18.7 15.20 13.00
TM9X080C16MP11 21.0 FC/MC/PC48C 800 25.6 18.8 15.30 13.10
TM9X080C16MP11 21.0 FC/MC/PC48D 800 25.6 18.8 15.00 12.75
TM9X100C16MP11 21.0 FC/MC/PC35C 800 25.2 18.3 15.00 12.85
TM9X100C16MP11 21.0 FC/MC/PC43C 800 25.6 18.7 15.20 13.00
TM9X100C16MP11 21.0 FC/MC/PC48C 800 25.6 18.8 15.30 13.10
TM9X100C16MP11 21.0 FC/MC/PC48D 800 25.6 18.8 15.00 12.75
TM9X100C20MP11 21.0 FC/MC/PC35C 800 25.4 18.5 15.75 13.50
TM9X100C20MP11 21.0 FC/MC/PC43C 800 25.8 18.9 15.75 13.25
TM9X100C20MP11 21.0 FC/MC/PC48C 800 26.0 19.0 15.75 13.25
TM9X100C20MP11 21.0 FC/MC/PC48D 800 26.0 19.0 15.75 13.50
TM9X120D20MP11 24.5 FC/MC/PC48D 800 26.0 19.0 16.00 13.50
TMLX060A12MP11 14.5 FC/MC/PC32A 800 25.4 18.6 15.75 13.25
TMLX060A12MP11 14.5 FC/MC/PC37A 800 25.8 18.9 16.00 13.50
TMLX080B12MP11 17.5 FC/MC/PC35B 750 25.2 18.1 15.75 13.25
TMLX080B12MP11 17.5 FC/MC/PC43B 775 26.0 19.0 16.25 13.75
TMLX080C16MP11 21.0 FC/MC/PC35C 800 25.4 18.4 15.35 13.15
TMLX080C16MP11 21.0 FC/MC/PC43C 800 25.6 18.8 15.65 13.35
TMLX080C16MP11 21.0 FC/MC/PC48C 800 25.8 18.9 15.75 13.25
TMLX080C16MP11 21.0 FC/MC/PC48D 750 25.8 18.6 16.50 14.00
TMLX100C16MP11 21.0 FC/MC/PC35C 800 25.4 18.4 15.35 13.15
TMLX100C16MP11 21.0 FC/MC/PC43C 800 25.6 18.8 15.65 13.35
TMLX100C16MP11 21.0 FC/MC/PC48C 800 25.8 18.9 15.75 13.25
TMLX100C16MP11 21.0 FC/MC/PC48D 750 25.8 18.6 16.50 14.00
TMLX100C20MP11 21.0 FC/MC/PC35C 800 25.2 18.4 15.15 12.95
TMLX100C20MP11 21.0 FC/MC/PC43C 800 25.6 18.8 15.00 12.75
TMLX100C20MP11 21.0 FC/MC/PC48C 800 25.8 18.8 15.25 12.75
TMLX100C20MP11 21.0 FC/MC/PC48D 800 25.8 18.8 15.00 12.75
TMLX120C20MP11 21.0 FC/MC/PC35C 800 25.2 18.4 15.15 12.95
TMLX120C20MP11 21.0 FC/MC/PC43C 800 25.6 18.8 15.00 12.75
TMLX120C20MP11 21.0 FC/MC/PC48C 800 25.8 18.8 15.25 12.75
TMLX120C20MP11 21.0 FC/MC/PC48D 800 25.8 18.8 15.00 12.75
Y*(8,L)C*A12 14.5 FC/MC/PC32A 775 24.0 16.8 15.50 13.25
Y*(8,L)C*A12 14.5 FC/MC/PC37A 805 24.0 16.9 16.00 13.50
Y*(8,L)C*A12 14.5 HD36 805 24.0 16.4 16.00 13.50
Y*(8,L)C*B12 17.5 FC/MC/PC35B 760 24.0 16.8 15.75 13.25
Y*(8,L)C*B12 17.5 FC/MC/PC43B 760 24.0 16.7 16.00 13.50
Y*(8,L)C*B12 17.5 HD36 760 24.0 16.2 15.75 13.25
Y*(8,L)C*C16 21.0 HD36 855 24.0 16.7 16.00 13.50
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 11
Page 12
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF24S41S1(E)
YCJF30S41S1(E)
For notes see Page 27.
MODEL WIDTH
Y*(8,L)C*C20 21.0 HD36 750 24.0 16.1 15.75 13.25
Y*9C*B12 17.5 FC/MC/PC35B 815 24.0 17.0 15.75 13.25
Y*9C*B12 17.5 FC/MC/PC43B 800 24.0 16.8 16.00 13.50
Y*9C*B12 17.5 HD36 815 24.0 16.4 15.75 13.25
Y*9C*C16 21.0 FC/MC/PC35C 875 25.2 17 .6 16.00 13.00
Y*9C*C16 21.0 HD36 785 24.0 16.4 16.00 13.50
Y*9C*C20 21.0 HD36 760 24.0 16.1 15.75 13.25
T*(8,L)V*A12 14.5 FC/MC/PC32A 1045 29.2 21.6 14.50 12.25
T*(8,L)V*A12 14.5 FC/MC/PC37A 980 29.8 21.6 15.00 12.75
T*(8,L)V*A12 14.5 HD36 1000 29.0 20.6 15.00 12.75
T*(8,L)V*B12 17.5 FC/MC/PC35B 1020 29.2 22.0 15.20 12.85
T*(8,L)V*B12 17.5 FC/MC/PC43B 1045 30.0 22.6 15.70 13.30
T*(8,L)V*B12 17.5 HD36 985 29.2 20.6 15.50 13.00
T*(8,L)V*C16 21.0 FC/MC/PC35C 985 29.4 21.8 15.70 13.25
T*(8,L)V*C16 21.0 FC/MC/PC43C 990 30.0 22.0 16.25 13.50
T*(8,L)V*C16 21.0 FC/MC/PC48C 1010 30.0 22.2 16.50 13.75
T*(8,L)V*C16 21.0 HD36 1020 29.2 20.8 15.75 13.00
T*(8,L)V*C20 21.0 FC/MC/PC35C 1035 29.6 22.0 15.60 13.20
T*(8,L)V*C20 21.0 FC/MC/PC43C 1000 30.0 22.0 16.25 13.75
T*(8,L)V*C20 21.0 FC/MC/PC48C 1040 30.0 22.2 16.50 13.75
T*(8,L)V*C20 21.0 HD36 1055 29.6 21.4 15.75 13.25
T*9(C,V)*B12 17.5 FC/MC/PC35B 1045 29.4 21.8 15.00 12.50
T*9(C,V)*B12 17.5 FC/MC/PC43B 1035 29.8 21.8 15.25 12.75
T*9(C,V)*B12 17.5 HD36 985 29.2 20.6 15.25 12.75
T*9(C,V)*C16 21.0 FC/MC/PC35C 1005 29.6 22.0 15.75 13.25
T*9(C,V)*C16 21.0 FC/MC/PC43C 1030 30.0 22.0 15.50 13.25
T*9(C,V)*C16 21.0 FC/MC/PC48C 990 30 .0 22.2 16.25 13.50
T*9(C,V)*C16 21.0 HD36 1005 29.2 20.8 15.75 13.25
T*9(C,V)*C20 21.0 FC/MC/PC35C 985 29 .6 22.0 15.75 13.25
T*9(C,V)*C20 21.0 FC/MC/PC43C 995 30 .0 22.0 16.00 13.50
T*9(C,V)*C20 21.0 FC/MC/PC48C 965 30 .0 22.2 16.25 13.50
T*9(C,V)*C20 21.0 HD36 1045 29.2 20.6 15.50 13.00
T*9(C,V)*D20 24.5 FC/MC/PC48D 1085 30.0 22.6 16.25 13.50
TM8X080B12MP11 17.5 FC/MC/PC35B 950 29.2 20.6 15.35 13.00
TM8X080B12MP11 17.5 FC/MC/PC43B 975 30.0 21.6 15.85 13.40
TM8X080C16MP11 21.0 FC/MC/PC35C 975 29.8 21.2 15.75 13.25
TM8X080C16MP11 21.0 FC/MC/PC43C 950 29.8 21.0 16.00 13.50
TM8X080C16MP11 21.0 FC/MC/PC48C 975 30.0 21.2 16.25 13.25
TM8X080C16MP11 21.0 FC/MC/PC48D 975 30.0 21.2 16.00 13.25
TM8X100C16MP11 21.0 FC/MC/PC35C 975 29.8 21.2 15.75 13.25
TM8X100C16MP11 21.0 FC/MC/PC43C 950 29.8 21.0 16.00 13.50
TM8X100C16MP11 21.0 FC/MC/PC48C 975 30.0 21.2 16.25 13.25
TM8X100C16MP11 21.0 FC/MC/PC48D 975 30.0 21.2 16.00 13.25
TM8X100C20MP11 21.0 FC/MC/PC35C 1000 29.6 21.2 15.75 13.25
TM8X100C20MP11 21.0 FC/MC/PC43C 1000 30.2 21.6 16.00 13.50
TM8X100C20MP11 21.0 FC/MC/PC48C 1000 30.2 21.6 16.20 13.25
TM8X100C20MP11 21.0 FC/MC/PC48D 1000 30.0 21.6 15.75 13.25
TM8X120C20MP11 21.0 FC/MC/PC35C 1000 29.6 21.2 15.75 13.25
TM8X120C20MP11 21.0 FC/MC/PC43C 1000 30.2 21.6 16.00 13.50
TM8X120C20MP11 21.0 FC/MC/PC48C 1000 30.2 21.6 16.20 13.25
TM8X120C20MP11 21.0 FC/MC/PC48D 1000 30.0 21.6 15.75 13.25
TM9E060B12MP11 17.5 FC/MC/PC35B 950 29.2 20.4 15.00 12.90
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
12 Johnson Controls Unitary Products
Page 13
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF30S41S1(E)
For notes see Page 27.
MODEL WIDTH
TM9E060B12MP11 17.5 FC/MC/PC43B 950 29.6 20.8 15.45 13.10
TM9E080B12MP11 17.5 FC/MC/PC35B 950 29.2 20.4 15.00 12.90
TM9E080B12MP11 17.5 FC/MC/PC43B 950 29.6 20.8 15.45 13.10
TM9E080C16MP11 21.0 FC/MC/PC35C 1000 29.6 21.2 15.50 13.00
TM9E080C16MP11 21.0 FC/MC/PC43C 1000 30.2 21.6 16.00 13.25
TM9E080C16MP11 21.0 FC/MC/PC48C 1000 30.0 21.6 16.00 13.25
TM9E080C16MP11 21.0 FC/MC/PC48D 1000 30.0 21.6 15.75 13.25
TM9E100C16MP11 21.0 FC/MC/PC35C 1000 29.6 21.2 15.50 13.00
TM9E100C16MP11 21.0 FC/MC/PC43C 1000 30.2 21.6 16.00 13.25
TM9E100C16MP11 21.0 FC/MC/PC48C 1000 30.0 21.6 16.00 13.25
TM9E100C16MP11 21.0 FC/MC/PC48D 1000 30.0 21.6 15.75 13.25
TM9E100C20MP11 21.0 FC/MC/PC35C 1000 29.2 21.0 14.60 12.40
TM9E100C20MP11 21.0 FC/MC/PC43C 1000 29.8 21.4 15.05 12.80
TM9E100C20MP11 21.0 FC/MC/PC48C 1000 29.6 21.2 15.00 12.70
TM9E100C20MP11 21.0 FC/MC/PC48D 1000 29.8 21.2 14.75 12.50
TM9E120D20MP11 24.5 FC/MC/PC48D 1000 29.8 21.2 15.20 12.85
TM9X060B12MP11 17.5 FC/MC/PC35B 950 29.2 20.4 15.00 12.90
TM9X060B12MP11 17.5 FC/MC/PC43B 950 29.6 20.8 15.45 13.10
TM9X080B12MP11 17.5 FC/MC/PC35B 950 29.2 20.4 15.00 12.90
TM9X080B12MP11 17.5 FC/MC/PC43B 950 29.6 20.8 15.45 13.10
TM9X080C16MP11 21.0 FC/MC/PC35C 1000 29.6 21.2 15.50 13.00
TM9X080C16MP11 21.0 FC/MC/PC43C 1000 30.2 21.6 16.00 13.25
TM9X080C16MP11 21.0 FC/MC/PC48C 1000 30.0 21.6 16.00 13.25
TM9X080C16MP11 21.0 FC/MC/PC48D 1000 30.0 21.6 15.75 13.25
TM9X100C16MP11 21.0 FC/MC/PC35C 1000 29.6 21.2 15.50 13.00
TM9X100C16MP11 21.0 FC/MC/PC43C 1000 30.2 21.6 16.00 13.25
TM9X100C16MP11 21.0 FC/MC/PC48C 1000 30.0 21.6 16.00 13.25
TM9X100C16MP11 21.0 FC/MC/PC48D 1000 30.0 21.6 15.75 13.25
TM9X100C20MP11 21.0 FC/MC/PC35C 1000 29.2 21.0 14.60 12.40
TM9X100C20MP11 21.0 FC/MC/PC43C 1000 29.8 21.4 15.05 12.80
TM9X100C20MP11 21.0 FC/MC/PC48C 1000 29.6 21.2 15.00 12.70
TM9X100C20MP11 21.0 FC/MC/PC48D 1000 29.8 21.2 14.75 12.50
TM9X120D20MP11 24.5 FC/MC/PC48D 1000 29.8 21.2 15.20 12.85
TMLX080B12MP11 17.5 FC/MC/PC35B 950 29.2 20.6 15.35 13.00
TMLX080B12MP11 17.5 FC/MC/PC43B 975 30.0 21.6 15.85 13.40
TMLX080C16MP11 21.0 FC/MC/PC35C 975 29.8 21.2 15.75 13.25
TMLX080C16MP11 21.0 FC/MC/PC43C 950 29.8 21.0 16.00 13.50
TMLX080C16MP11 21.0 FC/MC/PC48C 975 30.0 21.2 16.25 13.25
TMLX080C16MP11 21.0 FC/MC/PC48D 975 30.0 21.2 16.00 13.25
TMLX100C16MP11 21.0 FC/MC/PC35C 975 29.8 21.2 15.75 13.25
TMLX100C16MP11 21.0 FC/MC/PC43C 950 29.8 21.0 16.00 13.50
TMLX100C16MP11 21.0 FC/MC/PC48C 975 30.0 21.2 16.25 13.25
TMLX100C16MP11 21.0 FC/MC/PC48D 975 30.0 21.2 16.00 13.25
TMLX100C20MP11 21.0 FC/MC/PC35C 1000 29.6 21.2 15.75 13.25
TMLX100C20MP11 21.0 FC/MC/PC43C 1000 30.2 21.6 16.00 13.50
TMLX100C20MP11 21.0 FC/MC/PC48C 1000 30.2 21.6 16.20 13.25
TMLX100C20MP11 21.0 FC/MC/PC48D 1000 30.0 21.6 15.75 13.25
TMLX120C20MP11 21.0 FC/MC/PC35C 1000 29.6 21.2 15.75 13.25
TMLX120C20MP11 21.0 FC/MC/PC43C 1000 30.2 21.6 16.00 13.50
TMLX120C20MP11 21.0 FC/MC/PC48C 1000 30.2 21.6 16.20 13.25
TMLX120C20MP11 21.0 FC/MC/PC48D 1000 30.0 21.6 15.75 13.25
Y*(8,L)C*A12 14.5 FC/MC/PC32A 1045 29.2 21.6 14.50 12.25
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 13
Page 14
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF30S41S1(E)
YCJF36S41S1(E)
For notes see Page 27.
MODEL WIDTH
Y*(8,L)C*A12 14.5 FC/MC/PC37A 980 29.8 21.6 15.00 12.75
Y*(8,L)C*A12 14.5 HD36 1000 29.0 20.6 15.00 12.75
Y*(8,L)C*B12 17.5 FC/MC/PC35B 1020 29.2 22.0 15.20 12.85
Y*(8,L)C*B12 17.5 FC/MC/PC43B 1045 30.0 22.6 15.70 13.30
Y*(8,L)C*B12 17.5 HD36 985 29.2 20.6 15.50 13.00
Y*(8,L)C*C16 21.0 FC/MC/PC35C 985 29.4 21.8 15.70 13.25
Y*(8,L)C*C16 21.0 FC/MC/PC43C 990 30.0 22.0 16.25 13.50
Y*(8,L)C*C16 21.0 FC/MC/PC48C 1010 30.0 22.2 16.50 13.75
Y*(8,L)C*C16 21.0 HD36 1020 29.2 20.8 15.75 13.00
Y*(8,L)C*C20 21.0 FC/MC/PC35C 1035 29.6 22.0 15.60 13.20
Y*(8,L)C*C20 21.0 FC/MC/PC43C 1000 30.0 22.0 16.25 13.75
Y*(8,L)C*C20 21.0 FC/MC/PC48C 1040 30.0 22.2 16.50 13.75
Y*(8,L)C*C20 21.0 HD36 1055 29.6 21.4 15.75 13.25
Y*9C*B12 17.5 FC/MC/PC35B 1045 29.4 21.8 15.00 12.50
Y*9C*B12 17.5 FC/MC/PC43B 1035 29.8 21.8 15.25 12.75
Y*9C*B12 17.5 HD36 985 29.2 20.6 15.25 12.75
Y*9C*C16 21.0 FC/MC/PC35C 1005 29.6 22.0 15.75 13.25
Y*9C*C16 21.0 FC/MC/PC43C 1030 30.0 22.0 15.50 13.25
Y*9C*C16 21.0 FC/MC/PC48C 990 30.0 22 .2 16.25 13.50
Y*9C*C16 21.0 HD36 1005 29.2 20.8 15.75 13.25
Y*9C*C20 21.0 FC/MC/PC35C 985 29.6 22 .0 15.75 13.25
Y*9C*C20 21.0 FC/MC/PC43C 995 30.0 22 .0 16.00 13.50
Y*9C*C20 21.0 FC/MC/PC48C 965 30.0 22 .2 16.25 13.50
Y*9C*C20 21.0 HD36 1045 29.2 20.6 15.50 13.00
Y*9C*D20 24.5 FC/MC/PC48D 1085 30.0 22.6 16.25 13.50
T*(8,L)V*A12 14.5 FC/MC/PC37A 1150 34.2 24.8 14.95 12.40
T*(8,L)V*B12 17.5 FC/MC/PC43B 1275 34.8 26.0 14.90 12.50
T*(8,L)V*B12 17.5 HD48 1210 34.8 25.6 15.25 12.50
T*(8,L)V*C16 21.0 FC/MC/PC43C 1205 35.0 25.8 15.75 13.00
T*(8,L)V*C16 21.0 FC/MC/PC48C 1210 35.6 26.2 16.00 13.25
T*(8,L)V*C16 21.0 FC/PC60C 1185 35.0 25.8 16.40 13.45
T*(8,L)V*C16 21.0 HD48 1210 35.2 25.8 16.00 13.25
T*(8,L)V*C16 21.0 UC60C 1195 34.2 24.6 15.75 13.15
T*(8,L)V*C20 21.0 FC/MC/PC43C 1190 34.6 25.8 15 .90 13.10
T*(8,L)V*C20 21.0 FC/MC/PC48C 1155 35.6 26.4 16 .25 13.50
T*(8,L)V*C20 21.0 FC/PC60C 1215 35.4 26.0 16.20 13.50
T*(8,L)V*C20 21.0 HD48 1155 35.2 26.0 16.00 13.25
T*(8,L)V*C20 21.0 UC60C 1215 34.2 24.6 15.70 13.10
T*9(C,V)*B12 17.5 FC/MC/PC43B 1200 34.6 25.4 14.75 12.25
T*9(C,V)*B12 17.5 HD48 1150 34.8 25.6 15.25 12.50
T*9(C,V)*C16 21.0 FC/MC/PC43C 1240 34.8 25.6 15.25 12.75
T*9(C,V)*C16 21.0 FC/MC/PC48C 1195 35.4 26.2 15.75 13.00
T*9(C,V)*C16 21.0 FC/PC60C 1235 35.0 25.8 15.50 13.00
T*9(C,V)*C16 21.0 HD48 1195 35.0 25.8 15.75 13.00
T*9(C,V)*C16 21.0 UC60C 1235 33.8 24.4 15.00 12.55
T*9(C,V)*C20 21.0 FC/MC/PC43C 1200 35.0 25.6 15.50 13.00
T*9(C,V)*C20 21.0 FC/MC/PC48C 1330 35.8 27.2 15.50 12.75
T*9(C,V)*C20 21.0 FC/PC60C 1330 35.6 27.2 15.65 13.15
T*9(C,V)*C20 21.0 HD48 1325 35.4 26.4 15.25 12.75
T*9(C,V)*C20 21.0 UC60C 1285 34.4 25.6 15.15 12.70
T*9(C,V)*D20 24.5 FC/MC/PC60D 1225 35.2 26.0 15.95 13.35
T*9(C,V)*D20 24.5 FC/MC62D 1235 35.6 26.4 16.00 13.50
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
14 Johnson Controls Unitary Products
Page 15
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF36S41S1(E)
For notes see Page 27.
MODEL WIDTH
T*9(C,V)*D20 24.5 FC64D 1235 36.0 27.0 16.00 13.00
T*9(C,V)*D20 24.5 UC60D 1225 34.0 24.6 15.45 12.90
TM8X060A12MP11 14.5 FC/MC/PC37A 1125 33.6 24.7 15.10 12.55
TM8X080B12MP11 17.5 FC/MC/PC43B 1175 33.6 24.7 15.15 12.55
TM8X080C16MP11 21.0 FC/MC/PC43C 1150 34.0 25.1 15.50 13.00
TM8X080C16MP11 21.0 FC/MC/PC48C 1150 34.2 25.3 16.05 13.25
TM8X080C16MP11 21.0 FC/MC/PC48D 1175 34.2 25.3 15.75 13.00
TM8X080C16MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.75 13.00
TM8X080C16MP11 21.0 FC/MC62D 1175 34.6 25.9 16.00 13.25
TM8X080C16MP11 21.0 FC/PC60C 1175 34.2 25.5 15.75 13.00
TM8X080C16MP11 21.0 FC64D 1175 35.6 27.2 16.50 13.50
TM8X080C16MP11 21.0 UC48C 1150 32.8 24.3 15.25 12.50
TM8X080C16MP11 21.0 UC48D 1175 32.8 24.3 15.25 12.50
TM8X080C16MP11 21.0 UC60C 1175 34.2 25.7 15.75 13.00
TM8X080C16MP11 21.0 UC60D 1175 34.2 25.7 15.75 13.00
TM8X100C16MP11 21.0 FC/MC/PC43C 1150 34.0 25.1 15.50 13.00
TM8X100C16MP11 21.0 FC/MC/PC48C 1150 34.2 25.3 16.05 13.25
TM8X100C16MP11 21.0 FC/MC/PC48D 1175 34.2 25.3 15.75 13.00
TM8X100C16MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.75 13.00
TM8X100C16MP11 21.0 FC/MC62D 1175 34.6 25.9 16.00 13.25
TM8X100C16MP11 21.0 FC/PC60C 1175 34.2 25.5 15.75 13.00
TM8X100C16MP11 21.0 FC64D 1175 35.6 27.2 16.50 13.50
TM8X100C16MP11 21.0 UC48C 1150 32.8 24.3 15.25 12.50
TM8X100C16MP11 21.0 UC48D 1175 32.8 24.3 15.25 12.50
TM8X100C16MP11 21.0 UC60C 1175 34.2 25.7 15.75 13.00
TM8X100C16MP11 21.0 UC60D 1175 34.2 25.7 15.75 13.00
TM8X100C20MP11 21.0 FC/MC/PC43C 1200 34.2 25.8 15.50 13.00
TM8X100C20MP11 21.0 FC/MC/PC48C 1200 34.6 26.0 16.05 13.25
TM8X100C20MP11 21.0 FC/MC/PC48D 1200 34.6 26.0 15.75 13.00
TM8X100C20MP11 21.0 FC/MC/PC60D 1200 34.2 25.5 15.50 12.75
TM8X100C20MP11 21.0 FC/MC62D 1200 34.6 25.9 15.50 13.00
TM8X100C20MP11 21.0 FC/PC60C 1200 34.2 25.5 15.50 12.75
TM8X100C20MP11 21.0 FC64D 1200 35.6 27.0 16.00 13.25
TM8X100C20MP11 21.0 UC48C 1200 32.8 24.3 15.00 12.25
TM8X100C20MP11 21.0 UC48D 1200 32.8 24.3 15.00 12.25
TM8X100C20MP11 21.0 UC60C 1200 34.2 25.5 15.50 12.75
TM8X100C20MP11 21.0 UC60D 1200 34.2 25.5 15.50 12.75
TM8X120C20MP11 21.0 FC/MC/PC43C 1200 34.2 25.8 15.50 13.00
TM8X120C20MP11 21.0 FC/MC/PC48C 1200 34.6 26.0 16.05 13.25
TM8X120C20MP11 21.0 FC/MC/PC48D 1200 34.6 26.0 15.75 13.00
TM8X120C20MP11 21.0 FC/MC/PC60D 1200 34.2 25.5 15.50 12.75
TM8X120C20MP11 21.0 FC/MC62D 1200 34.6 25.9 15.50 13.00
TM8X120C20MP11 21.0 FC/PC60C 1200 34.2 25.5 15.50 12.75
TM8X120C20MP11 21.0 FC64D 1200 35.6 27.0 16.00 13.25
TM8X120C20MP11 21.0 UC48C 1200 32.8 24.3 15.00 12.25
TM8X120C20MP11 21.0 UC48D 1200 32.8 24.3 15.00 12.25
TM8X120C20MP11 21.0 UC60C 1200 34.2 25.5 15.50 12.75
TM8X120C20MP11 21.0 UC60D 1200 34.2 25.5 15.50 12.75
TM9E060B12MP11 17.5 FC/MC/PC43B 1125 33.6 24.7 15.15 12.55
TM9E080B12MP11 17.5 FC/MC/PC43B 1125 33.6 24.7 15.15 12.55
TM9E080C16MP11 21.0 FC/MC/PC43C 1175 33.8 24.9 15.50 12.95
TM9E080C16MP11 21.0 FC/MC/PC48C 1150 34.2 25.1 15.70 13.00
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 15
Page 16
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF36S41S1(E)
For notes see Page 27.
MODEL WIDTH
TM9E080C16MP11 21.0 FC/MC/PC48D 1175 34.2 25.1 15.25 12.75
TM9E080C16MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.50 12.75
TM9E080C16MP11 21.0 FC/MC62D 1175 34.6 25.9 15.50 13.00
TM9E080C16MP11 21.0 FC/PC60C 1175 34.2 25.5 15.50 12.75
TM9E080C16MP11 21.0 FC64D 1175 35.6 27.0 16.00 13.25
TM9E080C16MP11 21.0 UC48C 1150 32.8 24.1 15.00 12.25
TM9E080C16MP11 21.0 UC48D 1175 32.8 24.1 14.75 12.25
TM9E080C16MP11 21.0 UC60C 1175 34.2 25.5 15.50 12.75
TM9E080C16MP11 21.0 UC60D 1175 34.2 25.5 15.50 12.75
TM9E100C16MP11 21.0 FC/MC/PC43C 1175 33.8 24.9 15.50 12.95
TM9E100C16MP11 21.0 FC/MC/PC48C 1150 34.2 25.1 15.70 13.00
TM9E100C16MP11 21.0 FC/MC/PC48D 1175 34.2 25.1 15.25 12.75
TM9E100C16MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.50 12.75
TM9E100C16MP11 21.0 FC/MC62D 1175 34.6 25.9 15.50 13.00
TM9E100C16MP11 21.0 FC/PC60C 1175 34.2 25.5 15.50 12.75
TM9E100C16MP11 21.0 FC64D 1175 35.6 27.0 16.00 13.25
TM9E100C16MP11 21.0 UC48C 1150 32.8 24.1 15.00 12.25
TM9E100C16MP11 21.0 UC48D 1175 32.8 24.1 14.75 12.25
TM9E100C16MP11 21.0 UC60C 1175 34.2 25.5 15.50 12.75
TM9E100C16MP11 21.0 UC60D 1175 34.2 25.5 15.50 12.75
TM9E100C20MP11 21.0 FC/MC/PC43C 1150 33.8 24.9 15.50 13.00
TM9E100C20MP11 21.0 FC/MC/PC48C 1150 34.2 25.1 15.80 13.00
TM9E100C20MP11 21.0 FC/MC/PC48D 1175 34.2 25.3 15.50 12.75
TM9E100C20MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.50 12.75
TM9E100C20MP11 21.0 FC/MC62D 1175 34.6 25.9 15.75 13.00
TM9E100C20MP11 21.0 FC/PC60C 1150 34.2 25.5 15.50 12.75
TM9E100C20MP11 21.0 FC64D 1175 35.6 27.0 16.25 13.25
TM9E100C20MP11 21.0 UC48C 1150 32.8 24.3 15.00 12.25
TM9E100C20MP11 21.0 UC48D 1175 32.8 24.3 15.00 12.25
TM9E100C20MP11 21.0 UC60C 1150 34.2 25.5 15.50 12.75
TM9E100C20MP11 21.0 UC60D 1175 34.2 25.5 15.50 12.75
TM9E120D20MP11 24.5 FC/MC/PC48D 1175 34.2 25.3 16.00 13.00
TM9E120D20MP11 24.5 FC/MC/PC60D 1175 34.2 25.5 15.75 13.00
TM9E120D20MP11 24.5 FC/MC62D 1175 34 .6 25.9 15.75 13.00
TM9E120D20MP11 24.5 FC64D 1150 35.6 27.0 16.25 13.50
TM9E120D20MP11 24.5 UC48D 1175 32.8 24.3 15.25 12.50
TM9E120D20MP11 24.5 UC60D 1175 34.2 25.7 15.75 13.00
TM9X060B12MP11 17.5 FC/MC/PC43B 1125 33.6 24.7 15.15 12.55
TM9X080B12MP11 17.5 FC/MC/PC43B 1125 33.6 24.7 15.15 12.55
TM9X080C16MP11 21.0 FC/MC/PC43C 1175 33.8 24.9 15.50 12.95
TM9X080C16MP11 21.0 FC/MC/PC48C 1150 34.2 25.1 15.70 13.00
TM9X080C16MP11 21.0 FC/MC/PC48D 1175 34.2 25.1 15.25 12.75
TM9X080C16MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.50 12.75
TM9X080C16MP11 21.0 FC/MC62D 1175 34 .6 25.9 15.50 13.00
TM9X080C16MP11 21.0 FC/PC60C 1175 34.2 25.5 15.50 12.75
TM9X080C16MP11 21.0 FC64D 1175 35.6 27.0 16.00 13.25
TM9X080C16MP11 21.0 UC48C 1150 32.8 24.1 15.00 12.25
TM9X080C16MP11 21.0 UC48D 1175 32.8 24.1 14.75 12.25
TM9X080C16MP11 21.0 UC60C 1175 34.2 25.5 15.50 12.75
TM9X080C16MP11 21.0 UC60D 1175 34.2 25.5 15.50 12.75
TM9X100C16MP11 21.0 FC/MC/PC43C 1175 33.8 24.9 15.50 12.95
TM9X100C16MP11 21.0 FC/MC/PC48C 1150 34.2 25.1 15.70 13.00
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
16 Johnson Controls Unitary Products
Page 17
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF36S41S1(E)
For notes see Page 27.
MODEL WIDTH
TM9X100C16MP11 21.0 FC/MC/PC48D 1175 34.2 25.1 15.25 12.75
TM9X100C16MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.50 12.75
TM9X100C16MP11 21.0 FC/MC62D 1175 34.6 25.9 15.50 13.00
TM9X100C16MP11 21.0 FC/PC60C 1175 34.2 25.5 15.50 12.75
TM9X100C16MP11 21.0 FC64D 1175 35.6 27.0 16.00 13.25
TM9X100C16MP11 21.0 UC48C 1150 32.8 24.1 15.00 12.25
TM9X100C16MP11 21.0 UC48D 1175 32.8 24.1 14.75 12.25
TM9X100C16MP11 21.0 UC60C 1175 34.2 25.5 15.50 12.75
TM9X100C16MP11 21.0 UC60D 1175 34.2 25.5 15.50 12.75
TM9X100C20MP11 21.0 FC/MC/PC43C 1150 33.8 24.9 15.50 13.00
TM9X100C20MP11 21.0 FC/MC/PC48C 1150 34.2 25.1 15.80 13.00
TM9X100C20MP11 21.0 FC/MC/PC48D 1175 34.2 25.3 15.50 12.75
TM9X100C20MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.50 12.75
TM9X100C20MP11 21.0 FC/MC62D 1175 34.6 25.9 15.75 13.00
TM9X100C20MP11 21.0 FC/PC60C 1150 34.2 25.5 15.50 12.75
TM9X100C20MP11 21.0 FC64D 1175 35.6 27.0 16.25 13.25
TM9X100C20MP11 21.0 UC48C 1150 32.8 24.3 15.00 12.25
TM9X100C20MP11 21.0 UC48D 1175 32.8 24.3 15.00 12.25
TM9X100C20MP11 21.0 UC60C 1150 34.2 25.5 15.50 12.75
TM9X100C20MP11 21.0 UC60D 1175 34.2 25.5 15.50 12.75
TM9X120D20MP11 24.5 FC/MC/PC48D 1175 34.2 25.3 16.00 13.00
TM9X120D20MP11 24.5 FC/MC/PC60D 1175 34.2 25.5 15.75 13.00
TM9X120D20MP11 24.5 FC/MC62D 1175 34.6 25.9 15.75 13.00
TM9X120D20MP11 24.5 FC64D 1150 35.6 27.0 16.25 13.50
TM9X120D20MP11 24.5 UC48D 1175 32.8 24.3 15.25 12.50
TM9X120D20MP11 24.5 UC60D 1175 34.2 25.7 15.75 13.00
TMLX060A12MP11 14.5 FC/MC/PC37A 1125 33.6 24.7 15.10 12.55
TMLX080B12MP11 17.5 FC/MC/PC43B 1175 33.6 24.7 15.15 12.55
TMLX080C16MP11 21.0 FC/MC/PC43C 1150 34.0 25.1 15.50 13.00
TMLX080C16MP11 21.0 FC/MC/PC48C 1150 34.2 25.3 16.05 13.25
TMLX080C16MP11 21.0 FC/MC/PC48D 1175 34.2 25.3 15.75 13.00
TMLX080C16MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.75 13.00
TMLX080C16MP11 21.0 FC/MC62D 1175 34.6 25.9 16.00 13.25
TMLX080C16MP11 21.0 FC/PC60C 1175 34.2 25.5 15.75 13.00
TMLX080C16MP11 21.0 FC64D 1175 35.6 27.2 16.50 13.50
TMLX080C16MP11 21.0 UC48C 1150 32.8 24.3 15.25 12.50
TMLX080C16MP11 21.0 UC48D 1175 32.8 24.3 15.25 12.50
TMLX080C16MP11 21.0 UC60C 1175 34.2 25.7 15.75 13.00
TMLX080C16MP11 21.0 UC60D 1175 34.2 25.7 15.75 13.00
TMLX100C16MP11 21.0 FC/MC/PC43C 1150 34.0 25.1 15.50 13.00
TMLX100C16MP11 21.0 FC/MC/PC48C 1150 34.2 25.3 16.05 13.25
TMLX100C16MP11 21.0 FC/MC/PC48D 1175 34.2 25.3 15.75 13.00
TMLX100C16MP11 21.0 FC/MC/PC60D 1175 34.2 25.5 15.75 13.00
TMLX100C16MP11 21.0 FC/MC62D 1175 34.6 25.9 16.00 13.25
TMLX100C16MP11 21.0 FC/PC60C 1175 34.2 25.5 15.75 13.00
TMLX100C16MP11 21.0 FC64D 1175 35.6 27.2 16.50 13.50
TMLX100C16MP11 21.0 UC48C 1150 32.8 24.3 15.25 12.50
TMLX100C16MP11 21.0 UC48D 1175 32.8 24.3 15.25 12.50
TMLX100C16MP11 21.0 UC60C 1175 34.2 25.7 15.75 13.00
TMLX100C16MP11 21.0 UC60D 1175 34.2 25.7 15.75 13.00
TMLX100C20MP11 21.0 FC/MC/PC43C 1200 34.2 25.8 15.50 13.00
TMLX100C20MP11 21.0 FC/MC/PC48C 1200 34.6 26.0 16.05 13.25
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 17
Page 18
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF36S41S1(E)
YCJF42S41S1(E)
For notes see Page 27.
MODEL WIDTH
TMLX100C20MP11 21.0 FC/MC/PC48D 1200 34.6 26.0 15.75 13.00
TMLX100C20MP11 21.0 FC/MC/PC60D 1200 34.2 25.5 15.50 12.75
TMLX100C20MP11 21.0 FC/MC62D 1200 34.6 25.9 15.50 13.00
TMLX100C20MP11 21.0 FC/PC60C 1200 34.2 25.5 15.50 12.75
TMLX100C20MP11 21.0 FC64D 1200 35.6 27.0 16.00 13.25
TMLX100C20MP11 21.0 UC48C 1200 32.8 24.3 15.00 12.25
TMLX100C20MP11 21.0 UC48D 1200 32.8 24.3 15.00 12.25
TMLX100C20MP11 21.0 UC60C 1200 34.2 25.5 15.50 12.75
TMLX100C20MP11 21.0 UC60D 1200 34.2 25.5 15.50 12.75
TMLX120C20MP11 21.0 FC/MC/PC43C 1200 34.2 25.8 15.50 13.00
TMLX120C20MP11 21.0 FC/MC/PC48C 1200 34.6 26.0 16.05 13.25
TMLX120C20MP11 21.0 FC/MC/PC48D 1200 34.6 26.0 15.75 13.00
TMLX120C20MP11 21.0 FC/MC/PC60D 1200 34.2 25.5 15.50 12.75
TMLX120C20MP11 21.0 FC/MC62D 1200 34.6 25.9 15.50 13.00
TMLX120C20MP11 21.0 FC/PC60C 1200 34.2 25.5 15.50 12.75
TMLX120C20MP11 21.0 FC64D 1200 35.6 27.0 16.00 13.25
TMLX120C20MP11 21.0 UC48C 1200 32.8 24.3 15.00 12.25
TMLX120C20MP11 21.0 UC48D 1200 32.8 24.3 15.00 12.25
TMLX120C20MP11 21.0 UC60C 1200 34.2 25.5 15.50 12.75
TMLX120C20MP11 21.0 UC60D 1200 34.2 25.5 15.50 12.75
Y*(8,L)C*A12 14.5 FC/MC/PC37A 1150 34.2 24.8 14.95 12.40
Y*(8,L)C*B12 17.5 FC/MC/PC43B 1275 34.8 26.0 14.90 12.50
Y*(8,L)C*B12 17.5 HD48 1210 34.8 25.6 15.25 12.50
Y*(8,L)C*C16 21.0 FC/MC/PC43C 1205 35.0 25.8 15.75 13.00
Y*(8,L)C*C16 21.0 FC/MC/PC48C 1210 35.6 26.2 16.00 13.25
Y*(8,L)C*C16 21.0 FC/PC60C 1185 35.0 25.8 16.40 13.45
Y*(8,L)C*C16 21.0 HD48 1210 35.2 25.8 16.00 13.25
Y*(8,L)C*C16 21.0 UC60C 1195 34.2 24.6 15.75 13.15
Y*(8,L)C*C20 21.0 FC/MC/PC43C 1190 34.6 25.8 15.90 13.10
Y*(8,L)C*C20 21.0 FC/MC/PC48C 1155 35.6 26.4 16.25 13.50
Y*(8,L)C*C20 21.0 FC/PC60C 1215 35.4 26.0 16.20 13.50
Y*(8,L)C*C20 21.0 HD48 1155 35.2 26.0 16.00 13.25
Y*(8,L)C*C20 21.0 UC60C 1215 34.2 24.6 15.70 13.10
Y*9C*B12 17.5 FC/MC/PC43B 1200 34.6 25.4 14.75 12.25
Y*9C*B12 17.5 HD48 1150 34.8 25.6 15.25 12.50
Y*9C*C16 21.0 FC/MC/PC43C 1240 34.8 25.6 15.25 12.75
Y*9C*C16 21.0 FC/MC/PC48C 1195 35.4 26.2 15.75 13.00
Y*9C*C16 21.0 FC/PC60C 1235 35.0 25.8 15.50 13.00
Y*9C*C16 21.0 HD48 1195 35.0 25.8 15.75 13.00
Y*9C*C16 21.0 UC60C 1235 33.8 24.4 15.00 12.55
Y*9C*C20 21.0 FC/MC/PC43C 1200 35.0 25.6 15.50 13.00
Y*9C*C20 21.0 FC/MC/PC48C 1330 35.8 27.2 15.50 12.75
Y*9C*C20 21.0 FC/PC60C 1330 35.6 27.2 15.65 13.15
Y*9C*C20 21.0 HD48 1325 35.4 26.4 15.25 12.75
Y*9C*C20 21.0 UC60C 1285 34.4 25.6 15.15 12.70
Y*9C*D20 24.5 FC/MC/PC60D 1225 35.2 26.0 15.95 13.35
Y*9C*D20 24.5 FC/MC62D 1235 35.6 26.4 16.00 13.50
Y*9C*D20 24.5 FC64D 1235 36.0 27.0 16.00 13.00
Y*9C*D20 24.5 UC60D 1225 34.0 24.6 15.45 12.90
T*(8,L)V*B12 17.5 HD48 1350 41.0 29.8 14.75 12.50
T*(8,L)V*C16 21.0 FC/MC/PC43C 1425 41.5 30.8 14.50 12.50
T*(8,L)V*C16 21.0 FC/MC/PC48C 1330 41.0 30.6 15.30 12.90
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
18 Johnson Controls Unitary Products
Page 19
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF42S41S1(E)
For notes see Page 27.
MODEL WIDTH
T*(8,L)V*C16 21.0 FC/PC60C 1420 42.0 31.5 15.45 13.15
T*(8,L)V*C16 21.0 FC64D 1420 42.0 31.8 16.00 13.00
T*(8,L)V*C16 21.0 HD48 1435 41.5 30.8 15.25 13.00
T*(8,L)V*C16 21.0 HD60 1420 42.0 31.4 15.55 13.30
T*(8,L)V*C16 21.0 UC48C 1435 40.5 30.8 14.90 12.65
T*(8,L)V*C16 21.0 UC60C 1420 40.5 29.8 15.00 12.75
T*(8,L)V*C20 21.0 FC/MC/PC43C 1450 41.5 30.8 14.50 12.50
T*(8,L)V*C20 21.0 FC/MC/PC48C 1410 41.5 31.4 15.55 13.10
T*(8,L)V*C20 21.0 FC/PC60C 1340 42.0 31.1 15.70 13.40
T*(8,L)V*C20 21.0 FC64D 1410 42.0 31.8 16.00 13.00
T*(8,L)V*C20 21.0 HD48 1410 42.0 31.0 15.25 13.00
T*(8,L)V*C20 21.0 HD60 1410 42.0 31.4 15.85 13.50
T*(8,L)V*C20 21.0 UC48C 1410 40.5 31.0 15.10 12.80
T*(8,L)V*C20 21.0 UC60C 1410 40.5 30.0 15.30 13.00
T*9(C,V)*B12 17.5 HD48 1150 40.0 28.2 14.75 12.50
T*9(C,V)*C16 21.0 FC/MC/PC43C 1360 41.0 30.8 14.50 12.50
T*9(C,V)*C16 21.0 FC/MC/PC48C 1395 42.0 31.4 15.25 13.00
T*9(C,V)*C16 21.0 FC/PC60C 1445 41.5 31.0 14.75 12.60
T*9(C,V)*C16 21.0 FC64D 1445 42.0 31.8 15.25 12.65
T*9(C,V)*C16 21.0 HD48 1395 41.5 30.8 15.00 12.75
T*9(C,V)*C16 21.0 HD60 1445 42.0 31.2 14.85 12.75
T*9(C,V)*C16 21.0 UC48C 1395 40.0 30.8 14.70 12.45
T*9(C,V)*C16 21.0 UC60C 1445 40.0 29.6 14.35 12.25
T*9(C,V)*C20 21.0 FC/MC/PC43C 1395 41.5 30.8 14.50 12.50
T*9(C,V)*C20 21.0 FC/MC/PC48C 1430 42.0 31.4 15.00 12.75
T*9(C,V)*C20 21.0 FC/PC60C 1445 41.5 31.2 15.10 12.90
T*9(C,V)*C20 21.0 FC64D 1445 42.0 31.8 16.00 13.00
T*9(C,V)*C20 21.0 HD48 1430 41.5 30.8 14.75 12.50
T*9(C,V)*C20 21.0 HD60 1445 42.0 31.4 15.20 13.00
T*9(C,V)*C20 21.0 UC48C 1430 40.0 30.8 14.60 12.40
T*9(C,V)*C20 21.0 UC60C 1445 40.5 29.6 14.65 12.50
T*9(C,V)*D20 24.5 FC/MC/PC48D 1450 42.0 31.4 15.25 13.00
T*9(C,V)*D20 24.5 FC/MC/PC60D 1445 42.0 31.2 15.30 13.05
T*9(C,V)*D20 24.5 FC/MC62D 1455 42.0 31.6 16.00 13.00
T*9(C,V)*D20 24.5 FC64D 1235 42.0 30.4 16.00 13.00
T*9(C,V)*D20 24.5 HD48 1450 41.5 30.8 15.00 12.75
T*9(C,V)*D20 24.5 HD60 1445 42.0 31.4 15.40 13.15
T*9(C,V)*D20 24.5 UC48D 1450 40.0 30.8 14.80 12.60
T*9(C,V)*D20 24.5 UC60D 1445 40.5 29.8 14.90 12.65
TM8X080C16MP11 21.0 FC/MC/PC43C 1350 40.5 30.6 15.00 12.50
TM8X080C16MP11 21.0 FC/MC/PC48C 1325 40.5 30.0 15.10 12.70
TM8X080C16MP11 21.0 FC/MC/PC48D 1350 41.0 30.8 15.00 12.50
TM8X080C16MP11 21.0 FC/MC/PC60D 1375 41.0 30.6 15.00 12.50
TM8X080C16MP11 21.0 FC/MC62D 1350 41.5 31.4 15.40 12.95
TM8X080C16MP11 21.0 FC/PC60C 1350 41.0 30.6 15.00 12.50
TM8X080C16MP11 21.0 FC64D 1375 42.5 32.4 15.85 13.00
TM8X080C16MP11 21.0 UC48C 1325 39.5 28.8 14.90 12.40
TM8X080C16MP11 21.0 UC48D 1350 39.5 28.8 14.75 12.00
TM8X080C16MP11 21.0 UC60C 1350 40.5 30.0 14.75 12.25
TM8X080C16MP11 21.0 UC60D 1375 40.5 30.0 14.75 12.25
TM8X100C16MP11 21.0 FC/MC/PC43C 1350 40.5 30.6 15.00 12.50
TM8X100C16MP11 21.0 FC/MC/PC48C 1325 40.5 30.0 15.10 12.70
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 19
Page 20
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF42S41S1(E)
For notes see Page 27.
MODEL WIDTH
TM8X100C16MP11 21.0 FC/MC/PC48D 1350 41.0 30.8 15.00 12.50
TM8X100C16MP11 21.0 FC/MC/PC60D 1375 41.0 30.6 15.00 12.50
TM8X100C16MP11 21.0 FC/MC62D 1350 41.5 31.4 15.40 12.95
TM8X100C16MP11 21.0 FC/PC60C 1350 41.0 30.6 15.00 12.50
TM8X100C16MP11 21.0 FC64D 1375 42.5 32.4 15.85 13.00
TM8X100C16MP11 21.0 UC48C 1325 39.5 28.8 14.90 12.40
TM8X100C16MP11 21.0 UC48D 1350 39.5 28.8 14.75 12.00
TM8X100C16MP11 21.0 UC60C 1350 40.5 30.0 14.75 12.25
TM8X100C16MP11 21.0 UC60D 1375 40.5 30.0 14.75 12.25
TM8X100C20MP11 21.0 FC/MC/PC43C 1350 40.5 30.6 15.00 12.50
TM8X100C20MP11 21.0 FC/MC/PC48C 1350 41.0 30.8 15.25 12.75
TM8X100C20MP11 21.0 FC/MC/PC48D 1400 41.0 30.8 15.00 12.50
TM8X100C20MP11 21.0 FC/MC/PC60D 1400 41.0 30.6 15.00 12.50
TM8X100C20MP11 21.0 FC/MC62D 1400 41.5 31.4 15.45 13.00
TM8X100C20MP11 21.0 FC/PC60C 1375 41.0 30.6 15.00 12.50
TM8X100C20MP11 21.0 FC64D 1400 42.5 32.4 15.90 13.00
TM8X100C20MP11 21.0 UC48C 1350 39.5 28.8 14.90 12.45
TM8X100C20MP11 21.0 UC48D 1400 40.0 30.0 14.75 12.25
TM8X100C20MP11 21.0 UC60C 1375 40.5 30.0 14.75 12.25
TM8X100C20MP11 21.0 UC60D 1400 40.5 30.0 14.75 12.25
TM8X120C20MP11 21.0 FC/MC/PC43C 1350 40.5 30.6 15.00 12.50
TM8X120C20MP11 21.0 FC/MC/PC48C 1350 41.0 30.8 15.25 12.75
TM8X120C20MP11 21.0 FC/MC/PC48D 1400 41.0 30.8 15.00 12.50
TM8X120C20MP11 21.0 FC/MC/PC60D 1400 41.0 30.6 15.00 12.50
TM8X120C20MP11 21.0 FC/MC62D 1400 41.5 31.4 15.45 13.00
TM8X120C20MP11 21.0 FC/PC60C 1375 41.0 30.6 15.00 12.50
TM8X120C20MP11 21.0 FC64D 1400 42.5 32.4 15.90 13.00
TM8X120C20MP11 21.0 UC48C 1350 39.5 28.8 14.90 12.45
TM8X120C20MP11 21.0 UC48D 1400 40.0 30.0 14.75 12.25
TM8X120C20MP11 21.0 UC60C 1375 40.5 30.0 14.75 12.25
TM8X120C20MP11 21.0 UC60D 1400 40.5 30.0 14.75 12.25
TM9E080C16MP11 21.0 FC64D 1400 42.0 32.2 15.00 12.60
TM9E100C16MP11 21.0 FC64D 1400 42.0 32.2 15.00 12.60
TM9E100C20MP11 21.0 FC/MC/PC43C 1325 40.0 29.6 14.75 12.50
TM9E100C20MP11 21.0 FC/MC/PC48C 1325 40.5 29.8 15.00 12.50
TM9E100C20MP11 21.0 FC/MC/PC48D 1350 41.0 30.8 15.00 12.50
TM9E100C20MP11 21.0 FC/MC/PC60D 1350 41.0 30.6 15.00 12.50
TM9E100C20MP11 21.0 FC/MC62D 1350 41 .5 31.2 15.30 12.90
TM9E100C20MP11 21.0 FC64D 1350 42.5 32.4 15.80 13.00
TM9E100C20MP11 21.0 UC48C 1325 39.5 28.8 14.50 12.25
TM9E100C20MP11 21.0 UC48D 1350 39.5 28.8 14.75 12.00
TM9E100C20MP11 21.0 UC60D 1350 40.5 30.0 14.75 12.25
TM9E120D20MP11 24.5 FC/MC/PC48D 1325 40.5 30.0 15.00 12.50
TM9E120D20MP11 24.5 FC/MC/PC60D 1325 40.5 29.8 15.00 12.75
TM9E120D20MP11 24.5 FC/MC62D 1325 40 .5 30.4 15.35 12.80
TM9E120D20MP11 24.5 FC64D 1325 42.0 31.6 15.80 13.00
TM9E120D20MP11 24.5 UC48D 1325 39.5 28.8 14.75 12.25
TM9E120D20MP11 24.5 UC60D 1325 40.5 30.0 14.75 12.25
TM9X080C16MP11 21.0 FC64D 1400 42.0 32.2 15.00 12.60
TM9X100C16MP11 21.0 FC64D 1400 42.0 32.2 15.00 12.60
TM9X100C20MP11 21.0 FC/MC/PC43C 1325 40.0 29.6 14.75 12.50
TM9X100C20MP11 21.0 FC/MC/PC48C 1325 40.5 29.8 15.00 12.50
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
20 Johnson Controls Unitary Products
Page 21
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF42S41S1(E)
For notes see Page 27.
MODEL WIDTH
TM9X100C20MP11 21.0 FC/MC/PC48D 1350 41.0 30.8 15.00 12.50
TM9X100C20MP11 21.0 FC/MC/PC60D 1350 41.0 30.6 15.00 12.50
TM9X100C20MP11 21.0 FC/MC62D 1350 41.5 31.2 15.30 12.90
TM9X100C20MP11 21.0 FC64D 1350 42.5 32.4 15.80 13.00
TM9X100C20MP11 21.0 UC48C 1325 39.5 28.8 14.50 12.25
TM9X100C20MP11 21.0 UC48D 1350 39.5 28.8 14.75 12.00
TM9X100C20MP11 21.0 UC60D 1350 40.5 30.0 14.75 12.25
TM9X120D20MP11 24.5 FC/MC/PC48D 1325 40.5 30.0 15.00 12.50
TM9X120D20MP11 24.5 FC/MC/PC60D 1325 40.5 29.8 15.00 12.75
TM9X120D20MP11 24.5 FC/MC62D 1325 40.5 30.4 15.35 12.80
TM9X120D20MP11 24.5 FC64D 1325 42.0 31.6 15.80 13.00
TM9X120D20MP11 24.5 UC48D 1325 39.5 28.8 14.75 12.25
TM9X120D20MP11 24.5 UC60D 1325 40.5 30.0 14.75 12.25
TMLX080C16MP11 21.0 FC/MC/PC43C 1350 40.5 30.6 15.00 12.50
TMLX080C16MP11 21.0 FC/MC/PC48C 1325 40.5 30.0 15.10 12.70
TMLX080C16MP11 21.0 FC/MC/PC48D 1350 41.0 30.8 15.00 12.50
TMLX080C16MP11 21.0 FC/MC/PC60D 1375 41.0 30.6 15.00 12.50
TMLX080C16MP11 21.0 FC/MC62D 1350 41.5 31.4 15.40 12.95
TMLX080C16MP11 21.0 FC/PC60C 1350 41.0 30.6 15.00 12.50
TMLX080C16MP11 21.0 FC64D 1375 42.5 32.4 15.85 13.00
TMLX080C16MP11 21.0 UC48C 1325 39.5 28.8 14.90 12.40
TMLX080C16MP11 21.0 UC48D 1350 39.5 28.8 14.75 12.00
TMLX080C16MP11 21.0 UC60C 1350 40.5 30.0 14.75 12.25
TMLX080C16MP11 21.0 UC60D 1375 40.5 30.0 14.75 12.25
TMLX100C16MP11 21.0 FC/MC/PC43C 1350 40.5 30.6 15.00 12.50
TMLX100C16MP11 21.0 FC/MC/PC48C 1325 40.5 30.0 15.10 12.70
TMLX100C16MP11 21.0 FC/MC/PC48D 1350 41.0 30.8 15.00 12.50
TMLX100C16MP11 21.0 FC/MC/PC60D 1375 41.0 30.6 15.00 12.50
TMLX100C16MP11 21.0 FC/MC62D 1350 41.5 31.4 15.40 12.95
TMLX100C16MP11 21.0 FC/PC60C 1350 41.0 30.6 15.00 12.50
TMLX100C16MP11 21.0 FC64D 1375 42.5 32.4 15.85 13.00
TMLX100C16MP11 21.0 UC48C 1325 39.5 28.8 14.90 12.40
TMLX100C16MP11 21.0 UC48D 1350 39.5 28.8 14.75 12.00
TMLX100C16MP11 21.0 UC60C 1350 40.5 30.0 14.75 12.25
TMLX100C16MP11 21.0 UC60D 1375 40.5 30.0 14.75 12.25
TMLX100C20MP11 21.0 FC/MC/PC43C 1350 40.5 30.6 15.00 12.50
TMLX100C20MP11 21.0 FC/MC/PC48C 1350 41.0 30.8 15.25 12.75
TMLX100C20MP11 21.0 FC/MC/PC48D 1400 41.0 30.8 15.00 12.50
TMLX100C20MP11 21.0 FC/MC/PC60D 1400 41.0 30.6 15.00 12.50
TMLX100C20MP11 21.0 FC/MC62D 1400 41.5 31.4 15.45 13.00
TMLX100C20MP11 21.0 FC/PC60C 1375 41.0 30.6 15.00 12.50
TMLX100C20MP11 21.0 FC64D 1400 42.5 32.4 15.90 13.00
TMLX100C20MP11 21.0 UC48C 1350 39.5 28.8 14.90 12.45
TMLX100C20MP11 21.0 UC48D 1400 40.0 30.0 14.75 12.25
TMLX100C20MP11 21.0 UC60C 1375 40.5 30.0 14.75 12.25
TMLX100C20MP11 21.0 UC60D 1400 40.5 30.0 14.75 12.25
TMLX120C20MP11 21.0 FC/MC/PC43C 1350 40.5 30.6 15.00 12.50
TMLX120C20MP11 21.0 FC/MC/PC48C 1350 41.0 30.8 15.25 12.75
TMLX120C20MP11 21.0 FC/MC/PC48D 1400 41.0 30.8 15.00 12.50
TMLX120C20MP11 21.0 FC/MC/PC60D 1400 41.0 30.6 15.00 12.50
TMLX120C20MP11 21.0 FC/MC62D 1400 41.5 31.4 15.45 13.00
TMLX120C20MP11 21.0 FC/PC60C 1375 41.0 30.6 15.00 12.50
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 21
Page 22
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF42S41S1(E)
YCJF48S41S2(E)
For notes see Page 27.
MODEL WIDTH
TMLX120C20MP11 21.0 FC64D 1400 42.5 32.4 15.90 13.00
TMLX120C20MP11 21.0 UC48C 1350 39.5 28.8 14.90 12.45
TMLX120C20MP11 21.0 UC48D 1400 40.0 30.0 14.75 12.25
TMLX120C20MP11 21.0 UC60C 1375 40.5 30.0 14.75 12.25
TMLX120C20MP11 21.0 UC60D 1400 40.5 30.0 14.75 12.25
Y*(8,L)C*B12 17.5 HD48 1350 41.0 29.8 14.75 12.50
Y*(8,L)C*C16 21.0 FC/MC/PC43C 1425 41.5 30.8 14.50 12.50
Y*(8,L)C*C16 21.0 FC/MC/PC48C 1330 41.0 30.6 15.30 12.90
Y*(8,L)C*C16 21.0 FC/PC60C 1420 42.0 31.5 15.45 13.15
Y*(8,L)C*C16 21.0 FC64D 1420 42.0 31.8 16.00 13.00
Y*(8,L)C*C16 21.0 HD48 1435 41.5 30.8 15.25 13.00
Y*(8,L)C*C16 21.0 HD60 1420 42.0 31.4 15.55 13.30
Y*(8,L)C*C16 21.0 UC48C 1435 40.5 30.8 14.90 12.65
Y*(8,L)C*C16 21.0 UC60C 1420 40.5 29.8 15.00 12.75
Y*(8,L)C*C20 21.0 FC/MC/PC43C 1450 41.5 30.8 14.50 12.50
Y*(8,L)C*C20 21.0 FC/MC/PC48C 1410 41.5 31.4 15.55 13.10
Y*(8,L)C*C20 21.0 FC/PC60C 1340 42.0 31.1 15.70 13.40
Y*(8,L)C*C20 21.0 FC64D 1410 42.0 31.8 16.00 13.00
Y*(8,L)C*C20 21.0 HD48 1410 42.0 31.0 15.25 13.00
Y*(8,L)C*C20 21.0 HD60 1410 42.0 31.4 15.85 13.50
Y*(8,L)C*C20 21.0 UC48C 1410 40.5 31.0 15.10 12.80
Y*(8,L)C*C20 21.0 UC60C 1410 40.5 30.0 15.30 13.00
Y*9C*B12 17.5 HD48 1150 40.0 28.2 14.75 12.50
Y*9C*C16 21.0 FC/MC/PC43C 1360 41.0 30.8 14.50 12.50
Y*9C*C16 21.0 FC/MC/PC48C 1395 42.0 31.4 15.25 13.00
Y*9C*C16 21.0 FC/PC60C 1445 41.5 31.0 14.75 12.60
Y*9C*C16 21.0 FC64D 1445 42.0 31.8 15.25 12.65
Y*9C*C16 21.0 HD48 1395 41.5 30.8 15.00 12.75
Y*9C*C16 21.0 HD60 1445 42.0 31.2 14.85 12.75
Y*9C*C16 21.0 UC48C 1395 40.0 30.8 14.70 12.45
Y*9C*C16 21.0 UC60C 1445 40.0 29.6 14.35 12.25
Y*9C*C20 21.0 FC/MC/PC43C 1395 41.5 30.8 14.50 12.50
Y*9C*C20 21.0 FC/MC/PC48C 1430 42.0 31.4 15.00 12.75
Y*9C*C20 21.0 FC/PC60C 1445 41.5 31.2 15.10 12.90
Y*9C*C20 21.0 FC64D 1445 42.0 31.8 16.00 13.00
Y*9C*C20 21.0 HD48 1430 41.5 30.8 14.75 12.50
Y*9C*C20 21.0 HD60 1445 42.0 31.4 15.20 13.00
Y*9C*C20 21.0 UC48C 1430 40.0 30.8 14.60 12.40
Y*9C*C20 21.0 UC60C 1445 40.5 29.6 14.65 12.50
Y*9C*D20 24.5 FC/MC/PC48D 1450 42.0 31.4 15.25 13.00
Y*9C*D20 24.5 FC/MC/PC60D 1445 42.0 31.2 15.30 13.05
Y*9C*D20 24.5 FC/MC62D 1455 42.0 31.6 16.00 13.00
Y*9C*D20 24.5 FC64D 1235 42.0 30.4 16.00 13.00
Y*9C*D20 24.5 HD48 1450 41.5 30.8 15.00 12.75
Y*9C*D20 24.5 HD60 1445 42.0 31.4 15.40 13.15
Y*9C*D20 24.5 UC48D 1450 40.0 30.8 14.80 12.60
Y*9C*D20 24.5 UC60D 1445 40.5 29.8 14.90 12.65
T*(8,L)C*C16 21.0 FC/MC/PC48C 1565 44.5 32.8 14.25 11.75
T*(8,L)C*C16 21.0 FC/MC/PC48D 1565 44.5 32.8 14.25 11.75
T*(8,L)C*C16 21.0 FC/MC/PC60D 1600 45.5 32.0 14.50 12.00
T*(8,L)C*C16 21.0 FC/MC62D 1635 46.5 33.4 15.00 12.25
T*(8,L)C*C16 21.0 FC/PC60C 1600 45.5 32.0 14.50 12.00
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
22 Johnson Controls Unitary Products
Page 23
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF48S41S2(E)
For notes see Page 27.
MODEL WIDTH
T*(8,L)C*C16 21.0 FC64D 1635 47.0 34.0 15.25 12.50
T*(8,L)C*C16 21.0 HD60 1625 47.0 32.6 15.00 12.50
T*(8,L)C*C16 21.0 UC48C 1615 44.5 33.0 14.50 12.00
T*(8,L)C*C16 21.0 UC60C 1625 45.5 32.0 14.75 12.00
T*(8,L)C*C20 21.0 FC/MC/PC48C 1640 45.0 33.0 14.50 12.00
T*(8,L)C*C20 21.0 FC/MC/PC48D 1640 45.0 33.0 14.50 12.00
T*(8,L)C*C20 21.0 FC/MC/PC60D 1625 45.5 32.0 14.75 12.00
T*(8,L)C*C20 21.0 FC/MC62D 1620 46.5 33.6 15.25 12.50
T*(8,L)C*C20 21.0 FC/PC60C 1625 45.5 32.0 14.75 12.00
T*(8,L)C*C20 21.0 FC64D 1410 46.0 32.0 15.75 13.00
T*(8,L)C*C20 21.0 HD60 1605 47.0 32.8 15.50 12.75
T*(8,L)C*C20 21.0 UC48C 1640 44.5 33.0 14.50 11.75
T*(8,L)C*C20 21.0 UC60C 1605 45.5 32.2 15.00 12.25
T*(8,L)V*C16 21.0 FC/MC/PC48C 1565 44.5 32.8 14.25 11.75
T*(8,L)V*C16 21.0 FC/MC/PC48D 1565 44.5 32.8 14.25 11.75
T*(8,L)V*C16 21.0 FC/MC/PC60D 1600 45.5 32.0 14.50 12.00
T*(8,L)V*C16 21.0 FC/MC62D 1635 46.5 33.4 15.00 12.25
T*(8,L)V*C16 21.0 FC/PC60C 1600 45.5 32.0 14.50 12.00
T*(8,L)V*C16 21.0 FC64D 1635 47.0 34.0 15.25 12.50
T*(8,L)V*C16 21.0 HD60 1625 47.0 32.6 15.00 12.50
T*(8,L)V*C16 21.0 UC48C 1615 44.5 33.0 14.50 12.00
T*(8,L)V*C16 21.0 UC60C 1625 45.5 32.0 14.75 12.00
T*(8,L)V*C20 21.0 FC/MC/PC48C 1640 45.0 33.0 14.50 12.00
T*(8,L)V*C20 21.0 FC/MC/PC48D 1640 45.0 33.0 14.50 12.00
T*(8,L)V*C20 21.0 FC/MC/PC60D 1625 45.5 32.0 14.75 12.00
T*(8,L)V*C20 21.0 FC/MC62D 1620 46.5 33.6 15.25 12.50
T*(8,L)V*C20 21.0 FC/PC60C 1625 45.5 32.0 14.75 12.00
T*(8,L)V*C20 21.0 FC64D 1410 46.0 32.0 15.75 13.00
T*(8,L)V*C20 21.0 HD60 1605 47.0 32.8 15.50 12.75
T*(8,L)V*C20 21.0 UC48C 1640 44.5 33.0 14.50 11.75
T*(8,L)V*C20 21.0 UC60C 1605 45.5 32.2 15.00 12.25
T*9(C,V)*C16 21.0 FC/MC/PC48C 1590 44.5 33.0 14.50 11.75
T*9(C,V)*C16 21.0 FC/MC/PC48D 1590 44.5 33.0 14.50 11.75
T*9(C,V)*C16 21.0 FC/MC/PC60D 1590 45.5 32.0 14.50 12.00
T*9(C,V)*C16 21.0 FC/MC62D 1590 46.5 33.4 14.75 12.25
T*9(C,V)*C16 21.0 FC/PC60C 1590 45.5 32.0 14.50 12.00
T*9(C,V)*C16 21.0 FC64D 1590 47.0 34.0 15.00 12.50
T*9(C,V)*C16 21.0 HD60 1590 47.0 32.6 14.75 12.25
T*9(C,V)*C16 21.0 UC48C 1590 44.5 33.0 14.50 11.75
T*9(C,V)*C16 21.0 UC60C 1590 45.5 32.0 14.25 11.75
T*9(C,V)*C20 21.0 FC/MC/PC48C 1655 44.5 33.0 14.25 11.75
T*9(C,V)*C20 21.0 FC/MC/PC48D 1655 44.5 33.0 14.25 11.75
T*9(C,V)*C20 21.0 FC/MC/PC60D 1655 45.5 32.0 14.50 12.00
T*9(C,V)*C20 21.0 FC/MC62D 1655 46.0 33.4 14.50 12.00
T*9(C,V)*C20 21.0 FC/PC60C 1655 45.5 32.0 14.50 12.00
T*9(C,V)*C20 21.0 FC64D 1655 46.5 33.8 14.75 12.25
T*9(C,V)*C20 21.0 HD60 1655 47.0 32.6 14.75 12.25
T*9(C,V)*C20 21.0 UC48C 1655 44.5 33.0 14.50 11.75
T*9(C,V)*C20 21.0 UC60C 1655 45.5 32.0 14.25 11.75
T*9(C,V)*D20 24.5 FC/MC/PC48D 1645 44.5 33.0 14.25 11.75
T*9(C,V)*D20 24.5 FC/MC/PC60D 1615 45.5 32.0 14.50 12.00
T*9(C,V)*D20 24.5 FC/MC62D 1630 46.5 33.4 14.75 12.25
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 23
Page 24
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF48S41S2(E)
For notes see Page 27.
MODEL WIDTH
T*9(C,V)*D20 24.5 FC64D 1630 47.0 34.0 15.00 12.50
T*9(C,V)*D20 24.5 HD60 1615 47.0 32.6 15.00 12.25
T*9(C,V)*D20 24.5 UC48D 1645 44.5 33.0 14.50 11.75
T*9(C,V)*D20 24.5 UC60D 1615 45.5 32.0 14.50 12.00
TM8X080C16MP11 21.0 FC/MC/PC48C 1525 44.5 31.9 14.70 12.25
TM8X080C16MP11 21.0 FC/MC/PC48D 1550 45.0 31.9 14.75 12.25
TM8X080C16MP11 21.0 FC/MC/PC60D 1550 44.5 31.7 14.65 12.25
TM8X080C16MP11 21.0 FC/MC62D 1550 45.0 31.7 14.70 12.35
TM8X080C16MP11 21.0 FC/PC60C 1525 44.5 31.7 14.55 12.20
TM8X080C16MP11 21.0 FC64D 1550 46.0 33.1 15.15 12.65
TM8X100C16MP11 21.0 FC/MC/PC48C 1525 44.5 31.9 14.70 12.25
TM8X100C16MP11 21.0 FC/MC/PC48D 1550 45.0 31.9 14.75 12.25
TM8X100C16MP11 21.0 FC/MC/PC60D 1550 44.5 31.7 14.65 12.25
TM8X100C16MP11 21.0 FC/MC62D 1550 45.0 31.7 14.70 12.35
TM8X100C16MP11 21.0 FC/PC60C 1525 44.5 31.7 14.55 12.20
TM8X100C16MP11 21.0 FC64D 1550 46.0 33.1 15.15 12.65
TM8X100C20MP11 21.0 FC/MC/PC48C 1550 45.0 32.1 14.90 12.45
TM8X100C20MP11 21.0 FC/MC/PC48D 1575 45.0 32.1 14.90 12.45
TM8X100C20MP11 21.0 FC/MC/PC60D 1575 44.5 31.7 14.85 12.45
TM8X100C20MP11 21.0 FC/MC62D 1575 45.0 31.9 14.95 12.50
TM8X100C20MP11 21.0 FC/PC60C 1550 44.5 31.7 14.85 12.40
TM8X100C20MP11 21.0 FC64D 1600 46.0 33.1 15.35 12.80
TM8X100C20MP11 21.0 UC60C 1550 44.0 30.9 14.60 12.25
TM8X120C20MP11 21.0 FC/MC/PC48C 1550 45.0 32.1 14.90 12.45
TM8X120C20MP11 21.0 FC/MC/PC48D 1575 45.0 32.1 14.90 12.45
TM8X120C20MP11 21.0 FC/MC/PC60D 1575 44.5 31.7 14.85 12.45
TM8X120C20MP11 21.0 FC/MC62D 1575 45 .0 31.9 14.95 12.50
TM8X120C20MP11 21.0 FC/PC60C 1550 44.5 31.7 14.85 12.40
TM8X120C20MP11 21.0 FC64D 1600 46.0 33.1 15.35 12.80
TM8X120C20MP11 21.0 UC60C 1550 44.0 30.9 14.60 12.25
TM9E100C20MP11 21.0 FC/MC/PC48D 1525 44.5 31.9 14.70 12.30
TM9E100C20MP11 21.0 FC/MC/PC60D 1525 44.5 31.7 14.55 12.20
TM9E100C20MP11 21.0 FC/MC62D 1550 45 .0 31.7 14.75 12.35
TM9E100C20MP11 21.0 FC64D 1550 46.0 33.1 15.15 12.65
TM9E120D20MP11 24.5 FC/MC/PC48D 1525 45.0 31.9 14.80 12.25
TM9E120D20MP11 24.5 FC/MC/PC60D 1550 44.5 31.7 14.80 12.40
TM9E120D20MP11 24.5 FC/MC62D 1550 45 .0 31.9 14.80 12.45
TM9E120D20MP11 24.5 FC64D 1525 46.0 33.1 15.25 12.75
TM9E120D20MP11 24.5 UC60D 1550 44.0 30.9 14.60 12.25
TM9X100C20MP11 21.0 FC/MC/PC48D 1525 44.5 31.9 14.70 12.30
TM9X100C20MP11 21.0 FC/MC/PC60D 1525 44.5 31.7 14.55 12.20
TM9X100C20MP11 21.0 FC/MC62D 1550 45 .0 31.7 14.75 12.35
TM9X100C20MP11 21.0 FC64D 1550 46.0 33.1 15.15 12.65
TM9X120D20MP11 24.5 FC/MC/PC48D 1525 45.0 31.9 14.80 12.25
TM9X120D20MP11 24.5 FC/MC/PC60D 1550 44.5 31.7 14.80 12.40
TM9X120D20MP11 24.5 FC/MC62D 1550 45 .0 31.9 14.80 12.45
TM9X120D20MP11 24.5 FC64D 1525 46.0 33.1 15.25 12.75
TM9X120D20MP11 24.5 UC60D 1550 44.0 30.9 14.60 12.25
TMLX080C16MP11 21.0 FC/MC/PC48C 1525 44.5 31.9 14.70 12.25
TMLX080C16MP11 21.0 FC/MC/PC48D 1550 45.0 31.9 14.75 12.25
TMLX080C16MP11 21.0 FC/MC/PC60D 1550 44.5 31.7 14.65 12.25
TMLX080C16MP11 21.0 FC/MC62D 1550 45 .0 31.7 14.70 12.35
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
24 Johnson Controls Unitary Products
Page 25
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF48S41S2(E)
For notes see Page 27.
MODEL WIDTH
TMLX080C16MP11 21.0 FC/PC60C 1525 44.5 31.7 14.55 12.20
TMLX080C16MP11 21.0 FC64D 1550 46.0 33.1 15.15 12.65
TMLX100C16MP11 21.0 FC/MC/PC48C 1525 44.5 31.9 14.70 12.25
TMLX100C16MP11 21.0 FC/MC/PC48D 1550 45.0 31.9 14.75 12.25
TMLX100C16MP11 21.0 FC/MC/PC60D 1550 44.5 31.7 14.65 12.25
TMLX100C16MP11 21.0 FC/MC62D 1550 45.0 31.7 14.70 12.35
TMLX100C16MP11 21.0 FC/PC60C 1525 44.5 31.7 14.55 12.20
TMLX100C16MP11 21.0 FC64D 1550 46.0 33.1 15.15 12.65
TMLX100C20MP11 21.0 FC/MC/PC48C 1550 45.0 32.1 14.90 12.45
TMLX100C20MP11 21.0 FC/MC/PC48D 1575 45.0 32.1 14.90 12.45
TMLX100C20MP11 21.0 FC/MC/PC60D 1575 44.5 31.7 14.85 12.45
TMLX100C20MP11 21.0 FC/MC62D 1575 45.0 31.9 14.95 12.50
TMLX100C20MP11 21.0 FC/PC60C 1550 44.5 31.7 14.85 12.40
TMLX100C20MP11 21.0 FC64D 1600 46.0 33.1 15.35 12.80
TMLX100C20MP11 21.0 UC60C 1550 44.0 30.9 14.60 12.25
TMLX120C20MP11 21.0 FC/MC/PC48C 1550 45.0 32.1 14.90 12.45
TMLX120C20MP11 21.0 FC/MC/PC48D 1575 45.0 32.1 14.90 12.45
TMLX120C20MP11 21.0 FC/MC/PC60D 1575 44.5 31.7 14.85 12.45
TMLX120C20MP11 21.0 FC/MC62D 1575 45.0 31.9 14.95 12.50
TMLX120C20MP11 21.0 FC/PC60C 1550 44.5 31.7 14.85 12.40
TMLX120C20MP11 21.0 FC64D 1600 46.0 33.1 15.35 12.80
TMLX120C20MP11 21.0 UC60C 1550 44.0 30.9 14.60 12.25
Y*(8,L)C*C16 21.0 FC/MC/PC48C 1565 44.5 32.8 14.25 11.75
Y*(8,L)C*C16 21.0 FC/MC/PC48D 1565 44.5 32.8 14.25 11.75
Y*(8,L)C*C16 21.0 FC/MC/PC60D 1600 45.5 32.0 14.50 12.00
Y*(8,L)C*C16 21.0 FC/MC62D 1635 46.5 33.4 15.00 12.25
Y*(8,L)C*C16 21.0 FC/PC60C 1600 45.5 32.0 14.50 12.00
Y*(8,L)C*C16 21.0 FC64D 1635 47.0 34.0 15.25 12.50
Y*(8,L)C*C16 21.0 HD60 1625 47.0 32.6 15.00 12.50
Y*(8,L)C*C16 21.0 UC48C 1615 44.5 33.0 14.50 12.00
Y*(8,L)C*C16 21.0 UC60C 1625 45.5 32.0 14.75 12.00
Y*(8,L)C*C20 21.0 FC/MC/PC48C 1640 45.0 33.0 14.50 12.00
Y*(8,L)C*C20 21.0 FC/MC/PC48D 1640 45.0 33.0 14.50 12.00
Y*(8,L)C*C20 21.0 FC/MC/PC60D 1625 45.5 32.0 14.75 12.00
Y*(8,L)C*C20 21.0 FC/MC62D 1620 46.5 33.6 15.25 12.50
Y*(8,L)C*C20 21.0 FC/PC60C 1625 45.5 32.0 14.75 12.00
Y*(8,L)C*C20 21.0 FC64D 1410 46.0 32.0 15.75 13.00
Y*(8,L)C*C20 21.0 HD60 1605 47.0 32.8 15.50 12.75
Y*(8,L)C*C20 21.0 UC48C 1640 44.5 33.0 14.50 11.75
Y*(8,L)C*C20 21.0 UC60C 1605 45.5 32.2 15.00 12.25
Y*9C*C16 21.0 FC/MC/PC48C 1590 44.5 33.0 14.50 11.75
Y*9C*C16 21.0 FC/MC/PC48D 1590 44.5 33.0 14.50 11.75
Y*9C*C16 21.0 FC/MC/PC60D 1590 45.5 32.0 14.50 12.00
Y*9C*C16 21.0 FC/MC62D 1590 46.5 33.4 14.75 12.25
Y*9C*C16 21.0 FC/PC60C 1590 45.5 32.0 14.50 12.00
Y*9C*C16 21.0 FC64D 1590 47.0 34.0 15.00 12.50
Y*9C*C16 21.0 HD60 1590 47.0 32.6 14.75 12.25
Y*9C*C16 21.0 UC48C 1590 44.5 33.0 14.50 11.75
Y*9C*C16 21.0 UC60C 1590 45.5 32.0 14.25 11.75
Y*9C*C20 21.0 FC/MC/PC48C 1655 44.5 33.0 14.25 11.75
Y*9C*C20 21.0 FC/MC/PC48D 1655 44.5 33.0 14.25 11.75
Y*9C*C20 21.0 FC/MC/PC60D 1655 45.5 32.0 14.50 12.00
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 25
Page 26
700695-YTG-C-0714
COOLING CAP ACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
YCJF48S41S2(E)
YCJF60S41S2(E)
For notes see Page 27.
MODEL WIDTH
Y*9C*C20 21.0 FC/MC62D 1655 46.0 33.4 14.50 12.00
Y*9C*C20 21.0 FC/PC60C 1655 45.5 32.0 14.50 12.00
Y*9C*C20 21.0 FC64D 1655 46.5 33.8 14.75 12.25
Y*9C*C20 21.0 HD60 1655 47.0 32.6 14.75 12.25
Y*9C*C20 21.0 UC48C 1655 44.5 33.0 14.50 11.75
Y*9C*C20 21.0 UC60C 1655 45.5 32.0 14.25 11.75
Y*9C*D20 24.5 FC/MC/PC48D 1645 44.5 33.0 14.25 11.75
Y*9C*D20 24.5 FC/MC/PC60D 1615 45.5 32.0 14.50 12.00
Y*9C*D20 24.5 FC/MC62D 1630 46.5 33.4 14.75 12.25
Y*9C*D20 24.5 FC64D 1630 47.0 34.0 15.00 12.50
Y*9C*D20 24.5 HD60 1615 47.0 32.6 15.00 12.25
Y*9C*D20 24.5 UC48D 1645 44.5 33.0 14.50 11.75
Y*9C*D20 24.5 UC60D 1615 45.5 32.0 14.50 12.00
T*(8,L)C*C16 21.0 FC/PC60C 1600 54.5 35.8 14.00 12.00
T*(8,L)C*C20 21.0 FC/MC/PC60D 1600 54.5 36.0 14.25 12.25
T*(8,L)C*C20 21.0 FC/MC62D 1620 55.5 37.4 14.50 12.50
T*(8,L)C*C20 21.0 FC/PC60C 1600 54.5 36.0 14.25 12.25
T*(8,L)C*C20 21.0 FC64D 1630 56.5 39.5 14.75 12.75
T*(8,L)C*C20 21.0 HD60 1605 56.0 37.0 14.50 12.50
T*(8,L)C*C20 21.0 UC60C 1605 54.5 36.0 14.25 12.25
T*(8,L)V*C16 21.0 FC/PC60C 1600 54.5 35.8 14.00 12.00
T*(8,L)V*C20 21.0 FC/MC/PC60D 1600 54.5 36.0 14.25 12.25
T*(8,L)V*C20 21.0 FC/MC62D 1620 55.5 37.4 14.50 12.50
T*(8,L)V*C20 21.0 FC/PC60C 1600 54.5 36.0 14.25 12.25
T*(8,L)V*C20 21.0 FC64D 1630 56.5 39.5 14.75 12.75
T*(8,L)V*C20 21.0 HD60 1605 56.0 37.0 14.50 12.50
T*(8,L)V*C20 21.0 UC60C 1605 54.5 36.0 14.25 12.25
T*9(C,V)*C20 21.0 FC/MC/PC60D 1655 55.0 37.2 14.00 12.00
T*9(C,V)*C20 21.0 FC/MC62D 1655 55.5 37.4 14.00 12.00
T*9(C,V)*C20 21.0 FC/PC60C 1655 55.0 37.2 14.00 12.00
T*9(C,V)*C20 21.0 FC64D 1655 56.5 39.0 14.25 12.25
T*9(C,V)*C20 21.0 HD60 1655 56.0 37.2 14.25 12.25
T*9(C,V)*C20 21.0 UC60C 1655 54.5 36.2 14.00 12.00
T*9(C,V)*D20 24.5 FC/MC/PC60D 1615 54.5 36.0 14.00 12.00
T*9(C,V)*D20 24.5 FC/MC62D 1630 55.5 37.2 14.25 12.25
T*9(C,V)*D20 24.5 FC64D 1630 56.5 39.0 14.50 12.50
T*9(C,V)*D20 24.5 HD60 1615 55.5 36.8 14.25 12.25
T*9(C,V)*D20 24.5 UC60D 1615 54.5 36.0 14.00 12.00
TM8X080C16MP11 21.0 FC/MC62D 1550 54 .5 35.9 14.25 11.75
TM8X080C16MP11 21.0 FC64D 1550 56.0 37.1 14.25 12.00
TM8X100C16MP11 21.0 FC/MC62D 1550 54 .5 35.9 14.25 11.75
TM8X100C16MP11 21.0 FC64D 1550 56.0 37.1 14.25 12.00
TM8X100C20MP11 21.0 FC/MC/PC60D 1575 54.0 35.3 14.25 12.15
TM8X100C20MP11 21.0 FC/MC62D 1575 54 .5 36.3 14.45 12.30
TM8X100C20MP11 21.0 FC/PC60C 1550 54.0 35.1 14.25 12.10
TM8X100C20MP11 21.0 FC64D 1600 56.5 37.8 14.80 12.65
TM8X100C20MP11 21.0 UC60C 1550 53.5 34.5 14.15 12.00
TM8X100C20MP11 21.0 UC60D 1575 53.5 34.7 14.20 12.05
TM8X120C20MP11 21.0 FC/MC/PC60D 1575 54.0 35.3 14.25 12.15
TM8X120C20MP11 21.0 FC/MC62D 1575 54 .5 36.3 14.45 12.30
TM8X120C20MP11 21.0 FC/PC60C 1550 54.0 35.1 14.25 12.10
TM8X120C20MP11 21.0 FC64D 1600 56.5 37.8 14.80 12.65
FURNACE
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COIL
MODEL
1
RATED
CFM
COOLING
NET MBH
TOTAL SENS.
2
SEER EER
26 Johnson Controls Unitary Products
Page 27
COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)
UNIT
MODEL
MODEL WIDTH
TM8X120C20MP11 21.0 UC60C 1550 53.5 34.5 14.15 12.00
TM8X120C20MP11 21.0 UC60D 1575 53.5 34.7 14.20 12.05
TM9E100C20MP11 21.0 FC/MC62D 1550 54.5 35.9 14.30 12.15
TM9E100C20MP11 21.0 FC64D 1550 56.0 37.1 14.60 12.45
TM9E120D20MP11 24.5 FC/MC/PC60D 1550 54.0 35.1 14.20 12.05
TM9E120D20MP11 24.5 FC/MC62D 1550 54.5 35.9 14.35 12.20
TM9E120D20MP11 24.5 FC64D 1525 56.0 36.9 14.65 12.50
TM9E120D20MP11 24.5 UC60D 1550 53.5 34.5 14.10 12.00
TM9X100C20MP11 21.0 FC/MC62D 1550 54.5 35.9 14.30 12.15
TM9X100C20MP11 21.0 FC64D 1550 56.0 37.1 14.60 12.45
TM9X120D20MP11 24.5 FC/MC/PC60D 1550 54.0 35.1 14.20 12.05
TM9X120D20MP11 24.5 FC/MC62D 1550 54.5 35.9 14.35 12.20
TM9X120D20MP11 24.5 FC64D 1525 56.0 36.9 14.65 12.50
TM9X120D20MP11 24.5 UC60D 1550 53.5 34.5 14.10 12.00
TMLX080C16MP11 21.0 FC/MC62D 1550 54.5 35.9 14.25 11.75
TMLX080C16MP11 21.0 FC64D 1550 56.0 37.1 14.25 12.00
TMLX100C16MP11 21.0 FC/MC62D 1550 54.5 35.9 14.25 11.75
TMLX100C16MP11 21.0 FC64D 1550 56.0 37.1 14.25 12.00
TMLX100C20MP11 21.0 FC/MC/PC60D 1575 54.0 35.3 14.25 12.15
TMLX100C20MP11 21.0 FC/MC62D 1575 54.5 36.3 14.45 12.30
TMLX100C20MP11 21.0 FC/PC60C 1550 54.0 35.1 14.25 12.10
TMLX100C20MP11 21.0 FC64D 1600 56.5 37.8 14.80 12.65
TMLX100C20MP11 21.0 UC60C 1550 53.5 34.5 14.15 12.00
YCJF60S41S2(E)
TMLX100C20MP11 21.0 UC60D 1575 53.5 34.7 14.20 12.05
TMLX120C20MP11 21.0 FC/MC/PC60D 1575 54.0 35.3 14.25 12.15
TMLX120C20MP11 21.0 FC/MC62D 1575 54.5 36.3 14.45 12.30
TMLX120C20MP11 21.0 FC/PC60C 1550 54.0 35.1 14.25 12.10
TMLX120C20MP11 21.0 FC64D 1600 56.5 37.8 14.80 12.65
TMLX120C20MP11 21.0 UC60C 1550 53.5 34.5 14.15 12.00
TMLX120C20MP11 21.0 UC60D 1575 53.5 34.7 14.20 12.05
Y*(8,L)C*C16 21.0 FC/PC60C 1600 54.5 35.8 14.00 12.00
Y*(8,L)C*C20 21.0 FC/MC/PC60D 1600 54.5 36.0 14.25 12.25
Y*(8,L)C*C20 21.0 FC/MC62D 1620 55.5 37.4 14.50 12.50
Y*(8,L)C*C20 21.0 FC/PC60C 1600 54.5 36.0 14.25 12.25
Y*(8,L)C*C20 21.0 FC64D 1630 56.5 39.5 14.75 12.75
Y*(8,L)C*C20 21.0 HD60 1605 56.0 37.0 14.50 12.50
Y*(8,L)C*C20 21.0 UC60C 1605 54.5 36.0 14.25 12.25
Y*9C*C20 21.0 FC/MC/PC60D 1655 55.0 37.2 14.00 12.00
Y*9C*C20 21.0 FC/MC62D 1655 55.5 37.4 14.00 12.00
Y*9C*C20 21.0 FC/PC60C 1655 55.0 37.2 14.00 12.00
Y*9C*C20 21.0 FC64D 1655 56.5 39.0 14.25 12.25
Y*9C*C20 21.0 HD60 1655 56.0 37.2 14.25 12.25
Y*9C*C20 21.0 UC60C 1655 54.5 36.2 14.00 12.00
Y*9C*D20 24.5 FC/MC/PC60D 1615 54.5 36.0 14.00 12.00
Y*9C*D20 24.5 FC/MC62D 1630 55.5 37.2 14.25 12.25
Y*9C*D20 24.5 FC64D 1630 56.5 39.0 14.50 12.50
Y*9C*D20 24.5 HD60 1615 55.5 36.8 14.25 12.25
Y*9C*D20 24.5 UC60D 1615 54.5 36.0 14.00 12.00
1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.
2. High Efficiency Motor Furnaces have B.O.D (Blower on Delay) standard.
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Rating.
FURNACE
COIL
MODEL
1
RATED
CFM
14.5 SEER AC WITH HIGH EFFICIENCY MOTOR FURNACES
COOLING
NET MBH
TOTAL SENS.
2
700695-YTG-C-0714
SEER EER
Johnson Controls Unitary Products 27
Page 28
700695-YTG-C-0714
ACCESSORIES & APPLICATIONS
Refer to Price Manual for specific model numbers.
Application Limits
Maximum Lineset Equivalent Length 75 Ft
Outdoor Ambient Temperature Limits
Cooling Operation
Maximum DB 115°F
Minimum DB 50°F
Start Assist Kit (S1-2SA067) - Provides increased starting
torque for areas with low voltage. See Hard Start Kit Accessory
Installation Manual for Hard Start Kit part number for each
model.
TXV Kits - S1-1TVM series thermal expansion valves precisely
meter refrigerant for optimum performance over a wide range of
conditions. See System Charge table for TXV part number for
each model.
Low Ambient Pressure Switch Kit (S1-2LA06700424) -
Allows the use of air conditioning at low outdoor ambient tem-
Long Lineset Applications - For installations with more than
75' of equivalent lineset length, refer to the current version of
the Piping Application Guide 247077-UAD-H-0209, availabl e
in the Application Bulletins section on UPGnet.
Off Cycle Timer Delay - Provides a 5-minute off cycle to prevent rapid recycling of the compressor.
peratures down to +20°F (-7°C). For use with single-stage
models containing R-410A refrigerant only.
Thermostats - Compatible thermostat controls are available
through accessory sourcing. For optimum performance and
installation, refer to the UPGNET “Low Voltage Wiring Diagram”
document to select and apply controls.
SOUND POWER LEVEL - TYPICAL OCTAVE BAND SPECTRUM (db re. 1-pW)
Models 63 125 250 500 1000 2000 4000 8000 dBA
18 68 71 65 67 64 59 56 49 69
24 69 73 67 67 68 61 58 52 71
30 68 70 64 67 71 64 57 51 73
36 69 73 64 65 68 60 55 49 70
42 72 69 65 70 69 63 56 52 72
48 69 70 65 66 67 61 56 52 70
60 69 68 64 69 72 63 59 57 74
Rated in accordance with ARI Standard 270.
28 Johnson Controls Unitary Products
Page 29

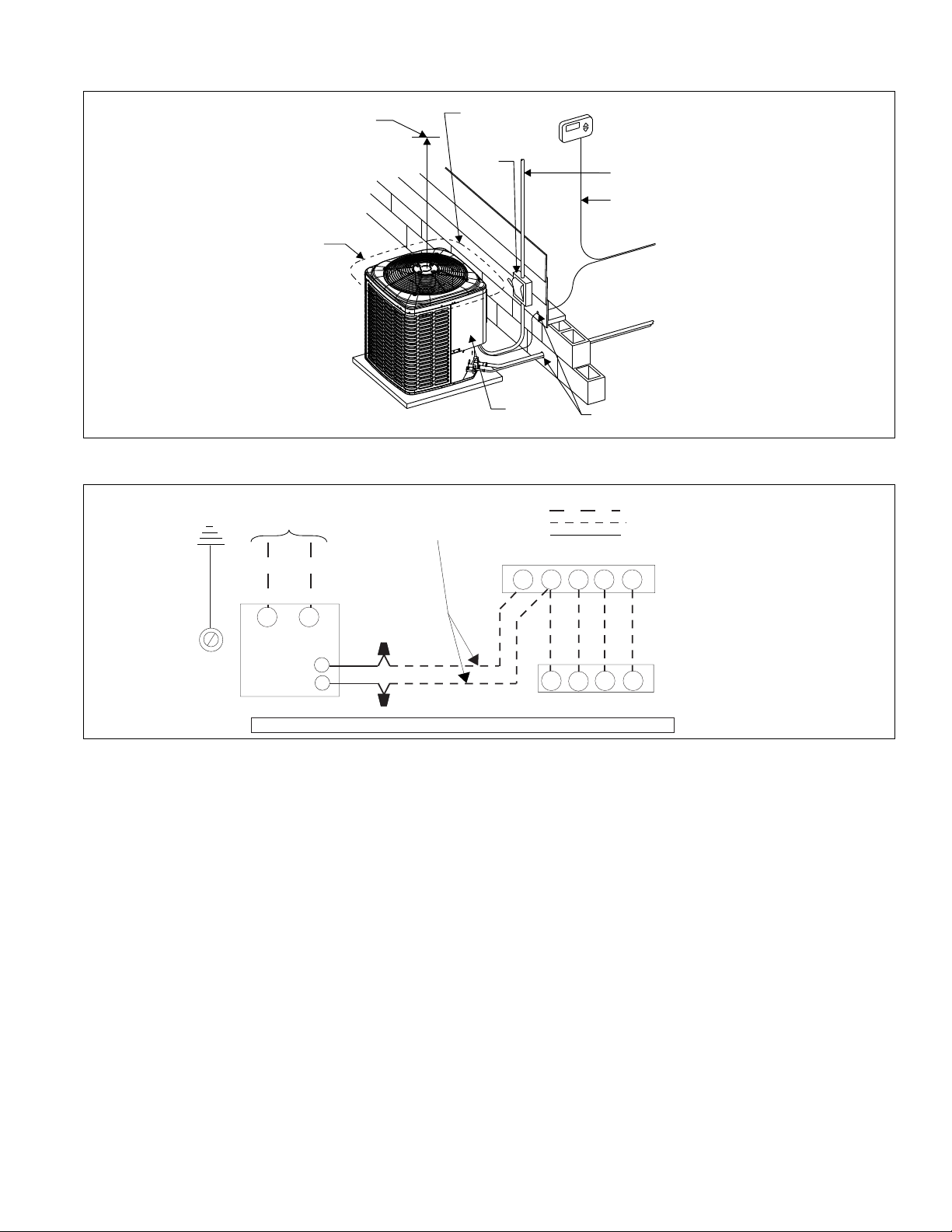

TYPICAL INSTALLATION
60” OVERHEAD
CLEARANCE
MINIMUM 18” SERVICE
ACCESS CLEARANCE
ON ONE SIDE
WEATHERPROOF
DISCONNECT
SWITCH
THERMOSTAT
10” CLEARANCE
AROUND PERIMETER
CONTROL
ACCESS
PANEL
TO INDOOR COIL
NEC CLASS 1 WIRING
NEC CLASS 2 WIRING
TO FURNACE OR
AIR HANDLER
TERMINAL BLOCK
SEAL OPENING(S) WITH
PERMAGUM OR EQUIVALENT
NOTES:
ALL OUTDOOR WIRING MUST BE WEATHERPROOF.
MINIMUM 24” UNIT TO UNIT CLEARANCE.
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
POWER WIRING
208/230-1-60
CONTACTOR
TERMINALS
COIL
GND.
LUG
CYRGW
Y
R
GW
POWER WIRING
CONTROL WIRING
FACTORY WIRING
24 VOLT CONTROL WIRING
MINIMUM 18 GA. WIRE
(NEC CLASS 2)
FURNACE OR AIR HANDLER TERMINAL BLOCK
ROOM THERMOSTAT
CONDENSING UNIT
ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.
TERMINAL W IS ONLY
REQUIRED ON SYSTEMS
WITH HEAT.
*
*
TYPICAL FIELD WIRING
700695-YTG-C-0714
Johnson Controls Unitary Products 29
Page 30
700695-YTG-C-0714
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. YCJF18S41S1(E)
INDOOR COIL MODEL NO. FC/MC/PC32
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
ID CFM 450 600 750
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 16.2 17.9 17.6 20.0 22.3 18.0 18.8 18.6 20.9 23.6 19.8 19.8 19.6 21.9 25.0
S.C. 16.2 14.9 12.3 12.8 10.1 18.0 17.3 14.2 14.5 11.4 19.8 19.7 16.1 16.3 12.6
KW 1.00 0.98 1.00 0.99 0.98 0.99 0.99 0.99 0.98 0.97 0.99 0.99 0.99 0.97 0.96
T.C. 15.3 16.9 16.8 19.0 21.2 17.1 18.0 17.7 19.9 22.4 19.0 19.1 18.7 20.8 23.6
S.C. 15.3 14.3 11.9 12.2 9.8 17.1 16.7 13.7 13.9 11.0 19.0 19.1 15.6 15.7 12.2
KW 1.17 1.15 1.17 1.16 1.14 1.16 1.15 1.16 1.15 1.13 1.14 1.14 1.15 1.14 1.12
T.C. 14.4 16.0 15.9 17.9 20.2 16.3 17.1 16.8 18.8 21.2 18.1 18.3 17.7 19.8 22.3
S.C. 14.4 13.8 11.4 11.6 9.4 16.3 16.1 13.3 13.4 10.6 18.1 18.3 15.1 15.1 11.8
KW 1.35 1.32 1.33 1.33 1.30 1.32 1.31 1.32 1.31 1.29 1.29 1.29 1.31 1.30 1.28
T.C. 13.5 15.1 15.0 16.9 19.2 15.4 16.3 15.9 17.8 20.1 17.3 17.5 16.8 18.7 20.9
S.C. 13.5 13.2 11.0 11.0 9.0 15.4 15.5 12.8 12.8 10.2 17.3 17.5 14.6 14.6 11.3
KW 1.52 1.50 1.50 1.50 1.46 1.48 1.47 1.48 1.48 1.45 1.45 1.45 1.47 1.47 1.44
T.C. 12.9 14.1 13.9 15.8 18.0 14.6 15.3 14.7 16.6 18.7 16.2 16.4 15.5 17.4 19.4
S.C. 12.9 12.7 10.5 10.6 8.6 14.6 14.7 12.2 12.4 9.6 16.2 16.4 14.0 14.2 10.7
KW 1.80 1.79 1.81 1.80 1.74 1.77 1.75 1.78 1.77 1.74 1.73 1.72 1.75 1.74 1.73
T.C. 12.4 13.2 12.9 14.7 16.8 13.7 14.3 13.6 15.5 17.3 15.1 15.4 14.2 16.2 17.9
S.C. 12.4 12.3 10.1 10.2 8.2 13.7 14.0 11.7 12.0 9.1 15.1 15.4 13.3 13.8 10.1
KW 2.07 2.07 2.11 2.09 2.01 2.04 2.02 2.06 2.05 2.01 2.00 1.98 2.02 2.01 2.01
T.C. 11.912.211.913.615.612.913.312.414.316.013.914.312.915.016.4
S.C. 11.9 11.9 9.6 9.9 7.7 12.9 13.2 11.1 11.6 8.6 13.9 14.3 12.7 13.4 9.5
KW 2.34 2.36 2.42 2.38 2.28 2.31 2.30 2.35 2.33 2.29 2.28 2.24 2.29 2.28 2.29
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC18 0.97 0.97 1.01
– FC/MC/PC32 1.00 1.00 1.00
– FC/MC/PC35 1.00 1.00 1.00
– FC/MC/PC37 1.01 1.01 1.01
– FC/MC/PC43 1.01 1.01 1.01
– HD24 1.01 1.00 1.01
– HD36 0.97 0.93 1.01
– UC18 0.98 0.98 1.00
AHE18B – 1.01 1.02 0.91
AHE24B – 1.02 1.02 0.90
AHE30B – 1.02 1.02 0.90
AHE36C – 1.08 1.17 0.91
AHR18B – 0.99 1.02 0.99
Air Handlers Coils T.C. S.C. KW
AHV18B – 0.99 1.00 0.91
AHV24B – 1.00 1.01 0.91
AHV30B – 1.01 1.08 0.92
AHV36C – 1.02 1.07 0.89
MV12B FC/MC18B 1.01 0.99 0.91
MV12B FC/MC35B 1.02 1.02 0.93
MV12B FC/MC43B 1.03 1.03 0.92
MX12BN21 FC/MC18B 1.01 1.00 0.90
MX12BN21 FC/MC35B 1.03 1.03 0.91
MX12BN21 FC/MC43B 1.03 1.05 0.90
MX16CN21 FC/MC35C 1.01 1.02 1.01
Continued on next page.
30 Johnson Controls Unitary Products
Page 31
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
T*(8,L)V*A12 FC/MC/PC18A 1.00 0.99 0.92
T*(8,L)V*A12 FC/MC/PC32A 1.02 1.02 0.93
T*(8,L)V*A12 FC/MC/PC37A 1.04 1.08 0.91
T*(8,L)V*A12 HD24 1.04 1.07 0.91
T*(8,L)V*A12 HD36 1.01 1.00 0.92
T*(8,L)V*A12 UC18A 1.01 1.00 0.91
T*(8,L)V*B12 FC/MC/PC18B 1.00 0.99 0.92
T*(8,L)V*B12 FC/MC/PC35B 1.03 1.06 0.92
T*(8,L)V*B12 FC/MC/PC43B 1.02 1.02 0.91
T*(8,L)V*B12 HD24 1.04 1.03 0.89
T*(8,L)V*B12 HD36 1.02 1.01 0.92
T*(8,L)V*B12 UC18B 1.01 1.01 0.91
T*(8,L)V*C16 FC/MC/PC35C 1.03 1.08 0.92
T*(8,L)V*C16 HD24 1.03 1.02 0.90
T*(8,L)V*C16 HD36 1.00 0.96 0.91
T*9(C,V)*B12 FC/MC/PC18B 1.01 0.99 0.91
T*9(C,V)*B12 FC/MC/PC35B 1.01 1.01 0.90
T*9(C,V)*B12 HD24 1.03 1.02 0.90
T*9(C,V)*B12 HD36 1.01 1.00 0.92
T*9(C,V)*B12 UC18B 1.01 1.01 0.89
T*9(C,V)*C16 FC/MC/PC35C 1.03 1.08 0.90
T*9(C,V)*C16 HD36 1.00 0.96 0.91
T*9V*A10 FC/MC/PC18A 0.99 0.98 0.94
T*9V*A10 FC/MC/PC32A 1.01 1.02 0.93
T*9V*A10 FC/MC/PC37A 1.02 1.02 0.93
TM8X060A12MP11 FC/MC/PC18A 1.00 1.00 0.92
TM8X060A12MP11 FC/MC/PC32A 1.02 1.03 0.92
TM8X060A12MP11 FC/MC/PC37A 1.03 1.04 0.91
TM8X060A12MP11 UC18A 1.01 1.01 0.92
TM8X080B12MP11 FC/MC/PC18B 1.00 1.00 0.92
TM8X080B12MP11 FC/MC/PC35B 1.02 1.03 0.92
TM8X080B12MP11 FC/MC/PC43B 1.03 1.04 0.92
TM8X080B12MP11 UC18B 1.01 1.00 0.92
TM8X080C16MP11 FC/MC/PC35C 1.02 1.03 0.92
TM8X080C16MP11 FC/MC/PC43C 1.03 1.04 0.95
TM8X100C16MP11 FC/MC/PC35C 1.02 1.03 0.92
TM8X100C16MP11 FC/MC/PC43C 1.03 1.04 0.95
TM9E040A10MP11 FC/MC/PC18A 0.99 0.98 0.97
TM9E040A10MP11 FC/MC/PC32A 1.01 1.02 0.97
TM9E040A10MP11 FC/MC/PC37A 1.01 1.02 0.97
TM9E040A10MP11 UC18A 0.99 0.99 0.99
TM9E060B12MP11 FC/MC/PC18B 1.00 0.99 0.93
TM9E060B12MP11 FC/MC/PC35B 1.02 1.02 0.93
TM9E060B12MP11 FC/MC/PC43B 1.03 1.04 0.95
TM9E060B12MP11 UC18B 1.01 1.00 0.93
TM9E080B12MP11 FC/MC/PC18B 1.00 0.99 0.93
TM9E080B12MP11 FC/MC/PC35B 1.02 1.02 0.93
TM9E080B12MP11 FC/MC/PC43B 1.03 1.04 0.95
TM9E080B12MP11 UC18B 1.01 1.00 0.93
TM9E080C16MP11 FC/MC/PC35C 1.03 1.03 0.93
TM9E080C16MP11 FC/MC/PC43C 1.03 1.05 0.92
TM9E100C16MP11 FC/MC/PC35C 1.03 1.03 0.93
TM9E100C16MP11 FC/MC/PC43C 1.03 1.05 0.92
TM9E100C20MP11 FC/MC/PC35C 1.01 1.02 1.01
Furnaces Coils T.C. S.C. KW
TM9E100C20MP11 FC/MC/PC43C 1.01 1.02 0.99
TM9X040A10MP11 FC/MC/PC18A 0.99 0.98 0.97
TM9X040A10MP11 FC/MC/PC32A 1.01 1.02 0.97
TM9X040A10MP11 FC/MC/PC37A 1.01 1.02 0.97
TM9X040A10MP11 UC18A 0.99 0.99 0.99
TM9X060B12MP11 FC/MC/PC18B 1.00 0.99 0.93
TM9X060B12MP11 FC/MC/PC35B 1.02 1.02 0.93
TM9X060B12MP11 FC/MC/PC43B 1.03 1.04 0.95
TM9X060B12MP11 UC18B 1.01 1.00 0.93
TM9X080B12MP11 FC/MC/PC18B 1.00 0.99 0.93
TM9X080B12MP11 FC/MC/PC35B 1.02 1.02 0.93
TM9X080B12MP11 FC/MC/PC43B 1.03 1.04 0.95
TM9X080B12MP11 UC18B 1.01 1.00 0.93
TM9X080C16MP11 FC/MC/PC35C 1.03 1.03 0.93
TM9X080C16MP11 FC/MC/PC43C 1.03 1.05 0.92
TM9X100C16MP11 FC/MC/PC35C 1.03 1.03 0.93
TM9X100C16MP11 FC/MC/PC43C 1.03 1.05 0.92
TM9X100C20MP11 FC/MC/PC35C 1.01 1.02 1.01
TM9X100C20MP11 FC/MC/PC43C 1.01 1.02 0.99
TMLX060A12MP11 FC/MC/PC18A 1.00 1.00 0.92
TMLX060A12MP11 FC/MC/PC32A 1.02 1.03 0.92
TMLX060A12MP11 FC/MC/PC37A 1.03 1.04 0.91
TMLX060A12MP11 UC18A 1.01 1.01 0.92
TMLX080B12MP11 FC/MC/PC18B 1.00 1.00 0.92
TMLX080B12MP11 FC/MC/PC35B 1.02 1.03 0.92
TMLX080B12MP11 FC/MC/PC43B 1.03 1.04 0.92
TMLX080B12MP11 UC18B 1.01 1.00 0.92
TMLX080C16MP11 FC/MC/PC35C 1.02 1.03 0.92
TMLX080C16MP11 FC/MC/PC43C 1.03 1.04 0.95
TMLX100C16MP11 FC/MC/PC35C 1.02 1.03 0.92
TMLX100C16MP11 FC/MC/PC43C 1.03 1.04 0.95
Y*(8,L)C*A12 FC/MC/PC18A 1.00 0.99 0.92
Y*(8,L)C*A12 FC/MC/PC32A 1.02 1.02 0.93
Y*(8,L)C*A12 FC/MC/PC37A 1.04 1.08 0.91
Y*(8,L)C*A12 HD24 1.04 1.07 0.91
Y*(8,L)C*A12 HD36 1.01 1.00 0.92
Y*(8,L)C*A12 UC18A 1.01 1.00 0.91
Y*(8,L)C*B12 FC/MC/PC18B 1.00 0.99 0.92
Y*(8,L)C*B12 FC/MC/PC35B 1.03 1.06 0.92
Y*(8,L)C*B12 FC/MC/PC43B 1.02 1.02 0.91
Y*(8,L)C*B12 HD24 1.04 1.03 0.89
Y*(8,L)C*B12 HD36 1.02 1.01 0.92
Y*(8,L)C*B12 UC18B 1.01 1.01 0.91
Y*(8,L)C*C16 FC/MC/PC35C 1.03 1.08 0.92
Y*(8,L)C*C16 HD24 1.03 1.02 0.90
Y*(8,L)C*C16 HD36 1.00 0.96 0.91
Y*9C*B12 FC/MC/PC18B 1.01 0.99 0.91
Y*9C*B12 FC/MC/PC35B 1.01 1.01 0.90
Y*9C*B12 HD24 1.03 1.02 0.90
Y*9C*B12 HD36 1.01 1.00 0.92
Y*9C*B12 UC18B 1.01 1.01 0.89
Y*9C*C16 FC/MC/PC35C 1.03 1.08 0.90
Y*9C*C16 HD36 1.00 0.96 0.91
Johnson Controls Unitary Products 31
Page 32
700695-YTG-C-0714
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. YCJF24S41S1(E)
INDOOR COIL MODEL NO. FC/MC/PC32
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
ID CFM 500 700 900
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 20.5 23.7 23.8 27.1 29.1 23.5 25.4 25.5 28.6 30.8 26.5 27.1 27.1 30.1 32.6
S.C. 20.5 18.8 16.0 16.5 13.4 23.5 22.1 18.6 19.0 15.0 26.5 25.4 21.2 21.5 16.5
KW 1.35 1.31 1.34 1.31 1.33 1.33 1.31 1.33 1.32 1.32 1.31 1.31 1.33 1.33 1.31
T.C. 20.0 22.6 22.9 25.6 28.0 22.6 24.2 24.4 27.2 29.7 25.2 25.8 25.9 28.8 31.3
S.C. 20.0 18.1 15.6 15.8 12.9 22.6 21.3 18.2 18.4 14.5 25.2 24.5 20.8 20.9 16.1
KW 1.56 1.55 1.55 1.55 1.54 1.55 1.55 1.55 1.54 1.53 1.54 1.55 1.54 1.54 1.52
T.C. 19.5 21.5 22.0 24.1 26.9 21.7 23.0 23.4 25.8 28.5 23.9 24.4 24.8 27.5 30.1
S.C. 19.5 17.3 15.2 15.1 12.4 21.7 20.4 17.8 17.7 14.1 23.9 23.5 20.4 20.3 15.7
KW 1.78 1.79 1.77 1.78 1.75 1.77 1.78 1.76 1.76 1.74 1.76 1.78 1.75 1.75 1.73
T.C. 19.1 20.3 21.1 22.7 25.9 20.8 21.7 22.4 24.4 27.4 22.6 23.1 23.6 26.1 28.9
S.C. 19.1 16.6 14.8 14.4 12.0 20.8 19.6 17.4 17.1 13.6 22.6 22.6 20.0 19.8 15.2
KW 1.99 2.02 1.99 2.01 1.96 1.99 2.02 1.98 1.98 1.95 1.98 2.02 1.96 1.96 1.94
T.C. 17.9 19.1 19.5 21.4 24.3 19.7 20.5 20.6 22.9 25.7 21.4 21.8 21.7 24.4 27.1
S.C. 17.9 16.1 14.0 13.9 11.3 19.7 19.0 16.4 16.4 13.0 21.4 21.8 18.9 19.0 14.6
KW 2.40 2.44 2.41 2.41 2.35 2.38 2.41 2.41 2.37 2.32 2.35 2.38 2.41 2.33 2.29
T.C. 16.8 17.8 17.9 20.1 22.8 18.5 19.2 18.9 21.4 24.1 20.3 20.6 19.8 22.8 25.4
S.C. 16.8 15.6 13.2 13.4 10.8 18.5 18.4 15.5 15.8 12.3 20.3 20.6 17.8 18.2 13.9
KW 2.81 2.84 2.82 2.79 2.72 2.76 2.79 2.83 2.74 2.68 2.71 2.73 2.83 2.69 2.63
T.C. 15.7 16.6 16.3 18.9 21.3 17.4 18.0 17.1 20.0 22.4 19.2 19.4 18.0 21.1 23.6
S.C. 15.7 15.1 12.4 12.8 10.2 17.4 17.8 14.5 15.1 11.7 19.2 19.4 16.7 17.4 13.2
KW 3.21 3.25 3.23 3.17 3.10 3.14 3.16 3.25 3.11 3.03 3.07 3.08 3.26 3.05 2.97
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC32 1.00 1.00 1.00
– FC/MC/PC35 1.02 1.02 1.02
– FC/MC/PC37 1.04 1.04 1.04
– FC/MC/PC43 1.03 1.05 1.02
– FC/MC/PC48 1.05 1.06 1.02
– HD36 1.02 0.99 1.04
– HD48 1.05 1.04 1.04
AHE24B – 1.03 1.09 0.94
AHE30B – 1.03 1.09 0.94
AHE36C – 1.07 1.15 0.93
AHE42D – 1.08 1.13 0.92
AHR24B – 1.02 1.03 0.98
AHV24B – 0.98 0.99 0.91
AHV30B – 0.99 1.02 0.92
Air Handlers Coils T.C. S.C. KW
AHV36C – 1.00 1.03 0.91
MV12B FC/MC35B 1.05 1.05 0.96
MV12B FC/MC43B 1.06 1.07 0.95
MV12D FC/MC48D 1.08 1.15 0.92
MV16C FC/MC35C 1.05 1.05 0.96
MV16C FC/MC43C 1.06 1.07 0.95
MV16C FC/MC48C 1.07 1.09 0.94
MX12BN21 FC/MC35B 1.05 1.08 0.94
MX12BN21 FC/MC43B 1.06 1.10 0.94
MX12DN21 FC/MC48D 1.07 1.11 0.94
MX16CN21 FC/MC35C 1.04 1.08 0.97
MX16CN21 FC/MC43C 1.06 1.10 0.98
MX16CN21 FC/MC48C 1.07 1.10 0.97
Continued on next page.
32 Johnson Controls Unitary Products
Page 33
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
T*(8,L)V*A12 FC/MC/PC32A 0.98 0.98 0.91
T*(8,L)V*A12 FC/MC/PC37A 0.98 0.98 0.90
T*(8,L)V*A12 HD36 0.98 0.95 0.90
T*(8,L)V*B12 FC/MC/PC35B 0.98 0.98 0.91
T*(8,L)V*B12 FC/MC/PC43B 0.98 0.97 0.90
T*(8,L)V*B12 HD36 0.98 0.94 0.91
T*(8,L)V*C16 HD36 0.98 0.97 0.90
T*(8,L)V*C20 HD36 0.98 0.94 0.91
T*9(C,V)*B12 FC/MC/PC35B 0.98 0.99 0.91
T*9(C,V)*B12 FC/MC/PC43B 0.98 0.98 0.90
T*9(C,V)*B12 HD36 0.98 0.95 0.91
T*9(C,V)*C16 FC/MC/PC35C 1.03 1.02 0.98
T*9(C,V)*C16 HD36 0.98 0.95 0.90
T*9(C,V)*C20 HD36 0.98 0.94 0.91
T*9V*A10 FC/MC/PC32A 1.02 1.06 0.99
T*9V*A10 FC/MC/PC37A 1.04 1.08 0.98
TM8X060A12MP11 FC/MC/PC32A 1.04 1.08 0.97
TM8X060A12MP11 FC/MC/PC37A 1.06 1.10 0.96
TM8X080B12MP11 FC/MC/PC35B 1.03 1.05 0.96
TM8X080B12MP11 FC/MC/PC43B 1.07 1.10 0.95
TM8X080C16MP11 FC/MC/PC35C 1.04 1.07 0.97
TM8X080C16MP11 FC/MC/PC43C 1.05 1.09 0.97
TM8X080C16MP11 FC/MC/PC48C 1.06 1.10 0.98
TM8X080C16MP11 FC/MC/PC48D 1.06 1.08 0.93
TM8X100C16MP11 FC/MC/PC35C 1.04 1.07 0.97
TM8X100C16MP11 FC/MC/PC43C 1.05 1.09 0.97
TM8X100C16MP11 FC/MC/PC48C 1.06 1.10 0.98
TM8X100C16MP11 FC/MC/PC48D 1.06 1.08 0.93
TM8X100C20MP11 FC/MC/PC35C 1.03 1.07 0.98
TM8X100C20MP11 FC/MC/PC43C 1.05 1.09 1.01
TM8X100C20MP11 FC/MC/PC48C 1.06 1.09 1.02
TM8X100C20MP11 FC/MC/PC48D 1.06 1.09 1.02
TM8X120C20MP11 FC/MC/PC35C 1.03 1.07 0.98
TM8X120C20MP11 FC/MC/PC43C 1.05 1.09 1.01
TM8X120C20MP11 FC/MC/PC48C 1.06 1.09 1.02
TM8X120C20MP11 FC/MC/PC48D 1.06 1.09 1.02
TM9E040A10MP11 FC/MC/PC32A 1.02 1.05 0.99
TM9E040A10MP11 FC/MC/PC37A 1.04 1.09 0.99
TM9E060B12MP11 FC/MC/PC35B 1.04 1.07 0.97
TM9E060B12MP11 FC/MC/PC43B 1.05 1.09 0.97
TM9E080B12MP11 FC/MC/PC35B 1.04 1.07 0.97
TM9E080B12MP11 FC/MC/PC43B 1.05 1.09 0.97
TM9E080C16MP11 FC/MC/PC35C 1.03 1.06 0.99
TM9E080C16MP11 FC/MC/PC43C 1.05 1.09 0.99
TM9E080C16MP11 FC/MC/PC48C 1.05 1.09 0.99
TM9E080C16MP11 FC/MC/PC48D 1.05 1.09 1.01
TM9E100C16MP11 FC/MC/PC35C 1.03 1.06 0.99
TM9E100C16MP11 FC/MC/PC43C 1.05 1.09 0.99
TM9E100C16MP11 FC/MC/PC48C 1.05 1.09 0.99
TM9E100C16MP11 FC/MC/PC48D 1.05 1.09 1.01
TM9E100C20MP11 FC/MC/PC35C 1.04 1.08 0.95
TM9E100C20MP11 FC/MC/PC43C 1.06 1.10 0.98
TM9E100C20MP11 FC/MC/PC48C 1.07 1.10 0.99
TM9E100C20MP11 FC/MC/PC48D 1.07 1.10 0.97
Furnaces Coils T.C. S.C. KW
TM9E120D20MP11 FC/MC/PC48D 1.07 1.10 0.97
TM9X040A10MP11 FC/MC/PC32A 1.02 1.05 0.99
TM9X040A10MP11 FC/MC/PC37A 1.04 1.09 0.99
TM9X060B12MP11 FC/MC/PC35B 1.04 1.07 0.97
TM9X060B12MP11 FC/MC/PC43B 1.05 1.09 0.97
TM9X080B12MP11 FC/MC/PC35B 1.04 1.07 0.97
TM9X080B12MP11 FC/MC/PC43B 1.05 1.09 0.97
TM9X080C16MP11 FC/MC/PC35C 1.03 1.06 0.99
TM9X080C16MP11 FC/MC/PC43C 1.05 1.09 0.99
TM9X080C16MP11 FC/MC/PC48C 1.05 1.09 0.99
TM9X080C16MP11 FC/MC/PC48D 1.05 1.09 1.01
TM9X100C16MP11 FC/MC/PC35C 1.03 1.06 0.99
TM9X100C16MP11 FC/MC/PC43C 1.05 1.09 0.99
TM9X100C16MP11 FC/MC/PC48C 1.05 1.09 0.99
TM9X100C16MP11 FC/MC/PC48D 1.05 1.09 1.01
TM9X100C20MP11 FC/MC/PC35C 1.04 1.08 0.95
TM9X100C20MP11 FC/MC/PC43C 1.06 1.10 0.98
TM9X100C20MP11 FC/MC/PC48C 1.07 1.10 0.99
TM9X100C20MP11 FC/MC/PC48D 1.07 1.10 0.97
TM9X120D20MP11 FC/MC/PC48D 1.07 1.10 0.97
TMLX060A12MP11 FC/MC/PC32A 1.04 1.08 0.97
TMLX060A12MP11 FC/MC/PC37A 1.06 1.10 0.96
TMLX080B12MP11 FC/MC/PC35B 1.03 1.05 0.96
TMLX080B12MP11 FC/MC/PC43B 1.07 1.10 0.95
TMLX080C16MP11 FC/MC/PC35C 1.04 1.07 0.97
TMLX080C16MP11 FC/MC/PC43C 1.05 1.09 0.97
TMLX080C16MP11 FC/MC/PC48C 1.06 1.10 0.98
TMLX080C16MP11 FC/MC/PC48D 1.06 1.08 0.93
TMLX100C16MP11 FC/MC/PC35C 1.04 1.07 0.97
TMLX100C16MP11 FC/MC/PC43C 1.05 1.09 0.97
TMLX100C16MP11 FC/MC/PC48C 1.06 1.10 0.98
TMLX100C16MP11 FC/MC/PC48D 1.06 1.08 0.93
TMLX100C20MP11 FC/MC/PC35C 1.03 1.07 0.98
TMLX100C20MP11 FC/MC/PC43C 1.05 1.09 1.01
TMLX100C20MP11 FC/MC/PC48C 1.06 1.09 1.02
TMLX100C20MP11 FC/MC/PC48D 1.06 1.09 1.02
TMLX120C20MP11 FC/MC/PC35C 1.03 1.07 0.98
TMLX120C20MP11 FC/MC/PC43C 1.05 1.09 1.01
TMLX120C20MP11 FC/MC/PC48C 1.06 1.09 1.02
TMLX120C20MP11 FC/MC/PC48D 1.06 1.09 1.02
Y*(8,L)C*A12 FC/MC/PC32A 0.98 0.98 0.91
Y*(8,L)C*A12 FC/MC/PC37A 0.98 0.98 0.90
Y*(8,L)C*A12 HD36 0.98 0.95 0.90
Y*(8,L)C*B12 FC/MC/PC35B 0.98 0.98 0.91
Y*(8,L)C*B12 FC/MC/PC43B 0.98 0.97 0.90
Y*(8,L)C*B12 HD36 0.98 0.94 0.91
Y*(8,L)C*C16 HD36 0.98 0.97 0.90
Y*(8,L)C*C20 HD36 0.98 0.94 0.91
Y*9C*B12 FC/MC/PC35B 0.98 0.99 0.91
Y*9C*B12 FC/MC/PC43B 0.98 0.98 0.90
Y*9C*B12 HD36 0.98 0.95 0.91
Y*9C*C16 FC/MC/PC35C 1.03 1.02 0.98
Y*9C*C16 HD36 0.98 0.95 0.90
Y*9C*C20 HD36 0.98 0.94 0.91
Johnson Controls Unitary Products 33
Page 34
700695-YTG-C-0714
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. YCJF30S41S1(E)
INDOOR COIL MODEL NO. FC/MC/PC43
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
ID CFM 800 1000 1200
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 28.8 29.9 30.0 33.1 36. 6 31.0 31.1 31.2 34.3 37.7 33.3 32.4 32.4 35.4 38.7
S.C. 28.0 25.5 21.3 21.3 17.0 29.9 28.4 23.6 23.7 18.4 31.7 31.3 25.9 26.1 19.8
KW 1.64 1.64 1.64 1.64 1.64 1.64 1.64 1.64 1.64 1.65 1.64 1.64 1.64 1.65 1.65
T.C. 27.3 28.5 28.7 31.6 35. 1 29.4 29.7 29.7 32.7 36.1 31.4 30.9 30.8 33.8 37.1
S.C. 26.9 24.4 20.5 20.6 16.5 28.8 27.3 22.7 22.9 17.8 30.6 30.1 25.0 25.2 19.2
KW 1.90 1.90 1.90 1.89 1.90 1.90 1.90 1.90 1.90 1.90 1.90 1.90 1.90 1.90 1.90
T.C. 25.8 27.1 27.3 30.1 33. 5 27.7 28.3 28.3 31.2 34.5 29.6 29.4 29.2 32.2 35.5
S.C. 25.8 23.4 19.8 19.8 15.9 27.6 26.2 21.9 22.1 17.3 29.5 29.0 24.0 24.4 18.6
KW 2.16 2.16 2.15 2.15 2.15 2.15 2.16 2.15 2.15 2.15 2.15 2.16 2.15 2.15 2.15
T.C. 24.3 25.8 25.9 28.6 31. 9 26.0 26.9 26.8 29.6 32.9 27.8 28.0 27.7 30.6 33.9
S.C. 24.3 22.4 19.0 19.1 15.3 26.0 25.1 21.1 21.3 16.7 27.8 27.8 23.1 23.6 18.1
KW 2.41 2.42 2.41 2.41 2.40 2.41 2.41 2.41 2.41 2.40 2.40 2.41 2.41 2.40 2.40
T.C. 23.1 24.4 24.4 27.0 30. 1 24.7 25.6 25.2 27.9 31.0 26.2 26.7 26.0 28.8 31.9
S.C. 23.1 21.8 18.4 18.5 14.7 24.7 24.3 20.3 20.6 16.0 26.2 26.7 22.3 22.7 17.4
KW 2.81 2.81 2.81 2.80 2.78 2.79 2.80 2.81 2.79 2.78 2.78 2.78 2.81 2.78 2.77
T.C. 22.0 23.1 23.0 25.5 28. 4 23.4 24.3 23.7 26.3 29.2 24.8 25.5 24.4 27.1 30.0
S.C. 22.0 21.2 17.8 17.9 14.1 23.4 23.6 19.6 19.9 15.4 24.8 25.5 21.5 21.9 16.7
KW 3.19 3.20 3.20 3.18 3.14 3.17 3.17 3.20 3.17 3.14 3.15 3.13 3.20 3.15 3.14
T.C. 20.8 21.8 21.5 24.0 26. 7 22.1 23.0 22.1 24.6 27.4 23.3 24.3 22.7 25.3 28.1
S.C. 20.8 20.6 17.2 17.3 13.4 22.1 22.9 18.9 19.2 14.8 23.3 24.3 20.7 21.1 16.1
KW 3.57 3.59 3.58 3.56 3.51 3.54 3.54 3.59 3.54 3.50 3.51 3.49 3.59 3.52 3.50
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC32 0.98 0.96 1.00
– FC/MC/PC35 0.98 0.96 1.00
– FC/MC/PC37 1.00 0.99 1.00
– FC/MC/PC43 1.00 1.00 1.00
– FC/MC/PC48 1.01 1.00 1.01
– HD36 0.97 0.93 1.00
– HD48 1.01 0.98 1.00
AHE30B – 1.00 0.97 0.95
AHE36C – 1.03 1.00 0.92
AHE42D – 1.04 1.02 0.91
AHR30B – 1.01 1.00 1.03
AHR36B – 1.01 1.00 1.02
AHV30B – 0.98 0.95 0.96
AHV36C – 0.99 0.94 0.92
AHV42D – 1.01 1.02 0.92
MV12B FC/MC35B 1.00 0.98 0.95
MV12B FC/MC43B 1.02 1.01 0.95
MV16C FC/MC35C 1.00 0.98 0.93
MV16C FC/MC43C 1.02 1.01 0.93
MV16C FC/MC48C 1.03 1.02 0.94
MV20D FC/MC48D 1.03 1.02 0.94
MX12BN21 FC/MC35B 1.00 0.97 0.93
MX12BN21 FC/MC43B 1.02 0.99 0.93
MX12DN21 FC/MC48D 1.01 0.97 0.91
Air Handlers Coils T.C. S.C. KW
MX16CN21 FC/MC35C 1.00 0.97 0.93
MX16CN21 FC/MC43C 1.01 0.97 0.89
MX16CN21 FC/MC48C 1.01 0.97 0.89
MX20DN21 FC/MC48D 1.01 0.98 0.98
Furnaces Coils T.C. S.C. KW
T*(8,L)V*A12 FC/MC/PC32A 0.99 0.99 0.99
T*(8,L)V*A12 FC/MC/PC37A 1.01 0.99 0.97
T*(8,L)V*A12 HD36 0.98 0.94 0.95
T*(8,L)V*B12 FC/MC/PC35B 0.99 1.01 0.94
T*(8,L)V*B12 FC/MC/PC43B 1.01 1.04 0.94
T*(8,L)V*B12 HD36 0.99 0.94 0.93
T*(8,L)V*C16 FC/MC/PC35C 0.99 1.00 0.92
T*(8,L)V*C16 FC/MC/PC43C 1.01 1.01 0.92
T*(8,L)V*C16 FC/MC/PC48C 1.01 1.02 0.91
T*(8,L)V*C16 HD36 0.99 0.95 0.93
T*(8,L)V*C20 FC/MC/PC35C 1.00 1.01 0.93
T*(8,L)V*C20 FC/MC/PC43C 1.01 1.01 0.91
T*(8,L)V*C20 FC/MC/PC48C 1.01 1.02 0.91
T*(8,L)V*C20 HD36 1.00 0.98 0.93
T*9(C,V)*B12 FC/MC/PC35B 0.99 1.00 0.98
T*9(C,V)*B12 FC/MC/PC43B 1.01 1.00 0.97
T*9(C,V)*B12 HD36 0.99 0.94 0.95
Continued on next page.
34 Johnson Controls Unitary Products
Page 35
Furnaces Coils T.C. S.C. KW
T*9(C,V)*C16 FC/MC/PC35C 1.00 1.01 0.93
T*9(C,V)*C16 FC/MC/PC43C 1.01 1.01 0.94
T*9(C,V)*C16 FC/MC/PC48C 1.01 1.02 0.92
T*9(C,V)*C16 HD36 0.99 0.95 0.92
T*9(C,V)*C20 FC/MC/PC35C 1.00 1.01 0.93
T*9(C,V)*C20 FC/MC/PC43C 1.01 1.01 0.92
T*9(C,V)*C20 FC/MC/PC48C 1.01 1.02 0.92
T*9(C,V)*C20 HD36 0.99 0.94 0.93
T*9(C,V)*D20 FC/MC/PC48D 1.01 1.04 0.92
TM8X080B12MP11 FC/MC/PC35B 0.99 0.94 0.93
TM8X080B12MP11 FC/MC/PC43B 1.01 0.99 0.93
TM8X080C16MP11 FC/MC/PC35C 1.01 0.97 0.93
TM8X080C16MP11 FC/MC/PC43C 1.01 0.96 0.92
TM8X080C16MP11 FC/MC/PC48C 1.01 0.97 0.94
TM8X080C16MP11 FC/MC/PC48D 1.01 0.97 0.94
TM8X100C16MP11 FC/MC/PC35C 1.01 0.97 0.93
TM8X100C16MP11 FC/MC/PC43C 1.01 0.96 0.92
TM8X100C16MP11 FC/MC/PC48C 1.01 0.97 0.94
TM8X100C16MP11 FC/MC/PC48D 1.01 0.97 0.94
TM8X100C20MP11 FC/MC/PC35C 1.00 0.97 0.93
TM8X100C20MP11 FC/MC/PC43C 1.02 0.99 0.93
TM8X100C20MP11 FC/MC/PC48C 1.02 0.99 0.95
TM8X100C20MP11 FC/MC/PC48D 1.01 0.99 0.94
TM8X120C20MP11 FC/MC/PC35C 1.00 0.97 0.93
TM8X120C20MP11 FC/MC/PC43C 1.02 0.99 0.93
TM8X120C20MP11 FC/MC/PC48C 1.02 0.99 0.95
TM8X120C20MP11 FC/MC/PC48D 1.01 0.99 0.94
TM9E060B12MP11 FC/MC/PC35B 0.99 0.94 0.94
TM9E060B12MP11 FC/MC/PC43B 1.00 0.95 0.94
TM9E080B12MP11 FC/MC/PC35B 0.99 0.94 0.94
TM9E080B12MP11 FC/MC/PC43B 1.00 0.95 0.94
TM9E080C16MP11 FC/MC/PC35C 1.00 0.97 0.95
TM9E080C16MP11 FC/MC/PC43C 1.02 0.99 0.95
TM9E080C16MP11 FC/MC/PC48C 1.01 0.99 0.94
TM9E080C16MP11 FC/MC/PC48D 1.01 0.99 0.94
TM9E100C16MP11 FC/MC/PC35C 1.00 0.97 0.95
TM9E100C16MP11 FC/MC/PC43C 1.02 0.99 0.95
TM9E100C16MP11 FC/MC/PC48C 1.01 0.99 0.94
TM9E100C16MP11 FC/MC/PC48D 1.01 0.99 0.94
TM9E100C20MP11 FC/MC/PC35C 0.99 0.96 0.98
TM9E100C20MP11 FC/MC/PC43C 1.01 0.98 0.97
TM9E100C20MP11 FC/MC/PC48C 1.00 0.97 0.97
TM9E100C20MP11 FC/MC/PC48D 1.01 0.97 0.99
TM9E120D20MP11 FC/MC/PC48D 1.01 0.97 0.96
TM9X060B12MP11 FC/MC/PC35B 0.99 0.94 0.94
TM9X060B12MP11 FC/MC/PC43B 1.00 0.95 0.94
TM9X080B12MP11 FC/MC/PC35B 0.99 0.94 0.94
TM9X080B12MP11 FC/MC/PC43B 1.00 0.95 0.94
TM9X080C16MP11 FC/MC/PC35C 1.00 0.97 0.95
TM9X080C16MP11 FC/MC/PC43C 1.02 0.99 0.95
TM9X080C16MP11 FC/MC/PC48C 1.01 0.99 0.94
TM9X080C16MP11 FC/MC/PC48D 1.01 0.99 0.94
TM9X100C16MP11 FC/MC/PC35C 1.00 0.97 0.95
TM9X100C16MP11 FC/MC/PC43C 1.02 0.99 0.95
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
TM9X100C16MP11 FC/MC/PC48C 1.01 0.99 0.94
TM9X100C16MP11 FC/MC/PC48D 1.01 0.99 0.94
TM9X100C20MP11 FC/MC/PC35C 0.99 0.96 0.98
TM9X100C20MP11 FC/MC/PC43C 1.01 0.98 0.97
TM9X100C20MP11 FC/MC/PC48C 1.00 0.97 0.97
TM9X100C20MP11 FC/MC/PC48D 1.01 0.97 0.99
TM9X120D20MP11 FC/MC/PC48D 1.01 0.97 0.96
TMLX080B12MP11 FC/MC/PC35B 0.99 0.94 0.93
TMLX080B12MP11 FC/MC/PC43B 1.01 0.99 0.93
TMLX080C16MP11 FC/MC/PC35C 1.01 0.97 0.93
TMLX080C16MP11 FC/MC/PC43C 1.01 0.96 0.92
TMLX080C16MP11 FC/MC/PC48C 1.01 0.97 0.94
TMLX080C16MP11 FC/MC/PC48D 1.01 0.97 0.94
TMLX100C16MP11 FC/MC/PC35C 1.01 0.97 0.93
TMLX100C16MP11 FC/MC/PC43C 1.01 0.96 0.92
TMLX100C16MP11 FC/MC/PC48C 1.01 0.97 0.94
TMLX100C16MP11 FC/MC/PC48D 1.01 0.97 0.94
TMLX100C20MP11 FC/MC/PC35C 1.00 0.97 0.93
TMLX100C20MP11 FC/MC/PC43C 1.02 0.99 0.93
TMLX100C20MP11 FC/MC/PC48C 1.02 0.99 0.95
TMLX100C20MP11 FC/MC/PC48D 1.01 0.99 0.94
TMLX120C20MP11 FC/MC/PC35C 1.00 0.97 0.93
TMLX120C20MP11 FC/MC/PC43C 1.02 0.99 0.93
TMLX120C20MP11 FC/MC/PC48C 1.02 0.99 0.95
TMLX120C20MP11 FC/MC/PC48D 1.01 0.99 0.94
Y*(8,L)C*A12 FC/MC/PC32A 0.99 0.99 0.99
Y*(8,L)C*A12 FC/MC/PC37A 1.01 0.99 0.97
Y*(8,L)C*A12 HD36 0.98 0.94 0.95
Y*(8,L)C*B12 FC/MC/PC35B 0.99 1.01 0.94
Y*(8,L)C*B12 FC/MC/PC43B 1.01 1.04 0.94
Y*(8,L)C*B12 HD36 0.99 0.94 0.93
Y*(8,L)C*C16 FC/MC/PC35C 0.99 1.00 0.92
Y*(8,L)C*C16 FC/MC/PC43C 1.01 1.01 0.92
Y*(8,L)C*C16 FC/MC/PC48C 1.01 1.02 0.91
Y*(8,L)C*C16 HD36 0.99 0.95 0.93
Y*(8,L)C*C20 FC/MC/PC35C 1.00 1.01 0.93
Y*(8,L)C*C20 FC/MC/PC43C 1.01 1.01 0.91
Y*(8,L)C*C20 FC/MC/PC48C 1.01 1.02 0.91
Y*(8,L)C*C20 HD36 1.00 0.98 0.93
Y*9C*B12 FC/MC/PC35B 0.99 1.00 0.98
Y*9C*B12 FC/MC/PC43B 1.01 1.00 0.97
Y*9C*B12 HD36 0.99 0.94 0.95
Y*9C*C16 FC/MC/PC35C 1.00 1.01 0.93
Y*9C*C16 FC/MC/PC43C 1.01 1.01 0.94
Y*9C*C16 FC/MC/PC48C 1.01 1.02 0.92
Y*9C*C16 HD36 0.99 0.95 0.92
Y*9C*C20 FC/MC/PC35C 1.00 1.01 0.93
Y*9C*C20 FC/MC/PC43C 1.01 1.01 0.92
Y*9C*C20 FC/MC/PC48C 1.01 1.02 0.92
Y*9C*C20 HD36 0.99 0.94 0.93
Y*9C*D20 FC/MC/PC48D 1.01 1.04 0.92
Johnson Controls Unitary Products 35
Page 36
700695-YTG-C-0714
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. YCJF36S41S1(E)
INDOOR COIL MODEL NO. FC/MC/PC43
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
ID CFM 1000 1200 1400
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 33.2 35.1 35.4 38.6 42. 2 35.0 35.9 36.1 39.5 43.1 36.8 36.7 36.8 40.4 44.0
S.C. 32.9 30.3 25.8 25.5 20.0 34.8 33.3 28.1 27.8 21.3 36.7 36.4 30.5 30.1 22.7
KW 1.88 1.88 1.88 1.90 1.92 1.89 1.89 1.89 1.90 1.93 1.90 1.90 1.90 1.91 1.93
T.C. 32.0 33.4 33.6 36.9 40. 5 33.7 34.4 34.4 37.7 41.3 35.5 35.3 35.2 38.5 42.0
S.C. 31.6 29.4 25.0 24.7 19.3 33.4 32.3 27.4 27.1 20.8 35.3 35.3 29.7 29.4 22.2
KW 2.18 2.19 2.18 2.19 2.21 2.19 2.19 2.19 2.20 2.21 2.19 2.19 2.19 2.20 2.22
T.C. 30.8 31.7 31.8 35.2 38. 8 32.5 32.8 32.6 36.0 39.4 34.2 33.9 33.5 36.7 40.1
S.C. 30.3 28.5 24.2 24.0 18.7 32.1 31.3 26.6 26.4 20.2 33.9 33.9 28.9 28.8 21.8
KW 2.48 2.49 2.48 2.49 2.49 2.48 2.49 2.49 2.49 2.50 2.48 2.48 2.49 2.49 2.50
T.C. 29.6 30.1 30.0 33.5 37. 1 31.2 31.3 30.9 34.2 37.6 32.9 32.6 31.8 34.9 38.1
S.C. 29.0 27.7 23.4 23.2 18.1 30.8 30.3 25.8 25.7 19.7 32.5 32.6 28.2 28.1 21.3
KW 2.79 2.80 2.79 2.78 2.78 2.78 2.79 2.78 2.78 2.78 2.78 2.78 2.78 2.78 2.79
T.C. 27.5 27.8 27.5 30.9 34. 5 29.2 29.1 28.3 31.5 34.9 30.9 30.4 29.1 32.2 35.4
S.C. 27.1 26.2 22.1 22.2 17.2 28.8 28.5 24.4 24.5 18.8 30.4 30.4 26.6 26.8 20.3
KW 3.38 3.39 3.40 3.36 3.31 3.36 3.35 3.39 3.34 3.30 3.33 3.32 3.38 3.33 3.30
T.C. 25.5 25.6 25.1 28.3 32. 0 27.2 26.9 25.7 28.9 32.4 28.9 28.2 26.4 29.5 32.8
S.C. 25.2 24.8 20.8 21.2 16.4 26.8 26.7 23.0 23.3 17.9 28.4 28.2 25.1 25.5 19.4
KW 3.96 3.96 4.00 3.91 3.83 3.92 3.91 3.98 3.89 3.81 3.87 3.85 3.95 3.87 3.79
T.C. 23.6 23.4 22.6 25.8 29. 5 25.3 24.7 23.2 26.3 29.8 27.0 26.0 23.7 26.8 30.1
S.C. 23.3 23.4 19.6 20.2 15.6 24.8 24.7 21.6 22.2 17.1 26.3 26.0 23.7 24.2 18.5
KW 4.54 4.53 4.60 4.47 4.34 4.47 4.46 4.56 4.44 4.32 4.40 4.38 4.53 4.40 4.29
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC37 1.01 1.01 1.01
– FC/MC/PC43 1.00 1.00 1.00
– FC/MC/PC48 1.01 1.02 1.02
– FC/MC/PC60 0.99 1.02 1.02
– FC/MC62 1.01 1.03 1.01
– FC64 1.04 1.07 1.02
– HD48 1.01 1.00 1.02
– UC60 0.97 0.95 1.02
AHE36C – 1.02 1.04 0.93
AHE42D – 1.03 1.06 0.92
AHE48D – 1.02 1.05 0.92
AHE60D – 1.04 1.06 0.91
AHR36B – 1.00 1.01 1.03
AHR42C – 1.02 1.05 1.00
AHV36C – 1.01 1.03 0.97
AHV42D – 1.02 1.04 0.94
AHV48D – 1.00 1.02 0.93
MV12B FC/MC43B 1.02 1.02 0.96
MV12D FC/MC48D 1.03 1.03 0.96
MV12D FC/MC60D 1.01 1.02 0.94
MV12D FC/MC62D 1.04 1.06 0.91
MV12D FC64D 1.05 1.08 0.96
MV16C FC/MC43C 1.02 1.03 0.95
MV16C FC/MC48C 1.04 1.06 0.96
MV20D FC/MC48D 1.05 1.10 0.92
Air Handlers Coils T.C. S.C. KW
MV20D FC/MC60D 1.03 1.09 0.94
MV20D FC/MC62D 1.04 1.10 0.93
MV20D FC64D 1.05 1.08 0.96
MX12BN21 FC/MC43B 0.99 1.00 0.94
MX12DN21 FC/MC48D 1.01 1.02 0.92
MX12DN21 FC/MC60D 1.01 1.03 0.92
MX12DN21 FC/MC62D 1.02 1.04 0.90
MX12DN21 FC64D 1.05 1.09 0.90
MX16CN21 FC/MC43C 1.00 1.03 0.94
MX16CN21 FC/MC48C 1.01 1.04 0.95
MX16CN21 FC60C 1.00 1.02 0.96
MX20DN21 FC/MC48D 1.02 1.05 0.93
MX20DN21 FC/MC60D 1.01 1.03 0.91
MX20DN21 FC/MC62D 1.02 1.04 0.90
MX20DN21 FC64D 1.05 1.09 0.91
Furnaces Coils T.C. S.C. KW
T*(8,L)V*A12 FC/MC/PC37A 1.00 0.99 0.99
T*(8,L)V*B12 FC/MC/PC43B 1.02 1.04 1.00
T*(8,L)V*B12 HD48 1.02 1.02 1.00
T*(8,L)V*C16 FC/MC/PC43C 1.02 1.03 0.97
T*(8,L)V*C16 FC/MC/PC48C 1.04 1.05 0.97
T*(8,L)V*C16 FC/PC60C 1.02 1.03 0.94
T*(8,L)V*C16 HD48 1.03 1.03 0.96
T*(8,L)V*C16 UC60C 1.00 0.98 0.94
Continued on next page.
36 Johnson Controls Unitary Products
Page 37
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
T*(8,L)V*C20 FC/MC/PC43C 1.01 1.03 0.95
T*(8,L)V*C20 FC/MC/PC48C 1.04 1.06 0.95
T*(8,L)V*C20 FC/PC60C 1.04 1.04 0.94
T*(8,L)V*C20 HD48 1.03 1.04 0.96
T*(8,L)V*C20 UC60C 1.00 0.98 0.94
T*9(C,V)*B12 FC/MC/PC43B 1.01 1.02 1.02
T*9(C,V)*B12 HD48 1.02 1.02 1.00
T*9(C,V)*C16 FC/MC/PC43C 1.02 1.02 0.98
T*9(C,V)*C16 FC/MC/PC48C 1.04 1.05 0.98
T*9(C,V)*C16 FC/PC60C 1.02 1.03 0.97
T*9(C,V)*C16 HD48 1.02 1.03 0.97
T*9(C,V)*C16 UC60C 0.99 0.98 0.97
T*9(C,V)*C20 FC/MC/PC43C 1.02 1.02 0.97
T*9(C,V)*C20 FC/MC/PC48C 1.05 1.09 1.01
T*9(C,V)*C20 FC/PC60C 1.04 1.09 0.97
T*9(C,V)*C20 HD48 1.04 1.06 1.00
T*9(C,V)*C20 UC60C 1.01 1.02 0.97
T*9(C,V)*D20 FC/MC/PC60D 1.03 1.04 0.95
T*9(C,V)*D20 FC/MC62D 1.04 1.06 0.95
T*9(C,V)*D20 FC64D 1.05 1.08 1.00
T*9(C,V)*D20 UC60D 0.99 0.98 0.95
TM8X060A12MP11 FC/MC/PC37A 0.98 0.99 0.96
TM8X080B12MP11 FC/MC/PC43B 0.98 0.99 0.96
TM8X080C16MP11 FC/MC/PC43C 0.99 1.00 0.94
TM8X080C16MP11 FC/MC/PC48C 1.00 1.01 0.93
TM8X080C16MP11 FC/MC/PC48D 1.00 1.01 0.95
TM8X080C16MP11 FC/MC/PC60D 1.00 1.02 0.95
TM8X080C16MP11 FC/MC62D 1.01 1.04 0.94
TM8X080C16MP11 FC/PC60C 1.00 1.02 0.95
TM8X080C16MP11 FC64D 1.04 1.09 0.95
TM8X080C16MP11 UC48C 0.96 0.97 0.94
TM8X080C16MP11 UC48D 0.96 0.97 0.94
TM8X080C16MP11 UC60C 1.00 1.03 0.95
TM8X080C16MP11 UC60D 1.00 1.03 0.95
TM8X100C16MP11 FC/MC/PC43C 0.99 1.00 0.94
TM8X100C16MP11 FC/MC/PC48C 1.00 1.01 0.93
TM8X100C16MP11 FC/MC/PC48D 1.00 1.01 0.95
TM8X100C16MP11 FC/MC/PC60D 1.00 1.02 0.95
TM8X100C16MP11 FC/MC62D 1.01 1.04 0.94
TM8X100C16MP11 FC/PC60C 1.00 1.02 0.95
TM8X100C16MP11 FC64D 1.04 1.09 0.95
TM8X100C16MP11 UC48C 0.96 0.97 0.94
TM8X100C16MP11 UC48D 0.96 0.97 0.94
TM8X100C16MP11 UC60C 1.00 1.03 0.95
TM8X100C16MP11 UC60D 1.00 1.03 0.95
TM8X100C20MP11 FC/MC/PC43C 1.00 1.03 0.95
TM8X100C20MP11 FC/MC/PC48C 1.01 1.04 0.94
TM8X100C20MP11 FC/MC/PC48D 1.01 1.04 0.96
TM8X100C20MP11 FC/MC/PC60D 1.00 1.02 0.96
TM8X100C20MP11 FC/MC62D 1.01 1.04 0.96
TM8X100C20MP11 FC/PC60C 1.00 1.02 0.96
TM8X100C20MP11 FC64D 1.04 1.08 0.97
TM8X100C20MP11 UC48C 0.96 0.97 0.96
TM8X100C20MP11 UC48D 0.96 0.97 0.96
TM8X100C20MP11 UC60C 1.00 1.02 0.96
TM8X100C20MP11 UC60D 1.00 1.02 0.96
TM8X120C20MP11 FC/MC/PC43C 1.00 1.03 0.95
Furnaces Coils T.C. S.C. KW
TM8X120C20MP11 FC/MC/PC48C 1.01 1.04 0.94
TM8X120C20MP11 FC/MC/PC48D 1.01 1.04 0.96
TM8X120C20MP11 FC/MC/PC60D 1.00 1.02 0.96
TM8X120C20MP11 FC/MC62D 1.01 1.04 0.96
TM8X120C20MP11 FC/PC60C 1.00 1.02 0.96
TM8X120C20MP11 FC64D 1.04 1.08 0.97
TM8X120C20MP11 UC48C 0.96 0.97 0.96
TM8X120C20MP11 UC48D 0.96 0.97 0.96
TM8X120C20MP11 UC60C 1.00 1.02 0.96
TM8X120C20MP11 UC60D 1.00 1.02 0.96
TM9E060B12MP11 FC/MC/PC43B 0.98 0.99 0.96
TM9E080B12MP11 FC/MC/PC43B 0.98 0.99 0.96
TM9E080C16MP11 FC/MC/PC43C 0.99 1.00 0.94
TM9E080C16MP11 FC/MC/PC48C 1.00 1.00 0.95
TM9E080C16MP11 FC/MC/PC48D 1.00 1.00 0.96
TM9E080C16MP11 FC/MC/PC60D 1.00 1.02 0.96
TM9E080C16MP11 FC/MC62D 1.01 1.04 0.96
TM9E080C16MP11 FC/PC60C 1.00 1.02 0.96
TM9E080C16MP11 FC64D 1.04 1.08 0.97
TM9E080C16MP11 UC48C 0.96 0.96 0.96
TM9E080C16MP11 UC48D 0.96 0.96 0.96
TM9E080C16MP11 UC60C 1.00 1.02 0.96
TM9E080C16MP11 UC60D 1.00 1.02 0.96
TM9E100C16MP11 FC/MC/PC43C 0.99 1.00 0.94
TM9E100C16MP11 FC/MC/PC48C 1.00 1.00 0.95
TM9E100C16MP11 FC/MC/PC48D 1.00 1.00 0.96
TM9E100C16MP11 FC/MC/PC60D 1.00 1.02 0.96
TM9E100C16MP11 FC/MC62D 1.01 1.04 0.96
TM9E100C16MP11 FC/PC60C 1.00 1.02 0.96
TM9E100C16MP11 FC64D 1.04 1.08 0.97
TM9E100C16MP11 UC48C 0.96 0.96 0.96
TM9E100C16MP11 UC48D 0.96 0.96 0.96
TM9E100C16MP11 UC60C 1.00 1.02 0.96
TM9E100C16MP11 UC60D 1.00 1.02 0.96
TM9E100C20MP11 FC/MC/PC43C 0.99 1.00 0.94
TM9E100C20MP11 FC/MC/PC48C 1.00 1.00 0.95
TM9E100C20MP11 FC/MC/PC48D 1.00 1.01 0.96
TM9E100C20MP11 FC/MC/PC60D 1.00 1.02 0.96
TM9E100C20MP11 FC/MC62D 1.01 1.04 0.96
TM9E100C20MP11 FC/PC60C 1.00 1.02 0.96
TM9E100C20MP11 FC64D 1.04 1.08 0.97
TM9E100C20MP11 UC48C 0.96 0.97 0.96
TM9E100C20MP11 UC48D 0.96 0.97 0.96
TM9E100C20MP11 UC60C 1.00 1.02 0.96
TM9E100C20MP11 UC60D 1.00 1.02 0.96
TM9E120D20MP11 FC/MC/PC48D 1.00 1.01 0.95
TM9E120D20MP11 FC/MC/PC60D 1.00 1.02 0.95
TM9E120D20MP11 FC/MC62D 1.01 1.04 0.96
TM9E120D20MP11 FC64D 1.04 1.08 0.95
TM9E120D20MP11 UC48D 0.96 0.97 0.94
TM9E120D20MP11 UC60D 1.00 1.03 0.95
TM9X060B12MP11 FC/MC/PC43B 0.98 0.99 0.96
TM9X080B12MP11 FC/MC/PC43B 0.98 0.99 0.96
TM9X080C16MP11 FC/MC/PC43C 0.99 1.00 0.94
TM9X080C16MP11 FC/MC/PC48C 1.00 1.00 0.95
Continued on next page.
Johnson Controls Unitary Products 37
Page 38
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
TM9X080C16MP11 FC/MC/PC48D 1.00 1.00 0.96
TM9X080C16MP11 FC/MC/PC60D 1.00 1.02 0.96
TM9X080C16MP11 FC/MC62D 1.01 1.04 0.96
TM9X080C16MP11 FC/PC60C 1.00 1.02 0.96
TM9X080C16MP11 FC64D 1.04 1.08 0.97
TM9X080C16MP11 UC48C 0.96 0.96 0.96
TM9X080C16MP11 UC48D 0.96 0.96 0.96
TM9X080C16MP11 UC60C 1.00 1.02 0.96
TM9X080C16MP11 UC60D 1.00 1.02 0.96
TM9X100C16MP11 FC/MC/PC43C 0.99 1.00 0.94
TM9X100C16MP11 FC/MC/PC48C 1.00 1.00 0.95
TM9X100C16MP11 FC/MC/PC48D 1.00 1.00 0.96
TM9X100C16MP11 FC/MC/PC60D 1.00 1.02 0.96
TM9X100C16MP11 FC/MC62D 1.01 1.04 0.96
TM9X100C16MP11 FC/PC60C 1.00 1.02 0.96
TM9X100C16MP11 FC64D 1.04 1.08 0.97
TM9X100C16MP11 UC48C 0.96 0.96 0.96
TM9X100C16MP11 UC48D 0.96 0.96 0.96
TM9X100C16MP11 UC60C 1.00 1.02 0.96
TM9X100C16MP11 UC60D 1.00 1.02 0.96
TM9X100C20MP11 FC/MC/PC43C 0.99 1.00 0.94
TM9X100C20MP11 FC/MC/PC48C 1.00 1.00 0.95
TM9X100C20MP11 FC/MC/PC48D 1.00 1.01 0.96
TM9X100C20MP11 FC/MC/PC60D 1.00 1.02 0.96
TM9X100C20MP11 FC/MC62D 1.01 1.04 0.96
TM9X100C20MP11 FC/PC60C 1.00 1.02 0.96
TM9X100C20MP11 FC64D 1.04 1.08 0.97
TM9X100C20MP11 UC48C 0.96 0.97 0.96
TM9X100C20MP11 UC48D 0.96 0.97 0.96
TM9X100C20MP11 UC60C 1.00 1.02 0.96
TM9X100C20MP11 UC60D 1.00 1.02 0.96
TM9X120D20MP11 FC/MC/PC48D 1.00 1.01 0.95
TM9X120D20MP11 FC/MC/PC60D 1.00 1.02 0.95
TM9X120D20MP11 FC/MC62D 1.01 1.04 0.96
TM9X120D20MP11 FC64D 1.04 1.08 0.95
TM9X120D20MP11 UC48D 0.96 0.97 0.94
TM9X120D20MP11 UC60D 1.00 1.03 0.95
TMLX060A12MP11 FC/MC/PC37A 0.98 0.99 0.96
TMLX080B12MP11 FC/MC/PC43B 0.98 0.99 0.96
TMLX080C16MP11 FC/MC/PC43C 0.99 1.00 0.94
TMLX080C16MP11 FC/MC/PC48C 1.00 1.01 0.93
TMLX080C16MP11 FC/MC/PC48D 1.00 1.01 0.95
TMLX080C16MP11 FC/MC/PC60D 1.00 1.02 0.95
TMLX080C16MP11 FC/MC62D 1.01 1.04 0.94
TMLX080C16MP11 FC/PC60C 1.00 1.02 0.95
TMLX080C16MP11 FC64D 1.04 1.09 0.95
TMLX080C16MP11 UC48C 0.96 0.97 0.94
TMLX080C16MP11 UC48D 0.96 0.97 0.94
TMLX080C16MP11 UC60C 1.00 1.03 0.95
TMLX080C16MP11 UC60D 1.00 1.03 0.95
TMLX100C16MP11 FC/MC/PC43C 0.99 1.00 0.94
TMLX100C16MP11 FC/MC/PC48C 1.00 1.01 0.93
TMLX100C16MP11 FC/MC/PC48D 1.00 1.01 0.95
TMLX100C16MP11 FC/MC/PC60D 1.00 1.02 0.95
TMLX100C16MP11 FC/MC62D 1.01 1.04 0.94
TMLX100C16MP11 FC/PC60C 1.00 1.02 0.95
TMLX100C16MP11 FC64D 1.04 1.09 0.95
Furnaces Coils T.C. S.C. KW
TMLX100C16MP11 UC48C 0.96 0.97 0.94
TMLX100C16MP11 UC48D 0.96 0.97 0.94
TMLX100C16MP11 UC60C 1.00 1.03 0.95
TMLX100C16MP11 UC60D 1.00 1.03 0.95
TMLX100C20MP11 FC/MC/PC43C 1.00 1.03 0.95
TMLX100C20MP11 FC/MC/PC48C 1.01 1.04 0.94
TMLX100C20MP11 FC/MC/PC48D 1.01 1.04 0.96
TMLX100C20MP11 FC/MC/PC60D 1.00 1.02 0.96
TMLX100C20MP11 FC/MC62D 1.01 1.04 0.96
TMLX100C20MP11 FC/PC60C 1.00 1.02 0.96
TMLX100C20MP11 FC64D 1.04 1.08 0.97
TMLX100C20MP11 UC48C 0.96 0.97 0.96
TMLX100C20MP11 UC48D 0.96 0.97 0.96
TMLX100C20MP11 UC60C 1.00 1.02 0.96
TMLX100C20MP11 UC60D 1.00 1.02 0.96
TMLX120C20MP11 FC/MC/PC43C 1.00 1.03 0.95
TMLX120C20MP11 FC/MC/PC48C 1.01 1.04 0.94
TMLX120C20MP11 FC/MC/PC48D 1.01 1.04 0.96
TMLX120C20MP11 FC/MC/PC60D 1.00 1.02 0.96
TMLX120C20MP11 FC/MC62D 1.01 1.04 0.96
TMLX120C20MP11 FC/PC60C 1.00 1.02 0.96
TMLX120C20MP11 FC64D 1.04 1.08 0.97
TMLX120C20MP11 UC48C 0.96 0.97 0.96
TMLX120C20MP11 UC48D 0.96 0.97 0.96
TMLX120C20MP11 UC60C 1.00 1.02 0.96
TMLX120C20MP11 UC60D 1.00 1.02 0.96
Y*(8,L)C*A12 FC/MC/PC37A 1.00 0.99 0.99
Y*(8,L)C*B12 FC/MC/PC43B 1.02 1.04 1.00
Y*(8,L)C*B12 HD48 1.02 1.02 1.00
Y*(8,L)C*C16 FC/MC/PC43C 1.02 1.03 0.97
Y*(8,L)C*C16 FC/MC/PC48C 1.04 1.05 0.97
Y*(8,L)C*C16 FC/PC60C 1.02 1.03 0.94
Y*(8,L)C*C16 HD48 1.03 1.03 0.96
Y*(8,L)C*C16 UC60C 1.00 0.98 0.94
Y*(8,L)C*C20 FC/MC/PC43C 1.01 1.03 0.95
Y*(8,L)C*C20 FC/MC/PC48C 1.04 1.06 0.95
Y*(8,L)C*C20 FC/PC60C 1.04 1.04 0.94
Y*(8,L)C*C20 HD48 1.03 1.04 0.96
Y*(8,L)C*C20 UC60C 1.00 0.98 0.94
Y*9C*B12 FC/MC/PC43B 1.01 1.02 1.02
Y*9C*B12 HD48 1.02 1.02 1.00
Y*9C*C16 FC/MC/PC43C 1.02 1.02 0.98
Y*9C*C16 FC/MC/PC48C 1.04 1.05 0.98
Y*9C*C16 FC/PC60C 1.02 1.03 0.97
Y*9C*C16 HD48 1.02 1.03 0.97
Y*9C*C16 UC60C 0.99 0.98 0.97
Y*9C*C20 FC/MC/PC43C 1.02 1.02 0.97
Y*9C*C20 FC/MC/PC48C 1.05 1.09 1.01
Y*9C*C20 FC/PC60C 1.04 1.09 0.97
Y*9C*C20 HD48 1.04 1.06 1.00
Y*9C*C20 UC60C 1.01 1.02 0.97
Y*9C*D20 FC/MC/PC60D 1.03 1.04 0.95
Y*9C*D20 FC/MC62D 1.04 1.06 0.95
Y*9C*D20 FC64D 1.05 1.08 1.00
Y*9C*D20 UC60D 0.99 0.98 0.95
38 Johnson Controls Unitary Products
Page 39
700695-YTG-C-0714
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. YCJF42S41S1(E)
INDOOR COIL MODEL NO. FC/MC/PC48
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
ID CFM 1200 1400 1600
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 39.9 41.8 41.4 45.0 47.9 41.6 42.7 42.4 45.9 48.8 43.4 43.7 43.3 46.8 49.7
S.C. 39.8 36.6 30.9 30.3 23.8 41.4 39.2 32.9 32.4 24.9 43.1 41.9 35.0 34.6 26.0
KW 2.30 2.31 2.31 2.32 2.33 2.31 2.31 2.32 2.33 2.34 2.32 2.31 2.32 2.34 2.34
T.C. 38.4 40.0 39.7 43.2 46.2 40.1 41.0 40.7 44.1 47.1 41.8 42.0 41.7 45.0 48.0
S.C. 38.3 35.5 30.0 29.5 23.1 39.9 38.2 32.1 31.8 24.4 41.6 40.8 34.3 34.0 25.6
KW 2.67 2.68 2.67 2.67 2.68 2.67 2.67 2.67 2.68 2.68 2.67 2.67 2.68 2.68 2.68
T.C. 37.0 38.3 38.0 41.4 44.6 38.6 39.3 39.0 42.3 45.4 40.3 40.3 40.0 43.1 46.2
S.C. 36.7 34.5 29.1 28.8 22.5 38.4 37.1 31.3 31.1 23.8 40.1 39.7 33.6 33.3 25.1
KW 3.04 3.04 3.03 3.02 3.02 3.03 3.04 3.03 3.03 3.02 3.03 3.03 3.03 3.03 3.03
T.C. 35.5 36.6 36.3 39.7 42.9 37.1 37.6 37.4 40.5 43.7 38.7 38.7 38.4 41.3 44.5
S.C. 35.2 33.4 28.2 28.0 21.9 36.9 36.0 30.6 30.4 23.3 38.6 38.6 32.9 32.7 24.7
KW 3.41 3.41 3.39 3.37 3.36 3.39 3.40 3.39 3.38 3.37 3.38 3.39 3.38 3.38 3.37
T.C. 33.7 34.4 34.0 37.4 40.5 35.1 35.5 34.9 38.1 41.2 36.6 36.6 35.9 38.9 41.9
S.C. 33.3 32.3 27.3 27.1 21.1 34.9 34.6 29.5 29.4 22.4 36.5 36.6 31.7 31.7 23.8
KW 4.03 4.01 4.01 3.94 3.90 3.98 3.98 3.99 3.93 3.90 3.94 3.94 3.98 3.92 3.89
T.C. 31.8 32.3 31.7 35.1 38.2 33.2 33.4 32.6 35.8 38.8 34.6 34.6 33.5 36.5 39.4
S.C. 31.6 31.2 26.3 26.3 20.3 33.1 33.2 28.4 28.5 21.6 34.5 34.6 30.5 30.8 22.9
KW 4.63 4.60 4.61 4.48 4.42 4.56 4.54 4.58 4.46 4.41 4.48 4.48 4.56 4.45 4.40
T.C. 30.0 30.1 29.5 32.9 35.8 31.3 31.4 30.2 33.5 36.4 32.6 32.6 31.0 34.1 36.9
S.C. 29.8 30.1 25.4 25.4 19.5 31.2 31.4 27.4 27.6 20.8 32.5 32.6 29.4 29.8 22.1
KW 5.23 5.18 5.22 5.02 4.93 5.13 5.10 5.17 5.00 4.92 5.03 5.02 5.13 4.98 4.92
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC43 1.00 1.00 1.00
– FC/MC/PC48 1.00 1.00 1.00
– FC/MC/PC60 1.01 1.01 0.99
– FC/MC62 1.01 1.02 0.99
– FC64 1.02 1.05 1.00
– HD48 1.01 1.00 1.00
– HD60 1.02 1.03 1.00
AHE42D – 1.02 1.02 0.93
AHE48D – 1.00 1.01 0.92
AHE60D – 1.02 1.03 0.93
AHR42C – 1.01 1.03 1.01
AHR48D – 0.98 0.96 1.00
AHR60D – 1.00 0.99 0.98
AHV42D – 0.99 0.99 0.95
AHV48D – 1.00 0.98 0.94
AHV60D – 1.01 1.01 0.95
Air Handlers Coils T.C. S.C. KW
MV12D FC64D 1.04 1.00 0.96
MV16C FC/MC43C 1.01 1.01 0.95
MV16C FC/MC48C 1.02 1.03 0.95
MV16C FC60C 1.00 1.01 0.94
MV20D FC/MC48D 1.04 1.03 0.96
MV20D FC/MC60D 1.02 1.03 0.95
MV20D FC/MC62D 1.04 1.03 0.96
MV20D FC64D 1.04 1.03 0.92
MX16CN21 FC/MC43C 1.00 1.01 0.94
MX16CN21 FC/MC48C 1.01 1.01 0.95
MX16CN21 FC60C 1.01 1.01 0.95
MX20DN21 FC/MC48D 1.02 1.03 0.93
MX20DN21 FC/MC60D 1.01 1.01 0.92
MX20DN21 FC/MC62D 1.02 1.04 0.91
MX20DN21 FC64D 1.06 1.08 0.93
Continued on next page.
Johnson Controls Unitary Products 39
Page 40
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
T*(8,L)V*B12 HD48 1.01 0.98 0.97
T*(8,L)V*C16 FC/MC/PC43C 1.02 1.01 0.98
T*(8,L)V*C16 FC/MC/PC48C 1.01 1.01 0.94
T*(8,L)V*C16 FC/PC60C 1.04 1.04 0.95
T*(8,L)V*C16 FC64D 1.04 1.05 0.96
T*(8,L)V*C16 HD48 1.02 1.01 0.95
T*(8,L)V*C16 HD60 1.04 1.03 0.94
T*(8,L)V*C16 UC48C 1.00 1.01 0.95
T*(8,L)V*C16 UC60C 1.00 0.98 0.94
T*(8,L)V*C20 FC/MC/PC43C 1.02 1.01 0.98
T*(8,L)V*C20 FC/MC/PC48C 1.02 1.03 0.94
T*(8,L)V*C20 FC/PC60C 1.04 1.02 0.93
T*(8,L)V*C20 FC64D 1.04 1.05 0.96
T*(8,L)V*C20 HD48 1.04 1.02 0.96
T*(8,L)V*C20 HD60 1.04 1.03 0.92
T*(8,L)V*C20 UC48C 1.00 1.02 0.94
T*(8,L)V*C20 UC60C 1.00 0.99 0.92
T*9(C,V)*B12 HD48 0.99 0.93 0.95
T*9(C,V)*C16 FC/MC/PC43C 1.01 1.01 0.97
T*9(C,V)*C16 FC/MC/PC48C 1.04 1.03 0.96
T*9(C,V)*C16 FC/PC60C 1.02 1.02 0.98
T*9(C,V)*C16 FC64D 1.04 1.05 0.98
T*9(C,V)*C16 HD48 1.02 1.01 0.96
T*9(C,V)*C16 HD60 1.04 1.03 0.98
T*9(C,V)*C16 UC48C 0.99 1.01 0.95
T*9(C,V)*C16 UC60C 0.99 0.97 0.97
T*9(C,V)*C20 FC/MC/PC43C 1.02 1.01 0.98
T*9(C,V)*C20 FC/MC/PC48C 1.04 1.03 0.98
T*9(C,V)*C20 FC/PC60C 1.02 1.03 0.95
T*9(C,V)*C20 FC64D 1.04 1.05 0.96
T*9(C,V)*C20 HD48 1.02 1.01 0.98
T*9(C,V)*C20 HD60 1.04 1.03 0.96
T*9(C,V)*C20 UC48C 0.99 1.01 0.96
T*9(C,V)*C20 UC60C 1.00 0.97 0.96
T*9(C,V)*D20 FC/MC/PC48D 1.04 1.03 0.96
T*9(C,V)*D20 FC/MC/PC60D 1.04 1.03 0.95
T*9(C,V)*D20 FC/MC62D 1.04 1.04 0.96
T*9(C,V)*D20 FC64D 1.04 1.00 0.96
T*9(C,V)*D20 HD48 1.02 1.01 0.96
T*9(C,V)*D20 HD60 1.04 1.03 0.95
T*9(C,V)*D20 UC48D 0.99 1.01 0.94
T*9(C,V)*D20 UC60D 1.00 0.98 0.95
TM8X080C16MP11 FC/MC/PC43C 1.00 1.01 0.96
TM8X080C16MP11 FC/MC/PC48C 1.00 0.99 0.94
TM8X080C16MP11 FC/MC/PC48D 1.01 1.01 0.97
TM8X080C16MP11 FC/MC/PC60D 1.01 1.01 0.97
TM8X080C16MP11 FC/MC62D 1.02 1.03 0.95
TM8X080C16MP11 FC/PC60C 1.01 1.01 0.97
TM8X080C16MP11 FC64D 1.05 1.07 0.97
TM8X080C16MP11 UC48C 0.98 0.95 0.94
TM8X080C16MP11 UC48D 0.98 0.95 0.98
TM8X080C16MP11 UC60C 1.00 0.99 0.98
TM8X080C16MP11 UC60D 1.00 0.99 0.98
TM8X100C16MP11 FC/MC/PC43C 1.00 1.01 0.96
TM8X100C16MP11 FC/MC/PC48C 1.00 0.99 0.94
TM8X100C16MP11 FC/MC/PC48D 1.01 1.01 0.97
Furnaces Coils T.C. S.C. KW
TM8X100C16MP11 FC/MC/PC60D 1.01 1.01 0.97
TM8X100C16MP11 FC/MC62D 1.02 1.03 0.95
TM8X100C16MP11 FC/PC60C 1.01 1.01 0.97
TM8X100C16MP11 FC64D 1.05 1.07 0 .97
TM8X100C16MP11 UC48C 0.98 0.95 0.94
TM8X100C16MP11 UC48D 0.98 0.95 0.98
TM8X100C16MP11 UC60C 1.00 0.99 0.98
TM8X100C16MP11 UC60D 1.00 0.99 0.98
TM8X100C20MP11 FC/MC/PC43C 1.00 1.01 0.96
TM8X100C20MP11 FC/MC/PC48C 1.01 1.01 0.95
TM8X100C20MP11 FC/MC/PC48D 1.01 1.01 0.97
TM8X100C20MP11 FC/MC/PC60D 1.01 1.01 0.97
TM8X100C20MP11 FC/MC62D 1.02 1.03 0.95
TM8X100C20MP11 FC/PC60C 1.01 1.01 0.97
TM8X100C20MP11 FC64D 1.05 1.07 0 .97
TM8X100C20MP11 UC48C 0.98 0.95 0.94
TM8X100C20MP11 UC48D 0.99 0.99 0.97
TM8X100C20MP11 UC60C 1.00 0.99 0.98
TM8X100C20MP11 UC60D 1.00 0.99 0.98
TM8X120C20MP11 FC/MC/PC43C 1.00 1.01 0.96
TM8X120C20MP11 FC/MC/PC48C 1.01 1.01 0.95
TM8X120C20MP11 FC/MC/PC48D 1.01 1.01 0.97
TM8X120C20MP11 FC/MC/PC60D 1.01 1.01 0.97
TM8X120C20MP11 FC/MC62D 1.02 1.03 0.95
TM8X120C20MP11 FC/PC60C 1.01 1.01 0.97
TM8X120C20MP11 FC64D 1.05 1.07 0 .97
TM8X120C20MP11 UC48C 0.98 0.95 0.94
TM8X120C20MP11 UC48D 0.99 0.99 0.97
TM8X120C20MP11 UC60C 1.00 0.99 0.98
TM8X120C20MP11 UC60D 1.00 0.99 0.98
TM9E080C16MP11 FC64D 1.04 1.06 0 .99
TM9E100C16MP11 FC64D 1.04 1.06 0 .99
TM9E100C20MP11 FC/MC/PC43C 0.99 0.97 0.95
TM9E100C20MP11 FC/MC/PC48C 1.00 0.98 0.96
TM9E100C20MP11 FC/MC/PC48D 1.01 1.01 0.97
TM9E100C20MP11 FC/MC/PC60D 1.01 1.01 0.97
TM9E100C20MP11 FC/MC62D 1.02 1.03 0.95
TM9E100C20MP11 FC64D 1.05 1.07 0 .97
TM9E100C20MP11 UC48C 0.98 0.95 0.96
TM9E100C20MP11 UC48D 0.98 0.95 0.98
TM9E100C20MP11 UC60D 1.00 0.99 0.98
TM9E120D20MP11 FC/MC/PC48D 1.00 0.99 0.96
TM9E120D20MP11 FC/MC/PC60D 1.00 0.98 0.94
TM9E120D20MP11 FC/MC62D 1.00 1.00 0.94
TM9E120D20MP11 FC64D 1.04 1.04 0 .96
TM9E120D20MP11 UC48D 0.98 0.95 0.96
TM9E120D20MP11 UC60D 1.00 0.99 0.98
TM9X080C16MP11 FC64D 1.04 1.06 0 .99
TM9X100C16MP11 FC64D 1.04 1.06 0 .99
TM9X100C20MP11 FC/MC/PC43C 0.99 0.97 0.95
TM9X100C20MP11 FC/MC/PC48C 1.00 0.98 0.96
TM9X100C20MP11 FC/MC/PC48D 1.01 1.01 0.97
TM9X100C20MP11 FC/MC/PC60D 1.01 1.01 0.97
TM9X100C20MP11 FC/MC62D 1.02 1.03 0.95
TM9X100C20MP11 FC64D 1.05 1.07 0 .97
Continued on next page.
40 Johnson Controls Unitary Products
Page 41
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
TM9X100C20MP11 UC48C 0.98 0.95 0.96
TM9X100C20MP11 UC48D 0.98 0.95 0.98
TM9X100C20MP11 UC60D 1.00 0.99 0.98
TM9X120D20MP11 FC/MC/PC48D 1.00 0.99 0.96
TM9X120D20MP11 FC/MC/PC60D 1.00 0.98 0.94
TM9X120D20MP11 FC/MC62D 1.00 1.00 0.94
TM9X120D20MP11 FC64D 1.04 1.04 0.96
TM9X120D20MP11 UC48D 0.98 0.95 0.96
TM9X120D20MP11 UC60D 1.00 0.99 0.98
TMLX080C16MP11 FC/MC/PC43C 1.00 1.01 0.96
TMLX080C16MP11 FC/MC/PC48C 1.00 0.99 0.94
TMLX080C16MP11 FC/MC/PC48D 1.01 1.01 0.97
TMLX080C16MP11 FC/MC/PC60D 1.01 1.01 0.97
TMLX080C16MP11 FC/MC62D 1.02 1.03 0.95
TMLX080C16MP11 FC/PC60C 1.01 1.01 0.97
TMLX080C16MP11 FC64D 1.05 1.07 0.97
TMLX080C16MP11 UC48C 0.98 0.95 0.94
TMLX080C16MP11 UC48D 0.98 0.95 0.98
TMLX080C16MP11 UC60C 1.00 0.99 0.98
TMLX080C16MP11 UC60D 1.00 0.99 0.98
TMLX100C16MP11 FC/MC/PC43C 1.00 1.01 0.96
TMLX100C16MP11 FC/MC/PC48C 1.00 0.99 0.94
TMLX100C16MP11 FC/MC/PC48D 1.01 1.01 0.97
TMLX100C16MP11 FC/MC/PC60D 1.01 1.01 0.97
TMLX100C16MP11 FC/MC62D 1.02 1.03 0.95
TMLX100C16MP11 FC/PC60C 1.01 1.01 0.97
TMLX100C16MP11 FC64D 1.05 1.07 0.97
TMLX100C16MP11 UC48C 0.98 0.95 0.94
TMLX100C16MP11 UC48D 0.98 0.95 0.98
TMLX100C16MP11 UC60C 1.00 0.99 0.98
TMLX100C16MP11 UC60D 1.00 0.99 0.98
TMLX100C20MP11 FC/MC/PC43C 1.00 1.01 0.96
TMLX100C20MP11 FC/MC/PC48C 1.01 1.01 0.95
TMLX100C20MP11 FC/MC/PC48D 1.01 1.01 0.97
TMLX100C20MP11 FC/MC/PC60D 1.01 1.01 0.97
TMLX100C20MP11 FC/MC62D 1.02 1.03 0.95
TMLX100C20MP11 FC/PC60C 1.01 1.01 0.97
TMLX100C20MP11 FC64D 1.05 1.07 0.97
TMLX100C20MP11 UC48C 0.98 0.95 0.94
TMLX100C20MP11 UC48D 0.99 0.99 0.97
TMLX100C20MP11 UC60C 1.00 0.99 0.98
TMLX100C20MP11 UC60D 1.00 0.99 0.98
TMLX120C20MP11 FC/MC/PC43C 1.00 1.01 0.96
TMLX120C20MP11 FC/MC/PC48C 1.01 1.01 0.95
TMLX120C20MP11 FC/MC/PC48D 1.01 1.01 0.97
TMLX120C20MP11 FC/MC/PC60D 1.01 1.01 0.97
TMLX120C20MP11 FC/MC62D 1.02 1.03 0.95
TMLX120C20MP11 FC/PC60C 1.01 1.01 0.97
TMLX120C20MP11 FC64D 1.05 1.07 0.97
Furnaces Coils T.C. S.C. KW
TMLX120C20MP11 UC48C 0.98 0.95 0.94
TMLX120C20MP11 UC48D 0.99 0.99 0.97
TMLX120C20MP11 UC60C 1.00 0.99 0.98
TMLX120C20MP11 UC60D 1.00 0.99 0.98
Y*(8,L)C*B12 HD48 1.01 0.98 0.97
Y*(8,L)C*C16 FC/MC/PC43C 1.02 1.01 0.98
Y*(8,L)C*C16 FC/MC/PC48C 1.01 1.01 0.94
Y*(8,L)C*C16 FC/PC60C 1.04 1.04 0.95
Y*(8,L)C*C16 FC64D 1.04 1.05 0.96
Y*(8,L)C*C16 HD48 1.02 1.01 0.95
Y*(8,L)C*C16 HD60 1.04 1.03 0.94
Y*(8,L)C*C16 UC48C 1.00 1.01 0.95
Y*(8,L)C*C16 UC60C 1.00 0.98 0.94
Y*(8,L)C*C20 FC/MC/PC43C 1.02 1.01 0.98
Y*(8,L)C*C20 FC/MC/PC48C 1.02 1.03 0.94
Y*(8,L)C*C20 FC/PC60C 1.04 1.02 0.93
Y*(8,L)C*C20 FC64D 1.04 1.05 0.96
Y*(8,L)C*C20 HD48 1.04 1.02 0.96
Y*(8,L)C*C20 HD60 1.04 1.03 0.92
Y*(8,L)C*C20 UC48C 1.00 1.02 0.94
Y*(8,L)C*C20 UC60C 1.00 0.99 0.92
Y*9C*B12 HD48 0.99 0.93 0.95
Y*9C*C16 FC/MC/PC43C 1.01 1.01 0.97
Y*9C*C16 FC/MC/PC48C 1.04 1.03 0.96
Y*9C*C16 FC/PC60C 1.02 1.02 0.98
Y*9C*C16 FC64D 1.04 1.05 0.98
Y*9C*C16 HD48 1.02 1.01 0.96
Y*9C*C16 HD60 1.04 1.03 0.98
Y*9C*C16 UC48C 0.99 1.01 0.95
Y*9C*C16 UC60C 0.99 0.97 0.97
Y*9C*C20 FC/MC/PC43C 1.02 1.01 0.98
Y*9C*C20 FC/MC/PC48C 1.04 1.03 0.98
Y*9C*C20 FC/PC60C 1.02 1.03 0.95
Y*9C*C20 FC64D 1.04 1.05 0.96
Y*9C*C20 HD48 1.02 1.01 0.98
Y*9C*C20 HD60 1.04 1.03 0.96
Y*9C*C20 UC48C 0.99 1.01 0.96
Y*9C*C20 UC60C 1.00 0.97 0.96
Y*9C*D20 FC/MC/PC48D 1.04 1.03 0.96
Y*9C*D20 FC/MC/PC60D 1.04 1.03 0.95
Y*9C*D20 FC/MC62D 1.04 1.04 0.96
Y*9C*D20 FC64D 1.04 1.00 0.96
Y*9C*D20 HD48 1.02 1.01 0.96
Y*9C*D20 HD60 1.04 1.03 0.95
Y*9C*D20 UC48D 0.99 1.01 0.94
Y*9C*D20 UC60D 1.00 0.98 0.95
Johnson Controls Unitary Products 41
Page 42
700695-YTG-C-0714
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. YCJF48S41S2(E)
INDOOR COIL MODEL NO. FC/MC62
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
ID CFM 1400 1600 1800
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 43.3 48.6 46.2 50.6 54. 3 44.9 49.3 47.7 52.2 55.4 46.5 49.9 49.3 53.9 56.5
S.C. 43.2 39.3 33.6 33.2 26.2 44.8 42.1 35.6 35.0 27.1 46.4 45.0 37.6 36.7 27.9
KW 2.60 2.62 2.62 2.63 2.67 2.60 2.62 2.62 2.64 2.68 2.61 2.63 2.62 2.65 2.69
T.C. 41.8 46.2 44.3 48.6 52. 4 43.2 47.0 45.7 50.2 53.6 44.7 47.7 47.2 51.7 54.7
S.C. 41.7 38.5 32.7 32.4 25.4 43.1 41.2 34.7 34.2 26.4 44.6 43.8 36.6 36.1 27.4
KW 3.00 3.02 3.02 3.03 3.06 3.01 3.02 3.02 3.04 3.07 3.01 3.03 3.02 3.04 3.08
T.C. 40.3 43.8 42.4 46.7 50. 5 41.6 44.7 43.7 48.1 51.7 42.9 45.5 45.1 49.5 52.9
S.C. 40.2 37.8 31.9 31.6 24.7 41.5 40.2 33.7 33.5 25.8 42.8 42.6 35.6 35.4 26.9
KW 3.40 3.42 3.42 3.43 3.45 3.41 3.42 3.43 3.44 3.46 3.42 3.43 3.43 3.44 3.46
T.C. 38.8 41.4 40.5 44.7 48. 6 40.0 42.4 41.7 46.0 49.9 41.1 43.3 42.9 47.3 51.1
S.C. 38.7 37.0 31.0 30.8 24.0 39.8 39.2 32.8 32.8 25.2 41.0 41.5 34.6 34.8 26.3
KW 3.80 3.82 3.83 3.84 3.84 3.81 3.82 3.83 3.83 3.84 3.82 3.82 3.83 3.83 3.85
T.C. 36.6 38.8 38.2 42.2 45. 9 37.8 39.9 39.3 43.4 47.0 38.9 40.9 40.5 44.6 48.1
S.C. 36.6 35.8 29.8 29.8 22.9 37.7 37.7 31.7 31.9 24.1 38.8 39.6 33.6 33.9 25.3
KW 4.48 4.54 4.53 4.48 4.44 4.47 4.51 4.52 4.46 4.44 4.45 4.48 4.50 4.45 4.45
T.C. 34.6 36.3 36.0 39.7 43. 2 35.7 37.4 37.0 40.8 44.2 36.8 38.5 38.0 41.9 45.2
S.C. 34.5 34.5 28.6 28.9 21.8 35.6 36.2 30.6 30.9 23.1 36.7 37.8 32.6 33.0 24.3
KW 5.14 5.23 5.22 5.10 5.03 5.10 5.17 5.19 5.08 5.03 5.06 5.11 5.16 5.06 5.03
T.C. 32.5 33.8 33.7 37.3 40. 6 33.6 34.9 34.7 38.3 41.4 34.7 36.1 35.6 39.3 42.3
S.C. 32.4 33.3 27.4 27.9 20.8 33.5 34.7 29.5 30.0 22.1 34.6 36.0 31.6 32.2 23.3
KW 5.80 5.92 5.91 5.72 5.61 5.74 5.83 5.86 5.69 5.61 5.67 5.74 5.81 5.66 5.61
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC48 0.97 1.00 0.99
– FC/MC/PC60 0.99 0.97 1.01
– FC/MC62 1.00 1.00 1.00
– FC64 1.01 1.03 0.99
– HD60 1.01 0.99 1.01
– UC48 0.97 1.00 0.99
– UC60 0.98 0.97 1.00
AHE48D – 1.00 0.99 0.96
AHE60D – 1.01 1.01 0.93
AHR48D – 0.99 0.98 1.01
AHR60D – 1.01 1.01 0.99
AHV48D – 0.99 0.97 0.97
AHV60D – 1.00 0.99 0.96
Air Handlers Coils T.C. S.C. KW
MV16C FC/MC48C 0.98 1.01 0.96
MV16C FC60C 1.00 0.98 0.96
MV20D FC/MC48D 0.99 1.02 0.95
MV20D FC/MC60D 1.00 0.98 0.98
MV20D FC/MC62D 1.02 1.03 0.96
MV20D FC64D 1.03 1.04 0.95
MX16CN21 FC/MC48C 0.98 0.98 0.96
MX16CN21 FC60C 0.98 0.97 0.94
MX20DN21 FC/MC48D 0.99 0.99 0.93
MX20DN21 FC/MC60D 0.99 0.98 0.91
MX20DN21 FC/MC62D 0.99 0.98 0.90
MX20DN21 FC64D 1.01 1.02 0.90
Continued on next page.
42 Johnson Controls Unitary Products
Page 43
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
T*(8,L)C*C16 FC/MC/PC48C 0.97 1.00 0.99
T*(8,L)C*C16 FC/MC/PC48D 0.97 1.00 0.99
T*(8,L)C*C16 FC/MC/PC60D 0.99 0.98 0.99
T*(8,L)C*C16 FC/MC62D 1.01 1.02 0.99
T*(8,L)C*C16 FC/PC60C 0.99 0.98 0.99
T*(8,L)C*C16 FC64D 1.02 1.04 0.98
T*(8,L)C*C16 HD60 1.02 0.99 0.98
T*(8,L)C*C16 UC48C 0.97 1.01 0.97
T*(8,L)C*C16 UC60C 0.99 0.98 0.99
T*(8,L)C*C20 FC/MC/PC48C 0.98 1.01 0.98
T*(8,L)C*C20 FC/MC/PC48D 0.98 1.01 0.98
T*(8,L)C*C20 FC/MC/PC60D 0.99 0.98 0.99
T*(8,L)C*C20 FC/MC62D 1.01 1.02 0.97
T*(8,L)C*C20 FC/PC60C 0.99 0.98 0.99
T*(8,L)C*C20 FC64D 1.00 0.98 0.92
T*(8,L)C*C20 HD60 1.02 1.00 0.96
T*(8,L)C*C20 UC48C 0.97 1.01 0.99
T*(8,L)C*C20 UC60C 0.99 0.98 0.97
T*(8,L)V*C16 FC/MC/PC48C 0.97 1.00 0.99
T*(8,L)V*C16 FC/MC/PC48D 0.97 1.00 0.99
T*(8,L)V*C16 FC/MC/PC60D 0.99 0.98 0.99
T*(8,L)V*C16 FC/MC62D 1.01 1.02 0.99
T*(8,L)V*C16 FC/PC60C 0.99 0.98 0.99
T*(8,L)V*C16 FC64D 1.02 1.04 0.98
T*(8,L)V*C16 HD60 1.02 0.99 0.98
T*(8,L)V*C16 UC48C 0.97 1.01 0.97
T*(8,L)V*C16 UC60C 0.99 0.98 0.99
T*(8,L)V*C20 FC/MC/PC48C 0.98 1.01 0.98
T*(8,L)V*C20 FC/MC/PC48D 0.98 1.01 0.98
T*(8,L)V*C20 FC/MC/PC60D 0.99 0.98 0.99
T*(8,L)V*C20 FC/MC62D 1.01 1.02 0.97
T*(8,L)V*C20 FC/PC60C 0.99 0.98 0.99
T*(8,L)V*C20 FC64D 1.00 0.98 0.92
T*(8,L)V*C20 HD60 1.02 1.00 0.96
T*(8,L)V*C20 UC48C 0.97 1.01 0.99
T*(8,L)V*C20 UC60C 0.99 0.98 0.97
T*9(C,V)*C16 FC/MC/PC48C 0.97 1.01 0.99
T*9(C,V)*C16 FC/MC/PC48D 0.97 1.01 0.99
T*9(C,V)*C16 FC/MC/PC60D 0.99 0.98 0.99
T*9(C,V)*C16 FC/MC62D 1.01 1.02 0.99
T*9(C,V)*C16 FC/PC60C 0.99 0.98 0.99
T*9(C,V)*C16 FC64D 1.02 1.04 0.98
T*9(C,V)*C16 HD60 1.02 0.99 1.00
T*9(C,V)*C16 UC48C 0.97 1.01 0.99
T*9(C,V)*C16 UC60C 0.99 0.98 1.01
T*9(C,V)*C20 FC/MC/PC48C 0.97 1.01 0.99
T*9(C,V)*C20 FC/MC/PC48D 0.97 1.01 0.99
T*9(C,V)*C20 FC/MC/PC60D 0.99 0.98 0.99
T*9(C,V)*C20 FC/MC62D 1.00 1.02 1.00
T*9(C,V)*C20 FC/PC60C 0.99 0.98 0.99
T*9(C,V)*C20 FC64D 1.01 1.03 0.99
T*9(C,V)*C20 HD60 1.02 0.99 1.00
T*9(C,V)*C20 UC48C 0.97 1.01 0.99
T*9(C,V)*C20 UC60C 0.99 0.98 1.01
T*9(C,V)*D20 FC/MC/PC48D 0.97 1.01 0.99
T*9(C,V)*D20 FC/MC/PC60D 0.99 0.98 0.99
Furnaces Coils T.C. S.C. KW
T*9(C,V)*D20 FC/MC62D 1.01 1.02 0.99
T*9(C,V)*D20 FC64D 1.02 1.04 0.98
T*9(C,V)*D20 HD60 1.02 0.99 1.00
T*9(C,V)*D20 UC48D 0.97 1.01 0.99
T*9(C,V)*D20 UC60D 0.99 0.98 0.99
TM8X080C16MP11 FC/MC/PC48C 0.97 0.97 0.95
TM8X080C16MP11 FC/MC/PC48D 0.98 0.97 0.96
TM8X080C16MP11 FC/MC/PC60D 0.97 0.97 0.95
TM8X080C16MP11 FC/MC62D 0.98 0.97 0.95
TM8X080C16MP11 FC/PC60C 0.97 0.97 0.95
TM8X080C16MP11 FC64D 1.00 1.01 0.95
TM8X100C16MP11 FC/MC/PC48C 0.97 0.97 0.95
TM8X100C16MP11 FC/MC/PC48D 0.98 0.97 0.96
TM8X100C16MP11 FC/MC/PC60D 0.97 0.97 0.95
TM8X100C16MP11 FC/MC62D 0.98 0.97 0.95
TM8X100C16MP11 FC/PC60C 0.97 0.97 0.95
TM8X100C16MP11 FC64D 1.00 1.01 0.95
TM8X100C20MP11 FC/MC/PC48C 0.98 0.98 0.94
TM8X100C20MP11 FC/MC/PC48D 0.98 0.98 0.94
TM8X100C20MP11 FC/MC/PC60D 0.97 0.97 0.93
TM8X100C20MP11 FC/MC62D 0.98 0.97 0.94
TM8X100C20MP11 FC/PC60C 0.97 0.97 0.94
TM8X100C20MP11 FC64D 1.00 1.01 0.94
TM8X100C20MP11 UC60C 0.96 0.94 0.94
TM8X120C20MP11 FC/MC/PC48C 0.98 0.98 0.94
TM8X120C20MP11 FC/MC/PC48D 0.98 0.98 0.94
TM8X120C20MP11 FC/MC/PC60D 0.97 0.97 0.93
TM8X120C20MP11 FC/MC62D 0.98 0.97 0.94
TM8X120C20MP11 FC/PC60C 0.97 0.97 0.94
TM8X120C20MP11 FC64D 1.00 1.01 0.94
TM8X120C20MP11 UC60C 0.96 0.94 0.94
TM9E100C20MP11 FC/MC/PC48D 0.97 0.97 0.94
TM9E100C20MP11 FC/MC/PC60D 0.97 0.97 0.95
TM9E100C20MP11 FC/MC62D 0.98 0.97 0.95
TM9E100C20MP11 FC64D 1.00 1.01 0.95
TM9E120D20MP11 FC/MC/PC48D 0.98 0.97 0.96
TM9E120D20MP11 FC/MC/PC60D 0.97 0.97 0.94
TM9E120D20MP11 FC/MC62D 0.98 0.97 0.94
TM9E120D20MP11 FC64D 1.00 1.01 0.94
TM9E120D20MP11 UC60D 0.96 0.94 0.94
TM9X100C20MP11 FC/MC/PC48D 0.97 0.97 0.94
TM9X100C20MP11 FC/MC/PC60D 0.97 0.97 0.95
TM9X100C20MP11 FC/MC62D 0.98 0.97 0.95
TM9X100C20MP11 FC64D 1.00 1.01 0.95
TM9X120D20MP11 FC/MC/PC48D 0.98 0.97 0.96
TM9X120D20MP11 FC/MC/PC60D 0.97 0.97 0.94
TM9X120D20MP11 FC/MC62D 0.98 0.97 0.94
TM9X120D20MP11 FC64D 1.00 1.01 0.94
TM9X120D20MP11 UC60D 0.96 0.94 0.94
TMLX080C16MP11 FC/MC/PC48C 0.97 0.97 0.95
TMLX080C16MP11 FC/MC/PC48D 0.98 0.97 0.96
TMLX080C16MP11 FC/MC/PC60D 0.97 0.97 0.95
TMLX080C16MP11 FC/MC62D 0.98 0.97 0.95
TMLX080C16MP11 FC/PC60C 0.97 0.97 0.95
TMLX080C16MP11 FC64D 1.00 1.01 0.95
Continued on next page.
Johnson Controls Unitary Products 43
Page 44
700695-YTG-C-0714
Furnaces Coils T.C. S.C. KW
TMLX100C16MP11 FC/MC/PC48C 0.97 0.97 0.95
TMLX100C16MP11 FC/MC/PC48D 0.98 0.97 0.96
TMLX100C16MP11 FC/MC/PC60D 0.97 0.97 0.95
TMLX100C16MP11 FC/MC62D 0.98 0.97 0.95
TMLX100C16MP11 FC/PC60C 0.97 0.97 0.95
TMLX100C16MP11 FC64D 1.00 1.01 0.95
TMLX100C20MP11 FC/MC/PC48C 0.98 0.98 0.94
TMLX100C20MP11 FC/MC/PC48D 0.98 0.98 0.94
TMLX100C20MP11 FC/MC/PC60D 0.97 0.97 0.93
TMLX100C20MP11 FC/MC62D 0.98 0.97 0.94
TMLX100C20MP11 FC/PC60C 0.97 0.97 0.94
TMLX100C20MP11 FC64D 1.00 1.01 0.94
TMLX100C20MP11 UC60C 0.96 0.94 0.94
TMLX120C20MP11 FC/MC/PC48C 0.98 0.98 0.94
TMLX120C20MP11 FC/MC/PC48D 0.98 0.98 0.94
TMLX120C20MP11 FC/MC/PC60D 0.97 0.97 0.93
TMLX120C20MP11 FC/MC62D 0.98 0.97 0.94
TMLX120C20MP11 FC/PC60C 0.97 0.97 0.94
TMLX120C20MP11 FC64D 1.00 1.01 0.94
TMLX120C20MP11 UC60C 0.96 0.94 0.94
Y*(8,L)C*C16 FC/MC/PC48C 0.97 1.00 0.99
Y*(8,L)C*C16 FC/MC/PC48D 0.97 1.00 0.99
Y*(8,L)C*C16 FC/MC/PC60D 0.99 0.98 0.99
Y*(8,L)C*C16 FC/MC62D 1.01 1.02 0.99
Y*(8,L)C*C16 FC/PC60C 0.99 0.98 0.99
Y*(8,L)C*C16 FC64D 1.02 1.04 0.98
Y*(8,L)C*C16 HD60 1.02 0.99 0.98
Y*(8,L)C*C16 UC48C 0.97 1.01 0.97
Y*(8,L)C*C16 UC60C 0.99 0.98 0.99
Y*(8,L)C*C20 FC/MC/PC48C 0.98 1.01 0.98
Y*(8,L)C*C20 FC/MC/PC48D 0.98 1.01 0.98
Y*(8,L)C*C20 FC/MC/PC60D 0.99 0.98 0.99
Y*(8,L)C*C20 FC/MC62D 1.01 1.02 0.97
Furnaces Coils T.C. S.C. KW
Y*(8,L)C*C20 FC/PC60C 0.99 0.98 0.99
Y*(8,L)C*C20 FC64D 1.00 0.98 0.92
Y*(8,L)C*C20 HD60 1.02 1.00 0.96
Y*(8,L)C*C20 UC48C 0.97 1.01 0.99
Y*(8,L)C*C20 UC60C 0.99 0.98 0.97
Y*9C*C16 FC/MC/PC48C 0.97 1.01 0.99
Y*9C*C16 FC/MC/PC48D 0.97 1.01 0.99
Y*9C*C16 FC/MC/PC60D 0.99 0.98 0.99
Y*9C*C16 FC/MC62D 1.01 1.02 0.99
Y*9C*C16 FC/PC60C 0.99 0.98 0.99
Y*9C*C16 FC64D 1.02 1.04 0.98
Y*9C*C16 HD60 1.02 0.99 1.00
Y*9C*C16 UC48C 0.97 1.01 0.99
Y*9C*C16 UC60C 0.99 0.98 1.01
Y*9C*C20 FC/MC/PC48C 0.97 1.01 0.99
Y*9C*C20 FC/MC/PC48D 0.97 1.01 0.99
Y*9C*C20 FC/MC/PC60D 0.99 0.98 0.99
Y*9C*C20 FC/MC62D 1.00 1.02 1.00
Y*9C*C20 FC/PC60C 0.99 0.98 0.99
Y*9C*C20 FC64D 1.01 1.03 0.99
Y*9C*C20 HD60 1.02 0.99 1.00
Y*9C*C20 UC48C 0.97 1.01 0.99
Y*9C*C20 UC60C 0.99 0.98 1.01
Y*9C*D20 FC/MC/PC48D 0.97 1.01 0.99
Y*9C*D20 FC/MC/PC60D 0.99 0.98 0.99
Y*9C*D20 FC/MC62D 1.01 1.02 0.99
Y*9C*D20 FC64D 1.02 1.04 0.98
Y*9C*D20 HD60 1.02 0.99 1.00
Y*9C*D20 UC48D 0.97 1.01 0.99
Y*9C*D20 UC60D 0.99 0.98 0.99
44 Johnson Controls Unitary Products
Page 45
700695-YTG-C-0714
COOLING PERFORMANCE DATA
AIR CONDITIONER MODEL NO. YCJF60S41S2(E)
INDOOR COIL MODEL NO. FC/MC62
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
65
75
85
95
105
115
125
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
ID CFM 1600 1800 2000
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
T.C. 52.3 60.4 57.1 61.8 66.7 54.1 61.4 58.6 63.6 67.7 55.9 62.5 60.2 65.3 68.7
S.C. 51.1 46.8 40.1 39.0 31.5 52.9 49.5 42.1 41.0 32.6 54.7 52.1 44.2 43.0 33.7
KW 3.12 3.16 3.15 3.19 3.23 3.14 3.17 3.17 3.20 3.25 3.15 3.18 3.18 3.21 3.26
T.C. 50.2 57.2 54.7 59.5 64.2 51.9 58.4 56.3 61.0 65.4 53.6 59.5 57.8 62.6 66.6
S.C. 49.1 45.8 39.1 38.2 30.5 50.8 48.5 41.1 40.2 31.6 52.4 51.1 43.2 42.3 32.8
KW 3.62 3.66 3.65 3.68 3.72 3.63 3.66 3.66 3.69 3.73 3.65 3.67 3.67 3.70 3.73
T.C. 48.1 54.1 52.4 57.1 61.6 49.7 55.3 53.9 58.5 63.1 51.3 56.6 55.4 60.0 64.5
S.C. 47.0 44.8 38.0 37.3 29.5 48.6 47.4 40.1 39.4 30.7 50.2 50.1 42.2 41.5 31.9
KW 4.12 4.15 4.15 4.17 4.20 4.13 4.16 4.16 4.18 4.20 4.14 4.16 4.16 4.18 4.21
T.C. 46.0 50.9 50.1 54.7 59.1 47.5 52.3 51.6 56.0 60.7 49.0 53.6 53.0 57.3 62.4
S.C. 45.0 43.7 37.0 36.4 28.5 46.5 46.4 39.1 38.6 29.8 47.9 49.0 41.2 40.8 31.1
KW 4.61 4.65 4.65 4.66 4.68 4.62 4.65 4.65 4.67 4.68 4.63 4.65 4.65 4.67 4.68
T.C. 43.4 47.6 47.3 51.8 56.5 44.7 49.0 48.6 52.9 58.0 46.1 50.5 49.9 54.1 59.4
S.C. 42.4 42.5 35.8 35.3 27.4 43.8 44.8 37.9 37.5 28.7 45.1 47.2 40.0 39.6 30.0
KW 5.40 5.43 5.45 5.43 5.43 5.40 5.42 5.44 5.43 5.42 5.39 5.41 5.44 5.43 5.42
T.C. 40.8 44.3 44.6 48.9 54.1 42.0 45.9 45.7 50.0 55.3 43.3 47.5 46.9 51.0 56.6
S.C. 39.9 41.3 34.6 34.3 26.3 41.1 43.3 36.7 36.4 27.6 42.3 45.3 38.8 38.5 28.9
KW 6.17 6.20 6.22 6.18 6.15 6.15 6.17 6.21 6.17 6.14 6.13 6.15 6.20 6.16 6.14
T.C. 38.2 41.1 41.8 46.0 51.6 39.3 42.8 42.9 47.0 52.7 40.5 44.5 43.9 47.9 53.7
S.C. 37.4 40.1 33.4 33.3 25.2 38.5 41.8 35.5 35.3 26.5 39.6 43.5 37.5 37.4 27.8
KW 6.93 6.96 6.99 6.92 6.86 6.90 6.92 6.98 6.91 6.86 6.87 6.89 6.96 6.90 6.86
Air Handlers Coils T.C. S.C. KW
– FC/MC/PC60 0.97 0.95 0.99
– FC/MC62 1.00 1.00 1.00
– FC64 1.02 1.05 1.00
– HD60 1.01 0.99 1.01
– UC60 0.98 0.97 1.00
AHE60D – 1.01 1.03 0.97
AHR60D – 1.00 1.01 1.02
AHV60D – 0.99 0.97 0.99
MV20D FC/MC60D 1.00 0.99 0.98
MV20D FC/MC62D 1.01 1.03 0.99
MV20D FC64D 1.03 1.05 0.99
MX20DN21 FC/MC60D 0.98 0.96 0.95
MX20DN21 FC/MC62D 1.00 0.99 0.94
MX20DN21 FC64D 1.03 1.03 0.95
Continued on next page.
Johnson Controls Unitary Products 45
Page 46
Furnaces Coils T.C. S.C. KW
T*(8,L)C*C16 FC/PC60C 0.97 0.93 0.97
T*(8,L)C*C20 FC/MC/PC60D 0.97 0.93 0.95
T*(8,L)C*C20 FC/MC62D 0.99 0.97 0.95
T*(8,L)C*C20 FC/PC60C 0.97 0.93 0.95
T*(8,L)C*C20 FC64D 1.01 1.02 0.95
T*(8,L)C*C20 HD60 1.00 0.96 0.96
T*(8,L)C*C20 UC60C 0.97 0.93 0.95
T*(8,L)V*C16 FC/PC60C 0.97 0.93 0.97
T*(8,L)V*C20 FC/MC/PC60D 0.97 0.93 0.95
T*(8,L)V*C20 FC/MC62D 0.99 0.97 0.95
T*(8,L)V*C20 FC/PC60C 0.97 0.93 0.95
T*(8,L)V*C20 FC64D 1.01 1.02 0.95
T*(8,L)V*C20 HD60 1.00 0.96 0.96
T*(8,L)V*C20 UC60C 0.97 0.93 0.95
T*9(C,V)*C20 FC/MC/PC60D 0.98 0.96 0.98
T*9(C,V)*C20 FC/MC62D 0.99 0.97 0.99
T*9(C,V)*C20 FC/PC60C 0.98 0.96 0.98
T*9(C,V)*C20 FC64D 1.01 1.01 0.99
T*9(C,V)*C20 HD60 1.00 0.96 0.98
T*9(C,V)*C20 UC60C 0.97 0.94 0.97
T*9(C,V)*D20 FC/MC/PC60D 0.97 0.93 0.97
T*9(C,V)*D20 FC/MC62D 0.99 0.96 0.97
T*9(C,V)*D20 FC64D 1.01 1.01 0.97
T*9(C,V)*D20 HD60 0.99 0.95 0.97
T*9(C,V)*D20 UC60D 0.97 0.93 0.97
TM8X080C16MP11 FC/MC62D 0.97 0.93 0.99
TM8X080C16MP11 FC64D 1.00 0.96 1.00
TM8X100C16MP11 FC/MC62D 0.97 0.93 0.99
TM8X100C16MP11 FC64D 1.00 0.96 1.00
TM8X100C20MP11 FC/MC/PC60D 0.96 0.91 0.95
TM8X100C20MP11 FC/MC62D 0.97 0.94 0.95
TM8X100C20MP11 FC/PC60C 0.96 0.91 0.96
TM8X100C20MP11 FC64D 1.01 0.98 0.96
TM8X100C20MP11 UC60C 0.96 0.89 0.96
TM8X100C20MP11 UC60D 0.96 0.90 0.95
TM8X120C20MP11 FC/MC/PC60D 0.96 0.91 0.95
TM8X120C20MP11 FC/MC62D 0.97 0.94 0.95
TM8X120C20MP11 FC/PC60C 0.96 0.91 0.96
TM8X120C20MP11 FC64D 1.01 0.98 0.96
TM8X120C20MP11 UC60C 0.96 0.89 0.96
TM8X120C20MP11 UC60D 0.96 0.90 0.95
TM9E100C20MP11 FC/MC62D 0.97 0.93 0.96
TM9E100C20MP11 FC64D 1.00 0.96 0.96
TM9E120D20MP11 FC/MC/PC60D 0.96 0.91 0.96
Furnaces Coils T.C. S.C. KW
TM9E120D20MP11 FC/MC62D 0.97 0.93 0.96
TM9E120D20MP11 FC64D 1.00 0.96 0 .96
TM9E120D20MP11 UC60D 0.96 0.89 0.96
TM9X100C20MP11 FC/MC62D 0.97 0.93 0.96
TM9X100C20MP11 FC64D 1.00 0.96 0 .96
TM9X120D20MP11 FC/MC/PC60D 0.96 0.91 0.96
TM9X120D20MP11 FC/MC62D 0.97 0.93 0.96
TM9X120D20MP11 FC64D 1.00 0.96 0 .96
TM9X120D20MP11 UC60D 0.96 0.89 0.96
TMLX080C16MP11 FC/MC62D 0.97 0.93 0.99
TMLX080C16MP11 FC64D 1.00 0.96 1 .00
TMLX100C16MP11 FC/MC62D 0.97 0.93 0.99
TMLX100C16MP11 FC64D 1.00 0.96 1 .00
TMLX100C20MP11 FC/MC/PC60D 0.96 0.91 0.95
TMLX100C20MP11 FC/MC62D 0.97 0.94 0.95
TMLX100C20MP11 FC/PC60C 0.96 0.91 0.96
TMLX100C20MP11 FC64D 1.01 0.98 0 .96
TMLX100C20MP11 UC60C 0.96 0.89 0.96
TMLX100C20MP11 UC60D 0.96 0.90 0.95
TMLX120C20MP11 FC/MC/PC60D 0.96 0.91 0.95
TMLX120C20MP11 FC/MC62D 0.97 0.94 0.95
TMLX120C20MP11 FC/PC60C 0.96 0.91 0.96
TMLX120C20MP11 FC64D 1.01 0.98 0 .96
TMLX120C20MP11 UC60C 0.96 0.89 0.96
TMLX120C20MP11 UC60D 0.96 0.90 0.95
Y*(8,L)C*C16 FC/PC60C 0.97 0.93 0.97
Y*(8,L)C*C20 FC/MC/PC60D 0.97 0.93 0.95
Y*(8,L)C*C20 FC/MC62D 0.99 0.97 0.95
Y*(8,L)C*C20 FC/PC60C 0.97 0.93 0.95
Y*(8,L)C*C20 FC64D 1.01 1.02 0.95
Y*(8,L)C*C20 HD60 1.00 0.96 0.96
Y*(8,L)C*C20 UC60C 0.97 0.93 0.95
Y*9C*C20 FC/MC/PC60D 0.98 0.96 0.98
Y*9C*C20 FC/MC62D 0.99 0.97 0.99
Y*9C*C20 FC/PC60C 0.98 0.96 0.98
Y*9C*C20 FC64D 1.01 1.01 0.99
Y*9C*C20 HD60 1.00 0.96 0.98
Y*9C*C20 UC60C 0.97 0.94 0.97
Y*9C*D20 FC/MC/PC60D 0.97 0.93 0.97
Y*9C*D20 FC/MC62D 0.99 0.96 0.97
Y*9C*D20 FC64D 1.01 1.01 0.97
Y*9C*D20 HD60 0.99 0.95 0.97
Y*9C*D20 UC60D 0.97 0.93 0.97
Subject to change without notice. Published in U.S.A. 700695-YTG-C-0714
Copyright © 2014 by Johnson Controls, Inc. All rights reserved. Supersedes: 700695-YTG-B-0812
York International Corp.
5005 York Drive
Norman, OK 73069
Loading...
