York YCAL0041, YCAL0065 User Manual

AIR-COOLED

SCROLL CHILLERS

STYLE D

FORM 150.64-EG1 (505)

YCAL0041 – YCAL0065

50 AND 60HZ

47 – 60 TON

165 – 210 KW

R-22

   









 

 

 



 



 

    





 







 





Table of Contents

FORM 150.64-EG1 (405) ....................................................................................................................................................................................... 1

Introduction ........................................................................................................................................................................................................... 3

Speciﬁcation .........................................................................................................................................................................................................

Options and Accessories .................................................................................................................................................................................... 7

Selection Data ......................................................................................................................................................................................................11

Design Parameters ............................................................................................................................................................................................. 13

Water Pressure Drop ..........................................................................................................................................................................................

Ratings - R-22 (60Hz - English Units) ............................................................................................................................................................... 16

Ratings - R-22 (60Hz - English Units) - Cont. ................................................................................................................................................... 18

Ratings - R-22 (60Hz - SI Units) ......................................................................................................................................................................... 20

Ratings - R-22 (50Hz - English Units) ............................................................................................................................................................... 22

Ratings - R-22 (50Hz - English Units) - Cont. ................................................................................................................................................... 24

Ratings - R-22 (50Hz - SI Units) ......................................................................................................................................................................... 26

Part Load Ratings - R-22 (English Units) ......................................................................................................................................................... 28

Part Load Ratings - R-22 (SI) ............................................................................................................................................................................. 29

Physical Data ..................................................................................................................................................................................................... 30

Sound Data .......................................................................................................................................................................................................... 32

Dimensions - YCAL0041 (English) .................................................................................................................................................................... 34

Dimensions - YCAL0045 (English) .................................................................................................................................................................... 36

Dimensions - YCAL0051 (English) .................................................................................................................................................................... 38

Dimensions - YCAL0055EC - (English) ............................................................................................................................................................. 40

Dimensions - YCAL0061 (English) .................................................................................................................................................................... 42

Dimensions - YCAL0065 (English) .................................................................................................................................................................... 44

Dimensions - YCAL0041 (SI) ............................................................................................................................................................................. 46

Dimensions - YCAL0045 (SI) ............................................................................................................................................................................. 48

Dimensions - YCAL0051 (SI) ............................................................................................................................................................................. 50

Dimensions -YCAL0055 (SI) .............................................................................................................................................................................. 52

Dimensions - YCAL0061 (SI) ............................................................................................................................................................................. 54

Dimensions - YCAL0065 (SI) ............................................................................................................................................................................. 56

Isolator Selections ............................................................................................................................................................................................. 58

Isolator Details (cont'd) ...................................................................................................................................................................................... 60

Electrical Data ..................................................................................................................................................................................................... 62

Electrical Data - 60Hz ......................................................................................................................................................................................... 64

Electrical Data - 50Hz ......................................................................................................................................................................................... 66

Power Wiring ....................................................................................................................................................................................................... 68

Control Wiring ..................................................................................................................................................................................................... 71

Application Data ................................................................................................................................................................................................. 72

Guide Speciﬁcations ..........................................................................................................................................................................................

14

74

4

2

YORK INTERNATIONAL

Introduction

FORM 150.64-EG1

YORK Air-Cooled Scroll Chillers provide chilled water for all air conditioning applications using central station air handling or terminal units. They are completely self-contained and are designed for outdoor (roof or ground level) installation. Each unit includes hermetic scroll compressors, a liquid cooler, air cooled condenser, and a weather resistant microprocessor control center, all mounted on a pressed steel base.

YORK INTERNATIONAL

3

Speciﬁcation

GENERAL

The 47 - 60 Ton (165 - 210 kW) YCAL models are shipped complete from the factory ready for installation and use.

The unit is pressure-tested, evacuated, and fully charged with Refrigerant-22 (HCFC-22) and includes an initial oil charge. After assembly, a complete operational test is performed with water ﬂowing through the cooler to assure that the refrigeration circuit operates correctly.

The unit structure is heavy-gauge, galvanized steel. This galvanized steel is coated with baked-on powder paint, which, when subjected to ASTM B117 1000 hour, salt spray testing, yields a minimum ASTM 1654 rating of “6”. Corrosion resistant wire mesh panels are added to protect the condenser coil from incidental damage and restrict unauthorized access to internal components. Units are designed in accordance with NFPA 70 (Na tional Electric Code), ASHRAE/ANSI 15 Safety code for mechanical refrigeration, ASME, Listed and labeled with Intertek Testing Services (ETL) and rated in accordance with ARI Standard 550/590-2003.

COMPRESSORS

The chiller has suction-gas cooled, hermetic, scroll com pressors. The YCAL compressors incorporate a compliant scroll design in both the axial and radial direction. All rotating parts are statically and dynamically balanced. A large internal volume and oil reservoir provides greater liquid tolerance. Compressor crankcase heaters are also included for extra protection against liquid migration.

tion for the cooler down to -20°F (-29°C) ambient. The cooler is covered with 3/4” (19mm) ﬂexible, closed-cell, foam insulation (K~0.25).

Brazed plate heat exchangers shall be UL (Underwriters Laboratories) listed. Installing contractor must include accommodations in the chilled water piping to allow proper drainage and venting of the heat exchanger. Water inlet and outlet connections are grooved for com patibility with factory supplied victaulic connections.

A strainer with a mesh size between .5 and 1.5 mm (40 mesh) is recommended upstream of the heat exchanger to prevent clogging.

CONDENSER

Coils – Fin and tube condenser coils of seamless, inter

nally-enhanced, high-condensing-coefﬁcient, corrosion

-

resistant copper tubes are arranged in staggered rows, mechanically expanded into aluminum ﬁns. Integral subcooling is included. The design working pressure of the coil is 450 PSIG (31 bar).

Low Sound Fans – The condenser fans are composed of corrosion resistant aluminum hub and glass-ﬁberrein forced composite blades molded into a low noise airfoil

-

section. They are designed for maximum efﬁciency and are statically and dynamically balanced for vibration free operation. They are directly driven by independent motors, and positioned for vertical air discharge. All blades are statically and dynamically balanced for vibration-free operation. The fan guards are constructed of heavygauge, rust-resistant, PVCcoated steel wire.

-

COOLER

The cooler is equipped with a heater controlled by a separate thermostat. The heater provides freeze protec

4

Motors – The fan motors are Totally Enclosed Air-Over,

squirrel-cage type, current protected. They feature ball bearings that are double-sealed and permanently

-

lubricated.

YORK INTERNATIONAL

MILLENNIUM CONTROL CENTER

All controls are contained in a NEMA 3R/12 (and equivalent to IP55*) cabinet with hinged outer door and includes:

FORM 150.64-EG1

UNIT ON/OFF switch

Liquid Crystal Display with Light Emitting Diode back lighting for outdoor viewing: Two display lines Twenty characters per line

Color coded 12-button non-tactile keypad with sections for:

DISPLAY/PRINT of typical information: Chilled liquid temperatures Ambient temperature System pressures (each circuit) Operating hours and starts (each compressor) Print calls up to the liquid crystal display: Operating data for the systems History of fault shutdown data for up to the last six fault shutdown conditions An RS-232 port, in conjunction with this press-to-print button, is provided to permit the capability of hard copy print-outs via a separate printer (by others).

ENTRY section to: ENTER setpoints or modify system values

SETPOINTS updating can be performed to: Chilled liquid temperature setpoint and range Remote reset temperature range Set daily schedule/holiday for start/stop Manual override for servicing Low and high ambient cutouts Number of compressors Low liquid temperature cutout Low suction pressure cutout High discharge pressure cutout Anti-recycle timer (compressor start cycle time) Anti-coincident timer (delay compressor starts) UNIT section to: Set time Set unit options

The microprocessor control center is capable of dis

playing the following:

• Return and leaving liquid temperature

• Low leaving liquid temperature cutout setting

• Low ambient temperature cutout setting

• Outdoor air temperature

• English or Metric data

• Suction pressure cutout setting

• Each system suction pressure

• Discharge pressure (optional)

• Liquid Temperature Reset via a YORK ISN DDC or

Building Automation System (by others) via:

- a pulse width modulated (PWM) input as stan-

dard

- a 4-20 milliamp or 0 -10 VDC input, or contact

closure with the optional B.A.S. interface option

• Anti-recycle timer status for each system

• Anti-coincident system start timer condition

• Compressor run status

• No cooling load condition

• Day, date and time

• Daily start/stop times

• Holiday status

• Automatic or manual system lead/lag control

• Lead system deﬁnition

• Compressor starts & operating hours

(each compressor)

• Status of hot gas valves, evaporator heater

and fan operation

• Run permissive status

• Number of compressors running

• Liquid solenoid valve status

• Load & unload timer status

• Water pump status

-

* Intensity of Protection European Standard

YORK INTERNATIONAL

5

Provisions are included for: pumpdown at shutdown; optional remote chilled water temperature reset and two steps of demand load limiting from an external building automation system. Unit alarm contacts are standard.

The operating program is stored in non-volatile memory (EPROM) to eliminate chiller failure due to AC powered failure/battery discharge. Programmed setpoints are retained in lithium battery-backed RTC memory for 5 years minimum.

POWER PANEL

Each panel contains:

• Compressor power terminals

• Compressor motor starting contactors per l.E.C.**

• Control power terminals to accept incoming for

115-1-60 control power

• Fan contactors & overload current protection

The power wiring is routed through liquid-tight conduit to the compressors and fans.

** International Electrotechnical Commission

6

YORK INTERNATIONAL

Options and Accessories

FORM 150.64-EG1

POWER OPTIONS:

COMPRESSOR POWER CONNECTIONS – Single-

point (YCAL0041-0065) terminal block connection(s) are provided as standard. The following power connections are available as options. (See electrical data for speciﬁc voltage and options availability.) (Factory-Mounted.)

SINGLE-POINT SUPPLY TERMINAL BLOCK – (stan dard on YCAL0041 - 0065 models). Includes enclosure, terminal-block and interconnecting wiring to the compressors. Separate external protection must be supplied, by others, in the incoming compressor-power wiring. (Do not include this option if either the SinglePoint NonFused Disconnect Switch or Single-Point Circuit Breaker options have been included.)

SINGLE-POINT NON-FUSED DISCONNECT SWITCH – Unit-mounted disconnect switch with external, lockable

handle (in compliance with Article 440-14 of N.E.C.), can be supplied to isolate the unit power voltage for servicing. Separate external fusing must be supplied, by others in the power wiring, which must comply with the National Electrical Code and/or local codes.

SINGLE-POINT CIRCUIT BREAKER – A unit mounted circuit breaker with external, lockable handle (in com pliance with N.E.C. Article 440-14), can be supplied to isolate the power voltage for servicing. (This option includes the Single-Point Power connection.)

CONTROL TRANSFORMER – Converts unit power voltage to 115-1-60 (0.5 or 1.0 KVA capacity). Fac tory mounting includes primary and secondary wiring between the transformer and the control panel. (Fac-

tory-Mounted.)

POWER FACTOR CORRECTION CAPACITORS – Will

correct unit compressor power factors to a 0.90-0.95. (Factory-Mounted.)

CONTROL OPTIONS:

AMBIENT KIT (LOW) – Units will operate to 25°F (-4°C).

This accessory includes all necessary components to permit chiller operation to 0°F (-18°C). (This option includes the Discharge Pressure Transducer / Readout Capability option.) For proper head pressure control in applications below 25°F (-4°C), where wind gusts may exceed ﬁve mph, it is recommended that Optional Condenser Louvered Enclosure Panels also be included. (Factory-Mounted.)

AMBIENT KIT (HIGH) – Required if units are to operate when the ambient temperature is above 115°F (46°C). Includes discharge pressure transducers. (This option

includes the Discharge Pressure Transducer / Readout Capability option.) (Field-Mounted.)

BUILDING AUTOMATION SYSTEM INTERFACE – The factory addition of a Printed Circuit Board to accept a 4-20 milliamp, 0-10VDC or contact closure input to reset the leaving chiller liquid temperature from a Building Au tomation System. (Only one of following options can be offered on a unit at a time: BAS, Remote Control Panel

or Multi-unit Sequence Control.) (Factory-Mounted.)

(The standard unit capabilities include remote startstop, remote water temperature reset via a PWM input signal or up to two steps of demand (load) limiting depending on model.) (The standard control panel can be directly connected to a YORK Building Automated System via the standard onboard RS485 communication port.)

LANGUAGE LCD AND KEYPAD DISPLAY – Spanish, French, and German unit LCD controls and keypad display available. Standard language is English.

DISCHARGE PRESSURE TRANSDUCERS AND READOUT CAPABILITY – The addition of pressure

transducers allows models to sense and display dis charge pressure. This is recommended for brine chilling applications. (This option is included with either the low or high ambient kits.) (Factory-Mounted.)

-

• Suction Pressure Transducers: Permits unit to

sense and display suction pressure. This capability is standard on YCAL0041-0065 models.

MOTOR CURRENT MODULE – Capable of monitoring

compressor motor current. Provides extra protection

against compressor reverse rotation, phase-loss and phase imbalance. Option consists of one module per electrical system. (Factory-Mounted.)

OPTIVIEW REMOTE CONTROL PANEL - Graphical interface panel to remotely control and monitor up to 8 different units. (Refer to form 201.18-SG4 for detailed information)

MULTI-UNIT SEQUENCING – A separate Sequencing Control Center is provided to handle sequencing control of up to eight chillers in parallel based on mixed liquid temperature (interconnecting wiring by others). (Only one of following options can be offered on a unit at a time: BAS, Remote Control Panel or Multi-unit Sequence Control.) (Factory-Mounted.)

COMPRESSOR, PIPING, EVAPORATOR OPTIONS:

LOW TEMPERATURE BRINE – Required for brine

-

YORK INTERNATIONAL

7

chilling below 30°F (-1°C) leaving brine temperature for YCAL0041 - 0065 models. Option includes resized thermal expansion valve. (Factory-Mounted)

CHICAGO CODE RELIEF VALVES – Unit will be pro vided with relief valves to meet Chicago code requirements. (Factory-Mounted)

SERVICE ISOLATION VALVE – Service suction and discharge (ball type) isolation valves are added to unit per system. This option also includes a system high pressure relief valve in compliance with ASHRAE 15. (Factory-Mounted)

HOT GAS BY-PASS – Permits continuous, stable opera tion at capacities below the minimum step of compressor unloading to as low as 5% capacity (depending on both the unit and operating conditions) by introducing an artiﬁcial load on the cooler. Hot gas by-pass is installed on only refrigerant system #1 on two-circuited units. (Factory-Mounted)

DX COOLER 300 PSIG (21 bar) DWP WATERSIDE – The waterside will be of 300 PSIG (21 bar) instead of

the standard 150 PSIG DWP. 300 PSIG R.F. ﬂanges are included on the DX cooler nozzles. (Factory-Mounted.) The companion ﬂanges will be ﬁeld-supplied by others.

FLANGES (VICTAULIC TYPE) – Consists of two (2) Flange adapters for grooved end pipe (standard 150 psi [10.5 bar] cooler).

REMOTE DX COOLER – A split system arrangement with the cooler, leaving & return water sensors, liquid line solenoid valves, ﬁlter driers, sightglasses & TXVs shipped loose for ﬁeld connection to the air-cooled con-

-

densing section. The DX cooler and outdoor section will have a nitrogen holding charge. Interconnecting rigid piping, wiring and refrigerant are by others. Includes YORK Service startup. See Form 150.62-NM1.1 (200) for other application information. (This option includes the Crankcase Heater option.)(Field-Mounted.)

CONDENSER AND CABINET OPTIONS:

Condenser coil protection against corrosive environ-

-

ments is available by choosing any of the following options. For additional application recommendations, refer to FORM 150.12-ES1. (Factory-Mounted.)

PRE-COATED FIN CONDENSER COILS – The unit's coils are constructed with black epoxy coated aluminum ﬁns. This can provide corrosion resistance comparable to copper-ﬁn coils in typical seashore locations. Either these or the post-coated coils (below), are recommend ed for units being installed at the seashore or where salt spray may hit the unit.

POST-COATED DIPPED CONDENSER COILS – The unit's coils are constructed with dipped-cured condenser coils. This is another choice for seashore and other corrosive applications (with the exception of strong al kalies, oxidizers and wet bromine, chlorine and ﬂuorine in concentrations greater than 100 ppm).

-

FLOW SWITCH – The ﬂow switch or its equivalent must be furnished with each unit.

150 PSIG (10.5 bar) DWP – For standard units. Johnson Controls model F61MG-1C Vapor-proof SPDT, NEMA 4X switch (150 PSIG [10.5 bar] DWP), -20°F to 250°F (-29°C to 121°C), with 1” NPT connection for upright mounting in horizontal pipe. (Field-Mounted.)

300 psig (21 bar) DWP – For units with optional 300 PSIG (21 bar) DX cooler. McDonnell & Miller model FS74W Vapor-proof SPDT, NEMA 4X switch (300 PSIG (21 bar) DWP), -20°F to 300°F (-29°C to 149°C), with 1¼ inch MPT connection for upright mounting in horizontal pipe. (Field-Mounted.)

DIFFERENTIAL PRESSURE SWITCH – Alternative to an above mentioned ﬂow switch. Pretempco model DPS300AP40PF-82582-5 (300 psi max. working pres sure), SPDT 5 amp 125/250VAC switch, Range 0 - 40 PSID, deadband 0.5 - 0.8 psi, with 1/4” NPTE Pressure Connections.

COPPER FIN CONDENSER COILS – The unit's coils are constructed with copper ﬁns. (This is not recom mended for units in areas where they may be exposed to acid rain.)

ENCLOSURE PANELS (UNIT) – Tamperproof En closure Panels prevent unauthorized access to units. Enclosure Panels can provide an aesthetically pleasing alternative to expensive fencing. Additionally, for proper head pressure control, YORK recommends the use of :

LOUVERED PANELS (Full Unit) – Louvered panels surround the front, back, and sides of the unit. They prevent unauthorized access and visually screen unit components. Unrestricted air ﬂow is permitted through generously sized louvered openings. This option is ap plicable for any outdoor design ambient temperature up

-

to 115°F (46°C). (Factory-Mounted.)

SOUND ATTENUATION – One or both of the follow ing sound attenuation options are recommended for

-

8

YORK INTERNATIONAL

FORM 150.64-EG1

residential or other similar sound-sensitive locations. Louvered Panels can be ordered for winter applications where wind gusts may exceed ﬁve miles per hour. The following types of enclosure options are available:

COMPRESSOR ACOUSTIC SOUND BLANKET – Each compressor is individually enclosed by an acoustic sound blanket. The sound blankets are made with one layer of acoustical absorbent textile ﬁber of 5/8” (15mm) thickness; one layer of anti-vibrating heavy material thickness of 1/8” (3mm). Both are closed by two sheets

of welded PVC, reinforced for temperature and UV resistance. (Factory-Mounted.)

ULTRA QUIET FANS – Lower RPM, 8-pole fan motors are used with steeper-pitch fans. (Factory-Mounted.)

VIBRATION ISOLATORS – Level adjusting, spring type 1” (25.4mm) or seismic deﬂection or neoprene pad isolators for mounting under unit base rails. (

Field-

Mounted.)

YORK INTERNATIONAL

9

This page intentionally left blank.

10

YORK INTERNATIONAL

Selection Data

FORM 150.64-EG1

GUIDE TO SELECTION

Capacity ratings for YORK YCAL Packaged Air-Cooled Liquid Chillers, shown on pages 16 through 39 cover the majority of design applications for these units. For unusual applications or uses beyond the scope of this catalog, please consult your nearest YORK Ofﬁce or representative.

SELECTION RULES

1. Ratings – Ratings may be interpolated, but must not be extrapolated. The Ratings given on pages 16 through 39 and the DESIGN PARAMETERS given on page 11 indicate the limits of application for these chillers.

2. Cooler Water – Ratings are based upon 2.4 GPM per ton which is equal to a 10°F chilled water range and a 0.0001 fouling factor for the cooler at sea level. Tables on pages 16 through 39 give capacity, compressor kW required, cooler GPM and unit EER.

3. Condenser – Ratings are given in terms of air on condenser in degrees Fahrenheit.

4. Copper Fin Condenser Ratings – Since the thermal conductivity of copper is slightly higher than aluminum, apply the following corrections to the standard ratings. Tons x 0.97 and compressor kW x 0.99.

5. Performance Data Correction Factors – Ratings are based on 0.0001 cooler fouling factor, 10°F chilled water range and at sea level. For operation at different conditions, apply the appropriate correction factor from the following table.

FOULING FACTOR

0.0001 0.00025

TONS

COMPR

kW

TONS

COMPR

kW

ALTITUDE

SEA LEVEL

2000 FT.

4000 FT.

6000 FT.

TEMP SPLIT

8 0.990 0.998 0.979 0.996 10 1.000 1.000 0.991 0.998 12 1.012 1.003 1.002 1.001 14 1.021 1.005 1.012 1.003

8 0.987 1.005 0.978 1.003 10 0.997 1.008 0.988 1.006 12 1.009 1.010 1.000 1.008 14 1.018 1.012 1.009 1.010

8 0.983 1.014 0.975 1.012 10 0.994 1.016 0.985 1.014 12 1.005 1.019 1.111 1.017 14 1.014 1.021 1.006 1.019

8 0.980 1.023 0.971 1.021 10 0.990 1.025 0.982 1.023 12 1.002 1.028 0.993 1.026 14 1.011 1.030 1.002 1.028

6. Ethylene Glycol Correction Factors – The following factors are to be applied to the standard ratings for units cooling ethylene glycol.

ETHYLENE GLYCOL

%

WEIGHT

10 0.996 0.999 24.3 1.049 26.2

20 0.991 0.998 25.1 1.124 17.9

30 0.984 0.997 25.9 1.258 6.7

40 0.976 0.995 26.9 1.430 -8.1

50 0.968 0.994 28.0 1.650 -28.9

TONS

COMPR KWGPM

°F/TON

PRESS

DROP

FREEZE

PT

7. Propylene Glycol Correction Factors – The following factors are to be applied to the standard ratings for units cooling propylene glycol.

PROPYLENE GLYCOL

%

WEIGHT

10 0.995 0.999 24.0 1.014 26

20 0.984 0.997 24.3 1.104 19

30 0.973 0.994 24.9 1.234 9

40 0.960 0.992 25.6 1.399 -6

50 0.943 0.989 26.6 1.599 -28

TONS

COMPR KWGPM

°F/TON

PRESS

DROP

FREEZE

PT

METHOD OF SELECTION

To select of YORK Packaged Air-Cooled Liquid Chiller, the following data must be known:

1. Design Capacity in tons refrigeration (TR).

2. Entering and Leaving Liquid Temperatures.

3. Outside ambient air temperature in degrees F.

4. GPM of chilled liquid.

Determine capacity requirements from the following formula:

GPM = RANGE (°F)

TR x 24

EXAMPLE – WATER CHILLING

1. Given: Provide a capacity of 50 tons at 42 F leav ing water at 10 F range. 0.0001FF, 85 F air on the condenser, at sea level and 60 Hz.

2. Find: Unit Size, Compressor KW Output

3. From the ratings on page 18.

Select: YCAL0061 (English Units)

-

YORK INTERNATIONAL

11

a. 56.1 Tons

kWkWxkW 8.499.55

1.56

50

==

GPM

FRang

e

Tons

GP

M 120

10

24

)50(

=

°

×

=

kWCompressorx

tons

93

.41)77.41(

87

.33

34

=

Range

Tonfacto

rFGalTons

GP

M

min/

/.°×

=

)(7.88

10

1.260.34

GP

MGPM =

×

=

b. 55.9 Compressor KW

c. 10.7 Unit EER

4. Calculate Compressor kW at 50 Tons:

5. Calculate GPM:

6. From page ____, read 6 ft of water cooler pressure drop from GPM:

7. A YCAL0061 is suitable.

EXAMPLE - BRINE CHILLING

Example - Brine Chilling

1. Given: Provide a capacity of 34 tons cooling 30% by weight Ethylene Glycol from 50 F to 40 F, 0.00025FF, 95 F air on the condenser, 60 Hz and 4000 ft. altitude.

2. Determine:

a. Unit Size

b. KW Input

c. Ethylene Glycol GPM

d. Cooler Pressure Drop

3. See E.G. correction factors, for 30% by weight E.G.

READ: 0.984 Tons Factor

0.997 Compr. KW factor

26.1 Gal,/ F/Tons Factor

4. See Performance Data Correction Factors for

0.00025 fouling factor and 4,000 ft. altitude.

READ: 0.975 Tons factor

1.012 kW factor

5. From RATINGS on page 16.

SELECT: YCAL0045 (English Units)

35.3 Tons

41.1 Compressor kW

6. Determine YCAL0045 brine cooling capacity and Compressor kW requirement from pg 14:

a. TONS: = 35.3 x 0.984 x 0.975 = 33.87

b. Compr. KW = 41.1 x 0.997 x 1.012 = 41.77

7. Determine average full load Compressor kW at 34 tons

8. Determine E.G. GPM:

9. Determine Cooler Pressure Drop:

a. See E.G. correction factors for 30% by weight

E.G.

READ: 1.258 Pressure Drop factor

b. See page 14 at 88.7 GPM for YCAL0045

READ: 6.5_Water H2O PD

c. Cooler Pressure Drop = 6.5 x 1.258 or 8.17

A YCAL0045 is suitable.

12

YORK INTERNATIONAL

Design Parameters

ENGLISH

YCAL

0041 40 55 40 200 0 125

0045 40 55 40 200 0 125

0051 40 55 40 200 0 125

0055 40 55 60 300 0 125

0061 40 55 60 300 0 125

0065 40 55 60 300 0 125

YCAL

0041 4.4 12.8 2.5 12.6 -17.7 51.7

0045 4.4 12.8 2.5 12.6 -17.7 51.7

0051 4.4 12.8 2.5 12.6 -17.7 51.7

0055 4.4 12.8 3.8 18.9 -17.7 51.7

0061 4.4 12.8 3.8 18.9 -17.7 51.7

0065 4.4 12.8 3.8 18.9 -17.7 51.7

LEAVING WATER

TEMPERATURE (

°F)

COOLER FLOW (GPM) AIR ON CONDENSER (°F)

MIN MAX MIN MAX MIN MAX

SI UNITS

LEAVING WATER

TEMPERATURE (

°DC)

COOLER FLOW (L/S) AIR ON CONDENSER (°C)

MIN MAX MIN MAX MIN MAX

FORM 150.64-EG1

NOTES:

1. For leaving brine temperature below 40°F (4.4°C), contact your nearest YORK Ofﬁce for application requirements.

2. For leaving water temperature higher than 55°F (12.8°C), contact the nearest YORK Ofﬁce for application guidelines.

3. The evaporator is protected against freezing to -20°F (-28.8°C) with an electric heater as standard.

4. For operation at temperatures below 25°F (-3.9°C), the optional Low Ambient Kit will need to be installed on the system (for YCAL0041-0065 models only).

5. For operation at temperatures above 115°F (46.1°C), the optional High Ambient Kit will need to be installed on the system.

YORK INTERNATIONAL

13

Water Pressure Drop

ENGLISH

1

10

100

10 100 100

0

FLOW, GP

M

Press Drop, Ft H

2

O

A

B

C

D

Note: Water Pressure Drop Curves may extend past the minimum and maximum water ﬂow ranges. See page 13 for minimum and maximum ﬂow points.

14

YORK INTERNATIONAL

FORM 150.64-EG1

SI

1

10

100

1000

1 1

0 100

FLOW, L/

S

Press Drop, kPA

B

A C

D

Note: Water Pressure Drop Curves may extend past the minimum and maximum water ﬂow ranges. See page 13 for minimum and maximum ﬂow points.

YORK INTERNATIONAL

15

Ratings - R-22 (60Hz - English Units)

MODEL: YCAL0041EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 35.8 30.3 12.0 35.1 32.0 11.2 34.4 33.8 10.5 33.7 35.7 9.8 32.9 37.7 9.1 32.1 39.9 8.5

42.0 37.0 30.6 12.3 36.2 32.2 11.5 35.5 34.0 10.8 34.8 35.9 10.0 34.0 38.0 9.4 33.2 40.1 8.7

44.0 38.1 30.8 12.6 37.4 32.5 11.8 36.7 34.3 11.0 35.9 36.2 10.3 35.1 38.2 9.6 34.3 40.4 8.9

45.0 38.7 31.0 12.7 38.0 32.6 11.9 37.2 34.4 11.2 36.4 36.3 10.4 35.6 38.4 9.7 34.8 40.6 9.0

46.0 39.3 31.1 12.9 38.6 32.8 12.1 37.8 34.5 11.3 37.0 36.5 10.6 36.2 38.5 9.8 35.3 40.7 9.2

48.0 40.6 31.4 13.2 39.8 33.0 12.4 39.0 34.8 11.6 38.2 36.7 10.8 37.3 38.8 10.1 36.5 41.0 9.4

50.0 41.8 31.7 13.5 41.0 33.3 12.6 40.2 35.1 11.8 39.4 37.0 11.1 38.5 39.1 10.3 37.6 41.2 9.6

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

MODEL: YCAL0045EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 39.0 33.4 12.0 38.1 35.1 11.2 37.2 37.0 10.5 36.3 39.0 9.8 35.4 41.2 9.1 34.4 43.5 8.4

42.0 40.3 33.7 12.3 39.3 35.4 11.5 38.4 37.3 10.8 37.5 39.3 10.0 36.6 41.5 9.3 35.6 43.8 8.7

44.0 41.5 34.0 12.6 40.6 35.7 11.8 39.7 37.6 11.0 38.7 39.6 10.3 37.8 41.8 9.6 36.8 44.1 8.9

45.0 42.2 34.1 12.7 41.2 35.9 11.9 40.3 37.7 11.2 39.3 39.8 10.4 38.4 41.9 9.7 37.4 44.2 9.0

46.0 42.8 34.3 12.9 41.9 36.0 12.1 40.9 37.9 11.3 40.0 39.9 10.5 39.0 42.1 9.8 38.0 44.4 9.1

48.0 44.1 34.6 13.2 43.2 36.4 12.3 42.2 38.2 11.6 41.2 40.3 10.8 40.2 42.4 10.1 39.2 44.7 9.4

50.0 45.5 35.0 13.4 44.5 36.7 12.6 43.5 38.6 11.8 42.5 40.6 11.0 41.5 42.8 10.3 40.5 45.1 9.6

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

IPLV= 13.9

IPLV= 14.0

MODEL: YCAL0051EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 45.0 38.9 12.1 43.9 41.0 11.3 42.8 43.2 10.5 41.8 45.6 9.8 40.7 48.1 9.1 39.7 50.8 8.4

42.0 46.4 39.2 12.4 45.4 41.3 11.6 44.3 43.5 10.8 43.2 45.9 10.1 42.1 48.4 9.4 41.1 51.1 8.7

44.0 47.9 39.5 12.8 46.9 41.6 11.9 45.8 43.8 11.1 44.7 46.2 10.4 43.6 48.7 9.6 42.5 51.4 8.9

45.0 48.7 39.7 12.9 47.6 41.7 12.1 46.5 43.9 11.3 45.4 46.3 10.5 44.3 48.9 9.8 43.2 51.6 9.1

46.0 49.5 39.8 13.1 48.4 41.9 12.2 47.2 44.1 11.4 46.1 46.5 10.6 45.0 49.0 9.9 43.9 51.7 9.2

48.0 51.0 40.1 13.4 49.9 42.2 12.5 48.8 44.4 11.7 47.6 46.8 10.9 46.5 49.3 10.2 45.3 52.1 9.4

50.0 52.6 40.5 13.7 51.4 42.5 12.8 50.3 44.7 12.0 49.1 47.1 11.2 48.0 49.7 10.4 46.8 52.4 9.7

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

16

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

YORK INTERNATIONAL

IPLV= 14.3

FORM 150.64-EG1

MODEL: YCAL0041EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

40.0 31.3 42.2 7.9 30.5 44.7 7.3 29.6 47.4 6.7 28.7 50.2 6.2 27.8 53.2 5.7

42.0 32.4 42.5 8.1 31.5 45.0 7.5 30.6 47.6 6.9 29.7 50.4 6.4 28.7 53.4 5.8

44.0 33.4 42.7 8.3 32.5 45.2 7.7 31.6 47.9 7.1 30.7 50.7 6.5 29.7 53.7 6.0

45.0 34.0 42.9 8.4 33.1 45.3 7.8 32.1 48.0 7.2 31.2 50.8 6.6 30.2 53.8 6.1

46.0 34.5 43.0 8.5 33.6 45.5 7.9 32.7 48.1 7.3 31.7 50.9 6.7 30.7 53.9 6.2

48.0 35.6 43.3 8.7 34.7 45.7 8.1 33.7 48.4 7.5 32.8 51.2 6.9 31.8 54.1 6.4

50.0 36.7 43.6 9.0 35.8 46.0 8.3 34.8 48.6 7.7 33.8 51.4 7.1 32.8 54.4 6.6

105 110.0 115.0 120.0 125.0

MODEL: YCAL0045EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

40.0 33.5 45.9 7.8 32.5 48.6 7.2 31.5 51.4 6.6 30.4 54.4 6.1 29.3 57.5 5.6

42.0 34.6 46.2 8.0 33.6 48.9 7.4 32.6 51.7 6.8 31.5 54.7 6.3 30.4 57.8 5.7

44.0 35.8 46.5 8.2 34.8 49.2 7.6 33.7 52.0 7.0 32.6 55.0 6.5 31.5 58.1 5.9

45.0 36.4 46.7 8.4 35.4 49.4 7.7 34.3 52.1 7.1 33.2 55.1 6.6 32.0 58.3 6.0

46.0 37.0 46.9 8.5 36.0 49.5 7.8 34.9 52.3 7.2 33.8 55.3 6.7 32.6 58.5 6.1

48.0 38.2 47.2 8.7 37.2 49.8 8.0 36.0 52.7 7.4 34.9 55.6 6.8 33.7 58.8 6.3

50.0 39.4 47.6 8.9 38.4 50.2 8.3 37.2 53.0 7.6 36.1 56.0 7.0 34.9 59.1 6.5

105 110.0 115.0 120.0 125.0

IPLV= 13.9

IPLV= 14.0

MODEL: YCAL0051EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

40.0 38.6 53.7 7.8 37.5 56.7 7.2 36.3 59.9 6.7 35.1 63.3 6.1 33.9 66.8 5.6

42.0 39.9 54.0 8.0 38.8 57.0 7.4 37.6 60.2 6.9 36.4 63.6 6.3 35.1 67.2 5.8

44.0 41.3 54.3 8.3 40.1 57.4 7.7 38.9 60.6 7.1 37.7 64.0 6.5 36.4 67.6 6.0

45.0 42.0 54.5 8.4 40.8 57.5 7.8 39.6 60.8 7.2 38.3 64.2 6.6 37.0 67.8 6.1

46.0 42.7 54.6 8.5 41.5 57.7 7.9 40.3 60.9 7.3 39.0 64.4 6.7 37.7 68.0 6.1

48.0 44.1 55.0 8.7 42.9 58.0 8.1 41.6 61.3 7.5 40.3 64.7 6.9 39.0 68.3 6.3

50.0 45.6 55.3 9.0 44.3 58.4 8.3 43.0 61.7 7.7 41.7 65.1 7.1 40.3 68.7 6.5

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

YORK INTERNATIONAL

105 110.0 115.0 120.0 125.0

IPLV= 14.3

17

Ratings - R-22 (60Hz - English Units) - Cont.

MODEL: YCAL0055EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 48.6 42.1 11.9 47.6 44.4 11.2 46.6 46.8 10.5 45.6 49.4 9.7 44.6 52.2 9.1 43.5 55.1 8.4

42.0 50.2 42.4 12.3 49.2 44.7 11.5 48.2 47.1 10.7 47.1 49.7 10.0 46.1 52.5 9.3 44.9 55.4 8.7

44.0 51.8 42.7 12.6 50.8 44.9 11.8 49.8 47.4 11.0 48.7 50.0 10.3 47.6 52.8 9.6 46.4 55.7 8.9

45.0 52.7 42.8 12.8 51.6 45.1 12.0 50.6 47.5 11.2 49.5 50.2 10.4 48.4 52.9 9.7 47.2 55.9 9.0

46.0 53.5 43.0 12.9 52.5 45.2 12.1 51.4 47.7 11.3 50.3 50.3 10.6 49.1 53.1 9.9 48.0 56.1 9.2

48.0 55.2 43.3 13.3 54.2 45.5 12.4 53.1 48.0 11.6 51.9 50.6 10.9 50.7 53.4 10.1 49.5 56.4 9.4

50.0 57.0 43.6 13.6 55.9 45.9 12.8 54.7 48.3 11.9 53.6 50.9 11.2 52.4 53.7 10.4 51.1 56.7 9.7

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

MODEL: YCAL0061EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 56.8 49.8 12.1 55.6 52.6 11.3 54.5 55.5 10.5 53.3 58.7 9.8 52.0 62.0 9.1 50.8 65.5 8.4

42.0 58.7 50.2 12.4 57.5 53.0 11.5 56.3 56.0 10.8 55.0 59.1 10.0 53.8 62.5 9.3 52.5 66.0 8.7

44.0 60.6 50.6 12.7 59.4 53.4 11.8 58.1 56.4 11.0 56.9 59.6 10.3 55.6 62.9 9.6 54.2 66.5 8.9

45.0 61.5 50.9 12.8 60.3 53.6 12.0 59.1 56.6 11.2 57.8 59.8 10.4 56.5 63.2 9.7 55.1 66.7 9.0

46.0 62.5 51.1 13.0 61.3 53.9 12.1 60.0 56.8 11.3 58.7 60.0 10.6 57.4 63.4 9.8 56.0 67.0 9.1

48.0 64.5 51.5 13.3 63.2 54.3 12.4 61.9 57.3 11.6 60.6 60.5 10.8 59.2 63.9 10.1 57.8 67.5 9.4

50.0 66.5 52.0 13.6 65.2 54.8 12.7 63.9 57.8 11.9 62.5 61.0 11.1 61.1 64.4 10.3 59.7 68.0 9.6

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

IPLV= 13.6

IPLV= 14.2

MODEL: YCAL0065EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 & & & & & & 59.9 61.4 10.6 58.5 64.8 9.8 57.2 68.4 9.1 55.8 72.2 8.5

42.0 64.5 55.7 12.4 63.2 58.7 11.6 61.8 61.9 10.8 60.5 65.3 10.1 59.1 68.9 9.4 57.6 72.8 8.7

44.0 66.5 56.2 12.7 65.2 59.2 11.9 63.9 62.5 11.1 62.5 65.9 10.3 61.0 69.5 9.6 59.6 73.4 8.9

45.0 67.6 56.5 12.8 66.3 59.5 12.0 64.9 62.7 11.2 63.5 66.2 10.4 62.0 69.8 9.7 60.5 73.7 9.0

46.0 68.7 56.8 13.0 67.3 59.8 12.1 65.9 63.0 11.3 64.5 66.5 10.6 63.0 70.1 9.8 61.5 74.0 9.1

48.0 70.8 57.3 13.3 69.5 60.4 12.4 68.0 63.6 11.6 66.5 67.1 10.8 65.0 70.8 10.1 63.5 74.7 9.4

50.0 73.1 57.9 13.6 71.6 61.0 12.7 70.2 64.2 11.9 68.7 67.7 11.1 67.1 71.4 10.3 65.5 75.3 9.6

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

IPLV= 14.5

18

YORK INTERNATIONAL

FORM 150.64-EG1

MODEL: YCAL0055EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

40.0 42.3 58.2 7.8 41.2 61.4 7.2 39.9 64.8 6.7 29.0 48.0 6.4 28.0 50.6 5.9

42.0 43.8 58.5 8.1 42.6 61.8 7.5 41.3 65.2 6.9 30.0 48.3 6.6 29.0 50.9 6.0

44.0 45.3 58.8 8.3 44.0 62.1 7.7 42.7 65.6 7.1 31.1 48.5 6.8 30.1 51.2 6.2

45.0 46.0 59.0 8.4 44.7 62.3 7.8 43.4 65.8 7.2 31.6 48.6 6.9 30.6 51.3 6.3

46.0 46.8 59.1 8.5 45.5 62.5 7.9 44.2 65.9 7.3 32.2 48.7 7.0 31.1 51.4 6.4

48.0 48.3 59.5 8.8 47.0 62.8 8.1 45.6 66.3 7.5 33.3 49.0 7.2 32.2 51.7 6.6

50.0 49.8 59.9 9.0 48.5 63.2 8.3 47.1 66.7 7.7 34.4 49.2 7.4 33.3 51.9 6.8

105 110.0 115.0 120.0 125.0

MODEL: YCAL0061EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

40.0 49.5 69.2 7.8 48.2 73.1 7.2 46.8 77.2 6.7 45.4 81.5 6.2 34.7 63.9 5.9

42.0 51.1 69.7 8.0 49.8 73.6 7.4 48.4 77.8 6.9 46.9 82.1 6.3 35.9 64.3 6.1

44.0 52.9 70.2 8.2 51.5 74.1 7.6 50.0 78.3 7.1 48.5 82.7 6.5 37.2 64.7 6.2

45.0 53.7 70.5 8.4 52.3 74.4 7.7 50.9 78.6 7.2 49.3 83.0 6.6 37.8 64.9 6.3

46.0 54.6 70.7 8.5 53.2 74.7 7.8 51.7 78.9 7.2 50.2 83.3 6.7 38.5 65.1 6.4

48.0 56.4 71.3 8.7 54.9 75.3 8.0 53.4 79.4 7.4 51.8 83.9 6.9 39.8 65.6 6.6

50.0 58.2 71.8 8.9 56.7 75.8 8.2 55.1 80.0 7.6 53.5 84.5 7.0 41.1 66.0 6.8

105 110.0 115.0 120.0 125.0

IPLV= 13.6

IPLV= 14.2

MODEL: YCAL0065EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

40.0 54.3 76.3 7.9 52.8 80.6 7.3 51.3 85.1 6.7 49.7 89.9 6.2 38.2 73.1 5.7

42.0 56.2 76.9 8.1 54.6 81.2 7.5 53.1 85.8 6.9 51.4 90.6 6.3 39.6 73.6 5.9

44.0 58.0 77.5 8.3 56.5 81.9 7.6 54.9 86.5 7.1 53.2 91.3 6.5 28.9 42.9 7.0

45.0 59.0 77.8 8.4 57.4 82.2 7.7 55.8 86.8 7.2 54.1 91.7 6.6 29.4 43.1 7.1

46.0 59.9 78.2 8.5 58.3 82.5 7.8 56.7 87.2 7.2 55.0 92.1 6.7 29.9 43.2 7.2

48.0 61.9 78.8 8.7 60.3 83.2 8.0 58.6 87.9 7.4 56.8 92.8 6.8 31.0 43.4 7.4

50.0 63.9 79.5 8.9 62.2 83.9 8.2 60.5 88.6 7.6 58.7 93.5 7.0 32.0 43.6 7.6

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

105 110.0 115.0 120.0 125.0

IPLV= 14.5

YORK INTERNATIONAL

19

Ratings - R-22 (60Hz - SI Units)

MODEL: YCAL0041EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 126.9 31.1 3.5 122.4 34.3 3.1 117.6 37.9 2.7 112.5 41.9 2.4 107.1 46.4 2.1 101.3 51.5 1.8

6.0 130.6 31.3 3.5 125.9 34.5 3.1 121.0 38.1 2.8 115.8 42.1 2.4 110.3 46.6 2.1 104.4 51.7 1.8

7.0 134.3 31.6 3.6 129.6 34.7 3.2 124.5 38.3 2.8 119.2 42.3 2.5 113.6 46.9 2.2 107.6 51.9 1.9

8.0 138.1 31.8 3.7 133.2 35.0 3.3 128.1 38.6 2.9 122.7 42.6 2.6 116.9 47.1 2.2 110.9 52.1 1.9

9.0 142.0 32.1 3.8 137.0 35.2 3.4 131.7 38.8 3.0 126.1 42.8 2.6 120.3 47.3 2.3 114.1 52.4 2.0

10.0 145.9 32.3 3.9 140.8 35.5 3.4 135.4 39.1 3.0 129.7 43.1 2.7 123.8 47.6 2.3 117.5 52.6 2.0

11.0 149.9 32.6 3.9 144.6 35.8 3.5 139.1 39.3 3.1 133.3 43.4 2.7 127.3 47.8 2.4 120.9 52.8 2.1

MODEL: YCAL0045EC

LCWT

(°C)

5.0 138.1 34.2 3.5 132.3 37.5 3.1 126.4 41.3 2.7 120.4 45.6 2.4 114.1 50.4 2.0 107.3 55.8 1.8

6.0 142.1 34.5 3.6 136.2 37.8 3.1 130.2 41.6 2.8 124.1 45.8 2.4 117.7 50.6 2.1 110.7 56.0 1.8

7.0 146.1 34.7 3.6 140.1 38.1 3.2 134.1 41.9 2.8 127.9 46.1 2.5 121.4 50.9 2.2 114.3 56.3 1.9

8.0 150.2 35.0 3.7 144.1 38.4 3.3 138.0 42.2 2.9 131.7 46.4 2.5 125.0 51.2 2.2 117.9 56.6 1.9

9.0 154.3 35.3 3.8 148.2 38.7 3.4 142.0 42.5 3.0 135.5 46.7 2.6 128.7 51.5 2.3 121.5 56.9 1.9

10.0 158.5 35.7 3.8 152.3 39.0 3.4 146.0 42.8 3.0 139.4 47.1 2.7 132.5 51.9 2.3 125.2 57.2 2.0

11.0 162.7 36.0 3.9 156.4 39.3 3.5 150.0 43.1 3.1 143.3 47.4 2.7 136.4 52.2 2.4 128.9 57.5 2.0

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

AIR TEMPERATURE ON - CONDENSER (°C)

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

MODEL: YCAL0051EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 159.2 39.9 3.5 152.4 43.8 3.1 145.7 48.3 2.7 138.8 53.2 2.4 131.6 58.8 2.0 123.9 64.8 1.8

6.0 163.9 40.1 3.6 157.0 44.1 3.2 150.2 48.5 2.8 143.2 53.5 2.4 135.8 59.1 2.1 127.9 65.2 1.8

7.0 168.6 40.4 3.7 161.7 44.3 3.2 154.7 48.8 2.8 147.5 53.8 2.5 140.0 59.4 2.2 132.0 65.5 1.9

8.0 173.5 40.7 3.8 166.4 44.6 3.3 159.3 49.1 2.9 152.0 54.1 2.5 144.4 59.7 2.2 136.2 65.8 1.9

9.0 178.3 41.0 3.8 171.2 44.9 3.4 164.0 49.4 3.0 156.5 54.4 2.6 148.7 60.0 2.3 140.4 66.2 2.0

10.0 183.3 41.3 3.9 176.0 45.2 3.5 168.7 49.7 3.1 161.1 54.7 2.7 153.2 60.3 2.3 144.7 66.5 2.0

11.0 188.3 41.6 4.0 180.9 45.5 3.5 173.4 50.0 3.1 165.7 55.0 2.7 157.7 60.7 2.4 149.0 66.9 2.1

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

20

YORK INTERNATIONAL

FORM 150.64-EG1

MODEL: YCAL0055EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 172.2 43.1 3.5 166.0 47.5 3.1 159.3 52.3 2.7 152.2 57.7 2.4 144.6 63.6 2.1 102.4 49.2 1.8

6.0 177.4 43.4 3.5 170.9 47.7 3.1 164.1 52.6 2.8 156.8 58.0 2.4 149.0 63.9 2.1 105.7 49.4 1.9

7.0 182.6 43.6 3.6 176.0 48.0 3.2 169.0 52.9 2.8 161.6 58.3 2.5 153.6 64.3 2.2 109.0 49.6 1.9

8.0 187.9 43.9 3.7 181.1 48.3 3.3 173.9 53.2 2.9 166.3 58.6 2.6 158.2 64.6 2.2 112.4 49.8 2.0

9.0 193.3 44.2 3.8 186.4 48.5 3.4 179.0 53.4 3.0 171.1 58.9 2.6 162.9 64.9 2.3 115.9 50.1 2.0

10.0 198.8 44.5 3.9 191.7 48.8 3.5 184.1 53.7 3.1 176.1 59.2 2.7 167.7 65.3 2.3 119.4 50.3 2.1

11.0 204.4 44.8 4.0 197.1 49.1 3.5 189.4 54.0 3.1 181.1 59.6 2.7 172.5 65.6 2.4 122.9 50.5 2.2

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

MODEL: YCAL0061EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 201.3 51.1 3.5 193.8 56.4 3.1 186.0 62.2 2.7 177.8 68.7 2.4 169.3 75.8 2.1 160.3 83.6 1.8

6.0 207.2 51.5 3.6 199.6 56.8 3.1 191.6 62.6 2.8 183.2 69.2 2.4 174.4 76.3 2.1 165.2 84.1 1.8

7.0 213.3 51.9 3.6 205.4 57.2 3.2 197.3 63.1 2.8 188.7 69.6 2.5 179.7 76.8 2.2 170.2 84.7 1.9

8.0 219.5 52.3 3.7 211.4 57.6 3.3 203.0 63.5 2.9 194.2 70.1 2.5 185.1 77.3 2.2 175.4 85.2 1.9

9.0 225.7 52.7 3.8 217.5 58.0 3.4 208.9 63.9 3.0 199.9 70.5 2.6 190.5 77.8 2.3 143.0 63.5 2.0

10.0 232.1 53.1 3.9 223.7 58.4 3.4 214.9 64.4 3.0 205.7 71.0 2.7 196.0 78.3 2.3 147.3 63.9 2.1

11.0 238.6 53.5 4.0 230.0 58.9 3.5 221.0 64.8 3.1 211.6 71.5 2.7 201.7 78.8 2.4 151.7 64.2 2.1

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

MODEL: YCAL0065EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 221.3 56.6 3.5 213.0 62.3 3.1 204.4 68.7 2.7 195.3 75.7 2.4 185.7 83.6 2.1 175.5 92.3 1.8

6.0 227.7 57.1 3.6 219.3 62.8 3.2 210.5 69.2 2.8 201.2 76.3 2.4 191.3 84.2 2.1 180.9 92.9 1.8

7.0 234.3 57.6 3.6 225.7 63.3 3.2 216.7 69.7 2.8 207.2 76.9 2.5 197.1 84.8 2.2 186.5 93.6 1.9

8.0 241.1 58.1 3.7 232.2 63.8 3.3 223.0 70.3 2.9 213.3 77.4 2.5 203.0 85.4 2.2 192.1 94.2 1.9

9.0 247.9 58.6 3.8 238.9 64.3 3.4 229.4 70.8 3.0 219.5 78.0 2.6 209.0 86.0 2.3 197.9 94.9 2.0

10.0 254.9 59.1 3.9 245.7 64.9 3.4 236.0 71.4 3.0 225.8 78.6 2.7 215.1 86.7 2.3 162.8 73.4 2.0

11.0 262.1 59.6 4.0 252.6 65.4 3.5 242.7 71.9 3.1 232.3 79.2 2.7 221.3 87.3 2.4 167.7 74.0 2.1

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

YORK INTERNATIONAL

21

Ratings - R-22 (50Hz - English Units)

MODEL: YCAL0041EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 30.4 23.6 13.6 29.8 25.1 12.6 29.1 26.7 11.7 28.5 28.4 10.8 27.9 30.2 10.0 27.2 32.2 9.2

42.0 31.4 23.8 13.9 30.8 25.3 12.9 30.1 26.9 12.0 29.5 28.6 11.1 28.8 30.4 10.3 28.1 32.3 9.5

44.0 32.4 24.0 14.3 31.8 25.5 13.3 31.1 27.1 12.3 30.4 28.8 11.4 29.8 30.6 10.6 29.1 32.5 9.7

45.0 33.0 24.1 14.4 32.3 25.6 13.4 31.6 27.2 12.5 30.9 28.9 11.6 30.2 30.7 10.7 29.5 32.6 9.9

46.0 33.5 24.2 14.6 32.8 25.7 13.6 32.1 27.3 12.6 31.4 29.0 11.7 30.7 30.8 10.8 30.0 32.7 10.0

48.0 34.5 24.5 15.0 33.8 25.9 13.9 33.1 27.5 12.9 32.5 29.2 12.0 31.7 31.0 11.1 31.0 33.0 10.3

50.0 35.6 24.7 15.3 34.9 26.2 14.2 34.2 27.7 13.2 33.5 29.4 12.3 32.8 31.2 11.4 32.0 33.2 10.5

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

MODEL: YCAL0045EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 32.9 25.9 13.6 32.2 27.5 12.6 31.5 29.2 11.7 30.8 31.0 10.8 30.0 32.9 10.0 29.2 35.0 9.2

42.0 34.0 26.2 13.9 33.3 27.8 12.9 32.6 29.4 12.0 31.8 31.2 11.1 31.1 33.2 10.2 30.2 35.3 9.4

44.0 35.1 26.4 14.2 34.4 28.0 13.2 33.7 29.7 12.3 32.9 31.5 11.4 32.1 33.4 10.5 31.3 35.5 9.7

45.0 35.7 26.5 14.4 34.9 28.1 13.4 34.2 29.8 12.4 33.4 31.6 11.5 32.6 33.5 10.6 31.8 35.6 9.8

46.0 36.2 26.7 14.5 35.5 28.2 13.5 34.7 29.9 12.6 34.0 31.7 11.7 33.2 33.7 10.8 32.3 35.7 10.0

48.0 37.4 26.9 14.9 36.6 28.5 13.8 35.9 30.2 12.9 35.1 32.0 11.9 34.2 33.9 11.1 33.4 36.0 10.2

50.0 38.5 27.2 15.2 37.8 28.8 14.2 37.0 30.5 13.2 36.2 32.3 12.2 35.3 34.2 11.3 34.4 36.3 10.5

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

IPLV= 16.2

IPLV= 16.1

MODEL: YCAL0051EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 37.9 30.8 13.3 37.1 32.6 12.4 36.3 34.6 11.5 35.5 36.7 10.7 34.6 38.9 9.9 33.8 41.3 9.1

42.0 39.1 31.0 13.7 38.3 32.9 12.7 37.5 34.8 11.8 36.7 36.9 11.0 35.8 39.1 10.1 34.9 41.5 9.4

44.0 40.4 31.3 14.0 39.6 33.1 13.1 38.8 35.1 12.2 37.9 37.1 11.3 37.0 39.4 10.4 36.1 41.7 9.6

45.0 41.0 31.4 14.2 40.2 33.2 13.2 39.4 35.2 12.3 38.5 37.3 11.4 37.6 39.5 10.6 36.7 41.9 9.8

46.0 41.7 31.5 14.4 40.9 33.4 13.4 40.0 35.3 12.5 39.2 37.4 11.6 38.3 39.6 10.7 37.3 42.0 9.9

48.0 43.0 31.8 14.7 42.2 33.6 13.7 41.3 35.6 12.8 40.4 37.6 11.9 39.5 39.9 11.0 38.5 42.2 10.2

50.0 44.4 32.1 15.1 43.5 33.9 14.1 42.6 35.8 13.1 41.7 37.9 12.2 40.8 40.1 11.3 39.8 42.5 10.4

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

IPLV= 15.7

22

YORK INTERNATIONAL

FORM 150.64-EG1

MODEL: YCAL0041EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

26.5 40.0 34.3 8.5 25.7 36.5 7.8 25.0 39.0 7.1 24.1 41.6 6.5 23.2 44.4 5.8

27.4 42.0 34.5 8.7 26.6 36.7 8.0 25.8 39.2 7.3 25.0 41.8 6.7 24.1 44.6 6.0

28.3 44.0 34.7 9.0 27.5 36.9 8.2 26.7 39.4 7.5 25.9 42.0 6.9 24.9 44.8 6.2

28.8 45.0 34.8 9.1 28.0 37.0 8.4 27.2 39.5 7.6 26.3 42.1 7.0 25.4 44.9 6.3

29.3 46.0 34.9 9.2 28.5 37.1 8.5 27.6 39.6 7.8 26.8 42.2 7.1 25.8 45.0 6.4

30.2 48.0 35.1 9.5 29.4 37.3 8.7 28.6 39.8 8.0 27.7 42.4 7.3 26.7 45.2 6.6

31.2 50.0 35.3 9.7 30.4 37.5 8.9 29.5 40.0 8.2 28.6 42.6 7.5 27.6 45.4 6.8

105 110.0 115.0 120.0 125.0

MODEL: YCAL0045EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

28.4 40.0 37.3 8.4 27.6 39.7 7.7 26.6 42.2 7.0 25.7 45.0 6.4 24.7 47.9 5.8

29.4 42.0 37.5 8.7 28.5 39.9 7.9 27.6 42.5 7.2 26.6 45.2 6.6 25.6 48.2 6.0

30.4 44.0 37.7 8.9 29.5 40.1 8.2 28.6 42.7 7.5 27.6 45.4 6.8 26.5 48.4 6.2

30.9 45.0 37.8 9.0 30.0 40.2 8.3 29.1 42.8 7.6 28.1 45.6 6.9 27.0 48.5 6.3

31.4 46.0 38.0 9.2 30.5 40.4 8.4 29.6 42.9 7.7 28.5 45.7 7.0 27.5 48.6 6.4

32.5 48.0 38.2 9.4 31.5 40.6 8.6 30.6 43.2 7.9 29.5 45.9 7.2 28.4 48.9 6.6

33.5 50.0 38.5 9.6 32.6 40.9 8.9 31.6 43.4 8.1 30.5 46.2 7.4 29.4 49.1 6.7

105 110.0 115.0 120.0 125.0

IPLV= 16.2

IPLV= 16.1

MODEL: YCAL0051EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

32.8 40.0 43.8 8.4 31.9 46.4 7.7 30.9 49.3 7.1 29.8 52.3 6.5 28.7 55.4 5.9

34.0 42.0 44.0 8.6 33.0 46.7 7.9 32.0 49.5 7.3 30.9 52.5 6.7 29.8 55.7 6.1

35.1 44.0 44.3 8.9 34.2 46.9 8.2 33.1 49.8 7.5 32.0 52.8 6.9 30.9 56.0 6.3

35.7 45.0 44.4 9.0 34.7 47.0 8.3 33.7 49.9 7.6 32.6 52.9 7.0 31.4 56.1 6.4

36.3 46.0 44.5 9.1 35.3 47.2 8.4 34.2 50.0 7.7 33.1 53.0 7.1 32.0 56.2 6.5

37.5 48.0 44.7 9.4 36.5 47.4 8.6 35.4 50.3 7.9 34.3 53.3 7.3 33.1 56.5 6.6

38.8 50.0 45.0 9.6 37.7 47.7 8.9 36.6 50.5 8.2 35.4 53.6 7.5 34.2 56.8 6.8

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

105 110.0 115.0 120.0 125.0

IPLV= 15.7

YORK INTERNATIONAL

23

Ratings - R-22 (50Hz - English Units) - Cont.

MODEL: YCAL0055EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 41.2 33.8 13.1 40.4 35.7 12.2 39.6 37.8 11.4 38.7 40.0 10.6 37.8 42.4 9.8 36.9 44.9 9.1

42.0 42.6 34.0 13.5 41.7 36.0 12.6 40.9 38.0 11.7 40.0 40.3 10.9 39.1 42.6 10.1 38.2 45.1 9.4

44.0 44.0 34.3 13.8 43.1 36.2 12.9 42.3 38.3 12.0 41.4 40.5 11.2 40.4 42.8 10.4 39.5 45.4 9.6

45.0 44.7 34.4 14.0 43.8 36.3 13.1 43.0 38.4 12.2 42.1 40.6 11.3 41.1 43.0 10.5 40.1 45.5 9.8

46.0 45.4 34.5 14.2 44.5 36.4 13.3 43.7 38.5 12.4 42.7 40.7 11.5 41.8 43.1 10.7 40.8 45.6 9.9

48.0 46.9 34.7 14.6 46.0 36.7 13.6 45.1 38.8 12.7 44.1 40.9 11.8 43.1 43.3 11.0 42.1 45.8 10.2

50.0 48.4 35.0 14.9 47.5 36.9 14.0 46.5 39.0 13.0 45.6 41.2 12.1 44.5 43.6 11.3 43.5 46.1 10.4

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

MODEL: YCAL0061EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 48.0 40.0 13.1 47.0 42.3 12.2 46.0 44.8 11.3 45.0 47.5 10.5 44.0 50.3 9.8 43.0 53.3 9.0

42.0 49.6 40.3 13.5 48.6 42.6 12.5 47.6 45.1 11.6 46.6 47.8 10.8 45.5 50.6 10.0 44.4 53.6 9.3

44.0 51.2 40.6 13.8 50.2 42.9 12.9 49.1 45.5 12.0 48.1 48.1 11.1 47.0 51.0 10.3 45.9 54.0 9.5

45.0 52.0 40.7 14.0 51.0 43.1 13.0 49.9 45.6 12.1 48.9 48.3 11.2 47.8 51.1 10.4 46.7 54.2 9.7

46.0 52.9 40.9 14.2 51.8 43.3 13.2 50.8 45.8 12.3 49.7 48.5 11.4 48.6 51.3 10.6 47.4 54.3 9.8

48.0 54.6 41.2 14.5 53.5 43.6 13.5 52.4 46.1 12.6 51.3 48.8 11.7 50.2 51.6 10.8 49.0 54.7 10.0

50.0 56.3 41.6 14.9 55.2 43.9 13.8 54.1 46.5 12.9 52.9 49.1 12.0 51.8 52.0 11.1 50.6 55.1 10.3

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

IPLV= 15.0

IPLV= 15.7

MODEL: YCAL0065EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

40.0 52.5 44.2 13.1 51.4 46.7 12.2 50.3 49.4 11.3 49.2 52.3 10.5 48.1 55.4 9.7 46.9 58.7 9.0

42.0 54.2 44.5 13.4 53.1 47.1 12.5 52.0 49.8 11.6 50.9 52.7 10.8 49.7 55.8 10.0 48.5 59.1 9.2

44.0 55.9 44.9 13.8 54.8 47.5 12.8 53.7 50.2 11.9 52.5 53.1 11.1 51.3 56.2 10.2 50.1 59.6 9.5

45.0 56.8 45.1 13.9 55.7 47.7 13.0 54.6 50.4 12.1 53.4 53.3 11.2 52.2 56.4 10.4 50.9 59.8 9.6

46.0 57.7 45.3 14.1 56.6 47.9 13.1 55.4 50.6 12.2 54.2 53.5 11.3 53.0 56.7 10.5 51.7 60.0 9.7

48.0 59.6 45.7 14.4 58.4 48.3 13.4 57.2 51.0 12.5 56.0 54.0 11.6 54.7 57.1 10.8 53.4 60.4 10.0

50.0 61.4 46.1 14.7 60.2 48.7 13.7 59.0 51.5 12.8 57.7 54.4 11.9 56.5 57.5 11.0 55.1 60.9 10.2

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

75.0 80.0 85.0 90.0 95.0 100.0

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

IPLV= 15.8

24

YORK INTERNATIONAL

FORM 150.64-EG1

MODEL: YCAL0055EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

36.0 40.0 47.5 8.4 35.0 50.3 7.7 33.9 53.3 7.1 32.8 56.4 6.5 31.7 59.7 6.0

37.2 42.0 47.8 8.6 36.2 50.6 8.0 35.1 53.6 7.3 34.0 56.7 6.7 32.8 60.0 6.2

38.5 44.0 48.0 8.9 37.4 50.9 8.2 36.3 53.8 7.6 35.2 57.0 6.9 34.0 60.3 6.4

39.1 45.0 48.2 9.0 38.1 51.0 8.3 36.9 54.0 7.7 35.8 57.1 7.0 34.6 60.5 6.4

39.8 46.0 48.3 9.1 38.7 51.1 8.4 37.6 54.1 7.8 36.4 57.3 7.1 35.2 60.6 6.5

41.1 48.0 48.5 9.4 40.0 51.4 8.7 38.8 54.4 8.0 37.6 57.6 7.3 36.4 60.9 6.7

42.4 50.0 48.8 9.7 41.3 51.7 8.9 40.1 54.7 8.2 38.9 57.9 7.6 37.6 61.2 6.9

105 110.0 115.0 120.0 125.0

MODEL: YCAL0061EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

41.9 40.0 56.5 8.3 40.7 59.9 7.7 39.5 63.5 7.0 38.2 67.3 6.4 36.8 71.3 5.9

43.3 42.0 56.8 8.6 42.1 60.3 7.9 40.9 63.8 7.2 39.5 67.7 6.6 38.1 71.7 6.1

44.8 44.0 57.2 8.8 43.6 60.6 8.1 42.3 64.3 7.4 40.9 68.1 6.8 39.5 72.2 6.2

45.5 45.0 57.4 8.9 44.3 60.8 8.2 43.0 64.5 7.5 41.6 68.3 6.9 40.2 72.4 6.3

46.3 46.0 57.6 9.0 45.0 61.0 8.3 43.7 64.7 7.6 42.3 68.5 7.0 40.8 72.6 6.4

47.8 48.0 57.9 9.3 46.5 61.4 8.5 45.1 65.1 7.9 43.7 68.9 7.2 42.2 73.0 6.6

49.3 50.0 58.3 9.5 48.0 61.8 8.8 46.6 65.5 8.1 45.2 69.4 7.4 43.7 73.5 6.8

105 110.0 115.0 120.0 125.0

IPLV= 15.0

IPLV= 15.7

MODEL: YCAL0065EC

AIR TEMPERATURE ON - CONDENSER (°F)

LCWT

(°F)

TONS KW EER TONS KW EER TONS KW EER TONS KW EER TONS KW EER

45.6 40.0 62.2 8.3 44.3 65.9 7.6 42.8 69.9 7.0 41.3 74.2 6.3 39.6 78.7 5.8

47.2 42.0 62.7 8.5 45.8 66.4 7.8 44.3 70.4 7.2 42.8 74.7 6.5 41.1 79.2 5.9

48.8 44.0 63.1 8.7 47.4 66.9 8.0 45.9 70.9 7.4 44.3 75.2 6.7 42.6 79.8 6.1

49.6 45.0 63.3 8.8 48.2 67.1 8.1 46.7 71.2 7.5 45.1 75.5 6.8 43.4 80.1 6.2

50.4 46.0 63.6 9.0 49.0 67.4 8.2 47.4 71.4 7.6 45.8 75.7 6.9 44.1 80.3 6.3

52.0 48.0 64.0 9.2 50.6 67.9 8.5 49.0 72.0 7.8 47.4 76.3 7.1 35.1 54.3 7.2

53.7 50.0 64.5 9.4 52.2 68.4 8.7 50.6 72.5 8.0 49.0 76.8 7.3 36.3 54.6 7.4

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

105 110.0 115.0 120.0 125.0

IPLV= 15.8

YORK INTERNATIONAL

25

Ratings - R-22 (50Hz - SI Units)

MODEL: YCAL0041EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 107.8 24.3 3.9 103.7 27.1 3.4 99.6 30.3 3.0 95.2 33.9 2.6 90.4 38.1 2.2 85.1 42.8 1.9

6.0 111.0 24.5 4.0 106.9 27.3 3.5 102.6 30.5 3.0 98.1 34.1 2.6 93.3 38.2 2.3 87.8 43.0 1.9

7.0 114.2 24.7 4.1 110.0 27.5 3.6 105.7 30.6 3.1 101.1 34.3 2.7 96.1 38.4 2.3 90.6 43.2 2.0

8.0 117.5 24.9 4.2 113.2 27.6 3.7 108.8 30.8 3.2 104.1 34.5 2.8 99.1 38.6 2.4 93.4 43.3 2.0

9.0 120.8 25.1 4.3 116.4 27.9 3.7 112.0 31.0 3.3 107.2 34.6 2.8 102.0 38.8 2.4 96.3 43.5 2.1

10.0 124.2 25.3 4.4 119.7 28.1 3.8 115.2 31.2 3.3 110.3 34.8 2.9 105.0 39.0 2.5 99.2 43.7 2.1

11.0 127.6 25.5 4.5 123.1 28.3 3.9 118.4 31.4 3.4 113.5 35.0 3.0 108.1 39.2 2.6 102.2 43.9 2.2

MODEL: YCAL0045EC

LCWT

(°C)

5.0 116.7 26.7 3.9 112.2 29.7 3.4 107.4 33.1 3.0 102.2 36.9 2.6 96.7 41.3 2.2 90.6 46.3 1.8

6.0 120.2 26.9 4.0 115.6 29.9 3.5 110.7 33.3 3.0 105.4 37.1 2.6 99.7 41.5 2.2 93.5 46.5 1.9

7.0 123.7 27.1 4.1 119.0 30.1 3.6 114.0 33.5 3.1 108.6 37.3 2.7 102.8 41.7 2.3 96.5 46.7 1.9

8.0 127.2 27.3 4.2 122.4 30.3 3.7 117.3 33.7 3.2 111.9 37.6 2.7 106.0 41.9 2.4 99.6 46.9 2.0

9.0 130.8 27.6 4.2 125.9 30.6 3.7 120.7 33.9 3.3 115.2 37.8 2.8 109.2 42.2 2.4 102.7 47.1 2.0

10.0 134.4 27.8 4.3 129.4 30.8 3.8 124.2 34.2 3.3 118.6 38.0 2.9 112.4 42.4 2.5 105.8 47.3 2.1

11.0 138.1 28.1 4.4 133.0 31.1 3.9 127.7 34.4 3.4 122.0 38.2 2.9 115.7 42.6 2.5 109.0 47.6 2.2

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

AIR TEMPERATURE ON - CONDENSER (°C)

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

MODEL: YCAL0051EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 134.2 31.6 3.9 129.2 35.1 3.4 123.9 39.0 2.9 118.2 43.4 2.5 112.0 48.2 2.2 105.3 53.6 1.9

6.0 138.2 31.9 3.9 133.1 35.3 3.5 127.7 39.2 3.0 121.8 43.6 2.6 115.5 48.5 2.2 108.7 53.9 1.9

7.0 142.3 32.1 4.0 137.1 35.5 3.5 131.5 39.4 3.1 125.5 43.8 2.7 119.1 48.7 2.3 112.1 54.1 2.0

8.0 146.4 32.3 4.1 141.1 35.8 3.6 135.4 39.6 3.2 129.3 44.0 2.7 122.7 48.9 2.4 115.6 54.3 2.0

9.0 150.6 32.5 4.2 145.2 36.0 3.7 139.3 39.9 3.2 133.1 44.3 2.8 126.4 49.1 2.4 119.2 54.6 2.1

10.0 154.9 32.8 4.3 149.3 36.2 3.8 143.4 40.1 3.3 137.0 44.5 2.9 130.1 49.4 2.5 122.8 54.8 2.1

11.0 159.2 33.0 4.4 153.5 36.5 3.9 147.4 40.4 3.4 140.9 44.7 2.9 134.0 49.6 2.5 126.5 55.1 2.2

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

26

YORK INTERNATIONAL

FORM 150.64-EG1

MODEL: YCAL0055EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 146.1 34.7 3.8 140.9 38.4 3.3 135.3 42.5 2.9 129.3 47.1 2.5 122.9 52.2 2.2 115.9 57.8 1.9

6.0 150.5 34.9 3.9 145.1 38.6 3.4 139.4 42.7 3.0 133.3 47.3 2.6 126.7 52.5 2.3 119.6 58.1 1.9

7.0 155.0 35.1 4.0 149.5 38.8 3.5 143.6 42.9 3.1 137.4 47.6 2.7 130.6 52.7 2.3 123.3 58.4 2.0

8.0 159.5 35.3 4.1 153.9 39.0 3.6 147.9 43.1 3.2 141.5 47.8 2.7 134.6 53.0 2.4 127.1 58.7 2.0

9.0 164.2 35.5 4.2 158.3 39.2 3.7 152.2 43.3 3.2 145.6 48.0 2.8 138.6 53.2 2.4 131.0 58.9 2.1

10.0 168.9 35.7 4.3 162.9 39.4 3.8 156.6 43.6 3.3 149.9 48.2 2.9 142.7 53.4 2.5 134.9 59.2 2.1

11.0 173.7 36.0 4.4 167.5 39.6 3.9 161.1 43.8 3.4 154.2 48.5 2.9 146.8 53.7 2.6 138.9 59.5 2.2

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

MODEL: YCAL0061EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 170.1 41.1 3.8 163.9 45.5 3.3 157.4 50.5 2.9 150.5 56.0 2.5 143.0 62.2 2.2 134.7 69.0 1.9

6.0 175.2 41.3 3.9 168.8 45.8 3.4 162.2 50.7 3.0 155.1 56.3 2.6 147.5 62.5 2.2 139.0 69.4 1.9

7.0 180.3 41.6 4.0 173.8 46.1 3.5 167.0 51.1 3.0 159.8 56.7 2.6 152.0 62.9 2.3 143.3 69.8 2.0

8.0 185.6 41.9 4.1 178.9 46.4 3.6 171.9 51.4 3.1 164.6 57.0 2.7 156.6 63.3 2.3 147.8 70.2 2.0

9.0 190.9 42.2 4.1 184.0 46.7 3.6 176.9 51.7 3.2 169.4 57.3 2.8 161.2 63.6 2.4 152.2 70.6 2.0

10.0 196.4 42.5 4.2 189.3 47.0 3.7 182.0 52.0 3.3 174.3 57.6 2.8 165.9 64.0 2.4 156.7 71.0 2.1

11.0 201.9 42.8 4.3 194.7 47.3 3.8 187.2 52.3 3.3 179.3 58.0 2.9 170.7 64.3 2.5 161.3 71.4 2.1

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

MODEL: YCAL0065EC

AIR TEMPERATURE ON - CONDENSER (°C)

LCWT

(°C)

5.0 186.0 45.4 3.8 179.1 50.2 3.3 171.9 55.6 2.9 164.0 61.7 2.5 155.3 68.5 2.1 145.5 76.2 1.8

6.0 191.4 45.7 3.9 184.4 50.5 3.4 177.0 56.0 3.0 169.0 62.1 2.6 160.2 69.0 2.2 150.2 76.7 1.9

7.0 197.0 46.0 4.0 189.8 50.9 3.5 182.2 56.4 3.0 174.1 62.5 2.6 165.1 69.4 2.3 155.0 77.2 1.9

8.0 202.7 46.4 4.0 195.3 51.3 3.5 187.6 56.7 3.1 179.3 62.9 2.7 170.1 69.9 2.3 159.9 77.7 2.0

9.0 208.4 46.8 4.1 200.9 51.6 3.6 193.0 57.1 3.2 184.5 63.3 2.7 175.2 70.3 2.4 164.8 78.1 2.0

10.0 214.3 47.1 4.2 206.6 52.0 3.7 198.5 57.5 3.2 189.8 63.8 2.8 180.3 70.8 2.4 169.8 78.6 2.1

11.0 220.3 47.5 4.3 212.4 52.4 3.8 204.1 58.0 3.3 195.2 64.2 2.9 185.6 71.3 2.5 174.9 79.2 2.1

NOTES:

1. kW = Compressor Input Power

2. EER = Chiller EER (includes power from compressors, fans, and the control panels 0.8 kW)

3. LCWT = Leaving Chilled Water Temperature

4. Ratings are based upon 2.4 GPM cooler water per ton and 0.0001 fouling factor

5. Rated in accordance with ARI Standard 550/590-98

6. The shaded points are certiﬁed in accordance with ARI Standard 550/590-98

25.0 30.0 35.0 40.0 45.0 50.0

KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP KW KW COP

YORK INTERNATIONAL

27

Part Load Ratings - R-22 (English Units)

YCAL0041

% FULL

LOAD

DISPL.

100.0 35.0 38.2 95.0 9.6

75.0 28.2 24.5 83.3 11.2

50.0 20.2 14.0 69.7 14.4

25.0 10.6 6.1 55.0 17.0

% FULL

LOAD

DISPL.

100.0 37.8 41.8 95.0 9.6

73.2 30.3 26.0 83.0 11.5

50.0 22.1 15.5 70.0 14.5

23.2 10.8 6.2 55.0 17.0

% FULL

LOAD

DISPL.

100.0 43.5 48.7 95.0 9.6

69.2 33.7 28.3 81.4 11.9

48.3 24.4 17.2 68.6 14.6

20.9 13.3 7.2 55.0 18.7

TONS KW

IPLV: 14.0 EER

YCAL0045

TONS KW

IPLV: 14.1 EER

YCAL0051

TONS KW

IPLV: 14.4 EER

Ambient °FUNIT

EER

YCAL0055

% FULL

LOAD

DISPL.

100.0 47.6 52.8 95.0 9.6

73.5 37.2 32.3 81.9 11.4

47.0 25.0 17.2 66.5 14.6

23.5 13.0 7.8 55.0 16.3

% FULL

LOAD

DISPL.

100.0 55.7 62.9 95.0 9.6

69.3 42.4 35.8 80.7 11.9

46.2 30.1 20.4 67.5 15.2

23.1 15.7 9.1 55.0 17.5

% FULL

LOAD

DISPL.

100.0 60.0 68.3 95.0 9.6

71.5 47.4 40.3 82.4 12.1

50.0 34.7 25.3 69.6 14.5

21.5 16.2 9.0 55.0 18.2

TONS KW

IPLV: 13.6 EER

YCAL0061

TONS KW

IPLV: 14.3 EER

YCAL0065

TONS KW

IPLV: 14.5 EER

Ambient °FUNIT

EER

28

YORK INTERNATIONAL

Part Load Ratings - R-22 (SI)

FORM 150.64-EG1

YCAL0041

% FULL

LOAD

DISPL.

100.0 123.0 38.2 35.0 2.8

75.0 99.0 24.5 28.5 3.3

50.0 71.2 14.0 21.0 4.2

25.0 37.4 6.1 12.8 5.0

% FULL

LOAD

DISPL.

100.0 133.1 41.8 35.0 2.8

73.2 106.5 26.0 28.3 3.4

50.0 77.6 15.5 21.1 4.2

23.2 37.9 6.2 12.8 5.0

% FULL

LOAD

DISPL.

100.0 153.1 48.7 35.0 2.8

69.2 118.5 28.3 27.5 3.5

48.3 85.7 17.2 20.3 4.3

20.9 46.8 7.2 12.8 5.5

KW

CompKWAmbient °CUNIT

IPLV: 4.10 COP

YCAL0045

CompKWAmbient °CUNIT

IPLV: 4.12 COP

YCAL0051

CompKWAmbient °CUNIT

IPLV: 4.23 COP

COP

YCAL055

% FULL

LOAD

DISPL.

100.0 167.3 52.8 35.0 2.8

73.5 130.8 32.3 27.7 3.4

47.0 87.8 17.2 19.2 4.3

23.5 45.6 7.8 12.8 4.8

% FULL

LOAD

DISPL.

100.0 195.8 62.9 35.0 2.8

69.3 149.0 35.8 27.0 3.5

46.2 106.0 20.4 19.7 4.5

23.1 55.3 9.1 12.8 5.1

% FULL

LOAD

DISPL.

100.0 211.1 68.3 35.0 2.8

71.5 166.6 40.3 28.0 3.6

50.0 121.9 25.3 20.9 4.3

21.5 56.9 9.0 12.8 5.3

KW

CompKWAmbient °CUNIT

IPLV: 4.00 COP

YCAL0061

CompKWAmbient °CUNIT

IPLV: 4.18 COP

YCAL0065

CompKWAmbient °CUNIT

IPLV: 4.24 COP

COP

SCOP

YORK INTERNATIONAL

29

Physical Data

Dimension General Unit Data Nominal Compressor Capacity Condenser Condenser Fans, Low Sound Condenser Fans, Ultra Quiet Evaporator

YCAL Model

Length Width Height

No.

144.8 90.6 47.8 34.9 2 35/35 1.7/1.7 2942 3300 2967 3325 10 10 - 10 10 - 87.0 2/2 17 2/2 2 1140 47400 2/2 2 838 47400 2.7 300 450 40 200 3

0041

144.8 90.6 47.8 38.0 2 40/35 1.7/1.7 2968 3326 3001 3359 12 12 - 10 10 - 87.0 2/2 17 2/2 2 1140 47400 2/2 2 838 47400 3.5 300 450 40 200 3

0045

144.8 90.6 47.8 43.4 2 40/45 1.7/2.2 3448 3985 3480 4017 12 12 - 13 15 - 87.0 3/3 17 2/2 2 1140 47400 2/2 2 838 47400 3.5 300 450 40 200 3

0051

144.8 90.6 62.6 47.4 2 50/50 2.2/2.2 3558 4035 3595 4073 15 13 - 13 15 - 116.0 2/2 17 2/2 2 1140 52000 2/2 2 838 52000 4.1 300 450 60 300 3

0055

144.8 90.6 62.6 56.0 2 55/55 2.3/2.2 3863 4436 3908 4481 20 15 - 15 15 - 116.0 3/2 17 2/2 2 1140 52000 2/2 2 838 52000 4.9 300 450 60 300 3

0061

153.6 90.6 62.6 60.1 2 60/55 2.3/2.2 4097 4703 4142 4748 20 20 - 15 15 - 128.0 3/3 13 2/2 2 1140 52000 2/2 2 838 52000 4.9 300 450 60 300 3

0065

Nomi-

nal

Tons,

R-22

Num-

ber of

Refrig-

erant

Circuits

Refrigerant

Charge,

Operating,

R-22 (lbs)

ckt1/ckt2 ckt1/ckt2

Oil Charge,

gallons

60Hz

Alumi-

Coils,

Shipping

Weight

num

Fin

lbs

Copper

Fin

Coils,

lbs

Operating

Weight

Alumi-

num

Fin

Coils,

lbs

Copper

Fin

Coils,

lbs

Circuit 1 Ciruict 2

Com-

Compressor 2

Compressor 3

pressor 1

Compressor 4

Compressor 5

Compressor 6

50Hz

Dimension General Unit Data Nominal Compressor Capacity Condenser Condenser Fans, Low Sound Condenser Fans, Ultra Quiet Evaporator

Num-

Refrigerant

ber of

YCAL

Model

Length Width Height

No.

145.8 91.20 47.75 29.6 2.0 35.0 / 35.0 1.7 / 1.7 2942.0 3300.0 2967.0 3325.0 8.3 8.3 - 8.3 8.3 - 87.0 2.0 / 2.0 17.0 2.0 / 2.0 1.2 950.0 39500.0 2.0 / 2.0 1.2 698.3 39500.0 2.7 300.0 450.0 40.0 200.0 3.0

0041

145.8 91.20 47.75 32.3 2.0 40.0 / 35.0 1.7 / 1.7 2968.0 3326.0 3001.0 3359.0 10.0 10.0 - 8.3 8.3 - 87.0 2.0 / 2.0 17.0 2.0 / 2.0 1.2 950.0 39500.0 2.0 / 2.0 1.2 698.3 39500.0 3.5 300.0 450.0 40.0 200.0 3.0

0045

145.8 91.20 47.75 37.3 2.0 40.0 / 45.0 1.7 / 2.2 3448.0 3985.0 3480.0 4017.0 10.0 10.0 - 10.8 12.5 - 87.0 3.0 / 3.0 17.0 2.0 / 2.0 1.2 950.0 39500.0 2.0 / 2.0 1.2 698.3 39500.0 3.5 300.0 450.0 40.0 200.0 3.0

0051

145.8 91.20 62.73 40.2 2.0 50.0 / 50.0 2.2 / 2.2 3558.0 4035.0 3595.0 4073.0 12.5 10.8 - 10.8 12.5 - 116.0 2.0 / 2.0 17.0 2.0 / 2.0 1.2 950.0 43333.3 2.0 / 2.0 1.2 698.3 43333.3 4.1 300.0 450.0 60.0 300.0 3.0

0055

145.8 91.20 62.73 47.6 2.0 55.0 / 55.0 2.3 / 2.2 3863.0 4436.0 3908.0 4481.0 16.7 12.5 - 12.5 12.5 - 116.0 3.0 / 2.0 17.0 2.0 / 2.0 1.2 950.0 43333.3 2.0 / 2.0 1.2 698.3 43333.3 4.9 300.0 450.0 60.0 300.0 3.0

0061

154.6 91.20 62.73 50.9 2.0 60.0 / 55.0 2.3 / 2.2 4097.0 4703.0 4142.0 4748.0 16.7 16.7 - 12.5 12.5 - 128.0 3.0 / 3.0 13.0 2.0 / 2.0 1.2 950.0 43333.3 2.0 / 2.0 1.2 698.3 43333.3 4.9 300.0 450.0 60.0 300.0 3.0

0065

Nomi-

nal

KW,

R-22

Refrig-

Circuits

Charge,

Operating,

erant

R-22 (kg)

ckt1/ckt2 ckt1/ckt2

Oil Charge,

liters

Shipping Weight

Aluminum Fin Coils, lb

Cop-

per Fin

Coils, lb

Operating

Weight

Aluminum Fin Coils, lb

Cop-

per Fin

Coils, lb

Circuit 1 Circuit 2

Com-

Compressor 2

Compressor 3

pressor 1

Compressor 4

Compressor 5

Compressor 6

30

YORK INTERNATIONAL

60Hz

FORM 150.64-EG1

Number of

Rows

Total Face

Area ft2

Ckt. 1/Ckt. 2 Ckt. 1/Ckt. 2 ckt1/ckt2

Number of

Total Face Area

Rows

Fins

2

m

Ckt. 1/Ckt. 2 Ckt. 1/Ckt. 2 ckt1/ckt2

per cm

Fins

per

Inch

Number of

Fans

Number of

Fans

Power kw/fan

Fan

Fan Power hp/fan

Fan

RPM

Fan

RPM

Total

Chiller

fpm

Number of

Total

Chiller

CFM

Number of Fans

Fans

50Hz

Fan hp

Fan

Power

kw/fan

Fan

RPM

Fan

RPM

Total

Chiller

CFM

Total

Chiller

CFM

Water

Volume,

gallons

Water

Volume,

gallons

Maximum Water

Side Pressure, PSIG

Maximum

Water

Side Pressure,

psig

Maximum

Refrig-

erant

Side Pressure, PSIG

Maxi-

mum Refrig-

erant

Side Pressure,

psig

Minimum

Chiller

Water

Flow Rate,

gpm

Minimum

Chiller

Water

Flow

Rate,

gpm

Maximum

Chiller

Water

Flow

Rate,

gpm

Maxi-

mum

Chiller

Water

Flow Rate,

gpm

Nomi-

nal

Water

Con-

nections Size,

inches

Nominal

Water Con

nections

Size, inches

-

YORK INTERNATIONAL

31

Sound Data

60Hz Line Frequency

Low Noise Fan R-22

63 125 250 500 1000 2000 4000 8000 dBA

YCAL0041 92 91 92 90 86 81 77 74 92 YCAL0045 92 91 92 90 86 81 77 74 92 YCAL0051 91 92 92 91 87 82 78 75 92 YCAL0055 93 95 95 93 90 85 81 77 95 YCAL0061 93 95 95 93 90 86 82 77 95 YCAL0065 94 94 95 93 90 86 82 77 95

60Hz Line Frequency

Low Noise Fan with compressor sound blankets installed R-22

63 125 250 500 1000 2000 4000 8000 dBA

YCAL0041 92 91 92 90 86 81 77 73 91 YCAL0045 92 91 92 90 86 81 77 73 91 YCAL0051 91 92 92 90 86 81 77 73 91 YCAL0055 93 95 95 93 89 84 80 76 94 YCAL0061 93 95 95 93 89 84 80 76 94 YCAL0065 94 94 95 93 89 84 80 75 94

60Hz Line Frequency

Ultra Quiet Fan R-22

63 125 250 500 1000 2000 4000 8000 dBA

YCAL0041 94 88 88 87 83 79 75 74 88 YCAL0045 94 88 88 87 83 79 75 74 88 YCAL0051 94 90 89 88 84 80 76 75 90 YCAL0055 96 93 91 90 87 83 79 77 92 YCAL0061 96 93 91 90 87 84 80 77 92 YCAL0065 96 92 91 90 87 84 81 77 92

60Hz Line Frequency

Ultra Quiet Fan with compressor sound blankets installed R-22

63 125 250 500 1000 2000 4000 8000 dBA

YCAL0041 94 88 88 85 82 77 74 73 87 YCAL0045 94 88 88 85 82 77 74 73 87 YCAL0051 94 90 89 86 83 78 74 73 88 YCAL0055 96 93 91 89 85 81 77 76 91 YCAL0061 96 93 91 89 85 81 78 76 91 YCAL0065 96 92 91 89 86 81 78 75 91

32

YORK INTERNATIONAL

FORM 150.64-EG1

50Hz Line Frequency

Low Noise Fan R-22

63 125 250 500 1000 2000 4000 8000 dBA

YCAL0041 88 87 88 87 83 78 74 71 88 YCAL0045 88 87 88 87 83 78 74 71 88 YCAL0051 88 89 89 87 83 79 75 72 89 YCAL0055 89 92 92 90 86 82 78 74 91 YCAL0061 90 91 91 90 86 82 78 74 92 YCAL0065 90 91 91 90 86 83 79 73 92

50Hz Line Frequency

Low Noise Fan with compressor sound blankets installed R-22

63 125 250 500 1000 2000 4000 8000 dBA

YCAL0041 88 87 88 86 82 77 73 69 87 YCAL0045 88 87 88 86 82 77 73 69 87 YCAL0051 88 89 89 86 82 77 73 69 88 YCAL0055 89 92 92 89 85 80 76 72 90 YCAL0061 90 91 91 89 85 80 76 72 90 YCAL0065 90 91 91 89 85 80 77 72 90

50Hz Line Frequency

Ultra Quiet Fan R-22

63 125 250 500 1000 2000 4000 8000 dBA

YCAL0041 90 84 84 84 80 75 72 71 85 YCAL0045 90 84 84 84 80 75 72 71 85 YCAL0051 90 88 86 85 81 78 73 72 87 YCAL0055 92 90 88 87 84 80 76 74 89 YCAL0061 92 90 88 87 84 81 77 74 89 YCAL0065 92 89 87 87 84 81 78 73 89

50Hz Line Frequency

Ultra Quiet Fan with compressor sound blankets installed R-22

63 125 250 500 1000 2000 4000 8000 dBA

YCAL0041 90 84 84 82 78 73 70 69 84 YCAL0045 90 84 84 82 78 73 70 69 84 YCAL0051 90 88 86 82 79 74 71 69 84 YCAL0055 92 90 88 85 82 77 74 72 87 YCAL0061 92 90 88 85 82 77 74 72 87 YCAL0065 92 89 87 85 82 77 74 72 87

YORK INTERNATIONAL

33

Dimensions - YCAL0041 (English)

VIEW B-B

3 15/16"

3 1/4"

6 3/4"

BOTTOM OF PANEL

7/8" TYP.

47 3/4"

46 15/16"

45 1/8"

12 5/8"

3" VICTAULIC (typ)

90 1/4" BASE WIDTH

LEFT END

LIQUID OUT

34 5/8"

15 3/4"

9 15/16"

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

Center of Gravity (in.)

YCAL

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-

able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 6'; rear to wall – 6'; cooler end to wall – 4'0"; coil end to wall - 6'; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 6".

34

X Y X Y

0041 59.6 43.6 0041 63.6 43.7

YCAL

Center of Gravity (in.)

YORK INTERNATIONAL

90 9/16"

45 5/16"

Y

C

G

X

1 1/16"

ORIGIN

END CAP

WIDTH

21 13/16"

TOP VIEW

9 13/16"

1 1/16"

9 13/16"

9/16" DIA MOUNTING HOLES(typ)

144 13/16"

15 1/16"

13 15/16"

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

38"

5 5/16"

25 3/8"

13 5/8"

B

COIL

END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

35

Dimensions - YCAL0045 (English)

VIEW B-B

3 15/16"

3 1/4"

6 3/4"

BOTTOM OF PANEL

7/8" TYP.

47 3/4"

46 15/16"

45 1/8"

12 5/8"

3" VICTAULIC (typ)

90 1/4" BASE WIDTH

LEFT END

LIQUID OUT

34 5/8"

15 3/4"

9 15/16"

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

0045 59.2 43.5 0045 63.2 43.7

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-

able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 6'; rear to wall – 6'; cooler end to wall – 4'0"; coil end to wall - 6'; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 6".

36

YORK INTERNATIONAL

90 9/16"

45 5/16"

Y

C

G

X

1 1/16"

ORIGIN

END CAP

WIDTH

20 1/16"

TOP VIEW

9 13/16"

1 1/16"

9 13/16"

9/16" DIA MOUNTING HOLES(typ)

15 1/16"

13 15/16"

TWO LIFTING HOLES

BOTH SIDES

Z

38"

5 5/16"

25 3/8"

13 5/8"

B

COIL END

COOLER

END

CONTROL

PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

37

Dimensions - YCAL0051 (English)

VIEW B-B

3 15/16"

3 1/4"

6 3/4"

BOTTOM OF PANEL

7/8" TYP.

47 3/4"

46 15/16"

45 1/8"

12 5/8"

3" VICTAULIC (typ)

90 1/4" BASE WIDTH

LEFT END

LIQUID OUT

34 5/8"

15 3/4"

9 15/16"

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

0051 59.2 42.6 0051 64.3 42.9

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-

able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 6'; rear to wall – 6'; cooler end to wall – 4'0"; coil end to wall - 6'; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 6".

38

YORK INTERNATIONAL

90 9/16"

45 5/16"

Y

C

G

X

1 1/16"

ORIGIN

END CAP

WIDTH

20 1/16"

TOP VIEW

9 13/16"

1 1/16"

9 13/16"

9/16" DIA MOUNTING HOLES(typ)

144 13/16"

15 1/16"

13 15/16"

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

38"

5 5/16"

25 3/8"

13 5/8"

B

COIL END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

39

Dimensions - YCAL0055EC - (English)

VIEW B-B

3 15/16"

3 1/4"

6 3/4"

BOTTOM OF PANEL

7/8" TYP.

62 5/8"

61 7/8"

45 1/8"

12 5/8"

3" VICTAULIC (typ)

90 1/4" BASE WIDTH

LEFT END

LIQUID OUT

34 11/16"

15 3/4"

9 15/16"

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

0055 57.9 43.0 0055 62.5 43.2

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-

able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 6'; rear to wall – 6'; cooler end to wall – 4'0"; coil end to wall - 6'; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 6".

40

YORK INTERNATIONAL

90 9/16"

45 5/16"

Y

C

G

X

1 1/16"

ORIGIN

END CAP

WIDTH

18 7/16"

TOP VIEW

9 13/16"

1 1/16"

9 13/16"

9/16" DIA MOUNTING HOLES(typ)

144 13/16"

15 1/16"

14"

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

38"

5 3/16"

25 3/8"

28 9/16"

B

COIL

END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

41

Dimensions - YCAL0061 (English)

VIEW B-B

3 15/16"

3 1/4"

6 3/4"

BOTTOM OF PANEL

7/8" TYP.

62 5/8"

61 7/8"

43 1/8"

12 5/8"

3" VICTAULIC (typ)

90 1/4" BASE WIDTH

LEFT END

LIQUID OUT

34 11/16"

15 3/4"

9 15/16"

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

0061 56.6 45.2 0061 61.8 45.8

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-

able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 6'; rear to wall – 6'; cooler end to wall – 4'0"; coil end to wall - 6'; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 6".

42

YORK INTERNATIONAL

90 9/16"

43 5/16"

Y

C

G

X

1 1/16"

ORIGIN

END CAP

WIDTH

16 11/16"

TOP VIEW

9 13/16"

1 1/16"

9 13/16"

9/16" DIA MOUNTING HOLES(typ)

144 13/16"

15 1/16"

14"

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

38"

5 3/16"

25 3/8"

28 9/16"

B

COIL END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

43

Dimensions - YCAL0065 (English)

62 5/8"

61 7/8"

34 11/16"

15 3/4"

9 15/16"

43 1/8"

12 5/8"

3" VICTAULIC (typ)

ELECTRICAL ACCESS PANEL

90 1/4" BASE WIDTH

LEFT END

LIQUID OUT

LIQUID IN

VIEW B-B

7/8" TYP.

3 15/16"

3 1/4"

6 3/4"

BOTTOM OF PANEL

Aluminum Copper

YCAL

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

0065 59.7 44.9 0065 65.2 44.9

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-

able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 6'; rear to wall – 6'; cooler end to wall – 4'0"; coil end to wall - 6'; top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 6".

44

YORK INTERNATIONAL

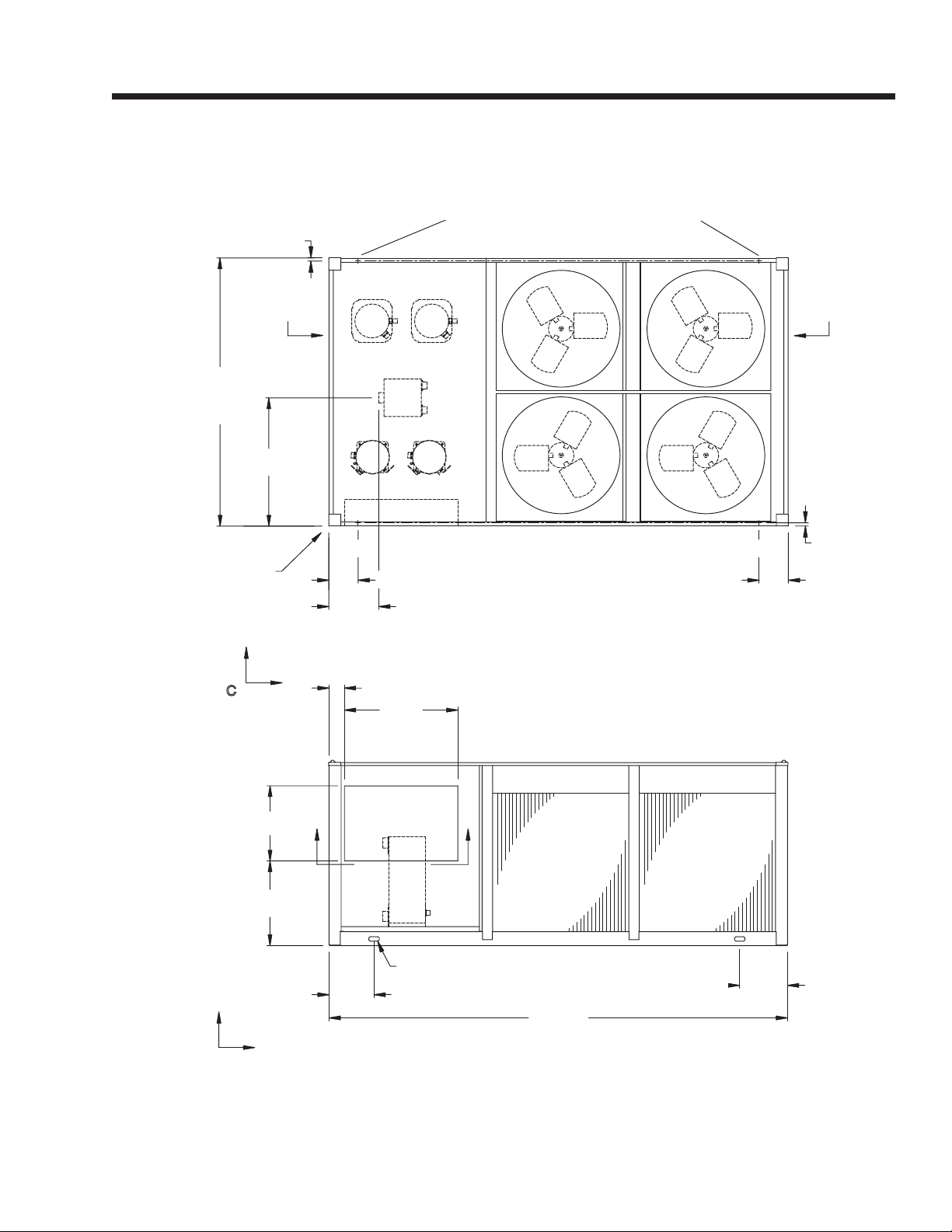

90 9/16"

43 5/16"

16 11/16"

38"

5 3/16"

153 5/8"

15 1/16"

16"

25 3/8"

28 9/16"

CONTROL PANEL

TWO LIFTING HOLES

BOTH SIDES

Y

TOP VIEW

C

G

X

FRONT VIEW

C

G

X

Z

1 1/16"

ORIGIN

9 13/16"

B

9/16" DIA MOUNTING HOLES(typ)

END CAP

WIDTH

COIL END

COOLER

END

FORM 150.64-EG1

YORK INTERNATIONAL

45

Dimensions - YCAL0041 (SI)

VIEW B-B

100

82

171

BOTTOM OF PANEL

22 TYP.

1213

1192

1146

321

76 VICTAULIC (typ)

2292 BASE WIDTH

LEFT END

LIQUID OUT

879

401

252

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

0041 1513.7 1107.0 0041 1616.1 1111.1

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

NOTE: All dimensions are in mm unless speciﬁed otherwise.

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable

operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 2m; rear to wall – 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 152mm.

46

YORK INTERNATIONAL

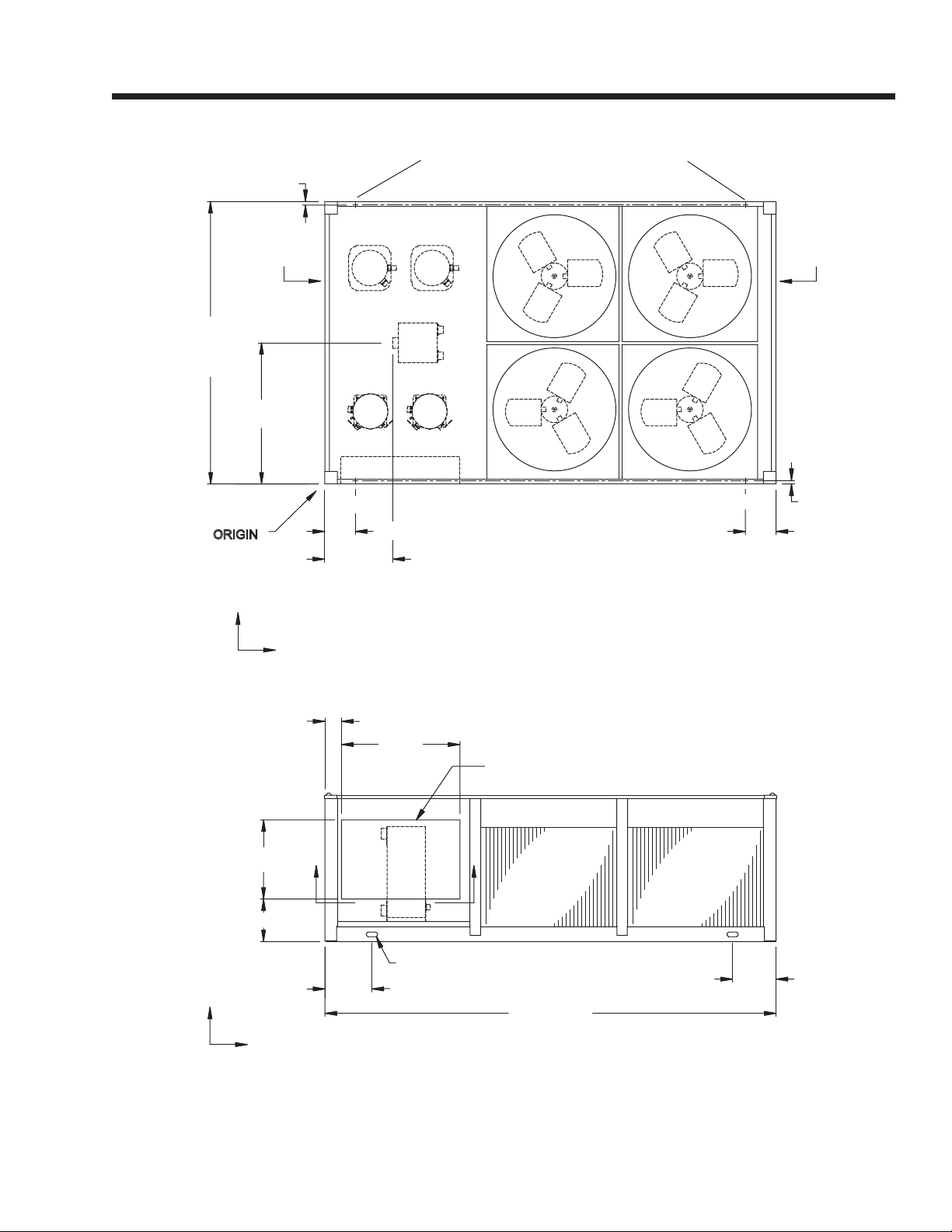

2301

1150

Y

C

G

X

28

ORIGIN

END CAP

WIDTH

554

TOP VIEW

249

28

249

14 DIA MOUNTING HOLES(typ)

3678

383

355

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

965

135

645

346

B

COIL END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

47

Dimensions - YCAL0045 (SI)

VIEW B-B

100

82

171

BOTTOM OF PANEL

22 TYP.

1213

1192

1146

321

76 VICTAULIC (typ)

2292 BASE WIDTH

LEFT END

LIQUID OUT

879

401

252

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

0045 1503.5 1105.5 0045 1605.9 1109.7

NOTE: All dimensions are in mm unless speciﬁed otherwise.

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable

operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 2m; rear to wall – 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 152mm.

48

YORK INTERNATIONAL

2301

1150

Y

C

G

X

28

ORIGIN

END CAP

WIDTH

509

TOP VIEW

249

28

249

14 DIA MOUNTING HOLES(typ)

3678

383

355

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

965

135

645

346

B

COIL END

COOLER

END

CONTROL

PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

49

Dimensions - YCAL0051 (SI)

VIEW B-B

100

82

171

BOTTOM OF PANEL

22 TYP.

1213

1192

1146

321

76 VICTAULIC (typ)

2292 BASE WIDTH

LEFT END

LIQUID OUT

879

401

252

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

0051 1504.6 1082.4 0051 1633.0 1090.8

NOTE: All dimensions are in mm unless speciﬁed otherwise.

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable

operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 2m; rear to wall – 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 152mm.

50

YORK INTERNATIONAL

2301

1150

Y

C

G

X

28

ORIGIN

END CAP

WIDTH

509

TOP VIEW

249

28

249

14 DIA MOUNTING HOLES(typ)

383

355

TWO LIFTING HOLES

BOTH SIDES

Z

965

135

645

346

B

COIL END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

51

Dimensions -YCAL0055 (SI)

VIEW B-B

100

82

171

BOTTOM OF PANEL

22 TYP.

1590

1572

1146

321

76 VICTAULIC (typ)

2292 BASE WIDTH

LEFT END

LIQUID OUT

880

401

252

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

0055 1470.3 1092.0 0055 1586.9 1098.3

NOTE: All dimensions are in mm unless speciﬁed otherwise.

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable

operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 2m; rear to wall – 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 152mm.

52

YORK INTERNATIONAL

2301

1151

Y

C

G

X

28

ORIGIN

END CAP

WIDTH

468

TOP VIEW

249

28

249

14 DIA MOUNTING HOLES(typ)

3678

383

356

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

965

131

645

726

B

COIL

END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

53

Dimensions - YCAL0061 (SI)

VIEW B-B

100

82

171

BOTTOM OF PANEL

22 TYP.

1590

1572

1095

321

76 VICTAULIC (typ)

2292 BASE WIDTH

LEFT END

LIQUID OUT

880

401

252

ELECTRICAL ACCESS PANEL

LIQUID IN

Aluminum Copper

YCAL

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

0061 1438.0 1147.1 0061 1569.3 1162.9

NOTE: All dimensions are in mm unless speciﬁed otherwise.

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable

operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 2m; rear to wall – 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 152mm.

54

YORK INTERNATIONAL

2301

1100

Y

C

G

X

28

ORIGIN

END CAP

WIDTH

424

TOP VIEW

R1

249

28

R2

249

L1

L2

14 DIA MOUNTING HOLES(typ)

3678

383

356

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

965

131

645

726

B

COIL END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

55

Dimensions - YCAL0065 (SI)

1590

1572

880

401

252

1095

321

76 VICTAULIC (typ)

ELECTRICAL ACCESS PANEL

2292 BASE WIDTH

LEFT END

LIQUID OUT

LIQUID IN

VIEW B-B

22 TYP.

100

82

171

BOTTOM OF PANEL

Aluminum Copper

YCAL

0065 1517.6 1140.3 0065 1655.5 1141.1

Center of Gravity (in.)

X Y X Y

YCAL

Center of Gravity (in.)

NOTE: All dimensions are in mm unless speciﬁed otherwise.

NOTE:

Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable

operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airﬂow patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts; however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 2m; rear to wall – 2m; cooler end to wall – 1.2m; coil end to wall - 2m; top – no obstructions allowed; distance between adjacent units – 3m. No more than one adjacent wall may be higher than the unit. 1" nominal deﬂection isolators (not shown) will increase overall unit height by 152mm.

56

YORK INTERNATIONAL

2301

1100

Y

C

G

X

28

ORIGIN

END CAP

WIDTH

424

TOP VIEW

R1

249

28

R2

249

L1

L2

14 DIA MOUNTING HOLES(typ)

3678

383

356

TWO LIFTING HOLES

BOTH SIDES

FRONT VIEW

C

G

X

Z

965

131

645

726

B

COIL END

COOLER

END

CONTROL PANEL

FORM 150.64-EG1

YORK INTERNATIONAL

57

Isolator Selections

E

Illustration shows single spring CIP-B or CIP-C mount.

HCL

SBC

Slot Width - SW

HCW

MAX BOLT

DIA.

- MBD

BASE PLATE DIMENSIONS

NON-SKID NEOPRENE

A

COUSTICAL ISOLATION PAD (Bolting to floor is not necessary for indoor applications)

All springs have additional travel to solid equal to 50% of the rated deflection.

A

L

FREE & OPERATING HEIGHT

T

W

FERROUS HOUSING

SIDE ACCESS INTERNAL ADJUSTMENT BOLT Turn clockwise to load spring and maintain Free & Operating Height.

Dowel Pin is 3/8" dia. for

CIP-A & 1/2" thereafter

Mounting may be operated 1/2" above Free & Operating Height.

NOTECIP Mounts are not

to be used in seismic or wind load applications.

EQUIPMENT BASE

TYPE CIP DIMENSIONS (inches)†

†Casting dimensions may vary ±1/8"

Size A L T W SW HCL HCW MBD SBC

Free

Ht.

CIP-B 8

/

4

/

2

/

16

8

CIP-C 6

/

8

/

16

/

8

5

1

7

3

/

8

1

6

/

4

3

/

5

/

4

3

8

/

8

7

/

16

9

2

/

4

3

/

2

1

/

2

/

4

1

6 7

/

2

/

4

1

3

1 1

/

4

/

8

1

7

7 7

Min

Ht.

5

/

4

1

6

/

4

3

6

ONE INCH DEFLECTION SPRING ISOLATOR CROSS-REFERENCE

CIP-X-

FOR UNITS WITH ALL POINT LOADS LESS THATN 1404 LBS (637 KG)

Weight Range (lbs) Weight Range (kg)

239 to 384 lbs 108 to 174 kg CIP-B- Red

384 to 639 lbs 174 to 290 kg CIP-B- White

639 to 851 lbs 290 to 386 kg CIP-B- Blue

851 to 1064 lbs 386 to 483 kg CIP-B- Gray

1064 to 1404 lbs 483 to 637 kg CIP-B- Black

FOR UNITS WITH ANY POINT LOAD ABOVE 1404 LBS (637 KG)

Weight Range (lbs) Weight Range (kg)

Up to 851 lbs Up to 386 kg CIP-C- Black

851 to 1149 lbs

1149 to 1489 lbs

1489 to 1786 lbs 675 to 910 kg CIP-C-

1786 to 2028 lbs 910 to 920 kg CIP-C-

2028 to 2254 lbs 920 to 1022 kg CIP-C- Red w/ Red

2254 to 2936 lbs 1022 to 1332 kg CIP-C- Red w/ Green

58

386 to 521 kg CIP-C- Yellow

521 to 675 kg CIP-C- Black

Model Number Color

Yellow w/

Red

Yellow w/

Green

YORK INTERNATIONAL

"CS" Cap Screw

BC

"MBD" Max. Bolt Dia.

Steel Plate - Top & Bottom Neoprene covered to prevent corrosion

L

T

H

W

D

NEOPRENE ISOLATOR CROSS-REFERENCE

ND-X

FORM 150.64-EG1

Size D H L T W BC CS MBD

ND-C 2 9/16 2 3/ 4 5 1/ 2 1/ 4 2 5/16 4 1/80 1/2- 13 x 1” 1/ 2" ND-D 3 3/ 8 2 3/ 4 6 1/ 4 5/16 4 5 1/2- 13 x 1” 1/ 2" ND-E 4 1/ 2 4 3/ 4 7 3/ 8 1/ 4 5 1/80 6 1/80 1/2- 13 x 1” 1/ 2"

ND-C 65.1 69.9 139.7 6.4 58.7 101.9 1/2- 13 x 1” 1/ 2" ND-D 85.7 69.9 158.8 7.9 101.6 127.0 1/2- 13 x 1” 1/ 2" ND-E 114.3 120.7 187.3 6.4 127.3 152.7 1/2- 13 x 1” 1/ 2"

ENGLISH

SI

Weight Range

(lbs)

Weight Range

(kg)

Model Number Color

Up to 751 lbs Up to 341 kg ND-C Yellow

751 to 1651 lbs 341 to 749 kg ND-D Yellow

1651 to 3226 lbs 749 to 1463 kg ND-E Yellow

YORK INTERNATIONAL

59

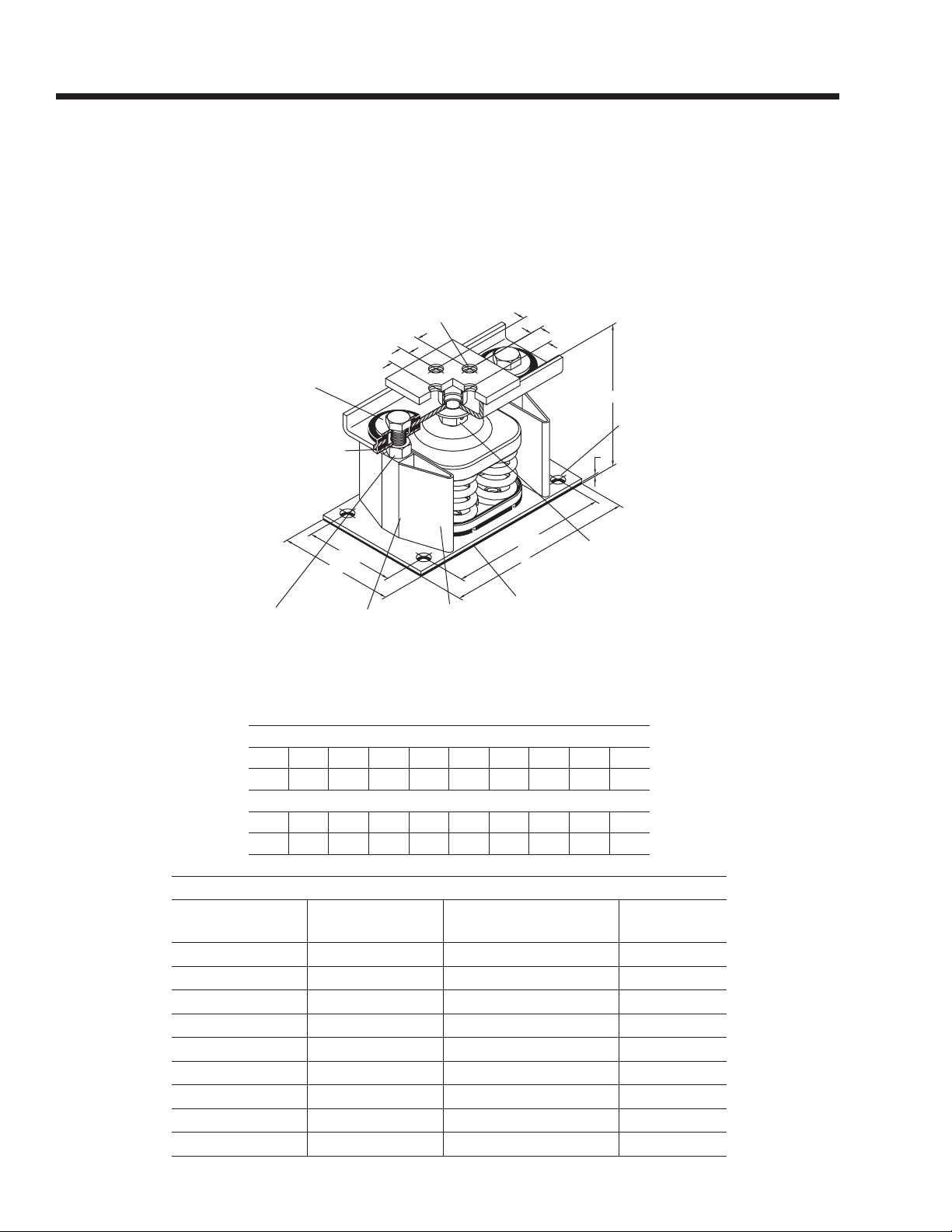

Isolator Details (cont'd)

SLRS-2-C2 has 2 springs.

E

H

T

HCW

W

L

HCL

"D" Tap - 4 Holes unless otherwise requested

Adjustment Bolt

Vertical Limit

Stops-Out of

contact during

normal operation

Non-Skid Neoprene PadPad can be removed if mounts are welded into position.

Enclosed Steel Housing

Internal

Neoprene

Acoustical

Pad

Lower Restraining Nut

Rubber Snubbing Collar

MBD -Max Bolt Diameter

TWO INCH DEFLECTION, SEISMIC SPRING ISOLATOR CROSS-REFERENCE

SLRS

60

*Weight Range

Up to 358 lbs Up to 162 kg SLRS-2-C2- Red

358 to 443 lbs 162 to 201 kg SLRS-2-C2- White

443 to 582 lbs 201 to 264 kg SLRS-2-C2- Black

582 to 783 lbs 264 to 335 kg SLRS-2-C2- Blue

783 to 1038 lbs 335 to 471 kg SLRS-2-C2- Green

1038 to 1497 lbs 471 to 679 kg SLRS-2-C2- Gray

1497 to 2058 lbs 679 to 933 kg SLRS-2-C2- Silver

2058 to 2619 lbs 933 to 1188 kg SLRS-2-C2- Gray w/ red

2619 to 3180 lbs 1188 to 1442 kg SLRS-2-C2- Silver w/ red

ENGLISH

SIZE H T D E L HCL W HCW MBD

2-C2 8 1/2 3/8 5/8 1 3/8 14 12 1/4 5 1/4 3 1/ 2 5/8"

SIZE H T D E L HCL W HCW MBD

2-C2 215.9 9.5 15.9 34.9 355.6 311.2 133.4 88.9 5/8"

Weight Range

(lbs)

(kg)

SI

Model Number Color

YORK INTERNATIONAL

INTENTIONALLY LEFT BLANK

FORM 150.64-EG1

YORK INTERNATIONAL

61

Electrical Data

NOTES:

1. Minimum Circuit Ampacity (MCA) is based on 125% of the rated load amps for the largest motor plus 100% of the rated load amps for all other loads included in the circuit, per N.E.C. Article 430-24. If the optional Factory Mounted Control Transformer is provided, add the following MCA values to the electrical tables for the system providing power to the transformer: -17, add 2.5 amps; -28, add 2.3 amps; -40, add 1.5 amps, -46, add 1.3 amps;

-58, add 1 amps.

2. The minimum recommended disconnect switch is based on 115% of the rated load amps for all loads included in the circuit, per N.E.C. Article 440.

3. Minimum fuse size is based upon 150% of the rated load amps for the largest motor plus 100% of the rated load amps for all other loads included in the circuit to avoid nuisance trips at start-up due to lock rotor amps. It is not recommended in applications where brown outs, frequent starting and stopping of the unit, and/or operation at ambient temperatures in excess of 95

4. Maximum fuse size is based upon 225% of the rated load amps for the largest motor plus 100% of the rated load amps for all other loads included in the circuit, per N.E.C. Article 440-22.

5. Circuit breakers must be UL listed and CSA certiﬁed and maximum size is based on 225% of the rated load amps for the largest motor plus 100% of the rated load amps for all other loads included in the circuit. Otherwise, an HACR-type circuit breakers must be used. Maximum HACR circuit breaker rating is based on 225% of the rated load amps for the largest motor plus 100% of the rated load amps for all other loads included in the circuit.

ºF (35ºC) is anticipated.

6. The “INCOMING WIRE RANGE” is the minimum and maximum wire size that can be accommodated by the unit wiring lugs. The (2) preceding the wire range indicates the number of termination points available per phase of the wire range speciﬁed. Actual wire size and number of wires per phase must be determined based on the National Electrical Code,

7. A ground lug is provided for each compressor system to accommodate a ﬁeld grounding conductor per N.E.C. Table 250-95. A control circuit grounding lug is also supplied.

8. The supplied disconnect is a “Disconnecting Means” as deﬁned in the N.E.C. 100, and is intended for isolating the unit for the available power supply to perform maintenance and troubleshooting. This disconnect is not intended to be a Load Break Device.

9. Field Wiring by others which complies to the National Electrical Code & Local Codes.

using copper connectors only. Field wiring must also comply with local codes.

62

YORK INTERNATIONAL

FORM 150.64-EG1

UNIT VOLTAGE

MODELS w/o

CONTROL

TRANS

MODELS w/

CONTROL

TRANS

A. Minimum #14 AWG, 75°C, Copper Recommended B. Minimum and Maximum Over Current Protection, Dual Element Fuse or Circuit Breaker

UNIT

VOLTAGE

-17 200-1-60 15A 10A 15A 30 A / 240V

-28 230-1-60 15A 10A 15A 30 A / 240V

-40 380-1-60 15A 10A 15A 30 A / 480V

-46 460-1-60 15A 10A 15A 30 A / 480V

-50 380/415-1-60 15A 10A 15A 30A / 415V

-58 575-1-60 15A 10A 15A 30 A / 600V

CONTROL

POWER

115-1-60/50

MCA

NOTE A

15A 10A 15A 30 A / 240V

VOLTAGE RANGE

VOLTAGE CODE UNIT POWER MIN. MAX.

-17 200-3-60 180 220

-28 230-3-60 207 253

-40 380/415-3-60 342 440

-46 460-3-60 414 506

-50 380/415-3-50 342 440

-58 575-3-60 517 633

OVER CURRENT PROTECTION,

SEE NOTE B

MIN MAX

NF DISC Sw

LEGEND

ACR-LINE ACROSS THE LINE START C.B. CIRCUIT BREAKER D.E. DUAL ELEMENT FUSE DISC SW DISCONNECT SWITCH FACT MOUNT CB FACTORY MOUNTED CIRCUIT BREAKER FLA FULL LOAD AMPS HZ HERTZ MAX MAXIMUM MCA MINIMUM CIRCUIT AMPACITY MIN MINIMUM MIN NF MINIMUM NON FUSED RLA RATED LOAD AMPS S.P. WIRE SINGLE POINT WIRING UNIT MTD SERV SW UNIT MOUNTED SERVICE (NON-FUSED DISCONNECT SWITCH) LRA LOCKED ROTOR AMPS

YORK INTERNATIONAL

63

Electrical Data - 60Hz

(One Field Provided Power Supply to the chiller. Field connections to Factory Provided Power Terminal Block (standard), Non-Fused Discon-

MODEL

YCAL

0041

0045

0051

0055

0061

0065

VOLT

200 197 250 225 225 225 225 1 6awg - 500MCM 1 6awg - 350MCM

230 184 250 200 200 200 200 1 6awg - 500MCM 1 6awg - 350MCM

380 107 150 125 125 125 125 1 6awg - 500MCM 1 6awg - 350MCM

460 90 100 100 100 100 100 1 6awg - 500MCM 1 6awg - 350MCM

575 71 100 80 80 80 80 1 6awg - 500MCM 1 6awg - 350MCM

200 199 250 225 225 225 225 1 6awg - 500MCM 1 6awg - 350MCM

230 186 250 200 200 200 200 1 6awg - 500MCM 1 6awg - 350MCM

380 108 150 125 125 125 125 1 6awg - 500MCM 1 6awg - 350MCM

460 91 100 100 100 100 100 1 6awg - 500MCM 1 6awg - 350MCM

575 71 100 80 80 80 80 1 6awg - 500MCM 1 6awg - 350MCM

200 228 250 250 250 250 250 1 6awg - 500MCM 2 3/0 - 250MCM

230 212 250 225 250 225 250 1 6awg - 500MCM 2 3/0 - 250MCM

380 123 150 150 150 150 150 1 6awg - 500MCM 1 6awg - 350MCM

460 103 150 110 110 110 110 1 6awg - 500MCM 1 6awg - 350MCM

575 81 100 90 90 90 90 1 6awg - 500MCM 1 6awg - 350MCM

200 250 400 300 300 300 300 1 6awg - 500MCM 2 3/0 - 250MCM

230 233 400 250 300 250 300 1 6awg - 500MCM 2 3/0 - 250MCM

380 135 150 150 150 150 150 1 6awg - 500MCM 1 6awg - 350MCM

460 113 150 125 125 125 125 1 6awg - 500MCM 1 6awg - 350MCM

575 89 100 100 100 100 100 1 6awg - 500MCM 1 6awg - 350MCM

200 274 400 300 300 300 300 1 6awg - 500MCM 1 250MCM - 500MCM

230 255 400 300 300 300 300 1 6awg - 500MCM 1 250MCM - 500MCM

380 148 200 175 175 175 175 1 6awg - 500MCM 1 6awg - 350MCM

460 125 150 150 150 150 150 1 6awg - 500MCM 1 6awg - 350MCM

575 98 150 110 110 110 110 1 6awg - 500MCM 1 6awg - 350MCM

200 292 400 350 350 350 350 1 6awg - 500MCM 1 250MCM - 500MCM

230 272 400 300 300 300 300 1 6awg - 500MCM 1 250MCM - 500MCM

380 158 200 175 175 175 175 1 6awg - 500MCM 1 6awg - 350MCM

460 132 150 150 150 150 150 1 6awg - 500MCM 1 6awg - 350MCM

575 104 150 110 125 110 125 1 6awg - 500MCM 1 6awg - 350MCM

SINGLE POINT FIELD SUPPLIED POWER WIRING (See Fig. 2)

nect Switch (optional) or Circuit Breaker (optional).)

FIELD WIRING LUGS

5

TERMINAL BLOCK (std)

LUGS/

PHASE

LUG WIRE RANGE

MCA

1

MIN N/F

DISC

2

SW

D.E. FUSE CKT. BKR.

REC. MAX4REC. MAX

6

FIELD WIRING LUGS

NF DISC. SWITCH (opt)

LUGS/

PHASE

6

LUG WIRE RANGE

YCAL0041 - YCAL0065

See Notes on page 100.

64

YORK INTERNATIONAL

FORM 150.64-EG1

(One Field Provided Power Supply to the chiller. Field connections to Factory Provided Power Terminal Block (standard), Non-Fused Discon-

FIELD WIRING LUGS6

CIRCUIT BREAKER (opt)

LUGS/ PHASE LUG WIRE RANGE RLA LRA RLA LRA QTY FLA(EA) RLA LRA RLA LRA QTY FLA(EA)

1 6awg - 350MCM 39.1 250 39.1 250 2 7.6 39.1 250 39.1 250 2 7.6

1 6awg - 350MCM 36.2 250 36.2 250 2 7.4 36.2 250 36.2 250 2 7.4

1 6awg - 350MCM 20.9 155 20.9 155 2 4.5 20.9 155 20.9 155 2 4.5

1 6awg - 350MCM 17.2 125 17.2 125 2 4 17.2 125 17.2 125 2 4

1 6awg - 350MCM 13.8 100 13.8 100 2 2.9 13.8 100 13.8 100 2 2.9

1 6awg - 350MCM 40.0 250 40.0 250 2 7.6 39.1 250 39.1 250 2 7.6

1 6awg - 350MCM 37.0 250 37.0 250 2 7.4 36.2 250 36.2 250 2 7.4

1 6awg - 350MCM 21.3 155 21.3 155 2 4.5 20.9 155 20.9 155 2 4.5

1 6awg - 350MCM 17.6 125 17.6 125 2 4 17.2 125 17.2 125 2 4

1 6awg - 350MCM 14.1 100 14.1 100 2 2.9 13.8 100 13.8 100 2 2.9

2 3/0 - 250MCM 40.0 350 40.0 350 2 7.6 49.4 316 53.8 374 2 7.6

2 3/0 - 250MCM 37.0 350 37.0 350 2 7.4 45.8 316 49.8 374 2 7.4

1 6awg - 350MCM 21.3 195 21.3 195 2 4.5 26.4 199 28.7 235 2 4.5

1 6awg - 350MCM 17.6 167 17.6 167 2 4 21.8 158 23.7 187 2 4

1 6awg - 350MCM 14.1 125 14.1 125 2 2.9 17.4 126 19.0 150 2 2.9

2 3/0 - 250MCM 53.8 374 49.4 316 2 7.6 49.4 316 53.8 374 2 7.6

2 3/0 - 250MCM 49.8 374 45.8 316 2 7.4 45.8 316 49.8 374 2 7.4

1 6awg - 350MCM 28.7 235 26.4 199 2 4.5 26.4 199 28.7 235 2 4.5

1 6awg - 350MCM 23.7 187 21.8 158 2 4 21.8 158 23.7 187 2 4

1 6awg - 350MCM 19.0 150 17.4 126 2 2.9 17.4 126 19.0 150 2 2.9

1 250MCM - 500MCM 68.3 505 53.8 425 2 7.6 53.8 425 53.8 425 2 7.6

1 250MCM - 500MCM 63.3 505 49.8 425 2 7.4 49.8 425 49.8 425 2 7.4

1 6awg - 350MCM 36.5 280 28.7 239 2 4.5 28.7 239 28.7 239 2 4.5

1 6awg - 350MCM 30.1 225 23.7 198 2 4 23.7 198 23.7 198 2 4

1 6awg - 350MCM 24.1 180 19.0 148 2 2.9 19.0 148 19.0 148 2 2.9

1 250MCM - 500MCM 68.3 505 68.3 505 2 7.6 53.8 425 53.8 425 2 7.6

1 250MCM - 500MCM 63.3 505 63.3 505 2 7.4 49.8 425 49.8 425 2 7.4

1 6awg - 350MCM 36.5 280 36.5 280 2 4.5 28.7 239 28.7 239 2 4.5

1 6awg - 350MCM 30.1 225 30.1 225 2 4 23.7 198 23.7 198 2 4

1 6awg - 350MCM 24.1 180 24.1 180 2 2.9 19.0 148 19.0 148 2 2.9

SINGLE POINT FIELD SUPPLIED POWER WIRING (See Fig. 2)

nect Switch (optional) or Circuit Breaker (optional).)

SYSTEM #1 COMPRESSOR & FAN SYSTEM #2 COMPRESSOR & FAN

COMPR. #1 COMPR. #2 FANS COMPR. #1 COMPR. #2 FANS

YCAL0041 - YCAL0065

YORK INTERNATIONAL

65

Electrical Data - 50Hz

(One Field Provided Power Supply to the chiller. Field connections to Factory Provided Power Terminal Block (standard), Non-Fused Discon-

MODEL

YCAL

0041

0045

0051

0055

0061

0065

VOLT

380/415 90 100 100 100 100 100 1 6awg - 500MCM 1 6awg - 350MCM 1 6awg - 350MCM 17.2 125 17.2 125 2 4 17.2 125 17.2 125 2 4

380/415 91 100 100 100 100 100 1 6awg - 500MCM 1 6awg - 350MCM 1 6awg - 350MCM 17.6 125 17.6 125 2 4 17.2 125 17.2 125 2 4

380/415 103 150 110 110 110 110 1 6awg - 500MCM 1 6awg - 350MCM 1 6awg - 350MCM 17.6 158 17.6 158 2 4 21.8 127 23.7 187 2 4

380/415 113 150 125 125 125 125 1 6awg - 500MCM 1 6awg - 350MCM 1 6awg - 350MCM 23.7 187 21.8 127 2 4 21.8 127 23.7 187 2 4

380/415 124 150 150 150 150 150 1 6awg - 500MCM 1 6awg - 350MCM 1 6awg - 350MCM 30.1 225 23.7 198 2 4 23.7 167 23.7 167 2 4

380/415 132 150 150 150 150 150 1 6awg - 500MCM 1 6awg - 350MCM 1 6awg - 350MCM 30.1 225 30.1 225 2 4 23.7 198 23.7 198 2 4

MCA

1

N/F DISC

MIN

SW

SINGLE POINT FIELD SUPPLIED POWER WIRING (See Fig. 2)

nect Switch (optional) or Circuit Breaker (optional).)

D.E. FUSE CKT. BKR.

2

REC. MAX4REC. MAX

5

FIELD WIRING LUGS6 FIELD WIRING LUGS6 FIELD WIRING LUGS

TERMINAL BLOCK (std) NF DISC. SWITCH (opt) CIRCUIT BREAKER (opt) COMPR. #1 COMPR. #2 FANS COMPR. #1 COMPR. #2 FANS

LUGS/

PHASE

LUG WIRE RANGE

LUGS/

PHASE

LUG WIRE RANGE

YCAL0041 - YCAL0065

66

YORK INTERNATIONAL

FORM 150.64-EG1

(One Field Provided Power Supply to the chiller. Field connections to Factory Provided Power Terminal Block (standard), Non-Fused Discon

6

SYSTEM #1 COMPRESSOR & FAN SYSTEM #2 COMPRESSOR & FAN

LUGS/

PHASE

LUG WIRE RANGE RLA LRA RLA LRA QTY

SINGLE POINT FIELD SUPPLIED POWER WIRING (See Fig. 2)

nect Switch (optional) or Circuit Breaker (optional).)

FLA

RLA LRA RLA LRA QTY

(EA)

FLA

(EA)

YCAL0041 - YCAL0065

-

YORK INTERNATIONAL

67

Power Wiring

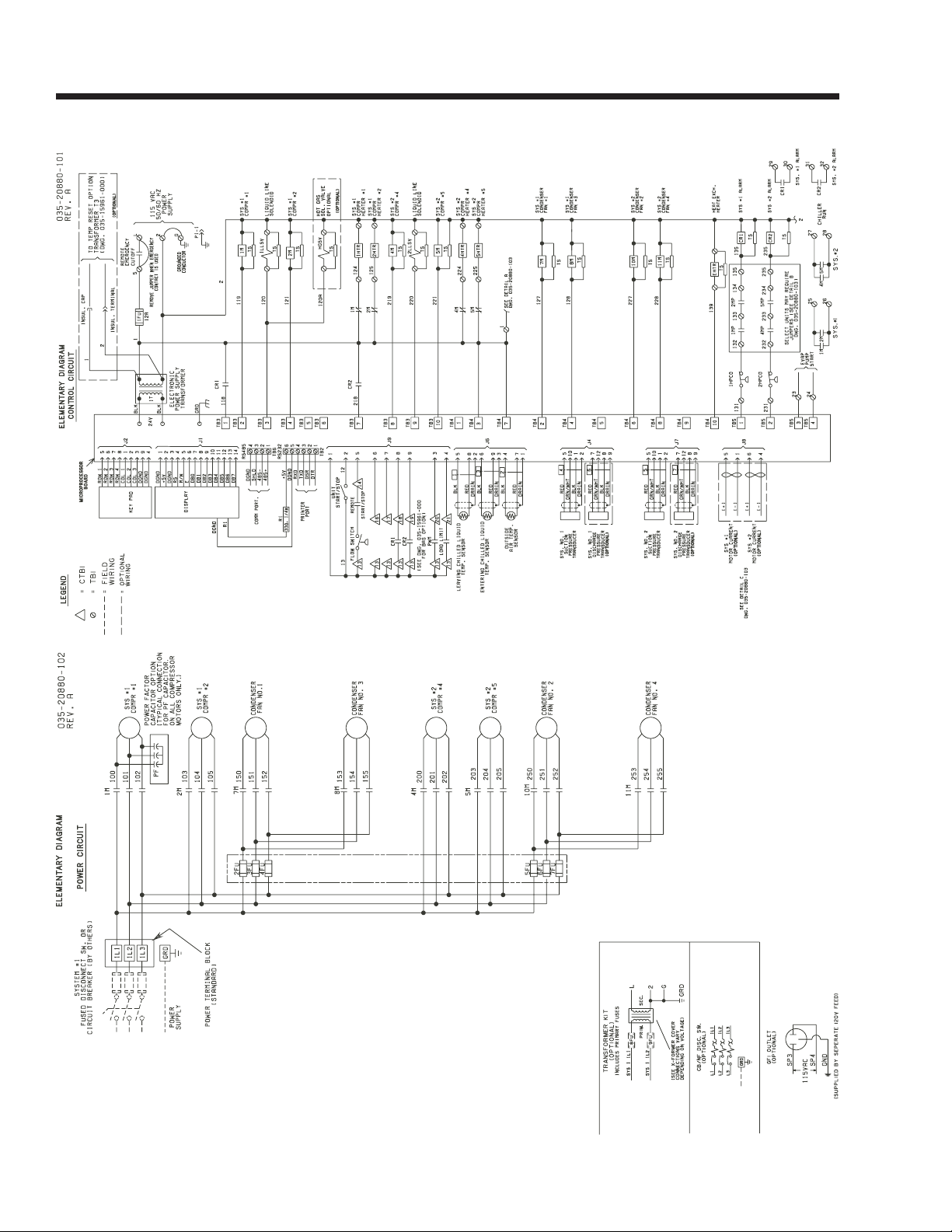

FIG. 1 – STANDARD POWER SUPPLY WIRING – (YCAL 0014 - 0080)

68

YORK INTERNATIONAL

FORM 150.64-EG1

YORK INTERNATIONAL

69

70

YORK INTERNATIONAL

CTB1

21

13

20

13

14

13

FLOW SW

REMOTE START/STOP

PWM INPUT

LOAD LIMIT INPUT

*

* Factory wired with optional transformer

.

Control Wiring

FORM 150.64-EG1

YORK INTERNATIONAL

LD03611

71

Application Data

UNIT LOCATION

The YCAL chillers are designed for outdoor installation. When selecting a site for installation, be guided by the following conditions:

1. For outdoor locations of the unit, select a place having an adequate supply of fresh air for the con denser.

2. Avoid locations beneath windows or between structures where normal operating sounds may be objectionable.

3. Installation sites may be either on a roof, or at ground level. (See FOUNDATION.)

4. The condenser fans are the propeller-type, and are not recommended for use with duct work in the condenser air stream.

5. When it is desirable to surround the unit(s), it is recommended that the screening be able to pass the required chiller CFM without exceeding 0.1” of water external static pressure.

for special installation requirements. Roof installations should incorporate the use of spring-type isolators to minimize the transmission of vibration into the building structure.

GROUND LEVEL INSTALLATIONS – It is important that

-

the units be installed on a substantial base that will not settle, causing strain on the liquid lines and resulting in possible leaks. A one-piece concrete slab with footers extending below the frost line is highly recommended. Additionally, the slab should not be tied to the main building foundation, as noises will telegraph.

Mounting holes (11/16” diameter) are provided in the steel channel for bolting the unit to its foundation. See DIMENSIONS.

For ground level installations, precautions should be taken to protect the unit from tampering by or injury to unauthorized persons. Screws on access panels will prevent casual tampering; however, further safety precautions, such as unit enclosure options, a fenced-in enclosure, or locking devices on the panels may be ad visable. Check local authorities for safety regulations.

-

6. Protection against corrosive environments is avail able by supplying the units with either copper ﬁn, cured epoxy-dipped, or epoxy-coated ﬁns on the condenser coils. The epoxy-dipped or epoxy-coated coils should be offered with any units being installed at the seashore or where salt spray may hit the unit.

In installations where winter operation is intended and snow accumulations are expected, additional height must be provided to ensure normal condenser air ﬂow.

Recommended clearances for units are given in DI MENSIONS. When the available space is less, the unit(s) must be equipped with the discharge pressure transducer option to permit high pressure unloading in the event that air recirculation were to occur.

FOUNDATION

The unit should be mounted on a ﬂat and level founda tion, ground or roof, capable of supporting the entire operating weight of the equipment. Operating weights are given in the PHYSICAL DATA tables.

ROOF LOCATIONS – Choose a spot with adequate structural strength to safely support the entire weight of the unit and service personnel. Care must be taken not to damage the roof during installation. If the roof is “bonded”, consult the building contractor or architect

-

CHILLED LIQUID PIPING

The chilled liquid piping system should be laid out so that the circulating pump discharges into the cooler. The inlet and outlet cooler liquid connections are given in DIMENSIONS.

Hand stop valves are recommended for use in all lines to facilitate servicing. Drain connections should be provided at all low points to permit complete drainage of the cooler and system piping. Additionally, a strainer (40 mesh) is recommended for use on the INLET line to the cooler.

Pressure gauge connections are recommended for

installation in the inlet and outlet water lines. Gauges are not furnished with the unit and are to be furnished by other suppliers.

The chilled liquid lines that are exposed to outdoor am bients should be wrapped with a supplemental heater

-

cable and covered with insulation. As an alternative, ethylene glycol should be added to protect against freezeup during low ambient periods.

A ﬂow switch is available as an accessory on all units. The ﬂow switch (or its equivalent) must be installed in the leaving water piping of the cooler and must not be

-

72

YORK INTERNATIONAL

Typical Piping for Brazed-Plate

Pressure

Gauge

INLET

OUTLET

Drain

Vi

bration

Eliminators

Vi

bration

Eliminators

Shut Off Valves

Strainer

Vent

Flow Switch

Isolation Va

lves

Coolers

Notes:

1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable operation and ease of maintenance.

2. Piping and wiring shown is for reference use only and is not in accordance with any national or local standards.

3. All wiring and piping must comply with applicable local and national codes.

4. All wiring and piping must follow standard piping techniques as discussed in the ASHRAE handbook.

5. A strainer with a mesh size between .5 and 1.5 mm is recommended upstream of the heat exchanger to prevent clogging.

FORM 150.64-EG1

YORK INTERNATIONAL

73

Guide Speciﬁcations

PART 1 – GENERAL

1.01 SCOPE

A. The requirements of the General Conditions, Sup

plementary Conditions, Division 1, and Drawings apply to all Work herein.

B. Provide Microprocessor controlled, multiple-scroll

compressor, air-cooled, liquid chillers of the scheduled capacities as shown and indicated on the Drawings, including but not limited to:

1. Chiller package

2. Electrical power and control connections

3. Chilled water connections

4. Change of refrigerant oil (for factory mounted evaporator) or (evaporator shipped separately for ﬁeld installation and piping by contractor)

1.02 QUALITY ASSURANCE

A. Products shall be Designed, Tested, Rated and

Certiﬁed in accordance with, and installed in compliance with applicable sections of the following Standards and Codes:

1. ANSI/ASHRAE Standard 15 – Safety Code for

Mechanical Refrigeration

2. ASHRAE 90.1– Energy Efﬁciency compli ance

3. ANSI/NFPA Standard 70 –

Code (N.E.C.).

4. ASME Boiler & Pressure Vessel Code, Sec tion VIII, Division 1.

5. ARI Standard 550/590 – Positive Displacement Compressors and Air Cooled Rotary Screw

Water-Chilling Packages.

6. Conform to Intertek Testing Services, formerly ETL, for construction of chillers and provide ETL/cETL Listing label.

7. Manufactured in facility registered to ISO

9002.

8. OSHA - Occupational Safety and Health Act

B. Factory Test: Chiller shall be pressure-tested, evac

uated and fully charged with refrigerant and oil, and shall be factory operational run tested with water ﬂowing through the vessel.

C. Chiller manufacturer shall have a factory trained

and supported service organization that is within a 50 mile radius of the site.

D. Warranty: Manufacturer shall Warrant all equipment

and material of its manufacture against defects in

74

.

National Electrical

workmanship and material for a period of one year from date of initial start-up or eighteen (18) months from date of shipment, whichever occurs ﬁrst.

-

1.03 DELIVERY AND HANDLING

A. Unit shall be delivered to job site fully assembled,

and charged with refrigerant and oil by the Manufacturer. (Contractor is responsible for providing and installing the refrigerant charge including the charge required for the ﬁeld installed interconnecting piping. Chiller components shall ship with a dry nitrogen holding charge – Remote Evaporator option).

B. Unit shall be stored and handled per Manufacturer’s

instructions.

PART 2 - PRODUCTS

2.01 CHILLER MATERIALS AND COMPONENTS

A. General: Install and commission, as shown on the

schedules and plans, factory assembled, charged, and tested air cooled scroll compressor chiller(s) as speciﬁed herein. Chiller shall be designed, selected,

-

and constructed using a refrigerant with Flamma bility rating of “1”, as deﬁned by ANSI/ASHRAE STANDARD - 34 Number Designation and Safety Classiﬁcation of Refrigerants. Chiller shall include, but is not limited to: a complete system with a single refrigerant circuit 35 tons (123kW) and below, and not less than two refrigerant circuits above 35 tons (123kW), scroll compressors, direct expansion type evaporator, air-cooled condenser, refrigerant, lubrication system, interconnecting wiring, safety and operating controls including capacity controller, control center, motor starting components, and special features as speciﬁed herein or required for safe, automatic operation.

B. Cabinet: External structural members shall be con-

structed of heavy gauge, galvanized steel coated with baked on powder paint which, when subject to ASTM B117, 1000 hour, 5% salt spray test, yields minimum ASTM 1654 rating of “6”. Add Wire Panels of heavy gauge, welded wire-mesh, coated to resist corrosion, to protect condenser coils from incidental damage and restrict unauthorized access to internal components. Factory installed.

2.02 COMPRESSORS

Compressors: Shall be hermetic, scroll-type, including:

1. Compliant design for axial and radial sealing

YORK INTERNATIONAL

-

FORM 150.64-EG1

2. Refrigerant ﬂow through the compressor with 100% suction cooled motor.

3. Large suction side free volume and oil sump to provide liquid handling capability.

4. Compressor crankcase heaters to provide extra liquid migration protection.

5. Annular discharge check valve and reverse vent assembly to provide low pressure drop, silent shut down and reverse rotation protection.

6. Initial Oil charge.

7. Oil Level sightglass.

8. Vibration isolator mounts for compressors.

9. Brazed-type connections for fully hermetic refrig erant circuits.

2.03 REFRIGERANT CIRCUIT COMPONENTS

Each refrigerant circuit shall include: liquid line shutoff valve with charging port, low side pressure relief device, ﬁlter-drier, solenoid valve, sight glass with moisture indi cator, expansion valves, and ﬂexible, closed-cell foam insulated suction line.

2.04 HEAT EXCHANGERS

A. Evaporator:

1. Evaporator shall be brazed-plate stainless steel construction, single or dual circuit heat exchangers capable of refrigerant working pressure of 450 psig (3103 kPa) and liquid side pressure of 150 psig (1034 kPa) (Option for 300 psig [2068 kPa] available.)

2. Evaporator shall be covered in 3/4" (19mm) ﬂexible, closed cell insulation, thermal conduc tivity of 0.26k (BTU/HR-FT

2-

°F]/in.) maximum.

3. C o o l e r s h a l l h a v e t h e r m o s t a t i cally controlled heaters to protect to -20°F (29°C) ambient in off-cycle.

4. Brazed plate heat exchangers shall be UL listed.

5. Installing contractor must include accomoda tions in the chilled water piping to allow prop er drainage and venting of the heat exchang er. A strainer with a mesh size between 0.5 and 1.5mm (40 mesh) is recommended up stream of the heat exchanger to prevent clog ging.

B. Air Cooled Condenser:

1. Coils: Internally enhanced, seamless copper tubes, mechanically expanded into aluminum alloy ﬁns with full height collars. Subcooling coil an integral part of condenser. Design working pressure shall be 450 PSIG (31 bar).

2. Low Noise Fans: Shall be dynamically and statically bal anced, direct drive, corrosion re sistant glass ﬁber reinforced composite blades molded into a low noise, full-airfoil cross section, providing vertical air discharge and low sound. Each fan in its own compartment

-

to prevent crossflow d u r i ng fa n cycling. Guards of heavy gauge, P V C (polyvinylchloride) coated or galvanized steel.

3. Fan Motors: High efﬁciency, direct drive, 6 pole,

-

3 phase, insulation class “F”, current protected, Totally Enclo sed Air-Over (TEA O), rigi d mounted, with double sealed, permanently lu bricated, ball bearings.

2.05 CONTROLS

A. General: Automatic start, stop, operating, and pro-

tection sequences across the range of scheduled conditions and transients.

B. Microprocessor Enclosure: Rain and dust tight

NEMA 3R/12 (IP55) powder painted steel cabinet with hinged, latched, and gasket sealed door.

C. Microprocessor Control Center:

1. Automatic control of compressor start/stop,

anti-coincidence and anti-recycle timers, automatic pumpdown on shutdown, condenser fans, evaporator pump, evaporator heater, unit alarm contacts, and chiller operation from 0°F to 125°F (-18°C to 52°C) ambient. Automatic reset to normal chiller operation after power failure.

2. Remote water temperature reset via a Pulse

Width Modulated (PWM) input signal or up to two steps of demand (load) limiting.

3. Software stored in non-volatile memory, with

programmed setpoints retained in lithium bat tery backed real time clock (RTC) memory for minimum 5 years.

4. Forty character liquid crystal display, descrip-

tions in English (or Spanish, French, Italian, or German), numeric data in English (or Metric) units. Sealed keypad with sections for Setpoints, Display/Print, Entry, Unit Options & clock, and On/Off Switch.

5. Programmable Setpoints (within Manufacturer

limits): display language; chilled liquid tempera ture setpoint and range, remote reset tempera ture range, set daily schedule/holiday for start/ stop, manual override for servicing, low and high ambient cutouts, number of compressors, low

YORK INTERNATIONAL

75

liquid temperature cutout, low suction pressure cutout, high discharge pressure cutout, anti-re cycle timer (compressor start cycle time), and anti-coincident timer (delay compressor starts).

6. Display Data: Return and leaving liquid tem peratures, low leaving liquid temperature cut out setting, low ambient temperature cutout set ting, outdoor air temperature, English or metric data, suction pressure cutout setting, each system suction pressure,disc harge pressure (standard on YCAL0041-0065 models), liquid temperature reset via a YORK ISN DDC or Building Automation System (by others) via PWM input as standard or a 4-20milliamp or 0 10 VDC input or contact closure with optional BAS interface, anti-recycle timer status for each compressor, anti-coincident system start timer condition, compressor run status, no cooling load condition, day, date and time, daily start/ stop times, holiday status, automatic or manual system lead/lag control, lead system deﬁnition, compressor starts/operating hours (each), sta tus of hot gas valves, evaporator heater and fan operation, run permissive status, number of compressors running, liquid solenoid valve status, load & unload timer status, water pump status.

7. System Safeties: Shall cause individual com pressor systems to perform auto shut down; manual reset required after the third trip in 90 minutes. Includes: high discharge pressure, low suction pressure, high pressure switch, and motor protector. Compressor motor protector shall protect against damage due to high input current or thermal overload of windings.

8. Unit Safeties: Shall be automatic reset and cause compressors to shut down if low ambi ent, low leaving chilled liquid temperature, un der voltage, and ﬂow switch operation. Contrac tor shall provide ﬂow switch and wiring per chiller manufacturer requirements.

9. Alarm Contacts: Low ambient, low leaving chilled liquid temperature, low voltage, low battery, and (per compressor circuit): high dis charge pressure, and low suction pressure.

D. Manufacturer shall provide any controls not listed

above, necessary for automatic chiller operation. Mechanical Contractor shall provide ﬁeld control wiring necessary to interface sensors to the chiller control system.

2.06 P O W E R CONNECTION AND D I S T R I -

BUTION

76

A. Power Panels:

1. NEMA 3R/12 (IP55) rain/dust tight, powder painted steel cabinets with hinged, latched, and gasket sealed outer doors. Provide main power connection(s), control power connections, com pressor and fan motor start contactors, current overloads, and factory wiring.

2. Power supply shall enter unit at a single loca-

tion, be 3 phase of scheduled voltage, and connect to individual terminal blocks per compressor. Separate disconnecting means and/ or external branch circuit protection (by Contractor) required per applicable local or national codes.

B. Exposed compressor, control and fan motor power

wiring shall be routed through liquid tight conduit.

2.07 ACCESSORIES AND OPTIONS

Some accessories and options supercede standard product features. Your YORK representative will be pleased to provide assistance.

A. Microprocessor controlled, Factory installed Across-

the-Line type compressor motor starters as stan dard.

B. Outdoor Ambient Temperature Control

1. Low Ambient Control: Permits unit operation to 0°F ambient. .

2. High Ambient Control: Permits unit operation above 115°F ambient.

C. Power Supply Connections:

1. Single Point Power Supply: Single point Termi-

nal Block for ﬁeld connection and interconnecting wiring to the compressors. Separate external protection must be supplied, by others, in the incoming power wiring, which must comply with the National Electric Code and/or local code s . Stan d a rd un i t con t r ols to 25°F ambient. Low Ambient Control standard on YCAL0041-0065 models

2. Single Point Power Supply with individual Sys

tem Breakers: Single or Terminal Block(s) for ﬁeld connection and factory interconnecting wiring to factory supplied system breakers . Available on YCAL0090-0134 models.

3. Single Point or Disconnect: Single or Dual point Non-Fused Disconnect(s) and lockable exter nal handle (in compliance with Article 440-14

YORK INTERNATIONAL

-

FORM 150.64-EG1

of N.E.C.) can be supplied to isolate the unit power voltage for servicing. Separate external fusing must be supplied, by others, in the in coming power wiring, which must comply with the National Electric Code and/or local codes.

4. Single Point Disconnect with Individual System Breakers: Single point Terminal Block with NonFused Disconnect and lockable external handle (in compliance with Article 440-14 of N.E.C.) can be supplied to isolate power voltage for servicing. Factory interconnecting wiring from disconnect to factory supplied circuit breakers. Available on YCAL0041-0065.

5. Single Point Circuit Breaker: Single point Ter minal Block with Circuit Breaker and lockable external handle (in compliance with Article 440 14 of N.E.C.) can be supplied to isolate power voltage for servicing. Incoming power wiring must comply with the National Electric Code and/or local codes. Single Point Circuit Break ers available on YCAL0041-0065 models.

D. Pressure Transducers and Readout Capability

100ppm).

I. Protective Chiller Panels (Factory or Field Mounted

1. Louvered Panels (c ondenser coils only): Painted steel as per remainder of unit cabinet, over external condenser coil faces.

2. Wire Panels (full unit): Heavy gauge, welded wire-mesh, PVC -coated to resist corrosion, to pro tect condenser coils from incidental damage and restrict unauthorized access to internal components.

3. Louvered Panels (full unit): Painted steel as per remainder of unit cabinet, to protect condenser coils from incidental damage, visually screen internal components, and prevent unauthorized access to internal components.

4. Louvered/Wire Panels: Louvered steel panels on external condenser coil faces, painted as per remainder of unit cabinet. Heavy gauge, welded wire-mesh, coated to resist corrosion, around base of machine to restrict unauthorized access.

1. Discharge Pressure Transducers: Permits unit to sense and display discharge pressure. Standard on YCAL0080-0134 models.

E. Control Power Transformer: Converts unit power

voltage to 120-1-60 (500 VA capacity). Factorymounting includes primary and secondary wiring between the transformer and the control panel.

F. Motor Current Module

: Capable of monitoring compressor motor current. Provides extra protection against compressor reverse rotation, phase-loss and phase imbalance. Option consists of one module per electrical system. (Factory-mounted.)

G. Power Factor Correction Capacitors: Provided to

correct unit compressor factors to a 0.90-0.95.

H. Condenser Coil Environmental Protection:

1. Pre-Coated: Epoxy coated aluminum ﬁn stock to guard from corrosive agents and insulate against galvanic potential. For mild seashore or industrial locations.

2. Copper Fin: Provide copper ﬁns in lieu of alumi-

num.

3. Post-Coated Dipped: Dipped-cured coating on condenser coils for seashore and other corrosive applications (with the exception of strong alkalis, oxidizers, and wet bromine, chlorine and flu orine in conc entr a tion s gr e ater tha n

J. Flow Switch (Field-mounted): Vapor proof SPDT,

NEMA 4X switch ( ___150 PSIG or ___300 PSIG),

-20°F to 250°F.

K. Differential Pressure Switch: Alternative to an

above mentioned ﬂow switch. Pretempco model DPS300A-P40PF-82582-5 (300 psi max. working pressure) SPDT 5 amp 125/250VAC switch, Range 0 - 40 PSID, deadband 0.5 - 0.8 psi, with 1/4” NPTE Pressure Connections.

L. Evaporator options:

1. Provide 1½" cooler insulation in lieu of standard ¾".

2. Provide DX Cooler with 300 PSIG water-side design working pressure in lieu of standard 150 PSIG.

3. Provide Raised Face Flanges for ﬁeld installation on cooler nozzles and ﬁeld piping: a. 150 PSIG, welded Flanges. b. 300 PSIG, welded Flanges.

M. Service Isolation valves: Service suction and dis

charge (ball type) isolation valves are added to unit per system. This option also includes a system high pressure relief valve in compliance with ASHRAE

15. (Factory-mounted.)

N. Remote Cooler: Manufacturer shall provide sep

arately: chiller less evaporator, leaving and return

-

YORK INTERNATIONAL

77

water sensors, and liquid line components (solenoid valves, ﬁlter driers, sight glasses, and TXVs), as discrete elements of a complete factory system. Contractor shall be ﬁeld erect system and provide interconnecting refrigerant piping and wiring in accordance with Manufacturer recommendations, and project plans and schedules. Where not otherwise speciﬁed, Contractor provided system piping shall be in accordance with applicable sections of ASHRAE Handbook.

O. Hot Gas By-Pass: Permits continuous, stable op

eration at capacities below the minimum step of unloading to as low as 5% capacity (depending on both the unit & operating conditions) by introducing an artiﬁcial load on the cooler. Hot gas by-pass is installed on only one refrigerant circuit (System #1).

on mixed liquid temperature.

X. Sound Reduction (Factory-mounted):

1. Ultra quiet, low speed, reduced noise fans

2. Compressor Acoustic Sound Blankets

Y. Vibration Isolation (Field-mounted):

1. Neoprene Pad Isolators.

2. 1 Inch Deﬂection Spring Isolators: Level ad justable, spring and cage type isolators for mounting under the unit base rails.

-

3. 2 Inch Deﬂection Seismic Isolators: Level adjustable, restrained mounts in rugged welded steel housing with vertical and horizontal limit stops. Housings shall be designed to withstand a minimum 1.0g accelerated force in all directions to 2 inches.

-

P. Microprocessor Membrane Keypad Graphics on in

lieu of Standard English:

1. French language.

2. German language.

3. Spanish language.

4. Italian language.

Q. Thermal Storage: Leaving chilled liquid setpoint

range for charge cycle from 25°F to 20°F minimum, with automatic reset of the leaving brine temperature up to 40°F above the setpoint. (Works with Option T)

R. Low Temperature Process Brine: Leaving chilled

liquid setpoint range 20°F to 30°F.

S. Chicago Code Relief Valves to meet Chicago Code

requirements.

T. Building Automation System (EMS) Reset Interface:

Chiller to accept 4 to 20mA, 0 to 10 VDC, or discrete contact closure input to reset the leaving chilled liquid temperature.

PART 3 - EXECUTION

3.01 INSTALLATION

A. General: Rig and Install in full accordance with

Manufacturers requirements, Project drawings, and Contract documents.

B. Location: Locate chiller as indicated on drawings,

including cleaning and service maintenance clear ance per Manufacturer instructions. Adjust and level chiller on support structure. If equipment provided exceeds height of scheduled chiller, installing contractor is responsible for additional costs associated with extending the height of parapet or screening walls/enclosures

C. Components: Installing Contractor shall provide and

install all auxiliary devices and accessories for fully operational chiller.

D. Electrical: Coordinate electrical requirements and

connections for all power feeds with Electrical Con tractor (Division 16).

-

U. Remote Control Panel (Field-mounted): Auxiliary

panel for remote user interface for functions nor mally made at the unit control center. Available on YCAL0014-0080 models.

V. OptiView Remote Control Panel (Field-mounted):

Graphical interface panel to remotely control and monitor up to 8 different units.

W. Multi-Unit Sequencing Panel (Field-mounted):

Separate Sequencing control center is provided to permit control of up to eight chillers in parallel based

78

E. Controls: Coordinate all control requirements and

-

connections with Controls Contractor.

F. Finish: Installing Contractor shall paint damaged and

abraded factory ﬁnish with touch-up paint matching factory ﬁnish.

YORK INTERNATIONAL

FORM 150.64-EG1

YORK INTERNATIONAL

79

P.

O.Box 1592 York, Pennsylvania USA 17405-1592

Subject to change without notice. Printed in the USA

Form 150.62-EG1 (103) Supersedes: 150.62-EG1 (102)

RPC 3M 303 9.28 Codes: DXL, ET2

York YCAL0041, YCAL0065 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Options and Accessories

Selection Data

Design Parameters

Water Pressure Drop

Ratings - R-22 (60Hz - English Units)

Ratings - R-22 (60Hz - English Units) - Cont.

Ratings - R-22 (60Hz - SI Units)

Ratings - R-22 (50Hz - English Units)

Ratings - R-22 (50Hz - English Units) - Cont.

Ratings - R-22 (50Hz - SI Units)

Part Load Ratings - R-22 (English Units)

Part Load Ratings - R-22 (SI)

Physical Data

Sound Data

Dimensions - YCAL0041 (English)

Dimensions - YCAL0045 (English)

Dimensions - YCAL0051 (English)

Dimensions - YCAL0055EC - (English)

Dimensions - YCAL0061 (English)

Dimensions - YCAL0065 (English)

Dimensions - YCAL0041 (SI)

Dimensions - YCAL0045 (SI)

Dimensions - YCAL0051 (SI)

Dimensions -YCAL0055 (SI)

Dimensions - YCAL0061 (SI)

Dimensions - YCAL0065 (SI)

Isolator Selections

Isolator Details (cont'd)

Electrical Data

Electrical Data - 60Hz

Electrical Data - 50Hz

Power Wiring

Control Wiring

Application Data
