Features

Remote controller

SPLIT SYSTEMS

• Super compact design

• Quiet design

• Easy removed panel

• Fresh air switch

• Sliding chassis

• Two drainage methods

• Slinger-up system

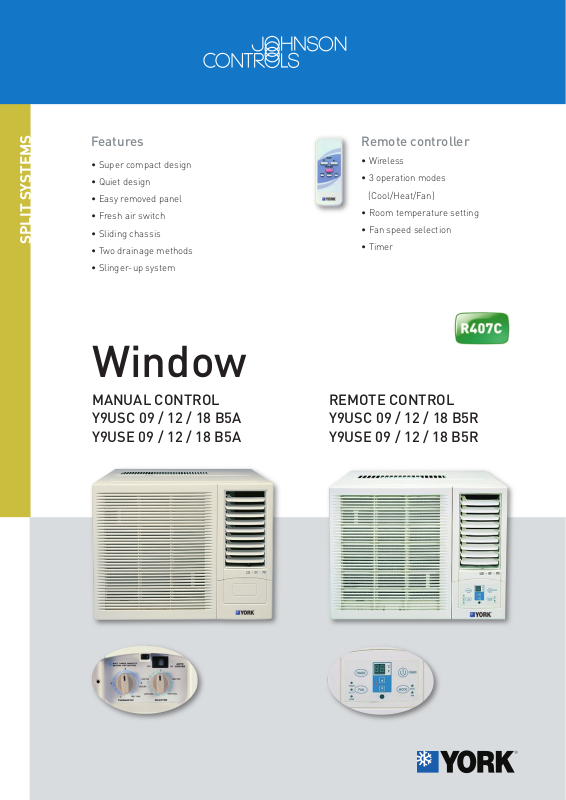

Window

MANUAL CONTROL Y9USC 09 / 12 / 18 B5A

• Wireless

• 3 operation modes

(Cool/Heat/Fan)

• Room temperature setting

• Fan speed selection

• Timer

REMOTE CONTROL Y9USC 09 / 12 / 18 B5R

Y9USE 09 / 12 / 18 B5A

Y9USE 09 / 12 / 18 B5R

Window

R407C

Y9USC/E 09 / 12 / 18 B5A Y9USC/E 09 / 12 / 18 B5R

Technical features

Models

Cooling capacity

Heating capacity

Power supply

Refrigerant

Power input (cooling / heating)

Operating current (cooling / heating)

EER / COP

Indoor airﬂow

Refrigerant charge

Sound pressure at 1 m (H / L)

Net dimensions W / H / D

Packing dimensions W / H / D

Net weight

Gross weight

Applicable area

Stufﬁng quantity 20’ / 40’ HQ

Nominal cooling capacity based on : - Indoor Air Temp. 27°C DB / 19°C WB - Outdoor Air Temp. 35°C DB Nominal heating capacity based on : - Indoor Air Temp. 21°C DB - Outdoor Air Temp. 7°C DB/6°C WB

Sizes

kW 2.6 3.5 5.3 2.6 3.5 5.3

kW - - - 2.6 3.5 5.3

V/Ph/Hz 230 / 1 / 50 + E

Type R407C

kW 1.0 / - 1.3 / - 2.1 / - 1.0 / 0.9 1.3 / 1.2 2.1 / 1.9

A 4.6 / - 6.1 / - 9.6 / - 4.6 / 4.3 6.1 / 5.7 9.6 / 8.9

W / W 2.6 / - 2.6 / - 2.5 / - 2.6 / 2.8 2.6 / 2.8 2.5 / 2.7

m3/h 360 530 750 360 530 750

g 510 870 870 550 900 1 150

dB(A) 47 / 43 46 / 42 52 / 47 47 / 43 46 / 42 52 / 47

mm 450 / 346 / 535 560 / 400 / 650 660 / 435 / 650 450 / 346 / 535 560 / 400 / 650 660 / 435 / 650

mm 495 / 435 / 580 620 / 445 / 770 740 / 520 / 750 495 / 435 / 580 620 / 445 / 770 740 / 520 / 750

kg 35 48 55 37 54 59

kg 39 53 60 41 59 64

Set 220 / 574 133 / 340 94 / 240 220 / 574 133 / 340 94 / 240

Y9USC 09 B5A Y9USC 12 B5A Y9USC 18 B5A Y9USE 09 B5A Y9USE 12 B5A Y9USE 18 B5A

Y9USC 09 B5R Y9USC 12 B5R Y9USC 18 B5R Y9USE 09 B5R Y9USE 12 B5R Y9USE 18 B5R

14-20 18-26 30-40 14-20 18-26 30-40

Super compact

design

E-COM-W0701

Quiet design Easy removed

panel

Fresh air switch Sliding chassis Two drainage

methods

Slinger-up

system
