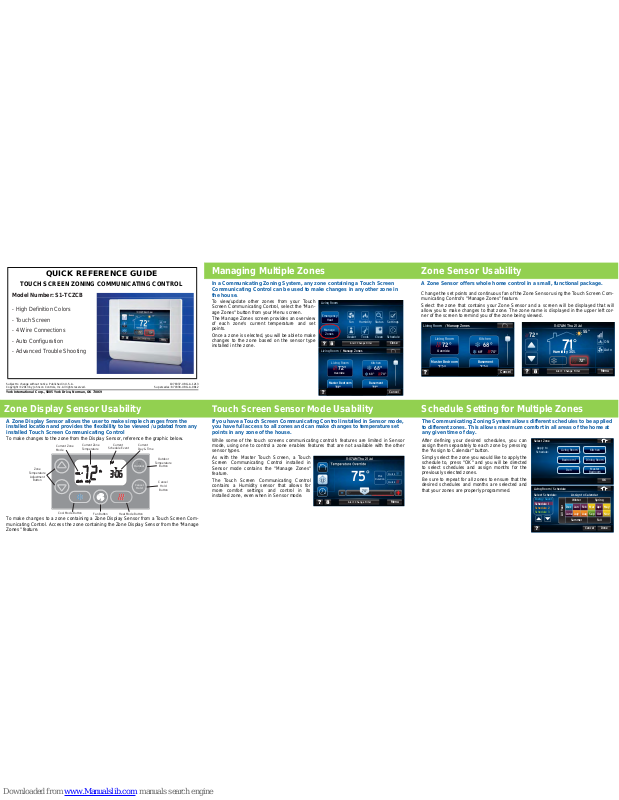

York S1-TCZCB Quick Reference Manual

Subject to change without notice. Published in U.S.A. 1078337-URG-A-1213
Copyright © 2013 by Johnson Controls, Inc. All rights reserved. Supersedes: 879338-URG-A-0812

York International Corp., 5005 York Drive, Norman, OK 73069

QUICK REFERENCE GUIDE

TOUCH SCREEN ZONING COMMUNICATING CONTROL

Model Number: S1-TCZCB

- High Definition Colors

- Touch Screen

- 4 Wire Connections

- Auto Configuration

- Advanced Trouble Shooting

A Zone Display Sensor allows the user to make simple changes from the
installed location and provides the flexibility to be viewed / updated from any
installed Touch Screen Communicating Control

To make changes to the zone from the Display Sensor, reference the graphic below.

To make changes to a zone containing a Zone Display Sensor from a Touch Screen Com­municating Control. Access the zone containing the Zone Display Sensor from the "Manage
Zones" feature.

Cancel

Hold

Outdoor

Current Zone
Mode

Current Zone
Temperature

Current

Schedule Event

Current
Day & Time

Outdoor

Temperature

Button

Cancel

Hold

Button

Heat Mode Button

Fan Button

Cool Mode Button

Zone

Temperature

Adjustment

Button

In a Communicating Zoning System, any zone containing a Touch Screen
Communicating Control can be used to make changes in any other zone in
the house.

To view/update other zones from your Touch
Screen Communicating Control, select the "Man­age Zones" button from your Menu screen.
The Manage Zones screen provides an overview
of each zone's current temperature and set
points.
Once a zone is selected, you will be able to make
changes to the zone based on the sensor type
installed in the zone.

Schedule

Emergency

Heat

Close

Alert: Change Fi lter

StatusHumidityFan

Settings

Dealer Tools

Clean

Manage

Zones

Living Room

Living Room / Manage Zones

72°

Living Room

Kitchen

Master Bedroom

Basement

72°

Cancel

Override

68°

68°

70°

72°

Managing Multiple Zones Zone Sensor Usability

A Zone Sensor offers whole home control in a small, functional package.

Change the set points and continuous fan of the Zone Sensor using the Touch Screen Com­municating Control's "Manage Zones" feature.

Select the zone that contains your Zone Sensor and a screen will be displayed that will
allow you to make changes to that zone. The zone name is displayed in the upper left cor­ner of the screen to remind you of the zone being viewed.

Living Room / Manage Zones

72°

Living Room

Kitchen

Master Bedroom

Basement

72°

Cancel

Override

68°

68°

70°

72°

72°

Menu

Auto

ON

71

°

30%Humidity

72°

11:07AM Thu 21 Jul

55°

Alert: Change Fi lter

72

Menu

71

72°

11:07AM Thu 21 Jul

55°

Alert: Change Fi lter

°

Humidity 30%

ON

Auto

Zone Display Sensor Usability Touch Screen Sensor Mode Usability Schedule Setting for Multiple Zones

If you have a Touch Screen Communicating Control inst alled in Sensor mode,
you have full access to all zones and can make changes to temperature set
points in any zone of the house.

While some of the touch screens communicating control's features are limited in Sensor
mode, using one to control a zone enables features that are not available with the other
sensor types.

As with the Master Touch Screen, a Touch
Screen Communicating Control installed in
Sensor mode contains the "Manage Zones"
feature.

The Touch Screen Communicating Control
contains a Humidity sensor that allows for
more comfort settings and control in its
installed zone, even when in Sensor mode.

Menu

Alert: Change Fi lter

75

°

50° 85°

11:07AM Thu 21 Jul

70°

Pick

Duration

Quick

Quick

The Communicating Zoning System allows different schedules to be applied
to different zones. This allows maximum comfort in all areas of the home at
any given time of day.

After defining your desired schedules, you can
assign them separately to each zone by pressing
the "Assign to Calendar" button.

Simply select the zone you would like to apply the
schedule to, press "OK" and you will be directed
to select schedules and assign months for the
previously selected zones.

Be sure to repeat for all zones to ensure that the
desired schedules and months are selected and
that your zones are properly programmed.

Living Room

OK

Select Zone

Kitchen

Bedroom 1

Dining Room

Den

Apply to

Schedule:

Master

Bedroom

Cancel

Done

Living Room / Schedule

Energy Saver

Schedule 1

Schedule 2

Schedule 3

Select Schedule: Assign to Calendar

Dec Jan Feb Mar

Spring

FallSummer

Winter

All Year

Apr May

June July Aug Sep Oct Nov

With the Zone Status Screen, the thermostat Icon now unveils all of your zone
sensors' statuses.

Access the sensor status by pressing the thermostat icon.

Access the Zone Panel Status by pressing the
Accessories Icon.

Touch ICON for a detailed view

Log MenuRefresh Accessories

Exit Service Mode

Humidifier
ON
UV Lamps
ON

EAC
Not Installed

Heat Pump
OFF

Thermostat
ON

Furnace
ON

11:07AM Thu 21 Jul

Back

LogRefresh Accessories

Touch ICON for a detailed view

Status

Humidifier
ON
UV Lamps
ON

EAC
Not Installed

Heat Pump
OFF

Thermostat
ON

Furnace
ON

UV La

ON

EA

C

Not I

n

F

urn

a

ON

Select Zone

10:31AM Wed 0 4 J an

BackRefresh

Touch ICON for a detailed view

Ventilator
ON

Dehumidifier
ON

BackRefresh

Accessories

Zone Panel
ON

Zone 5
ON

Zone 6
ON

Because your system is optimized for airflow in every zone, the continuous
fan must be controlled differently than a non-zoned system.

The fan can be operated in three different modes:
Auto Mode: Only runs the fan when the zone

is calling for condition (heating or cooling).
Manual Mode: Will circulate air in the zone

when no other zone is calling for conditioning.
NOTE: Any percentage setting selected will

be automatically designated to all zones and
override all zone schedules. This is done to
ensure that there are no conflicting airflows at
a given time.

Schedule Mode: Runs the fan according to settings as defined in the programmed sched­ule assigned for the current day part.

5% 100%

OK

Cancel

Master / Fan Adjust

Always

Run Fan

Auto ManualFunction:

23%

Show Fan on

Home

The Communicating Zone System allows for custom names to be created and
displayed on Touch Screen Communicating Controls.

Selecting descriptive names for each zone allows for easier navigation when making
changes or settings from multiple locations in the home.

Access this feature through the menu settings
screen under "Zoning".

Once at the screen, you can view and change
each installed zone name.

Another feature available in the zone settings
screen is "Not Zoned" mode. This setting allows
you to have the system operate according to
the master zone's temperature and set point
while keeping all zone dampers open.

Zone Mode:

Living Room / Zoning Config

Bedroom 1

Not Zoned

Zoned

Edit

Kitchen

Edit

Bedroom 2

Edit

Master Name:

Zone 2 Name:

Zone 3 Name:

Bedroom 3

Edit

Zone 4 Name:

OK

Cancel

The Communicating Zone System has the ability to control each zone's
humidity with separate set points. This allows you to customize your comfort
throughout your home.

When a Touch Screen Communicating Control is
installed in a zone as a sensor, it is constantly
tracking your humidity levels for the installed
zone.

The Master Touch Screen uses this information to
control equipment and airflow in that zone to the
settings desired.

Navigate to the humidity settings screen from the
menu or the short cut humidity icon in the zone (or
from the Master Touch Screen) to view or make
changes to this setting.

Schedule

Emergency

Heat

Close

Alert: Change Filt er

StatusHumidityFan

Settings

Dealer Tools

Clean

Manage

Zones

Living Room

72°

Menu

Auto

ON

71

°

72°

11:07AM Thu 21 Jul

55°

Alert: Change Filt er

30%Humidity

In addition to having the ability to run a schedule as assigned per zone, the
Communicating Zone System can be easily set up to control every zone to
the same set point for a predetermined amount of time.

Vacation mode is accessed from the Advanced
Programmable View / Mode home screen. Select
the schedule button and press "Set Vacation".

This will bring up the vacation wizard which will
instruct you to set your "Leave" / "Return" date
and time, Temperature set points, Fan settings
and Humidity settings.

The thermostat will control all zones to these set­tings without requiring setup at any other zone
sensors.

Menu

View Schedule...Set Vacation...

Day

8:00AM

78° 66°

Extend NOW or change to...

Return

5:00PM

73° 61°

10:00PM

Sleep

80° 57°

6:00AM

Awake

77° 55°

8:30AM Thu 05 Jan

NOW

OK

Vacation

Days

Leave

Return

2012

Jan5

2012

Jan10

AM10

AM

10

1

For how long?

NextCancel

8

8

6

5

Cancel

Tools / Wi-Fi

OK

Connect

11:07AM Thu 21 Jul

Home Network

Neighbors Network
Other Network

OK

Cancel

Connected
to:

Refresh
Wireless
Networks

Keyboard

p

o

i

u

q

a

ABC

z

¦¢§

x

c

v

b

n

m ,

.

s

d

f

g

h

j

kl

w

e

rty

123

Bksp

Space

Cancel OK

ALT

Steps to connect to wireless

1. Press select menu, select tools, select wireless.

2. Press refresh wireless network icon.

3. Select wireless network with Up/Down arrows.

4. Select connect.

5. If network is secure, type in password.

6. Connected to network

Touch Screen must be connected
to router before you can register the
device.

• For secured networks requiring a
password a lock will be present.

• Router signal strength will be shown once connected.

* For additional information
please reference the Non-Zoning
User’s Information Manual

* Download IntelliComfort from
iTunes or Google Play.

Connect Tab

Refresh Wireless
Network Icon

Unsecured
Network

Secured
Network

Wireless Strength Icon
Up/Down Arrows

for Network Selection

Show Signal
Strength on Home
