TECHNICAL

GUIDE

SPLIT -SYSTEM HEAT PUMPS 12 SEER MODELS:

E*BC-F018 THRU 060 (1.5 THRU 5 TONS, 1 PH)

E*BC-(T,W)036 THRU 060 (3 THRU 5 TONS, 3 PH)

U N

This product was manufactured in a plant whose quality system is certified/registered as being in conformity with ISO 9001.

Due to continuous product improvement, specific a tions are subject to change without notice.

Visit us on the web at www.york.com for the most up-to-date technical information.

Additional rating information can be found at www.ariprimenet.org.

Certification applies only

when the complete

system is listed

with ARI.

M P

LISTED

036-21320-002 Rev. A (1103)

DESCRIPTION

The 12 SEER series heat pumps are designed for use with a variety of UPG evaporator sections to suit any application need. A full line of matching Add-On Coils are available for use with upflow, downflow or horizontal furnaces. Matching Air Handlers are also available for upflow, downflow or horizontal installation to provide a complete system. Electric heat may be installed in air handlers. All units are factory charged to assure easy installation.

WARRANTY

Single Phase Units:

5-year limited parts warranty. 10-year limited compressor warranty.

Three Phase Units:

1-year limited parts warranty. 5-year limited compressor warranty.

FEATURES

• DURABLE CONSTRUCTION - The outdoor unit is con- structed of pre-painted steel that offers tough protection against corrosion and resists fading when exposed to sunlight. Drain holes are incorporated into the base pan to permit free drainage of moisture.

• QUALITY COILS - The coil is constructed of copper tube and aluminum fins.

• COIL PROTECTION - Coils are protected from damage by a polymer mesh applied between the coil face, and a PVC coated steel coil guard.

• PROTECTED COMPRESSOR - The hermetic compressor is internally protected against high pressure and temperature by the simultaneous operation of a high pressure relief valve and temperature sensors which stop the compressor if operating temperatures go too high. Both protectors reset automatically. A discharge line solid core filter drier further protects the compressor.

• TIME TEMPERATURE DEFROST CONTROL - Includes a five-minute anti-short cycle timer to protect the compressor from short cycling. Field selectable 30, 60, 90 minutes defrost intervals.

• LOW OPERATING SOUND LEVEL - The compressor is mounted on rubber isolators to reduce operating sounds. The slow moving condenser fan keeps air turbulence and sound to a low level.

• EASY ACCESS - Removable panel affords accessibility to the electrical box.

• FULLY CHARGED AND FACTORY WIRED - to simplify installation and reduce labor costs. Only power supply and control wiring and refrigerant lines must be connecte d. All models are sweat connect with reusable service valves.

• Factory tested - to verify system operation and control functioning before shipment.

• U.L. and C.U.L. listed - approved for outdoor application.

Certified in accordance with the Unitary Small Equipment certi-

fication program, which is based on ARI Standard 210/240.

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

Page 2

036-21320-002 Rev. A (1103)

Physical and Electrical Data - 1 Phase

MODEL

Unit Supply Voltage 208/230 – 1 – 60 Normal Voltage Range

Minimum Circuit Ampacity 11.7 14.9 18.4 21.3 30.6 31.1 42.6 Max. Overcurrent Device Amps Compressor Type

Compressor Amps Crankcase Heater Yes Yes Yes Yes No No No

Fan Motor Amps Rated Load 0.5 1.3 1.3 1.3 1.3 1.3 1.3 Fan Diameter Inches 18 22 22 22 22 24 24

Fan Motor

Face Area Sq. Ft. 12.58 15.72 15.72 19.65 19.65 22.50 22.50

Coil

Rows Deep 1111122

Fin / Inches 13 13 13 13 13 14 14 Liquid Line OD 3/8 3/8 3/8 3/8 3/8 3/8 3/8 Vapor Line OD 3/4 3/4 3/4 7/8 7/8 7/8 1 1/8

Unit Charge (Lbs. - Oz.) Charge Per Foot, Oz. 0.68 0.68 0.68 0.70 0.70 0.70 0.76 Operating Weight Lbs. 142 163 167 178 180 254 262

Rated Load 9.0 10.9 13.7 16 23.5 23.8 33.1 Locked Rotor 48 60 75 81 104 124 175

Rated HP 1/12 1/4 1/4 1/4 1/4 1/4 1/4 Nominal RPM 1,100 850 850 850 850 850 850 Nominal CFM 1,850 3,150 3,150 3,150 3,150 3,250 3,250

EABC-F018S EABC-F024S EABC-F030S EABC-F036S EABC-F042S EBBC-F048S EBBC-F060S

187 to 252

20 25 30 30 45 50 70

Inertia Inertia Inertia Inertia Scroll Scroll Scroll

5 - 13 6 - 7 6 - 9 7 - 4 7 - 1 13 - 9 12 - 11

Physical and Electrical Data - 3 Phase

MODEL

Unit Supply Voltage

Normal Voltage Range Minimum Circuit Ampacity 13.7 20.8 24.2 7.2 10.5 11.7

Max. Qvercurrent Device Amps Compressor Type

Compressor Amps Rated

Crankcase Heater Yes No No Yes No No Fan Motor Amps Rated

Fan Diameter Inches 22 24 24 22 24 24 Fan Motor Rated HP 1/4 1/4 1/4 1/4 1/4 1/4

Coil Face Area Sq. Ft. 19.65 27.00 27.00 19.65 27.00 27.00

Rows Deep 122122

Fin / Inches 18 14 14 18 14 14 Liquid Line OD 3/8 3/8 3/8 3/8 3/8 3/8 Vapor Line OD 3/4 7/8 7/8 3/4 7/8 7/8

Unit Charge (Lbs. - Oz.) Charge Per Foot, Oz. 0.68 0.70 0.70 0.68 0.70 0.70 Operating Weight Lbs. 185 240 258 185 241 258

1. Rated in accordance with ARI Standard 110, utilization range “A”.

2. Dual element fuses or HACR circuit breaker.

3. All scrolls listed with a superscript “B” are Bristol scrolls. All scrolls listed with a superscript “C” are Copeland scrolls.

4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.

Load Locked

Rotor

Load

Nominal RPM

Nominal CFM

EABC-T036S EABC-T048S EABC-T060S EABC-W036S EABC-W048S EABC-W060S

208/230-3-60 460 - 3 - 60

187-252 432-504

20 35 40 15 15 20

Recip

Scroll

Recip

Scroll

9.9 15.6 18.3 5.1 7.7 8.7

78 93 123 40 47 62

1.31.31.30.80.80.8

850 850 850 850 850 850

3,300 3,400 3,400 3,300 3,400 3,400

9 - 5 13 - 9 12 - 9 9 - 5 13 - 9 12 - 9

Scroll

2 Unitary Products Group

Page 3

036-21320-002 Rev. A (1103)

Additional R-22 Charge / Orifice Size for Various Matched Systems - 1 Phase

Outdoor Unit EABC-F018S EABC-F024S EABC-F030S EABC-F036S EABC-F042S EBBC-F048S EBBC-F060S Unit Orifice (s)

Factory R-22 Charge, lbs-oz 5 - 13 6 - 7 6 - 9 7 - 4 7 - 1 13 - 9 12 - 11

Indoor Coil

Coil Orifice

G2FD024(S,H)14,17(T) 61

G2FD030(S,H)17(T) 65

G2FD035(S,H)14 65

G2FD036(S,H)17,21(T) 75

G2FD042(S,H)21(T) 78

G2FD046(S,H)17 78 75 + 3 G2FD048(S,H)21,24 84

G2FD060(S,H)24 90

G2FD061H24 90 87 + 10 G1HA024H14 61 53 + 02

G1HA024H14T TXV 701 +02 +0 G1HA036H14 75 G1HA036H14T TXV 702 +05 +0 G1HA036H17 78 75 + 03 78 + 11 G1HA036H17T TXV 702 +0 +11 G1HA048H21 84 75 + 08 87 + 00 G1HA048H21T TXV 703 G1HA060H24 90 87 + 05 96 + 05 G1HA060H24T TXV 703 G1HD024 59

G1HD036 69 G1HD048 81 G1HD060 93 87 + 0 G1FA/G1UA024S14,17 59 G1FA/G1UA030S14 65 53 + 0 G1FA/G1UA036S14 73 G1FA/G1UA036S17,21 73 G1FA/G1UA048S21 84 G1FA/G1UA060S21,24 90 87 + 5 G1NA030S17K 63 G1NA030S21M 63 G1NA036S17L 71 G1NA048S21D 78 G1NA048S24P 78 G1NA042S24W 84 87 + 20

G1NA060S24T 87 G1NF036SOF 67 G1NF048SOF 78 G1NF060SOF 87

F2RP/F2FP024 61 55 + 0 F2RP/F2FP030 65 61 + 0 F2RP/F2FP036 75 71 + 7 75 + 0

53,55 59,61 67,69,71 71,75 81 87 96

53 + 2

53 + 0

3,5

701

+ 0

61 + 0

3,5

701

+ 0 701

61 + 0

7013 +0

61 + 6

System Orifice - Additional Charge, Oz

69 + 3

3,5

+ 3

69 + 3

71 + 5

7013 + 5 702

75 + 0

75 + 3

702

3,5

+ 0

78 + 11

+ 0 702

7023 +14

81 + 24

7023 +24

3,5

+11

81 + 17

87 + 0

7013 +8 7023 +2

69 + 14

75 + 7

78 + 7

7013 +0

55 + 4

69 + 5

61 + 0

59 + 1 59 + 1

59 + 1

4 4

69 + 3

67 + 0

67 + 1

75 + 8

71 + 11 71 + 11

71 + 11

4 4

81 + 11

87 + 0

78 + 0 78 + 0

4 4

78 + 0

87 + 20

96 + 5

96 + 15

96 + 1

96 + 5

96 + 0

96 + 9

Unitary Products Group 3

Page 4

036-21320-002 Rev. A (1103)

Additional R-22 Charge / Orifice Size for Various Matched Systems - 1 Phase

Outdoor Unit EABC-F018S EABC-F024S EABC-F030S EABC-F036S EABC-F042S EBBC-F048S EBBC-F060S Unit Orifice (s)

Factory R-22 Charge, lbs-oz 5 - 13 6 - 7 6 - 9 7 - 4 7 - 1 13 - 9 12 - 11

Indoor Coil

F2RP/F2FP042 (T) 78 75 + 3 F2FP045 78 87 + 5 F2FP048 (T) 84 81 + 17 F2FP060 (T) 90 F2FV060 90 87 + 5 96 + 5

FOOTNOTES:

Coil Orifice

1. These orifices are packed in the customer packet of each outdoor unit.

2. These orifices are factory mounted in the flow control device of each indoor coil. A TXV is factory mounted if model number has (T) suffix.

3. A TXV kit must be used with these coils to obtain system performance. (701,702,703 indicates 1TV07 ...series).

4. Systems matched with furnaces or air handlers not equipped with blower-off delays, may require blower Time Delay Kit #2FD0670224.

5. This TXV is factory installed on Indoor Coil model with (T) suffix.

PROCEDURES:

1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaportor and for 15 feet of interconnecting line tubing.

2. Verify the orifice size and additional charge required for specific evaportor coil in the system using the above table.

3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in the table above.

4. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for evaportor + adder for line set.

5. If the orifice in the evaportor was changed, verify the evaportor nameplate has been marked with the correct orifice size.

53,55 59,61 67,69,71 71,75 81 87 96

System Orifice - Additional Charge, Oz

3,5

702

+11

703

3,5

+ 0

703

3,5

+ 5

Additional R-22 Charge / Orifice Size for Various Matched Systems - 3 Phase

Outdoor Unit EABC-(T,W)036S EABC-(T,W)048S EABC-(T,W)060S

Unit Orifice (s)

Factory R-22 Charge, lbs-oz 9 - 5 13 - 9 12 - 9

Indoor Coil

Coil Orifice

G1UA048S(21,24) 84 73 + 0 87 + 0 — G1UA060S24 90 — 87 + 5 99 + 0 G1FA048S(21,24) 84 73 + 0 87 + 0 G1FA060S24 90 — 87 + 5 99 + 0 G1HA048H21 84 73 + 2 — — G1HA060H24 90 — 87 + 5 99 + 0 G2FD048S(21,24) 84 73 + 2 87 + 2 — G2FD060S24 90 — 87 + 5 99 + 0 Footnotes:

1. These orifices are packed in the instruction/warranty packet of each outdoor unit.

2. These orifices are factory mounted in the flow control device of each indoor coil.

3. A TXV is factory mounted in the coil or air handler.

PROCEDURES:

1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaportor and for 15 feet of interconnecting line tubing.

2. Verify the orifice size and additional charge required for specific evaportor coil in the system using the above table.

3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in the table above.

4. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (a s shipped) + adder for evaportor + adder for line set.

5. If the orifice in the evaportor was changed, verify the evaportor nameplate has been marked with the correct orifice size.

73 87 99

System Orifice = Additional Charge, Oz

4 Unitary Products Group

Page 5

036-21320-002 Rev. A (1103)

COOLING CAPACITY - With Air Handler Coils

COOLING

SEER

W/O TXV

SEER

+ TXV

UNIT MODEL

MODEL

AIR HANDLER

ELECTRIC

HEAT KW

1,6

COIL MODEL

RATED

CFM

NET MBH

TOTAL SENS.

1 PH 12 SEER HP WITH N-AH / G2FD

EABC-F018S N1AHB0806 2,5,8,10 17 G2FD024 EABC-F024S

N1AHB0806 2,5,8,10 17 G2FD024

N1AHB0806 2,5,8,10 17 G2FD030 EABC-F030S N1AHB1206 5,8,10,15,19 17 G2FD036 EABC-F036S N1AHB1206 5,8,10,15,19 17 G2FD036 EABC-F042S N1AHC1606 5,8,10,15,20 21 G2FD042

N1AHC1606 5,8,10,15,20 21 G2FD048 EBBC-F048S

N1AHD2006 8,10,15,20,25,30 24 G2FD060

(S,H)17 (T) 650 17.8 12.8 - 12.00 10.35 (S,H)17 (T) 840 23.4 17.3 - 12.00 10.25 (S,H)17 (T) 840 23.8 17.6 12.0 12.10 10.35 (S,H)17 (T) 1025 28 20.7 11.8 12.00 10.30 (S,H)17 (T) 1250 33.4 24.7 12.0 12.10 10.10 (S,H)21 (T) 1400 40 30.0 12.0 12.00 10.45

(S,H)21 1600 45.5 33.3 12.0 - 10.70 (S,H)24 1600 46.5 34.4 12.0 - 10.90

N1AHD2006 8,10,15,20,25,30 24 G2FD061H24 1600 47 36.3 12.0 - 11.00 EBBC-F060S

N1AHD2006 8,10,15,20,25,30 24 G2FD060

N1AHD2006 8,10,15,20,25,30 24 G2FD061H24 2000 59 44.0 - 12.00 10.80

(S,H)24 1700 57.5 40.4 12.0 - 10.75

1 PH 12 SEER HP / N1VS - VARIABLE SPEED

EABC-F018S N1VSB12 5,8,10,15,19 17 G2FD024 EABC-F024S N1VSB12 5,8,10,15,19 17 G2FD030 EABC-F030S N1VSB12 5,8,10,15,19 17 G2FD036

EABC-F036S

N1VSB12 5,8,10,15,19 17 G2FD036 N1VSB12 5,8,10,15,19 17 G2FD046

EABC-F042S N1VSC16 5,8,10,15,20 21 G2FD048 EBBC-F048S

EBBC-F060S

N1VSD20 8,10,15,20,25,30 24 G2FD060 N1VSD20 8,10,15,20,25,30 24 G2FD061H24 1600 47.5 36.3 - 12.65 11.55 N1VSD20 8,10,15,20,25,30 24 G2FD060 N1VSD20 8,10,15,20,25,30 24 G2FD061H24 1900 59.5 44.0 - 12.35 11.05

1 PH 12 SEER HP / F2RP / FP / FV

(S,H)17 645 18.4 12.8 13.00 - 11.80 (S,H)17 785 24.4 17.6 13.00 - 11.50 (S,H)17 1000 28.6 20.7 13.00 - 11.20 (S,H)17 1150 34.0 24.7 13.00 - 11.00 (S,H)17 1150 34.6 25.1 13.00 - 11.00 (S,H)21 1425 41.5 30.4 13.00 - 11.00

(S,H)24 (T) 1600 47.0 34.4 - 12.60 11.40

(S,H)24 (T) 1860 59.0 40.4 - 13.50 11.90

4,5

EABC-F018S F2RP/F2FP024 5,8,10 18 - 650 18.0 13.3 12.00 - 10.50 EABC-F024S F2RP/F2FP030 5,8,10,15 18 - 800 23.6 17.5 12.00 - 10.50

EABC-F030S

EABC-F036S

EABC-F042S

F2RP/F2FP030 5,8,10,15 18 - 1025 27.8 20.6 11.30 - 10.25 F2RP/F2FP036 5,8,10,15,19 21 - 1000 28.6 21.2 12.00 - 10.60 F2RP/F2FP036 5,8,10,15,19 21 - 1200 34.0 25.2 12.00 - 10.40 F2RP/F2FP042 5,8,10,15 21 - 1200 34.0 25.2 12.00 - 10.40

F2RP/F2FP042 (T) 5,8,10,15 21 - 1400 39.5 29.2 - 11.70 10.25

F2FP048 5,8,10,15,20,25 24 - 1400 41.0 30.3 12.00 - 10.60 F2FP045 5,8,10,15 24 - 1500 46.0 33.5 12.00 - 11.00

EBBC-F048S

F2FP048 (T) 5,8,10,15,20,25 24 - 1600 45.5 33.7 - 12.00 10.55

F2FV060 8,10,15,20,25 24 - 1600 47.0 35.9 12.60 - 11.40

EBBC-F060S

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18- 88) and ARI Standards 210. Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow. EER (Energy Efficiency Ratio) is the total cooling output in BTU’ s at a 95°F outdoor ambient divided by the total electric power in watt-hours at those condition s. SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the same period.

1. G2FD coils available with a factory installed horizontal drain pan. See price pages for specific model number.

2. Single phase units require single phase 2HK heaters. Three phase units require t hree phase 2HK heaters.

3. TXV = Thermal Expansion Valve kit required. Use 1TV700 series kit.

4. To meet R=4.2 insulation requirements, substitute F2FP for F2RP, and F2FC for F2RC

5. FG8, FG9, and FL8 furnaces and F2RP / F2RC air handlers have B.O.D (Blower on Delay) standard.

6. A TXV is factory mounted in the Indoor Coil or Air Handler with model numbers containing a (T) suffix.

- = Not applicable

F2FP060 (T) 5,8,10,15,20,25 24 - 1700 57.0 39.9 - 12.00 10.40

F2FV060 8,10,15,20,25 24 - 1900 57.5 43.4 12.30 - 10.65

. models. All ratings remain the same.

EER

Unitary Products Group 5

Page 6

036-21320-002 Rev. A (1103)

COOLING CAPACITY - Upflow, Downflow, & Horizontal Furnaces and Coils

UNIT MODEL

EABC-F018S

EABC-F024S

EABC-F030S

EABC-F036S

EABC-(T,W)036S

For Notes see Page 7.

FURNACE**

CFM RANGE

(MIN.-MAX.)

575 725

750 950

900

1150

1050 1350

1050 1450

14,17 G1FA024S14,17 650 17.6 13.0 11.70* - 10.30

14 G1FA030S14 650 17.8 13.2 11.85* - 10.40 14 G1HA024H14 (T) 650 17.4 12.8 12.00 12.00 10.25

- G1HD024 650 18.0 12.2 12.00* - 10.55

17 G1NA030S17K 650 18.0 12.2 12.00* - 10.50

14,17 G1UA024S14,17 650 17.6 13.0 11.70* - 10.30

14 G1UA030S14 650 17.8 13.2 11.85* - 10.40

14,17 G2FD024

14 G1FA030S14(T) 840 23.4 17.3 - 12.00 10.25

17,21 G1FA036S17,21 840 23.8 17.6 12.00* - 10.35

14 G1HA024H14T 840 23.0 17.3 12.00 12.00 10.25

- G1HD024 840 23.8 18.7 - 12.20 10.35

- G1HD036 840 24.2 19.0 12.00* - 10.50 17 G1NA030S17K 850 23.6 16.9 12.00 - 10.50 21 G1NA030S21M 850 23.6 16.9 12.00 - 10.50 14 G1UA030S14 840 23.4 17.3 - 12.00 10.25

17,21 G1UA036S17,21 840 23.8 17.6 12.00* - 10.35 14,17 G2FD024

17 G2FD030 14 G2FD035 14 G1FA036S14 1025 28.2 20.4 11.50* - 10.35

17,21 G1FA036S17,21 1025 27.8 20.6 11.50* - 10.25

14 G1HA036H14T 1025 27.4 20.7 12.00 12.00 10.45

- G1HD036 1025 28.2 22.4 - 12.00 10.35

- G1HD048 1025 29.4 23.3 12.15* - 10.70 17 G1NA036S17L 1000 30.0 20.7 12.00* - 10.90 21 G1NA048S21D 1000 30.0 20.7 12.00* - 10.85 14 G1UA036S14 1025 28.2 20.4 11.50* - 10.35

17,21 G1UA036S17,21 1025 27.8 20.5 11.50* - 10.25

17 G2FD030 14 G2FD035 17 G2FD036 21 G2FD036 21 G1FA048S21 1250 34.8 25.8 12.20* - 10.50 14 G1HA036H14T 1150 33.6 25.2 - 12.00 10.35 17 G1HA036H17(T) 1200 33.4 25.4 12.00 12.00 10.30 21 G1HA048H21 1200 34.0 25.8 12.00 12.00 10.50

- G1HD036 1250 33.4 26.4 - 12.00 10.10

- G1HD048 1250 36.0 27.9 12.00* - 10.50 17 G1NA036S17L 1200 34.0 24.1 12.00* - 10.70 21 G1NA048S21D 1200 34.0 24.1 12.00* - 10.60

21,24 G1UA048S21 1250 34.8 25.8 12.20* - 10.50

17 G2FD036 21 G2FD036 21 G2FD042 21 G1FA048(S,H)21 1250 34.6 25.8 12.00 - 10.55 21 G1HA048H21 1250 34.4 25.1 12.00 - 10.50 21 G1UA048(S,H)21 1250 34.6 25.8 12.00 - 10.55

21,24 G2FD048(S,H)21,24 1250 35.0 25.1 12.00 - 10.70

COIL

MODEL

(S,H)14,17(T) 650 17.8 12.8 - 12.00 10.35

(S,H)14,17(T) 840 23.4 17.3 - 12.00 10.25

(S,H)17(T) 840 23.8 17.6 12.00* 12.10 10.35

(S,H)14 840 23.8 17.6 12.00* - 10.35

(S,H)17(T) 1025 27.8 20.5 11.50* 11.65 10.25

(S,H)14 1025 27.8 20.5 11.65 - 10.25 (S,H)17 1025 28.0 20.7 11.80* 12.00 10.30 (S,H)21 1025 28.0 20.7 - 12.00 10.55

(S,H)17(T) 1250 33.4 24.7 12.00* 12.10 10.10 (S,H)21(T) 1200 34.0 25.2 - 12.15 10.35 (S,H)21(T) 1250 34.2 25.4 12.10* 12.20 10.30

RATED

CFM

NET MBH

TOTAL SENS.

COOLING

SEER

W/0 TXV

SEER + TXV

EER

6 Unitary Products Group

Page 7

036-21320-002 Rev. A (1103)

COOLING CAPACITY - Upflow, Downflow, & Horizontal Furnaces and Coils (Continued)

COOLING

SEER

W/0 TXV

UNIT MODEL

FURNACE**

CFM RANGE

(MIN.-MAX.)

COIL

MODEL

RATED

CFM

TOTAL SENS.

21 G1FA048S21 1400 40.5 30.0 12.00* - 10.65 17 G1HA036H17(T) 1300 39.5 30.0 12.00 12.00 10.35

- G1HD048 1400 40.5 31.5 12.00* - 10.60

21 G1NA048S21D 1400 40.5 29.7 12.00* - 10.50

21,24 G1UA048S21 1400 40.5 30.0 12.00* - 10.65

21 G2FD042

21,24 G2FD048

24 G2FD060

(S,H)21(T) 1400 40.0 30.0 12.00* 12.00 10.45

(S,H)21,24(T) 1450 40.5 30.4 - 12.00 10.65

(S,H)24(T) 1400 41.0 30.8 12.10* 12.30 10.90

EABC-F042S

1225 1575

21 G1FA048S21 1500 45.5 33.0 12.00 - 10.80

21,24 G1FA060S21,24 1600 46.5 34.4 12.00 - 10.90

21 G1HA048H21 1500 44.5 33.0 12.00 - 10.80 24 G1HA060H24 1600 46.0 34.4 12.00 - 10.90

- G1HD060 1600 46.0 34.1 12.00 - 10.80

24 G1NA042S24W 1500 46.0 32.8 12.00 - 10.75

21,24 G1UA048S21 1500 45.5 33.0 12.00 - 10.80

EBBC-F048S

1400 1800

21,24 G1UA060S21,24 1600 46.5 34.4 12.00 - 10.90 21,24 G2FD048

24 G2FD060

(S,H)21,24 1600 45.5 33.3 12.00 - 10.70

(S,H)24 1600 46.5 34.4 12.00 - 10.90

24 G2FD061H24 1600 47.0 36.3 12.00 - 11.00 21 G1FA048(S,H)21 1600 45.0 32.5 12.00 - 10.25

21,24 G1FA060(S,H)21,24 1600 45.5 33.0 12.00 - 10.35

24 G1HA060H24 1600 45.0 32.5 12.00 - 10.30 21 G1UA048(S,H)21 1600 45.0 32.6 12.00 - 10.25

21,24 G1UA060(S,H)21,24 1600 45.5 33.0 12.00 - 10.35

EABC-(T,W)048S

1400 1800

21,24 G2FD048(S,H)21,24 1600 45.0 32.5 12.00 - 10.25

24 G2FD060(S,H)24 1600 45.5 33.0 12.00 - 10.35

21,24 G1FA060S21,24 1700 57.5 40.4 12.00* - 10.75

24 G1HA060H24 1700 57.5 40.0 12.00 - 10.75

- G1HD060 1800 58.0 40.7 12.00* - 10.80

24 G1NA060S24T 1800 56.5 39.6 12.00* - 10.55

21,24 G1UA060S21,24 1700 57.5 40.4 12.00* - 10.75

24 G2FD060

(S,H)24 1700 57.5 40.4 12.00* - 10.75

EBBC-F060S

1600 2100

24 G2FD061H24 2000 59.0 44.0 - 12.00* 10.80

21,24 G1FA060(S,H)21,24 1700 55.5 38.4 12.00 - 10.70

EABC-(T,W)060S

1500 1900

24 G1HA060H24 1700 55.0 37.5 12.00 - 10.70

21,24 G1UA060(S,H)21,24 1700 55.5 38.4 12.00 - 10.70

24 G2FD060(S,H)24 1700 55.5 38.4 12.00 - 10.70

1. A TXV is factory mounted in the Indoor Coil or Air Handler with model numbers containing a (T) suffix.

2. TXV = Use 1TV700 Series Kit. * Requires a 2FD Blower Time Delay unless a standa rd furnace is equipped with one.

** Refer to Quick Selection Chart for specific furnace match-up.

NET MBH

SEER + TXV

EER

Unitary Products Group 7

Page 8

036-21320-002 Rev. A (1103)

COOLING CAPACITY - With Variable Speed Furnaces

UNIT MODEL

VARIABLE SPEED FURNACE MODEL

COIL MODEL

G8V***12UHA G1FA024S14(T) 14 685 18.0 13.4 - 12.75 11.40 G8V***12UHA G1FA030S14(T) 14 685 18.2 13.6 - 13.00 11.55

EABC-F018S

G8V***12UHA G2FD024 G9V***12DHB G2FD024 G9V***12UPB G1FA024 G9V***12UPB G2FD024 G8V***12UHA G1FA030 G8V***12UHA G2FD024 G8V***16UHB G1FA036 G8V***16UHB G2FD024

EABC-F024S

G8V***16UHB G2FD030 G9V***12DHB G2FD024 G9V***12DHB G2FD030 G9V***12UPB G1FA036S17 17 820 24.4 18.2 - 13.00 11.35 G9V***12UPB G2FD024S17(T) 17 820 24.0 17.9 - 13.00 11.20 G9V***12UPB G2FD030S17(T) 17 820 24.4 18.2 - 13.00 11.35 G8V***12UHA G1FA036S14 14 1080 28.6 20.8 - 12.00 10.80 G8V***12UHA G2FD035 G8V***16UHB G1FA036S17 17 1050 28.4 21.2 - 12.25 11.20

EABC-F030S

G8V***16UHB G2FD036 G9V***12UHB G1FA036S17 17 1050 28.2 21.0 - 12.25 10.95 G9V***12UHB G2FD030 G9V***12UHB G2FD036 G9V***12DHB G2FD036 G8V***16UHB G2FD036 G8V***20UHC G1FA048S21 21 1250 35.4 26.4 - 12.75 11.40 G8V***20UHC G2FD036 G8V***20UHC G2FD042

EABC-F036S

G9V***12DHB G2FD036 G9V***12UPB G2FD036 G9V***16UPC G1FA048S21 21 1260 35.4 26.4 - 12.75 11.20 G9V***16UPC G2FD036 G9V***16UPC G2FD042 G8V***20UHC G1FA048S21 21 1400 41.0 30.5 - 12.50 11.15 G8V***20UHC G2FD042 G8V***20UHC G2FD048

EABC-F042S

G9V***20DHD G2FD048 G9V***16UPC G1FA048S21 21 1400 41.0 30.5 - 12.50 11.15 G9V***16UPC G2FD042 G9V***16UPC G2FD048 G8V***20UHC G1FA048S21(T) 21 1500 46.0 33.5 - 12.25 11.15 G8V***20UHC G1FA060S21(T)(T) 21 1610 46.5 34.4 - 12.10 11.15 G8V***20UHC G2FD048 G9V***20DHD G2FD048

EBBC-F048S

G9V***16UPC G1FA048S21(T) 21 1480 45.5 33.0 - 12.10 10.90 G9V***16UPC G1FA060S21(T) 21 1480 46.0 33.9 - 12.10 10.95 G9V***16UPC G2FD048 G9V***20UPD G1FA060S24(T) 24 1620 46.5 34.4 - 12.10 11.10 G9V***20UPD G2FD060 G8V***20UHC G1FA060S21(T) 21 1730 57.5 40.4 - 12.10 10.80 G9V***20DHD G2FD060

EBBC-F060S

G9V***20UPC G1FA060S21(T) 21 1620 57.0 39.9 - 12.10 10.70 G9V***20UPD G1FA060S24(T) 24 1620 57.0 39.9 - 12.10 10.70 G9V***20UPD G2FD060 G9V***20UPD G2FD061H24 24 1620 58.5 43.5 - 12.10 10.55

1. G2FD coils available with a factory installed horizontal drain pan. See price pages for specific model number.

2. TXV = Use 1TV700 Series Kit.

3. Variable speed furnaces have B.O.D (Blower on Delay) standard.

4. A TXV is factory mounted in the Indoor Coil or Air Handler with model numbers containing a (T) suffix.

1,4

RATED

CFM

TOTAL SENS.

1 PH 12 SEER HP - VARIABLE SPEED

(S,H)14(T) 14 685 18.2 13.2 - 13.00 11.50 (S,H)17(T) 17 620 18.2 13.2 - 13.00 11.75

S17(T) 17 660 18.0 13.4 - 12.75 11.40

(S,H)17(T) 17 660 18.2 13.2 - 13.00 11.50

S14(T) 14 875 23.8 17.7 - 12.75 11.05

(S,H)14(T) 14 875 23.8 17.7 - 12.75 11.05

S17 17 840 24.2 18.0 - 12.75 11.20 (S,H)17(T) 17 840 23.8 17.7 - 12.75 11.05 (S,H)17(T) 17 840 24.2 18.0 - 13.00 11.15 (S,H)17(T) 17 815 23.6 17.5 - 13.00 11.30 (S,H)17(T) 17 830 24.2 18.0 - 13.20 11.60

(S,H)14(T) 14 975 28.2 20.9 - 12.50 11.05

(S,H)17 17 1050 28.6 21.3 - 12.75 11.25

(S,H)17(T) 17 1050 28.2 20.9 - 12.50 10.95

(S,H)17 17 1050 28.4 21.1 - 12.75 11.05 (S,H)17 17 1040 28.2 20.9 - 12.40 10.85

(S,H)17(T) 17 1250 33.8 25.1 - 12.50 10.70

(S,H)21(T) 21 1200 34.6 25.8 - 12.75 11.15 (S,H)21(T) 21 1200 34.8 26.2 - 12.75 11.10 (S,H)17(T) 17 1130 33.4 24.7 - 12.00 10.85 (S,H)17(T) 17 1200 33.8 25.1 - 12.25 10.50

(S,H)21(T) 21 1200 34.4 25.6 - 12.75 11.00 (S,H)21(T) 21 1200 34.8 26.2 - 12.75 11.00

(S,H)21(T) 21 1400 40.5 30.5 - 12.50 10.95

(S,H)21 21 1460 41.0 30.9 - 12.25 11.05 (S,H)24 24 1365 41.5 71.9 - 12.80 11.35

(S,H)21(T) 21 1400 40.5 30.5 - 12.25 10.85

(S,H)21 21 1480 40.5 30.4 - 12.10 10.70

(S,H)21(T) 21 1610 45.5 33.3 - 12.10 10.90 (S,H)24(T) 24 1610 47.0 34.8 - 12.40 11.00

(S,H)21(T) 21 1480 45.0 32.8 - 12.10 10.65

(S,H)24(T) 24 1620 46.5 34.4 - 12.20 11.10

(S,H)24(T) 24 1805 57.5 40.4 - 11.80 10.40

(S,H)24(T) 24 1620 57.0 39.9 - 12.10 10.70

NET MBH

COOLING

SEER

W/O TXV

SEER

+ TXV

EER

8 Unitary Products Group

Page 9

036-21320-002 Rev. A (1103)

HEATING PERFORMANCE - With Air Handler

UNIT

MODEL*

COIL

MODEL

ARI HEATING

47°F17°FHSPF-3°F 7°F27°F37°F57°F

MBH COP KW MBH COP KW

STD MBH KW MBH KW MBH KW MBH KW MBH KW

OUTDOOR TEMP

EABC-F018S F2RP/F2FP024 19.0 3.20 1.74 10.6 2.06 1.52 7.20 7.2 1.44 8.9 1.47 13.0 1.63 14.8 1.58 19.3 1.75 EABC-F024S F2RP/F2FP030 24.0 3.16 2.23 14.0 2.06 2.00 7.30 9.1 1.75 1.3 1.86 15.8 2.08 21.1 2.13 27.1 2.32

EABC-F030S

EABC-F036S

EABC-F042S

F2RP/F2FP030 29.0 3.30 2.58 18.0 2.20 2.40 7.60 10.7 2.28 14.3 2.34 22.2 2.59 26.4 2.78 32.7 2.63 F2RP/F2FP036 29.6 3.40 2.55 18.0 2.30 2.29 8.00 11.6 2.02 15.0 2.22 20.2 2.34 26.0 2.43 33.9 2.68 F2RP/F2FP036 35.0 3.50 2.93 20.6 2.30 2.62 8.00 12.1 2.26 15.9 2.40 25.0 2.86 30.8 2.79 39.6 3.12 F2RP/F2FP042 35.0 3.50 2.93 20.6 2.30 2.62 8.00 12.1 2.26 15.9 2.40 25.0 2.86 30.8 2.79 39.6 3.12 F2RP/F2FP042 41.5 3.38 3.60 25.2 2.30 3.21 8.00 14.3 2.95 19.8 3.08 31.4 3.43 37.6 3.65 46.9 3.73

F2FP048 42.0 3.60 3.42 25.4 2.38 3.14 8.00 14.8 2.93 20.1 3.04 30.9 3.24 36.7 3.33 48.8 3.54 F2FP045 47.0 3.22 4.28 29.4 2.40 3.59 8.00 17.7 3.13 23.5 3.36 33.7 3.71 37.9 3.78 52.9 4.39

EBBC-F048S

F2FP048 47.5 3.18 4.38 30.0 2.40 3.66 8.00 18.3 3.19 24.2 3.42 34.3 3.76 38.6 3.86 53.3 4.62 F2FV060 46.0 3.34 4.04 28.4 2.54 3.28 8.25 16.7 2.77 22.5 3.02 32.7 3.40 37.0 3.52 51.9 4.29

EBBC-F060S

1. Rated CFM same as for cooling.

2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.

3. Integrated heating capacities include the effect of defrost cycles in the temperature range where they occur.

CP equals MBH output divided by (total KW input x 3.412). HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the total electric

power input during the same period.

— = Not Applicable.

F2FP060 59.0 3.40 5.08 35.2 2.30 4.41 7.75 19.3 3.96 27.3 4.18 38.8 4.45 42.5 4.49 66.9 5.31 F2FV060 57.5 3.80 4.43 33.6 2.50 3.94 8.25 17.7 3.61 25.6 3.77 37.2 3.94 40.9 3.95 65.5 4.60

HEATING PERFORMANCE - Furnace Coils

UNIT

MODEL*

EABC-F018S

EABC-F024S

EABC-F030S

For Notes see Page 10.

COIL

MODEL

ARI HEATING

47°F17°FHSPF -3°F 7°F27°F37°F57°F

MBH COP KW MBH COP KW

Variable

Speed

STD N1VS MBH KW MBH KW MBH KW MBH KW MBH KW

OUTDOOR TEMP

G2FD024(S,H)14,17 18.8 3.40 1.65 10.6 2.04 1.52 7.0 7.1 7.2 1.44 8.9 1.47 13.0 1.63 14.8 1.58 19.3 1.71

G1HA024H14(T) 18.4 3.40 1.65 10.2 2.04 1.52 7.0 -- 7.2 1.44 8.9 1.47 13.0 1.63 14.8 1.58 19.3 1.71

G1HD024 19.0 3.24 1.72 10.4 2.04 1.49 7.0 -- 4.7 1.34 7.5 1.42 12.8 1.62 15.2 1.74 21.9 1.79

G1NA030S17K 18.0 3.26 1.62 10.8 2.06 1.54 7.2 -- 6.0 1.48 8.4 1.51 13.0 1.58 15.2 1.63 20.4 1.65

G1UA024S14,17 18.8 3.14 1.75 10.4 2.02 1.50 7.0 -- 5.0 1.33 7.7 1.42 13.1 1.59 15.8 1.67 21.8 1.84

G1UA030S14 19.0 3.22 1.73 10.4 2.04 1.49 7.1 -- 4.7 1.33 7.5 1.42 12.8 1.59 15.2 1.69 21.9 1.81

G1FA024S14,17 18.8 3.14 1.75 10.4 2.02 1.50 7.0 -- 5.0 1.33 7.7 1.42 13.1 1.59 15.8 1.67 21.8 1.84

G1FA030S14 19.0 3.22 1.73 10.4 2.04 1.49 7.1 -- 4.7 1.33 7.5 1.42 12.8 1.59 15.2 1.69 21.9 1.81

G2FD024

(S,H)14,17 23.4 3.04 2.26 13.8 2.02 2.00 7.2 -- 7.4 1.83 10.6 1.92 16.5 2.03 19.1 2.06 26.6 2.34

G1HA024H14(T) 23.0 3.04 2.26 13.6 2.02 2.00 7.2 -- 7.4 1.83 10.6 1.92 16.5 2.03 19.1 2.06 26.6 2.34

G2FD030

(S,H)14,17 23.6 3.12 2.22 14.0 2.06 1.99 7.3 7.3 7.9 1.81 11.0 1.90 17.8 2.08 20.3 2.60 27.7 2.31

G2FD035

(S,H)14 23.6 3.12 2.22 14.0 2.06 1.99 7.3 -- 8.0 1.82 11.0 1.90 17.0 2.08 20.3 2.16 27.6 2.31

G1HD024S 23.4 3.08 2.22 13.8 2.05 1.97 7.2 -- 7.7 1.78 10.7 1.88 16.9 2.07 20.1 2.15 27.5 2.32 G1HD036S 23.6 3.24 2.22 14.0 2.12 1.99 7.3 -- 7.9 1.80 11.0 1.90 17.0 2.09 20.2 2.16 27.9 2.30

G1NA030S17K 24.0 3.16 2.23 14.0 2.06 1.99 7.3 -- 7.3 1.84 10.7 1.91 16.9 2.08 19.7 2.16 27.3 2.30

G1NA030S21M 24.0 3.16 2.23 14.0 2.06 1.99 7.3 -- 7.3 1.84 10.7 1.91 16.9 2.08 19.7 2.16 27.3 2.30

G1UA030S14 23.6 3.12 2.22 14.0 2.06 1.99 7.3 -- 7.9 1.81 11.0 1.90 17.0 2.08 20.3 2.16 27.7 2.34

G1UA036S17,21 23.6 3.12 2.22 14.0 2.06 1.99 7.3 -- 7.9 1.81 11.0 1.90 17.0 2.08 20.3 2.16 27.7 2.34

G1FA030S14 23.6 3.12 2.22 14.0 2.06 1.99 7.3 -- 7.9 1.81 11.0 1.90 17.0 2.08 20.3 2.16 27.7 2.34 G1FA036S17,21 23.6 3.12 2.22 14.0 2.06 1.99 7.3 -- 7.9 1.81 11.0 1.90 17.0 2.08 20.3 2.16 27.7 2.34 G2FD030 G2FD035 G2FD036 G2FD036

(S,H)17 29.63.362.5818.02.282.31 8.0 -- 10.22.1014.12.2121.92.4226.12.5235.22.78 (S,H)14 29.63.362.5818.02.282.31 8.0 -- 10.22.1014.12.2121.92.4226.12.5235.22.78 (S,H)17 30.0 3.40 2.59 18.2 2.30 2.32 8.0 8.1 10.3 2.10 14.2 2.21 22.2 2.45 26.4 2.52 35.8 2.77 (S,H)21 29.63.382.5518.02.282.32 8.0 -- 10.52.1314.42.2222.02.4126.12.5035.12.74

G1HA036H14(T) 29.0 3.38 2.55 17.6 2.28 2.32 7.9 -- 10.5 2.13 14.4 2.22 22.0 2.41 26.1 2.50 35.1 2.74

G1HD036S 30.0 3.50 2.51 18.2 2.34 2.27 8.0 -- 10.3 2.07 14.2 2.17 22.2 2.37 26.4 2.46 35.7 2.70 G1HD048S 30.4 3.54 2.51 18.4 2.36 2.27 8.0 -- 10.3 2.08 14.3 2.17 22.3 2.37 26.6 2.46 36.1 2.68

G1NA036S17L 29.6 3.40 2.55 18.0 2.30 2.29 8.0 -- 10.3 2.12 14.1 2.21 21.3 2.34 24.6 2.39 33.5 2.64

G1NA048S21D 29.6 3.40 2.55 18.0 2.30 2.29 8.0 -- 10.3 2.12 14.1 2.21 21.3 2.34 24.6 2.39 33.5 2.64

G1UA036S14 29.8 3.42 2.57 18.2 2.28 2.34 8.0 -- 10.5 2.19 14.3 2.26 20.8 2.31 23.3 2.27 33.7 2.64 G1UA036S17,21 29.6 3.36 2.58 18.0 2.28 2.31 8.0 -- 10.2 2.10 14.1 2.21 21.9 2.42 26.1 2.52 35.2 2.78

G1FA036S14 29.8 3.42 2.57 18.2 2.28 2.34 8.0 -- 10.5 2.19 14.3 2.26 20.8 2.31 23.3 2.27 33.7 2.64 G1FA036S17,21 29.6 3.36 2.58 18.0 2.28 2.31 8.0 -- 10.2 2.10 14.1 2.21 21.9 2.42 26.1 2.52 35.2 2.78

Unitary Products Group 9

Page 10

036-21320-002 Rev. A (1103)

HEATING PERFORMANCE - Furnace Coils (Continued)

UNIT

MODEL*

COIL

MODEL

G2FD036 G2FD036 G2FD042

ARI HEATING

47°F17°FHSPF -3°F 7°F27°F37°F57°F

MBH COP KW MBH COP KW

(S,H)17 35.4 3.54 2.93 20.8 2.20 2.77 8.0 8.1 10.6 2.61 15.7 2.69 25.9 2.85 31.6 2.93 41.1 3.03 (S,H)21 35.0 3.46 2.96 20.4 2.16 2.77 7.8 -- 10.1 2.56 15.2 2.66 25.6 2.87 31.2 2.96 40.7 3.14 (S,H)21 35.4 3.52 2.95 20.8 2.30 2.65 8.0 -- 11.1 2.45 15.9 2.55 24.9 2.66 28.9 2.68 40.3 3.05

Variable

Speed

STD N1VS MBH KW MBH KW MBH KW MBH KW MBH KW

OUTDOOR TEMP

G1HA036H17 34.6 3.52 2.95 20.4 2.30 2.65 7.9 -- 11.1 2.45 15.9 2.55 24.9 2.66 28.9 2.68 40.3 3.05

EABC-F036S

G1HD036S 35.4 3.56 2.91 20.8 2.20 2.76 8.0 -- 10.4 2.58 15.6 2.67 26.0 2.85 31.6 2.92 41.2 3.07 G1HD048S 35.4 3.58 2.89 20.8 2.22 2.75 8.0 -- 10.4 2.58 15.6 2.66 26.0 2.83 31.7 2.90 41.2 3.04

G1NA036S17L 36.0 3.50 3.01 20.6 2.30 2.62 8.0 -- 10.3 2.37 15.5 2.49 24.5 2.70 28.4 2.78 41.1 3.14

G1NA048S21D 36.0 3.50 3.01 20.6 2.30 2.62 8.0 -- 10.3 2.37 15.5 2.49 24.5 2.70 28.4 2.78 41.1 3.14

G1UA048S21 35.8 3.58 2.93 20.8 2.32 2.63 8.0 -- 0.4 2.37 15.6 2.50 26.0 2.76 31.9 2.88 41.6 3.07

G1FA048(S,H)21 34.0 3.38 2.95 20.2 2.50 2.37 8.00 11.0 2.00 15.6 2.19 24.1 2.50 27.9 2.63 38.6 3.15

EABC(T,W)036S

G1UA048(S,H)21 34.0 3.38 2.95 20.2 2.50 2.37 8.00 11.0 2.00 15.6 2.19 24.1 2.50 27.9 2.63 38.6 3.15

G1HA048H21 33.6 3.36 2.93 19.8 2.48 2.34 8.00 10.6 1.95 15.2 2.14 23.6 2.46 27.4 2.58 38.2 3.13

G2FD048(S,H)21,24 34.4 3.38 2.98 20.4 2.50 2.39 8.00 11.1 2.01 15.7 2.21 24.3 2.53 28.3 2.66 39.1 3.18

G2FD042

G2FD048

G2FD060

(S,H)21 41.5 3.42 3.56 25.2 2.32 3.18 8.0 -- 14.5 2.90 19.9 3.04 30.5 3.32 36.3 3.45 48.1 3.71

(S,H)21,24 41.5 3.42 3.56 25.2 2.32 3.18 8.0 8.1 14.3 2.93 19.8 3.06 28.1 3.15 31.1 3.12 46.9 3.68

(S,H)24 42.0 3.58 3.44 25.4 2.36 3.15 8.0 -- 14.3 2.96 19.9 3.06 29.7 3.31 34.1 3.47 47.5 3.53

G1HA048H21 41.5 3.50 3.52 25.0 2.36 3.15 7.9 -- 14.6 2.94 20.0 3.05 30.8 3.26 36.7 3.38 48.9 3.59

EABC-F042S

G1HD048S 42.0 3.54 3.47 25.4 2.38 3.13 8.0 -- 14.7 2.89 20.0 3.01 30.8 3.24 36.6 3.35 48.8 3.64

G1NA048S21D 41.0 3.30 3.64 27.4 2.50 3.21 8.0 -- 18.3 2.93 22.9 3.07 30.3 3.33 33.2 3.45 45.5 3.78

G1UA048S21 42.0 3.50 3.52 25.4 2.36 3.15 8.0 -- 14.6 2.94 20.0 3.05 30.8 3.26 36.7 3.38 48.9 3.59

G1FA048S21 42.0 3.50 3.52 25.4 2.36 3.15 8.0 -- 14.6 2.94 20.0 3.05 30.8 3.26 36.7 3.38 48.9 3.59

G2FD048

(S,H)21,24 47.5 3.22 4.35 29.8 2.42 3.61 8.0 -- 18.0 3.11 23.9 3.36 34.1 3.71 38.4 3.81 53.4 4.60

G2FD060

(S,H)24 47.5 3.16 4.04 29.6 2.38 3.28 8.0 8.2 16.7 2.77 22.5 3.02 32.7 3.40 37.0 3.52 51.9 4.29

G2FD061H24 45.0 3.30 4.00 28.6 2.56 3.27 -- 8.2 17.7 2.79 23.1 3.03 32.6 3.39 36.6 3.51 50.5 4.24

G1HA048H21(T) 46.5 3.24 4.30 29.0 2.40 3.61 7.9 -- 17.7 3.16 23.6 3.39 34.0 3.70 38.4 3.79 53.5 4.52

EBBC-F048S

G1HD060S 46.5 3.24 4.21 29.6 2.38 3.64 8.0 -- 18.3 3.27 24.0 3.46 33.7 3.71 37.9 3.78 52.1 4.39

G1NA042S24W 48.5 3.36 4.22 30.4 2.50 3.56 8.0 -- 18.3 3.13 24.4 3.35 34.3 3.65 37.2 3.73 54.5 4.44

G1UA048S21 47.5 3.24 4.30 29.6 2.40 3.61 8.0 -- 17.7 3.16 23.6 3.39 34.0 3.70 38.4 3.79 53.5 4.52

G1UA060S21,24 47.5 3.16 4.17 29.6 2.38 3.60 8.0 -- 17.6 3.21 23.3 3.40 34.7 3.80 40.8 4.00 55.6 4.46

G1FA048S21 47.5 3.24 4.30 29.6 2.40 3.61 8.0 -- 17.7 3.16 23.6 3.39 34.0 3.70 38.4 3.79 53.5 4.52

G1FA060S21,24 47.5 3.16 4.17 29.6 2.38 3.60 8.0 -- 17.6 3.21 23.3 3.40 34.7 3.80 40.8 4.00 55.6 4.46

G1UA048(S,H)21 46.5 3.36 4.06 29.0 2.38 3.57 8.00 17.3 3.25 23.2 3.41 36.5 3.97 44.0 4.37 52.3 4.22

G1UA060(S,H)21,24 47.0 3.40 4.05 29.4 2.40 3.59 8.00 17.5 3.34 23.4 3.46 36.7 3.97 44.2 4.36 52.9 4.05

G1FA048(S,H)21 46.5 3.36 4.06 29.0 2.38 3.57 8.00 17.3 3.25 23.2 3.41 36.5 3.97 44.0 4.37 52.3 4.22

EABC(T,W)048S

G1FA060(S,H)21,24 47.0 3.40 4.05 29.4 2.40 3.59 8.00 17.5 3.34 23.4 3.46 36.7 3.97 44.2 4.36 52.9 4.05

G1HA060H24 47.0 3.40 4.05 29.4 2.38 3.62 8.00 17.5 3.34 23.4 3.46 36.7 3.97 44.2 4.36 52.9 4.05

G2FD048(S,H)21,24 47.0 3.38 4.08 29.2 2.40 3.57 8.00 17.3 3.23 23.3 3.40 36.6 3.97 44.1 4.37 52.9 4.24

G2FD060(S,H)24 47.0 3.40 4.05 29.4 2.40 3.59 8.00 17.5 3.34 23.4 3.46 36.7 3.97 44.2 4.36 52.9 4.05

G2FD060

(S,H)24 58.5 3.50 4.90 34.8 2.40 4.25 8.0 8.3 19.0 3.82 26.9 4.03 38.6 4.31 42.3 4.36 66.4 5.11

G2FD061H24 59.5 3.50 4.98 35.6 2.40 4.31 8.0 8.1 19.7 3.86 27.6 4.09 39.2 4.35 42.9 4.39 67.5 5.21

G1HA060H24(T) 57.5 3.50 4.90 34.8 2.40 4.25 8.0 -- 19.0 3.82 26.9 4.03 38.6 4.31 42.3 4.36 66.4 5.11

EBBC-F060S

G1HD060S 59.0 3.50 4.90 35.0 2.40 4.28 8.0 -- 19.0 3.88 29.9 4.08 38.4 4.33 42.1 4.37 66.4 5.10

G1NA060S24T 58.5 3.38 5.07 35.0 2.40 4.27 7.8 -- 19.3 3.74 27.2 4.01 38.6 4.35 42.2 4.43 66.3 5.34

G1UA060S21,24 58.5 3.50 4.90 34.8 2.40 4.25 8.0 -- 19.0 3.82 26.9 4.03 38.6 4.31 42.3 4.36 66.4 5.11

G1FA060S21,24 58.5 3.50 4.90 34.8 2.40 4.25 8.0 -- 19.0 3.82 26.9 4.03 38.6 4.31 42.3 4.36 66.4 5.11

G1UA060(S,H)21,24 59.0 3.48 4.97 37.0 2.92 3.72 8.00 22.3 3.86 30.0 4.08 40.4 4.32 43.8 4.33 66.3 5.19

EABC(T,W)060S

G1FA060(S,H)21,24 59.0 3.48 4.97 37.0 2.92 3.72 8.00 22.3 3.86 30.0 4.08 40.4 4.32 43.8 4.33 66.3 5.19

G1HA060H24 58.5 3.48 4.93 36.6 2.92 3.68 8.00 22.0 3.81 29.3 4.03 40.0 4.27 43.4 4.29 65.8 5.15

G2FD060(S,H)24 59.0 3.48 4.97 37.0 2.92 3.72 8.00 22.3 3.86 30.0 4.08 40.4 4.32 43.8 4.33 66.3 5.19

1. Rated CFM same as for cooling.

2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.

3. Integrated heating capacities include the effect of defrost cycles in the temperature range where they occur.

10 Unitary Products Group

Page 11

HEATING PERFORMANCE - With Variable Speed Furnaces

UNIT

MODEL

EABC-F018S

EABC-F024S

EABC-F030S

EABC-F036S

EABC-F042S

EBBC-F048S

For Notes see Page 12.

FURNACE

COIL

MODEL

47°F 17°F

MBH COP KW MBH COP KW STD MBH KW MBH KW MBH KW MBH KW MBH

G8V***12UHA G1FA024S14 18.4 3.32 1.62 10.0 2.12 1.38 7.50 4.6 1.29 7.3 1.37 12.7 1.46 15.4 1.54 21.4 1.62 G8V***12UHA G1FA030S14 18.5 3.40 1.60 9.8 2.16 1.33 7.45 4.2 1.29 7.1 1.36 12.3 1.46 14.7 1.56 21.4 1.60

ARI HEATING

G8V***12UHA G2FD024 G9V***12DHB G2FD024

(S,H)14 18.3 3.62 1.49 10.0 2.16 1.36 7.50 6.7 1.34 8.4 1.39 12.5 1.50 14.3 1.45 18.8 1.52 (S,H)17 18.3 3.40 1.58 11.2 2.26 1.45 7.00 6.7 1.32 8.4 1.37 12.5 1.48 14.3 1.43 18.8 1.50

G9V***12UPB G1FA024S17 18.4 3.32 1.62 10.0 2.12 1.38 7.50 4.6 1.29 7.3 1.37 12.7 1.46 15.4 1.54 21.4 1.62 G9V***12UPB G2FD024

(S,H)17 18.3 3.62 1.49 10.0 2.14 1.37 7.50 6.7 1.34 8.4 1.39 12.5 1.50 14.3 1.45 18.8 1.52

G8V***12UHA G1FA030S14 23.0 3.16 2.13 13.4 2.10 1.87 7.50 7.5 1.77 10.6 1.86 16.6 1.95 19.9 2.03 27.3 2.09 G8V***12UHA G2FD024

(S,H)14 23.0 3.16 2.13 13.4 2.10 1.87 7.50 7.0 1.79 10.2 1.87 16.1 1.90 18.7 1.93 26.2 2.13

G8V***16UHB G1FA036S17 23.2 3.26 2.08 13.6 2.14 1.86 7.60 7.5 1.77 10.6 1.86 16.6 1.95 19.9 2.03 27.3 2.09 G8V***16UHB G2FD024 G8V***16UHB G2FD030 G9V***12DHB G2FD024 G9V***12DHB G2FD030

(S,H)17 23.0 3.16 2.13 13.4 2.10 1.87 7.50 7.0 1.79 10.2 1.87 16.1 1.90 18.7 1.93 26.2 2.13 (S,H)17 23.2 3.26 2.08 13.6 2.14 1.86 7.60 7.5 1.77 10.6 1.86 17.4 1.95 19.9 2.03 27.3 2.09 (S,H)17 22.9 3.20 2.10 13.0 2.06 1.85 7.20 6.9 1.77 10.1 1.85 16.0 1.88 18.6 1.91 26.1 2.11 (S,H)17 23.0 3.28 2.06 13.2 2.10 1.84 7.30 7.3 1.74 10.4 1.83 17.2 1.92 19.7 2.00 27.1 2.06

G9V***12UPB G1FA036S17 23.1 3.28 2.06 13.4 2.16 1.82 7.60 7.4 1.74 10.5 1.83 16.5 1.92 19.8 2.00 27.2 2.06 G9V***12UPB G2FD024 G9V***12UPB G2FD030

(S,H)17 22.9 3.20 2.10 13.2 2.10 1.84 7.50 6.9 1.77 10.1 1.85 16.0 1.88 18.6 1.91 26.1 2.11 (S,H)17 23.1 3.28 2.06 13.4 2.16 1.82 7.60 7.4 1.74 10.5 1.83 17.3 1.92 19.8 2.00 27.2 2.06

G8V***12UHA G1FA036S14 29.5 3.52 2.46 17.8 2.34 2.23 8.30 10.2 2.17 14.0 2.25 20.5 2.22 23.0 2.18 33.4 2.48 G8V***12UHA G2FD035

(S,H)14 29.1 3.50 2.44 17.4 2.38 2.14 8.30 9.7 2.06 13.6 2.16 21.4 2.27 25.6 2.37 34.7 2.43

G8V***16UHB G1FA036S17 29.0 3.54 2.40 17.4 2.38 2.14 8.35 9.6 2.04 13.5 2.14 21.3 2.25 25.5 2.35 34.6 2.41 G8V***16UHB G2FD036

(S,H)17 29.4 3.58 2.41 17.6 2.42 2.13 8.45 9.7 2.03 13.6 2.14 21.6 2.27 25.8 2.34 35.2 2.41

G9V***12UHB G1FA036S17 29.0 3.54 2.40 17.4 2.38 2.14 8.30 9.6 2.04 13.5 2.14 21.3 2.25 25.5 2.35 34.6 2.41 G9V***12UHB G2FD030 G9V***12UHB G2FD036 G9V***12DHB G2FD036 G8V***16UHB G2FD036

(S,H)17 29.0 3.54 2.40 17.4 2.38 2.14 8.30 9.6 2.04 13.5 2.14 21.3 2.25 25.5 2.35 34.6 2.41 (S,H)17 29.4 3.58 2.41 17.6 2.42 2.13 8.35 9.7 2.03 13.6 2.14 21.6 2.27 25.8 2.34 35.2 2.41 (S,H)17 29.6 3.50 2.48 17.8 2.34 2.23 8.00 9.8 2.11 13.7 2.21 21.5 2.32 25.7 2.42 34.8 2.48 (S,H)1734.93.682.7820.22.262.628.2010.12.5515.22.6325.42.7131.12.7940.62.79

G8V***20UHC G1FA048S21 35.1 3.78 2.72 20.0 2.44 2.40 8.30 9.7 2.30 14.9 2.43 25.3 2.56 31.2 2.68 40.9 2.73 G8V***20UHC G2FD036 G8V***20UHC G2FD042 G9V***12DHB G2FD036 G9V***12UPB G2FD036

(S,H)21 34.4 3.62 2.78 19.8 2.24 2.59 8.10 9.5 2.48 14.6 2.59 25.0 2.69 30.6 2.78 40.1 2.78 (S,H)21 34.4 3.64 2.77 19.6 2.24 2.56 8.10 9.5 2.47 14.6 2.58 25.0 2.68 30.6 2.77 40.1 2.77 (S,H)1735.03.502.9319.82.302.528.0010.22.5615.32.6425.52.7231.22.8040.72.80 (S,H)1735.13.642.8220.42.242.678.2510.32.5915.42.6725.62.7531.32.8340.82.83

G9V***16UPC G1FA048S21 35.3 3.74 2.76 20.2 2.40 2.47 8.30 9.9 2.34 15.1 2.47 25.5 2.60 31.4 2.72 41.1 2.77 G9V***16UPC G2FD036 G9V***16UPC G2FD042

(S,H)21 34.5 3.60 2.81 19.8 2.24 2.59 8.10 9.6 2.51 14.7 2.62 25.1 2.72 30.7 2.81 40.2 2.81 (S,H)21 34.5 3.60 2.80 19.8 2.24 2.59 8.10 9.6 2.50 14.7 2.61 25.1 2.71 30.7 2.80 40.2 2.80

G8V***20UHC G1FA048S21 41.5 3.60 3.38 24.8 2.40 3.03 8.50 14.1 2.91 19.5 3.01 30.3 3.12 36.2 3.24 48.4 3.38 G8V***20UHC G2FD042 G8V***20UHC G2FD048 G9V***20DHD G2FD048

(S,H)2141.03.523.4224.62.383.038.4014.02.9019.43.0430.03.1835.83.3147.63.42 (S,H)2141.73.583.4125.02.403.058.2514.02.9619.53.0827.83.0530.83.0246.63.46 (S,H)24 -0.5 3.48 0.04 27.2 2.70 2.95 8.00 13.8 2.91 19.3 3.03 27.6 3.00 30.6 2.97 46.4 3.41

G9V***16UPC G1FA048S21 41.6 3.60 3.38 25.0 2.42 3.03 8.40 14.2 2.92 19.6 3.02 30.4 3.13 36.3 3.25 48.5 3.39 G9V***16UPC G2FD042 G9V***16UPC G2FD048

(S,H)2141.23.503.4524.82.363.088.2514.22.9419.63.0830.23.2236.03.3547.83.46 (S,H)21 42.0 3.52 3.49 25.4 2.38 3.13 8.15 14.3 3.05 19.8 3.17 28.1 3.14 31.1 3.11 46.9 3.55

G8V***20UHC G1FA048S21 47.2 3.30 4.19 29.2 2.44 3.51 8.20 17.4 3.29 23.3 3.51 33.7 3.60 38.1 3.69 53.2 4.20 G8V***20UHC G1FA060S21 47.3 3.20 4.33 29.4 2.42 3.56 8.15 17.4 3.33 23.1 3.53 34.5 3.73 40.6 3.93 55.4 4.10 G8V***20UHC G2FD048 G9V***20DHD G2FD048

(S,H)2147.33.264.2529.62.443.558.1517.83.3123.73.5633.93.6638.23.7653.24.30 (S,H)2447.47.951.7529.42.383.627.9517.93.3323.83.5834.03.6838.33.7853.34.32

G9V***16UPC G1FA048S21 47.4 3.26 4.26 29.4 2.42 3.56 8.15 17.6 3.36 23.5 3.58 33.9 3.67 38.3 3.76 53.4 4.27 G9V***16UPC G1FA060S21 47.3 3.18 4.35 29.0 2.38 3.57 8.05 17.4 3.33 23.1 3.53 34.5 3.73 40.6 3.93 55.4 4.10 G9V***16UPC G2FD048

(S,H)2147.33.244.2729.22.423.548.1017.83.2923.73.5433.93.6438.23.7453.24.28

G9V***20UPD G1FA060S24 47.3 3.20 4.33 29.4 2.40 3.59 8.10 17.4 3.35 23.1 3.55 34.5 3.75 40.6 3.95 55.4 4.12 G9V***20UPD G2FD060

(S,H)2447.33.204.3329.42.403.598.1017.43.3523.13.5534.53.7540.63.9555.44.12

036-21320-002 Rev. A (1103)

OUTDOOR TEMP

HSP

-3°F 7°F 27°F 37°F 57°F

Unitary Products Group 11

Page 12

036-21320-002 Rev. A (1103)

HEATING PERFORMANCE - With Variable Speed Furnaces (Continued)

UNIT

MODEL

EBBC-F060S

1. Rated CFM same as for cooling.

2. Heating MBH based on ARI standards of 70° DB entering indoor air, 72% RH outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.

3. Integrated heating capacities include the effect of defrost cycles in the temperature range where they occur.

power input during the same period.

— = Not Applicable.

FURNACE

G8V***20UHC G1FA060S21 58.4 3.52 4.86 34.6 2.42 4.19 8.05 18.9 4.00 26.8 4.22 38.5 4.28 42.2 4.33 66.3 4.87 G9V***20DHD G2FD060 G9V***20UPC G1FA060S21 58.1 3.56 4.78 34.4 2.44 4.13 8.10 18.6 3.92 26.5 4.14 38.2 4.20 41.9 4.25 66.0 4.79 G9V***20UPD G1FA060S24 58.1 3.56 4.78 34.4 2.44 4.13 8.10 18.6 3.92 26.5 4.14 38.2 4.20 41.9 4.25 66.0 4.79 G9V***20UPD G2FD060 G9V***20UPD G2FD061H24 58.7 3.62 4.76 34.6 2.44 4.15 8.25 18.9 3.87 26.8 4.09 38.4 4.13 42.1 4.17 66.7 4.76

COIL

MODEL

MBH COP KW MBH COP KW STD MBH KW MBH KW MBH KW MBH KW MBH

(S,H)2459.28.002.1735.42.344.438.0019.74.2527.64.4739.34.5343.04.5867.15.12

(S,H)2458.13.564.7834.42.444.138.1018.63.9226.54.1438.24.2041.94.2566.04.79

ARI HEATING

47°F 17°F

HSP

-3°F 7°F 27°F 37°F 57°F

OUTDOOR TEMP

ACCESSORIES

Refer to Price Manual for specific model numbers.

Start Assist Kit (2SA067*) Blower Time Delay - Available to increase efficiency when

installed. Installs on indoor section and maintains blower for approximately one minute after cooling thermostat has been satisfied.

Hard Start Kits - Provides required starting torque for use with Thermal Expansion Valve Kit.

Low Temperature Cutout (2LT06700224) - Prevents heat pump operation below -10°F ambient temperature.

Compressor Blanket - Designed to further reduce the normal operating sound.

Add-on Fossil Fuel Control - Interface controls for use with gas, oil furnaces and the heat pump system are available.

Thermal Expansion Valve Kit - 1TV0700 Series TXV kit used to improve system performance.

Outdoor Thermostat (2TD06700124) - Provides additional staging of supplemental electric heat.

Room Thermostats - A wide selection of matching thermostats is available to provide features required for any installation.

2H/1C, manual change-over electronic non-programmable thermostat.

3H/2C, non-programmable digital thermostat. 3H/2C, auto/manual changeover, electronic programmable,

7-day, hardwire thermostat. * For the most current accessory information, refer to the

price book or consult factory.

SOUND RATINGS

UNIT MODEL

018 80 024 80 030 80 036 80 042 80 048 80 060 80

*Rated in accordance with ARI Standard 270.

SOUND

RATINGS DECIBELS

All dim ensions are in inches. They are subject to change without notice. Certified dimensions will be provided upon request

UNIT

MODEL

018 25 35 23

030 27 37 27 036 33 37 27

048 32 43 32

060 32 43 32

1. Including Fan Guard.

2. Three-phase uses 7/8”. Single-phase uses 1-1/8”.

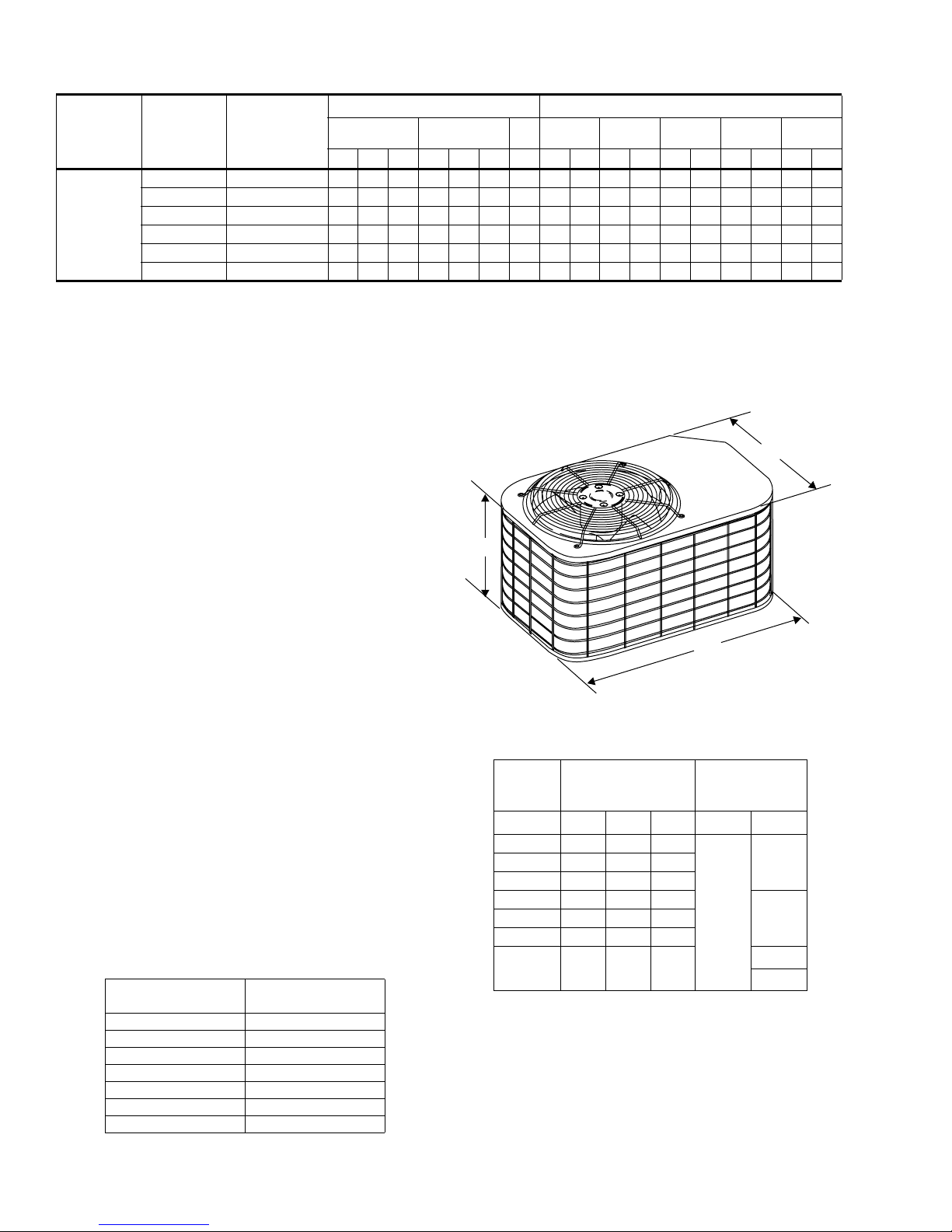

DIMENSIONS

(INCHES)

B C Liquid Vapor

REFRIGERANT

CONNECTION

LINE SIZE

3/8”

3/4”024 27 37 27

7/8”042 33 37 27

7/8”

1-1/8”

12 Unitary Products Group

Page 13

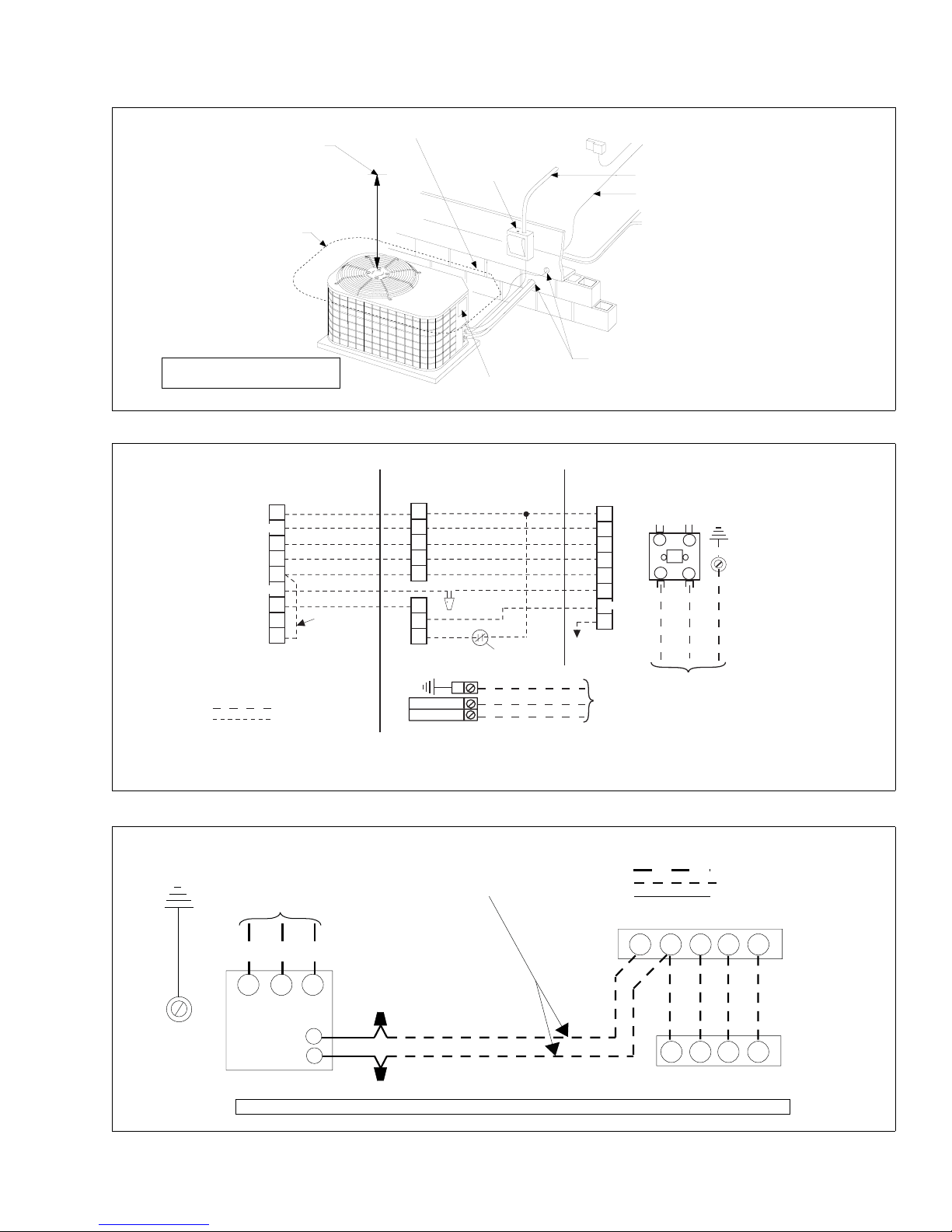

TYPICAL INSTALLATION - DRHS018 THRU 060

MINIMUM 18” SERVICE ACCESS CLEARANCE ON ONE SIDE

60” OVERHEAD CLEARANCE

10” CLEARANCE COIL AREA

WEATHERPROOF DISCONNECT SWITCH

THERMOSTAT

TO FURNACE OR AIR HANDLER TERMINAL BLOCK

NEC CLASS 1 WIRING

NEC CLASS 2 WIRING

TO INDOOR COIL

SEAL OPENING(S) WITH PERMAGUM OR EQUIVALENT

CONTROL ACCESS PANEL

NOTE: ALL OUTDOOR WIRING MUST BE WEATHERPROOF.

TYPICAL FIELD WIRING - 1 Phase Application

ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES

THERMOSTAT

BorC

LorX

JUMPER TERMINALS E AND W TOHEAT ON FIRST STAGE DURING EMERGENCY HEAT.

TERMINAL NOT USED ON ALL THERMOSTATS.

FIELD

INSTALLED

JUMPER

POWER WIRING 24V CONTROL WIRING

(NEC CLASS 2)

CHECK THE LOW VOLTAGE TERMINAL BLOCK ON THE INDOOR UNIT FOR THE ACTUAL ARRANGEMENT OF THE TERMINALS.

CONNECT POWER WIRING TO TERMINAL BLOCK 3TB ON UNITS WITHOUT ELECTRIC HEAT OR CIRCUIT BREAKER.

GRAY FOR USE WITH OPTIONAL OUTDOOR THERMOSTAT KITS.

DEHUMIDIFICATION CONTROL CONNECTION (Humidistat* Jumper must be removed)

INDOOR UNIT

LOW VOLTAGE TERMINAL BLOCK IN AIR HANDLER WITH ELECTRIC HEAT

GND.

LUG

CIRCUIT BREAKER***

036-21320-002 Rev. A (1103)

3,4

OUTDOOR UNIT

DEFROST CONTROL

RED

BLK

YEL

ORG

BRN

PUR

X/L

WHT

/66

GRY

CONTACTOR

POWER WIRING

208/230-1-60

230-1-50

GND.

SCREW

TYPICAL FIELD WIRING - 3 Phase Application

ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES

POWER WIRING

208/230-3-60

460-3-60

GND.

LUG

Unitary Products Group 13

CONTACTOR TERMINALS

COIL

CONDENSING UNIT

ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.

24 VOLT CONTROL WIRING MINIMUM 18 GA. WIRE (NEC CLASS 2)

TERMINAL W IS ONLY REQUIRED ON SYSTEMS WITH HEAT.

FURNACE OR AIR HANDLER TERMINAL BLOCK

POWER WIRING CONTROL WIRING FACTORY WIRING

CYRGW

YRGW

ROOM THERMOSTAT

Page 14

036-21320-002 Rev. A (1103)

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EABC-F018S INDOOR COIL MODEL NO. F2RP/F2FP024

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

D CFM 500 650 800

ID DB (°F) 85 80 70 85 80 70 85 80 70

ID WB (°F) 72 67 57 72 67 57 72 67 57

T.C. 21.0 19.0 17.5 21.4 19.8 18.3 21.9 20.6 19.2

S.C. 12.7 12.1 11.3 13.9 13.7 13.1 15.2 15.4 14.8

KW 1.49 1.45 1.44 1.55 1.52 1.50 1.59 1.57 1.55 T.C. 20.2 18.0 16.3 20.9 18.9 17.2 21.7 19.8 18.0 S.C. 12.4 11.6 10.8 14.0 13.5 12.5 15.6 15.5 14.2

KW 1.58 1.55 1.52 1.65 1.61 1.59 1.70 1.67 1.64 T.C. 19.3 17.0 15.1 20.4 18.0 16.0 21.6 19.0 16.8 S.C. 12.1 11.1 10.3 14.0 13.3 11.9 16.0 15.5 13.5

KW 1.68 1.64 1.61 1.75 1.71 1.67 1.81 1.76 1.73 T.C. 17.7 15.5 13.5 18.8 16.4 15.2 19.8 17.3 16.9 S.C. 11.5 10.4 9.6 13.4 12.4 11.0 15.3 14.4 12.4

KW 1.76 1.71 1.69 1.83 1.78 1.75 1.89 1.84 1.81 T.C. 16.2 14.1 11.9 17.1 14.8 14.5 18.0 15.6 17.0 S.C. 10.9 9.8 8.9 12.8 11.5 10.2 14.7 13.2 11.4

KW 1.84 1.78 1.77 1.91 1.85 1.83 1.97 1.91 1.89 T.C. 14.6 12.6 10.4 15.4 13.3 13.7 16.3 13.9 17.1 S.C. 10.3 9.2 8.2 12.1 10.6 9.3 14.0 12.1 10.4

KW 1.92 1.85 1.85 1.99 1.92 1.91 2.05 1.98 1.97

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed temperature and decreases by 1060 BTUH per 1000 CFM per degree belowthe listed temperature.

Air Handler Coil

N1AHB0806 G2FD024(S,H)17 0.99 0.96 1.00 N1VSB12 G2FD024

G1FA024S14,17 0.98 0.98 1.00 G1FA030S14 0.99 0.99 1.00 G1HD024 1.00 0.92 1.00 G1NA030S17K 1.00 0.92 1.00 G1UA024S14,17 0.98 0.98 1.00 G1UA030S14 0.99 0.99 1.00 G2FD024 G1HA024H14 0.97 0.94 0.98

(S,H)17 1.02 0.96 0.91

(S,H)14,17 0.99 0.96 1.00

T.C. S.C. KW

Variable Speed Furnace

G8V***12UHA G1FA024S14 1.00 1.01 0.92 G8V***12UHA G1FA030S14 1.01 1.02 0.92 G8V***12UHA G2FD024 G9V***12DHB G2FD024 G9V***12UPB G1FA024S17 1.00 1.01 0.92 G9V***12UPB G2FD024

Coil

(S,H)14 1.01 0.99 0.92 (S,H)17 1.01 0.99 0.90

(S,H)17 1.01 0.99 0.92

T.C. S.C. KW

14 Unitary Products Group

Page 15

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EABC-F024S INDOOR COIL MODEL NO. F2RP/F2FP030

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

ID CFM 700 850 1000

ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70

ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57

T.C. 27.7 25.3 23.3 20.9 28.1 25.8 23.8 21.3 28.3 25.9 24.0 21.5 S.C. 16.6 16.5 15.9 16.7 17.4 17.5 16.8 17.7 17.8 17.9 17.2 18.1

KW 1.90 1.89 1.89 1.85 1.95 1.94 1.94 1.91 2.00 2.00 1.99 1.96 T.C. 27.1 24.8 22.8 20.4 27.6 25.3 23.3 21.1 27.8 25.4 23.4 21.3 S.C. 16.7 16.7 16.1 16.9 17.7 17.8 17.1 18.2 18.2 18.3 17.6 18.7

KW 2.05 2.03 2.01 1.97 2.11 2.09 2.07 2.03 2.16 2.14 2.12 2.09 T.C. 25.5 23.3 21.4 19.2 25.9 23.6 21.7 19.6 26.0 23.7 22.0 19.8 S.C. 16.4 16.4 15.8 16.6 17.6 17.5 16.9 17.7 18.0 18.0 17.5 18.3

KW 2.22 2.19 2.16 2.11 2.28 2.25 2.22 2.17 2.33 2.30 2.28 2.23 T.C. 23.4 21.4 19.6 17.6 23.7 21.6 20.0 17.9 23.8 21.8 20.2 18.3 S.C. 15.8 15.8 15.2 15.9 17.0 17.0 16.3 17.0 17.6 17.6 16.9 17.6

KW 2.39 2.35 2.31 2.25 2.45 2.41 2.38 2.31 2.50 2.47 2.43 2.38 T.C. 21.3 19.4 17.9 15.9 21.5 19.7 18.2 16.6 21.7 19.9 18.3 16.8 S.C. 15.1 15.1 14.5 15.1 16.3 16.3 15.5 15.9 17.0 16.8 16.0 16.1

KW 2.56 2.51 2.46 2.39 2.62 2.57 2.52 2.46 2.68 2.63 2.58 2.53 T.C. 19.2 17.4 16.1 14.2 19.3 17.8 16.3 15.3 19.6 18.0 16.3 15.3 S.C. 14.4 14.4 13.7 14.3 15.6 15.6 14.8 14.8 16.4 16.0 15.1 14.6

KW 2.73 2.67 2.61 2.53 2.79 2.73 2.66 2.61 2.86 2.79 2.73 2.68

036-21320-002 Rev. A (1103)

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHB0806 G2FD024(S,H)17 0.99 0.99 1.02 N1AHB0806 G2FD030 N1VSB12 G2FD030

G1FA030S14 0.99 0.99 1.02 G1FA036S17,21 1.01 1.01 1.02 G1HD024 1.01 1.07 1.02 G1HD036 1.03 1.09 1.03 G1NA030S17K 1.00 0.97 1.00 G1NA030S21M 1.00 0.97 1.00 G1UA030S14 0.99 0.99 1.02 G1UA036S17,21 1.01 1.01 1.02 G2FD024 G2FD030 G2FD035 G1HA024H14 0.97 0.97 1.00

(S,H)17 1.01 1.01 1.02 (S,H)17 1.03 1.01 0.94

(S,H)14,17 0.99 0.99 1.02 (S,H)17 1.01 1.01 1.02 (S,H)14 1.01 1.01 1.02

T.C. S.C. KW

Variable Speed Furnace

G8V***12UHA G1FA030S14 1.01 1.01 0.96 G8V***12UHA G2FD024 G8V***16UHB G1FA036S17 1.03 1.03 0.96 G8V***16UHB G2FD024 G8V***16UHB G2FD030 G9V***12DHB G2FD024 G9V***12DHB G2FD030 G9V***12UPB G1FA036S17 1.03 1.04 0.96 G9V***12UPB G2FD024 G9V***12UPB G2FD030

Coil

(S,H)14 1.01 1.01 0.96

(S,H)17 1.01 1.01 0.96 (S,H)17 1.03 1.03 0.97 (S,H)17 1.00 1.00 0.93 (S,H)17 1.03 1.03 0.93

(S,H)17 1.02 1.02 0.95 (S,H)17 1.03 1.04 0.96

T.C. S.C. KW

Unitary Products Group 15

Page 16

036-21320-002 Rev. A (1103)

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EABC-F030S INDOOR COIL MODEL NO. F2RP/F2FP036

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

ID CFM 800 1000 1200

ID DB (°F) 85 80 70 85 80 70 85 80 70

ID WB (°F) 72 67 57 72 67 57 72 67 57

T.C. 32.2 30.6 28.5 32.6 31.4 30.0 32.9 31.8 30.4 S.C. 20.3 20.0 19.0 21.3 21.2 21.5 22.0 22.2 22.8

KW 2.32 2.32 2.30 2.40 2.40 2.38 2.52 2.52 2.51 T.C. 31.2 28.9 26.0 32.2 30.0 27.5 32.6 30.8 28.3 S.C. 20.1 19.3 18.0 22.0 21.2 20.5 23.2 22.9 22.2

KW 2.48 2.46 2.43 2.57 2.55 2.52 2.70 2.68 2.65 T.C. 30.2 27.1 23.4 31.7 28.6 24.9 32.3 29.9 26.1 S.C. 19.9 18.7 17.0 22.8 21.2 19.5 24.5 23.6 21.6

KW 2.64 2.60 2.56 2.74 2.70 2.65 2.87 2.84 2.79 T.C. 27.6 24.4 21.5 29.1 25.8 22.7 29.9 26.9 23.5 S.C. 18.9 17.7 15.9 21.8 20.2 18.5 23.8 22.5 20.4

KW 2.79 2.75 2.70 2.89 2.84 2.79 3.03 2.98 2.93 T.C. 25.0 21.7 19.5 26.5 23.0 20.5 27.5 24.0 20.9 S.C. 18.0 16.7 14.8 20.9 19.2 17.5 23.1 21.3 19.2

KW 2.93 2.89 2.84 3.04 2.98 2.93 3.19 3.12 3.08 T.C. 22.3 19.1 17.6 23.9 20.2 18.2 25.2 21.1 18.4 S.C. 17.0 15.8 13.7 19.9 18.2 16.5 22.4 20.2 18.0

KW 3.07 3.03 2.98 3.19 3.12 3.07 3.35 3.26 3.23

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHB1206 G2FD036(S,H)17 0.98 0.98 1.01 N1VSB12 G2FD036 F2RP/F2FP030 0.97 0.97 1.01

G1FA036S14 0.99 0.96 1.01 G1FA036S17,21 0.97 0.97 1.01 G1HD036 0.99 1.06 1.01 G1HD048 1.03 1.10 1.02 G1NA036S17L 1.05 0.98 1.02 G1NA048S21D 1.05 0.98 1.02 G1UA036S14 0.99 0.96 1.01 G1UA036S17,21 0.97 0.97 1.01 G2FD030 G2FD035 G2FD036 G2FD036 G1HA036H14 0.96 0.96 0.96

(S,H)17 1.00 0.98 0.95

(S,H)17 0.97 0.97 1.01 (S,H)14 0.97 0.97 1.01 (S,H)17 0.98 0.98 1.01 (S,H)21 0.98 0.98 0.98

T.C. S.C. KW

Variable Speed Furnace

G8V***12UHA G1FA036S14 1.00 0.98 0.98 G8V***12UHA G2FD035 G8V***16UHB G1FA036S17 0.99 1.00 0.94 G8V***16UHB G2FD036 G9V***12UHB G1FA036S17 0.98 0.99 0.96 G9V***12UHB G2FD030 G9V***12UHB G2FD036 G9V***12DHB G2FD036

Coil

(S,H)14 0.99 0.99 0.95

(S,H)17 1.00 1.00 0.94

(S,H)17 0.98 0.99 0.96 (S,H)17 0.99 0.99 0.96 (S,H)17 0.99 0.99 0.96

T.C. S.C. KW

16 Unitary Products Group

Page 17

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EABC-F036S INDOOR COIL MODEL NO. F2RP/F2FP036

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

ID CFM 1000 1200 1400

ID DB (°F) 85 80 70 85 80 70 85 80 70

ID WB (°F) 72 67 57 72 67 57 72 67 57

T.C. 38.3 36.4 34.5 38.5 36.7 35.1 38.8 37.0 35.7 S.C. 23.5 23.4 23.4 24.5 24.5 25.1 25.5 25.6 26.8

KW 2.85 2.83 2.80 2.91 2.89 2.86 3.03 3.01 3.00 T.C. 37.0 34.7 31.8 37.6 35.3 32.6 38.2 36.0 33.5 S.C. 23.9 23.2 22.3 25.5 24.8 24.2 27.2 26.5 26.2

KW 3.06 3.02 2.98 3.07 3.03 2.99 3.26 3.21 3.17 T.C. 35.7 33.0 29.1 36.6 34.0 30.1 37.5 35.0 31.2 S.C. 24.3 22.9 21.2 26.6 25.2 23.4 28.9 27.4 25.6

KW 3.27 3.20 3.15 3.34 3.27 3.22 3.48 3.41 3.35 T.C. 33.0 29.7 26.6 34.0 30.7 27.4 35.0 31.6 28.2 S.C. 23.4 21.6 20.1 25.8 23.9 22.2 28.1 26.1 24.2

KW 3.19 3.10 3.04 3.26 3.17 3.11 3.39 3.32 3.25 T.C. 30.4 26.5 24.1 31.4 27.4 24.7 32.4 28.2 25.3 S.C. 22.6 20.3 19.1 24.9 22.5 21.0 27.3 24.8 22.9

KW 3.12 3.00 2.92 3.18 3.08 3.00 3.31 3.23 3.15 T.C. 27.7 23.3 21.6 28.8 24.1 21.9 29.8 24.9 22.3 S.C. 21.8 18.9 18.1 24.1 21.2 19.8 26.5 23.4 21.5

KW 3.05 2.90 2.80 3.10 2.99 2.89 3.23 3.14 3.05

036-21320-002 Rev. A (1103)

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHB1206 G2FD036(S,H)17 0.98 0.98 1.01 N1VSB12 G2FD036 N1VSB12 G2FD046 F2RP/F2FP042 1.00 1.00 1.00

G1FA048S21 1.02 1.02 1.01 G1HD036 0.98 1.05 1.01 G1HD048 1.06 1.11 1.05 G1NA036S17L 1.00 0.96 0.97 G1NA048S21D 1.00 0.96 0.98 G1UA048S21 1.02 1.02 1.01 G2FD036 G2FD036 G2FD042 G1HA036H17 0.99 0.99 1.00

(S,H)17 1.00 0.98 0.95 (S,H)17 1.02 1.00 0.96

(S,H)17 0.98 0.98 1.01 (S,H)21 1.00 1.00 1.00 (S,H)21 1.01 1.01 1.02

T.C. S.C. KW

Variable Speed Furnace

G8V***16UHB G2FD036(S,H)17 0.99 1.00 0.97 G8V***20UHC G1FA048S21 1.04 1.05 0.95 G8V***20UHC G2FD036 G8V***20UHC G2FD042 G9V***12DHB G2FD036 G9V***12UPB G2FD036 G9V***16UPC G1FA048S21 1.04 1.05 0.97 G9V***16UPC G2FD036 G9V***16UPC G2FD042

Coil

(S,H)21 1.02 1.02 0.95 (S,H)21 1.02 1.04 0.96 (S,H)17 0.98 0.98 0.94 (S,H)17 0.99 1.00 0.98

(S,H)21 1.01 1.02 0.96 (S,H)21 1.02 1.04 0.97

T.C. S.C. KW

Unitary Products Group 17

Page 18

036-21320-002 Rev. A (1103)

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EABC-(T,W)036S INDOOR COIL MODEL NO. G1FA048S21

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

ID CFM 1050 1250 1450

ID DB (°F) 80 80 80 80 75 80 80 80 80 75 80 80 80 80 75

ID WB (°F) 72 67 62 55 62 72 67 62 55 62 72 67 62 55 62

T.C. 40.0 37.2 33.6 32.2 33.6 40.7 37.7 34.4 33.7 34.4 41.4 38.2 35.2 35.2 35.2 S.C. 18.8 24.9 29.9 32.1 25.5 19.4 26.5 32.3 33.7 27.7 20.0 28.0 34.6 35.2 29.9

KW 2.77 2.71 2.55 2.53 2.63 2.89 2.79 2.69 2.67 2.72 3.00 2.87 2.83 2.80 2.80 T.C. 39.1 35.3 31.4 30.5 31.4 39.7 36.2 33.1 32.2 33.1 40.3 37.0 34.9 33.8 34.9 S.C. 18.8 24.3 29.1 30.1 24.6 19.7 26.3 31.5 31.9 26.8 20.6 28.2 33.9 33.8 29.1

KW 3.00 2.90 2.77 2.75 2.80 3.10 3.00 2.92 2.88 2.98 3.20 3.10 3.07 3.01 3.17 T.C. 38.2 33.4 29.1 28.8 29.1 38.7 34.6 31.8 30.6 31.8 39.2 35.8 34.5 32.4 34.5 S.C. 18.7 23.7 28.2 28.0 23.6 20.0 26.1 30.7 30.2 25.9 21.2 28.4 33.2 32.4 28.2

KW 3.23 3.08 3.00 2.98 2.97 3.31 3.21 3.15 3.10 3.25 3.39 3.33 3.31 3.22 3.53 T.C. 34.9 30.5 27.2 26.9 27.2 35.5 31.5 29.3 28.5 29.3 36.1 32.6 31.5 30.0 31.5 S.C. 17.6 22.6 26.5 26.4 22.5 18.9 24.9 28.6 28.2 24.5 20.2 27.2 30.6 30.0 26.5

KW 3.39 3.24 3.16 3.15 3.20 3.49 3.37 3.31 3.27 3.44 3.58 3.49 3.45 3.39 3.69 T.C. 31.6 27.5 25.2 25.1 25.2 32.3 28.4 26.9 26.4 26.9 32.9 29.3 28.5 27.7 28.5 S.C. 16.6 21.6 24.9 24.7 21.3 17.9 23.8 26.4 26.2 23.1 19.3 26.0 27.9 27.6 24.9

KW 3.56 3.40 3.32 3.32 3.42 3.66 3.53 3.46 3.44 3.64 3.77 3.65 3.60 3.57 3.85 T.C. 28.3 24.6 23.3 23.2 23.3 29.1 25.4 24.4 24.3 24.4 29.8 26.1 25.5 25.3 25.5 S.C. 15.5 20.5 23.2 23.1 20.2 16.9 22.7 24.3 24.2 21.7 18.3 24.8 25.3 25.2 23.2

KW 3.72 3.57 3.49 3.49 3.65 3.84 3.68 3.61 3.62 3.83 3.96 3.80 3.74 3.74 4.01

Multipliers for determining the performance with other indoor sections.

Coil

G1UA048S21 1.00 1.00 1.00 G1HA048H21 1.01 1.02 1.00 G2FD048S(21,24) 0.99 0.97 1.00

T.C. S.C. KW

18 Unitary Products Group

Page 19

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EABC-F042S INDOOR COIL MODEL NO. F2FP048

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

ID CFM 1200 1400 1600

ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70

ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57

T.C. 47.5 43.8 40.7 36.7 48.0 44.3 41.2 37.4 48.4 44.7 41.7 37.7 S.C. 29.2 29.4 28.4 30.1 30.7 30.9 29.9 31.9 31.9 32.1 31.2 32.9

KW 3.24 3.19 3.18 3.13 3.33 3.29 3.28 3.23 3.47 3.42 3.41 3.36 T.C. 45.4 41.9 38.9 35.1 45.8 42.3 39.5 35.7 46.1 42.5 39.8 36.0 S.C. 28.5 28.7 27.8 29.3 29.9 30.2 29.4 31.0 31.1 31.2 30.3 32.1

KW 3.54 3.50 3.48 3.43 3.55 3.51 3.48 3.44 3.77 3.74 3.71 3.66 T.C. 42.4 39.1 36.4 32.8 42.8 39.5 37.0 33.3 43.0 39.9 37.2 33.7 S.C. 27.4 27.6 26.7 28.2 29.0 29.2 28.3 29.9 29.1 29.5 28.3 31.0

KW 3.79 3.76 3.73 3.68 3.89 3.85 3.82 3.78 4.02 3.98 3.96 3.92 T.C. 39.4 36.3 33.9 30.6 39.8 36.8 34.3 31.1 40.0 37.0 34.5 31.9 S.C. 26.4 26.5 25.8 27.2 28.0 28.3 27.1 28.8 29.3 29.3 28.1 30.2

KW 4.07 4.04 4.00 3.96 4.17 4.13 4.11 4.06 4.29 4.26 4.24 4.21 T.C. 36.6 33.8 31.4 28.4 36.9 34.1 31.8 29.4 37.1 34.3 32.1 29.8 S.C. 25.5 25.6 24.6 26.2 27.2 27.2 26.2 27.9 28.2 28.2 27.3 28.2

KW 4.38 4.35 4.33 4.27 4.47 4.44 4.42 4.38 4.61 4.58 4.55 4.51 T.C. 33.8 31.3 28.8 26.2 34.0 31.4 29.3 27.7 34.2 31.6 29.7 27.7 S.C. 24.6 24.7 23.5 25.2 26.4 26.1 25.2 27.0 27.1 27.1 26.5 26.2

KW 4.69 4.66 4.66 4.58 4.77 4.75 4.73 4.70 4.93 4.90 4.86 4.81

036-21320-002 Rev. A (1103)

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHC1606 G2FD042(S,H)21 0.98 0.99 0.99 N1VSC16 G2FD048 F2RP/F2FP042 0.96 0.96 1.00

G1FA048S21 0.99 0.99 0.98 G1HD048 0.99 1.04 0.99 G1NA048S21D 0.99 0.98 1.00 G1UA048S21 0.99 0.99 0.98 G2FD042 G2FD048 G2FD060 G1HA036H17 0.96 0.97 0.97

(S,H)21 1.01 1.00 0.98

(S,H)21 0.98 0.99 0.99 (S,H)21,24 0.99 1.00 0.98 (S,H)24 1.00 1.02 0.97

T.C. S.C. KW

Variable Speed Furnace

G8V***20UHC G1FA048S21 1.00 1.01 0.95 G8V***20UHC G2FD042 G8V***20UHC G2FD048 G9V***20DHD G2FD048 G9V***16UPC G1FA048S21 1.00 1.01 0.95 G9V***16UPC G2FD042 G9V***16UPC G2FD048

Coil

(S,H)21 0.99 1.01 0.96 (S,H)21 1.00 1.02 0.96 (S,H)24 1.01 2.37 0.95

(S,H)21 0.99 1.01 0.97 (S,H)21 0.99 1.00 0.98

T.C. S.C. KW

Unitary Products Group 19

Page 20

036-21320-002 Rev. A (1103)

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EBBC-F048S, EABC(T,W)048S* INDOOR COIL MODEL NO. G1NA042S24W

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

ID CFM 1400 1600 1800

ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70

ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57

T.C. 52.6 48.2 44.5 39.8 53.5 49.1 45.4 41.0 53.9 49.5 45.8 41.4 S.C. 32.6 32.8 31.5 33.2 34.9 35.0 33.7 35.7 36.0 36.2 34.9 36.9

KW 3.74 3.68 3.64 3.57 3.87 3.82 3.78 3.71 3.93 3.88 3.84 3.77 T.C. 50.5 46.3 42.7 38.2 51.3 47.1 43.6 39.3 51.8 47.5 44.0 39.7 S.C. 31.9 32.0 30.8 32.3 34.1 34.2 33.0 34.9 35.4 35.5 34.3 36.0

KW 3.92 3.85 3.79 3.70 4.06 3.99 3.93 3.84 4.12 4.05 3.99 3.91 T.C. 48.7 44.5 41.0 36.8 49.7 45.5 42.1 37.7 49.9 45.7 42.5 38.1 S.C. 31.1 31.2 30.0 31.7 33.6 33.7 32.6 34.1 34.6 34.7 33.6 35.2

KW 4.26 4.17 4.08 3.96 4.40 4.31 4.22 4.11 4.47 4.37 4.29 4.18 T.C. 46.7 42.7 39.3 35.3 47.6 43.6 40.3 36.1 47.9 43.9 40.5 36.5 S.C. 30.4 30.4 29.3 30.9 32.9 32.9 31.7 33.3 33.9 33.9 32.7 34.5

KW 4.60 4.48 4.37 4.22 4.74 4.62 4.52 4.38 4.82 4.69 4.59 4.46 T.C. 44.8 40.9 37.5 33.6 45.5 41.6 38.4 34.4 45.8 41.9 38.7 34.9 S.C. 29.8 29.8 28.7 30.1 32.0 32.0 30.8 32.2 33.1 33.2 31.8 33.5

KW 4.95 4.79 4.66 4.50 5.11 1.95 4.82 4.66 5.18 5.02 4.90 4.74 T.C. 42.9 39.1 35.8 32.0 43.4 39.6 36.5 32.7 43.7 39.8 36.8 33.2 S.C. 29.2 29.2 28.1 29.3 31.1 31.1 29.8 31.1 32.3 32.5 31.0 32.5

KW 5.30 5.10 4.95 4.78 5.48 -0.72 5.12 4.94 5.54 5.35 5.21 5.02

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHC1606 G2FD048(S,H)21 0.99 1.02 0.99 N1AHD2006 G2FD060 N1AHD2006 G2FD061H24 1.02 1.11 1.00 N1VSD20 G2FD060 N1VSD20 G2FD061H24 1.03 1.11 0.96 F2FP045 1.00 1.02 0.98 F2FP048 0.99 1.03 1.01 F2FV060 1.02 1.09 0.96

G1FA048S21* 0.99 1.01 1.09 G1FA060S21,24 1.01 1.05 1.00 G1HD060 1.00 1.04 1.00 G1UA048S21* 0.99 1.01 0.98 G1UA060S21,24 1.01 1.05 1.00 G2FD048 G2FD060 G2FD061H24 1.02 1.11 1.00 G1HA048H21 0.97 0.99 1.07

* Matchups marked with asterisks are the only ones that may be

matched with 3-Phase outdoor units.

(S,H)24 1.01 1.05 1.00

(S,H)24 1.02 1.05 0.96

(S,H)21,24* 0.99 1.02 0.99 (S,H)24 1.01 1.05 1.00

T.C. S.C. KW

Variable Speed Furnace

G8V***20UHC G1FA048S21 1.00 1.02 0.96 G8V***20UHC G1FA060S21 1.01 1.05 0.97 G8V***20UHC G2FD048 G9V***20DHD G2FD048 G9V***16UPC G1FA048S21 0.99 1.01 0.98 G9V***16UPC G1FA060S21 1.00 1.03 0.98 G9V***16UPC G2FD048 G9V***20UPD G1FA060S24 1.01 1.05 0.98 G9V***20UPD G2FD060

Coil

(S,H)21 0.99 1.02 0.98 (S,H)24 1.02 1.06 1.00

(S,H)21 0.98 1.00 0.99

(S,H)24 1.01 1.05 0.98

T.C. S.C. KW

20 Unitary Products Group

Page 21

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EBBC-F060S INDOOR COIL MODEL NO. G2FD060(S,H)24

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

ID CFM 1500 1700 1900

ID DB (°F) 85 80 70 85 80 70 85 80 70

ID WB (°F) 72 67 57 72 67 57 72 67 57

T.C. 63.5 60.9 57.7 63.8 61.5 58.3 64.0 62.1 59.0 S.C. 40.1 39.7 38.2 42.1 41.7 40.5 44.1 43.7 42.8

KW 4.31 4.31 4.31 4.38 4.38 4.38 4.46 4.46 4.45 T.C. 62.2 58.7 54.5 62.8 59.5 55.4 63.4 60.3 56.2 S.C. 39.9 38.7 36.8 42.3 41.0 39.2 44.6 43.3 41.7

KW 4.81 4.79 4.77 4.88 4.87 4.84 4.96 4.94 4.91 T.C. 61.0 56.4 51.4 61.9 57.5 52.4 62.8 58.6 53.4 S.C. 39.7 37.8 35.3 42.4 40.4 38.0 45.2 42.9 40.6

KW 5.31 5.27 5.23 5.38 5.35 5.30 5.46 5.43 5.38 T.C. 57.5 52.4 47.6 58.5 53.6 48.6 59.4 54.7 49.6 S.C. 38.5 36.2 34.0 41.3 38.8 36.5 44.1 41.3 39.0

KW 5.90 5.85 5.79 5.98 5.93 5.87 6.06 6.01 5.95 T.C. 54.1 48.5 43.8 55.1 49.6 44.8 56.1 50.8 45.8 S.C. 37.4 34.6 32.7 40.2 37.2 35.1 43.1 39.8 37.5

KW 6.49 6.42 6.35 6.58 6.51 6.43 6.66 6.59 6.52 T.C. 50.7 44.5 40.0 51.7 45.7 41.0 52.7 46.9 42.0 S.C. 36.3 33.0 31.4 39.1 35.6 33.7 42.0 38.2 36.0

KW 7.08 6.99 6.91 7.18 7.09 6.99 7.26 7.17 7.09

036-21320-002 Rev. A (1103)

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHD2006 G2FD060(S,H)24 1.00 1.00 1.00 N1AHD2006 G2FD061H24 1.03 1.09 1.02 N1VSD20 G2FD060 N1VSD20 G2FD061H24 1.03 1.09 1.01 F2FP060 0.99 0.99 1.02 F2FV060 1.00 1.07 1.01

G1FA060S21,24 1.00 1.00 1.00 G1HD060 1.01 1.01 1.00 G1NA060S24T 0.98 0.98 1.00 G1UA060S21,24 1.00 1.00 1.00 G2FD061H24 1.03 1.09 1.02 G1HA060H24 0.98 0.98 0.98

(S,H)24 1.03 1.00 0.93

T.C. S.C. KW

Variable Speed Furnace

G8V***20UHC G1FA060S21 1.00 1.00 1.00 G9V***20DHD G2FD060 G9V***20UPC G1FA060S21 0.99 0.99 1.00 G9V***20UPD G1FA060S24 0.99 0.99 1.00 G9V***20UPD G2FD060 G9V***20UPD G2FD061H24 1.02 1.08 1.04

Coil

(S,H)24 1.00 1.00 1.03

(S,H)24 0.99 0.99 1.00

T.C. S.C. KW

Unitary Products Group 21

Page 22

036-21320-002 Rev. A (1103)

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. EABC-(T,W)060S INDOOR COIL MODEL NO. G1FA060S21,24

CONDENSER

ENTERING AIR

TEMPERATURE

105

115

125

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

ID CFM 1500 1700 1900

ID DB (°F) 80 80 80 80 75 80 80 80 80 75 80 80 80 80 75

ID WB (°F) 72 67 62 55 62 72 67 62 55 62 72 67 62 55 62

T.C. 62.6 59.3 53.6 53.7 53.6 62.8 59.7 56.4 54.9 56.4 62.9 60.0 59.2 56.1 59.2 S.C. 29.2 38.2 45.7 38.9 48.8 30.3 40.2 47.4 41.2 50.5 31.3 42.2 49.0 43.5 52.2

KW 4.15 4.10 4.03 4.03 4.46 4.23 4.17 4.16 4.12 4.62 4.30 4.24 4.29 4.20 4.78 T.C. 61.4 56.5 51.2 51.2 51.2 61.8 57.1 52.9 52.2 52.9 62.3 57.7 54.6 53.1 54.6 S.C. 28.9 37.2 44.6 37.8 47.3 30.1 39.3 46.7 40.0 48.9 31.3 41.4 48.7 42.2 50.5

KW 4.63 4.55 4.47 4.47 4.84 4.71 4.62 4.57 4.57 4.92 4.79 4.70 4.68 4.66 5.01 T.C. 60.1 53.7 48.7 48.7 48.7 60.9 54.6 49.4 49.4 49.4 61.6 55.4 50.0 50.1 50.0 S.C. 28.5 36.2 43.5 36.6 45.8 29.9 38.4 46.0 38.8 47.3 31.3 40.5 48.4 41.0 48.7

KW 5.10 5.00 4.92 4.91 5.21 5.19 5.08 4.99 5.02 5.23 5.27 5.16 5.06 5.12 5.24 T.C. 56.9 50.8 45.8 45.6 45.8 57.6 51.8 46.5 46.3 46.5 58.3 52.7 47.2 47.0 47.2 S.C. 27.5 35.0 41.9 35.2 43.5 28.9 37.1 44.0 37.4 44.9 30.2 39.2 46.1 39.6 46.3

KW 5.69 5.56 5.43 5.45 5.70 5.77 5.66 5.51 5.56 5.71 5.85 5.76 5.59 5.66 5.73 T.C. 53.7 47.8 42.9 42.5 42.9 54.4 49.0 43.6 43.2 43.6 55.0 50.1 44.3 43.9 44.3 S.C. 26.6 33.9 40.3 33.9 41.3 27.8 35.9 42.1 36.1 42.6 29.1 38.0 43.8 38.3 43.9

KW 6.29 6.12 5.95 5.99 6.19 6.36 6.24 6.03 6.09 6.20 6.43 6.35 6.12 6.19 6.21 T.C. 50.5 44.9 40.0 39.4 40.0 51.1 46.2 40.8 40.1 40.8 51.7 47.4 41.5 40.8 41.5 S.C. 25.6 32.7 38.7 32.5 39.0 26.8 34.7 40.1 34.7 40.3 28.0 36.7 41.5 36.9 41.5

KW 6.88 6.68 6.46 6.53 6.68 6.95 6.82 6.56 6.63 6.69 7.01 6.95 6.65 6.73 6.69

Multipliers for determining the performance with other indoor sections.

Coil

G1UA048S21 1.00 1.00 1.00 G1HA048H21 1.01 1.02 1.00 G2FD048S(21,24) 0.99 0.97 1.00

T.C. S.C. KW

22 Unitary Products Group

Page 23

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO. EABC-F018S EVAPORATOR COIL MODEL NO. F2RP/F2FP024

AIR TEMP.

ENTERING

OUTDOOR

UNIT

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

AIR TEMP.

ENTERING

INDOOR

COIL

60 24.91.784.1125.11.764.1825.31.754.25 70 22.21.833.5722.91.833.6823.61.823.80 80 19.71.903.0520.91.913.2022.01.933.35 60 20.21.673.5520.81.693.6121.41.713.67 70 18.01.723.0819.01.743.2019.91.763.32 80 15.91.782.6217.21.802.8018.51.822.97 60 17.31.473.4617.81.483.5418.21.483.62 70 15.61.552.9416.11.573.0116.61.583.08 80 13.71.672.4114.31.702.4714.91.722.53 60 14.91.363.2315.51.333.4416.21.303.66 70 13.11.462.6413.91.452.8014.61.452.97 80 11.1 1.62 2.01 12.0 1.66 2.13 12.9 1.69 2.23 60 11.2 1.46 2.26 11.6 1.50 2.27 12.0 1.55 2.28 70 9.8 1.461.9810.61.502.0611.31.552.13 80 8.5 1.47 1.70 9.5 1.51 1.85 10.6 1.56 1.99 60 9.1 1.41 1.90 9.6 1.45 1.95 10.2 1.49 1.99 70 8.1 1.39 1.71 8.7 1.43 1.79 9.4 1.48 1.86 80 7.1 1.38 1.51 7.9 1.42 1.63 8.7 1.47 1.73

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

500 650 800

036-21320-002 Rev. A (1103)

ID CFM

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHB0806 G2FD024(S,H)17 0.99 1.06 0.93 N1VSB12 G2FD024

G1FA024S14,17 0.99 0.98 1.01 G1FA030S14 1.00 1.01 0.99 G1HD024 1.00 1.01 0.99 G1NA030S17K 0.95 1.02 0.93 G1UA024S14,17 0.99 0.98 1.01 G1UA030S14 1.00 1.01 0.99 G2FD024 G1HA024H14 0.97 1.04 0.92

(S,H)17 0.99 1.09 0.90

(S,H)14,17 0.99 1.06 0.93

MBH KW COP

Variable Speed Furnace

G8V***12UHA G1FA024S14 0.97 1.04 0.93 G8V***12UHA G1FA030S14 0.98 1.06 0.92 G8V***12UHA G2FD024 G9V***12DHB G2FD024 G9V***12UPB G1FA024S17 0.97 1.04 0.93 G9V***12UPB G2FD024

Coil

T.C. S.C. KW

(S,H)14 0.97 1.13 0.85 (S,H)17 0.96 1.06 0.91

(S,H)17 0.97 1.13 0.85

Unitary Products Group 23

Page 24

036-21320-002 Rev. A (1103)

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO EABC-F024S EVAPORATOR COIL MODEL NO F2RP/F2FP030

AIR TEMP. ENTERING OUTDOOR

UNIT

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

AIR TEMP.

ENTERING

INDOOR

COIL

60 28.72.223.7929.12.223.8329.42.253.85 70 26.82.263.4827.52.273.5627.92.293.58 80 24.92.293.1926.02.303.3226.42.323.33 60 24.32.143.3425.12.173.3925.42.193.40 70 22.42.193.0023.62.223.1224.12.243.15 80 20.42.232.6822.12.262.8722.82.292.92 60 21.52.083.0422.32.093.1322.62.133.11 70 20.02.132.7520.92.152.8621.32.182.87 80 18.42.182.4819.52.192.6120.02.232.64 60 18.31.972.7219.21.992.8319.72.012.87 70 17.12.022.4817.92.052.5618.42.082.59 80 15.82.062.2516.62.102.3117.02.142.33 60 15.91.912.4415.61.952.3515.81.992.33 70 13.81.962.0714.01.992.0614.42.042.07 80 11.7 2.01 1.71 12.5 2.04 1.79 13.0 2.09 1.82 60 12.51.812.0213.31.862.0913.61.902.10 70 10.5 1.85 1.67 11.7 1.90 1.81 12.3 1.94 1.86 80 8.5 1.89 1.31 10.2 1.94 1.54 11.0 1.99 1.62

MBTUH

700 850 1000

KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

ID CFM

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHB0806 G2FD024(S,H)17 0.98 0.97 1.01 N1AHB0806 G2FD030 N1VSB12 G2FD030

G1FA030S14 0.98 0.97 1.01 G1FA036S17,21 0.98 0.99 0.99 G1HD024 0.98 0.98 0.99 G1HD036 0.98 1.03 0.95 G1NA030S17K 1.00 1.01 0.99 G1NA030S21M 1.00 1.01 0.99 G1UA030S14 0.98 0.97 1.01 G1UA036S17,21 0.98 0.99 0.99 G2FD024 G2FD030 G2FD030 G2FD035 G1HA024H14 0.96 0.95 1.00

(S,H)17 0.98 0.99 0.99 (S,H)17 0.98 1.02 0.96

(S,H)14,17 0.98 0.97 1.01 (S,H)17 0.98 0.99 0.99 (S,H)17 0.98 0.99 0.99 (S,H)14 0.98 0.99 0.99

MBH KW COP

Variable Speed Furnace

G8V***12UHA G1FA030S14 0.96 1.01 0.95 G8V***12UHA G2FD024 G8V***16UHB G1FA036S17 0.96 1.04 0.93 G8V***16UHB G2FD024 G8V***16UHB G2FD030 G9V***12DHB G2FD024 G9V***12DHB G2FD030 G9V***12UPB G1FA036S17 0.96 1.04 0.92 G9V***12UPB G2FD024 G9V***12UPB G2FD030

Coil

T.C. S.C. KW

(S,H)14 0.96 1.01 0.95

(S,H)17 0.96 1.01 0.95 (S,H)17 0.97 1.04 0.93 (S,H)17 0.95 1.02 0.94 (S,H)17 0.96 1.04 0.92

(S,H)17 0.95 1.02 0.94 (S,H)17 0.96 1.04 0.92

24 Unitary Products Group

Page 25

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO EABC-F030S EVAPORATOR COIL MODEL NO F2 RP/F2FP036

AIR TEMP.

ENTERING

OUTDOOR

UNIT

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

AIR TEMP.

ENTERING

INDOOR

COIL

60 34.62.553.9835.12.484.1634.12.254.45 70 33.52.693.6534.52.623.8634.12.394.19 80 32.32.793.4033.92.733.6434.12.494.02 60 31.42.473.7430.42.443.6630.32.253.95 70 29.32.583.3329.02.583.3029.72.383.67 80 27.32.672.9928.72.683.1429.22.493.44 60 26.42.413.2027.42.423.3227.62.243.62 70 24.82.532.8826.32.543.0527.02.363.36 80 23.22.632.6025.32.642.8126.42.463.14 60 23.12.342.9124.22.363.0024.92.223.29 70 21.72.442.6123.02.462.7423.92.303.04 80 20.22.532.3421.82.562.5022.82.392.80 60 18.92.222.5019.42.272.5019.92.132.74 70 17.32.282.2318.02.382.2018.62.202.49 80 15.72.361.9516.52.412.0017.42.282.24 60 16.02.142.2016.72.192.2417.52.072.47 70 14.12.181.9015.22.232.0016.02.112.23 80 12.22.231.6013.62.291.7414.52.161.97

MBTUH

800 1000 1200 KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

036-21320-002 Rev. A (1103)

ID CFM

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHB1206 G2FD036(S,H)17 1.01 1.00 1.01 F2RP/F2FP030 0.98 0.97 1.01 N1VSB12 G2FD036

G1FA036S14 1.01 1.01 1.00 G1FA036S17,21 1.00 0.99 1.01 G1HD036 1.01 1.03 0.98 G1HD048 1.03 1.04 0.99 G1NA036S17L 1.00 1.00 1.00 G1NA048S21D 1.00 1.00 1.00 G1UA036S14 1.01 1.01 1.00 G1UA036S17,21 1.00 0.99 1.01 G2FD030 G2FD030 G2FD035 G2FD036 G2FD036 G1HA036H14 0.99 0.98 1.00

(S,H)17 1.00 1.03 0.97

(S,H)17 1.00 0.99 1.01 (S,H)17 1.00 0.99 1.01 (S,H)14 1.00 0.99 1.01 (S,H)17 1.01 1.00 1.01 (S,H)21 1.00 0.99 1.01

MBH KW COP

Variable Speed Furnace

G8V***12UHA G1FA036S14 1.00 1.04 0.96 G8V***12UHA G2FD035 G8V***16UHB G1FA036S17 0.98 1.04 0.94 G8V***16UHB G2FD036 G9V***12UHB G1FA036S17 0.99 1.05 0.96 G9V***12UHB G2FD030 G9V***12UHB G2FD036 G9V***12DHB G2FD036

Coil

T.C. S.C. KW

(S,H)14 0.98 1.03 0.95

(S,H)17 0.99 1.05 0.94

(S,H)17 0.99 1.05 0.96 (S,H)17 0.99 1.06 0.94 (S,H)17 0.98 1.04 0.96

Unitary Products Group 25

Page 26

036-21320-002 Rev. A (1103)

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO EABC-F036S EVAPORATOR COIL MODEL NO F2 RP/F2FP036

AIR TEMP. ENTERING OUTDOOR

UNIT

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

AIR TEMP.

ENTERING

INDOOR

COIL

60 42.0 2.86 4.30 42.1 2.85 4.33 42.2 2.84 4.35 70 40.0 2.98 3.94 40.9 2.99 4.02 41.8 2.99 4.10 80 38.0 3.13 3.56 39.7 3.15 3.69 41.4 3.17 3.83 60 36.2 2.80 3.79 36.4 2.80 3.81 36.6 2.81 3.83 70 34.2 2.92 3.44 35.0 2.93 3.50 35.7 2.95 3.56 80 32.1 3.06 3.08 33.5 3.09 3.18 34.9 3.12 3.28 60 32.3 2.73 3.47 32.7 2.75 3.49 33.1 2.77 3.51 70 30.5 2.83 3.17 31.2 2.85 3.21 31.8 2.88 3.25 80 28.4 2.95 2.83 29.4 2.98 2.89 30.3 3.01 2.95 60 27.7 2.60 3.13 28.4 2.63 3.17 29.1 2.65 3.22 70 26.0 2.65 2.88 26.8 2.69 2.92 27.6 2.73 2.97 80 23.8 2.73 2.55 24.7 2.78 2.60 25.6 2.84 2.65 60 22.3 2.49 2.62 22.8 2.54 2.63 23.2 2.58 2.64 70 20.0 2.57 2.29 20.6 2.62 2.30 21.1 2.67 2.32 80 17.9 2.65 1.98 18.5 2.70 2.01 19.1 2.76 2.03 60 18.8 2.36 2.34 19.4 2.42 2.36 20.0 2.47 2.38 70 16.2 2.42 1.97 17.1 2.47 2.03 17.6 2.53 2.04 80 13.8 2.46 1.64 14.8 2.51 1.73 15.3 2.58 1.74

MBTUH

1000 1200 1400

KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

ID CFM

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHB1206 G2FD036(S,H)17 1.01 1.01 1.00 F2RP/F2FP042 1.00 1.00 1.00 N1VSB12 G2FD036 N1VSB12 G2FD046

G1FA048S21 1.02 1.02 1.00 G1HD036 1.01 1.02 0.99 G1HD048 1.01 1.02 0.99 G1NA036S17L 1.03 0.94 1.09 G1NA048S21D 1.03 1.00 1.03 G1UA048S21 1.02 1.02 1.00 G2FD036 G2FD036 G2FD042 G1HA036H17 0.99 0.99 1.00

(S,H)17 1.01 1.03 0.98 (S,H)17 1.01 1.03 0.98

(S,H)17 1.01 1.01 1.00 (S,H)21 1.00 0.99 1.01 (S,H)21 1.01 1.01 1.01

MBH KW COP

Variable Speed Furnace

G8V***16UHB G2FD036(S,H)17 1.00 1.05 0.95 G8V***20UHC G1FA048S21 1.00 1.08 0.93 G8V***20UHC G2FD036 G8V***20UHC G2FD042 G9V***12DHB G2FD036 G9V***12UPB G2FD036 G9V***16UPC G1FA048S21 1.01 1.07 0.94 G9V***16UPC G2FD036 G9V***16UPC G2FD042

Coil

T.C. S.C. KW

(S,H)21 0.98 1.03 0.95 (S,H)21 0.98 1.04 0.94 (S,H)17 1.00 1.00 1.00 (S,H)17 1.00 1.04 0.96

(S,H)21 0.99 1.03 0.96 (S,H)21 0.98 1.03 0.96

26 Unitary Products Group

Page 27

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO EABC-(T,W)036S EVAPORATOR COIL MODEL NO G1FA048S21

AIR TEMP.

ENTERING

OUTDOOR

UNIT

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

AIR TEMP.

ENTERING

INDOOR

COIL

60 39.7 3.08 3.78 38.3 3.02 3.72 36.8 2.96 3.65 70 39.5 3.24 3.59 38.5 3.19 3.54 37.5 3.15 3.50 80 39.2 3.39 3.39 38.7 3.37 3.37 38.1 3.35 3.34 60 35.1 2.81 3.66 34.1 2.78 3.59 33.0 2.76 3.51 70 34.2 2.93 3.42 34.0 2.95 3.38 33.1 2.91 3.34 80 32.9 3.03 3.18 33.0 3.05 3.18 33.1 3.06 3.17 60 31.3 2.66 3.45 31.0 2.67 3.41 30.7 2.67 3.37 70 30.3 2.76 3.23 30.5 2.78 3.22 30.7 2.81 3.21 80 29.3 2.85 3.01 30.0 2.90 3.03 30.7 2.95 3.05 60 28.1 2.57 3.21 28.1 2.59 3.18 28.0 2.61 3.15 70 26.2 2.55 3.02 26.5 2.58 3.01 26.9 2.62 3.01 80 24.3 2.53 2.82 25.0 2.58 2.85 25.7 2.63 2.87 60 21.0 2.36 2.61 21.6 2.41 2.63 22.1 2.45 2.64 70 19.5 2.25 2.54 20.2 2.37 2.50 20.6 2.54 2.39 80 18.0 2.55 2.07 18.6 2.59 2.10 19.1 2.63 2.13 60 17.2 2.25 2.29 18.1 2.31 2.33 18.9 2.37 2.37 70 15.9 2.41 1.98 16.6 2.45 2.01 17.2 2.50 2.05 80 14.6 2.56 1.67 15.1 2.60 1.70 15.5 2.63 1.73

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

1050 1250 1450

036-21320-002 Rev. A (1103)

ID CFM

Multipliers for determining the performance with other indoor sections.

Coil

G1UA048S21 1.00 1.00 1.00 G1HA048H21 0.99 0.99 0.99 G2FD048S(21,24) 1.01 1.00 1.01

MBH KW COP

Unitary Products Group 27

Page 28

036-21320-002 Rev. A (1103)

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO EABC-F042S EVAPORATOR COIL MODEL NO F2FP048

AIR TEMP. ENTERING OUTDOOR

UNIT

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

AIR TEMP.

ENTERING

INDOOR

COIL

60 49.7 3.33 4.38 48.5 3.26 4.36 47.2 3.19 4.33 70 50.9 3.57 4.18 50.0 3.49 4.20 49.1 3.42 4.21 80 50.8 3.89 3.83 50.2 3.80 3.87 49.7 3.72 3.92 60 41.9 3.23 3.81 41.4 3.20 3.80 40.8 3.16 3.79 70 42.3 3.46 3.58 41.5 3.60 3.38 41.6 3.38 3.61 80 41.9 3.77 3.26 41.8 3.72 3.29 41.6 3.67 3.33 60 37.0 3.19 3.40 36.6 3.16 3.39 36.2 3.14 3.39 70 36.8 3.42 3.15 36.6 3.39 3.16 36.4 3.36 3.17 80 36.0 3.71 2.84 35.9 3.67 2.87 35.9 3.63 2.90 60 33.9 3.08 3.22 33.9 3.07 3.23 33.9 3.07 3.24 70 33.2 3.31 2.94 33.2 3.29 2.96 33.1 3.27 2.97 80 32.2 3.59 2.63 32.1 3.55 2.65 32.0 3.51 2.67 60 26.3 2.94 2.62 26.6 2.95 2.64 26.9 2.97 2.66 70 25.1 3.13 2.35 25.2 3.21 2.30 25.8 3.15 2.40 80 23.8 3.36 2.08 24.3 3.37 2.11 24.7 3.37 2.15 60 23.2 2.84 2.39 23.5 2.87 2.40 23.8 2.90 2.41 70 21.5 3.00 2.10 22.0 3.03 2.12 22.4 3.06 2.14 80 20.1 3.20 1.84 20.6 3.23 1.87 21.1 3.26 1.90

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

1200 1400 1600

ID CFM

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHC1606 G2FD042(S,H)21 0.99 0.95 1.04 F2RP/F2FP042 0.99 0.94 1.05 N1VSC16 G2FD048

G1FA048S21 1.00 0.97 1.03 G1HD048 1.00 0.98 1.02 G1NA048S21D 0.98 0.92 1.06 G1UA048S21 1.00 0.97 1.03 G2FD042 G2FD048 G2FD060 G1HA036H17 0.97 0.93 1.03

(S,H)21 1.00 1.00 1.00

(S,H)21 0.99 0.95 1.04 (S,H)21,24 1.00 0.97 1.03 (S,H)24 1.00 0.99 1.01

MBH KW COP

Variable Speed Furnace

G8V***20UHC G1FA048S21 0.99 1.00 0.99 G8V***20UHC G2FD042 G8V***20UHC G2FD048 G9V***20DHD G2FD048 G9V***16UPC G1FA048S21 0.99 1.00 0.99 G9V***16UPC G2FD042 G9V***16UPC G2FD048

Coil

T.C. S.C. KW

(S,H)21 0.98 0.98 1.00 (S,H)21 0.99 0.99 1.00 (S,H)24 0.96 0.97 1.00

(S,H)21 0.98 0.97 1.01 (S,H)21 1.00 0.98 1.02

28 Unitary Products Group

Page 29

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO EBBC-F048S, EABC(T,W)048S* EVAPORATOR COIL MODEL NO G1NA042S24W

AIR TEMP.

ENTERING

OUTDOOR

UNIT

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

AIR TEMP.

ENTERING

INDOOR

COIL

60 53.14.583.4053.34.543.4453.64.503.49 70 52.84.513.4353.24.463.5053.64.423.56 80 52.44.403.4953.04.353.5853.74.303.66 60 48.14.902.8848.04.373.2348.03.943.57 70 47.34.642.9947.54.393.1847.74.163.36 80 46.54.373.1247.04.373.1547.54.373.19 60 48.14.423.1946.44.353.1344.74.283.06 70 46.94.493.0645.64.433.0244.34.382.97 80 45.74.522.9744.84.472.9444.04.432.91 60 38.63.882.9239.13.912.9339.63.952.94 70 37.64.042.7338.04.072.7438.44.102.75 80 36.54.172.5736.94.202.5837.34.222.59 60 31.23.392.7031.63.432.7132.03.462.71 70 29.73.632.4030.03.662.4130.33.692.41 80 28.23.872.1428.43.902.1428.73.922.14 60 26.33.022.5626.93.062.5827.53.102.60 70 24.63.282.2025.13.312.2225.53.342.24 80 22.83.561.8823.23.581.9023.53.611.91

MBTUH

1400 1600 1800

KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

036-21320-002 Rev. A (1103)

ID CFM

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHC1606 G2FD048(S,H)21 0.98 0.96 1.02 N1AHD2006 G2FD060 N1AHD2006 G2FD061H24 0.96 0.92 1.04 F2FP045 0.97 0.96 1.01 F2FP048 0.98 0.95 1.03 F2FV060 0.97 0.96 1.00 N1VSD20 G2FD060 N1VSD20 G2FD061H24 0.95 0.95 1.00

G1FA048S21* 0.98 0.96 1.02 G1FA060S21,24 0.98 0.94 1.04 G1HD060 0.96 0.96 0.99 G1UA048S21* 0.98 0.96 1.02 G1UA060S21,24 0.98 0.94 1.04 G2FD048 G2FD060 G2FD061H24 0.96 0.92 1.04 G1HA048H21 0.96 0.94 1.01

* Matchups marked with asterisks are the only ones that may be

matched with 3-Phase outdoor units.

(S,H)24 0.98 0.94 1.04

(S,H)24 0.97 0.96 1.00

(S,H)21,24* 0.98 0.96 1.02 (S,H)24 0.98 0.94 1.04

MBH KW COP

Variable Speed Furnace

G8V***20UHC G1FA048S21 0.97 0.98 0.99 G8V***20UHC G1FA060S21 0.97 0.95 1.02 G8V***20UHC G2FD048 G9V***20DHD G2FD048 G9V***16UPC G1FA048S21 0.98 0.97 1.01 G9V***16UPC G1FA060S21 0.97 0.95 1.03 G9V***16UPC G2FD048 G9V***20UPD G1FA060S24 0.98 0.95 1.02 G9V***20UPD G2FD060

Coil

T.C. S.C. KW

(S,H)21 0.98 0.97 1.01 (S,H)24 0.98 2.37 0.41

(S,H)21 0.97 0.96 1.01

(S,H)24 0.98 0.95 1.02

Unitary Products Group 29

Page 30

036-21320-002 Rev. A (1103)

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO EBBC-F060S EVAPORATOR COIL MODEL NO G2 FD060(S,H)24

AIR TEMP. ENTERING OUTDOOR

UNIT

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

AIR TEMP.

ENTERING

INDOOR

COIL

60 73.4 5.12 4.20 74.1 5.03 4.32 74.8 4.94 4.44 70 71.6 5.52 3.81 72.9 5.42 3.94 74.1 5.33 4.08 80 69.7 6.00 3.41 71.6 5.90 3.56 73.4 5.81 3.71 60 59.9 4.60 3.82 61.2 4.58 3.92 62.6 4.56 4.02 70 57.3 4.93 3.41 58.5 4.90 3.50 59.6 4.87 3.59 80 54.7 5.35 3.00 55.7 5.31 3.07 56.7 5.27 3.15 60 50.9 4.35 3.43 51.5 4.34 3.47 52.0 4.33 3.52 70 47.7 4.63 3.02 47.9 4.59 3.06 48.0 4.56 3.09 80 44.6 4.99 2.62 44.3 4.92 2.64 43.9 4.86 2.65 60 43.4 4.15 3.07 44.3 4.13 3.14 45.2 4.12 3.22 70 42.2 4.49 2.76 42.3 4.45 2.79 42.3 4.41 2.81 80 40.9 4.91 2.45 40.2 4.85 2.43 39.5 4.80 2.41 60 34.8 3.92 2.61 35.5 3.92 2.66 36.2 3.92 2.71 70 34.2 4.26 2.36 34.8 4.25 2.40 35.3 4.24 2.44 80 33.6 4.68 2.11 34.0 4.66 2.14 34.4 4.65 2.17 60 30.4 3.89 2.29 30.9 3.91 2.32 31.5 3.94 2.35 70 28.8 4.22 2.00 29.2 4.24 2.02 29.6 4.25 2.04 80 27.2 4.66 1.71 27.5 4.67 1.72 27.7 4.68 1.74

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

1500 1700 1900

ID CFM

Multipliers for determining the performance with other indoor sections.

Air Handler Coil

N1AHD2006 G2FD060(S,H)24 1.00 1.00 1.00 N1AHD2006 G2FD061H24 1.02 1.00 1.02 F2FP060 1.01 0.97 1.04 F2FV060 1.00 0.98 1.02 N1VSD20 G2FD060 N1VSD20 G2FD061H24 1.02 1.02 1.00

G1FA060S21,24 1.00 1.00 1.00 G1HD060 1.01 1.00 1.01 G1NA060S24T 1.00 0.97 1.04 G1UA060S21,24 1.00 1.00 1.00 G2FD061H24 1.02 1.00 1.02 G1HA060H24 0.98 0.98 0.99

(S,H)24 0.98 1.09 0.91

MBH KW COP

Variable Speed Furnace

G8V***20UHC G1FA060S21 1.00 1.01 0.99 G9V***20DHD G2FD060 G9V***20UPC G1FA060S21 0.99 1.02 0.98 G9V***20UPD G1FA060S24 0.99 1.02 0.98 G9V***20UPD G2FD060 G9V***20UPD G2FD061H24 1.00 1.03 0.97

Coil

T.C. S.C. KW

(S,H)24 1.01 2.29 0.44

(S,H)24 0.99 1.02 0.98

30 Unitary Products Group

Page 31

HEATING PERFORMANCE DATA

CONDENSING UNIT MODEL NO EABC-(T,W)060S EVAPORATOR COIL MODEL NO G1FA060S21

AIR TEMP.

ENTERING

OUTDOOR

UNIT

AIR TEMP.

ENTERING

INDOOR

COIL

60 71.6 5.22 4.02 72.4 5.14 4.14 73.2 5.05 4.25 70 70.5 5.66 3.68 70.8 5.56 3.77 71.2 5.45 3.86 80 69.3 6.10 3.33 69.3 5.98 3.40 69.2 5.85 3.47 60 60.0 4.65 3.78 60.4 4.62 3.84 60.7 4.58 3.89 70 58.8 5.08 3.43 59.0 4.97 3.48 60.0 4.99 3.56 80 57.6 5.50 3.07 58.5 5.45 3.15 59.3 5.40 3.22 60 53.5 4.42 3.55 54.2 4.41 3.61 54.9 4.40 3.66 70 52.1 4.81 3.20 52.7 4.78 3.26 53.4 4.75 3.32 80 50.6 5.21 2.85 51.3 5.16 2.92 51.9 5.11 2.98 60 46.0 4.19 3.22 46.6 4.18 3.27 47.2 4.17 3.32 70 44.8 4.58 2.90 45.7 4.56 2.96 46.6 4.55 3.03 80 43.5 4.96 2.57 44.7 4.95 2.65 46.0 4.94 2.73 60 38.0 3.99 2.79 38.4 3.99 2.82 38.8 3.99 2.85 70 37.0 4.35 2.52 37.0 3.72 2.92 37.9 3.79 2.93 80 36.0 4.71 2.24 36.5 4.69 2.28 37.0 4.68 2.32 60 33.7 3.89 2.56 34.0 3.89 2.58 34.3 3.90 2.60 70 32.8 4.23 2.31 33.0 4.23 2.33 33.2 4.22 2.35 80 32.0 4.58 2.06 32.1 4.56 2.08 32.2 4.54 2.10

MBTUH KW C.O.P. MBTUH KW C.O.P. MBTUH KW C.O.P.

1500 1700 1900

036-21320-002 Rev. A (1103)

ID CFM

Multipliers for determining the performance with other indoor sections.

Coil

G1UA060(S,H)21,24 1.00 1.00 1.00 G1HA060H24 0.99 1.00 0.99 G2FD060(S,H)24 1.00 1.00 1.00

MBH KW COP

Unitary Products Group 31

Page 32

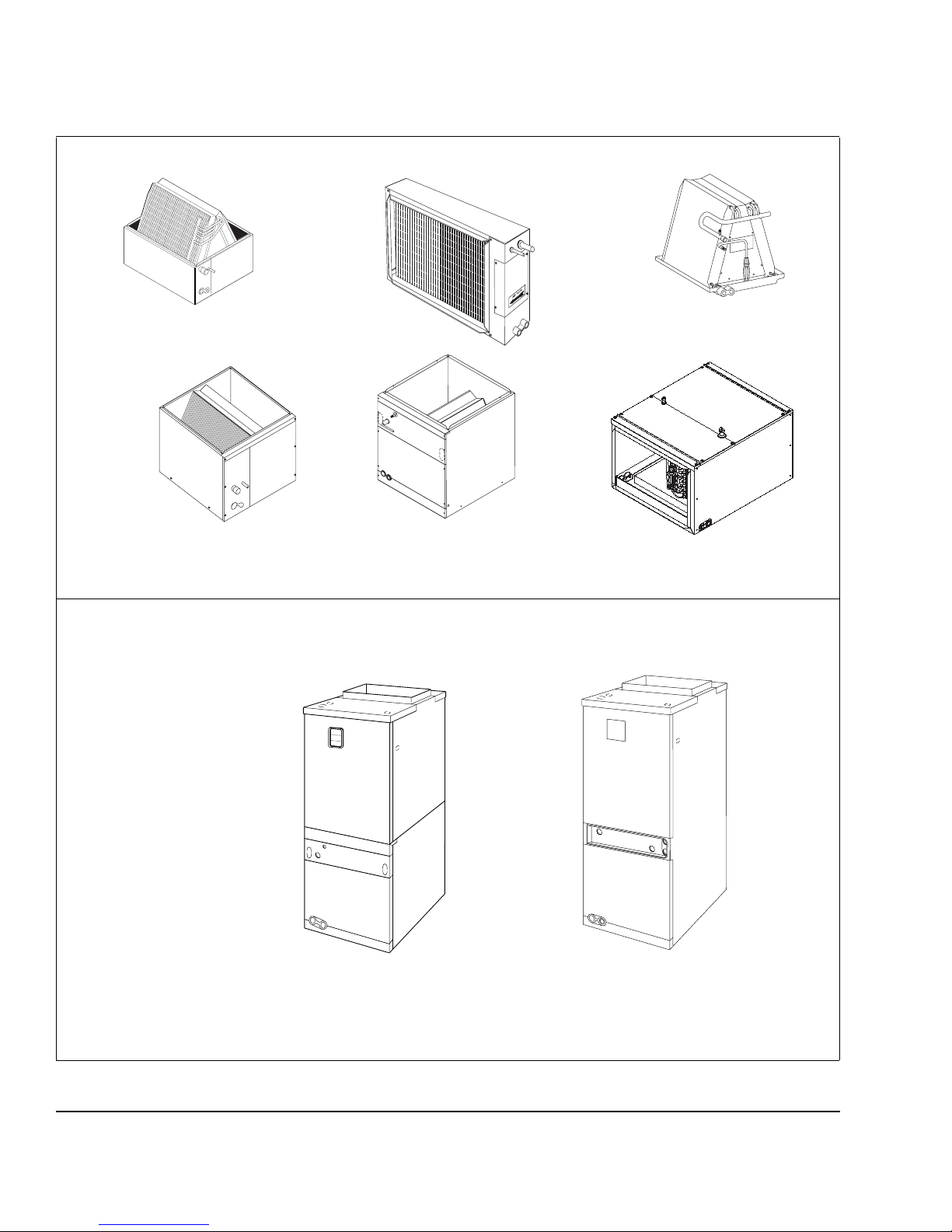

MATCHING INDOOR COMPONENTS

ADD-ON COILS - FOR FURNACE APPLICATIONS

G1UA 1/2 CASED UPFLOW

G1FA FULL CASED UPFLOW

* Available with factory installed horizontal drain pan.

G1HD HORIZONTAL DUCT

G2FD* MULTI-POSITION (UPFLOW, HORIZONTAL AND DOWNFLOW)

AIR HANDLERS - FOR NON-FURNACE APPLICATIONS

N1AH OR N1VS MODULAR BLOWER (UPFLOW, HORIZONTAL AND DOWNFLOW)

G1NA UNCASED UPFLOW

G1HA FULL CASED HORIZONTAL

Unitary 5005 Norman Product York OK Group Drive 73069

G2FD COIL

F2RC / F2FC OR F2RC / F2FP FAN COIL UNITS (UPFLOW, HORIZONTAL)
