TECHNICAL GUIDE

036-21508-005-A-0305

DESCRIPTION

YORK Sunline 2000™ heat pumps are convertible single package units with a common cabinet and a common roof curb for the 3, 4 and 5 ton sizes. The units were designed for light commercial and commercial applications. They can easily be installed on a roof curb, slab, roof jack or frame.

SINGLE PACKAGE HEAT PUMP UNITS

BQ 036, 048 & 060

3, 4 & 5 NOMINAL TONS

10.0 SEER

All units include:

• Powder Paint finish that meets ASTM-B-117 1000 hour salt spray standards

• Permanently lubricated motors

• Bottom or side air discharge configuration capability (field convertible)

• Manufactured under the quality standards of ISO9001

• Simplicity

• Copper tube/aluminum fin coils

• Easy access to all components

• Rigging holes in base rails for lifting

• Fork lift slots on three sides

• Single point power connection

• Complete factory package - tested, charged and wired

• CSA agency listing on all units

WARRANTY

• Factory Limited Parts Warranty

• One-year parts warranty

Control Board

• A Five-year parts warranty on the compressor and electric heat elements.

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

Page 2

TABLE OF CONTENTS

036-21508-005-A-0305

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

PRODUCT NOMENCLATURE

. . . . . . . . . . . . . . . . . . .3

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

FACTORY-INSTALLED OPTIONS . . . . . . . . . . . . . 12

FIELD-INSTALLED ACCESSORIES . . . . . . . . . . . 13

GUIDE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . 40

LIST OF FIGURES

Fig. #

Pg. #

1 UNIT CUTAWAY . . . . . . . . . . . . . . . . . . . . . . . . 12

2 TYPICAL FIELD POWER & CONTROL WIRING 34 3 UNIT DIMENSIONS (3 - 5 TON HEAT PUMP)

FRONT VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4 UNIT WITH ECONOMIZER RAINHOOD . . . . . . 35

5 UNIT WITH FIXED OUTDOOR AIR/MOTORIZED

DAMPER RAINHOOD . . . . . . . . . . . . . . . . . . . . 36

6 UNIT DIMENSIONS (REAR VIEW) . . . . . . . . . . 36

7 DISCONNECT/BLOWER ACCESS LOCATION 37

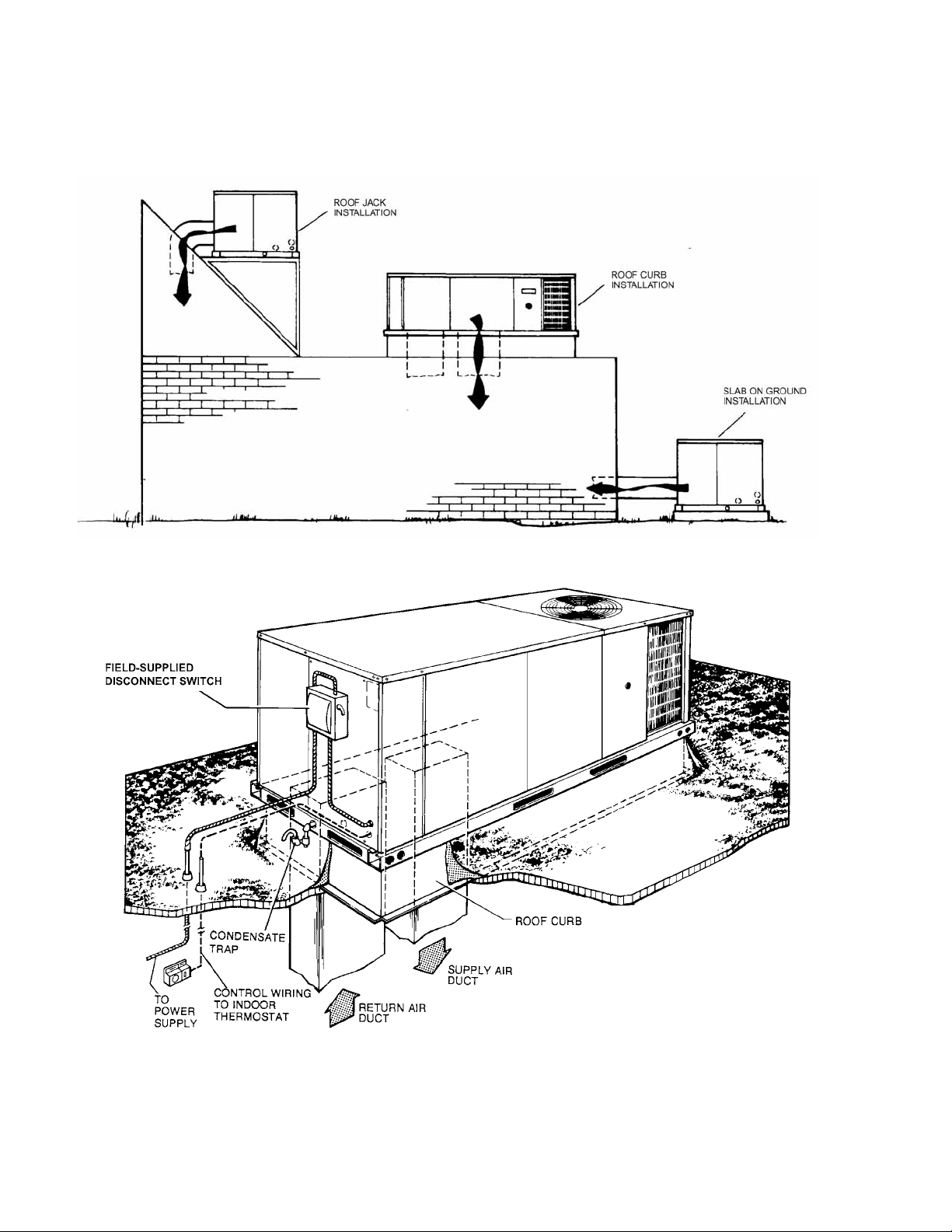

8 TYPICAL APPLICATIONS . . . . . . . . . . . . . . . . . 38

9 FOUR AND SIX POINT LOADING . . . . . . . . . . . 39

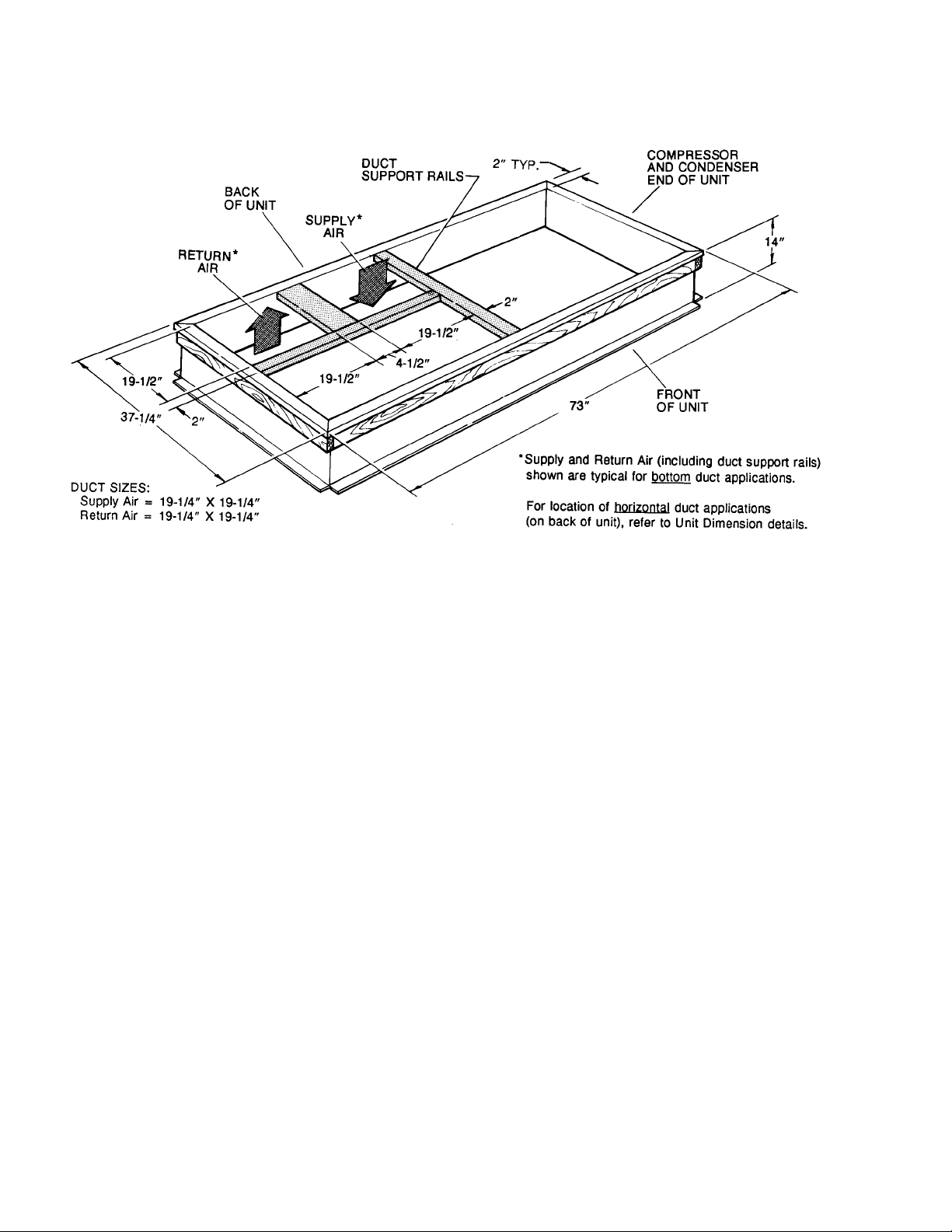

10 ROOF CURB DIMENSIONS . . . . . . . . . . . . . . . 40

BELT DRIVE) - SIDE DUCT APPLICATION . . . 22

10 SUPPLY AIR BLOWER PERFORMANCE (3 - 5

TON DIRECT DRIVE) - SIDE DUCT

APPLICATION . . . . . . . . . . . . . . . . . . . . . . . . . . 23

11 BELT DRIVE BLOWER MOTOR AND DRIVE

DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

12 STATIC RESISTANCES . . . . . . . . . . . . . . . . . . 24

13 ELECTRIC HEATER CFM LIMITATIONS . . . . . 24

14 ELECTRICAL DATA - BQ036 & 048 DIRECT

DRIVE WITHOUT POWR’D CONVENIENCE

OUTLET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

15 ELECTRICAL DATA - BQ060 DIRECT DRIVE

WITHOUT POWR’D CONVENIENCE

OUTLET 26 16 ELECTRICAL DATA - BQ036 & 048 BELT

DRIVE WITHOUT POWR’D CONVENIENCE

OUTLET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

17 ELECTRICAL DATA - BQ060 BELT DRIVE

WITHOUT POWR’D CONVENIENCE

OUTLET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

18 ELECTRICAL DATA - BQ036 & 048 DIRECT

DRIVE WITH POWR’D CONVENIENCE

OUTLET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

19 ELECTRICAL DATA - BQ060 DIRECT DRIVE WITH

POWR’D CONVENIENCE OUTLET . . . . . . . . . 30

LIST OF TABLES

Tbl. #

Pg. #

1 SOUND POWER RATING . . . . . . . . . . . . . . . . . 15

2 CAPACITY RATINGS . . . . . . . . . . . . . . . . . . . . 15

3 BQ036 COOLING CAPACITIES (3 TON) . . . . . 16

4 BQ048 COOLING CAPACITIES (4 TON) . . . . . 17

5 BQ060 COOLING CAPACITIES (5 TON) . . . . . 18

6 BQ HEATING CAPACITIES . . . . . . . . . . . . . . . . 19

7 SUPPLY AIR BLOWER PERFORMANCE (3 TON

BELT DRIVE) - SIDE DUCT APPLICATION . . . 20

8 SUPPLY AIR BLOWER PERFORMANCE (4 TON

BELT DRIVE) - SIDE DUCT APPLICATION . . . 21

9 SUPPLY AIR BLOWER PERFORMANCE (5 TON

20 ELECTRICAL DATA - BQ036 & 048 BELT DRIVE

WITH POWR’D CONVENIENCE OUTLET . . . . 31

21 ELECTRICAL DATA - BQ060 BELT DRIVE WITH

POWR’D CONVENIENCE OUTLET . . . . . . . . . 32

22 PHYSICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . 33

23 ELECTRIC HEAT CORRECTION FACTORS . . 33

24 VOLTAGE LIMITATIONS . . . . . . . . . . . . . . . . . . 33

25 UTILITIES ENTRY . . . . . . . . . . . . . . . . . . . . . . . 37

26 MINIMUM CLEARANCES . . . . . . . . . . . . . . . . . 37

27 BQ 4 POINT LOADS WEIGHT DISTRIBUTION 39 28 BQ 6 POINT LOADS WEIGHT DISTRIBUTION 39

29 CENTER OF GRAVITY . . . . . . . . . . . . . . . . . . . 39

30 OPERATING WEIGHTS (LBS.) . . . . . . . . . . . . . 39

2 Unitary Products Group

Page 3

036-21508-005-A-0305

PRODUCT NOMENCLATURE

3-5 Ton Sunline Model Number Nomenclature

B Q C00

Product Catagory

D = Air Cond., Single Package B = Heat Pump, Single Package

Product Identifier

M = R-22 Standard Efficiency (DCG/DCE) F = R-22 Medium Efficiency (DEG/DEE) H = R-22 High Efficiency (DHG/DHE) Q = R-22 Std. Effic Heat Pump (BCH)

Nominal Cooling

Capacity - MBH

036 = 3 Ton 048 = 4 Ton 060 = 5 Ton

Heat Type & Nominal Heat Capacity

C00 = Cooling Only. Suitable for field installed electric heat

  

E05 = 5 kW Electric Heat E07 = 7 kW Electric Heat E10 = 10 kW Electric Heat E15 = 15 kW Electric Heat E20 = 20 kW Electric Heat E30 = 30 kW Electric Heat

AA 1048

A2A

Voltage

1 = 208/230-1-60 2 = 208/230-3-60 4 = 460-3-60 5 = 575-3-60

Product Generation

1 = First Generation 2 = Second Generation

Installation Options

A = No Options Installed B = Option 1 C = Option 2 D = Options 1 & 2 E = Option 3 F = Option 4 G = Options 1 & 3 H = Options 1 & 4 J = Options 1, 2 & 3 K = Options 1, 2, & 4 L = Options 1,3 & 4 M = Options 1, 2, 3, & 4 N = Options 2 & 3 P = Options 2 & 4 Q = Options 2, 3, & 4 R = Options 3 & 4 S = Option 5 T = Options 1 & 5 U = Options 1, 3, & 5 V = Options 1, 4, & 5 W = Options 1, 3, 4, & 5 X = Options 3 & 5 Y = Options 4 & 5 Z = Options 3, 4, & 5

Options

1 = Disconnect 2=Non-Pwr'dConvOultet 3 = Smoke Detector S.A. 4 = Smoke Detector R.A. 5 = Pwr'd Conv. Outlet

Additional Options

(See Next Page)

Airflow

A= Direct Drive B = Direct Drive/Single Input Econo D = Direct Drive/Motorized Damper L = Direct Drive/BAS Ready Econ (No BAS Controller)/2" Pleated Filters/Ex tra xfrmr & circuit bkr. N=BeltDrive P = Belt Drive/Single Input Econo R = Belt Drive/Motorized Damper Y = Belt Drive/BAS Ready Econ (No BAS Controller) w/2" Pleated Filters

Unitary Products Group 3

Page 4

PRODUCT NOMENCLATURE - Continued

3-6T Sunline Model Number Nomenclature

Standard Cabinet

AA None AB Phase Monitor AC Coil Guard AD Dirty Filter Switch AE Phase Monitor & Coil Guard AF Phase Monitor & Dirty Filter Switch AG Coil Guard & Dirty Filter Switch AH Phase Monitor, Coil Guard, & Dirty Filter Switch AJ SS Drain Pan AK SS Drain Pan & Phase Monitor AL SS Drain Pan & Coil Guard AM SS Drain Pan & Dirty Filter Switch AN SS Drain Pan, Phase Monitor, Coil Guard & Dirty Filter Switch AS Bottom Drain Connection CA CPC Controller with Dirty Filter Switch & Air Proving Switch CB CPC Controller, DFS, APS & Phase Monitor CC CPC Controller, DFS, APS & Coil Guard CD CPC Controller, DFS, APS, Phase Monitor, & Coil Guard CE CPC Controller, DFS, APS & Technicoat Cond. Coil CF CPC Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor CG CPC Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard CH CPC Controller, DFS, APS, Technicoat Cond. Coil, Phase Monitor, & Coil Guard CJ CPC Controller, DFS, APS & Technicoat Evap. Coil CK CPC Controller, DFS, APS, Technicoat Evap. Coil, & Phase Monitor CL CPC Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard CM CPC Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard CN CPC Controller, DFS, APS & Technicoat Evap. & Cond Coils CP CPC Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Phase Monitor CQ CPC Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Coil Guard CR CPC Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard CS CPC Controller, DFS, APS, SS Drain Pan CT CPC Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard CU CPC Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils CV CPC Controller, DFS, APS, SS Drain Pan, & Technicoat Evap Coil CW CPC Controller, DFS, APS, SS Drain Pan, & Technicoat Evap and Cond Coils CX CPC Controller, DFS, APS, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils JA Johnson UNT Controller with Dirty Filter Switch & Air Proving Switch JB Johnson UNT Controller, DFS, APS & Phase Monitor JC Johnson UNT Controller, DFS, APS & Coil Guard JD Johnson UNT Controller, DFS, APS, Phase Monitor, & Coil Guard JE Johnson UNT Controller, DFS, APS & Technicoat Cond. Coil JF Johnson UNT Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor JG Johnson UNT Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard JH Johnson UNT Controller, DFS, APS, Technicoat Cond. Coil, Phase Monitor, & Coil Guard JJ Johnson UNT Controller, DFS, APS & Technicoat Evap. Coil JK Johnson UNT Controller, DFS, APS, Technicoat Evap. Coil, & Phase Monitor JL Johnson UNT Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard JM Johnson UNT Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard JN Johnson UNT Controller, DFS, APS & Technicoat Evap. & Cond Coils JP Johnson UNT Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Phase Monitor JQ Johnson UNT Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Coil Guard

036-21508-005-A-0305

4 Unitary Products Group

Page 5

036-21508-005-A-0305

Standard Cabinet

JR Johnson UNT Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard JS Johnson UNT Controller, DFS, APS, SS Drain Pan JT Johnson UNT Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard JU Johnson UNT Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils JV Johnson UNT Controller, DFS, APS, SS Drain Pan, & Technicoat Evap Coil JW Johnson UNT Controller, DFS, APS, SS Drain Pan, & Technicoat Evap and Cond Coils JX Johnson UNT Controller, DFS, APS, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils HA Honeywell Excel 10 Controller with Dirty Filter Switch & Air Proving Switch HB Honeywell Excel 10 Controller, DFS, APS & Phase Monitor HC Honeywell Excel 10 Controller, DFS, APS & Coil Guard HD Honeywell Excel 10 Controller, DFS, APS, Phase Monitor, & Coil Guard HE Honeywell Excel 10 Controller, DFS, APS & Technicoat Cond. Coil HF Honeywell Excel 10 Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor HG Honeywell Excel 10 Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard HH Honeywell Excel 10 Controller, DFS, APS, Technicoat Cond. Coil, Phase Monitor, & Coil Guard HJ Honeywell Excel 10 Controller, DFS, APS & Technicoat Evap. Coil HK Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. Coil, & Phase Monitor HL Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard HM Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard HN Honeywell Excel 10 Controller, DFS, APS & Technicoat Evap. & Cond Coils HP Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Phase Monitor HQ Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Coil Guard HR Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard HS Honeywell Excel 10 Controller, DFS, APS, SS Drain Pan HT Honeywell Excel 10 Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard HU Honeywell Excel 10 Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils HV Honeywell Excel 10 Controller,DFS, APS, SS Drain Pan, & Technicoat Evap Coil HW Honeywell Excel 10 Controller,DFS, APS, SS Drain Pan, & Technicoat Evap and Cond Coils HX Honeywell Excel 10 Controller,DFS, APS, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils NA Novar ETC-3 Controller with Dirty Filter Switch & Air Proving Switch NB Novar ETC-3 Controller, DFS, APS & Phase Monitor NC Novar ETC-3 Controller, DFS, APS & Coil Guard ND Novar ETC-3 Controller, DFS, APS, Phase Monitor, & Coil Guard NE Novar ETC-3 Controller, DFS, APS & Technicoat Cond. Coil NF Novar ETC-3 Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor NG Novar ETC-3 Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard NH Novar ETC-3 Controller, DFS, APS, Technicoat Cond. Coil, Phase Monitor, & Coil Guard NJ Novar ETC-3 Controller, DFS, APS & Technicoat Evap. Coil NK Novar ETC-3 Controller, DFS, APS, Technicoat Evap. Coil, & Phase Monitor NL Novar ETC-3 Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard NM Novar ETC-3 Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard NN Novar ETC-3 Controller, DFS, APS & Technicoat Evap. & Cond Coils NP Novar ETC-3 Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Phase Monitor NQ Novar ETC-3 Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Coil Guard NR Novar ETC-3 Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard NS Novar ETC-3 Controller, DFS, APS, SS Drain Pan NT Novar ETC-3 Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard NU Novar ETC-3 Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils NV Novar ETC-3 Controller, DFS, APS, SS Drain Pan, & Technicoat Evap Coil NW Novar ETC-3, DF S, APS, SS Drain Pan, & Technicoat Evap and Cond Coils NX Novar ETC-3 Controller, DFS, APS, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils TA Technicoat Condenser Coil TB Technicoat Condenser Coil & Phase Monitor TC Technicoat Condenser Coil & Coil Guard

Unitary Products Group 5

Page 6

036-21508-005-A-0305

Standard Cabinet

TD Technicoat Condenser Coil & Dirty Filter Switch TE Technicoat Condenser Coil, Phase Monitor, & Coil Guard TF Technicoat Condenser Coil, Phase Monitor, & Dirty Filter Switch TG Technicoat Condenser Coil, Coil Guard, & Dirty Filter Switch TH Technicoat Condenser Coil, Phase Monitor, Coil Guard, & Dirty Filter Switch TJ Technicoat Evaporator Coil TK Technicoat Evaporator Coil & Phase Monitor TL Technicoat Evaporator Coil & Coil Guard TM Technicoat Evapor ator Coil & Dirty Filter Switch TN Technicoat Evaporator Co il, Phase Monitor, & Coil Guard TP Technicoat Evaporator Coil, Phase Monitor, & Dirty Filter Switch TQ Technicoat Evaporator Coil, Coil Guard, & Dirty Filter Switch TR Technicoat Evaporator Coil, Phase Monitor, Coil Guard, & Dirty Filter Switch TS Technicoat Evaporator & Condenser Coils TT Technicoat Evaporator & Condenser Coils & Phase Monitor TU Technicoat Evaporator & Condenser Coils & Coil Guard TV Technicoat Evaporator & Condenser Coils & Dirty Filter Switch TW Technicoat Evaporator & Condenser Coils, Phase Monitor, & Coil Guard TX Technicoat Evaporator & Condenser Coils, Phase Monitor, & Dirty Filter Switch TY Technicoat Evaporator & Condenser Coils, Coil Guard, & Dirty Filter Switch TZ Technicoat Evaporator & Condenser Coils, Phase Monitor, Coil Guard, & Dirty Filter Switch T1 Technicoat Condenser & SS Drain Pan T3 Technicoat Condenser Coil, SS Drain Pan, Phase Monitor, Coil Guard, & Dirty Filter Switch T4 Technicoat Evaporator & SS Drain Pan T6 Technicoat Evaporator Coil, SS Drain Pan, Phase Monitor, Coil Guard, & Dirty Filter Switch T7 Technicoat Evaporator & Condenser Coils & SS Drain Pan T9 Technicoat Evaporator & Condenser Coils, SS Drain Pan, Phase Monitor, Coil Guard, & Dirty Filter Switch LA Simplicity Intelli-Comfort Controller LB Simplicity Intelli-Comfort Controller, & Phase Monitor LC Simplicity Intelli-Comfort Controller, & Coil Guard LD Simplicity Intelli-Comfort Controller, Phase Monitor, & Coil Guard LE Simplicity Intelli-Comfort Controller, & Technicoat Cond. Coil LF Simplicity Intelli-Comfort Controller, Technicoat Cond. Coil, & Phase Monitor LG Simplicity Intelli-Comfort Controller, Technicoat Cond. Coil, & Coil Guard LH Simplicity Intelli-Comfort Controller, Technicoat Cond. Coil, Phase Monitor, & Coil Guard LJ Simplicity Intelli-Comfort Controller, & Technicoat Evap. Coil LK Simplicity Intelli-Comfort Controller, Technicoat Evap. Coil, & Phase Monitor LL Simplicity Intelli-Comfort Controller, Technicoat Evap. Coil, & Coil Guard LM Simplicity Intelli-Comfort Controller, Technicoat Evap. Coil, Phase Monitor, & Coil Guard LN Simplicity Intelli-Comfort Controller, & Technicoat Evap. & Cond Coils LP Simplicity Intelli-Comfort Controller, Technicoat Evap. & Cond Coils, & Phase Monitor LQ Simplicity Intelli-Comfort Controller, Technicoat Evap. & Cond Coils, & Coil Guard LR Simplicity Intelli-Comfort Controller, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard LS Simplicity Intelli-Comfort Controller, SS Drain Pan LT Simplicity Intelli-Comfort Controller, SS Drain Pan, Phase Monitor, & Coil Guard LU Simplicity Intelli-Comfort Controller, SS Drain Pan, & Technicoat Cond Coils LV Simplicity Intelli-Comfort Controller, SS Drain Pan, & Technicoat Evap Coil LW Simplicity Intelli-Comfort Controller, SS Drain Pan, & Technicoat Evap and Cond Coils LX Simplicity Intelli-Comfort Controller, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils WA Intelli-Comfort w/Mod Link Controller WB Intelli-Comfort w/Mod Link Controller, & Phase Monitor WC Intelli-Comfort w/Mod Link Controller, & Coil Guard WD Intelli-Comfort w/Mod Link Controller, Phase Monitor, & Coil Guard WE Intelli-Comfort w/Mod Link Controller, & Technicoat Cond. Coil

6 Unitary Products Group

Page 7

036-21508-005-A-0305

Standard Cabinet

WF Intelli-Comfort w/Mod Link Controller, Technicoat Cond. Coil, & Phase Monitor WG Intelli-Comfort w/Mod Link Controller, Technicoat Con d . Coil, & Coil Guard WH Intelli-Comfort w/Mod Link Controller, Technicoat Cond. Coil, Phase Monitor, & Coil Guard WJ Intelli-Comfort w/Mod Link Controller, & Technicoat Evap. Coil WK Intelli-Comfort w/Mod Link Controller, Technicoat Evap. Coil, & Phase Monitor WL Intelli-Comfort w/Mod Link Controller, Technicoat Evap. Coil, & Coil Guard WM Intelli-Comfort w/Mod Link Controller, Technicoat Evap. Coil, Phase Monitor, & Coil Guard WN Intelli-Comfort w/Mod Link Controller, & Technicoat Evap. & Cond Coils WP Intelli-Comfort w/Mod Link Controller, Technicoat Evap. & Cond Coils, & Phase Monitor WQ Intelli-Comfort w/Mod Link Controller, Technicoat Evap. & Cond Coils, & Coil Guard WR Intelli-Comfort w/Mod Link Controller, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard WS Intelli-Comfort w/Mod Link Controller, SS Drain Pan WT Intelli-Comfort w/Mod Link Controller, SS Drain Pan, Phase Monitor, & Coil Guard WU Intelli-Comfort w/Mod Link Controller, SS Drain Pan, & Technicoat Cond Coils WV Intelli-Comfort w/Mod Link Controller, SS Drain Pan, & Technicoat Evap Coil WW Intelli-Comfort w/Mod Link Controller, SS Drain Pan, & Technicoat Evap and Cond Coils WX Intelli-Comfort w/Mod Link Controller, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils

Hinged Filter Door & Toolless Access Cabinet

BA Hinged Filter Door & Toolless Access Panels BB Phase Monitor, Hinged Filter Door & Toolless Access Panels BC Coil Guard, Hinged Filter Door & Toolless Access Panels BD Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels BE Phase Monitor & Coil Guard, Hinged Filter Door & Toolless Access Panels BF Phase Monitor & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels BG Coil Guard & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels BH Phase Monitor, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels BJ SS Drain Pan & Hinged Filter Door & Toolless Access Panels BK SS Drain Pan & Phase Monitor, Hinged Filter Door & Toolless Access Panels BL SS Drain Pan & Coil Guard, Hinged Filter Door & Toolless Access Panels BM SS Drain Pan & Dirty Filter Switch, H inged Filter Door & Toolless Access Panels BN SS Drain Pan & Phase Monitor & Coil Guard, Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels BS Bottom Drain Connection, Hinged Filter Door & Toolless Access Panels DA CPC Controller with Dirty Filter Switch & Air Proving Switch, Hinged Filter Door & Toolless Access Panels DB CPC Controller, DFS, APS & Phase Monitor, Hinged Filter Door & Toolless Access Panels DC CPC Controller, DFS, APS & Coil Guard, Hinged Filter Door & Toolless Access Panels DD CPC Controller, DFS, APS, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels DE CPC Controller, DFS, APS & Technicoat Cond. Coil, Hinged Filter Door & Toolless Access Panels DF CPC Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels DG CPC Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels DH CPC Controller, DFS, APS, Technicoat Cond. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels DJ CPC Controller, DFS, APS & Technicoat Evap. Coil, Hinged Filter Door & Toolless Access Panels DK CPC Controller, DFS, APS, Technicoat Evap. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels DL CPC Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels DM CPC Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels DN CPC Controller, DFS, APS & Technicoat Evap. & Cond Coils, Hinged Filter Door & Toolless Access Panels DP CPC Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Phase Monitor, Hinged Filter Door & Toolless Access Panels DQ CPC Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Coil Guard, Hinged Filter Door & Toolless Access Panels DR CPC Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels DS CPC Controller, DFS, APS, SS Drain Pan Hinged Filter Door & Toolless Access Panels DT CPC Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard Hinged Filter Door & Toolless Access Panels DU CPC Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils Hinged Filter Door & Toolless Access Panels DV CPC Controller, DFS, APS, SS Drain Pan, & Technicoat Evap Coil Hinged Filter Door & Toolless Access Panels DW CPC Controller, DFS, APS, SS Drain Pan, & Technicoat Evap and Cond Coils Hinged Filter Door & Toolless Access Panels

Unitary Products Group 7

Page 8

036-21508-005-A-0305

Hinged Filter Door & Toolless Access Cabinet

DX CPC Controller, DFS, APS, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils Hinged Filter Door & Toolless

Access Panels EA Johnson UNT Controller with Dirty Filter Switch & Air Proving Switch, Hinged Filter Door & Toolless Access Panels EB Johnson UNT Controller, DFS, APS & Phase Monitor, Hinged Filter Door & Toolless Access Panels EC Johnson UNT Controller, DFS, APS & Coil Guard, Hinged Filter Door & Toolless Access Panels ED Johnson UNT Controller, DFS, APS, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels EE Johnson UNT Controller, DFS, APS & Technicoat Cond. Coil, Hinged Filter Door & Toolless Access Panels EF Johnson UNT Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels EG Johnson UNT Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels EH Johnson UNT Controller, DFS, APS, Technicoat Cond. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels EJ Johnson UNT Controller, DFS, APS & Technicoat Evap. Coil, Hinged Filter Door & Toolless Access Panels EK Johnson UNT Controller, DFS, APS, Technicoat Evap. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels EL Johnson UNT Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels EM Johnson UNT Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels EN Johnson UNT Controller, DFS, APS & Technicoat Evap. & Cond Coils, Hinged Filter Door & Toolless Access Panels EP Johnson UNT Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Phase Monitor, Hinged Filter Door & Toolless Access Panels EQ Johnson UNT Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Coil Guard, Hinged Filter Door & Toolless Access

Panels ER Johnson UNT Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard, Hinged Filter Door &

Toolless Access Panels ES Johnson UNT Controller, DFS, APS, SS Drain Pan Hinged Filter Door & Toolless Access Panels ET Johnson UNT Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard Hinged Filter Door & Toolless Access Panels EU Johnson UNT Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils Hinged Filter Door & Toolless Access Panels EV Johnson UNT Controller, DFS, APS, SS Drain Pan, & Technicoat Evap Coil Hinged Filter Door & Toolless Access Panels EW Johnson UNT Controller, DFS, APS, SS Drain Pan, & Technicoat Evap and Cond Coils Hinged Filter Door & Toolless Access Panels EX Johnson UNT Controller, DFS, APS, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils Hinged Filter Door &

Toolless Access Panels GA Honeywell Excel 10 Controller with Dirty Filter Switch & Air Proving Switch, Hinged Filter Door & Toolless Access Panels GB Honeywell Excel 10 Controller, DFS, APS & Phase Monitor, Hinged Filter Door & Toolless Access Panels GC Honeywell Excel 10 Controller, DFS, APS & Coil Guard, Hinged Filter Door & Toolless Access Panels GD Honeywell Excel 10 Controller, DFS, APS, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels GE Honeywell Excel 10 Controller, DFS, APS & Technicoat Cond. Coil, Hinged Filter Door & Toolless Access Panels GF Honeywell Excel 10 Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels GG Honeywell Excel 10 Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels GH Honeywell Excel 10 Controller, DFS, APS, Technicoat Cond. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access

Panels GJ Honeywell Excel 10 Controller, DFS, APS & Technicoat Evap. Coil, Hinged Filter Door & Toolless Access Panels GK Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels GL Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels GM Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access

Panels GN Honeywell Excel 10 Controller, DFS, APS & Technicoat Evap. & Cond Coils, Hinged Filter Door & Toolless Access Panels GP Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Phase Monitor, Hinged Filter Door & Toolless Access

Panels GQ Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Coil Guard, Hinged Filter Door & Toolless Access Panels GR Honeywell Excel 10 Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard, Hinged Filter Door & Too

Access Panels GS Honeywell Excel 10 Controller, DFS, APS, SS Drain Pan GT Honeywell Excel 10 Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard GU Honeywell Excel 10 Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils GV Honeywell Excel 10 Controller,DFS, APS, SS Drain Pan, & Technicoat Evap Coil GW Honeywell Excel 10 Controller,DFS, APS, SS Drain Pan, & Technicoat Evap and Cond Coils GX Honeywell Excel 10 Controller,DFS, APS, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils PA Novar ETC-3 Controller with Dirty Filter Switch & Air Proving Switch, Hinged Filter Door & Toolless Access Panels PB Novar ETC-3 Controller, DFS, APS & Phase Monitor, Hinged Filter Door & Toolless Access Panels

lless

8 Unitary Products Group

Page 9

036-21508-005-A-0305

Hinged Filter Door & Toolless Access Cabinet

PC Novar ETC-3 Controller, DFS, APS & Coil Guard, Hinged Filter Door & Toolless Access Panels PD Novar ETC-3 Controller, DFS, APS, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels PE Novar ETC-3 Controller, DFS, APS & Technicoat Cond. Coil, Hinged Filter Door & Toolless Access Panels PF Novar ETC-3 Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels PG Novar ETC-3 Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels PH Novar ETC-3 Controller, DFS, APS, Technicoat Cond. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels PJ Novar ETC-3 Controller, DFS, APS & Technicoat Evap. Coil, Hinged Filter Door & Toolless Access Panels PK Novar ETC-3 Controller, DFS, APS, Technicoat Evap. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels PL Novar ETC-3 Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels PM Novar ETC-3 Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels PN Novar ETC-3 Controller, DFS, APS & Technicoat Evap. & Cond Coils, Hinged Filter Door & Toolless Access Panels PP Novar ETC-3 Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Phase Monitor, Hinged Filter Door & Toolless Access Panels PQ Novar ETC-3 Controller, DFS, APS, Technicoat Evap. & Cond Coils, & Coil Guard, Hinged Filter Door & Toolless Access Panels PR Novar ETC-3 Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access

Panels PS Novar ETC-3 Controller, DFS, APS, SS Drain Pan PT Novar ETC-3 Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard PU Novar ETC-3 Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils PV Novar ETC-3 Controller, DFS, APS, SS Drain Pan, & Technicoat Evap Coil PW Novar ETC-3, DFS, APS, SS Drain Pan, & Technicoat Evap and Cond Coils PX Novar ETC-3 Controller, DFS, APS, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils UA Technicoat Condenser Coil, Hinged Filter Door & Toolless Access Panels UB Technicoat Condenser Coil & Phase Monitor, Hinged Filter Door & Toolless Access Panels UC Technicoat Condenser Coil & Coil Guard, Hinged Filter Door & Toolless Access Panels UD Technicoat Condenser Coil & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UE Technicoat Condenser Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels UF Technicoat Condenser Coil, Phase Monitor, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UG Technicoat Condenser Coil, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UH Technicoat C ondenser Coil, Phase Monitor, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UJ Technicoat Evaporator Coil, Hinged Filter Door & Toolless Access Panels UK Technicoat Evaporator Coil & Phase Monitor, Hinged Filter Door & Toolless Access Panels UL Technicoat Evaporator Coil & Coil Guard, Hinged Filter Door & Toolless Access Panels UM Technicoat Evaporator Coil & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UN Technicoat Evaporator Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels UP Technicoat Evaporator Coil, Phase Monitor, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UQ Technicoat Evaporator Coil, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UR Technicoat Evaporator Coil, Phase Monitor, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels US Technicoat Evaporator & Condenser Coils, Hinged Filter Door & Toolless Access Panels UT Technicoat Evaporator & Condenser Coils & Phase Monitor, Hinged Filter Door & Toolless Access Panels UU Technicoat Evaporator & Condenser Coils & Coil Guard, Hinged Filter Door & Toolless Access Panels UV Technicoat Evaporator & Condenser Coils & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UW Technicoat Evaporator & Condenser Coils, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels UX Technicoat Evaporator & Condenser Coils, Phase Monitor, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UY Technicoat Evaporator & Condenser Coils, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels UZ Technicoat Evaporator & Condenser Coils, Phase Monitor, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels U1 Technicoat Condenser & SS Drain Pan, Hinged Filter Door & Toolless Access Panels U3 Technicoat Condenser Coil, SS Drain Pan, Phase Monitor, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels U4 Technicoat Evaporator & SS Drain Pan, Hinged Filter Door & Toolless Access Panels U6 Technicoat Evaporator Coil, SS Drain Pan, Phase Monitor, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless Access Panels U7 Technicoat Evaporator & Condenser Coils & SS Drain Pan, Hinged Filter Door & Toolless Access Panels U9 Technicoat Evaporator & Condenser Coils, SS Drain Pan, Phase Monitor, Coil Guard, & Dirty Filter Switch, Hinged Filter Door & Toolless

Access Panels QA Simplicity Intelli-Comfort Controller with Hinged Filter Door & Toolless Access Panels QB Simplicity Intelli-Comfort Controller, & Phase Monitor, Hinged Filter Door & Toolless Access Panels QC Simplicity Intelli-Comfort Controller, & Coil Guard, Hinged Filter Door & Toolless Access Panels

Unitary Products Group 9

Page 10

036-21508-005-A-0305

Hinged Filter Door & Toolless Access Cabinet

QD Simplicity Intelli-Comfort Controller, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels QE Simplicity Intelli-Comfort Controller, & Technicoat Cond. Coil, Hinged Filter Door & Toolless Access Panels QF Simplicity Intelli-Comfort Controller, Technicoat Cond. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels QG Simplicity Intelli-Comfort Controller, Technicoat Cond. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels QH Simplicity Intelli-Comfort Controller, Technicoat Cond. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access QJ Simplicity Intelli-Comfort Controller, & Technicoat Evap. Coil, Hinged Filter Door & Toolless Access Panels QK Simplicity Intelli-Comfort Controller, Technicoat Evap. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels QL Simplicity Intelli-Comfort Controller, Technicoat Evap. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels QM Simplicity Intelli-Comfort Controller, Technicoat Evap. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access QN Simplicity Intelli-Comfort Controller, & Technicoat Evap. & Cond Coils, Hinged Filter Door & Toolless Access Panels QP Simplicity Intelli-Comfort Controller, Technicoat Evap. & Cond Coils, & Phase Monitor, Hinged Filter Door & Toolless Access Pan QQ Simplicity Intelli-Comfort Controller, Technicoat Evap. & Cond Coils, & Coil Guard, Hinged Filter Door & Toolless Access Panels QR Simplicity Intelli-Comfort Controller, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolles QS Simplicity Intelli-Comfort Controller, SS Drain Pan Hinged Filter Door & Toolless Access Panels QT Simplicity Intelli-Comfort Controller, SS Drain Pan, Phase Monitor, & Coil Guard Hinged Filter Door & Toolless Access Panels QU Simplicity Intelli-Comfort Controller, SS Drain Pan, & Technicoat Cond Coils Hinged Filter Door & Toolless Access Panels QV Simplicity Intelli-Comfort Controller, SS Drain Pan, & Technicoat Evap Coil Hinged Filter Door & Toolless Access Panels QW Simplicity Intelli-Comfort Controller, SS Drain Pan, & Technicoat Evap and Cond Coils Hinged Filter Door & Toolless Access Panels QX Simplicity Intelli-Comfort Controller, SS Drain Pan, Phase Monitor, Coil Guard, & Technicoat Evap and Cond Coils Hinged Filter Door &

Toolless Access Panels XA Intelli-Comfort w/Mod Link Controller, Hinged Filter Door & Toolless Access Panels XB Intelli-Comfort w/Mod Link Controller, & Phase Monitor, Hinged Filter Door & Toolless Access Panels XC Intelli-Comfort w/Mod Link Controller, & Coil Guard, Hinged Filter Door & Toolless Access Panels XD Intelli-Comfort w/Mod Link Controller, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels XE Intelli-Comfort w/Mod Link Controller, & Technicoat Cond. Coil, Hinged Filter Door & Toolless Access Panels XF Intelli-Comfort w/Mod Link Controller, Technicoat Cond. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels XG Intelli-Comfort w/Mod Link Controller, Technicoat Cond. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels XH Intelli-Comfort w/Mod Link Controller, Technicoat Cond. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access XJ Intelli-Comfort w/Mod Link Controller, & Technicoat Evap. Coil, Hinged Filter Door & Toolless Access Panels XK Intelli-Comfort w/Mod Link Controller, Technicoat Evap. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels XL Intelli-Comfort w/Mod Link Controller, Technicoat Evap. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels XM Intelli-Comfort w/Mod Link Controller, Technicoat Evap. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access XN Intelli-Comfort w/Mod Link Controller, & Technicoat Evap. & Cond Coils, Hinged Filter Door & Toolless Access Panels XP Intelli-Comfort w/Mod Link Controller, Technicoat Evap. & Cond Coils, & Phase Monitor, Hinged Filter Door & Toolless Access Pan XQ Intelli-Comfort w/Mod Link Controller, Technicoat Evap. & Cond Coils, & Coil Guard, Hinged Filter Door & Toolless Access Panels XR Intelli-Comfort w/Mod Link Controller, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolles XS Intelli-Comfort w/Mod Link Controller, SS Drain Pan Hinged Filter Door & Toolless Access Panels XT Intelli-Comfort w/Mod Link Controller, SS Drain Pan, Phase Monitor, & Coil Guard Hinged Filter Door & Toolless Access Panels XU Intelli-Comfort w/Mod Link Controller, SS Drain Pan, & Technicoat Cond Coils Hinged Filter Door & Toolless Access Panels XV Intelli-Comfort w/Mod Link Controller, SS Drain Pan, & Technicoat Evap Coil Hinged Filter Door & Toolless Access Panels XW Intelli-Comfort w/Mod Link Controller, SS Drain Pan, & Technicoat Evap and Cond Coils Hinged Filter Door & Toolless Access Panels XX Intelli-Comfort w/Mod Link Controller, SS Drain Pan, Phase Monitor, Coil Guard, & T echnicoat Evap and Cond Coils Hinged Filter Door &

Toolless Access Panels

10 Unitary Products Group

Page 11

036-21508-005-A-0305

FEATURES

All models are available with a wide variety of factorymounted options such as electric heaters, phase monitor, convenience outlet, dirty filter switch, disconnect switch, smoke detectors, and coil guards to make them suitable for almost every application.

All units are self-contained and assembled on full perimeter base rails with forklift holes on three sides and holes for overhead rigging. Every unit is completely piped, wired, charged and tested at the factory to simplify the field installation and to provide years of dependable operation.

All models (including those with an economizer) are suitable for either bottom or horizontal duct connections. For bottom duct, remove the sheet metal panels from the supply and return air openings through the base of the unit. For horizontal duct, remove the supply and return air panels on the rear of the unit.

All models are available with these “factory mounted” outdoor air damper options:

• Single enthalpy economizer

• Motorized outdoor air damper Supply air blowers are equipped with either a direct drive or a

belt drive that can be adjusted to meet the exact requirements of the job.

All compressors are equipped with internal pressure relief. Every refrigerant circuit includes a liquid line filter-drier, a high pressure switch and a suction line with a freezestat and low pressure/loss of charge switch to protect all system components.

• Simplicity™ Controls - Simplicity™ control boards have standardized a number of features previously available only as options or by utilizing additional controls.

• Low Ambient - An integrated low-ambient control

allows all units to operate in the cooling mode down to 0ºF outdoor ambient without additional assistance. Optionally , the control board can be programmed to lockout the compressors when the outdoor air temperature is low or when free cooling is available.

• Anti-Short Cycle Protection - To aid compressor

life, an anti-short cycle delay is incorporated into the standard controls. Compressor reliability is further ensured by programmable minimum run times. For testing, the anti short cycle delay can be temporarily overridden with the push of a button.

• Fan Delays - Fan on and fan off delays are fully programmable and are independent of one another. All units are programmed with default values based upon their configuration of cooling and heat.

• Safety Monitoring - The control board monitors the high and low-pressure switches, the freezestats, the gas valve, if applicable, and the temperature limit switch on gas heat units. The unit control board will alarm on ignition failures, compressor lockouts and repeated limit switch trips.

• Nuisance Trip Protection- To prevent nuisance trouble calls, the control board uses a “three strikes, you’re out” philosophy. The high and low-pressure switches and the freezestats must trip three times within two hours before the unit control board will lock out the compressor.

• On Board Diagnostics - Each alarm will energize a trouble light on the thermostat, if so equipped, and flash an alarm code on the control board LED. Each high and low-pressure switch alarm as well as each freezestat alarm has its own flash code. The control board saves the five most recent alarms in memory, and these alarms can be reviewed at any time. Alarms and programmed values are retained through the loss of power.

All units have long lasting powder paint cabinets with 750 hour salt spray test approval under ASTM-B117 procedures.

All models are CSA listed.

• Warranty - All models include a one-year limited parts warranty on the complete unit. Compressors and electric heater elements carry a five-year warranty

• Electric Heat Operation - All electric heat models are wired for a single power source and include a bank of nickel chromium elements mounted at the discharge of the supply air blower to provide a high velocity and uniform distribution of air across the heating elements. Every element is fully protected against excessive temperature by thermal limit switches.

The power supply wiring can be routed into the control box through a threaded pipe connection (field supplied) in the base pan of the unit or through a knockout in the wiring panel on the side of the unit.

• BAS Controls - York’s Sunline™ series units offe r factory mounted BAS controls such as SImplicity™ INTELLI-Comfort™, Novar, Honeywell, Johnson, and CPC.

Unitary Products Group 11

Page 12

036-21508-005-A-0305

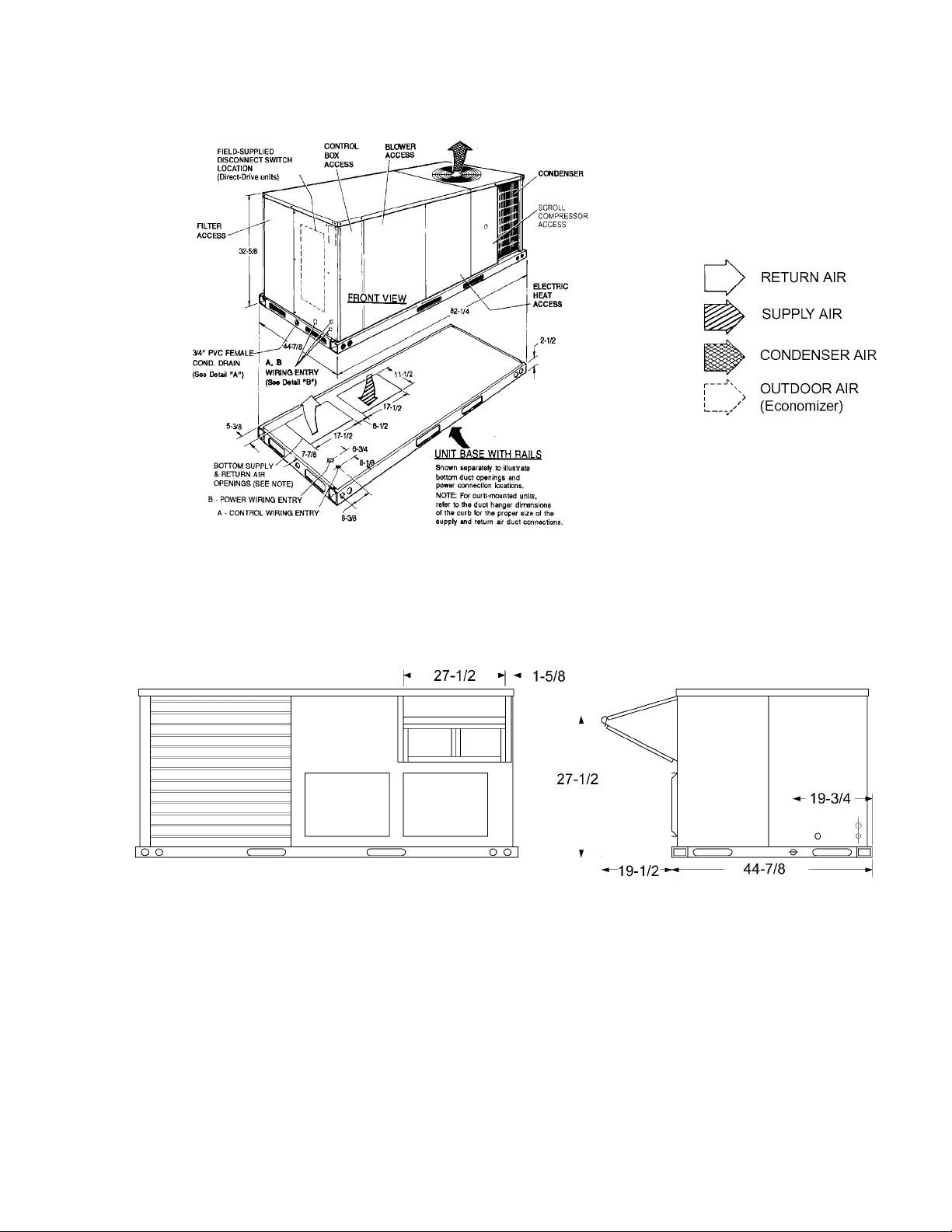

FIGURE 1 - UNIT CUTAWAY

FACTORY-INSTALLED OPTIONS

• SINGLE INPUT ELECTRONIC ENTHALPY ECONOMIZERS - Includes a slide-in / plug-in damper assembly

with fully modulating spring-return motor actuator capable of introducing up to 100% outdoor air with nominal 1% leakage type dampers.

The enthalpy system contains one sensor that monitors the outdoor air and determines when the air is cool enough and dry enough to provide free cooling.

The rainhood is painted to match the basic unit and must be field-assembled before installing.

• MOTORIZED OUTDOOR AIR INTAKE DAMPER - Includes a slide-in / plug-in damper assembly with a 2position, spring return motor actuator which opens to a pre-set position whenever the supply air blower is operating and will drive fully closed when the blower unit shuts down.

The rain hood is painted to match the basic unit and must be field assembled before installing.

• PHENOLIC COATED EVAPORATOR AND CON- DENSER COILS - Special coating process that utilizes

Technicoat 10-1 immersion of the complete coil for maximum protection.

processes. Coating is applied by total

• ELECTRIC HEATERS - Wired for single point power supply. These nickel chromium heater elements are provided with limit and automatic reset capability to prevent operation at excessive temperatures.

• FILTER OPTIONS - Standard units are shipped with 1” throw-away filters installed. 2” pleated filters are offered as a factory installed option.

• CONVENIENCE OUTLET - This 110 volt outlet can be “powered” by the unit with a stepdown transformer or the unit may be ordered with a “non-powered” convenience outlet that can be wired in the field.

• DISCONNECT SWITCH - For heat pump units with electric heat, an HACR breaker sized to the unit is provided. For heat pump units without electric heat, a switch sized to the largest electric heat available for the particular unit is provided. Factory-installed option only.

• BAS - Building Automation System Controls Simplicity™ INTELLI-Comfort™ CONTROL - The York® Simplicity™ INTELLI-Comfort™ control is factory installed. It includes a supply air sensor, a return air sensor, and an outside air sensor . There are provisions for a field installed dirty filter indicator switch, an air-proving switch, an Outside Air Humidity sensor, a Return Air Humidity sensor, an Inside IAQ sensor, and an Outside

12 Unitary Products Group

Page 13

036-21508-005-A-0305

Air IAQ sensor. Construction mode operation, 365-day real time clock with 7 day programming plus holiday scheduling is built-in. Two different modes of demand ventilation are achieved through the INTELLI-Comfort™using CO2 sensors. It uses an inside CO2 sensor to perform Demand Ventilation. It can also use an Outside CO2 sensor to perform Differential Demand Ventilation. It uses a Patented Comfort Ventilation algorithm to provide comfortable ventilation air temperature. The patented economizer-loading algorithm will protect the equipment when harsh operating conditions exist. Humidity in the occupied space or return duct can be monitored and controlled via humidity sensors and the on-board connection for hot gas re-heat system. It uses the INTELLI-Start™ algorithm to maximize energy savings by recovering the building from the Unoccupied Setpoints to the Occupied Setpoints just in time for the Occupied Time Period to be g i n. The Simplicity™ INTELLI-Comfort™ balances space temperature, ventilation air temperature, CO2 and humidity for ultimate comfort.

• Simplicity™ INTELLI-Comfort™ with MOD LINK CON- TROL - The York® Simplicity™ INTELLI-Comfor t™ with Mod Link control is factory installed. It includes all the features of the INTELLI-Comfort™ control with an additional control to translate communications from MODBUS to the BACnet MSTP protocol.

• Novar® BAS CONTROL - The Novar® ETC-3 building automation system controller is factory installed. Includes supply air sensor, return air sensor, dirty filter indicator switch, and air proving switch.

• JOHNSON CONTROLS BAS CONTROL - The Johnson Control YK-UNT-1126 bu ilding automation system controller is factory installed. Includes supply air sensor, return air sensor, dirty filter indicator switch, and air proving switch.

• CPC BAS CONTROL - The Computer Process Controls Model 810-3060 ARTC Advanced Rooftop building automation system controller is factory installed. Includes supply air sensor, return air sensor, dirty filter indicator switch and air proving switch.

• HONEYWELL BAS CONTROL - The Honeywell W7750C building automation system controller is factory installed. Includes air supply sensor, return air sensor, dirty filter indicator switch, and air proving switch.

• SMOKE DETECTORS - (supply air & return air) The smoke detectors stop operation of the unit by interrupting power to the control board if smoke is detected within the air compartment.

• STAINLESS STEEL DRAIN PAN - An optional rust- proof stainless steel drain pan is available to provide years of trouble-free operation in corrosive environments.

• BOTTOM DRAIN CONNECTION - An optional bottom drain connection is available for inside the curb connections for applications in cold environments to reduce freezing drain lines.

• COIL GUARD - Customers can purchase a coil guard kit to protect the condenser coil from damage. This is not a hail guard kit.

• PHASE MONITORS - Designed to prevent unit damage. The phase monitor will shut the unit down in an out-ofphase condition.

• DIRTY FILTER SWITCH - This kit includes a differential pressure switch that energizes the fault light on the unit thermostat, indicating that there is an abnormally high pressure drop across the filters. Factory installed option or field installed accessory.

• HINGED FILTER DOOR/“TOOLLESS” BLOWER AND ACCESS PANELS (not hinged) - This option allows for easy access and maintenance.

NOTE:Knobs are shipped inside the unit to prevent ship-

ping damage. These must be field installed for tool-less operation.

FIELD-INSTALLED ACCESSORIES

• SINGLE INPUT ELECTRONIC ENTHALPY ECONOMIZERS - Includes a slide-in / plug-in damper assembly

with fully modulating spring-return motor actuator capable of introducing up to 100% outdoor air with nominal 1% leakage type dampers.

The enthalpy system contains one sensor that monitors the outdoor air and determines when the air is cool enough and dry enough to provide free cooling.

The rainhood is painted to match the basic unit and must be field-assembled before installing.

• MOTORIZED OUTDOOR AIR INTAKE DAMPER - Includes a slide-in / plug-in damper assembly with a 2position, spring return motor actuator which opens to some pre-set position whenever the supply air blower is operating and will drive fully closed when the blower unit shuts down.

The rain hood is painted to match the basic unit and must be field assembled before installing.

• ELECTRIC HEATERS wired for single point power sup- ply. These nickel chromium heater elements are provided with limit and automatic reset capability to prevent operation at excessive temperatures.

• ROOF CURBS - Eight and fourteen-inch high roof curbs provide a water-tight seal between the unit and the finished roof. These full perimeter curbs meet the requirements of the National Roofing Contractors Association (NRCA) and are shipped knocked-down for field assembly.

Unitary Products Group 13

Page 14

036-21508-005-A-0305

Roof curbs are designed to fit inside the base rails of the unit and include both a wood nailing strip and duct hanger supports.

• POWER EXHAUST - Our single input economizer options are available with power exhaust. Whenever the outdoor air intake dampers are opened for free cooling, the exhaust fan will be energized to prevent the conditioned space from being over-pressurized during economizer operation.

The power exhaust option can only be used on bottom duct configurations.

• BAROMETRIC RELIEF DAMPER - This damper accessory can be used to relieve internal building air pressure on units with an economizer without power exhaust. This accessory includes a rain hood, a bird screen and a fully assembled damper. With bottom duct connections, the damper should be mounted over the opening in the

return air panel. With horizontal ductwork, the accessory should be mounted on the return air duct.

• ENTHALPY ACCESSORY CONTROL KIT - This kit contains the required components to convert a single enthalpy economizer to dual enthalpy.

• BURGLAR BARS - Mount in the supply and return openings to prevent entry into the duct work.

• CO

SENSOR - Senses CO2 levels and automatically

overrides the economizer when levels rise above the present limits.

• COIL GUARD - Customers can purchase a coil guard kit to protect the condenser coil from damage. This is not a hail guard kit.

• HAIL GUARD - Hail guard is available to protect the unit from hail damage. This is a sloped hood that fits above the coil.

14 Unitary Products Group

Page 15

036-21508-005-A-0305

MBH SEER EER MBH COP MBH COP

036 39 10.00 9.20 8.6 7.3 39.0 3.0 23.0 2.1

048 48 10.20 9.25 8.6 6.7 48.0 3.0 26.4 2.0

060 59 10.00 9.20 8.4 7.0 59.0 3.0 36.0 2.1

HSPF

UNIT SIZE

(MBH)

ARI RATINGS

HEATING CAPACITY

47°F 17°F

COOLING PERFORMANCE

SOUND

RATING

bels

NOTES:

1. Certified in accordance with the Unitary Small Equipment certification program, which is based on ARI Standard 210/240.

2. Rated in accordance with ARI Standard 270.

SEER = Seasonal Energy Efficiency Ratio - the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power input in watt-hoursduring the same period. EER = Energy Efficiency Ratio-the cooling capacity in BTU’s per hour (BTUH) divided by the power input in watts at any given set of rating conditions, expressed in BTUH per watt (BTUH/watt). COP = Coefficient of Performance - the total heating capacity provided by the refrigeration system, including circulating fan heat but excluding supplementary resistance (BTU’s per hour) divided by the total electric input (watts) x 3.412. HSPF = Heating Seasonal Performance Factor - the total heating output during a normal annual usage period for heating divided by the total electric power input during the same period. (Based on Region IV minimum design heating requirement).

TABLE 1: SOUND POWER RATING

UNIT SIZE

CFM

ESP BLOWER

IWG SPEED KW 63 125 250 500 1,000 2,000 4,000 8,000

-12

SOUND POWER (db 10

Octave Band Centerline Frequency (Hz)

Watts)

SWL

dB(A)

036 1,200 0.6 LOW 0.60 84 84 74 67 69 62 57 52 74 41 048 1,600 0.55 HIGH 0.80 85 85 75 68 70 63 58 53 75 42 060 2,000 0.45 HIGH 1.00 86 86 76 69 71 64 59 54 76 43

1. These values have been accessed using a model of sound propagation from a point source into the hemispheric\free field. The dBA values provided are to be used for reference only. Calculation of dBA values cover matters of system design and the fan manufacture has no way of knowing the details of each system. This constitutes and expectation to any specification or guarantee requiring a dBA value or sound data in any other form than sound power level ratings.

2. At a distance of 10 feet from the blower.

TABLE 2: CAPACITY RATINGS

dB(A)

10Ft.

Unitary Products Group 15

Page 16

TABLE 3: BQ036 COOLING CAPACITIES (3 TON)

036-21508-005-A-0305

AIR ON

EVAPORATOR

COIL

CFM WB °F 86 83 80 77 74 71 68 86 83 80 77 74 71 68

TOTAL

CAP.

MBH

POWER

INPUT

85°F

SENSIBLE CAPACITY

ENTERING DRY BULB, °F

TEMPERATURE OF AIR ON CONDENSER COIL

TOTAL

CAP.

MBH

POWER

INPUT

95°F

SENSIBLE CAPACITY

ENTERING DRY BULB, °F

72 51 3.4 37 32 28 24 19 - - 47 3.7 34 29 25 22 17 - -

1750

67 46 3.4 40 40 36 31 26 21 16 44 3.7 38 38 34 29 24 20 15 62 42 3.3 42 42 41 39 34 29 24 38 3.6 38 38 37 35 30 26 21 57 42 3.3 42 42 42 40 35 30 25 37 3.6 37 37 37 35 30 26 22 72 49 3.4 35 30 26 22 18 - - 46 3.7 32 28 24 20 16 - -

1500

67 45 3.4 39 37 33 29 24 20 15 42 3.7 36 34 30 27 22 18 14 62 41 3.3 41 41 40 37 32 28 24 37 3.6 37 37 36 33 28 25 21 57 41 3.3 41 41 41 38 34 29 25 36 3.6 36 36 36 33 29 25 21 72 48 3.4 33 29 24 20 16 - - 45 3.7 30 27 22 18 15 - -

1400

67 44 3.3 39 36 32 28 23 20 15 41 3.7 36 33 29 26 21 18 13 62 40 3.3 40 39 38 34 30 26 22 36 3.6 36 35 34 30 27 23 19 57 40 3.3 40 40 39 35 31 27 23 36 3.5 36 36 35 31 27 24 20 72 47 3.4 31 27 24 20 16 - - 44 3.7 29 25 22 18 14 - -

1200

67 41 3.3 36 32 29 25 22 18 14 39 3.6 34 30 27 23 20 17 13 62 38 3.3 38 37 36 32 29 25 21 35 3.6 35 34 33 29 26 23 19 57 37 3.3 37 37 36 33 30 26 22 35 3.5 35 35 34 31 28 24 20 72 45 3.3 28 25 22 19 16 - - 42 3.6 26 23 20 17 14 - -

1050

67 41 3.3 34 30 27 24 20 17 14 38 3.6 31 27 25 22 18 15 12 62 36 3.3 36 35 33 30 27 24 21 34 3.5 34 33 31 28 25 22 19 57 36 3.3 36 36 34 31 28 25 22 33 3.5 33 33 31 28 25 22 20 72 45 3.3 26 24 20 17 15 - - 40 3.6 23 21 17 15 13 - -

900

67 39 3.3 31 28 25 22 19 17 14 35 3.6 27 25 22 19 17 15 12 62 35 3.2 35 34 32 29 25 23 20 32 3.5 32 30 28 25 22 20 17 57 35 3.2 35 35 32 30 26 24 21 31 3.5 31 31 28 26 23 21 18

AIR ON

EVAPORATOR

COIL

CFM WB °F 86 83 80 77 74 71 68 86 83 80 77 74 71 68

TOTAL

CAP.

MBH

POWER

INPUT

105°F 115°F

SENSIBLE CAPACITY

ENTERING DRY BULB, °F ENTERING DRY BULB, °F

TEMPERATURE OF AIR ON CONDENSER COIL

TOTAL

CAP.

MBH

POWER

INPUT

SENSIBLE CAPACITY

72 44 4.0 31 27 24 20 16 - - 42 4.2 30 26 23 19 15 - -

1750

67 40 4.0 34 34 31 26 22 18 13 36 4.1 31 31 28 24 20 16 12 62 35 3.9 35 35 34 32 28 24 20 34 4.1 34 34 33 31 27 23 19 57 35 3.9 35 35 35 33 29 25 20 33 4.1 33 33 33 31 27 23 19 72 43 4.0 30 26 22 19 15 - - 41 4.2 29 25 21 18 15 - -

1500

67 38 4.0 32 31 27 24 20 16 12 35 4.1 30 28 25 22 18 15 11 62 34 3.9 34 34 33 30 26 23 19 33 4.1 33 33 32 29 25 22 19 57 34 3.9 34 34 34 31 28 24 20 32 4.1 32 32 32 29 26 22 19 72 42 4.0 28 25 21 17 14 - - 39 4.2 26 23 19 16 13 - -

1400

67 37 4.0 32 30 26 23 19 16 12 34 4.1 30 27 24 21 17 15 11 62 33 3.9 33 32 31 28 24 21 18 32 4.1 32 31 30 27 24 20 17 57 32 3.8 32 32 31 28 24 21 18 32 4.0 32 32 31 28 24 21 18 72 41 4.0 27 23 20 17 13 - - 37 4.2 24 21 18 15 12 - -

1200

67 35 3.9 30 27 24 21 18 15 11 32 4.1 28 24 22 19 17 14 10 62 32 3.9 32 31 30 26 24 21 17 30 4.1 30 29 28 25 22 19 16 57 31 3.8 31 31 31 27 25 21 18 29 4.0 29 29 29 25 23 20 17 72 40 3.9 24 22 19 16 14 - - 35 4.1 21 19 17 14 12 - -

1050

67 34 3.9 28 24 22 19 16 14 11 31 4.0 25 22 20 18 15 12 10 62 30 3.8 30 29 27 25 22 20 17 29 4.0 29 28 26 24 21 19 16 57 30 3.8 30 30 28 25 23 20 18 28 4.0 28 28 26 24 21 19 17 72 38 3.9 21 20 16 14 12 - - 34 4.1 19 18 15 12 11 - -

900

67 32 3.9 25 22 20 18 15 13 11 29 4.0 23 20 18 16 14 12 10 62 29 3.8 29 27 25 23 20 18 16 27 4.0 27 25 24 21 18 17 15 57 29 3.8 29 29 26 24 21 19 17 26 4.0 26 26 23 22 19 17 15

1. These capacities are gross ratings. For net capacity, determine the kW of the supply air blower motor from the SUPPLY AIR BLOWER PERFORMANCE Table, multiply this value by 3.415 MBH/kW to determine the motor heat, and deduct this heat from the gross capacity of the unit.

2. These ratings include the compressor and the condenser fan motors but not the supply air blower motor. The total condenser fan motor power input is 0.35kW. Refer to the SUPPLY AIR BLOWER PERFORMANCE Table for the kW of the supply air blower motor.

NOMINAL RATING

16 Unitary Products Group

Page 17

036-21508-005-A-0305

CFM WB °F 86 83 80 77 74 71 68 86 83 80 77 74 71 68

72 56 4.1 42 36 31 26 - - - 53 4.5 40 35 29 24 - - 67 53 4.0 48 47 41 36 30 25 - 51 4.4 46 45 41 35 30 24 62 49 4.0 49 49 48 44 38 33 28 46 4.3 46 46 45 41 35 30 24 57 49 3.9 49 49 49 44 38 33 28 46 4.3 46 46 46 41 35 30 24 72 55 4.0 40 35 30 25 - - - 53 4.4 38 33 28 23 - - 67 52 4.0 47 44 39 34 29 24 - 51 4.4 44 44 39 34 29 24 62 48 3.9 48 48 47 43 38 33 28 47 4.3 47 47 45 40 36 31 26 57 48 3.9 48 48 48 43 38 33 28 45 4.2 45 45 45 40 35 30 25 72 53 4.0 37 33 28 24 - - - 52 4.4 36 32 27 23 - - 67 51 4.0 46 42 37 33 28 24 - 50 4.3 44 43 38 34 29 25 62 47 3.9 47 47 46 41 37 32 28 45 4.2 45 45 44 40 36 31 27 57 47 3.9 47 47 47 42 38 33 29 44 4.1 44 44 44 40 36 31 27 72 52 4.0 34 30 26 22 - - - 49 4.3 33 29 25 21 - - 67 49 3.9 42 38 34 30 26 22 - 47 4.2 42 38 34 30 26 22 62 46 3.8 46 45 42 38 34 30 26 43 4.1 43 42 40 36 32 28 24 57 45 3.8 45 45 43 39 35 31 27 42 4.1 42 42 40 36 32 28 24 72 50 3.9 31 27 24 20 - - - 47 4.2 29 25 22 18 - - 67 47 3.9 38 35 31 28 24 21 - 45 4.2 37 34 30 27 23 20 62 44 3.8 44 42 39 35 32 28 25 40 4.1 40 39 36 32 29 25 22 57 44 3.7 44 43 39 36 32 29 25 40 4.0 40 39 36 32 29 25 22

CFM WB °F 86 83 80 77 74 71 68 86 83 80 77 74 71 68

72 51 4.9 40 35 29 24 - - - 49 5.2 39 34 29 23 - - 67 46 4.7 42 42 39 34 28 23 - 41 5.0 40 40 37 32 26 21 62 43 4.6 43 43 42 37 32 27 21 40 4.9 40 40 39 34 29 23 18 57 43 4.6 43 43 43 38 32 28 22 40 4.8 40 40 40 34 30 24 19 72 50 4.8 38 33 28 23 - - - 47 5.1 37 32 27 22 - - 67 45 4.7 41 41 37 32 27 22 - 40 4.9 37 36 35 30 25 20 62 42 4.6 42 42 41 37 32 27 22 39 4.8 39 39 37 34 29 24 19 57 42 4.5 42 42 42 37 33 27 23 38 4.7 38 38 38 33 30 25 20 72 49 4.8 35 31 26 22 - - - 46 5.1 34 29 25 20 - - 67 44 4.6 40 40 35 31 26 22 - 39 4.9 36 36 32 28 23 19 62 41 4.5 41 41 40 35 32 27 23 37 4.7 37 37 36 33 28 24 19 57 41 4.4 41 41 41 36 32 28 23 37 4.7 37 37 37 34 28 25 20 72 47 4.7 32 28 24 20 - - - 44 5.0 31 27 23 19 - - 67 42 4.5 38 36 32 28 24 20 - 37 4.8 36 34 30 26 21 17 62 39 4.4 39 38 37 33 28 25 20 36 4.7 36 35 34 30 26 22 18 57 39 4.4 39 39 37 33 29 25 21 36 4.6 36 36 34 31 26 23 19 72 44 4.6 28 25 21 18 - - - 42 4.9 28 24 21 17 - - 67 40 4.5 36 32 29 25 22 18 - 36 4.7 34 31 27 24 20 17 62 38 4.4 38 36 34 29 27 22 20 35 4.6 35 34 30 28 24 20 17 57 37 4.3 37 37 34 30 27 23 20 35 4.6 35 35 31 29 24 21 18

NOMINAL RATING

1200

TOTAL

CAP.

MBH

POWER

INPUT

TOTAL

CAP.

MBH

TOTAL

CAP.

MBH

POWER

INPUT

TOTAL

CAP.

MBH

2000

1800

1600

1400

POWER

INPUT

ENTERING DRY BULB, °F ENTERING DRY BULB, °F

AIR ON

EVAPORATOR

COIL

TEMPERATURE OF AIR ON CONDENSER COIL

105°F 115°F

SENSIBLE CAPACITY

ENTERING DRY BULB, °F

AIR ON

EVAPORATOR

COIL

TEMPERATURE OF AIR ON CONDENSER COIL

1200

1400

85°F

POWER

INPUT

95°F

SENSIBLE CAPACITY

ENTERING DRY BULB, °F

2000

1800

1600

TABLE 4: BQ048 COOLING CAPACITIES (4 TON)

Unitary Products Group 17

Page 18

TABLE 5: BQ060 COOLING CAPACITIES (5 TON)

036-21508-005-A-0305

AIR ON

EVAPORATOR

COIL

CFM WB °F 86 83 80 77 74 71 68 86 83 80 77 74 71 68

TOTAL

CAP.

MBH

POWER

INPUT

85°F

SENSIBLE CAPACITY

ENTERING DRY BULB, °F

TEMPERATURE OF AIR ON CONDENSER COIL

TOTAL

CAP.

MBH

POWER

INPUT

95°F

SENSIBLE CAPACITY

ENTERING DRY BULB, °F

72 68 5.7 51 44 38 31 - - - 67 6.0 51 45 38 31 - - -

2500

67 65 5.6 58 56 50 43 37 30 - 64 5.9 56 56 50 43 37 30 62 61 5.6 61 61 59 53 46 39 33 59 5.9 59 59 57 50 44 38 31 57 60 5.5 60 60 59 53 47 40 33 58 5.8 58 58 57 51 44 39 32 72 67 5.6 48 42 36 30 - - - 66 5.9 48 42 36 30 - - -

2250

67 64 5.6 57 54 48 42 36 30 - 63 5.9 55 54 48 42 35 29 62 60 5.5 60 60 57 51 45 39 33 57 5.8 57 57 55 50 44 38 32 57 59 5.5 59 59 58 52 46 40 34 57 5.8 57 57 56 50 45 39 33 72 66 5.6 45 40 34 29 - - - 65 5.9 45 40 34 29 - - -

2000

67 63 5.5 56 51 45 40 35 29 - 61 5.9 55 51 45 40 34 29 62 59 5.4 59 59 55 50 44 39 33 56 5.8 56 56 54 49 44 38 33 57 58 5.4 58 58 57 52 46 41 36 56 5.7 56 56 55 50 44 39 34 72 64 5.5 42 37 32 27 - - - 62 5.9 43 38 33 28 - - -

1750

67 61 5.5 52 47 42 37 33 28 - 59 5.8 53 48 44 39 34 29 62 57 5.4 57 56 51 46 41 37 32 54 5.7 54 54 52 48 43 38 33 57 57 5.4 57 57 53 48 44 39 34 54 5.7 54 54 53 49 43 39 34 72 62 5.5 38 34 30 25 - - - 60 5.8 41 36 32 28 - - -

1500

67 59 5.5 48 43 39 35 31 26 - 57 5.8 51 46 42 38 34 29 62 55 5.4 55 52 47 43 39 35 30 52 5.7 52 52 50 46 42 38 34 57 55 5.3 55 54 49 45 41 37 32 52 5.6 52 52 51 47 42 39 35

AIR ON

EVAPORATOR

COIL

CFM WB °F 86 83 80 77 74 71 68 86 83 80 77 74 71 68

TOTAL

CAP.

MBH

POWER

INPUT

105°F 115°F

SENSIBLE CAPACITY

ENTERING DRY BULB, °F ENTERING DRY BULB, °F

TEMPERATURE OF AIR ON CONDENSER COIL

TOTAL

CAP.

MBH

POWER

INPUT

SENSIBLE CAPACITY

72 64 6.0 51 44 38 31 - - - 60 6.9 50 43 37 30 - - -

2500

67 59 5.9 51 51 49 42 36 29 - 54 6.6 54 53 47 41 34 27 62 54 5.9 54 54 51 46 40 33 26 49 6.5 49 49 48 42 35 28 22 57 54 5.8 54 54 52 46 41 33 26 49 6.5 49 49 49 43 35 28 23 72 63 5.9 48 42 36 30 - - - 60 6.8 47 41 35 29 - - -

2250

67 58 5.9 51 51 46 40 34 28 - 54 6.6 47 47 45 39 32 26 62 53 5.8 53 53 52 46 40 34 28 49 6.5 49 49 47 42 36 30 24 57 53 5.8 53 53 52 46 41 35 27 49 6.4 49 49 48 43 37 31 25 72 62 5.9 45 39 34 28 - - - 59 6.8 44 38 33 27 - - -

2000

67 57 5.9 51 49 44 38 33 27 - 53 6.5 45 45 42 36 31 26 62 52 5.8 52 52 51 46 40 35 30 48 6.4 48 48 46 42 36 31 25 57 52 5.7 52 52 51 46 40 36 31 47 6.4 47 47 46 43 36 32 25 72 60 5.9 41 37 32 27 - - - 56 6.7 40 35 30 25 - - -

1750

67 55 5.8 48 46 41 36 31 26 - 51 6.5 43 43 38 33 29 24 62 50 5.7 50 50 48 43 39 34 29 46 6.4 46 46 43 38 33 28 24 57 50 5.7 50 50 48 43 39 34 30 45 6.3 45 45 43 38 33 28 25 72 57 5.8 38 34 30 25 - - - 53 6.6 36 31 27 23 - - -

1500

67 53 5.8 47 43 38 34 30 26 - 48 6.4 41 39 35 30 26 22 62 48 5.7 48 48 45 41 37 32 28 44 6.3 44 44 39 35 30 26 22 57 48 5.6 48 48 45 41 38 32 28 43 6.2 43 43 40 36 30 26 23

NOMINAL RATING

18 Unitary Products Group

Page 19

036-21508-005-A-0305

CAP

& KW-100 102030405060

MBH 13.1 16.4 23.5 29.1 30.2 41.7 47 48.2

KW 2.9 3 3.2 3.3 3.5 3.7 3.8 3.9

MBH 11.9 15 21.5 26.7 27.7 38.2 43.1 44.1

KW 3 3.1 3.4 3.4 3.6 3.8 3.9 4.1

MBH 10.9 13.6 19.6 24.3 25.2 34.8 39.3 40.2

KW 3.1 3.2 3.4 3.5 3.8 3.9 4.1 4.2

MBH 12.4 15.5 22.5 27.7 28.7 39.6 44.7 45.8

KW 2.7 2.9 3 3.1 3.3 3.5 3.6 3.7

MBH 11.4 14.1 20.3 25.2 26.1 36.1 40.7 41.6

KW 2.9 3 3.2 3.3 3.5 3.7 3.8 3.9

MBH 10.4 13.1 18 23.2 24.2 33.3 37.6 38.5

KW 3 3.1 3.2 3.4 3.6 3.8 3.9 4

MBH 11.8 14.8 21.3 26.5 27.5 37.8 42.7 43.7

KW 2.7 2.8 3 3.1 3.3 3.4 3.5 3.6

MBH 10.8 13.5 19.4 24 24.9 34.4 38.8 39.7

KW 2.9 3 3.1 3.3 3.4 3.6 3.7 3.8

MBH 9.9 12.4 17.8 22 22.9 31.5 35.6 36.5

KW 2.9 3.1 3.2 3.4 3.5 3.7 3.8 3.9

MBH 11.2 14.1 20.3 25.2 26.1 35.9 40.6 41.6

KW 2.6 2.7 2.9 3 3.3 3.3 3.5 3.5

MBH 10.2 12.8 18.5 22.8 23.6 32.7 36.9 37.8

KW 2.8 2.9 3 3.2 3.3 3.5 3.6 3.7

MBH 9.3 11.7 16.7 20.7 21.5 29.8 33.6 34.4

KW 2.8 3 3.1 3.3 3.4 3.6 3.7 3.8

MBH 12.3 17.3 22.5 28.2 36.3 44.5 53.8 61.6

KW 3.4 3.5 3.6 3.6 3.8 4 4.6 5.2

MBH 11.8 16.6 21.6 27.1 34.9 42.8 51.7 59.2

KW 3.5 3.6 3.8 3.8 4 4.2 4.8 5.4

MBH 10.9 15.3 19.9 24.9 32.1 39.4 47.6 54.5

KW 3.6 3.7 4 4 4.1 4.4 5 5.7

MBH 12.1 17 22 27.7 34.5 42.3 51.2 58.6

KW 3.3 3.4 3.5 3.6 3.6 3.8 4.4 5

MBH 11.6 16.3 21.2 26.6 33.2 40.7 49.2 56.3

KW 3.4 3.5 3.6 3.7 3.8 4 4.6 5.2

MBH 10.7 15 19.5 24.5 30.5 37.4 45.3 51.8

KW 3.5 3.6 3.8 3.9 4 4.2 4.8 5.4

MBH 10.9 15.3 19.9 24.9 31.7 38.9 47 53.8

KW 3.1 3.2 3.3 3.4 3.5 3.7 4.2 4.8

MBH 10.5 14.7 19.1 24 30.5 37.4 45.2 51.7

KW 3.2 3.3 3.4 3.5 3.6 3.8 4.4 5

MBH 9.6 13.5 17.6 22 28.1 34.4 41.6 47.6

KW 3.3 3.4 3.5 3.6 3.8 4 4.6 5.2

MBH 18.2 24.7 31.1 38.4 45.6 55.4 64.7 75.6

KW 5 5.1 5.2 5.3 5.3 5.6 5.9 6.5

MBH 17.5 23.7 29.9 37 43.9 53.3 62.2 72.7

KW 5.2 5.3 5.4 5.5 5.6 5.9 6.2 6.8

MBH 16.1 21.8 27.5 34 40.4 49 57.2 66.9

KW 5.4 5.6 5.7 5.8 5.9 6 6.5 7.2

MBH 18 24.4 30.8 38.1 45 54.7 63.9 74.7

KW 4.7 4.8 4.9 5 5.3 5.5 5.8 6.4

MBH 17.3 23.5 29.6 36.6 43.3 52.6 61.4 71.8

KW 4.9 5 5.1 5.2 5.5 5.8 6.1 6.7

MBH 15.9 21.6 27.2 33.7 39.8 48.4 56.5 66.1

KW 5.1 5.3 5.4 5.5 5.8 6.1 6.4 7

MBH 16.2 22 27.8 34.3 41.4 50.2 58.7 68.6

KW 4.5 4.6 4.7 4.8 5 5.3 5.5 6.1

MBH 15.6 21.2 26.7 33 39.8 48.3 56.4 66

KW 4.7 4.8 4.9 5 5.2 5.5 5.8 6.4

MBH 14.4 19.5 24.6 30.4 36.6 44.5 51.9 60.7

KW 4.9 5 5.1 5.2 5.5 5.8 6.1 6.7

1750

1400

1500

2000

2500

1200

1600

OUTDOOR AIR TEMPERATURE, °F (72% RH)

CFM RET. AIR °FModel Tonnage

2000

1050

1200

TABLE 6: BQ HEATING CAPACITIES

Unitary Products Group 19

Page 20

036-21508-005-A-0305

TABLE 7: SUPPLY AIR BLOWER PERFORMANCE (3 TON BELT DRIVE) - SIDE DUCT APPLICATION

UNIT

TONNAGE

1, 2

UNIT

TONNAGE

1, 2

AIR

FLOW

CFM

AVAILABLE EXTERNAL STATIC PRESSURE-IWG

0.20 0.30 0.40 0.50

RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS

0.60 0.70 0.80

2000 843 860 880 925 919 1005 956 1065 993 1145 1030 1195 1067 1235

1900 817 775 854 850 893 920 930 995 970 1065 1008 1125 1046 1170

1800 790 700 828 760 867 840 906 905 944 980 985 1040 1025 1100

1700 - - 802 670 840 745 881 815 920 900 961 970 1001 1030

1600 ----818665858740898820940890980950

1500 ------842695882755922835962895

1400 ------833650867705904765942820

1300 --------858665893725932785

1200 --------847640880680916730

AIR

FLOW

CFM

AVAILABLE EXTERNAL STATIC PRESSURE-IWG

0.90 1.00 1.10 1.20 1.30 1.40 1.50

RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS

2000 1103 1270 ------------

1900 1085 1210 ------------

1800 1064 1145 1102 1180 ----------

1700 1040 1075 1081 1115 1121 1140 --------

1600 1020 1005 1060 1050 1100 1085 --------

1500 1003 945 1044 995 1086 1035 --------

1400 982 880 1024 920 1067 965 1107 1000 ------

1300 970 835 1010 870 1053 920 1099 960 ------

1200 953 780 992 815 1034 855 1080 905 ------

1. 230/460/575 Volts

2. For 208 Volts multiply values by 0.95.

3. Includes allowances for a wet evaporator coil, 1” filters, and the heat exchangers. Refer to STATIC RESISTANCE Table for resistance values on applications other than gas / electric units with side duct airflows.

20 Unitary Products Group

Page 21

036-21508-005-A-0305

RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS

2000 843 860 880 925 919 1005 956 1065 993 1145 1030 1195 1067 1235

1900 817 775 854 850 893 920 930 995 970 1065 1008 1125 1046 1170

1800 790 700 828 760 867 840 906 905 944 980 985 1040 1025 1100

1700 - - 802 670 840 745 881 815 920 900 961 970 1001 1030

1600 ----818665858740898820940890980950

1500 ------842695882755922835962895

1400 ------833650867705904765942820

1300 --------858665893725932785

1200 --------847640880680916730

RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS

2000 1103 1270 ------------

1900 1085 1210 ------------

1800 1064 1145 1102 1180 ----------

1700 1040 1075 1081 1115 1121 1140 --------

1600 1020 1005 1060 1050 1100 1085 --------

1500 1003 945 1044 995 1086 1035 --------

1400 982 880 1024 920 1067 965 1107 1000 ------

1300 970 835 1010 870 1053 920 1099 960 ------

1200 953 780 992 815 1034 855 1080 905 ------

1, 2

AVAILABLE EXTERNAL STATIC PRESSURE-IWG

0.90 1.00 1.10 1.20 1.30 1.40 1.50

UNIT

TONNAGE

AIR

FLOW

CFM

1, 2

UNIT

TONNAGE

AIR

FLOW

CFM

0.60 0.70 0.80

AVAILABLE EXTERNAL STATIC PRESSURE-IWG

0.20 0.30 0.40 0.50

1. 230/460/575 Volts

2. For 208 Volts multiply values by 0.95.

TABLE 8: SUPPLY AIR BLOWER PERFORMANCE (4 TON BELT DRIVE) - SIDE DUCT APPLICATION

Unitary Products Group 21

Page 22

036-21508-005-A-0305

TABLE 9: SUPPLY AIR BLOWER PERFORMANCE (5 TON BELT DRIVE) - SIDE DUCT APPLICATION

UNIT

TONNAGE

1, 2

UNIT

TONNAGE

1, 2

AIR

FLOW

CFM

AVAILABLE EXTERNAL STATIC PRESSURE-IWG

0.20 0.30 0.40 0.50

RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS

0.60 0.70 0.80

2500 1059 1560 1077 1590 1095 1630 1114 1650 1134 1660 1158 1685 1181 1720

2400 1032 1405 1054 1470 1074 1525 1094 1560 1116 1595 1140 1620 1167 1640

2300 1005 1260 1024 1275 1049 1370 1069 1440 1090 1475 1116 1505 1142 1535

2200 980 1160 1002 1170 1022 1190 1044 1250 1066 1350 1090 1410 1117 1440

2100 930 1060 957 1070 983 1080 1010 1100 1039 1160 1064 1260 1092 1340

2000 877 950 908 975 941 1000 976 1020 1009 1050 1040 1100 1070 1225

1900 ----8948859409409809801014 1020 1047 1095

1800 ----8558159038609509059889401022 970

1700 ------8848159258509648801001 910

1600 ------864770908805948835987870

1500 --------882740926780965830

AIR

FLOW

CFM

AVAILABLE EXTERNAL STATIC PRESSURE-IWG

0.90 1.00 1.10 1.20 1.30 1.40 1.50

RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS RPM WATTS

2500 --------------

2400 1193 1665 ------------

2300 1170 1580 1202 1620 ----------

2200 1148 1480 1180 1530 ----------

2100 1121 1385 1155 1425 1190 1475 --------

2000 1100 1285 1133 1340 1169 1385 1205 1445 ------

1900 1079 1180 1110 1240 1143 1280 1178 1330 1222 1375 ----

1800 1058 1060 1090 1135 1122 1190 1158 1240 1196 1295 ----

1700 1035 960 1071 1030 1103 1100 1134 1140 1164 1175 1197 1205 - -

1600 1020 900 1056 965 1088 1035 1118 1065 1145 1105 1170 1130 1198 1150

1500 1004 860 1038 880 1070 925 1101 980 1130 1045 1158 1075 1184 1110

1. 230/460/575 Volts

2. For 208 Volts multiply values by 0.95.

22 Unitary Products Group

Page 23

036-21508-005-A-0305

CFM WATTS CFM WATTS CFM WATTS CFM WATTS CFM WATTS

------1720 825 1665 795

MED

1660 850 1630 820 1590 780 1550 750 1500 720

LOW

1470 750 1440 725 1410 700 1370 675 1330 650

----2000 1010 1950 975 1905 945

MED

1810 910 1780 880 1740 850 1700 825 1665 800

LOW

1635 810 1610 780 1580 760 1555 740 1540 730

----2500 1400 2420 1350 2340 1300

MED

2390 1350 2350 1300 2300 1255 2245 1210 2190 1165

LOW

2270 1320 2230 1270 2190 1220 2145 1170 2090 1110

CFM WATTS CFM WATTS CFM WATTS CFM WATTS

1600 765 1540 735 1490 700 1380 670

MED

1450 690 1400 665 1360 650 1270 610

LOW

1290 625 1250 610 1220 600 1130 560

1840 910 1770 825 1660 825 1530 775

MED

1620 775 1560 740 1480 700 1390 660

LOW

1510 715 1460 690 1400 660 1300 615

2260 1250 2160 1190 2060 1135 1925 1065

MED

2130 1120 2065 1075 1990 1030 1900 970

LOW

2030 1070 1960 1020 1890 970 1810 920

0.70

AVAILABLE EXTERNAL STATIC PRESSURE-IWG

0.900.80 1.00

AVAILABLE EXTERNAL STATIC PRESSURE-IWG

0.600.20 0.30 0.40 0.50

UNIT

TONNAGE

MOTOR SPEED

UNIT

TONNAGE

MOTOR SPEED

1. Side Duct application (230/460/575 Volts)

2. Includes allowances for a wet evaporator coil, 1” filters, and the heat exchangers. Refer to STATIC RESISTANCES Table for resistance values.

TABLE 10: SUPPLY AIR BLOWER PERFORMANCE (3 - 5 TON DIRECT DRIVE) - SIDE DUCT APPLICATION

TABLE 11: BELT DRIVE BLOWER MOTOR AND DRIVE DATA

MODEL

SIZE

3 TON 790/1120 1 1/2 56 1VL40 2.7-3.7 2.4-3.4 5/8 AK61 5.9 5.7 1 A36 37.3 1 4 TON 790/1120 1 1/2 56 1VL40 2.7-3.7 2.4-3.4 5/8 AK61 5.9 5.7 1 A36 37.3 1 5 TON 850/1220 1 1/2 56 1VL40 2.7-3.7 2.4-3.4 5/8 AK56 5.4 5.2 1 A36 37.3 1

BLOWER

RANGE

(RPM)

1. All motors have solid bases and are in herently p rot ected. t hese mot ors ca n be selecte d t o operat e into t heir service f acto r becau se t hey are locat ed in the moving air, upstream of any heating device.

Unitary Products Group 23

MOTOR

HP FRAME

ADJUSTABLE MOTOR PULLEY FIXED BLOWER PULLEY

DESIG-

NATION

OUTSIDE

DIA. (IN.)

PITCH

DIA. (IN.)

BORE

(IN.)

DESIG-

NATION

OUTSIDE

DIA. (IN.)

PITCH

DIA. (IN.)

BORE

(IN.)

DESIG-

NATION

BELT

(NOTCHED)

PITCH

LENGTH

(IN.)

QTY.

Page 24

TABLE 12: STATIC RESISTANCES

DESCRIPTION

ECONOMIZER

ELECTRIC

HEATERS

BOTTOM DUCT CONNECTIONS

1. Deduct these resistance values from the available external static pressure shown in SUPPLY AIR BLOWER PERFORMANCE Tables.

2. The pressure through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of the return air duct system is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.

1, 2

5-15KW 0.04 0.05 0.06 0.07 0.08 0.10 0.12 0.14 0.16

20-30KW 0.06 0.07 0.08 0.09 0.11 0.13 0.15 0.17 0.20

1000 1200 1400 1600 1800 2000 2200 2400 2600

0.07 0.08 0.09 0.11 0.13 0.15 0.17 0.20 0.23

0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.14 0.16

TABLE 13: ELECTRIC HEATER CFM LIMITATIONS

036-21508-005-A-0305

RESISTANCE, IWG

CFM

UNIT MODEL SIZE NOMINAL

TONS

MINIMUM SUPPLY AIR CFM

VOLTAGE

5 7 10 15 20 30

208/230-1-60 1100 1100 1200 1200 1300 -

208/230-3-60 1100 1100 1200 1200 1300 -

460-3-60 - 1100 1200 1200 1300 -

575-3-60 - - 1200 1200 1300 -

208/230-1-60 1300 1300 1300 1300 1300 -

208/230-3-60 1300 1300 1300 1300 1300 -

460-3-60 - 1300 1300 1300 1300 -

575-3-60 - - 1300 1300 1400 -

208/230-1-60 1600 1600 1600 1600 1600 1600

208/230-3-60 1600 1600 1600 1600 1600 1600

460-3-60 - 1600 1600 1600 1600 1600

575-3-60 - - 1600 1600 1600 1800

HEATER SIZE NOMINAL KW

24 Unitary Products Group

Page 25

036-21508-005-A-0305

NONE 0.0 29.9 45

2CE04510506 4.0

0.0

19.2 53.9 60 2CE04510706 5.6 26.9 63.5 70 2CE04511006 8.0 38.5 77.9 80 2CE04511506 11.9 57.2 101.4 110 2CE04512006 15.9 76.4 125.4 150

NONE 0.0 29.9 45

2CE04510506 5.3

0.0

22.1 57.5 70 2CE04510706 7.5 31.3 68.9 80 2CE04511006 10.6 44.2 85.1 90 2CE04511506 15.9 66.3 112.7 125 2CE04512006 21.2 88.3 140.3 150

NONE 0.0 21.0 30

2CE04510525

4.0

0.0

11.1 34.9 40

2CE04510725

5.6 15.5 40.4 45 2CE04511025 8.0 22.2 48.7 50 2CE04511525 11.9 33.0 62.3 70 2CE04512025 15.9 44.1 76.1 80

NONE 0.0 21.0 30

2CE04510525

5.3

0.0

12.7 36.9 45

2CE04510725

7.5 18.0 43.5 50 2CE04511025 10.6 25.5 52.8 60 2CE04511525 15.9 38.2 68.8 70 2CE04512025 21.2 51.0 84.7 90

NONE 0.0 10.6 15

2CE04510746

6.8

0.0

8.2 20.8 25

2CE04511046

10.1 12.1 25.8 30

2CE04511546

13.6 16.4 31.0 35

2CE04512046

19.5 23.5 39.9 40

NONE 0.00.0 8.6 15 2CE04511058 10.6 10.2 21.3 25 2CE04511558 15.9 15.3 27.7 30 2CE04512058 21.2 20.4 34.1 35

NONE 0.00.0 38.6 60 2CE04510506 4.0 19.2 62.6 80 2CE04510706 5.6 26.9 72.2 90 2CE04511006 8.0 38.5 86.6 100 2CE04511506 11.9 57.2 110.1 125 2CE04512006 15.9 76.4 134.0 150

NONE 0.00.0 38.6 60 2CE04510506 5.3 22.1 66.2 80 2CE04510706 7.5 31.3 77.6 90 2CE04511006 10.6 44.2 93.8 100 2CE04511506 15.9 66.3 121.4 125 2CE04512006 21.2 88.3 149.0 150

NONE 0.00.0 25.7 40

2CE04510525

4.0 11.1 39.6 50

2CE04510725

5.6 15.5 45.1 50 2CE04511025 8.0 22.2 53.4 60 2CE04511525 11.9 33.0 67.0 70 2CE04512025 15.9 44.1 80.8 90

NONE 0.00.0 25.7 40

2CE04510525

5.3 12.7 41.6 50

2CE04510725

7.5 18.0 48.2 50 2CE04511025 10.6 25.5 57.5 60 2CE04511525 15.9 38.2 73.5 80 2CE04512025 21.2 51.0 89.4 90

NONE 0.00.0 13.1 15

2CE04510746

6.8 8.2 23.3 25

2CE04511046

10.1 12.1 28.3 30

2CE04511546

13.6 16.4 33.6 35

2CE04512046

19.5 23.5 42.4 45

NONE 0.00.0 10.8 15

2CE04511058 10.6 10.2 23.5

25 2CE04511558 15.9 15.3 9.9 35 2CE04512058 21.2 20.4 36.3 40

1.3 2.2 0.0

575-3-60 6.4 52 1.3 2.2 0.0

2.3 5.0 0.0

230-3-60 14.7 130 2.3 5.0 0.0

2.3 5.0 0.0

230-1-60 25.0 105 2.3 5.0 0.0

208-1-60 25.0 105

208-3-60 14.7 130

460-3-60 7.7 64

1.0 2.2 0.0

575-3-60 4.8 34 1 2.2 0.0

1.7 4.4 0.0

230-3-60 11.9 85 1.7 4.4 0.0

1.7 4.4 0.0

230-1-60 19.0 105 1.7 4.4 0.0

208-1-60 19.0 105

208-3-60 11.9 85

460-3-60 5.9 42

Heater

Amps

Minimum

Circuit

Ampacity

Amps

Max Fuse /

BRKR

Size

Amps

RLA

Each

LRA

Each

ID Blower

Motor

FLA

Conv Outlet Amps

Electric Heater

Model No.

Heater

Model

Tonnage

Voltage

Compressors

OD Fan

Motor

FLA

1. HACR Type per NEC.

2. These electric heaters DO NOT include a fuse box. If a fuse box is required to meet a local code (i.e. Chicago), the fuse block accessories 2FB

2n 2FB

rvill f

r fil inlli

TABLE 14: ELECTRICAL DATA - BQ036 & 048 DIRECT DRIVE WITHOUT POWR’D CONVENIENCE OUTLET

Unitary Products Group 25

Page 26

036-21508-005-A-0305

TABLE 15: ELECTRICAL DATA - BQ060 DI RECT DRIVE WITHOUT POWR’D CONVENIENCE OUTLET

Model

Tonnage

Voltage

RLA

Each

208-1-60 32.1 148

230-1-60 32.1 148 2.3 6.6 0.0

Compressors

208-3-60

230-3-60 19.3 137 2.3 6.6 0.0

460-3-60 10.0 62

575-3-60 7.9 50 1.3 3.3 0.0

19.3 137

LRA

Each

OD Fan

ID Blower

Motor

FLA

2.3 6.6 0.0

1.3 3.3 0.0

Motor

FLA

Conv Outlet Amps

Electric Heater

Model No.

NONE 0.0 0.0 49.0 80 2CE04510506 4.0 19.2 73.1 100 2CE04510706 5.6 26.9 82.7 100 2CE04511006 8.0 38.5 97.1 110 2CE04511506 11.9 57.2 120.5 125 2CE04512006 15.9 76.4 144.6 150 2CE04513006 22.2 106.7 182.4 200

NONE 0.0 0.0 49.0 80 2CE04510506 5.3 22.1 76.6 100 2CE04510706 7.5 31.3 88.1 110 2CE04511006 10.6 44.2 104.2 125 2CE04511506 15.9 66.3 131.8 150 2CE04512006 21.2 88.3 159.4 175 2CE04513006 29.6 123.3 203.2 225

NONE 0.0 0.0 33.0 50

2CE04510525 2CE04510725

2CE04511025 8.0 22.2 60.8 70 2CE04511525 11.9 33.0 74.3 80 2CE04512025 15.9 44.1 88.2 90 2CE04513025 22.2 61.6 110.1 125

NONE 0.0 0.0 33.0 50

2CE04510525 2CE04510725

2CE04511025 10.6 25.5 64.9 70 2CE04511525 15.9 38.2 80.8 90 2CE04512025 21.2 51.0 96.8 100 2CE04513025 29.6 71.2 122.0 125

NONE 0.0 0.0 17.1 25

2CE04510746 2CE04511046 2CE04511546 2CE04512046 2CE04513046

NONE 0.0 0.0 13.6 20 2CE04511058 10.6 10.2 26.3 30 2CE04511558 15.9 15.3 32.7 35 2CE04512058 21.2 20.4 39.1 40 2CE04513058 30.4 29.3 50.1 60

HeaterkWHeater

Amps

4.0 11.1 46.9 60

5.6 15.5 52.5 60

5.3 12.7 49.0 60

7.5 18.0 55.6 70

6.8 8.2 27.3 35

10.1 12.1 32.3 35

13.6 16.4 37.5 40

19.5 23.5 46.4 50

28.8 34.6 60.4 70

Minimum

Circuit

Ampacity

Amps

1. HACR Type per NEC.

2. These electric heaters DO NOT include a fuse box. If a fuse box is required to meet a local code (i.e. Chicago), the fuse block accessories 2FB04700825 and 2FB04700846 are available for field installation.

Max Fuse /

BRKR

Size

Amps

26 Unitary Products Group

Page 27

036-21508-005-A-0305

NONE 0.0 33.0 50 2CE04510506 4.0 19.2 57.1 70 2CE04510706 5.6 26.9 66.7 70 2CE04511006 8.0 38.5 81.1 90 2CE04511506 11.9 57.2 104.6 110 2CE04512006 15.9 76.4 128.6 150

NONE 0.0 33.0 50 2CE04510506 5.3 22.1 60.7 70 2CE04510706 7.5 31.3 72.1 80 2CE04511006 10.6 44.2 88.3 90 2CE04511506 15.9 66.3 115.9 125 2CE04512006 21.2 88.3 143.5 150

NONE 0.0 21.8 30

2CE04510525

4.0 11.1 35.7 40

2CE04510725

5.6 15.5 41.2 45 2CE04511025 8.0 22.2 49.5 50 2CE04511525 11.9 33.0 63.1 70 2CE04512025 15.9 44.1 76.9 80

NONE 0.0 21.8 30

2CE04510525

5.3 12.7 37.7 45

2CE04510725

7.5 18.0 44.3 50 2CE04511025 10.6 25.5 53.6 60 2CE04511525 15.9 38.2 69.6 70 2CE04512025 21.2 51.0 85.5 90

NONE 0.0 11.0 15

2CE04510746

6.8 8.2 21.2 25

2CE04511046

10.1 12.1 26.2 30

2CE04511546

13.6 16.4 31.4 35

2CE04512046

19.5 23.5 40.3 45

NONE 0.0 8.4 15 2CE04511058 10.6 10.2 21.1 25 2CE04511558 15.9 15.3 27.5 30 2CE04512058 21.2 20.4 33.9 35

NONE 0.0 41.2 60 2CE04510506 4.0 19.2 65.2 80 2CE04510706 5.6 26.9 74.8 90 2CE04511006 8.0 38.5 89.2 100 2CE04511506 11.9 57.2 112.7 125 2CE04512006 15.9 76.4 136.7 150

NONE 0.0 38.8 60 2CE04510506 5.3 22.1 66.4 80 2CE04510706 7.5 31.3 77.8 90 2CE04511006 10.6 44.2 94.0 100 2CE04511506 15.9 66.3 121.6 125 2CE04512006 21.2 88.3 149.2 150

NONE 0.0 25.9 40

2CE04510525

4.0 11.1 39.8 50

2CE04510725

5.6 15.5 45.3 50 2CE04511025 8.0 22.2 53.6 60 2CE04511525 11.9 33.0 67.2 70 2CE04512025 15.9 44.1 81.0 90

NONE 0.0 25.9 40

2CE04510525

5.3 12.7 41.8 50

2CE04510725

7.5 18.0 48.4 50 2CE04511025 10.6 25.5 57.7 60 2CE04511525 15.9 38.2 73.7 80 2CE04512025 21.2 51.0 89.6 90

NONE 0.0 13.5

2CE04510746

6.8 8.2 23.7

2CE04511046

10.1 12.1 28.7

2CE04511546

13.6 16.4 34.0

2CE04512046

19.5 23.5 42.8

NONE 0.0 11.4

2CE04511058 10.6 10.2 23.8

2CE04511558 15.9 15.3 30.2

2CE04512058 21.2 20.4 36.5

1.3 2.6 0.0

575-3-60 6.4 52 1.3 2 0.0

2.3 5.2 0.0

230-3-60 14.7 130 2.3 5.2 0.0

2.3 7.6 0.0

230-1-60 25.0 105 2.3 7.6 0.0

208-1-60 25.0 105

208-3-60 14.7 130

460-3-60 7.7 64

1.0 2.6 0.0

575-3-60 4.8 34 1 2 0.0

1.7 5.2 0.0

230-3-60 11.9 85 1.7 5.2 0.0

1.7 7.6 0.0

230-1-60 19.0 105 1.7 7.6 0.0

208-1-60 19.0 105

208-3-60 11.9 85

460-3-60 5.9 42

Max Fuse /

BRKR

Size Amps

RLA

Each

LRA

Each

ID Blower

Motor

FLA

Conv Outlet Amps

Electric Heater

Model No.

Heater

Compressors

OD Fan

Motor

FLA

Model

Tonnage

Voltage

Heater

Amps

Minimum

Circuit

Ampacity

Amps

1. HACR Type per NEC.

0.0

TABLE 16: ELECTRICAL DATA - BQ036 & 048 BELT DRIVE WITHOUT POWR’D CONVENIENCE OUTLET

Unitary Products Group 27

Page 28

036-21508-005-A-0305

TABLE 17: ELECTRICAL DATA - BQ060 BELT DRIVE WITHOUT POWR’D CONVENIENCE OUTLET

Model

Tonnage

Voltage

RLA

Each

Compressors

208-1-60

230-1-60 32.1 148 2.3 7.6 0.0

208-3-60

230-3-60 19.3 137 2.3 5.2 0.0

460-3-60 10.0 1.362

575-3-60 7.9 50 1.3 2 0.0

32.1 148

19.3 137 2.3

LRA

Each

OD Fan

Motor

FLA

2.3

ID Blower

Motor

FLA

7.6 0.0

5.2 0.0

2.6 0.0

Conv Outlet Amps

Electric Heater

Model No.

NONE 0.0 0.0 50.0 80 2CE04510506 4.0 19.2 74.1 100 2CE04510706 5.6 26.9 83.7 100 2CE04511006 8.0 38.5 98.1 110 2CE04511506 11.9 57.2 121.5 125 2CE04512006 15.9 76.4 145.6 150 2CE04513006 22.2 106.7 183.4 200

NONE 0.0 0.0 50.0 80 2CE04510506 5.3 22.1 77.6 100 2CE04510706 7.5 31.3 89.1 110 2CE04511006 10.6 44.2 105.2 125 2CE04511506 15.9 66.3 132.8 150 2CE04512006 21.2 88.3 160.4 175 2CE04513006 29.6 123.3 204.2 225

NONE 0.0 0.0 31.6 50

2CE04510525 2CE04510725

2CE04511025 8.0 22.2 59.4 70 2CE04511525 11.9 33.0 72.9 80 2CE04512025 15.9 44.1 86.8 90 2CE04513025 22.2 61.6 108.7 110

NONE 0.0 0.0 31.6 50

2CE04510525 2CE04510725

2CE04511025 10.6 25.5 63.5 70 2CE04511525 15.9 38.2 79.4 80 2CE04512025 21.2 51.0 95.4 100 2CE04513025 29.6 71.2 120.6 125

NONE 0.0 0.0 16.4 25

2CE04510746 2CE04511046 2CE04511546 2CE04512046 2CE04513046

NONE 0.0 0.0 12.5 20 2CE04511058 10.6 10.2 25.3 30 2CE04511558 15.9 15.3 31.6 35 2CE04512058 21.2 20.4 38.0 40 2CE04513058 30.4 29.3 49.1 50

HeaterkWHeater

Amps

4.0 11.1 45.5 60

5.6 15.5 51.1 60

5.3 12.7 47.6 60

7.5 18.0 54.2 60

6.8 8.2 26.6 30

10.1 12.1 31.6 35

13.6 16.4 36.8 40

19.5 23.5 45.7 50

28.8 34.6 59.7 60

Minimum

Circuit

Ampacity

Amps

1. HACR Type per NEC.

Max Fuse /

BRKR

Size

Amps

28 Unitary Products Group

Page 29

036-21508-005-A-0305

NONE 0.0 39.8 50 2CE04510506 4.0 19.2 63.9 70 2CE04510706 5.6 26.9 73.5 80 2CE04511006 8.0 38.5 87.9 90 2CE04511506 11.9 57.2 111.4 125 2CE04512006 15.9 76.4 135.4 150

NONE 0.0 39.8 50 2CE04510506 5.3 22.1 67.5 80 2CE04510706 7.5 31.3 78.9 90 2CE04511006 10.6 44.2 95.1 100 2CE04511506 15.9 66.3 122.7 125 2CE04512006 21.2 88.3 150.3 175

NONE 0.0 31.0 40

2CE04510525

4.0 11.1 44.9 50

2CE04510725

5.6 15.5 50.4 60 2CE04511025 8.0 22.2 58.7 60 2CE04511525 11.9 33.0 72.3 80 2CE04512025 15.9 44.1 86.1 90

NONE 0.0 31.0 40

2CE04510525

5.3 12.7 46.9 50

2CE04510725

7.5 18.0 53.5 60 2CE04511025 10.6 25.5 62.8 70 2CE04511525 15.9 38.2 78.8 80 2CE04512025 21.2 51.0 94.7 100

NONE 0.0 15.6 20

2CE04510746

6.8 8.2 25.8 30

2CE04511046

10.1 12.1 30.8 35

2CE04511546

13.6 16.4 36.0 40

2CE04512046

19.5 23.5 44.9 45

NONE 0.0 12.6 15 2CE04511058 10.6 10.2 25.3 30 2CE04511558 15.9 15.3 31.7 35 2CE04512058 21.2 20.4 38.1 40

NONE 0.0 48.6 70 2CE04510506 4.0 19.2 72.6 90 2CE04510706 5.6 26.9 82.2 100 2CE04511006 8.0 38.5 96.6 110 2CE04511506 11.9 57.2 120.1 125 2CE04512006 15.9 76.4 144.1 150

NONE 0.0 48.6 70 2CE04510506 5.3 22.1 76.2 90 2CE04510706 7.5 31.3 87.6 100 2CE04511006 10.6 44.2 103.8 110 2CE04511506 15.9 66.3 131.4 150 2CE04512006 21.2 88.3 159.0 175

NONE 0.0 35.7 50

2CE04510525

4.0 11.1 49.6 60

2CE04510725

5.6 15.5 55.1 60 2CE04511025 8.0 22.2 63.4 70 2CE04511525 11.9 33.0 77.0 80 2CE04512025 15.9 44.1 90.8 100

NONE 0.0 35.7 50

2CE04510525

5.3 12.7 51.6 60

2CE04510725

7.5 18.0 58.2 60 2CE04511025 10.6 25.5 67.5 70 2CE04511525 15.9 38.2 83.5 90 2CE04512025 21.2 51.0 99.4 100

NONE 0.0 18.2 25

2CE04510746

6.8

0.0

8.2 28.4 30

2CE04511046

10.1 12.1 33.4 35

2CE04511546

13.6 16.4 38.7 40

2CE04512046

19.5 23.5 47.5 50

NONE 0.0 14.8 20 2CE04511058 10.6 10.2 27.5 30 2CE04511558 15.9 15.3 33.9 35 2CE04512058 21.2 20.4 40.5 45

Model

Tonnage

Voltage

Compressors

OD Fan

Motor

FLA

Heater

Amps

Minimum

Circuit

Ampacity

Amps

Max Fuse /

BRKR

Size

Amps

RLA

Each

LRA

Each

ID Blower

Motor

FLA

Conv Outlet Amps

Electric Heater

Model No.

Heater

208-1-60 19.0 105

208-3-60 11.9 85

460-3-60 5.9 42

1.7 4.4 10.0

230-1-60 19.0 105 1.7 4.4 10.0

1.7 4.4 10.0

230-3-60 11.9 85 1.7 4.4 10.0

1.0 2.2 5.0

575-3-60 4.8 34 1 2.2 4.0

208-1-60 25.0 105

208-3-60 14.7 130

460-3-60 7.7 64

2.3 5.0 10.0

230-1-60 25.0 105 2.3 5.0 10.0

2.3 5.0 10.0

230-3-60 14.7 130 2.3 5.0 10.0

1.3 2.2 5.0

575-3-60 6.4 52 1.3 2.2 4.0

1. HACR Type per NEC.

0.0

TABLE 18: ELECTRICAL DATA - BQ036 & 048 DIRECT DRIVE WITH POWR’D CONVENIENCE OUTLET

Unitary Products Group 29

Page 30

036-21508-005-A-0305

TABLE 19: ELECTRICAL DATA - BQ060 DIRECT DRIVE WITH POWR’D CONVENIENCE OUTLET

Model

Tonnage

Voltage

RLA

Each

208-1-60 32.1 148

230-1-60 32.1 148 2.3 6.6 10.0

Compressors

208-3-60

230-3-60 19.3 137 2.3 6.6 10.0

460-3-60 10.0 62

575-3-60 7.9 50 1.3 3.3 4.0

19.3 137

LRA

Each

OD Fan

ID Blower

Motor

FLA

Motor

FLA

2.3 6.6 10.0

1.3 3.3 5.0

Conv Outlet Amps

Electric Heater

Model No.

NONE 0.0 0.0 59.0 90 2CE04510506 4.0 19.2 83.1 110 2CE04510706 5.6 26.9 92.7 110 2CE04511006 8.0 38.5 107.1 125 2CE04511506 11.9 57.2 130.5 150 2CE04512006 15.9 76.4 154.6 175 2CE04513006 22.2 106.7 192.4 200

NONE 0.0 0.0 59.0 90 2CE04510506 5.3 22.1 86.6 110 2CE04510706 7.5 31.3 98.1 110 2CE04511006 10.6 44.2 114.2 125 2CE04511506 15.9 66.3 141.8 150 2CE04512006 21.2 88.3 169.4 175 2CE04513006 29.6 123.3 213.2 225

NONE 0.0 0.0 43.0 60

2CE04510525 2CE04510725

2CE04511025 8.0 22.2 70.8 80 2CE04511525 11.9 33.0 84.3 90 2CE04512025 15.9 44.1 98.2 100 2CE04513025 22.2 61.6 120.1 125

NONE 0.0 0.0 43.0 60

2CE04510525 2CE04510725

2CE04511025 10.6 25.5 74.9 80 2CE04511525 15.9 38.2 90.8 100 2CE04512025 21.2 51.0 106.8 110 2CE04513025 29.6 71.2 132.0 150

NONE 0.0 0.0 22.1 30

2CE04510746 2CE04511046 2CE04511546 2CE04512046 2CE04513046

NONE 0.0 0.0 17.6 25 2CE04511058 10.6 10.2 30.3 35 2CE04511558 15.9 15.3 36.7 40 2CE04512058 21.2 20.4 43.1 45 2CE04513058 30.4 29.3 54.1 60

HeaterkWHeater

Amps

4.0 11.1 56.9 70

5.6 15.5 62.5 70

5.3 12.7 59.0 70

7.5 18.0 65.6 80

6.8 8.2 32.3 40

10.1 12.1 37.3 40

13.6 16.4 42.5 45

19.5 23.5 51.4 60

28.8 34.6 65.4 70

Minimum

Circuit

Ampacity

Amps

1. HACR Type per NEC.

Max Fuse /

BRKR

Size

Amps

30 Unitary Products Group

Page 31

036-21508-005-A-0305

NONE 0.0 43.0 60 2CE04510506 4.0 19.2 67.1 80 2CE04510706 5.6 26.9 76.7 80 2CE04511006 8.0 38.5 91.1 100 2CE04511506 11.9 57.2 114.6 125 2CE04512006 15.9 76.4 138.6 150

NONE 0.0 43.0 60 2CE04510506 5.3 22.1 70.7 80 2CE04510706 7.5 31.3 82.1 90 2CE04511006 10.6 44.2 98.3 100 2CE04511506 15.9 66.3 125.9 150 2CE04512006 21.2 88.3 153.5 175

NONE 0.0 31.8 40

2CE04510525

4.0 11.1 45.7 50

2CE04510725

5.6 15.5 51.2 60 2CE04511025 8.0 22.2 59.5 60 2CE04511525 11.9 33.0 73.1 80 2CE04512025 15.9 44.1 86.9 90

NONE 0.0 31.8 40

2CE04510525

5.3 12.7 47.7 50

2CE04510725

7.5 18.0 54.3 60 2CE04511025 10.6 25.5 63.6 70 2CE04511525 15.9 38.2 79.6 80 2CE04512025 21.2 51.0 95.5 100

NONE 0.0 16.0 20

2CE04510746

6.8 8.2 26.2 30

2CE04511046

10.1 12.1 31.2 35

2CE04511546

13.6 16.4 36.4 40

2CE04512046

19.5 23.5 45.3 50

NONE 0.0 12.4 15 2CE04511058 10.6 10.2 25.1 30 2CE04511558 15.9 15.3 31.5 35 2CE04512058 21.2 20.4 37.9 40

NONE 0.0 51.2 70 2CE04510506 4.0 19.2 75.2 90 2CE04510706 5.6 26.9 84.8 90 2CE04511006 8.0 38.5 99.2 110 2CE04511506 11.9 57.2 122.7 125 2CE04512006 15.9 76.4 146.7 150

NONE 0.0 51.2 70 2CE04510506 5.3 22.1 78.8 90 2CE04510706 7.5 31.3 90.2 100 2CE04511006 10.6 44.2 106.4 110 2CE04511506 15.9 66.3 134.0 150 2CE04512006 21.2 88.3 161.6 175

NONE 0.0 35.9 50

2CE04510525

4.0

0.0

11.1 49.8 60

2CE04510725

5.6 15.5 55.3 60 2CE04511025 8.0 22.2 63.6 70 2CE04511525 11.9 33.0 77.2 80 2CE04512025 15.9 44.1 91.0 100

NONE 0.0 35.9 50

2CE04510525

5.3 12.7 51.8 60

2CE04510725

7.5 18.0 58.4 60 2CE04511025 10.6 25.5 67.7 70 2CE04511525 15.9 38.2 83.7 90 2CE04512025 21.2 51.0 99.6 100

NONE 0.0 18.6 25

2CE04510746

6.8

0.0

8.2 28.8 30

2CE04511046

10.1 12.1 33.8 35

2CE04511546

13.6 16.4 39.1 40

2CE04512046

19.5 23.5 47.9 50

NONE 0.0 15.0 20 2CE04511058 10.6 10.2 27.8 30 2CE04511558 15.9 15.3 34.2 35 2CE04512058 21.2 20.4 40.5 45

1.3 2.6 5.0

575-3-60 6.4 52 1.3 2 4.0

2.3 5.2 10.0

230-3-60 14.7 130 2.3 5.2 10.0

2.3 7.6 10.0

230-1-60 25.0 105 2.3 7.6 10.0

208-1-60 25.0 105

208-3-60 14.7 130

460-3-60 7.7 64

1.0 2.6 5.0

575-3-60 4.8 34 1 2 4.0

1.7 5.2 10.0

230-3-60 11.9 85 1.7 5.2 10.0

7.6 10.0

230-1-60 19.0 105 1.7 7.6 10.0

1.7

208-1-60 19.0 105

208-3-60 11.9 85

460-3-60 5.9 42

Max Fuse /

BRKR

Size

Amps

RLA

Each

LRA

Each

ID Blower

Motor

FLA

Conv Outlet Amps

Electric Heater

Model No.

Heater

Compressors

OD Fan

Motor

FLA

Voltage

Model

Tonnage

Heater

Amps

Minimum

Circuit

Ampacity

Amps

1. HACR Type per NEC.

0.0

TABLE 20: ELECTRICAL DATA - BQ036 & 048 BELT DRIVE WITH POWR’D CONVENIENCE OUTLET

Unitary Products Group 31

Page 32

036-21508-005-A-0305

TABLE 21: ELECTRICAL DATA - BQ060 BELT DRIVE WITH POWR’D CONVENIENCE OUTLET

Model

Tonnage

Voltage

RLA

Each

Compressors

208-1-60

230-1-60 32.1 148 2.3 7.6 10.0

208-3-60

230-3-60 19.3 137 2.3 5.2 10.0

460-3-60

575-3-60 7.9 50 1.3 2 4.0

32.1 148

19.3 137

10.0 62

LRA

Each

OD Fan

ID Blower

Motor

FLA

Motor

FLA

2.3 7.6 10.0

2.3 5.2 10.0

1.3 2.6 5.0

Conv Outlet Amps

Electric Heater

Model No.

NONE 0.0 0.0 60.0 90 2CE04510506 4.0 19.2 84.1 110 2CE04510706 5.6 26.9 93.7 110 2CE04511006 8.0 38.5 108.1 125 2CE04511506 11.9 57.2 131.5 150 2CE04512006 15.9 76.4 155.6 175 2CE04513006 22.2 106.7 193.4 200

NONE 0.0 0.0 60.0 90 2CE04510506 5.3 22.1 87.6 110 2CE04510706 7.5 31.3 99.1 110 2CE04511006 10.6 44.2 115.2 125 2CE04511506 15.9 66.3 142.8 150 2CE04512006 21.2 88.3 170.4 175 2CE04513006 29.6 123.3 214.2 225

NONE 0.0 0.0 41.6 60

2CE04510525 2CE04510725

2CE04511025 8.0 22.2 69.4 80 2CE04511525 11.9 33.0 82.9 90 2CE04512025 15.9 44.1 96.8 100 2CE04513025 22.2 61.6 118.7 125

NONE 0.0 0.0 41.6 60

2CE04510525 2CE04510725

2CE04511025 10.6 25.5 73.5 80 2CE04511525 15.9 38.2 89.4 90 2CE04512025 21.2 51.0 105.4 110 2CE04513025 29.6 71.2 130.6 150

NONE 0.0 0.0 21.4 30

2CE04510746 2CE04511046 2CE04511546 2CE04512046 2CE04513046

NONE 0.0 0.0 16.5 20 2CE04511058 10.6 10.2 29.3 30 2CE04511558 15.9 15.3 35.6 40 2CE04512058 21.2 20.4 42.0 45 2CE04513058 30.4 29.3 53.1 60

HeaterkWHeater

Amps

4.0 11.1 55.5 70

5.6 15.5 61.1 70

5.3 12.7 57.6 70

7.5 18.0 64.2 70

6.8 8.2 31.6 35

10.1 12.1 36.6 40

13.6 16.4 41.8 45

19.5 23.5 50.7 60

28.8 34.6 64.7 70

Minimum

Circuit

Ampacity

Amps

1. HACR Type per NEC.

Max Fuse /

BRKR

Size

Amps

32 Unitary Products Group

Page 33

036-21508-005-A-0305

TABLE 22: PHYSICAL DATA

EVAPORATOR

BLOWER

EVAPORATOR

COIL

CONDENSER

FANS

CONDENSER

COILS

COMPRESSOR

(Qty. Per Unit)

AIR

FILTERS

CHARGE

MODELS

Centrifugal Blower (Dia. x Wd. in.) 12 X 10 12 X 10 12 X 10

Fan Motor HP (Direct Drive) 1/2 3/4 1

Fan Motor HP (Belt Drive) 1 1/2 1 1/2 1 1/2

Rows Deep 4 3 3

Fins Per Inch 16 15 15

Face Area (Sq. Ft.) 4.3 5.1 5.1

Propeller Dia. (in.) 22 22 24

Fan Motor Hp 1/3 1/2 1/2

Nom. CFM 4300 4200 4500

Rows Deep 1 1 1

Fins Per Inch 20 20 20

Face Area (Sq. Ft.) 17.1 17.1 17.1 Reciprocating Type 1 1 1

Quantity Per Unit (15” X 20” X 1” or 2“) 2 2 2 Quantity Per Unit (14” X 25” X 1” or 2“) 1 1 1

Total Face Area (sq. ft.) 6.6 6.6 6.6

Refrigerant 22

(lbs./oz.)

036 048 060

7/12 9/2 8/4

TABLE 23: ELECTRIC HEAT CORRECTION

FACTORS

NOMINAL VOLTAGE VOLTAGE

208 240 480 600

208 1.00 230 0.92 460 0.92 575 0.92

kW CAP. MULTI-

PLIER

TABLE 24: VOLTAGE LIMITATIONS

POWER SUPPLY

208/230-3-60

460-3-60 575-3-60

1. Utilization Range “A” in accordance with ARI Standard

110.

MIN. MAX.

187 253 414 506

518 506

VOLTAGE

Unitary Products Group 33

Page 34

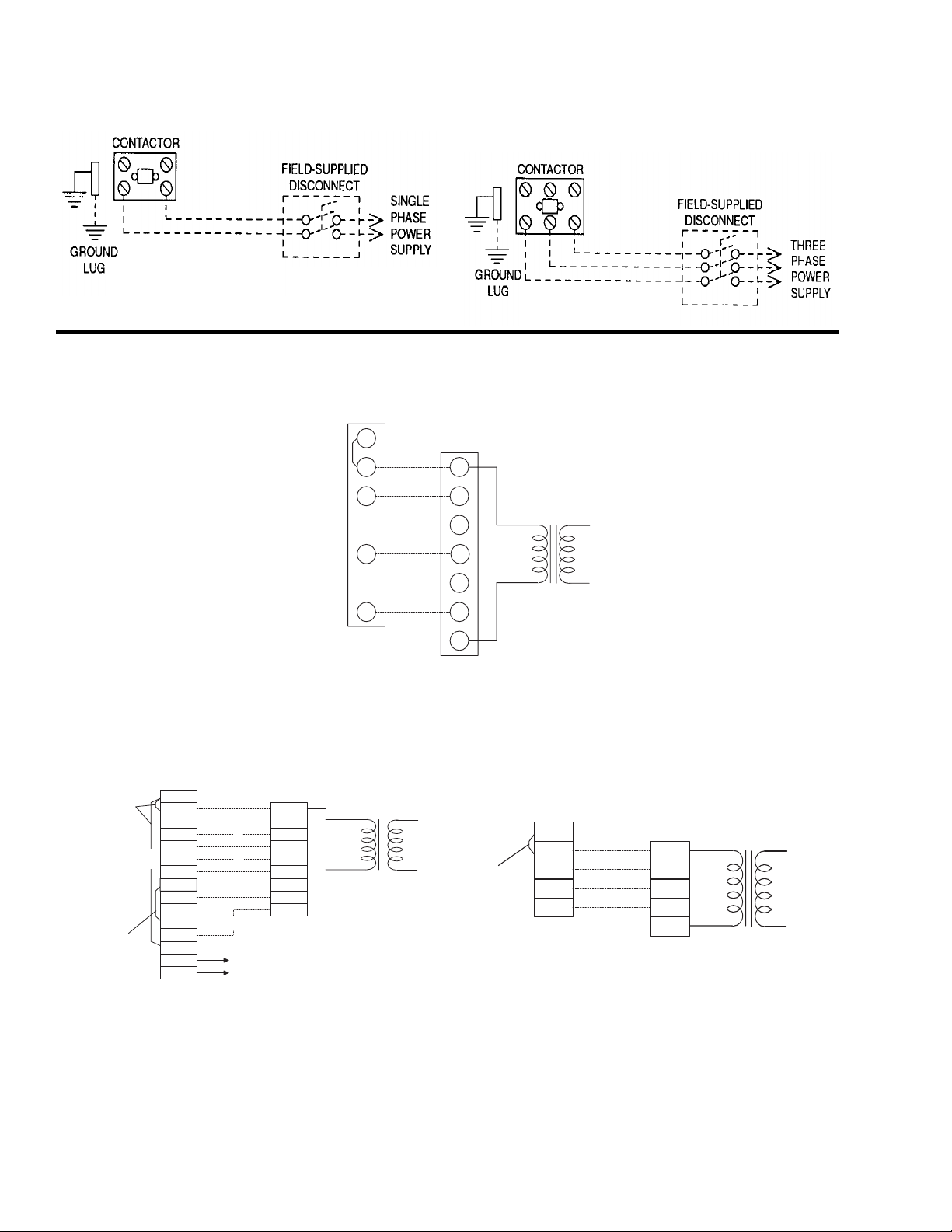

TYPICAL POWER WIRING

LED 1

LED 2

COM

OCC

THERMOSTAT

TERMINALS

UNIT TERMINAL

STRIP TB1

24 VOLT

TRANSFORMER

TO REMOTE SENSOR 2TH040702224 IF USED

NOT USED

ADD

JUMPER

ADD

JUMPER

ELECTRONIC PROGRAMMABLE THERMOSTAT 2ET04700224 (INCLUDES SUBBASE).

SECOND STAGE COOLING IS NOT REQUIRED ON UNITS LESS ECONOMIZER.

SECOND STAGE HEATING IS ONLY REQUIRED ON UNITS WITH A TWO STAGE

ELECTRIC HEATER.

ADD

JUMPER

THERMOSTAT

TERMINALS

UNIT TERMINAL

STRIP TB1

24 VOLT

TRANSFORMER

ELECTRONIC PROGRAMMABLE THERMOSTAT 2ET07701024 (INCLUDES SUBBASE). TO CONTROL THE ECONOMIZER ON SECOND STAGE COOLING, USE THERMOSTAT 2TH04700224.

COOLING / HEATING (ELECTRONIC THERMOSTAT)

SINGLE STAGE

REFER TO THE ELECTRICAL DATA TABLES TO SIZE THE DISCONNECT SWITCH, OVERCURRENT PROTECTION AND WIRING.

TYPICAL CONTROL WIRING

COOLING / HEATING (24 VOLT THERMOSTAT)

THERMOSTAT

TERMINALS

ADD

JUMPER

UNIT TERMINAL

STRIP TB1

036-21508-005-A-0305

24 VOLT THERMOSTAT 2ET07701024. TO CONTROL THE ECONOMIZER ON THE SECOND STAGE COOLING OR TO HAVE AN ELECTRIC HEAT ACCESSORY WITH TWO STAGES OF HEAT, USE THERMOSTAT 2TH0471024.

COOLING / HEATING (ELECTRONIC THERMOSTAT)

MULTI STAGE

FIGURE 2 - TYPICAL FIELD POWER & CONTROL WIRING

34 Unitary Products Group

REMOVE JUMPER J2 FROM TERMINALS 4 AND 9 ON JUMPER PLUG CONNECTOR P6 ON UNITS WITH ECONOMIZER. TERMINALS A1 ANDA2 PROVIDE A RELAY OUT-PUT TO CLOSE THE OUTDOOR ECONOMIZER DAMPERS WHEN THE THERMOSTAT SWITCHES TO THE SET-BACK POSITION.

24 VOLT

TRANSFORMER

Page 35

036-21508-005-A-0305

FIGURE 3 - UNIT DIMENSIONS (3 - 5 TON HEAT PUMP) FRONT VIEW

FIGURE 4 - UNIT WITH ECONOMIZER RAINHOOD

DETAIL “A”

Unitary Products Group 35

Page 36

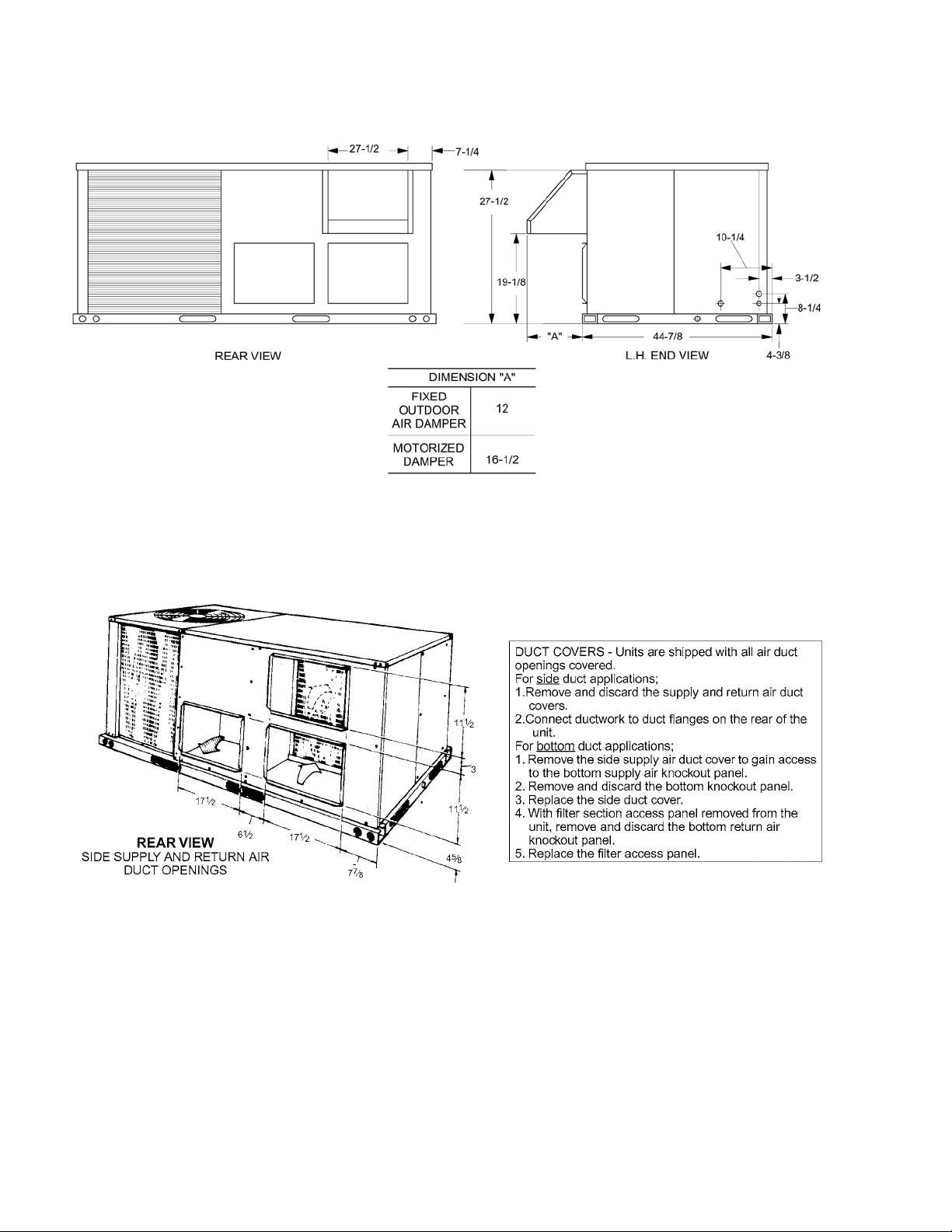

DETAIL “B”

FIGURE 5 - UNIT WITH FIXED OUTDOOR AIR/MOTORIZED DAMPER RAINHOOD

036-21508-005-A-0305

FIGURE 6 - UNIT DIMENSIONS (REAR VIEW)

36 Unitary Products Group

Page 37

036-21508-005-A-0305

FILTER ACCESS

BLOWER MOTOR ACCESS

DOT PLUGS

FIELD-SUPPLIED DISCONNECT SWITCH LOCATION

MOUNTING BRACKET FOR DICONNECT SWITCH (Shipped attached to the

blower housing inside the blower compartment )

A,B WIRING ENTRY (See Detail “B”)

DISCONNECT SWITCH LOCATION AND MOTOR ACCESS PANEL FOR

UNIT WITH “BELT-DRIVE” OPTION

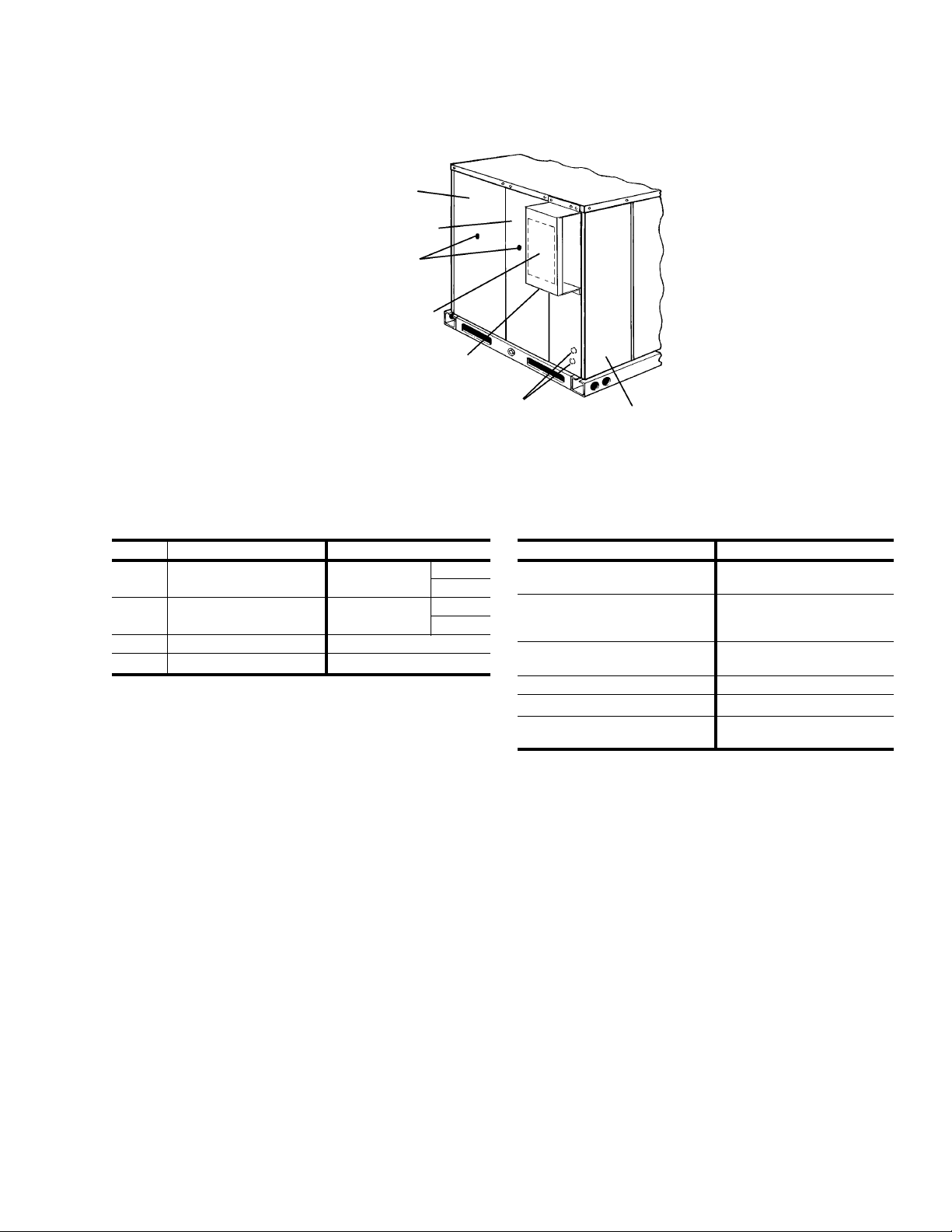

FIGURE 7 - DISCONNECT/BLOWER ACCESS LOCATION

CONTROL BOX ACCESS

TABLE 25: UTILITIES ENTRY

HOLE OPENING SIZE (DIA.) USED FOR

B C

1. Opening in the bottom to the unit can be located by the side in the insulation.

2. Do not remove the 2” knockout ring.

7/8” KO

2” KO

Control Wiring

Power Wiring

1-5/8” KO Gas Piping (Front) 1-1/2” KO

Gas Piping (Bottom)

TABLE 26: MINIMUM CLEARANCES

LOCATION

Side

Bottom

Side

Bottom

Front

Rear

Left Side (Filter Access)

Right Side (Cond. Coil)

Below Unit Above Unit

1. Units may be installed on combustible floors made from wood or class A, B, or C roof covering material.

2. Units must be installed outdoors. Overhanging structures or shrubs should not obstruct condenser air discharge outlet.

CLEARANCE

24” (Cooling/Electric Heat)

32” (Gas Heat)

12” (Less Economizer)

36” (With Economizer or Fixed

Air/Motorized Damper) 24” (Less Economizer)

36” (With Economizer)

24”

0”

72” (For

Condenser Air Discharge)

Unitary Products Group 37

Page 38

036-21508-005-A-0305

FIGURE 8 - TYPICAL APPLICATIONS

38 Unitary Products Group

Page 39

036-21508-005-A-0305

447/

BACK OF UNIT

821/

APPROXIMATE CENTER OF GRAVITY

FRONT OF UNIT

CONDENSER COIL

END OF UNIT

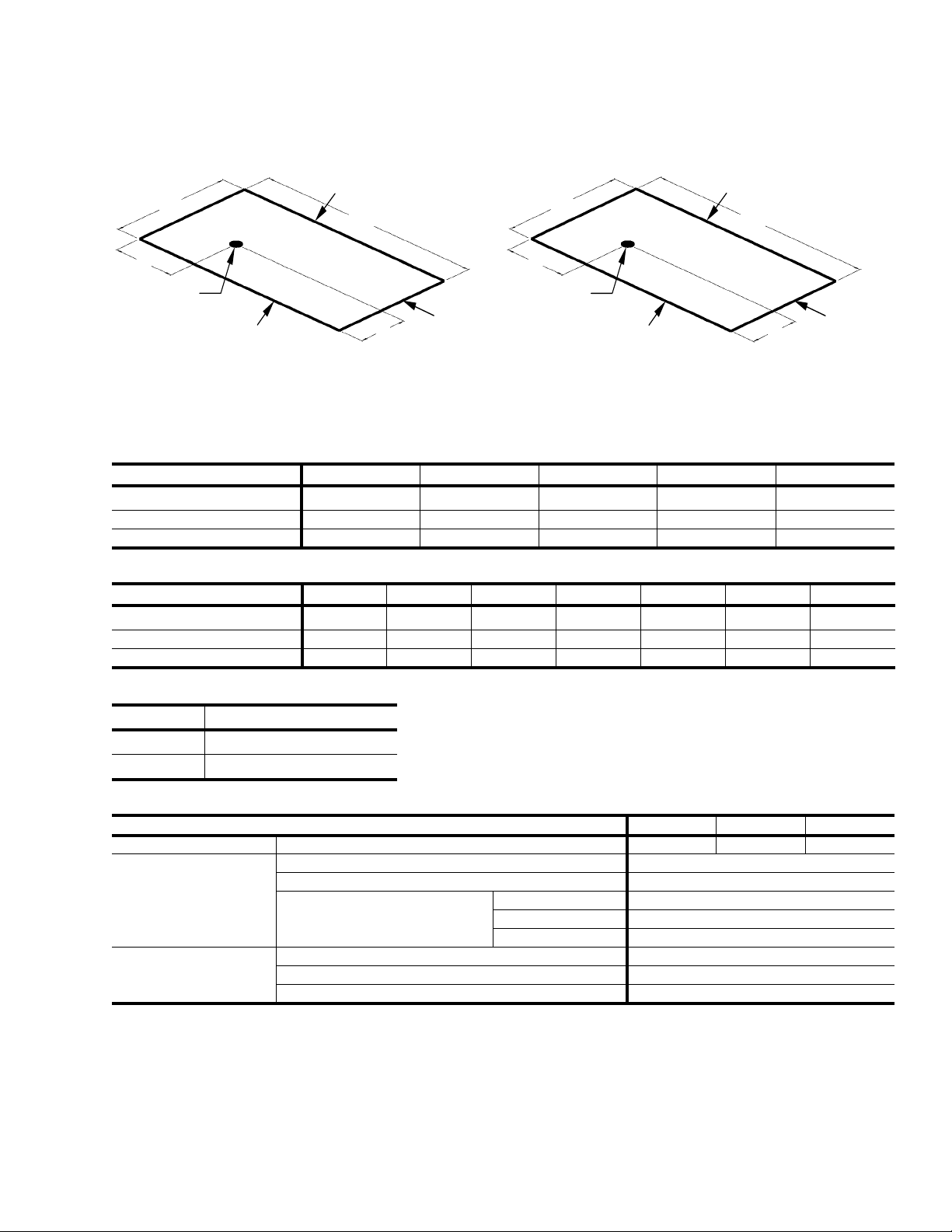

FIGURE 9 - FOUR AND SIX POINT LOADING

TABLE 27: BQ 4 POINT LOADS WEIGHT DISTRIBUTION

UNIT TOTALABCD BQ036 BQ048

BQ060

TABLE 28: BQ 6 POINT LOADS WEIGHT DISTRIBUTION

UNIT TOTAL A B C D E F BQ036 BQ048

BQ060

628 139 137 174 177 668 148 146 185 189

693 154 151 192 196

628939291116117119 668 99 98 97 123 125 126

693 103 102 100 128 129 131

447/

APPROXIMATE CENTER OF GRAVITY

FRONT OF UNIT

BACK OF UNIT

821/

CONDENSER COIL

END OF UNIT

TABLE 29: CENTER OF GRAVITY

DIMENSION 3 - 5 TON

X 40-¾” Y 19-¾”

TABLE 30: OPERATING WEIGHTS (LBS.)

MODEL SIZE 3 TON 4 TON 5 TON

BASIC UNIT

OPTIONS

Electric Heater

ACCY.

Barometric Relief / Fixed Air Damper 10

BQ 628 668 693

Economizer 50

Motorized Damper 26

5 - 7 kW 18 10 - 15 kW 23 20 - 30 kW 28

Roof Curb 92

Belt-Drive Blower 5

Unitary Products Group 39

Page 40

036-21508-005-A-0305

FIGURE 10 - ROOF CURB DIMENSIONS

GUIDE SPECIFICATIONS

GENERAL

Units shall be manufactured by York International Unitary Products Group in an ISO 9001 certified facility.

York's Sunline 2000 heat pumps. Although the units are primarily designed for curb mounting on a roof, they can also be slab-mounted at ground level or set on steel beams above a finished roof. Models are available with a wide variety of factory-mounted options and field-installed accessories to make them suitable for almost every application. All units are self-contained and assembled on full perimeter base rails with holes in the four corners for overhead rigging. Every unit is completely piped, wired, charged and tested at the factory to simplify the field installation and to provide years of dependable operation. All models (including those with an economizer) are suitable for either bottom or horizontal duct connections. Models with power exhaust are suitable for bottom duct connections only. For bottom duct, remove the sheet metal panels from the supply and return air openings through the base of the unit. For horizontal duct, remove the supply and return air panels on the rear of the unit.

All non-Scroll compressors include crankcase heaters and all compressors have internal pressure relief. Every refrigerant circuit includes a liquid line filter-drier, a discharge line high pressure switch and a suction line with a freezestat and low pressure/loss of charge switch.The unit control circuit

units are convertible single package

includes a 75 VA transformer, a 24-volt circuit breaker and a relay board with a compressor lockout circuit, a terminal strip for thermostat wiring, plus an additional set of pin connectors to simplify the interface of additional field controls. All units have long lasting powder paint cabinets with 750 hour salt spray test approval under ASTMB117 procedures. All models are CSA listed. All models include a 1-year limited warranty on the complete unit. Compressors and electric heater elements carry a 5-year warranty.

DESCRIPTION

Units shall be factory-assembled, single packaged heat pumps designed for outdoor mounted installation.

The units shall have minimum SEER ratings of 10.0. They shall have built-in field convertible duct connections for down discharge supply/return or horizontal discharge supply/return, and be available with factory installed options or field installed accessories. The units shall be factory wired, piped, charged with R-22 refrigerant and factory tested prior to shipment. All unit wiring shall be both numbered and color coded. All units the cooling performance shall be rated in accordance with DOE and ARI test procedures. Units shall be CSA listed, classified to ANSI Z21.47, UL 1995/CSA No. 236 standards.

UNIT CABINET

Unit cabinet shall be constructed of G90 galvanized steel, with exterior surfaces coated with a non-chalking, powdered

paint finish, certified at 750 hours salt spray test per ASTMB1 17 st andards. Indoor blower section shall be insu-

40 Unitary Products Group

Page 41

036-21508-005-A-0305

lated with a minimum 1/2” thick insulation, coated on the ai rside. Aluminum foil faced insulation shall be used in the furnace compartment and be fastened with ridged fasteners to prevent insulation from entering the air stream. Cabinet panels shall be “large” size, easily removable for servicing and maintenance. Full perimeter base rails shall be provided to assure reliable transit of equipment, overhead rigging and proper sealing on roof curb applications. Disposable 1" filters shall be furnished and be accessible through a removable access door, sealed airtight. Units filter track shall be designed to accommodate either 1” or 2” filters. Fan performance measuring ports shall be provided on the outside of the cabinet to allow accurate air measurements of evaporator fan performance without removing panels or creating air bypass of the coils. Condensate pan shall be internally sloped and conform to ASHRAE 62-89 self-draining standards. Condensate connection shall be a minimum of 3/4” I.D. female and be a ridged mount connection.

INDOOR (EVAPORATOR) FAN ASSEMBLY

The indoor fan shall be direct drive, multi-speed, or a factory installed belt drive assembly that includes an adjustable pitch motor pulley. Job site selected (B.H.P.) brake horsepower shall not exceed the motors nameplate horsepower rating, plus the service factor. Units shall be designed not to operate above service factor. Fan wheel shall be double-inlet type with forward-curved blades, dynamically balanced to operate smoothly throughout the entire range of operation. Airflow design shall be constant air volume. Bearings shall be sealed and permanently lubricated for longer life and no maintenance.

OUTDOOR (CONDENSER) FAN ASSEMBLY

The outdoor fan shall be of the direct-driven propeller type, discharge air vertically, have aluminum blades riveted to a corrosion resistant steel spider bracket and shall be dynamically balanced for smooth operation. The outdoor fan motor shall be totally enclosed with permanently lubricated bearings, internally protected against overload conditions and staged independently.

REFRIGERANT COMPONENTS

Compressor:

a. Shall be internally protected with internal high-pres-

sure relief and over temperature protection.

b. Shall have internal spring isolation and sound muf-

fling to minimize vibration and noise, and be externally isolated on a dedicated, independent mounting.

Coils:

a. Evaporator and condenser coils shall have alumi-

num plate fins mechanically bonded to seamless internally enhanced copper tubes with all joints brazed. Special Phenolic coating shall be available as a factory option.

b. Evaporator and Condenser coils shall be of the

direct expansion, draw-thru, design.

Refrigerant Circuit and Refrigerant Safety Components shall include:

a. Independent fixed-orifice expansion devices. b. Filter drier/strainer to eliminate any moisture or for-

eign matter.

c. Accessible service gage connections on both suc-

tion and liquid lines to charge, evacuate, and measure refrigerant pressure during any necessary servicing or troubleshooting without losing charge.

d. The refrigeration system shall provide at least 15°F

of sub-cooling at design conditions.

UNIT CONTROLS

a. Unit shall be complete with self-contained low-volt-

age control circuit protected by a resetable circuit breaker on the 24-volt transformer side.

b. Unit shall incorporate a lockout circuit which pro-

vides reset capability at the space thermostat or base unit, should any of the following standard

safety devices trip and shut off compressor. c. Loss-of-charge/Low-pressure switch. d. High-pressure switch. e. Freeze-protection thermostat, evaporator coil. f. If any of the above safety devices trip, a LED (light-

emitting diode) indicator shall flash a diagnostic

code that indicates which safety switch has tripped. g. Unit shall incorporate “AUTO RESET” compressor

over temperature, over current protection. h. Unit shall operate with conventional thermostat

designs and have a low voltage terminal strip for

easy hook-up. i. Unit control board shall have on-board diagnostics

and fault code display. j. Standard controls shall include anti-short cycle and

low voltage protection, and permit cooling operation

down to 0°F. k. Control board shall monitor each refrigerant safety

switch independently. l. Control board shall retain last 5 fault codes in non

volatile memory, which will not be lost in the event of

a power loss.

ELECTRIC HEATING SECTION

An electric heating section, with nickel chromium elements, shall be provided in a range of 5 thru 30 KW, offering two stages of capacity - 16 KW and above on 208/230 volt heaters and 20 KW and above on 460 and 575 volt heaters. The heating section shall have a primary limit control(s) and auto-

Unitary Products Group 41

Page 42

036-21508-005-A-0305

matic reset to prevent the heating element system from operating at an excessive temperature. The heating section assembly shall slide out of the unit for easy maintenance and service. Units with Electric Heating shall be wired for a single point power supply with branch circuit fusing (where required).

UNIT OPERATING CHARACTERISTICS

a. Unit shall be capable of starting and running at

125°F outdoor temperature, exceeding maximum load criteria of ARI Standard 210/240. The compressor, with standard controls, shall be capable of operation down to 0°F outdoor temperature. Unit shall be provided with fan time delay to prevent cold air delivery before heat exchanger warms up (Gas heat only).

ELECTRICAL REQUIREMENTS

All unit power wiring shall enter unit cabinet at a single factory provided location and be capable of side or bottom entry, to minimize roof penetrations and avoid unit field modifications. Separate side and bottom openings shall be provided for the control wiring.

STANDARD LIMITED WARRANTIES

• Compressor 5 Years

• Electric Heat Element 5 Years

• Other Parts 1 Year OPTIONAL OUTDOOR AIR (Shall be made available by

either/or):

• ELECTRONIC ENTHALPY AUTOMATIC ECONO- MIZER- Outdoor and return air dampers that are interlocked and positioned by a fully-modulating, spring return damper actuator. The maximum leakage rate for the outdoor air intake dampers shall not exceed 2% when dampers are fully closed and operating against a pressure differential of 0.5 IWG. A unit-mounted potentiometer shall be provided to adjust the outdoor and return air damper assembly to take in CFM of outdoor air to meet the minimum ventilation requirement of the conditioned space during normal operation. During economizer operation, a mixed-air temperature control shall modulate the outdoor and return air damper assembly to prevent the supply air temperature from dropping below 55°F. Changeover from compressor to economizer operation shall be provided by an integral electronic enthalpy control that feeds input into the basic module. The outdoor intake opening shall be covered with a rain hood that matches the exterior of the unit. Water eliminator/filters shall be provided. Simultaneous economizer/compressor operation is also possible. Dampers shall fully close on power loss.

• MOTORIZED OUTDOOR AIR DAMPERS - Outdoor air dampers are positioned by a 2-position, spring-return damper actuator. The maximum leakage rate for the outdoor air intake dampers shall not exceed 2% when dampers are fully closed and operating against a pressure differential of 0.5 IWG. A unit-mounted potentiometer shall be provided to adjust the outdoor damper assembly to take in the design CFM of outdoor air to meet the ventilation requirements of the conditioned space during normal operation. Whenever the indoor fan motor is energized, the dampers open up to one of two pre-selected positions - regardless of the outdoor air enthalpy. Dampers return to the fully closed position when the indoor fan motor is de-energized. Dampers shall fully close on power loss.

OTHER PRE-ENGINEERED ACCESSORIES AVAILABLE

• ROOF CURB - 14"and 8” high, full perimeter curb with wood nailer (shipped knocked-down).

• BAROMETRIC RELIEF DAMPER - Contains a rain hood, air inlet screen, exhaust damper and mounting hardware. Used to relieve internal air pressure through the unit.

• POWER EXHAUST OPTION - To work in conjunction with economizers.

• ELECTRIC HEATERS

• ECONOMIZER/MOTORIZED DAMPER RAIN HOOD Contains all hood panels and the hardware for assembling.

• MANUAL OUTDOOR AIR DAMPER

• COIL GUARD KIT - Guard for cooling coil.

• HAIL GUARD

OTHER FACTORY INSTALLED OPTIONS

• POWER EXHAUST OPTION - To work in conjunction with economizers.

• TECHNICOAT PHENOLIC COATED CONDENSER AND EVAPORATOR COIL

• ELECTRONIC SINGLE ENTHALPY ECONOMIZER

• DIRTY FILTER SWITCH

• PHASE MONITOR

• COIL GUARD

• POWERED GFI CONVENIENCE OUTLET

• NON-POWERED GFI CONVENIENCE OUTLET

42 Unitary Products Group

Page 43

036-21508-005-A-0305

• BAS CONTROLS (SImplicity™ INTELLI-Comfort™,

CPC, JOHNSON, HONEYWELL, NOVAR)

• BAS READY ECONOMIZER (BELIMO ACTUATOR WITHOUT A CONTROLLER)

• HINGED FILTER DOOR ACCESS AND TOOLESS ACCESS PANELS

• ST A INLES S STEEL DRAIN PAN

• BOTTOM DRAIN CONNECTION

• 2" PLEATED FILTERS

• DISCONNECT SWITCH

• SUPPLY AIR SMOKE DETECTOR

• RETURN AIR SMOKE DETECTOR

Unitary Products Group 43

Page 44

Subject to change without notice. Printed in U.S.A. 036-21508-005-A-0305

Unitary 5005 Norman Products York O Group Drive 73069
